Max-Ability Pressalit Aquamax User manual

MSCT 1 shower change trolley – Operation and maintenance manual en
AquaMax
User
Manual
R9464717000-R844717304
R9464717000-R844717302
R9464721000-R844721304
R9464721000-R844721302
Mobile Shower / Changing Trolley
MAX-Ability, Inc.
[email protected]
800 577-1555
max-ability.com

Find out more about this product by clicking here.
Or go to https://max-ability.com/product/pressalit-shower-trolley/
The guarantee covers faults or defects in material or
manufacture within a period of 5 years. Products are subject to
minor technical modifications and design deviations. E.&O.E.
[email protected] 800.577.1555
max-ability.com

3
REF
max-ability.com 800.577.1555 [email protected]
R9464717000
R9464721000

R844721
R844717
R844521
[email protected] 800.577.1555
4

70
¹⁄
9
³⁄
27
⁹⁄
32
⁵⁄
6
¹⁄
61
¹⁄
66
¹⁵⁄
82
¹¹⁄
86
¹⁄
61
¹⁄
9
³⁄
27
⁹⁄
32
⁵⁄
6
¹⁄
inch
max-ability.com 800.577.1555 [email protected]
5

Content
Symbols used in this manual............................................
General safety ........................................................
Product label.........................................................
Intended use .........................................................
Intended operator profile .........................................
Intended user profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating environment...........................................
Contraindications for use .........................................
Biocompatibility......................................................
Operating instructions ................................................
Safety brakes ....................................................
Moving .........................................................
Side supports....................................................
Height adjustment ...............................................
Tilt function .....................................................
Resetting........................................................
Charging the battery .............................................
Accessories ..........................................................
Shower mattress .................................................
Head rest .......................................................
Cleaning.............................................................
Electromagnetic compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electromagnetic immunity........................................
Electromagnetic emissions........................................
Technical data........................................................
Trouble-shooting .....................................................
Storage and transportation ............................................
Disposal and recycling ................................................
max-ability.com 800.577.1555 [email protected]
6
7
8
9
11
11
11
11
11
11
12
12
13
14
15
16
16
17
19
21
19
22
23
23
23
24
25
26
26

Symbols used in this manual
The following symbols are used in this manual as well as the associated
documentation supplied with the product.
!WARNING
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
!CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury. It may also be used to alert against
unsafe practices.
IMPORTANT
IMPORTANT indicates important information about handling and use of the
product.
NOTICE
NOTICE is used to address practices not related to personal safety.
Hand injury warning Head injury warning
Feet injury warning Electricity or potentially
dangerous voltage.
Compatible products Do not leave the patient
unattended.
max-ability.com 800.577.1555 [email protected]
7

!CAUTION
• Please comply with these instructions to avoid the product becoming
damaged or destroyed.
• Do not perform repairs, disassembly, or assembly operations,
extensions, re-adjustments or modifications to this product. These
must be carried out by Pressalit or by persons authorized by Pressalit
only.
• Never allow children to operate this product unless under supervision.
The product is not intended for play.
• Never use the product if it is defective or damaged. Do not use a
defective product before it has been repaired.
!WARNING
• Read and understand the manual completely before use. Keep the
manual close to the unit.
• Comply with this manual to avoid accidents involving serious personal
injury.
• Never use or handle this product in other ways than are specified in
this manual, as this can put your safety at risk and cause damage to the
product.
• Make sure that everyone who is to install or use the product and its
systems has the necessary information and access to this manual.
NOTICE
• The information in this manual is based on correct fitting of the
product in accordance with our Assembly instruction.
• Pressalit cannot be held liable if the product is used in any way which
differs from that described in the guide.
• We reserve the right to amend this manual without prior notice.
General safety
max-ability.com 800.577.1555 [email protected]
8

YYYY-MM-DD
YY-MM-DD
XXX V
XX-XX Hz
IPXX
XX WRZZZZYYYXXX-X
(01)0XXXXXXXXXXXXX(10)YYMMDD
xxx kg
xxx lbs ++xxx kg xxx lbs
xxx kg
xxx lbs
++
2
min
18
min
Pressalit A/S, Pressalitvej 1 DK-8680 Ry
[phone], www.pressalit.com
REF
⑫ ⑬ ⑭ ⑮ ⑯ ⑰
①
②
③
④
⑤
⑥ ⑦ ⑧ ⑨ ⑩ ⑪
⑱
⑲
⑳

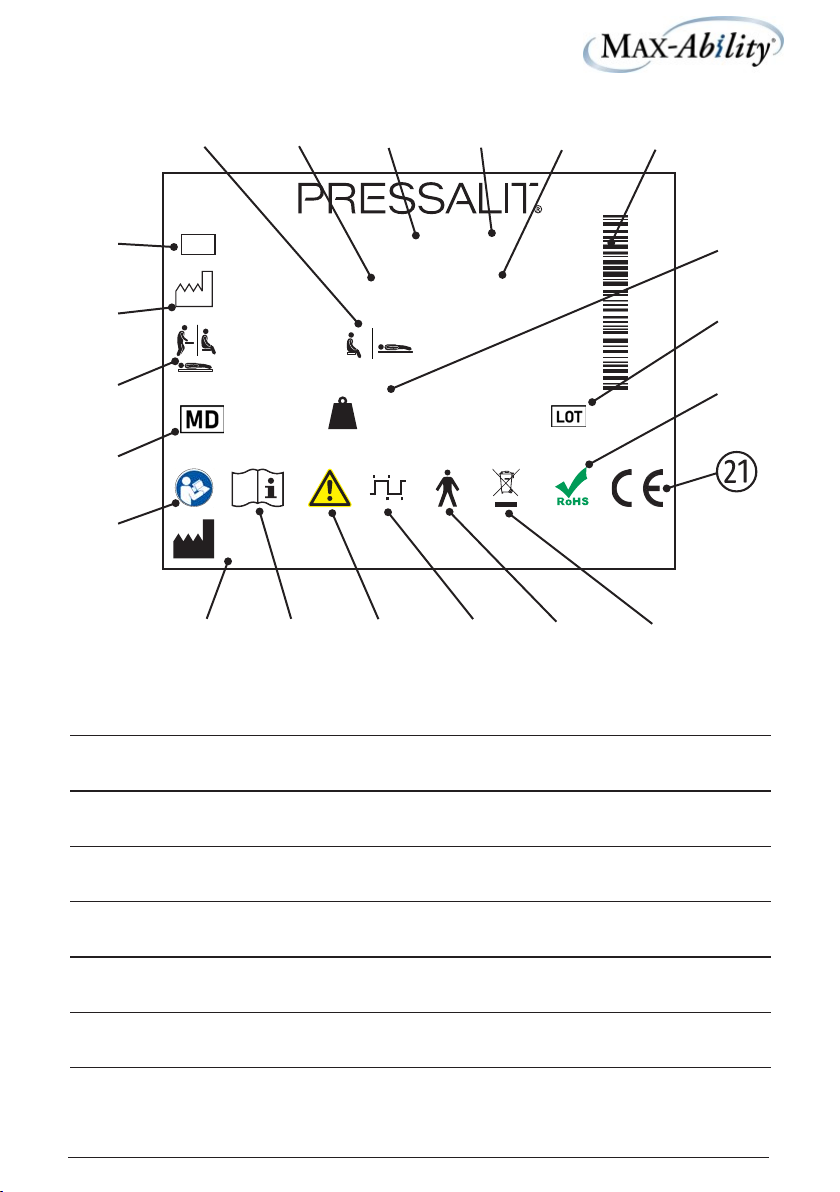

①Article number
②Production date
③Maximum user weight
④Medical device
⑤Consult manual for use
⑥Max load
⑦Mains voltage
⑧Frequency
Product label
9

⑨Maximum power consumption
⑩IP class
⑪GS1-128 barcode
⑫Name and address of manufacturer
⑬Consult manual for use
⑭Consult the manual for important cautionary information such as
warnings and precautions
⑮Duty cycle
⑯
Type B applied part Part of the product in normal use necessarily
comes into physical contact with the patient to perform its function
The product complies with requirements of IEC 60601-1 to provide
protection against electric shock
⑰Do not dispose as unsorted municipal waste. The product should
be collected separately and returned to the designated recycling
service.
⑱Product weight
⑲Batch code
⑳This product does not contain any of the hazardous substances
mentioned in the Council Directive 2011/65/EC on RoHS.
This product is CE-marked in accordance with the European
Medical Device Directive 93/42/EEC, including amendments
incorporated in Directive 2007/47/EEC. A declaration of conformity
can be found at www pressalit com.
max-ability.com 800.577.1555 [email protected]
10

Intended use
This product is intended for bathing a person who is unable to stand or sit. The
person is lying horizontally on the shower trolley.
Intended operator profile
The product is to be used by personnel trained in health care and trained in
washing a person in their care.
Intended user profile
The product can be used by all - adults, children, young, old, whose weight does
not exceed the maximum load of 200 kg / 440 lbs.
Operating environment
For indoor use in a wet environment, such as a bathroom or wash room. The
product is intended to be used at room temperature in public changing places,
schools, private homes, nursing homes and hospitals under normal working
conditions.
Contraindications for use
It is not recommended that pregnant women are bathed in the shower change
trolley.
It is not recommended that patients with infusion or insulin pump, inflammatory
skin diseases or patients in feverish conditions are bathed in the shower change
trolley.
Patients with cardiac insufficiency, cardiovascular diseases, craniocerabral injury,
open wounds, feed or drain lines (e.g. catheter, drainage tube) may be bathed in
the shower change trolley only after consulting with the attending physician.
Do not use if the patient's weight exceeds 200 kg / 440 lbs.
Biocompatibility
The materials in contact with the skin of the patient or the user during the
changing procedure, have been tested for their content of harmful substances
according to ISO 10993 Biocompatibility, and are therefore considered suitable
for this purpose.
max-ability.com 800.577.1555 [email protected]
11

To lock the brakes: Step on the
red button on one of the four rocker
pedals to lock the brakes on all four
wheels.
To unlock the brakes: Step on the
green button on one of the four rocker
pedals to unlock the brakes on all four
wheels.
Operating instructions
Safety brakes
The shower change trolley is equipped with safety brakes on all four castor
wheels to ensure that it cannot move unintentionally.
!WARNING
Always ensure that the brakes are locked when transferring a patient to and
from the shower change trolley.
max-ability.com 800.577.1555 [email protected]
12

Do not leave the patient unattended.
Moving
Use the cut-out grips on the side supports when moving the shower change
trolley. Push straight ahead in the desired direction. Do not twist or turn the side
support.
max-ability.com 800.577.1555 [email protected]
13

To fold down: Lift the side support
upwards to unlock it, and swing it
down.
To fold up: Swing the side support up
and push it down to lock it in place.
Side supports
The side supports can be folded up and down individually for easy transfer of the
patient. The end supports can be folded up and down individually for easy access
to the patient's feet/legs (putting on stockings, etc).
!WARNING
When the trolley is in use, make sure that all side supports are erect and in
locked position to protect the patient from falling out of the unit.
max-ability.com 800.577.1555 [email protected]
14

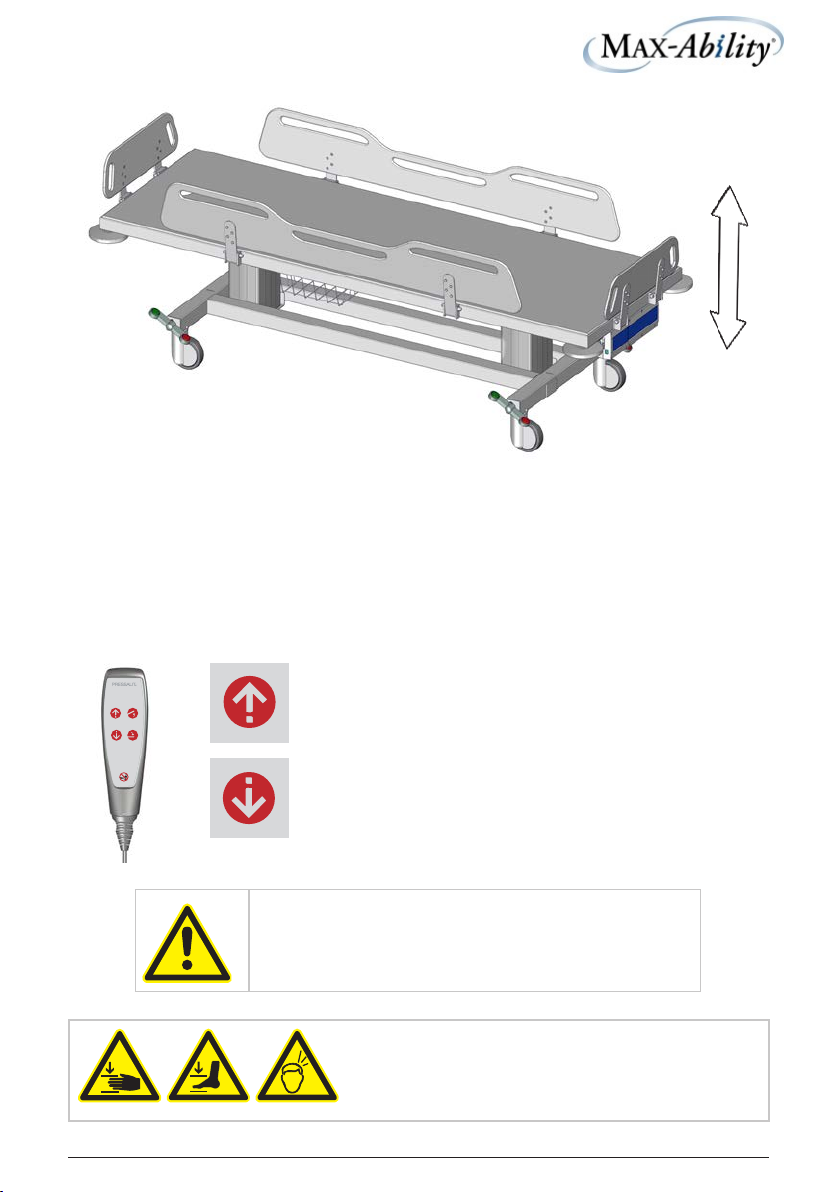

Height adjustment
The shower change trolley can be adjusted 400 mm / 15¾" up and down.
Max user weight: 200 kg / 440 lbs
Max load: 250 kg / 550 lbs
The height adjustment is controlled by the wired remote control unit.
Take care to avoid injury to hands,
feet and head when in the vicinity
of moving mechanical parts.
Press and hold the Up button to raise the unit.
When the button is released, the motion stops.
Press and hold the Down button to lower the unit.
When the button is released, the motion stops.
To avoid the risk of strangulation, make
sure that the wired remote control is
placed in its holder when not in use.
15

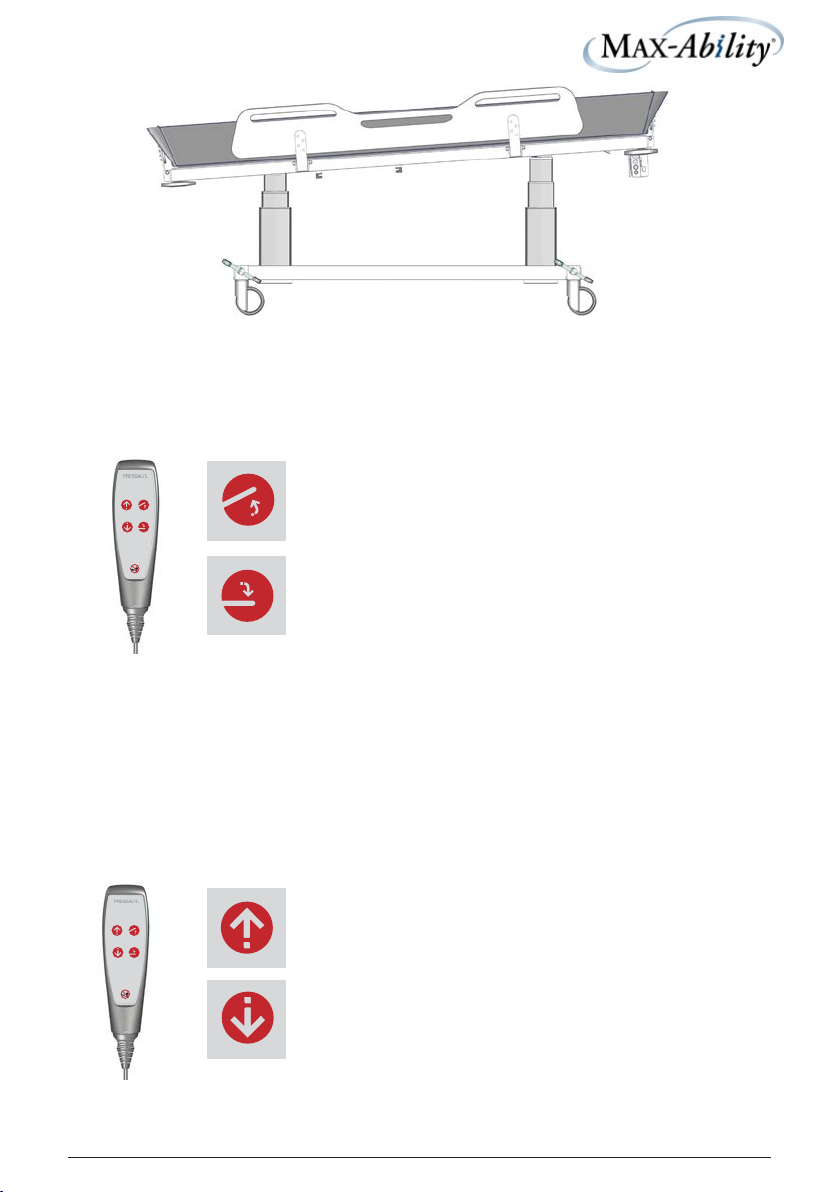

The shower change trolley can be tilted approximately 3 degrees to allow the
water to drain when using the optional shower mattress.
The tilt function is controlled by the wired remote control unit.
Tilt function
Press and hold the Tilt up button to tilt the unit.
The motion stops when the unit is tilted approx. 3
degrees, or when the tilt up button is released.
Press and hold the Tilt down button to level the
unit. The motion stops when the unit is level, or
when the tilt down button is released.
It is still possible to raise and lower the unit when it is in tilted position.
Press and hold the up button and the down button
simultaneously.
The columns will move down after a few seconds
while a beep tone is heard.
Keep holding both buttons until the beep tone
disappears.
The lifting columns are now reset.
Resetting
If the lifting function does not work properly or if the two lifting columns are out
of sync, try resetting the lifting system.
max-ability.com 800.577.1555 [email protected]
16

Charging the battery
The battery can height adjust the shower change trolley up to 30 times when fully
charged.
Release the lock to remove the battery for
charging.
Reattach the battery after charging
before placing the patient on the shower
change trolley.
max-ability.com 800.577.1555 [email protected]
17

Click
IMPORTANT
If the battery has not been used for more than a week, it enters into standby
mode to save power and to protect the battery. Place the battery in the charger
for approx. 15 seconds to exit the standby mode before use.
Please note that there is no audio signal to indicate the standby mode or to
indicate exit of standby mode. If there is still no power after exit of standby
mode, the battery needs to be charged. The battery must be recharged every 6
months.
Place the battery in the charger. Make sure
the battery lock clicks into place.
A mounting instruction
for the battery charger is
included and can also be
downloaded from
www.pressalit.com.
!CAUTION
When the battery is running low, a beep tone is heard when you operate the
remote control. Although there is still enough power to raise or lower the unit,
it is of utmost importance that you charge or replace the battery immediately.
Failure to do so will soon cause the lifting function to stop working.
[phone]
[phone]
[email protected]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej1
DK8680 Ry
Danmark
Monteringsvejledning
DK
Montageanleitung
DE
Mounting instruction
EN
Notice de montage
FR
Montage-voorschrift
NL
Monteringsanvisning
SV
Monteringsveiledning
NO
Subjectto alteration without further notice · Ret til ændringer forbeholdes · Recht auf Änderungen sind vorbehalten
Nousnous réservons le droit d’apportertoutes modications pourl’amélioration de nous produits sans préavis · Wijzigingen voorbehouden
Rättentill ändringar förbehålles ·Vi forbeholder oss rett til endri nger · Salvo variaciones
Instruccionesde montaje
ES
max-ability.com 800.577.1555 [email protected]
18

An instruction for attaching the drain hose is included with the
shower mattress and can also be downloaded from
www.pressalit.com.
Shower mattress
The shower change trolley can be used as a bathtub with the optional shower
mattress, (R844721 and R844717).
Attach the drain hose to the
mattress drain, as per the included
mounting instruction.
IMPORTANT
• Check for damages on the mattress on a regular basis. This will prevent
infection of the mattress.
• Use gloves while handling the waste hose for the mattress. It might
have contact to human waste.
Pull the drain hose through the
shower trolley's drain hole, fold
the mattress and place it on the
trolley. Make sure that all four side
supports on the shower trolley are
folded up and locked.
Accessories
[phone]
[phone]
[email protected]
www.pressalit.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit
Pressalitvej1
DK8680 Ry
Danmark
Monteringsvejledning
DK
Montageanleitung
DE
Mounting instruction
EN
Notice de montage
FR
Montage-voorschrift
NL
Monteringsanvisning
SV
Monteringsveiledning
NO
Subjectto alteration without further notice · Ret til ændringer forbeholdes · Recht auf Änderungen sind vorbehalten
Nousnous réservons le droit d’apportertoutes modications pourl’amélioration de nous produits sans préavis · Wijzigingen voorbehouden
Rättentill ändringar förbehålles ·Vi forbeholder oss rett til endri nger · Salvo variaciones
Instruccionesde montaje
ES
max-ability.com 800.577.1555 [email protected]
19

IMPORTANT
Do not move the trolley when there is water in the shower mattress.

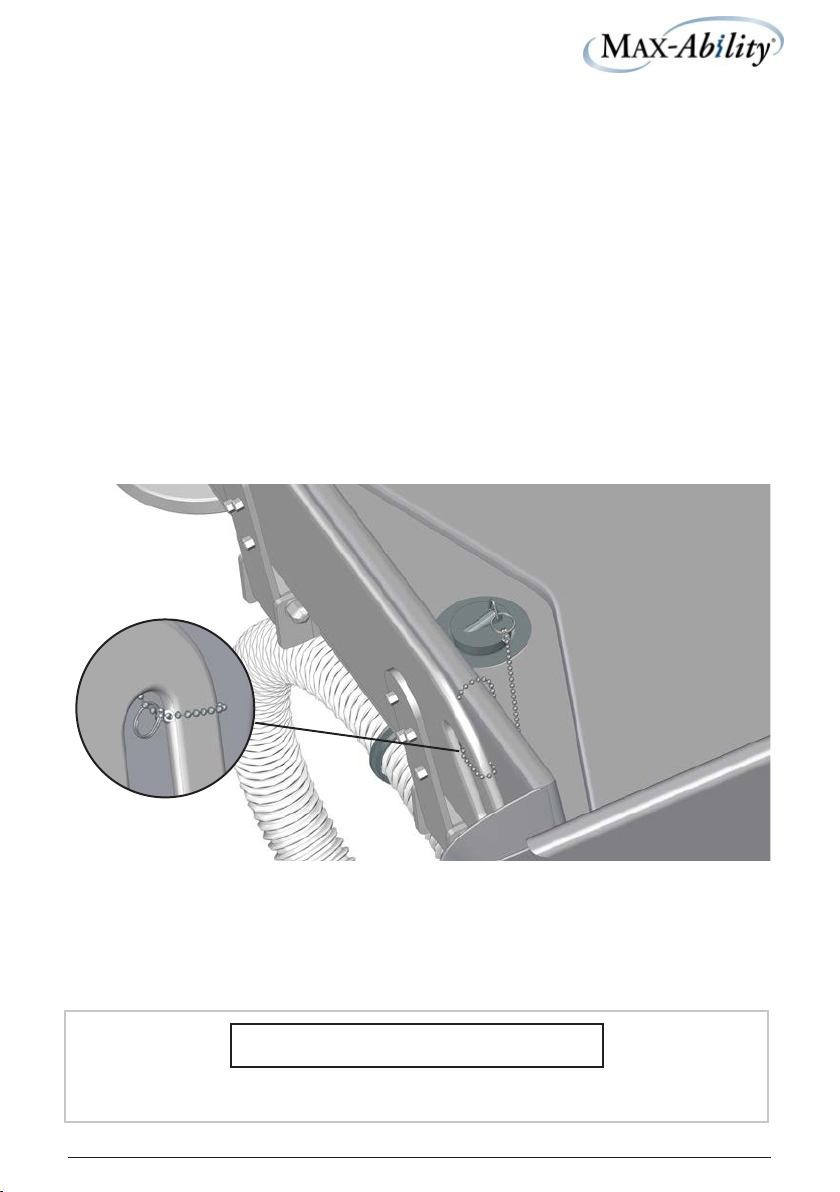

Coil up the hose and attach it to the hose hanger.
Attach one key ring of the chain to the plug. Make a loop around one of the
footboard handles with the other ring.
max-ability.com 800.577.1555 [email protected]
20
