VersaMax
User Manual
Public Restroom
Adult Changing Table
R8594 (Manual Fold)
R8595 (Electric Fold)

The guarantee covers faults or defects in material or manufacture within a period
of 5 years. Products are subject to minor technical modifications and design
deviations. E.&O.E.
www.max-ability.com
800.577.1555 [email protected]
Find more information about the VersaMax on our website.
Click here or go to www.max-ability.com/product/public-
restroom-changing-table

3
Symbols used in this manual.....................................4
Specific safety ..................................................4
General safety ..................................................5
Product label...................................................6
Intended use ................................................... 8
Intended operator profile ...................................8
Intended user profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operating environment.....................................8
Versions .......................................................9
Accessories ....................................................9
Operating instructions .........................................10
Folding down R8574/R8584/R8594 .........................10
Height adjustment ........................................11
Folding down R8575/R8585/R8595 .........................12
Height adjustment ........................................13
Optional control box ......................................13
The safety rail ............................................14
Cleaning......................................................15
Disinfection...................................................15
Maintenance..................................................16
Service inspection ........................................16
Service kit.....................................................18
Trouble-shooting ..............................................19
Dimensions, mm ..............................................20
Dimensions, inch..............................................20
Technical data.................................................21
Disposal and recycling .........................................22
Content
Mounting instruction
A mounting instruction is included with the product. It can also
be downloaded from www.
Operational signage
An operational signage is included with this product. It can also
be downloaded from www.
www.max-ability.com
800.577.1555 [email protected]
max-ability.com
max-ability.com

4
Symbols used in this manual
The following symbols are used in this manual as well as the associated
documentation supplied with the product.
!WARNING
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
!CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury. It may also be used to alert against
unsafe practices.
IMPORTANT
IMPORTANT indicates important information about handling and use of
the product.
NOTICE
NOTICE is used to address practices not related to personal safety.
Hand injury
warning
Electricity or potentially
dangerous voltage
Other specific warning
Specific safety
!CAUTION
•
•
www.max-ability.com
800.577.1555 [email protected]
Never leave a person lying on the changing table without supervision.
Always be careful when moving a person to and from the table.

5
!CAUTION
•Please comply with these instructions to avoid the product becoming
damaged or destroyed.
•
Never allow children to operate this product unless under supervision
.
The product is not intended for play.
•
Never use the product if it is defective or damaged. Do not use a
defective product before it has been repaired.
General safety
!WARNING
• Read and understand the manual completely before use. Keep the
manual close to the unit.
• Comply with this manual to avoid accidents involving serious personal
injury.
• Never use or handle this product in other ways than are specified in
this manual, as this can put your safety at risk and cause damage to the
product.
• Make sure that everyone who is to install or use the product and its
systems has the necessary information and access to this manual.
NOTICE
• The information in this manual is based on correct fitting of the
product in accordance with our Assembly instruction.
• Pressalit cannot be held liable if the product is used in any way which
differs from that described in the guide.
• We reserve the right to amend this manual without prior notice.
www.max-ability.com
800.577.1555 [email protected]
For any questions or problems, please contact us at
800 577-1555 or www.max-ability.com.

6
⑩ ⑪ ⑫ ⑬ ⑭
⑮
⑯
⑰
⑱
⑲
①
②
③
④
⑤ ⑥ ⑦ ⑧ ⑨
2
min
18
min
Pressalit A/S, Pressalitvej 1 DK-8680 Ry
[phone], www.pressalit.com
REF
YYYY-MM-DD XXX V
XX-XX Hz
IPXX
XX WRZZZZYYYXXX-X
xxx kg
xxx lbs
xxx kg
xxx lbs
xxx kg
xxx lbs
(01)0XXXXXXXXXXXXX(10)YYMMDD

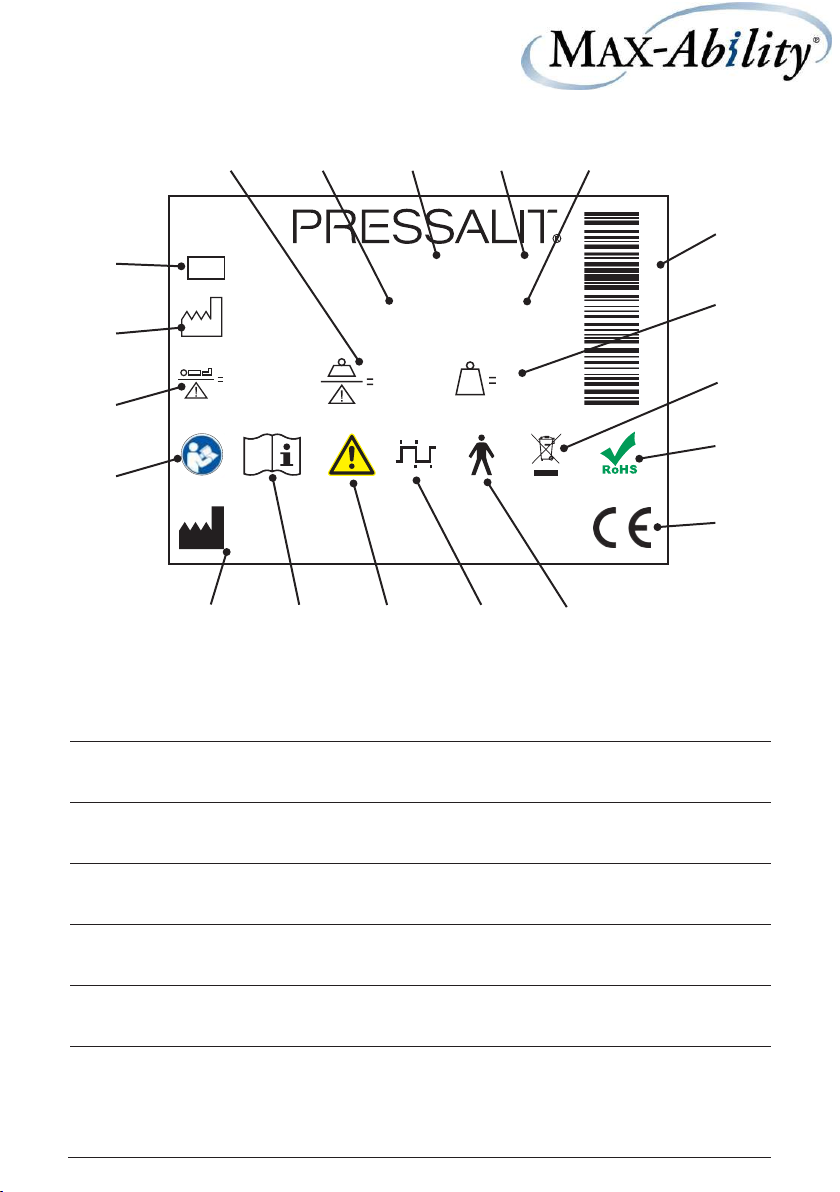

①Article number
②Production date
③Maximum user weight
④Consult manual for use
⑤Safe working load
⑥Mains voltage
⑦Frequency
Product label
www.max-ability.com
800.577.1555 [email protected]

7
⑧Maximum power consumption
⑨IP class
⑩Name and address of manufacturer
⑪Consult manual for use
⑫Consult the manual for important cautionary information such as
warnings and precautions.
⑬Duty cycle. The motor on height-adjustable products can be used
for a maximum of 2 minutes of continuous operation, followed by
18 minutes pause.
⑭Type B applied part Part of the product in normal use necessarily
comes into physical contact with the patient to perform its function
The product complies with requirements of IEC 60601-1 to provide
protection against electric shock.
⑮GS1-128 barcode
⑯Product weight
⑰Do not dispose as unsorted municipal waste. The product should
be collected separately and returned to the designated recycling
service.
⑱This product does not contain any of the hazardous substances
mentioned in the Council Directive 2011/65/EC on RoHS.
⑲This product is CE-marked in accordance with the European
Medical Device Directive 93/42/EEC, including amendments
incorporated in Directive 2007/47/EEC. It also complies with all
relevant requirements in the Council Directive 2006/42/EC (of 17
May 2006) on machinery and with Council Directive 2011/65/EC
(of 8 June 2011) on RoHS. A declaration of conformity can be found
at www.pressalitcare.com.
www.max-ability.com
800.577.1555 [email protected]

8
The product label 1is placed on
the wall mount.
1
NOTICE
.
Salt and chloride have a corrosive effect on the products components and
will cause a decrease in the life expectancy of the product. The damaging
effects can, however, be reduced if the product is showered with tap water
on a daily basis.
Intended use
This product is intended for people who
• need to get changed on a changing table
• are above the usual changing table age
• are caregivers and need a customized work position
• need to use a changing table in combination with person lifts
Intended operator profile
The product is to be used by personnel trained in health care.
Intended user profile
The product can be used by adults whose weight does not exceed the
maximum load of 200 kg / 440 lbs.
Operating environment
For indoor use, such as a bathroom or wash room. The product is intended to
be used at room temperature, in private homes, nursing homes and hospitals
under normal working conditions.
www.max-ability.com
800.577.1555 [email protected]

9
Versions
Version Power plug type
R8594572 (US)
R8595572 (US)
120V
Accessories
R8594
R8487: Mattress
R8485: Safety hook
R8595 R8487: Mattress
R8489: Control box
www.max-ability.com
800.577.1555 [email protected]
R8594
R8595

10
Operating instructions
7 kg
15 lbs 1
1

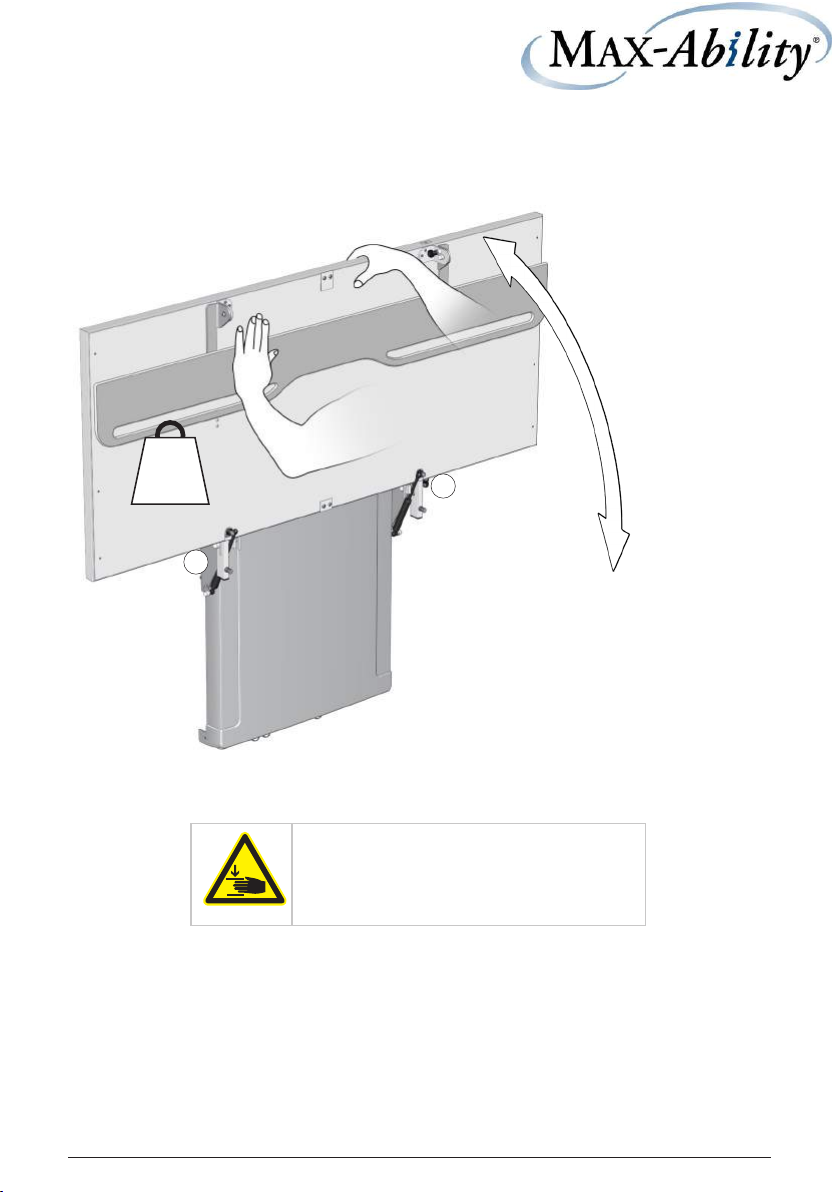

Take care to avoid injury to
hands when in the vicinity of
closing mechanical parts ①.
Support the table using your hand or
body when folding it down, to avoid the
risk of damage.

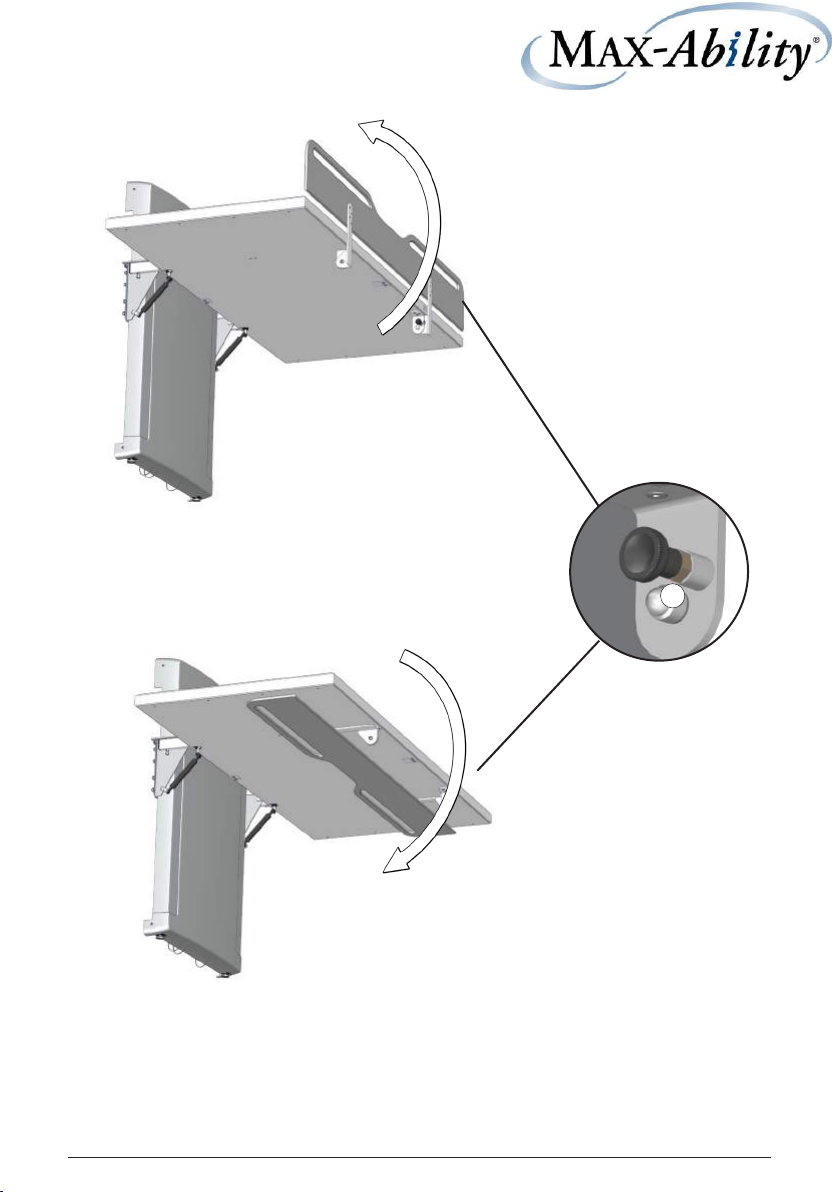

The built-in gas cylinders make it easy
to fold the table up against the wall after
use. Be sure to fold the safety rail away
first.
www.max-ability.com
800.577.1555 [email protected]
Folding the table -- R8594 (Manual Fold)

11
Make sure that there are no
objects under the changing table
when adjusting the height.
The height adjustment can also be controlled by the wired
remote control unit.
Height adjustment
When the changing able is installed at the correct height, it can be adjusted
between 300 and 1000 mm (11.81 and 39.37 inches) above the floor.

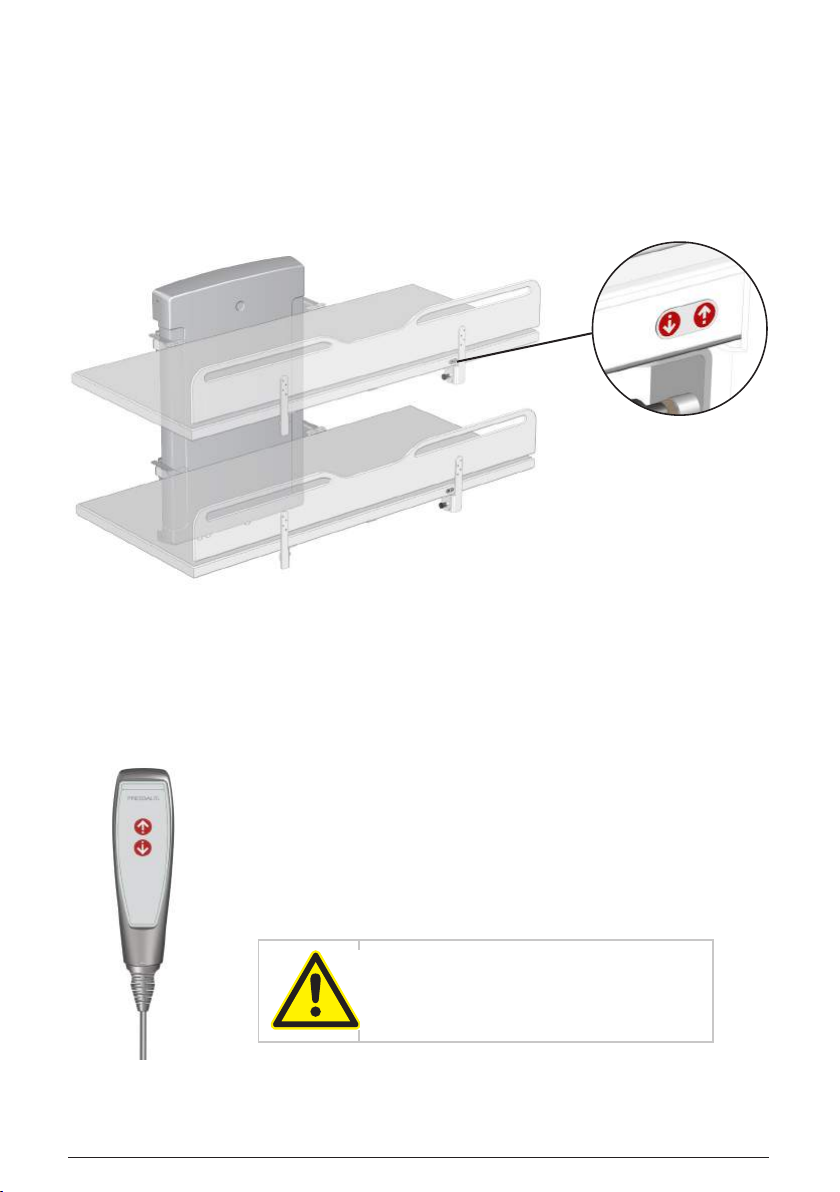

The height adjustment is done by pressing the buttons on the frame.
Press and hold the Up button to raise the bench, and press and hold the
Down button to lower the bench.
The movement stops when the button is released.
www.max-ability.com
800.577.1555 [email protected]

12
The table folds up and down electrically
On the wired remote control for this model, there are two
additional buttons that control the fold-up function.
Press and hold the fold up button ② to fold the table up, and
press and hold the fold down button ③ to fold the table down.
The movement stops when the button is released.
1
1
2 3
Take care to avoid injury to
hands when in the vicinity of
closing mechanical parts ①.
www.max-ability.com
800.577.1555 [email protected]
Folding the table -- R8595 (Electric Fold)

13
Height adjustment
When the changing table is installed at the recommended height, it can be
adjusted between 300 and 1000 mm (11.81 and 39.37 inches) above the floor.
The height adjustment is done by pressing the buttons on the frame.
The height adjustment and the fold-up
function can also be controlled by the
optional wall-mounted control box.
Make sure that there are no
objects under the changing table
when adjusting the height.
Optional control box
Press and hold the Up button to raise
the bench, and press and hold the
Down button to lower the bench.
The movement stops when the button
is released.
The height adjustment can also be controlled by the wired
remote control unit.
www.max-ability.com
800.577.1555 [email protected]

14
1
The safety rail
To pull the safety rail
up: Release the lock ① and
pull the safety rail from the
underside of the table, and
swing it upwards. The safety
rail will automatically lock
into position.
To fold the safety rail
away: Release the lock ①
and swing the safety rail
down to the underside of
the table. The safety rail
will automatically lock into
position.
www.max-ability.com
800.577.1555 [email protected]

15
Cleaning
Clean the changing table after each use. Use ordinary soapy water. Rinse off
with fresh water and dry with a soft cloth.
IMPORTANT
• Do not use an autoclave or other type of steam cleaner.
• Avoid aggressive cleaning agents containing acids or chloride.
• Never spray the table directly with a high pressure cleaner.
• Avoid use of aggressive, abrasive, corrosive or chloride-based cleaning or
disinfecting products.
Disinfection
When using the changing table for multiple patients, it is necessary to both
clean and disinfect it between uses on different patients to prevent the risk of
cross infection.
A list of suitable cleaning agents and disinfectants can be found at
www.pressalitcare.com
!CAUTION
Always read the material safety data sheet (MSDS) and supplied
instructions of the cleaning, disinfecting or de-scaling agent and comply
with instructions for safe use, dilution, rinsing, drying, handling and
storage of the agent.
www.max-ability.com
800.577.1555 [email protected]

16
Maintenance
Expected service life of the changing table is 10 years, provided that
maintenance is carried out as described below:
It is recommended on a weekly basis to run the motors on the product to their
maximum positions by raising the bench to its full height, and then lowering
it to its lowest position, so that the internal parts are lubricated.
It is recommended that service inspection is done once a year.
Service inspection

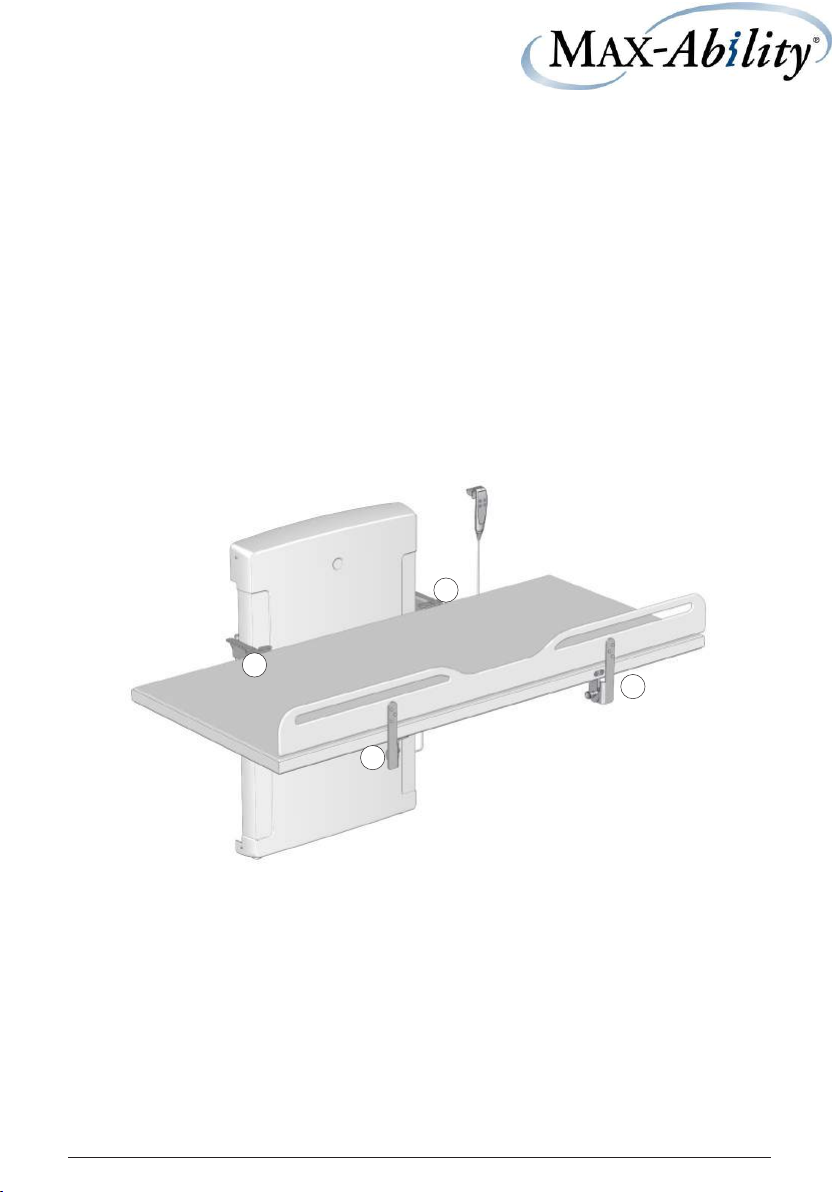

1
1
2
2
Check the hinges ①on the bench and the safety rail ②. Tighten if necessary.
www.max-ability.com
800.577.1555 [email protected]

17
1
1
1
1

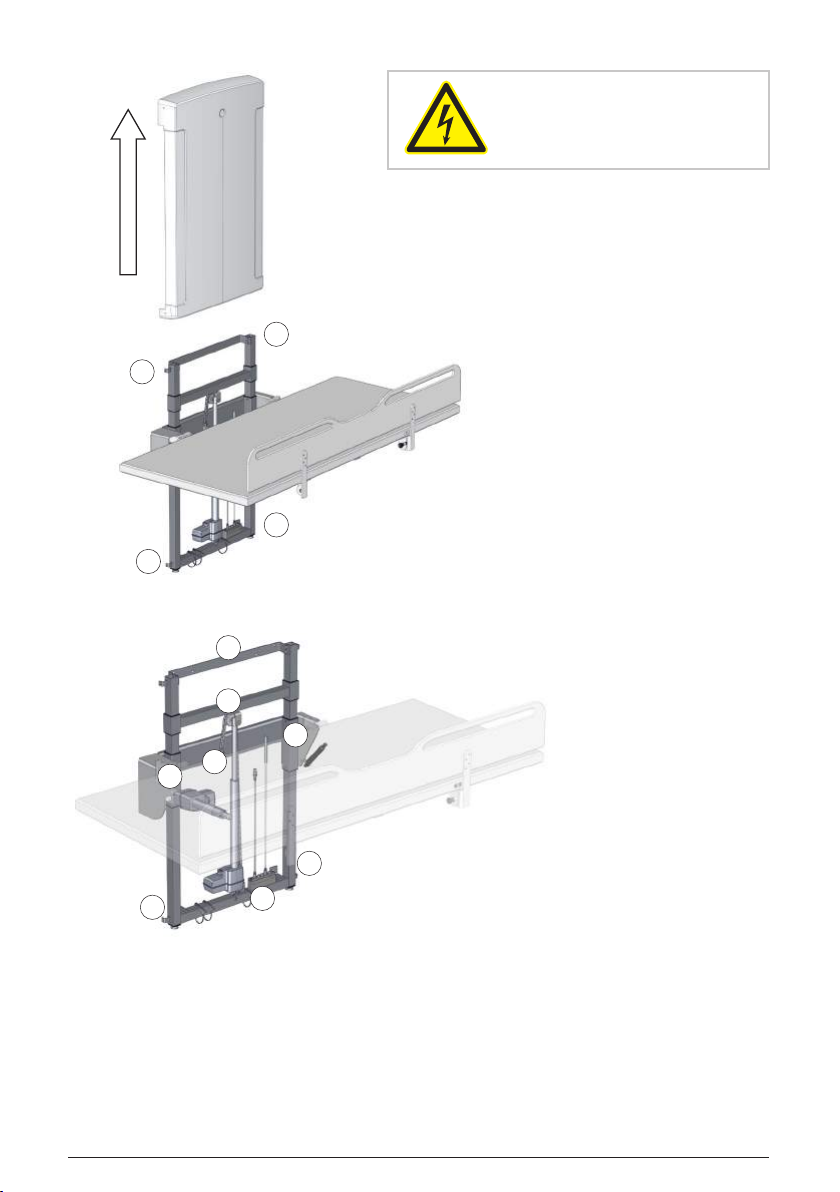

Remove the upper and lower retaining
screws ① on the lift unit cover and
carefully remove the cover.
• Check the wall brackets ② and
tighten if necessary.
• Oil moving parts, especially the
sliding brackets ③.
2
2
2
5
6
4
3
3
Disconnect mains before
removing the covers.
• Check all electrical connections to the control box ④.
• Check the chain wheel ⑤for wear.
• Oil the chain ⑥.
• Put the unit cover back again and tighten the retaining screws.
www.max-ability.com
800.577.1555 [email protected]

18
Service kit
Expected service life of the nursing bench is 10 years for institutional use.
However it must be expected that some of the internal wear and tear parts
must be replaced after approximately 3 years.
The service kits T5256 and T5268 with the replacement parts must be
purchased at Pressalit A/S or your local dealer.
www.max-ability.com
800.577.1555 [email protected]

19
.
.
Trouble-shooting
Symptom Cause Action
The changing table
does not stay in
upright position.
One or more gas
cylinders are
defective.
.
The product will not
work, even though
the remote control is
used correctly.
Fault in power supply. Check that all wires and
plugs are intact and
correctly connected.
.
The changing table
runs up and down
unevenly.
The sliding brackets
are not properly
lubricated.
Oil the sliding brackets
as described under
的“Maintenance”
The table top is not
level.
Adjustment screws
too high or too low.
Adjust the adjustment
screws ①.
1
www.max-ability.com
800.577.1555 [email protected]
Contact MAX-Ability at
800 577-1555 or
[email protected]
Contact MAX-Ability.
Verify your purchase details before carrying out repairs so you don’t void your warranty:
We guarantee all product components against manufacturing defects for five years, and
parts repair/labor for one year, from the invoice date. In most instances the affected parts
are replaced, not repaired.
Parts damaged due to improper product assembly, installation, or procedure; lack of
recommended maintenance including cleaning; or lost after delivery cannot be included in
this warranty.

20
Dimensions, mm
Dimensions, inch
1829
115
813
995
10
1005
750
1180
242
72
4⁄
32
39⁄
⁄
39⁄
29⁄
46⁄
9⁄
www.max-ability.com
800.577.1555 [email protected]
