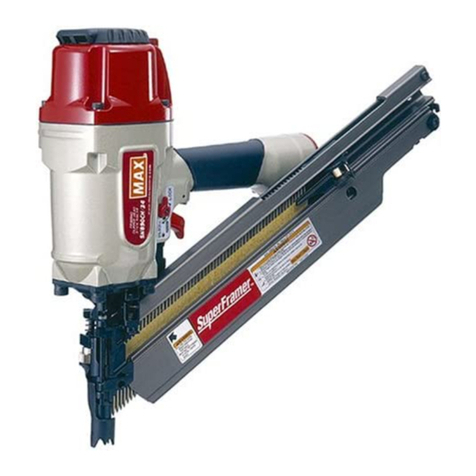

Max SN890CH/34 Operating instructions

SN890CH/34, SN890CH/28, SN890RH
and SN890RH-R
PNEUMATIC NAILER
CLOUEUSE PNEUMATIQUES
CLAVADORAS NEUMATICAS PARA
PEINES DE CLAVO
OPERATING and MAINTENANCE MANUAL
MANUEL D’UTILISATION et D’ENTRETIEN
MANUAL DE OPERACIONES Y MANTENIMIENTO
BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE SAFETY
WARNING AND INSTRUCTIONS.
KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.
AVANT D’UTILISER CET OUTIL, LIRE CE MANUEL ET LES CONSIGNES DE
SECURITE AFIN DE GARANTIR UN FONCTIONNEMENT SUR.
CONSERVER CE MANUEL EN LIEU SUR AVEC L’OUTIL AFIN DE POUVOIR LE
CONSULTER ULTERIEUREMENT.
PARA EVITAR GRAVES DAÑOS PERSONALES O EN LA PROPIEDAD.
ANTES DE EMPLEAR LA HERRAMIENTA, LEER CON ATENCIÓN Y
COMPRENDER LOS SIGUIENTES INSTRUCCIONES DE SEGURIDAD.
WARNING:
AVERTISSEMENT:
ATENCIÓN:

2
DEFINITIONS OF SIGNAL WORDS
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury.
NOTE: Emphasizes essential information.
DÉFINITIONS DES DIFFÉRENTS DEGRÉS D’ AVERTISSEMENTS
AVERTISSEMENT Indique une situation éventuellement dangereuse qui, si elle n’est pas contournée,
pourrait provoquer la mort ou des blessure sérieuses.
ATTENTION Indique une situation éventuellement dangereuse qui, si elle n’est pas contournée,
pourrait provoquer des blessures légères à moyennement sérieuses.
REMARQUE Souligne des informations importantes.
DEFINICIÓN DE LAS INDICACIONES DE ADVERTENCIA
¡ATENCIÓN! Indica una situación potencialmente peligrosa que podría causar la muerte o graves
lesiones si no se evita.
¡PRECAUCIÓN! Indica una situación potencialmente peligrosa que podría causar lesiones menos
graves o leves si no se evita.
NOTA: Resalta informaciones importantes.
INDEX INDEX INDICE
ENGLISH Page 3 to 15 Page
FRANÇAIS Page 17 to 29 Page
ESPAÑOL Page 31 to 43 Page

3
ENGLISH
SN890CH/34, SN890CH/28,
SN890RH and SN890RH-R
PNEUMATIC NAILER
INDEX
1. SAFETY INSTRUCTIONS
…………… 4
2. SPECIFICATIONS &
TECHNICAL DATA
…………………… 7
3. AIR SUPPLY AND CONNECTIONS
… 9
4.
INSTRUCTIONS FOR OPERATION … 10
5. MAINTAIN FOR PERFORMANCE
… 15
6. STORING
…………………………… 15
7. TROUBLESHOOTING/REPAIRS
…… 15
OPERATING and MAINTENANCE MANUAL
BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE SAFETY WARNING
AND INSTRUCTIONS.
KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.
WARNING:

4
1. SAFETY INSTRUCTIONS
PRECAUTIONS ON USING THE TOOL
1. WEAR SAFETY GLASSES OR GOGGLES
Danger to the eyes always exists due to the possibility of dust being blown up by the exhausted air
or of a fastener flying up due to the improper handling of the tool. For these reasons, safety glasses
or goggles shall always be worn when operating the tool.
The employer and/or user must ensure that proper eye protection is worn. Eye protection equipment
must conform to the requirements of the American National Standards Institute, ANSI Z87.1 (Council
Directive 89/686/EEC of 21 DEC. 1989) and provide both frontal and side protection.
The employer is responsible to enforce the use of eye protection equipment by the tool operator
and all other personnel in the work area.
NOTE: Non-side shielded spectacles and face shields alone do not provide adequate protection.
2. EAR PROTECTION MAY BE REQUIRED IN SOME ENVIRONMENTS
As the working condition may include exposure to high noise levels which can lead to hearing
damage, the employer and user should ensure that any necessary hearing protection is provided and
used by the operator and others in the work area.
3. DO NOT USE ANY POWER SOURCE EXCEPT AN AIR COMPRESSOR
The tool is designed to operate on compressed air. Do not operate the tool on any other highpressure
gas, combustible gases (e.g., oxygen, acetylene, etc.) since there is the danger of an explosion. For
this reason, absolutely do not use anything other than an air compressor to operate the tool.
4. OPERATE WITHIN THE PROPER AIR PRESSURE RANGE
The tool is designed to operate within an air pressure range of 70 to 100 p.s.i. (5 to 7 bar.)
The pressure should be adjusted to the type of the work being fastened. The tool shall never be
operated when the operating pressure exceeds 120 p.s.i. (8 bar.)
Never connect the tool to air pressure which potentially exceeds 200 p.s.i. (14 bar) as the tool can
burst.
5. DO NOT OPERATE THE TOOL NEAR A FLAMMABLE SUBSTANCE
Never operate the tool near a flammable substance (e.g., thinner, gasoline, etc.). Volatile fumes from
these substances could be drawn into the compressor and compressed together with the air and this
could result in an explosion.
6. DO NOT USE A WRONG FITTINGS
The connector on the tool must not hold pressure when air supply is disconnected. If a wrong fitting
is used, the tool can remain charged with air after disconnecting and thus will be able to drive a
fastener even after the air line is disconnected, possibly causing injury.
7. DISCONNECT THE AIR SUPPLY AND EMPTY THE MAGAZINE WHEN THE TOOL IS NOT
IN USE
Always disconnect the air supply from the tool and empty the magazine when operation has been
completed or suspended, when unattended, moving to a different work area, adjusting,
disassembling, or repairing the tool, and when clearing a jammed fastener.
WARNING:
TO AVOID SEVERE PERSONAL INJURY OR PROPERTY DAMAGE
BEFORE USING THE TOOL, READ CAREFULLY AND UNDERSTAND THE FOLLOWING
“SAFETY INSTRUCTIONS”. FAILURE TO FOLLOW WARNINGS COULD RESULT IN DEATH OR
SERIOUS INJURY.
5
7
70
100

5
8. INSPECT SCREW TIGHTNESS
Loose or improperly installed screws or bolts cause accidents and tool damage when the tool is put
into operation. Inspect to confirm that all screws and bolts are tight and properly installed prior to
operating the tool.
9. DO NOT TOUCH THE TRIGGER UNLESS YOU INTEND TO DRIVE A FASTENER
Whenever the air supply is connected to the tool, never touch the trigger unless you intend to drive
a fastener into the work. It is dangerous to walk around carrying the tool with the trigger pulled, and
this and similar actions should be avoided.
10. NEVER POINT THE DISCHARGE OUTLET TOWARD YOURSELF AND OTHER PERSONNEL
If the discharge outlet is pointed toward people, serious accidents may be caused when misfiring.
Be sure the discharge outlet is not pointed toward people when connecting and disconnecting the
hose, loading and unloading the fasteners or similar operations.
11. USE SPECIFIED FASTENERS (SEE PAGE 7)
The use of fasteners other than specified fasteners will cause the tool malfunction. Be sure to use
only specified fasteners when operating the tool.
12. PLACE THE DISCHARGE OUTLET ON THE WORK SURFACE PROPERLY
Failure to place the discharge outlet of the nose in a proper manner can result in a fastener flying
up and is extremely dangerous.
13. KEEP HANDS AND BODY AWAY FROM THE DISCHARGE OUTLET
When loading and using the tool, never place a hand or any part of body in fastener discharge area
of the tool. It is very dangerous to hit the hands or body by mistake.
14. DO NOT DRIVE FASTENERS CLOSE TO THE EDGE AND CORNER OF THE WORK AND THIN
MATE RIAL
The workpiece is likely to split and the fastener could fly free and hit someone.
15. DO NOT DRIVE FASTENERS ON TOP OF OTHER FASTENERS
Driving fasteners of the top of other fasteners may cause deflection fasteners which could cause
injury.
16. REMOVING THE FASTENERS AFTER COMPLETING OPERATION
If fasteners are left in the magazine after the completion of operation, there is the danger of a serious
accident occurring prior to the resumption of operation, should the tool be handled carelessly, or
when connecting the air fitting. For this reason, always remove all fasteners remaining in the
magazine after completion of the operation.
17. CHECK OPERATION OF THE CONTACT TRIP MECHANISM FREQUENTLY IN CASE OF
USING A CONTACT TRIP TYPE TOOL
Do not use the tool if the trip is not working correctly as accidental driving of a fastener may result.
Do not interfere with the proper operation of the contact trip mechanism.

6
18. WHEN USING THE TOOL OUTSIDE OR ELEVATED PLACE
When fastening roofs or similar slanted surface, start fastening at the lower part and gradually work
your way up. Fastening backward is dangerous as you may loose your foot place.
Secure the hose at a point close to the area you are going to drive fasteners. Accidents may be
caused due to the hose being pulled inadvertently or getting caught.
19. NEVER USE THE TOOL IF ANY PORTION OF THE TOOL CONTROLS (e.g., TRIGGER, CONTACT
ARM) IS INOPERABLE, DISCONNECTED, ALTERED OR NOT WOKING PROPERLY
20. NEVER ACTUATE THE TOOL INTO FREE SPACE
This will avoid any hazard caused by free flying fasteners and excessive strain of the tool.
21. ALWAYS ASSUME THAT THE TOOL CONTAINS FASTENERS
22. RESPECT THE TOOL AS A WORKING IMPLEMENT
23. NO HORSEPLAY
24. NEVER LOAD THE TOOL WITH FASTENERS WHEN ANY ONE OF THE OPERATING CONTROLS
(e.g., TRIGGER, CONTACT ARM) IS ACTIVATED
OBSERVE THE FOLLOWING GENERAL CAUTION IN ADDITION TO
THE OTHER WARNINGS CONTAINED IN THIS MANUAL
• Do not use the tool as a hammer.
•
Always carry the tool by the handle, never carry the tool by the air hose.
• The tool must be used only for the purpose it was designed.
• Never remove, tamper with the operating controls (e.g., TRIGGER, CONTACT ARM)
• Keep the tool in a dry place out of reach of children when not in use.
• Do not use the tool without Safety Warning label.
• Do not modify the tool from original design or function without approval by MAX CO., LTD.

7
2. SPECIFICATIONS AND TECHNICAL DATA
1. NAME OF PARTS
q Frame
w Cylinder Cap
e Contact Arm
r Nose
t Magazine
y Trigger
u Grip
i Exhaust Cover
o Adjustment dial
!0 Door
i
u
w
q
r
e
!0
y t
o
PRODUCT NO. SN890CH/34 SN890CH/28 SN890RH, SN890RH-R
HEIGHT 14-3/4˝ (374 mm) 14-3/4˝ (374 mm) 14-1/8˝ (359.2 mm)
WIDTH 4˝ (102 mm) 4˝ (102 mm) 4˝ (102 mm)
LENGTH 17˝ (436 mm) 16-7/8˝ (429 mm) 21-3/8˝ (542 mm)
WEIGHT 8.0 lbs. (3.63 kg) 8.0 lbs. (3.63 kg) 8.0 lbs. (3.63 kg)
RECOMMENDED
70 to 100 p.s.i. (5 to 7 bar) 70 to 100 p.s.i. (5 to 7 bar) 70 to 100 p.s.i. (5 to 7 bar)
OPERATING PRESSURE
LOADING CAPACITY 90 Nails 75 Nails 64 Nails
AIR CONSUMPTION 1.78Rat 90 p.s.i. (6 bar) 1.78Rat 90 p.s.i. (6 bar) 1.78Rat 90 p.s.i. (6 bar)
operating pressure operating pressure operating pressure
PRODUCT NO. SN890CH/34 SN890CH/28 SN890RH, SN890RH-R
NAIL LENGTH 2˝ to 3-1/2˝ (50 to 90 mm) 2˝ to 3-1/2˝ (50 to 90 mm) 2˝ to 3-1/2˝ (50 to 90 mm)
SHANK DIAMETER .113˝ to .148˝ (2.9 to 3.8 mm) .113˝ to .130˝ (2.9 to 3.3 mm) .113˝ to .148˝ (2.9 to 3.8 mm)
SHANK TYPE Smooth, Ring, Screw Smooth, Ring, Screw Smooth, Ring, Screw
HEAD DIAMETER .256˝ to .303˝ (6.5 to 7.7 mm) .275˝ to .303˝ (7.0 to 7.7 mm) .267˝ to .295˝ (6.8 to 7.5 mm)
COLLATION ANGLE 34 degree 28 degree 21 degree
HEAD Clipped head Clipped head Full round head
2. TOOL SPECIFICATIONS
TOOL AIR FITTINGS:
This tool uses a 3/8˝ N.P.T. male plug. The inside diameter should be .39˝ (9.9mm) or larger. The fitting must be capable of
discharging tool air pressure when disconnected from the air supply.
RECOMMENDED OPERATING PRESSURE:
70 to 100 p.s.i. (5 to 7 bar). Select the operating air pressure within this range for best fastener performance.
DO NOT EXCEED 120 p.s.i. (8 bar).
3. FASTENER SPECIFICATIONS

8
4. TECHNICAL DATA
q NOISE
A-weighted single-event ------ LWA, 1s, d 96.34 dB
sound power level
A-weighted single-event ------ LpA, 1s, d 87.68 dB
emission sound pressure
level at work station
These values are determined and documented in accordance to EN12549 : 1999.
w VIBRATION
Vibration characteristic value ＝5.18 m/s
2
These values are determined and documented in accordance to ISO 8662-11.
This value is a tool-related characteristic value and does not represent the influence to the hand-arm-system when using the tool.
An influence to the hand-arm-system when using the tool will for example depend on the gripping force, the contact pressure
force, the working direction, the adjustment of mains supply, the workpiece, the workpiece support.
5. APPLICATIONS
＊Floor and wall framing
＊Subflooring
＊Roof and wall sheathing
＊Fencing

9
WARNING:
3. AIR SUPPLY AND CONNECTIONS
Read section titled “SAFETY INSTRUCTIONS”.
DO NOT USE ANY POWER SOURCE EXCEPT AN AIR COMPRESSOR
The tool is designed to operate on compressed air. Do not operate the tool on any other highpressure
gas, combustible gases (e.g., oxygen, acetylene, etc.) since there is the danger of an explosion. For this
reason, absolutely do not use anything other than an air compressor to operate the tool.
OPERATE WITHIN THE PROPER AIR PRESSURE RANGE
The tool designed to operate within an air pressure range of 70 to 100 p.s.i. (5 to 7 bar.)
The pressure should be adjusted to the type of the work being fastened. The tool shall never be
operated when the operating pressure exceeds 120 p.s.i. (8 bar.)
DO NOT OPERATE THE TOOL NEAR A FLAMMABLE SUBSTANCE
Never operate the tool near a flammable substance (e.g., thinner, gasoline, etc.). Volatile fumes from
these substances could be drawn into the compressor and compressed together with the air and this
could result in an explosion.
DO NOT USE A WRONG FITTINGS
The connector on the tool must not hold pressure when air supply is disconnected. If a wrong fitting is
used, the tool can remain charged with air after disconnecting and thus will be able to drive a fastener
even after the air line is disconnected, possibly causing injury.
DISCONNECT THE AIR SUPPLY AND EMPTY THE MAGAZINE WHEN THE TOOL IS NOT IN USE
Always disconnect the air supply from the tool and empty the magazine when operation has been
completed or suspended, when unattended, moving to a different work area, adjusting, disassembling,
or repairing the tool, and when clearing a jammed fastener.
FITTINGS: Install a male plug on the tool which is free flowing and which will release
air pressure from the tool when disconnected from the supply source.
HOSES: Hose has a min. ID of 1/4˝ (6 mm) and max. length of no more than 17˝ (5
meters).
The supply hose should contain a fitting that will provide “quick disconnecting” from
the male plug on the tool.
SUPPLY SOURCE: Use only clean regulated compressed air as a power source for
the tool.
3-PIECE AIRSET (Air filter, Regulator, Oiler):
Refer to TOOL SPECIFICATIONS for setting the correct operating pressure for the
tool.
NOTE:
A filter will help to get the best performance and minimum wear from the tool because dirt and water in
the air supply are major causes of wear in the tool.
Frequent, but not excessive, lubrication is required for the best performance. Oil added thru the air line
connection will lubricate the internal parts.
Air compressor
[AIR SUPPLY & CONNECTIONS]
Air filter
Air hose
Oiler
Used at 70 to 100 p.s.i. (5 to 7 bar)
Regulator
[AIR SUPPLY & CONNECTIONS]
3-piece airset

10
WARNING:
WARNING:
4. INSTRUCTIONS FOR OPERATION
Read section titled “SAFETY INSTRUCTIONS”.
1. BEFORE OPERATION
q Wear Safety Glasses or Goggles.
w Do not connect the air supply.
e Inspect screw tightness.
r Check operation of the contact arm & trigger if moving smoothly.
t Connect the air supply.
y Check the air-leakage. (The Tool must not have the air-leakage.)
u Hold the Tool with finger-off the trigger, then push the contact arm against the work-piece. (The tool
must not operate.)
i Hold the Tool with contact arm free from work-piece and pull the trigger. (The Tool must not operate.)
o Disconnect the air supply.
2. OPERATION
Wear safety glasses or goggles danger to the eyes always exists due to the possibility of dust being
blown up by the exhausted air or of a fastener flying up due to the improper handling of the tool. For
these reasons, safety glasses or goggles shall always be worn when operating the tool.
The employer and/or user must ensure that proper eye protection is worn. Eye protection equipment
must conform to the requirements of the American National Standards Institute, ANSI Z87.1 (Council
Directive 89/686/EEC of 21 DEC. 1989) and provide both frontal and side protection.
The employer is responsible to enforce the use of eye protection equipment by the tool operator and all
other personnel in the work area.
NOTE: Non-side shielded spectacles and face shields alone do not provide adequate protection.
Keep hands and body away from the discharge outlet when driving the fasteners because of dangerous
of hitting the hands or body by mistake.
NAIL LOADING
q Pull the pusher back until it is engaged with the pusher hook.
w Insert a strip of nails into the top of magazine.
Pusher hook
Magazine
Nails
Pusher
