Max SN883-90CH/34(CE) Operating instructions

SN883-90CH/34(CE)
SN883-100CH/34(CE)
OPERATING and MAINTENANCE MANUAL
BETRIEBSANLEITUNG
MANUEL D’UTILISATION et D’ENTRETIEN
MANUALE DI FUNZIONAMENTO E MANUTENZIONE
MANUAL DE OPERACIONES Y MANTENIMIENTO
34 DEGREE CLIPPED HEAD
FRAMING STICK NAILER
34-GRAD BEFESTIGTER RAHMEN-
STOCKHAUPTNAGLER
CLOUEUSE À MANCHE D’ENCADREMENT
DE TÊTE COUPÉE À 34 DEGRÉS
INCHIODATRICE A MANICA DI QUADRO
DI TESTA TAGLIATA A 34 GRADI
CLAVADORA DE BARRA DE MARCO
DE CABEZA CORTADA A 34 GRASDOS
BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE SAFETY WARNING
AND INSTRUCTIONS.
KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.
LESEN SIE VOR INBETRIEBNAHME DES GERÄTES DIE GEBRAUCHS- UND SICHER-
HEITSHINWEISE. BITTE BEWAHREN SIE DIE GEBRAUCHS- UND SICHERHEITSHIN-
WEISE AUF, DAMIT SIE AUCH SPÄTER EINGESEHEN WERDEN KÖNNEN.
AVANT D’UTILISER CET OUTIL, LIRE CE MANUEL ET LES CONSIGNES DE SECURITE
AFIN DE GARANTIR UN FONCTIONNEMENT SUR.
CONSERVER CE MANUEL EN LIEU SUR AVEC L’OUTIL AFIN DE POUVOIR LE CON-
SULTER ULTERIEUREMENT.
PRIMA DI USARE QUESTA MACCHINA, STUDIARE IL MANUALE PER PRENDERE ATTO
DEGLI AVVERTIMENTI E DELLE ISTRUZIONIPER LA SICUREZZA.
TENERE QUESTE ISTRUZIONI INSIEME ALLO STRUMENTO PER CONSULTAZIONI FU-
TURE.
PARA EVITAR GRAVES DAÑOS PERSONALES O EN LA PROPIEDAD.
ANTES DE EMPLEAR LA HERRAMIENTA, LEER CON ATENCIÓN Y COMPRENDER LOS
SIGUIENTES INSTRUCCIONES DE SEGURIDAD.
WARNING
ACHTUNG
AVERTISSEMENT
ATTENZIONE
ATENCIÓN

2
INDEX INHALTSVERZEICHNIS INDEX INDICE ÍNDICE
ENGLISH Page 3 to 16
DEUTSCH Page 17 to 30
FRANÇAIS Page 31 to 44
ITALIANO Page 45 to 58
ESPAÑOL Page 59 to 72
PORTUGUÊS Consulte o CD-ROM ou o sítio web.
NEDERLANDS Raadpleeg de cd-rom of de website.
SVENSKA Se cd-skivan eller webbplatsen.
NORSK Referer til CD-ROMen eller til Web-sidene.
FINNISH Katso lisätietoja CD-ROM-levyltä tai verkkosivuilta.
DANSK Se cd-rom'en eller webstedet.
POLSKI
Więcej informacji na płycie CD-ROM lub stronie internetowej.
ΕΛΛΗΝΙΚΑ Ανατρέξτε στο CD-ROM ήστην τοποθεσία Web.
TÜRKÇE CD-ROM veya Web sitesine bakınız.
РУССКИЙ См. на компакт-диске или на веб-сайте.
www.max-ltd.co.jp/int/eu/
DEFINITIONS OF SIGNAL WORDS
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury.
NOTE: Emphasizes essential information.
DEFINITIONEN DER HINWEISBEZEICHNUNGEN
ACHTUNG! Zeigt eine eventuell gefährliche Situation an, die den Tod oder schwere Verletzungen zur
Folge haben könnte, wenn sie nicht vermieden wird.
VORSICHT! Zeigt eine eventuell gefährliche Situation an, die leichte oder mittelschwere Verletzungen
zur Folge haben könnte, wenn sie nicht vermieden wird.
HINWEIS: Hebt wichtige Informationen hervor.
DÉFINITIONS DES DIFFERÉNTS DEGRÉS D’ AVERTISSEMENTS
AVERTISSEMENT Indique une situation éventuellement dangereuse qui, si elle n’est pas contournée, pour-
rait provoquer la mort ou des blessure sérieuses.
ATTENTION Indique une situation éventuellement dangereuse qui, si elle n’est pas contournée, pour-
rait provoquer des blessures légères à moyennement sérieuses.
REMARQUE Souligne des informations importantes.
DEFINIZIONE DELLE INDICAZIONI DI AVVERTIMENTO
ATTENZIONE: Indica l’eventualità che possa verificarsi una situazione pericolosa, la quale se non viene
evitata, può risultare letale o provocare gravi lesioni.
AVVERTENZA: Indica l’eventualità che possa verificarsi una situazione pericolosa, la quale se non viene
evitata, può provocare lesioni di lieve o media entità.
NOTA: Evidenzia informazioni importanti.
DEFINICIÓN DE LAS INDICACIONES DE ADVERTENCIA
!ATENCION! Indica una situación potencialmente peligrosa que podría causar la muerte o graves le-
siones si no se evita.
!PRECAUCIÓN! Indica una situación potencialmente peligrosa que podría causar lesiones menos graves
o leves si no se evita.
NOTA: Resalta informaciones importantes.

3
INDEX
1. SAFETY INSTRUCTIONS..................................................3
2. SPECIFICATIONS AND TECHNICAL DATA ....................7
3. AIR SUPPLY AND CONNECTIONS ..................................8
4. INSTRUCTIONS FOR OPERATION ................................10
5. MAINTENANCE................................................................15
6. STORAGE ........................................................................15
7. TROUBLE SHOOTING/REPAIRS....................................15
1. SAFETY INSTRUCTIONS PRECAUTIONS ON USING THE TOOL
1. WEAR SAFETY GLASSES OR GOGGLES
Danger to the eyes always exists due to the
possibility of dust being blown up by the ex-
hausted air or of a fastener flying up due to
the improper handling of the tool. For these
reasons, safety glasses or goggles shall al-
ways be worn when operating the tool.
The employer and/or user must ensure that
proper eye protection is worn. Eye protection
equipment must conform to the require-
ments of Council Directive 89/686/EEC of 21
DEC. 1989 (the American National Stand-
ards Institute, ANSI Z87.1) and provide both
frontal and side protection.
The employer is responsible to enforce the
use of eye protection equipment by the tool
operator and all other personnel in the work
area.
ENGLISH
OPERATING and MAINTENANCE MANUAL
BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE SAFETY WARNING AND IN-
STRUCTIONS.
KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.
WARNING
TO AVOID SEVERE PERSONAL INJURY
OR PROPERTY DAMAGE
BEFORE USING THE TOOL, READ CARE-
FULLY AND UNDERSTAND THE FOLLOW-
ING "SAFETY INSTRUCTIONS". FAILURE
TO FOLLOW WARNINGS COULD RESULT
IN DEATH OR SERIOUS INJURY.
WARNING

4
NOTE: Non-side shielded spectacles and
face shields alone do not provide adequate
protection.
2. EAR PROTECTION MAY BE REQUIRED
IN SOME ENVIRONMENTS
As the working condition may include expo-
sure to high noise levels which can lead to
hearing damage, the employer and user
should ensure that any necessary hearing
protection is provided and used by the oper-
ator and others in the work area.

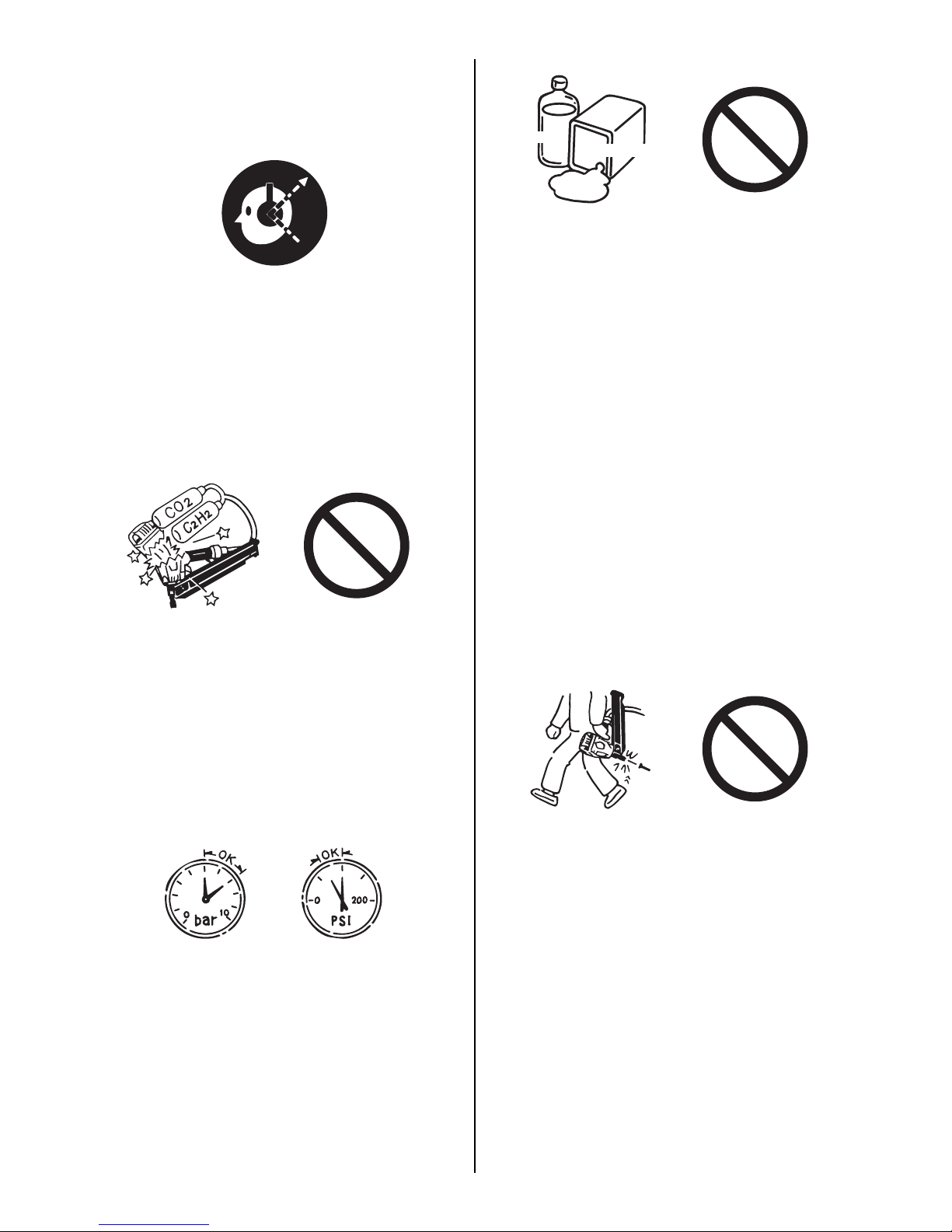

3. DO NOT USE ANY POWER SOURCE EX-
CEPT AN AIR COMPRESSOR
The tool is designed to operate on com-
pressed air. Do not operate the tool on any
other highpressure gas, combustible gases
(e.g., oxygen, acetylene, etc.) since there is
the danger of an explosion. For this reason,
absolutely do not use anything other than an
air compressor to operate the tool.
4. OPERATE WITHIN THE PROPER AIR
PRESSURE RANGE
The tool is designed to operate within an air
pressure range of 5 to 7 bar (70 to 100 p.s.i.).
The pressure should be adjusted to the type
of the work being fastened. The tool shall
never be operated when the operating pres-
sure exceeds 8 bar (120 p.s.i.).
Never connect the tool to air pressure which
potentially exceeds 14 bar (200 p.s.i.) as the
tool can burst.
5. DO NOT OPERATE THE TOOL NEAR A
FLAMMABLE SUBSTANCE
Never operate the tool near a flammable
substance (e.g., thinner, gasoline, etc.). Vol-
atile fumes from these substances could be
drawn into the compressor and compressed
together with the air and this could result in
an explosion.
6. NEVER USE THE TOOL IN AN EXPLO-
SIVE ATMOSPHERE
Sparks from the tool may ignite atmospheric
gases, dust or other combustible materials.
7. DO NOT USE A WRONG FITTINGS
The connector on the tool must not hold
pressure when air supply is disconnected. If
a wrong fitting is used, the tool can remain
charged with air after disconnecting and thus
will be able to drive a fastener even after the
air line is disconnected, possibly causing in-
jury.
8. DISCONNECT THE AIR SUPPLY AND
EMPTY THE MAGAZINE WHEN THE
TOOL IS NOT IN USE
Always disconnect the air supply from the
tool and empty the magazine when operation
has been completed or suspended, when un-
attended, moving to a different work area, ad-
justing, disassembling, or repairing the tool,
and when clearing a jammed fastener.
5
7
70
100
Thinner Gasoline

5

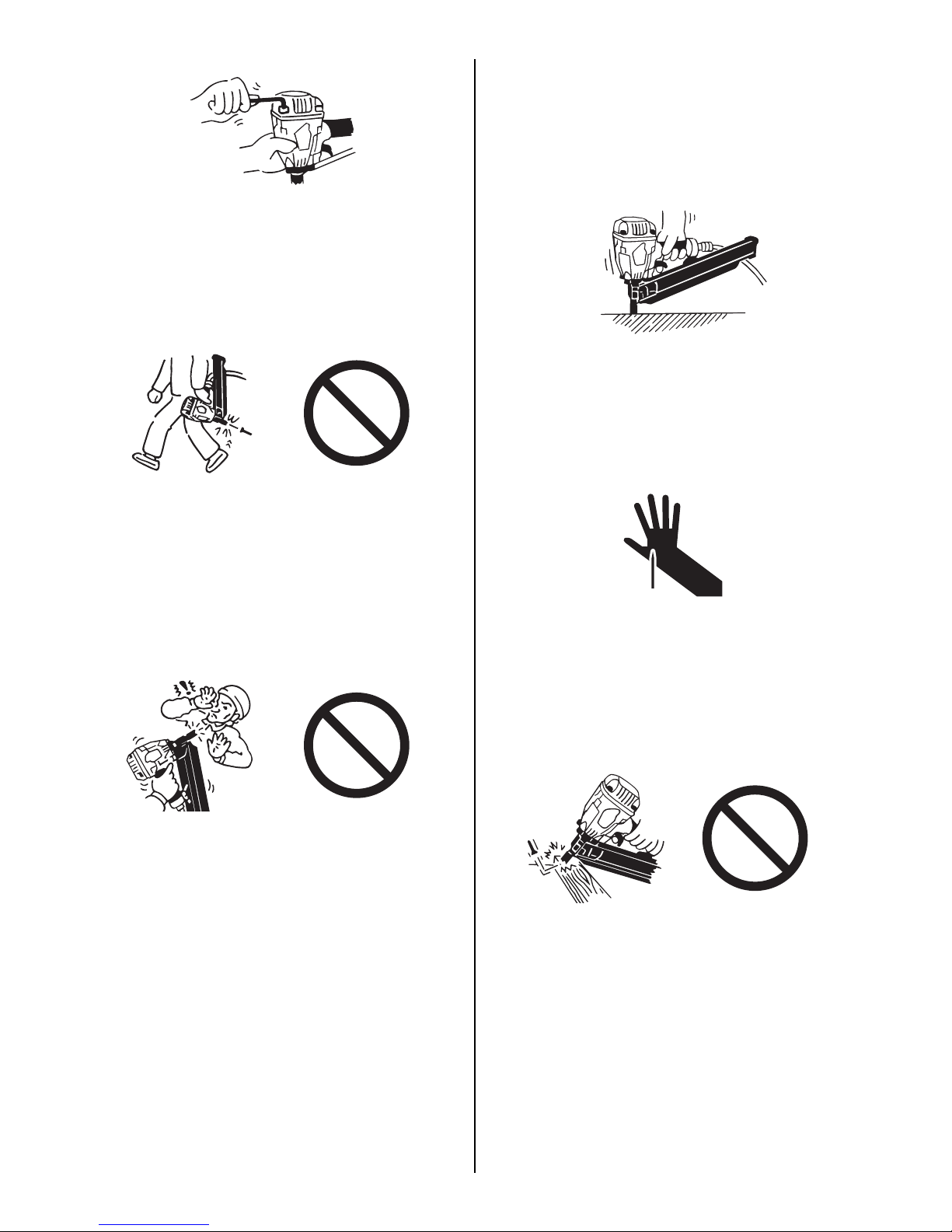

9. INSPECT SCREW TIGHTNESS
Loose or improperly installed screws or bolts
cause accidents and tool damage when the
tool is put into operation. Inspect to confirm
that all screws and bolts are tight and prop-
erly installed prior to operating the tool.
10. DO NOT TOUCH THE TRIGGER UNLESS
YOU INTEND TO DRIVE A FASTENER
Whenever the air supply is connected to the
tool, never touch the trigger unless you in-
tend to drive a fastener into the work. It is
dangerous to walk around carrying the tool
with the trigger pulled, and this and similar
actions should be avoided.
11. NEVER POINT THE DISCHARGE OUTLET
TOWARD YOURSELF AND OTHER PER-
SONNEL
If the discharge outlet is pointed toward peo-
ple, serious accidents may be caused when
misfiring. Be sure the discharge outlet is not
pointed toward people when connecting and
disconnecting the hose, loading and unload-
ing the fasteners or similar operations.
12. USE SPECIFIED FASTENERS
(SEE PAGE 7)
The use of fasteners other than specified
fasteners will cause the tool malfunction. Be
sure to use only specified fasteners when
operating the tool.
13. PLACE THE DISCHARGE OUTLET ON
THE WORK SURFACE PROPERLY
Failure to place the discharge outlet of the
nose in a proper manner can result in a fas-
tener flying up and is extremely dangerous.
14. KEEP HANDS AND BODY AWAY FROM
THE DISCHARGE OUTLET
When loading and using the tool, never
place a hand or any part of body in fastener
discharge area of the tool. It is very danger-
ous to hit the hands or body by mistake.
15. DO NOT DRIVE FASTENERS CLOSE TO
THE EDGE AND CORNER OF THE WORK
AND THIN MATERIAL
The workpiece is likely to split and the fas-
tener could fly free and hit someone.

6

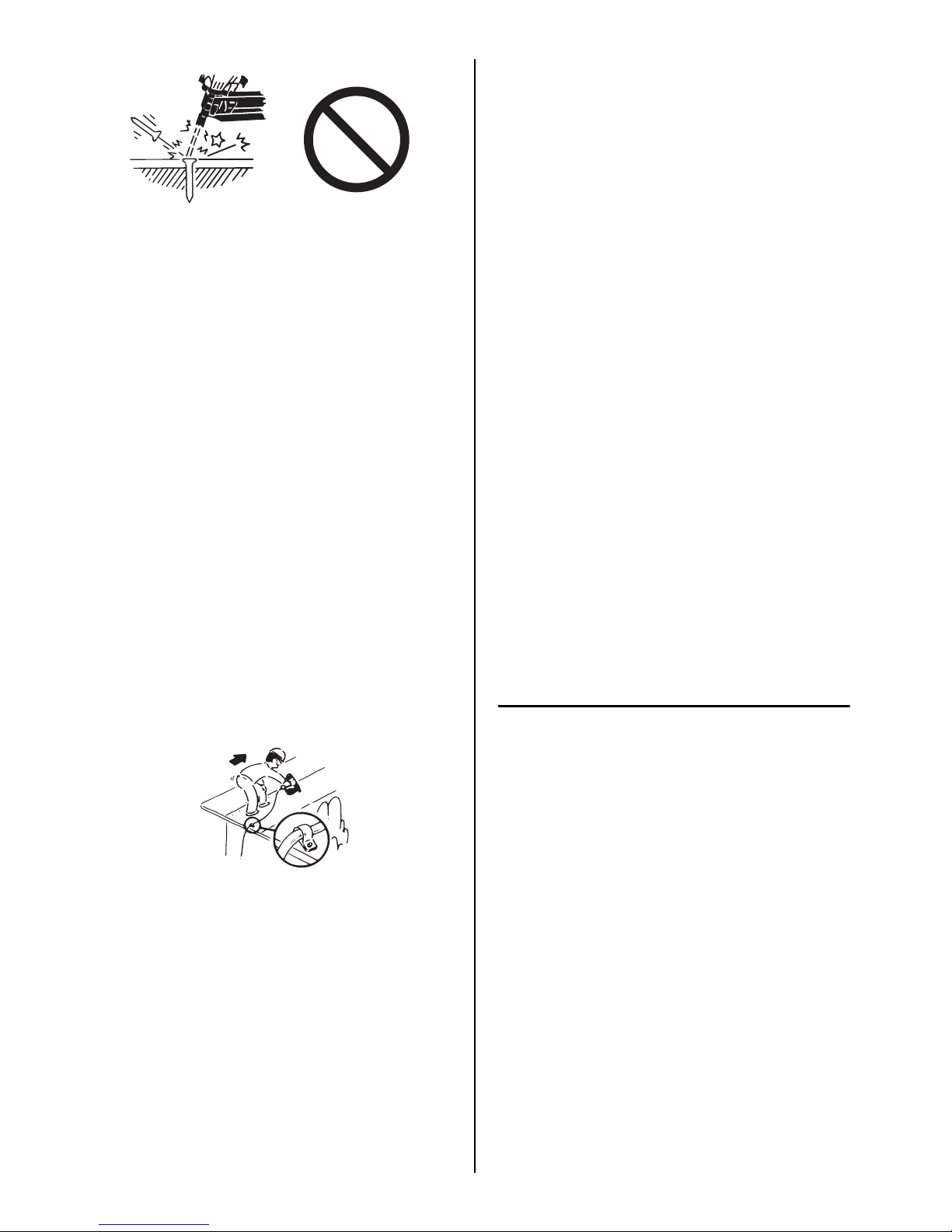

16. DO NOT DRIVE FASTENERS ON TOP OF
OTHER FASTENERS
Driving fasteners on the top of other fasten-
ers may cause deflection fasteners which
could cause injury.
17. REMOVING THE FASTENERS AFTER
COMPLETING OPERATION
If fasteners are left in the magazine after the
completion of operation, there is the danger
of a serious accident occurring prior to the
resumption of operation, should the tool be
handled carelessly, or when connecting the
air fitting. For this reason, always remove all
fasteners remaining in the magazine after
completion of the operation.
18. CHECK OPERATION OF THE CONTACT
TRIP MECHANISM FREQUENTLY IN
CASE OF USING A CONTACT TRIP TYPE
TOOL
Do not use the tool if the trip is not working
correctly as accidental driving of a fastener
may result. Do not interfere with the proper
operation of the contact trip mechanism.
19. WHEN USING THE TOOL OUTSIDE OR
ELEVATED PLACE
When fastening roofs or similar slanted sur-
face, start fastening at the lower part and
gradually work your way up. Fastening back-
ward is dangerous as you may lose your foot
place.
Secure the hose at a point close to the area
you are going to drive fasteners. Accidents
may be caused due to the hose being pulled
inadvertently or getting caught.
20. NEVER USE THE TOOL IF ANY PORTION
OF THE TOOL CONTROLS (e.g., TRIG-
GER, CONTACT ARM) IS INOPERABLE,
DISCONNECTED, ALTERED OR NOT
WOKING PROPERLY
21. NEVER ACTUATE THE TOOL INTO FREE
SPACE
This will avoid any hazard caused by free fly-
ing fasteners and excessive strain of the
tool.
22. ALWAYS ASSUME THAT THE TOOL
CONTAINS FASTENERS
23. RESPECT THE TOOL AS A WORKING IM-
PLEMENT
24. NO HORSEPLAY
25. NEVER LOAD THE TOOL WITH FASTEN-
ERS WHEN ANY ONE OF THE OPERAT-
ING CONTROLS (e.g., TRIGGER,
CONTACT ARM) IS ACTIVATED
26. WEAR THE GLOVES DEPENDING ON
THE WORKING CONDITION
27. WHEN DISPOSING THE MACHINE OR ITS
PARTS, FOLLOW THE RELEVANT NA-
TIONAL RULES
OBSERVE THE FOLLOWING GENER-
AL CAUTION IN ADDITION TO THE
OTHER WARNINGS CONTAINED IN
THIS MANUAL
•Do not use the tool as a hammer.
•Always carry the tool by the grip, never car-
ry the tool by the air hose.
•The tool must be used only for the purpose
it was designed.
•Never remove, tamper with the operating
controls (e.g., TRIGGER, CONTACT ARM)
•Keep the tool in a dry place out of reach of
children when not in use.
•Do not use the tool without Safety Warning
label.
•Do not modify the tool from original design
or function without approval by MAX CO.,
LTD.

7
2. SPECIFICATIONS AND TECHNICAL DATA
1. NAME OF PARTS
2. TOOL SPECIFICATIONS
∗The compact design of the tool allows you to use in the narrow space.
3. FASTENER SPECIFICATIONS
1Frame
2Cylinder Cap
3Contact Arm
4Nose
5Magazine
6Trigger
7Grip
8Exhaust Cover
9Pusher
0Adjustment Dial
PRODUCT NO. SN883-90CH/34 (CE) SN883-100CH/34 (CE)
HEIGHT 316mm (12-1/2") 344 mm (13-1/2")
WIDTH 121 mm (4-3/4") 121 mm (4-3/4")
LENGTH 435 mm (17-1/8") 435 mm (17-1/8")
WEIGHT 3.3 kg (7.28 lbs.) 3.4 kg (7.51 lbs.)
RECOMMENDED
OPERATING PRESSURE 5 to 7 bar (70 to 100 p.s.i.) 5 to 7 bar (70 to 100 p.s.i.)
LOADING CAPACITY 90 Nails 90 Nails
AIR CONSUMPTION 2.18 l at 6 bar (90 p.s.i.)
operating pressure
2.4 l at 6 bar (90 p.s.i.)
operating pressure
PRODUCT NO. SN883-90CH/34 (CE) SN883-100CH/34 (CE)
NAIL LENGTH 50 to 90 mm (2" to 3-1/2") 65 to 100 mm (2-1/2" to 4")
SHANK DIAMETER 2.8 to 3.3 mm (.110" to .131") 2.8 to 3.3 mm (.110" to .131")
SHANK TYPE Smooth, Ring, Screw Smooth, Ring, Screw
HEAD DIAMETER 6.5 to 7.7 mm (.256" to .303") 6.5 to 7.7 mm (.256" to .303")
COLLATION ANGLE 34 degree 34 degree
HEAD Clipped head Clipped head
1
2
8
4
396
5
0
7

8
TOOL AIR FITTINGS:
This tool uses a 3/8" N.P.T. male plug. The in-
side diameter should be 9.9mm (.39") or larger.
The fitting must be capable of discharging tool air
pressure when disconnected from the air supply.
RECOMMENDED OPERATING PRES-
SURE:
5 to 7 bar (70 to 100 p.s.i.). Select the operating
air pressure within this range for best fastener
performance.
DO NOT EXCEED 8 bar (120 p.s.i.).
4. TECHNICAL DATA
1NOISE
A-weighted single-event sound power level
SN883-90CH/34 ------ LWA, 1s, d 93.64 dB
SN883-100CH/34 ------ LWA, 1s, d 94.98 dB
A-weighted single-event emission sound
pressure level at work station
SN883-90CH/34 ------ LpA, 1s, d 84.19 dB
SN883-100CH/34 ------ LpA, 1s, d 85.52 dB
These values are determined and docu-
mented in accordance to EN12549 : 1999.
2VIBRATION
Vibration characteristic value
SN883-90CH/34 ------ 4.46 m/s2
SN883-100CH/34 ------ 4.38 m/s2
These values are determined and document-
ed in accordance with ISO 8662-11.
This value is a tool-related characteristic val-
ue and does not represent the influence to the
hand-arm-system when using the tool. An in-
fluence to the hand-arm-system when using
the tool will, for example, depend on the grip-
ping force, the contact pressure force, the
working direction, the adjustment of mains
supply, the workpiece, the workpiece support.
5. APPLICATIONS
∗Floor and wall framing
∗Subflooring
∗Roof and wall sheathing
∗Fencing
3. AIR SUPPLY AND CON-
NECTIONS
READ SECTION TITLED "SAFETY IN-
STRUCTIONS".
DO NOT USE ANY POWER SOURCE EXCEPT
AN AIR COMPRESSOR
The tool is designed to operate on compressed
air. Do not operate the tool on any other high-
pressure gas, combustible gases (e.g., oxygen,
acetylene, etc.) since there is the danger of an
explosion. For this reason, absolutely do not use
anything other than an air compressor to operate
the tool.
OPERATE WITHIN THE PROPER AIR PRES-
SURE RANGE
The tool designed to operate within an air pres-
sure range of 5 to 7 bar (70 to 100 p.s.i.).
The pressure should be adjusted to the type of
the work being fastened. The tool shall never be
operated when the operating pressure exceeds
8 bar (120 p.s.i.).
WARNING
5
7
70
100

9
DO NOT OPERATE THE TOOL NEAR A FLAM-
MABLE SUBSTANCE
Never operate the tool near a flammable sub-
stance (e.g., thinner, gasoline, etc.). Volatile
fumes from these substances could be drawn
into the compressor and compressed together
with the air and this could result in an explosion.
DO NOT USE A WRONG FITTINGS
The connector on the tool must not hold pressure
when air supply is disconnected. If a wrong fitting
is used, the tool can remain charged with air after
disconnecting and thus will be able to drive a fas-
tener even after the air line is disconnected, pos-
sibly causing injury.
DISCONNECT THE AIR SUPPLY AND EMPTY
THE MAGAZINE WHEN THE TOOL IS NOT IN
USE
Always disconnect the air supply from the tool
and empty the magazine when operation has
been completed or suspended, when unattend-
ed, moving to a different work area, adjusting,
disassembling, or repairing the tool, and when
clearing a jammed fastener.
FITTINGS: Install a male plug on the tool which
is free flowing and which will release air pressure
from the tool when disconnected from the supply
source.
HOSES: Hose has a min. ID of 6 mm (1/4") and
max. length of no more than 5 meters (17").
The supply hose should contain a fitting that will
provide "quick disconnecting" from the male plug
on the tool.
SUPPLY SOURCE: Use only clean regulated
compressed air as a power source for the tool.
3-PIECE AIRSET (Air filter, Regulator, Oiler):
Refer to TOOL SPECIFICATIONS for setting the
correct operating pressure for the tool.
NOTE:
A filter will help to get the best performance and
minimum wear from the tool because dirt and
water in the air supply are major causes of wear
in the tool.
Frequent, but not excessive, lubrication is re-
quired for the best performance. Oil added thru
the air line connection will lubricate the internal
parts.
Thinner Gasoline
100
70
5
7
[AIR SUPPLY & CONNECTIONS]
Air filter
Air hose
Regulator
Oiler
3-piece airset
Used at 5 to 7 bar (70 to 100 p.s.i.)
Air compressor

10
4. INSTRUCTIONS FOR OP-
ERATION
READ SECTION TITLED "SAFETY IN-
STRUCTIONS".
1. BEFORE OPERATION
Check the following prior operation.
1Wear Safety Glasses or Goggles.
2Do not connect the air supply.
3Inspect screw tightness.
4Check operation of the contact arm & trigger
if moving smoothly.
5Connect the air supply.
6Check the air-leakage. (The Tool must not
have the air-leakage.)
7Hold the Tool with finger-off the trigger, then
push the contact arm against the work-piece.
(The tool must not operate.)
8Hold the Tool with contact arm free from
work-piece and pull the trigger. (The Tool
must not operate.)
9Disconnect the air supply.
2. OPERATION
Wear safety glasses or goggles. Danger to the
eyes always exists due to the possibility of dust
being blown up by the exhausted air or of a fas-
tener flying up due to the improper handling of
the tool. For these reasons, safety glasses or
goggles shall always be worn when operating
the tool.
The employer and/or user must ensure that
proper eye protection is worn. Eye protection
equipment must conform to the requirements of
Council Directive 89/686/EEC of 21 DEC. 1989
(the American National Standards Institute,
ANSI Z87.1) and provide both frontal and side
protection.
The employer is responsible to enforce the use
of eye protection equipment by the tool operator
and all other personnel in the work area.
NOTE: Non-side shielded spectacles and face
shields alone do not provide adequate protection.
Keep hands and body away from the discharge
outlet when driving the fasteners because of
dangerous of hitting the hands or body by mis-
take.

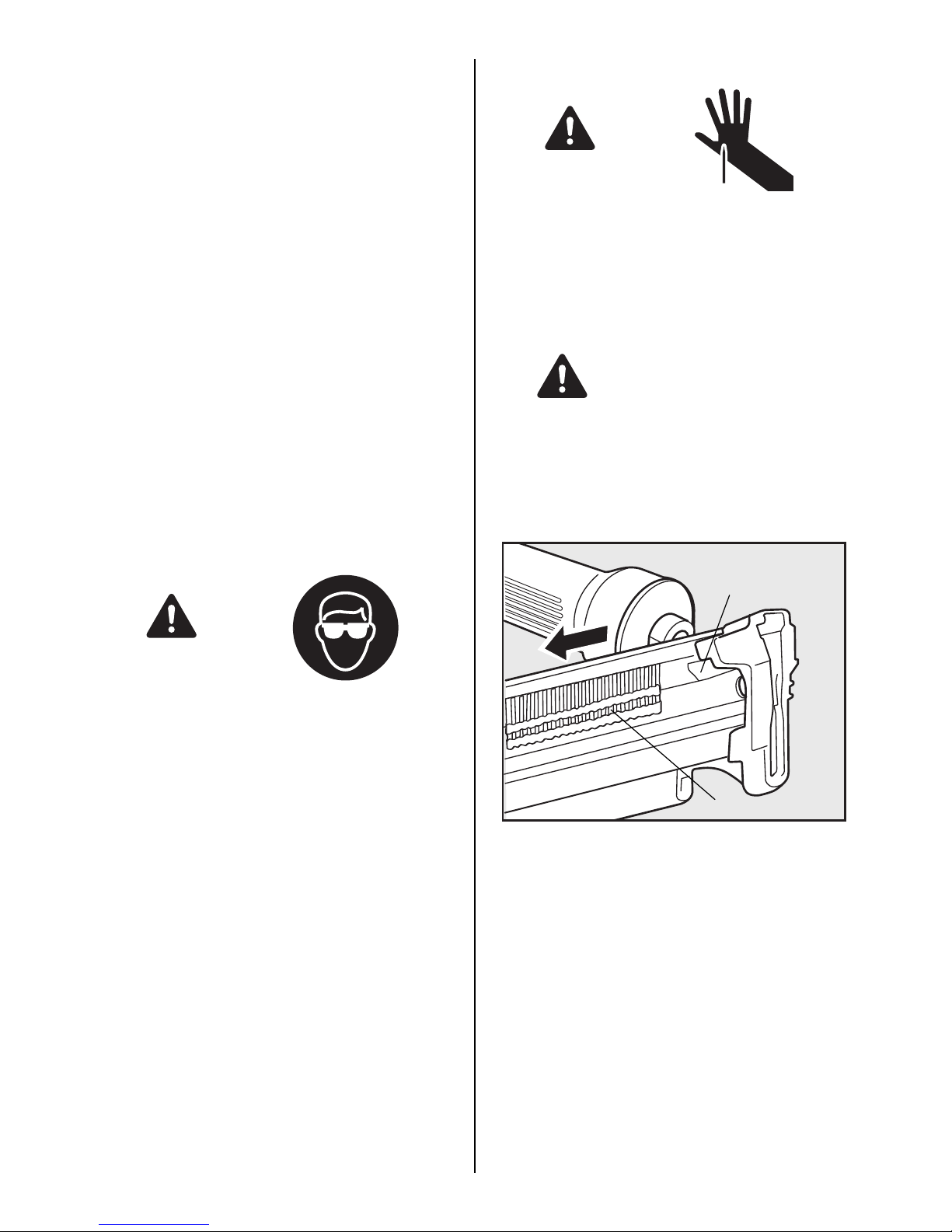

NAIL LOADING
• When loading the nails, be sure to release
the finger from the Trigger.
• Do not press the Contact Arm against the
object.
PROCEDURE
1Load the nails into the slot in the rear of the
Magazine until they go over the Nail Stopper.
WARNING
WARNING
WARNING
Nail Stopper
Nails

11

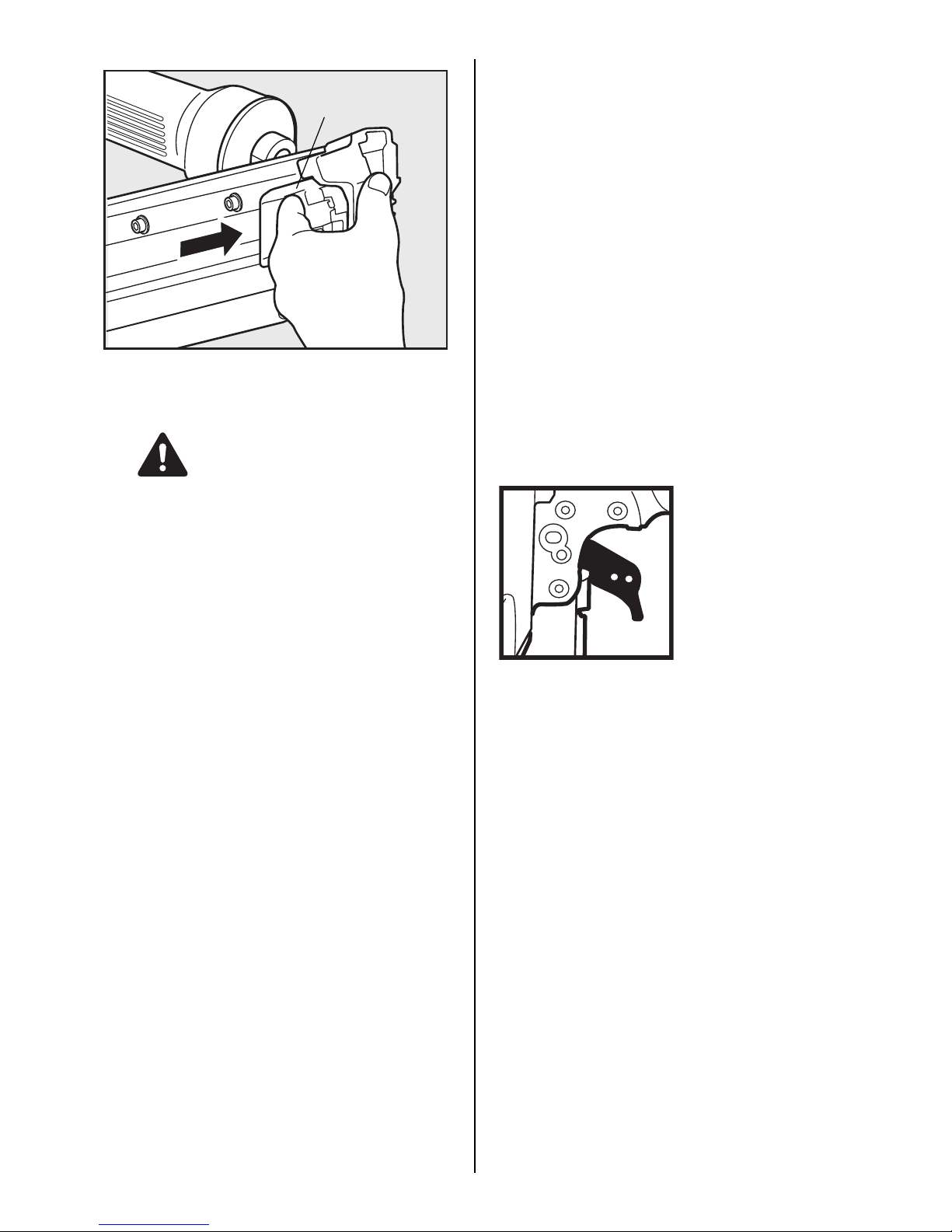

2Pull the Pusher as far as the rear end of the
magazine and release it gently.
Abrupt release of the Pusher causes jamming
of nails or dry-firing.
TEST OPERATION
1Adjust the air pressure at 5 bar (70 p.s.i.) and
connect the air supply.
2Without touching the trigger, depress the
contact arm against the work-piece.
Pull the trigger. (The tool must fire the fas-
tener.)
3With the tool off the work-piece, pull the trig-
ger.
Then depress the contact arm against the
work-piece. (The tool must fire the fastener.)
4Adjust the air pressure as much as the low-
est possible according the length of fastener
and the hardness of work-piece.
MODEL IDENTIFICATION
CONTACT TRIP MODEL with ANTI-DOUBLE
FIRE MECHANISM
The anti-double fire mechanism (US patent
5597106, UK patent 2286790) is installed on this
tool.
The common operating procedure on "Contact
Trip" tools is for the operator to contact the work
to actuate the trip mechanism while keeping the
trigger pulled, thus driving a fastener each time
the work is contacted. This will allow rapid fas-
tener placement on many jobs, such as sheath-
ing, decking and pallet assembly. All pneumatic
tools are subject to recoil when driving fasteners.
The tool may bounce, releasing the trip, and if
unintentionally allowed to re-contact the work
surface with the trigger still actuated (finger still
holding trigger pulled) an unwanted second fas-
tener will be driven.
CONTACT TRIP WITH ANTI-DOUBLE FIRE
MECHANISM
(US patent 5597106, UK patent 2286790)
Identified by RED TRIGGER.
Pusher
CAUTION

12

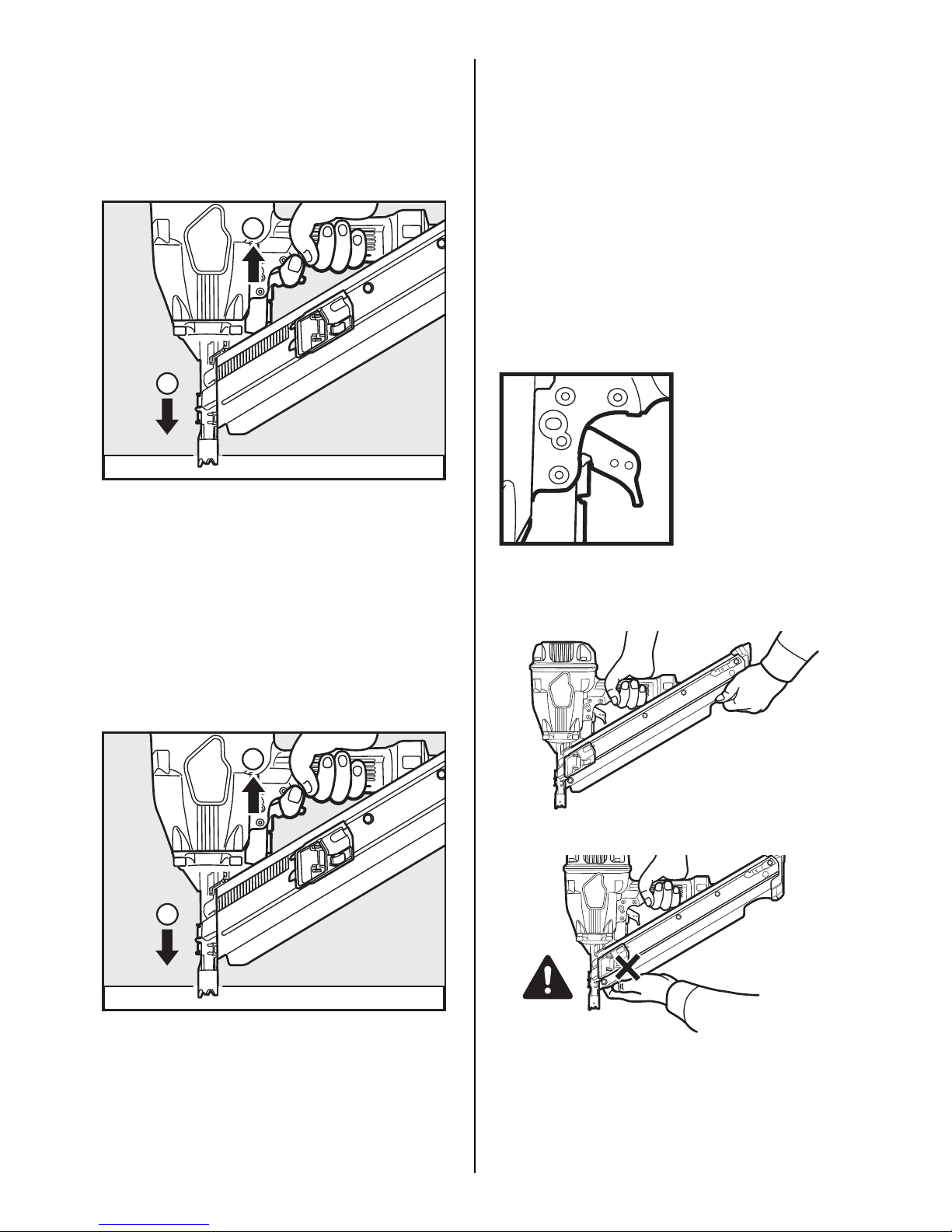

DRIVING FASTENERS
CONTACT FIRE OPERATION
For contact fire operation, hold the Trigger and
depress the Contact Arm against the work sur-
face.
PROCEDURE
1Hold the Trigger.
2Depress the Contact Arm.
SINGLE FIRE OPERATION
(ANTI-DOUBLE FIRE MECHANISM)
For single fire operation, depress the Contact
Arm against the work surface and pull the Trig-
ger. Tool cannot fire a second nail until the Trig-
ger is released and tool can cycle.
PROCEDURE
1Depress the Contact Arm.
2Pull the Trigger.
SEQUENTIAL TRIP
The Sequential Trip requires the operator to hold
the tool against the work before pulling the trig-
ger. This makes accurate fastener placement
easier, for instance on framing, toe nailing and
crating applications. The Sequential Trip allows
exact fastener location without the possibility of
driving a second fastener on recoil, as described
under "Contact Trip".
The Sequential Trip Tool has a positive safety
advantage because it will not accidentally drive a
fastener if the tool is contacted against the work-
or anything else-while the operator is holding the
trigger pulled.
SEQUENTIAL TRIP
Identified by ORANGE TRIGGER.
When using the tool with both hands;
Hold the rear of the magazine to use.
Do not hold the front of the magazine because
your hand may be injured by nails.
2
1
1
2
WARNING

13

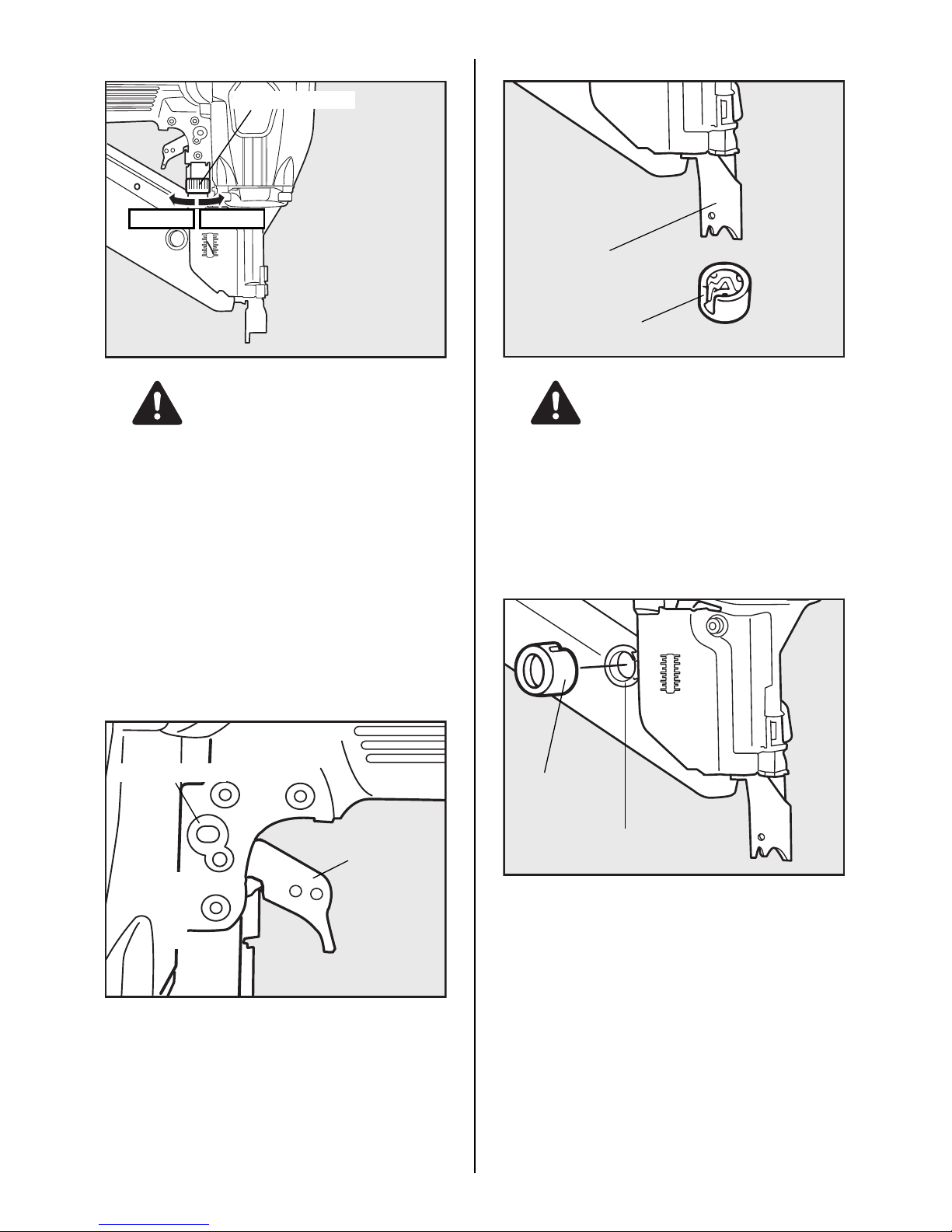

ADJUSTABLE DIAL DEPTH CONTROL
ALWAYS disconnect air supply before dial ad-
justment.
1With air pressure set, drive nails into a repre-
sentative material sample to determine if ad-
justment is necessary.
2If adjustment is required, disconnect air sup-
ply.
3Refer to the mark on the Adjust Spacer for di-
rection to turn the adjustment dial.
4Reconnect air supply.
TRIGGER LOCK MECHANISM
TRIGGER LOCK MECHANISM
The tool is equipped with a trigger lock mecha-
nism. Push and rotate the trigger LOCK to the
trigger UNLOCK position before driving nails.
CONTACT TIP
ALWAYS disconnect air supply before attach-
ing / detaching the contact tip.
Attach the Contact Tip on the tip of Contact Arm,
when driving nails to a soft material.
The Contact Tip can be kept on the Contact Tip
holder when not using.
Adjustment Dial
Deeper Shallow
WARNING
Trigger lock dial
(UNLOCK)
(LOCK)
Trigger
Contact Arm
Contact Tip
WARNING
Contact Tip
Contact Tip holder

14

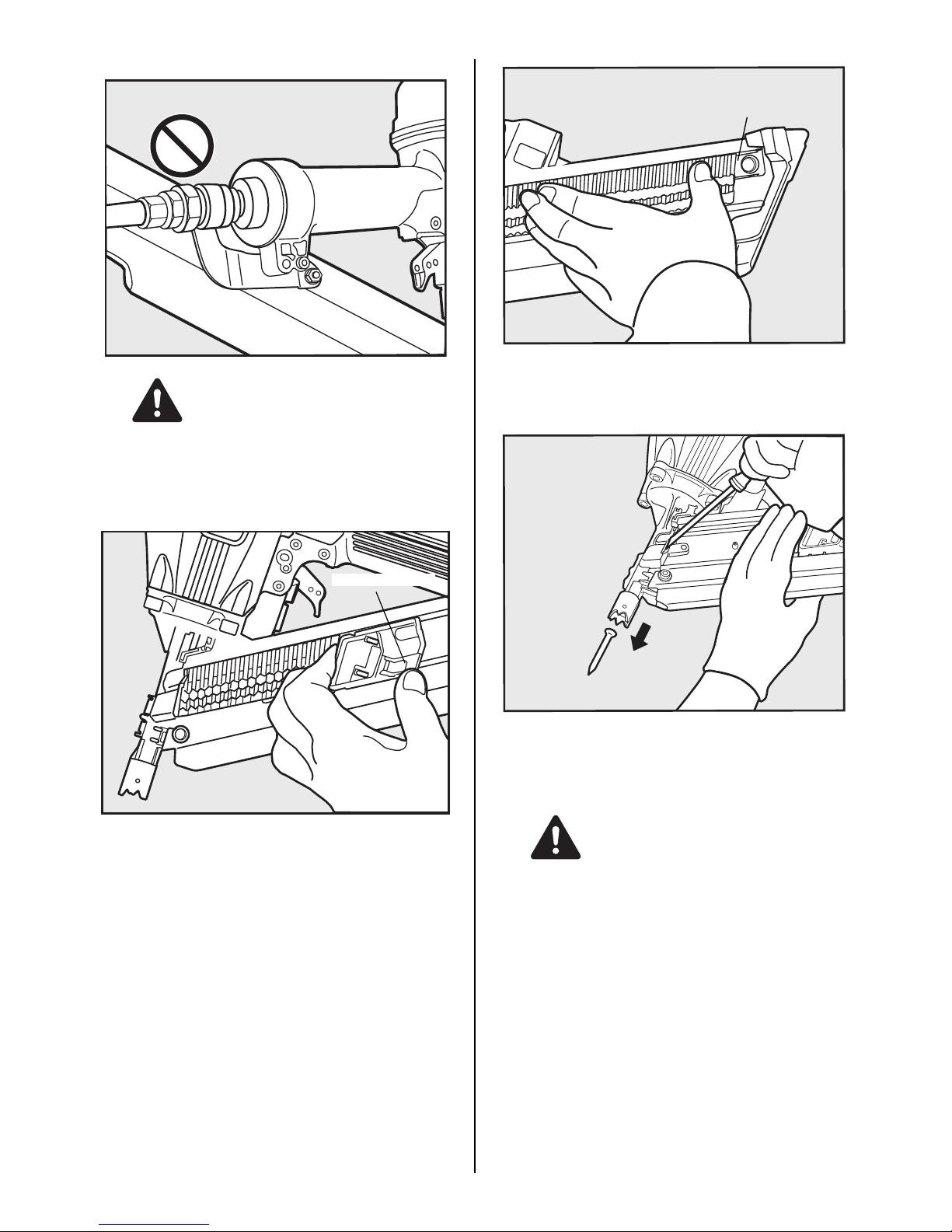

REMOVING JAMMED NAILS
ALWAYS disconnect air supply before remov-
ing jammed nails.
PROCEDURE
1Push down the Pusher Lever and release
the strip nails from the Pusher.
2Push the Nail Stopper, and remove the strip
nails from inside of the Magazine.
3Pull and stayed the Pusher with hand.
4Remove the jammed nail from the Nose us-
ing a punch or a slotted screw driver.
When removing the jammed nail, wear the
gloves.
Do not remove the jammed nail with your bare
hands.
WARNING
Pusher Lever
Nail Stopper
WARNING

15
5. MAINTENANCE
1ABOUT PRODUCTION YEAR
This product bears production number at the
lower part of the grip of the main body. The
two digits of the number from left indicates
the production year.
2DO NOT FIRE THE STAPLER WHEN IT IS
EMPTY
3USE A 3-PIECE AIRSET
Failure to use a 3-piece airset allows the
moisture and dirt inside compressor to pass
into the tool directly. This causes rust and
wear, and results in a poor operating per-
formance. The hose length between airset
and tool should be no longer than 5 m since
a longer length results in a reduction in air
pressure.
4USE RECOMMENDED OIL
The velocite or turbine oil should be used to
lubricate the tool. Upon completion of opera-
tions, place 2 or 3 drops of oil into the air plug
inlet with the jet oiler. (Recommended Oil :
ISO VG32)
5INSPECT AND MAINTAIN DAILY OR BE-
FORE OPERATION
Disconnect air supply and empty the maga-
zine when inspecting or maintaining the tool.
(1) Drain air line filter and compressor
(2) Keep lubricator filled in air 3-pieces set
(3) Clean filter element of air 3-pieces set
(4) Tighten all screws
(5) Keep contact arm moving smoothly
6. STORAGE
1When not in use for an extended period, ap-
ply a thin coat of the lubricant to the steel
parts to avoid rust.
2Do not store the tool in a cold weather envi-
ronment. Keep the tool in a warm area.
3When not in use, the tool should be stored in
a warm and dry place. Keep out of reach of
children.
4All quality tools will eventually require servic-
ing or replacement of parts because of wear
from the normal use.
7. TROUBLE SHOOTING/RE-
PAIRS
The troubleshooting and/or repairs shall be car-
ried out only by the MAX CO., LTD. authorised
distributors or by other specialists.
Supplement to the operating instruction
According to the European Norm EN 792-13 the
regulation is valid from 01.01.2001 that all fas-
tener driving tools with contact actuation must be
marked with the symbol "Do not use on scaffold-
ings, ladders" and they shall not be used for spe-
cific application for example:
∗when changing one driving location to another
involves the use of scaffoldings, stairs, ladders
or ladder alike constructions e.g. roof laths,
∗closing boxes or crates,
∗fitting transportation safety systems e.g. on ve-
hicles and wagons.
(Example)
0 8 8 2 6 0 3 5 D
Year 2008
WARNING
