Maxon TE-25 User manual

© 2017 MAXON LIFT CORP.
M-16-35
REV A
MAY 2017


LIFT CORP.
11921 Slauson Ave.
Santa Fe Springs, CA. 90670
CUSTOMER SERVICE:
TELEPHONE (562) 464-0099 TOLL FREE (800) 227-4116
FAX: (888) 771-7713
WARRANTY/ RMA POLICY & PROCEDURE
NOTE: For latest version of all Manuals (and replacements), download the
Manuals from Maxon’s website at www.maxonlift.com.
LIFTGATE WARRANTY
Type of Warranty: Full Parts and Labor
Term of Warranty: Standard Liftgates - 2 years from ship date or 6,000 cycles
Premium Liftgates - 2 years from ship date or 10,000 cycles
This warranty shall not apply unless the product is installed, operated and maintained in accordance with MAXON Lift’s specifications as set forth in
MAXON Lift’s Installation, Operation and Maintenance manuals. This warranty does not cover normal wear, maintenance or adjustments, damage or
malfunction caused by improper handling, installation, abuse, misuse, negligence, or carelessness of operation. In addition, this warranty does not
cover equipment that has had unauthorized modifications or alterations made to the product.
MAXON agrees to replace any components which are found to be defective during the first 2 years of service, and will reimburse for labor based on
MAXON’s Liftgate Warranty Flat Rate Schedule. (Copy of the Flat Rate is available at www.maxonlift.com.)
All warranty repairs must be performed by an authorized MAXON warranty facility. For any repairs that may exceed $500, including parts and labor,
MAXON’s Technical Service Department must be notified and an “Authorization Number” obtained.
All claims for warranty must be received within 30 Days of the repair date, and include the following information:
1. Liftgate Model Number and Serial Number
2. The End User must be referenced on the claim
3. Detailed Description of Problem
4. Corrective Action Taken, and Date of Repair
5. Parts used for Repair, Including MAXON Part Number(s)
6. MAXON R.M.A. # and/or Authorization # if applicable (see below)
7. Person contacted at MAXON if applicable
8. Claim must show detailed information i.e. Labor rate and hours of work performed
Warranty claims can also be placed online at www.maxonlift.com. Online claims will be given priority processing.
All claims for warranty will be denied if paperwork has not been received or claim submitted via Maxon website for processing by MAXON’s Warranty
Department within 30 days of repair date.
All components may be subject to return for inspection, prior to the claim being processed. MAXON products may not be returned without prior written
approval from MAXON’s Technical Service Department. Returns must be accompanied by a copy of the original invoice or reference with original
invoice number and are subject to a credit deduction to cover handling charges and any necessary reconditioning costs. Unauthorized returns will be
refused and will become the responsibility of the returnee.
Any goods being returned to MAXON Lift must be pre-approved for return, and have the R.M.A. number written on the outside of the package in plain
view, and returned freight prepaid. All returns are subject to a 15% handling charge if not accompanied by a detailed packing list. Returned parts
are subject to no credit and returned back to the customer. Defective parts requested for return must be returned within 30 days of the claim date for
consideration to:
MAXON Lift Corp.
10321 Greenleaf Ave., Santa Fe Springs, CA 90670
Attn: RMA#__
MAXON’s warranty policy does not include the reimbursement for travel time, towing, vehicle rental, service calls, oil, batteries or loss of income due to
downtime. Fabrication or use of non Maxon parts, which are available from MAXON, are also not covered.
MAXON’s Flat Rate Labor Schedule takes into consideration the time required for diagnosis of a problem.
All Liftgates returned are subject to inspection and a 15% restocking fee. Any returned Liftgates or components that have been installed or not returned
in new condition will be subject to an additional reworking charge, which will be based upon the labor and material cost required to return the Liftgate or
component to new condition.
PURCHASE PART WARRANTY
Term of Warranty: 1 Year from Date of Purchase.
Type of Warranty: Part replacement only. MAXON will guarantee all returned genuine MAXON replacement parts upon receipt and inspection of parts
and original invoice.
All warranty replacements parts will be sent out via ground freight. If a rush shipment is requested, all freight charges will be billed to the requesting
party.

SUMMARY OF CHANGES: M-16-33, REVISION A
PAGE DESCRIPTION OF CHANGE
COVER Updated revision and date.
18-20 Removed information pertaining to ramp flipover.
31 Corrected input and output terminal callouts for the power down module on
the power down electrical diagram.

TABLE OF CONTENTS
SUMMARY OF CHANGES: M-16-33, REVISION A............................................................. 4
WARNINGS........................................................................................................................... 7
SAFETY INSTRUCTIONS .................................................................................................... 8
LIFTGATE TERMINOLOGY.................................................................................................. 9
PERIODIC MAINTENANCE................................................................................................ 10
PERIODIC MAINTENANCE CHECKS................................................................................ 10
PERIODIC MAINTENANCE CHECKLIST............................................................................11
CHECKING HYDRAULIC OIL............................................................................................. 13
CHANGING HYDRAULIC OIL............................................................................................. 15
PLATFORM ADJUSTMENT................................................................................................ 18
REPLACING PLATFORM TORSION SPRING................................................................... 21
SAFETY HOOK MAINTENANCE........................................................................................ 23
DECALS & PLATES ........................................................................................................... 24
PUMP, MOTOR & SOLENOID OPERATION - GRAVITY DOWN.......................................26
PUMP, MOTOR & SOLENOID OPERATION - POWER DOWN.........................................27
HYDRAULIC SYSTEM DIAGRAMS................................................................................... 28
HYDRAULIC SCHEMATIC (GRAVITY DOWN)................................................................... 28
HYDRAULIC SCHEMATIC (POWER DOWN) ....................................................................29
ELECTRICAL SYSTEM DIAGRAMS ................................................................................. 30

11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
6
ELECTRICAL SCHEMATIC (GRAVITY DOWN) ................................................................. 30
ELECTRICAL SCHEMATIC (POWER DOWN)................................................................... 31
TROUBLESHOOTING........................................................................................................ 32
PLATFORM WILL NOT RAISE............................................................................................ 32
PLATFORM RAISES BUT LEAKS DOWN..........................................................................33
PLATFORM RAISES PARTIALLY AND STOPS.................................................................. 34
LIFTGATE WILL NOT LIFT RATED CAPACITY.................................................................. 35
PLATFORM RAISES SLOWLY........................................................................................... 36
PLATFORM WILL NOT LOWER, LOWERS TOO SLOWLY OR TOO QUICKLY................ 37

11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
7
WARNINGS
•Do not stand, or allow obstructions, under the platform when lowering the Liftgate. Be sure your
feet are clear of the Liftgate.
• Keep fingers, hands, arms, legs, and feet clear of moving Liftgate parts (and platform
edges) when operating the Liftgate.
•Disconnect Liftgate power cable from battery before repairing or servicing Liftgate.
Comply with the following WARNINGS and SAFETY INSTRUCTIONS while maintaining
Liftgates. See Operation Manual for operating safety requirements.
•If it is necessary to stand on the platform while maintaining the Liftgate, keep your feet and any
objects clear of the inboard edge of the platform. Your feet or objects on the platform can become
trapped between the platform and the Liftgate extension plate.
WARNING
!
• Correctly stow platform when not in use. Extended platforms could create a hazard for
people and vehicles passing by.
•Recommended practices for welding on steel parts are contained in the current AWS (American
Welding Society) D1.1 Structural Welding Code - Steel. Damage to Liftgate and/or vehicle, and
personal injury could result from welds that are done incorrectly.
•Recommended practices for welding on aluminum parts are contained in the current AWS
(American Welding Society) D1.2 Structural Welding Code - Aluminum. Damage to Liftgate
and/or vehicle, and personal injury could result from welds that are done incorrectly.
•Recommended practices for welding galvanized steel are contained in the current AWS (Ameri-
can Welding Society) D19.0 Welding Zinc-Coated Steel. Damage to Liftgate and/or vehicle,
and personal injury can result from welds that are done incorrectly.

11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
8
SAFETY INSTRUCTIONS
•Keep decals clean and legible. If decals are illegible or missing, replace them. Free replacement
decals are available from Maxon Customer Service.
•Consider the safety and location of bystanders and location of nearby objects when operating the
Liftgate. Stand to one side of the platform while operating the Liftgate.
•Wear appropriate safety equipment such as protective eyeglasses, faceshield and clothing while
performing maintenance on the Liftgate and handling the battery. Debris from drilling and contact
with battery acid may injure unprotected eyes and skin.
•Do not allow untrained persons to operate the Liftgate.
•Be careful working by an automotive type battery. Make sure the work area is well ventilated and
there are no flames or sparks near the battery. Never lay objects on the battery that can short the
terminals together. If battery acid gets in your eyes, immediately seek first aid. If acid gets on your
skin, immediately wash it off with soap and water.
•If an emergency situation arises (vehicle or Liftgate) while operating the Liftgate, release the con-
trol switch to stop the Liftgate.
•Read and understand the instructions in this Maintenance Manual before performing mainte-
nance on the Liftgate.
•Before operating the Liftgate, read and understand the operating instructions in Operation
Manual.
•Comply with all WARNING and instruction decals attached to the Liftgate.
•A correctly installed Liftgate operates smoothly and reasonably quiet. The only noticeable noise
during operation comes from the power unit while the platform is raised. Listen for scraping, grat-
ing and binding noises and correct the problem before continuing to operate Liftgate.
•Use only Maxon Authorized Parts for replacement parts. Provide Liftgate model and serial num-
ber information with your parts order. Order replacement parts from:
MAXON LIFT CORP. Customer Service
11921 Slauson Ave., Santa Fe Springs, CA 90670
Online: www.maxonlift.com
Express Parts Ordering: Phone (800) 227-4116 ext. 4345
Email: Ask your Customer Service representative
SAFETY INSTRUCTIONS

11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
9
LIFTGATE TERMINOLOGY
LIFT FRAME
CONTROL
SWITCH
PARALLEL
ARM
PLATFORM
LIFT
CYLINDER
EXTENSION
PLATE
DOCK
BUMPER
PUMP BOX
(COVER SHOWN)
MAIN
FRAME
RAMP FLIPOVER
(WEDGE IS AVAILABLE)
PLATFORM
OPENER
STEP

11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
10
PERIODIC MAINTENANCE
PERIODIC MAINTENANCE CHECKS
Never operate the Liftgate if parts are loose or missing.
WARNING
NOTE: Make sure vehicle is parked on level ground while performing the
maintenance checks.
Quarterly or 1250 Cycles (whichever occurs first)
Semi-annually or 2500 Cycles (whichever occurs first)
Visually check the platform hinge pins for excessive wear and broken welds. See PARTS
BREAKDOWN section for replacement parts. Also, do the Quarterly or 1250 Cycles
maintenance checks.
Check the hydraulic fluid level in the pump reservoir. Refer to the CHECKING HYDRAULIC
FLUID procedure in the PERIODIC MAINTENANCE section.
If hydraulic fluid appears contaminated, refer to the CHANGING HYDRAULIC FLUID
procedure in the PERIODIC MAINTENANCE section.
Keep track of the grade of hydraulic fluid in the pump reservoir and never mix two different
grades of fluid.
Check all hoses and fittings for chafing and fluid leaks. Tighten loose fittings or replace
parts as required.
Check electrical wiring for chafing and make sure wiring connections are tight and free of
corrosion. Use dielectric grease to protect electrical connections.
Check that all WARNING and instruction decals are in place. Also, make sure decals are
legible, clean and undamaged.
Check that all bolts, nuts, and roll pins are in place. Make sure roll pins protrude evenly
from both sides of hinge pin collar. Replace fasteners and roll pins if necessary.
!
Check for rust and oily surfaces on Liftgate. If there is rust or oil on Liftgate, clean it off.
Touch up the paint where bare metal is showing. MAXON recommends using the aluminum
primer touchup paint kit, P/N 908134-01.
Damaged cylinder seals and contaminated hydraulic fluid can result from paint-
ing the polished portion of the cylinder rod. To prevent damage, protect the
exposed polished portion of the cylinder rod while painting.
CAUTION
Pump EP chassis grease in each lube fitting on the cylinders and arms until grease
starts oozing from ends of the bearings. The lubrication diagram on the PERIODIC
MAINTENANCE CHECKLIST SHEET shows where to find the lube fittings. Wipe off
excess grease with a clean lint-free cloth.

11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
11
PERIODIC MAINTENANCE CHECKLIST
NOTE: Make sure vehicle is parked on level ground while performing the
maintenance checks.
Quarterly or 1250 Cycles (whichever occurs first)
Semi-annually or 2500 Cycles (whichever occurs first)
Check the level and condition of the hydraulic fluid.
Check that all WARNING and instruction decals are in place. Also, make sure decals
are legible and decals are clean and undamaged.
Check that all bolts, nuts, and roll pins are in place. Make sure roll pins protrude evenly
from both sides of hinge pin collar. Replace fasteners and roll pins if necessary.
Visually check the platform hinge pins for excessive wear and broken welds.
Do the Quarterly or 1250 Cycles Checks on this checklist.
Check for rust and oily surfaces on Liftgate. If there is rust or oil on Liftgate or if the Lift-
gate is dirty, clean it off. Touch up the paint where bare metal is showing. To maintain
the protection provided by the original paint system, MAXON recommends aluminum
primer touchup paint kit, P/N 908134-01.
Check electrical wiring for chafing and make sure wiring connections are tight and free
of corrosion. Use dielectric grease to protect electrical connections.
Visually check all hoses for chafing and fluid leaks. Tighten loose fittings or replace
parts as required.
Damaged cylinder seals and contaminated hydraulic fluid can result from
painting the polished portion of the cylinder rod. To prevent damage,
protect the exposed polished portion of the cylinder rod while painting.
CAUTION
Pump EP chassis grease in each lube fitting on the cylinders and arms until grease
starts oozing from ends of the bearings. Refer to lubrication diagram on the next
page. Wipe off excess grease with a clean lint-free cloth.

11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
12
PERIODIC MAINTENANCE
PERIODIC MAINTENANCE CHECKLIST - Continued
NOTE: Lube fittings are shown for the cylinder, LH lift arm, and LH parallel
arm. There are also lube fittings at the same places on the RH
cylinder, lift arm, and parallel arm.
LUBRICATION DIAGRAM
FIG. 12-1
RH LIFT ARM &
PARALLEL ARM
CYLINDER
LH LIFT ARM &
PARALLEL ARM
Refer to lubrication diagram (FIG. 12-1) to find the lube
fittings on cylinders and arms. Pump EP chassis grease
in each lube fitting on the cylinders and arms until grease
starts oozing from ends of the bearings. Then, wipe off
excess grease with a clean lint-free cloth.

11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
13

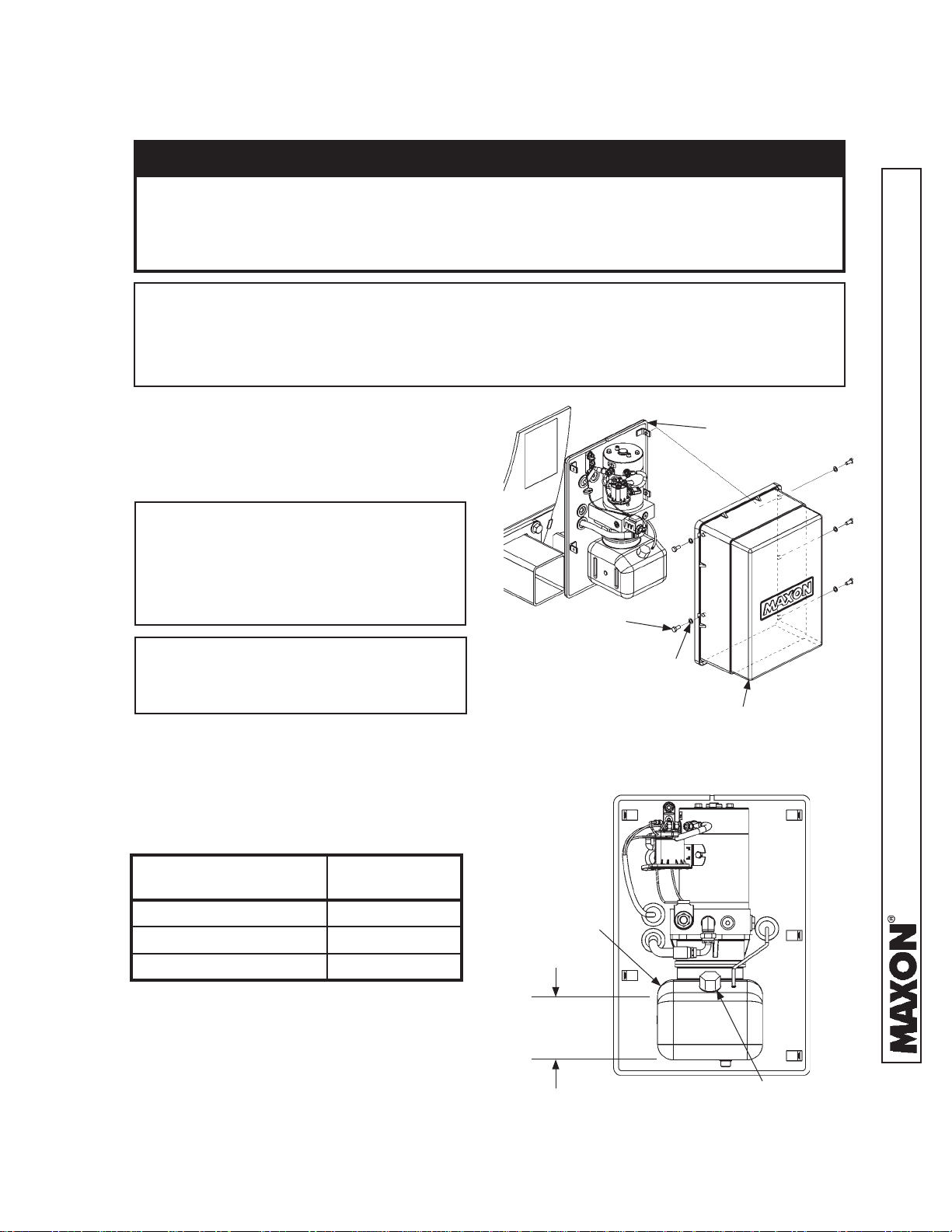

CHECKING HYDRAULIC OIL
1. Unbolt & remove pump cover
(FIG. 13-1).
2. For gravity down power unit, check the
hydraulic fluid level “H” in reservoir (FIG.
13-2 and TABLE 13-1). If needed, add
fluid to the reservoir as follows.
PLATFORM POSITION FLUID LEVEL
“H”
STOWED 1-7/8” to 2-3/8”
VEHICLE BED HEIGHT 1-7/8” to 2-3/8”
ON THE GROUND 3-1/2” to 4”
GRAVITY DOWN FLUID LEVEL
TABLE 13-1
3. Pull out (no threads) filler cap (FIG. 13-2).
Fill the reservoir with hydraulic fluid to level
“H” shown in FIG. 13-2 and TABLE 13-1.
Reinstall filler cap (FIG. 13-2).
NOTE: If the hydraulic fluid in the
reservoir is contaminated, do
the CHANGING HYDRAULIC
FLUID procedure in this
section.
NOTE: If you have a power down
power unit, skip instructions 2
& 3.
CAUTION
Keep dirt, water and other contaminants from entering the hydraulic system.
Before opening the hydraulic fluid reservoir filler cap, drain plug and
hydraulic lines, clean up contaminants that can get in the openings. Also,
protect the openings from accidental contamination.
UNBOLTING / BOLTING PUMP COVER
FIG. 13-1
PUMP COVER
FLAT WASHERS
(5 PLACES)
POWER UNIT
(REF)
CAP SCREWS
(5 PLACES)
GRAVITY DOWN POWER UNIT
FIG. 13-2
FILLER CAP
RESERVOIR
“H”
+50 to +120 Degrees F - Grade ISO 32
Below + 70 Degrees F - Grade ISO 15 or MIL-H-5606
NOTE: Liftgate is shipped with ISO 32 oil. Use correct oil for climate conditions.
See TABLES 14-2 & 14-3 for recommended brands of ISO 32 & ISO 15 oils.

11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
14
TABLE 14-2
6. Bolt on the pump cover (FIG. 13-1).
Torque the cap screws to 10-14
lb-in.
5. Pull out (no threads) filler cap (FIG.
14-1). Fill the reservoir with hydraulic
fluid to level “H” shown in FIG. 14-1
and TABLE 14-1. Reinstall filler cap
(FIG. 14-1).
POWER DOWN FLUID LEVEL
TABLE 14-1
4. For power down power unit, check the hydraulic
fluid level “H” in reservoir (FIG. 14-1 and TABLE
14-1). If needed, add fluid to the reservoir as fol-
lows.
PLATFORM POSITION FLUID LEVEL
“H”
STOWED 2-5/8” to 3-1/8”
VEHICLE BED HEIGHT 2-5/8” to 3-1/8”
ON THE GROUND 2-3/8” to 2-7/8”
ISO 32 HYDRAULIC OIL
RECOMMENDED
BRANDS PART NUMBER
CHEVRON HIPERSYN 32
KENDALL GOLDEN MV
SHELL TELLUS S2 VX 32
EXXON UNIVIS N-32
MOBIL DTE-13M, DTE-24,
HYDRAULIC OIL-13
PERIODIC MAINTENANCE
CHECKING HYDRAULIC OIL - Continued
POWER DOWN POWER UNIT
FIG. 14-1
FILLER
CAP “H”
RESERVOIR
TABLE 14-3
ISO 15 OR MIL-H-5606 HYDRAULIC OIL
RECOMMENDED
BRANDS PART NUMBER
CHEVRON FLUID A, AW-MV-15
KENDALL GLACIAL BLU
SHELL TELLUS S2 VX 15
EXXON UNIVIS HVI-13
MOBIL DTE-11M
ROSEMEAD THS FLUID 17111

11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
15
CHANGING HYDRAULIC OIL
3. Disconnect the white wire (FIG. 15-2) from starter
solenoid. Lower the platform while draining the
remaining hydraulic fluid from system. Reinstall
drain plug. Reconnect the white wire to starter
solenoid.
2. Open and raise platform to vehicle bed height.
Pull out (no threads) drain plug (FIG. 15-1). Drain
hydraulic fluid.
CAUTION
Keep dirt, water and other contaminants from entering the hydraulic system.
Before opening the hydraulic fluid reservoir filler cap, drain plug and hydrau-
lic lines, clean up contaminants that can get in the openings. Also, protect the
openings from accidental contamination.
POWER DOWN LIFTGATES
1. Remove the pump cover (FIG. 13-1). Place empty
5 gallon bucket under drain plug (FIG. 15-1).
4. Pull out (no threads) filler cap (FIG. 15-1) and
refill reservoir with hydraulic fluid to level shown
in FIG. 15-1. Reinstall filler cap (FIG. 15-1).
1.Remove the pump cover (FIG. 13-1). Place empty
5 gallon bucket under drain plug (FIG. 15-1).
GRAVITY DOWN LIFTGATES
2. Lower platform to ground. Pull out (no
threads) drain plug (FIG. 15-1). Drain hydrau-
lic fluid from system. Reinstall drain plug.
3. Pull out (no threads) filler cap (FIG. 15-1) and
refill reservoir with hydraulic fluid to level shown
in FIG. 15-1. Reinstall filler cap (FIG. 15-1).
4. Bolt on the pump cover as shown in FIG. 16-1
Torque the bolts (cap screws) to 10-14 lb-in.
LIFTGATE SHOWN WITH GRAVITY
DOWN PUMP & MOTOR
FIG. 15-1
DRAIN
PLUG FILLER
CAP
3-1/2” - 4”
RESERVOIR
POWER DOWN PUMP
FIG. 15-2
STARTER
SOLENOID
WHITE
WIRE
+50 to +120 Degrees F - Grade ISO 32
Below + 70 Degrees F - Grade ISO 15 or MIL-H-5606
NOTE: Liftgate is shipped with ISO 32 oil. Use correct oil for climate conditions.
See TABLES 14-2 & 14-3 for recommended brands of ISO 32 & ISO 15 oils.

11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
16
PERIODIC MAINTENANCE
CHANGING HYDRAULIC OIL - Continued
5. Bolt on the pump cover as shown
in FIG. 16-1. Torque the cap
screws to 10-14 lb-in.
PUMP COVER
FLAT WASHERS
(5 PLACES)
POWER UNIT
(REF)
CAP SCREWS
(5 PLACES)
BOLTING PUMP COVER
FIG. 16-1

11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
17
THIS PAGE INTENTIONALLY LEFT BLANKTHIS PAGE INTENTIONALLY LEFT BLANK

11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
18
PERIODIC MAINTENANCE
NOTE: Before doing the following procedure, make sure vehicle is parked on level
ground.
PLATFORM ADJUSTMENT
“A”
(TABLE 18-1)
PLATFORM EDGE
ABOVE BED LEVEL
FIG. 18-2
SHACKLES DO NOT TOUCH GROUND
FIG. 18-3A
PLATFORM & SHACKLES
TOUCH GROUND
FIG. 18-1
2. Make sure platform is still at ground level. If
the shackle is not touching the ground, mea-
sure and compare distance “A” (FIG. 18-3A)
with TABLE 18-1 to determine the correct
shim. Next, mark position on shackle (FIG.
18-3B).
1. Make sure platform is at ground level. Unfold
the platform and flipover. As the platform first
touches the ground, shackles and tip of flipover
must touch the ground at the same time (FIG.
18-1).If the shackles and the tip of flipover
touch the ground at the same time, raise plat-
form to bed height. Outboard edge on top of
flipover should be above bed level (FIG. 18-2).
If indications are correct in both cases (FIGS.
18-1 & 18-2), Liftgate is installed correctly and
no adjustment is needed. If indications are
incorrect, continue with instruction 2.
LEVEL LINE
TIP OF
FLIPOVER
OUTBOARD
EDGE
RAISE TIP OF
FLIPOVER
THIS DISTANCE “A”
REQUIRED SHIM
THICKNESS
WELD
SIZE “W”
9/16” 1/16” 1/16”
1-1/4” 1/8” 1/8”
1-15/16” 3/16” 3/16”
2-5/8” 1/4” 1/4”
NOTE: If tip of flipover touches first
(FIG. 18-3A), do instructions 2
and 3. If the shackle touches
first (see FIG. 20-1), skip 2 and
3and do instructions 4 and 5.
SHIMS TO RAISE TIP OF FLIPOVER
TABLE 18-1
MARKING SHIM
POSITION
FIG. 18-3B
1/4”
SHACKLE
PLATFORM STOP
MARK HERE

11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
19
2 PLACES
“W”
(TABLE 18-1)
SHIM
(TABLE 18-1 )
SHACKLE
(REF)
CENTERED

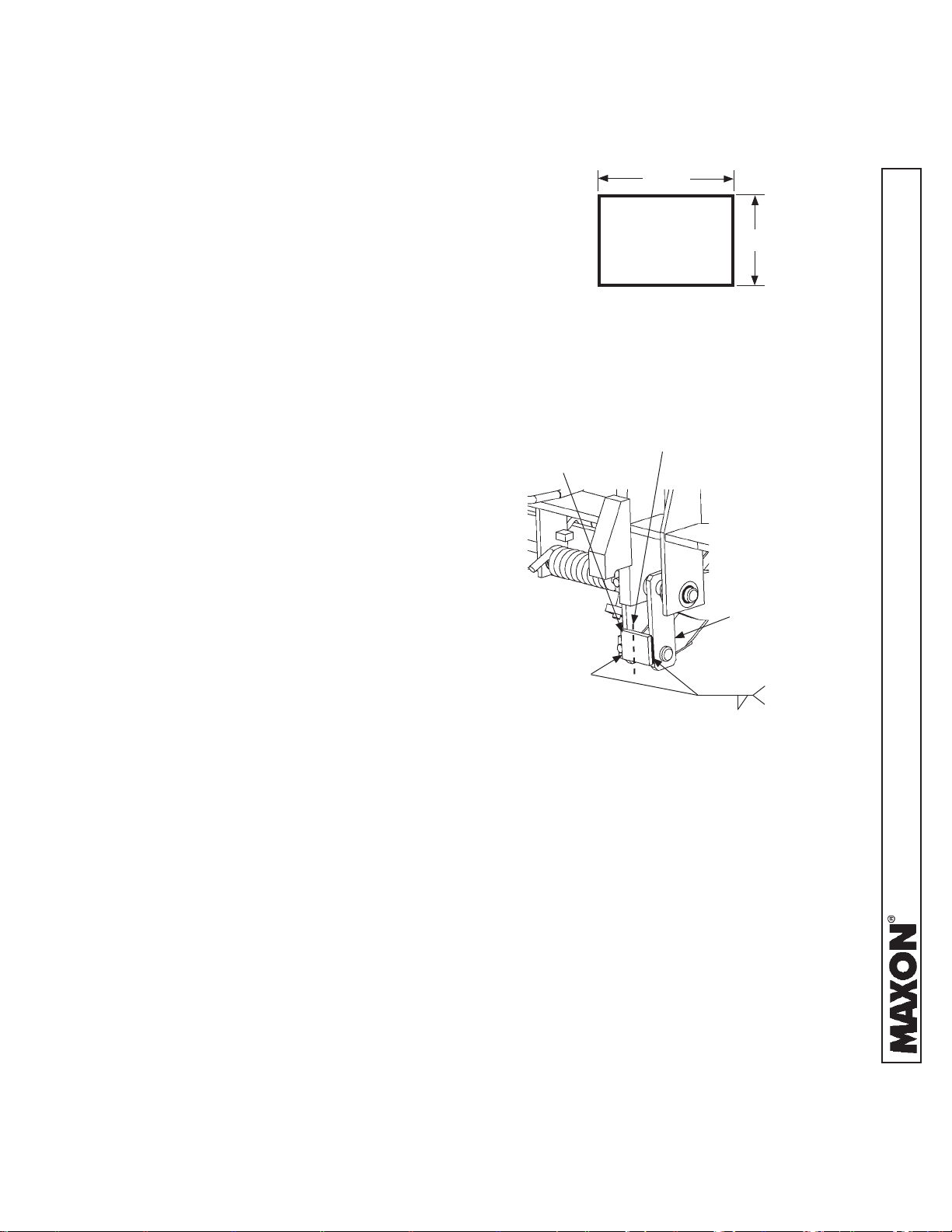

WELDING SHIMS (RH SHACKLE SHOWN)
FIG. 19-2
SHIM (1/16”, 1/8”, 3/16”, or 1/4”)
MADE FROM STEEL FLAT
FIG. 19-1
2-1/4”
1-1/2”
3. Make shims as needed (FIG. 19-1). Posi-
tion bottom edge of shim to line up with
mark on shackle (FIG. 19-2). Then, weld
the shim to shackle as shown in FIG. 19-2.

11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
20
PERIODIC MAINTENANCE
PLATFORM ADJUSTMENT - Continued
4. Make sure platform is still at ground
level. If the tip of flipover is not
touching the ground, measure and
compare distance “B” (FIG. 20-1)
with TABLE 20-1 to determine how
much to grind from the platform
stops (FIG. 20-2).
6. Raise the platform, then lower it to the
ground. As the platform first touches the
ground, the tip of flipover and shackle
should touch at the same time as shown
in FIG. 20-3.
LOWER TIP OF
FLIPOVER
THIS DISTANCE “B”
GRIND METAL FROM
PLATFORM STOP
9/16” 1/16”
1-1/4” 1/8”
1-15/16” 3/16”
2-5/8” 1/4”
GRIND TO LOWER TIP
TABLE 20-1
5. Grind correct amount of metal (TABLE
20-1) from platform stop as shown in
FIG. 20-2.
GRINDING PLATFORM STOPS
(RH SHACKLE SHOWN)
FIG. 20-2
PLATFORM
SHACKLE
(REF)
PLATFORM
STOP
GRIND ENTIRE
SURFACE HERE
(TABLE 20-1)
PLATFORM & SHACKLES
TOUCH GROUND
FIG. 20-3
TIP OF
FLIPOVER
SHACKLE
“B”
(TABLE 20-1)
TIP OF FLIPOVER DOES NOT
TOUCH GROUND
FIG. 20-1
TIP OF
FLIPOVER
Other manuals for TE-25
1
This manual suits for next models
1
Table of contents
Other Maxon Automobile Accessories manuals

Maxon
Maxon GPTLR-25 User manual

Maxon
Maxon T-181 User manual

Maxon
Maxon DMD-22 User manual

Maxon
Maxon DMD series User manual

Maxon
Maxon 297080-01 User manual

Maxon
Maxon 49-SX User manual

Maxon
Maxon 297890-01G User manual

Maxon
Maxon GPC X1-LDF User manual

Maxon
Maxon DMD-22 Operating instructions

Maxon
Maxon 49-HX User manual
