Mayline realoffice Aberdeen Series User manual

1
2
F
Remove drawers from pedestal by depressing the plastic tabs and
pulling the drawer out of cabinet
B
2
3
D

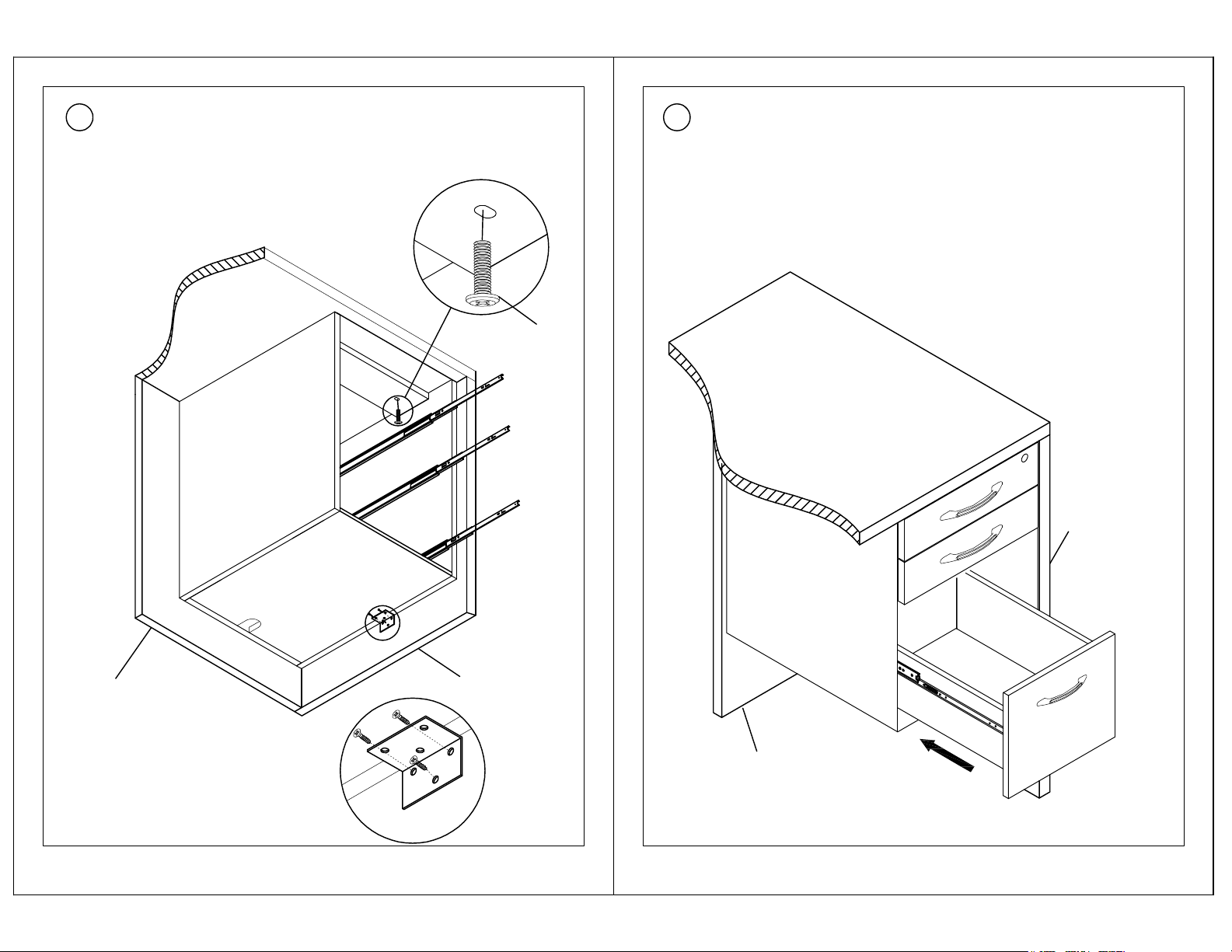

Attach L Bracket (D) to the underside of the pedestal centered, on
the side that will come in contact with the desk leg using Screws
(B)

A
43
5
4
Worksurface
Desk Side Panel
Modesty Panel
Modesty Panel
Attach Pedestal Screws (A), to the inserts in the underside of the
desk Secure L Bracket (D) to the leg of the desk using Screws (B)
Re-install the drawers into the pedestal by lining up the grooves of the
inner slide with the grooves of the outer slides and sliding in
Install Pencil Drawer Dividers (G) into Pencil Drawer
Worksurface
Side Panel

1*
3
3
Drawer Slide 16"
- Pair
REALS307
Drawer Fronts -
Set of 3
APBFDF**
Handle w/ Screws
REALS191
Included
Qty
Part
Included
Qty
Part
Pre-Installed Replacement
Parts List
6
* Available in Cherry (LCR) or Mocha (LDC) finish only
**Denotes Color Code
A
Previous Drawer Slide Was REALS054 Change effective July 10, 2010
