McConnel Twose Series Parts list manual

Twose Series
SWH 8 BALLAST ROLLER
SWR 10 BALLAST ROLLER
2.5 & 3.0M WHEELED TYPE
INSTRUCTION & PARTS MANUAL
Publication No: 5293 May 2016

IMPORTANT
VERIFICATION OF WARRANTY REGISTRATION
DEALER WARRANTY INFORMATION & REGISTRATION VERIFICATION
It is imperative that the selling dealer registers this machine with McConnel Limited before
delivery to the end user – failure to do so may affect the validity of the machine warranty.
To register machines go to the McConnel Limited web site at www.mcconnel.com, log
onto ‘Dealer Inside’ and select the ‘Machine Registration button’which can be found in
the Service Section of the site. Confirm to the customer that the machine has been
registered in the section below.
Should you experience any problems registering a machine in this manner please contact
the McConnel Service Department on 01584 875848.
Registration Verification
Dealer Name:
……………………..…………………………………………………………….
Dealer Address:
…….………………………………………………………………………….
Customer Name:
……………………..…………………………………………………………
Date of Warranty Registration:
……/……/...…… Dealer Signature: ………………..……
NOTE TO CUSTOMER / OWNER
Please ensure that the above section above has been completed and signed by the selling
dealer to verify that your machine has been registered with McConnel Limited.
IMPORTANT: During the initial ‘bedding in’ period of a new machine it is the customer’s responsibility
to regularly inspect all nuts, bolts and hose connections for tightness and re-tighten if required. New
hydraulic connections occasionally weep small amounts of oil as the seals and joints settle in – where
this occurs it can be cured by re-tightening the connection – refer to torque settings chart below.The
tasks stated above should be performed on an hourly basis during the first day of work and at least
daily thereafter as part of the machines general maintenance procedure.
CAUTION: DO NOT OVER TORQUE HYDRAULIC FITTINGS AND HOSES
TORQUE SETTINGS FOR HYDRAULIC FITTINGS
HYDRAULIC HOSE ENDS PORT ADAPTORS WITH BONDED SEALS
BSP
Setting
Metric
BSP
Setting
Metric
1/4” 18 Nm 19 mm 1/4” 34 Nm 19 mm
3/8” 31 Nm 22 mm 3/8” 47 Nm 22 mm
1/2” 49 Nm 27 mm 1/2” 102 Nm 27 mm
5/8” 60 Nm 30 mm 5/8” 122 Nm 30 mm
3/4” 80 Nm 32 mm 3/4” 149 Nm 32 mm
1” 125 Nm 41 mm 1” 203 Nm 41 mm
1.1/4”
190 Nm
50 mm
1.1/4”
305 Nm
50 mm
1.1/2” 250 Nm 55 mm 1.1/2” 305 Nm 55 mm
2” 420 Nm 70 mm 2” 400 Nm 70 mm

WARRANTY POLICY
WARRANTY REGISTRATION
All machines must be registered, by the selling dealer with McConnel Ltd, before delivery to the
end user. On receipt of the goods it is the buyer’s responsibility to check that the Verification of
Warranty Registration in the Operator’s Manual has been completed by the selling dealer.
1. LIMITED WARRANTIES
1.01. All machines supplied by McConnel Ltd are warranted to be free from defects in material and
workmanship from the date of sale to the original purchaser for a period of 12 months, unless
a different period is specified.
1.02. All spare parts supplied by McConnel Ltd and purchased by the end user are warranted to be
free from defects in material and workmanship from the date of sale to the original purchaser
for a period of 6 months. All parts warranty claims must be supported by a copy of the failed
part invoice to the end user. We cannot consider claims for which sales invoices are not
available.
1.03. The warranty offered by McConnel Ltd is limited to the making good by repair or replacement
for the purchaser any part or parts found, upon examination at its factory, to be defective
under normal use and service due to defects in material or workmanship. Returned parts
must be complete and unexamined. Pack the component(s) carefully so that any transit
damage is avoided. All ports on hydraulic items should be drained of oil and securely plugged
to prevent seepage and foreign body ingress. Certain other components, electrical items for
example, may require particular care when packing to avoid damage in transit.
1.04. This warranty does not extend to any product from which McConnel Ltd’s serial number plate
has been removed or altered.
1.05. This warranty does not apply to any part of the goods, which has been subjected to improper
or abnormal use, negligence, alteration, modification, fitment of non-genuine parts, accident
damage, or damage resulting from contact with overhead power lines, damage caused by
foreign objects (e.g. stones, iron, material other than vegetation), failure due to lack of
maintenance, use of incorrect oil or lubricants, contamination of the oil, or which has served
its normal life. This warranty does not apply to any expendable items such as blades, belts,
clutch linings, filter elements, flails, flap kits, skids, soil engaging parts, shields, guards, wear
pads, pneumatic tyres or tracks.
1.06. Temporary repairs and consequential loss - i.e. oil, downtime and associated parts are
specifically excluded from the warranty.
1.07. Warranty on hoses is limited to 12 months and does not include hoses which have suffered
external damage. Only complete hoses may be returned under warranty, any which have
been cut or repaired will be rejected.
1.08. Machines must be repaired immediately a problem arises. Continued use of the machine
after a problem has occurred can result in further component failures, for which McConnel Ltd
cannot be held liable, and may have safety implications.
1.09. If in exceptional circumstances a non McConnel Ltd part is used to effect a repair, warranty
reimbursement will be at no more than McConnel Ltd’s standard dealer cost for the genuine
part.
1.10. Except as provided herein, no employee, agent, dealer or other person is authorised to give
any warranties of any nature on behalf of McConnel Ltd.
1.11. For machine warranty periods in excess of 12 months the following additional exclusions
shall apply:
1.11.1.Hoses, exposed pipes and hydraulic tank breathers.
1.11.2. Filters.
1.11.3. Rubber mountings.
1.11.4. External electric wiring.
1.11.5. Bearings and seals.

1.12. All service work, particularly filter changes, must be carried out in accordance with the
manufacturer’s service schedule. Failure to comply will invalidate the warranty. In the event of
a claim, proof of the service work being carried out may be required.
1.13. Repeat or additional repairs resulting from incorrect diagnosis or poor quality previous repair
work are excluded from warranty.
NB Warranty cover will be invalid if any non-genuine parts have been fitted or used. Use of non-
genuine parts may seriously affect the machine’s performance and safety. McConnel Ltd cannot be
held responsible for any failures or safety implications that arise due to the use of non-genuine parts.
2. REMEDIES AND PROCEDURES
2.01. The warranty is not effective unless the Selling Dealer registers the machine, via the
McConnel Ltd web site and confirms the registration to the purchaser by completing the
confirmation form in the operator’s manual.
2.02. Any fault must be reported to an authorised McConnel Ltd dealer as soon as it occurs.
Continued use of a machine, after a fault has occurred, can result in further component
failure for which McConnel Ltd cannot be held liable.
2.03. Repairs should be undertaken within two days of the failure. Claims submitted for repairs
undertaken more than 2 weeks after a failure has occurred, or 2 days after the parts were
supplied will be rejected, unless the delay has been authorised by McConnel Ltd. Please
note that failure by the customer to release the machine for repair will not be accepted as a
reason for delay in repair or submitting warranty claims.
2.04. All claims must be submitted, by an authorised McConnel Ltd Service Dealer, within 30 days
of the date of repair.
2.05. Following examination of the claim and parts, McConnel Ltd will pay, at their discretion, for
any valid claim the invoiced cost of any parts supplied by McConnel Ltd and appropriate
labour and mileage allowances if applicable.
2.06. The submission of a claim is not a guarantee of payment.
2.07. Any decision reached by McConnel Ltd is final.
3. LIMITATION OF LIABILITY
3.01. McConnel Ltd disclaims any express (except as set forth herein) and implied warranties with
respect to the goods including, but not limited to, merchantability and fitness for a particular
purpose.
3.02. McConnel Ltd makes no warranty as to the design, capability, capacity or suitability for use of
the goods.
3.03. Except as provided herein, McConnel Ltd shall have no liability or responsibility to the
purchaser or any other person or entity with respect to any liability, loss, or damage caused
or alleged to be caused directly or indirectly by the goods including, but not limited to, any
indirect, special, consequential, or incidental damages resulting from the use or operation of
the goods or any breach of this warranty. Notwithstanding the above limitations and
warranties, the manufacturer’s liability hereunder for damages incurred by the purchaser or
others shall not exceed the price of the goods.
3.04. No action arising out of any claimed breach of this warranty or transactions under this
warranty may be brought more than one (1) year after the cause of the action has occurred.
4. MISCELLANEOUS
4.01. McConnel Ltd may waive compliance with any of the terms of this limited warranty, but no
waiver of any terms shall be deemed to be a waiver of any other term.
4.02. If any provision of this limited warranty shall violate any applicable law and is held to be
unenforceable, then the invalidity of such provision shall not invalidate any other provisions
herein.
4.03. Applicable law may provide rights and benefits to the purchaser in addition to those provided
herein.

DECLARATION OF CONFORMITY
Conforming to EU Machinery Directive 2006/42/EC
We,
McCONNEL LIMITED, Temeside Works, Ludlow, Shropshire SY8 1JL, UK
Hereby declare that:
The Product; Tractor Trailed Roller(s)
Product Code; TWBR
Serial No. & Date ………………………………… Type …………………………
Manufactured in; United Kingdom
Complies with the required provisions of the Machinery Directive 2006/42/EC
The machinery directive is supported by the following harmonized standards;
BS EN ISO 12100 (2010) Safety of machinery –General principles for design –Risk
assessment and risk reduction.
BS EN 349 (1993) + A1 (2008) Safety of machinery - Minimum distances to avoid the
entrapment with human body parts.
BS EN 953 (1997) + A1 (2009) Safety of machinery - Guards general requirements for
the design and construction of fixed and movable guards.
BS EN 4413 (2010) Hydraulic fluid power. Safety requirements for systems and their
components.
McCONNEL LIMITED operates an ISO 9001:2008 quality management system,
certificate number: FM25970.
This system is continually assessed by the;
British Standards Institution (BSI), Beech House, Milton Keynes, MK14 6ES, UK
BSI is accredited by UK Accreditation Service, accreditation number: UKAS 003.
The EC declaration only applies if the machine stated above is used in
accordance with the operating instructions.
Signed …………………................ Responsible Person
CHRISTIAN DAVIES on behalf of McCONNEL LIMITED
Status: General Manager Date: May 2016

THIS MANUAL IS TO BE HANDED TO THE CUSTOMER BEFORE
THE MACHINE IS TO BE USED FOR THE FIRST TIME
McCONNEL LIMITED
TEMESIDE WORKS
LUDLOW
SHROPSHIRE
SY8 1ND
TELEPHONE:
01584 873131
All dimensions and capacities mentioned in this book are approximate. In pursuance
of the Companies policy of constant development, the right is reserved to depart,
without notice, from any detail illustrated or specified in this book, without incurring
the obligation to provide such modifications on machines previously delivered.
No responsibility will be accepted by McConnel Limited for any injury, damage or
loss arising from the improper use or lack of maintenance of any machinery supplied
by them or from any failure of the user to comply with all instructions published by
Tractor or Loader manufacturers, particularly with regard to maximum load
capacities, tyre pressures and stability, or with instructions and regulations pertaining
to Tractor Cabs.

INDEX
OPERATOR SECTION
GENERAL ARRANGEMENT 1
SPECIFICATIONS 3
GENERAL INFORMATION 4
SAFETY NOTES AND WARNINGS 5
HEALTH AND SAFETY 6
GENERAL INSTRUCTIONS 8
OPERATING INSTRUCTIONS 9
SAFETY WHEN ROLLING 10
ROUTINE MAINTENANCE AND LAYING-UP 11
NOTES 12
PARTS SECTION
MAINFRAME ASSEMBLY - SWH 8 14
MAINFRAME ASSEMBLY- SWR 10 16
DRUM ASSEMBLIES 18
AXLE ASSEMBLY - SWH 8 20
AXLE ASSEMBLY - SWR 10 22
RAM ASSEMBLY 24
HYDRAULIC INSTALLATIONS 25
TRANSFERS 26

0

1

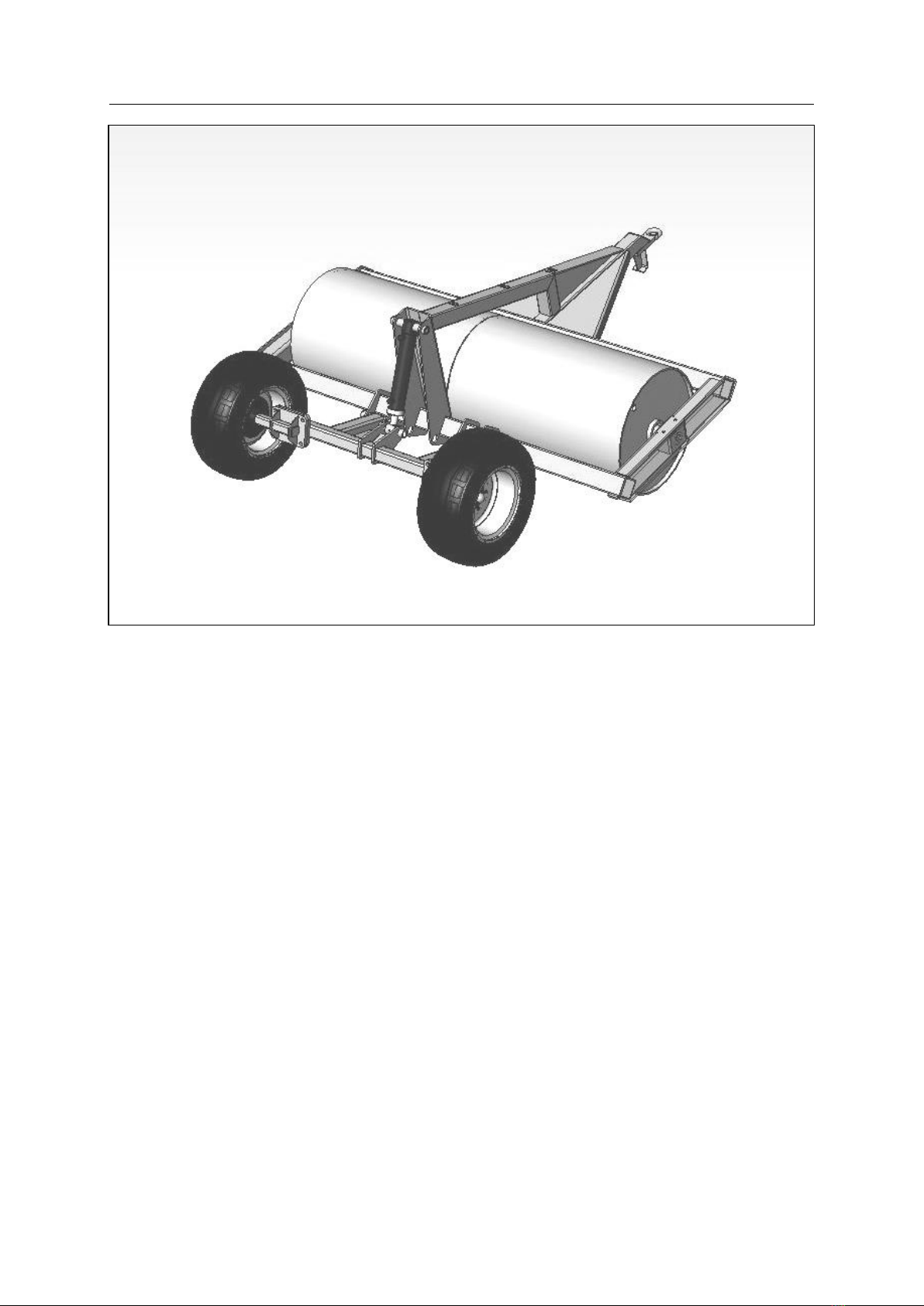

GENERAL ARRANGEMENT
SWH 8 BALLAST ROLLER IN WORKING POSITION

2

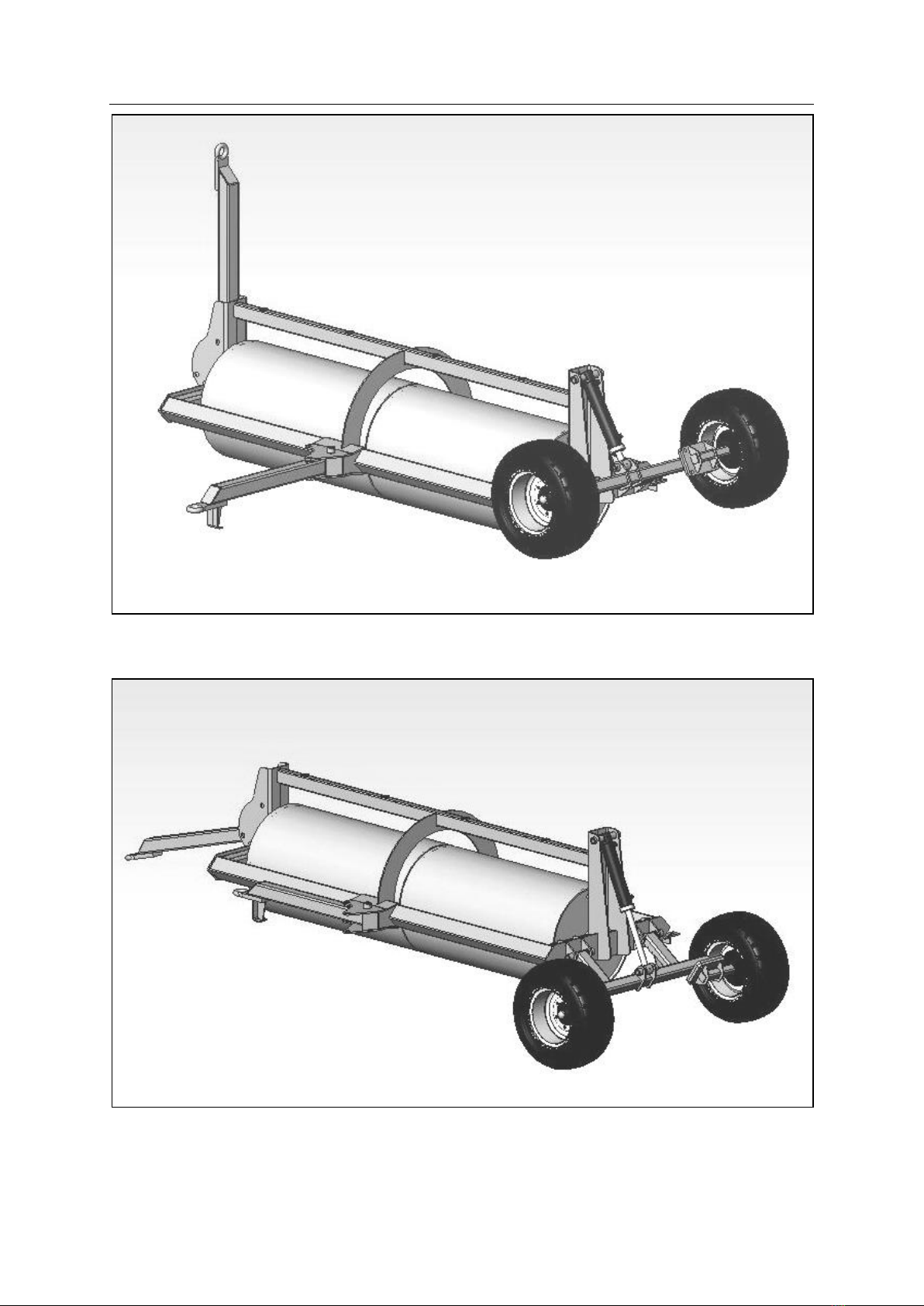

GENERAL ARRANGEMENT
SWR 10 BALLAST ROLLER IN WORKING POSITION
SWR 10 BALLAST ROLLER IN TRANSPORT POSITION

3
SPECIFICATIONS
SWH 8 SWR 10
Rolling Width 2.5M 3.0M
Drum Diameter 0.76M 0.76M
Number of Drums 2 2
Drum Capacity (Per Drum) 567 Litres 675 Litres
Machine Length
Operating 3.5M 2.981M
Transport 3.5M 5.550M
Machine Width
Operating 2.87M 4.42M
Transport 2.87M 2.03M
Machine Weight
Without Ballast 1010 Kg 1470 Kg
With Ballast 2144 Kg 2820 Kg
Tyre Size 10/75 x 15.5 10/75 x 15.5
Tyre Pressure 60 PSI 60 PSI
TRACTOR REQUIREMENTS
Power 60hp (min)
Hydraulic Supply Double Acting Spool Valve
ABOUT THIS MACHINE
The SWH 8 AND SWR 10 are ballast type rollers designed for agricultural use and
feature two steel drums in a fabricated steel frame. The drums rotate on a steel shaft
mounted in replaceable bearing blocks.
A replaceable scraper bar helps prevent a build-up of dirt on the rollers.
An axle frame and wheels with pneumatic tyres are provided for road transport.
The SWR 10 is designed for ‘end on’ transport and a separate drawbar is provided
for this purpose. The SWH 8 is transported normally. The axle and wheels are raised
and lowered hydraulically by a double acting ram. Hydraulic power is provided from
the tractors double acting spool valve.
The hydraulic hoses are provided with quick release couplings complete with dust
covers.
It is intended to be attached to a Agricultural vehicle by means of the "Drawbar-hitch"
couple-up system.
The purpose for its production and its sole intention is to roll suitable pieces of land.
At no time must this machine be used for anything other than, or to do any job -
other than that for which it has been designed (see note above).

4
GENERAL INFORMATION
NOTE:- This handbook has been designed to help the operator and
service/mechanic to use and understand the machine fully, safely and
efficiently
NOTE:- The handbook/manual will be supplied in a waterproof plastic outer
cover to prevent damage from rain, condensation etc. The cover of the
handbook will include its own part number, which includes information
as to machine type and issue date of manual in question.
DANGER
NOTE:- It is very important that the handbook/manual has been read
thoroughly - throughout, and is completely understood before
attempting to attach or use machine in any way.
CAUTION: When ordering spares, please state clearly:-
(a) Machine type and model No.
(b) Part No. of component.
(c) Description of component.
(d) Quantity required.
(e) Full address to which spares are to be sent.
(f) Method of delivery required.
CAUTION:- Always insist on genuine and correct spare parts.
NOTE:- Further copies of this handbook/manual can be obtained from:-
McCONNEL LIMITED
Temeside Works
Ludlow
Shropshire
SY8 1ND
Telephone: [phone]
Email: [email protected]

5
SAFETY NOTES AND WARNINGS
Throughout the handbook the following sub headings are used to draw attention to
various points of importance.
This is to draw attention to very important instructions which MUST be followed
precisely to avoid injury or death.
CAUTION
This is used to draw attention to instructions which MUST be followed to avoid
damage to operator, machine, process or the environment.
NOTE:-
This is used to highlight points used for supplementary information.

6
HEALTH AND SAFETY
Never attempt to assemble, couple up,
or operate machinery until you
understand fully the functions, controls
and safety precautions required, as
shown in the operators manual.
Always follow tractor safety operations
and instructions VERY carefully.
NEVER TAKE RISKS
CAUTION.
Be aware of warning and instruction decals on machine as care must be taken and
instructions obeyed.
Never drive machinery at speeds that
could cause danger to other persons or
properties, or in a manner that may
cause accidents.
Never attempt to Service/adjust or work
on any machinery in an unsupported
state.
Always ensure that machinery is safely
supported and propped in position.
Always ensure that the implement is
'chocked' firmly and it will not move,
before attempting to 'service' or 'work on'
in any way or form.
CAUTION
Always "SWITCH-OFF" tractor engine before attempting to carry out adjustment or
service repairs and inspections, on machinery.

7
Always be aware of your surroundings
- and operate machinery accordingly.
Beware of confined-tight areas, low
height restrictions, buildings and
overhangs etc. Also drive and operate
bearing in mind weather conditions
such as sun, rain, ice, snow, wind etc.
(Make allowances in all situations).
CAUTION
Never carry "passengers" on machinery or on tractor.
Ensure bystanders/onlookers are kept well away from operational area of apparatus.
CAUTION
'PARKING UP' MACHINE
When machine is being removed from tractor linkage and being 'parked up' it is
essential that a good firm base and level site be found.
Always chock and prop machine to ensure a good firm position to leave parked.
Ensure that stand legs of machine are correctly locked into position.
CAUTION
Never allow children to play on, or around, parked machinery.
CAUTION
Never wear loose fitting or ragged clothing which could get caught in machinery or
controls.
CAUTION
Always dispose of discarded or worn out parts thoughtfully - by disposing of them in
an approved and specified legal scrap site, bin or skip.

8
GENERAL INSTRUCTIONS
1. Before attaching any machine to a tractor make sure that implement is still
standing firmly on good solid - level site as it will be, providing unit was
previously parked correctly.
-Check that any wheels are 'chocked' correctly and that supports/props are in
position where necessary to prevent booms etc. dropping.
2. Before and during the manoeuvring of the tractor or vehicle in order to attach
machinery/implements, - make sure that No other persons are in the vicinity.
Keep other persons well clear and make known your intentions, all the while
keeping a sharp lookout whilst reversing and aligning machines for coupling
up.
3. Always secure tractor into selected position by ensuring that brakes are
applied correctly in order to prevent vehicle moving off on its own to cause
injury and damage.
4. Check that the hitch on the tractor is in good condition and that the hitch pin
used is of the correct size and type to suit the drawbar of the roller, and is
properly secured when fitted.
5. Never attempt to work on, adjust or service repair machinery of any kind whilst
it is still running or working. Always stop the machine and STOP THE
TRACTOR ENGINE - before any service/repairs begin.
(SWITCH OFF TRACTOR ENGINE BEFORE LEAVING TRACTOR SEAT)
6. In transit always use transport stays or locking devices where provided.
If, as in the case of some longer machines, the unit is transported lengthways
- make sure that the front of the tractor is suitably ballasted to maintain
stability.
A method of achieving this would be to add suitable weights to a correctly
specified and fitted front weight frame.
7. Always use machines in a sensible and reasonable manner and do not
attempt to use them in work for which they are not intended. Avoid
overloading and abusing them as this can cause damage to machine and
tractor and can be very dangerous.
8. When detaching a machine from a tractor ensure that any stands or legs are
securely positioned and that the machine is parked where it will not be a
safety hazard or cause annoyance to others.
Make sure that chosen 'parking site' is a firm and level site.
9. Carry out regular periodic maintenance. - Always with safety in mind.

9
OPERATING INSTRUCTIONS
SWH 8 Machines
To Change the Roller from ‘Transport’to ‘In Work’Position
1. Set the tap on the ram to the ‘open’ position
2. Raise the axle by retracting the hydraulic ram fully
3, Close the tap on the ram
To Change the Roller from ‘In Work’to ‘Transport’Position
1 Open valve on ram and extend the ram fully to lower the axle and wheels and
lift the roller.
2 Close the valve on the ram to lock the wheels in the lowered position.
SWR10 Machines
To Change the Roller from ‘Transport’to ‘In Work’Position
3. Set the tap on the ram to the ‘open’ position
4. Raise the axle by retracting the hydraulic ram fully
3, Close the tap on the ram
4. Disconnect hoses from tractor spool valve and fit dust covers,
5. Position and secure hoses to prevent damage.
6. Disconnect tractor, raise and stow transport drawbar.
7. Remove locking pin, unfold work drawbar to working position and refit pin.
8. Reattach tractor to work drawbar.
To Change the Roller from ‘In Work’to ‘Transport’Position
2 Disconnect from tractor and stow work drawbar.
3 Remove pin, lower transport drawbar and refit pin
4 Reposition tractor and connect transport drawbar
5 Remove protective caps from quick release couplings and connect hoses to
tractor spool valve
6 Open valve on ram and extend the ram fully to lower the axle and wheels and
lift the roller.
6 Close the valve on the ram to lock the wheels in the lowered position.

10
SAFETY WHEN ROLLING
Before starting work with any roller
ensure that the bearings are properly
greased and that all bolts and nuts are
tight.
Remember that a heavy roller will add
to your momentum and will require a
longer distance for stopping. Particular
care will be needed on hilly or sidling
ground.
Avoid turning so acutely that the
tractors rear wheels foul the rollers
drawbar.
Do not attempt to use rollers when the
ground conditions are unsuitable i.e.:-
When ground is excessively wet or
greasy.
When ground is frozen or thawing after
a frost.
Do not attempt to use the rollers on
very steep or sidling ground.

11
ROUTINE MAINTENANCE AND ‘LAYING-UP’
DAILY
Check end float and adjust if necessary.
WEEKLY
Grease pivot points thoroughly.
Check all bolts and nuts for tightness.
ANNUALLY AND LAYING-UP
Periodically (once a year should suffice)
check the bearings or bushes, spacer and
axle for wear; dismantling if necessary.
Replace any parts that are appreciably
worn.
Lubricate and use anti-corrosion measures
when storing the roller
.
For Ballast Rollers some form of frost
protection is strongly advised: be it draining
the drum for winter, filling drums entirely
with waste oil or the use of anti-freeze.(See
below)
DRUM CAPACITIES
Capacity of each 760mm (30") Diameter drum:-
SWH 8 2.5M (8') Roller (2 Drums) 567 litres, (125 Gallons) per drum
SWR 10 3.0M (10') Roller (2 Drums) 675 litres, (148 Gallons) per drum
