Mec 1330SE Building instructions

SERVICE AND PARTS MANUAL
1330SE
ART_4907a
Serial Number Range
16300001 - Up
Part # 94123r2
July 2017

1401 S. Madera Avenue • Kerman, CA 93630 USA
Ph: 1-800-387-4575 • 1-559-842-1500 • FAX [phone]
E-mail: [e-mail] • Web: www.mecAWP.com
Aerial Platform Sales Corp.
Revision History
Original Release Date: June 2016
Date Reason for Update
June 2016 New Release
July 2017New Style Ground Control

“1330SE” Service and Parts Manual July 2017
Page i
Service Table of Contents
Introduction I Page
Machine Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .II
MEC Operator Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . III
Safety Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
General Safety Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
Maintenance Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
Hydraulic System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VI
Electrical System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VI
Total System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
Primary Machine Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VII
Emergency Systems and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X
Emergency Lowering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X
Free-Wheel Configuration For Winching or Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . XI
Lift and Support the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . XII
Section 1: Maintenance Page
Machine Maintenance – General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Pre-Start Inspection Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
30-Day Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Frequent Inspection Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Hydraulic Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Electrical Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Tires & Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Emergency Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6
Key Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Drive Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Drive Speed - Stowed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Drive Speed - Raised . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Drive Speed - Slow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9
Hydraulic Oil Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9
Tank Venting System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Annual Inspection Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Scissor Slide Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Hydraulic Tank Breather Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
Hydraulic Oil Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
Section 2: Error Codes & Troubleshooting Page
Control Component Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Fault Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Troubleshooting Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Parameter Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Main Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Menu Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
Calibration Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

“1330SE” Service and Parts Manual
July 2017
Page ii
Service Table of Contents
Section 3: Schematics Page
Hydraulic Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Electrical Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Electrical Schematic, {Serial #16301161 ~} . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..3-5
Control Harness . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Control Harness, 2 of 2 . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Pin Identification, ECU Harness Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Pin Identification, Motor Controller ECU2 Harness Plug . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Pin Identification, Main Harness Plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Pin Identification, Platform Controls, Com Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Pin Identification, Chassis Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Electrical Harness, {Serial #16301161 ~} . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15

“1330SE” Service and Parts Manual July 2017
Page I
INTRODUCTION
This manual consists of Service and Illustrated Parts sections.
The Service Section of this manual is designed to provide you, the customer, with the instructions
needed to properly maintain the MEC self-propelled aerial work platform. When used in conjunc-
tion with the Illustrated Parts Section and the Operators Manual (provided separately), this manual
will assist you in making necessary adjustments and repairs, and identifying and ordering the cor-
rect replacement parts.
All parts represented here are manufactured and supplied in accordance with MEC quality stan-
dards.
We recommend that you use genuine MEC parts to ensure proper operation and reliable perfor-
mance.
To obtain maximum benefits from your MEC Aerial Work Platform, always follow the proper oper-
ating and maintenance procedures. Only trained authorized personnel should be allowed to oper-
ate or service this machine. Service personnel should read and study the Operator’s, Service and
Parts Manuals in order to gain a thorough understanding of the unit prior to making any repairs.
C ONTENTS P AGE
Machine Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . II
MEC Operator Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .III
Safety Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
General Safety Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
Maintenance Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
Hydraulic System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VI
Electrical System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VI
Total System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I
Primary Machine Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VII
Emergency Systems and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X
Emergency Lowering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X
Free-Wheel Configuration For Winching or Towing . . . . . . . . . . . . . . . . . . . . . . XI
Lift and Support the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . XII

“1330SE” Service and Parts Manual
July 2017
Page II
M ACHINE S PECIFICATIONS
1330SE
Working Height* 19 ft 6 m
Platform Height 13 ft 4 m
Maximum Drive Height 13 ft 4 m
Stowed Height Top Guardrail 74 in. 1.9 m
Platform Floor 35 in. .9 m
Guardrail Height 39 in. 1 m
Toeboard Height 6 in. 15 cm
Machine Weight** (Unloaded) 1900 lb 860 kg
Lift Capacity Total 530 lb 240 kg
Deck Extension Capacity 1 Person / 250lb (113 kg)
Maximum Occupants 2
Length-Stowed (Overall) 58 in. 1.5 m
Length-Stowed (Ladder Removed) 51 in. 1.3 m
Platform Length (Extended) 75 in. 1.9 m
Platform Length (Retracted) 51 in. 1.3 m
Width (Overall) 30 in. 76 cm
Platform Width (Outside) 27.5 in. 70 cm
Wheel Base 41 in 1 m
Turning Radius--Inside 18 in. 45 cm
Ground Clearance--Stowed 2.5 in 6 cm
Ground Clearance--Elevated 0.6 in 1.5 cm
Drive Speed (Proportional) Stowed 0-2.5 mph 0-4 km/h
Raised or extended 0-.7 mph 0-1.1 km/h
Gradability 25%/14°
Maximum Side Slope--Stowed 5°
Ground Pressure/Wheel 112 psi 7.9 kg/cm2
Maximum Wheel Load 730 lb 331 kg
Occupied Floor Pressure 234 psf 1138 kg/m2
Maximum Operating Wind Speed 28 mph / 12.5 m/sec (45 km/h)
Tire Size 9 x 3 inch/230 x 80mm
Lug Nut Torque 19 ft-lb / 25.5 Nm
Secured with cotter pin
Hydraulic Pressure 2250 psi/ 155 bar
Power System Voltage 24 Volt DC
Battery Charger Input 110-230 V AC, 50-60 Hz
Output 24 Volt DC
Batteries Two 12-Volt deep cycle; 85Ah
Meets applicable requirements of ANSI A92.6-2006.
*Working Height adds 6 feet (2 m) to platform height. **Weight may increase with certain options.
*** Uniform Pressure of 1330SE can be reduced to 111.2 (542.93 kg/sq.M) (unloaded) to 142.2 (694.3 kg/sq.M) (loaded)
by extending the slide out platform

“1330SE” Service and Parts Manual July 2017
Page III
MEC O PERATOR P OLICY
NOTE: The best method to protect yourself and others from injury or death is to use common sense. If you are unsure
of any operation, don’t start until you are satisfied that it is safe to proceed and have discussed the situation with
your supervisor.
Service personnel and machine operators must understand and comply with all warn-
ings and instructional decals on the body of the machine, at the ground controls, and
platform control console.
MODIFICATIONS OF THIS MACHINE FROM THE ORIGINAL DESIGN AND
SPECIFICATIONS WITHOUT WRITTEN PERMISSION FROM MEC ARE STRICTLY
FORBIDDEN. A MODIFICATION MAY COMPROMISE THE SAFETY OF THE
MACHINE, SUBJECTING OPERATOR(S) TO SERIOUS INJURY OR DEATH.
MEC’s policies and procedures demonstrate our commitment to Quality and our relent-
less ongoing efforts towards Continuous Improvement, due to which product specifica-
tions are subject to change without notice.
Any procedures not found within this manual must be evaluated by the individual to
assure oneself that they are “proper and safe.”
Your MEC Aerial Work Platform has been designed, built, and tested to provide many
years of safe, dependable service. Only trained, authorized personnel should be
allowed to operate or service the machine.
MEC, as manufacturer, has no direct control over machine application and opera-
tion. Proper safety practices are the responsibility of the user and all operating
personnel.
If there is a question on application and/or operation contact:
MEC Aerial Work Platform
1401 S. Madera Avenue
Kerman, CA 93630 USA
Ph: 1-800-387-4575
www.MECawp.com

“1330SE” Service and Parts Manual
July 2017
Page IV
S AFETY S YMBOLS
To help you recognize important safety information, we have identified warnings and instructions
that directly impact on safety with the following signals:
“DANGER” INDICATES AN IMMINENTLY HAZARDOUS SITUATION WHICH, IF
NOT AVOIDED, WILL RESULT IN DEATH OR SERIOUS INJURY.
THIS SIGNAL WORD IS LIMITED TO THE MOST EXTREME SITUATIONS.
“WARNING” INDICATES A POTENTIALLY HAZARDOUS SITUATION WHICH, IF
NOT AVOIDED, COULD RESULT IN DEATH OR SERIOUS INJURY.
“CAUTION” indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury. It may also be used to alert against unsafe
practices.
“Caution” without alert symbol indicates a situation which, if not avoided, may
result in property damage.

“1330SE” Service and Parts Manual July 2017
Page V
G ENERAL S AFETY T IPS
Regular inspection and conscientious maintenance is the key to efficient economical oper-
ation of your aerial work platform. It will help to assure that your equipment will perform
satisfactorily with a minimum of service and repair.
The actual operating environment of the machine governs the inspection schedule. Cor-
rect lubrication is an essential part of the preventative maintenance to minimize wear on
working parts and ensure against premature failure. By maintaining correct lubrication, the
possibility of mechanical failure and resulting downtime is reduced to a minimum.
• Never leave hydraulic components or hoses open. They must be protected from contamina-
tion (including rain) at all times.
• Never open a hydraulic system when there are contaminants in the air.
• Always clean the surrounding area before opening hydraulic systems.
• Use only recommended lubricants. Improper lubricants or incompatible lubricants may be as
harmful as no lubrication.
• Watch for makeshift “fixes” which can jeopardize safety as well as lead to more costly repair.
M AINTENANCE L OCK
DEATH OR SERIOUS INJURY HAZARD!
NEVER PERFORM WORK OR INSPECTION ON THE MACHINE WITH THE
PLATFORM ELEVATED WITHOUT FIRST BLOCKING THE SCISSOR ASSEMBLY
WITH THE MAINTENANCE LOCK.
Figure 1-1: Support Platform
1. Raise the platform approximately 7.2ft / 2.2m from the
ground.
2. Rotate the Maintenance Lock away from the machine
and let it hang down.
3. Lower the platform until the Maintenance Lock rests
securely on the link. Keep clear of the Maintenance
Lock when lowering the platform.
ART_4995
Maintenance
Lock

“1330SE” Service and Parts Manual
July 2017
Page VI
H YDRAULIC S YSTEM
HYDRAULIC FLUID UNDER PRESSURE CAN PENETRATE AND BURN SKIN,
DAMAGE EYES, AND MAY CAUSE SERIOUS INJURY, BLINDNESS, AND EVEN
DEATH.
CORRECT LEAKS IMMEDIATELY.
Hydraulic fluid leaks under pressure may not always be visible. Check for pin hole
leaks with a piece of cardboard, not your hand.

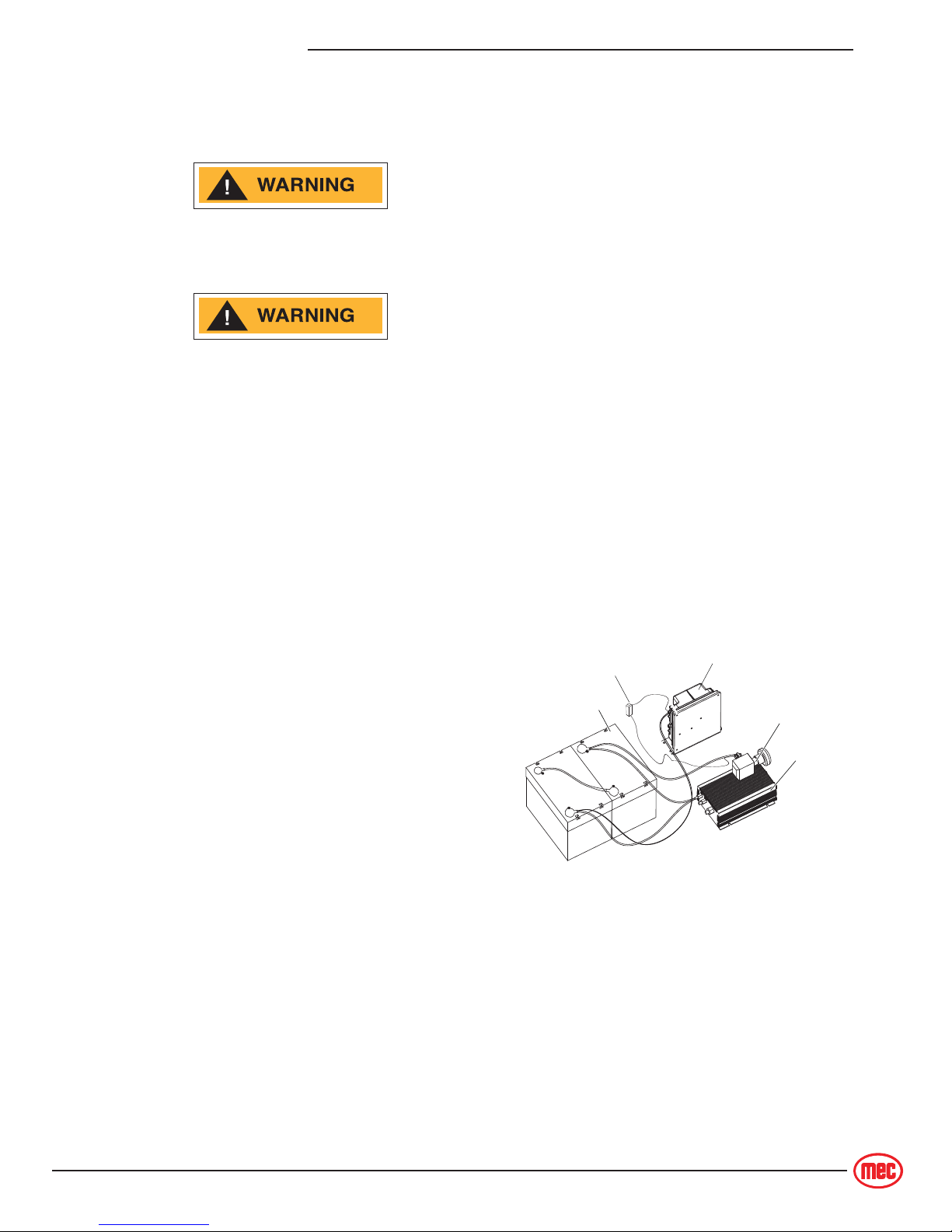

E LECTRICAL S YSTEM
Prevent damage to battery and/or electrical system;
• Always disconnect the negative battery cable first.
• Always connect the positive battery cable first.
When the negative cable is installed, a spark will occur if contact is made between the
positive side of the battery and a metal surface on the machine. This can cause damage
to the electrical system, battery explosion, and personal injury.
T OTAL S YSTEM
FAILURE TO PERFORM PREVENTIVE MAINTENANCE AT RECOMMENDED
INTERVALS MAY RESULT IN THE UNIT BEING OPERATED WITH A DEFECT
THAT COULD RESULT IN INJURY OR DEATH OF THE OPERATOR.
IMMEDIATELY REPORT TO YOUR SUPERVISOR ANY DEFECT OR
MALFUNCTION. ANY DEFECT SHALL BE REPAIRED PRIOR TO CONTINUED
USE OF THE AERIAL WORK PLATFORM.
INSPECTION AND MAINTENANCE SHOULD BE PERFORMED BY QUALIFIED
PERSONNEL FAMILIAR WITH THE EQUIPMENT.

“1330SE” Service and Parts Manual July 2017
Page VII

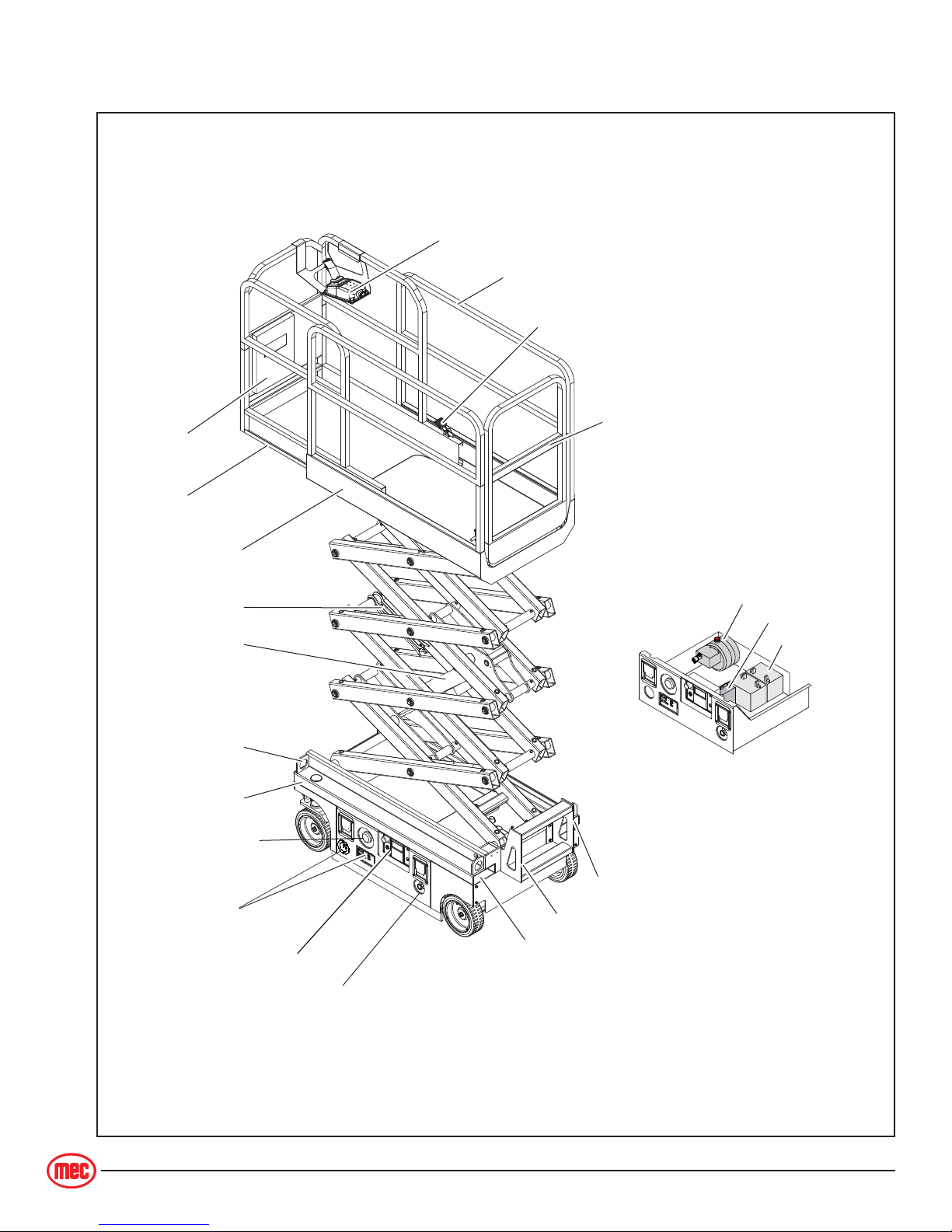

P RIMARY M ACHINE C OMPONENTS
Figure 1-2: Component Locations
ART_5229
PlatformControls
Platform
Deck Extension
Deck Extension Release
Lift Cylinder
Tie-Down/
Lift Points
Entry Gate
Lower Controls (ECU)
Emergency Lowering Knob
Batteries
Motor Controller
Hydraulic Unit
Forklift Pocket
Entry Ladder
Forklift Pocket
Component Tray
Maintenance
Lock
Battery Charger &
Power to Platform
Manuals Case
Guard Rails
(PCU)
#HASSIS
-AIN0OWER
,OWEREmergency
Stop Switch

“1330SE” Service and Parts Manual
July 2017
Page VIII
T ORQUE S PECIFICATIONS
F ASTENERS
Use the following values to apply torque unless a specific torque value is called out for
the part being used.
SAE GRADE
TORQUE
FT. LBS
MIN MAX
TORQUE
Nm
MIN MAX
FT. LBS
MIN MAX
Nm
TORQUE
FT. LBS
TORQUE
Nm FT. LBS Nm
MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX
CAP SCREW
SIZE
- millimeters-
CAP SCREW
SIZE
- inches -
58 METRIC GRADE 8.8 10.9
8.8 10.9
1/4 - 20 6.25
8
14
17.5
26
31
41
51
65
76
95
111
126
152
238
274
350
407
537
670
7.25
9
15
19
28
34
45
55
72
84
105
123
139
168
262
302
386
448
592
740
8.5
11
19
23
35
42
55.5
69
88
103
129
150
171
206
322
371
474
551
728
908
10
12
20
26
38
46
61
74.5
97.5
114
142
167
188
228
255
409
523
607
802
1003
8.25
10.5
18.5
23
35
41
55
68
86
102
127
148
168
203
318
365
466
543
716
894
9.5
12
20
25
37
45
60
75
96
112
140
164
185
224
350
402
515
597
790
987
11
14
25
31
47.5
55.5
74.5
92
116
138
172
200
228
275
431
495
631
736
970
1211
13
16
27
34
50
61
81
102
130
152
190
222
251
304
474
544
698
809
1070
1137
M6 X 1.00
M8 X 1.25
M10 X 1.50
M12 X 1.75
M14 X 2.00
M16 X 2.50
M18 X 2.50
M20 X 2.50
M22 X 2.50
M24 X 3.00
M27 X 3.00
M3 X 3.00
6
16
29
52
85
130
172
247
332
423
637
872
8
20
35
62
103
158
210
301
404
517
779
1066
8
21.5
39
70
115
176
233
335
450
573
863
1181
11
27
47
84
139
214
284
408
547
700
1055
1444
9
23
42
75
120
176
240
343
472
599
898
1224
11
27
52
91
146
216
294
426
576
732
1098
1496
12
31
57
102
163
238
325
465
639
812
1217
1658
15
36.5
70
123
198
293
398
577
780
992
1488
2027
1/4 - 28
5/16 - 18
5/16 - 24
3/8 - 16
3/8 - 24
7/16 - 14
7/16 - 20
1/2 - 13
1/2 - 20
9/16 - 12
9/16 - 18
5/8 - 11
5/8 - 18
3/4 - 10
3/4 - 16
7/8 - 9
7/8 - 14
1 - 8
1 - 14
Torque values apply to fasteneers as received
from the supplier, dry or when lubricated with
normal engine oil.
If special graphite grease, molydisulphide
grease, or other extreme pressure lubricants
are used, these torque values do not apply.
AMERICAN STANDARD CAP SCREWS METRIC CAP SCREWS

“1330SE” Service and Parts Manual July 2017
Page IX
H YDRAULIC C OMPONENTS T ORQUE T ABLE
NOTE: Always lubricate threads with clean hydraulic fluid prior to installation.
Use the following values to torque hydraulic components when a specific value is not
available. Always check for torque values in the following places before relying on the
Hydraulic Components Torque Table:
• parts drawings and service instructions in this manual.
• packaging and instruction sheets provided with new parts.
• instruction manuals provided by the manufacturer of the component being serviced.
Type: SAE
PORT SERIES Cartridge Poppet Fittings Hoses
Ft. Lbs. Nm Ft. Lbs. Nm In. Lbs. Nm
#4 N/A N/A N/A N/A 135-145 15-16
#6 N/A N/A 10-20 14-27 215-245 24-28
#8 25-30 31-41 25-30 34-41 430-470 49-53
#10 35-40 47-54 35-40 47-54 680-750 77-85
#12 85-90 115-122 85-90 115-122 950-1050 107-119
#16 130-140 176-190 130-140 176-190 1300-1368 147-155

“1330SE” Service and Parts Manual
July 2017
Page X
E MERGENCY S YSTEMS AND P ROCEDURES
IF THE CONTROL SYSTEM FAILS WHILE THE PLATFORM IS ELEVATED, HAVE
AN EXPERIENCED OPERATOR USE THE EMERGENCY LOWERING PROCEDURE
TO SAFELY LOWER THE PLATFORM.
DO NOT ATTEMPT TO CLIMB DOWN ELEVATING ASSEMBLY.
E MERGENCY S TOP
Figure 1-3: Emergency Stop Buttons
The machine is equipped with an EMERGENCY STOP switch
at the base controls and the platform control box.
•Press the EMERGENCY STOP switch at any time to stop all machine
functions.
•Pull switch to reset.
•Either switch will stop all machine functions.
•Both switches must be reset or machine will not operate.
E MERGENCY L OWERING
IF THE CONTROL SYSTEM FAILS WHILE THE PLATFORM IS ELEVATED,
USE THE EMERGENCY LOWERING PROCEDURE TO SAFELY LOWER THE
PLATFORM.
DO NOT CLIMB DOWN THE ELEVATING ASSEMBLY OR EXIT THE PLATFORM.
Figure 1-4: Emergency Lowering
The Emergency Lowering System is used to
lower the platform in case of power failure.
To lower the platform, pull the Emergency Lower-
ing Knob, located near the Base Control panel.
ART_4979
ART_4986
Emergency
Lowering
Knob

“1330SE” Service and Parts Manual July 2017
Page XI
F REE -W HEEL C ONFIGURATION F OR W INCHING OR T OWING
RUNAWAY HAZARD!
AFTER RELEASING THE BRAKES THERE IS NOTHING TO STOP MACHINE
TRAVEL. MACHINE WILL ROLL FREELY ON SLOPES.
ALWAYS CHOCK THE WHEELS BEFORE MANUALLY RELEASING THE BRAKES.
The machine can be winched or towed short distances at speeds not to exceed 2.5
MPH (4 km/h). Before towing or winching the machine, it is necessary to release the
brakes. Reset the brakes after towing or winching.
D ISENGAGE B RAKES BEFORE T OWING OR W INCHING
1.Chock the wheels.
2.Turn the Key Switch to the OFF position.
3.Turn the red Emergency Stop button clockwise to the on
position at both the ground and platform controls.
4.At the Ground Controls panel, press and hold the Lift/Lower
Switch to the DOWN position, then turn on the Key Switch to the
“Ground” position.
5.Hold the Lift/Lower Switch in this position until a continuous
alarm sounds, signalling that the brake has been released.
E NGAGE B RAKES BEFORE D RIVING
Turn the Key Switch to the OFF position to reset the brake.
BE SURE THAT THE BRAKES ARE ENGAGED BEFORE REMOVING THE WHEEL
CHOCKS.
ART_4998
Push Down
& Hold
Turn to
Ground

“1330SE” Service and Parts Manual
July 2017
Page XII
L IFT AND S UPPORT THE M ACHINE
DEATH OR SERIOUS PERSONAL INJURY MAY RESULT FROM THE USE OF
SUBSTANDARD LIFTING DEVICES AND/OR JACK STANDS. ENSURE THAT ALL
LIFTING DEVICES AND JACK STANDS ARE OF ADEQUATE CAPACITY AND IN
GOOD WORKING CONDITION BEFORE USE.
The following are needed to safely lift and support the machine;
• a jack with a lifting capacity of two (2) tons or more.
• jack stands with a rating of two (2) tons or more.
T O RAISE THE MACHINE
1. Move machine to a firm level surface capable of supporting the weight of the
machine.
2. Chock tires on one end of machine and raise the other end of machine.
3. Position a jack at the end of the machine to be lifted, under a solid lifting point in the
center of the frame.
4. Raise the machine and place two (2) suitable jack stands under solid support points
at the outer ends of the frame.
5. Lower the machine to rest on the jack stands and inspect for stability.
T O LOWER THE MACHINE
1. Raise machine slightly and remove jack stands.
2. Lower the machine and remove the jack.
3. Remove chocks.

“1330SE” Service and Parts Manual July 2017
Page 1-1
Section 1
M AINTENANCE
C ONTENTS P AGE
Machine Maintenance – General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Pre-Start Inspection Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
30-Day Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Frequent Inspection Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Hydraulic Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Electrical Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Tires & Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Emergency Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Key Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Drive Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Drive Speed - Stowed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Drive Speed - Raised . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Drive Speed - Slow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Hydraulic Oil Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Tank Venting System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Annual Inspection Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Scissor Slide Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Hydraulic Tank Breather Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
Hydraulic Oil Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12

“1330SE” Service and Parts Manual
July 2017
Page 1-2
MACHINE MAINTENANCE – GENERAL
M ACHINE M AINTENANCE – G ENERAL
Instructions in this portion of the manual are to be used in conjunction with the
Pre-Start, Frequent and Annual Inspection checklists found in this machine’s
Operator’s Manual.
IMPORTANT:Scheduled maintenance inspection checklists are included in the Operator’s Manual for use only by
qualified service technicians. Only qualified service technicians may perform repairs to the machine. After
repairs are completed, the operator must perform a Pre-Start Inspection before proceeding to the Functions Test.
HYDRAULIC FLUID UNDER PRESSURE CAN PENETRATE AND BURN
SKIN, DAMAGE EYES, AND MAY CAUSE SERIOUS INJURY, BLINDNESS,
AND DEATH. REPAIR LEAKS IMMEDIATELY. FLUID LEAKS UNDER
PRESSURE MAY NOT ALWAYS BE VISIBLE. CHECK FOR PIN HOLE
LEAKS WITH A PIECE OF CARDBOARD, NOT YOUR HAND.
NEVER PERFORM WORK OR INSPECTION ON THE MACHINE WITH THE
PLATFORM ELEVATED WITHOUT FIRST BLOCKING THE SCISSOR
ASSEMBLY WITH THE MAINTENANCE LOCK (SEE THE INTRODUCTION
PORTION OF THIS MANUAL).
PERFORM SCHEDULED MAINTENANCE AT RECOMMENDED
INTERVALS. FAILURE TO PERFORM SCHEDULED MAINTENANCE AT
RECOMMENDED INTERVALS MAY RESULT IN A DEFECTIVE OR
MALFUNCTIONING MACHINE AND MAY RESULT IN INJURY OR DEATH
OF THE OPERATOR. KEEP MAINTENANCE RECORDS CURRENT AND
ACCURATE.
IMMEDIATELY REPORT ANY DAMAGE, DEFECT, UNAUTHORIZED
MODIFICATION OR MALFUNCTION TO YOUR SUPERVISOR. ANY
DEFECT MUST BE REPAIRED PRIOR TO CONTINUED USE. DO NOT
USE A DAMAGED, MODIFIED OR MALFUNCTIONING MACHINE.
Never leave hydraulic components or hoses open. Plug all hoses and
fitting immediately after disassembly to protect the system from outside
contamination (including rain).
Never open a hydraulic system when there are contaminants in the air.
Always clean the surrounding area before opening hydraulic systems.
Use only recommended lubricants. Improper lubricants or incompatible
lubricants may cause as much damage as no lubrication.
Watch for makeshift “fixes” which can jeopardize safety as well as lead
to more costly repair.
Inspection and maintenance should be performed by qualified
personnel familiar with the equipment.

“1330SE” Service and Parts Manual July 2017
Page 1-3
PRE-START INSPECTION CHECKLIST
P RE -S TART I NSPECTION C HECKLIST
Items on this checklist should be inspected before each work shift. Refer to the
Operator’s Manual.
30-D AY S ERVICE
The 30 day maintenance procedure is a one-time procedure to be performed after the
first 30 days or 40 hours of usage. This procedure is normally performed every 150
hours or quarterly, whichever comes first.
Maintaining the tires and wheels in good condition is essential to safe operation and
good performance. Tire and/or wheel failure could result in a machine tip-over.
Component damage may also result if problems are not discovered and repaired in a
timely fashion.
1. Check the tire surface and sidewalls for cuts, cracks, punctures and unusual wear.
2. Check each wheel for damage, bends and cracks.
3. Remove the wheel covers and check each center lock nut for proper torque.
F REQUENT I NSPECTION C HECKLIST
THIS CHECKLIST MUST BE USED AT 3-MONTH INTERVALS OR EVERY
150 HOURS OF MACHINE USE, WHICHEVER OCCURS FIRST. FAILURE TO
DO SO COULD RESULT IN DEATH OR SERIOUS INJURY.
Frequent Maintenance Inspections should be conducted by qualified service
technicians only. Photocopy the Frequent Inspection Checklist page from the
Operator’s Manual to keep record of this inspection. Keep inspections records up to
date. Record and report all discrepancies to your supervisor.
Perform all checks listed on Pre-Start Inspection, then proceed with the following
checks.
H YDRAULIC F LUID
Inspect the condition of hydraulic fluid in the reservoir.
Oil should be a clear and amber in color.
Castle nut torque, dry 19 ft-Ibs / 26 Nm
Castle nut torque, lubricated 14 ft-Ibs / 20 Nm

“1330SE” Service and Parts Manual
July 2017
Page 1-4
FREQUENT INSPECTION CHECKLIST
B ATTERIES
Proper battery condition is essential to good machine performance and operational
safety. Improper or damaged cables and connections can result in component damage
and hazardous conditions.
ELECTROCUTION / BURN HAZARD. CONTACT WITH ELECTRICALLY
CHARGED CIRCUITS COULD RESULT IN DEATH OR SERIOUS INJURY.
REMOVE ALL RINGS, WATCHES AND OTHER JEWELRY.
BODILY INJURY HAZARD. BATTERIES CONTAIN ACID. AVOID SPILLING
OR CONTACTING BATTERY ACID. NEUTRALIZE BATTERY ACID SPILLS
WITH BAKING SODA AND WATER.
1. Put on protective clothing and eye wear.
2. Slide out the component tray from the chassis.
3. Be sure that the battery cable connections are free of corrosion.
NOTE: Adding terminal protectors and a corrosion preventative sealant will help eliminate corrosion on the battery
terminals and cables.
4. Be sure that the battery retainers and cable connections are tight.
5. Fully charge the batteries. Allow the batteries to rest 24 hours before performing this
procedure to allow the battery cells to equalize.
6. Check each battery pack and verify that the
batteries are wired correctly.
7. Inspect the battery charger plug and pigtail
for damage or excessive insulation wear.
Replace as required.
8. Connect the battery charger to a properly
grounded 110 - 230V / 50 - 60 Hz single
phase AC power supply.
• Result: The charger should operate and begin
charging the batteries.
• Result: If, simultaneously, the charger alarm sounds and the LEDs blink, correct the charger
connections at the fuse and battery. The charger will then operate correctly and begin charg-
ing the batteries.
NOTE: For best results, use an extension cord of adequate size with a length no longer than 50 ft / 15m.
If you have any further questions regarding the battery charger operation, please contact the MEC Customer
Service.
ART_5050
Batteries Power
Switch
Motor Controller (ECU2 (TMI)
Battery
Charger
150A Fuse
