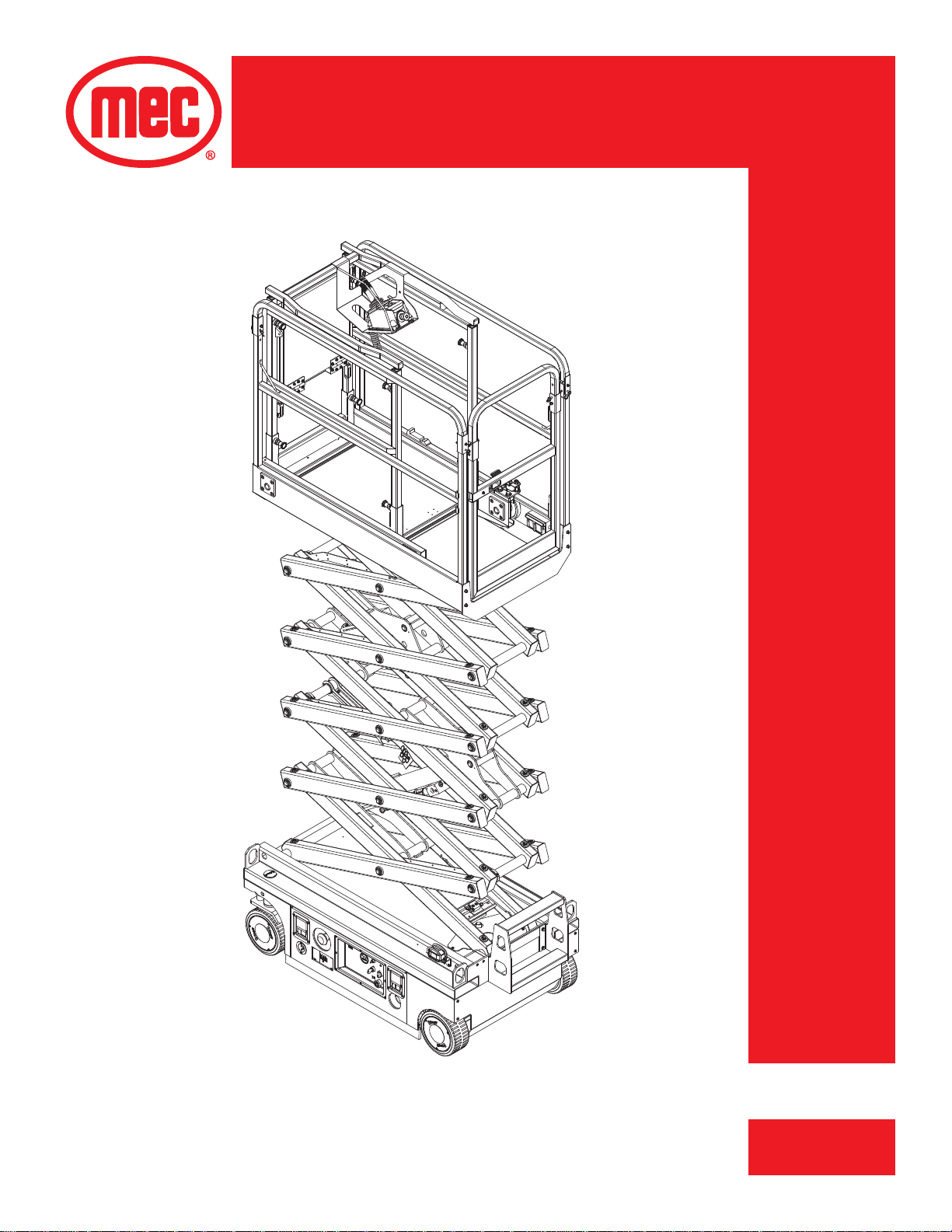

Mec Micro 19-XD User manual

Part # 43893
July 2020
Serial Number Range
1610000 - Up
Operator’s Manual
Micro 19-XD
Art_5588

Page i Micro 19-XD - Operator’s Manual
July 2020
Revision History
Date Reason for Update
March 2020 New Release
July 2020 Added Safe Electrical Distances Chart For Safety Per A92.20-2018
Updated To Include 2 Person Indoors With Xtra Deck Stowed Rating
1401 S. Madera Avenue, Kerman, CA93630 USA
Toll Free: 1 - 877 - 632 - 5438
Phone: 1 - 559 - 842 - 1500
Fax: 1 - 559 - 842 - 1520
[email protected]
www.MECawp.com
MEC Aerial Work Platforms

Page ii Micro 19-XD - Operator’s Manual
July 2020
Table of Contents
Section 1 - Introduction . . . . . . . . . . . . . . . . 1
Introduction.....................1
Section 2 - Safety . . . . . . . . . . . . . . . . . 2
Safety.......................2
Safety Alert Symbols & Fall Protection . . . . . . . . . . . . . . 3
Section 3 - Machine Specifications. . . . . . . . . . . . . 4
Machine Specifications . . . . . . . . . . . . . . . . . . 4
Section 4 - Hazards . . . . . . . . . . . . . . . . . 5
Electrocution Hazard . . . . . . . . . . . . . . . . . . . 5
Minimum Safe Approach Distance . . . . . . . . . . . . . . . 6
Tip-Over Hazards . . . . . . . . . . . . . . . . . . . . 8
Fall & Collision Hazards . . . . . . . . . . . . . . . . . . 9
Additional Safety Hazards . . . . . . . . . . . . . . . . . . 10
Section 5 - Xtra Deck Instructions . . . . . . . . . . . . . 11
Xtra Deck Deployment And Stowing . . . . . . . . . . . . . . . 11
Section 6 - Folding Guardrails . . . . . . . . . . . . . . 13
Folding Guardrails . . . . . . . . . . . . . . . . . . . . 13
Section 7 - Components and Controls. . . . . . . . . . . . 14
Component Locations . . . . . . . . . . . . . . . . . . . 14
Platform Controls . . . . . . . . . . . . . . . . . . . . 15
LowerControls.....................16
Section 8 - Workplace Inspection . . . . . . . . . . . . . 17
Workplace Inspection . . . . . . . . . . . . . . . . . . . 17
Section 9 - Operating Instructions and Function Tests . . . . . . . 18
Operating Instructions & Functions Test . . . . . . . . . . . . . . 18
Section 10 - Battery Charging . . . . . . . . . . . . . . 27
Battery Charging . . . . . . . . . . . . . . . . . . . . 27
Section 11 - Maintenance . . . . . . . . . . . . . . . 28
Maintenance.....................28
Lubrication......................30
Pre-Start Inspection Checklist . . . . . . . . . . . . . . . . . 31
Frequent Inspection Checklist . . . . . . . . . . . . . . . . . 32
Annual Inspection Report . . . . . . . . . . . . . . . . . . 33

Page iii Micro 19-XD - Operator’s Manual
July 2020
Section 12 - Warning and Instructional Decals . . . . . . . . . 34
Decal Locations . . . . . . . . . . . . . . . . . . . . 34
SerialPlate .....................37
Section 13 - Troubleshooting . . . . . . . . . . . . . . 38
Troubleshooting . . . . . . . . . . . . . . . . . . . . 38
Section 14 - Transport and Lifting Instructions . . . . . . . . . 39
Transport and Lifting Instructions . . . . . . . . . . . . . . . . 39

Page 1 Micro 19-XD - Operator’s Manual
July 2020
Introduction
This Operator’s Manual has been designed to provide you, the owner, user or operator, with the
instructions and operating procedures essential to properly and safely operate your MEC Aerial Work
Platform for positioning personnel, along with their necessary tools and materials, to overhead work
locations.
This Operator's Manual and other manuals provided by MEC on the
machine must be read and understood prior to operating your MEC Aerial
Work Platform. The operator should not accept operating responsibility
until he/she has read and understands the operator’s manual as well as
having operated the MEC Aerial Work Platform under supervision of an
authorized, trained and qualified operator.
It is essential that the operator of the aerial work platform is not alone at
the workplace during operation.
Modifications of this machine from the original design and specifications
without written permission from MEC are strictly forbidden. A
modification may compromise the safety of the machine, subjecting the
platform occupants and personal around the machine to serious injury or
death.
Your MECAerial Work Platform has been designed, built, and tested to provide safe, dependable
service. Only authorized, trained and qualified personnel shall be allowed to operate or service the
machine.
MEC, as manufacturer, has no direct control over machine application and operation. Proper safety
practices are the responsibility of the owner, user and operator.
If there is a question on application and/or operation contact:
1401 S. Madera Avenue, Kerman, CA93630 USA
Toll Free: 1 - 877 - 632 - 5438
Phone: 1 - 559 - 842 - 1500
Fax: 1 - 559 - 842 - 1520
[email protected]
www.MECawp.com
MEC Aerial Work Platforms
Section 1 - Introduction

Page 2 Micro 19-XD - Operator’s Manual
July 2020
This product can expose you to chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm. For more
information go to www.p65warnings.ca.gov.
Section 2 - Safety SafetySafety
DO NOT operate this machine until you have read and understood this manual, have
performed the Workplace Inspection, Pre-Start Inspection and Routine Maintenance, and have
completed all the test operations detailed in the Operating Instructions section.
Failure to read, understand and follow all safety rules, warnings, and instructions could result in
serious injury or death. For your safety and the safety of those around you, you must operate your
machine as instructed in this manual.
MEC designs aerial work platforms to safely and reliably position personnel, along with their
necessary tools and materials, at overhead work locations. The owner/user/operator of the machine
should not accept responsibility for the operation of the machine unless properly trained.
ANSI and other applicable standards identify requirements of all parties who may be involved with
self-propelled elevating work platforms. The Manual of Responsibilities is considered a part of this
machine and can be found in the manual compartment, located at the platform control station. To
ensure safe use of machine, inspections and training specified in ANSI/SIAA92.22 & A92.24 must be
performed at designated intervals as prescribed.

Page 3 Micro 19-XD - Operator’s Manual
July 2020Section 2 - Safety Safety Alert Symbols & Fall Protection
MEC manuals and decals use symbols, colors and signal words to help you recognize important
safety, operation and maintenance information.
RED and the word DANGER – Indicates an imminently hazardous
situation which, if not avoided, will result in death or serious injury.
ORANGE and the word WARNING – Indicates a potentially hazardous
situation which, if not avoided, could result in death or serious injury.
YELLOW with alert symbol and the word CAUTION – Indicates a
potentially hazardous situation which, if not avoided, may result in minor
or moderate injury.
YELLOW without alert symbol and the word CAUTION – Indicates a
potentially hazardous situation which, if not avoided, may result in
property damage.
GREEN and the word NOTICE – Indicates operation or maintenance
information.
Fall Protection
ART_4713
Operators must comply with employer, job site and governmental rules
regarding the use of personal protective equipment.
If required by your employer or job site, use personal fall protection
equipment (PFPE) when operating this machine.
All PFPE must comply with applicable governmental regulations, and must be
inspected and used in accordance with the PFPE manufacturer’s instructions.
Fall restraint must be properly attached to a designated anchorage point
when driving or operating the machine. Attach only one fall restraint to each
anchorage point.

Page 4 Micro 19-XD - Operator’s Manual
July 2020
Machine Specifications
Working Height* Indoor 24.4 ft 7.43 m
Outdoor 19 ft 5.79 m
Platform Height Indoor 18.4 ft 5.6 m
Outdoor 13 ft 4 m
Maximum Drive Height Indoor 18.4 ft 5.6 m
Outdoor 13 4 m
Stowed Height Top Guardrail 83.3 in 2.12 m Guardrails Folded 79 in 2.0 m
Platform Floor 39 in 1.0 m
Platform Extension Length 23.6 in 0.6 m
Machine Weight** (Unloaded) 2,820 lbs 1,280 kg
Maximum Lift Capacity 500 lbs 227 kg
Deck Extension Capacity 1 Person / 250 lbs (113 kg)
Xtra Deck Capacity 1 Person / 250 lbs (113 kg)
Maximum Occupants
Indoor (Xtra Deck Deployed) 1
Indoor (Xtra Deck Stowed) 2
Outdoor (Xtra Deck Deployed) 1
Outdoor (Xtra Deck Stowed) 1
Manual Force Indoor 45 lbs 200 N
Outdoor 45 lbs 200 N
Platform Length (Extended) 78 in 2.0 m
Platform Length (Retracted) 54 in 1.4 m
Width (Overall) 32 in 0.81 m
Platform Dimensions (Length × Width) 53.9 × 27.6 in 1.37 × 0.7 m
Wheel Base 44.5 in 1.13 m
Turning Radius - Inside 17.7 in 0.45 m
Ground Clearance - Stowed 2.4 in 6.0 cm
Ground Clearance - Elevated 0.6 in 1.5 cm
Drive Speed (Proportional) Stowed 0-2.5 mph 0-4.0 km/h
Raised Or Extended 0-0.5 mph 0-8.0 km/h
Gradability 25%/14°
Maximum Side Slope - Stowed 5°
Ground Pressure/Wheel 116 psi 8.2 kg/cm2
Maximum Wheel Load 990 lbs 450 kg
Occupied Floor Pressure 242 psf 1,177 kg/m2
Maximum Operating Wind Speed 28 mph / 12.5 m/sec (45 km/h)
Tire Size 9 × 4 inch / 230 × 100 mm
Lug Nut Torque 19 Ft-lbs / 25.5 N-m, Secured with cotter pin
Hydraulic Pressure 2,320 psi/ 160 bar
Power System Voltage 24 Volt DC
Battery Charger Input 110-230 V AC, 50-60 Hz
Output 24 Volt DC
Batteries Two 12 Volt Deep Cycle 115Ah
Chassis Inclination 1.5 Side 3.0 Inline
Airborne Noise Emissions <70 dB
Meets applicable requirements of ANSIA92.20-2020 & CSAB354.6-2019.
*Working Height adds 6 feet (2 m) to platform height.
**Weight may increase with certain options.
Machine Specifications
Section 3 - Machine Specifications

Page 5 Micro 19-XD - Operator’s Manual
July 2020

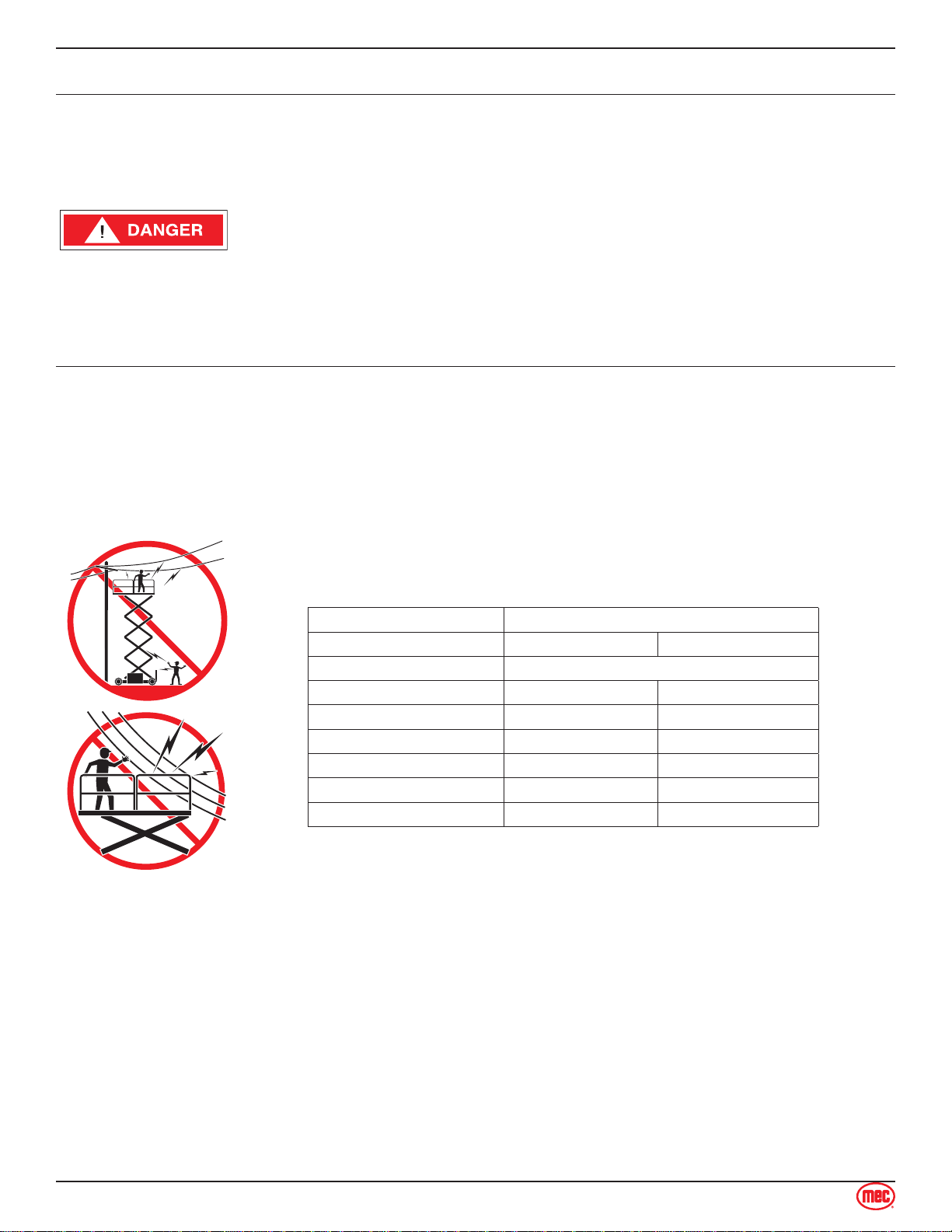

Electrocution Hazard
ELECTROCUTION HAZARD! THIS MACHINE IS NOT INSULATED!
DEATH OR SERIOUS INJURY will result from contact with or inadequate
clearance from any electrically charged conductor.
You must maintain a CLEARANCE OF AT LEAST 10 FEET (3.05 m)
between any part of the machine, or its load, and any electrical line or
apparatus carrying over 300 Volts up to 50,000 Volts. One foot (30.5 cm)
additional clearance is required for every additional 30,000 Volts.
Observe Minimum Safe Approach Distance.
This machine is not electrically insulated and will not provide protection from contact with or proximity
to electrical current.
Maintain safe distances from electrical power lines and apparatus in accordance with applicable
government regulations and the following chart:
Art_2824
Art_2823
Minimum Save Approach Distance
Voltage Minimum Safe Approach Distance
Phase to Phase Feet Meters
0 to 300 Volts Avoid Contact
Over 300V to 50kv 10 3.1
Over 50KV to 200KV 15 4.6
Over 200KV to 350KV 20 6.1
Over 350KV to 500KV 25 7.6
Over 500KV to 750KV 35 10.7
Over 750KV to 1000KV 45 13.7
Allow for platform movement, electrical line sway or sag and beware of strong or gusty winds.
Keep away from the machine if it contacts energized power lines. Personnel on the ground or in the
platform must not touch or operate the machine until energized power lines are shut off.
Do not use the machine as a ground for welding.
Section 4 - Hazards Electrocution Hazard

Page 6 Micro 19-XD - Operator’s Manual
July 2020Section 4 - Hazards Minimum Safe Approach Distance
ART_3265
No go zone
Spotter
required
zone
Personal
protection
barriers
FRONT VIEW
(a) Distribution lines up to and including 133 kV
SIDE VIEW
6.4
6.4
3
3Sag
Variations
in sag
(b) Transmission lines greater than 133 kV
No go zone Spotter
required
zone
Sway
10
10
8
8
FRONT VIEW SIDE VIEW
Sag
Variations
in sag
Sag
Sag
LEGEND
CLEARANCES FROM LIVE AERIAL CONDUCTORS
= No shading, in the front views, indicates no proximity requirements
= Light shading indicates spotter is required
= Heavy shading indicates the NO GO ZONE
(a) Affected area
Min. volts
Min. volts
Max. volts
Higher voltage
Lower voltage
(b) Avoid simultaneous contact across
areas of high potential difference
5000 V
20000 V
15000 V
10000 V
5000 V
