Med-Mizer EX5000 User manual

EX5000 User Manual
Revision 01

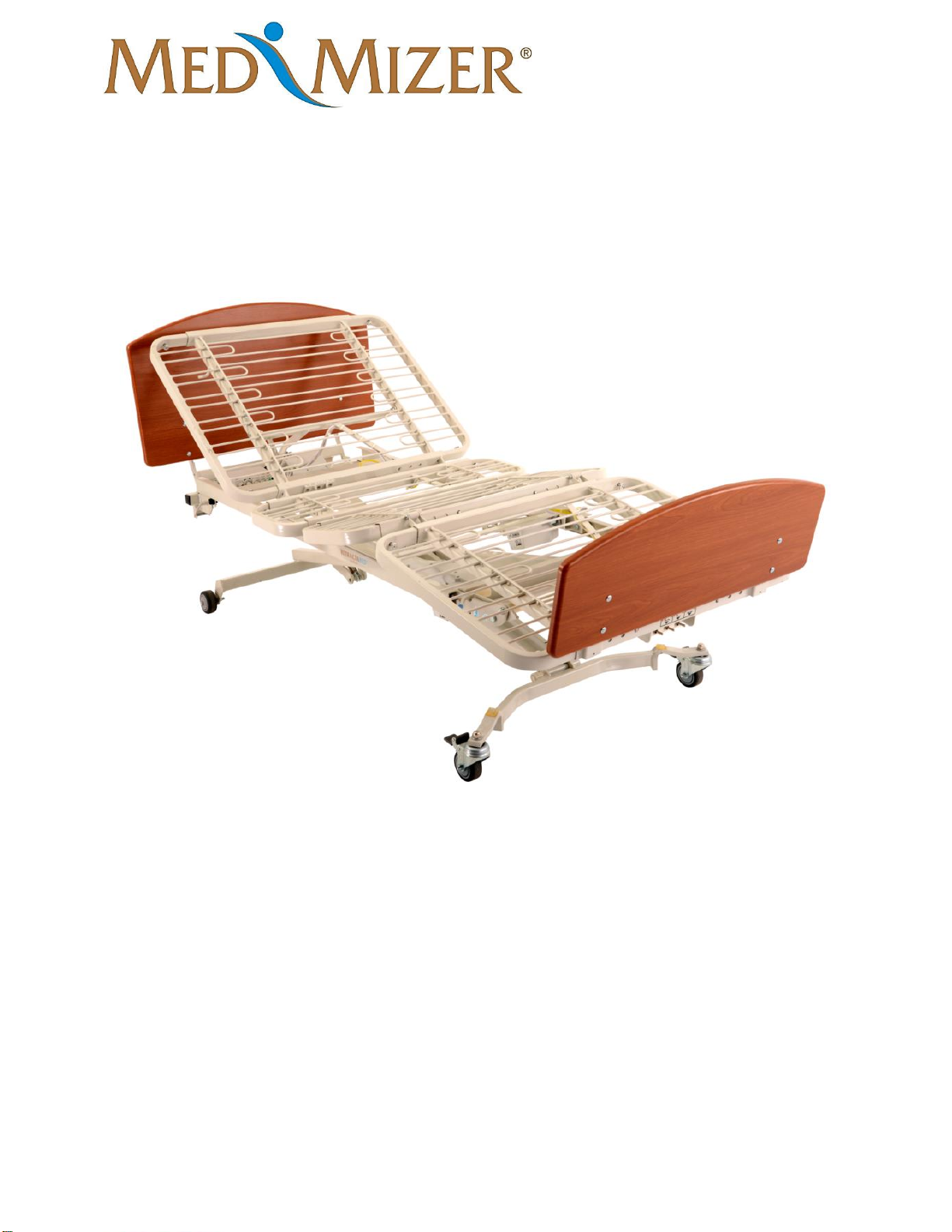

MAN-EX5000 REV01 EX5000 USER MANUAL Page 1 of 13
EX5000
USER MANUAL
For Parts or Technical Assistance - [phone]

EX5000 User Manual
Revision 01
MAN-EX5000 REV01 EX5000 USER MANUAL Page 2 of 13
TABLEOF CONTENTS
Overview
Introduction
3
Intended Use
3
Safety Information
3
Specifications
6
Options and Accessories
6
Preparation for Use
Unpacking
7
Assembly
8
Operation
Control Options
8
Bed Height Adjustment
8
Head and Knee Adjustment
9
Foot Elevation
9
Bed Transport
9
Articulation Lockout
10
Bed Deck Expansion & Retraction
10
Surelock Operation
11
Maintenance
Cleaning
11
Maintenance and Service
11
Service Part List
12
Warranty
13
3

EX5000 User Manual
Revision 01
MAN-EX5000 REV01 EX5000 USER MANUAL Page 3 of 13
Overview
Introduction
This manual provides instructions for use of the EX5000. Do not operate the bed without first
reading and understanding the warnings and cautions provided herein.
NOTICE: The information in this document is subject to change without notice.
Intended Use
The EX5000 Bed is intended to provide means for a single occupant to recline and sit, and to
assist the occupant in moving between reclining, sitting and standing positions.
The bed is intended for use in U.S. and Canada long and short-term care facilities, and homes.
The bed is intended to support a safe working load of 500 lbs. (evenly distributed), which
includes the weight of the occupant, mattress, bedding, and any other items on the bed deck.
The bed is intended for operation by adult users who have read and understand this User Manual.
The bed is intended for indoor use in environments where it will not get wet, where floors are
stable and level, and in ambient temperatures between 41°F and 104°F.
The bed is intended for operation on 120 VAC, 60 Hz mains power.
The bed is not intended to provide a means for transport of the occupant.
Safety Information
This symbol identifies a WARNING or CAUTION:
WARNING represents potentially dangerous situations that can lead to serious physical
injury or death.
CAUTION represents potentially dangerous situations that can lead to minor physical
injury.
General Use Safety
WARNING Bed must be used as specified under the “Intended Use” heading. Use of the
bed outside of the specified conditions may result in personal injury or equipment
damage.

EX5000 User Manual
Revision 01
MAN-EX5000 REV01 EX5000 USER MANUAL Page 4 of 13
WARNING Close supervision by an adult user who has read and understands this User
Manual is required when the bed is used around children or others who have not or
cannot read and/or understand this User Manual.
WARNING The bed mattress must be properly sized to meet entrapment zone
dimensional guidelines published by the Food and Drug Administration.
WARNING Do not spill or spray liquid on the bed. Excessive liquid on the bed can
result in an electric shock hazard. In the event of a liquid spill or excessive liquid on the
bed, unplug the bed immediately. Remove excess liquid and allow bed to dry thoroughly
before restoring power.
WARNING Never permit anyone under the bed while the bed is being used. Failure to
do so could result in personal injury.
WARNING Never operate the bed if a cord or plug is damaged, or it is not working
properly. Contact Qualified Service Personnel for inspection and/or repair. Failure to do
so could result in personal injury.
WARNING Ensure the main power cord is routed where it is not pinched either under or
beside the bed. Failure to do so could result in personal injury or equipment damage.
CAUTION Ensure the grounding cable of the control box is securely fastened to the
frame. Failure to do so could result in personal injury or equipment damage.
CAUTION If a handset is used, the cord must be routed and secured properly to ensure
that cord does not become entangled. Failure to do so could result in equipment damage
or personal injury.
CAUTION Keep all moving parts free of obstruction (i.e. blankets, sheets, pads, tubing,
etc.)
CAUTION Never remove any labels applied to the bed. Failure to do so could result in
personal injury or equipment damage.
CAUTION Do not exceed the maximum allowable weight capacity on this bed. The
maximum weight is the sum of the resident/patient, mattress, bedding material and
headboard and footboards.
CAUTION Keep the bed in low position when the occupant is unattended. High bed
positions increase the risk of injury from falling when getting in or out of bed, or while
reclined.

EX5000 User Manual
Revision 01
MAN-EX5000 REV01 EX5000 USER MANUAL Page 5 of 13
CAUTION Always keep all bed casters locked unless bed is being moved. Unlocked
casters can result in a fall hazard due to unexpected bed movement.
CAUTION To avoid a fire hazard; do not use the bed in an oxygen-enriched
environment or in the presence of explosive gases.
CAUTION To avoid an electric shock hazard; do not plug the power cord into a wall
outlet if the power cord is damaged, if the ground pin is missing, or if the wall outlet does
not provide for the power cord ground pin.
Bed Articulation Safety
WARNING Always confirm the area under the bed and end-boards is free and clear of
children, inattentive adults, pets, and objects when raising and lowering the bed.
CAUTION When lowering the bed or knee in chair position, always ensure limbs or
extremities are not under any portion of the bed or mattress.
CAUTION Always confirm limbs or extremities are within the perimeter of the mattress
and not in a position where they can be trapped or pinched by the support arms and assist
bars when adjusting head and knee elevation.
CAUTION Keep moving parts of bed free of obstructions, including bedding, heating
pads, tubes, cords and wires. Items caught in moving parts may be crushed, cut or pulled
during bed adjustment.
Side Rail and Assist Bar Safety
WARNING Always confirm the side rail and assist bars are locked in the raised position.
Improperly locked support arms and assist bars can result in a fall hazard due to sudden
unexpected movement.
Options and Accessories Safety
CAUTION Use only bed accessories and bed replacement parts supplied or approved by
Med-Mizer® for this bed. Third party accessories and replacement parts that are not
approved by Med-Mizer® may result in personal injury or equipment damage.
Cleaning Safety
WARNING Do not spill or spray liquid on the bed. Excessive liquid on the bed can
result in an electric shock hazard. In the event of a liquid spill or excessive liquid on the
bed, unplug the bed immediately. Remove excess liquid and allow bed to dry thoroughly
before restoring power.

EX5000 User Manual
Revision 01
MAN-EX5000 REV01 EX5000 USER MANUAL Page 6 of 13
CAUTION Follow manufacturer’s instructions for proper use of cleaning agent.
Improperly diluted or improperly applied cleaning agents can result in inadequate
disinfection or a caustic burn hazard.
Maintenance and Service Safety
WARNING Before performing bed maintenance or service, unplug the power cord to
avoid an electric shock hazard.
WARNING If a fault or problem is found during preventative maintenance inspections,
remove the bed from service until the appropriate repair or adjustment is made.
Specifications
Deck height range
9" to 25"
With Standard Boards
263 lbs.
(5" Caster Option)
11" to 27"
Maximum Head Angle
62° ± 3°
Safe Working Load
500 lbs.
Maximum Knee Angle
22° ± 3°
Overall Bed Widths
35.5", 38.5", 41.5"
Power Requirements
120 VAC, 60 Hz
Overall Bed Length
87.5"
Maximum current draw
2.7 amps
Overall bed Weight
236 lbs.
Controller Output Voltage
24 VDC
Options and Accessories
TRAP
Trapeze Accessory
FBSS
Floor Bumper System
ASRL-3PR
Assist Bar with Embedded controls –Right w/ Pivot
ASRL-3PL
Assist Bar with Embedded controls –Left w/ Pivot
BEX
4 Inch Bed Extender
DOLLY-EX
Transport Dolly - RetractaBed® EX Model
2039
5 Inch Caster Upgrade
ASRL-PR
Pivoting Assist Bar –Right
ASRL-PL
Pivoting Assist Bar –Left
UD3AC
Two Position Side Rail (Set) w/ Embedded Controls
UD
Two Position Side Rail (Set)

EX5000 User Manual
Revision 01
MAN-EX5000 REV01 EX5000 USER MANUAL Page 7 of 13
End Board Options
Headboard and Footboard Finish Options
Custom Headboard and Footboards Available
Factory Installed Options
4 Swivel Caster Upgrade
Battery Backup
Surelock or 1 Step Lock (See how to use in the Operations part of the manual.)
Preparation for Use
Unpacking (If Shipped LTL/Commercial)
Tools Required:
Utility knife
Side-cutting shears
9/16 Socket and Ratchet
To unpack bed, footboard and headboard:
1. Use the utility knife to carefully cut the shrink-wrap film
and remove it from the bed.
2. Use the side-cutting shears to carefully cut all banding and
tie straps.
3. Use the utility knife to carefully open the carton containing
the end boards, and remove the headboard and footboard.
4. Use the hi/low function to raise the bed until the casters are
extended past the pallet. Then lay the bed down on its
casters and un-bolt the frame from the pallet using the 9/16
socket and ratchet.

EX5000 User Manual
Revision 01
MAN-EX5000 REV01 EX5000 USER MANUAL Page 8 of 13
Assembly
Tools Required: None
To prepare bed for first use:
1. Attach the headboard to the bed by placing
the headboard against in the slots located
on the inner-mediate frame. Ensure that
metal headboard bracket is firmly seated
within the channels.
2. Attach the footboard to the bed by placing
the footboard into the slots outside of the
foot-end frame. Make sure footboard
brackets are securely seated into channel
slots until the dimple is making contact.
Operation
Control Options
¼ Length Side Rail with Embedded Controls
Assist Bar with Embedded Controls
Hand Held Handset
Bed Height Adjustment
The bed height controls are located on the outside of side rail or assist device and on the face of
the hand held handset. The up arrow raises the bed, and the down arrow lowers the bed.
Dimple

EX5000 User Manual
Revision 01
MAN-EX5000 REV01 EX5000 USER MANUAL Page 9 of 13
Head and Knee Adjustment
The head and knee elevation controls are located on the inside of side rail or assist bar and on the
face of the hand held handset. The head-up arrow raises the head section, and the head-down
arrow lowers the head section. The knee-up arrow raises the knee, and the knee-down arrow
lowers the knee.
Foot Elevation
To elevate the foot section, first raise the knee to the desired height. Manually lift the foot end of
the foot section and rotate the foot support post upward. Lower the foot section placing the foot
support on the bottom of the foot section.
Bed Transport
To transport an empty bed, unlock the bed casters and use the footboard or headboard to move
the bed. Do not move the bed using the support arms, hand held handset or assist bars as handles.
Lock all four bed casters when bed movement is complete.

EX5000 User Manual
Revision 01
MAN-EX5000 REV01 EX5000 USER MANUAL Page 10 of 13
Articulation Lock-out
Powered bed movement may be disabled by activating
the lock-out switch, located under the foot section of the
bed deck centered at the foot. Each individual operation
can be locked out separately.
Bed Deck Expansion or Retraction
To expand deck push the two buttons simultaneously
and pull the tube, release the button until the desired
width is achieved. The first locking location is 39”
and the last locking location is 42” in width. Repeat
on all four sections and both sides of bed. Ensure that
the section locks into desired location.
To retract deck, depress both buttons and push the
tube in to the desired location.
To position the head or foot of the deck into the Evac position or through the door position push
depress the buttons and push the tube with accessory completely in until the tube stops and in
position. Repeat on both sides of the deck.
BUTTONS

EX5000 User Manual
Revision 01
MAN-EX5000 REV01 EX5000 USER MANUAL Page 11 of 13

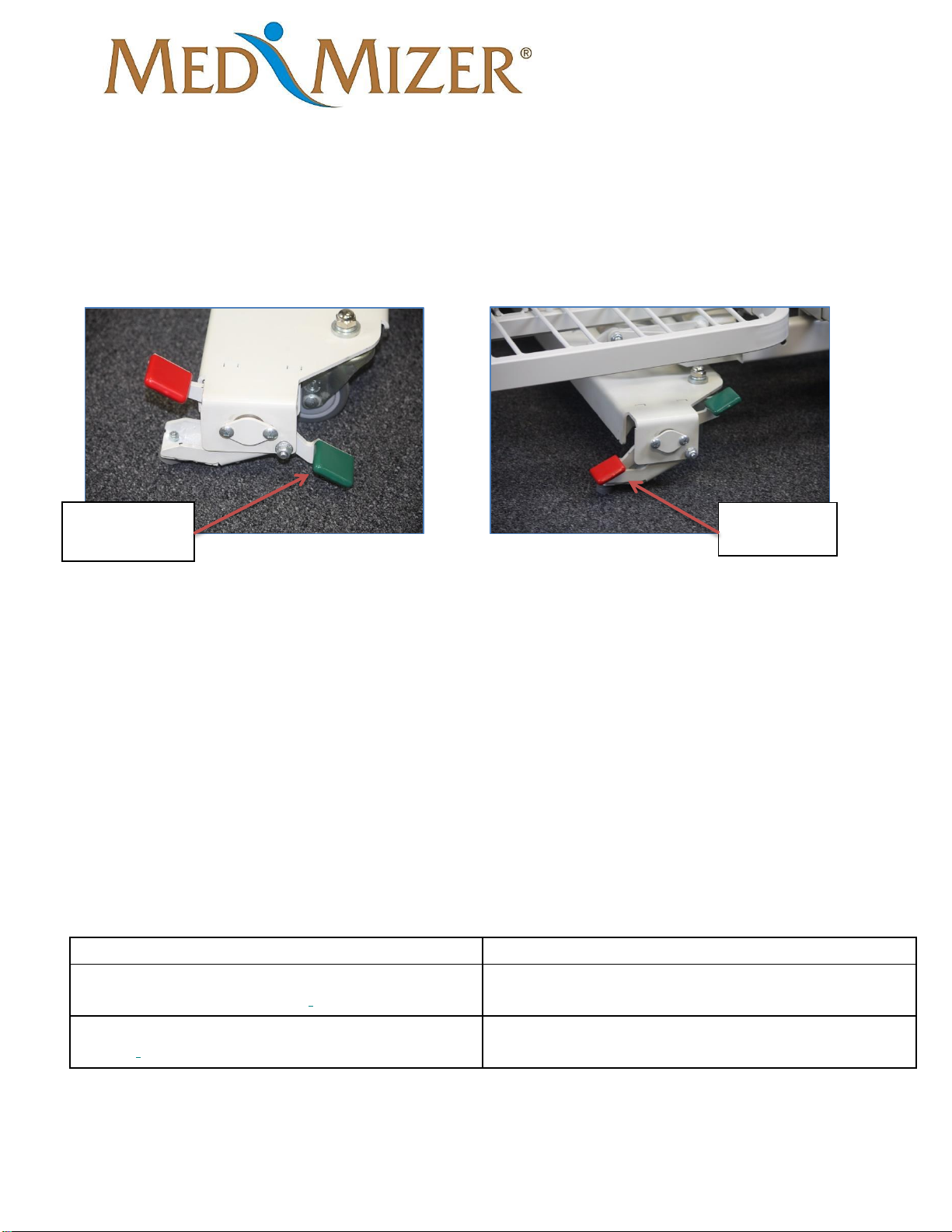

Surelock or 1 Step Lock
The Surelock allows you to lock or unlock the casters of the bed with one step. If the green pedal
is in the down position that means the bed is ready to be moved. If the red pedal is in the down
position, that means the foot end bed casters are locked. See images below.
Maintenance
Cleaning
The frame can be cleaned/disinfected with a disinfecting wipe. Disinfectant should always be
applied to a cloth; never spray directly on frame. After applying cleaning agent, allow the surface
to dry prior to placing unit back in service. Clean frame as needed.
Maintenance and Service
NOTICE: RECOMMENDED TO PERFORM PREVENTIVE MAINTENANCE EVERY 12
MONTHS FOR BEST PERFORMANCE.
1. Inspect the frame for weld cracks or tears.
2. Check that all bolts, pins and fasteners are still in working order.
3. Perform functional test on the frame.
4. Inspect the casters for wear and tear.
Preventative Maintenance Inspections
Problem Resolution
Inspect bed frame for cracks, tears or bending,
particularly at welds and joints.
Remove bed from service. Contact Med-Mizer®
customer service.
Inspect electrical enclosures for cracks or other
damage.
Remove bed from service. Contact Med-Mizer®
customer service.
Unlocked
Position
Locked
Position

EX5000 User Manual
Revision 01
MAN-EX5000 REV01 EX5000 USER MANUAL Page 12 of 13
Check that screws, bolts, pins and other fasteners are
in place, secured and properly tightened.
Remove bed from service. Tighten loose bolts and
screws. Contact Med-Mizer® customer service to
replace missing or damaged fasteners.
Inspect actuators for excessive wear and
misalignment.
Remove bed from service. Contact Med-Mizer®
customer service.
Inspect power cord for damage including the plug
and strain relief.
Remove bed from service. Contact Med-Mizer®
customer service to replace power cord.
Verify that cables and wires are properly retained
and clear of moving parts.
Remove bed from service. Securely retain wires so
they are clear of moving parts. Contact Med-Mizer®
customer service to replace missing or damaged wire
fasteners.
Verify the plug connectors for the controls, drive
motors, and motor control box are fully engaged.
Fully engage connectors that are not properly engaged.
Verify the side rails/ assist bars latch securely in the
raised position.
Remove bed from service. Contact Med-Mizer®
customer service.
Verify all casters securely lock when activated.
Remove bed from service. Contact Med-Mizer®
customer service to replace non-locking casters.
Verify that all bed control switches operate
correctly.
Contact Med-Mizer® customer service.
Service Parts List
Contact Med-Mizer® customer service at [phone] to order parts
Part
#
Description
Part
#
Description
5004
MATTRESS STOP
6142
ENGLISH OAK FOOTBOARD MELAMINE 11.50 X 31.75
5007
ROLLER, NYLON P/N 9013883701
6143
MAHOGANY HEADBOARD MELAMINE 19.75 X 35.75
5652
ALUMINUM KNOB
6144
MAHOGANY FOOTBOARD MELAMINE 11.50 X 31.75
6028
HEAD MOTOR
6145
LIGHT OAK HEADBOARD MELAMINE 19.75 X 35.75
6030
KNEE MOTOR
6146
LIGHT OAK FOOTBOARD MELAMINE 11.50 X 31.75
6036
DPST TOGGLE SWITCH
6147
CHERRY HEADBOARD MELAMINE 19.75 X 35.75
6044
3 INCH CASTER WHEEL
6148
CHERRY FOOTBOARD MELAMINE 11.50 X 31.75
6045
3 INCH CASTER WHEEL & HUB
6157
SG WIRE RIGHT FROM BOX 95 INCHES LONG
6053
SG PUSH SWITCH
6158
SG WIRE LEFT FROM BOX 101 INCHES LONG
6054
SG WIRE SHORT 54 INCHES LONG
6160
END CAP 3/8 DIA WHITE
6077
HANDLE, BED CONTROL 4 BUTTON, W/ LT 2 PLUG
6175
HANDLE, BED CONTROL 4 BUTTON, RIGHT
6078
HANDLE, BED CONTROL 4 BUTTON, W/ RT 2 PLUG
6176
HANDLE, BED CONTROL 4 BUTTON, LEFT
6082
HI/LO MOTOR
6201
LINAK POWER CORD 11 FOOT W/ GROUND CABLE

EX5000 User Manual
Revision 01
MAN-EX5000 REV01 EX5000 USER MANUAL Page 13 of 13
6090
IN-LINE COUPLER SG
6205
3 FUNCTION PENDENT RJ45 (HB43-U015-01)
6141
ENGLISH OAK HEADBOARD MELAMINE 19.75 X 35.75
6336
SLIDE PUSH BUTTON SPRING B-163
6345
BARIATRIC CONTROL BOX CB9140AE4+011J (56 / box)
6470
FLAT HEAD SOCKET CAP SCREW 10-24 X 1
Warranty
Med-Mizer, Inc. warrants to the original purchaser that its products shall be free of defects in material
and workmanship for a period of Lifetime on welds: 15 years on the bed frame: 5 years on the drive
system; 1 year on wood products, casters, handsets, and miscellaneous parts. Med-Mizer’s obligation
under this warranty is expressly limited to supplying replacement parts for, or replacing, at its option,
any product which is, in the sole discretion of Med-Mizer, found to be defective. This warranty does not
cover failure due to negligence, accident, abuse or installation not in accordance with the company’s
instructions or failure to follow maintenance instructions.
If requested by Med-Mizer, products or parts for which a warranty claim is made shall be returned
prepaid to Med-Mizer’s factory. Any improper use or any alteration or repair by others in such manner
as in Med-Mizer’s judgment affects the product materially and adversely shall void this warranty.
80 Commerce Dr. | www.med-mizer.com
Batesville, IN 47006 | [phone]
