Med-Mizer FlexTilt TF16 User manual

FlexTilt FT16-FT24 User Manual
Revision 06
MAN-FlexTilt REV06 FlexTilt-FT20-FT24 USER MANUAL Page 1 of 13
FlexTilt
Model FT16, FT20, FT24
USER MANUAL
For Parts or Technical Assistance - [phone]

FlexTilt FT16-FT24 User Manual
Revision 06
MAN-FlexTilt REV06 FlexTilt-FT20-FT24 USER MANUAL Page 2 of 13
TABLEOF CONTENTS
Overview
Introduction
3
Intended Use
3
Safety Information
3
Specifications
5
Options and Accessories
5
Preparation for Use
Unpacking
5
Operation
Seat Tilt
5
Recline Position
6
Leg Elevation
6
Foot Extension –Retraction
7
Pivoting Side Rail
7
Front Locking Casters
8
Rear Directional Casters
8
Adjustable Seat Height
9
Backrest Adjustability
10
Maintenance
Cleaning
11
Maintenance and Service
11
Service Parts List
12
Warranty
Warranty
13

FlexTilt FT16-FT24 User Manual
Revision 06
MAN-FlexTilt REV06 FlexTilt-FT20-FT24 USER MANUAL Page 3 of 13
Overview
Introduction
This manual provides instructions for use of the FlexTilt. Do not operate the chair without first
reading and understanding the warnings and cautions provided herein.
NOTICE: The information in this document is subject to change without notice.
Intended Use
The FlexTilt geriatric chair is intended to provide means for a single occupant to recline and sit,
and to assist the occupant in moving between reclining, sitting and standing positions.
The chair is intended for use in U.S. and Canada long and short-term care facilities, and homes.
The chair is intended to support a safe working load of 350 lbs. (evenly distributed), which
includes the weight of the occupant, clothing and accessories.
The chair is intended for operation by adult users who have read and understand this User
Manual.
The chair is intended for use in environments where it will not get wet, and where the ground is
stable and level.
Safety Information
This symbol identifies a WARNING or CAUTION:
WARNING represents potentially dangerous situations that can lead to serious physical
injury or death.
CAUTION represents potentially dangerous situations that can lead to minor physical
injury.
General Use Safety
WARNING Chair must be used as specified under the “Intended Use” heading. Use of
the chair outside of the specified conditions may result in personal injury or equipment
damage.

FlexTilt FT16-FT24 User Manual
Revision 06
MAN-FlexTilt REV06 FlexTilt-FT20-FT24 USER MANUAL Page 4 of 13
WARNING Close supervision by an adult user who has read and understands this User
Manual is required when the chair is used around children or others who have not or
cannot read and/or understand this User Manual.
CAUTION Keep all moving parts free of obstruction (i.e. blankets, pads, tubing, etc.)
CAUTION Never remove any labels applied to the chair. Failure to do so could result in
personal injury or equipment damage.
CAUTION Do not exceed the maximum allowable weight capacity on the chair. The
maximum weight is the sum of the resident/patient, clothing and accessories.
CAUTION Always keep all chair casters locked unless chair is being moved. Unlocked
casters can result in a fall hazard due to unexpected movement.
Options and Accessories Safety
CAUTION Use only chair accessories and chair replacement parts supplied or approved
by Med-Mizer® for this chair. Third party accessories and replacement parts that are not
approved by Med-Mizer® may result in personal injury or equipment damage.
CAUTION The use of parts and accessories not approved by Med-Mizer® will void the
warranty and will exclude Med-Mizer® from any possible liability claims.
Cleaning Safety
CAUTION Follow manufacturer’s instructions for proper use of cleaning agent.
Improperly diluted or improperly applied cleaning agents can result in inadequate
disinfection or a caustic burn hazard.
Maintenance and Service Safety
WARNING If a fault or problem is found during preventative maintenance inspections,
remove the chair from service until the appropriate repair or adjustment is made.

FlexTilt FT16-FT24 User Manual
Revision 06
MAN-FlexTilt REV06 FlexTilt-FT20-FT24 USER MANUAL Page 5 of 13
Specifications
FT16
FT20
FT24
Seat Width
16"
20”
24”
Backrest Recline
34 Degrees
34 Degrees
28 Degrees
Seat Tilt
27 Degrees
27 Degrees
25 Degrees
Leg Raise
42 Degrees
42 Degrees
45 Degrees
Backrest Adjustability/Seat Depth
From Edge of Seat: 15.375”/16.0625”/17.125”/18”
Seat Height Adjustment
Seat to the floor: 17.5”/18.5”/19.5”
Leg support extends
From 15.5”/16.25”/17”/17.75”/18.5”/19.25”/20”
Options and Accessories
FTBUCK –Foot Box
SBFLEX –Stabilizer Bars
Preparation for Use (Read this user manual thoroughly)
Unpacking (If Shipped LTL/Commercial)
Tools Required: Utility Knife and Side Cutting Shear
1. Remove shrink wrap and straps that attach the chair to the pallet.
Operation
1. Chair Tilt –The chair tilt action on the chair is activated when you use the left lever on
the back of the chair.
Use left lever to
operate the seat
tilt action
Chair Tilt Position

FlexTilt FT16-FT24 User Manual
Revision 06
MAN-FlexTilt REV06 FlexTilt-FT20-FT24 USER MANUAL Page 6 of 13
2. Back Recline - The back recline action on the chair is activated when you use the right
lever on the back of the chair.
Note: The leg rest elevates as the caregiver reclines the chair, the leg elevation can be
adjusted once the caregiver has the chair in the desired recline position. See step 3 for
details.
3. Leg Adjustment –The leg elevation is activated by lifting on the black sleeve on the
side of the lower base frame.
Note: Place lower leg elevation to the full down position prior to attempting patient
egress from Chair.
Use right lever to
operate the
recline action
Back Recline
Black Sleeve on
either side of
the chair

FlexTilt FT16-FT24 User Manual
Revision 06
MAN-FlexTilt REV06 FlexTilt-FT20-FT24 USER MANUAL Page 7 of 13
4. Foot Extension and Retraction –Push the buttons located on the lower foot rest to
activate the foot extensions and retraction.
Note: Retract foot extension prior to attempting patient egress from chair.
5. Pivoting Side Rail –Pull side rail knob and flip rail up and towards the backrest. Rail
will lock in complete up position.
Push buttons
then move
foot to desired
length
Retract or
extend lower
foot section
Pull knob and
pivot rail up until
it locks into place

FlexTilt FT16-FT24 User Manual
Revision 06
MAN-FlexTilt REV06 FlexTilt-FT20-FT24 USER MANUAL Page 8 of 13
6. Front Locking Casters –Casters located under the leg rest of the chair are total locking.
When pedal is compressed the caster will no longer swivel nor will the caster turn.
7. Rear Directional/Steering Casters –The two rear casters are directional/steering
casters. When the pedal is compressed the casters will swivel until they lock in a straight
line.
Note: It is recommended to use both when moving the chair.
Front swivel total
locking caster
Rear directional
locking casters

FlexTilt FT16-FT24 User Manual
Revision 06
MAN-FlexTilt REV06 FlexTilt-FT20-FT24 USER MANUAL Page 9 of 13

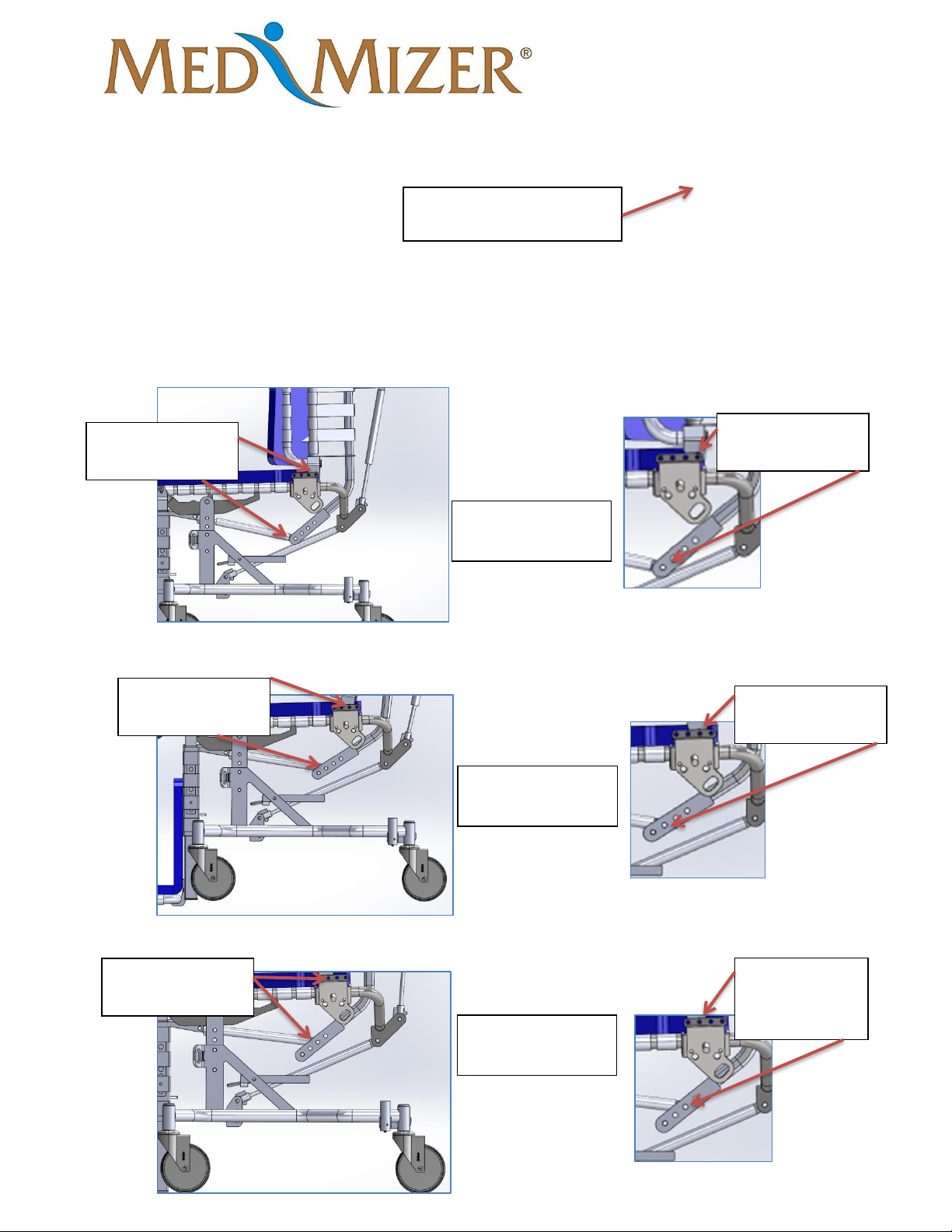

8. Adjustable Seat Height –The seat height has three different heights that are available
(19.25”, 18.25”, 17.25”). Adjusting the seat height means moving the adjustment
brackets down or up as well as adjusting the cylinder to match the height.
Note: (The chair will always be delivered in the highest position.)
Highest Position
Adjustment
bracket in
highest position
Adjustment
bracket in
highest position
Cylinder in highest position
of locater bracket
Middle Position
Adjustment
bracket in
middle position
Adjustment
bracket in
middle position
Cylinder in middle position
of locater bracket
Adjustment
bracket in
lowest position
Adjustment
bracket in
lowest position
Lowest Position

FlexTilt FT16-FT24 User Manual
Revision 06
MAN-FlexTilt REV06 FlexTilt-FT20-FT24 USER MANUAL Page 10 of 13

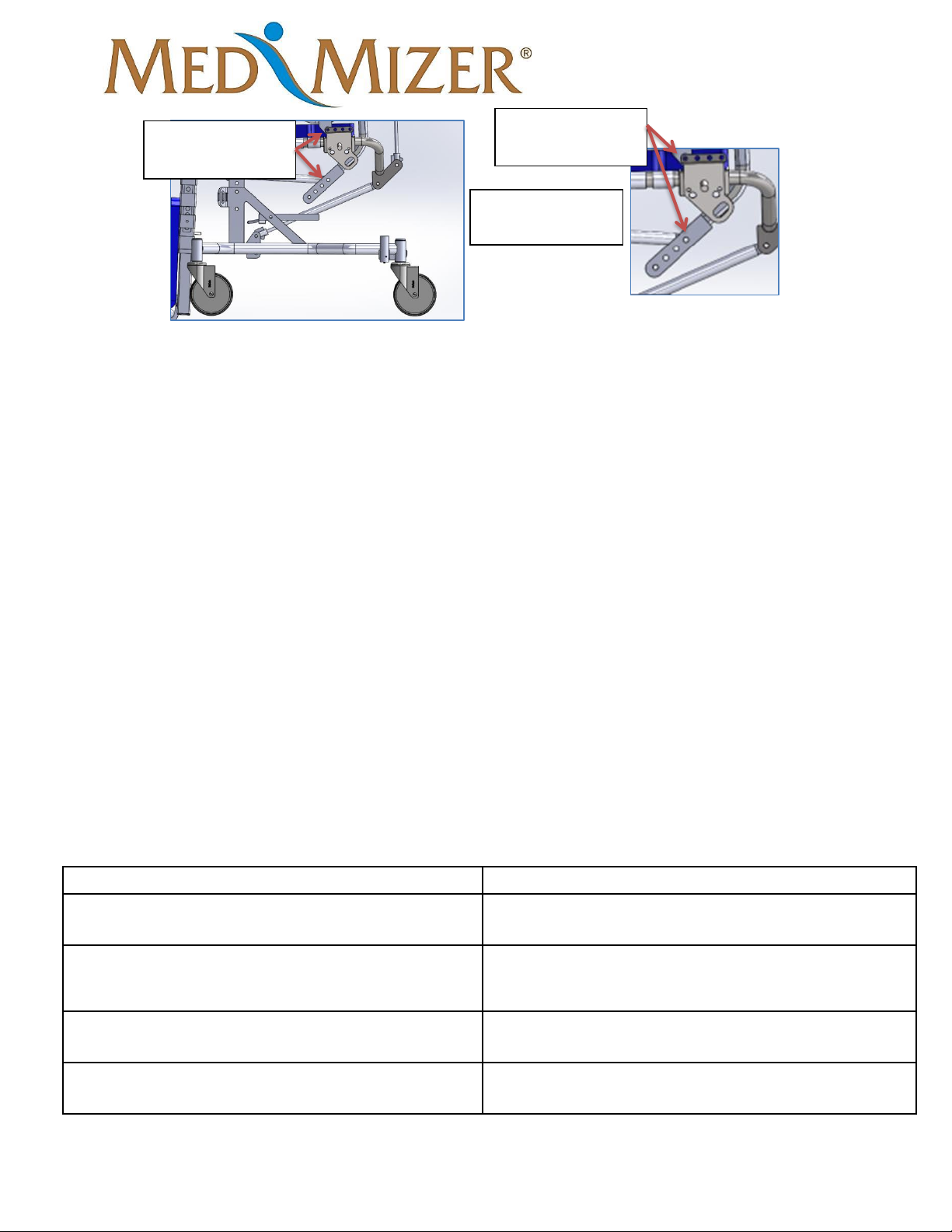

9. Backrest Adjustability –The backrest adjustment has four different available seat
depths. Each adjustment has an increment of .875”. The backrest and cylinder both need
adjusted when choosing a seat depth. See images below.
Note: (The chair will always be delivered with the seat depth in the maximum seat depth
position.)
Cylinder in lowest position
of locater bracket
Furthest Backrest
Location
Backrest and
cylinder location
Backrest and
cylinder location
Second adjustment
forward
Backrest and
cylinder location
Backrest and
cylinder location
Third adjustment
forward
Backrest and
cylinder location
Backrest and
cylinder
location

FlexTilt FT16-FT24 User Manual
Revision 06
MAN-FlexTilt REV06 FlexTilt-FT20-FT24 USER MANUAL Page 11 of 13
Maintenance
Cleaning
Frame Cleaning - The frame can be cleaned/disinfected with a disinfecting wipe. Disinfectant
should always be applied to a cloth; never spray directly on frame. Always follow
manufacturer’s instructions for proper use of cleaning agent. After applying cleaning agent,
allow the surface to dry prior to placing unit back in service. Clean frame as needed.
Pad/Cushion Cleaning - All cleaning solutions must be properly diluted according to the
manufacturer’s instructions. Please follow standard institutional wipe down and infection control
procedures.
Maintenance and Service
NOTICE: RECOMMENDED TO PERFORM PREVENTIVE MAINTENANCE EVERY 12
MONTHS FOR BEST PERFORMANCE.
1. Inspect the frame for weld cracks or tears.
2. Check that all bolts, pins and fasteners are still in working order.
3. Perform functional test on the chair.
4. Inspect the casters for wear and tear.
Preventative Maintenance Inspections
Problem Resolution
Inspect chair frame for cracks, tears or bending,
particularly at welds and joints.
Remove chair from service. Contact Med-Mizer®
customer service.
Check that screws, bolts, pins and other fasteners are
in place, secured and properly tightened.
Remove chair from service. Tighten loose bolts and
screws. Contact Med-Mizer® customer service to
replace missing or damaged fasteners.
Inspect gas springs for excessive wear and
misalignment.
Remove chair from service. Contact Med-Mizer®
customer service.
Inspect all gas spring cabling for wear and tear.
Remove chair from service. Contact Med-Mizer®
customer service to replace power cord.
Third adjustment
forward
Backrest and
cylinder location
Backrest and
cylinder location

FlexTilt FT16-FT24 User Manual
Revision 06
MAN-FlexTilt REV06 FlexTilt-FT20-FT24 USER MANUAL Page 12 of 13
Service Parts List
PART #
DESCRIPTION
5261
Shoulder Washer, Sleep Surface
5526
Bushing, Pivot ASRL
5527
Pin, ASRL Pivot Pull
5639
Steel Knob
6102
1/2-13 Jam Finishing Nut Zinc
6195
5" Swivel Caster Total Lock (LK524)
6283
1/2-13 Gr2 Nyl Thin Locknut, 5/16" Ht.
6317
Wldmnt, Seat Bottom
6423
Pivot ASRL Nylon Spacer 17W15013
6474
5" BI Brake Caster (Y580XDT2/W500U)
6602
17W10032
6774
Pin, 10mm Clevis x 1-3/4" Usable Length
6775
Armrest, Polyurethane Chair
6776
Aluminum Blind Rivets with Aluminum Mandrel, 3/16" Diameter, 0.450" Long
6777
Locking Gas Springs, Back (K0M2KK2-100-351/300N)
6778
Locking Gas Springs, Tilt (K0M2KK2-100-351/600N)
6779
Locking Gas Springs, Leg (K0M2KK2-100-351/150N)
6780
Release Head (20AKXXMXX)
6781
Tubing plug Caster (41194)
6782
Tubing plug, Seat Base(41170)
6783
Back Tube cap, Seat Back (41203)
6784
36" Cable
6785
48" cable
6786
Leg Cable
6787
Levers
6788
Handle Grip
6808
Pad, Head Rest (20" Chair)
6806
Pad, Back Rest (20" Chair)
6805
Pad, Seat (20" Chair)
6807
Pad, Leg Rest (16", 20", 24" Chair)
6839
Pad, Head Rest (24" Chair)
6838
Pad, Back Rest (24" Chair)
6837
Pad, Seat (24" Chair)
6873
Pad, Head Rest (16" Chair)
6871
Pad, Back Rest (16" Chair)
6870
Pad, Seat (16" Chair)
10438
Boss, Caster Mounting
10468
Spacer, Chair Bottom

FlexTilt FT16-FT24 User Manual
Revision 06
MAN-FlexTilt REV06 FlexTilt-FT20-FT24 USER MANUAL Page 13 of 13
6765
Strap, 1 x 28 (Fits FT16, FT20 and FT24)
6766
Strap, 1-1/2 x 21" Long (FT20 Only)
6767
Strap, 1 x 31(Fits FT16, FT20 and FT24)
6768
Strap, 1 x 29.5 (Fits FT16, FT20 and FT24)
6769
Strap, 1 x 29 (FT20 Only)
6770
Strap, 1-1/2 x 21.5 (FT20 Only)
6771
Strap, 1-1/2 x 22-1/2 (FT20 Only)
6772
Strap, 1-1/2 x 20 (FT20 Only)
6773
Strap, 1-1/2 x 17 (FT20 Only)
6843
Strap, 1 1/2 x 24 (FT24 Only)
6844
Strap, 1 1/2 x 30 (FT24 Only)
6845
Strap, 1 1/2 x 33.5 (FT24 Only)
6776
Strap, 1 1/2 x 26 (FT16 Only)
6777
Strap, 1 1/2 x 18.5 (FT16 Only)
6846
Strap, 1 1/2 x 25.5 (FT24 Only)
Contact Med-Mizer® customer service at [phone] to order parts
Warranty
Med-Mizer, Inc. warrants to the original purchaser that its products shall be free of defects in material
and workmanship for a period of 3 years on the chair frame, 1 year on all other components. All pads are
excluded from the warranty unless damaged during freight. Med-Mizer’s obligation under this warranty
is expressly limited to supplying replacement parts for, or replacing, at its option, any product which is,
in the sole discretion of Med-Mizer, found to be defective. This warranty does not cover failure due to
negligence, accident, abuse or installation not in accordance with the company’s instructions or failure
to follow maintenance instructions.
If requested by Med-Mizer, products or parts for which a warranty claim is made shall be returned
prepaid to Med-Mizer’s factory. Any improper use or any alteration or repair by others in such manner
as in Med-Mizer’s judgment affects the product materially and adversely shall void this warranty.
80 Commerce Dr. | www.med-mizer.com
Batesville, IN 47006 | [phone]
