Med-Mizer ActiveCare-Deluxe User manual

ActiveCare - Deluxe
User Manual
Revision 04
MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 1 of 32
ActiveCare-Deluxe
USER MANUAL
For Parts or Technical Assistance - [phone]

ActiveCare - Deluxe
User Manual
Revision 04
MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 2 of 32
TABLEOF CONTENTS
Overview
Introduction
3
Intended Use
3
Safety Information
3
Specifications
6
Intended Users
7
Bed Placement Dimensions
7
Options and Accessories
8
Preparation for Use
Unpacking
8
Assembly
12
Pivot Alignment
20
Mattress Installation
22
Pivot Bed Turn Left
24
Operation
Control Options
26
Bed Transport
27
Maintenance
Cleaning
27
Maintenance and Service
27
Service Part List
28
Troubleshooting
30
Control Box Reinitialization
31
Warranty
31

ActiveCare - Deluxe
User Manual
Revision 04
MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 3 of 32
Overview
Introduction
This manual provides instructions for use of the ActiveCare Bed. Do not operate the bed without
first reading and understanding the warnings and cautions provided herein.
NOTICE: The information in this document is subject to change without notice.
Intended Use
The ActiveCare Bed is intended to provide means for a single occupant to recline and sit, and to
assist the occupant in moving between reclining, sitting and standing positions.
The bed is intended for use in long and short-term care facilities, and homes.
The bed is intended to support a safe working load of 600 lbs. (evenly distributed), which
includes the weight of the occupant, mattress, bedding, and any other items on the bed deck.
The bed is intended for operation by adult users who have read and understand this User Manual.
The bed is intended for indoor use in environments where it will not get wet, where floors are
stable and level, and in ambient temperatures between 41°F and 104°F.
The bed is intended for operation on 120 VAC, 60 Hz mains power.
The bed is not intended to provide a means for transport of the occupant.
Safety Information
This symbol identifies a WARNING or CAUTION: IF SYMBOL IS ON BED
CONSULT USER MANUAL FOR EXPLANATION
WARNING represents potentially dangerous situations that can lead to serious physical
injury or death.
CAUTION represents potentially dangerous situations that can lead to minor physical
injury.
General Use Safety
WARNING Bed must be used as specified under the “Intended Use” heading. Use of the
bed outside of the specified conditions may result in personal injury or equipment
damage.

ActiveCare - Deluxe
User Manual
Revision 04
MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 4 of 32
WARNING Close supervision by an adult who has read and understands this User
Manual is required when the bed is used around children or others who have not or
cannot read and/or understand this User Manual.
WARNING The bed mattress must be purchased from Med-Mizer Inc. to meet
entrapment zone dimensional guidelines published by the Food and Drug Administration.
WARNING Do not spill or spray liquid on the bed. Excessive liquid on the bed can
result in an electric shock hazard. In the event of a liquid spill or excessive liquid on the
bed, unplug the bed immediately. Remove excess liquid and allow bed to dry thoroughly
before restoring power.
WARNING Never permit anyone under the bed while the bed is being used. Failure to do
so could result in personal injury.
WARNING Never operate the bed if a cord or plug is damaged, or it is not working
properly. Contact Qualified Service Personnel for inspection and/or repair. Failure to do so
could result in personal injury.
WARNING DO not sit or lie on hand control. It can cause unintended movement of the
application.
WARNING Ensure the main power cord is routed where it is not pinched either under or
beside the bed. Failure to do so could result in personal injury or equipment damage.
CAUTION Ensure the grounding cable of the control box is securely fastened to the frame.
Failure to do so could result in personal injury or equipment damage.
CAUTION If a handset is used, the cord must be routed and secured properly to ensure
that cord does not become entangled. Failure to do so could result in equipment damage or
personal injury.
CAUTION Keep all moving parts free of obstruction (i.e. blankets, sheets, pads, tubing,
etc.)
CAUTION Never remove any labels applied to the bed. Failure to do so could result in
personal injury or equipment damage.
CAUTION Do not exceed the maximum allowable weight capacity on this bed. The
maximum weight is the sum of the resident/patient, mattress, bedding material, and
accessories.
CAUTION Keep the bed in low position when the occupant is unattended. High bed
positions increase the risk of injury from falling when getting in or out of bed.

ActiveCare - Deluxe
User Manual
Revision 04
MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 5 of 32
CAUTION To avoid a fire hazard; do not use the bed in an oxygen-enriched
environment or in the presence of explosive gases.
CAUTION To avoid an electric shock hazard; do not plug the power cord into a wall
outlet if the power cord is damaged, if the ground pin is missing, or if the wall outlet does
not provide for the power cord ground pin.
Bed Articulation Safety
WARNING Always confirm the area under the bed and end-boards is free and clear of
children, inattentive adults, pets, and objects when raising and lowering or pivoting the
bed.
WARNING Do not place body parts or objects under bed or moving part mechanisms.
Failure to do so could cause serious injury or equipment damage.
WARNING Electric drive bed mechanisms can cause serious injury if operated
improperly. Operate the bed only when persons are clear of the mechanisms.
CAUTION When lowering the bed or knee in chair position, always ensure limbs or
extremities are not under any portion of the bed or mattress.
CAUTION Always confirm limbs or extremities are within the perimeter of the mattress
and not in a position where they can be trapped or pinched by the support arms and assist
bars when adjusting head and knee elevation.
CAUTION Keep moving parts of bed free of obstructions, including bedding, heating
pads, tubes, cords and wires. Items caught in moving parts may be crushed, cut or pulled
during bed adjustment.
Side Rail and Assist Bar Safety
WARNING Always confirm the side rail and assist bars are locked in the raised position.
Improperly locked support arms and assist bars can result in a fall hazard due to sudden
unexpected movement.
Options and Accessories Safety
CAUTION Use only bed accessories and bed replacement parts supplied or approved by
Med-Mizer® for this bed. Third party accessories and replacement parts that are not
approved by Med-Mizer® may result in personal injury or equipment damage.

ActiveCare - Deluxe
User Manual
Revision 04
MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 6 of 32
Cleaning Safety
WARNING Do not spill or spray liquid on the bed. Excessive liquid on the bed can
result in an electric shock hazard. In the event of a liquid spill or excessive liquid on the
bed, unplug the bed immediately. Remove excess liquid and allow bed to dry thoroughly
before restoring power.
CAUTION Follow manufacturer’s instructions for proper use of cleaning agent.
Improperly diluted or improperly applied cleaning agents can result in inadequate
disinfection or a caustic burn hazard.
CAUTION Clean the hand control regularly to ensure good hygiene standards.
Maintenance and Service Safety
WARNING Before performing bed maintenance or service, unplug the power cord to
avoid an electric shock hazard.
WARNING If a fault or problem is found during preventative maintenance inspections,
remove the bed from service until the appropriate repair or adjustment is made.
Specifications
“Low” Deck Height Range
13.625”
Maximum Head Angle
58º ± 3º
“High” Deck Height Range
28.5”
Maximum Head Angle (Pivoted)
90º ± 3º
Safe Working Load
600 lbs.
Maximum Knee Angle
29º ± 3º
Overall Bed Deck Widths
36", 42"
Power Requirements
120 VAC, 50 Hz
Overall Bed Length
94.00"
Maximum Current Draw
4.5 amps
Overall Bed Weight
(36”) 460lbs
(42”) 470lbs
Controller Output Voltage
24 VDC
Overall Bed Weight with
boards
(36”) 598lbs
(42”) 608lbs

ActiveCare - Deluxe
User Manual
Revision 04
MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 7 of 32

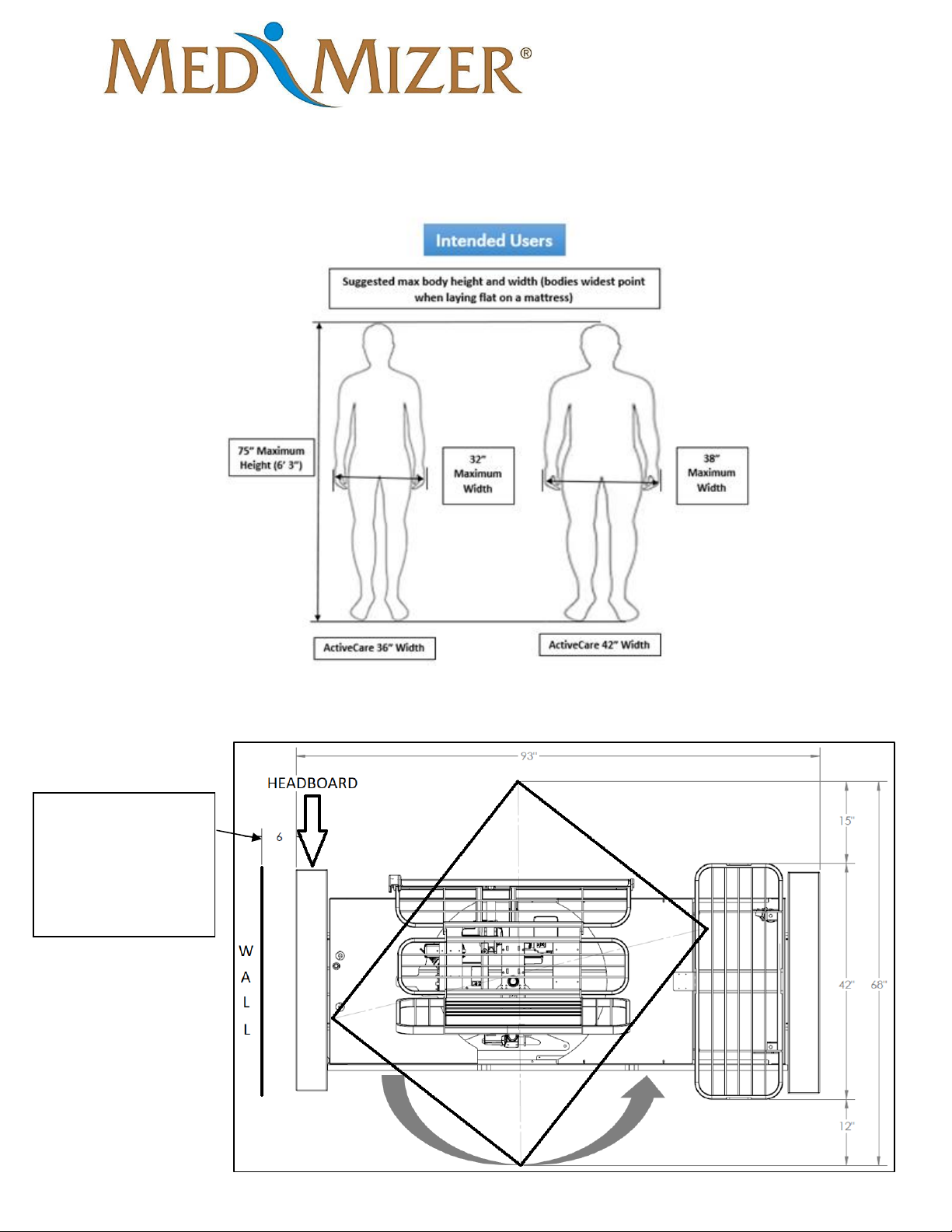

Intended Users
Bed Placement Dimensions
Bed must be 6”
from the wall if you
are using the
Trendelenburg
feature.

ActiveCare - Deluxe
User Manual
Revision 04
MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 8 of 32
Options and Accessories
•UD-MM (Up Down Rails)
•1/4 Length Deluxe Rail with matching top cap (Standard with bed)
•MBAR-Left (Mobility Bar Left Side)
•MBAR-Right (Mobility Bar Right Side)
•Trendelenburg Hand Pendant
•Battery Backup (Standard with bed)
End Board and Runner Panels
Headboard and Footboard Finish Options
Custom Headboard and Footboards Available

ActiveCare - Deluxe
User Manual
Revision 04
MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 9 of 32
Unpacking (If Shipped LTL/Commercial)
Tools Required:
•Utility knife/side cutting shears
•½” Socket with rachet/impact driver
•9/16” Wrench
1. Carefully remove outside box and shrink wrap with utility knife. And cut the three straps
holding the boxes. (Do not puncture boxes or mattress)
2. Remove boxes and mattress and put them off to the side.
Bed
Unwrapped
Cut the
straps

ActiveCare - Deluxe
User Manual
Revision 04
MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 10 of 32

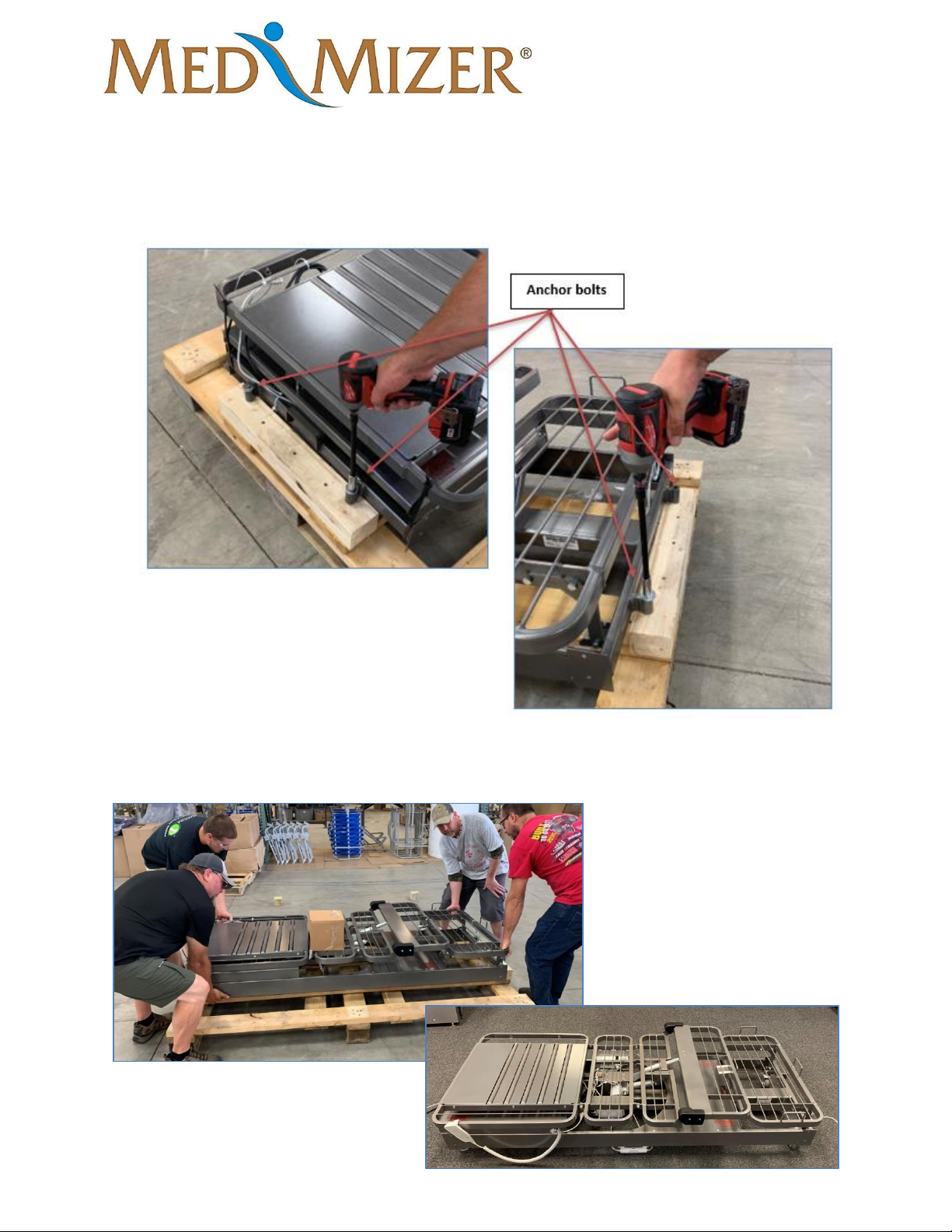

3. Using your ½” socket and impact/drill remove the four anchor bolts at each end of the
bed.
4. Lift bed off pallet and rest on the casters in its final location.

ActiveCare - Deluxe
User Manual
Revision 04
MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 11 of 32
5. Remove cable ties from frame.
6. Remove white shipping bracket from frame. (use 9/16” wrench)
7. Remove hand pendant from box.
Cable tie
locations
White shipping
bracket

ActiveCare - Deluxe
User Manual
Revision 04
MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 12 of 32
Assembly
Tools required:
•5/8” Wrench
•5/8” Socket
•Impact drill
•6” Impact extension
•Side Cutters
•7/16” Wrench
•#3 Phillips screwdriver or bit

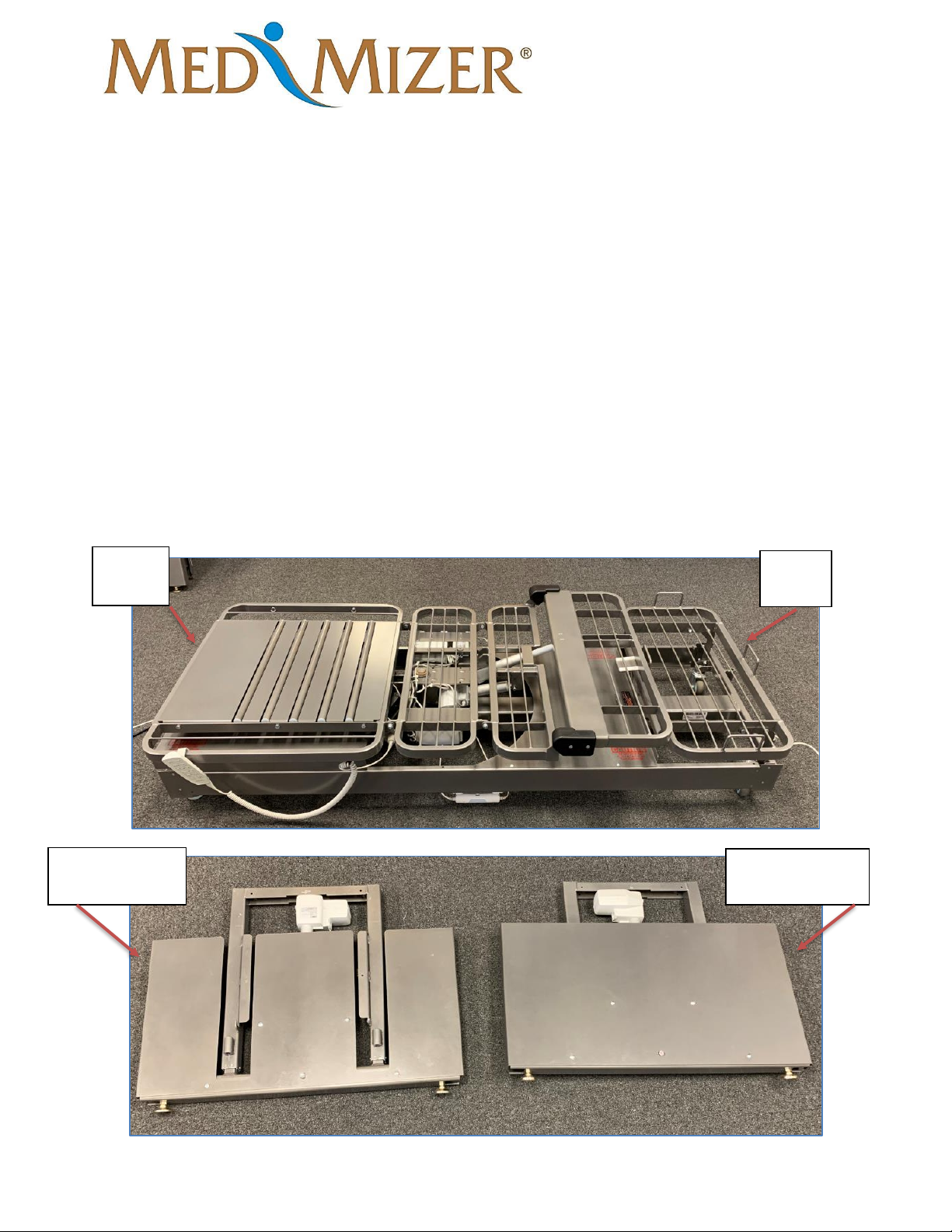

1. Unbox the head and foot high/low assemblies as well as identify the main frame head and
foot.
Head
of bed
Foot
of bed
Head High/Low
Assembly
Foot High/Low
Assembly

ActiveCare - Deluxe
User Manual
Revision 04
MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 13 of 32

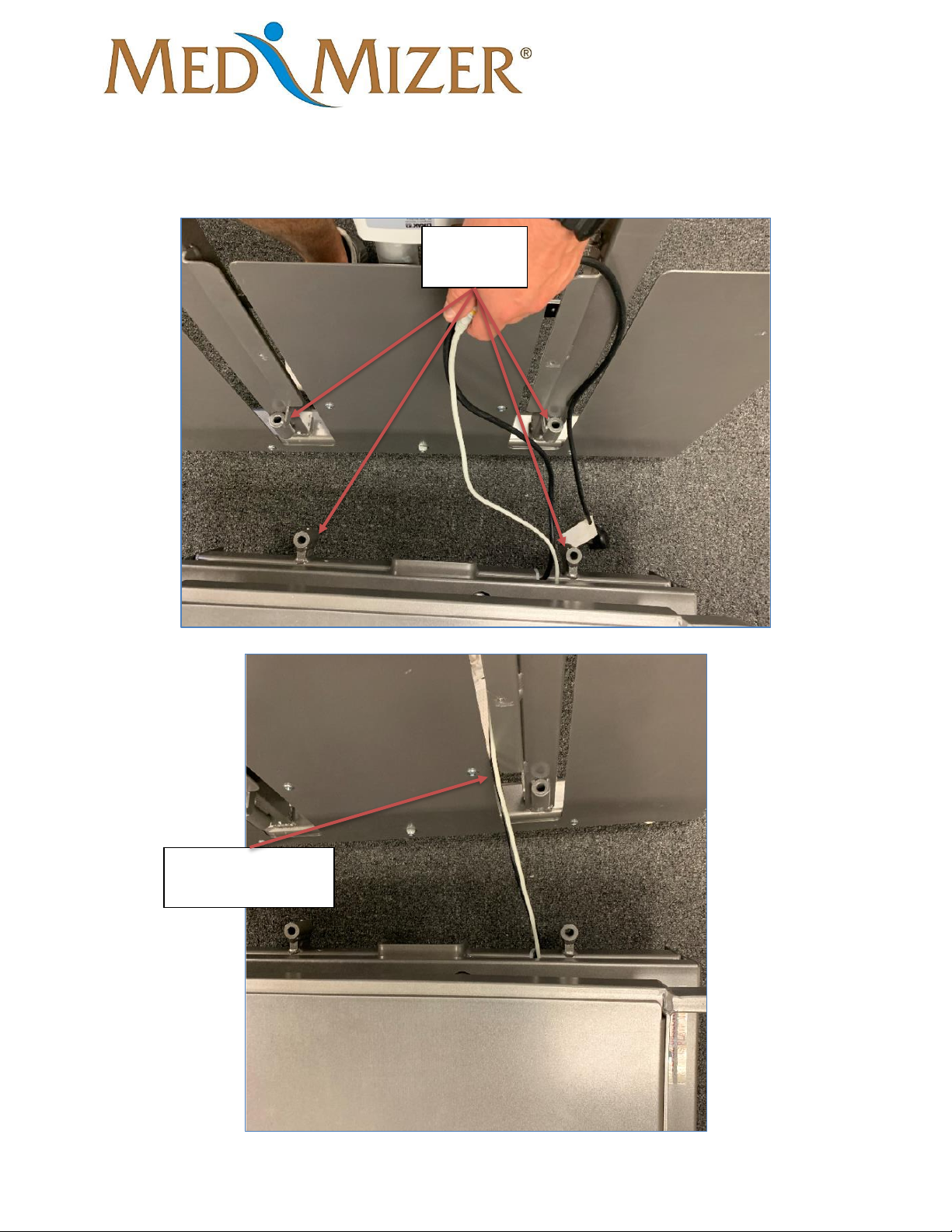

2. Attach head assembly to the of the main frame. Line up the bosses and pull wires through
the front slot of the assembly.
Align
Bosses
Pull wires through
front slot

ActiveCare - Deluxe
User Manual
Revision 04
MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 14 of 32
3. Place the high/low assembly on top of the frame bosses and slide the bolt though bosses.
Note: Reference page15 image 4 for a side view.
Install bolt into
both bosses

ActiveCare - Deluxe
User Manual
Revision 04
MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 15 of 32

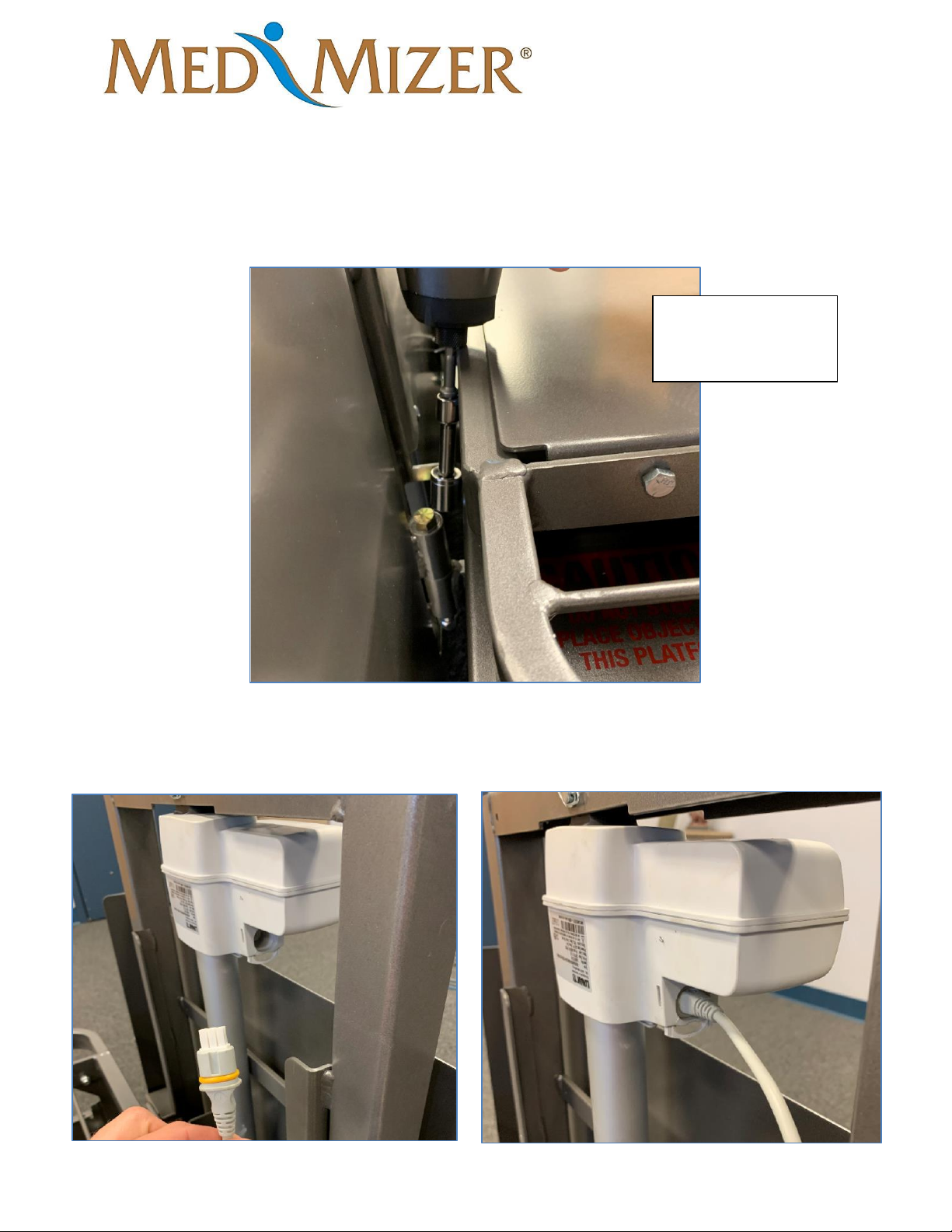

4. Fasten the nut and bolt together using a 5/8” wrench, impact/drill, impact extension, and
5/8” socket.
5. Plug high/low actuator cable into actuator. Push in cable thoroughly, then press clip in to
lock cable into place.
Note: Very important
to tighten nut on bolt
thoroughly

ActiveCare - Deluxe
User Manual
Revision 04
MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 16 of 32
6. Attach cable cord to lift column using two zip ties provided with the bed. Cut excess
when cord is attached.
Press cable clip in
to fasten cable
Attach
zip ties

ActiveCare - Deluxe
User Manual
Revision 04
MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 17 of 32
7. Repeat steps 2 through 6 for the foot high/low assembly.
8. Unbox the end boards for the bed.
Note: (End boards are identical for head and foot)
9. Locate tapped mounting holes on each end of the high/low assemblies.
Tapped
mounting holes

ActiveCare - Deluxe
User Manual
Revision 04
MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 18 of 32
10. Slide end board over high/low assembly and screw the Philips pan head bolt into the
tapped holes. Do this for both the head and foot assemblies.
11. Plug bed into power source and raise all the way up to locate the holes for the side
runners.
End boards
fastened to bed
Holes for
runner board

ActiveCare - Deluxe
User Manual
Revision 04
MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 19 of 32
12. Install carriage bolt into outside of runners and attach to the bed while fastening the nut
on the inside of the frame. Do this to both sides of the bed.
Carriage
Bolts

ActiveCare - Deluxe
User Manual
Revision 04
MAN-ActiveCare REV04 ActiveCare USER MANUAL Page 20 of 32
13. Position the Under Bed Lights (UBL) properly on the runners of the bed. Slide the tab of
the UBL hanger into the positioning hole on the runner as shown. The UBL is simply
held in place using magnets. There is a UBL on both sides of the bed.
Note: When moving the bed over high thresholds or bumps, tuck the light back behind the
runner as it was during shipping to prevent damage to the UBL.
UBL Tucked
Behind Runner
Slide UBL down
below runner
Place tab through
hole for proper
alignment
