ActiveCare-Standard
USER MANUAL
For Parts or Technical Assistance - [phone]

ActiveCare - Standard
User Manual
MAN-ActiveCare REV03 ActiveCare Standard USER MANUAL Page 2 of 33
TABLEOF CONTENTS
Overview
Introduction
3
Intended Use
3
Safety Information
3
Specifications
6
Intended Users
7
Bed Placement Dimension
7
Options and Accessories
8
Preparation for Use
Unpacking
9
Assembly
13
Pivot Alignment
18
Mattress Installation
20
Pivot Turn –Opposite Direction
22
Switching Hand Pendant to Opposite Side
24
Operation
Control Options
29
Bed Transport
30
Maintenance
Cleaning
30
Maintenance and Service
30
Service Part List
31
Warranty
33

ActiveCare - Standard
User Manual
MAN-ActiveCare REV03 ActiveCare Standard USER MANUAL Page 3 of 33
Overview
Introduction
This manual provides instructions for use of the ActiveCare Bed. Do not operate the bed without
first reading and understanding the warnings and cautions provided herein.
NOTICE: The information in this document is subject to change without notice.
Intended Use
The ActiveCare Bed is intended to provide means for a single occupant to recline and sit, and to
assist the occupant in moving between reclining, sitting and standing positions.
The bed is intended for use in long and short-term care facilities, and homes.
The bed is intended to support a safe working load of 600 lbs. (evenly distributed), which
includes the weight of the occupant, mattress, bedding, and any other items on the bed deck.
The bed is intended for operation by adult users who have read and understand this User Manual.
The bed is intended for indoor use in environments where it will not get wet, where floors are
stable and level, and in ambient temperatures between 41°F and 104°F.
The bed is intended for operation on 120 VAC, 60 Hz mains power.
The bed is not intended to provide a means for transport of the occupant.
Safety Information
This symbol identifies a WARNING or CAUTION: IF SYMBOL IS ON BED
CONSULT USER MANUAL FOR EXPLANATION
WARNING represents potentially dangerous situations that can lead to serious physical
injury or death.
CAUTION represents potentially dangerous situations that can lead to minor physical
injury.
General Use Safety
WARNING Bed must be used as specified under the “Intended Use” heading. Use of the
bed outside of the specified conditions may result in personal injury or equipment
damage.

ActiveCare - Standard
User Manual
MAN-ActiveCare REV03 ActiveCare Standard USER MANUAL Page 4 of 33
WARNING Close supervision by an adult who has read and understands this User
Manual is required when the bed is used around children or others who have not or
cannot read and/or understand this User Manual.
WARNING The bed mattress must be purchased from Med-Mizer Inc. to meet
entrapment zone dimensional guidelines published by the Food and Drug Administration.
WARNING Do not spill or spray liquid on the bed. Excessive liquid on the bed can
result in an electric shock hazard. In the event of a liquid spill or excessive liquid on the
bed, unplug the bed immediately. Remove excess liquid and allow bed to dry thoroughly
before restoring power.
WARNING Never permit anyone under the bed while the bed is being used. Failure to do
so could result in personal injury.
WARNING Never operate the bed if a cord or plug is damaged, or it is not working
properly. Contact Qualified Service Personnel for inspection and/or repair. Failure to do so
could result in personal injury.
WARNING DO NOT sit or lie on hand control. It can cause unintended movement of the
application.
WARNING Ensure the main power cord is routed where it is not pinched either under or
beside the bed. Failure to do so could result in personal injury or equipment damage.
CAUTION Ensure the grounding cable of the control box is securely fastened to the frame.
Failure to do so could result in personal injury or equipment damage.
CAUTION If a handset is used, the cord must be routed and secured properly to ensure
that cord does not become entangled. Failure to do so could result in equipment damage or
personal injury.
CAUTION Keep all moving parts free of obstruction (i.e. blankets, sheets, pads, tubing,
etc.)
CAUTION Never remove any labels applied to the bed. Failure to do so could result in
personal injury or equipment damage.
CAUTION Do not exceed the maximum allowable weight capacity on this bed. The
maximum weight is the sum of the resident/patient, mattress, bedding material, and
accessories.

ActiveCare - Standard
User Manual
MAN-ActiveCare REV03 ActiveCare Standard USER MANUAL Page 5 of 33
CAUTION Keep the bed in low position when the occupant is unattended. High bed
positions increase the risk of injury from falling when getting in or out of bed, or while
reclined.
CAUTION To avoid a fire hazard; do not use the bed in an oxygen-enriched
environment or in the presence of explosive gases.
CAUTION To avoid an electric shock hazard; do not plug the power cord into a wall
outlet if the power cord is damaged, if the ground pin is missing, or if the wall outlet does
not provide for the power cord ground pin.
Bed Articulation Safety
WARNING Always confirm the area under the bed and end-boards are free and clear of
children, inattentive adults, pets, and objects when raising and lowering or pivoting the
bed.
WARNING Do not place body parts or objects under bed or moving part mechanisms.
Failure to do so could cause serious injury or equipment damage.
WARNING Electric drive bed mechanisms can cause serious injury if operated
improperly. Operate the bed only when persons are clear of the mechanisms.
CAUTION When lowering the bed or knee in chair position, always ensure limbs or
extremities are not under any portion of the bed or mattress.
CAUTION Always confirm limbs or extremities are within the perimeter of the mattress
and not in a position where they can be trapped or pinched by the support arms and assist
bars when adjusting head and knee elevation.
CAUTION Keep moving parts of bed free of obstructions, including bedding, heating
pads, tubes, cords and wires. Items caught in moving parts may be crushed, cut or pulled
during bed adjustment.
Side Rail and Assist Bar Safety
WARNING Always confirm the side rail and assist bars are locked in the raised position.
Improperly locked support arms and assist bars can result in a fall hazard due to sudden
unexpected movement.
Options and Accessories Safety
CAUTION Use only bed accessories and bed replacement parts supplied or approved by
Med-Mizer® for this bed. Third party accessories and replacement parts that are not
approved by Med-Mizer® may result in personal injury or equipment damage.

ActiveCare - Standard
User Manual
MAN-ActiveCare REV03 ActiveCare Standard USER MANUAL Page 6 of 33
Cleaning Safety
WARNING Do not spill or spray liquid on the bed. Excessive liquid on the bed can
result in an electric shock hazard. In the event of a liquid spill or excessive liquid on the
bed, unplug the bed immediately. Remove excess liquid and allow bed to dry thoroughly
before restoring power.
CAUTION Follow manufacturer’s instructions for proper use of cleaning agent.
Improperly diluted or improperly applied cleaning agents can result in inadequate
disinfection or a caustic burn hazard.
CAUTION Clean the hand control regularly to ensure good hygiene standards.
Maintenance and Service Safety
WARNING Before performing bed maintenance or service, unplug the power cord to
avoid an electric shock hazard.
WARNING If a fault or problem is found during preventative maintenance inspections,
remove the bed from service until the appropriate repair or adjustment is made.
Specifications
“Low” Deck Height Range
13.5”
Maximum Head Angle
58º ± 3º
“High” Deck Height Range
27.5”
Maximum Head Angle(pivoted)
90º ± 3º
Safe Working Load
600 lbs.
Maximum Knee Angle
29º ± 3º
Overall Bed Widths
36", 42"
Power Requirements
120 VAC, 50 Hz
Overall Bed Length
94.00"
Maximum Current Draw
4.5 amps
Overall Bed Weight
(36”) 365lbs,
(42”) 375lbs
Controller Output Voltage
24 VDC
Weight with Standard
Boards
(36”), 395lbs
(42”), 405lbs

ActiveCare - Standard
User Manual
MAN-ActiveCare REV03 ActiveCare Standard USER MANUAL Page 7 of 33
Intended Users

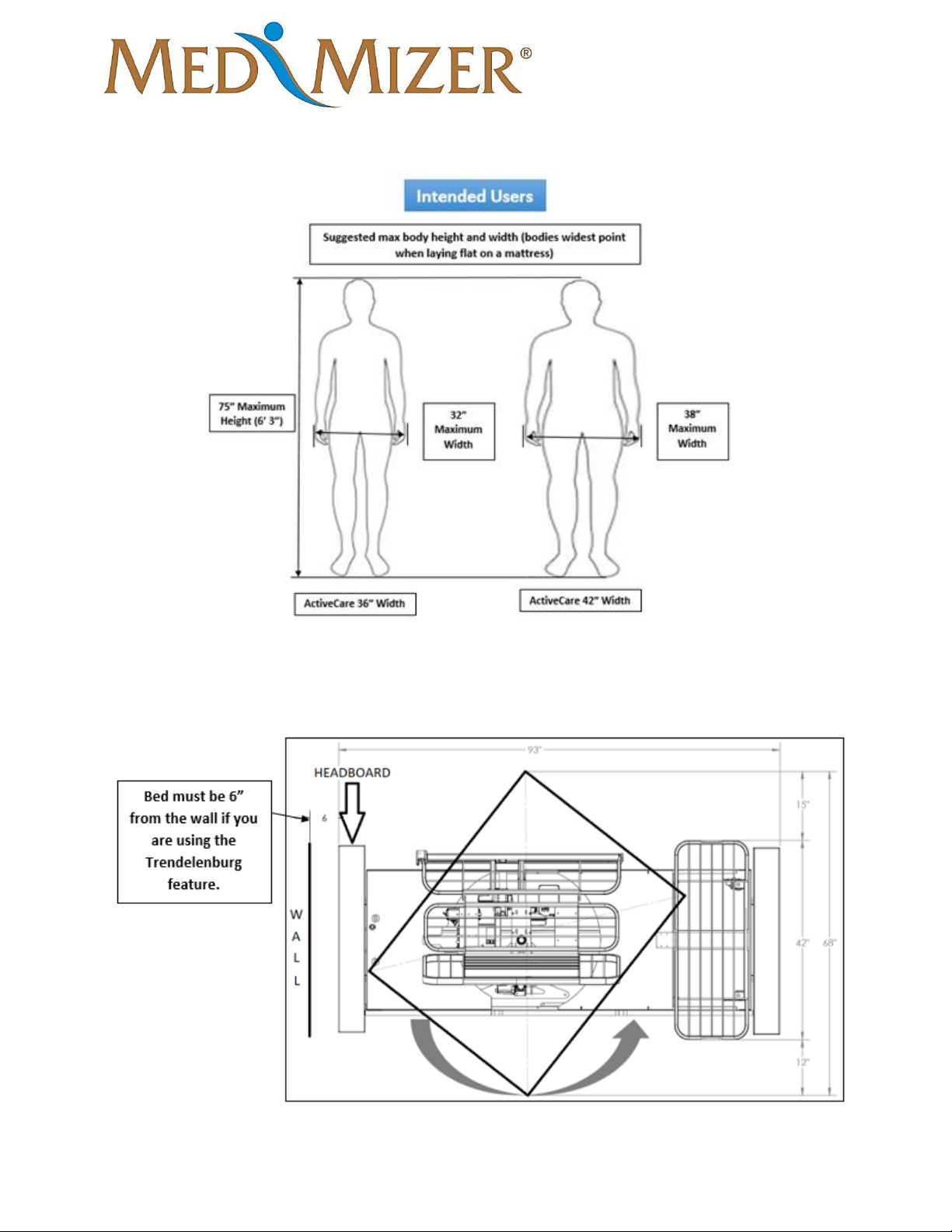

Bed Placement Dimensions

ActiveCare - Standard
User Manual
MAN-ActiveCare REV03 ActiveCare Standard USER MANUAL Page 8 of 33
Options and Accessories
•UD Rails (1/4 rails for head)
•Pivoting Assist Bars (not available on same side of bed as Mobility Bar)
•Mobility Bar
•Trapeze
•Battery Backup
•Trend/Reverse Trend Handset
End Boards
Headboard and Footboard Finish Options

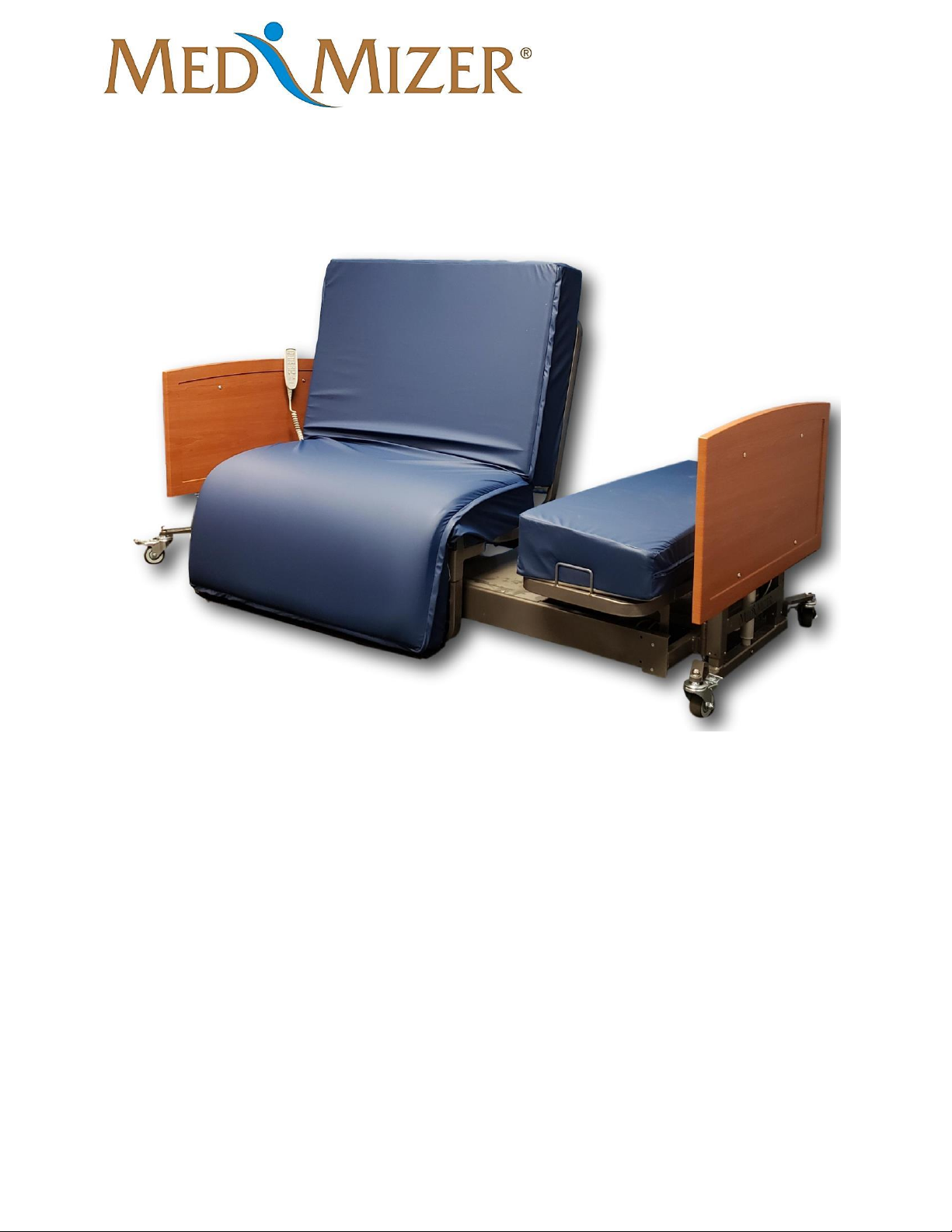

Custom Headboard and Footboards Available

ActiveCare - Standard
User Manual
MAN-ActiveCare REV03 ActiveCare Standard USER MANUAL Page 9 of 33
Unpacking (If Shipped LTL/Commercial)
Tools Required:
•Utility knife/side cutting shears
•½” Socket with rachet/impact driver
•9/16” Wrench
1. Carefully remove outside box and shrink wrap with utility knife. (Do not puncture boxes
or mattress)
2. Cut the three straps holding the boxes and
Bed
unwrapped
Cut the straps

ActiveCare - Standard
User Manual
MAN-ActiveCare REV03 ActiveCare Standard USER MANUAL Page 10 of 33
3. Remove boxes and mattress and put them off to the side.
4. Unbolt the four anchor bolts on each end of the bed.
Anchor bolts

ActiveCare - Standard
User Manual
MAN-ActiveCare REV03 ActiveCare Standard USER MANUAL Page 11 of 33
5. Lift bed off pallet and put on installation blocks (installation blocks included with bed, in
small box).
Frame resting on
assembly blocks

ActiveCare - Standard
User Manual
MAN-ActiveCare REV03 ActiveCare Standard USER MANUAL Page 12 of 33
6. Remove cable ties from frame.
7. Remove white shipping bracket from frame. (use 9/16” wrench)
8. Remove Pendant from box
Cable tie
locations
White shipping
bracket

ActiveCare - Standard
User Manual
MAN-ActiveCare REV03 ActiveCare Standard USER MANUAL Page 13 of 33
Assembly
Tools Required:
•5/8 Wrench
•5/8 Socket
•6” Socket Extension
•Ratchet/Impact Driver
•Side Cutters
1. Begin with bed frame resting on installation block. (as seen in unpacking instructions)
Frame resting on
assembly blocks

ActiveCare - Standard
User Manual
MAN-ActiveCare REV03 ActiveCare Standard USER MANUAL Page 14 of 33

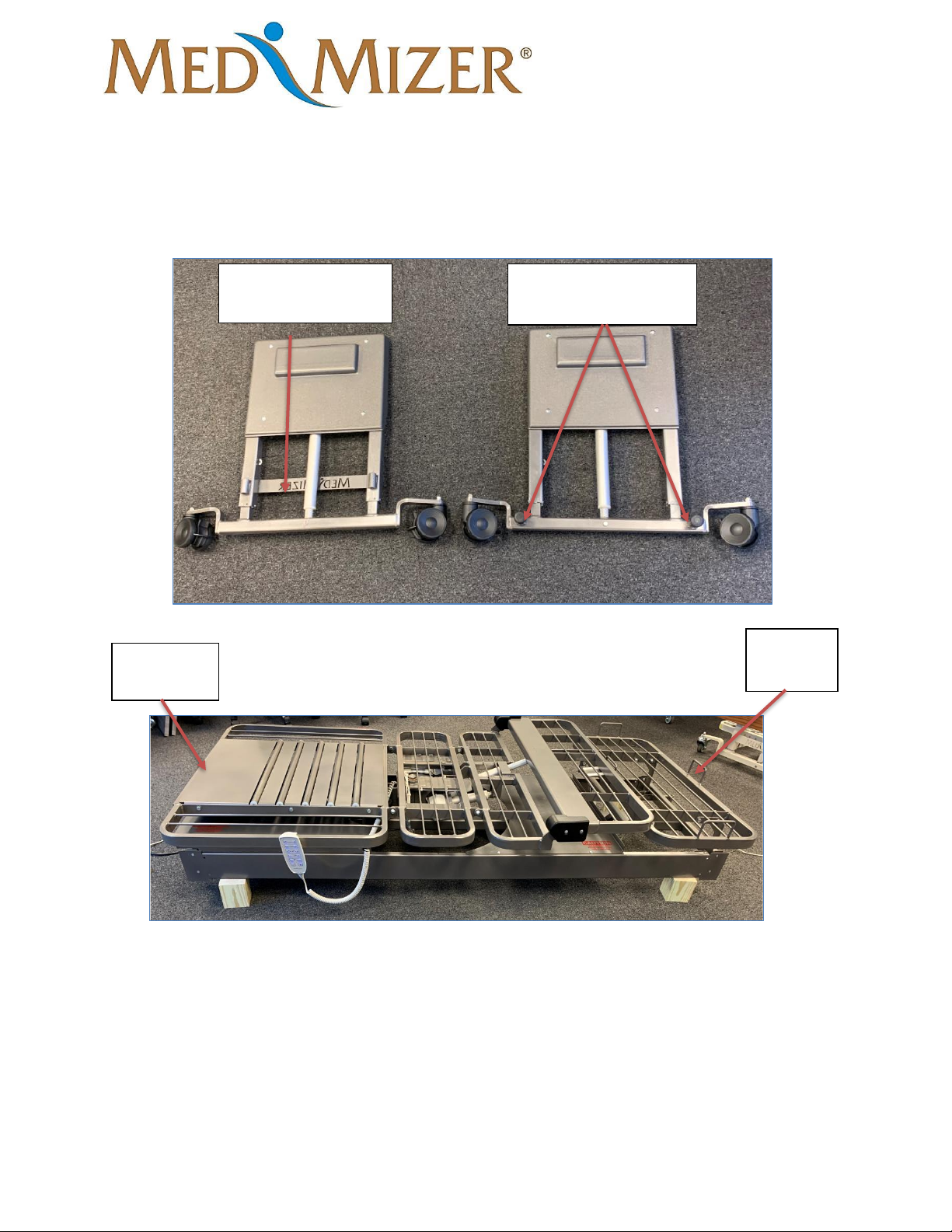

2. Determined which high/low assembly goes to the head and foot of the bed. The foot
weldment has the Med-Mizer logo welded on the bottom, and the head weldment has
wall bumpers at the bottom of the weldment.
Foot Weldment with
Med-Mizer strap
Head Weldment with
rubber wall bumpers
Head End
of Bed
Foot End
of Bed

ActiveCare - Standard
User Manual
MAN-ActiveCare REV03 ActiveCare Standard USER MANUAL Page 15 of 33

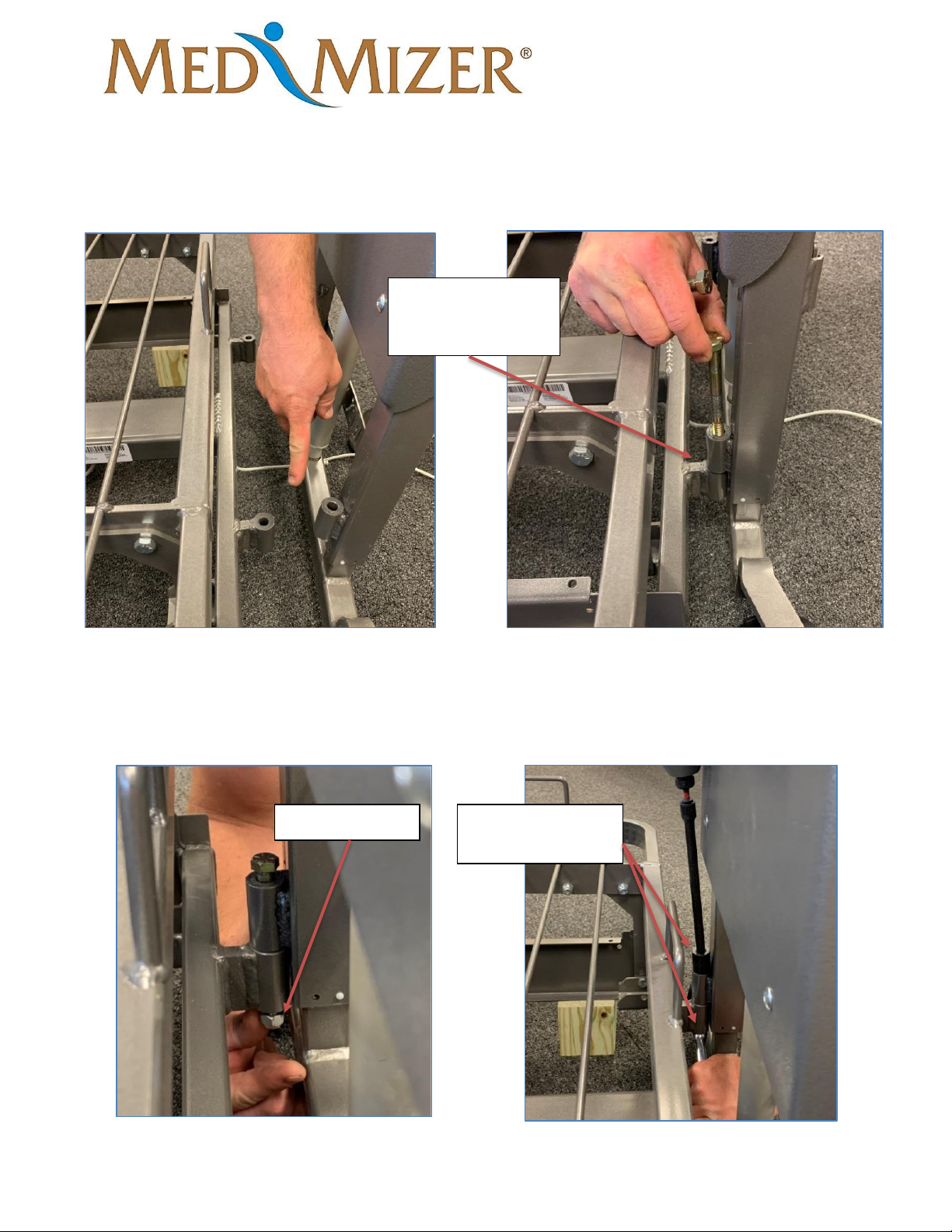

3. Install high/low weldments to the frame using the bolts and nuts provided. The high/low
assembly bosses must go on top of the frame bosses.
4. Hand tighten nuts to each bolt and fasten firmly using the 5/8” ratchet/impact and 5/8”
wrench.
High/Low weldment
mounted on top of
frame boss.
Hand tighten nut
Firmly fasten nuts
and bolts together

ActiveCare - Standard
User Manual
MAN-ActiveCare REV03 ActiveCare Standard USER MANUAL Page 16 of 33

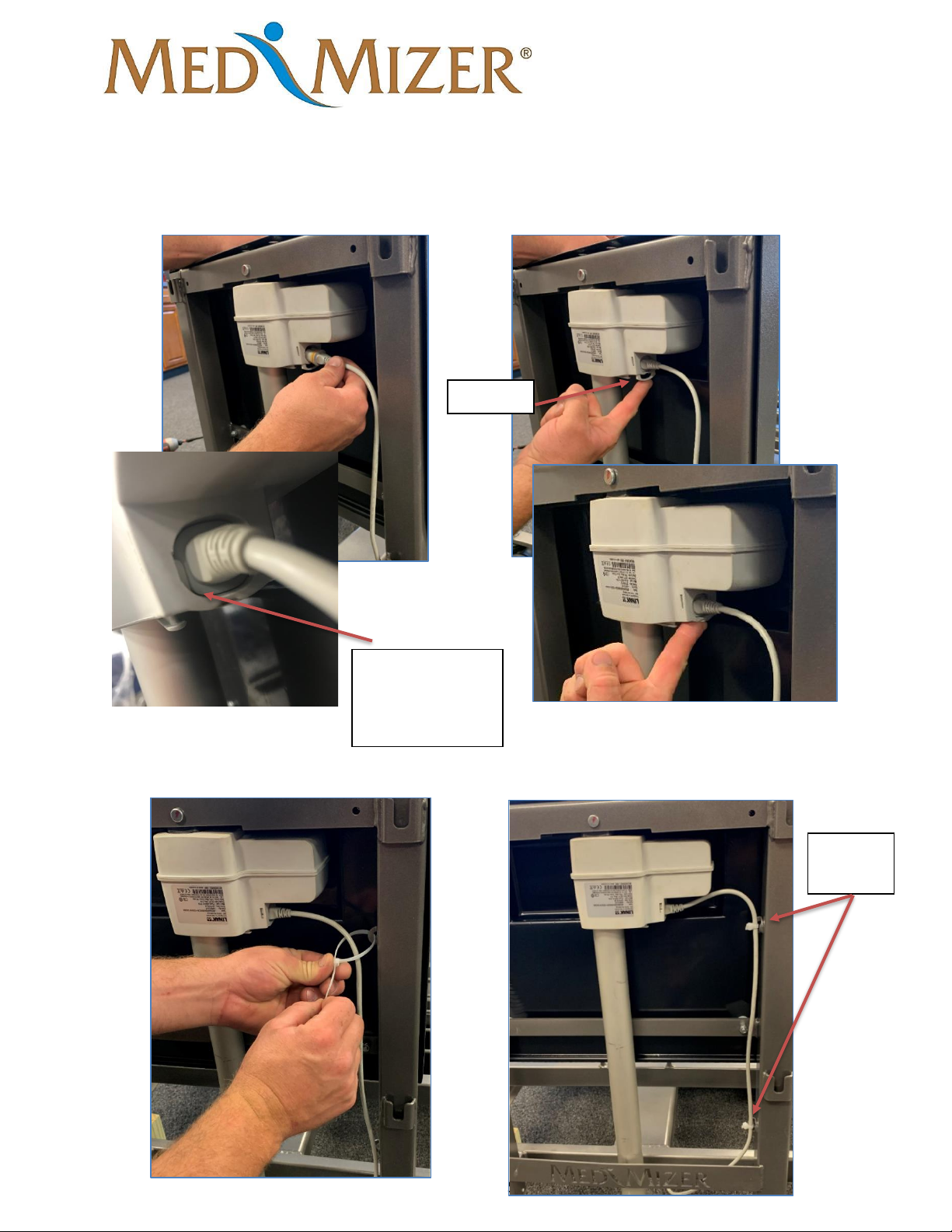

5. Install motor extension cable into actuator. Ensure cable is full inserted then install c-
clip.
6. Zip tie cable to the two attachment points and cut excess.
Two zip
ties
C-Clip
Cable should look
like this once clip
is installed

ActiveCare - Standard
User Manual
MAN-ActiveCare REV03 ActiveCare Standard USER MANUAL Page 17 of 33
7. Install head/foot board to the weldment. Slide board mount brackets down into channel
brackets.
Board
mounting
brackets
Channel
Brackets
Installed
Board
To secure in place
push down on board
until it stops

ActiveCare - Standard
User Manual
MAN-ActiveCare REV03 ActiveCare Standard USER MANUAL Page 18 of 33
8. Repeat steps 3 through 7 to install opposite end high/low weldment.
Pivot Alignment (If Needed)
Tools Required:
•(2) ¾” wrenches

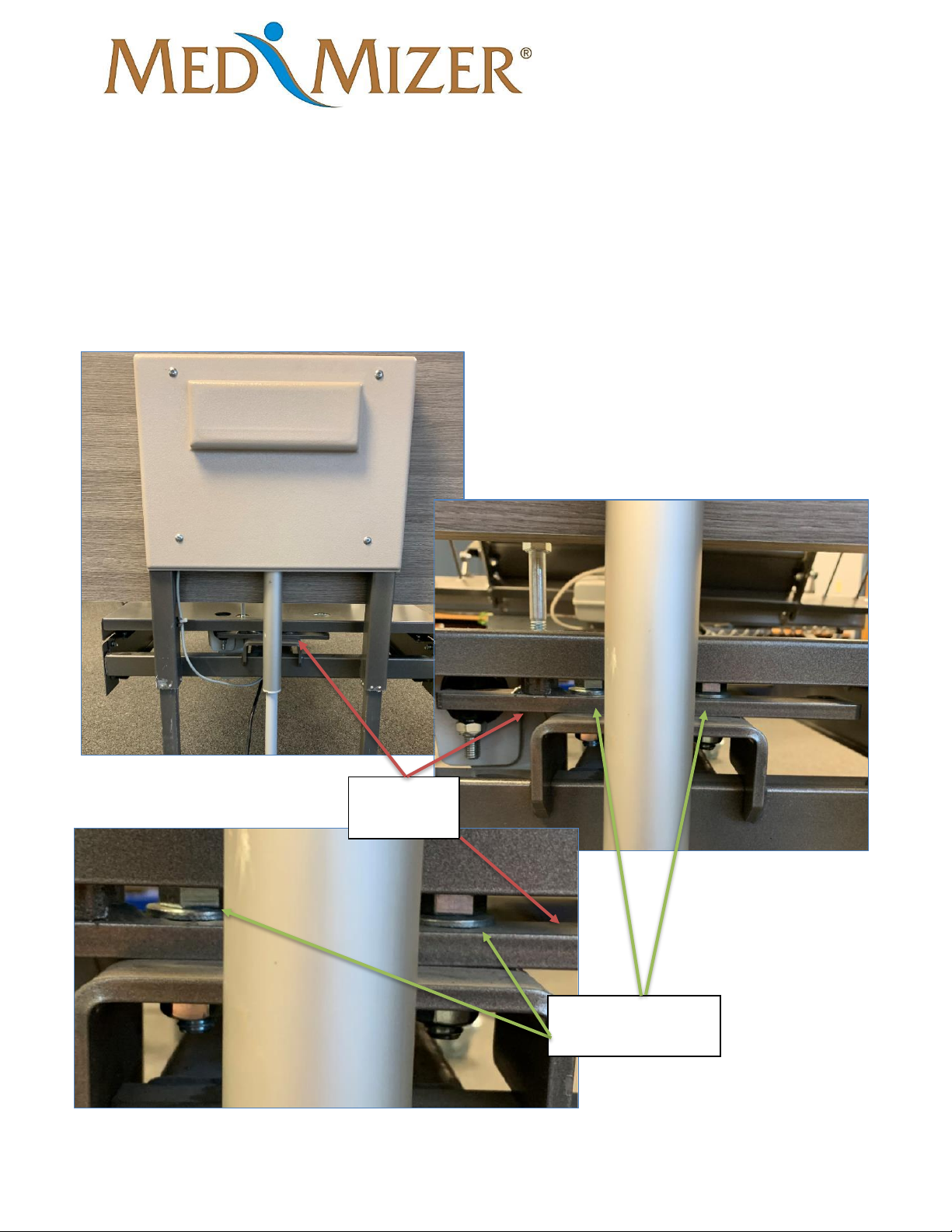

1. Go behind the headboard of the bed and find the adjustment bracket and the two bolts.
Adjustment
bracket
Bolts holding
adjustment bracket

ActiveCare - Standard
User Manual
MAN-ActiveCare REV03 ActiveCare Standard USER MANUAL Page 19 of 33
2. Using the two ¾” wrench loosen each bolt ¼ turn, do not fully disassemble. Once loose,
straighten the bed out. View images below to see incorrect alignment and correct
alignment. The pivoting and fixed sections of the bed should be parallel. Once straight
retighten the bolts.
Incorrect
Alignment
Correct
Alignment

ActiveCare - Standard
User Manual
MAN-ActiveCare REV03 ActiveCare Standard USER MANUAL Page 20 of 33

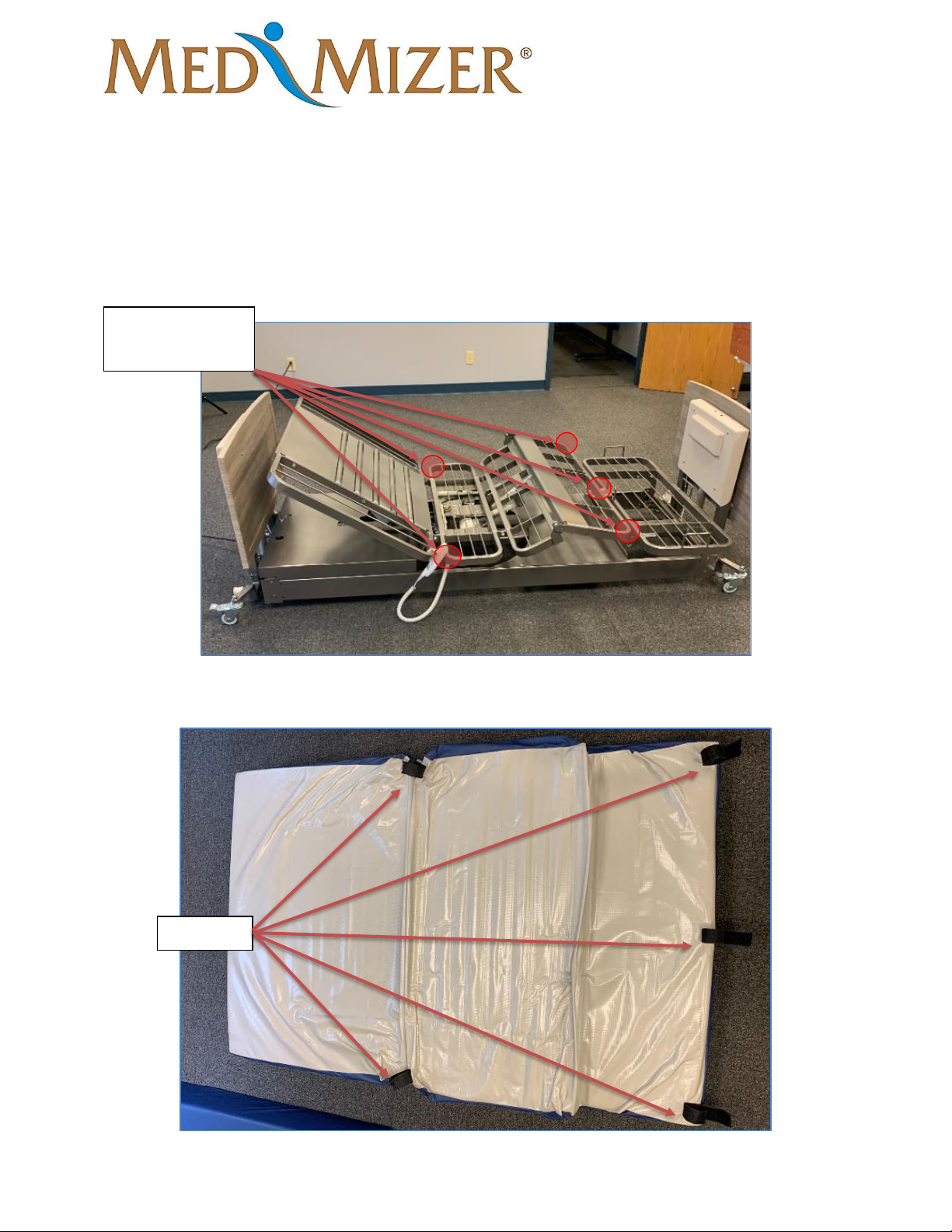

Mattress Installation
1. Using the auto-contour button raise the head and leg section of the bed.
2. Locate the straps on the back of the mattress.
Straps
Strap attachment
points
