Medela Symphony User manual

Symphony®
and Lactina®
BREASTPUMP KITS
Instructions for Use

Table of Contents
Important Safeguards . . . . . . . . . . . . . . . . . 1
Cleaning and Sterilization . . . . . . . . . . . . . 2-3
Hygiene . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Preparation . . . . . . . . . . . . . . . . . . . . . . . . 2
Prior To First Use . . . . . . . . . . . . . . . . . . . 2
In the Hospital . . . . . . . . . . . . . . . . . . . 2
At Home . . . . . . . . . . . . . . . . . . . . . . . . 3
After Each Use . . . . . . . . . . . . . . . . . . . . . 3
Tubing Care . . . . . . . . . . . . . . . . . . . . . . . . . 3
Symphony®Parts List . . . . . . . . . . . . . . . . . 4
Symphony®Instructions For Use . . . . . . . 5-7
Important Battery Care . . . . . . . . . . . . . . . . 7
Lactina®Parts List . . . . . . . . . . . . . . . . . . . . 8
Lactina®Instructions For Use . . . . . . . . . 9-11
Careof Piston/Cylinder Assembly . . . . . . .12
Manual Breastpumping . . . . . . . . . . . . 13-14
Storing Breastmilk . . . . . . . . . . . . . . . . . . . 15
Thawing Breastmilk . . . . . . . . . . . . . . . . . . 16
Troubleshooting . . . . . . . . . . . . . . . . . . . . . 16
1
IMPORTANT
SAFEGUARDS
When using electrical devices, basic safety precautions should
always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USE
DANGER: To reduce the risk of electrocution:
1. Always unplug electrical devices immediately after using. Separation from the
mains is only assured through the disconnection of the plug and socket connection.
2. Do not use while bathing or showering.
3. Do not place in or drop motor unit into water or other liquid.
4. Do not reach for any electrical device if it has fallen into water. Unplug immediately.
5. Do not store or use this product where it can fall or be pulled into a tub or sink.
WARNING: To reduce the risk of burns, electrocution, fire or injury to persons:
1. The pump should never be left unattended when plugged into an electric outlet.
2. Use the pump only for its intended use as described in this manual.
3. Do not use accessory attachments not recommended by the manufacturer,
as this may cause hazards.
4. Never operate an electrical device if it has a damaged cord or plug, if it is
not working properly, if it has been dropped or damaged, or if it has been
dropped into water.
5. Keep the cord and all components away from heated surfaces.
6. Do not use outdoors.
7.
Only use the electric cord thatcomes with the Lactina or Symphony
Breastpump.
8. The kits are personal care items and are not to be shared between mothers
without proper sterilization to prevent the risk of cross contamination.
9.
Supervision is necessary when this product is used in the vicinity of children.
10. Make sure the voltage of the device is compatible with the power source.
11. Pump only with the motor in an upright position.
12. Do not use while sleeping or overly drowsy.
13.
There are no user-serviceable parts inside the Lactina®or Symphony®
Breastpump. DO NOT ATTEMPT TO REPAIR THE LACTINA OR SYMPHONY
BREASTPUMP YOURSELF.
SAVE THESE INSTRUCTIONS
Medela, Inc., P.O. Box 660, McHenry, IL 60051-0660
Phone: [phone] Fax: [phone]
Email: customer[email protected] www.medela.com
Medela Canada Inc., 4090B Sladeview Crescent, Unit 2
Mississauga, Ontario L5L 5Y5 Canada
Phone: [phone] or [phone] Fax: [phone] or [phone]
Email: [email protected] Internet: www.medela.ca
Medela, Symphony and Lactina are registered trademarks of Medela in the USA.
PersonalFit is a trademark of Medela, Inc. in the USA and in other countries.
Applications for registration of Medela is pending in other countries.
©2007 Medela, Inc. Printed in the U.S.A.

To Sanitize at Home:
Disassemble, refer to diagram on page 4. Sanitize by
boiling for 10 minutes.
After each use:
•Disassemble and wash all parts that come in contact
with the breast and milk in warm soapy water.
•Rinse in clear water.
•
Air-dry on clean towel and cover parts when not in use.
All parts may also be washed in top rack of dishwasher.
For Quicker Cleaning:
Medela offers Quick Clean™Micro-Steam™Bags for daily
kit disinfection.
Tubing Care:
Inspect tubing after each pumping session for
condensation and or milk.
If condensation appears in tubing:
To eliminate condensation after you have completed
pumping, continue running the pump with the tubing
attached for another 1-2 minutes or until dry.
If milk appears in tubing:
1. Turnoffthe pump and unplug from power source.
2.
Remove and disassemble the tubing, pump connector,
piston, cylinder, membranes and membrane caps
(parts vary by pump used). Wash in soapy water, then
rinse in clear cold water.
3.
Shake water droplets out of tubing and hang to air-dry.
For faster drying, attach tubing to pump and run pump
1-2 minutes or until dry, or pour a small amount of
isopropyl alcohol through the tubing to dry.
Cleaning and Sterilization
Unless instructed otherwise by your health care provider.
Hygiene
Wash hands before touching breasts
or containers, and avoid touching the
inside of containers or lids.
Preparation
Follow these cleaning instructions
unless you aretold
otherwise by your healthcareprofes-
sional. Prior to cleaning,
take apart all parts of your breast-
pump accessory kit. Be especially sure to remove the
valve from the breastshield
and separate the membrane
from the valve prior to cleaning.
Prior To First Use
The Symphony and Lactina sanitized version does not
require washing before first use.
ToSterilize in the Hospital:
All disassembled parts can be autoclaved to a maximum
of 272° F for 3 minutes at 29 PSIG or 250° F for 15-20 min-
utes at 15 PSIG.
To avoid damage during and immediately after sterilization:
• Sterilize parts without applying external pressureto them.
•Allow parts to cool before applying external pressure.
If gas sterilization is used, residual testing is recom-
mended to determine the proper length of aeration.
2 3
This product’s kit is a single-user item unless properly
sterilized between users. Use by more than one user
without adequate sterilization may pose a health risk
and voids the warranty .
IMPORTANT

4 5
Symphony®Breastpump Instructions
11Follow cleaning instructions on pages 2-3.
22Insert the small end of the
PersonalFit™Breastshields into the
small end of the connectors. (Prior
to cleaning, separate these two
pieces.)
33Snap white membranes onto
yellow valves until membrane lies
completely flat. (Prior to cleaning,
separate these two pieces.)
44Push assembled valves
and membranes onto
connectors/breastshields.
55Screw containers onto
connectors/breastshield.
66Insert clear ends of tubing into
openings in connectors/breast-
shields.

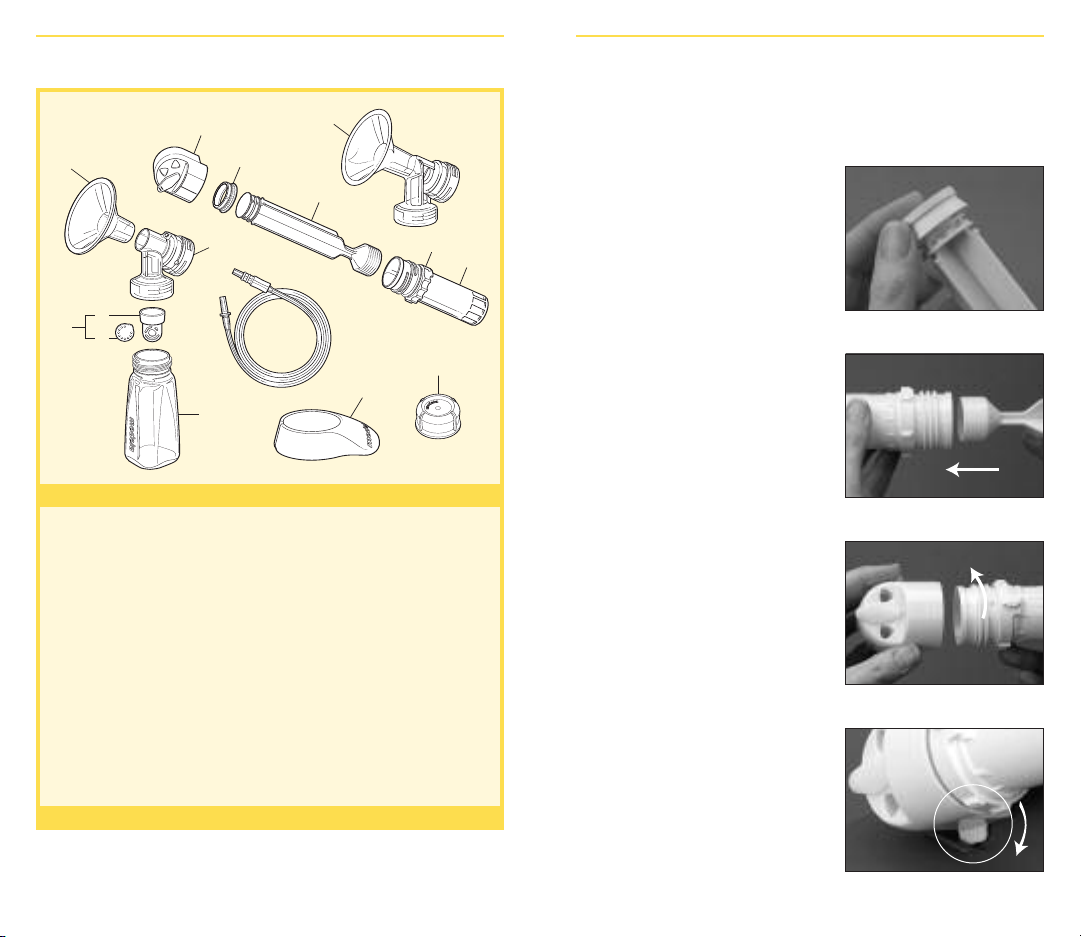

Symphony®Breastpump Parts
6
1b
5
1a
2
7
9
8
1c
3
4
1a. PersonalFit™Breastshield, Standard (24mm)....................87073
1b. PersonalFit Breastshield Connector ................................87071
1c. Breastshield (1-piece) ..................................................8107089
2. Valve and White Membrane..........................................8000001
3. Valve..............................................................................8100475
4. Membrane ....................................................................8207013
5. Collection Connector ....................................................8117009
6. Solid Container Lid ......................................................8107057
7. Tubing............................................................................8107168
8. Membrane Cap ............................................................8100667
9. Protective Membrane....................................................8200094
10. Breastfeeding Information Guide..................................1907200
11. Symphony Instruction Manual ......................................1907533
12. Symphony Program Card - English ..............................8000541
13. Symphony Program Card - French ..............................8000542
14. Symphony Program Card - Spanish............................ 8190023
15. Symphony Container Stand ........................................ 8100552
16. Symphony Protector for Card/Cord..............................6000816
17. Symphony Power Cord ................................................9280043
18. Symphony Vehicle Lighter Adapter ..................................67173
Call for pricing
Item Order Number
Breastpump kits come with either 1-piece breastshields
or PersonalFit Breastshields.

1122Center breastshields over nipples.
Switch the breastpump on to
begin Stimulation/Let-down
phase by pressing the power
button. Vacuum may be adjusted
to your comfort level by turning
the vacuum regulator knob.
After two minutes, the Stimulation/Let-down phase will
automatically change to the Expression phase and you
may wish to adjust the vacuum level for comfort.
1133If let-down occurs before
the Expression phase begins,
you may pump more efficiently
by pressing the button to
begin the Expression phase.
1144If you need to return to stimula-
tion for another let-down or did
not achieve let-down after 2
minutes, simply press the
Let-Down button to return to
stimulation for another 2-minute
cycle.
When your pumping session is over, seal and safeguard your milk and follow
tubing care and cleaning instructions on pages 2-3.
Important Note: If you experience discomfort, contact your lactation professional as you
may need a larger breastshield or other advice. To locate Medela products or a
breastfeeding specialist in your area call 1-800-TELL YOU.
Important Battery Care
Charge Symphony®pump batteries for 12 hours upon receipt.
Pump may be used while charging.
Optimal battery life is achieved when:
•Batteries are not fully drained on a regular basis
•Pump is allowed to charge when not in use
•If unable to charge regularly, charge for 12 hours
every 2 months at minimum
Pumping time using a completely charged battery is
approximately 60 minutes.
6 7
77Assemble protective membranes
onto membrane caps.
88Push triangular ends of tubing
into the small openings in the
membrane caps.
99To unlock case, press the oval
release button on top of the
Symphony®Breastpump. Keeping
button depressed, lift up on the
handle to open case and access
pumping mechanisms.
1100Push membranes into place on
pumping mechanism. To ensure
proper fit, be sure to center the
membrane caps’ tube ports
directly over the crevice on the
pump housing. Make sure that
protective base clicks into place
and is flush with surrounding
surface.
1111
Power the Symphony Breastpump
(or charge its battery if included)
by connecting the power cord to
a wall outlet and the socket in the
back of the pump.

8 9
Lactina®Electric Breastpump Kit
Instructions
11Follow cleaning instructions on pages 2-3.
22Slip rubber seal onto piston
until it snaps into place—
the larger side faces the
handle. To ensure proper
seal, hold rubber seal firmly
and twist piston.
33Slide vacuum regulator ring
onto cylinder, if not already
done. Push handle end of
piston into cylinder.
44Screw cylinder tightly into
pump connector.
55Attach pump connector to
Lactina, and rotate until tab
is secure.
Lactina®Breastpump Kit Parts
1a. PersonalFit™Breastshield, Standard (24mm)....................87073
1b. PersonalFit Breastshield Connector ................................87071
1c. Breastshield (1-piece) ..................................................8107089
2. Valve Assembly (2-Part) ................................................8000001
3. Valve ............................................................................8100475
4. Membrane ....................................................................8207013
5. Pump Connector with Plug ..........................................8000649
6. Rubber Seal ..................................................................8200078
7. Piston ............................................................................8100494
8. Vacuum Regulator Ring ................................................8200066
9. Cylinder ........................................................................8100717
10. Tubing............................................................................8007179
11. Collection Container ....................................................8117009
12. Container Stand ............................................................8100462
13. Solid Lid for Collection Container ................................8107057
14. Instruction Manual English/Spanish (not shown) ......................1547477
15. Instruction Manual English/French (not shown) ........................1547476
Item Order Number
Breastpump kits come with either 1-piece breastshields
or PersonalFit Breastshields.
Call for pricing
10
6
7
89
1a
1c
1b
11
12
13
3
4
2
5

1111Insert clear ends of tubing
into openings in connec-
tors/breastshields.
1122Insert other ends of tubing
into ports on pump
connector.
1133If single pumping: insert
plug into unused port.
1144Set vacuum regulator ring
to “MIN.” Adjust for com-
fort once pumping begins.
1155Center breastshields over
your nipples and start
pumping.
Important note: If you experience discomfort, contact your lactation
professional as you may need a different size breastshield or other
device. To locate Medela products or a breastfeeding specialist in your
area, call 1-800-TELL-YOU or visit www.medela.com.
10 11

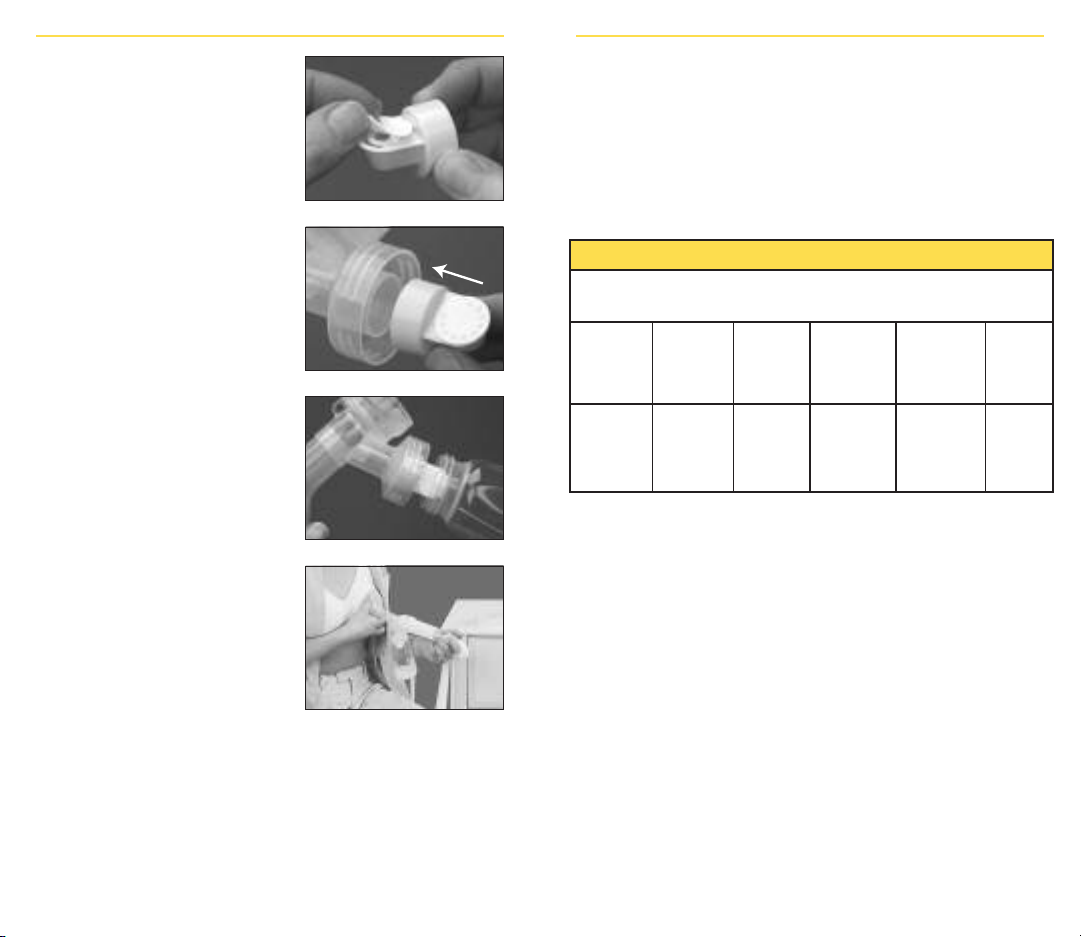

66Push piston into pumping
arm, and rotate until snug in
clamp.
77If 2-piece breastshield
assembly: Make sure
breastshields and connectors
are securely attached.
88Snap membranes onto
valves until membranes lie
completely flat.
99Push assembled valves &
membranes onto connec-
tors/breastshields.
1100Screw containers onto
connectors/breastshields.

Manual Breastpumping
11Follow cleaning instructions on pages 2-3.
22Slip rubber seal onto
piston until it snaps into
place—the larger side
faces the handle.To ensure
proper seal, hold rubber
seal firmly and twist piston.
33Slide vacuum regulator ring
onto cylinder, if not already
done. Push handle end of
piston into cylinder.
44Screw cylinder into back of
connector/breastshield.
55If 2-piece breastshield
assembly: Make sure
breastshield and connector
are securely attached.
12 13
Cylinder Rubber Piston
Seal
Care of Piston/Cylinder Assembly:
The inside of the cylinder must be smooth and free of
buildup to ensure long-lasting performance of the rubber
seal. Clean the cylinder, rubber seal, and vacuum regulator
ring every few pumpings with lukewarm soapy water or a
vinegar and water solution to keep these parts working
efficiently. In addition, rotate the piston in the cylinder
every few pumpings to ensure even wear. Only
sterilize/sanitize these parts when the presence of milk is
evident. Be sure the rubber seal is completely dry before
using.

14
66Snap membrane onto
valve until membrane lies
completely flat
77Push assembled valve &
membrane onto breast-
shield assembly.
88Screw container onto
connector/breastshield.
99Center breastshield
over your nipple and
start pumping.
Important note: If you experience discomfort, contact your lactation
professional as you may need a different size breastshield or other
device. To locate Medela products or a breastfeeding specialist in your
area, call 1-800-TELLYOU or visit www.medela.com.
15
Storing Breastmilk
Check with your hospital for specific storage
instructions.
When freezing, do not fill containers more than 3/4 full to
allow space for expansion. Label containers with the date
of pumping.
Important Note: If the temperature in the room, car or
outdoors exceeds 77° F / 25° C, chill milk immediately to
preserve freshness.
Breastmilk Storage (For Healthy Term Babies)
Room Cooler with Refrigerator Self-contained Deep
Temperature 3 Frozen Refrigerator Freezer
Ice Packs Freezer Unit
Freshly 4 hours 24 hours 5 -7 days 3-4 6-12
expressed at 66-72°F at 59°F at 32-39°F months
3
months
breastmilk (19-22°C)
1
(15°C)
1
(0°-4°C)
2
at 0°F
(-19°C)
3
Thawed Do not Do not 24 hours
4
Never Never
breastmilk store store refreeze refreeze
(previously thawed thawed
frozen) milk milk
1Hamosh M, Ellis L, Pollock D, Henderson T, and Hamosh P: Pediatrics, Vol. 97, No. 4, April 1996.
pp 492-497. (4 hours at 77° F/25° C).
2Sosa, Roberto; Barness, Lewis: AJDC, Vol. 141, Jan. 1987.
3Lawrence R, and Lawrence R: Breastfeeding: A Guide For the Medical Profession, 1999, p.894.
4
Arnold L; Recommendations for Collection, Storage and Handling of a Mother's Milk for Her Own Infant in the
Hospital Setting, 3rd Edition.The Human Milk Banking Association of North America, Inc. 1999, p. 18.

16
Defrosting
•Thaw milk overnight in the refrigerator, or hold the bottle
under warm running water to quickly thaw. You can also
place the sealed container in a bowl of warm water for 20
minutes to bring it to body temperature.
•Thawed milk is safe in the refrigerator for 24 hours. Do
not refreeze.
Caution:
•Do not thaw frozen breastmilk in a microwave or in a
pan of boiling water.
•Never microwave breastmilk. Microwaving can cause
severe burns to baby’s mouth from hot spots that develop
in the milk during microwaving. Microwaving can also
change the composition of breastmilk.
•If adding expressed breastmilk to container of already
frozen breastmilk, make sure to add a lesser amount
than the already frozen amount.
Troubleshooting
If There Is Low or No Suction
•Make sure all connections of kit and breastpump are
secure.
•Make sure membrane is lying flat against valve head.
Refer to the assembly instructions.
•Make sure the clear ends of the tubing fit securely into
breastshield assemblies and the other ends into the
ports on the pump connector or membrane caps.
•
In the US, call Medela at 800-435-8316 or 815-363-1166.
In Canada, call Medela at 800-435-8316 or 905-608-7272.
In other countries, contact your local distributor or the
location where you purchased your pump. Visit us on the
internet at www.medela.com.
