Medifa 5000 User manual

medifa 5000
Mobile operating tables
User manual
for the 501130, 501135 models
Version: 2.1
EN

3User manual for medifa 5000 operating table Version 2.1
Table of contents
Table of contents
1. Important information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
1.1 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 CE label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3 Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4 Manufacturer and distributor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.5 Copyright statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2. Foreword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3. Understand the user manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
3.1 List of abbreviations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4. Used symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
5. Safety instructions and user obligations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
5.1 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.2 Measures to be taken prior to each use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.3 Infection prevention. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.4 High-frequency (HF) surgical devices and defibrillators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.5 Maintenance and repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.6 Service life. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6. Intended use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
6.1 Intended users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7. Type label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
8. Used icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
8.1 Symbols on medifa 5000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
8.2 Symbols on the transport packaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
9. Padding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
9.1 SF padding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
9.2 PUR padding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
9.3 Attaching the padding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
9.4 Removing the padding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4User manual for medifa 5000 operating table Version 2.1
10. Standard rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
10.1 Maximum permissible torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
11. Features and functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
11.1 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
11.2 Model 501130 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
11.3 Model 501135 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
12. Initial commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
12.1 Attaching and adjusting the head plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
12.2 Removing the head plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
12.3 Attach and adjust split leg plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
12.4 Swivelling the split leg plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
12.5 Removing split leg plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
12.6 Connection of the potential equalisation cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
12.7 501135. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
13. Positioning of patient. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
13.1 Preparing medifa 5000 for patient positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
13.2 Positioning the patients . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
13.3 Height adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
13.4 Trendelenburg/ Anti-Trendelenburg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
13.5 Lateral adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
13.6 Backrest adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
13.7 Triggering the driveability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
14. Patient transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
14.1 Notes on patient transport. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
14.2 Transporting the patients. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
14.3 Braking medifa 5000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
15. Care instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
15.1 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

5User manual for medifa 5000 operating table Version 2.1
15.2 Disinfection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
15.3 Drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
15.5 Disinfectant recommendation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
16. we care. Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
17. Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
17.1 Dimensions, weights and load limits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
17.2 Adjustment range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
17.3 Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
17.4 Environmental conditions for operation, storage and transport . . . . . . . . . . . . . . . . . . . . . . . . . 37
18. Delivery, unpacking and installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
18.1 Delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
18.2 Unpacking and installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
19. Accessory list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
20. Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Table of contents

6User manual for medifa 5000 operating table Version 2.1
Important information
Version Date Reason or modification of publication
1.0 09/2014 First edition
2.0 09/2018 Layout, content
2.1 05/2021 MDR adjustment
1. Important information
1.1 Revision history
1.2 CE label
This product is a Class 1 medical product according to the Ordinance (EU) 2017/745 on medical products and
complies with the prevailing version of this ordinance at the time of its introduction on the market.
1.3 Conformity
The manufacturer declares the conformity of this product with the essential safety and performance require-
ments according to Medical Device Regulations in Annexe I as well as the implementation of the technical
documentation according to Annexe II and declares conformity by means of an EU Declaration of Conformity
according to Annexe IV.
1.4 Manufacturer and distributor
medifa GmbH & Co. KG
Industriestraße 5
57413 Finnentrop
Germany
Telephone no.: [phone]
Service hotline: [phone]
Fax [phone]
[e-mail]
www.medifa.com
1.5 Copyright statement
This user manual including all figures is subject to copyright. The transmission and reproduction of this docu-
ment as well as the exploitation and communication of its contents are - unless expressly permitted - prohibited.
Contraventions shall impose an obligation to compensation for damages. All rights reserved in case of a patent
grant or utility model registration.
We are constantly working on the further development of our products. Please understand that we must reserve
the right to change the scope of delivery in shape, equipment and technology at any time.
Reproduction, duplication or translation of the original user manual, even in part, is not permitted without writ-
ten consent from medifa.
All rights according to the copyright law are expressly reserved by medifa. medifa shall only be responsible for
the safety-related properties of this device within the framework of the legal regulations if maintenance, servic-
ing and changes to this device are carried out by medifa itself or a representative in accordance with instructions.

7User manual for medifa 5000 operating table Version 2.1
2. Foreword
Foreword
Medifa would like to thank you for purchasing the medifa 5000 operating table. With medifa 5000, you have
acquired an operating table that combines design, functionality and comfort in the highest possible “Made in
Germany” quality.
medifa's products are manufactured for a long and trouble-free service life.
Development, design and production at medifa have been certified according to DIN EN ISO 9001 and DIN EN
ISO 13485. The products comply with the requirements of the EU Medical Device Regulations (MDR) and bear
the CE label.
The operating table consists exclusively of high-quality materials with a long service life.
medifa offers a wide range of accessories to meet your requirements. Periodic maintenance by our trained
service technicians also ensures that the table is always in perfect condition during the routine operation.
In case of any questions, please do not hesitate to contact us at any time.

8User manual for medifa 5000 operating table Version 2.1
Understand the user manual
3. Understand the user manual
ATTENTION
Read and follow the instructions in the user manual
This user manual must be read and understood in full by the operating personnel before putting the
medifa 5000 into operation; this applies in particular to the chapter on safety instructions and user
obligations. If necessary, verified mediation by means of in-house training is also possible, taking into
account the professional qualifications. The user manual must be strictly observed and must be available
at the place of use.
ATTENTION
Using the operating table is safe!
Remaining residual hazards are indicated at the relevant points in the user manual.
Please observe these instructions.
3.1 List of abbreviations
Abbreviation Description
CE European Community (derived from the French "Communauté Européenne")
DIN German Industrial Standard
EN European Standard
EEC European Economic Community
HF Radio Frequency
IEC International Electrotechnical Commission
IP Ingress Protection
ISO International Organisation for Standardisation
MDR Medical Device Regulation

9User manual for medifa 5000 operating table Version 2.1
Used symbols
4. Used symbols
Various information and safety symbols are used in this user manual to highlight particularly relevant informa-
tion.
Safety Instructions
HAZARD
HAZARD indicates an imminently hazardous situation which, if not avoided, will result in death or serious
injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate
injury.
ATTENTION
Indication of harmful situation with the possible consequences: the device or something in its vicinity could be
damaged.
Instructions:
Useful instructions and further information are indicated by this symbol.

10 User manual for medifa 5000 operating table Version 2.1
5.1 General safety instructions
Safety instructions and user obligations
5. Safety instructions and user obligations
Keep the user manual in the vicinity of the product so that information can be read at a later date. The user
manual is an integral part of the product and must be handed over in case there is a change in location or
personnel.
Furthermore, the user manual must be easily accessible to all users of the product at all times.
WARNING
Patient hazard!
Any modification of the medical product is prohibited. The manufacturer shall assume no liability for changes
to the product.
• All work with or on the medifa 5000 (installation, commissioning, operation, maintenance, decommissioning,
transport or disposal) may only be carried out by trained medical or nursing staff.
• The medifa 5000 may only be used with the specified products and for the purposes indicated under Intended
use. When operating medifa 5000, the factors specified under Technical Data must be observed.
• For the intended and safe use of additional equipment, the corresponding user manual for this additional
equipment must be followed.
Instructions to users and/or patients
All serious incidents relating to the device must be notified to the manufacturer and the competent
authority of the Member State in which the user and/or patient is located.
All mechanical functions as well as all parts of the medifa 5000 including accessories must be checked for func-
tionality and integrity before each use.
The use of defective or damaged products is prohibited.
• All specifications for cleaning and disinfection must be observed.
• Observe the cleaning and disinfection procedures and agents described in this instruction manual.
• Only cleaned and disinfected devices and equipment may be handed over to a service technician or the manu-
facturer for maintenance and repair work.
• Replace padding that no longer meets the hygiene and infection prevention requirements.
5.2 Measures to be taken prior to each use
5.3 Infection prevention

11User manual for medifa 5000 operating table Version 2.1
Safety instructions and user obligations
The medifa 5000 is suitable for use with HF surgical units, defibrillators and defibrillator monitors. Please adhere
to the user manual and safety instructions given by the manufacturers of these devices!
5.4 High-frequency (HF) surgical devices and defibrillators
HAZARD
Danger of burns for patients!
When using HF surgical unit, defibrillators and defibrillator monitors, there is a risk of burns for the patient if
no safety measures are taken.
Here are the safety measures to be followed:
• Place the patient on medifa 5000 isolated from metal parts (medifa 5000, accessories) and conductive pad-
dings or tubes.
• Ensure that the patient does not come into contact with wet cloths or underlays. Use only dry materials!
5.5 Maintenance and repair
To avoid failure faults and to ensure operational safety, annual maintenance must be carried out so that the
functioning is fully maintained. It is recommended to hire a medifa-certified service technician for this mainte-
nance procedure.
Repairs
Repairs may only be carried out by medifa's technical customer service department or by personnel authorised,
trained and certified by medifa.
medifa shall not be liable for any damage caused due to deferred inspections, faulty repair or maintenance, or
changes made to the product.
For service work, please contact the medifa technical customer service department.
5.6 Service life
The medifa 5000 has a service life of 10 years if the specified inspection is adhered to by the medifa service de-
partment. This excludes all wear parts and padding.

12 User manual for medifa 5000 operating table Version 2.1
The described products are exclusively intended for human medical purposes!
The medifa 5000 operating table is intended for the following uses in combination with other medifa accesso-
ries:
• Positioning of patients from induction of anaesthesia through operation till the discharge of anaesthesia.
• Patient transport on the medifa 5000 from a transfer facility to the operating room or from the operating
room to the transfer facility (in compliance with the conditions for patient transport).
• Positioning the patient for X-rays.
The patient is positioned on the medifa 5000 according to general practice and doctrine. The medifa 5000 must
be covered with sterile material before use.
The transport of objects, devices or materials on the medifa 5000 is prohibited. The operating table may only
be used / operated by trained medical and nursing staff in a responsible and controlled manner. The training of
operating and nursing personnel shall be carried out by the manufacturer or by other persons authorised by the
manufacturer.
This user manual must be followed for the intended use of the medifa 5000.
Any other use of medifa 5000 shall be deemed to be not in compliance with the intended purpose. The supplier/
manufacturer shall not be liable for personal injury or damage to property as a result of improper operation or
use.
Only accessories from the Accessories list chapter are intended for use with the operating table.
All accessories not listed may not be used for safety reasons.
Intended use
6. Intended use
6.1 Intended users
This manual describes tasks and duties for several user target groups.
We classify two user groups under healthcare professionals: Physicians, such as surgeons, orthopaedic surgeons,
and anaesthesiologists, as well as surgical assistants and nurses. The third user group consists of cleaning staff
and technicians.
All target groups must be instructed by the operator according to their field of activity, their education and
professional experience on the device in order to operate the device as intended. For technicians, only secondary
information may be included, as there is a separate instruction that specifically addresses this target group.

13
medifa GmbH & Co. KG
Industriestraße 5 ,
57413 Finnentrop, Germany
medifa 5000
50113x
xxxxx 05/2021
[phone]XXXXXX
(21) XXXXX
Max. load: 200 kg
Tare weight: xxx kg
medifaGmbH&Co. KG
Industriestraße5,
57413Finnentrop,Germany
medifa5000
50113x
xxxxx 05/2021
[phone]XXXXXX
(21)XXXXX
Max.load: 200kg
Tareweight: xxx kg
User manual for medifa 5000 operating table Version 2.1
7. Type label
Type label
The type label is located at the foot of the frame above the column.
Element / symbol Description
Manufacturer details and contact information
Production period
Article number
Serial number
Data matrix code (UDI carrier)
Details of unladen weight and maximum additional load
Degree of protection against electric shock: application part type B
Observe the safety instructions in the accompanying documents
Medical product
Read the user manual
Observe instructions for disposal
The device is declared compliant according to 2017/745 ordinance
Figure 1: Type label - medifa 5000 (manual)

14 User manual for medifa 5000 operating table Version 2.1
Observe the danger points and hazards marked by warning symbols (stickers) on the medifa 5000. All warning
symbols on the product must be complete and legible. They must not be moved, altered, removed or covered by
other objects. Damaged or detached warning symbols must be replaced according to the specifications.
8. Used icons
Used icons
Symbol Description
Danger of crushing
Do not sit!
Risk of injury due to tilting of the medifa 5000
medifa 5000 may only be operated on surfaces with an inclination of max. 5°.
Connection for potential equalisation
Adhere to the user manual.
Fig. 2: Warning sticker on the medifa 5000
8.1 Symbols on medifa 5000

15User manual for medifa 5000 operating table Version 2.1
Symbols used

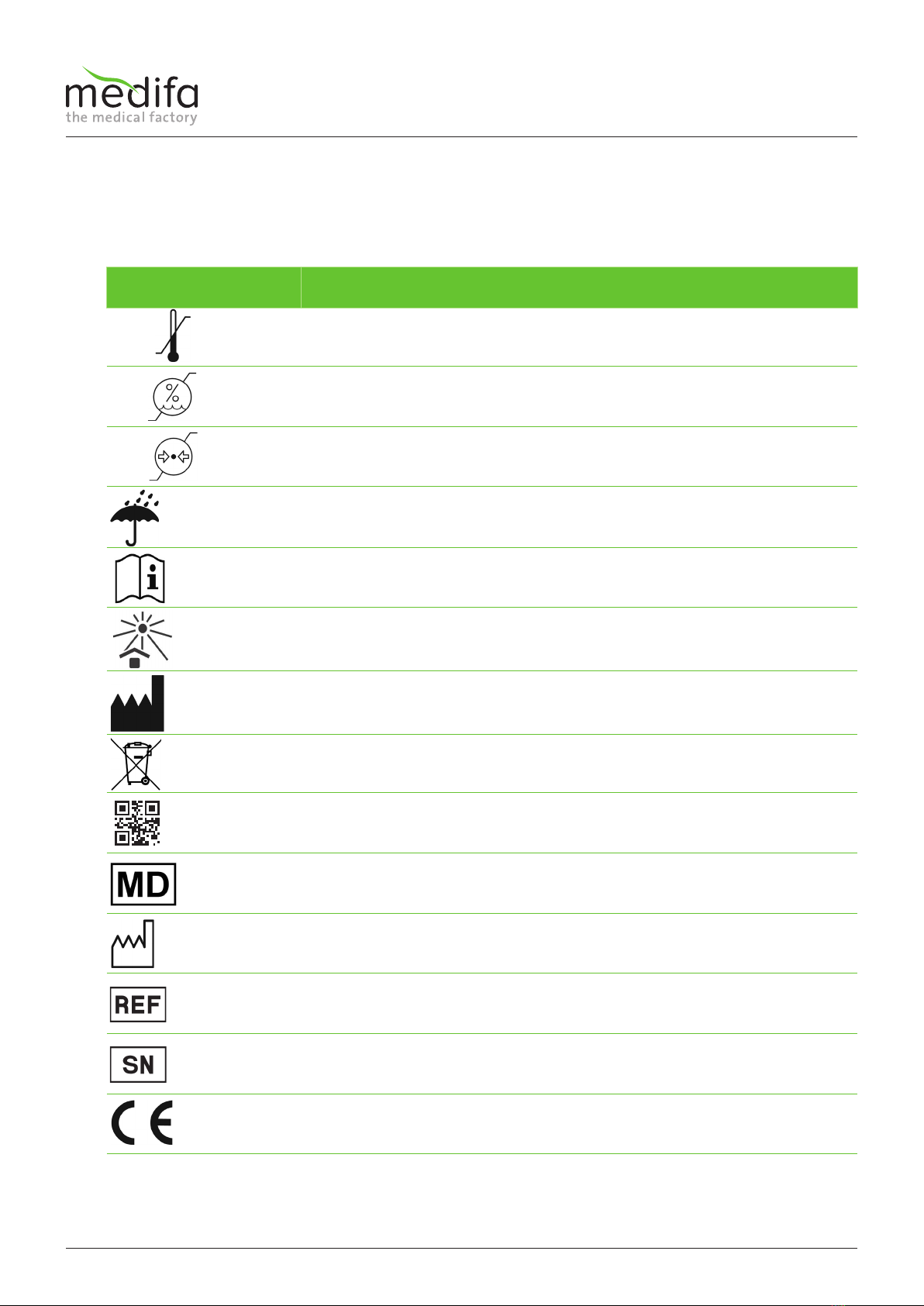

8.2 Symbols on the transport packaging
On the transport packaging, there are various symbols related to handling.
Element / symbol Description
Temperature range for storage and transport -20 °C to 50 °C.
Relative humidity for storage and transport 10% to 95%.
Air pressure for storage and transport 70 kPa to 106 kPa.
Protect transport packaging from moisture.
Read the user manual.
Protect against sunlight.
Manufacturer information.
Observe instructions for disposal.
Data matrix code (UDI carrier).
Medical product.
Production period.
Article number.
Serial number.
The device is declared compliant according to 2017/745 ordinance.
+50°C
10%
-20°C
70 kPa
106 kPa
95%

16 User manual for medifa 5000 operating table Version 2.1
Padding
ATTENTION
Do not use if the padding surface is damaged.
Operating the medifa 5000 with non-approved padding is prohibited and will result in loss of CE conformity.
The padding supports are removable to facilitate cleaning and disinfection.
The paddings are adapted by fitting the supports provided on the underside of the padding onto the studs pro-
vided on the upper frame of the table.
The padding prevents pressure necrosis of the patient. Medically trained personnel must eliminate the residual
risk through active decubitus prophylaxis when positioning the patient. The padding is antistatic and, when
fastened properly, complies with the normative regulations.
ATTENTION
Safety Instructions
• Only use the original medifa padding!
• Do not place the patient on the medifa 5000 without a padding.
• When the table components are attached according to instructions, the padding edges of the medifa 5000
are aligned.
• Do not insert any sharp-edged objects into the padding or place them on the padding.
• Do not attach adhesive foils.
The paddings are available in SF or PUR version. The padding is attached to the padded plate with stud-mount-
ing holes.
9. Padding
9.1 SF padding
The padding is made of 80 mm thick viscoelastic foam with a 3-fold sandwich construction and a non-remova-
ble, electrically conductive upholstery fabric.
The padding is disinfectable and washable as well as radiotransparent. Furthermore, the poster is latex-free,
breathable as well as antistatic. The seams are ultrasonically welded so that - unlike sewn seams or the use of
zippers - penetration of liquids and pathogens is prevented.
This makes the padding support easy to clean.
9.2 PUR padding
The padding supports are made of a special integral foam mixture foamed onto a plastic carrier. They are made
in special colours to meet even the most demanding comfort requirements of the patient.
Ergonomic shapes and rounded edges characterise the design and support the functionality. The paddings are
X-ray transparent, electrically conductive and comply with DIN 53596.

17
q
User manual for medifa 5000 operating table Version 2.1
1. Reach under an edge on the side of the padding
and pull the padding upwards.
9.3 Attaching the padding
Padding
1. Place the padding on the padded plate, press the
bushings in the padding onto the stud-mounting
holes [1] on the padded plate.
2. Check if the padding is securely held on the oper-
ating table. The padding must be fixed exactly on
the padded plate.
9.4 Removing the padding

18 User manual for medifa 5000 operating table Version 2.1
10. Standard rails
The standard rails on the right and left of the table top are used to attach accessories.
WARNING
Risk of personal injury due to tilting of the medifa 5000!.
Irrespective of the permissible load of the individual standard rails, a total unilateral torque of 70 Nm over
the longitudinal axis and 100 Nm over the transverse axis of the medifa 5000 must not be exceeded during
intended use!
In addition to the risk of tipping over, the standard rail can break if the load limit is exceeded. As a result, the
patient’s body part supported on the accessory can slip away, which poses the risk of inserted cannulas being
pulled out.
m1
MM��
LL11
LL22
m2
MMQQ
Figure 3: Torque on standard rail
The maximum permissible torque on a standard rail of the medifa 5000 is 70 Nm around the longitudinal axis
and 100 Nm around the transverse axis. The torque is applied as soon as an accessory is coupled to the standard
rails. The dead weight of an accessory used can be taken from the accessories list!
[L1] = Length 1 [m2] = Mass 2
[L2] = Length 2 [ML] = Longitudinal moment
[m1] = Mass 1 [MQ] = Transverse moment
The torque acting on the standard rails can be approximately calculated using the following rule of thumb.
Standard rails
10.1 Maximum permissible torque
M (L or Q) = m x L x 10
Torque [Nm] = Mass [kg] x Length [m] x 10[m/s2]
For the mass (m), specify the weight of the patient body part to be placed on the accessory.

19
q
w
e
r
t
y
u
i
o
a
User manual for medifa 5000 operating table Version 2.1
• Height adjustment by foot pump hydraulics from 750 to 1000 mm.
• Trendelenburg adjustment, gas pressure spring-assisted, from -30° to +30°.
• Lateral adjustment by means of removable crank handle, adjustable up to 20° on both sides.
• Back rest adjustment, gas pressure spring-assisted, from -40° to +70°.
• Possibility to adjust the flex/reflex position.
• Continuous X-ray cassette tunnel.
• Side rails for accessory mounting (25 x 10 mm).
• Choice of SF padding (H = 80 mm) or PUR padding (H = 60 mm), electrically conductive, removable,
radiolucent.
• Four Ø 125 mm twin castors with central braking system, electrically conductive, two castors with
directionally stable locking.
• Floor space (L x W) 920 mm x 520 mm.
• Article no. 501135 has a longitudinal shift of up to 310 mm.
11. Features and functions
Figure 4: Model 501130
No. Name
1 4 twin castors, lockable
2 Foot pump for height adjustment
3 Parking brake
4 Release for Trendelenburg adjustment
5 Crank handle for lateral adjustment
6 Release lever for back adjustment
7 Padding
8 Lateral guide rail (standard rail)
9 Socket
10 Column
Features and functions
11.2 Model 501130
11.1 Features

20
q
User manual for medifa 5000 operating table Version 2.1
Features and functions
Figure 5: Model 501135
11.3 Model 501135
No. Name
1 Release button for triggering the relocating capability
Model 501135 has the same functions as model 501130 (see Fig. 4) plus an additional longitudinal shift of the
table top by up to 310 mm.
