ResMed Swift FX User manual

Swift™FX
nasal pillows system
User Guide
English

1

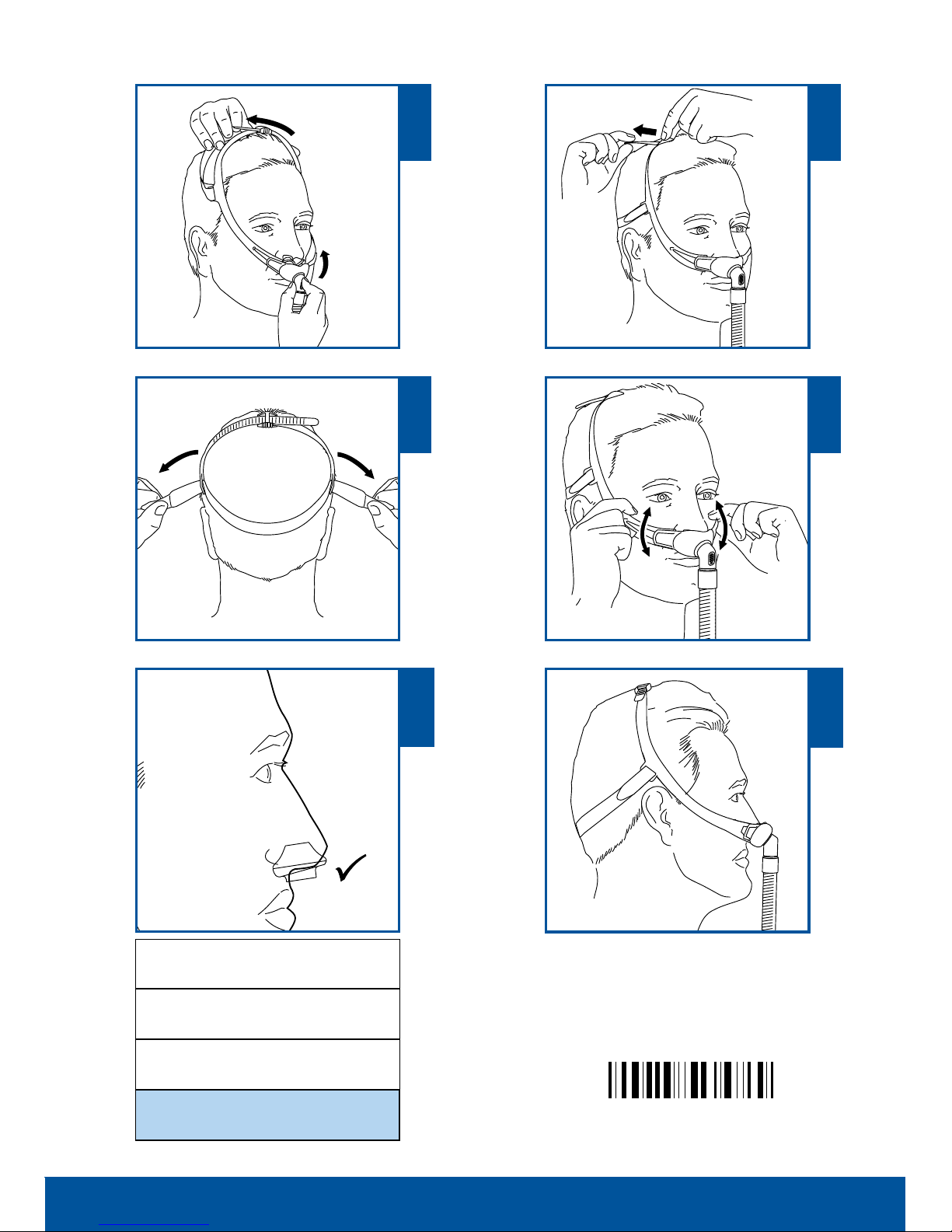

Fitting / Mise en place /
Colocación / Colocação
1 2 3
4 5
6
Rx Only / Sur prescription
uniquement / Solamente
bajo prescripción / Somente
com prescrição médica
Swift™FX

2
Swift FX
B D
A
1
2
3
4
65
7
8
9
11
10
C

3

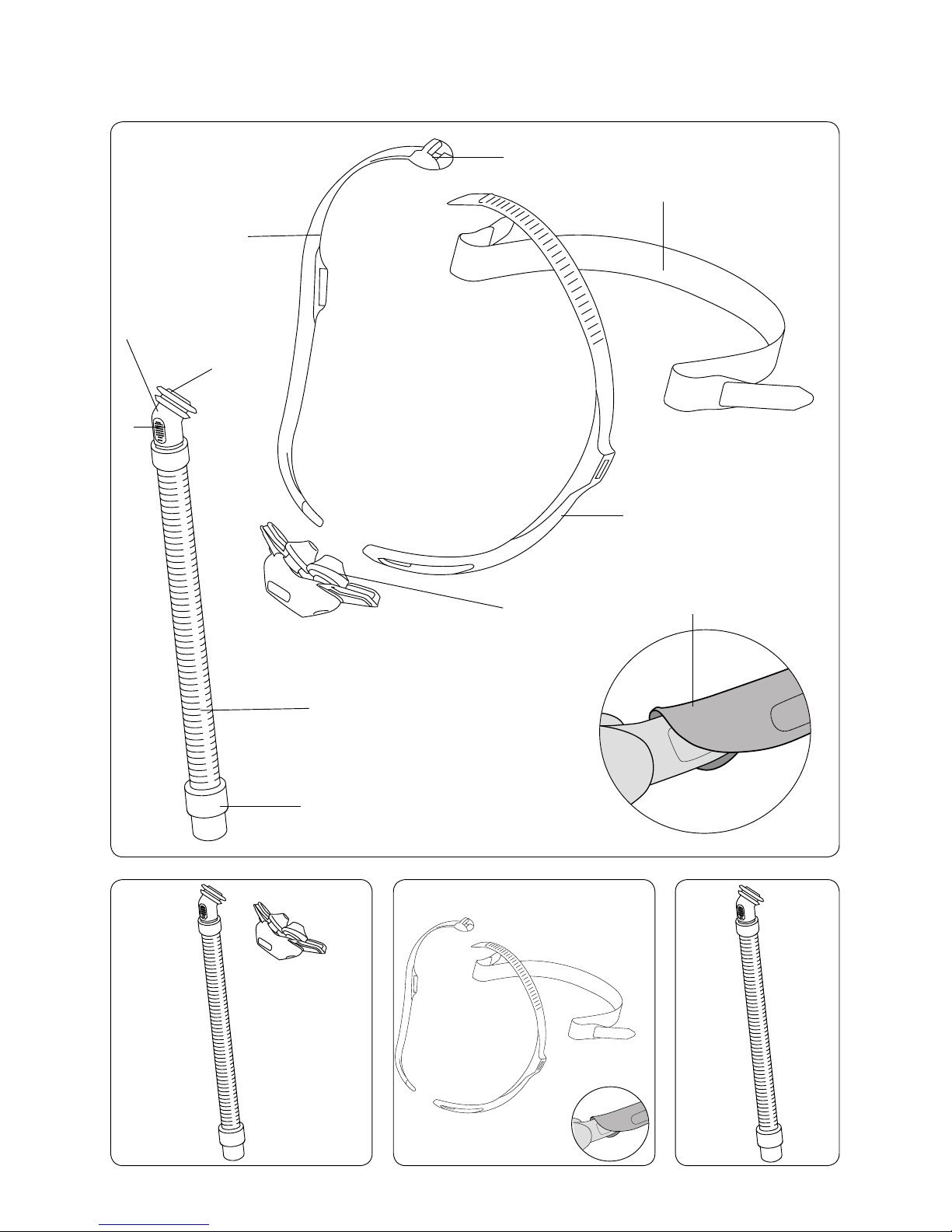

Mask components / Composants du masque /
Piezas de la mascarilla / Componentes da máscara
Item /
Article /
Artículo /
Item
Description / Description /
Descripción / Descrição Part number / Code produit /
Número de
parte / Código
do produto
1 Headgear right / Harnais droit / Arnés
derecho / Lateral direita do arnês
—
2 Top buckle / Boucle supérieure / Hebilla
superior / Fivela superior
—
3 Back strap / Sangle arrière / Correa
posterior / Correia traseira
—
4 Headgear left / Harnais gauche / Arnés
izquierdo / Lateral esquerda do arnês
—
5 Soft wraps / Housses souples / Fundas
blandas / Envoltórios macios
61530
6 Pillows / Coussins / Almohadillas /
Almofadas
61521 (S)
61522 (M)
61523 (L)
7 Short tube / Tuyau court / Tubo corto /
Tubo curto
—
8 Swivel / Pièce pivotante / Pieza giratoria /
Peça giratória
—
9 Vent / Orifice de ventilation / Ventilación /
Respiradouro
—
10 Elbow / Coude / Codo / Cotovelo —
11 Swivel ring / Anneau pivotant / Aro de la
pieza giratoria / Anel da peça giratória
—

4
Item /
Article /
Artículo /
Item
Description / Description /
Descripción / Descrição Part number / Code produit /
Número de
parte / Código
do produto
A Complete system / Système complet /
Sistema completo / Sistema completo
61500
B Pillows system (Frame system) / Système
coussins (Entourage rigide) / Sistema
de almohadillas (Sistema de armazón) /
Sistema de almofadas (Sistema de
armação)
61510 (XS)
61511 (S)
61512 (M)
61513 (L)
C Headgear assembly / Ensemble harnais /
Conjunto del arnés / Conjunto do arnês
61529
D Short tube assembly (Frame assembly) /
Ensemble tuyau court (Ensemble
entourage rigide) / Conjunto del tubo corto
(Conjunto del armazón) / Conjunto do tubo
curto (Conjunto da armação)
61528 (1)
61527 (10)
Also available / Également disponible /También está disponible /
Também disponível
Pillows / Coussins / Almohadillas /
Almofadas
61520 (XS)
XS Extra Small / Très petit / Extra-pequeña / Extra Pequeno(a),
S Small / Petit / Pequeña / Pequeno(a),
M Medium / Moyen / Mediana / Médio(a),
L Large / Grand / Grande / Grande

5

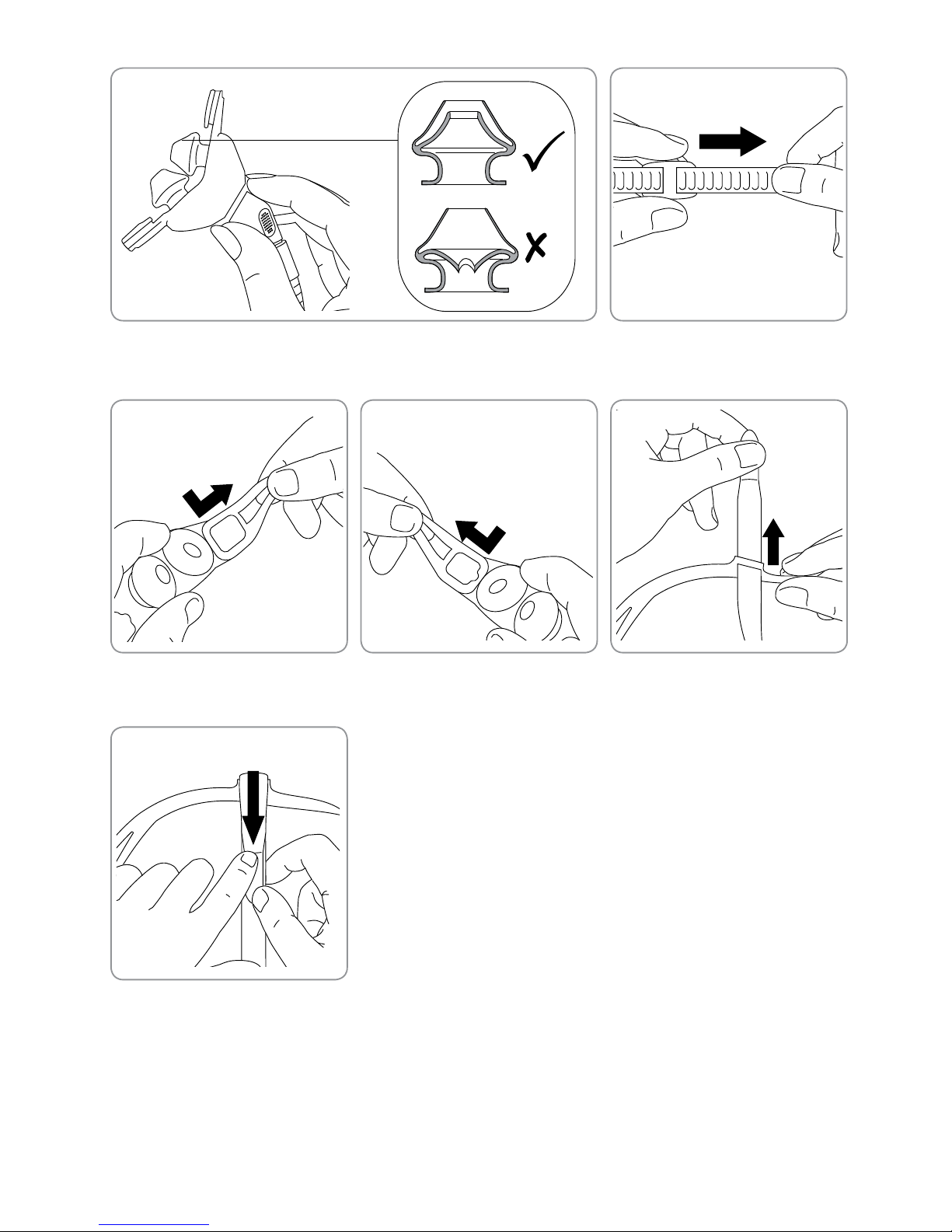

Disassembly / Démontage / Desmontaje /
Desmontagem
4
123
Reassembly / Remontage / Montaje / Remontagem
23 1

6
7 8
9
5
6
4

1
English
English
Swift™FX
nasal pillows system
Thank you for choosing the Swift FX.
Intended use
The Swift FX channels airflow noninvasively to a patient from a positive
airway pressure (PAP) device such as a continuous positive airway
pressure (CPAP) or bilevel system.
The Swift FX is:
to be used by adult patients (> 66 lb/30 kg) for whom positive•
airway pressure has been prescribed
intended for single-patient re-use in the home environment and•
multipatient re-use in the hospital/institutional environment.
Using your mask
When using your mask with ResMed CPAP or bilevel devices that have
mask setting options, refer to the Technical specifications section in
this user guide for mask selection options.
For a full list of compatible devices for this mask, see the Mask/Device
Compatibility List on www.resmed.com on the Products page under
Service & Support. If you do not have internet access, please contact
your ResMed representative.
Notes:
This mask is not compatible for use with ResMed AutoSet CS•™2
and VPAP™Adapt SV devices.
SmartStop may not operate effectively when using this mask with•
some CPAP or bilevel devices that have this feature.
If you experience nasal dryness or irritation, use of a humidifier is•
recommended.

2
WARNING
The vent holes must be kept clear.•
The mask should not be used unless the CPAP system is•
turned on and operating properly.
Follow all precautions when using supplemental oxygen.•
Oxygen flow must be turned off when the CPAP or bilevel•
device is not operating, so that unused oxygen does not
accumulate within the CPAP or bilevel device enclosure
and create a risk of fire.
At a fixed rate of supplemental oxygen flow, the inhaled•
oxygen concentration varies, depending on the pressure
settings, patient breathing pattern, mask, point of
application and leak rate.
The technical specifications of the mask are provided for•
your clinician to check that they are compatible with the
CPAP or bilevel device. If used outside specification or if
used with incompatible devices, the seal and comfort of
the mask may not be effective, optimum therapy may not
be achieved, and leak, or variation in the rate of leak, may
affect the CPAP or bilevel device function.
Discontinue using this mask if you have ANY adverse•
reaction to the use of the mask, and consult your physician
or sleep therapist.
Using a mask may cause tooth, gum or jaw soreness or•
aggravate an existing dental condition. If symptoms occur,
consult your physician or dentist.
As with all masks, some rebreathing may occur at low•
CPAP pressures.
Refer to your CPAP or bilevel device manual for details on•
settings and operational information.
Remove all packaging before using the mask.•

3
English
Cleaning your mask in the home
Your mask and headgear should only be handwashed by gently
rubbing in warm (approximately 86°F/30°C) water using mild soap.
All components should be rinsed well with drinking quality water and
allowed to air dry out of direct sunlight.
Daily/After each use:
To optimize the mask seal, facial oils should be removed from the•
cushion after use.
Handwash the separated mask components (excluding headgear).•
If the vent requires cleaning use a soft bristle brush.•
Weekly:
Handwash the headgear. It may be washed without being•
disassembled.
WARNING
Do not use aromatic-based solutions or scented oils (eg,
eucalyptus or essential oils), bleach, alcohol or products
that smell strongly (eg, citrus) to clean any of the mask
components. Residual vapours from these solutions can be
inhaled if not rinsed thoroughly.They may also damage the
mask, causing cracks.
CAUTION
If any visible deterioration of a system component is•
apparent (cracking, crazing, tears or cushion damage), the
component should be discarded and replaced.
Avoid connecting flexible PVC products (eg, PVC tubing)•
directly to any part of the mask. Flexible PVC contains
elements that can be detrimental to the materials of the
mask, and may cause the components to crack or break.

4
Reprocessing the mask between patients
This mask should be reprocessed when used between patients.
Cleaning, disinfection and sterilization instructions are available from
the ResMed website, www.resmed.com/masks/sterilization/americas.
If you do not have internet access, please contact your ResMed
representative.
Troubleshooting
Problem / possible cause Solution
Pillows won’t seal properly, are uncomfortable or cause red marks
Pillows may have been fitted
incorrectly, adjusted incorrectly or
the headgear is too tight.
Check that the ResMed logo
on top of the pillows is facing
outwards. Carefully follow the
fitting instructions. Readjust the
headgear to ensure it is not over
tightened.
Inner wall position of one or both
pillows is incorrect.
Squeeze pillow sides to release
inner wall. The correct position
is shown in the reassembly
instructions.
Pillows are the wrong size. Talk to your clinician.
Pillows may be dirty. Clean pillows according to the
instructions.
Mask is too noisy
System is assembled incorrectly. Disassemble the mask, then
reassemble according to the
instructions.
System is leaking air. Refit or reposition you mask.
Adjust your headgear.
Check your mask is assembled
correctly.
Vent is blocked or partially blocked. If the vent requires cleaning, use a
soft bristle brush.

5
English
Technical specifications

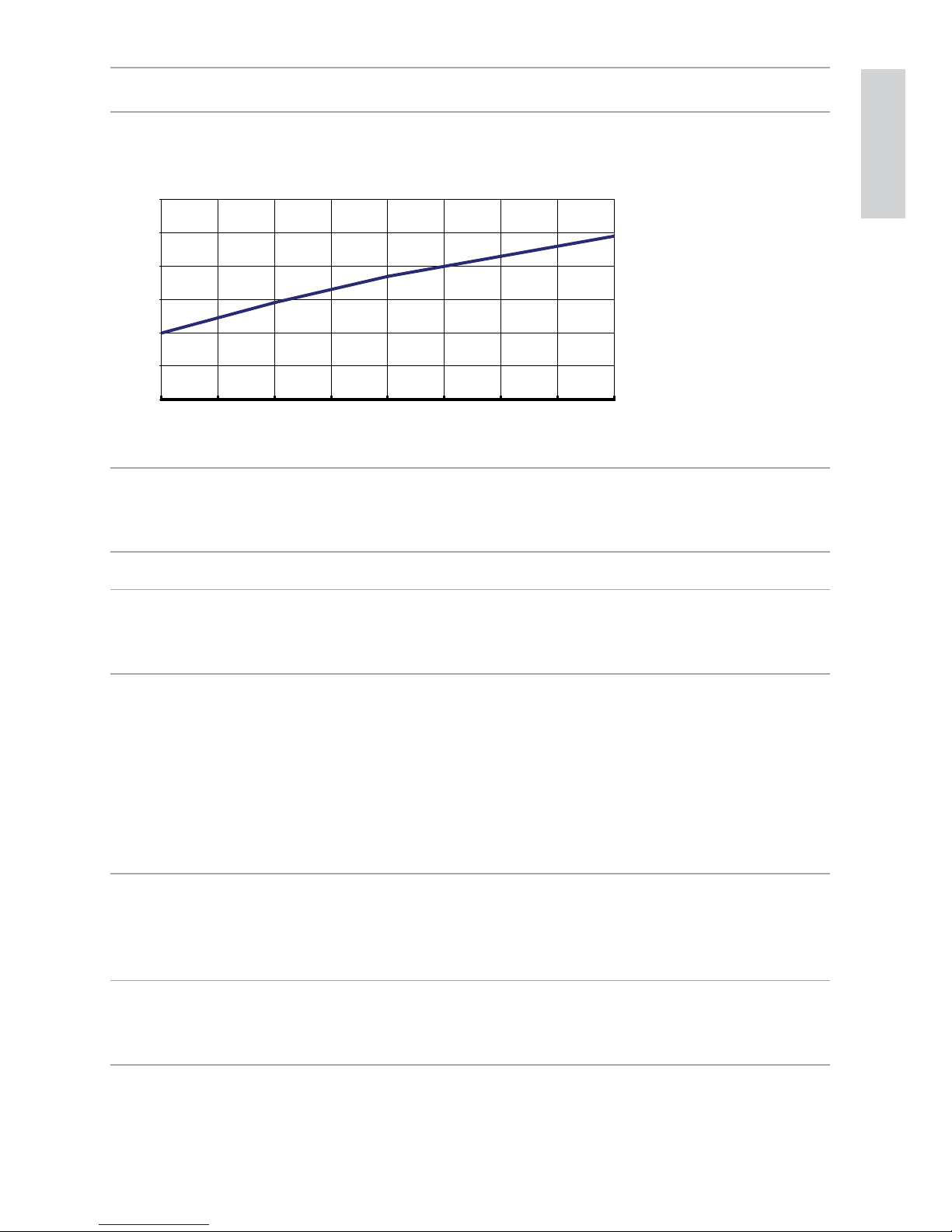

Pressure–flow
curve
The mask contains passive venting to protect against
rebreathing. As a result of manufacturing variations,
the vent flow rate may vary.
Dead space
information
Physical dead space is the empty volume of the mask
to the end of the swivel. Using the large cushions it
is 106 mL.
Therapy pressure 4 to 20 cm H2O
Resistance Drop in pressure measured (nominal)
at 50 L/min: 0.4 cm H2O
at 100 L/min: 1.4 cm H2O
Environmental
conditions
Operating temperature: +41°F to 104°F
(+5°C to +40°C)
Operating humidity: 15% to 95% relative humidity
non-condensing
Storage and transport temperature: -4°F to 140°F
( -20°C to +60°C)
Storage and transport humidity: up to 95% relative
humidity non-condensing
Gross dimensions Large: 16.34“ (H) x 3.70“ (W) x 1.77“ (D)
(415 mm (H) x 94 mm (W) x 45mm (D))
Mask fully assembled with short tube assembly – no
headgear.
Mask setting
options
For S9: Select ‘Pillows’
For other devices: Select ‘SWIFT’, (if available),
otherwise select ‘MIRAGE’ as the mask option.
0
10
20
30
40
50
60
4 6 8 10 12 14 16 18 20
Mask pressure (cm H2O)
Vent flow rate (L/min)
Pressure
(cm H2O)
Flow
(L/min)
4 20
8 29
12 37
16 43
20 49

6
Notes:
The mask system does not contain latex, PVC or DEHP materials.•
The manufacturer reserves the right to change these specifications•
without notice.
Storage
Ensure that the mask is thoroughly clean and dry before storing it for
any length of time. Store the mask in a dry place out of direct sunlight.
Disposal
This mask does not contain any hazardous substances and may be
disposed of with your normal household refuse.
Symbols
Caution, consult accompanying documents;
L O T
Lot number;
REF
Part number; Temperature limitation; Humidity limitation;
Does not contain latex; Manufacturer; Indicates a Warning
or Caution and alerts you to a possible injury or explains special
measures for the safe and effective use of the device; Keep away
from rain; This way up; Fragile, handle with care.
Limited warranty
ResMed Ltd (hereafter ’ResMed’) warrants that your ResMed mask
system (including mask frame, cushion, headgear and tubing) shall
be free from defects in material and workmanship from the date of
purchase for the period of 90 days or in the case of disposable masks
the maximum use period.
This warranty is only available to the initial consumer. It is not
transferable.
If the product fails under conditions of normal use, ResMed will
repair or replace, at its option, the defective product or any of its
components.

7
English
This limited warranty does not cover: a) any damage caused as a result
of improper use, abuse, modification or alteration of the product;
b) repairs carried out by any service organization that has not been
expressly authorized by ResMed to perform such repairs; and c) any
damage or contamination due to cigarette, pipe, cigar or other smoke.
Warranty is void on product sold, or resold, outside the region of
original purchase.
Warranty claims on defective product must be made by the initial
consumer at the point of purchase.
This warranty replaces all other expressed or implied warranties,
including any implied warranty of merchantability or fitness for a
particular purpose. Some regions or states do not allow limitations on
how long an implied warranty lasts, so the above limitation may not
apply to you.
ResMed shall not be responsible for any incidental or consequential
damages claimed to have resulted from the sale, installation or use
of any ResMed product. Some regions or states do not allow the
exclusion or limitation of incidental or consequential damages, so the
above limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have
other rights which vary from region to region. For further information
on your warranty rights, contact your local ResMed dealer or ResMed
office.

Manufacturer:
ResMed Ltd 1 Elizabeth Macarthur Drive Bella Vista NSW 2153 Australia.
Distributed by:
ResMed Corp 9001 Spectrum Center Boulevard San Diego CA 92123 USA.
ResMed (UK) Ltd 96 Milton Park Abingdon Oxfordshire OX14 4RY UK.
See www.resmed.com for other ResMed locations worldwide.
Swift FX
Protected by patents: AU 785376, HK 1057714, EP 1314445, EP 1582230, JP 4354664,
US 6581594, US 6823865, US 7159587. Other patents pending.
Protected by design registration: US D562976. Others designs pending.
Swift is a trademark of ResMed Ltd and Swift is registered in U.S. Patent and
Trademark Ofce.
© 2010 ResMed Ltd.

Global leaders in sleep and respiratory medicine www.resmed.com
608259/2 10 04
SWIFT FX
USER
AMER – ENG
12
34
56
608259
