Medion AutoXS MD 18559 User manual

Dok./Rev.-Nr. 18559 EN-AUS MSN 50059508 Cover Final
Made in China
AUTO XS is a registered trademark of ALDI Stores
DISTRIBUTED BY:
ALDI STORES
1 SARGENTS ROAD
MINCHINBURY NSW 2770
WWW.ALDI.COM.AU
AUS
AFTER SALES SUPPORT
www.medion.com.au
1 300 884 987
MODEL:
MD 18559
97043
10/2018
3
YEAR
WARRANTY
AUS
ALDI guarantees that our exclusive brand products are
developed to our stringent quality specifications. If you are not
entirely satisfied with this product, please return it to the nearest
ALDI store within 60 days from the date of purchase, for a full
refund or replacement, or take advantage of our after sales
support by calling the supplier’s Customer Service Hotline.
User Manual
Overview ......................................................................................... 3
Use.................................................................................................... 3
Appliance parts ............................................................................... 4
Information about these operating instructions .......................... 7
Proper use .......................................................................................9
Safety information ........................................................................ 10
Package contents...........................................................................16
Mounting on the wall.....................................................................16
Operation........................................................................................17
Description of the charging cycle..................................................21
Protection against wrong polarity............................................... 23
Overheating cut-out ..................................................................... 23
Disconnecting the battery ............................................................ 24
Switching off ................................................................................. 24
Cleaning and care ......................................................................... 25
Storing/transporting .................................................................... 25
Disposal.......................................................................................... 25
Technical specifications ................................................................ 26
Warranty Details ............................................................................ 27
Repair and Refurbished Goods or Parts Notice........................... 28
Contents
CAR BATTERY CHARGER
18559 EN-AUS MSN 50059508 Cover Final.indd 1-418559 EN-AUS MSN 50059508 Cover Final.indd 1-4 03.07.2018 14:22:2303.07.2018 14:22:23

Dok./Rev.-Nr. 18559 EN-AUS MSN 50059508 Cover Final
Made in China
AUTO XS is a registered trademark of ALDI Stores
DISTRIBUTED BY:
ALDI STORES
1 SARGENTS ROAD
MINCHINBURY NSW 2770
WWW.ALDI.COM.AU
AUS
AFTER SALES SUPPORT
www.medion.com.au
1 300 884 987
MODEL:
MD 18559
97043
10/2018
3
YEAR
WARRANTY
AUS
ALDI guarantees that our exclusive brand products are
developed to our stringent quality specifications. If you are not
entirely satisfied with this product, please return it to the nearest
ALDI store within 60 days from the date of purchase, for a full
refund or replacement, or take advantage of our after sales
support by calling the supplier’s Customer Service Hotline.
User Manual
Overview ......................................................................................... 3
Use.................................................................................................... 3
Appliance parts ............................................................................... 4
Information about these operating instructions .......................... 7
Proper use .......................................................................................9
Safety information ........................................................................ 10
Package contents...........................................................................16
Mounting on the wall.....................................................................16
Operation........................................................................................17
Description of the charging cycle..................................................21
Protection against wrong polarity............................................... 23
Overheating cut-out ..................................................................... 23
Disconnecting the battery ............................................................ 24
Switching off ................................................................................. 24
Cleaning and care ......................................................................... 25
Storing/transporting .................................................................... 25
Disposal.......................................................................................... 25
Technical specifications ................................................................ 26
Warranty Details ............................................................................ 27
Repair and Refurbished Goods or Parts Notice........................... 28
Contents
CAR BATTERY CHARGER
18559 EN-AUS MSN 50059508 Cover Final.indd 1-418559 EN-AUS MSN 50059508 Cover Final.indd 1-4 03.07.2018 14:22:2303.07.2018 14:22:23

34
A
10
9
87
1112
1314
15
B
1 2
3
45
63
C
red black
1. 2.

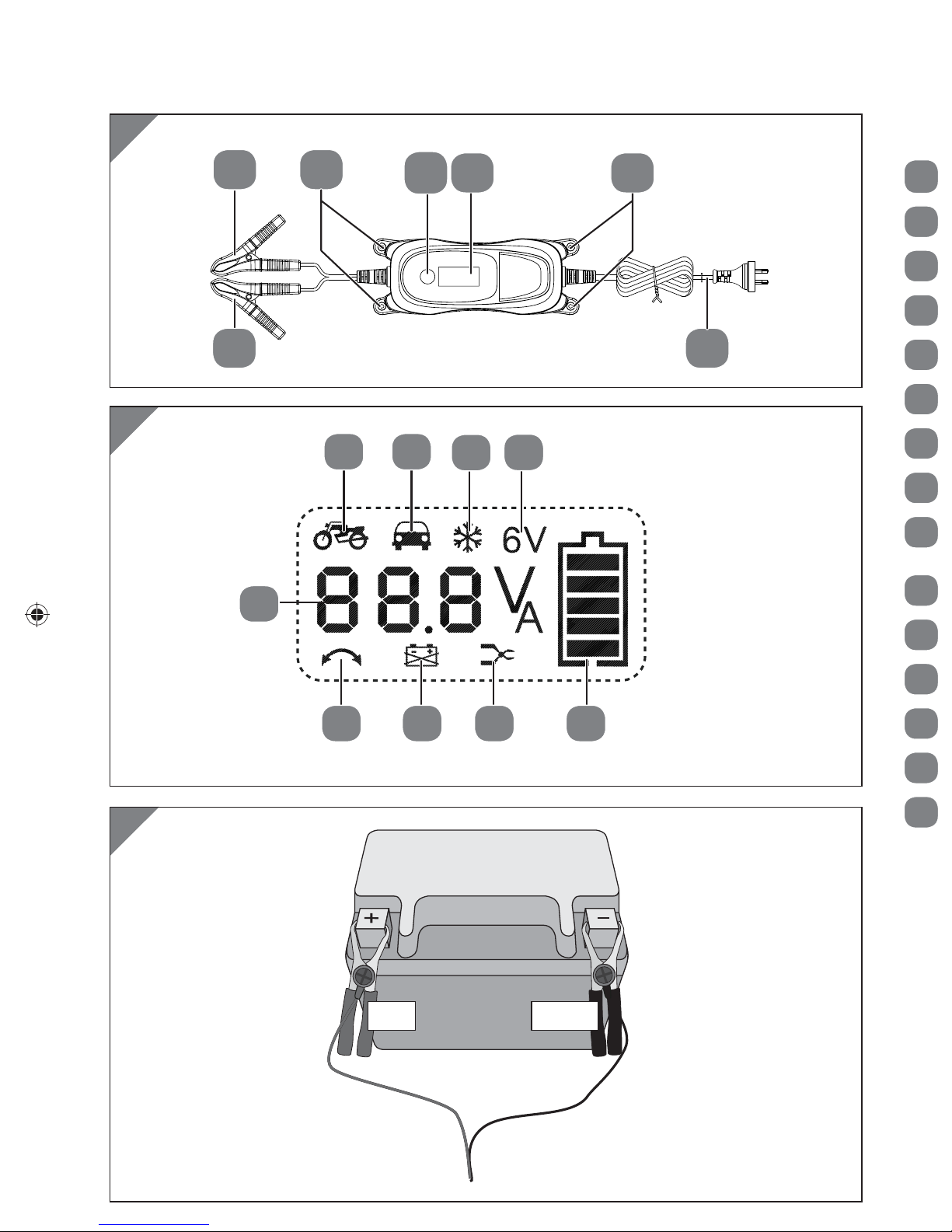

Appliance parts
1MODE button
2Display
3Fixing holes
4Mains cord with mains plug
5Positive terminal clamp (red), with connection cord
6Negative terminal clamp (black), with connection cord
712 V / 0.8 A charging mode active – standard charging
812 V / 3.8 A charging mode active – fast charging
912 V / 3.8 A COLD charging mode active – fast charging at low ambient
temperature
10 6 V / 0.8 A charging mode active – standard charging
11 Charge display (see page 18 ff.)
12 Fault display (no battery connected, short circuit)
13 Battery defective
14 Fault display (incorrectly connected terminals)
15 Charging current display/
current battery voltage display
18559 EN-AUS MSN 50059508 Cover Final.indd 5-818559 EN-AUS MSN 50059508 Cover Final.indd 5-8 03.07.2018 14:22:4703.07.2018 14:22:47

34
A
10
9
87
1112
1314
15
B
1 2
3
45
63
C
red black
1. 2.
Appliance parts
1MODE button
2Display
3Fixing holes
4Mains cord with mains plug
5Positive terminal clamp (red), with connection cord
6Negative terminal clamp (black), with connection cord
712 V / 0.8 A charging mode active – standard charging
812 V / 3.8 A charging mode active – fast charging
912 V / 3.8 A COLD charging mode active – fast charging at low ambient
temperature
10 6 V / 0.8 A charging mode active – standard charging
11 Charge display (see page 18 ff.)
12 Fault display (no battery connected, short circuit)
13 Battery defective
14 Fault display (incorrectly connected terminals)
15 Charging current display/
current battery voltage display
18559 EN-AUS MSN 50059508 Cover Final.indd 5-818559 EN-AUS MSN 50059508 Cover Final.indd 5-8 03.07.2018 14:22:4703.07.2018 14:22:47

Contents
5
Contents
Overview ......................................................................................................... 3
Use ................................................................................................................... 3
Appliance parts ............................................................................................... 4
Information about these operating instructions ........................................... 7
Key to symbols..................................................................................................... 7
Proper use ....................................................................................................... 9
Safety information .........................................................................................10
Setting up the appliance...................................................................................13
Charging process................................................................................................13
Handling rechargeable batteries ....................................................................14
Package contents ...........................................................................................16
Mounting on the wall.....................................................................................16
Operation........................................................................................................ 17
Connecting the charger to the battery ...........................................................17
Select charging mode....................................................................................... 18
Status displays ................................................................................................... 18
6 V / 0.8A charging mode (6V batteries up to max. 14Ah)......................... 19
12 V / 0.8A charging mode (12 V batteries up to max. 120Ah)..................... 19
12V / 3.8A charging mode (fast charging for 12 V batteries from 1.2Ah
to 120Ah) ............................................................................................................20
12 V / 3.8 A Cold (fast charging for 12V batteries from 1.2 Ahto 120Ah at
low ambient temperature) ..............................................................................20
Regenerating/recharging fully discharged 12V batteries (regeneration
mode)...................................................................................................................21
Description of the charging cycle .................................................................. 21
Protection against wrong polarity ................................................................23
Overheating cut-out.......................................................................................23
Disconnecting the battery............................................................................. 24
Switching off ................................................................................................. 24
Cleaning and care...........................................................................................25
18559 EN-AUS MSN 50059508 Content Final REV1.indd 518559 EN-AUS MSN 50059508 Content Final REV1.indd 5 04.07.2018 11:17:5104.07.2018 11:17:51

Contents
6
Storing/transporting......................................................................................25
Disposal ..........................................................................................................25
Technical specifications................................................................................. 26
Warranty Details .............................................................................................27
Repair and Refurbished Goods or Parts Notice............................................ 28
18559 EN-AUS MSN 50059508 Content Final REV1.indd 618559 EN-AUS MSN 50059508 Content Final REV1.indd 6 04.07.2018 11:17:5404.07.2018 11:17:54

Information about these operating instructions
7
Information about these operating instructions
Thank you for choosing our product. We hope you enjoy using it.
Read the safety instructions carefully before using the appliance for
the first time. Note the warnings on the appliance and in the operating
instructions.
Always keep the operating instructions close to hand. If you sell the
appliance or give it away, please ensure that you also pass on these
operating instructions. They are an essential component of the product.
Key to symbols
If a block of text is marked with one of the warning symbols listed below, the hazard
described in that text must be avoided to prevent the potential consequences
described there from occurring.
DANGER!
This keyword denotes a high-risk hazard situation which results in death or serious
injury if it is not avoided.
WARNING!
This keyword denotes a medium-risk hazard situation which can result in death or a
serious injury if it is not avoided.
CAUTION!
This keyword denotes a low-risk hazard situation which can result in moderate or
minor injuries if it is not avoided.
PLEASE NOTE!
This keyword serves as a warning for possible damage to property.
Warning: risk of electric shock!
18559 EN-AUS MSN 50059508 Content Final REV1.indd 718559 EN-AUS MSN 50059508 Content Final REV1.indd 7 04.07.2018 11:17:5404.07.2018 11:17:54

Information about these operating instructions
8
Warning: risk of explosive materials!
Warning: risk of chemical burns!
Comply with the notes in the operating instructions.
This symbol provides useful additional information for assembling or
operating the appliance.
Protection class II
Electrical appliances in protection class II are appliances that have
double and/or reinforced insulation throughout, and do not have the
option of connecting a protective earth. The housing of an electrical
appliance in protection class II, with surrounding insulating material,
may either form all of the additional or increased insulation, or part of
it.
Indoor use
Appliances with this symbol are intended solely for indoor use.
Battery symbol
The information behind this symbol defines the maximum and the
minimum nominal charge of the battery to be charged.
TFuse
Appliances bearing this symbol have a fuse that blows when the
specified rated current (2A) is exceeded, thus breaking the electrical
circuit.
Symbol for direct current (DC)
+Positive polarity
–Negative polarity
18559 EN-AUS MSN 50059508 Content Final REV1.indd 818559 EN-AUS MSN 50059508 Content Final REV1.indd 8 04.07.2018 11:17:5504.07.2018 11:17:55

Proper use
9
IP65 This appliance complies with protection class IP65 in accordance with
DIN EN 60529. This means:
• The appliance is dust-proof and completely protected against
contact.
• The appliance is protected against water jets from any angle.
The Australian Regulatory Compliance Mark (RCM) is a single
compliance mark used by suppliers after establishing compliance
with all applicable regulations, including EMC, telecoms, radiocoms,
electromagnetic radiation (EMR) and electrical safety.
Proper use
This appliance is a primary-side switched charging appliance
with pulse trickle charging. It is suitable for charging and trickle-
charging the following rechargeable 6 V or 12 V lead batteries
containing an electrolyte solution or gel as well as AGM batteries,
which are used in motor vehicles:
−6V: Capacity from 1.2 Ah to 14 Ah;
−12V: Capacity from 1.2 Ah to 120 Ah;
It can also regenerate fully discharged 12V batteries (regeneration
mode).
The appliance is not suitable for recharging lithium batteries for
vehicles, motor bikes or boats.
Use the charger only to charge the battery types specified in these
instructions. No other batteries may be charged with the charger.
When using other types of batteries, there is a risk of injury, and
the charger could be damaged.
The charger charges batteries automatically in several stages
and can thus recharge them up to approximately 100% of their
capacity.
You can also connect a battery that has not been used for a long
time to the charger in order to keep it charged.
The appliance is only intended for private use and not for
industrial/commercial use.
18559 EN-AUS MSN 50059508 Content Final REV1.indd 918559 EN-AUS MSN 50059508 Content Final REV1.indd 9 04.07.2018 11:17:5504.07.2018 11:17:55

Safety information
10
Note that no liability will be accepted if the appliance is not used
for its intended purpose:
− Do not modify the appliance without our express agreement
and do not use any accessories that have not been supplied or
approved by us.
− Do not use any replacement parts or accessories that we have
not supplied or approved.
− Comply with all the information in these operating instructions,
especially the safety information. Any other use is considered
improper and can cause personal injury or property damage.
Safety information
Read the safety instructions carefully before using the appliance
for the first time. Note the warnings on the appliance and in the
operating instructions. Always keep the operating instructions
close to hand. If you sell the appliance or give it away, please
ensure that you also pass on these instructions.
− This appliances can be used by persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand
the hazards involved.
− Children must not be allowed to play with the appliance.
− Cleaning and user maintenance must not be carried out by
children.
− Keep the appliance and its accessories out of the reach of
children.
− Children should be kept away from the appliance and the
mains cord.
− Never leave the charger unattended when the appliance is in
use.
18559 EN-AUS MSN 50059508 Content Final REV1.indd 1018559 EN-AUS MSN 50059508 Content Final REV1.indd 10 04.07.2018 11:17:5504.07.2018 11:17:55
