Meditech BioFlex 120 User manual

1
User Manual
Meditech International Inc.
CANADA
THE BIOFLEX 120
A Personal Therapy System

2

3
Meditech International Inc.
Copyright © 2015 Meditech International Inc. All rights reserved.
No part of this publication may be reproduced, translated into another
language, stored in a retrieval system, or transmitted, in any form or by
any means, electronic, mechanical, photocopying, recording, or otherwise
without the prior written consent of Meditech International Inc.
Every precaution has been taken in the preparation of this publication.
Meditech assumes no responsibility for errors or omissions. Neither is any
liability assumed for damages resulting from the use of the information
contained herein.
All brand and product names mentioned are used for identication
purposes only and are trademarks or registered trademarks of their
respective holders.
Personal User Manual CAN (MN-100.794)
1st Edition December 2015

4
Table Of Contents
Introduction 5
Intended Use 6
Important Information 7
System Basics 8
What’s In The Box 9
Connecting The System 10
Connecting The System 11
Getting Started 12
Planning Your Treatments 14
Cleaning 28
System Troubleshooting 29
System Specications 31
Electromagnetic Compatibility (EMC) 35
BioFlex Personal Parts List 36
Notes 37

5
Introduction
For the rst time in history Meditech International has produced an
automated, pre-programmed light therapy device that can be applied at
home, while travelling or while otherwise engaged.
This highly eective, sophisticated unit is a derivative product of the BioFlex
Professional Laser Therapy Systems that have achieved a high level of
distinction in medical clinics based on the resolution of many pathologies,
often representing dramatic clinical outcomes.
Currently utilized in the eld of Laser Medicine by health care professionals
in over 50 countries worldwide, the technology is widely applicable in the
treatment of musculoskeletal conditions, arthritis, sports and soft tissue
injuries, etc., on a scalable basis.
At Meditech International we view this system as a major advance in the
immediate relief of pain and other symptoms. Pathologies are resolved –
as a result of the initiation of a cascade of physiological activities that lead
to the restoration of normal cell structure and function.
With the purchase of this unit, you hold the key to a non-invasive solution
for many of your medical problems, at your ngertips.
The Man Behind The System
BioFlex is a division of Meditech International Inc. a
company founded by Fred Kahn, MD, in 1989. The
company designs and manufacturers leading edge
Laser Therapy Systems.
In 1993, Meditech opened its rst clinic within a
laboratory at Ryerson University which has evolved
into two major Laser Rehabilitation Clinics currently
active in Toronto. All products represent the synergy
developed through the collaboration of clinicians,
engineers and designers, innovating and improving
the development of new technologies.

6
Intended Use
Prior to initiating treatment for any medical condition, it is advisable to
be examined and have a diagnosis established by a qualied health care
professional in order that more serious problems may be discovered and
to determine if light therapy will be eective for your condition.
The BioFlex 120 is a medical device designed for the safe, easy and eective
treatment of the following conditions:
Soft Tissue & Sports Injuries
Ligament & Tendon Tears
Muscle Strains
Tendonitis
Contusions
Repetitive Stress Injuries
Carpal Tunnel Syndrome
Rotator Cu Injuries
Tennis Elbow
Arthritic Conditions
Degenerative Osteoarthritis
Rheumatoid Arthritis
Vertebral Radiculopathy
Chronic Spinal Problems
General Problems
Herniated Disc
Fibromyalgia
TMJ Syndrome
Reex Sympathetic Dystrophy
Post Herpetic Neuralgia
Contraindications
The BioFlex 120 should not be used during the rst trimester of pregnancy.
In addition it should be avoided when photosensitive drugs are being
utilized. For additional advise consult your physician.

7
Important Information
It is appropriate to read and understand this User Manual. Failure to
follow the instructions noted may result in problems and void the product
warranty. If you have any questions, call BioFlex at 1-844-770-0177.
• This device is to be utilized for the conditions listed in this manual.
• The device is to be used in a dry environment only and must be kept
dry at all times.
• The system is not waterproof. Do not get it wet or rinse under water.
Do not use while bathing.
• Do not use the system while operating a vehicle or machinery.
• Do not use the system as a passenger in a vehicle. The bright light may
distract the driver.
• Do not exert excessive pressure or twist/bend the system parts. Keep
the Treatment Array away from sharp objects as they may puncture it.
• Do not pull, kink or pinch the cables. Never tightly wrap cables around
the Treatment Array.
• Do not drop the system.
• Do not open or modify any part of the system.
• Choking hazard: Do not wrap cords or straps around the neck.
• Do not cover the Treatment Array during treatment.
• Do not use the system to treat over the eyes. It is inappropriate to
shine the light emanating from the Treatment Array into the eyes.
• Use the provided glasses if your eyes are sensitive to the bright light
coming from the Treatment Array. Do not use the glasses for any
purpose other than for treatment with the BioFlex 120 system.
• Do not leave the device unattended when it is running.
• Use carefully. Do not use over sensitive skin areas or in the presence
of poor circulation. The unattended use of the BioFlex 120 system by
children/infants or incapacitated persons may be dangerous. Keep the
system out of the reach of children.

8
System Basics
The BioFlex 120 is a high performance therapy system that is aordable,
cost-eective and easy to use. The ergonomically designed Controller Unit
is connected to a exible Treatment Array in order to deliver a patented
sequence of Red and Infrared light energy to injured or diseased tissue.
Scientically and clinically developed protocols have been pre-
programmed for 12 anatomical regions. Simply select the desired area of
treatment from the face of the Controller Unit to start treatment. Three
Stages of protocols are available for each area. Initiate treatment at Stage
1 for at least the initial ve treatments and increase to higher settings, only
as required.
The Treatment Array’s soft, exible material is easy to clean and readily
adjusts to the contours of the area to which it is applied. For optimal results,
apply the Array to the skin’s surface and if desired, hold in place with straps
provided. Holding the system in place with a hand is also appropriate. Do
not cover the Treatment Array throughout the course of therapy.
Each treatment is initiated by radiation of red light automatically followed
by infrared radiation. The latter is not visible to the human eye. Once the
treatment has been completed, it will be conrmed via a sound.
Need more information? Visit www.bioexpersonal.com for step-by-step
tutorial videos and customer support.

9
What’s In The Box
When you receive your BioFlex Personal System, check to determine that
all of the parts shown below are included and undamaged. If parts are
missing or damaged, contact BioFlex immediately at 1-844-770-0177 or
customerservice@bioexpersonal.com
Note: System parts may appear dierent than displayed below.
AC Adapter
Power Cable
Controller Unit
Treatment Array
Safety Glasses
Retention
Strap

10
Connecting The System
This is as easy as 1-2-3:
1. Connect the power cord, AC adapter and Controller as shown
2. Connect the Controller Unit to AC adapter

11
Connecting The System
3. Connect Treatment Array to Controller Unit, Squeezing the sides of the
Treatment Array connector together to easily insert - and remove.
Your fully connected system should look like the following gure below

12
Power
Button
Stop Start/
Pause
Select
Stage
Neck
Upper Back
Lower Back
Hip
Knee
Ankle
Treatment Stage
Strap Anchor Points
Treatment
LEDs
Face
Shoulder
Elbow
Wrist
Hand
Foot
Timer
Top View of Treatment Array Bottom View of Treatment Array
Getting Started
Treatment Array
Power LED
Controller Unit

13
Step 1
Place the Treatment Array on the area to be treated. Keep it
applied to the skin to ensure maximum transmission of light
into the tissues. The Treatment Array may be held rmly in
place either with the straps provided or manually.
Step 2
Press the power button to turn the system on or o. You’ll
hear an audible double beep and the power button will turn
blue when it is turned on.
Step 3
Press the circle on the Controller Unit that corresponds to the
area of the body to be treated (e.g., face, knee, etc.). When
selected, the circle will turn blue.
Step 4
The Treatment Stage of the BioFlex 120 automatically defaults
to stage 1 (recommended for at least the rst ve treatments).
Press the button again for stage 2 or 3, if needed.
Step 5
Press the Start/Pause button to begin the treatment. There will
be an audible beep and the countdown timer will begin. The
length of each treatment varies depending on the area select-
ed. For optimal results, run the treatment to completion (until
the timer ends).
If you need to stop or pause your treatment for any reason,
press the Start/Pause button. Pressing the Start/Pause button
again will resume your treatment.
Step 6
Press the Stop button once at any time to pause the treat-
ment. Press Stop twice to cancel the treatment.

14
Planning Your Treatments
Treatment Area
Light therapy is most eective when the Treatment Array is placed rmly
over the dermis and directly over the focal point of the painful area.
Identify the focus of the pain in the area being treated and apply the Array
over that particular area. The treatment may be completed by applying
to the opposing area in order to apply therapy from all perspectives
applicable to the region.
There are 12 dierent treatment guidelines for each body area. The
diagram below shows which page to refer to for each area.
Neck Pg.22
Upper Back Pg.23
Lower Back Pg.24
Hip Pg.25
Knee Pg.26
Ankle Pg.27

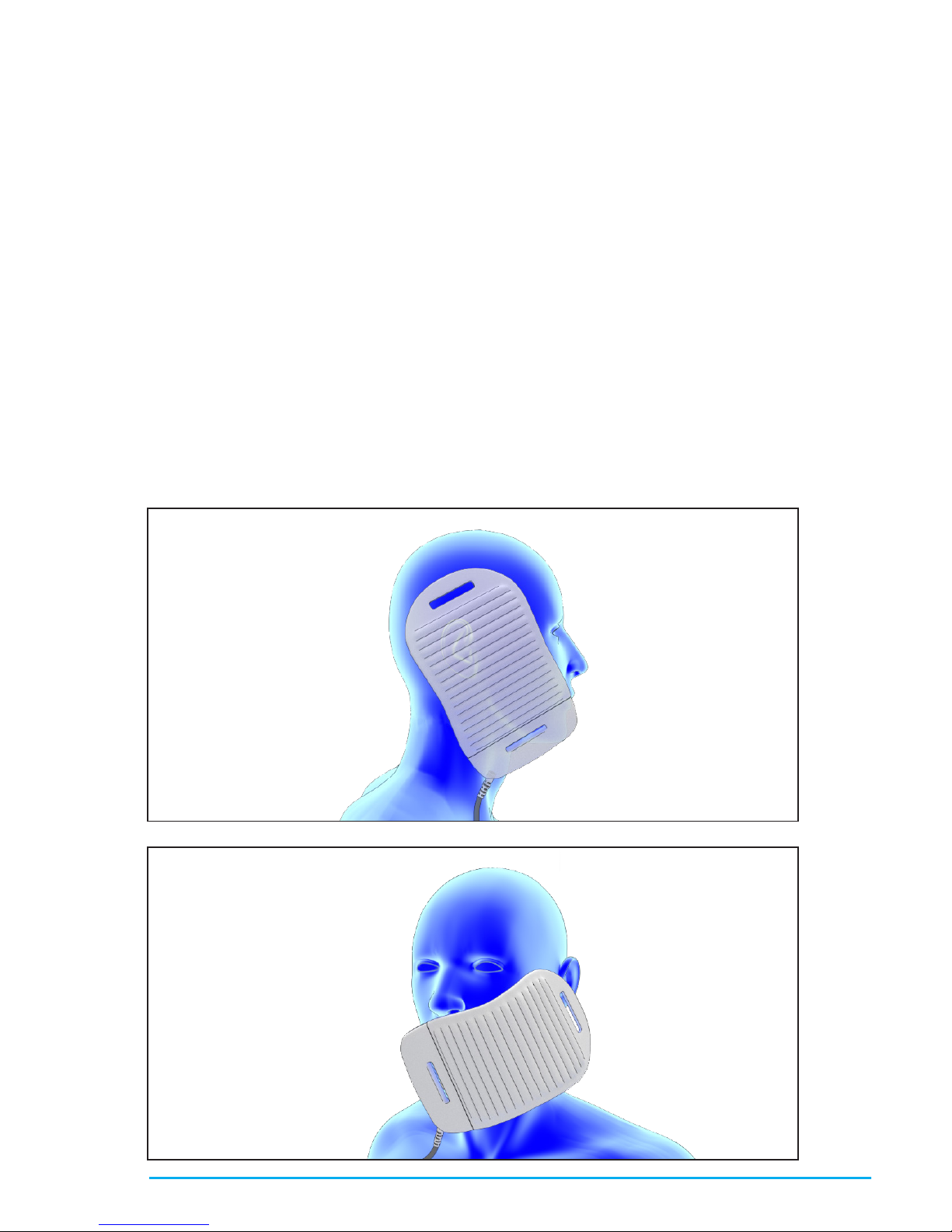

Face Pg.16
Shoulder Pg.17
Elbow Pg.18
Wrist Pg.19

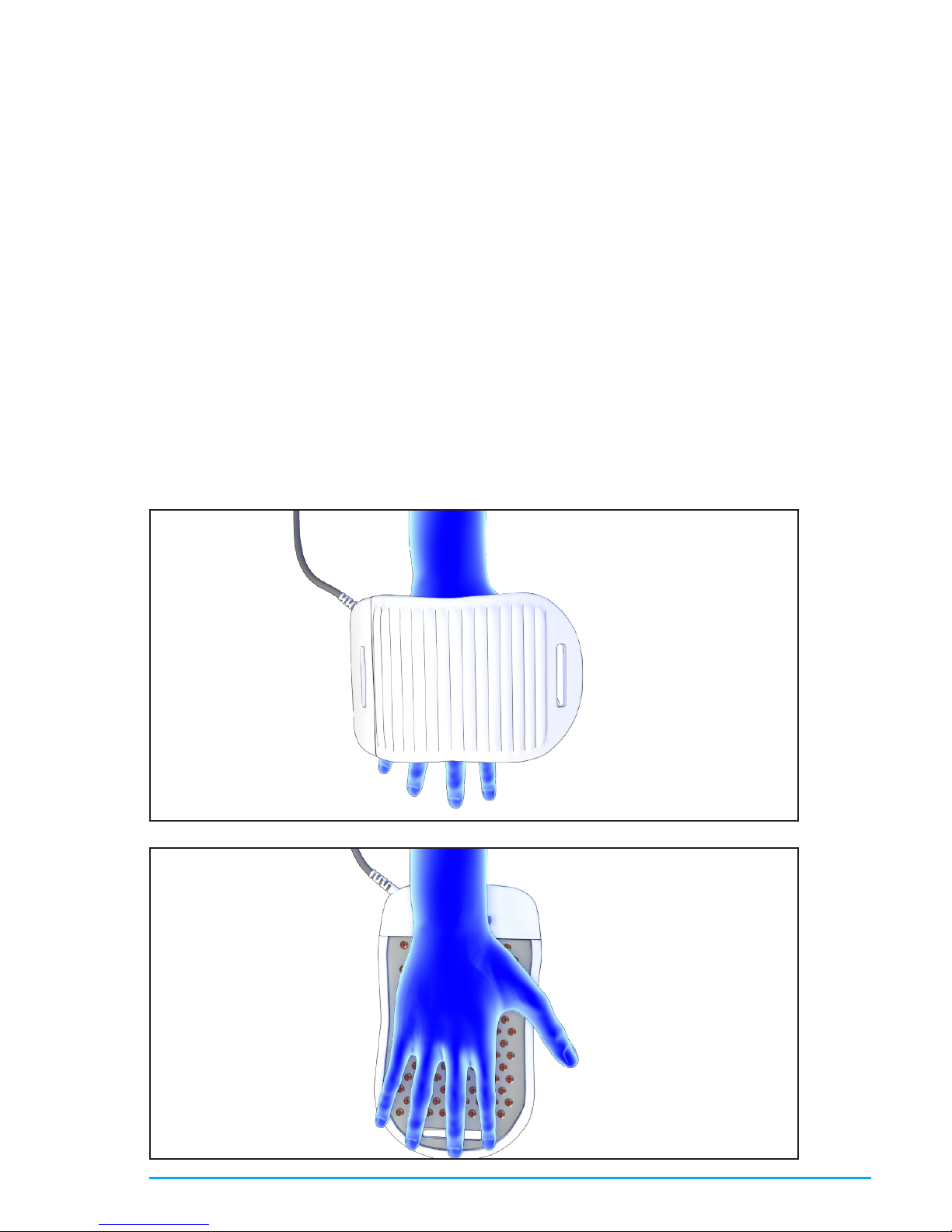

Hand Pg.20
Foot Pg.21

15
Stage
There are 3 pre-programmed stages for each of the 12 treatments
available on the Controller Unit. Each stage is meant for dierent stages of
the healing process. Stage 1 provides the best results for most cases and
should be used for as long as possible. Using stage 2 is only advisable if
there is no improvement after 5-10 full treatments. Skipping from stage 1
to stage 2 may result in less pain relief. Stage 3 should only be used if stage
2 no longer provides any pain relief after 5-10 treatments.
Frequency
Acutely painful areas may be treated daily until the pain and other
symptoms diminish.
Possible Reactions and Side Eects
During the course of treatment, the dermis may become erythematous,
secondary to physiological eects. This condition is not harmful and will
disappear following completion of treatment. Use the glasses provided
throughout the course of treatment, however they are not essential.
End of Treatment
Treatments end automatically unless you press the Stop button prior to
that occurrence. Clean the Treatment Array after each use (see page 28).
As your symptoms diminish you may reduce the frequency of treatments
and in order to avoid recurrence, treat once or twice per week. For chronic
pain, treat as required for maintenance purposes.
Should your pain not diminish after utilizing the three Stages provided for
each area, it is appropriate to consult a physician.

16
A
B
Face
Common Conditions
TMJ Disorder Postherpetic Neuralgia
Placements
See Figures A and B for the location of the Treatment Array when treating
jaw pain.

17
Shoulder
Common Conditions
Ligament Injury
Repetitive Stress Injury
Ligament & Tendon Tears
“Frozen” Shoulder
Arthritis (Degenerative & Rheumatoid)
Rotator Cu Injuries
Muscle Strains
Tendonitis
Contusions
Placements
See Figures A to C for the location of the Treatment Array when treating
pain in a shoulder joint.
A
C
B

18
Elbow
Common Conditions
Tennis Elbow
Soft Tissue Injuries
Arthritis (Degenerative & Rheumatoid)
Ligament & Tendon Tears
Tendonitis
Contusions
Placements
See Figures A to C for the location of the Treatment Array when treating
pain in an elbow joint.
A B
C

19
A
B
Wrist
Common Conditions
Carpal Tunnel Syndrome
Soft Tissue Injuries
Ligament & Tendon Tears
Reex Sympathetic Dystrophy
Arthritis (Degenerative & Rheumatoid)
Tendonitis
Placements
See Figures A and B for the location of the Treatment Array when treating
pain in a wrist joint.

20
Hand
Common Conditions
Soft Tissue Injuries
Arthritis (Degenerative & Rheumatoid
Ligament and Tendon Tears
Reex Sympathetic Dystrophy
Tendonitis
Contusions
Placements
See Figures A and B for the location of the Treatment Array when treating
pain in the ngers.
A
B
