1. Copyright and Disclaimer

MEITRACK and are trademarks that belong to Meitrack Group

The user manual may be changed without prior notification.

This user manual, or any part thereof, may not be reproduced for any purpose whatsoever without the written

authorization of Meiligao (MEITRACK), or transmitted in any form, either electronically or mechanically, including

photocopying and recording.

In no event shall Meiligao (MEITRACK) be liable for direct, indirect, special, incidental, or consequential damages

(including but not limited to economic loss, personal injury, and loss of asset and property) arising out of the use

or inability or illegality to use the product or documentation.

2. Applications

Vehicle Real Time Tracking

Car Security/Anti-Hijack

Fleet Management

3. Product Function and Specifications

3.1 Product Function

SiRF IV GPS and Quad Band GSM 850/900/1800/1900 MHz

GPS + GSM (Base Station) dual-module positioning

Track by SMS/GPRS (TCP/UDP) (MEITRACK Protocol)

Track on Demand

Track by Time Interval

Track by Distance Interval

Track on Mobile Phone

Listen-in (Voice Monitoring) or Two-way Audio (Optional)

Internal 4Mb Memory for Logging

Inbuilt Motion Sensor

850mAh Internal Backup Battery

SOS Alarm

Geo-fence Alarm

GPS Blind Area Alarm

Low Battery Alarm

Speeding Alarm

- 3 -

File Name:

MEITRACK MVT380 User Guide

Creator:

Cavana Cheung

Project:

MVT380

Creation Date:

Update Date:

2010-08-26

2013-09-13

Sub Project:

User Guide

Page:

- 4 - of 22

Revision:

V2.8

Confidential:

External Documentation

Tow Ala rm

GPS Antenna Cut Alarm

External Power Cut Alarm

Mileage Report

Engine Cut (Engine immobilization)

Inbuilt Super Magnet (optional)

5 Digital Inputs (2 positive triggering and 3 negative triggering), 5 Outputs.

2 Analog Input Detection

3.2 Specifications

Items Specifications

Dimension 105*65*26mm

Weight 190g

Input Voltage DC 11V~36V/1.5A

Back-up Battery 850mAh/3.7V

Power

consumption

65mA standby current

Operating

Temperature

-20℃~55℃

Humidity 5%~95%

Work Time 43 hours in power-saving mode and 10 hours in normal mode

LED 2 LED lights to show GPS, GSM and other status

Button 1 SOS and 1 power on/off

Microphone Optional

Memory 4M Byte

Sensor Motion sensor

GSM Frequency GSM 850/900/1800/1900MHz

GPS Chip Latest GPS SIRF-Star IV high-sensitivity chipset

GPS Sensitivity -163 dB

Positioning

Accuracy

10 meters

I/O 5 Digital input ( 2 positive triggering and 3 negative triggering)

2 Analog input detection

5 Output

1 USB port

1 earphone and microphone jack

- 4 -

File Name:

MEITRACK MVT380 User Guide

Creator:

Cavana Cheung

Project:

MVT380

Creation Date:

Update Date:

2010-08-26

2013-09-13

Sub Project:

User Guide

Page:

- 5 - of 22

Revision:

V2.8

Confidential:

External Documentation

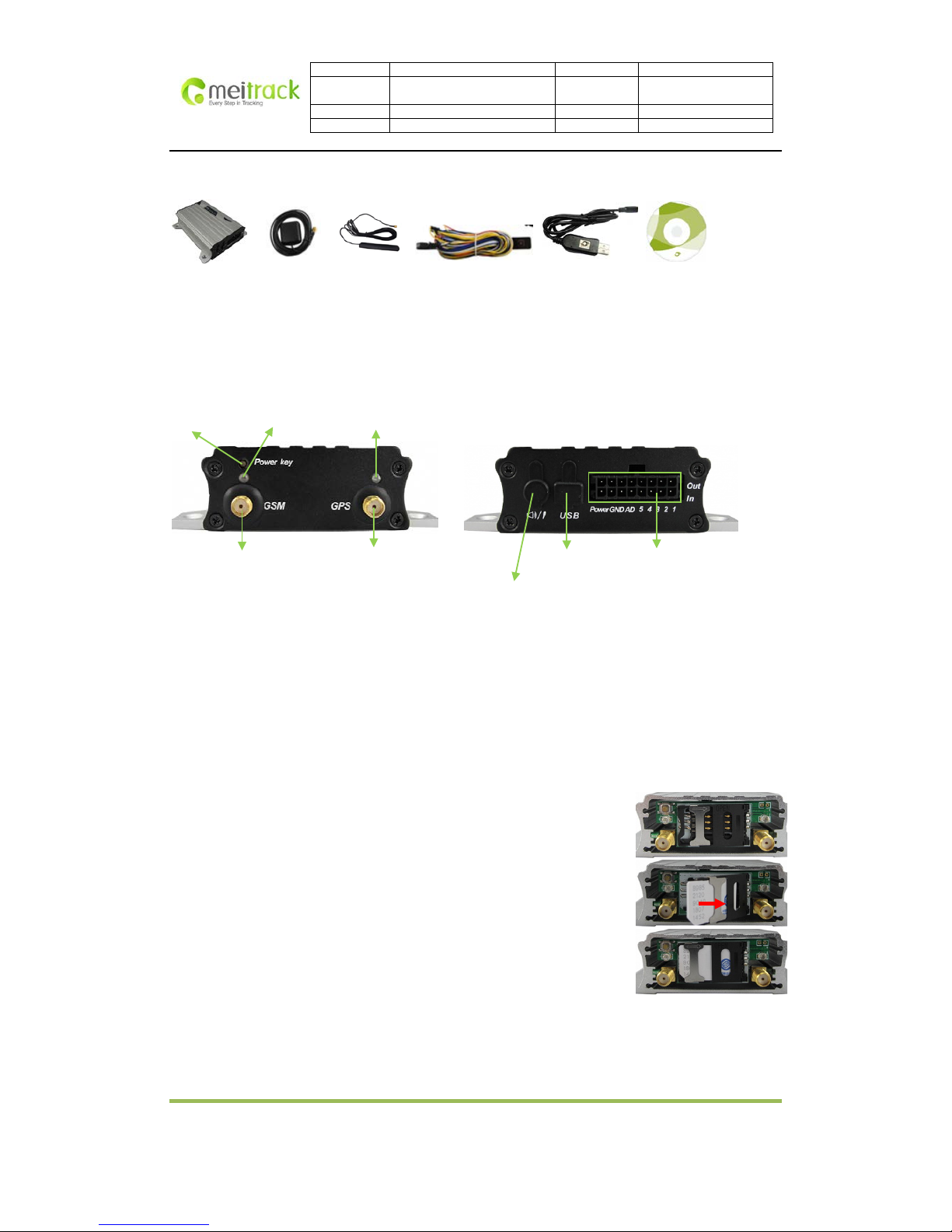

4. MVT380 and Accessories

MVT380 with

Battery

GPS

Antenna

GSM

Antenna

I/O Cable +

SOS Button

USB Data Cable CD

5. View

6. First Use

6.1 Install SIM Card

Check that the SIM has not run out of credit (test the SIM in a phone to make sure it

can send and receive SMS);

Check that the SIM Lock code is turned off;

If you require the function of sending an SMS location report to the authorized

phone number when it makes a call to the MVT380, please make sure the SIM

installed supports displaying caller ID.

Before installing the SIM card, turn off the power for MVT380.

Unscrew and remove cover.

Insert the SIM card by sliding it into the card holder with the chip module facing to

the connectors on PCB.

Replace the cover and screw it in.

GSM LED

GPS LED

On/Off

GSM Antenna GPS Antenna

Microphone/Speaker

USB Port PIN (Power, I/O)

- 5 -

File Name:

MEITRACK MVT380 User Guide

Creator:

Cavana Cheung

Project:

MVT380

Creation Date:

Update Date:

2010-08-26

2013-09-13

Sub Project:

User Guide

Page:

- 6 - of 22

Revision:

V2.8

Confidential:

External Documentation

6.2 Charging

Please connect GND (-Black) and Power (+Red) wires to 12V or 24 external power and make sure to charge the

battery for at least 3 hours. 8 hours is highly appreciated.

Configuration and testing suggested prior to installation.

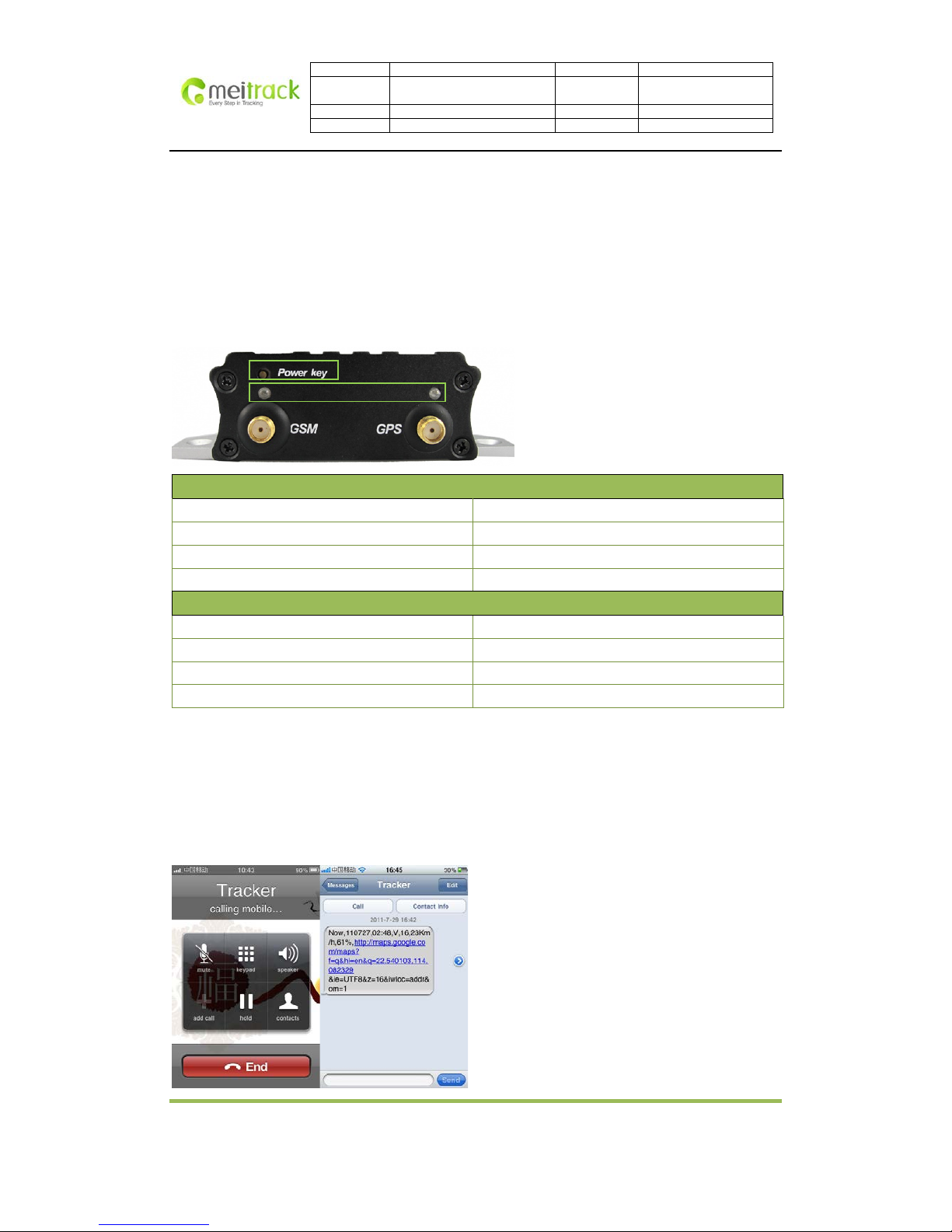

6.3 LED Indications

Press and hold the Power On/Off button for 3~5 seconds to turn on/off MVT380.

GPS LED (Blue)

On One button is pressed or input is active.

Flashing ( every 0.1 second) Initializing or back-up battery power is low

Flashing (0.1 second on and 2.9 seconds off) MVT380 has a GPS fix

Flashing (1 second on and 2 seconds off) MVT380 has no GPS fix

GSM LED (Green)

On A call is coming in / a call is being made

Flashing ( every 0.1 second) Initializing

Flashing (0.1 second on and 2.9 seconds off) MVT380 is connected to the GSM network

Flashing (1 second on and 2 seconds off) MVT380 is not connected to the GSM network

6.4 Track by Calling

Make a call to MVT380 and it will report with one SMS.

For example,

Now,110727 02:48,V,16,23Km/h,61%,http://maps.google.com/maps?f=q&hl=en&q=22.540103,114.082329

&ie=UTF8&z=16&iwloc=addr&om=1

- 6 -

File Name:

MEITRACK MVT380 User Guide

Creator:

Cavana Cheung

Project:

MVT380

Creation Date:

Update Date:

2010-08-26

2013-09-13

Sub Project:

User Guide

Page:

- 7 - of 22

Revision:

V2.8

Confidential:

External Documentation

Click on the link then the location can be shown directly on Google Maps on your mobile phone.

Report description:

Now,110727 02:48,V,16,23Km/h,61%,http://maps.google.com/maps?f=q&hl=en&q=22.540103,114.082329

&ie=UTF8&z=16&iwloc=addr&om=1

Content Description Note

Now Current Location Alarm Type

110721 16:40 Date & Time: 21 July, 2011, 16:40pm Date & Time in YYMMDD HH:MM

V No GPS fixed GPS Status Indicator:

A = valid, V = invalid

10 GSM signal=10 GSM Signal. Decimal Digit (0~31)

0Km/h Speed=0 KM/h. Decimal digit

97% Battery Power: 97% Battery Power Balance (Percentage)

http://maps.google.c

om/maps?f=q&hl=en

&q=22.540103,114.0

82329&ie=UTF8&z=1

6&iwloc=addr&om=1

Latitude: 22.513015

Longitude: 114.057235

Google Maps Web Link with Latitude and

Longitude. Click on the link to get the

location.

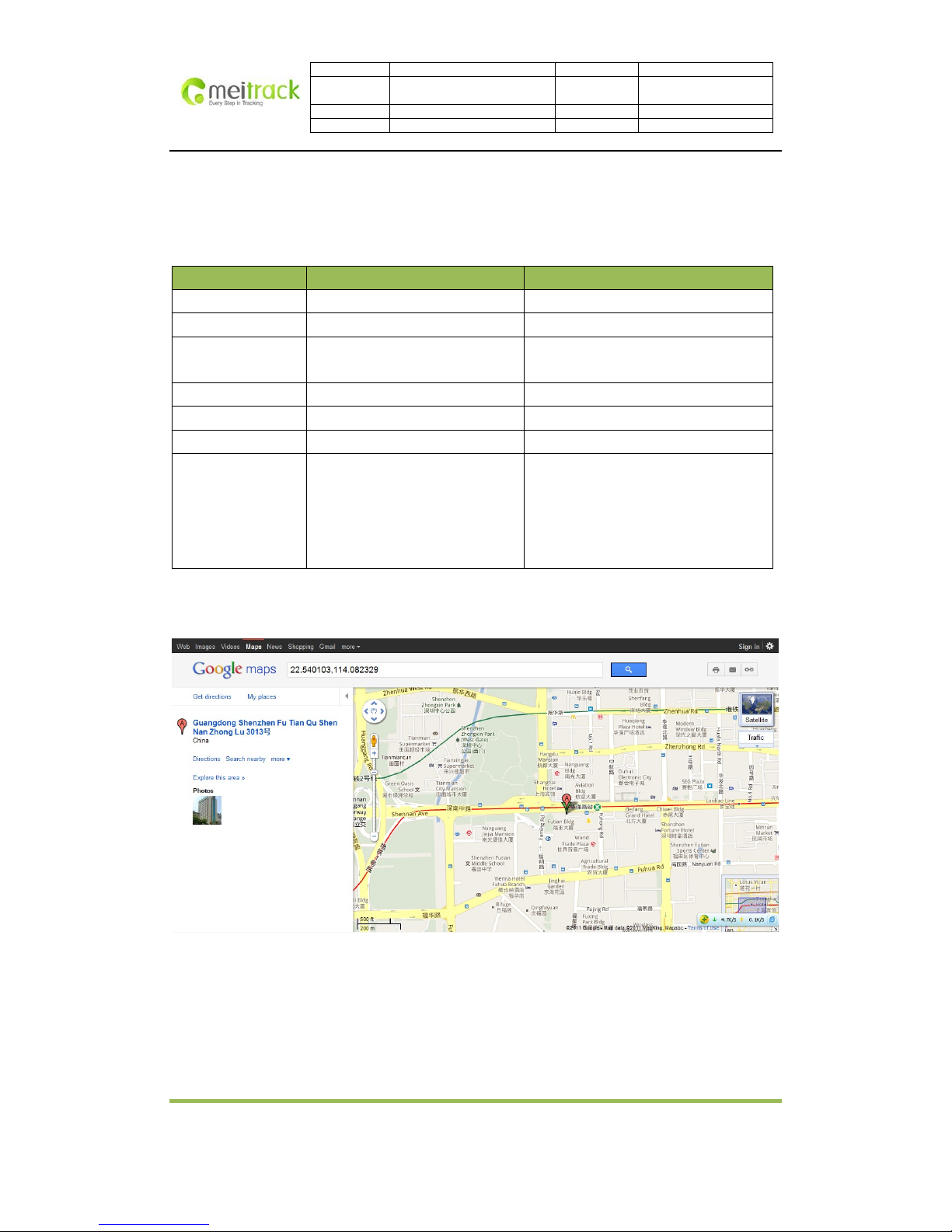

If your mobile cannot visit HTTP websites, input the latitude and longitude into Google Maps as the following

picture shows to get the position:

More SMS commands

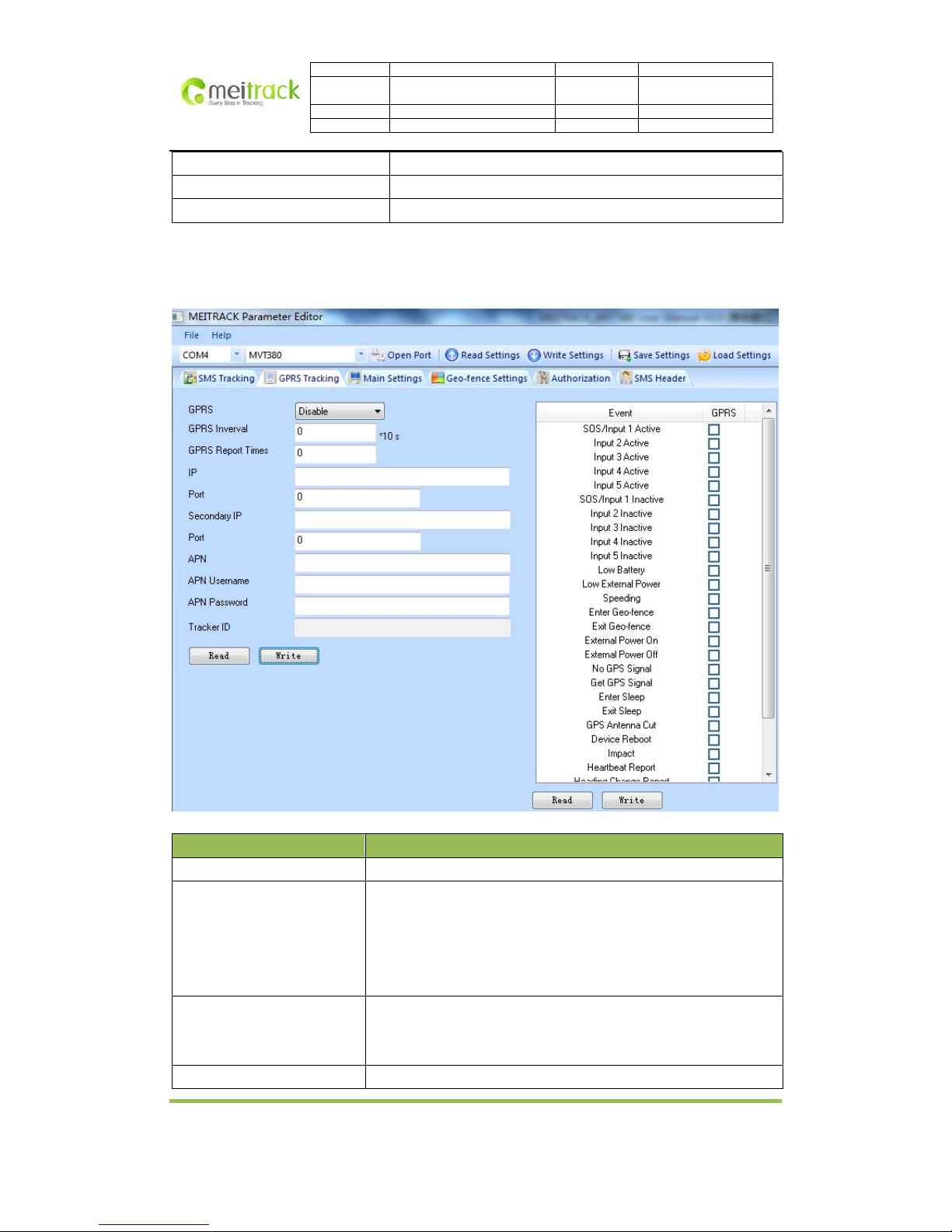

You can configure MVT380 by mobile phone or by computer using the MEITRACK Parameter Editor.

For more details, please refer to part 6.5 Configure by Computer.

Note:

1. Password is 4 digits only and defaulted as 0000. You can change the password by Parameter Editor and SMS

command.

- 7 -

File Name:

MEITRACK MVT380 User Guide

Creator:

Cavana Cheung

Project:

MVT380

Creation Date:

Update Date:

2010-08-26

2013-09-13

Sub Project:

User Guide

Page:

- 8 - of 22

Revision:

V2.8

Confidential:

External Documentation

2. MVT380 will only accept commands from a user with the correct password and report SMS report to the user.

If preauthorized phone number was set, only this phone number can receive SMS reports.

6.4.1 Multiple Phone numbers– A71

Command: 0000, A71, phone number 1, phone number 2, phone number 3

SMS Get: IMEI, A71, OK

Note：

Authorize a phone number for SOS alarm, calling for location report, geo-fence alarm, and low battery alarm.

Phone number: Max 16 characters.

If no preset phone number, it is empty (default is empty).

Send the “0000, A71” command to delete all phone numbers.

When the SOS button is pressed, MVT380 will make a call to phone number 1, 2 and 3. It will stop calling when

one number answers.

Example: 0000,A71,13811111111,13822222222,13833333333

SMS Get: 353358017784062,A71,OK

6.4.2 Listening-in (Voice Monitoring)–A72

Command: 0000, A72, phone number 1, phone number 2

SMS Get: IMEI, A72, OK

Note:

Authorize a phone number to make a silent call to the tracker. The tracker will answer the call automatically and

allows the caller to listen to what is happening around the tracker. There is no sound when the tracker is working.

Phone Number: 2 monitoring numbers at the most can be set, 16 characters per number.

If no preset phone number, it is empty (default).

If no phone number, but has “,”, the number related to this “,” is deleted.

Send the “0000, A72” command to delete all phone numbers.

Example: 0000,A72,13844444444,13855555555

SMS Get: 353358017784062,A72,OK

6.4.3 Sleep Mode – A73

Command: 0000,A73,X

SMS Get: IMEI,A73,OK

Note:

This setting is for power saving.

X=0, turn off sleep mode (default)

X=1, normal sleep. The GSM module always works, and the GPS module works in sleep mode intermittently. The

device can work 25% longer than no sleep mode. Note: this is not recommended for users who set “track by

interval” or short time interval, because it will affect the completeness of tracking.

X=2, deep sleep, the tracker will enter this mode after it is inactive or stationary (No SOS/any triggered by the

- 8 -

File Name:

MEITRACK MVT380 User Guide

Creator:

Cavana Cheung

Project:

MVT380

Creation Date:

Update Date:

2010-08-26

2013-09-13

Sub Project:

User Guide

Page:

- 9 - of 22

Revision:

V2.8

Confidential:

External Documentation

button/input/incoming calls/message/movement) for 5 minutes. GPS module stops working and GSM module

enters sleep mode. The tracker remains in this mode until it is activated by SOS/any triggered by the

button/input/incoming calls/message/movement. After that, it will repeat above processes.

Note: In any condition, the device will directly quit the sleep mode and back to normal working mode by SMS or

GPRS command to turn off the sleep mode.

Example: 0000,A73,2

SMS Get: 353358017784062,A73,OK

6.4.4 Geo-fence Alarm – B05

SMS command: 0000, B05,P,latitude,longitude,radius,in,out

SMS Get: IMEI,B05,OK

Note:

P: Digit ranging from1 to 8. A maximum of 8 Geo-fences can be set.

Latitude: Latitude in decimal degrees of the geo-fence center.

Longitude: Longitude in decimal degrees of the geo-fence c e nter.

Radius: [1, 4294967295] in meters. Draw a circle with this radius and centered by the preceding latitude and

longitude.

In = 0, turn off the alarm when the tracker enters the geo-fence;

In = 1, turn on the alarm when the tracker enters the geo-fence.

Out = 0, turn off the alarm when the tracker exits the geo-fence;

Out = 1, turn on the alarm when the tracker exits the geo-fence.

Example: 0000,B05,1,22.91319,114.07988,1000,0,1

SMS Get: 353358017784062,B05,OK

Note: Once the tracker goes outside of the circle (center: 22.91319,114.07988 and radius 1000 meters), the tracker

reports an out alarm to the server and sends an SMS to the preset authorized number.

6.4.5 Set Anti-theft – B21

Command: 0000,B21,Status

SMS Get: IMEI,B21,OK

Note:

Status=1, turn on Anti-theft (default); the device alarms when input 2 (negative input) and input 4 (positive input)

are active;

Status=0, turn off Anti-theft; the device doesn’t alarm when input 2 (negative input) and input 4 (positive input)

are active.

6.4.6 Time Zone– B35

Command: 0000,B35,T

- 9 -

File Name:

MEITRACK MVT380 User Guide

Creator:

Cavana Cheung

Project:

MVT380

Creation Date:

Update Date:

2010-08-26

2013-09-13

Sub Project:

User Guide

Page:

- 10 - of 22

Revision:

V2.8

Confidential:

External Documentation

SMS Get: IMEI,B35,OK

Note:

Default time of the tracker is GMT. You can use this command to change the time on your tracker to your local

time. This command is for SMS tracking only.

Time zone of SMS report is separated with that of GPRS data. If you need to set time zone in GPRS data, please

use SMS command: 0000, B36, T

T=0, to turn off this function.

T=[-32768,32767] to set time difference in minutes to GMT.

For those ahead of GMT, just input the time difference in minutes directly. For example, GMT+8, 0000,B35,480

‘-‘is required for those behind GMT. For example, 0000,B35,-120.

Example: 0000,B35,480

SMS Get: 353358017784062,B35,OK

For more details regarding SMS commands, please refer to MEITRACK SMS Protocol.

6.5 Configure by Computer

This part shows the basics of how to use the MEITRACK Parameter Editor.

Note: Don’t connect MVT380 to external battery when configuring.

Please refer to the MEITRACK Parameter Editor User Guide for more detailed information regarding configuration

and functions.

Run ‘PL2303_Prolific_DriverInstaller’ to install the driver for the USB data cable.

Note: PL2303_Prolific_DriverInstaller is in the folder ‘USB-232 Driver’ in the CD.

Connect the USB Data Cable between MVT380 and PC.

Open Device Manager (Device Manager is under Control Panel\System and Security\System). You can then find

‘Prolific USB-to-Serial Comm Port’ as the following picture shows.

- 10 -

File Name:

MEITRACK MVT380 User Guide

Creator:

Cavana Cheung

Project:

MVT380

Creation Date:

Update Date:

2010-08-26

2013-09-13

Sub Project:

User Guide

Page:

- 11 - of 22

Revision:

V2.8

Confidential:

External Documentation

Note: Remember this Com number. It needs to be input into the MEITRACK Parameter Editor. It is COM3 in this

example and it would be COM4 or COM5… in your computer.

Run ‘MEITRACK Parameter Editor.exe’ and the following configuration window will pop up:

Choose the correct Com number and device model No. in previous Device Manager then click the ‘Open Port’

button.

Click ‘Read Settings’ button to show the default or previous settings of the tracker.

Note: MEITRACK Parameter Editor is in the CD. The language will be automatically adjusted to be the same as

your PC operation system’s language. Please use “Ctrl+L” to change the language.

6.5.1 SMS Tracking

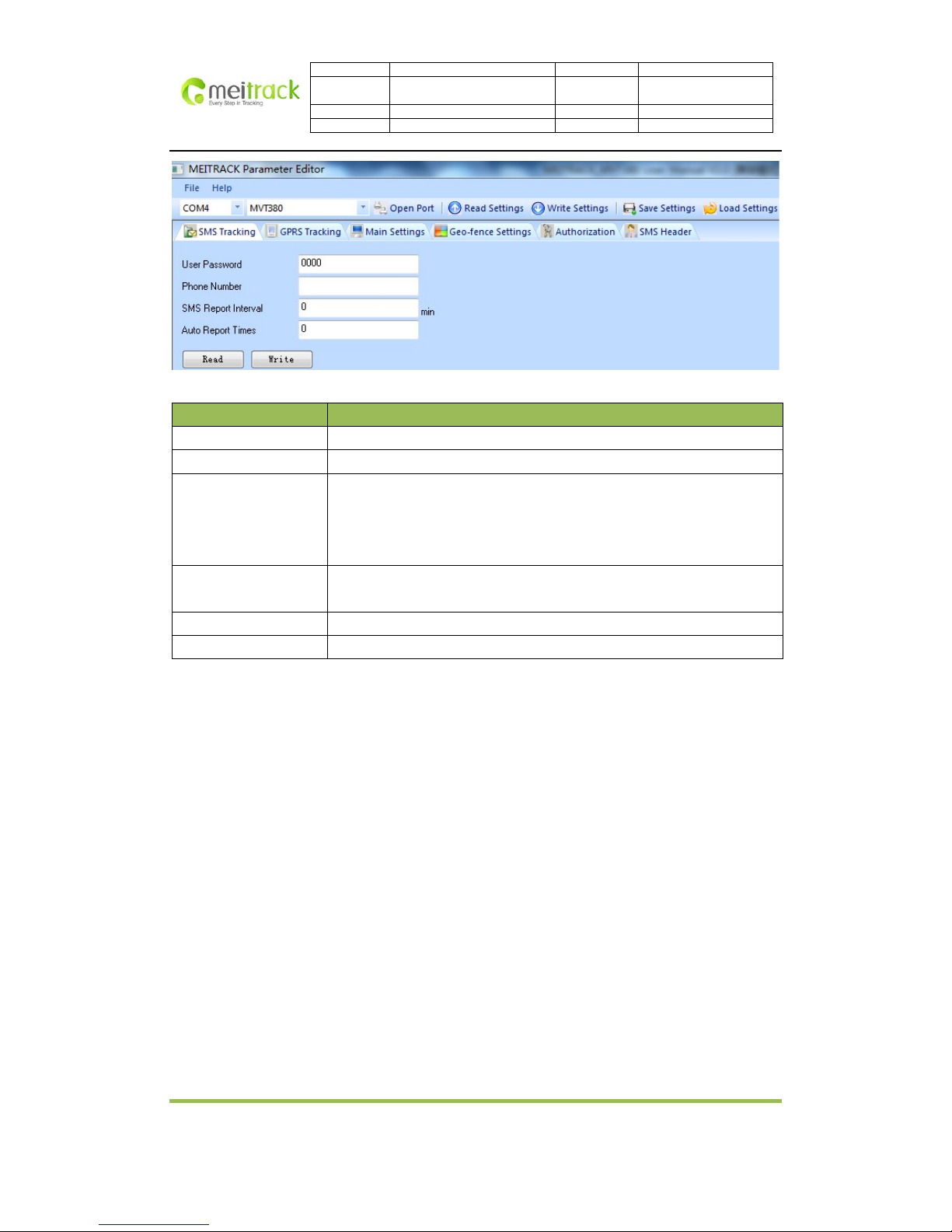

6.5.1.1 Track by Preset Interval

Click Tap I: SMS Tracking

- 11 -

File Name:

MEITRACK MVT380 User Guide

Creator:

Cavana Cheung

Project:

MVT380

Creation Date:

Update Date:

2010-08-26

2013-09-13

Sub Project:

User Guide

Page:

- 12 - of 22

Revision:

V2.8

Confidential:

External Documentation

Item Description

User Password SMS password for sending SMS commands and defaulted as 0000.

Phone Number A phone number to receive SMS location reports.

SMS Report Interval Track by time interval via SMS.

Set time interval for SMS location report.

= 0, stop tracking by time interval (default);

= [1,65535], track by interval in minute.

Auto Report Times = 0, unlimited times for report.

= [1,255], it will stop reporting when reaching preset times

Read Read tracker’s current settings for above items.

Write Write above settings to the tracker.

6.5.1.2 SMS Report

Click Tap V: Authorization

- 12 -

File Name:

MEITRACK MVT380 User Guide

Creator:

Cavana Cheung

Project:

MVT380

Creation Date:

Update Date:

2010-08-26

2013-09-13

Sub Project:

User Guide

Page:

- 13 - of 22

Revision:

V2.8

Confidential:

External Documentation

Item Description

Authorization Phone A phone number to receive selected event’s SMS reports.

Event Selected event’s SMS reports will be sent to authorize phone number.

For more details, please refer to MEITRACK GPRS/SMS Protocol.

For description of events from SOS/Input 1 Active to Tow Alarm,

please refer to tap II GPRS Tracking.

Other events description, please refer to below chart.

Read Read current tracker’s settings for above items.

Write Write above settings to the tracker.

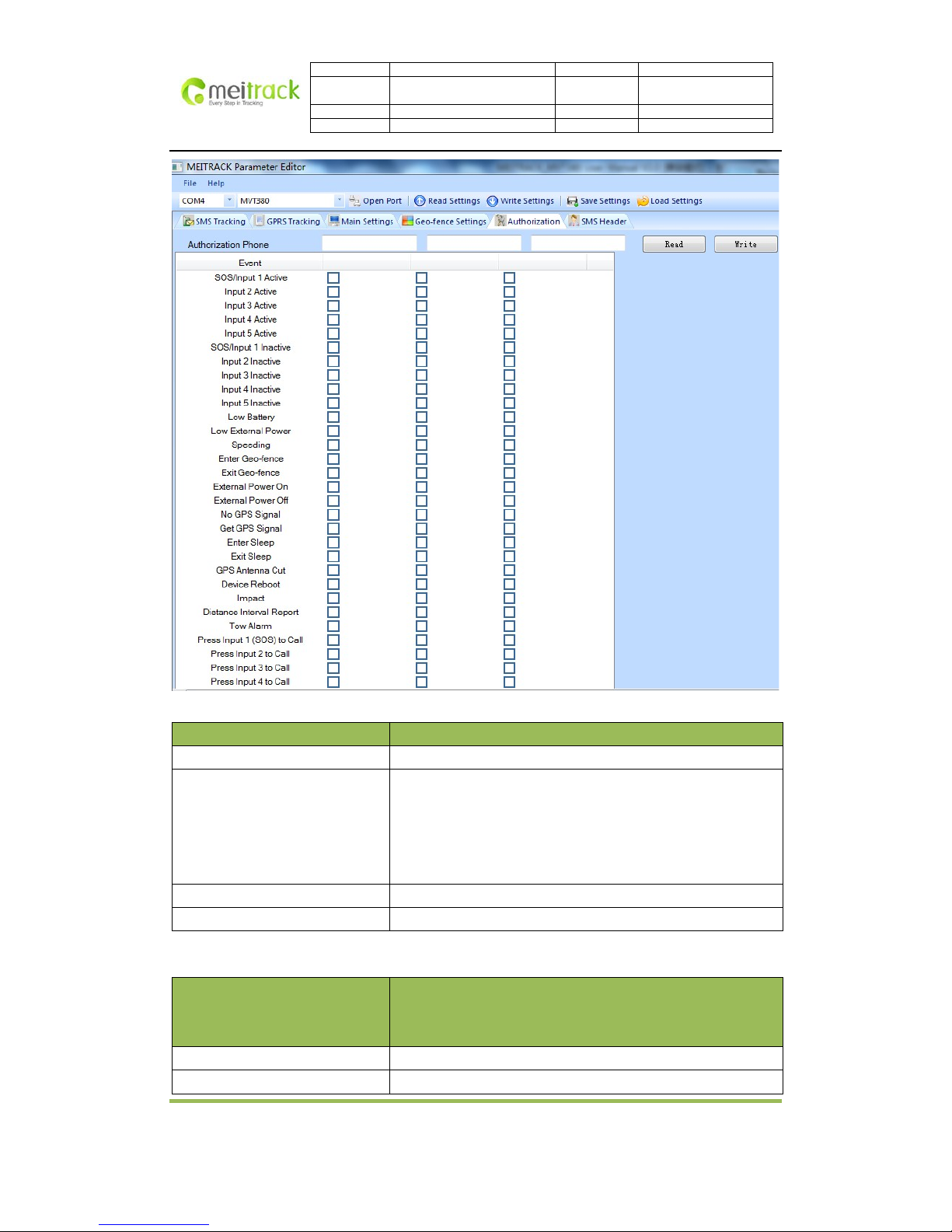

Event Description:

Event Description

(If the box is ticked, authorized phone number will get event report

by SMS or calling)

SOS/Input 1 Active Report when input1 (SOS) is active/pressed.

Input 2 Active Report when input 2 is active.

- 13 -

File Name:

MEITRACK MVT380 User Guide

Creator:

Cavana Cheung

Project:

MVT380

Creation Date:

Update Date:

2010-08-26

2013-09-13

Sub Project:

User Guide

Page:

- 14 - of 22

Revision:

V2.8

Confidential:

External Documentation

Input 3 Active Report when input 3 is active.

Input 4 Active Report when input 4 is active.

Input 5 Active Report when input 5 is active.

SOS/Input1 Inactive Report when input 1 inactive (SOS released).

Input 2 Inactive Report when input 2 inactive.

Input 3 Inactive Report when input 3 inactive.

Input 4 Inactive Report when input 4 inactive.

Input 5 Inactive Report when input 5 inactive.

Low Battery Report when backup battery’s voltage is below 3.5V.

Low External Power External power (car battery) is lower than predefined voltage.

You can define voltage in Main Settings.

Speeding Report when MVT380 speeds higher than the pre-set value.

Value can be changed on tap III Main Settings

Enter Geo-fence Report when MVT380 enters Geo-fence.

Exit Geo-fence Report when MVT380 exits Geo-fence.

Geo-fence can be changed on tap III Main Settings.

External Power On Alarm when external power supply is on or recover.

External Power Off Alarm when external power supply if off or cut.

No GPS Signal Report when MVT380 enters GPS blind area or no GPS signal.

Get GPS Signal Report when MVT380 exits GPS blind area or get GPS signal.

Enter Sleep Report when MVT380 enters sleep mode.

Exit Sleep Report when MVT380 exits sleep mode.

Sleep mode can be changed on tap III Main Settings.

GPS Antenna Cut Alarm when the GPS antenna is disconnected or cut

Device Reboot Report when MVT380 is rebooting.

Heartbeat Report Turn on heartbeat report

You can define heartbeat interval on tap III Main Settings.

Heading Change Report Auto report when MVT380’s direction changes over predefined angle

You can define angle degree on tap III Main Settings.

Distance Interval Report Track by distance.

Interval can be changed on tap III Main Settings.

Tow Alarm Alarm when the tracker trembles for a period of time.

You can define tow time on tap III Main Settings.

Press Input 1 (SOS) to call Make a call to authorized phone number when press input 1 (SOS).

Press Input 2 to call Make a call to authorized phone number when press input 2.

Press Input 3 to call Make a call to authorized phone number when press input 3.

Press Input 4 to call Make a call to authorized phone number when press input 4.

Press Input 5 to call Make a call to authorized phone number when press input 5.

Reject Incoming Call Hand up automatically incoming call from correspondent authorized

phone number.

- 14 -

File Name:

MEITRACK MVT380 User Guide

Creator:

Cavana Cheung

Project:

MVT380

Creation Date:

Update Date:

2010-08-26

2013-09-13

Sub Project:

User Guide

Page:

- 15 - of 22

Revision:

V2.8

Confidential:

External Documentation

Call for SMS Location Report Reject incoming call or report SMS location when no answer.

Auto Answer Incoming Call Auto answer the incoming call for conversation

Listen-in (voice monitoring) Auto answer the incoming call for voice monitoring

6.5.2 GPRS Tracking

Click Tap II: GPRS Tracking

Item Description

GPRS Select TCP/UDP to enable GPRS communication.

GPRS Interval Track by time interval via GPRS.

Set time interval for GPRS tracking.

Interval is in unit of 10 seconds.

Interval = 0, stop tracking by time interval.

Max time interval = 65535*10 seconds

GPRS Report Times

= 0, report without limit.

= [1,65535], set report times, MVT380 will stop reporting when it has sent

the report this many times.

IP & Port Input server’s IP address and port number.

- 15 -

File Name:

MEITRACK MVT380 User Guide

Creator:

Cavana Cheung

Project:

MVT380

Creation Date:

Update Date:

2010-08-26

2013-09-13

Sub Project:

User Guide

Page:

- 16 - of 22

Revision:

V2.8

Confidential:

External Documentation

Secondary IP and Port

(Backup Server)

Input backup server’s IP address and port number to avoid losing data

when main server is down. The backup server will receive data

automatically.

APN

APN user name

APN password

APN, APN username, APN password: max 32 bytes.

If no username and password required, leave them blank.

Tracker ID MVT380’s IMEI. It is the only ID in GPRS packet.

Read Read current tracker’s settings for above items.

Write Write above settings to the tracker.

Tick the box for receiving GPRS report.

Event Description:

Event Description

(If the box is ticked, authorized phone number will get event report

by SMS or calling)

SOS/Input 1 Active Report when input1 (SOS) is active/pressed.

Input 2 Active Report when input 2 is active.

Input 3 Active Report when input 3 is active.

Input 4 Active Report when input 4 is active.

Input 5 Active Report when input 5 is active.

SOS/Input1 Inactive Report when input 1 inactive (SOS released).

Input 2 Inactive Report when input 2 inactive.

Input 3 Inactive Report when input 3 inactive.

Input 4 Inactive Report when input 4 inactive.

Input 5 Inactive Report when input 5 inactive.

Low Battery Report when backup battery’s voltage is below 3.5V.

Low External Power External power (car battery) is lower than predefined voltage.

You can define voltage in Main Settings.

Speeding Report when MVT380 speeds higher than the pre-set value.

Value can be changed on tap III Main Settings

Enter Geo-fence Report when MVT380 enters Geo-fence.

Exit Geo-fence Report when MVT380 exits Geo-fence.

Geo-fence can be changed on tap III Main Settings.

External Power On Alarm when external power supply is on or recover.

External Power Off Alarm when external power supply if off or cut.

No GPS Signal Report when MVT380 enters GPS blind area or no GPS signal.

Get GPS Signal Report when MVT380 exits GPS blind area or get GPS signal.

Enter Sleep Report when MVT380 enters sleep mode.

Exit Sleep Report when MVT380 exits sleep mode.

Sleep mode can be changed on tap III Main Settings.

- 16 -

File Name:

MEITRACK MVT380 User Guide

Creator:

Cavana Cheung

Project:

MVT380

Creation Date:

Update Date:

2010-08-26

2013-09-13

Sub Project:

User Guide

Page:

- 17 - of 22

Revision:

V2.8

Confidential:

External Documentation

GPS Antenna Cut Alarm when the GPS antenna is disconnected or cut

Device Reboot Report when MVT380 is rebooting.

Heartbeat Report Turn on heartbeat report

You can define heartbeat interval on tap III Main Settings.

Heading Change Report Auto report when MVT380’s direction changes over predefined angle

You can define angle degree on tap III Main Settings.

Distance Interval Report Track by distance.

Interval can be changed on tap III Main Settings.

Tow Alarm Alarm when the tracker trembles for a period of time.

You can define tow time on tap III Main Settings.

For more information about GPRS settings, please refer to MEITRACK SMS/GPRS Protocol.

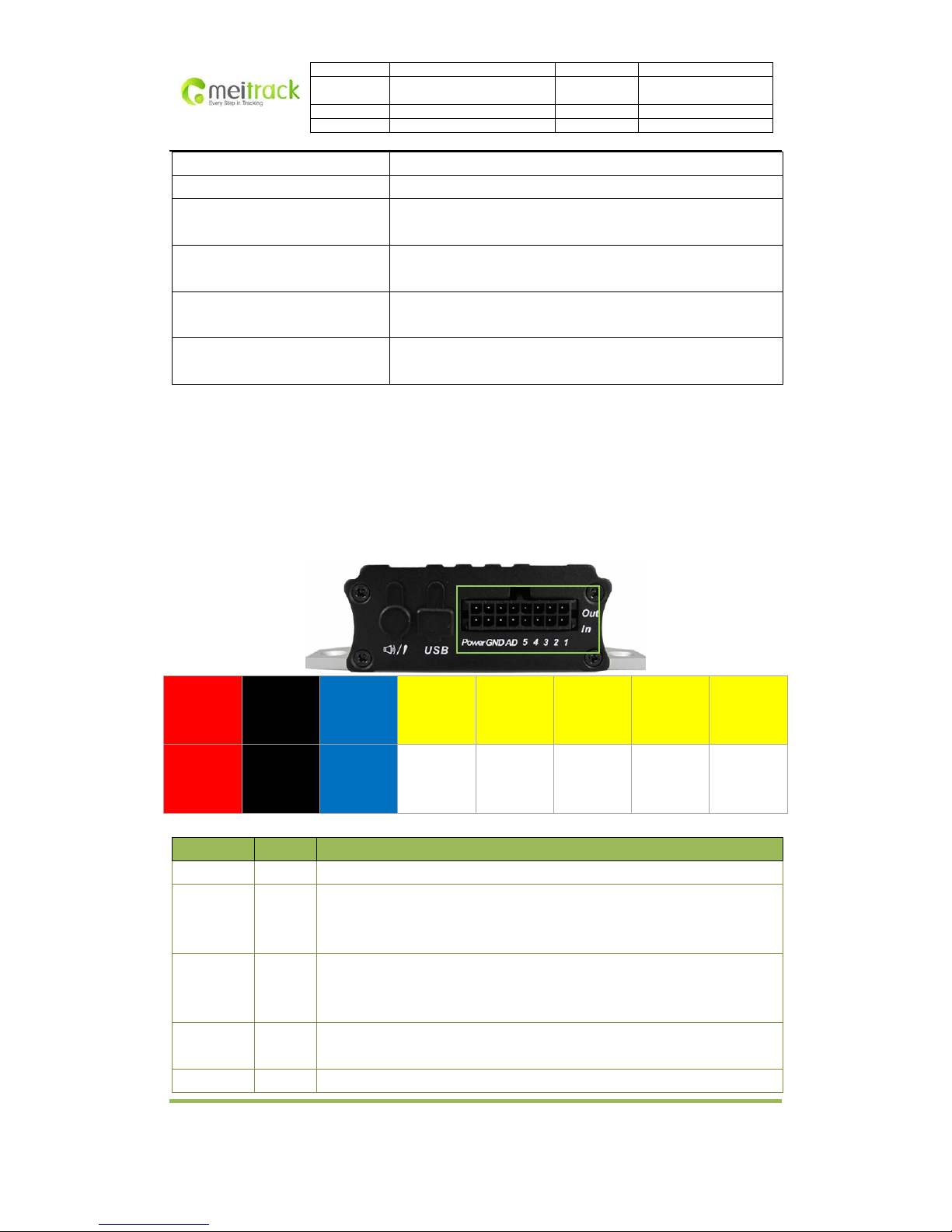

6Installation

7.1 Install I/O Cable

The I/O cable is a 16-pin cable including power, analog input, negative/positive input and output.

Power out

(+)

GND out(-)

AD Input 2

Output 5

Output 4

Output 3

Output 2

Output 1

Power in

(+)

GND in (-)

AD Input 1

Input 5 (+)

Input 4 (+)

Input 3 (-)

Input 2 (-)

Input 1 (-)

PIN Number Color Description

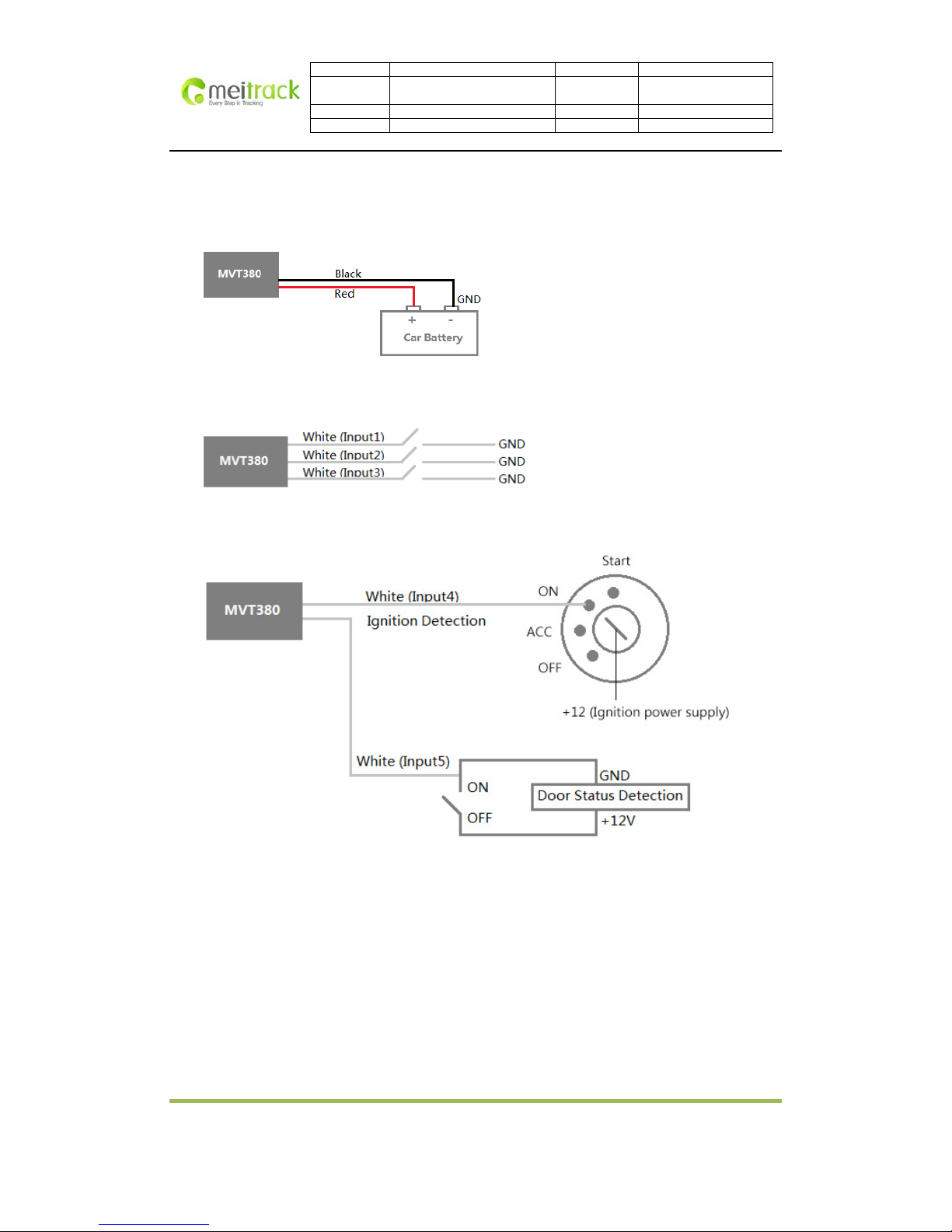

1 (IN1) White Digital Input 1 (negative triggering) (the SOS button by default)

2 (IN2) White Digital Input 2 (negative triggering)

For connecting a door opening signal trigger cable to detect status of the vehicle

door. (Most Chinese, Korean, and Japanese cars are negative edge-triggered.)

3 (IN3) White Digital Input 3 (negative triggering)

For connecting a door opening signal trigger cable to detect status of the vehicle

door. (Most Chinese, Korean, and Japanese cars are negative edge-triggered.)

4 (IN4) White Digital Input 4 (positive triggering)

For detecting the vehicle ACC status by default.

5 (IN5) White Digital Input 5 (positive triggering)

- 17 -

File Name:

MEITRACK MVT380 User Guide

Creator:

Cavana Cheung

Project:

MVT380

Creation Date:

Update Date:

2010-08-26

2013-09-13

Sub Project:

User Guide

Page:

- 18 - of 22

Revision:

V2.8

Confidential:

External Documentation

Can be used for connecting a door opening signal trigger cable to detect status of

the vehicle door. (Most European and American cars are positive edge-triggered.)

6 (AD1) Blue Analog input 1 with 10-bit resolution and valid voltage of 0~6V.

It can be connected to an external sensor, such as a fuel level sensor and a

temperature sensor.

7 (GND) Black Ground cable, connected to the negative pole of the vehicle storage battery or to

the negative terminal.

8 (POWER) Red Positive pole of the power input, connected to the positive pole of the vehicle

storage battery. Input voltage: 11V~36V. 12V suggested.

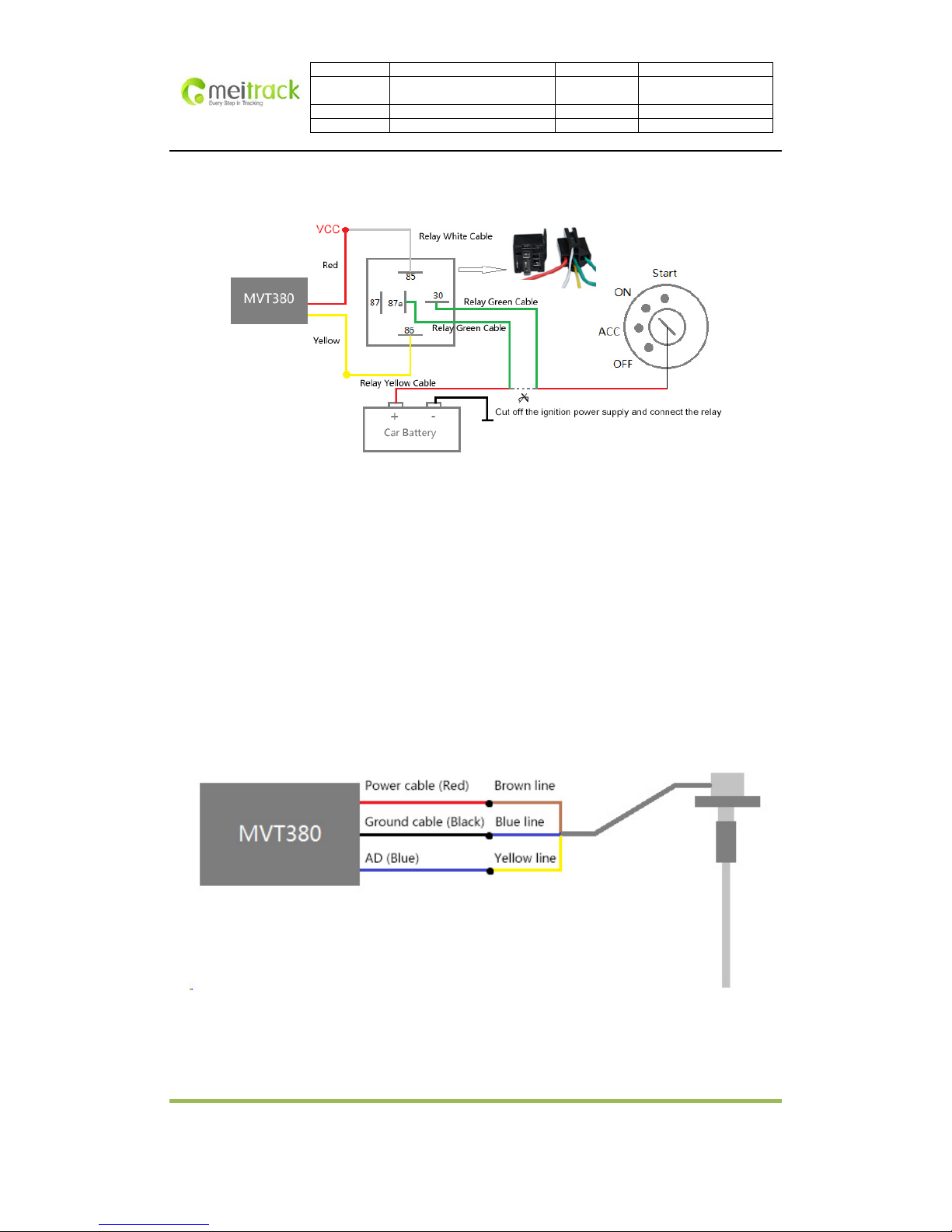

9 (OUT1) Yellow Output 1. Low voltage (0V) when effective and open drain (OD) when ineffective.

Output open drain sink voltage (ineffective): 45V max.
