Members Mark PG195H User manual

Call center for missing parts
1-855-242-6887
DANGER:
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your
gas supplier or fire department.
WARNING:
Improper installation, adjustment,
alteration, service or maintenance can
cause property damage, injury or death.
Read the installation, operating and
maintenance instructions thoroughly
before installing or servicing this
equipment
.
WARNING:
For outdoor use onl
y
.
IMPORTANT DO NOT RETURN
Question, problems, missing parts? Don’t return the product to stores, please call our customer
service department at 1-855-CHANT-US (1-855-242-6887) from 8:00am to 5:00pm Eastern time,
Monday through Friday for assistance.
BRONZE HSC PATIO HEATER
MODEL NO.: PG195H
WARNING:
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of this
or an
y
other a
pp
liance.

2
TABLE OF CONTENTS
.
Product Specifications.........................................................................................................2
Safety Information...............................................................................................................3
Package Contents...............................................................................................................6
Hardware Contents..............................................................................................................7
Assembly Preparation.........................................................................................................7
Assembly Instructions.........................................................................................................8
Safety Check.....................................................................................................................12

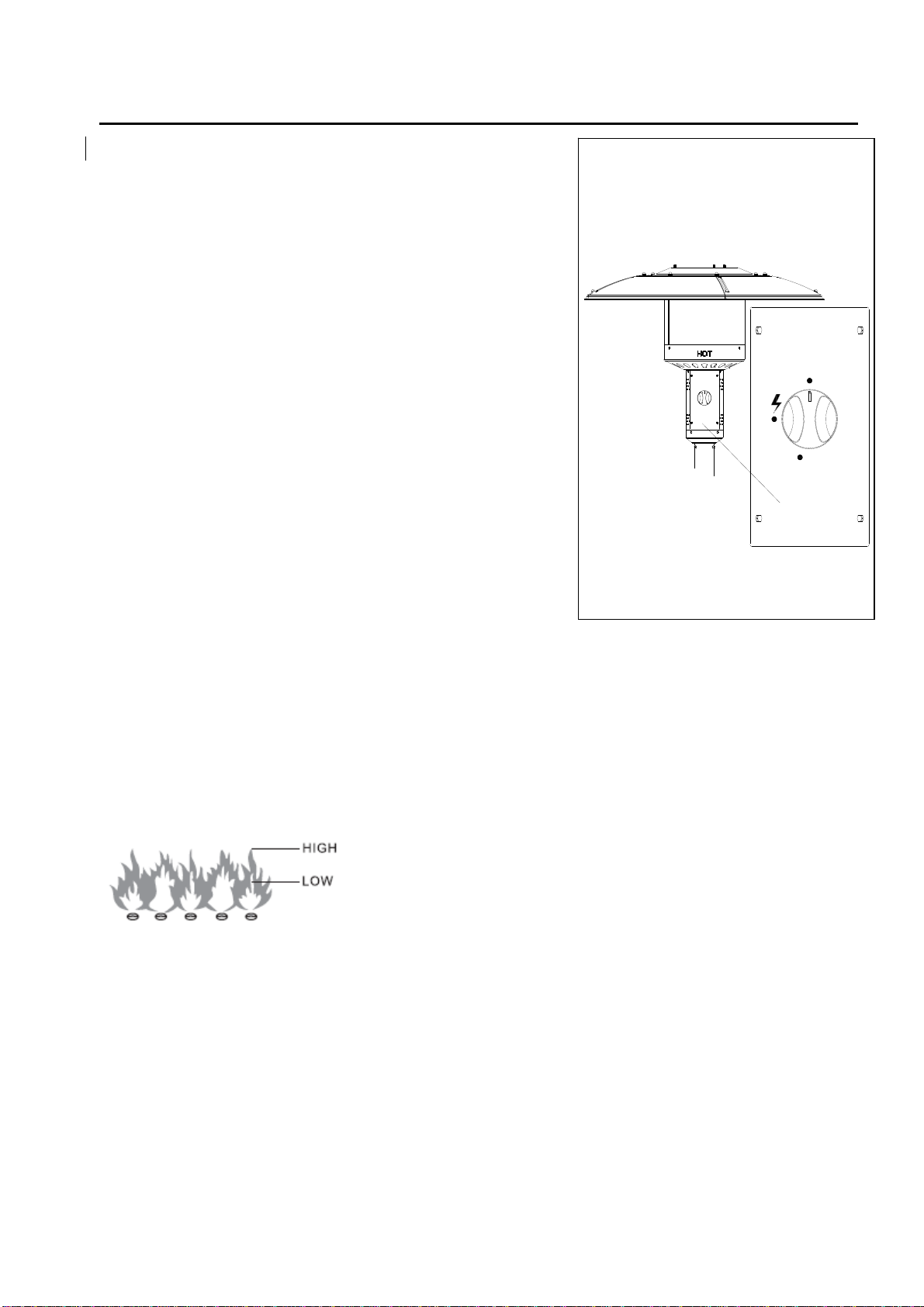

Operation Instructions.......................................................................................................13
Care and Maintenance......................................................................................................14
Troubleshooting.................................................................................................................16
Warranty.............................................................................................................................16

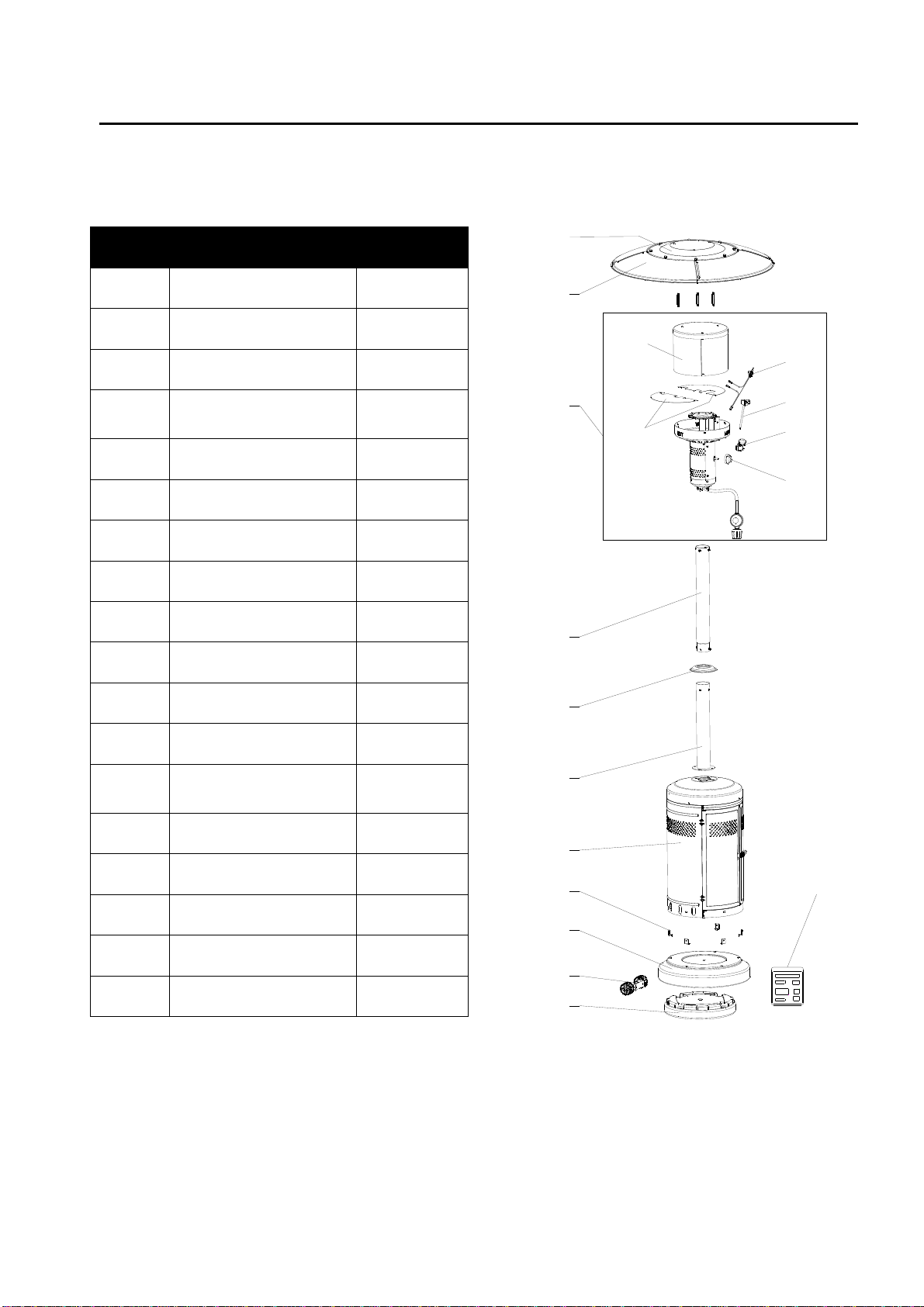

Replacement Parts List.....................................................................................................17
PRODUCTSPECIFICATIONS
Product Specifications
Certification CSA
Height Overall 86.60 inches
Reflector Diameter 31.50 inches
Rated Heat Input 45,000 BTU/HR
Fuel Propane-LP
Gas Supply 20-Lb LP-Gas cylinder
Manifold Pressure 11 inches W.C
Injector Size (diameter) 2.07 mm
Safety Features Thermocouple & Tilt Switch
Gas Supply Pressure Max 150 PSI, Min 5 PSI
Manufacturer:
Guangdong Chant Group Inc.
No.42 Xiaolan Industrial Road South Zhongshan, Guangdong 528415, China
Call center for missing parts 1-855-242-6887.

3
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble,
operate or install the product. If you have any questions regarding the product, please
call customer service at: 1-855-CHANT-US (1-855-242-6887) from 8:00 am to 5:00 pm
Eastern time, Monday to Friday.
1. The installation must conform with local codes or, in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.1 /NFPA 54, Natural Gas and Propane Installation
Code, CSA B149.1, or Propane Storage and Handling Code, B149.2.
2. Minimum clearance to the combustible materials is 3.61 ft(1100mm).
3. Perform a leak test with a soapy solution:
(a) To check gas connections.
(b) After connecting a new cylinder.
(c) Upon re-assembly after disassembly.
Please refer to the leak test procedure indicated in this instruction manual on page 12.
Replace the hose assembly prior to the appliance being put into operation if there is
evidence of excessive abrasion or wear, or if the hose is damaged. The pressure
regulator and hose assembly supplied with the appliance must be used .The
replacement hose assembly/ regulator shall be that specified by the manufacturer.
4. If you don’t feel the heater is on a stable surface, use a ground screw to fix the base of
the heater on the surface where the heater is installed. Fix the base on an incline no
wider than 15 degrees.
5. Place the propane hose with regulator assembly out of pathways where people may trip
over it or in areas where the hose will not be subjected to accidental damage.
6. Materials or items when stored under the heater will be subjected to intense heat and
could be seriously damaged.
7. Clothing or other flammable materials should not be hung on the heater, or placed on,
under or near the heater .
8. Children and adults should be alerted to the hazards of high surface temperatures and
should stay away to avoid burns or clothing ignition.
9. Young children should be carefully supervised when they are in the area of the heater .
10.Any guard or other protective device removed for servicing the heater must be replaced
prior to operating the heater.
11.Installation and repair should be done by qualified service person, the heater should be
inspected before use and at least annual by a qualified service person.
12.More frequent cleaning may be required as necessary. It is imperative that the control
compartment, burners and circulating air passageways of the heater to kept clean.
13.Keep the appliance area clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
14.Do not obstruct the flow of combustion and ventilation air.

4
SAFETY INFORMATION
15.Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris. Use
this appliance in a well-ventilated space only. Do not use it in a building, garage, or any
other enclosed area.
Use this appliance in outdoor areas described below:
(a) With walls on all sides, but at least one permanent opening at ground level and no
overhead cover.
(b) Within a partial enclosure that includes overhead cover and no more than two walls.
These walls may be parallel, or at right angles to each other.
(c) Within a partial enclosure that includes overhead cover and no more than two walls.
The following shall apply:
(i) One wall that is equivalent to at least 25% of the total wall area is completely
open.
(ii) 30% or more in total of the remaining wall area is open and unrestricted.
16.The LP-gas supply cylinder to be used must be:
(a) Constructed and marked in accordance with the Specifications for LP-gas cylinders of
the U.S. Department of Transportation of Dangerous Goods and Commission,
CAN/CSA-B339, as applicable;
(b) Provided with a listed overfilling prevention device; and
(c) Provided with a cylinder connection device compatible with the connection for the
appliance.
17.Disconnect the cylinder when the appliance is not in use.
18.Storage of an appliance indoors is permissible only if the cylinder is disconnected and
removed from the appliance.
19.Store the cylinder outdoors in a well-ventilated area (not in a building, garage, or other
enclosed area) out of the reach of children.
20.The cylinder used must include a collar to protect the cylinder valve.
21.Do not store a spare LP-gas cylinder under or near this appliance;
22.Never fill the cylinder beyond 80 percent full;
23.Place the dust cap tightly on the cylinder valve outlet whenever the cylinder is not in use.
Install only the type of dust cap on the cylinder valve that is provided with the cylinder
valve. Other types of caps or plugs may result in a propane leak.
24.Inspect the visible portion of the hose before each use of the appliance.
25.More frequent cleaning may be required as necessary. It is imperative that the control
compartment, burners and circulating air passageways of the heater be kept clean.
26.Every part of the heater shall be secure against displacement and shall be constructed to
maintain a fixed relationship between essential parts under normal and reasonable
conditions of handling and usage. Parts not permanently secured shall be designed so
they cannot be incorrectly assembled and cannot be improperly located or misaligned in
removing or replacing during cleaning or other servicing.

5
SAFETY INFORMATION
27. CALIFORNIA PROPOSITION 65 WARNING:
(a) Combustion by-products produced when using this product contain chemicals known
to the State of California to cause cancer and birth defects or other reproductive
harm.
(b) Handling the brass material on this product exposes you to lead, a chemical known to
the State of California to cause cancer and birth defects or other reproductive harm.
Wash hands after handling.
(c) This product contains chemicals, including lead and lead compounds, known by the
State of California to cause cancer, reproductive harm, or other birth defects.
(d) Wash your hands after using this product.

6
PACKAGECONTENTS
PARTS LIST
PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY
A Top Dome 1 F Lower Pole 1
B KD Dome 4 G
Cylinder Housing
Assembly 1
C Burner Assembly 1 I Base 1
D Upper Pole 1 J Wheel Assembly 1
E Beauty Ring 1 K
Regulator & Hose
Assembly 1
B
A
C
D
E
F
IJ
G
K

7

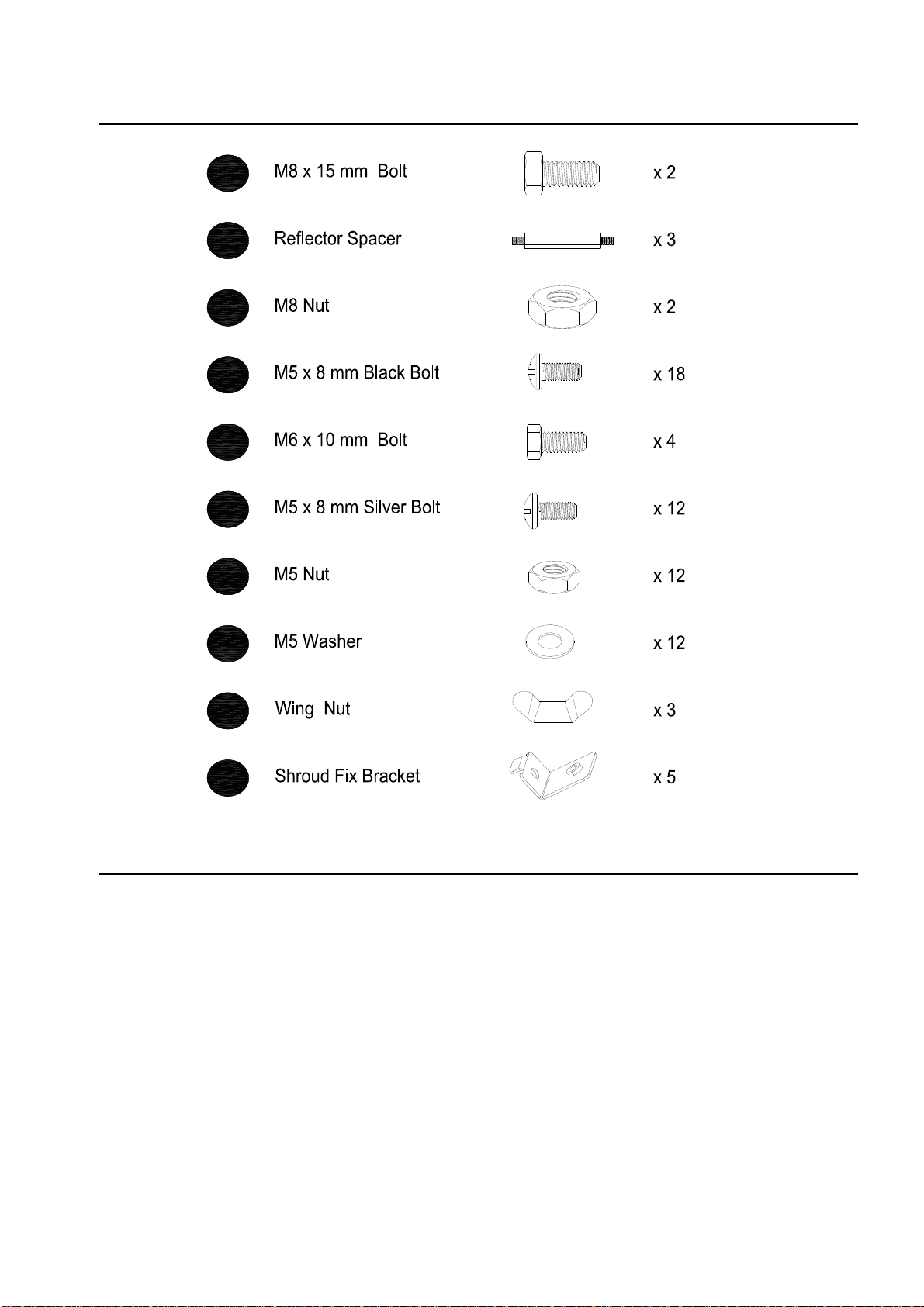

HARDWARECONTENTS
ASSEMBLYPREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and diagram above. If any part is missing or damaged, do not attempt
to assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 30 minutes
Tools required: Wrench, Magnetic Head Phillips Screwdriver (Not included)
AA
BB
CC
DD
EE
FF
GG
HH
II
H

8
ASSEMBLYINSTRUCTIONS

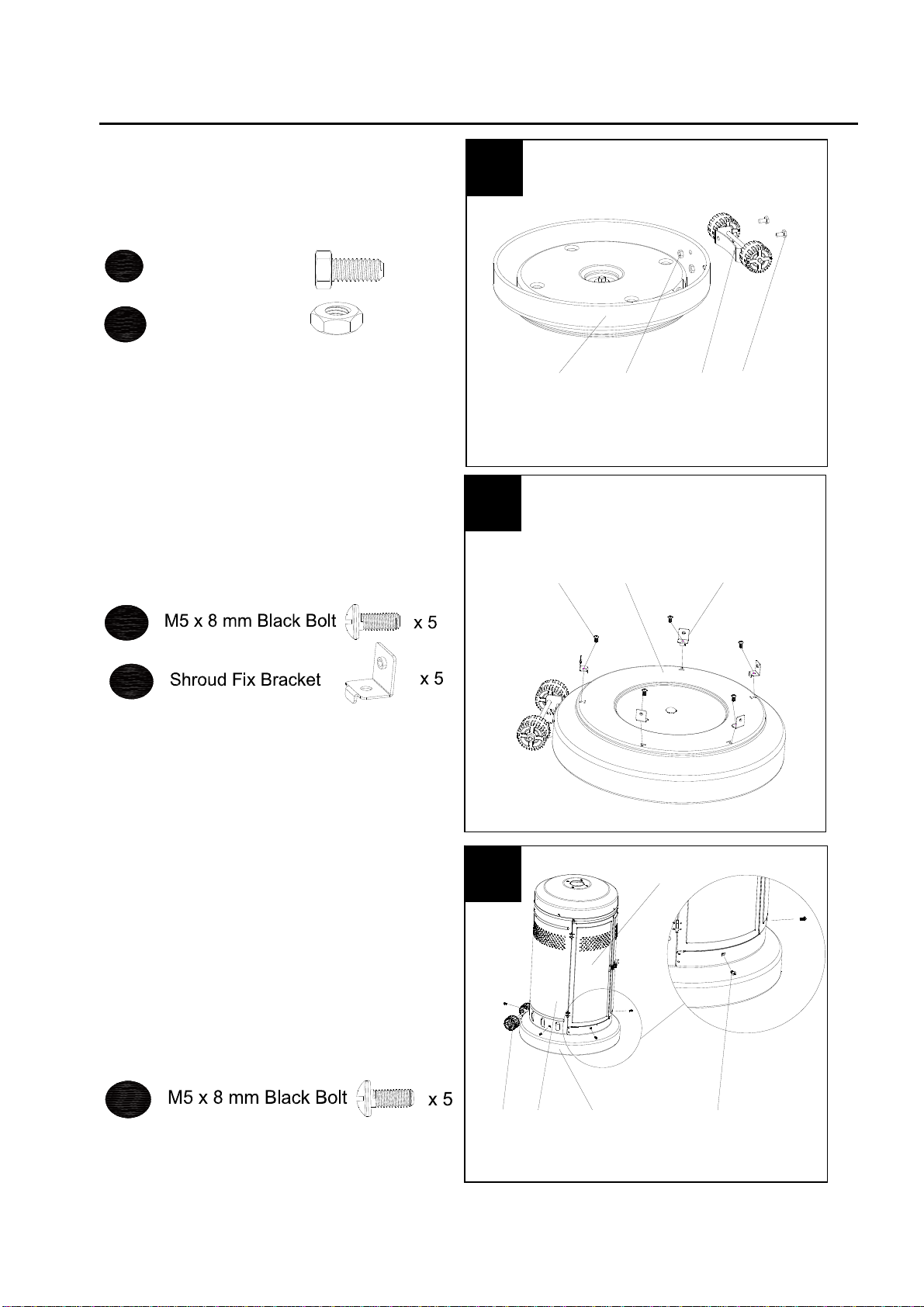

1. With the Base (I) upside down, attach
Wheel Assembly (J) using M8 x 15
mm Bolts (AA) and M8 Nuts (CC).
1
3
A
AJ
CC
I
3. Attach Cylinder Housing assembly (G)
using M5 x 8 mm black bolts (DD)
through the Shroud Fix Brackets.
Note: The doors on the Cylinder
Housing Assembly (G) should be on
the opposite side of the Wheel
Assembly (J).
J IG DD
DD
x 2
x 2
M8 Nut
M8 x 15 mm Bolt
AA
CC
2
DD IH
2. Reverse the Base (I), attach Shroud
Fix Brackets (H) using M5 x 8 mm
Black Bolts (DD).
DD
H
Door

9
ASSEMBLYINSTRUCTIONS
5
C
BB
C
K
4
5
6
D
DD
4.
A
ttach Lower Pole (F) to Cylinde
r
Housing Assembly (G) using M6 x 10
mm bolts (EE), and then put the Beaut
y
Ring (E) through the Lower Pole on top
of Cylinder Housing Assembly (G).
5. Screw Reflector Spacers (BB) into the
top of Burner Assembly (C).
6. Feed the Regulator & Hose Assembly
(K) and connect the Burner Assembly
(C) to the Upper Pole (D).
6.1. Feed the Regulator & Hose
Assembly (K) into and go through
the Upper Pole (D).
6.2. Screw Burner Assembly (C) onto
Upper Pole (D) until the holes on
bottom of Burner Assembly (C) is
aligned to the holes on top of
Upper Pole (D). Fix them by using
four M5 x 8 mm Black Bolts (DD).
Ensure they are fully tightened.
x 3
Reflector Spacer
BB
G
EE
E
F
x 4
M6 x 10 mm Bolt
EE
DD

10
ASSEMBLYINSTRUCTIONS
D
K
F
8
7
B
GG
HH
FF
A
GG
HH
FF
7. Feed the Regulator & Hose Assembly
(K) and connect Upper Pole (D) to the
Lower Pole (F).
7.1. Feed the Regulator & Hose
Assembly (K) into and go through
the Lower Pole Assembly
7.2. Screw Upper Pole (D) onto Lower
Pole (F) until the holes on Upper
Pole (D) is aligned to the holes on
top of Lower Pole (F). Fix them by
using four M5 x 8 mm Black Bolts
(DD). Ensure they are fully
tightened.
8. Attach the four KD Domes (B) using
M5 x 8 mm Silver Bolts (FF), M5 Nuts
(GG) and M5 Washers (HH). Then,
complete dome assembly by attaching
Top Dome (A) to KD Domes (B) with
M5 x 8 mm Silver Bolts (FF), M5 Nuts
(GG) and M5 Washers (HH).
FF
HH
GG
DD
DD

11
ASSEMBLYINSTRUCTIONS
9
10
9. Attach dome assembly to Burner
Assembly (C) by securing Wing Nuts
(II) to Reflector Spacers (BB).
C
BB
II

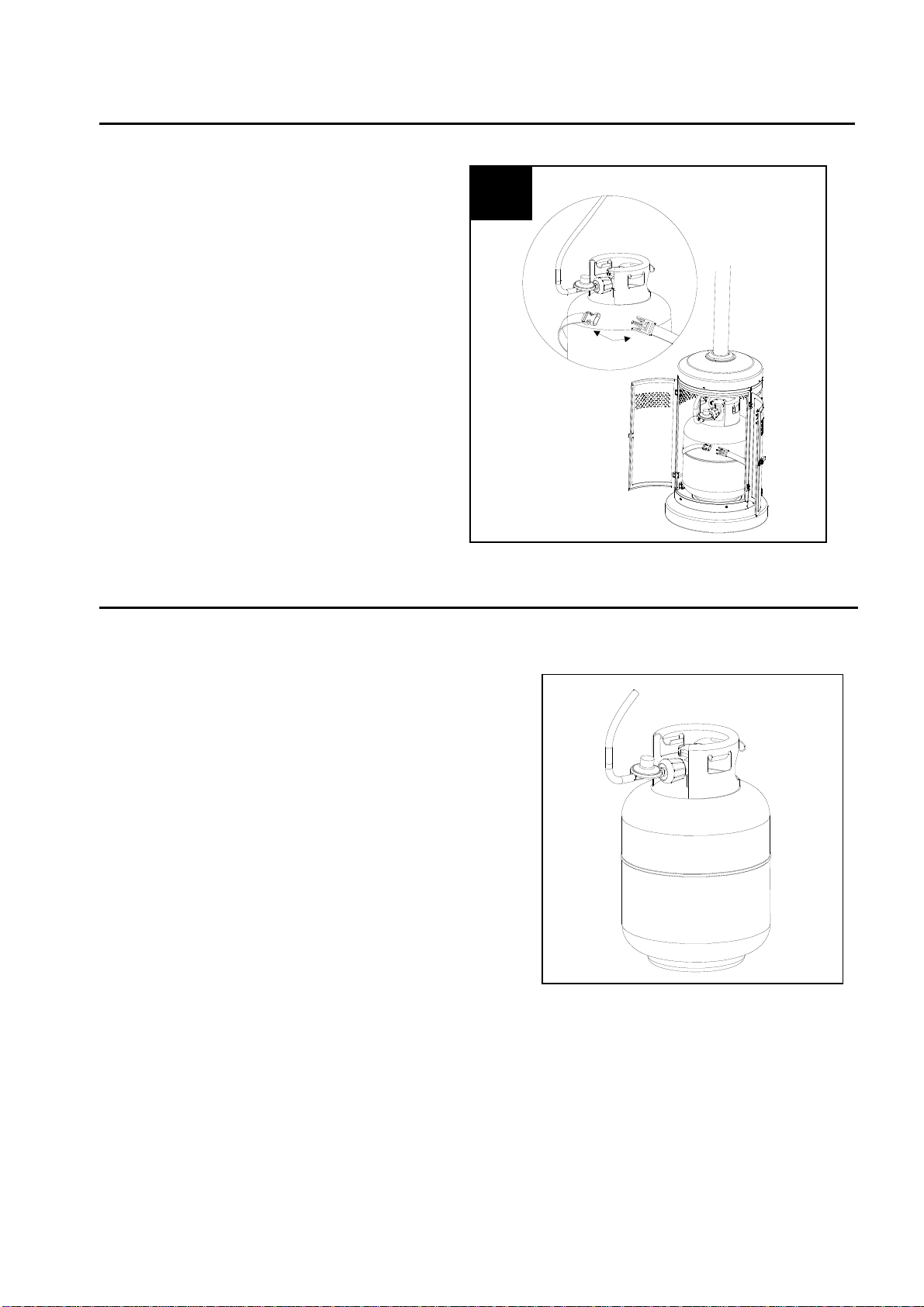

10. Connect Hose & Regulator Assembly
(K) to 20lb. LP-gas cylinder (sold
separately).
Line up threads on fitting with those on
regulator and rotate clockwise until
tighten. HAND TIGHTEN ONLY. DO
NOT USE ANY HAND TOOLS TO
MAKE THIS CONNECTION. Be careful
not to cross threads when screwing in
fitting.
To disconnect the LP-Gas cylinder, first
make sure the cylinder valve is “OFF”.
Then, turn the knob on the regulator
counterclockwise until it is loose.
Warning:
Before connecting, be sure that there is
no debris caught in the head of the LP
gas cylinder head of the regulator valve
or in the head of the burner and burner
ports.
Check for leaks after connecting the
gas cylinder every time according to the
“Checking for Leaks” section on page
12.
K
II x 3
Wing Nut

12
ASSEMBLYINSTRUCTIONS
SAFETYCHECK
Checking for Leaks
Your patio heater has been checked at all factory
connections for leakage. To check the connection at
the gas hose/regulator/cylinder:
a. Make leakage solution by mixing 1 part liquid dish
soap and 3 part water.
b. Spoon or brush several drops (or use squirt bottle)
of the solution onto the gas hose/regulator and
regulator/cylinder and hose connection.
c. Turn on gas cylinder valve. Inspect the
connections and look for bubbles.
d. If no bubbles appear, the connection is safe.
e. If bubbles appear, there is leakage. Loosen and
re-tighten this connection. If it still leaks, please
call customer service at: 1-855-CHANT-US
(1-855-242-6887).
11
11. Attach strap inside of Cylinder
Housing Assembly (G) to secure
cylinder. Then, close doors on
Cylinder Housing Assembly (G) to
complete installation.

13
OPERATIONINSTRUCTIONS
Lighting Instructions
Note:
Note:
Visually check the burner flame against the illustrations below:
Flame should be blue with slight yellow tips.
You should see a smaller flame in LOW position than seen on HIGH. Perform flame check
prior to each use. If only low flame is seen, refer to “Burner flame is low” in the
“TROUBLESHOOTING” on page 16.
1. Ensure that the LP gas tank valve is OFF.
2. Push the control knob in, turn to OFF, and wait 5
minutes for any gas to clear.
3. Turn the LP tank valve ON.
4. Push control knob in and slowly rotate to HIGH. This will
activate the built-in igniter and light the burner. Once
burner is lit, hold control knob in for 30 seconds and
then release. If the burner fails to remain lit or becomes
extinguished, repeat step 4 before attempting to relight.
5. Turn the control knob from HIGH to LOW to the desired
heat setting.
For complete shutdown
1. Please turn the knob to HIGH first, then push and turn
to OFF for complete shut off.
2. Turn the LP gas tank valve OFF before removing the
LP gas tank. If you experience any ignition problem,
turn off the heater and gas supply, and consult
“Troubleshooting” on page 16.
HIGH
LOW
OFF

14
OPERATIONINSTRUCTIONS
CAREANDMAINTENANCE
Abrasive cleaners will damage this product.
Never use oven cleaner to clean any part of heater
Do not clean any heater part in a self-cleaning oven. The extreme heat will damage the
finish.
More frequent cleaning may be required as necessary. It is imperative that control
compartment, burners and circulating air passageways of the heater be kept clean.
Spiders and insects can create a dangerous condition that may damage heater or make
it unsafe. Keep burner area clean of all spiders, webs or insects. Clean burner holes by
using a heavy-duty pipe cleaner. Compressed air may help clear away smaller particles.
Inspect heater before each use.
Have heater inspected annually and repairs should be made by a qualified service
person
Check heater immediately if any of the following conditions exist:
a. The smell of gas in conjunction with extreme yellow tipping of burner flames
b. Heater does not reach proper temperature.
c. Heater’s glow is excessively uneven.
d. Burner makes popping noises during use.
Note: A slight pop is normal when burner is extinguished.
Carbon deposits may create a fire hazard. Keep dome and emitter clean at all times.
Do not clean heater with combustible or corrosive cleaners. Use warm, soapy water.
This heater should be thoroughly cleaned on a regular basis.
After a period of storage and/or no use, check for leaks, burner obstructions and inspect
for any abrasion, wear, cuts to the hose.
In any case of failure of normal ignition, please use the
Lighter gun (Sold Separately) to reach the burner for
ignition through the hole on the bottom of burner diffuser.
WARNING
FOR YOUR SATETY:
If at any time you are unable to light burner and smell
gas, wait 5 minutes to allow gas to dissipate before
attempting to light heater.
WARNING
FOR YOUR SATETY:
DO NOT touch or move heater for at least 45 minutes
after use. Allow emitter and dome to cool before touching.
CAUTION:
Avoid inhaling fumes emitted from the heater’s first use.
Smoke and odor from the burning of oils used in
manufacturing will appear. Both smoke and odor will
dissipate after approximately 30 minutes. The heater
should NOT produce thick black smoke.

15
CAREANDMAINTENANCE
Cleaning
Wipe surfaces clean with mild dish detergent or baking soda.
For stubborn surfaces use a citrus-based degreaser and a nylon scrubbing brush.
Rinse clean with water.
Note: While cleaning the unit, be sure to keep the area around the burner and pilot
assembly dry at all times. Do not submerge the control valve assembly. If the gas control
is submerged in water, do NOT use it. It must be replaced.
TIP: Use high-quality automobile wax to help maintain the appearance of the heater.
Apply to exterior surfaces from the pole down. Do not apply to emitter screen or domes
Maintenance
Keep exterior surfaces clean.
Air flow must be unobstructed. Keep controls, burner and circulating air passageways
clean.
Signs of possible blockage include:
Gas odor with extreme yellow tipping of flame.
Heater does NOT reach the desired temperature.
Heater glow is excessively uneven.
Heater makes popping noises.
Note: In a salt-air environment (such as near an ocean) corrosion occurs more quickly than
normal. Frequently check for corroded areas and repair them promptly.
Storage
Between uses or during periods of extended inactivity:
Turn control knob to "OFF".
Disconnect LP cylinder and move to a secure, well-location outdoors.
Store heater upright in an area sheltered from direct contact with inclement weather
(such as rain, sleet, hail, snow, dust and debris).
Note: Never leave LP gas tank exposed to direct sunlight or excessive heat.
If desired, use cover (Sold Separately) to protect the heater and help prevent buildup in
air passages.
CAUTION: Wait until heater is cool before covering.

16
TROUBLESHOOTING
Problem Possible Cause Corrective Action
Burner won’t light Gas pressure is low.
The orifice is blocked.
Control knob is not in “High”
position.
Turn tank valve “OFF” and replace
the tank
Clear blockage.
Turn control knob to “High”
Burner flame is
low Gas pressure is low.
The control knob is not positioned
at “High”.
The burner jet may be partially
blocked.
Outdoor temperature is less than
40°F and tank is less than 1/4 full.
Supply hose is bent or kinked.
Turn tank valve “OFF” and replace
the tank.
Position the control knob at “High”
Clear blockage.
Use a full tank.
Straighten the hose.
Carbon build-up Build-up of carbon can accumulate
over time. Wipe off before lighting.
Thick black
smoke Blockage in burner Remove blockage and clean burner inside and outside.
1-YEARLIMITEDWARRANTY
The appliance has been manufactured under the highest standards of quality and
workmanship. We warrant to the original consumer / purchaser that all aspects of this
product will be free of defects in material and workmanship for one (1) year from the date of
purchase. A replacement for any defective part will be supplied free of charge for installation
by the consumer. Defects or damage caused by the use of other than genuine parts are not
covered by this warranty .This warranty shall be effective from the date of purchase as
shown in the purchaser’s receipt. This warranty is valid for the original consumer purchaser
only and excludes industrial, commercial or business use of the product, product damage
due to shipment or failure which results from alteration, product abuse, or product misuse,
where performed by a container, service company, or consumer. We will not be responsible
for labor charges and/or damage incurred in installation, repair or replacement, nor for
incidental or consequential damage. This warranty gives you specific legal rights, and you
may also have the other rights that vary from state to state.
If problems cannot be corrected by using these methods, pleas contact
1-855-CHANT-US (1-855-242-6887) for assistance.

17
REPLACEMENTPARTSLIST
For replacement parts, call our customer service department at 1-855-CHANT-US
(1-855-242-6887), 8 a.m. - 8 p.m., EST, Monday - Friday.
V01
PART DESCRIPTION PART #
A Top Dome 5007755
B KD Dome 5007756
C Burner Assembly 195H001
C1 Burner Chamber
Assembly 5206424
C2 insulation plate 195H002
C3 Thermocouple 2409043
C4 Ignition Pin 195H003
C5 Tilt Switch 2310662
C6 Knob 2100462
D Upper Pole 195H004
E Beauty Ring 5211787
F Lower Pole 195H005
G Cylinder Housing
Assembly 195H006
H Shroud Fix Bracket 5203158
I Base 5207529
J Wheel Assembly 195H007
M Weight Plate 2409045
N Hardware Pack 195H008
B
A
C
D
E
F
G
I
J
M
HN
C1 C3
C4
C5
C6
C2
