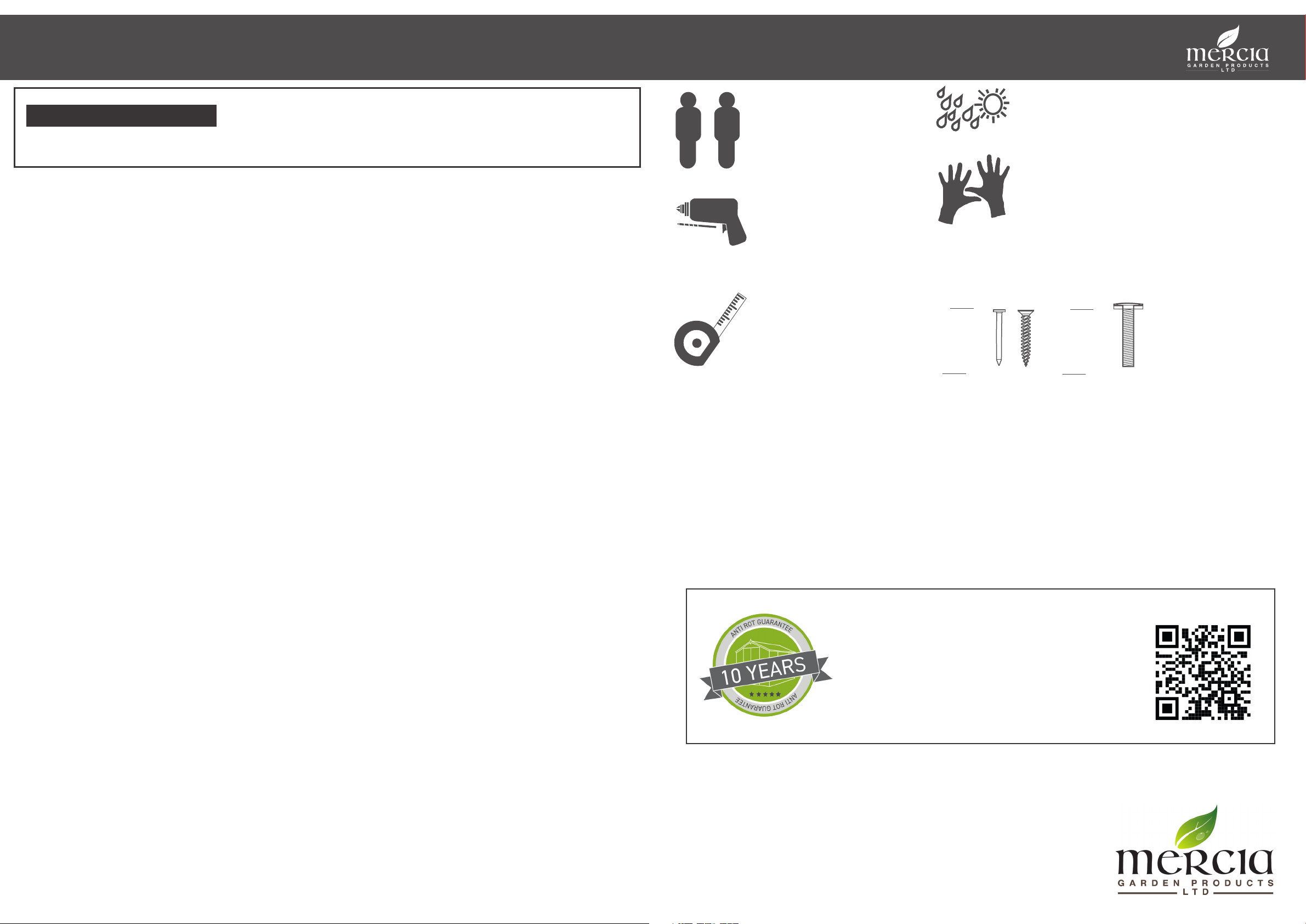

Mercia Garden Products 03DTSHCR0808FGD2TW-V2 User manual
2mm Drill bit
x2
¡
¡
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Overall Dimensions:
Width = 2545mm
Depth = 2546mm
Height = 2118mm
Base Dimensions:
Width = 2429mm
Depth = 2430mm
CONTENTS
1
Door Panel
QTY 1
AI-03S11SHDD1411X2058-V1
2
Window Panel
QTY 2
AI-03S11SH1TFWC1411X2058-V1
3
Large Right Panel
QTY 1
AI-03S11SHPGR1201X2062-V1
4
Small Right Panel
QTY 1
AI-03S11SHPGR1201X2002-V1
5
Large Left Panel
QTY 1
AI-03S11SHPGL1201X2062-V1
6
Small Left Panel
QTY 1
AI-03S11SHPGL1201X2002-V1
8
Angled Floor
1382x2430mm
QTY 1
AI-R11MBAF1382X2430-V1
7
Floor
1047x2430mm
QTY 1
AI-R11MBF1047X2430-V1
9
Roof
728x2516mm
QTY 2
AI-S11MBPR728X2516-V1
10
Angled Roof
1016x2516mm
QTY 1
AI-S11MBANGRR1061X2516-V1
13
15
Roof Support Block 44x58x350mm QTY 1
F4458-G-390mm
Door Strip 12x40x1261mm QTY1
S1240-1261mm
14
Locating Block 28x28x239mm QTY 2
FS2828-239mm
11
Master Door
QTY 1
AI-STDFGMD603X1715-V1
12
Secondary Door
QTY 1
AI-STDFGSD603X1715-V1
23
24
Roof Support Bar 44x44x2633mm QTY 1
F4444-2633mm
Fascia 12x95x1258mm QTY 4
S1295-1258mm
Fascia 12x95x1485mm QTY 3
S1295-1485mm
Cover Trim 12x40x2055mm QTY 6
S1240-2055mm
Rear Roof Frame 28x28x2517mm QTY 1
FS2828-2517mm
Front Roof Frame 28x28x1473mm QTY 1
FS2828-1473mm
Panel Joint Frame 28x28x1918mm QTY 1
FS2828-1918mm
25
20
21
22
17
19
Rear Cover Trim 12x60x1909mm QTY 2
S1260-1909mm
16 Door Strip 12x40x1740mm QTY 2
S1240-1740mm
18
Rain Guard - 28x44x680mm QTY 2
RG2844-680mm
Rain Guard - 28x44x1260mm QTY 1
RG2844-1260mm
27 28
Rear Panel Framing 28x28x2374mm QTY 1
FS2828-2374mm
26 Front Panel Framing 28x28x1411mm QTY 1
FS2828-1411mm
¢
34
29 32
31
35
33
Butt Hinge Qty 6
PI-07-0066
Handle Qty 2
PI-07-0081
L-Bracket Qty 2
PI-07-0012
Turn Button Qty 2
PI-07-0034
30
Felt QTY 1
PI-01-0003
Press Lock Qty 1
PI-07-0162
Barrel Bolt QTY 2
PI-07-0114
30mm Screw x 43
50mm Screw x 108
60mm Screw x 6
40mm Screw x 37
Felt Tacks x100
25mm Screw x 40
Nail Bag
There may be extra screws present in the nail bag
10mm Screw x 12
35mm Bolt x 4
Pre Assembly
Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed.
Pre drill
hole
25mm
screw
32
32
32
32
32
32
32
12 11
1
IMPORTANT: Pre-drill before xing screws.
Step 1
Parts needed - No.1 QTY 1
No.11 QTY 1
No.12 QTY 1
No.32 QTY 6
Lay the Door Panel (No.1) on a at surface and
Place the doors (No.11 and No.12) within
the Door Panel aperture. Position the doors so
that they are equally spaced within the
opening.
Fix the Butt Hinges (No.32) onto the door and
Door Panel as shown. Ensure that the screws
go through the cladding and into the framing
behind.
**PLEASE NOTE** Before tting the hinges,
ensure the inner door framing is the correct
way round as shown in the illustration.
36x25mm Screws
50mm
screw
Pre drill
hole
6
35
Step 2
Parts needed - No.3 QTY 1
No.4 QTY 1
No.5 QTY 1
No.6 QTY 1
Fix Large Right Panel (No.3) to Small Right Panel
(No.4) and Fix Large Left Panel (No.5) to Small
Left Panel (No.6) using 4x 50mm screws per join.
8x50mm Screws
IMPORTANT: Pre-drill before xing screws.
4
50mm
screw
Pre drill
hole
8
7
IMPORTANT: Pre-drill before xing screws.

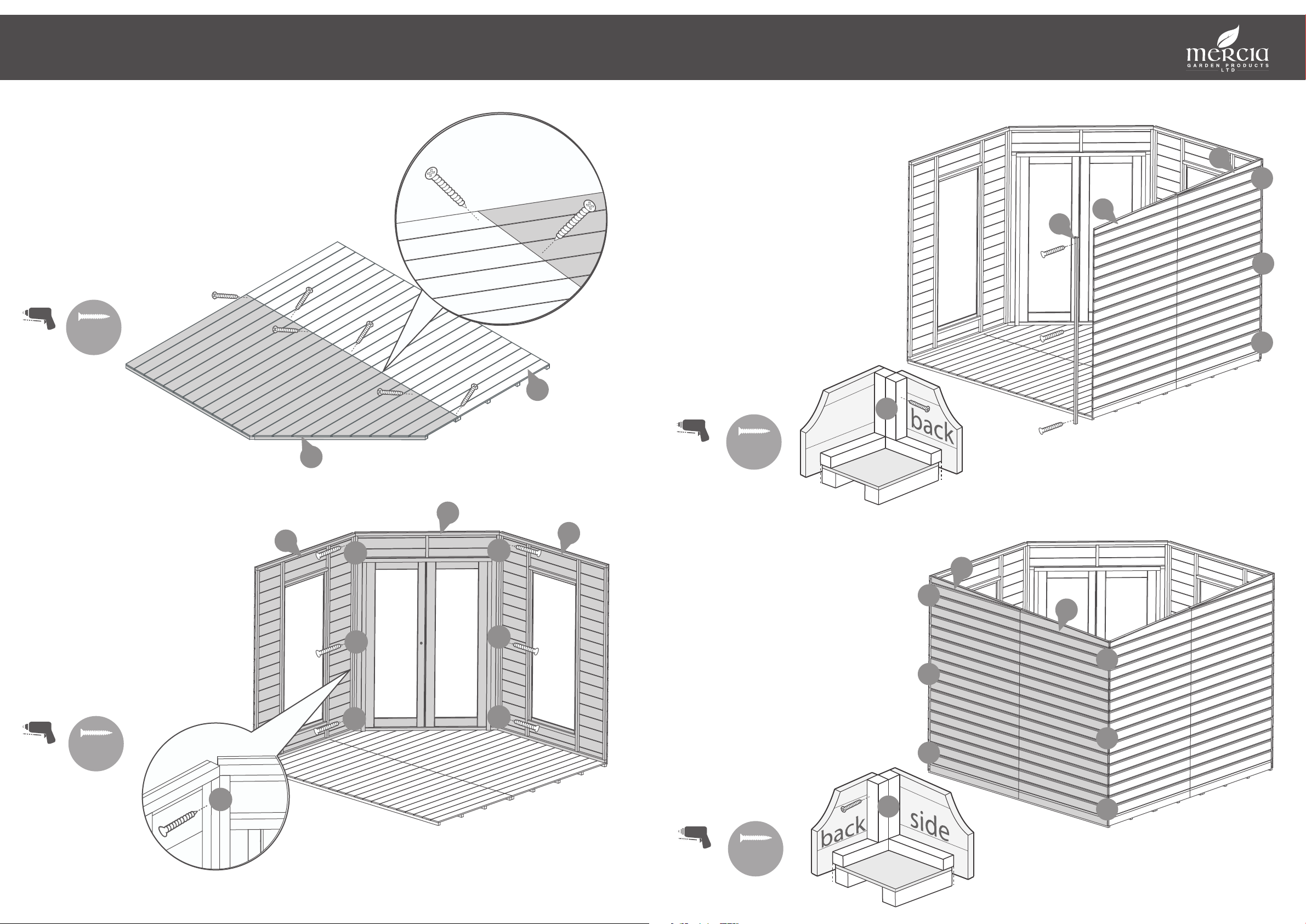

Step 3
Parts needed - No.7 QTY 1
No.8 QTY 1
Place oors (No.7 and No.8) on a rm and level
base, ensure base has suitable drainage free
from areas where standing water can collect.
(See front page on base requirements). Fix the
two oor panels together as shown using 50mm
screws at an angle and alternate the positions.
6x50mm Screws
Pre drill
hole
60mm
screw
Step 4
Parts needed - No. 1 QTY 1
No. 2 QTY 2
Place the Door Panel (No. 1) and the
Window Panels (No. 2) onto the oor.
Fix the corners with 60mm screws as
shown in the illustration.
Do not secure the building to the
oor until the roof is tted.
6x60mm Screws
2
1
a
a
a
a
a
a
a
2
IMPORTANT: Pre-drill before xing screws.
50mm
screw
Pre drill
hole
a
a
a
18
6
5
side a
IMPORTANT: Pre-drill before xing screws.
Step 5
Parts needed - No.5 QTY 1
No.6 QTY 1
No.18 QTY 1
Place the two already assembled Left
Panels (No.5 and No.6) against the oor
and the Window Panel.
Fix the corners with 3x50mm screws as
shown in the illustration.
Attach the Panel Joint Frame (No.18) into
place with 3x50mm screws.
Do not secure the building to the oor
until the roof is tted.
6x50mm Screws
Step 6
Parts needed - No. 3 QTY 1
No. 4 QTY 1
Using the same method outlined in Step
5 place the two already assembled Right
Panels (No.3 and No.4) against the oor
and other Panels securing using 6x50mm
screws.
From the inside x the corners with
3x50mm screws as shown in the illustra-
tion.
Do not secure the building to the oor
until the roof is tted.
6x50mm Screws
50mm
screw
Pre drill
hole
4
3
a
a
a
a
a
a
a
IMPORTANT: Pre-drill before xing screws.
50mm
screw
Pre drill
hole
Step 7
Parts needed - No. 25 QTY 1
No. 26 QTY 1
Place the Rear Panel Framing (No.25) on top
of the Right Panels. Fix in place using
4x50mm screws.
Place the Front Panel Framing (No.26) on
top of the Window Panel. Fix in place using
3x50mm screws.
7x50mm Screws
26
25
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
31
30mm
screw
40mm
screw
31
19
19
14
IMPORTANT: Pre-drill before xing screws.
Step 8
Parts needed - No.14 QTY 1
No.19 QTY 1
No.31 QTY 2
First position the Roof Support Bar
(No.19) in the centre of the building
between the back corner and the door
panel. Ensure the top of the roof support
bar runs level with building. Line the
Roof Support Block (No.14) with the Roof
Support Bar & mark its position. Secure
the roof block in place using 4x40mm
screws. Screw through the boards into
the block from the outside.
Secure the Roof Support Bar (No.19) to
the door panel using the “L”Bracket (No.
31) and 4x30mm Screws. Fix the other“L”
Bracket to the Roof Support Block (No.
14) to the underside of the Roof Support
Bar (No. 19).
8x30mm Screws
4x40mm Screws
Step 9
Parts needed - No.9 QTY 2
No.10 QTY 1
Layout the Roof Panels (No.9 and No.10)
on a at level surface and position them
as shown in the diagram. Secure the
panels together using 50mm screws and
alternate the positions.
12x50mm Screws
9
9
10
50mm
screw
Pre drill
hole
IMPORTANT: Pre-drill before xing screws.
23
22
13
40mm
screw
Pre drill
hole
** If Shed add on pack has been purchased, do not t No.23
the rear roof framing until instructed to do so in the Shed add
on Pack instructions**
IMPORTANT: Pre-drill before xing screws.
Step 10
Parts needed - No.13 QTY 2
No.22 QTY 1
No.23 QTY 1
Attach the front (No.23) roof
framing to the roof as shown in
the illustration using 3x30mm
screws.
Attach the rear (No.22) roof
framing to the roof as shown in
the illustration using 5x30mm
screws.
*Ensure to x the framing the
opposite direction to the roof
bearers.
Fix the Locating Blocks (No.13) to
the opposing sides to the roof
framing (these blocks are to help
square the roof when tted).
12x40mm Screws
Pre drill
hole
50mm
screw
Step 11
Parts needed - No.9 QTY 1
No.10 QTY 1
Place both Roof sections (No.9 and
No.10) on top of the building, ensure
the roof framing slots over each side
equally all the way around.
Fix the Roof Panels into position
using 50mm screws ensuring that
they line up with the vertical framing
inside the building and along the
length of the internal roof support
bar.
26x50mm Screws
9
9
10
IMPORTANT: Pre-drill before xing screws.
Step 12
Secure the building to the oor . Fix the
panels onto the oor using 50mm
screws in alignment with the oor joists
*Ensure to screw through the framing
into the oor bearers.
30x50mm Screws
50mm
screw
Pre drill
hole
bbbbbbb
b
bb
b
b
b
bb
IMPORTANT: Pre-drill before xing screws.
30mm
screw
Pre drill
hole
15
16 16
IMPORTANT: Pre-drill before xing screws.
Step 13
Parts needed - No.15 QTY 1
- No.16 QTY 2
Fit the Door Strip (No.15 and No.16)
to the framing of the door panel,
secure using 3x30mm screws per strip
9x30mm Screws
INTERIOR
35mm
bolt
35
Fix the door handles (No.35) to the
outside of the master and secondary door
using the 35mm bolts provided.
Fix the Turn buttons (No.29) at the top and
bottom of the secondary door using
2x30mm screws.
2x30mm Screws
4x35mm Bolts
Step 14
Parts needed - No. 29 QTY 2
- No. 35 QTY 2
35
Pre drill
hole
MASTER DOORSECONDARY DOOR
10mm
screw
29
29
29
35
IMPORTANT: Pre-drill before xing screws.
EXTERIOR
Step 15
Parts needed - No.33 QTY 2
No.34 QTY 1
33
Pre drill
hole
10mm
screw
25mm
screw
34
Secure the barrel bolts (No.33) to the top &
bottom of the secondary door using 6x10mm
screws.
Attach the press lock (No34) to the master
door with 4x25mm screws, aligning the barrel
with the key hole.
*Ensure the key turns and locks properly
before xing to the door.
12x10mm Screws
4x25mm Screws
MASTER DOOR SECONDARY DOOR
IMPORTANT: Pre-drill before xing screws.
INTERIOR
Pre drill
hole
50mm
screw
Fix the rain guards (No.27) above
each window, securing in place using
2x50mm screws per guard, ensuring
to screw through the framing.
Fix the rain guard (No.28) above the
door, secure using 3x50mm screws,
ensuring to screw through to the
framing
7x50mm Screws
Step 16
Parts Needed - No.27 QTY 2
- No.28 QTY 1
28
27
27
IMPORTANT: Pre-drill before xing screws.
30mm
screw
Pre drill
hole
17
17
17
17
IMPORTANT: Pre-drill before xing screws.
Step 17
Parts needed - No. 17 QTY 4
Fit the Cover Trims (No.17) to the front of
the building onto the joins of the panels,
secure using 3x30mm screws per cover
trim.
12x30mm Screws
£
Felt
tacks
Step 18
Parts needed - No. 30 QTY 1
Cut three strips from the roll of felt (No.
30), 2x3700mm and 1x2300mm in length.
With one of the 3700mm strips, trim a
corner o at 1100mm to make piece 1.
Place the sheets of felt on top of the roof
panels and align as shown in the diagram
ensuring each strip overlaps the next by
200mm. Ensure that all strips over hang
the roof by 50mm.
*Ensure strip 1 is the rst piece placed
down then lay sheet 2, 3 and then 4 on
top.
Cut the sides as shown in diagram at the
dotted lines, use fascia width as a cutting
guide. Cut the triangle with 50mm
overhang again using fascia as a guide.
Fix each sheet using felt tacks along
where sheet overlap at 100mm intervals.
100x Felt Tacks
HANDLE
WITH CARE
12
3
4
**If Shed add on Pack has been purchased,
please move onto the Add on Pack Instructions**
3700mm
1000mm
200mm
200mm
200mm
2300mm
1100mm
1
2
3
4
50mm
50mm
50mm
Front
30mm
screw
Pre drill
hole
24 24
17
17
IMPORTANT: Pre-drill before xing screws.
Step 19
Parts needed - No. 17 QTY 2
- No. 24 QTY 2
Fit the Cover Trims (No.17) to the back
of the building onto the joins of the
panels, secure using 3x30mm screws per
cover trim.
Fix the rear cover trims (No.24) to the
back of the building, aligning with the
edge of the panel.
12x30mm Screws
Step 20
Parts needed - No. 20 QTY 4
No. 21 QTY 3
Fit the fascias (No.20 and No.21)
to the building over the felt and
secure in place with 3x40mm
screws per cover trim.
Make sure the fascias at the back
of the building t lower than the
roof height to allow water to run
o.
21x40mm Screws
40mm
screw
Pre drill
hole
20
20
20
20
21
21 21
IMPORTANT: Pre-drill before xing screws.

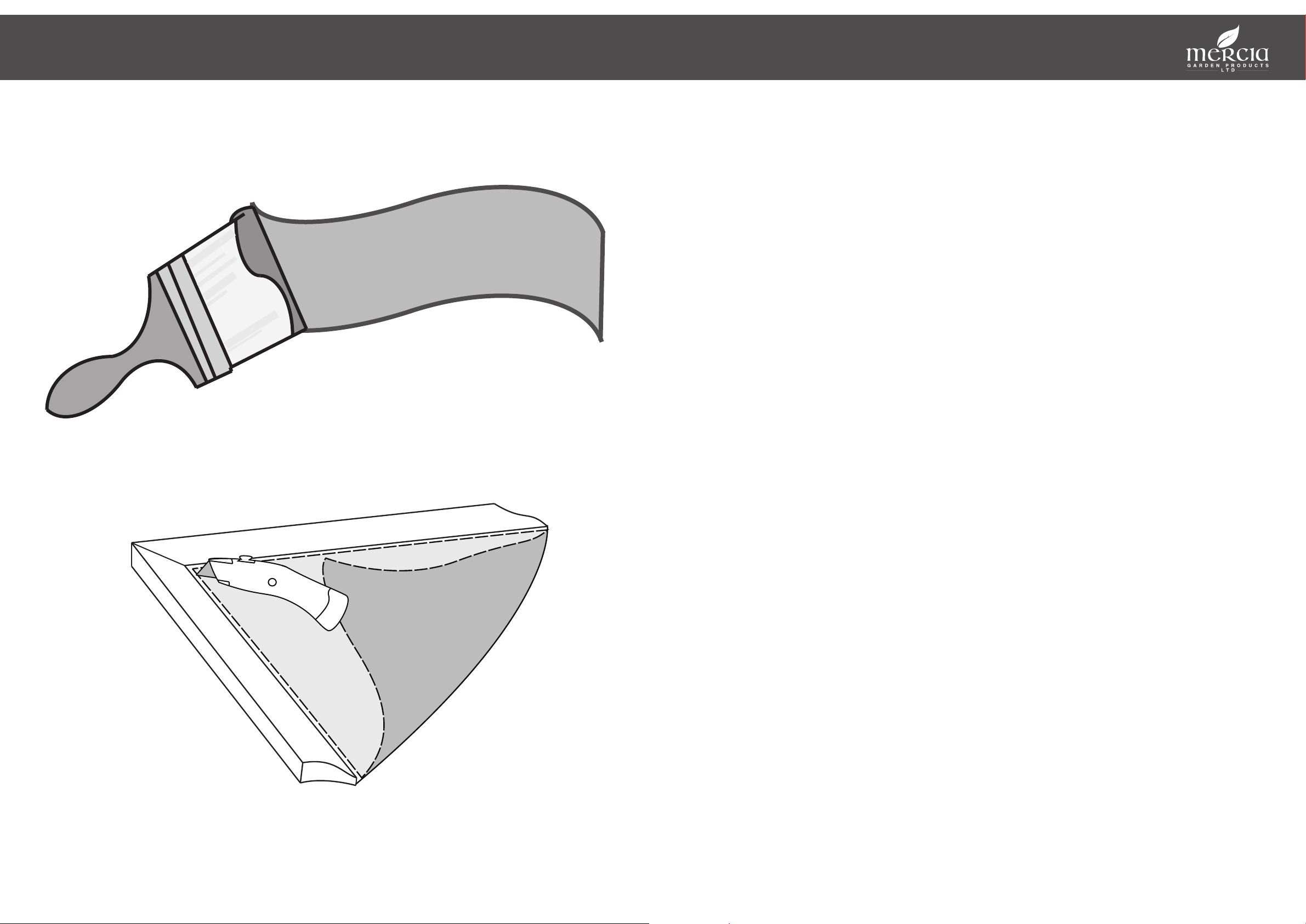

It is ESSENTIAL that you apply wood treat-
ment immediately after the building has
been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
¡
¡
¡
¡
¡
¢
¡
¡¡
¢
¤
¡
£
¥
¢
¤
1
2
3
4
5
6
7
8
9
¦
§
¥¡
2
1
¨
3
4
¦
¡
§
¡
¡
¤
¨
¢
§
12
¡
¡
¡
¤
¨
¢
¢
Table of contents
Other Mercia Garden Products Garden House manuals
Mercia Garden Products
Mercia Garden Products 01DTSHRAX1006SDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 02CHY0404-V3 User manual
Mercia Garden Products
Mercia Garden Products 0644LOG208-V3 Instruction manual
Mercia Garden Products
Mercia Garden Products 03WES1008-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 03DTSHAX0608FGD4MW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01OVLPA0808DDFW-V1 User manual
Mercia Garden Products
Mercia Garden Products 01PTJER0806-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 04VCGRO-V3 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTSHAX0806SDSEC-V2 User manual
Mercia Garden Products
Mercia Garden Products 03WES1008-V3 Instruction manual
Mercia Garden Products
Mercia Garden Products 02SNO0705-V1 User manual
Mercia Garden Products
Mercia Garden Products 0628PNNE0325HGDD1SW-V1 User manual
Mercia Garden Products
Mercia Garden Products 01DTSHRAX0705SDNW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 06LOG001-V1 User manual
Mercia Garden Products
Mercia Garden Products 010VLPA0305SDNW-V1 User manual
Mercia Garden Products
Mercia Garden Products 0619PNNE2424HGDD1SW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 0619RANE0325FGSD3TW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 02RSE0505-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTSHAX0806SDSEC-V1 User manual
Mercia Garden Products
Mercia Garden Products ESDXL21PT002 User manual
Mercia Garden Products
Mercia Garden Products 01PTOSBA1006DDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTPRMSHPN1208DDOP-V2 User manual
Mercia Garden Products
Mercia Garden Products 01DTSHPWOR1010DDOW-V4 Instruction manual
Mercia Garden Products
Mercia Garden Products 0619RANE3503FGSD3TW-V1 Instruction manual
Popular Garden House manuals by other brands
Luoman
Luoman Lillevilla 220 Assembly and Maintenance
Palmako
Palmako Freiburg installation manual
Weka Holzbau
Weka Holzbau 818.1212.10430 ASSEMBLY, USER AND MAINTENANCE INSTRUCTIONS
WoodLife Garden
WoodLife Garden 38589 Assembly instructions
Palmako
Palmako Irene installation manual
Palmako
Palmako FRB28-2525-1 installation manual
Gazebo penguin
Gazebo penguin FLORENCE Assembly instructions
Palmako
Palmako PM44-5034 installation manual
Best Barns
Best Barns Cypress R Assembly Book
Forest garden
Forest garden Overlap Apex Shed 7' x 5' Assembly instructions
KidKraft
KidKraft Big Backyard FORESTVIEW II P280095 Installation and operating instructions
Finn Art Blockhaus
Finn Art Blockhaus Double grillkota 9m2 Assembly instruction
