Mercia Garden Products 01PTSHPWOR1010DDOW-V4 Instruction manual

Please retain product label and instructions for future reference
P 1
General Instructions
01PTSHPWOR1010DDOW-V4
Modular Workshop 10x10, 12x10, 16x10 & 20x10
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied)
including a Phillips screwdriver, Stanley knife, Wood saw, Step ladder, Hammer and a
Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather conditions.
For the duration of heavy or extended periods of rain, swelling of the wood panels may
occur. Warping of the wood may also occur during excessive dry spells due to an interior
moisture loss. Unfortunately, these processes cannot be avoided but can be helped. It is
suggested that the outdoor building is sprayed with water during extended periods of
warm sunshine and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as
possible and annually to prevent the timber from deteriorating and to waterproof it.
This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and
decay and a waterproof treatment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong
treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to
diagrams for the base dimensions, The base should be slightly smaller than the external
measurement of the building, i.e. The cladding should overlap the base, creating a run
o for water. It is also recommended that the oor be at least 25mm above the
surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in
the case of childrens products independently tested to EN71 level, we cannot accept
responsibility for your safety whilst erecting or using this product.
For ease of assembly, you
will need a tape measure to
check dimensions of
components.
Pressure Treated Timber
Pressure treating is a chemical process which helps to protect wood against adverse weather which could
lead to rot or insect damage.
The most common chemicals used to pressure treat wood are Alkaline Copper Quaternary (ACQ),
Copper Azole (CA), and Micronized Copper Quaternary (MCQ).
Safety: Always wear gloves, eye protection and a dust mask when handling wood. Due to chemicals in
pressure treated wood, never burn its sawdust or scraps; instead dispose in a landll.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.

P 2
01PTSHPWOR1010DDOW-V4
The building you have purchased can be built in two ways as an Apex or a Reverse Apex. Within this document there are seperate instructions to show how to install each style
please refer to the corresponding pages for the style you have chosen.
10X10 Apex
Overall Dimensions:
Width = 3229mm
Depth = 3028mm
Height = 2504mm
Base Dimensions:
Width = 3064mm
Depth = 2976mm
12X10 Apex
Overall Dimensions:
Width = 3229mm
Depth = 3678mm
Height = 2504mm
Base Dimensions:
Width = 3064mm
Depth = 3572mm
16X10 Apex
Overall Dimensions:
Width = 3229mm
Depth = 4870mm
Height = 2504mm
Base Dimensions:
Width = 3064mm
Depth = 4764mm
20X10 Apex
Overall Dimensions:
Width = 3229mm
Depth = 6062mm
Height = 2504mm
Base Dimensions:
Width = 3064mm
Depth = 5956mm
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Apex Page 5 - 14 Reverse Apex Page 15 - 24
10X10 Reverse Apex
Overall Dimensions:
Width = 3028mm
Depth = 3229mm
Height = 2504mm
Base Dimensions:
Width = 2976mm
Depth = 3064mm
12X10 Reverse Apex
Overall Dimensions:
Width = 3678mm
Depth = 3229mm
Height = 2504mm
Base Dimensions:
Width = 3572mm
Depth = 3064mm
16X10 Reverse Apex
Overall Dimensions:
Width = 4870mm
Depth = 3229mm
Height = 2504mm
Base Dimensions:
Width = 4764mm
Depth = 3064mm
20X10 Reverse Apex
Overall Dimensions:
Width = 6062mm
Depth = 3229mm
Height = 2504mm
Base Dimensions:
Width = 5956mm
Depth = 3064mm

P 3
Please retain product label and instructions for future reference
01SHPWOR1010DDOW-V4
Casement stay - Qty 2
PI-07-0007
2
1
34
56
Plain Side Panel
AI-01SHPWORPS1490X1784
Qty 4
Window Side Panel
AI-01SHPWORWS1490X1784
Qty 2
Floor
AI-01TAGFLOOR3064X1488
Qty 2
Roof Panel
AI-01TAGROOF1529X1760
Qty 4
7
Small Plain Panel
AI-01SHPWORPS745X1784
Qty 2
Right Gable
AI-01SHPWORDGT1534X675R
Qty 2
Double Door Panel
AI-01RAWDDP1490X1784
8
9
Door
AI-01-217ZB600X1720
Qty 2
Window
AI-01OW-V1
Qty 2
10
Gable Point - 12x615mm - Qty 2
WBP-G-615
Truss Brace - 27x44x1618mm - Qty 2
F2744-G-1658
Truss Block - 44x44x140mm - Qty 2
F4444-G-160
Truss Support Triangle - 12x503mm - Qty 2
MB12-P-503
Door Cloaking Strip - 27x44x1658mm - Qty 1
F2744-G-1658
Door Strip - 12x30x1600mm - Qty 2
S1230-1600
11
12
13
14
30
15
16
17
Truss Support- AI-01WORTS1651X88 - Qty 2
Cover Strip - 12x56x1850mm - Qty 6
S1256-1850
Fascia Spacing Block - 28x28x150mm - Qty 4
F2828-150
Hasp and Staple Lock
PI-07-0191 Butt Hinge - Qty 4
PI-07-0066 Tower Bolt - Qty 2
PI-07-0030
Window Strip - 12x56x1038mm - Qty 2
S1256-1038
Cover Strip - 12x56x2500mm - Qty 4
S1256-2500
18
19
20
21
Finial - Qty 2
Shed Diamond FInial
Fascias - 12x60x1800mm - Qty 4
S1260-1800
22
23 24 25
31
T Hinge - Qty 6
PI-07-0021
32
Felt
29
33
Left Gable
AI-01SHPWORDGT153X675L
Qty 2
U Channel - Qty 2
PI-07-0031
Nail Bag
30mm Screw x 125
50mm Screw x 91
70mm Screw x 4
40mm Screw x 106
Felt Tacks x 170
16mm Screws x 12
100mm Screw x 2
Building content - Pack A
01PTSHPWOR1010DDOW-V4
There may be extra screws present in the nail bag

Please retain product label and instructions for future reference
P4
Building content - Pack B
01SHPWORPB-V1
Building content - Pack C
01SHPWORPC-V1
Building content - Pack D
01SHPWORPD-V1
Plain Side Panel
AI-01SHPWORPS596X1784
Qty 2
2ft Roof
AI-01TAGROOF596X1760
Qty 2
2ft Floor
AI-01TAGFLOOR1532X596
Qty 2
Single Door Panel
AI-01SHPWORSD1490x1784
Qty 1
5ft Floor Panel
AI-01TAGFLOOR1532X1490
Qty 2
5ft Roof Panel
AI-01TAGROOF1490X1760
Qty 2
35 36 37
38
39
34
39
Pad Bolt
PI-07-0035
Truss Brace - 27x44x1618mm - Qty 2
F2744-G-1658
Truss Block - 44x44x140mm - Qty 2
F4444-G-160
Truss Support Triangle - 12x503mm - Qty 2
MB12-P-503
11
12
13
14
15
Truss Support - AI-01WORTS1651X88 - Qty 2
Cover Strip - 12x56x1850mm - Qty 2
S1256-1850
32
U Channel - Qty 2
PI-07-0031
21
Plain Side Panel
AI-01SHPWORPS1490X1784
Qty 1
Window Side Panel
AI-01SHPWORWS1490X1784
Qty 1
Window
AI-01OW-V1
Qty 1
10
Truss Brace - 27x44x1618mm - Qty 2
F2744-G-1658
Truss Block - 44x44x140mm - Qty 2
F4444-G-160
Truss Support Triangle - 12x503mm - Qty 2
MB12-P-503
11
12
13
14
15
Truss Supportt - AI-01WORTS1651X88 - Qty 2
Cover Strip - 12x56x1850mm - Qty 2
S1256-1850
Window Strip - 12x56x1038mm - Qty 1
S1256-1038
18
32
U Channel - Qty 2
PI-07-0031
Casement stay - Qty 1
PI-07-0007
Butt Hinge - Qty 2
PI-07-0066
24
33
5ft Floor Panel
AI-01TAGFLOOR1532X1490
Qty 2
37
2
Plain Side Panel
AI-01SHPWORPS1490X1784
Qty 1
5ft Roof Panel
AI-01TAGROOF1490X1760
Qty 2
38 9
Door
AI-01-217ZB600X1720
Qty 2
Truss Brace - 27x44x1618mm - Qty 2
F2744-G-1658
Truss Block - 44x44x140mm - Qty 2
F4444-G-160
Truss Support Triangle - 12x503mm - Qty 2
MB12-P-503
11
12
13
14
15
Truss Support - AI-01WORTS1651X88 - Qty 2
Cover Strip - 12x56x1850mm - Qty 2
S1256-1850
Door Strip - 12x30x1600mm - Qty 2
S1230-1600
16
31
T Hinge - Qty 3
PI-07-0021
32
U Channel - Qty 2
PI-07-0031
Nail Bag
30mm Screw x 8
50mm Screw x 10
70mm Screw x 4
40mm Screw x 46
100mm Screw x 2
There may be extra screws present in the nail bag
Nail Bag
There may be extra screws present in the nail bag
Nail Bag
There may be extra screws present in the nail bag
Felt Tacks x 30
30mm Screw x 23
50mm Screw x 12
70mm Screw x 4
40mm Screw x 46
100mm Screw x 2
Felt Tacks x 70
16mm Screws x 6
30mm Screw x 23
50mm Screw x 12
70mm Screw x 4
40mm Screw x 45
100mm Screw x 2
Felt Tacks x 70

Please retain product label and instructions for future reference
P 5
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk

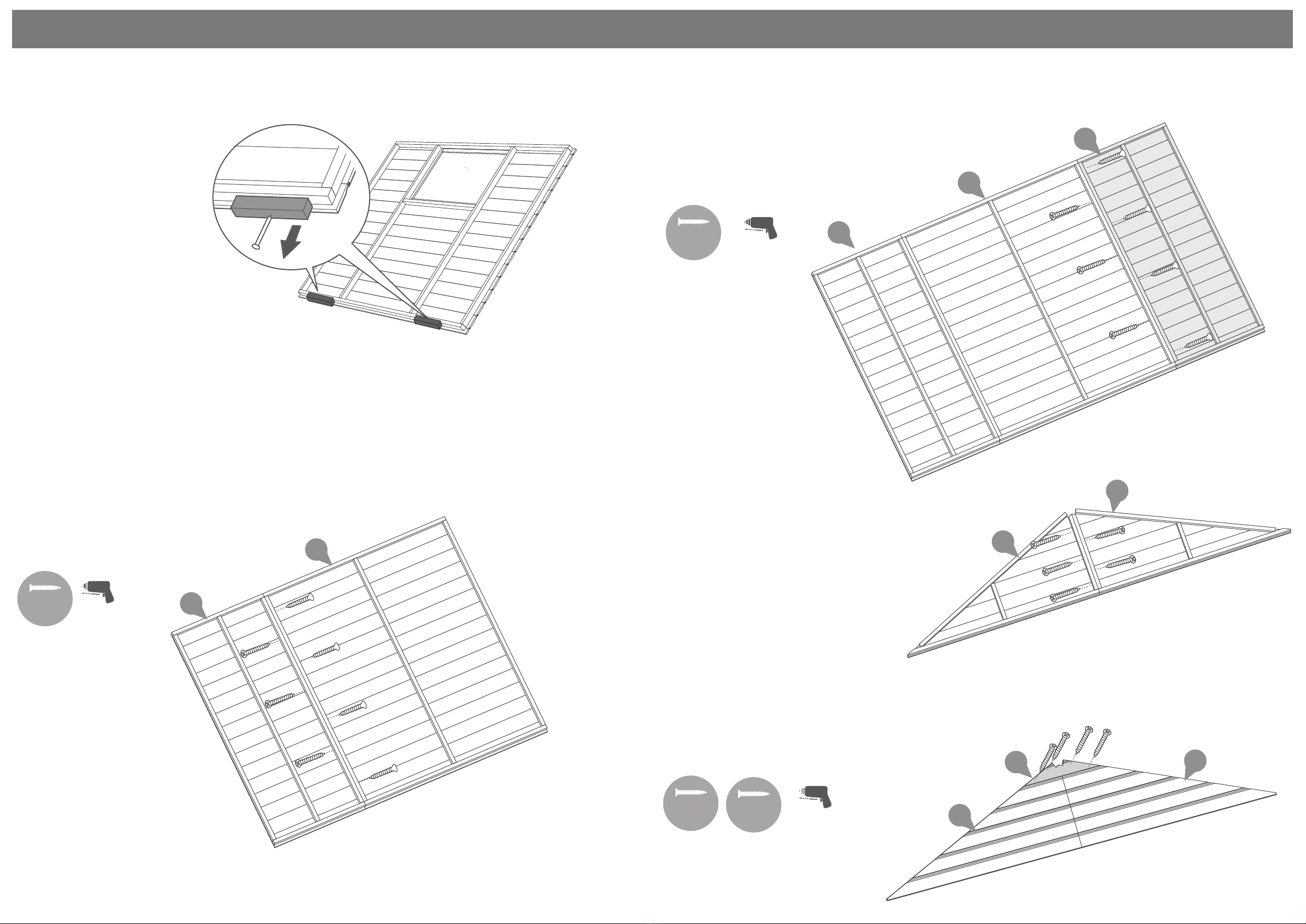

Apex Installation
Remove transportation
blocks from the bottom
of each panel before
beginning assembly. Each
Panel should have two
Pre Assembly
Door Gable Assembly

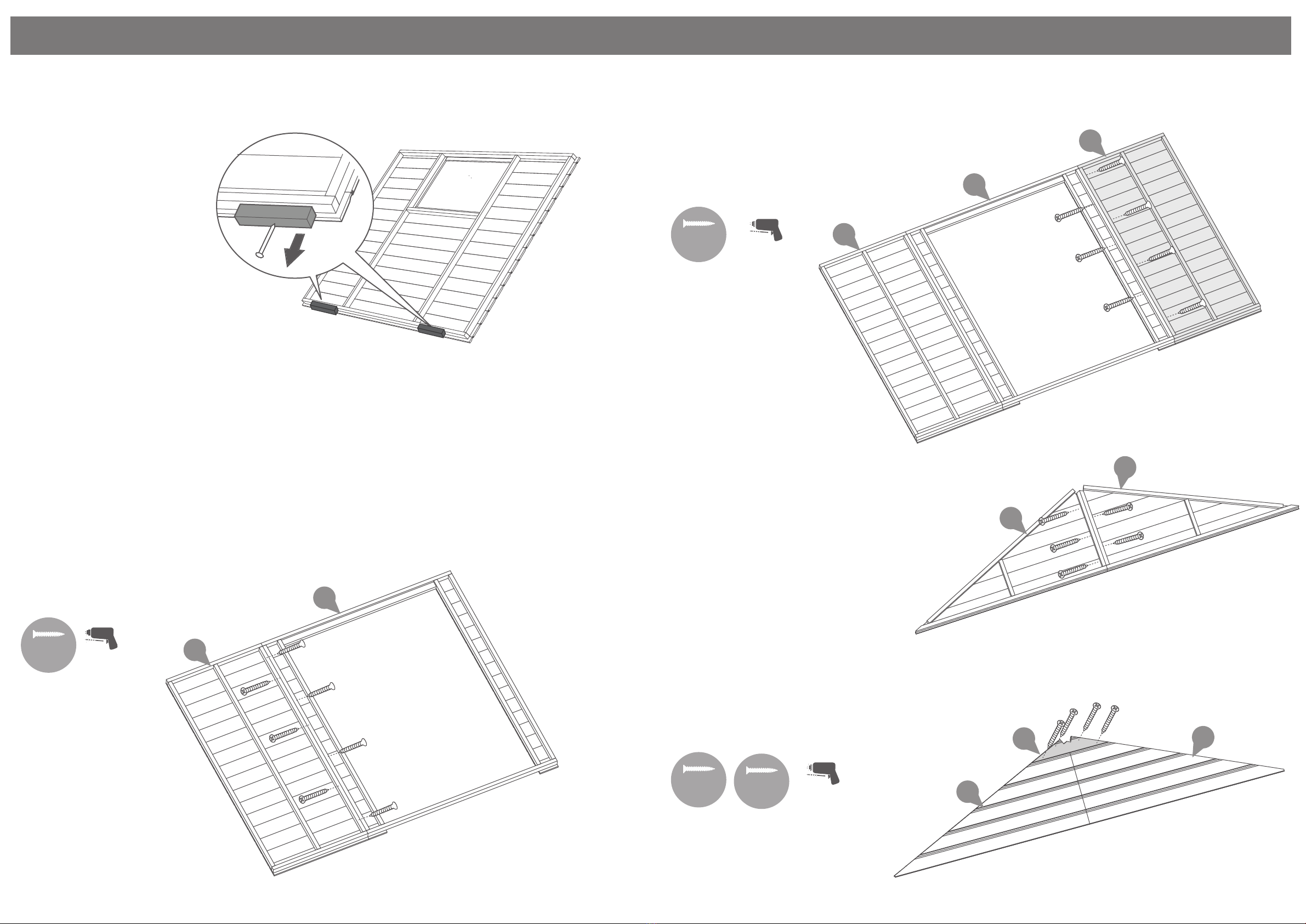

Step 1
7 x 50mm screws
Lay the Double Door Panel (No. 5) and
Small Plain Panel (No. 6) on a level oor.
Place them next to each other, ensure they
are level at the top and bottom, then x
together using 7x50mm screws.
Stagger the screws so they do not collide.
50mm
screw Pre drill
hole
6
5
Step 2
7 x 50mm screws
Repeat the previous step when adding the
second Small Plain Panel (No. 6), ensure
they are level at the top and bottom then x
together using 7x50mm screws.
Stagger the screws so they do not collide.
50mm
screw Pre drill
hole
6
5
6
Step 3
Place the Left Gable and Right Gable (No. 3
& 4. together and make sure that they meet
level.
Fix together in the middle using 50mm
screws staggering the screws so they do not
collide.
Repeat this step for both sets of gables.
Turn the Gables over, attach a Gable Point
(No. 17) to the top of the assembled gables
using 30mm screws to complete the gable
assemblies.
10 x 50mm screws
50mm
screw
8 x 30mm screws
30mm
screw Pre drill
hole
4
3
4
3
17

P 6
Please retain product label and instructions for future reference
Please retain product label and instructions for future reference
Step 4
Place the newly assembled Gables above
the assembled panels. Make sure that the
Gables meet exactly in the middle and over
hang from the sides equally at approx
45mm.
Fix together using 50mm screws staggering
the screws so they do not collide.
8 x 50mm screws
50mm
screw Pre drill
hole
6
5
6
4
3
Plain Gable Assembly
Step 5
7 x 50mm screws
Lay two of the plain side panels (No. 2) on a
level oor place them next to each other,
ensure they are level at the top and bottom
then x together using 7x50mm screws.
Stagger the screws so they do not collide.
2
50mm
screw Pre drill
hole
2
Place the other set of assembled Gables
(No. 3 & 4) above the plain panels.
Make sure that the Gables meet exactly in
the middle and over hang the sides equally
at approx 45mm.
Fix together using 50mm screws staggering
the screws so they do not colide.
50mm
screw Pre drill
hole
Step 6
8 x 50mm screws
2
2
4
3

P 7
Please retain product label and instructions for future reference
Step 7
10x10 - 8 x 40mm screws
12x10 - 16 x 40mm screws
16x10 - 32 x 40mm screws
20x10 - 24 x 40mm screws

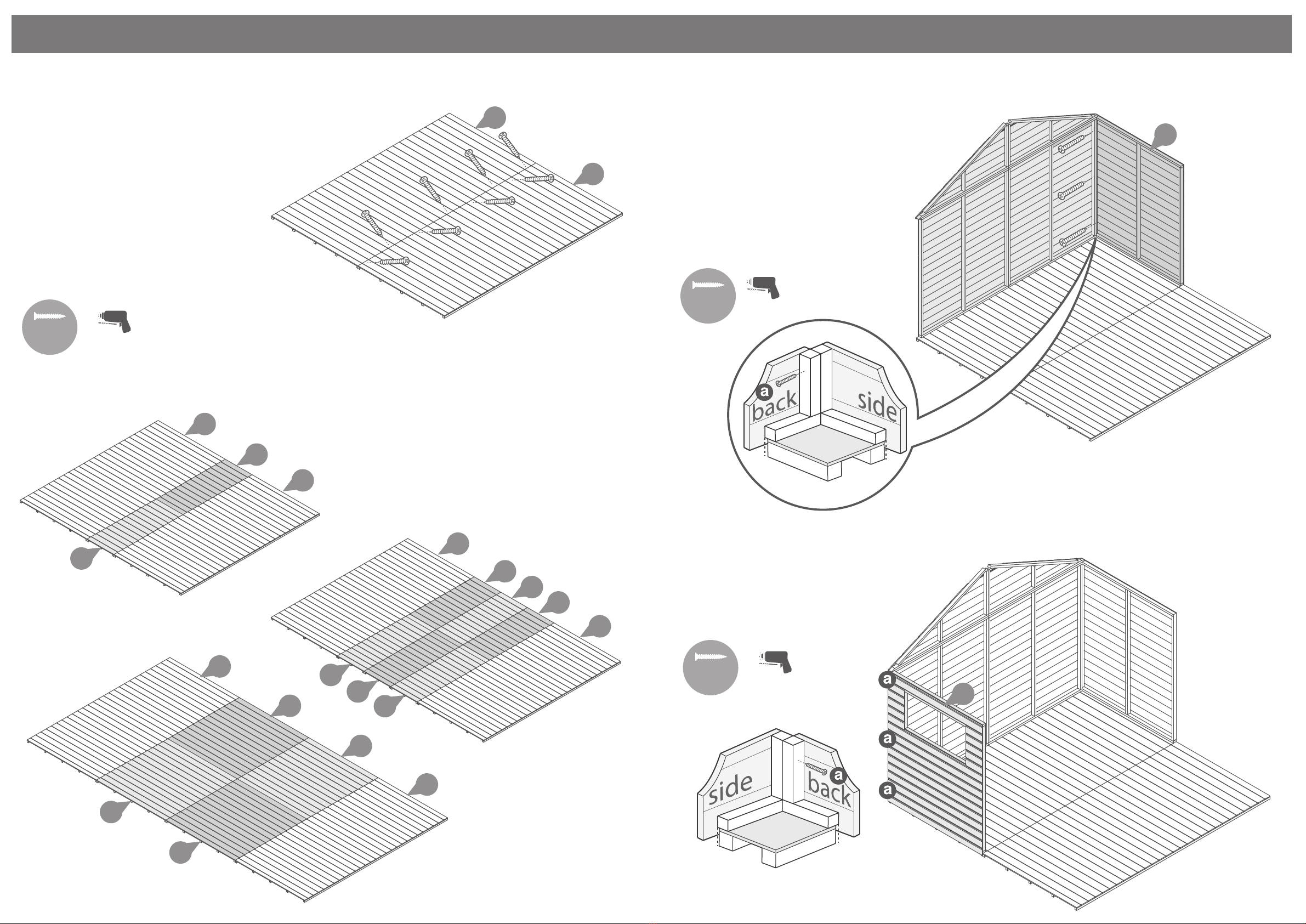

Place the oors (No. 7, 35 & 37) on a rm
and level base, ensure the base has suitable
drainage free from areas where water can
collect. (See front page on base
requirements).
Fix together using 40mm screws. Stagger
the screws so they do not collide.
40mm
screw Pre drill
hole
16x10 Floor
20x10 Floor
12x10 Floor
10x10 Floor
7
7
7
7
7
7
7
7
35
35
35
35
37
37
37
37
35
35
35
35
Fix the corners of the assembled
plain gable and a plain side panel
(No. 2) with 50mm screws as shown
in diagram.
Do not secure the building to the
oor until the roof is tted
Position the panels so there is equal spacing
between the oor and cladding on all 4 sides
Step 8
3 x 50mm Screws
50mm
screw Pre drill
hole
2
Step 9
Fix a Window Side Panel (No. 1)
with 50mm screws as shown in
diagram.
1
3 x 50mm Screws
50mm
screw Pre drill
hole

Please retain product label and instructions for future reference
P 8
1
Step 10
Build up the walls of your building
using the plain side panels (No. 2 &
34), the window sides (No. 1) and
for the 20x10 the single door panel
(No. 39).
Fix the panels together using
50mm screws.
See the corresponding illustration
for the building size you are
assembling.
10x10 - 6 x 50mm Screws
12x10 - 12 x 50mm Screws
16x10 - 24 x 50mm Screws
20x10 - 18 x 50mm Screws
50mm
screw Pre drill
hole
2
10X10
20X10
12X10
16X10
1
2
1
2
2
1
2
34
34
1
2
34
34
39
34
34
34
34
Step 11
Fix the Door Gable (refer to steps 1,
2 and 3 if you have not already
assembled this) at the corners with
50mm screws as shown in diagram.
6x50mm Screws
50mm
screw Pre drill
hole
10X10
20X10
16X10
12X10

P 9
Please retain product label and instructions for future reference
Fix the T Hinges (No. 31) onto the doors (No.
9) as shown using 7 x 30mm screws per T
hinge.
Ensure that the screws go through the
cladding and into the framing behind.
If you have puchased a 20x10, repeat this step
when attaching the single door.
42 x 30mm screws
20x10 - 63 x 30mm screws
Step 12
30mm
screw
Pre drill
hole 31
31
Step 13
A. To construct the truss, secure
the Truss supports (No. 11)
together as shown with 2x30mm
screws.
B. Secure the Truss Brace (No. 12)
to both sides of the Truss support
making sure to stagger the
4x40mm screws.
C. Finally secure the Truss support
triangle (No. 14) to both sides
with 3x30mm screws.
Repeat the steps above once for a
12x10, three times for a 16x10
and twice for a 20x10.
10x10 - 8 x 30mm Screws
- 4 x 40mm Screws
12x10 - 16 x 30mm Screws
- 8 x 40mm screws
16x10 - 32 x 30mm Screws
- 16 x 40mm screws
20x10 - 24 x 30mm Screws
- 16 x 40mm screw
A.
B.
C.
40mm
screw
30mm
screw Pre drill
hole
30mm
screw Pre drill
hole
Pre drill
hole
11
11
12
12
14
14
10x10 - 4x70mm Screws
2x100mm Screws
12x10 - 8x70mm Screws
4x100mm Screws
16x10 - 16x70mm Screws
8x100mm Screws
20x10 - 12x70mm Screws
6x100mm Screws
70mm
screw
100mm
screw
Pre drill
hole
13 13

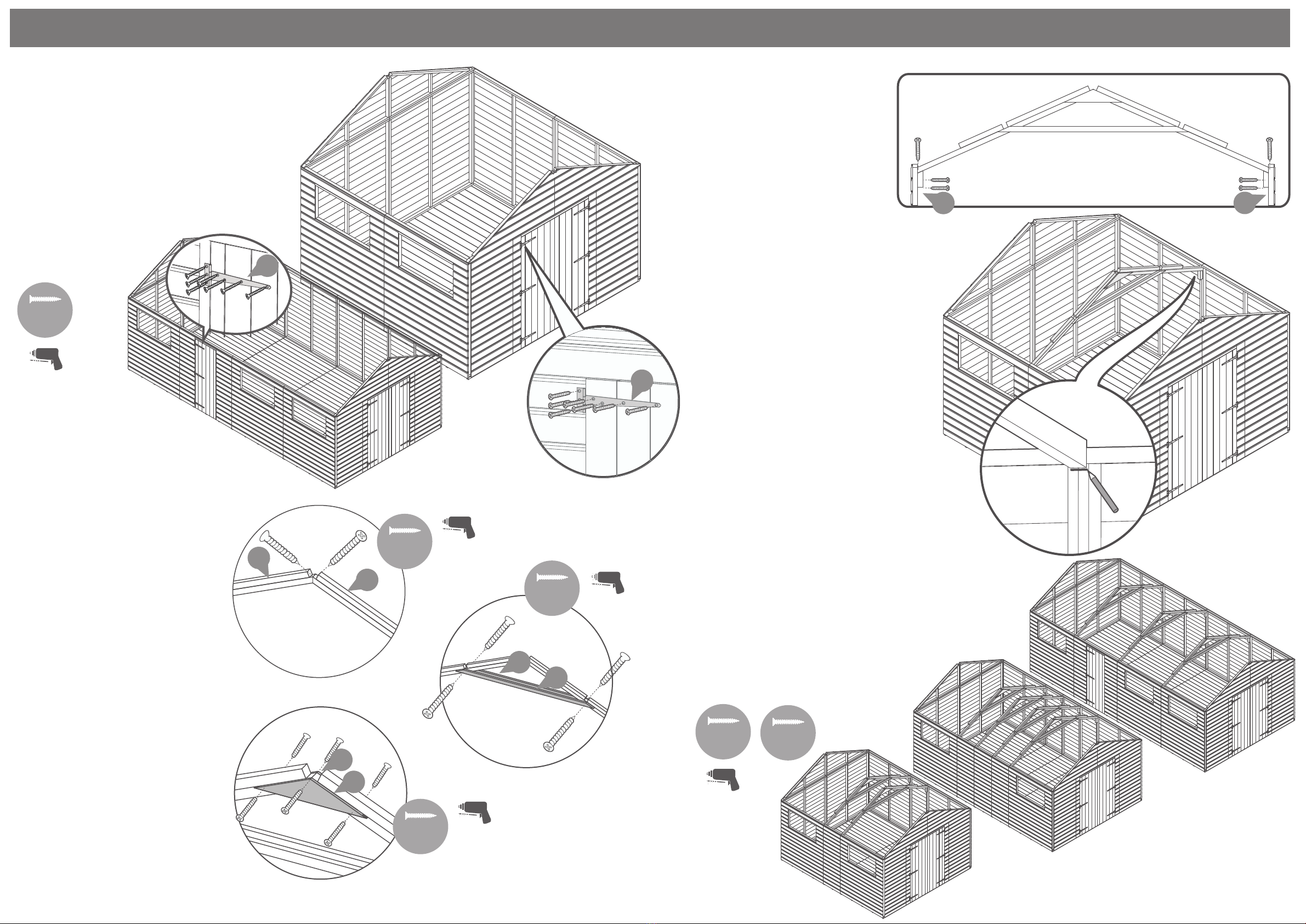

Step 14
Place an assembled Truss central to
where two panels join. Align the
top of the truss one inch (25mm)
below the top of the sides as shown
in the diagram.
HINT - Use a piece from the xing
kit as a guide.
Pencil mark the truss position and
remove truss.
Place the truss blocks (No. 13) up to
the pencil mark and x using
2x70mm screws per block.
Place the truss back into position on
top of the support block and secure
using 100mm screw each side from
the top down through the truss and
into the block.
For 12x10, 16x10 and 20x10 attach a
truss where each panel joins. For
12x10 you will have two trusses,
for the 16x10 you will have four
trusses and for 20x10 you will have
three trusses.
10X10
20X10
16X10
12X10

Please retain product label and instructions for future reference
P 10
Step 15
Place the roof panels (No. 8, 36
& 38) ontop of the building and
truss making sure the roof
panels sit into the gables and
truss. Do not x the roof panels
untill all roof panels are in place.
There are two roof panels for
the 10x10 building, three for the
12x10, ve for the 16x10 and
four for the 20x10.
Ensure there is an eqal amount
of roof overhang on either side
of the building.
Secure the roof panels (No. 8, 36 &
38) together using the metal U
channel (No. 32) and 6x40mm
screws per U channel.
For a 10x10 you will have one U
channel, two for the 12x10, four for
the 16x10 and three for the 20x10.
10x10 - 6 x 40mm screws
12x10 - 12x 40mm screws
16x10 - 24x 40mm screws
20x10 - 18 x 40mm screws
40mm
screw Pre drill
hole
32
8
8
10X10
20X10
16X10
12X10
8
8
38
38
8
8
363636
8
8
36
Step 16
Following the same method used
in the previous step, secure the
roof panels (No. 8, 36 & 38)
together using the metal U chan-
nel (No. 32) and 6x40mm screws
per U channel.
For a 10x10 you will have one U
channel, two for the 12x10, four
for the 16x10 and three for the
32
10X10
Place the roof panels (No. 8, 36
& 38) ontop of the building and
truss making sure the roof
panels sit into the gables and
truss .
Place two roof panels for the
10x10 building, three for the
12x10, ve for the 16x10 and
four for the 20x10.
Ensure there is an eqal amount
of roof overhang on either side
of the building.
Secure all the roof panels to the
building using 40mm screws
ensuring the building is square
before xing.
40mm
screw
Pre drill
hole
10x10 - 6 x 40mm screws
12x10 - 12x 40mm screws
16x10 - 24x 40mm screws
20x10 - 18 x 40mm screws
40mm
screw Pre drill
hole
10x10 - 32 x 40mm screws
12x10 - 48 x 40mm screws
16x10 - 80 x 40mm screws
20x10 - 64 x 40mm screws
8
8
20X10
16X10
12X10
8
8
38
38
8
8
8
8
363636
36

Please retain product label and instructions for future reference
P 11
Step 17
Once the roof is xed
attatch the building to the
oor with 50 mm screws.
Ensure the screws go
through the panel into the
oor framing.
10x10 - 26 x 50mm Screws
12x10 - 30 x 50mm Screws
16x10 - 38 x 50mm Screws
20x10 - 38 x 50mm Screws
50mm
screw Pre drill
hole
10X10
20X10
16X10
12X10
1
3
4
2
Step 18
HANDLE
WITH CARE
12
3
4
10x10 - 170 x felt tacks
12x10 - 190 x felt tacks
16x10 - 260 x felt tacks
20x10 - 310 x felt tacks
Cut four strips of felt (No. 29)
and place onto the roof. See
below for sizes.
Place the felt at onto the
roof in the order that is
stated on the diagram below.
Once the sheets are laid out
x them onto the roof with
tacks 100mm apart.
12
34
Felt Strip Sizes
10x10 - 3160mm
12x10 - 3760mm
16x10 - 4950mm
20x10 - 6150mm
Felt
tacks

P 12
Please retain product label and instructions for future reference
Step 19
Fit the Cover Strips (No. 15 & 19)
to the building and secure in
place with 40mm screws as
shown.
The cover strips will need
cutting to length before
securing to the building.
Pre drill to avoid splitting.
10x10 - 32x40mm Screws
12x10 - 38x40mm Screws
16x10 - 50x40mm Screws
20x10 - 44x40mm Screws
19
19
15
15
15
15
15
40mm
screw Pre drill
hole *Cut down
trims to t
19
19
15
15
19
15
10X10
20X10
16X10
12X10
19
15
15
19
19
15
15
15
15
15
15
15
15
19
15
15
15
15
19
15
15
15
15
15
15
19
15
15
19
19
19
15
15
19
19
15
15
15
15
15
15
19
Step 20
8 x 30mm screws
16 x 40mm Screws
Attach the Fascia Spacing
lock (No. 21) to the front
and back of the roof using
2x30mm screws per block.
Ensure the blocks are ush
to the edge of the roof.
Fit the Fascias (No. 22)
and Finials (No. 30) to
the roof over the felt
and secure in place with
40mm screws as shown.
The fascia’s will need
cutting to length before
securing to the
building.
Pre drill to avoid
splitting.
40mm
screw
Pre drill
hole
22
22
30
30
22
22
*Cut down
trims to t
20X10
16X10
12X10
21
30mm
screw

Please retain product label and instructions for future reference
P 13
Step 21
30mm
screw Pre drill
hole
19
25
20
Place the Door Cloaking Strip
(No. 20) to the rear of one of the
double doors. Fix in position
screwing through the door into
the cloaking strip with 3x30mm
screws.
Align the tower bolts (No. 25)
onto the door cloaking strip,
secure the bolts to the top and
bottom using 6x30mm
screws per tower bolt.
Mark the position of the bolt
& drill a hole above and below
for the bolt to catch in to.
15x30mm Screws
Fix the Door Strips (No. 16)
to the side of the door frame
using 3x30mm screws per
door strip.
Ensure that the screw is
parallel with the door frame
when xing, as shown in the
close up view.
Repeat this for the single
door for the 20x10 building.
Step 22
10x10 - 6 x 30mm screws
12x10 - 6 x 30mm screws
16x10 - 6 x 30mm screws
20x10 - 12 x 30mm screws
30mm
screw Pre drill
hole
16 16
Step 23
18
10
30mm
16mm
Opening Window
Fixed Window
30mm
screw
30mm
screw
16mm
screw
30mm
screw
24
Place the Window Strip (No. 18)
11mm above the window gap in the
window panel and x with 3x30mm
screws per strip.
If you would like the windows to be
opening use the Butt Hinges
(No. 24) to attach to the window
strip and the Window (No. 10)
together.
Use 30mm screws to x the butt
hinge to the Window Strip and
16mm screws to x it to the
Window.
If you want to x the windows,
instead of xing butt hinges to
the opening window, use
4x30mm screws to attach the
window (No. 10) to the window
side panel as shown in the
diagram.
3x30mm Screws
*SCREW COUNT PER WINDOW
6x30mm Screws
6x16mm Screws
4x30mm Screws
10x10 - 18 x 30mm screws
- 12 x 16mm screws
12x10 - 18 x 30mm screws
- 12 x 16mm screws
16x10 - 18 x 30mm screws
- 12 x 16mm screws
20x10 - 27 x 30mm screws
- 18 x 16mm screws

P 14
Please retain product label and instructions for future reference
Step 24
To x the Hasl and Staple Lock (No. 23)
in place. Screw the Staple to the left
hand door.
Making sure the Hasp is in line with
the staple and screw into the right hand
Door
To lock the Door, place the Hasp over the
Staple and twist into the lock position as
shown.
8x30mm screws.
Pre drill
hole
30mm
screw
23
23
This step is only for the 20x10
building.
Fix the Pad Bolt (No. 39) to the
side door with 6x30mm screws
along the horizontal door brace.
Then x the tower bolt retainer
to the vertical door panel
framing using 4x30mm screws.
10x30mm screws
39
Step 25
Step 26
Fix the Casement Stay (No. 33)
to the opening window then
align the xings onto the
window panel frame.
Ensure the casement stay ts
into xings when closed before
screwing them down using 6 x
20mm screws per casement
stay.
10x10 - 12 x 30mm screws
12x10 - 12 x 30mm screws
16x10 - 12 x 30mm screws
20x10 - 18 x 30mm screws
33
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back

Please retain product label and instructions for future reference
P 15
Reverse Apex Installation
Remove transportation
blocks from the bottom
of each panel before
beginning assembly. Each
Panel should have two
Pre Assembly
Plain Gable Assembly
Step 1
7 x 50mm screws
Lay a Plain Side Panel (No. 2) and Small
Plain Panel (No. 6) on a level oor. Place
them next to each other, ensure they are
level at the top and bottom, then x
together using 7x50mm screws.
Stagger the screws so they do not collide.
50mm
screw Pre drill
hole
6
2
Step 2
7 x 50mm screws
Repeat the previous step when adding the
second Small Plain Panel (No. 6), ensure
they are level at the top and bottom then x
together using 7x50mm screws.
Stagger the screws so they do not collide.
50mm
screw Pre drill
hole
6
2
6
Step 3
Place the Left Gable and Right Gable (No. 3
& 4. together and make sure that they meet
level.
Fix together in the middle using 50mm
screws staggering the screws so they do not
collide.
Repeat this step for both sets of gables.
Turn the Gables over, attach a Gable Point
(No. 17) to the top of the assembled gables
using 30mm screws to complete the gable
assemblies.
10 x 50mm screws
50mm
screw
8 x 30mm screws
30mm
screw Pre drill
hole
4
3
4
3
17

P 16
Please retain product label and instructions for future reference
Step 4
Place the newly assembled Gables above
the assembled panels. Make sure that the
Gables meet exactly in the middle and over
hang from the sides equally at approx
45mm.
Fix together using 50mm screws staggering
the screws so they do not collide.
8 x 50mm screws
50mm
screw Pre drill
hole
6
2
6
4
3
Window Gable Assembly
Step 5
7 x 50mm screws
Lay one of the Plain Side Panel (No. 2) and a
Window Side Panel (No. 1) on a level oor
place them next to each other, ensure they
are level at the top and bottom then x
together using 7x50mm screws.
Stagger the screws so they do not collide.
1
50mm
screw Pre drill
hole
2
Place the other set of assembled Gables
(No. 3 & 4) above the plain panels.
Make sure that the Gables meet exactly in
the middle and over hang the sides equally
at approx 45mm.
Fix together using 50mm screws staggering
the screws so they do not colide.
50mm
screw Pre drill
hole
Step 6
8 x 50mm screws
1
2
4
3

Please retain product label and instructions for future reference
P 17
Step 7
10x10 - 8 x 40mm screws
12x10 - 16 x 40mm screws
16x10 - 32 x 40mm screws
20x10 - 24 x 40mm screws
Place the oors (No. 7, 35 & 37) on a rm
and level base, ensure the base has suitable
drainage free from areas where water can
collect. (See front page on base
requirements).
Fix together using 40mm screws. Stagger
the screws so they do not collide.
40mm
screw Pre drill
hole
16x10 Floor
20x10 Floor
12x10 Floor
10x10 Floor
7
7
7
7
7
7
7
7
35
35
35
35
37
37
37
37
35
35
35
35
Fix the corners of the assembled
plain gable and a plain side panel
(No. 2) with 50mm screws as shown
in diagram.
Do not secure the building to the
oor until the roof is tted
Position the panels so there is equal spacing
between the oor and cladding on all 4 sides
Step 8
3 x 50mm Screws
50mm
screw Pre drill
hole
2
Step 9
Fix a Window Side Panel (No. 1)
with 50mm screws as shown in
diagram.
1
3 x 50mm Screws
50mm
screw Pre drill
hole

P 18
Please retain product label and instructions for future reference
5
Step 10
Build up the walls of your building
using the plain side panels (No. 2 &
34), the double door panel (No. 5)
and for the 20x10 the single door
panel (No. 39) and window side
panel (No. 1).
Fix the panels together using
50mm screws.
See the corresponding illustration
for the building size you are
assembling.
10x10 - 6 x 50mm Screws
12x10 - 12 x 50mm Screws
16x10 - 24 x 50mm Screws
20x10 - 18 x 50mm Screws
50mm
screw Pre drill
hole
2
10X10
20X10
12X10
16X10
1
2
1
2
2
5
2
34
34
5
2
34
34
39
34
34
34
34
Step 11
Fix the Window Gable (refer to steps
1, 2 and 3 if you have not already
assembled this) at the corners with
50mm screws as shown in diagram.
6x50mm Screws
50mm
screw Pre drill
hole
10X10
20X10
16X10
12X10

Please retain product label and instructions for future reference
P 19
Fix the T Hinges (No. 31) onto the doors (No.
9) as shown using 7 x 30mm screws per T
hinge.
Ensure that the screws go through the
cladding and into the framing behind.
If you have puchased a 20x10, repeat this step
when attaching the single door.
42 x 30mm screws
20x10 - 63 x 30mm screws
Step 12
30mm
screw
Pre drill
hole 31
31
Step 13
A. To construct the truss, secure
the Truss supports (No. 11)
together as shown with 2x30mm
screws.
B. Secure the Truss Brace (No. 12)
to both sides of the Truss support
making sure to stagger the
4x40mm screws.
C. Finally secure the Truss support
triangle (No. 14) to both sides
with 3x30mm screws.
Repeat the steps above once for a
12x10, three times for a 16x10
and twice for a 20x10.
10x10 - 8 x 30mm Screws
- 4 x 40mm Screws
12x10 - 16 x 30mm Screws
- 8 x 40mm screws
16x10 - 32 x 30mm Screws
- 16 x 40mm screws
20x10 - 24 x 30mm Screws
- 16 x 40mm screw
A.
B.
C.
40mm
screw
30mm
screw Pre drill
hole
30mm
screw Pre drill
hole
Pre drill
hole
11
11
12
12
14
14
10x10 - 4x70mm Screws
2x100mm Screws
12x10 - 8x70mm Screws
4x100mm Screws
16x10 - 16x70mm Screws
8x100mm Screws
20x10 - 12x70mm Screws
6x100mm Screws
70mm
screw
100mm
screw
Pre drill
hole
13 13
Step 14
Place an assembled Truss central to
where two panels join. Align the
top of the truss one inch (25mm)
below the top of the sides as shown
in the diagram.
HINT - Use a piece from the xing
kit as a guide.
Pencil mark the truss position and
remove truss.
Place the truss blocks (No. 13) up to
the pencil mark and x using
2x70mm screws per block.
Place the truss back into position on
top of the support block and secure
using 100mm screw each side from
the top down through the truss and
into the block.
For 12x10, 16x10 and 20x10 attach a
truss where each panel joins. For
12x10 you will have two trusses,
for the 16x10 you will have four
trusses and for 20x10 you will have
three trusses.
10X10
20X10
16X10
12X10

P 20
Please retain product label and instructions for future reference
Step 15
Place the roof panels (No. 8, 36
& 38) ontop of the building and
truss making sure the roof
panels sit into the gables and
truss. Do not x the roof panels
untill all roof panels are in place.
There are two roof panels for
the 10x10 building, three for the
12x10, ve for the 16x10 and
four for the 20x10.
Ensure there is an eqal amount
of roof overhang on either side
of the building.
Secure the roof panels (No. 8, 36 &
38) together using the metal U
channel (No. 32) and 6x40mm
screws per U channel.
For a 10x10 you will have one U
channel, two for the 12x10, four for
the 16x10 and three for the 20x10.
10x10 - 6 x 40mm screws
12x10 - 12x 40mm screws
16x10 - 24x 40mm screws
20x10 - 18 x 40mm screws
40mm
screw Pre drill
hole
32
8
8
10X10
20X10
16X10
12X10
8
8
38
38
8
8
363636
8
8
36
Step 16
Following the same method used
in the previous step, secure the
roof panels (No. 8, 36 & 38)
together using the metal U chan-
nel (No. 32) and 6x40mm screws
per U channel.
For a 10x10 you will have one U
channel, two for the 12x10, four
for the 16x10 and three for the
32
10X10
Place the roof panels (No. 8, 36
& 38) ontop of the building and
truss making sure the roof
panels sit into the gables and
truss .
Place two roof panels for the
10x10 building, three for the
12x10, ve for the 16x10 and
four for the 20x10.
Ensure there is an eqal amount
of roof overhang on either side
of the building.
Secure all the roof panels to the
building using 40mm screws
ensuring the building is square
before xing.
40mm
screw
Pre drill
hole
10x10 - 6 x 40mm screws
12x10 - 12x 40mm screws
16x10 - 24x 40mm screws
20x10 - 18 x 40mm screws
40mm
screw Pre drill
hole
10x10 - 32 x 40mm screws
12x10 - 48 x 40mm screws
16x10 - 80 x 40mm screws
20x10 - 64 x 40mm screws
8
8
20X10
16X10
12X10
8
8
38
38
8
8
8
8
363636
36
