Meridian Euro User manual

Welcome to
Welcome to
Security and
Peace of Mind

optional
optional
optional
THIS INFORMATION IS FOR
USE BY THE INSTALLER ONLY
To simplify operation for the user
and to avoid unnecessary confusion,
the Meridian User Manual can be
made up to include only relevant
information.
Remove the pages you do not
require from the binder supplied
Sections Content
Introduction A -4 ✔
Using PIN Codes/Tags B -8 ✔
When Problems Arise C -3 ✔
Setting Individual Areas D -4
Advanced Functions E -6
Manager Menu F - 6
Service Information G
Instruct 60 issue 3

Contents
Introduction A -4
Using Meridian with Code or Tag B -6
Intelligent Setting B7-8
When Problems Arise C -3
Setting Individual Areas D -4
Chime Facility E2
Omitting Zones E3-4
Keypad Personal Attack E5
Obscured Detectors E6
Manager Menu F -3
Omitting 24 hr Zones F4
Changing Date and Time F5
Change/Add Codes or Tags F6- 2
Review History Logs F 3- 4
Walk Testing Detectors F 5
Testing your Sounders F 6
Manager Menu Exit F 7
Service Information G
Note; The specification of Euro Meridian may change from model to model
and some facilities in the manual may not be available. Check with your
installer for full details.

Using your Meridian Alarm System
just couldn't be easier!

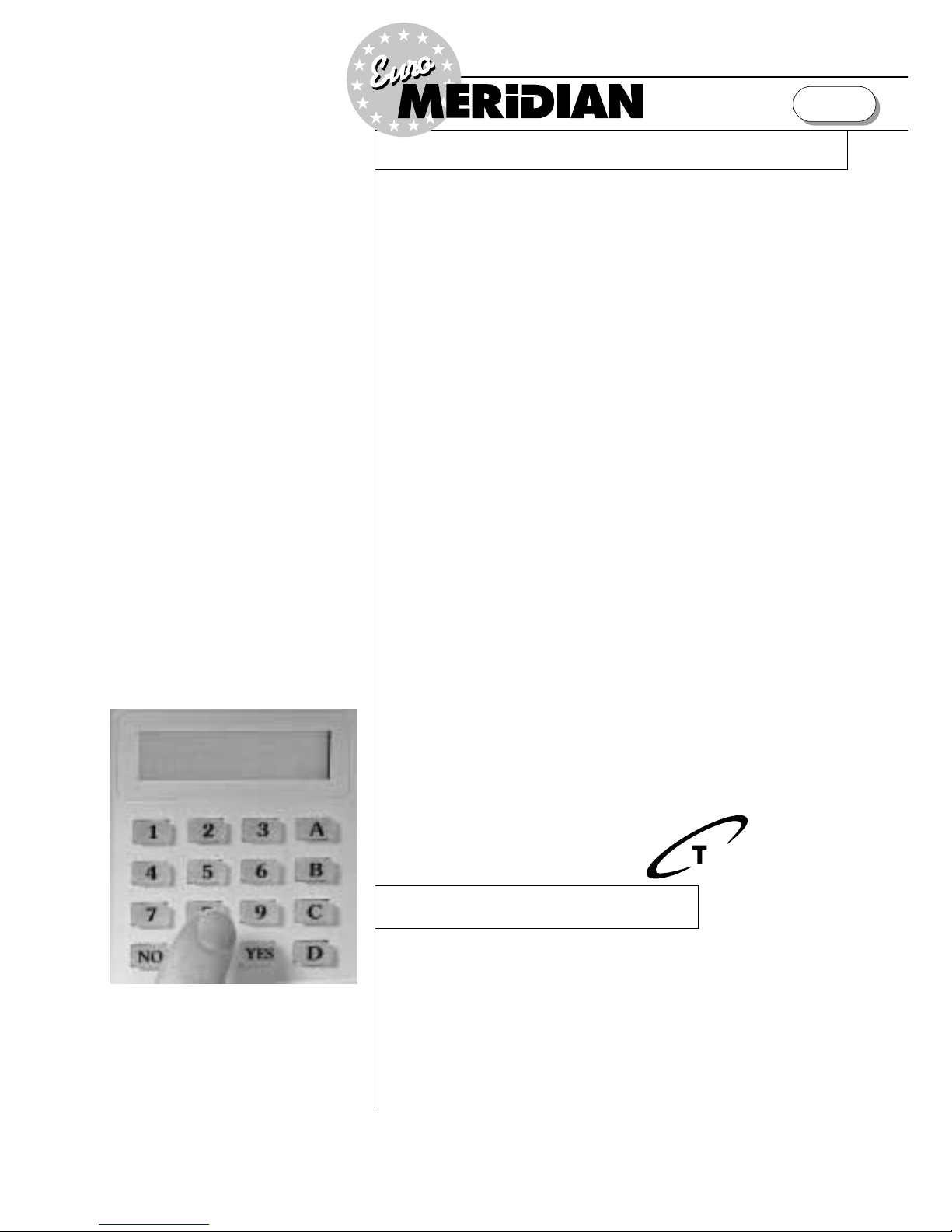

This is the Keypad from where you
control your Alarm System.
A1
A1
You've Made the Right Choice

The display gives you any
important messages.
The 0 digit numeric keypad is
where you use your PIN code.
The A B C D keys help
simplify use, and will light to
highlight your choice of security
cover, or flash if there is a
problem.
This is where you use your Tag.
MAINS FAIL
MERIDIAN
TIME:
A1
A2
The Meridian Keypad
ag

All setting points (Meridian keypads
or Tag Readers) have lamps to
clearly indicate what is happening.
The ‘Po er’ lamp will flash if the
mains supply fails.
The ‘Alarm’ lamp will flash if an
alarm occurs.
The ‘Tamper’ lamp will flash if
Meridian’s wiring or equipment is
tampered with.
The ‘Fault’ lamp will indicate if a
technical fault occurs and will flash
if you cannot set the system for any
reason.
The ‘Unset’ lamp will light if
Meridian is completely Unset
(steady) or if some areas remain
Set (flashing)
A1
A3
Other Setting Points
ag
ag
ag
ag
ag
ag

Meridian's High Security
Proximity Tag can be used to set
or unset your Alarm System with
the minimum of fuss or complexity.
The Tag contains NO batteries
and is completely maintenance
free.
Just touch the Tag to the logo
to use.
The keypad will BEEP to
acknowledge the Tag.
A1
A4
sing Tag
ag

Using the
Keypad
With Your
PIN Code
or Tag
A1
B1

Before you switch Meridian on
You must ensure all doors and
windows are securely closed and
any pets or people are excluded
from areas protected by
movement sensors.
Close
Doors
Close
Windows
Exclude
Pets and people
A1
B2
Security Checks

If you are leaving the building
go to the Keypad and
key in your PIN code or present
your Tag
Exit tone starts.
The appropriate area (ABCD)
keys will light.
Leave by the agreed exit route.
Close and lock the final exit door.
Finally press the ' ush to Set'
button (if fitted) that is mounted
externally by the final exit door.
Exit tone will cease.
Meridian is now SET.
SETTING
OFFICE
MERIDIAN
TIME:
A1
B3
Leaving the building
ag

If when you key in your PIN Code
or present your Tag a warning
tone sounds and the fault lamp
comes on a message will show
the nature of the problem.
If appropriate an ‘ABCD’ key will
flash to indicate in which area the
fault exists.
The tone will cease after about
10 seconds.
Press the ‘NO’ key
Meridian will revert to its previous
state, so you can resolve the
problem.
For example you may have left a
door open if so close the door.
Now commence the setting
procedure again
A1
B4
Faults when you switch Meridian on
ag
UNABLE TO SET
BACK DOOR

A1
B5
Faults when leaving the building
If when you have closed the final
exit door (and pushed the ' ush
to Set' button if fitted) the exit
tone continues to sound an
interrupted tone....
"Beep - Beep - Beep - - - "
You have most probably left a
protected door on the exit route
open.
Return to the keypad and note
the message on the display.
Switch Meridian off with your
PIN code or Tag.
Close the open door
Now commence the setting
procedure again (see B2)
EXIT VIA
HALLWAY
ag

To enter the building you must
use the agreed entry route and
go straight to the Keypad.
Entry tone will be sounding.
"Beep - Beep - Beep - - - "
Key in your PIN code or
present your Tag.
Entry tone will cease.
Meridian is now UNSET.
A1
B6
Entering the building
ag
ENTRY TIME [20]
ENTRY TIME [10]
**

If you wish to set Meridian
and stay in the building
(eg set the alarm at night)
Meridian's intelligent operating
system will realise what you
require and set only part of the
system.
You will NOT need to press a
'Push-to-Set' button if you set
only part of the system.
A1
B7
Part - Setting Meridian
Intelligent Setting
For systems
using
Intelligent Set

To Part Set Meridian go to the
Keypad and enter your PIN code
or present your Tag.
The appropriate ‘ABCD’ keys
will light
Exit tone will start.
Leave the protected area and retire
to the un-protected area (eg
Upstairs).
After a pre-set time the exit tone
will cease.
Meridian is now art Set.
B8
Intelligent Setting
Staying in the building

A1
C1
ag
When
Problems Arise
Just Key In Your
PIN Code
or
Present
Your Tag

If an Alarm tone sounds
Just key in your PIN code or
Present your Tag.
The Alarm will stop sounding.
The display will indicate
the problem and the appropriate
lamp will light.
Press the 'YES' key.
Meridian will advise you on the
action to take if needs be.
ALARM SILENCE
LOW VOLTS
A1
C2
Silencing Alarms
ag
CALL ENGINEER
LOW VOLTS
ag

hen Meridian has been reset
after an alarm a random 5-digit
code may be displayed, along
with the message "RESET
REQUIRED".
Normally it is then necessary for
an engineer, from your installing
company, to check the installation
and reset the system for further
use.
But if you have caused the
alarm in error your Alarm
Receiving Centre may permit you
to reset the system without an
engineer present.
You will be required to quote
this 5-digit code by telephone
(advise them that the system is a
Castle ‘EURO-MERIDIAN' ). You
will then be given a special code
which will reset the system for
that one occasion only
A1
C3
Engineer Reset
ENGINEER RESET
REQUIRED 21055

Setting
Individual
Areas
A1
D1

Sometimes your security needs
will be a little more complex and
you will need to use Meridian's
A B C D keys.
Your Installer can also give names
to all four of the A B C D areas,
so that you can easily identify
them.
or example:
A = Reception
B = Warehouse
C = Office
D = Storeroom
In addition, names can be given
to the whole system
‘ALL AREAS’
These will be displayed when
setting the system
MERIDIAN
TIME:
A1
D2
SETTING
RECEPTION
The A B C D Keys
SETTING
ALLAREAS
or All Set
Bedtime Set
Cat in Lounge
Dog in Study
