Merkava eFold Fatty500 User manual

POWER CHARGED TRANSPORTERS
eFold Fatty500
User Manual

1. Carefully remove contents of box out o, the packaging.
You will find:
. 1x eFold Fatty500 eBike
. 1x 110V Charger
. 2xKeYs
. 1x Set offolding pedals
. 1x Set ot refledive lights
2. Fold open the eBike and the handlebar and secure both quick release latches. when
opening the frame be aware ofthe wires that run through the frame so as not to accidently
close the frame on them and risk pinching the wires.
4_
3.
5.
6.
7.
lnstallpedals.
Place handle bar in place and tighten allen screws
Place seat to desired height and tighten quick release latch.
lnflate tires to about 15-20PSl
Place your eFold Fattysoo on a raised suaface for easy inspection while securing one ofthe
wheels so it stays in place then proceed tovisually check the eFold Fatty500 components
and ensure that all screws and bolts are tightened and that tires are correctly inflated. Check
and adjust break lever to your preference and checkthat the dera illeur fu nctio ns properly.
This is usually already done once at the factory and once before shipping but as a
precautionary measure we recommend you do this as well before riding as some
components may shift durinS transport.
Charge your eFold Fatty500 in a clean environment at ambient temperature until light on
the chargerturns from red to green. You can charge the battery while still inside the frame
of the eBike or you may remove the battery and charge it independently. To remove the
battery pack open the quick release latch on the frame and fold the eBike, insert the key
underthe battery and turn it counter clockwise untilthe lock pin goes inside the battery.
Proceed to slowly pull out battery pack. Repeat process in the inverse order to re insert the
battery pack into frame.
Once you've familiarized yourselfwith the digita I display you willbe ready to ride. Please
ride carefully! (see attached instruction for 800s display)
8.
IMPORTANT NOTE: To AVoID DAMAGING YOUR BATTERY PACK WE STRONGLY RECOMMENO
usER SHUTS DOWN AND RECHARGE THE eFold Fatty500 ONCE AATTERY LEVEI REACHES 10%. YOU
WI.L EiIIER THIS CRITICAI. LEVEL SHORI1Y AFIER YOUN DISPLAY SHOWS 1 AAR OR REACHES iOV IiI
THE VOLTAGE MEIER.

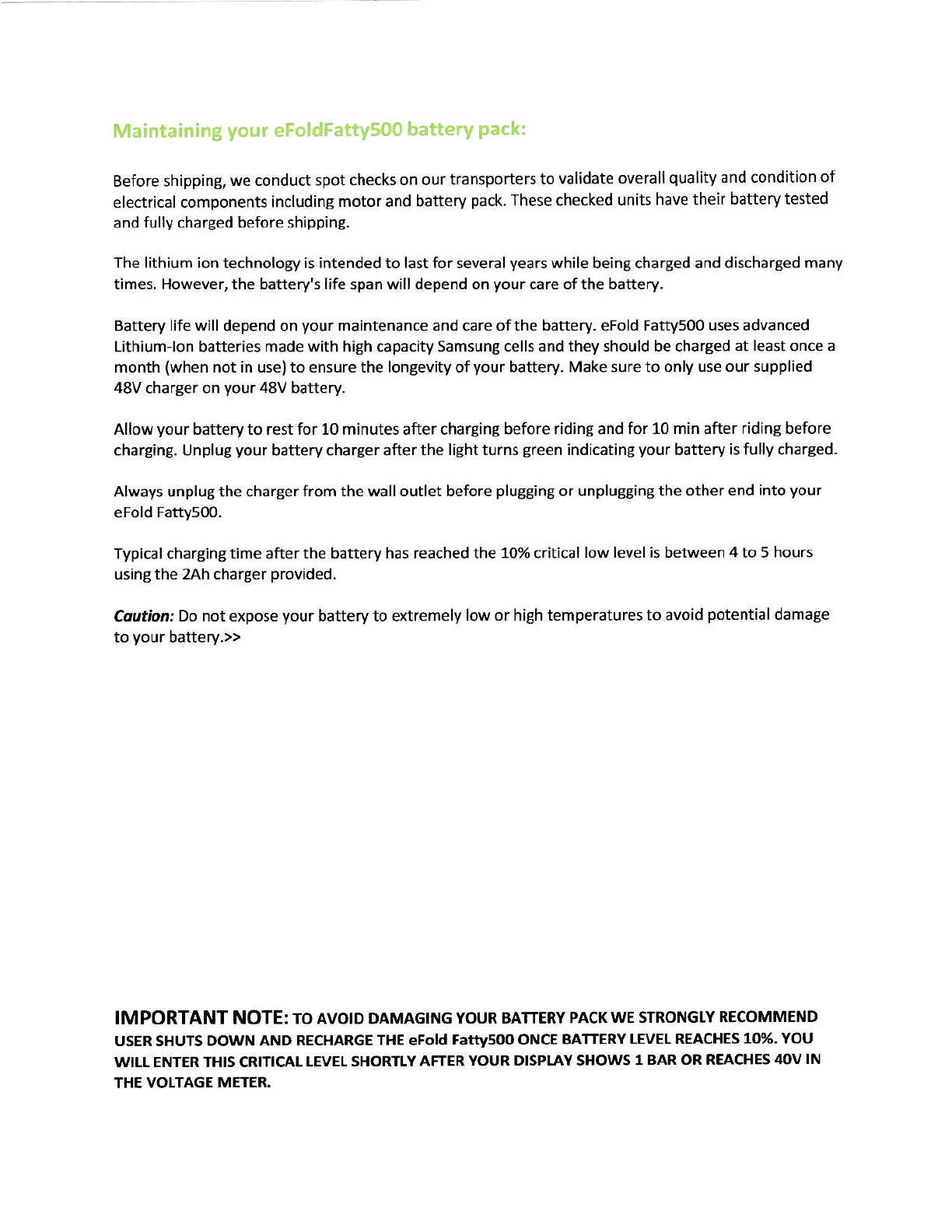

Before shipping, we conduct spot checks on our transporters to validate overall quality and condition of
electrical components including motor and battery pack. These checked units have their battery tested
and fully charaed before shipping.
The lithium ion technology is intended to last for several years while being charged and discharged many
times. However, the battery's iife span will depend on your care of the battery-
Battery life will depend on your maintenance and care ofthe battery. eFold Fatty500 uses advanced
Lithium lon batteries made with high capacity Samsung cells and they should be charg€d at least once a
month (when not in use)to ensure the longevityofyour battery- Make sureto only use our supplied
48V charger on your4SV battery.
Allow your Llattery to rest for 10 minutes after charging before riding and for 10 min after riding before
charging- Unplug your battery charger after the light turns green indicating your battery is fully charged.
Always unplug the charger from lhe wall outlet before plugging or unplugging the other end into your
eFold Fatty500.
Typical charging time after the battery has reached the 10% critlcal low level is between 4 to 5 hours
using the 2Ah charger provided.
Coutior. Do not expose your battery to extremely low or high temperatures to avoid potential damage
to your battery.>>
IMPORTANT NOTE: To AvotD DAMAGTNG youR BATTERY PACKwE STRoNGLY RECoMMEND
usER sHUTS OOWN AND RECHARGE THE eFold Fattysoo ONCE BATTERY LEVEL REACHTS 1O%. YOU
WILI- ENTIR THIS CRITICAT LEVEI- SHORTLY AFTER YOUR DISPLAY SHOWS 1 BAR OR REACHES 4OV IN
THE VOLTAGE METER.

M.rkava stands behind its products. All our transporters benclit from a 2 ycar limitcd
warranty.
I'hc COMP NY warants that thc frame will bc frcc from def'ects in the matcrials and
workmanship for a pcriod of 2 ycars.
]'hc C()MPANY warrants that the motor and battcry pack will bc ftec lrom dcfects in the
matenals and workmanship for a pcriod of 1 year*.
The COMPANY wanaits that the elcctrical components including the controllcr and
charger will bc free from deticts in the materials and workmanship for a period ol 6 months.
Reforc shipping. wc conduct spot checks on our transporters to validatc ovcrall quality and
condilion ofelectdcal conlponents includinB motor and ballery pack. These chcckcd units have
thcir battery tested and fully charged betbrc shipping.
'I'hc lithium ion techrology we use is intendcd to last fbr several years while bcing charged and
discharged many times. Ilo\rcvcr, the battery's liL span will dcpcnd on yourcare ofthe battcry-
Ifthe PR()DtlC'T provcs defective AND a claim is fillcd during the warranly period. thc
COMI'ANY at its option. will:
l{epairthePRODUCTbymeansoftclcphonesuppo.emailsupport,orbyprovidirgthe
necessary parts at no chargc-
Warranty claims must be filed with Merkava hy cmail: lqil44cr'1.rr r.e rr
*Waranty on battcry will be limited to 6 months if it is dctermined that our guidclines lbr proper
baftcry care have not been lbllowed.
Thc following are not covered by the warranty:
o Wcar and tcar on fi'ame, grip tape. levers, tubcs. tires. brake discs, brakc pads. cables,
seats, plastic lairjngs and any other component which wcars out naturally during usagc.
. Minor scratchcs and stress marks that may occur during shipping and handling.
. water damage caused by exposing sensitive electrical parts to watcr such as rlashing
transportcr with hose or pressurc washcr.
. Accidenls, misusc, abusc. human ertors oa lack ofmaintenance.
r Acts-ol-god such as firc, flood. earthquake, frcczing. etc

Warranty information continued:
Thc followingwill void the warratrty:
. The modification ofyour tmnsporter or use outside those specified on this site.
r The serial number of the product has been altered or removed,
r The Foduct has been dismantled and repaired/rcassembled with aftermarket parts.
o Overloading your transporter.
. Storing your transponer outdoors.
IMPORTANT NOTE: ro AvorD oaMAGTNG youR BArrERy pAcx wE srRor{cLY RECoMMEND
usER sHUTS DOWN AND RECHARGE THE eFold Fatty500 ONCE BAfitRY LEVEI REACHES 10%, YOU
wlLL ENTER THIS CRITICAL LEVELSHORTLY AFTER YOUR DISPTAY SHOWS 1 BAR OR REACHES 4{IV IN
]HE VOI.TAGE METER.

. Always Start in the slow PedalAssist mode
. Grip both hand grips
. Check brake level for positive braking action
. Press the power button on the display
. Start pedaling, motor will kick in within a second or two
. once your comfortable riding the eBike on Pedal Assist Mode you can start using the
throttle instead of pedaling.
. You should only use ONE riding mode at a time. lf using throttle do not pedal. lf pedaling
with pedal assist mode do not use throttle.
. Please note, throttle only riding will lower the max range on a charge considerably.
. ALWAYS follow your local laws regarding e8ikes and be respectful of other riders on the
road and on trails.
Always wear an ASTM and CPSC certified helmet when riding. Make sure that chin strap is
attached before your ride and follow the helmet manufactlrres instructions for proper user and
fit.
Make sure to always wear shoes that have good traction on the pedals and will stay on your
feet.
Squeeze the hand brake levers to ensure there is positive braking action before starting your
ride.
IMPORTANT NOTE: To AVoID DAMAGING YOUR BATTERY PACX WE STRONGLY RECOMMEND
USER SHUTS DOWN AND RECHARGE THE eFold Fatty500 ONCE BATTERY LEVEL REACHES 1()%. YOU
WII.L ENTERTHIS CRITICAL TIVEL SHORTTY AFTER YOUR DISPI.AY SHOWS 1 BAR OR REACHES 4OV IN
THE VOI.TAGE METER

ra;=-r
Tianlin APT Development Co.. Ltd.
1 Product Name
1.1
1.2
2.1
4.1
4.2
The [,,liddle install intelligent LCD Display
Model:APT12LCO800S
3 ElectricalParameters
+ 24Vl36V battery supply
+ Rated operating cunent: 1omA
+ [Iax operating cunent : 30mA
+ Off leakage current < 1uA
+ Max output curent 1o controller : 50mA
+ Operating temperature i -30-'70 C
+ Storage temperature : -40-70C
4 Dimensions & Material
Producl shell is ABS, lransparent wandou/ is made
stifiness equals the tempered glass.
Dimensions : hosrl90mm'W54mm'H13.3mm
2 Suppliers
Tianjin APT Development Co., Lld.
Email : vzhaolAaotdeveloo.com [email protected]
wilh high strenglh Acrylic, the
Room 609, Hi-ledr Building H, No.6 Huatian Road,
Huayuan lndusbalArea, Tianjin 300384, china TEL:[phone]
FA* a6 22 8371 9955
Email: [email protected]

FTP_I
Tianjin APT Development Co., Ltd.

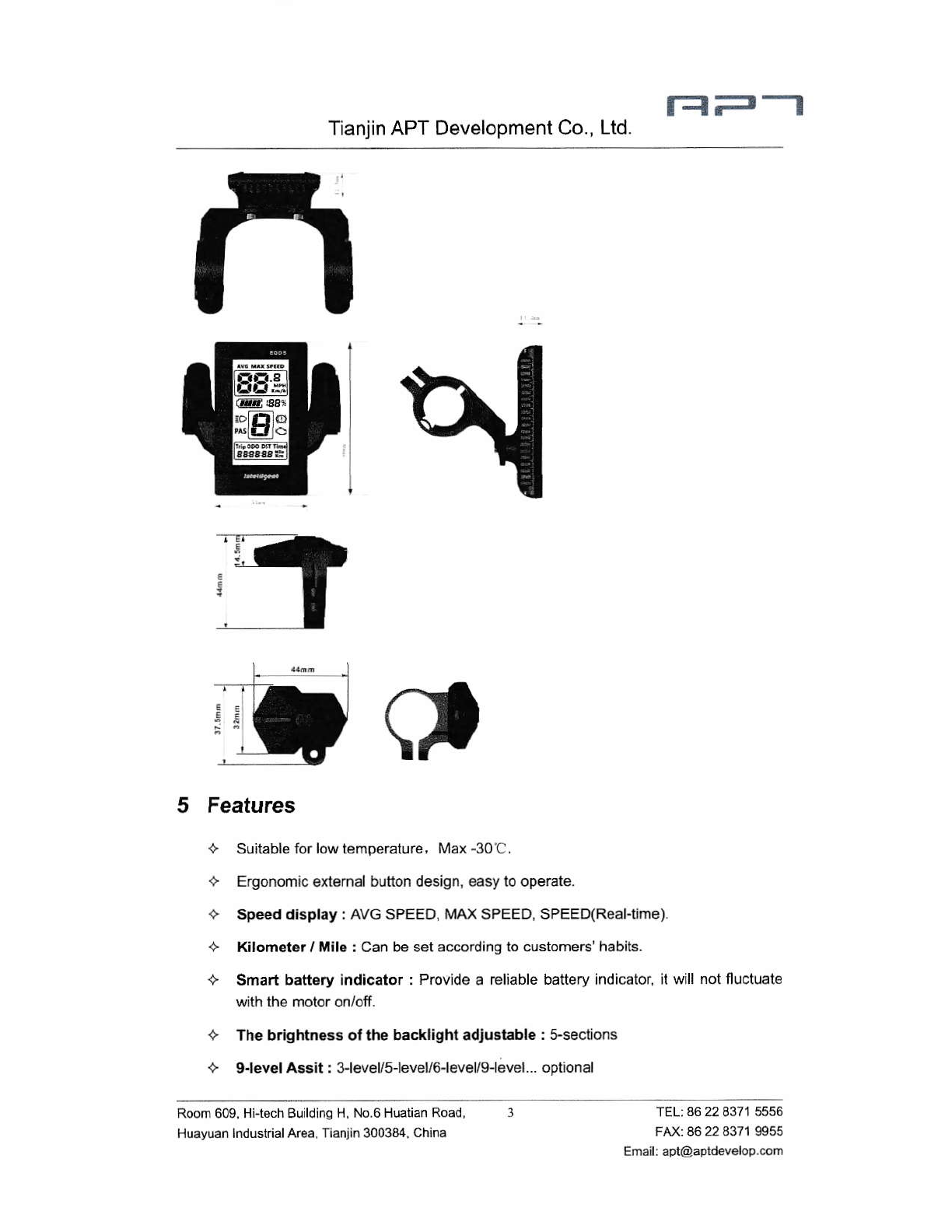

5 Features
+ Suitable for low temperature, Max-30"C.
+ Ergonomic exlemal button design, easy lo operate.
+ Speed display: AVG SPEED, MAX SPEED, SPEED(Real-time).
+ Kilometer / Mile : Can be set according to customers' habils-
+ Smart battery indicator : Provide a reliable battery indicator, it will not fluctuale
with the motor on/off.
+ The b.ightness of the backlight adluBtable : tsections
+ g-level Assit : 3-level/5-levev6-levd/9-level... optonal
Roorn 609, Hllech Buildin! H. No 6 Huatian Road,
Huavuan lndusirialArea Tianiin 300384, China TFt a6 22 4371 5556
FAX: [phone]
Email [email protected]
#:
FEEII
Diritql
ffi
IffiEfl
ry

reP-l
Tianjin APT Development Co., Ltd.
+ Mileage indlcator: Odomeler/Trip distance/ Riding time
+ Error coda indicator
+ Parameter sefiings : Multiple parameter can be set through computer USB port,
including Assist level/ Wheel diameter / Voltage / Speed limit...
6 LCD instructions
The figure of LCD display see below:
EE#^
Sgeed mode
Speed display
Batt€ry indicator
Lamp
Brak6
PAS level
ERROR code
N,lil6age mode
Mileage information
7 FunctionalDescription
UP
POWER
oowN
7.1 Power On/Off
Press and trob @ outton for 1 second can tum on/off lhe display. The Display can
Room 609, Hi-lech BLrilding H, No.6 Huatian Road
Huayuan !ndustralArea, Tianjin 300384, china TEL:[phone]
FAx: [phone]
Email: apt@apldryelop .@

rAP_I
Tianiin APT Development Co., Ltd.
automalically shut down when lhere is no operate & ride for X mlnutes ( X could be
0-9).
7.2 Assist level operating
Short press OPfD]'/Dd@ butlon can change the assisl level. Top assisl tevet as 9, o for
neutral. Level quantities c€n be adjuslad according to the customer requiremenl6.
SPTTD
m
@E
P s[r?]
l-:!zj
IE**;
@
r--it
,orl tl
t-_J)
lr;----l
loboap ,- I
lt->
€r
SPETD
,-rl5;;,
@E
Ti-r
,^'ltil
Assist oporating
7.3 Speed mode switch& Mileage mode switch
Short press @ uutton can change the speed mode& the mileage mode,
Speed->AVG Speed->MAX Speed->Trip->ODO-> Time.
E=;:,lo[LJE*lom
1t
[-iA *a- otu-t *
l0o5cY0 l-lcogY5€r- ]-
oDo
Speed modo switch& Ml6age mode swilch
rlf ih6re is no operalion for 5 s6conds, display will return Speed (Raal-Time) dlsplay
7.4 Headlighubacklighr On/Ofi
Press and hold lE butlon for 1 second can lurn on/offthe headlighubacklight
The motor doa€ not rc.k when tre batr€ry voltloa is hw, Obday stillcan k6€p tha headlEhl on f6. a
while $rlen E-bike is in nding.
Room 609, Hitech Bu ding H, No.6 Hualian Road, j
Huayuan lnduskialArea TiantLn 300384, China
C
rG;----------l
lccoasz,(. I
TEL:[phone]
FAX [phone]
Email: apl@aptdevek p,@m

raP-t
Tianjin APT Development Co.. Ltd.
'EED
a
s
5
l-.
x
@
r;;-t
,^,lH')
000PB.P x'
LIX;;"
@!E
-^TrEl
ill'r'l
Itr, I
000e 8.e *^
7.5 6km walk
xE*,
@Z
-- T;-^ l
iulL/
PAs lI I
l! I
000?B? x-
Room 609, Hilech Building H, No.6llualian Road,
Huayuan lnd!strialArea,Tia.jin300384, China TEL:[phone]
FAx: [phone]
Email: [email protected]
Press and hold @ button for 1 second can get lnto walk mode, out of ihe mode
when release lhe button.
Llx,i,,
@
000P8? x.
7.6Data cleanup
Press and hob @ & EbWii butlons logether for 1 second can rcset several iemporary
data, temporary data include AVG Sp6€d / MAX Sp6ed /Trip / Time.

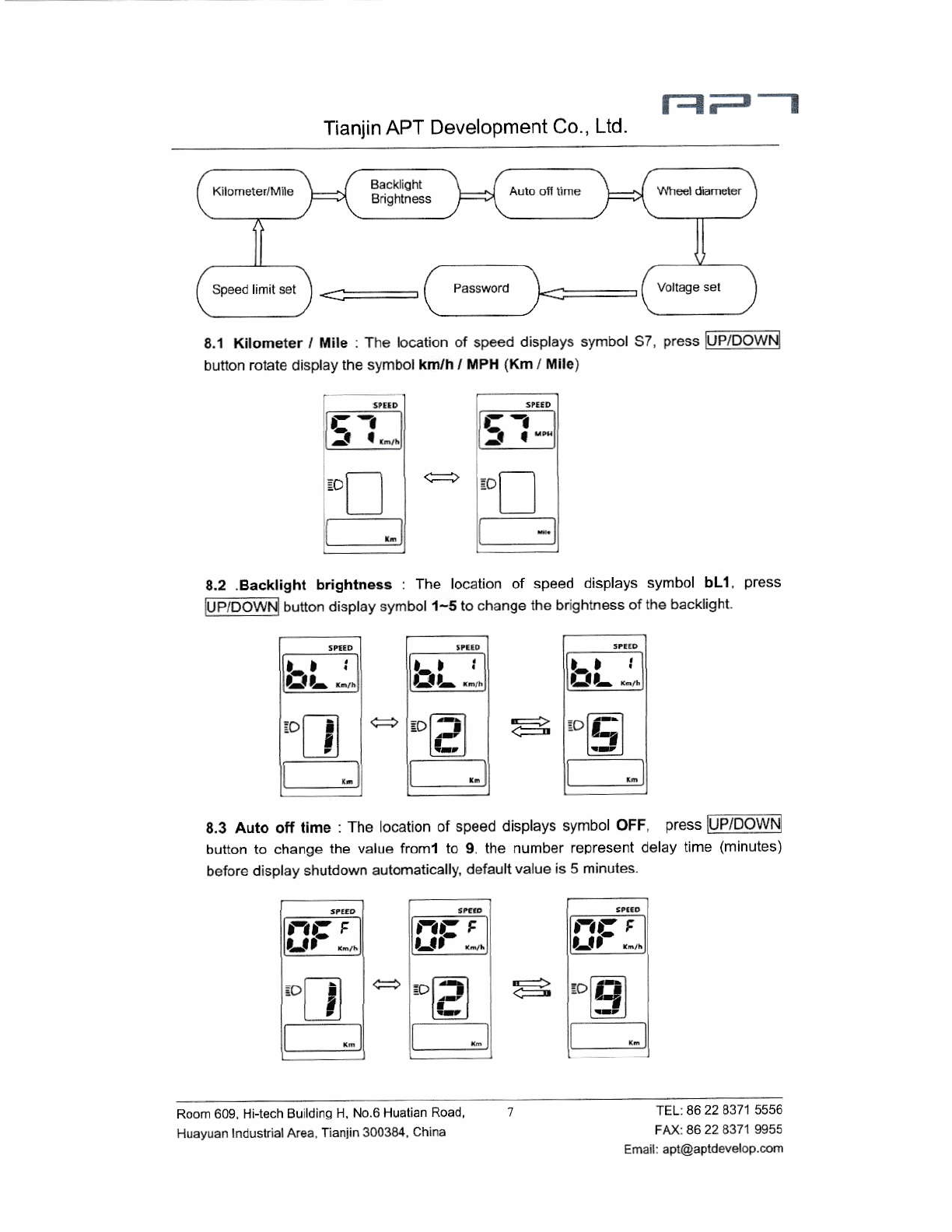

8 Parameter setting
Double press F6WFd button (press inlerval iess han 0.3 second) can gel into parameler
setting state, the parametar twinkles. short press @ burons to change the
parameier value, short press 1F6WEd button can switch to the next parameter. Double
press F6WER button (press interval less than 0.3 second) can quit from the parameter
selting state. The meter Mll automatically quit the parameter setting state when lhere is no
operation for'10 seconds.
The order of parameters is as follows.

!q--l
Tianjin APT Development Co., Ltd.
8.1 Kilometer / ile : The location of sp€ed displays symbol 57,
butlon rotate display the symbol km/h / MPH (Km / Mlle) press U-F7D6W!
8.2.gacklight brighln6ss : The location of speed displays symbol bLl, press
@ button aisplay symbol t-5 to change lhe brightness ofthe backlight.
hL;,
'E
8.3 Auto oft tlme : The location of speed displays symbol OFF, press @
button to change ihe value froml to 9 the number represent delay time (minuies)
before display shutdown automatically, default value is 5 minules.
EFT;
ofE
LI
L |l m
r:l
i()t tt
Room 609, Hitech Building H, No.6 Hualian Road,
Huayuan lnduslrialArea,Tianjin3003S4, China TEL:[phone]
FAx: [phone]
Email: apt@apldev€lop-@
h!- "r,
--a:l
'." ,-,

Tlanjin APT Development Co.. Ltd.

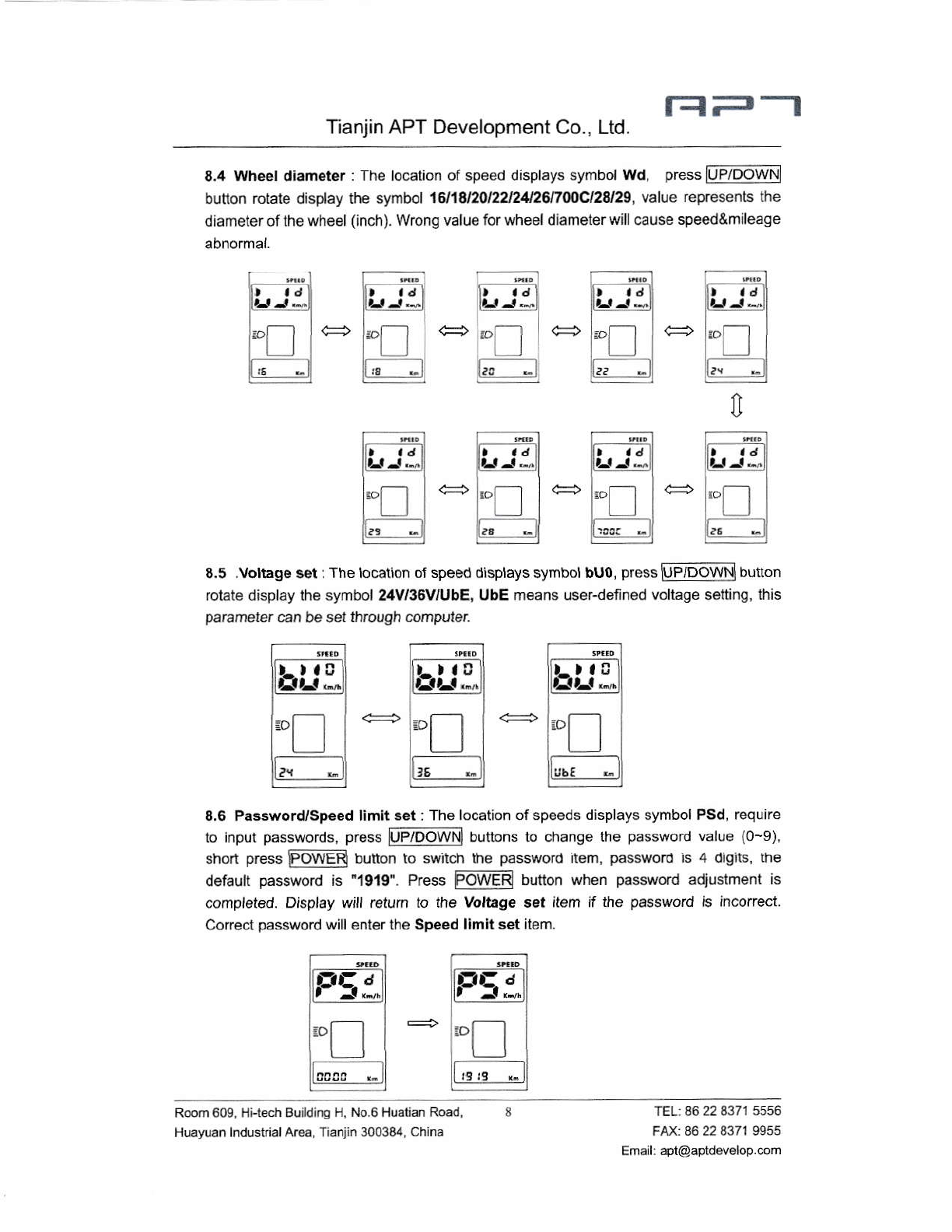

8./t wheel diameter : The location of sp6ed displays symbol wd. press IUP/DoW\d
button rotate display the synbol 1611U20112212A126fr00C128r29, value .epresents the
diameterofthe wheel(inch). Wrong value for wheel diameter will cause speed&mileage
abnormal.
E----r
--;t
16 .;ll
lll.r.l -ll
l-l
lIol
ILlI
Ell
raP-r
-E 6.al
lL' J *ll
<- rol---l
L,l
,..-1.-,^
-E L! -4 .-, -tr
8.5 .Voltage set : The loDaiion of speed dlsplays symbol buo, press EFESWNI uutton
rotate display the symbol 24VI35V/UbE, UbE means user-defined voltage setting, this
parameter can be set Ihrough computer
hil.:"
.E
?Y
8.6 Password/Speed limit set : The locaiion of speeds displays symbol PSd, require
to input passwords, press @ buttons to change the password value (o-9),
short press F6WER button to switch lhe password item, password is 4 digits, the
default password is '1919'. Press FOWgfl outton when password adjustfient is
completed. Display will roturn to the Voltage set item if ihe password is incorrect.
Correct password willenterthe Speed llmit set item.
F\:,.
lhii.:"
.E
Lt J.-,,
*T
0
La.!.--
Room 609, Hi-tech Building H. No.6 Huatan Road,
Huayuan lndustdar A.ea, Tianji.300384, china TEL:86 22 a37'1 5556
FAxr 86 22 8371 9955
Ema I [email protected]

r==-t
Tianjin APT Development Co., Ltd.

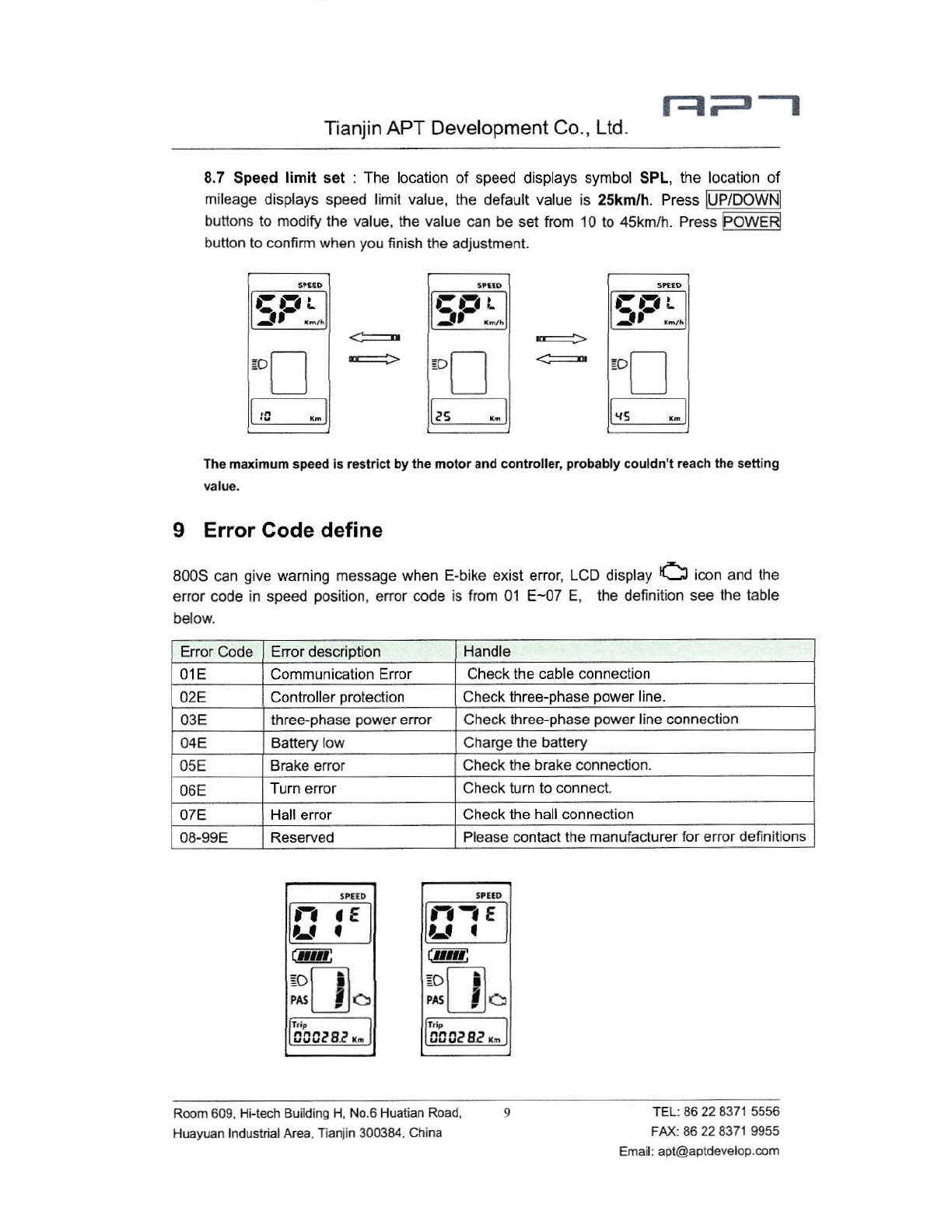

8.7 Speed limil sot : The locaiion ot 6peed displays
mileage displays speed Iimit value, the default value symbol SPL, the locaiion of
is 25km/h. Press EFEdWll
buttons to modiry lhe value, lhe value can be sel fiom 10 to 45km/h. press @
butlon lo confrm when you fnish the adiustmenl.
The maiimum lpeed i3 restrict bythe moto. and controller, probably couldn't reach ths setling
9 Error Gode define
8005 can glve warning message when E-bike exist error, LCD display ft icon and ttre
error code in speed position, enor code is from 01 E-07 E, the definition see the table
Error Code Error description Handle
01E Communication Error Check the cable connectron
a2E Controller proiect on Check three-phase power line.
03E three-phase power error Check lhree-phase power line conneclion
04E Battery low Charge the batlery
05E Brake error Check the brake connection.
06E Check turn to connect.
a7E Hall error Check the hall conn6ciion
08-99E Please contact the manufacturerfor error definrtlons
,? ,r
,JI
@
ilD.
00024:,-
Room 609, Hi-tech Building H, No-6 Huatian Road,
HEyuan lnduslrialAEa, Tianjin 300384. china TEL:[phone]
FAX: [phone]
Emair: apt@aptd,av€rop.@m
5i:,:,
,T 5F:
.T Ei:,":,
,E

ra=-l
Tianjin APT Development Co., Ltd.
10 Assembly instructions
Please pay atteniion to the screw's torque value, damaged caused by excessive tolque
is not within lhe scope of the wananty-
I 4*16 I
I srD=o io N [t
I AX=o. 70 N. il
it4*8
ISTD=o.50 N. ll
ttAx 0.70 \. $
v3*10
S'll)-{). J0 \. \l
u^x=0. 70 \. \1
There are 2 directions for lhe clamp installaiion, foMard or backward.
Different assembly methods will need different cable l€nglh.
Room 609, Hnten Building H, No-6 Hu.lian Road,
Huayuan lndustrial Area, Tianiin 300344, China TEL: [phone] FAX: 86 22 s371 9955
Email apt@aptdevelop.@m

taP-t
Tianjin APT Development Co., Ltd.
Clamps suit for 3 size of handlebar. 31.8mm, 25.4mm, 22.2mm, there are transfer rings for
25.4mm and 22.2mm, transfer ring must b€ assembled with the special dkections, pay
atteniion to the green arrow below.
11 Warning
There is waterproof membrane inside ihe sound hole. Don'i insert sharp object into the hole,
it will causes waterproof failure.
Sun exposure may c€use high temperature indicate, this is not display's failure.
12 Output wire instructions
(3) BLAcx
Room 609, Bi-tech Building H, No.6 Hualian Road,
Huayuan lnduslral Area, Tlanjin 300384, china TEL] 86 22 8371 5556
FAx: [phone]
Email: apt@apidevelop.@m

r=P-l
Tianjin APT Development Co., Ltd.
1. Red wir6: Anode(24vl36v)
2. Blue wire : Power cord to the controller
3, Black wk€ : GND
4. Green wire: RxD (controller -> display)
5. Yellowwirc: TxD (display -> controller)
13 Assist level instructions
Assist level can be customized, lhe highest level is 9, common used assist level see the
t6ble below:
3 level 5 level I level
0 0 No power assisl
1I
2
123
4
3 5
2 6
8
35I
14 Certification
CE / lP65 (water proof) / ROHS.
Room 609, H]-tech Bujldlng H, No 6 Hualian Road, 12
Huayuan lndustrial Area, Tianli. 300384. china TEL:[phone]
FAx: [phone]
Email : [email protected]
