Yeti ARC User manual



ARC

TABLE OF CONTENTS
BRAND OVERVIEW 03
FRAME FEATURES 05
GEOMETRY 07
MAINTENANCE SCHEDULE 09
TECHNICAL
EXPLODED VIEWS 11
ASSEMBLY OVERVIEW 15
REBUILD KITS 19
LEGAL
WARRANTY 23
CONTACT INFORMATION 24
1.2.

3.4.
CONGRATULATIONS ON
YOUR PURCHASE OF A
NEW YETI.
We are confident your new bicycle will
exceed your expectations for value,
performance, and ride quality. Each
frameset and component has been custom
specified and designed to enhance your
riding experience. Whether you are a
beginner cyclist, or a seasoned pro, your Yeti
bicycle will provide endless hours of two-
wheeled fun.
This model specific manual is designed to
be used in conjunction with the general Yeti
Owner’s Manual and the manuals supplied
by the suspension manufacturers. If you did
not receive the Yeti owner’s manual or the
manual provided by the suspension
manufacturer, download the materials off
the Internet, or contact your local dealer.
Bicycling can be a hazardous activity
even under the best of circumstances.
Proper maintenance of your bicycle is your
responsibility and when done properly helps
reduce the risk of injury and damage to your
bicycle.
This manual outlines basic setup and
maintenance recommendations of your new
Yeti. Because it is impossible to anticipate
every situation or condition that may occur
during the assembly, setup, and
maintenance of your bicycle, Yeti
recommends that all service and repairs be
performed by your local authorized Yeti
Dealer.
This manual contains many “Warnings” and
“Cautions” concerning the consequences of
failure to maintain or inspect your bicycle.
The word “Warning” indicates a potentially
hazardous situation in which , if not
avoided, could result in serious injury or
death. The word “Caution” indicates a
potentially hazardous situation in which, if
not avoided may result in minor injuries or
damage to your bicycle or a component of
your bicycle. Be sure to read and
understand all of the Warnings and
Cautions listed in the manual.
Warning: Make sure you review and understand the warnings, instructions, and content of this manual and accompanying
manuals for your bicycle.
Warning: Technological advances have made bicycles and bicycle components more complex and the pace of innovation
is increasing. It is impossible for this manual or the accompanying manuals to provide all the information required to
properly repair and/or maintain your bicycle. In order to help minimize the chances of an injury, it is critical for you to have
work performed by an authorized Yeti retailer.

5.6.
1. Cutting-edge, high modulus carbon is hand laid to create our Turq
Series frames. That same stiffness and efficiency can also be found
in our Carbon Series frame sets.
2. The ARC does away with the front derailleur mount, making it a 1x
drive specific frame.
3. 2-bolt ISCG-05 chain guide mounts are there for you in case you
need extra drivetrain security for rowdy sections.
4. Designed around 130mm of travel, the ARC comes with the latest
Fox Racing Shox 34 front fork.
5. Custom seatstay, chainstay and down tube guards keep the ride
quiet while protecting the frame.
6. The ARC is designed with rattle-free cable ports and internally
molded cable routing tubes keeping the bike quiet and clean
looking while reducing cable rub and overall maintenance.
7. Configurable routing ports that provide a clean look to your frame
when you ditch the cables and go wireless.
8. Dedicated 12 x 148 Boost dropouts with SRAM's universal
derailleur hanger provide strength, stiffness and easy hanger and
wheel installation.
2. HIGH MODULUS CARBON FIBER MAIN FRAME AND SWING ARM
3. INTEGRATED 2-BOLT ISCG-05 MOUNTS
4. INTEGRATED 41MM / 52MM TAPERED HEADTUBE
5. CUSTOM DOWN TUBE PROTECTOR AND RIBBED CHAIN GUARDS TO DECREASE CHAIN SLAP NOISE
6. RATTLE-FREE CABLE PORT ASSEMBLY SECURES CABLES AND HOSES TO PROVIDE A SILENT RIDE
7. INTERNALLY MOLDED CARBON TUBES FOR HASSLE-FREE CABLE ROUTING AND A QUIET BIKE
8. INTEGRATED AXLE AND UNIVERSAL DERAILLEUR HANGER SYSTEM
9. BOOST HUB SPACING, FRONT AND REAR
10. DUAL WATERBOTTLE MOUNTING LOCATIONS
11. UNINTERRUPTED SEAT TUBE FOR COMPATIBILITY WITH LONGER TRAVEL DROPPER POSTS
THE LOWDOWN ON THE
ARC AND ITS FEATURES.
1. MODERN GEO TO ELEVATE HOW HARDTAILS CAN BE RIDDEN

7.8.
GEOMETRY
FIT
MEDIUM 5'5" (165 CM) - 5'11" (180 CM)
LARGE 5'10" (178 CM) - 6'3" (191 CM)
X-LARGE 6'1" (185 CM) - 6'7" (200 CM)
SMALL 5'1" (155 CM) - 5' " (10 CM)
FOX 34 / 130MM FORK
MD LG XL
A WHEEL 29” 29” 29”
B REACH 445.0 465.0 490.0
C EFF. TOP TUBE 604.3 626.0 653.4
D STACK 638.9 645.1 654.3
E HEAD TUBE LENGTH 102.9 109.6 119.6
F SEAT TUBE LENGTH 410.0 450.0 495.0
G EFF. SEAT TUBE ANGLE 76.0 76.0 76.0
H HEAD TUBE ANGLE 67.0 67.0 67.0
I EST. BB HEIGHT 310.0 310.0 310.0
JCHAINSTAY LENGTH 433.0 433.0 433.0
KFRONT-CENTER 738.5 761.2 790.1
L WHEELBASE 1171.5
MSTANDOVER 722.0 720.0
NALXE TO CROWN 543.7
O FORK OFFSET 44 44 44
*All measurements are in millimeters
SM
29”
420.0
577.4
631.7
95.0
380.0
76.0
67.0
310.0
433.0
710.5
1143.5
723.0
543.7
44
720.0
543.7 543.7
P119.7 119.7 119.7
VERTICAL WHEEL TRAVEL
H
O
L
K
J
I
M
E
C
D
B
F
G
N
P
1194.2 1223.1
119.7

9.10.
TORQUE
Yeti strongly recommends using a torque wrench when assembling your frame.
Torque specifications for individual parts on the ARC are listed below, as well as in
the step by step assembly instructions later in the manual. For general bicycle
maintenance please consult the torque specifications of the component you are
adjusting.
KEY TORQUE SPECS
PART NUMBER DESCRIPTION TORQUE (NM)
300030010 SHCS, M5 X 0.8, 16L 4-5
300030177 SCREW, FH, M4 X 0.7, 25L 2-3
300030174 SCREW, FH, M4 X 0.7, 15L 3
300030173 SCREW, FH, M4 X 0.7, 10L 2-3
300030163 UNIVERSAL HANGER STOPPER 5
WEEKLY
MONTHLY
3 MONTHS
ANNUALLY
CHECK TIRE PRESSURE
CLEAN BIKE OF MUD AND DEBRIS
CHECK BRAKE FUNCTION
CHECK FOR LOOSE BOLTS AND TIGHTEN, IF NECESSARY
CHECK HEADSET AND TIGHTEN / LOOSEN, IF NECESSARY
CHECK / REPLACE BRAKE PADS
CHECK TIRES FOR WEAR
CHECK SPOKE TENSION. RETENTION, IF NECESSARY
CHECK CHAIN FOR WEAR. REPLACE IF NECESSARY
COMPLETE TUNE-UP PERFORMED BY AN AUTHORIZED YETI DEALER
KEEP YOUR YETI FRESH
AND CLEAN
OVERVIEW
Following these guidelines will help maintain the performance of your bicycle and
prevent more serious problems from arising. It is important to remember that service
intervals can vary depending on climate, trail conditions and riding frequency. If you
are unsure about working on your own bicycle, contact your authorized Yeti Dealer for
more information on general bicycle maintenance.
SCHEDULE
CLEAN AND LUBE CHAIN
300060080 SRAM UNIVERSAL HANGER 25

1112.

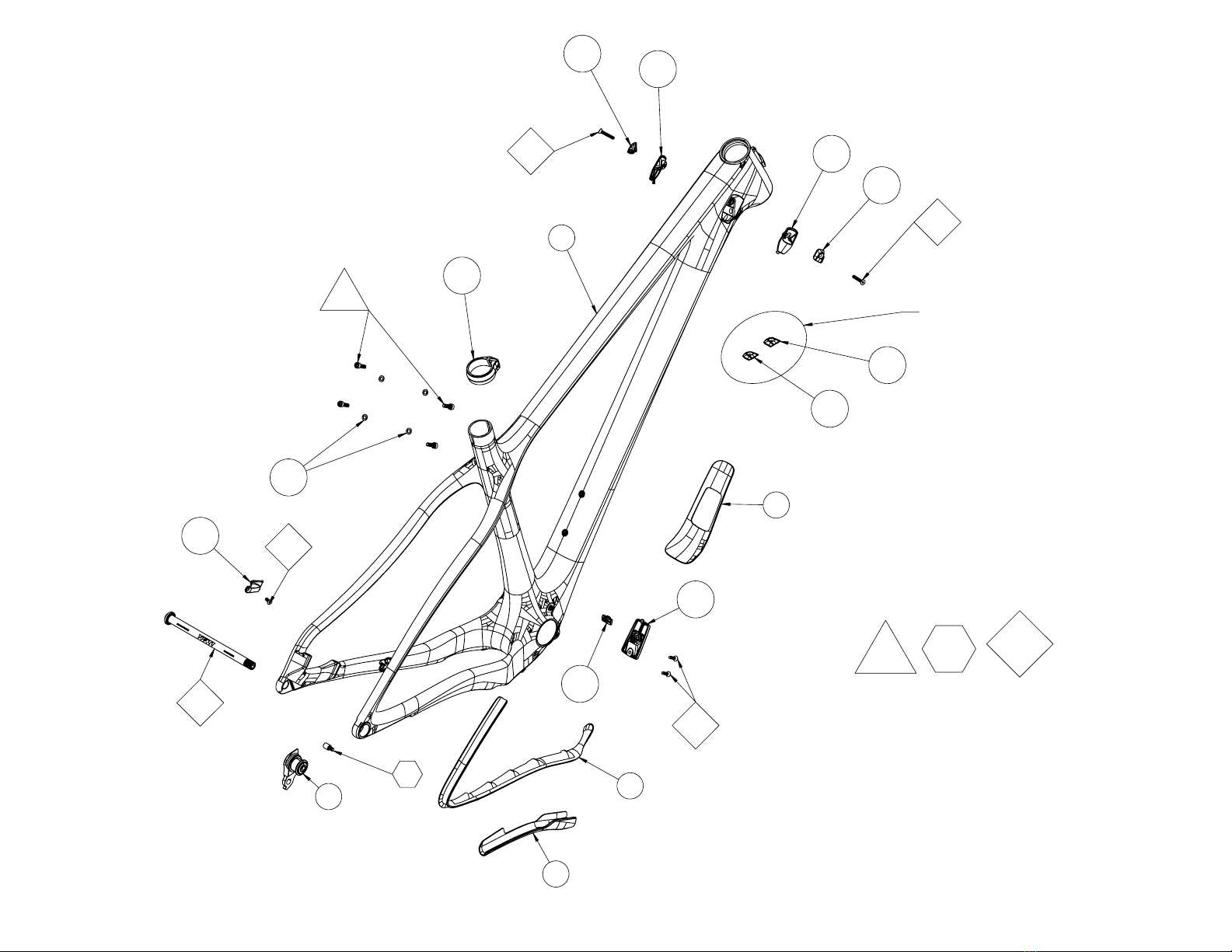

EXPLODED VIEW
1
2.3
2.7
2.6
2.4
2.15
2.16
2.14
2.5
2.2
2.1
2.13
2.13
2.8
2.11
2.12
2.11
EXTRA PARTS
SUPPLIED
WITH FRAME
2.8
2.9
2.10
PREP KEY
GREASE
LOCTITE
NYLON
PATCH
1.5
1.4
1.3

13.
14.
ITEM# PART # DESCRIPTION QTY
1 N/A ARC FRAME ASSEMBLY
1.3 400100209 DOWN TUBE GUARD, ARC 1
1.4 400100210 CS/SS PROTCTOR, ARC 1
1.5 400100211 CS LOWER PROTECTOR, ARC 1
HARDTAIL ASSEMBLY PARTS 1
2.1 WASHER 5.1 X 8.9 X 1.0 MM 4
300030010 SHCS, M5 X 0.8, 16L 4
2
ASSEMBLY, YETI SEAT CLAMP, BOLT ON, 31.6 1
SRAM UNIVERSAL HANGER 1
2.5 300030163 UNIVERSAL HANGER STOPPER
2.6 300030173 SCREW, FH, M4 X 0.7, 10L 1
2.7 300050052 COVER-CABLE PORT, SINGLE, RIGHT EXIT 1
2.8 300040521 CLAMP, HT PORT SINGLE, PA6 2
2.9 300040523 COVER, HT PORT, BLIND, PA6
2.10 100425009 AXLE, M12X1 X 174L, BOLT-ON, BLACK 1
2.13 300030177 SCREW, FH, M4 X 0.7, 25L 2
2.14 300040519 CABLE PORT COVER, DOWN TUBE 1
2.16
1
300030174 SCREW, FH, M4 X 0.7, 15L
EXPLODED VIEW PARTS LIST
1
2
N/A
300030148
2.2
2.3 300060078
2.11 300040524 CABLE PORT COVER, HEAD TUBE, 2 PIECE 2
2.12 300040522 CLAMP, HT PORT DOUBLE, PA6 1
2.15 300040514 CLAMP-LOWER PORT
2.4 300060080
1
1

15.16.
FRAME ASSEMBLY
TOOLS NEEDED
YETI TIPS
Make sure your tools are in good condition.
A worn allen key can round the hex on a
bolt not allowing for proper torque.
Torque settings are listed throughout the
instructions and on page 10 of this manual.
It is important to prep all bolt threads. The
instructions denote whether to use a Loctite
compound or grease. Reference Exploded
View for assembly part locations listed in
parentheses.
Warning: Service on Yeti bicycles requires special
knowledge and tools. Yeti Cycles recommends that all
service and repairs be performed by an authorized Yeti
Dealer
•2.5mm allen key
•4mm allen key
•8mm allen key
•Torque wrench
Grease 4x H20 Bolts (2.2) and
install with washers (2.1) to frame
downtube.
Torque: 4-5 Nm
Place a Head Tube Cable Port
Cover (2.11) into each recess
behind the head tube.
Place a Double Port Clamp (2.12)
into the non-drive side cover and a
Single Port Clamp (2.11)into the
drive-side cover. Secure with M4 x
25L screws.
Tighten until snug. Hardware can be
torqued to 2-3 Nm after housing
installation.
Assemble a Lower Port Clamp
(2.15) to the Down Tube Port
Cover (2.14) using a Flat Head M4
x 16L screw. Hardware can be
torqued to 2-3 Nm after housing
installation.

17.
ASSEMBLY
18

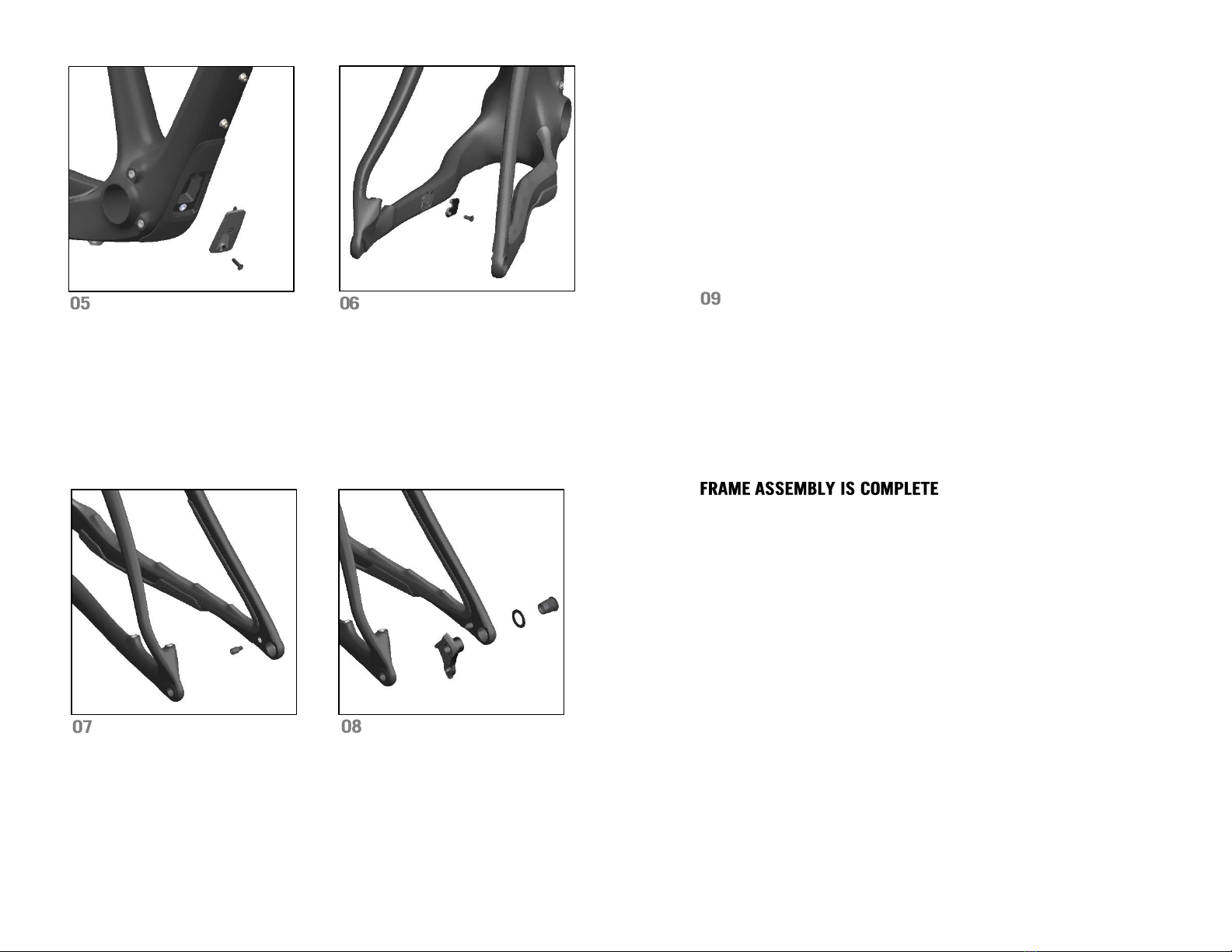

Install the Down Tube Port
Cover (2.14) into the frame
with a Flat Head M4 x 16L
screw (2.16).
Torque: 3 Nm
Install the Chainstay Cable Port Cover
(2.7) to the non-drive side chainstay
port and secure with Flat Head M4 x
10L.
Hardware can be torqued to 2-3 Nm
after housing installation.
Apply Blue Loctite 243 to threads
of the Hanger Stop Bolt (2.5).
Install Stop Bolt into rear dropout.
Torque: 5 Nm
Install Universal Hanger (2.4)
into frame. Do not use grease.
Note that hanger cap bolt is
REVERSE THREADED.
Torque: 25 Nm
Note that different Port Clamps
may be used for different
configurations of shifter and
dropper seatpost. An extra
single-port and blank cover are
provided depending on your
needs.

19.20.
REBUILD KITS
PART # QTY
200020368
DESCRIPTION
ARC MASTER REBUILD KIT
1
CAP SCREW, FH, M4 x 0.7, 10L
CAP SCREW, FH, M4 x 0.7, 16L
1
2
300030177 CAP SCREW, FH, M4 x 0.7, 25L 2
1
300040518 CABLE PORT COVER, REAR CHANSTAY 1
300040519 CABLE PORT COVER, DOWN TUBE 1
300040521 CLAMP, HT PORT, SINGLE 2
CLAMP, HT PORT, DOUBLE 1
300040523 COVER, HT, NO PORT 1
2
300030173
300030174
300030163 STOP BOLT, UNI HANGER
CLAMP, DT CABLE PORT
300040514
300040522
300040524 CABLE PORT COVER, HT
400100213 ARC PROTECTOR KIT
400100211 CS LOWER PROTECTOR, ARC 1
1
400100209 DT GUARD, ARC 1
CS/SS PROTCTOR, ARC
400100210
1
100425009 REAR AXLE 148x12 UDH BLACK 1
SRAM UNIVERSAL HANGER, 20190506
300060080
HANGER
AXLE
PART # QTYDESCRIPTION

FOX TRANSFER POST INSERTION GUIDE
21.22.
MEASURE FROM TOP OF SEAT TUBE TO BOTTOM OF DROPPER
POST AS SHOWN BELOW (MEASUREMENTS IN MM)
FOX TRANSFER POST SIZE
125 150 175
228 258 290
228 258 290
228 258 290
228 258 290
SM
MD
LG
XL
FRAME SIZE
MAX INSERTION (X)
X
NOTE: Saddle centered on
straight length of rails.

23.
LIFETIME WARRANTY
HERE’S EVERYTHING YOU NEED TO KNOW ABOUT OUR LIFETIME WARRANTY:
All 2019 (or newer) frames, including the Switch Infinity, are covered for life against damage
due to manufacturing defects for the original purchaser. Paint and finish are covered for 1-
year. We will repair or replace, at our discretion, any frame we deem defective. There are a
few conditions: you must register it online at yeticycles.com and you must take it to an
authorized Yeti Cycles dealer for processing. Warranty does not cover damage due to
ordinary wear and tear, neglect or intentional destruction. From a slingshot or your truck.
If you happen to have a crash or non-warranty situation, we’ll get you back on the trail with a
reasonable replacement price. Same conditions as above.
Lifetime Warranty applies to all 2019 and newer frames (including the SB100). Model year
2018 and older frames will be covered under our previous warranty (5-year or 2-year based
on time of purchase).
Simple as that. No fine print.
DISCLAIMER
YETI Cycles is not responsible for any damages to you or others arising from riding,
transporting or other use of your bicycle. In the event that your frame breaks or
malfunctions, YETI Cycles shall have no liability or obligation beyond the repair or
replacement of your frame pursuant to the terms outlined in the warranty.
*If you have a warranty concern, please contact your authorized Yeti dealer.
YETI CYCLES
621 Corporate Circle, Unit
B Golden, CO 80401
(p) 303-278-6909
(f) 303-278-6906
www.yeticycles.com
BUSINESS HOURS
Monday-Friday
8AM-11:30AM,
1:00PM-5:30PM (Mountain
Time)
24.
