Merkava RF350 User manual

RF350
User Manual

RF350 Quick Start Guide:
1. Carefully remove contents of box out of the packaging.
You will find:
• 1 x RF350 eBike
• 1 x 110V Charger
• 1 x mud guard (optional)
• 1 x Rear rack (optional)
• 2 x Keys
2. Fold open the eBike and close the quick release latch on the frame.
3. Install Front wheel and tighten quick release latch.
4. Place handle bar in place and tighten allen screws
5. Place seat to desired height and tighten quick release latch.
6. Inflate tires to about 35-40PSI
7. Place your RF350_Zpao350 on a raised surface for easy inspection while securing one of the
wheels so it stays in place then proceed to visually check the RF350 components and ensure
that all screws and bolts are tightened and that tires are correctly inflated. Check and adjust
break lever to your preference and check that the derailleur functions properly. This is
usually already done once at the factory and once before shipping but as a precautionary
measure we recommend you do this as well before riding.
8. Charge your RF350 in a clean environment at ambient temperature until light on the charger
turns from red to green. You can charge the battery while still inside the frame of the eBike
or you may remove the battery and charge it independently. To remove the battery pack
open the quick release latch on the frame and fold the eBike, insert the key under the
frame, push and turn it clockwise until the lock pin goes inside the battery. Remove the key
and slowly pull out battery pack. Repeat process in the inverse order to re insert the battery
pack into frame.
9. Once you've familiarized yourself with the digital display you will be ready to ride. Please
ride carefully! (see attached instruction for OMOT-M3 display)
IMPORTANT NOTE: TO AVOID DAMAGING YOUR BATTERY PACK WE STRONGLY RECOMMEND
USER SHUTS DOWN AND RECHARGE THE RF350 ONCE BATTERY LEVEL REACHES 10%. YOU WILL ENTER
THIS CRITICAL LEVEL SHORTLY AFTER YOUR DISPLAY SHOWS 1 BAR OR REACHES 40V IN THE VOLTAGE
METER.

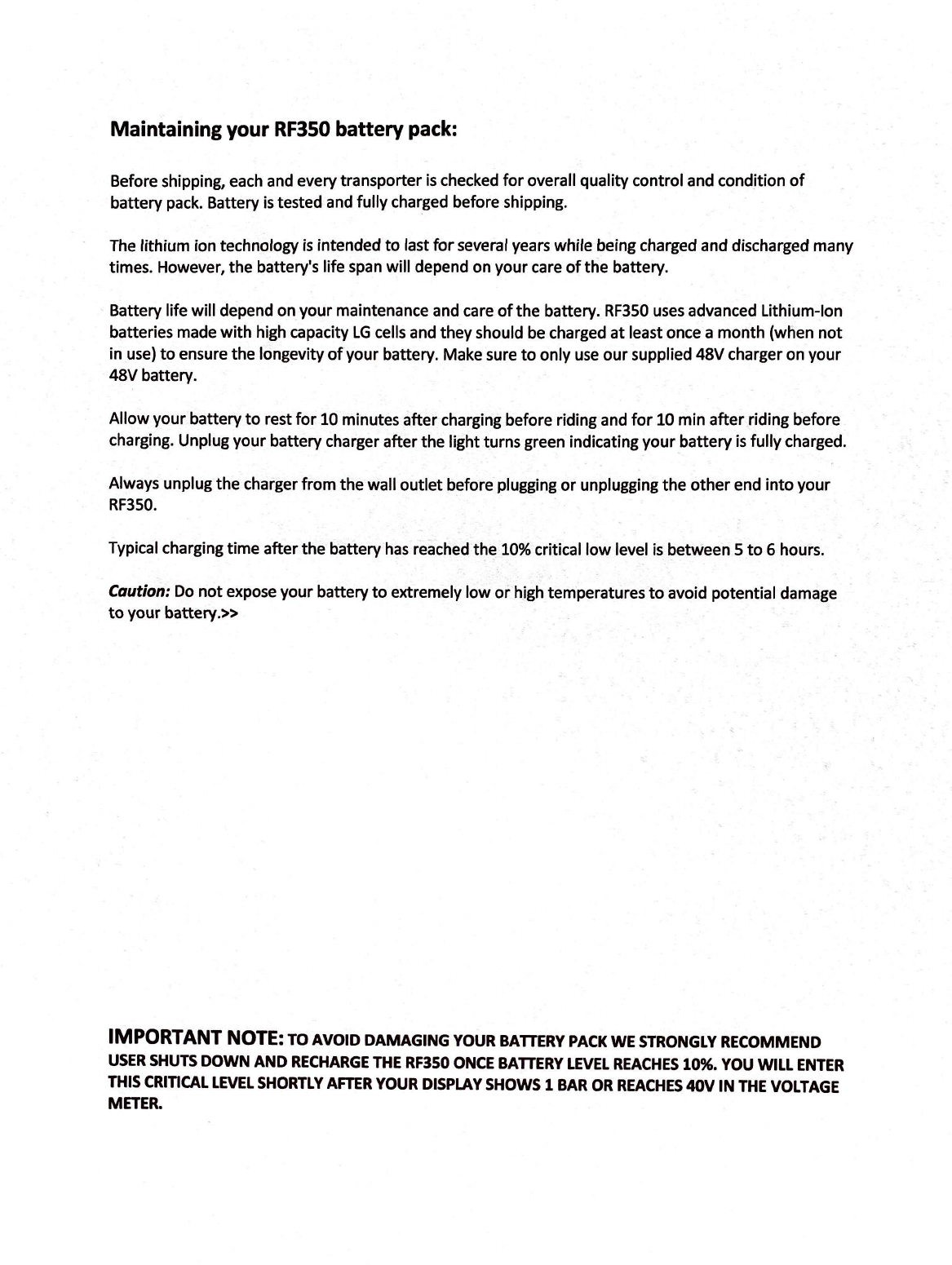

Maintaining your RF350 battery pack:
Before shipping, each and every transporter is checked for overall quality control and condition of
battery pack. Battery is tested and fully charged before shipping.
The lithium ion technology is intended to last for several years while being charged and discharged many
times. However, the battery's life span will depend on your care of the battery.
Battery life will depend on your maintenance and care of the battery. RF350 uses advanced Lithium-Ion
batteries made with high capacity LG cells and they should be charged at least once a month (when not
in use) to ensure the longevity of your battery. Make sure to only use our supplied 48V charger on your
48V battery.
Allow your battery to rest for 10 minutes after charging before riding and for 10 min after riding before
charging. Unplug your battery charger after the light turns green indicating your battery is fully charged.
Always unplug the charger from the wall outlet before plugging or unplugging the other end into your
RF350.
Typical charging time after the battery has reached the 10% critical low level is between 5 to 6 hours.
Caution: Do not expose your battery to extremely low or high temperatures to avoid potential damage
to your battery.»
IMPORTANT NOTE: TO AVOID DAMAGING YOUR BATTERY PACK WE STRONGLY RECOMMEND
USER SHUTS DOWN AND RECHARGE THE RF350 ONCE BATTERY LEVEL REACHES 10%. YOU WILL ENTER
THIS CRITICAL LEVEL SHORTLY AFTER YOUR DISPLAY SHOWS 1 BAR OR REACHES 40V IN THE VOLTAGE
METER.

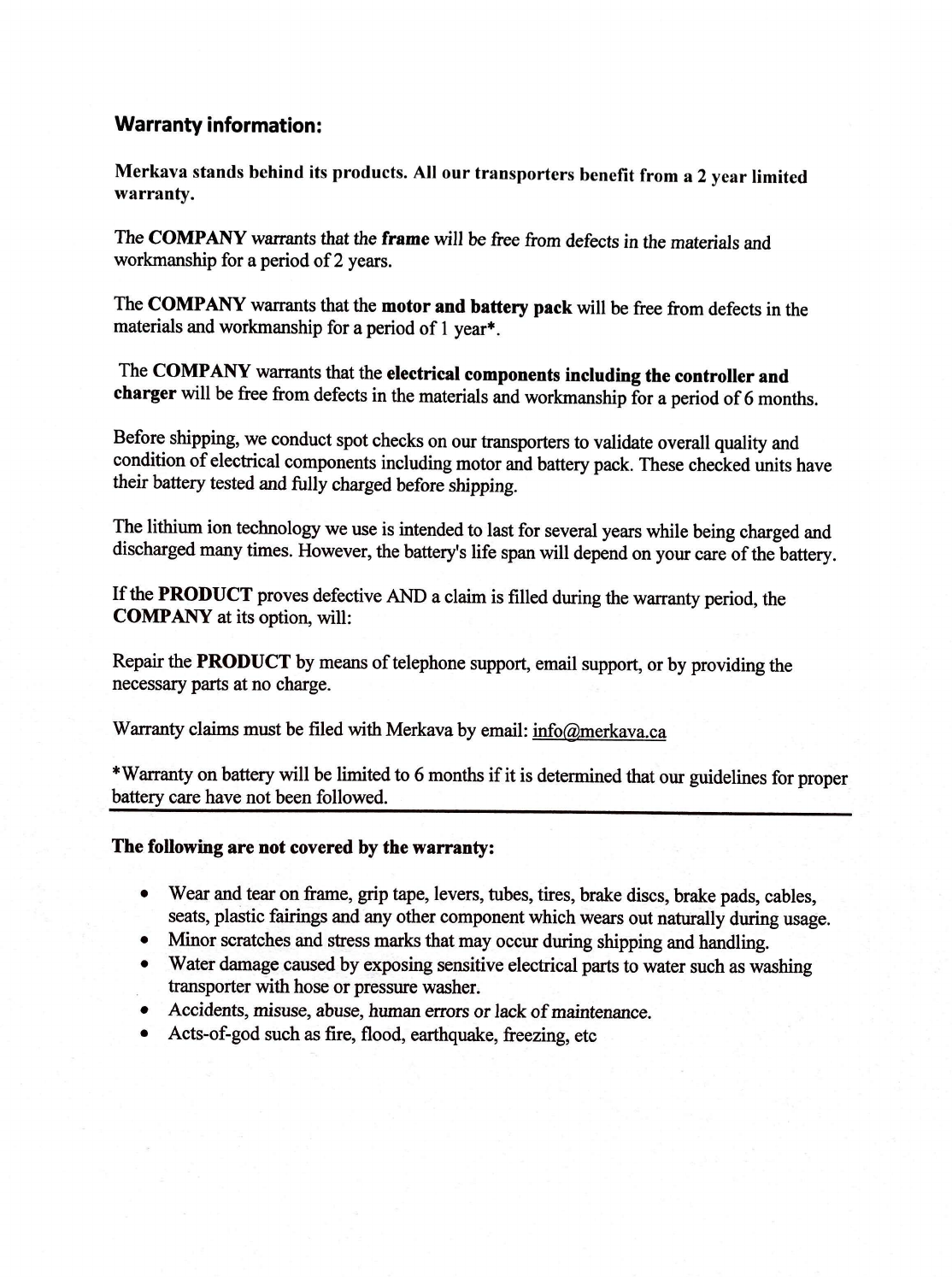

Warranty information:
Merkava stands behind its products. All our transporters benefit from a 2 year limited
warranty.
The COMPANY warrants that the frame will be free from defects in the materials and
workmanship for a period of2 years.
The COMPANY warrants that the motor and battery pack will be free from defects in the
materials and workmanship for a period of 1 year*.
The COMPANY warrants that the electrical components including the controller and
charger will be free from defects in the materials and workmanship for a period of 6 months.
Before shipping, we conduct spot checks on our transporters to validate overall quality and
condition of electrical components including motor and battery pack. These checked units have
their battery tested and fully charged before shipping.
The lithium ion technology we use is intended to last for several years while being charged and
discharged many times. However, the battery's life span will depend on your care of the battery.
If the PRODUCT proves defective AND a claim is filled during the warranty period, the
COMP ANY at its option, will:
Repair the PRODUCT by means of telephone support, email support, or by providing the
necessary parts at no charge.
Warranty claims must be filed with Merkava by email: [email protected]
*Warranty on battery will be limited to 6 months if it is determined that our guidelines for proper
battery care have not been followed.
The following are not covered by the warranty:
• Wear and tear on frame, grip tape, levers, tubes, tires, brake discs, brake pads, cables,
seats, plastic fairings and any other component which wears out naturally during usage.
• Minor scratches and stress marks that may occur during shipping and handling.
• Water damage caused by exposing sensitive electrical parts to water such as washing
transporter with hose or pressure washer.
• Accidents, misuse, abuse, human errors or lack of maintenance.
• Acts-of-god such as fire, flood, earthquake, freezing, etc

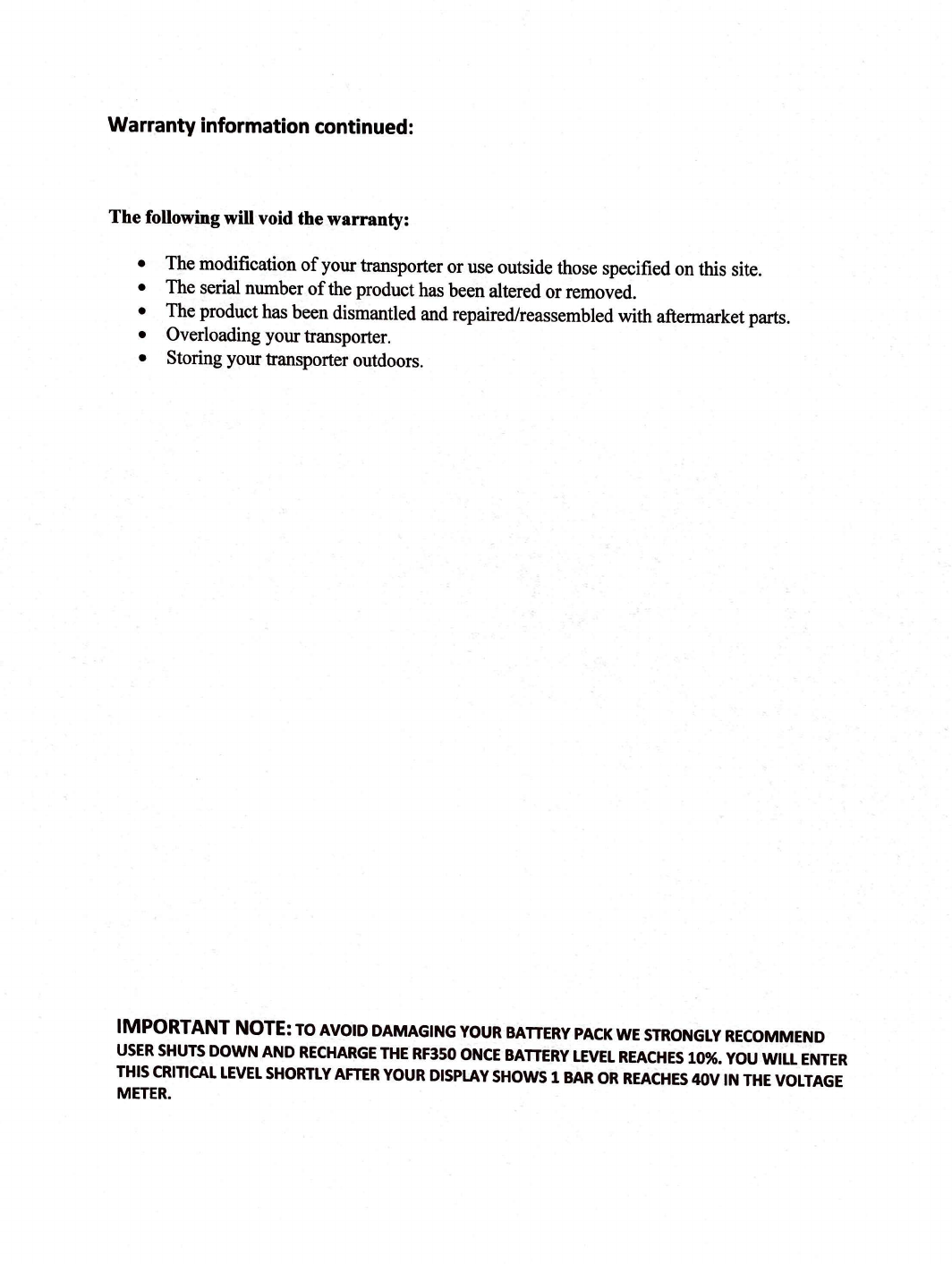

Warranty information continued:
The following will void the warranty:
• The modification ofyour transporter or use outside those specified on this site.
• The serial number of the product has been altered or removed.
• The product has been dismantled and repaired/reassembled with aftermarket parts.
• Overloading your transporter.
• Storing your transporter outdoors.
IMPORTANT NOTE: TO AVOID DAMAGING YOUR BATTERY PACK WE STRONGLY RECOMMEND
USER SHUTS DOWN AND RECHARGE THE RF350 ONCE BATTERY LEVEL REACHES 10%. YOU WILL ENTER
THIS CRITICAL LEVEL SHORTLY AFTER YOUR DISPLAY SHOWS 1 BAR OR REACHES 40V IN THE VOLTAGE
METER .

Safe Operation:
Always wear a Helmet
• Always Start in the slow Pedal Assist mode
• Grip both hand grips
• Check brake level for positive braking action
• Turn ignition to on by inserting the key at the bottom of the frame and turning
counter clock wise
• Press the power button on the display
• Start pedaling, motor will kick in within a second or two
• Once your comfortable riding the eBike on Pedal Assist Mode you can start using the
throttle instead of pedaling.
• You should only use ONE riding mode at a time. If using throttle do not pedal. If pedaling
with pedal assist mode do not use throttle.
• Please note, throttle only riding will lower the max range on a charge considerably.
• ALWAYS follow your local laws regarding eBikes and be respectful of other riders on the
road and on trails.
Helmet
Always wear an ASTM and CPSC certified helmet when riding. Make sure that chin strap is
attached before your ride and follow the helmet manufactures instructions for proper user and
fit.
Footwear
·Make sure to always wear shoes that have good traction on the pedals and will stay on your
feet.
Brakes
Squeeze the hand brake levers to ensure there is positive braking action before starting your
ride.
IMPORTANT NOTE: TO AVOID DAMAGING YOUR BATTERY PACK WE STRONGLY RECOMMEND
USER SHUTS DOWN AND RECHARGE THE RF350 ONCE BATTERY LEVEL REACHES 10%. YOU WILL ENTER
THIS CRITICAL LEVEL SHORTLY AFTER YOUR DISPLAY SHOWS 1 BAR OR REACHES 40V IN THE VOLTAGE
METER.

2. Overview of OMOT-M3
1) UART protocol:
Equipped with independent press buttons
2) Speed:
Real-time SPEED, MAX SPEED, Average SPEED
3) kmh/mile:
Kmh/MPH according to habit
4) Battery level:
Indicates the battery level in real time
S) Head light control:
Press mbutton for 3 seconds t~ power on/off
6) Back light adjustment:
3-level adjustment
3

7) Assist level:
From 1 to 3, press button to change assist level.
8) Distance:
ODO/Trip/Driving duration
9) Error code:
Please refer to appendix table 1 for definition
10)6km mode:
In this mode, it will display Aon the screen,
ll)Parameter setting:
Set parameters, such as: wheel size, speed limit etc
3. Presentation of screen
Speed Mode
Head Light
~ffe!EIE~ JJwmM ..
~---' ....
Speed
Driving Duration
Distance Mode
4
Battery Level
Assist Level

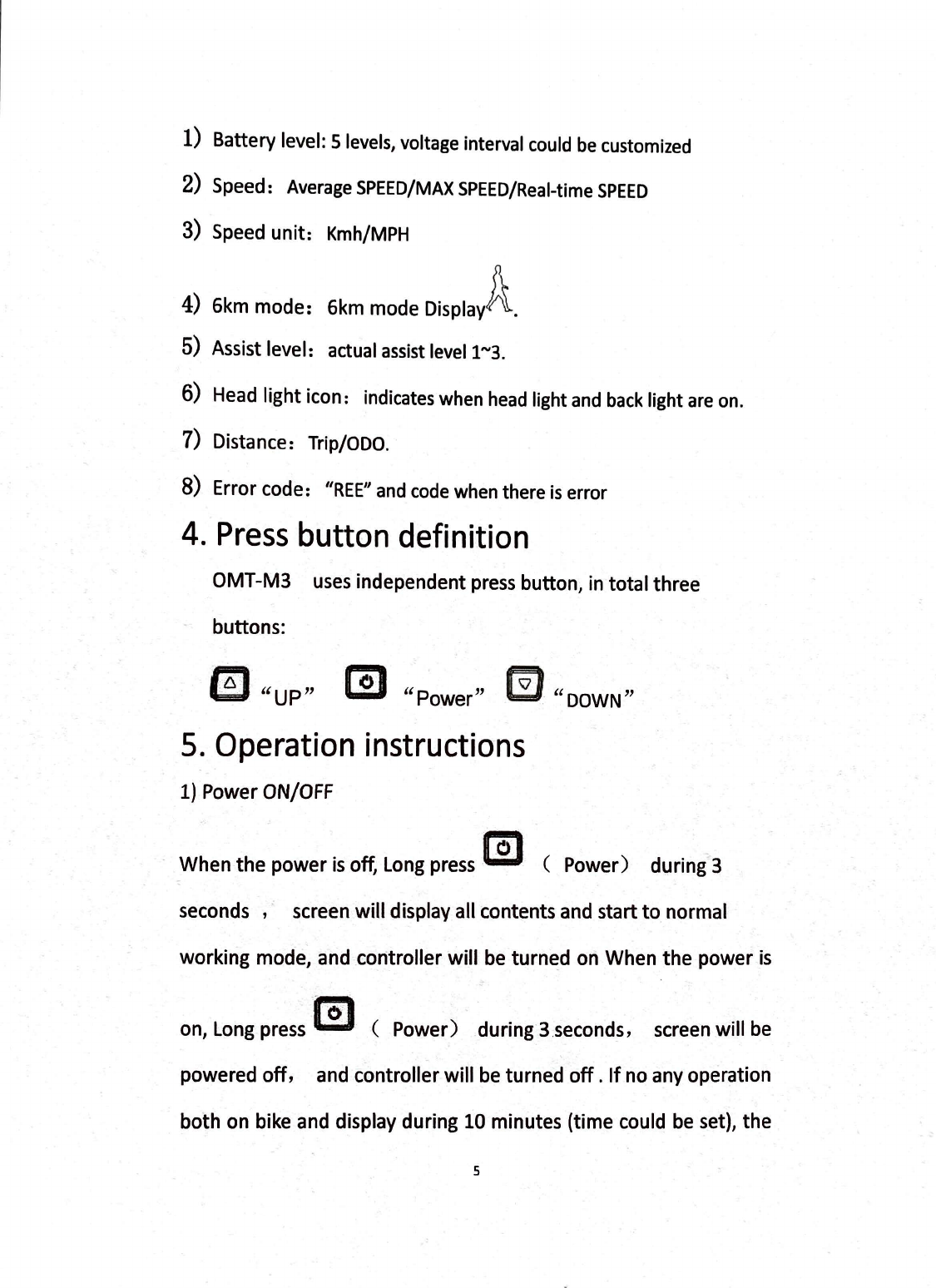

1) Battery level: 5 levels, voltage interval could be customized
2) Speed: Average SPEED/MAX SPEED/Real -time SPEED
3) Speed unit: Kmh/MPH
4) 6km mode: 6km mode Displa).
5) Assist level: actual assist level 1"'3.
6) Head light icon: indicates when head light and back light are on.
7) Distance: Trip/ODO.
8) Error code: "REE" and code when there is error
4. Press button definition
OMT-M3 uses independent press button, in total three
buttons:
8 "UP"
r:,
"Power" ~ . "DOWN"
5. Operation instructions
1) Power ON/OFF
r;,
When the power is off, Long press . 11.:;U ( Power) during 3
seconds , · screen will display all contents and start to normal
working mode, and controller will be turned on When the power is
on, Long press Io·i ( Power) during 3 seconds, screen will be
powered off, and controller will be turned off. If no any operation
both on bike and display during 10 minutes (time could be set), the
5

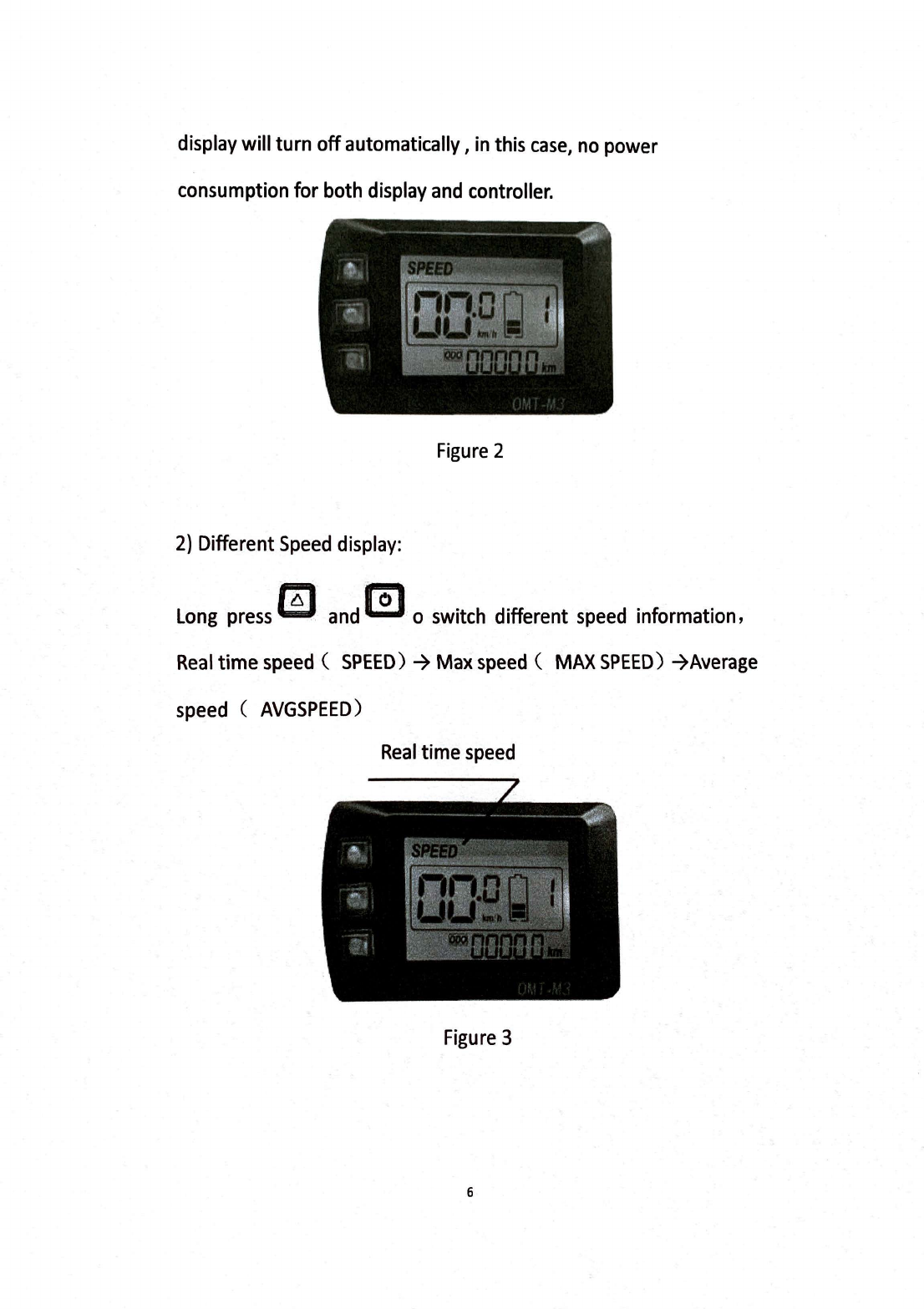

display will turn off automatically, in this case, no power
consumption for both display and controller.
Figure 2
2) Different Speed display:
m
Long press~ and o switch different speed information,
Real time speed ( SPEED) Max speed ( MAX SPEED)
speed ( AVGSPEED)
Real time speed
Figure 3
6

Average speed Max speed
, °"iJI
Figure 4 Figure 5
3)ODO/TRIP/ Driving Time/Error Code
Short press m to switch ODO/TRIP/ Driving Time/Error Code
Trip(Single trip distance)-
TM (Driving Time)-REE (Error Code) o
ODO
Figure 6
7
TRIP
Figure 7

Driving Time
Figure 8
4)Assist level
Error Code
Figure 9
Short press m or 0 to change assist level,
level 1
default value is
level 1 levels
"ijj j
Figure 10 Figure 11
5) Head light control
Long press m for 3 seconds turn on/off the head lighto
8

Head Light
Figure 12
6) 6km mode
When the bike is stopped, long press m,will enter Gkm/h mode,
the speed will be 4.5"'7.Skm/h according to different road
conditions, ,,A,, will show up on screen, long press Bagain or
short press m, will quit Gkm/h mode. long press or short press
could be customized by clients.
6Km Mode
Figure 13
9

6. Parameter setting
When the display is powered on,
long press mands, will
enter parameter setting mode ( Figure 14), in this mode, can
change parameter values, long
press again mand 8 will
quit parameter setting mode or no operation during 10s will also
quit this mode.
In parameter setting mode,
change parameter value,
short press m/ mwill
short press mwill save current
value and switch to next parameter.
1) POl-back light lightness:
short press m/0 will switch from 1 to 3,Level 3 is
lightest. Level 2 is default value.
Level 2 - default value
Figure 14
10

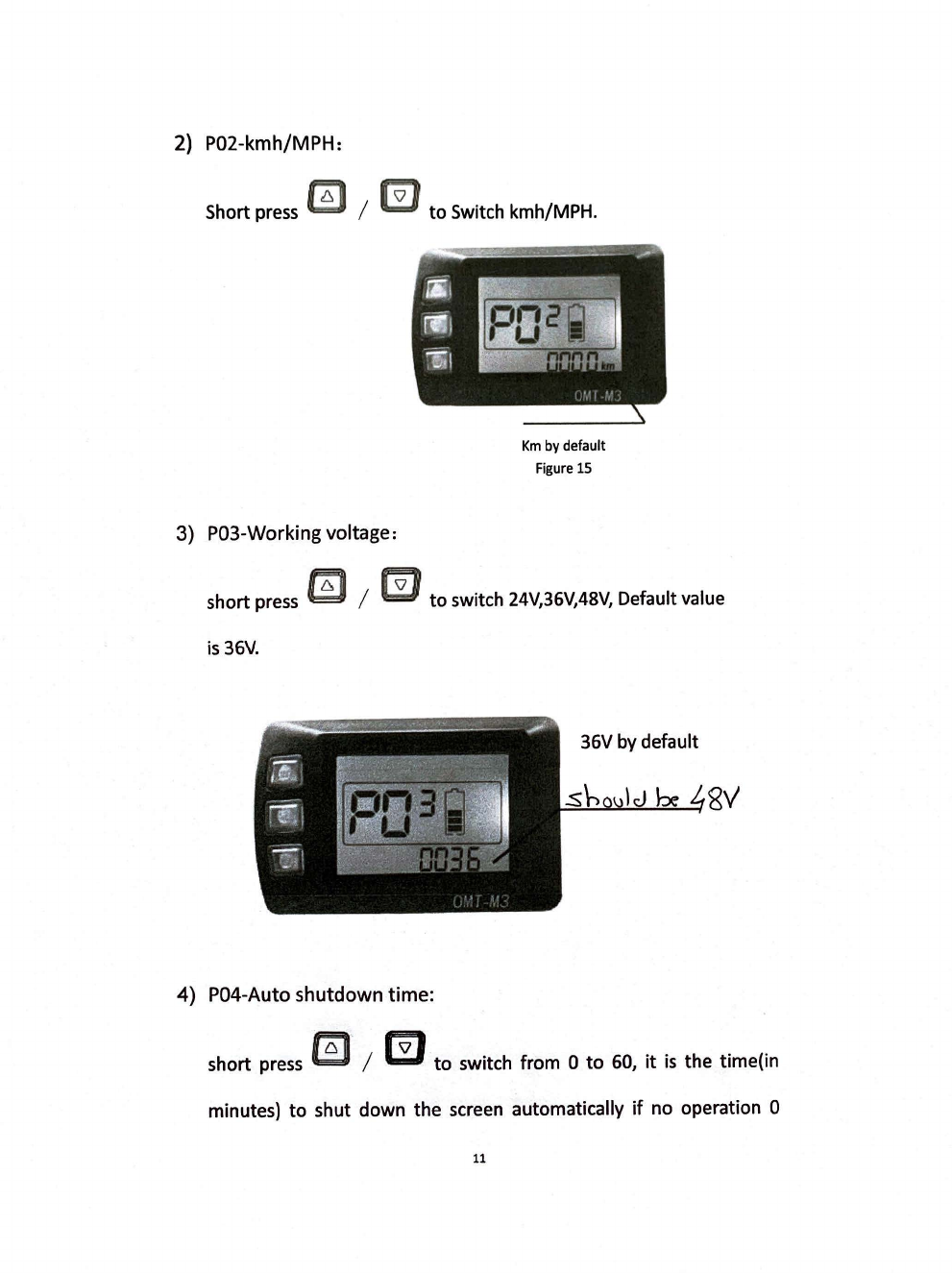

2) P02-kmh/MPH:
Short press m/ B' to Switch kmh/MPH.
3) P03-Working voltage:
Km by default
Figure 15
short press (!J / [D to switch 24V,36V , 48V, Default value
is 36V.
36V by default
4) P04-Auto shutdown time :
short press m/B to switch from O to 60, it is the time(in
minutes) to shut down the screen automatically if no operation 0
11

means never shut down, Default value is 10 minutes
Sminutes
Ul,11 ,',U
5) POS-Number of Assist levels:
Short press m/ (]) to change level 0->1->2.
0: 3 assist levels
1: 5 assist levels
2: · 9 assist levels
POS = 1
6) P06-Wheel size selection:
short press f]] / I]) to switch wheel size, in inch, step: 0.1
inch
12

26inch
7) P07-Number of magnets for speed sensor:
mm
short press / to switch fromt 1 to 100.
8) P08-speed limit:
One magnet for
Speed sensor
~m
short press / to set the speed limit from Oto lOOKm/h,
100 means no limit.
13

Speed limit SOKm/h
9) P09-Non-zero speed start:
short press m/m to switch from0 to 1. 0: zero speed
start,1:non-zero speed start.
Zero speed start
10) P10-Driving mode selection:
~. m
short press / · to switch from 0->1->2.
0: Assist mode (throttle does not work, only assist);
1: Electrical driving mode(only throttle works, assist does not work);
2: Both assist and Electrical driving mode
14

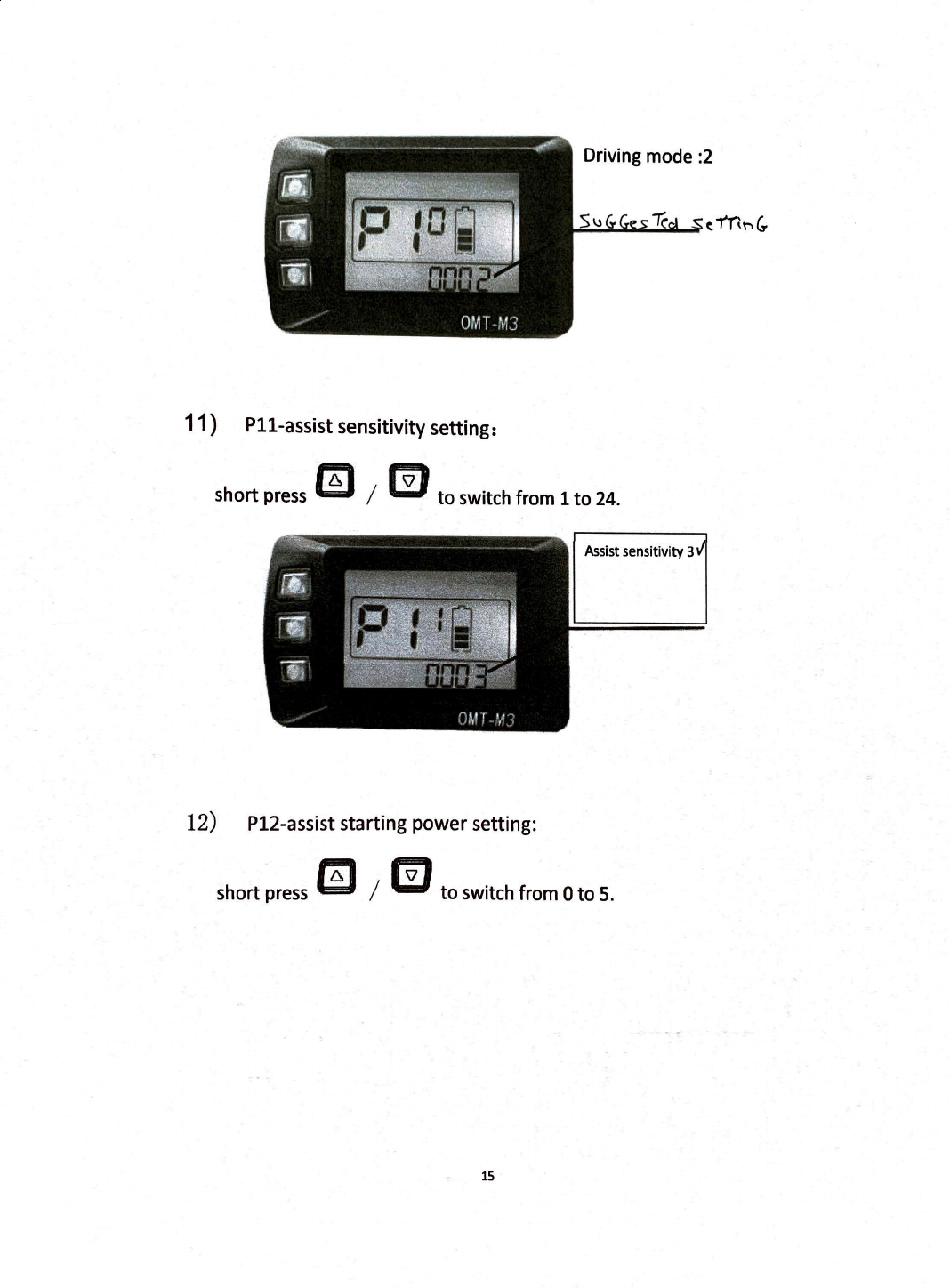

Driving mode :2
OMT -M3
11) Pll-assist sensitivity setting:
short press m/0 to switch from 1 to 24.
Assist sensitivity 3
12) P12-assist starting power setting:
short press m/mto switch from Oto 5.
15

c1,\1 I 1:
13) P13-Assist magnetic disc types
Starting power of
assist 3
short press l, 6. I / E) to switch from 5->8->12 ,
numbers of magnets.
different
14) P14-Current limit for the controller:
12 magnets in the
disc
short press m/mto switch from 1 to 20A
16
