Metos T2 User manual

Installation and User Manual
10.2.2015
(9606 041)
VACUUM MACHINES
T2,T3,T4,T5, M1, M2, M3, M4,
M5, M6, M7, M8, D2, D3, D4, D6
MG4221527, MG4221529, MG4221555, MG4291594

10.2.2015
METOS VACUUM MACHINES
2|
1. TABLE OF CONTENTS...............................................................................................................................2
2. Safety Regulations and Warnings ............................................................................................................4
3. Welcome ....................................................................................................................................................5
3.1. Service from your Dealer ............................................................................................................................5
3.2. YouTube Henkovac Channel - Instruction and Service Videos .....................................................................5
4. Installation of Machine .............................................................................................................................5
4.1. Gas Connection for MAP Applications (Modified Atmospheric Packaging) .................................................6
4.2. Compressed Air Connection for Additional Sealing Pressure......................................................................6
5. Overview of Main Machine Components................................................................................................7
6. Digital Control with LCD Display .............................................................................................................8
6.1. One-Program Control System .....................................................................................................................8
6.2. Operating the Machine with One-Program Control System........................................................................9
6.3. Ten-Program Control System.....................................................................................................................10
6.3.1. Time-Based Operation (vacuum gauge: mbar) ..........................................................................................10
6.3.2. Sensor-Based Operation (digital display: mbar) .........................................................................................10
6.4. Operating the Machine with Ten-Program Control System ....................................................................... 11
7. Programming the Machine.....................................................................................................................13
7.1. One-Program Control System ...................................................................................................................13
7.1.1. Programmable Functions...........................................................................................................................13
7.1.2. Programming.............................................................................................................................................13
7.1.3. Reviewing Vacuum Time and Sealing Time................................................................................................13
7.1.4. Adjusting Vacuum Time for P1 ............................................................................................................13
7.1.5. Adjusting Sealing Time for P1 ..............................................................................................................13
7.1.6. Turning Off Machine ..................................................................................................................................14
7.2. Ten-Program Control System.....................................................................................................................14
7.2.1. Programmable Functions...........................................................................................................................14
7.2.2. Reviewing Function Values for P1-P9.........................................................................................................14
7.2.3. Programming and Adjusting Values for P1-P9............................................................................................15
7.2.4. Turning Program Functions ON/OFF..........................................................................................................15
7.2.5. Adjusting ON/OFF Function Values............................................................................................................15
7.2.6. Turning Off Machine ..................................................................................................................................15
8. Symbols in the Display ...........................................................................................................................16
9. Standard Vacuum Pump Settings:.........................................................................................................18
9.1. One-Program Control System ...................................................................................................................18
9.2. Ten-Program Control System.....................................................................................................................18
10. Further Explanation of Packaging Concepts.........................................................................................19
10.1. Sensor-Based Control................................................................................................................................19
10.2. Time-Based Control...................................................................................................................................19
10.3. P H2O Program for Liquid Products .........................................................................................................19
10.4. Vacuum Plus (seconds)....................................................................................................................19
10.5. MAP Gassing (option) .......................................................................................................................19
1. TABLE OF CONTENTS

|3
10.2.2015
METOS VACUUM MACHINES
10.6. Sealing ................................................................................................................................................20
10.7. Extra Sealing Pressure ..............................................................................................................................20
10.8. Soft-Air (option)...................................................................................................................................21
10.9. Multi-Cycle .........................................................................................................................................21
10.10. Cool-Down/Oil Dehumidification of the vacuum pump .............................................................................21
11. Maintenance ............................................................................................................................................22
11.1. General......................................................................................................................................................22
11.2. Vacuum Pump ...........................................................................................................................................22
11.3. Adding and Changing the Pump Oil...........................................................................................................23
11.4. Seal Beams and Counter Beams...............................................................................................................24
11.4.1. Single-Seal Beam ......................................................................................................................................24
11.4.2. Aluminum/Stainless Steel Seal Beam .......................................................................................................25
11.4.3. Aluminum T-Shaped Seal Beam.................................................................................................................26
11.4.4. Applying Teflon Tape to Seal Beam ............................................................................................................26
11.5. Replacing Silicone Rubber Seal of Counter Beam.....................................................................................27
11.6. Rubber Seal of Vacuum Chamber Cover ...................................................................................................27
11.7. Struts, Dampers and Springs ....................................................................................................................27
11.8. Vacuum Hoses and Tubes..........................................................................................................................27
12. Malfunctions and Notifications..............................................................................................................28
12.1. Service and Technical Support ...................................................................................................................28
12.2. YouTube Henkovac Channel - Instruction and Service Videos ...................................................................28
12.3. Trouble Shooting Check List ......................................................................................................................28
13. Recommended Spare Parts ....................................................................................................................29
14. Utilities.....................................................................................................................................................30
14.1. General Data .............................................................................................................................................30
15. Commonly-Used Symbols......................................................................................................................30

10.2.2015
METOS VACUUM MACHINES
4|
2. Safety Regulations and Warnings
General
The manufacturer of this equipment accepts no liability whatsoever for damage or injury caused by failing
to adhere to the directions and instructions in this manual, or through carelessness during the installa-
tion, use, maintenance and repair of the machine identified on the front of this document, or any of its
accompanying options or components.
The owner of the machine is fully responsible at all times for the adherence to the locally applicable
safety regulations and guidelines. Obey all safety instructions and guidelines as provided in this manual.
User Manual
• Every user of the machine should be familiar with the contents of this manual and follow its instruc-
tions carefully. Management must train the appropriate personnel on the basis of this manual and
make sure that all directions and indications are adhered to
• Never change the order of the actions to be taken
• Always keep the manual in the proximity of the machine
Pictograms and Instructions on the Machine
• The labels with pictograms, warnings and instructions that are attached to the machine are part of the
safety measures taken. These labels should not be damaged or removed and should remain present
and legible throughout the life of the machine
• Immediately replace or repair any labels that are damaged or have become illegible
Intended Use of the Machine 1
The machine is designed for vacuum packaging of food or other products for 8 hours a day, 5 days a
week. Any other or extended use is not in accordance with this purpose and the manufacturer accepts
no liability for any resulting damage or injury. Only use this machine while in perfect technical condition
in accordance with the above mentioned purpose.
Technical Specifications
The specifications outlined in this manual may not be altered.
Modifications
Modifications of the machine or its components is not permitted.
Safety Measures
The machine is equipped with the following standard safety devices:
• Short-circuit and overload safety
• Pump fan guards
All safety devices must be correctly installed and may only be removed to accommodate maintenance
and repair activities by trained and authorized service personnel. The machine may never be operated
while safety measures are incomplete, deactivated or absent. The safety devices may never be by-
passed.
1 The “use in accordance with purpose”, as established in EN 292-1, is the use for which the technical
product is suitable according to the statement by the manufacturer, including his directions in the sales
brochure. When in doubt, it is the use that manifests itself as the most common, based on the construc-
tion, model and function of the product. Use in accordance with the purpose also means adhering to the
instructions in the user manual.
©2014 HFE Vacuum Systems BV
All rights reserved.
No part of this document may be reproduced and/or published by means of print, photocopy, microfilm
or any other method without the prior written permission of the manufacturer. This also applies to the
accompanying illustrations and/or diagrams and schematics.

|5
10.2.2015
METOS VACUUM MACHINES
3. Welcome
Thank you very much for your purchase of a Henkovac vacuum packaging machine. In order to guarantee
the reliability, longevity and robustness of your equipment, we only used materials of the highest
quality in the fabrication of your machine. During its design, it was our goal to make it easy to use and
simple to maintain.
Based on your purchase of this machine, we assume that you are familiar with the fundamentals of
vacuum packaging. For additional information and guidance about vacuum packaging applications, we
recommend that you contact your dealer.
3.1. Service from your Dealer
For technical support, please contact your dealer.
Please have the following information available:
• Machine type
• Serial number
You can locate the serial number on the front page of the original manual. In addition, you can find it on
the identification plate on the right-hand side or back-side of your machine.
3.2. YouTube Henkovac Channel - Instruction and Service Videos
Instructional videos are placed onYouTube for the operation and service of your machine. You may locate
these videos on the YouTube website under “Henkovac Channel”.
4. Installation of Machine
General
• Level the machine on a flat firm surface
• Position the machine in such a manner that the pump is unobstructed and properly ventilated
• Engage the locks on the wheels, if so equipped
• Check the oil level in the pump; add oil if necessary
- Never operate the machine when the oil level is low
Table-Top Model
Mobile and Double-
Chamber Models

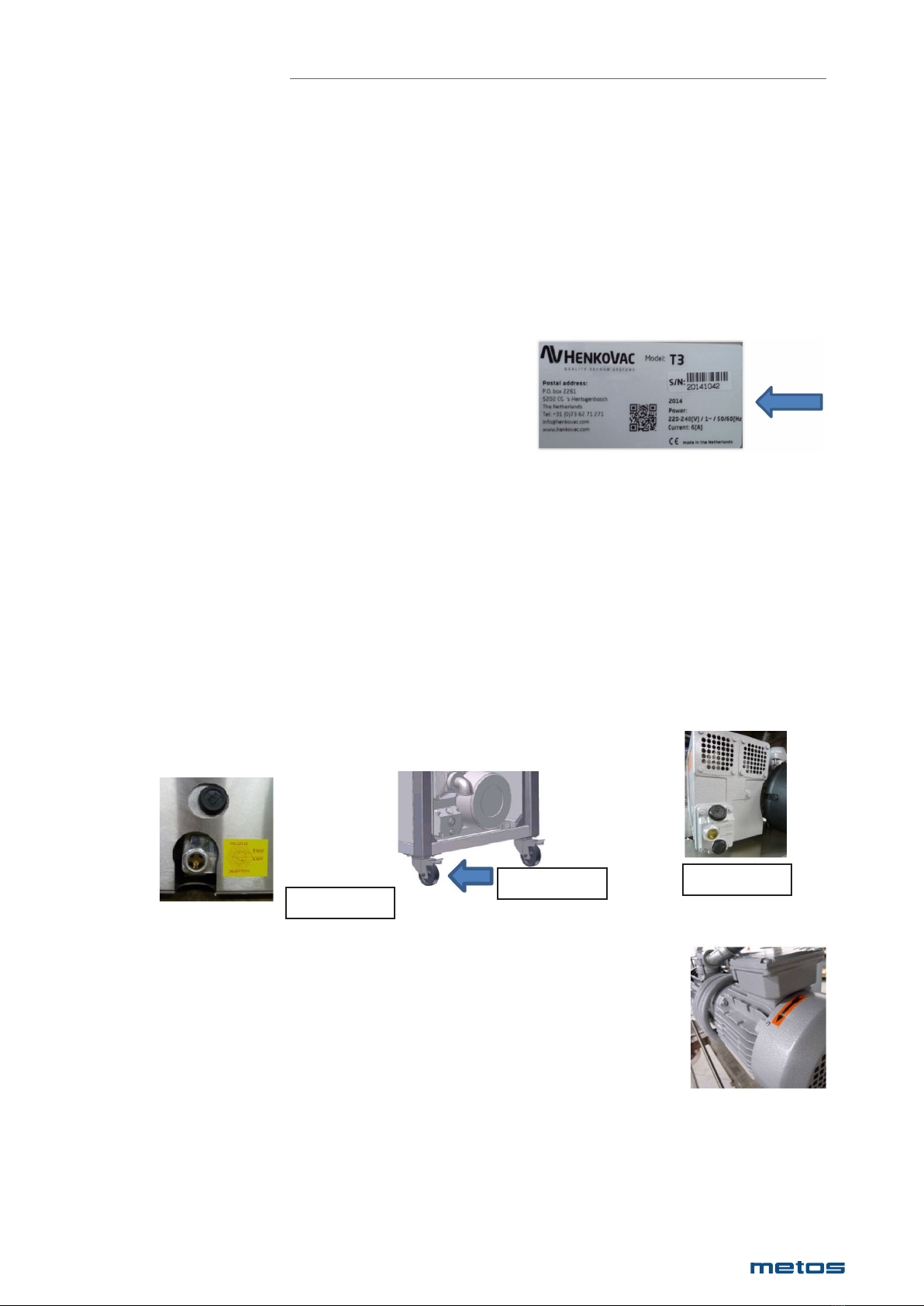

Oil sight glass
Oil sight glass
Wheel locks
Electrical Connection 3-phase vacuum pump
If the machine is incorrectly hooked up to a three-phase electrical connection,
the pump will make excessive noise. If this happens, take the following steps:
• Turn the pump off immediately
• Switch the phase wires
• Make sure that the rotation direction of the pump matches the arrow on the
motor housing

10.2.2015
METOS VACUUM MACHINES
6|
Turning on Machine
• If so equipped, like some mobile and double-chamber models, turn on the main
power switch on the back of the machine
• Push the on/off button on the control panel of the machine
4.1. Gas Connection for MAP Applications (Modified Atmospheric Packaging)
• Connect the gas supply line to the inlet on the back of the machine
• Maximum pressure: 1 bar
• Anchor the gas cylinders securely to prevent them from falling over
• Make sure that the work area is well-ventilated
• To assure that you use the appropriate gas for your application, consult
your dealer or gas supplier
• Assure a good connection and use high-quality materials
4.2. Compressed Air Connection for Additional Sealing Pressure
• Additional sealing pressure is usually recommended for MAP applications
only
• The M4-M8 and the D1-D6 models with the option Gas/MAP are standard
equipped with a compressed air inlet
• Extra sealing pressure is not necessary and not available for the Table-Top,
M1, M2, M3
• Consult your dealer for installation details
• Maximum pressure: 1 bar
• Assure a good connection and use high-quality materials

|7
10.2.2015
METOS VACUUM MACHINES
5. Overview of Main Machine Components
A
B
C
D
E
F
G
H
I
J K L
A
B
C
E
F
C
E
A
G
H
I
M
M
I
A Control panel
B Seal beam (located in the cover on the doublechamber machines)
C Counter beam
D MAP gassing pipes
E Fitting plates (optional)
F Exhaust (located in the cover on double-chamber and some mobile models)
G Cover lock (not for double-chamber machines)
H Silicone sealing gasket
I Identification plate
J Main switch
K MAP gas connection
L Compressed air connection (extra sealing pressure option)
M Wheel with lock
On the back side of the machine:
J Main switch
K MAP gas connection
L Compressed air connection

10.2.2015
METOS VACUUM MACHINES
8|

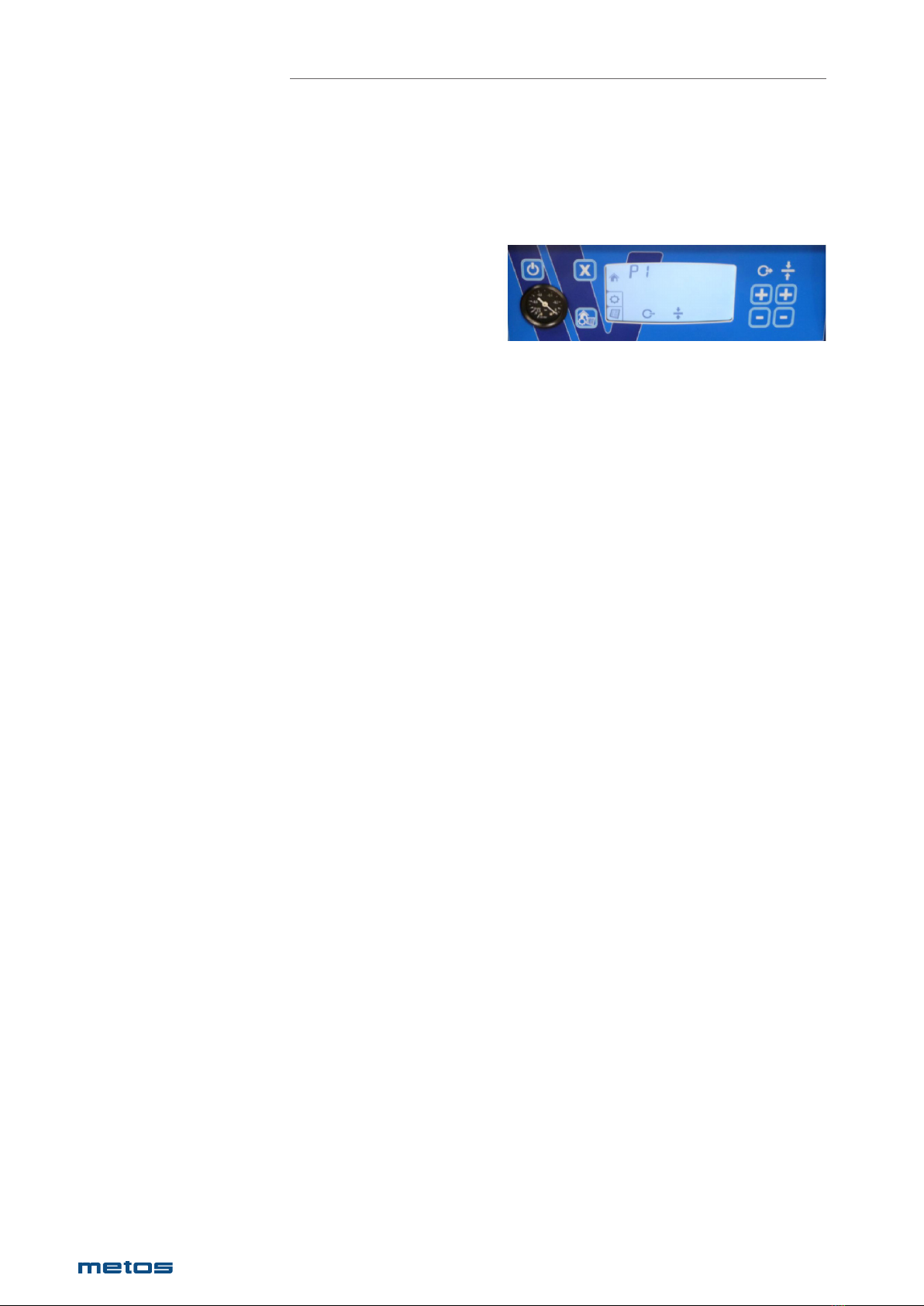

6. Digital Control with LCD Display
Some Henkovac vacuum machines have a control system with just one Program (P1). Other machines
have an optional expanded control system, which can accommodate up to 9 custom programs (P1-9).
6.1. One-Program Control System
Henkovac machines with the One-Program
control system can be programmed for the
following 2 functions:
1. Vacuum time (seconds)
2. Sealing time (seconds)
• The values for vacuum and sealing times are selected by the user and saved in program P1
• During operation, the LCD display will show symbols to indicate the active function and the progress
of the packing cycle

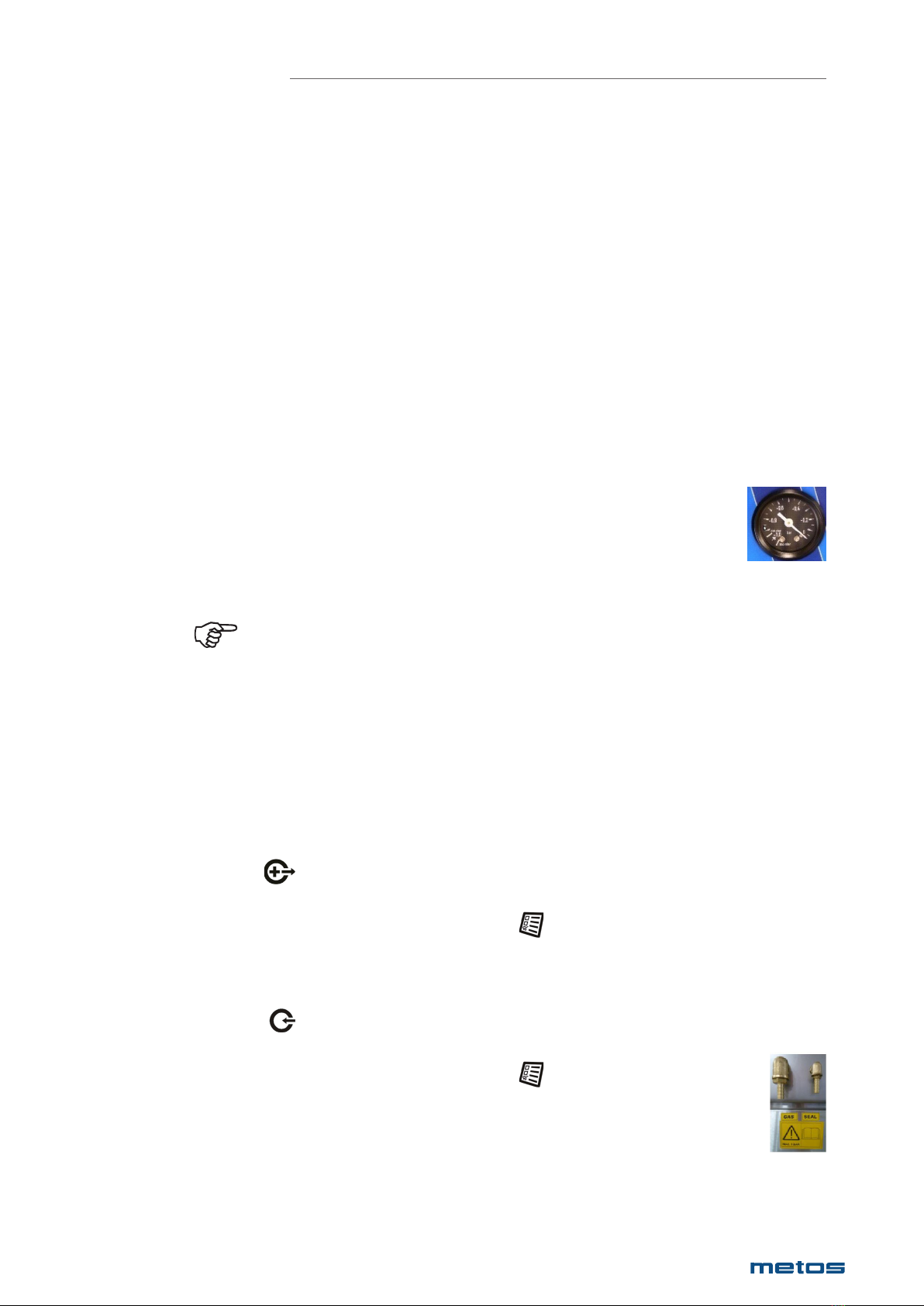

• The actual vacuum pressure is indicated by the analog vacuum gauge
Plug & Play
• When turning on the machine for the first time:
- running time of the vacuum pump is pre-set at 30-40 seconds and the sealing time at 2 seconds.
Vacuum is indicated on the analog vacuum gauge.
• When turning on the machine after that, program P1 will contain the most-recently used settings
• The vacuum and sealing times are easily adjusted to match the needs for the application

|9
10.2.2015
METOS VACUUM MACHINES
Menu Button
- Confirms and saves the entered values for vacuum and sealing times
- Returns to the Home menu

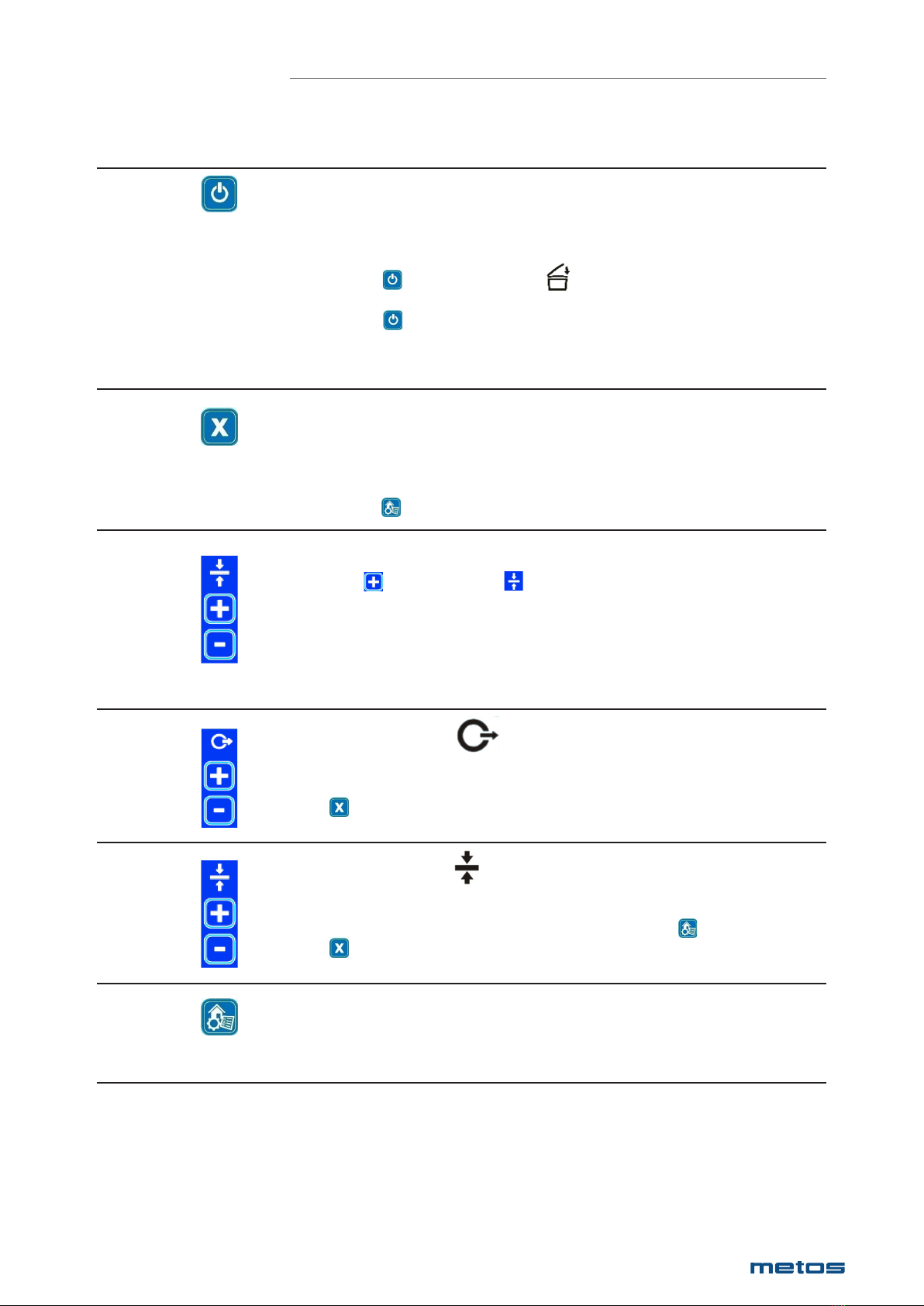

6.2. Operating the Machine with One-Program Control System
On:Turns the machine on
- The machine will start up in the most-recently used program
- The pump of a machine with a transparent cover will start when the cover is closed
Off:Turns the machine off
- When pressing the button once, the symbol will start blinking and the pump will stop after
about 4 seconds
- When pressing the button a second time, the pump will stop immediately
- Closing the cover will initiate the cool-down phase; the machine will complete a number of vacuum
cycles before turning off automatically
Stop-function
- Stops the machine at any point in the packing cycle and aerates the chamber
Reset-function
- While programming, resets the program value to its original setting
Press the menu button to return to the Home menu
Stops the current function and initiates the next step in the cycle
- By pressing the of the sealing button , the vacuum function stops and the program jumps to
the sealing function
- While packing sauce or soup, the package may be sealed as soon as product boiling is detected
Entering the desired vacuum time
- By pressing the + or – of the vacuum button , the vacuum time can be increased or decreased
The selected value is confirmed and saved by pressing the menu button
- Press the button to reset the original value
Entering the desired sealing time
- By pressing the + or – of the sealing button , the sealing time can be increased or decreased
The selected value is confirmed and saved by pushing the menu button
- Press the button to reset the original value
Packing of
sauce/soup

10.2.2015
METOS VACUUM MACHINES
10 |

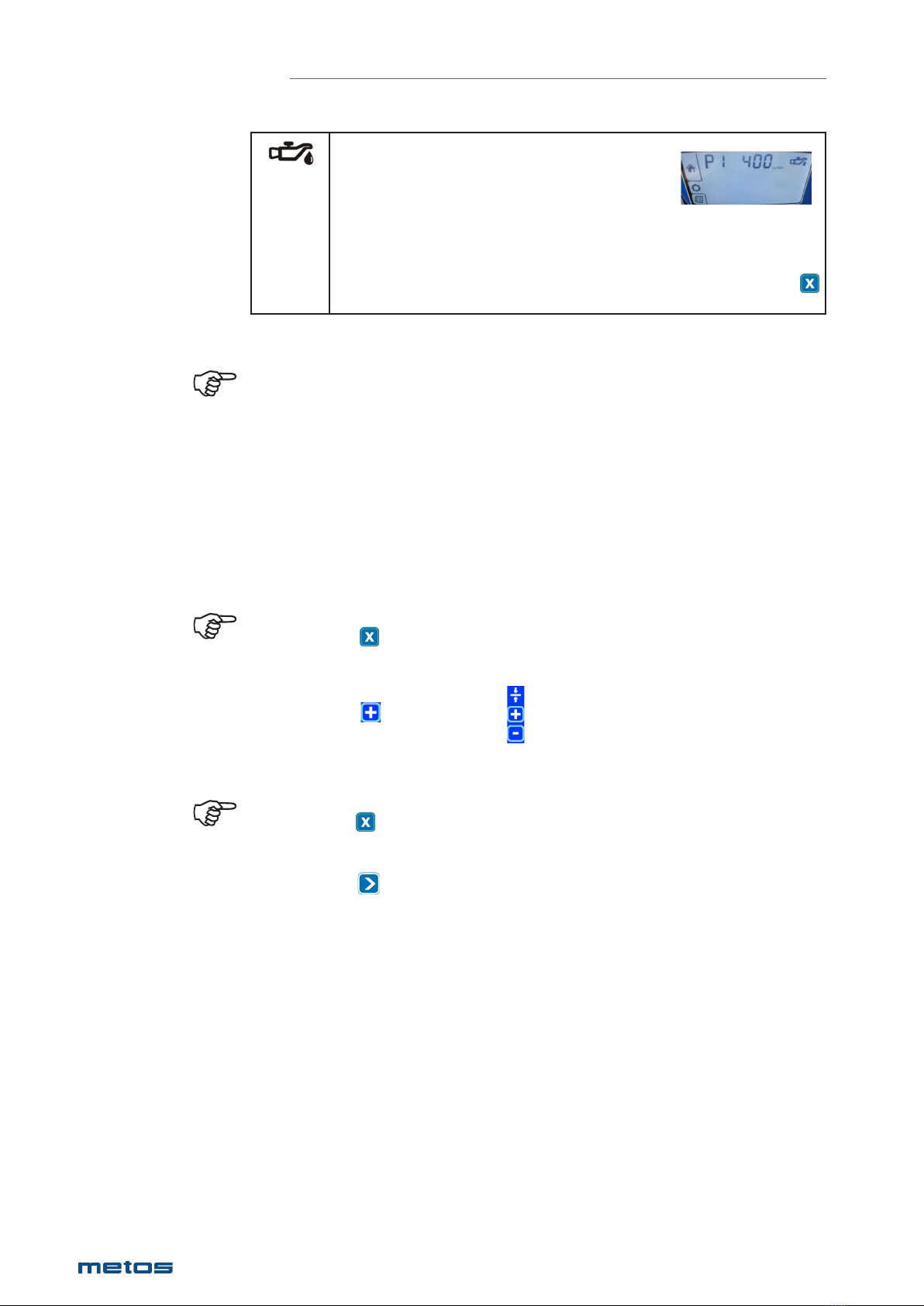

Service Symbol
- After a number of operating hours or packing cycles, the service
symbol will briefly appear on the display when the machine is
turned on. In addition, the display indicates how many hours or
cycles remain before an oil change is required
When turning off the machine with the button, the symbol will start blinking
- The pump will stop after about 4 seconds
- Press the button a second time and the pump will stop
immediately
- Close the lid; the machine initiates the cool-down phase and per-
form a number of vacuum cycles before turning off automatically
- These additional cycles allow any moisture in the oil of the
pump to evaporate. This increases the longevity of the machine and minimizes the need for oil
changes and pump maintenance
- Except for regularly changing the oil in the pump (important!), the machine requires little other rou-
tine maintenance
6.3. Ten-Program Control System
In addition to vacuum and sealing times, Henkovac machines with a Ten-Program control system may
be programmed for several additional functions. Each of the 9 customizable programs is either
1. time-controlled
2. sensor-controlled
6.3.1. Time-Based Operation (vacuum gauge: mbar)
• The values for vacuum and sealing time, as well as
the values for several optional functions, are selected
by the customer and saved in any of 9 customizable
programs P1-9
• When operating a packaging machine with a time-based program, the actual vacuum pressure is indicated by
the analog vacuum gauge.The number of seconds of vacuum time remaining is shown on the LCD display
Plug & Play
• When turning on a time-based machine for the first time, it will start up in the PA program AUTOMATIC . This
is a pre-set factory program with 30-40 seconds vacuum time and 2 seconds of sealing time
• When turning on the machine after that, it will start up in the most-recently used program
Optional installation of a Sensor or Soft-Air
• A machine with a time-based control program can be upgraded to sensor-based operation at a later
date by installing the optional sensor kit
• The Soft-Air feature can also be installed at a later date by ordering the optional soft-air kit
6.3.2. Sensor-Based Operation (digital display: mbar)
• When operating a packaging machine with a sensor-based program, the actual vacuum pressure is digi-
tally shown on the LCD display in mbar (standard setting) or in % vacuum
Plug & Play
• When turning on a sensor-based machine for the first time, it
will start up in the PA program AUTOMATIC . This is a pre-set
factory program with 5 mbar of vacuum and 2 seconds
of sealing time
• When turning on the machine after that, it will start up in the most-recently used program
Optional installation of Soft-Air
• The Soft-Air feature can also be installed at a later date by ordering the optional soft-air kit
