Metos MG3753594MM User manual

01.09.2015
Instruction manual
RANGE WITH OVEN
METOS
METOS MINOR 4/LD64
MG3753594MM, 3753594MK, 3753594
Metos Marine

Table if Contents
1. General .......................................................................................................................................................3
1.1. Symbols used in the manual .......................................................................................................................3
1.2. Symbols used on the appliance...................................................................................................................3
1.3. Checking the relationship of the appliance and the manual ........................................................................3
2. Safety .........................................................................................................................................................4
2.1. Safe use of the appliance ............................................................................................................................4
2.2. Disposal of the appliance ...........................................................................................................................4
3. Functional description ..............................................................................................................................5
3.1. Intended use of the appliance.....................................................................................................................5
3.1.1. Prohibited use .............................................................................................................................................5
3.2. Operating principle and construction...........................................................................................................5
4. Operation instructions ..............................................................................................................................6
4.1. 4.1 Before use .............................................................................................................................................6
4.1.1. Selecting cookware .....................................................................................................................................6
4.2. Operation procedures..................................................................................................................................6
4.2.1. Using the hob..............................................................................................................................................6
4.2.2. Using the oven ............................................................................................................................................7
5. Cleaning .....................................................................................................................................................9
6. Maintenance ............................................................................................................................................10
6.1. Shelf hangers ............................................................................................................................................ 10
6.2. Other service measures............................................................................................................................ 10
7. Installation ............................................................................................................................................... 11
7.1. General...................................................................................................................................................... 11
7.2. Transporting and unpacking the range....................................................................................................... 11
7.3. Positioning the range................................................................................................................................. 11
7.4. Electrical connections and Test run........................................................................................................... 11
8. Technical specications.............................................................................................................................12

01.09.2015
METOS MINOR 4/LD64
3
1. General
Carefully read the instructions in this manual as they contain important information regarding
proper, efficient and safe installation, use and maintenance of the appliance.
Keep this manual in a safe place for eventual use by other operators of the appliance.
The installation of this appliance must be carried out in accordance with the manufacturer’s
instructions and following local regulations. The connection of the appliance to the
electric and water supply must be carried out by qualified persons only.
Persons using this appliance should be specifically trained in its operation.
Switch off the appliance in case of failure or malfunction. The periodical function checks
requested in the manual must be carried out according to the instructions. Have the appliance
serviced by a technically qualified person authorized by the manufacturer and using
original spare parts.
Not complying with the above may put the safety of the appliance in danger.
1.1. Symbols used in the manual
This symbol informs about a situation where a safety risk might be at hand. Given instructions
are mandatory in order to prevent injury.
This symbol informs about the right way to perform in order to prevent bad results, appliance
damage or hazardous situations.
This symbol informs about recommendations and hints that help to get the best performance
out of the appliance.
1.2. Symbols used on the appliance
This symbol on a part informs about electrical terminals behind the part. The removal of
the part must be carried out by qualified persons only.
1.3. Checking the relationship of the appliance and the manual
The rating plate of the appliance indicates the serial number of the appliance. If the manuals
are missing, it is possible to order new ones from the manufacturer or the local representative.
When ordering new manuals it is essential to quote the serial number shown on the rating plate.
STOP

01.09.2015 METOS MINOR 4/LD64
4
2. Safety
2.1. Safe use of the appliance
Because the range is a heated appliance that has hot surfaces during normal use, the following
warnings and instructions must be followed in order to avoid burns.
During long-time operation even the frame surrounding the cooking plates gets hot.
The capability of the cooking plates to store and even out the heat also keeps them hot for
a long time after switching them off.
For safe handling of cookware on the cooking top, always use heat protective gloves.
Do not leave the range on for long periods totally without supervision.
2.2. Disposal of the appliance
WEEE Directive Registration No. WEE/DC0059TT/PRO
At the end of the appliance’s economical life, disposal of the appliance and any replacement parts is best
done by professional personnel specialized in recycling.
Den överkorsade soptunnan på hjul betyder att inom EU måste produkten vid
slutet av dess livslängd föras till en separat sopuppsamling.
Detta gäller inte bara denna enhet utan även alla tillbehör som är märkta med
denna symbol. Kasta inte dessa produkter med det vanliga hushållsavfallet.

01.09.2015
METOS MINOR 4/LD64
5
3. Functional description
3.1. Intended use of the appliance
The Minor range is intended for preparing different kinds of foodstuffs using cookware.
The oven LD64 is intended for cooking and browning food, baking and for heating convenience
meals and keeping food warm.
3.1.1. Prohibited use
Use of the appliance for other purposes than stated above is prohibited.
Covering the edges between the range cooking plates and the upper frame with folio is prohibited.
Preparing food directly on the cooking plate without cookware is prohibited.
The manufacturer of the appliance takes no responsibility for situations that might occur
if the warnings and instructions in this manual are neglected.
3.2. Operating principle and construction
The hob Minor is equipped with four cooking plates.
Each cooking plate is equipped with a 4 position power regulator which allows power
regulation in several steps. A green pilot light for every cooking plate indicates that the
plate is on.
In order to ease daily cleaning the cooking plates are hinged and can be lift up in an
upright position. In addition, the range is equipped with a removable spillage tray.
The oven LD64 is a fan-assisted convection oven with a glass door, with Minor 4 hob mounted upon it.
Glass panel in oven door
• Monitor cooking progress without losing valuable heat
Oven fan
• Ensures even cooking performance throughout chamber
Supplied with 2 x stainless steel oven shelves
• No need to purchase as accessories
STOP

01.09.2015 METOS MINOR 4/LD64
6
4. Operation instructions
4.1. Before use
The hob
The cooking plates are protected with a thin layer of oil for the duration of storage and transportation.
When heating up the range for the first time the oil may create some smoke and unpleasant smell.
This is quite normal and disappears quickly when using the hob.
4.1.1. Selecting cookware
Always use flat-based cookware in order to achieve good heat transfer and to increase the service life of
the cooking plate. Placing a cold and wet pan on a red-hot cooking plate should be avoided as the thermal
tensions created considerably decrease the service life of the plate.
You get the best benefit from the hob as well as from the cookware by observing the following:
• Use good quality flat-based cookware.
• Wait for pans to cool before putting them in cold water.
• Always ensure pans have clean, dry bases before use.
• Ensure pan handles are positioned safely and away from heat sources.
• Always use pan lids except when frying.
• Remember good quality pans retain heat well, so generally only low or medium heat is necessary.
4.2. Operation procedures
4.2.1. 4.2.1. Using the hob
Switch the appliance off if it is damaged or is malfunctioning. Contact authorised service
personnel using original spare parts for service of the appliance.
During the installation, a mains switch may have been fitted near the range, often on a wall nearby.
Check that the mains switch is in the ON position.

01.09.2015
METOS MINOR 4/LD64
7
17.3.2010 Rev. 1.0
Operation instructions
5
4.2 Operation procedures
4.2.1 Using the range
Switch the appliance off if it is damaged or is malfunctioning. Contact authorised service
personnel using original spare parts for service of the appliance.
During the installation, a mains switch may have been fitted near the range, often on a wall
nearby. Check that the mains switch is in the ON position.
The range is controlled with power regulators and pilot lights.
Operating panel
1. Spillage tray
2. Pilot light, cooking plate on
3. Power regulator, front plate
4. Power regulator, rear plate
Each cooking plate is equipped with a 4-position power regulator which allows power
regulation in several steps. A green pilot light for every cooking plate indicates that the
plate is on.
Do not leave the cooking plate on without any load, because it then overheats, which con-
siderably decreases the service life of the plate. By turning the cooking plate off when not
needed energy is saved and a cooler working environment is achieved.
If there are longer interruptions in the electricity distribution, all power regulators of the
range should be set to the 0 position. This should be done in order to prevent unexpected
start-up of the range when the electricity distribution is restored.
The hob is controlled with power regulators and pilot lights
Operating panel
1. Spillage tray
2. Pilot light, cooking plate on
3. Power regulator, front plate
4. Power regulator, rear
Each cooking plate is equipped with a 4-position power regulator which allows power
regulation in several steps. A green pilot light for every cooking plate indicates that the
plate is on.
Do not leave the cooking plate on without any load, because it then overheats, which considerably
decreases the service life of the plate. By turning the cooking plate off when not
needed energy is saved and a cooler working environment is achieved.
If there are longer interruptions in the electricity distribution, all power regulators of the
range should be set to the 0 position. This should be done in order to prevent unexpected
start-up of the range when the electricity distribution is restored.
4.2.2. Using the oven
The oven is operated with a thermostat and Indication lamps.
1
2 3
Control panel
1 Red indicator lamp
2 The thermostat
3 Thermostat indicator lamp
A thermostat and indicator lamps monitor op-
eration of the oven.
The thermostat may be set at temperatures
between 100°C and 270°C

01.09.2015 METOS MINOR 4/LD64
8
Switching on
Switch on at mains. The red neon will light.
Turn thermostat to secured setting. The amber neon will light. When amber neon goes out, the oven has
reached the required temperature.
Switching off
Turn thermostat back fully anti-clockwise.
The red neon will remain lit. Switch off.
Loading
When the set temperature is reached the amber neon will go out, the elements are off but the fan will
still run. The oven is ready to load.
If the oven cools, the thermostat will activate power to the elements and maintain set temperature. Load
the oven quickly to prevent heat loss.
Shelves
These are designed to prevent being out accidentally. To remove a shelf, pull forward to stop position and
tilt up. When replacing a shelf, insert with rail with rail stop to the rear.
There are six runner positions. For even shelf cooking, distances between trays should be consistent.
Shelf combinations with regard to position should be 2/4/6 (from to top) or 3/6.
A typical shelf load may be 12 x 56 g (2oz.) scones, 12 x 225 g (80 oz.) jacket potatoes or 3 x 500 g tin
bread loaves.
Times and temperatures will vary according to the quality and quantity of the food being prepared.
Never overload the oven as excessive restriction of air circulation will affect the cooking quality.

01.09.2015
METOS MINOR 4/LD64
9
5. Cleaning
Disconnect unit from electrical supply prior to cleaning.
Use of a water hose or pressure cleaning jet is strictly forbidden.
Never use coarse abrasive to clean exterior surfaces. A soft cloth with a warm water and detergent solu-
tion is sufficient. Rinse with a damp clean cloth and wipe dry.
It is not allowed to wipe the undersides of cooking plates swung up to a cleaning position
with a wet sponge, cloth etc, because water flowing down the plate is absorbed into the
insulating material thus causing earth leakage.
When cleaning the cooking plates, observe that they are hot a long time after they have
been switched off. When the cooking plates are lifted up for cleaning, it is advisable to
support the plate in the upper position with one hand thus preventing the possibility that
they unexpectedly return to their working position. Lift the plate up and place it down by
gripping the outer edge of the plate, as there is too little space for your fingers between
the plates in the middle of the range (your fingers may become trapped).
Be careful when removing the spillage tray, as it may contain spillages that are still hot.
Clean spillage tray.
Cleaning is very easy, if possible spill overs are removed immediately with a damp cloth.
Sugar and mixes containing much sugar must be removed immediately, because later removing
is laborious.
Always dry the cooking plates after cleaning by heating them up.
Clean cooking plates give an efficient heat transfer to the cookware. Cooking is then fast and the service
life of the cooking plates is extended.
Oven interior
Wipe with soft cloth using warm water and detergent solution. Thoroughly rinse by wiping with a damp
clean cloth and wipe dry.
Under no circumstances should abrasives, scrapers, knives, scourers, paste, bleaches, steel wool with
or without soap, aerosol or proprietary oven cleaning pads be used on enamelled panels.
STOP
STOP
STOP

01.09.2015 METOS MINOR 4/LD64
10
6. Maintenance
6.1. Oven shelf hangers
Lift to withdraw.
Replace in reverse order. Ensure hangers locate correctly within the fixings with the narrow section of
the keyhole slots at the top.
6.2. Other service measures
The appliance does not include any user serviceable parts inside.
Service must be left to authorised service personnel.
STOP

01.09.2015
METOS MINOR 4/LD64
11
7. Installation
7. 1 . General
The installation of this appliance must be carried out in accordance with the manufacturer’s
instructions and following local regulations. This installation manual must be used
together with the installation drawing of the appliance.
The connection of the appliance to the electrical and water supply must be carried out by
qualified persons only.
7.2. Transporting and unpacking the range
The best way to move the range is to keep it in its package as long as possible while it also
protects the range from outer damage. If it is necessary to unpack the range, possible lifting
must be done from the bottom frame using suitable spacers of wood. In order to avoid
damages it is not allowed to use the cooking top as a workbench during installation.
7.3. Positioning the range
Because the temperature of a cooking plate accidentally forgotten on without a pan may
reach even 550°C, it is mandatory to follow local fire safety regulations when installing
the range.
The range is positioned in the installation place and adjusted in a horizontal position with
the help of the adjustable legs.
On ranges fitted with a convection oven the horizontal position should be checked from
the runners of the oven in order to achieve good browning results.
When the range is on the correct location and in a horizontal position, it must be bolted to
the floor, the land models by the flanges in the rear adjusting legs and the marine models
from all four leg flanges.
7.4. Electrical connections and Test run
The electrical connections can only be carried out by a qualified electrician having the necessary
competence for the installation and service of electrical appliances.
STOP
STOP

01.09.2015 METOS MINOR 4/LD64
12
8. Technical specications
Main and Control circuit AC415-440V, 50-60 Hz T03905 A3 1

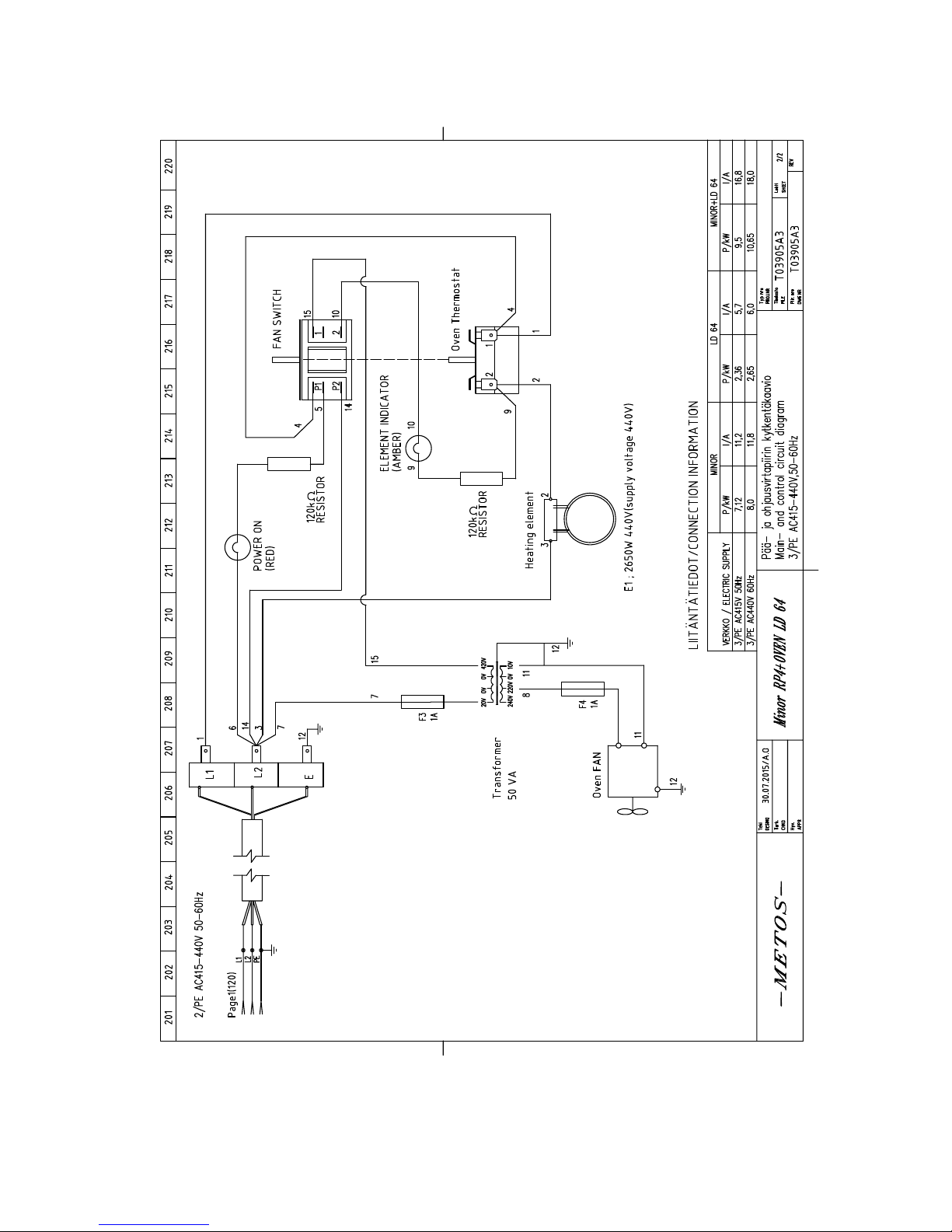

Main and Control circuit AC415-440V, 50-60 Hz T03905 A3 2
Main and Control circuit AC380-400V, 50 Hz T04136 A3 1
Main and Control circuit AC220-230V 50 Hz T04136 A3 2
Leg
Installation drawing T03957 A3
Installation drawing T03959 A3

01.09.2015 METOS MINOR 4/LD64
20
Item Specification
Outer dimensions WxDxH 603 x 670 x 885 mm
Marine model 603 x 710 x 885 mm
Cooking plates 4
Power regulator hob 4 position, pilot light for each plate
oven
Material hob Cooking plates of cast iron, external parts of Stainless steel
oven
Weight net 101 kg
Marine model 104 kg
Electrical connection 380-400V/3N 50 Hz
Marine model AC400/3 50 Hz
Marine model AC415-440/3 60 Hz
Power input 11 kW 16A
IP classification X3
