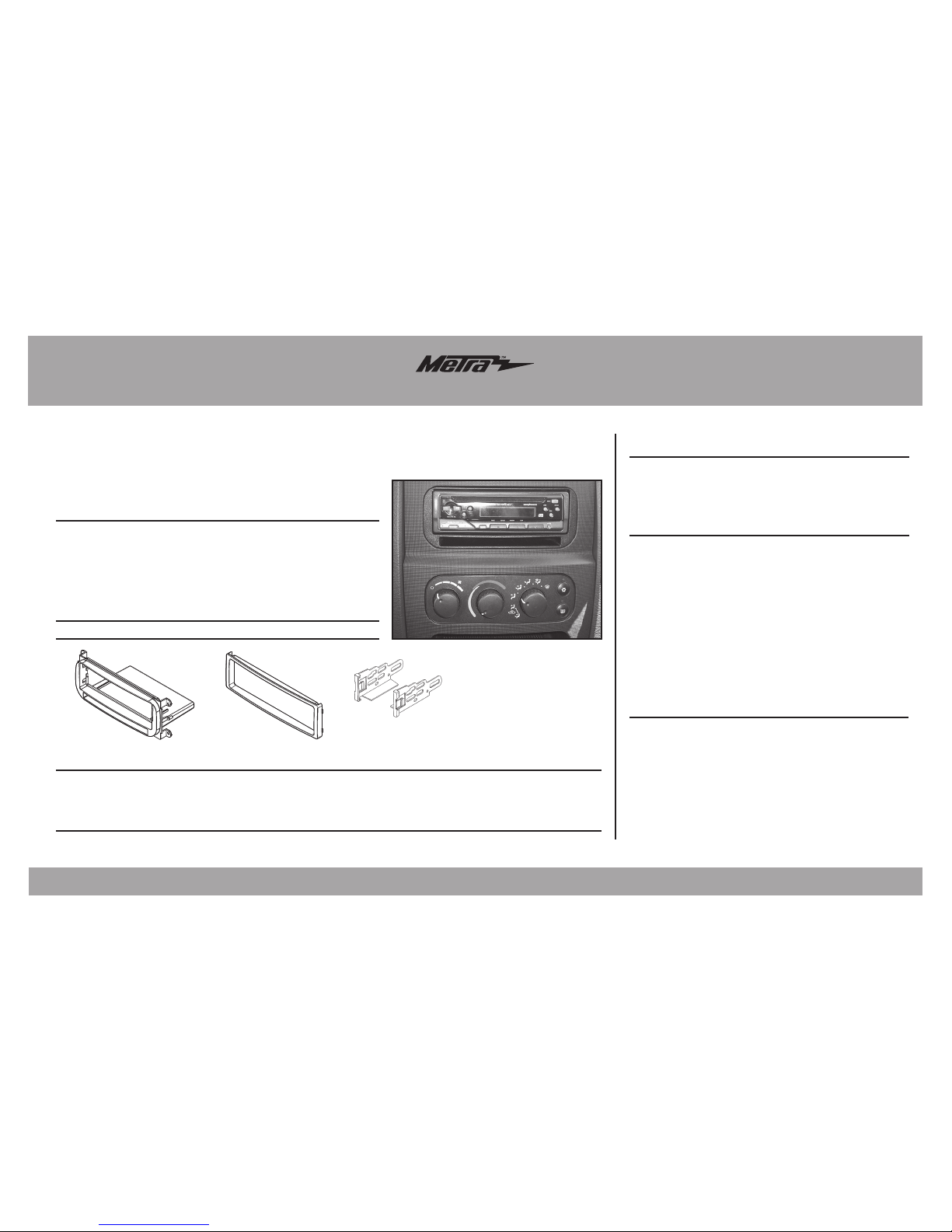

Installation instructions for part 99-6505
CAUTION! Metra recommends disconnecting the negative bat -
tery terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your local
Dealership for more information. All accessories, switches, climate
controls panels, and especially air bag indicator lights must be con
-
nected before reconnecting the battery or cycling the ignition. Also,
do not remove the factory radio with the key in the on position, or the
vehicle running. It would be best to remove the key from the ignition
and then wait a few seconds before removing the factory radio.
• DIN radio provision with pocket
• ISO DIN radio provision with pocket
• A) Radio housing • B) ISO trim plate • C) ISO snap-in brackets
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • Please visit metraonline.com for options
Antenna Adapter: • Please visit metraonline.com for options
• Torx T-20 driver • Phillips screwdriver • Socket wrench
TOOLS REQUIRED
Chrysler multi-kit 1998-2010
99-6505
A B C
See Table of Contents list inside cover
Table of Contents
APPLICATIONS
See application list inside cover

99-6505
2
Applications Table of Contents
CHRYSLER
300M 1999-2004
Concorde 1998-2004
LHS 1999-2001
PT Cruiser 2001-2005
Sebring 2001-2006
Town & Country 2000-2007
Voyager 2001-2003
DODGE
Caravan 2001-2007
Dakota 2001-2004
Durango 2001-2003
Intrepid 1998-2004
DODGE (cont’d)
Neon 2000-2006
Ram 2002-2005
Stratus 2001-2006
Viper 2003-2010
JEEP
Grand Cherokee 1999-2004
Liberty 2002-2007
Wrangler 2003-2006
PLYMOUTH
Neon 2000-2001
Dash Disassembly
– Chrysler 300M 1999-2004/Concorde 1998-2004 ......................................... 3
– Chrysler LHS 1999-2001........................................................................... 3
– Chrysler PT Cruiser 2001-2005 .................................................................. 3
– Chrysler Sebring 2001-2006...................................................................... 3
– Chrysler Town & Country 2000-2007 .......................................................... 4
– Chrysler Voyager 2001-2003 ..................................................................... 4
– Dodge Caravan 2001-2007 ....................................................................... 4
– Dodge Dakota 2001-2004/Durango 2001-2003............................................ 5
– Dodge Intrepid 1998-2004 ........................................................................ 3
– Dodge Neon 2000-2006............................................................................ 4
– Dodge Ram 2002-2005 ............................................................................ 4
– Dodge Stratus 2001-2006......................................................................... 3
– Dodge Viper 2003-2010 ............................................................................ 6
– Jeep Grand Cherokee 1999-2004............................................................... 4
– Jeep Liberty 2002-2007............................................................................ 5
– Jeep Wrangler 2003-2006......................................................................... 5
– Plymouth Neon 2000-2001........................................................................ 4
Kit Assembly
–DIN radio provision with pocket.......................................................................... 7
– ISO DIN radio provision with pocket.................................................................... 7

99-6505
Chrysler 300M 1999-2004
Concorde 1998-2004 / LHS 1999-2001
Dodge Intrepid 1998-2004
1. Remove the ashtray by pressing
down on the inner spring clip.
(Concorde only)
2. Unclip the gear shifter trim panel
and slide the trim panel toward the
rear of the vehicle.
3. Unclip the dash trim panel and
disconnect the wire to the trim
panel.
4. Remove (4) Phillips screws
securing the radio. Disconnect and
remove the radio.
Continue to kit assembly
Dash Disassembly
Chrysler PT Cruiser 2001-2005
1. Unclip the power window control
panel. Disconnect and remove the
panel.
2. Pull off the climate control knobs.
3. Unclip and remove the dash trim
panel.
4. Remove (4) Phillips screws
securing the radio. Disconnect and
remove the radio.
Continue to kit assembly
Chrysler Sebring 2001-2006
Dodge Stratus 2001-2006
1. Remove (2) Phillips screws from
under the climate controls.
(Coupe only)
2. Unclip and remove the radio trim
panel.
3. Remove (4) Phillips screws
securing the radio. Disconnect and
remove the radio.
Continue to kit assembly
3

99-6505
Dash Disassembly
Dodge Ram 2002-2005
1. Unclip the top edge of the trim
panel below the steering column.
(It is not necessary to completely
remove this panel).
2.
Remove (1) Phillips screw from
below the right ac/heater vent
.
3.
Unclip and remove the dash trim panel .
4. Remove (4) Phillips screws
securing the radio. Disconnect and
remove the radio.
Continue to kit assembly
Jeep Grand Cherokee 1999-2004
1. Unclip and remove the radio trim
panel.
2. Remove (4) Phillips screws
securing the radio. Disconnect and
remove the radio.
Continue to kit assembly
4
Chrysler Town & Country 2000-2007/
Voyager 2001-2003
Dodge Caravan 2001-2007
1.
Open the cup holder. Unclip and
remove the trim above the cup holder
.
2. Remove (2) Phillips screws from
above the cup holder.
3.
Unclip and remove the dash trim panel .
4. Remove (4) Phillips screws
securing the radio. Disconnect and
remove the radio.
Continue to kit assembly
Dodge Neon 2000-2006
Plymouth Neon 2000-2001
1. Pull off the climate control knobs.
2. Unclip and remove the ac / heater
vents.
3. Remove (1) Phillips screw from
each vent cavity.
4.
Unclip and remove the dash trim panel .
5. Remove (4) Phillips screws
securing the radio. Disconnect and
remove the radio.
Continue to kit assembly

99-6505
3 Screws
3 Screws
2 Screws

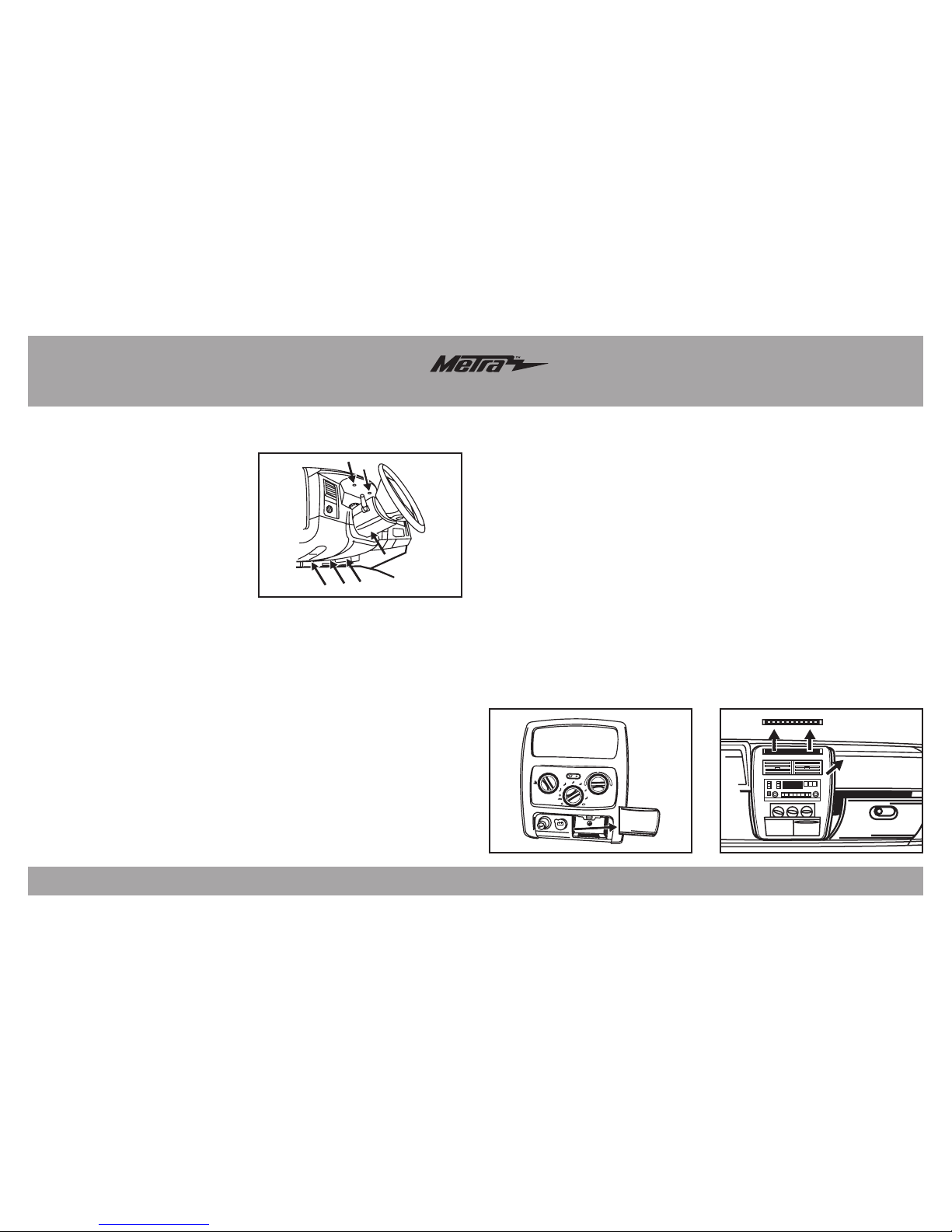

Dodge Dakota 2001-2004
Durango 2001-2003
1.
Remove (3) T-20 Torx screws from
the bottom edge of the panel below
the steering column and unsnap to
remove the panel.
2. Remove (2) Phillips screws from the
instrument cluster panel above the
gauges.
3. Remove (3) T-20 Torx screws from
the bottom of the steering column
shroud. Unsnap and remove the top
half of the shroud.
4. Unsnap and remove the entire
panel surrounding the radio, a/c
controls, and instrument cluster.
5. Remove (4) Phillips screws securing
the radio. Disconnect and remove
the radio.
Continue to kit assembly
Jeep Liberty 2002-2007
1. Remove the ashtray and remove
(1) Phillips screw exposed.
2. Unclip and remove the radio /
climate control panel.
3. Remove (4) Phillips screws
securing the radio. Disconnect and
remove the radio.
Continue to kit assembly
Dash Disassembly
Jeep Wrangler 2003-2006
1. Unsnap and remove the defroster
grille panel near the windshield.
2.
Remove (2) Phillips screws exposed
at the top of the center of the dash
panel. Unsnap and remove the panel
.
3. Remove the glove box door to
access (1) 10mm nut on the back
of the radio.
4. Remove (4) Phillips screws
securing the radio. Disconnect and
remove the radio.
Continue to kit assembly
5
1
23
4
POWER
OUTLET

99-6505

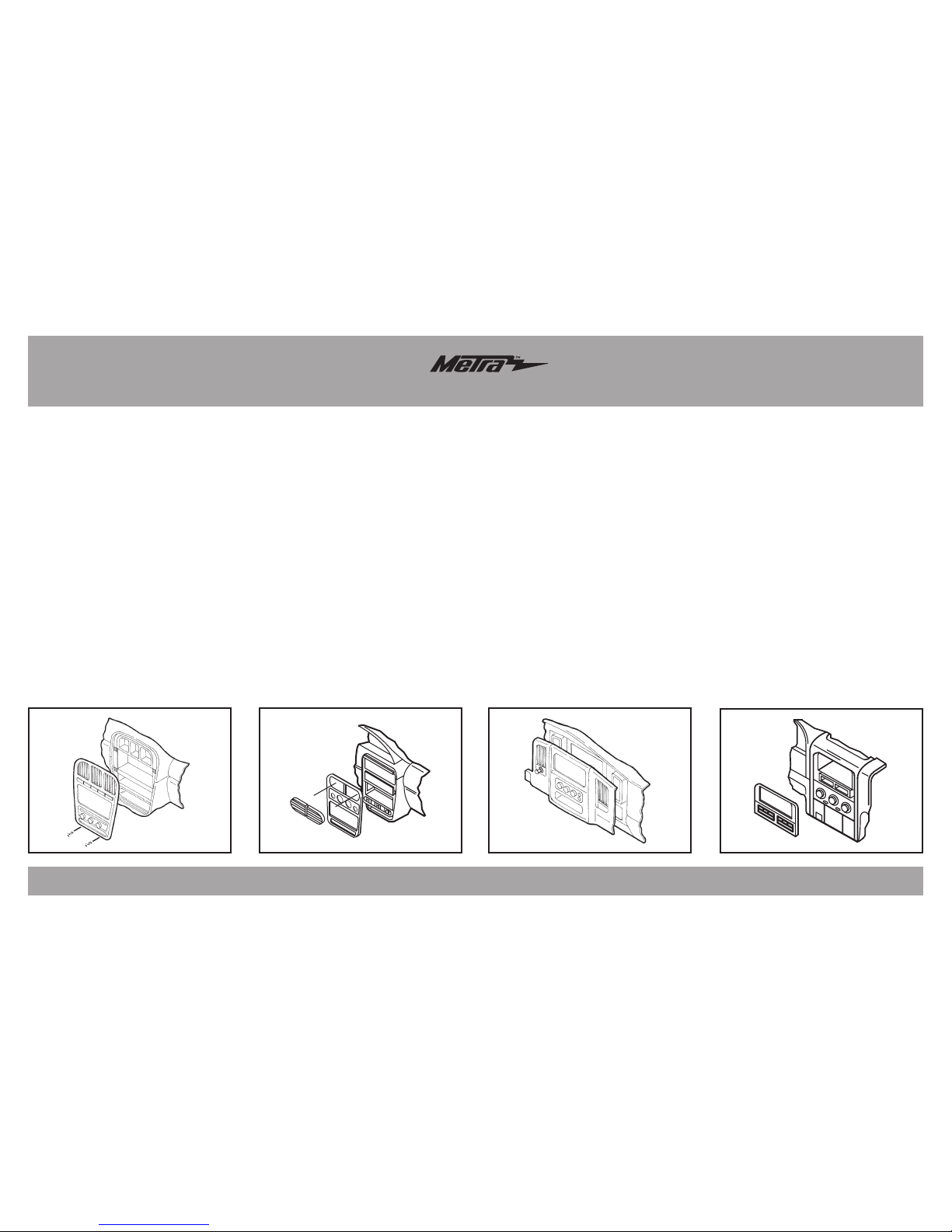

Dodge Viper 2003-2010
1. Using a panel removal tool, pry up
on the center console trim panel.
Be careful not to scratch the trim
panel. (Figure A)
2. Loosen the shifter lock nut below
the center console trim panel
(Figure A), and unscrew the shifter
knob. (Figure B)
3. Unplug the electrical connectors
and remove the center console
trim panel. (Figure C)
4. Remove (6) Allen screws from
the radio / climate control trim
panel, and (1) Phillips screw at the
bottom of the panel.
5. Unplug the electrical connectors
and remove the panel. (Figure D)
6.
Remove (4) screws securing the radio.
Disconnect and remove the radio
.
Continue to kit assembly
(Figure A) (Figure C)
(Figure B) (Figure D)
Dash Disassembly
6

99-6505

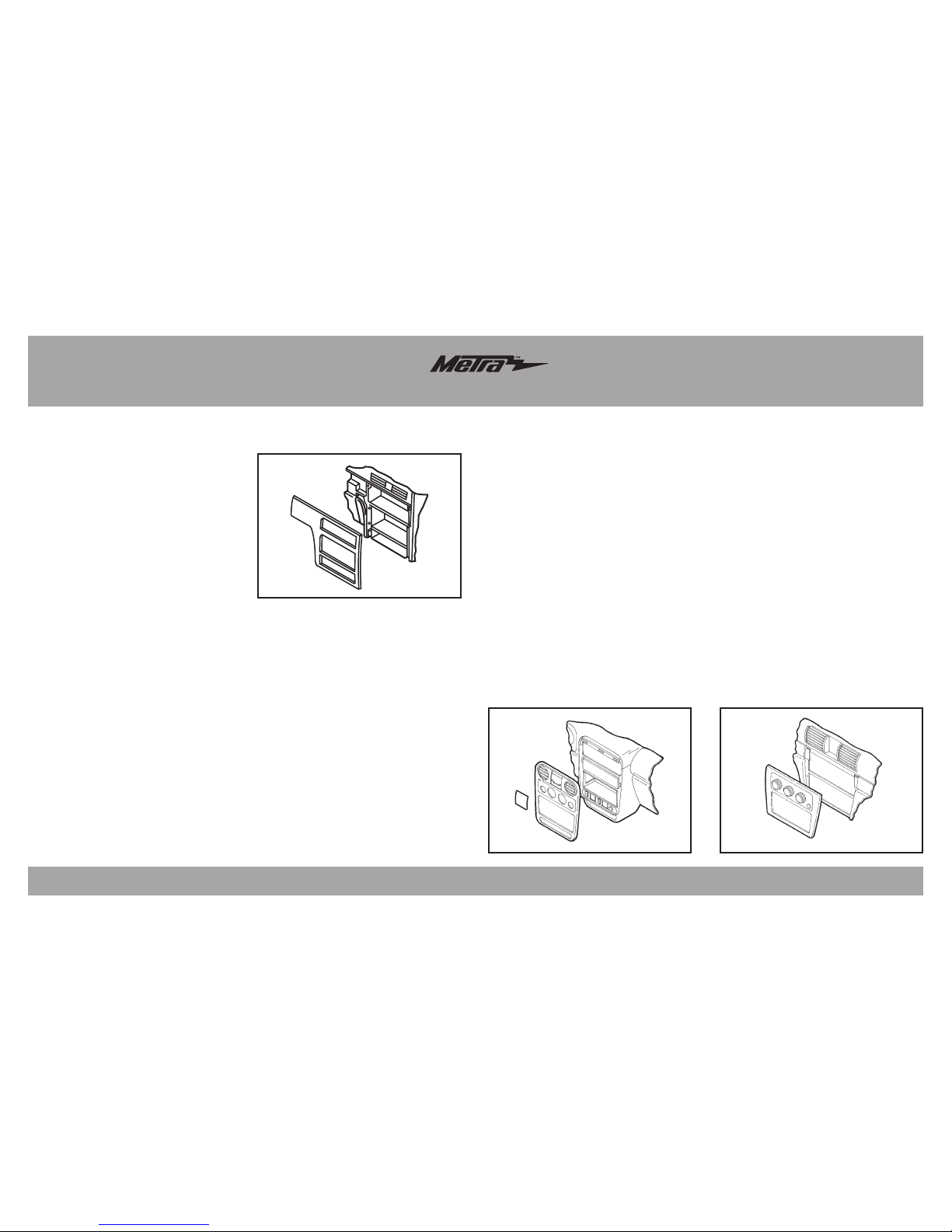

Kit Assembly
(Figure A) (Figure A)
(Figure B) (Figure B)
DIN radio provision with pocket
1. Remove the metal DIN sleeve from
the aftermarket radio.
2. Slide the sleeve into the assembly
and secure by bending the metal
locking tabs down. (Figure A)
3. Slide the radio into the sleeve until
secure. (Figure B)
4. Locate the factory wiring harness
and antenna connector in the
dash and make all necessary
connections to the radio. Metra
recommends using the proper
mating adapters from Metra and/
or AXXESS. Reconnect the negative
battery terminal and test the radio
for proper operation.
5. Reassemble the dash in reverse
order of disassembly.
ISO DIN radio provision with pocket
1. Remove the metal DIN sleeve and
trim ring from the aftermarket radio .
2. Align the holes in the ISO snap-in
brackets with the holes in the
radio and mount the brackets to
the radio with the screws supplied
with the radio. (Figure A)
3. Slide the radio/bracket assembly
into the radio opening until the side
clips engage. (Figure B)
4. Locate the factory wiring harness
and antenna connector in the
dash and make all necessary
connections to the radio. Metra
recommends using the proper
mating adapters from Metra and/
or AXXESS. Reconnect the negative
battery terminal and test the radio
for proper operation.
5. Reassemble the dash in reverse
order of disassembly.
7

METRA. The World’s best kits.™metraonline.com © COPYRIGHT 2004-2015 METRA ELECTRONICS CORPORATION
REV. 12/28/2015 INST99-6505
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Metra recommends MECP
certified technicians
Installation instructions for part 99-6505
IMPORTANT
If you are having difficulties with the
installation of this product, please call our
Tech Support line at 1-800-253-TECH.
Before doing so, look over the instructions a
second time, and make sure the installation
was performed exactly as the instructions
are stated. Please have the vehicle apart
and ready to perform troubleshooting steps
before calling.

METRA. The World’s best kits.™metraonline.com © COPYRIGHT 2004-2015 METRA ELECTRONICS CORPORATION
REV. 12/28/2015 INST99-6505
Instrucciones de instalación para la pieza 99-6505
¡PRECAUCIÓN! Meta recomienda desconectar la terminal negativa
de la batería antes de iniciar cualquier instalación, a menos que el
fabricante del vehículo recomiende lo contrario. Verifique con su
concesionario local si existe más información. Todos los accesorios,
interruptores, paneles de controles de clima y especialmente las lu-
ces del indicador de las bolsas de aire deben estar conectados antes
de reconectar la batería o ciclar la ignición. Además, no quite el radio
de fábrica con la llave en la posición de encendido ni con el vehículo
funcionando. Sería mejor retirar la llave de la ignición y esperar unos
cuantos segundos antes de quitar el radio de fábrica.
• Provisión de radio DIN con cavidad
• Provisión de radio ISO DIN con cavidad
• A) Carcasa del radio • B) Placa de moldura ISO
• C) Soportes a presión ISO
CARACTERÍSTICAS DEL KIT
COMPONENTES DEL KIT
CABLEADO Y CONEXIONES DE ANTENA (se venden por separado)
Arnés de cableado: • Visite metraonline.com para opciones
Adaptador de antena: • Visite metraonline.com para opciones
• Destornillador Torx T-20 • Destornillador Phillips
• llave de tubo
HERRAMIENTAS REQUERIDAS
Chrysler multi-kit 1998-2010
99-6505
A B C
Ver interior de la portada para indice
Indice
APLICACIONES
Ver interior de la portada

99-6505
2
Aplicaciones Indice
CHRYSLER
300M 1999-2004
Concorde 1998-2004
LHS 1999-2001
PT Cruiser 2001-2005
Sebring 2001-2006
Town & Country 2000-2007
Voyager 2001-2003
DODGE
Caravan 2001-2007
Dakota 2001-2004
Durango 2001-2003
Intrepid 1998-2004
DODGE (continuación)
Neon 2000-2006
Ram 2002-2005
Stratus 2001-2006
Viper 2003-2010
JEEP
Grand Cherokee 1999-2004
Liberty 2002-2007
Wrangler 2003-2006
PLYMOUTH
Neon 2000-2001
Desmontaje del tablero
– Chrysler 300M 1999-2004/Concorde 1998-2004 ......................................... 3
– Chrysler LHS 1999-2001........................................................................... 3
– Chrysler PT Cruiser 2001-2005 .................................................................. 3
– Chrysler Sebring 2001-2006...................................................................... 3
– Chrysler Town & Country 2000-2007 .......................................................... 4
– Chrysler Voyager 2001-2003 ..................................................................... 4
– Dodge Caravan 2001-2007 ....................................................................... 4
– Dodge Dakota 2001-2004/Durango 2001-2003............................................ 5
– Dodge Intrepid 1998-2004 ........................................................................ 3
– Dodge Neon 2000-2006............................................................................ 4
– Dodge Ram 2002-2005 ............................................................................ 4
– Dodge Stratus 2001-2006......................................................................... 3
– Dodge Viper 2003-2010 ............................................................................ 6
– Jeep Grand Cherokee 1999-2004............................................................... 4
– Jeep Liberty 2002-2007............................................................................ 5
– Jeep Wrangler 2003-2006......................................................................... 5
– Plymouth Neon 2000-2001........................................................................ 4
Ensamble del kit
–Provisión de radio DIN con cavidad .................................................................... 7
– Provisión de radio ISO DIN con cavidad .............................................................. 7
