Microlab M-700 User manual

Before using, please read the manual carefully
M-700/5.1
User Manual
Microlab Electronics Co.,Ltd
Made in China
All symbols and logo belong to the respective brand holder or registered holder. All specifications and information are subject to changes without
further notice. Slight variations and differences might appear between the printed photos and actual product due to product enhancement.
M u l t i m e d i a S p e a k e r S y s t e m
feel the difference
80-M-700/5.1-97-0001-01 2010-10-20

1
Important Safety Instructions
WARNINGS:
1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and user instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to
the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local
power company.
7. Grounding or polarization - the product is not required to be grounded. Ensure the plug is fully inserted into the wall outlet
or extension cord receptacle to prevent blade or pin exposure. Some versions of the product are equipped with a power
cord fitted with a polarized alternating line plug (a plug having one blade wide than the other). This plug will fit onto the
power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety
purpose of the polarized plug. When using an extension power-supply cord or a power-supply cord other than that
supplied with the appliance, it should be fitted with the appropriate molded plugs and carry safety approval appropriate to
the country of use.
8. Power cord protection - Power-supply cords should be routed so that they are not likely to be walked on, kinked or
pinched by items placed on or against them, paying particular attention to cords from plugs, receptacles and the point
where they exit from the appliance.
9. Overloading - Do not overload wall outlets, extension cords or multiple sockets, as this can result in a risk of fire or
electric shock.
10. Ventilation - The product must be properly ventilated. Do not place the product on a bed, sofa, or other similar surface.
Do not cover the product with any items such as tablecloths, newspapers, etc.
11. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other
products) including amplifiers that produce heat. No naked flame sources, such as lighted candles, should be placed on
the apparatus.
12. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train, dripping, splashing or
excessive moisture such as in a sauna or bathroom. Do not use this product near water for example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool and the like.
13. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch
dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on
the product. Do not place any object containing liquid on top of the product.
14. Cleaning - Unplug the product from the wall outlet before cleaning. The cabinet of the subwoofer may be cleaned by
dusting with a dry cloth. If you wish to use an aerosol cleaning spray, do not spray directly on the cabinet; spray onto the
cloth. Be careful not to damage the drive units.
15. Attachments - Do not use attachments not recommended by the product manufactures, as they may cause hazards.
16. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing
serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket or table
recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's
instructions and should use a mounting accessory recommended by the manufacturer.
17. Moving the product - A product and cart combination should be moved with care. Quick stops, excessive force and
uneven surfaces may cause the product and cart combination to overturn.
Caution:
To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture. No
user-serviceable parts inside. Refer servicing to qualified personnel only.
The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage
within the product's enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons.
The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the product.
Explanation of Graphical Symbols:
2
18. Unused periods - The power cord of the appliance should be unplugged from the outlet during lightning storms or when
the apparatus is left unused for a long period of time.
19. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
20. Please remove the power plug form the main power source or wall power source when not in use. When plugged in to a
power source, the system is in standby mode, so the power is not entirely cut off.
21. Replacement parts - When replacement parts are required, ensure the service technician has used replacement parts
specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result
in fire, electric shock or other hazards.
22. Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and rating. The correct fuse
specification for each voltage range is marked on the product.
23. Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speaker
may be damaged when a peak level section is suddenly played.
24. The only means of completely disconnecting the product from the power supply is by removing the power cord from the
wall outlet or the product. The wall outlet or the power cord entry to the product must remain freely accessible at all times
while the product is in use.
25. Try to install the product near a wall socket or extension cord and shall be easily accessible.
26. The highest environmental temperature suitable for this product is 40°C.
Introduction
Features
Quality 5.1 subwoofer system for movie effects with 5 point speaker layout
Ÿ
Ideal for digital multimedia movies, TV, CD/DVD and Mp3/Mp4 playbacks
Ÿ
Flexible options; lets you connect to stereo or 5.1 channel audio source such
Ÿ
as Mp3 or DVD player
Enhance sound effects with full 5.1 channel outputs using Microlab surround
Ÿ
design
Bass control for separate effect level
Ÿ
Bass reflex technology for depth and resolution
Ÿ
Package contents
M-700 subwoofer 1 pc
M-700 satellites 5 pcs
3.5mm stereo - 2RCA cable 3 pcs
User manual
1 pc
Powerful speaker system for your perfect introduction to home movie setup.
Consist of 5 satellite speakers to fill your room with dynamic sound effects. Deep
bass effect with subwoofer design including bass reflex technology.
Ideal for movies, music and computer use. Fits into your living room and converts it
into a personal cinema.
User friendly options with stereo and 5.1 channel inputs for different audio source.
80-M-700/5.1-97-0001-01 2010-10-20

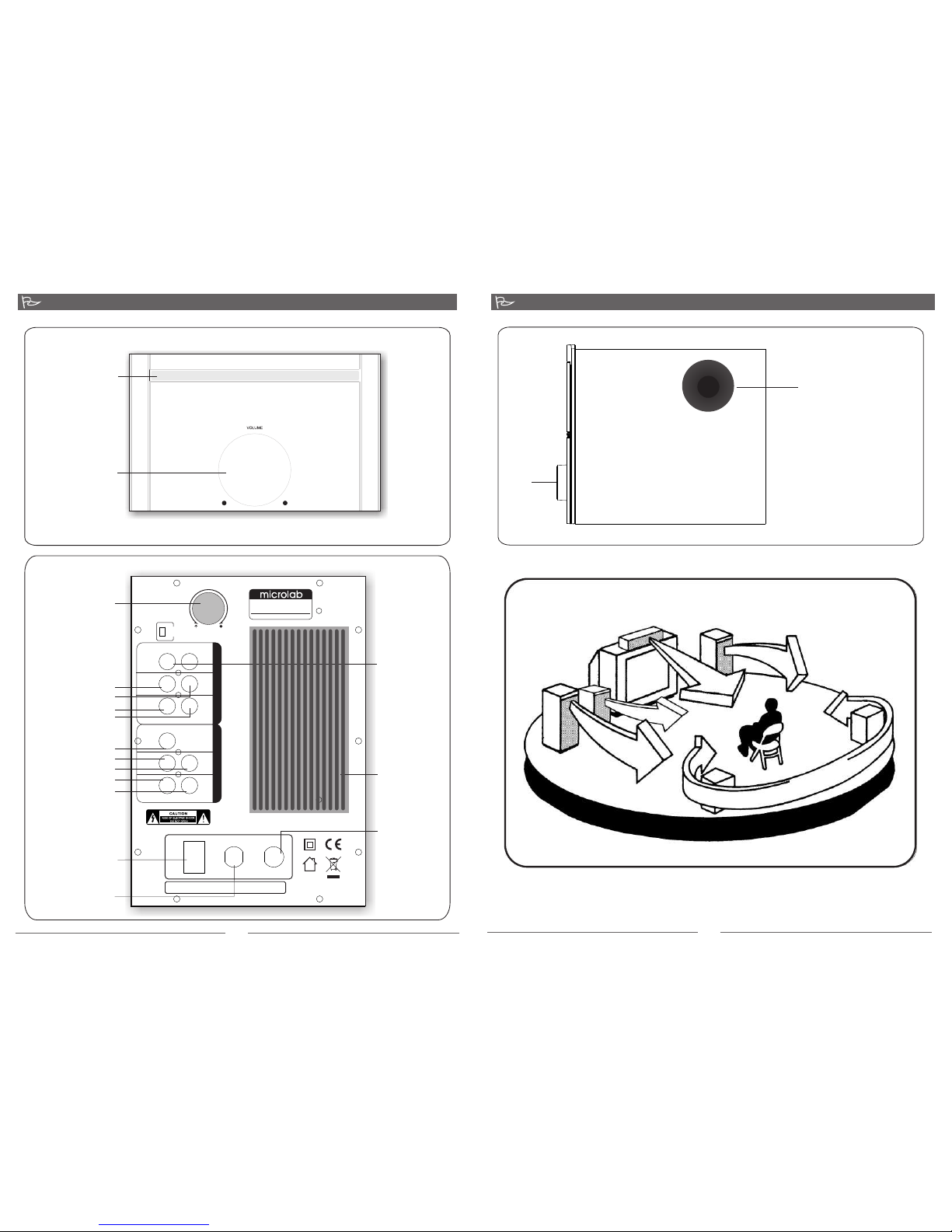

Illustrations
34
Illustrations
Rear Panel
Power switch On / Off
5.1 channel input:
Connect from 5.1 ch
sources, DVD player
Center
Subwoofer
Rear Left
Rear Right
To satellites:
Center
Left
Right
Rear Left
Rear Right
AC power cable
Bass volume knob
- adjust bass level
Stereo input
- connect from
playback source
such as Mp3/Mp4
CD/DVD players
Heat sink
Fuse
T630mAL250V
Front Panel
+
-
Volume knob
Power LED
Bass reflex tunnel
- increase bass driver efficiency
and powerful bass effect.
Do not block this port.
Left side: Subwoofer
Volume
knob
5.1 speakers layout
Suggested 5.1 channel speaker positioning
L R
L R
FRONT L R
REAR L R
S.W.
FRONT / AUX
REAR
AUDIO OUTPUTAUDIO INPUT
CENTER
CENTER
AUX
5.1CH
ON
OFF
AC IN
T630mA L250V
FUSE
CAU TIO N: FO R CONT INU ED PR OTE CTIO N AGA INS T RIS K OF FIR E, REPL ACE
ONLY WI TH SAME T YPE AND R ATING OF F USE
MULTIMEDIA SPEAKER
MADE IN CHINA
MOD EL: M-700 / 5.1
AC IN : 220V-240 V~ 50 Hz 26 0mA
+
BASS
Subwoofer
Subwoofer
80-M-700/5.1-97-0001-01 2010-10-20

L R
L R
FRONT L R
REAR L R
S.W.
FRONT / AUX
REAR
AUD IO OUTP UTAUD IO INPU T
CENTER
CENTER
AUX
5.1CH
ON
OFF
AC IN
T630mA L250V
FUSE
CAUTI ON: FOR CO NTINU ED PROTE CTION AG AINST RI SK OF FIRE , REPLA CE
ONLY WITH S AME TYP E AND RATI NG OF FUS E
MULTIMEDIA SPEAKER
MADE IN CHINA
MODEL : M-700 / 5.1
AC IN: 22 0V-240V~ 5 0Hz 260m A
+
BASS
Subw oofer
Technical Information
Product connection and operation
65
Frequently Asked Questions (FAQ)
If the problem still exists, please contact the distributor or seek professional advice.
ŸCheck if the audio source is working well
ŸCheck if the audio and speaker cables well connected
ŸCheck if the volume at right level
Static sound heard when
volume knob is turned
What are the products
supported?
Where to place this speaker
ŸCheck if the source file is not corrupted, play a different
song and test.
ŸC
ensure source connection is correctly inserted
heck if the satellite cable well connected, and
One or more satellite no sound
No Sound
Sound is distorted
ŸTurn off the playback source first, then turn the speaker
volume knob several times. Playback again and
monitor. The static noise is due to dust, so simply
turning the volume will remove it easily.
ŸIt is magnetically shielded so can be placed near LCD
TV monitor without any distortion
ŸAny playback devices such as PC, notebook, CD/DVD
player, Media Players with 3.5mm to 2RCA connection.
Solutions
SPECIFICATIONS
AMPLIFIER
Output power: 62 Watt RMS
Power distribution: 8 Watt x 5 + 22 Watt
Harmonic distortion: < 0.3% 1 W 1 kHz
Frequency response: 35 Hz - 20 kHz
Signal/Noise ratio: > 75 dB
Separation: > 45 dB
SPEAKERS
Tweeter driver type: 2.5" x 5
Tweeter rated power: 10 Watt x 5, 4 ohm
Bass driver type: 5"
Bass rated power: 30 Watt, 4 ohm
Frequency range: 35 Hz - 20 kHz
INTERFACES
Output: 5RCA jacks
Input: 6RCA jacks
POWER
Power supply: AC 220 V - 240 V, 50Hz 260 mA, or
AC 120 V, 520 mA version
Dimensions
Subwoofer: 165 x 240 x 290 mm
Satellites: 90 x 180 x 75 mm
Product Net weight: 6.1 kg
Connections
1. Connect the five satellites to their respective output RCA jacks at the rear of the subwoofer.
2. Place the front satellites on extreme sides in front of the listening position.
3. Place the rear satellites on extreme sides at the back of the listening position.
4. Next, place the center satellite in front, and at the top of the TV or monitor.
5. Place the subwoofer on the floor and with its back to the wall. It can also be place on the desk but
the resonance is better when on the floor.
6. Connect the stereo or 5.1 channel audio source to the respective input jacks at the rear of the
subwoofer.
7. For stereo source such as Mp3/Mp4 player or CD player, select the Input switch at the rear of the
subwoofer to AUX.
8. For 5.1 channel source such as DVD player, select the 5.1CH option.
9. Connect the power cable at the rear of the subwoofer to the AC power supply source. Please
ensure the AC power supply match the power requirement printed at the rear panel.
Operations
1. Ensure the master volume is at the lowest setting.
2. Turn on the main AC power and switch on the speaker system from the rear power switch.
3. Start the playback device and song
4. Slowly adjust the volume to your preferred volume level and enjoy.
5. Next adjust the bass volume at the rear panel to your preferred bass effect.
Note: Always adjust in slow increment.
Right satellite
Rear right Rear left
Left satellite
To AC power su pply: 220 V - 240 V 50 Hz 260 mA,
or 120 V 60 Hz 520 mA depending on country typ e
Center
To stereo or
5.1 channel audio
sources such as
DVD player or TV
PC
Mp3 \ Mp4
Media pla yer
CD\ VCD \ DVD
Audio sources
TV
80-M-700/5.1-97-0001-01 2010-10-20
