Midea Arctic King WWK User manual

Window Type
version A - 09 - 2018
WWK05CM01N
WWK05CR01N
WWK06CR01N
www.midea.com
USER MANUAL
en
WWK
Warning notices: Before using
this product, please read this
manual carefully and keep it
for future reference.
The design and specifications
are subject to change without
prior notice for product
improvement. Consult with
your dealer or the manufacturer
for details.
Frequency: 60Hz
Capacity: 5000 ~ 6000BTU/h
version A - 09 - 2019

Page 2
Read This Manual
Inside you’ll find many helpful hints on how to use and maintain your air conditioner
properly. Just a little preventive care on your part can save you a great deal of time
and money over the life of your air conditioner. You’ll find many answers to common
problems in the troubleshooting tips - you should be able to fix most of them quickly
before calling service. These instructions may not cover every possible condition of
use, so common sense and attention to safety is required when installing, operating
and maintaining this product.
• Contact the authorized service technician for repair or maintenance of this unit.
• Contact the installer for installation of this unit.
• The air conditioner is not intended for use by young children or infirm persons
without supervision.
• Young children should be supervised to ensure that they do not play with the air
conditioner.
• If the power cord needs to be replaced, please contact our consumer service and
look for an authorized technician.
• Electrical installation must be performed in accordance to national regulation
standards by qualified personnel only.
Safety Precautions ........................................................................................ 3
Operating Instructions ................................................................................. 8
Installation Instructions .............................................................................. 15
Care and Cleaning ...................................................................................... 20
Troubleshooting Tips .................................................................................. 21
Remote Control Instructions .................................................................... 23
CAUTION
Owner’s Manual
Warranty ................................................................... 30and Return Policy ...

Page 3
Safety Precautions
Safety
Precautions
To prevent injury to the user or other people and property damage, the instructions
shown here must be followed. Incorrect operation due to ignoring of instructions may
cause harm or damage. The level of risk is shown by the following indications.
CAUTION
WARNING
• Plug in power cord plug properly.
Otherwise, it may cause electric shock or fire due to excess heat generation.
• Do not modify power cord length or share the outlet with other appliances as it
may cause electric shock or fire due to overheating.
• Always ensure effective grounding.
Incorrect grounding may cause electric shock.
• Unplug the unit if you notice unusual sounds or smells, or smoke comes from it.
A damaged product may cause fire and electric shock.
• Keep firearms away from the unit.
• Ventilate room before operating the air conditioner if there is a gas leakage from
another appliance.
• Do not operate or stop the unit by inserting or pulling out the power cord plug.
• Do not operate with wet hands or in very humid enviroments.
It may cause electric shock.
• Do not allow water to come into contact with any electric parts.
It may cause failure or electric shock.
• Do not use the socket if it is loose or damaged.
It may cause fire and electric shock.
• Do not place the power cord close to heating appliances.
It may cause fire and electric shock
• Do not disassemble or modify unit.
It may cause failure and electric shock.
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to property.
This symbol shows that the operation manual should be read carefully.
This symbol shows that a service personnel should be handling this
equipment with reference to the installation manual.
WARNING
This symbol shows that this appliance uses a flammable refrigerant.
If the refrigerant is leaked and exposed to an external ignition source,
there is a risk of fire.
WARNING
CAUTION
CAUTION
CAUTION
This symbol shows that information is available such as the operating
manual or installation manual.

Page 4
WARNING
• Do not damage or use an alternate power cord.
It may cause fire and electric shock.
If the power cord is damaged, it must be replaced by the manufacturer or an
authorized service center or a similarly qualified person in order to avoid a hazard.
• Do not direct airflow straight into persons to avoid possible health hazard.
• Always install a circuit breaker and a dedicated power circuit.
Incorrect installation may cause fire and electric shock.
• Do not open the unit during operation.
It may cause electric shock.
• Do not use the power cord near flammable gas or combustibles, such as gasoline,
benzene, thinner, etc.
It may cause an explosion or fire.
CAUTION
• When the air filter is to be removed, do not touch the metal parts of the unit.
It may cause injury.
• When the unit needs cleaning, switch off, and turn off the circuit breaker.
Do not clean unit when power is on as it may cause fire, electric shock or injury.
• Stop operation and close the window during a in stormor hurricane.
Operation with windows open may cause water leakage into the room.
• Do not place obstacles around air inlets or inside of air outlet.
It may cause failure or accident.
• Do not use detergents that contain wax or thinners as it may damage the product.
Clean with a soft cloth only.
• Use caution when unpacking and installing. Sharp edges could cause injury.
• Do not clean the air conditioner with water.
Water may enter the unit and degrade the insulation which could lead to electric
shock.
• Do not put a pet or house plant where it will be exposed to direct air flow.
This could injure the pet or harmthe plant.
• Hold the plug by the head of the power plug when taking it out.
Otherwise, it may cause electric shock and damage.
• Ensure that the installation is properly secured to prevent the product from
potentially falling.
• Do not place heavy objects on the power cord and ensure that the cord is not
compressed.
Otherwise, there is danger of fire or electric shock.
• If water enters the unit, turn off the unit and switch off the circuit breaker. Isolate
supply by taking the power-plug out and contact a qualified service technician.
• When used near a stove or other gas burning device, be sure the roomis
properly ventilated.
Otherwise an oxygen shortage may occur.
Safety
Precautions

Page 5
Safety
Precautions
CAUTION
• Do not use for any purpose other than roomcomfort.
Do not use this air conditioner to preserve precision devices, food, pets, plants,
and art objects. It may cause deterioration.
• Turn off the main power switch if the unit is not to be used for an extended time.
• Always insert the filters securely. Clean filter once every two weeks.
Operation without filters may cause failure.
• Do not drink water drained fromthe air conditioner.
WARNINGS (for using R32 refrigerant only)
• Do not use any means to accelerate the defrosting process or to clean the unit,
other than those recommended by the manufacturer.
• Do not use or store the appliance in spaces with potential ignition sources (for
example: open flames, an operating gas appliance or an operating electric heater).
• Do not pierce or burn refrigerant tubing. Be aware that refrigerants may not
contain an odor.
• Keep ventilation openings clear of obstruction.
• Store the appliance in a way that will prevent mechanical damage fromoccurring.
• Store the appliance in a well-ventilated area where the roomsize corresponds to
the roomarea as specified for operation.
• Any person who is involved with working on or breaking into a refrigerant circuit
should hold a current valid certificate froman industry-accredited assessment
authority, which authorizes their competence to handle refrigerants safely in
accordance with an industry recognized assessment specification.
• Servicing shall only be performed as recommended by the equipment
manufacturer. Maintenance and repair requiring the assistance of other skilled
personnel shall be carried out under the supervision of the person competent
in the use of flammable refrigerants.
• Flammable refrigerant (R32) is used within the air conditioner. When maintaining
or disposing of the air conditioner, the refrigerant (R32) shall be recovered
properly, do not discharge to air directly.
Caution: Risk of fire/
flammable materials
(Required for R32/R290 units only)
IMPORTANT NOTE:Read this manual
carefully before installing or operating
your new air conditioning unit. Make sure
to save this manual for future reference.

Page 6
NOTE
The power supply cord with this
air conditioner contains a current
detection device designed to reduce
the risk of fire.
Please refer to the section Operation of
Current Device for details.
In the event that the power supply cord
is damaged, it can not be repaired. It
must be replaced with a cord fromthe
manufacturer.
WARNING - For your safety
• Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
• Avoid fire hazard or electric shock.
Do not use an extension cord or an
adaptor plug. Do not remove any
prongs fromthe power cord.
WARNING - Electrical Information
The complete electrical rating of
your new roomair conditioner is
stated on the serial plate. Refer to the
rating when checking the electrical
requirements.
• Be sure the air conditioner is
properly grounded. To minimize
shock and fire hazards, proper
grounding is important. The power
cord is equipped with a three-prong
grounding plug for protection against
shock hazards.
• Your air conditioner must be
connected to a properly grounded
wall receptacle. If the wall receptacle
you intend to use is not adequately
grounded or protected by a time
delay fuse or circuit breaker, have a
qualified electrician install the proper
receptacle.
• Ensure the receptacle is accessible
after the unit installation.
• Do not run air conditioner without
outside protective cover in place.
This could result in mechanical
damage within the air conditioner.
Safety
Precautions
Grounding type wall receptacle
Do not, under any
circumstances, cut,
remove or bypass
the grounding prong.
Power supply cord with 3-prong grounding
plug and current detection device.

Page 7
Safety
Precautions
The power supply cord contains a current
device that senses damage to the power
cord. Test your power supply cord as
follows:
1. Plug in the air conditioner.
2. The power supply cord will have TWO
buttons on the plug head. Press the
TEST button. You will notice a click as
the RESET button pops out.
3. Press the RESET Button. You will notice
a click as the button engages.
4. The power supply cord is now supplying
electricity to the unit. (On some
products this is also indicated by a light
on the plug head.)

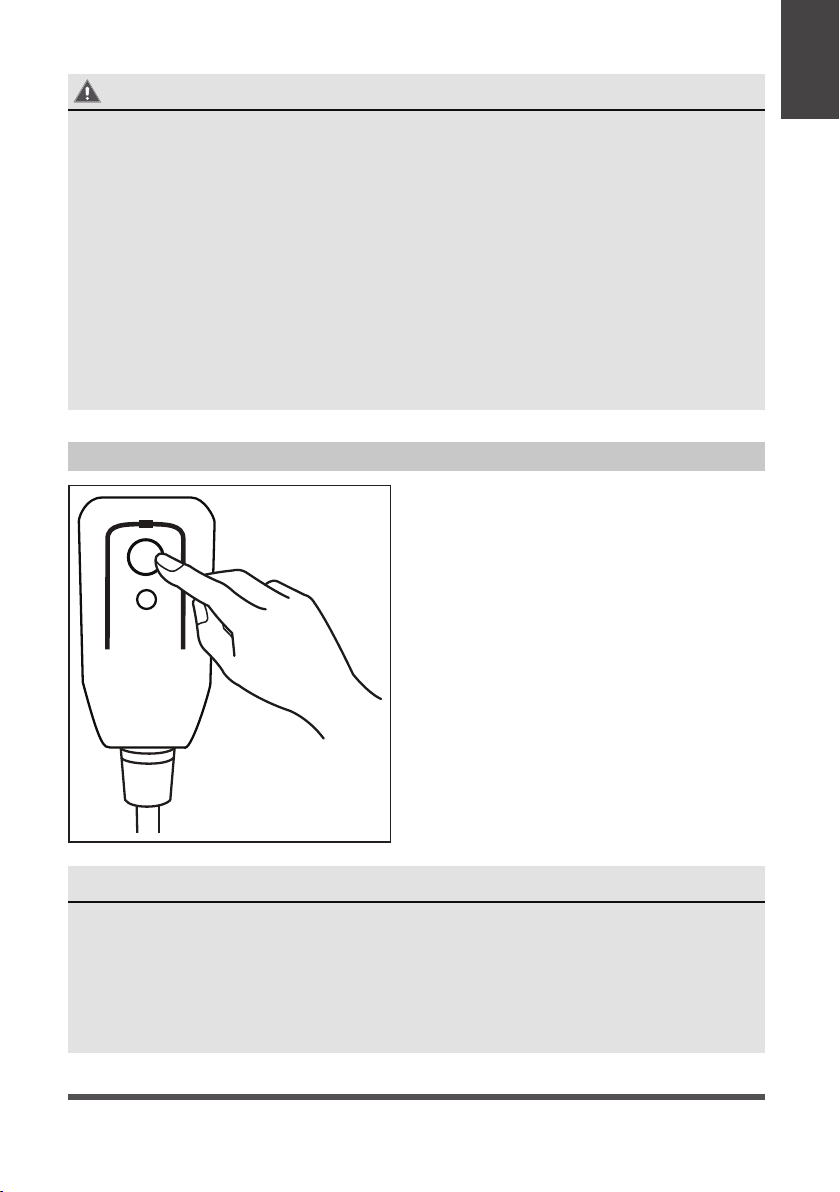

Operation of Current Device
NOTES
• Do not use this device to turn the unit on or off.
• Always make sure the RESET button is pushed in for correct operation.
• The power supply must be replaced if it fails to reset when either the TEST button
is pushed, or it can not be reset. Please contact Customer Service.
• If power supply cord is damaged, it can not be repaired. It MUST be replaced with
a new cord. Please contact Customer Service.
WARNING - Prevent Accidents
To reduce the risk of fire, electrical shock, or injury to persons when using your air
conditioner, follow basic precautions, including the following:
• Be sure the electrical service is adequate for the model you have chosen. This
information can be found on the serial plate, which is located on the side of the
cabinet and behind the grille.

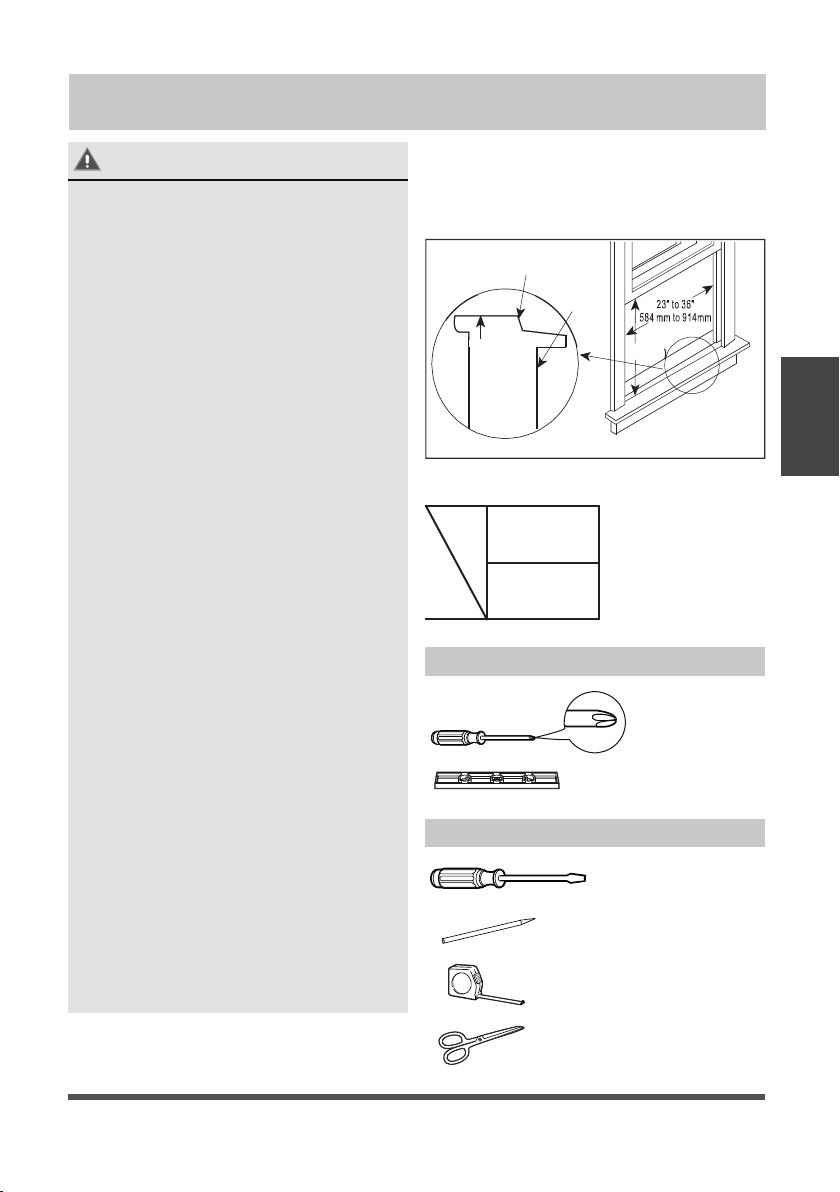

• If the air conditioner is to be installed in a window, you will probably want to clean
both sides of the glass first. If the window is a triple-track type with a screen panel
included, remove the screen completely before installation.
• Be sure the air conditioner has been securely and correctly installed according to
the installation instructions in this manual. Save this manual for possible future use
in removing or installing this unit.
• When handling the air conditioner, be careful to avoid cuts fromsharp metal fins
on front and rear coils.
RESET
TEST
Plug in &
press RESET

Page 8

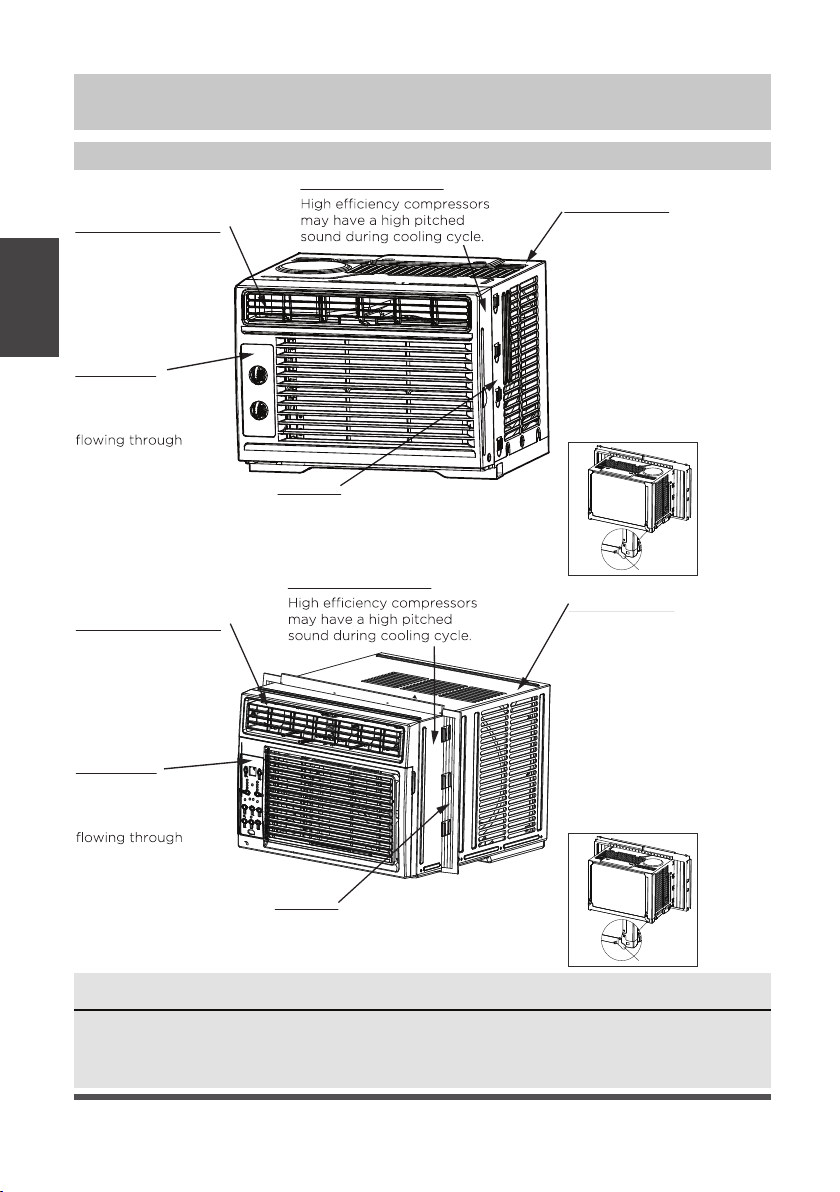

Normal Sounds
Operating Instructions
Operating
Instructions
NOTE
All the pictures in this manual are for illustrative purposes only. The actual
appearance of the air conditioner you purchased may vary slightly, but its operation
and functions will be similar.
Gurgle/Hiss
Gurgling or hissing
noises maybeheard
due to refrigerant
evaporator during
normal operation.
Sound of Rushing Air
In front of theunit, you
mayhear the sound of
rushing airbeing
moved by the fan.
High Pitched Chatter
Vibration
Trickling Sound
WWK05CM
WWK05CR / WWK06CR
Gurgle/Hiss
Gurgling or hissing
noises maybe heard
due to refrigerant
evaporator during
normaloperation.
Sound of Rushing Air
In front of the unit, you
mayhear the sound of
rushing airbeing
moved by the fan.
High Pitched Chatter
Vibration
TricklingSound
Water plug
Water plug
Droplets of water hitting
condenser during normal
operation may cause a
trickling sound.
This noise can be reduce
by removing the water
plug at the bottom of
unit’s rear as shown below.
Removing this plug will
lower the Energy Efficiency
of your unit.
Note: Don’t try to drill any
holes on the base pan to
eliminate the normal
sounds, otherwise it will
void the warranty.
Droplets of water hitting
condenser during normal
operation may cause a
trickling sound.
This noise can be reduce
by removing the water
plug at the bottom of
unit’s rear as shown below.
Removing this plug will
lower the Energy Efficiency
of your unit.
Note: Don’t try to drill any
holes on the base pan to
eliminate the normal
sounds, otherwise it will
void the warranty.
Unit may vibrate and make noise
because of poor wall or window
construction or incorrect installation.
Unit may vibrate and make noise
because of poor wall or window
construction or incorrect installation.

Page 9
Air Conditioner Operation
WARNING
To reduce the risk of fire, electrical shock, personal injury or property, read the
SAFETY PRECAUTIONS before operating this appliance.
NOTE
The cooling mode has an automatic 3 minutes time delayed start if the unit is turned
off and on quickly. This prevents overheating of the compressor and possible tripping.
Operating
Instructions
TO BEGIN OPERATING THE AIR CONDITIONER, FOLLOW THESE STEPS:
1. Set the lowest number (coldest setting).
2. Set the selector control to the highest COOL setting.
3. Adjust the louver for comfortable air flow (see Air Directional Louvers).
4. Once the room feels colder, adjust the setting you find most comfortable.
5. Make sure that the air flow inside and outside are not obstructed by anything.
6. This air conditioner is designed to be operated under the following conditions:
Cooling Operation
Outdoor temp.: 64-109°F/18-43°C (64-125°F/18-52°C
for special tropical models)
Indoor temp.: 62-90°F/17-32°C
Heating Operation Outdoor temp.: 23-76°F/-5-24°C
Indoor temp.: 32-80°F/0-27°C
Before you begin, thoroughly familiarize yourself with the control panel as shown
below and all its functions, then follow the symbol for the functions you desire. The
unit can be controlled by the unit control panel alone or with the remote controller.
NOTES
• The relative humidity of roomshould be less than 80%. If the unit is used in a
condition with a relative humidity over 80%, there will be condensed water on the
surface of the unit.
• Performance may be reduced outside of these operating temperatures.

Page 10
Operating
Instructions

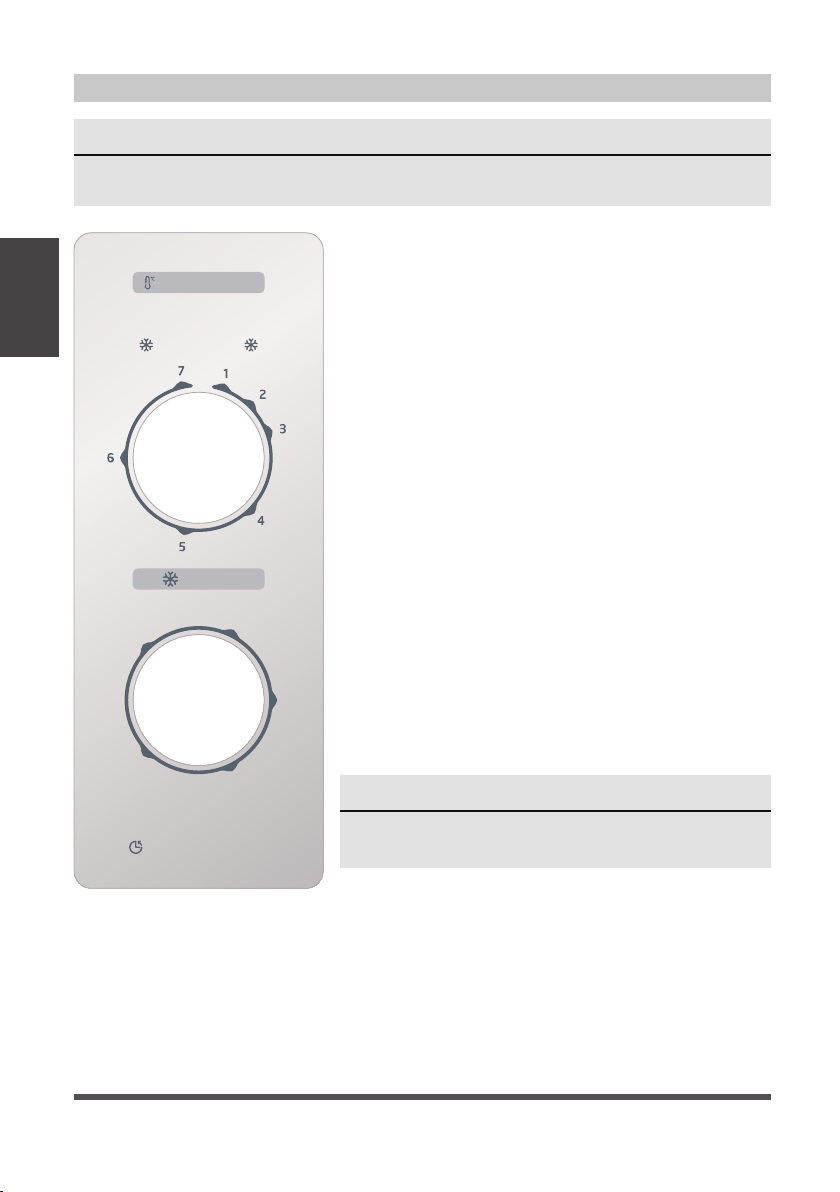

Air Conditioner Features - WKK05CM
NOTE
COOL MODE
The desired cool setting is selected by rotating the
knob to the right to the appropriate location.
High Cool has maximum cooling effect and airflow.
Low Cool has minimum cooling effect and airflow.
FAN MODE
Rotate the knob to the left to select your choice of
fan speeds for air circulation.
The controls featured in this manual are representative of many available models.
Your model’s features and appearance may vary slightly.
NOTE
When selecting a fan speed, the compressor will
not run.
UNIT CONTROL
THERMOSTAT
The thermostat is used to set the desired room
temperature when the unit is being operated in the
COOL MODE.
To set the desired room temperature, rotate the
thermostat switch to the desired setting. After the
set temperature is achieved the thermostat will
automatically start and stop the compressor in order
to maintain the desired set temperature.
Rotate the thermostat selector clockwise for higher
cool settings. Higher cool settings will provide lower
room temperature. Rotate the thermostat selector
counter clockwise for lower cool settings. Lower cool
settings will provide higher room temperature.
High
Cool High
Fan
Off
Low
Fan
Low
Cool
Cooling
Temperature
Wait three minutes
before restarting
Max
Cool
Min
Cool

Page 11
Operating
Instructions
ELECTRONIC CONTROL OPERATING INSTRUCTIONS
Before you begin, thoroughly familiarize yourself with the control panel as shown below
and all its functions, then follow the symbol for the functions you desire. The unit can be
controlled by the unit control alone or with the remote controller.
TO TURN UNIT ON OR OFF:
Press ON | Off ON/OFF button to turn
unit on or off.
TO CHANGE TEMPERATURE
SETTING:
Press UP ( )/DOWN ( ) button
to change temperature setting.
NOTE
The unit will automatically
initiate the Energy Saver
function under Cool, Dry, Auto
(only Auto-Cooling and Auto-
Fan) modes.
NOTE
Press or hold either UP ( )/
DOWN ( ) button until the
desired temperature is seen on
the display.
This temperature will be
automatically maintained
anywhere between 62°F (17°C)
and 86°F (30°C). If you want
to display the actual room
temperature, see To Operate on
Fan Only section.
TO ADJUST FAN SPEEDS:
Press Fan to select the Fan Speed
in four steps-Auto, Low, Med or High.
Each time the button is pressed,
the fan speed mode is changed. On
Dry mode, the fan operates on Low
speed automatically.
Air Conditioner Features - WWK05CR to WWK06CR
UNIT CONTROL
DISPLAYS
TEMPERATURE
OR TIME OR
ERROR CODES
ADJUSTS
TEMPERATURE
OR TIME
ADJUSTS
TEMPERATURE
OR TIME
CHECK FILTER
RESET
BUTTON
ENERGY
SAVER MODE
SLEEP MODE
SETS FAN
SPEED SETS MODE
ACTIVATES
TIMER
TURNS UNIT
ON OR OFF

Page 12
Operating
Instructions
SLEEP FEATURE:
Press Sleep Sleep button to initiate the
sleep mode. In this mode the selected
temperature will increase by 2°F/1
(or 2)°C 30 minutes after the mode
is selected. The temperature will then
increase by another 2°F/1 (or 2)°C after
an additional 30 minutes. This new
temperature will be maintained for 6
hours before it returns to the originally
selected temperature. This ends the
Sleep mode and the unit will continue to
operate as originally programmed. The
Sleep mode program can be cancelled at
any time during operation by pressing the
Sleep button again.
CHECK FILTER FEATURE:
Press Filter Check filter button to initiate
this feature. This feature is a reminder
to clean the Air Filter for more efficient
operation. The light will illuminate after
250 hours of operation. To reset after
cleaning the filter, press the Check Filter
button and the light will go off.
ENERGY SAVER FEATURE:
Press Energy
Saver Energy Saver button to
initiate this function. This function is
available on COOL, DRY, AUTO (only
AUTO-COOLING and AUTO-FAN) modes.
The fan will continue to run for 3 minutes
after the compressor shuts off. The fan
then cycles on for 2 minutes at 10 minute
intervals until the room temperature
is above the set temperature, at which
time the compressor turns back on and
Cooling resumes.
TO SELECT THE OPERATING MODE:
To choose operating mode, press Mode
Mode button. Each time you press the
button the unit cycles through the modes,
Auto, Cool, Dry, and Fan. The adjacent
indicator light will remain on once the
mode is selected.
The unit will automatically initiate the Energy
Saver function under Cool, Dry, Auto (only
Auto-Cooling and Auto-Fan) modes.
To operate on Auto feature:
• When you set the air conditioner to
AUTO mode, it will automatically select
cooling or fan only operation depending
on what temperature you have selected
and the current room temperature.
• The air conditioner will control room
temperature automatically according
to the temperature you’ve set.
• In this mode, the fan speed cannot be
adjusted, as it’s automatically controlled
according to the temperature setting
and room temperature.
To operate on Fan Only:
• Use this function only when cooling is not
desired, such as for room air circulation
or to exhaust stale air (on some models).
(Remember to open the vent during
this function, but keep it closed during
cooling for maximum cooling efficiency.)
You can choose any fan speed you prefer.
• During this function, the display will
show the actual room temperature,
not the set temperature as in the
cooling mode.
• In Fan Only mode, the temperature is
not adjusted.
To operate on Dry mode:
In this mode, the air conditioner will
generally function as a dehumidifier. Since
the conditioned space is a closed or sealed
area, some degree of cooling will occur.

Page 13
Displays:
Operating
Instructions
TIMER: AUTO START/STOP FEATURE:
• When the unit is on or off, first press
Timer the Timer button. The TIMER ON
indicator light illuminates indicating the
Auto Start program has initiated.
• When the time of TIMER ON is
displayed, press the Timer button
again. The TIMER OFF indicator light
illuminates. It indicates the Auto Stop
program has initiated.
• Press or hold the UP ( ) or DOWN
( ) button to change the Auto time
by 0.5 hour increments, up to 10 hours,
then at 1 hour increments up to 24
hours. The control will count down the
time remaining until start.
• The selected time will register in
5 seconds, and the system will
automatically revert back to display the
previous temperature setting or room
temperature when the unit is on. (when
the unit is off, there is no display.)
• Turning the unit ON or OFF at any time
or adjusting the timer setting to 0.0
will cancel the Auto Start/Stop timed
program.
• If setting ON 0.5 and OFF 1 at the same
time, the unit will be activated in 0.5
hour, operates for 0.5 hour and then
stops.
Displays
Shows the set temperature in “°C” or
“°F” and the Auto-timer settings. While
on Fan Only mode, it shows the room
temperature.
Error codes:
AS - Room temperature sensor error -
Unplug the unit and plug it back in.
If error repeats, call for service.
NOTE: In Fan Only mode, it will
display “LO” or “HI.”
ES - Evaporator temperature sensor error
- Unplug the unit and plug it back in. If
error repeats, call for service.
NOTE
If the unit shuts off unexpectedly due
to the power outage, it will restart
with the previous function setting
automatically when the power resumes.

Page 14
Operating
Instructions
Additional Information
Now that you understand the operating procedure, here are more features in your
control that you should become familiar with.
• The Cool circuit has an automatic 3 minute time delayed start if the unit is turned
off and on quickly. This prevents overheating of the compressor and possible
circuit breaker tripping. The fan will continue to run during this time.
• The control can display temperature in Fahrenheit or Celsius. To convert from one
to the other, press and hold the UP ( )/DOWN ( ) Temp/Timer buttons at
the same time, for 3 seconds.
AIR DIRECTIONAL LOUVERS
The louvers will allow you to direct the air
flow lefft or right throughout the room as
needed.
Move the levers from side to side until the
desired left/right direction is obtained.
Air Direction
Levers

Page 15
Installation
Instructions
Your air conditioner is designed to install
in standard double hung windows with
opening widths of 23 to 36 inches (584mm
to 914mm) (See Fig. D).
Model5000~6000
BTU/h
H
13”
(330mm)
H
Wooden Windows
INTERIOR
WALL
OFFSET
WINDOW
SILL
INNER
EXTERIOR
WALL
Fig. D
Table 1
Installation Instructions
WARNING - Before You Begin
Read these instructions completely and
carefully.
• IMPORTANT - Save these
instructions for local inspector’s use.
• IMPORTANT - Observe all governing
codes and ordinances.
• Note to Installer - Be sure to
leave these instructions with the
consumer.
• Note to Consumer - Keep these
instructions for future reference.
• Skill level - Installation of
this appliance requires basic
mechanical skills.
• Completion time - Approximately
1 hour. We recommend that two
people install this product.
Proper installation is the responsibility
of the installer.
Product failure due to improper
installation is not covered under the
Warranty.
You MUST use all supplied parts and
use proper installation procedures as
described in these instructions when
installing this air conditioner.
Do not, under any circumstances, cut or
remove the third (ground) prong from
the power cord.
Do not change the plug on the power
cord of the air conditioner.
Aluminum house wiring may present
special problems - consult a qualified
electrician.
When handling unit, be careful to
avoid cuts from sharp metal edges and
aluminum fins on front and rear coils.
Tools You Will Need
Phillips
Screwdriver
Level
Tools You May Use
Flathead
Screwdriver
Pencil
Ruler or tape measure
Scissors or knife

Page 16
CAUTION
When handling unit, be careful to
avoid cuts fromsharp metal edges
and aluminumfins on front and rear
coils.
1. PREPARE THE WINDOW
Lower sash must open sufficiently to allow a clear vertical opening (see dimension
H in Table 1). Side louvers and the rear of the AC must have clear air space to allow
enough airflow through the condenser for heat removal. The rear of the unit must be
outdoors, not inside a building or garage.
NOTE
Save carton and these Installation Instructions for future reference. The carton is the
best way to store unit during winter, or when not in use.
Installation
Instructions
Mounting Hardware
3/4’’ (or 1/2”)
Screws
(7)
Lock Frame
(For Wooden windows)
(2)
Sash Lock
(1)
Window sash
seal foam
(1)
Lock Frame
(For Vinyl-Clad windows)
(2)
2. PREPARE AIR CONDITIONER
Before installing the unit, the top rail must be assembled on the unit for models with a
capacity of less than 10,000Btu/h.
A: Remove the air conditioner from the
carton and place on a flat surface.
B: Remove top rail from the packaging
material as shown in Fig. E.
Packaging Top Rail
Fig. E
3/8” Screws
(4)
Top Rail
(1)
Top Rail Hardware

Page 17
Installation
Instructions
1. Place unit on floor, a bench or a table. There is a left and right side accordion panel; be
sure to use the proper panel for each side. When installed, the flange for securing the
panel in place to the window sill will be facing into the room.
A. Hold the side panel in one hand and gently pull back the center to free the open
end. See Fig. 1.
B. Slide the free and “I” section of the panel directly into the cabinet as shown in Fig. 2.
Slide the panel down. Be sure to leave enough space to slip the top and bottom of
the frame into the rails on the cabinet.
C. Once the panel has been installed on the side of the cabinet, make sure it sits
securely inside the frame channel by making slight adjustments. Slide the top and
bottom ends of the frame into the top and bottom rails of the cabinet. Fig. 3.
NOTE
Top rail and side panels at each side are offset to provide the proper pitch to the rear of
5/16” (8mm). This is necessary for proper condensed water management and drainage. If
you are not using the side panels for any reason, this pitch to the rear must be maintained.
NOTE
For safety reasons, all
four (4) screws MUST be
securely fastened.
C: Align the hole in the top rail with those in the top of the unit as shown in Fig. F.
D: Secure the top rail to the unit with the 3/8” (9.5mm) screws as shown in Fig. G.
3. INSTALL THE ACCORDION PANELS
Fig.B
Fig. F
Fig.C
Fig. G
NOTE
If stormwindow blocks AC, see Fig. 11.
Top Rail
BottomRail
Top left Top right
Fig. 4
D. Slide the panel all the way in and repeat
on the other side.
Fig. 1
Top Rail
Bottom Rail
Fig. 3
“I” section
Fig. 2 “I” section

Page 18
Installation
Instructions
2. While keeping a firm grip on the air
conditioner, carefully place the unit into
the window opening so the bottom of
the air conditioner frame is against the
window sill (Fig. 5). Carefully close the
window behind the top rail of the unit.
NOTE
Check that air conditioner is tilted back
per dimension H (Fig. 5) (tilted about 3°
to 4° downward to the outside). After
proper installation, condensate should
not drain fromthe overflow drain hole
during normal use. Adjust the slope if
otherwise.
3. Extend the side panels out against the window
frame (Fig. 6).
window
frame
Fig. 6
Fig. 5
Wooden Windows
INSIDE
OUTSIDE
Measure from the cabinet edge
H
H:About 5/8” to 3/4”
Vinyl-Clad Windows
INSIDE
OUTSIDE
H:About 3/4” to 1”
for 5K to K)
Measure from the cabinet edge
H
Fig. 7A Fig. 7B
Fig. 8A
4. INSTALL SUPPORT BRACKET
A. Place the frame lock between the
frame extensions and the window
sill as shown (Fig. 7A for Wooden
windows), (Fig. 7B for Vinyl-Clad
windows).
Drive 3/4” (19 mm) or 1/2” (12.7 mm)
locking screws through the frame lock
and into the sill.
NOTE: To prevent window sill from
splitting, drill 1/8” (3 mm) pilot holes
before driving screws.
B1: For wooden windows:
Drive 1/2” (12.7 mm) locking screws through the
frame lock and into the sill (Fig. 8A).
NOTE: To prevent window sill from splitting, drill 1/8”
(3mm) pilot holes before driving screws. Drive 1/2”
(12.7mm) locking screws through frame holes into
window sash (Fig. 8B/8C).
6
for 5K to K)
6

Page 19
Installation
Instructions
Fig. 9 FOAM SEAL
Fig. 10
If AC is Blocked by StormWindow
Add wood as shown in Fig. 11, or remove
storm window before air conditioner is
installed.
If storm window frame must remain,
be sure the drain holes or slots are not
caulked or painted shut. Accumulated
rain water or condensation must be
allowed to drain out.
Fig. 11
SASH
1-1/2"min
(38 mm) Board thickness
as required, for
proper pitch to rear,
along entire
sill. Fasten with nails
or screws.
Storm window
frame or other
obstruction.
Removing AC FromWindow
• Turn AC off, and disconnect power cord.
• Remove sash seal from between windows, and unscrew safety lock.
• Remove screws installed through frame and frame lock.
• Close (slide) side panels into frame.
• Keeping a firm grip on air conditioner, raise sash and carefully remove.
• Be careful not to spill any standing water while lifting unit form window. Store parts
WITH air conditioner.
WWK05CR to WWK06CR
Fig. 8C
WWK05CM
Fi 8
Fig. 8B
B2: For Vinyl-Clad windows:
Drive 1/2” (12.7 mm)
locking screws through
the frame lock and into
the window sash (Fig.
8B).
NOTE: Before driving
the screws, use a drill to
drill 5 holes through the
holes in the frame lock
and frame extensions
into the windows sash
as shown (Fig. 8B/8C).
C. To secure lower sash in
place, attach right angle
sash lock with 3/4” (19
mm) or 1/2” (12.7 mm)
screw as shown (Fig. 9).
D. Cut Window sash seal
foam and insert it in
the space between the
upper and lower sashes
(Fig. 10).
Fi 8

Page 20
Air Filter Cleaning
Cabinet Cleaning
Winter Storage
• Be sure to unplug the air conditioner to prevent shock or fire hazard. The cabinet and
front may bedusted with an oil-free cloth or washed with a cloth dampened in a solution
of warm water and mild liquid dishwashing detergent. Rinse thoroughly and wipe dry.
• Never use harsh cleansers, wax or polish on the cabinet front.
• Be sure to wring excess water from the cloth before wiping around the controls.
Excess water in or around the controls may cause damage to the air conditioner.
• Plug in air conditioner.
Care and
Cleaning
CAUTION
Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the
unit before cleaning to prevent shock or fire hazards.
NOTE
Never use hot water over 104°F (40°C) to clean the air filter. Never attempt to
operate the unit without the air filter.
If you plan to store the air conditioner during the winter, remove it carefully from the
window according to the installation instructions. Cover it with plastic or return it to
theoriginal carton.
Care and Cleaning
The air filter should be checked at least once a month to see if cleaning is necessary. Trapped
particles in the filter can build up and cause an accumulation of frost on the cooling coils.
• Push the vent handle to the closed position (where applicable). Open the front panel.
• Take the filter by the center and pull up and out.
• Wash the filter using liquid dishwashing detergent and warm water. Rinse filter thoroughly.
• Gently shake excess water from the filter. Be sure the filter is thoroughly dry before replacing.
• You may also vacuum the filter clean rather than washing.
WWK05CR to WWK06CRWWK05CM
