Midway CarnEvil User manual

MIDWAY
2-PLAYER
DEDICATED
25" VIDEO
GAME
C€
NOVEMBER 1998
76-40069-101
LISTED
Operation Manual. Including...
• Installation & Operation • Testing & Problem Diagnosis
• Parts Information • Wiring Diagrams
Midway Games Inc.
3401 North California Avenue
Chicago, Illinois 60618-5899
USA

u
o
u

DECLARATION OF CONFORMITY
MIDWAY GAMES INC
3401N. CALIFORNIA AVE.
CHICAGO, IL 60618
VSA.
WE, HEREBY DECLARE UNDER SOLE RESPONSIBILITY THAT
THE MODEL: "CARNEVIL" 25" 40269,40369,40469,40769,40969,41069,41169,41269,
41469,41869,41969,42069,42169,42269,47269
TO WHICH THIS DECLARATION RELATES IS IN CONFORMITY
WITH THE FOLLOWING EUROPEAN PRODUCT SAFETY
ELECTROMAGNETIC COMPATIBILITY DIRECTIVE
(89/336/EEC AND AMENDMENTS 91/C162/08,92/31/EEC,93/68/EEC
ELECTRICAL EQUIPMENT DESIGNED FOR USE WITHIN
CERTAIN VOLTAGE LIMITS DERECHVE
(73/336/EEC AND AMENDMENTS 88/C168/02,92/C210/01,
93/68/EEC94/C199/03,95/C214/02)
AS IS VERIFIED BY COMPLIANCE WITH THE FOLLOWING
EN55014:1993
IEC 801-3:1984 (EN61000-4-3)
EN61000-4-5:1995
IEC 335-2-82 (DRAFT)
EN61000-4-2:1995
EN61000-4-4:1995
EN335-1:1995
Date issued: OCTOBER 214998
DANGALARDE
CORPORATE VJ». OF QUALITY

u
o
u

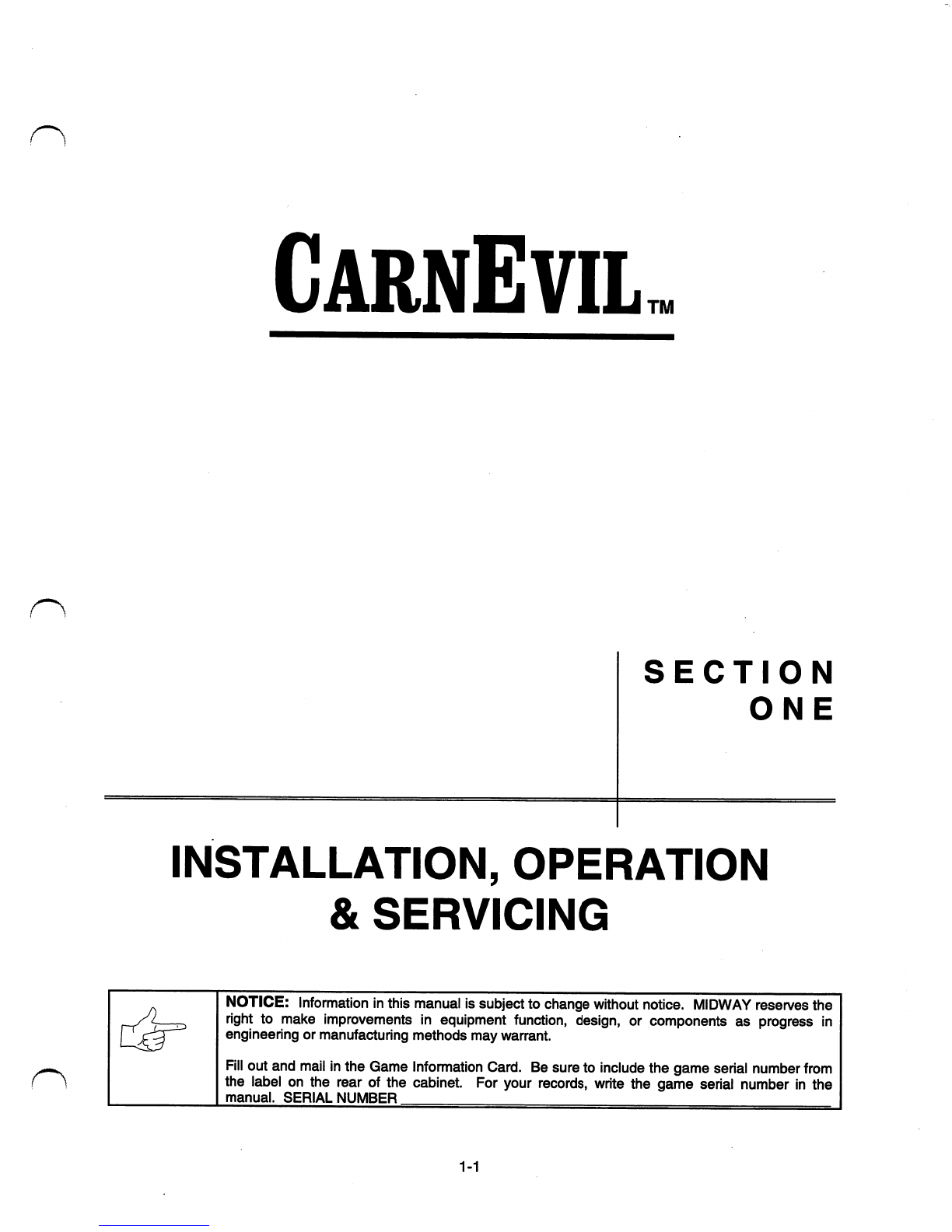

CarnEvil
TM
SECTION
ONE
INSTALLATION, OPERATION
& SERVICING
NOTICE: Information in this manual is subject to change without notice. MIDWAY reserves the
right to make improvements in equipment function, design, or components as progress in
engineering or manufacturing methods may warrant.
Fill out and mail in the Game Information Card. Be sure to include the game serial number from
the label on the rear of the cabinet. For your records, write the game serial number in the
manual. SERIAL NUMBER
1-1

SAFETY INSTRUCTIONS
The following safety instructions apply to operators and service personnel. Read these instructions before
preparing your game for play. Other safety instructions appear throughout this manual.
DEFINITIONS OF SAFETY TERMS
DANGER indicates an imminent hazard. If you fail to avoid this hazard, it WILL cause death or serious
injury.
WARNING indicates a potential hazard. If you fail to avoid this hazard, it COULD cause death or serious
injury.
CAUTION indicates a potential hazard. If you fail to avoid this hazard, it MAY cause minor or moderate
injury. CAUTION also alerts you about unsafe practices.
NOTICE indicates information of special importance.
WARNING: TRANSPORTING GAMES. This game contains glass and fragile electronic
devices. Use appropriate care when transporting this game. Avoid rough handling when
moving the cabinet. Do not move this game with the power on.
WARNING: DISCONNECT POWER. Always turn the power OFF and unplug the game
before attempting service or adjustments. Installing or repairing PC boards with power
ON can damage components and void the warranty. Be sure that you securely install
ground wires.
WARNING: GROUND GAMES. Avoid electrical shocks! Do not plug in a game until
you have inspected and properly grounded it. Only plug this game into a grounded,
three-wire outlet. Do not use a "cheater" plug, or cut off the ground pin on the line cord.
WARNING: AVOID ELECTRICAL SHOCKS. This video game system does not utilize
an isolation transformer. Internal, cabinet A.C. isn't isolated from the external, A.C. line.
WARNING: HANDLE FLUORESCENT TUBE AND CRT WITH CARE. If you drop a
fluorescent tube or CRT and it breaks, it will implode! Shattered glass can fly eight feet
or more from the implosion.
CAUTION: CHECK POWER SUPPLY LINE VOLTAGE SELECTOR SWITCH. Set the
110/220 VAC selector on the power supply for the correct local line voltage. Check the
selector setting before switching on the game.
1-2

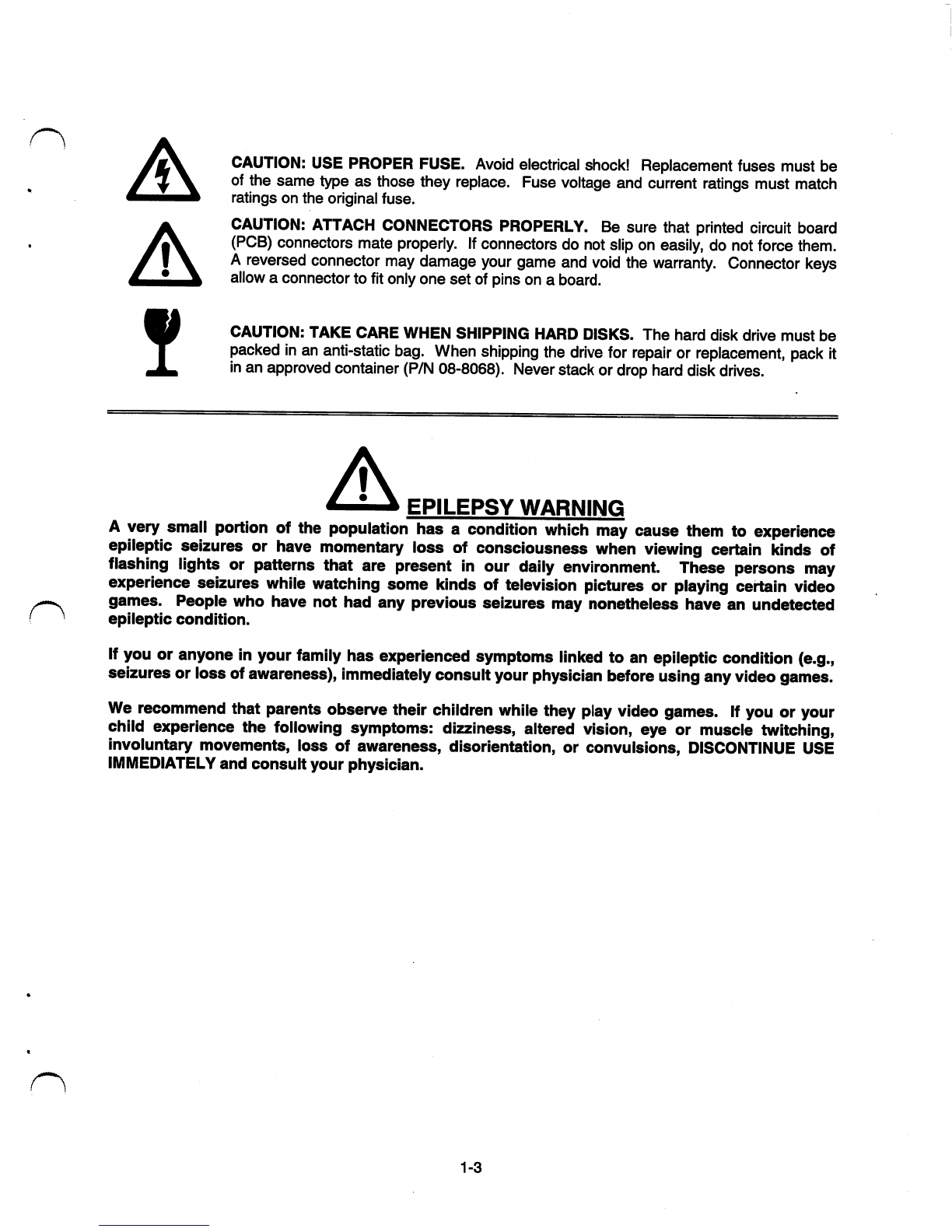

CAUTION: USE PROPER FUSE. Avoid electrical shock! Replacement fuses must be
of the same type as those they replace. Fuse voltage and current ratings must match
ratings on the original fuse.
CAUTION: ATTACH CONNECTORS PROPERLY. Be sure that printed circuit board
(PCB) connectors mate properly. If connectors do not slip on easily, do not force them.
A reversed connector may damage your game and void the warranty. Connector keys
allow a connector to fit only one set of pins on a board.
CAUTION: TAKE CARE WHEN SHIPPING HARD DISKS. The hard disk drive must be
packed in an anti-static bag. When shipping the drive for repair or replacement, pack it
in an approved container (P/N 08-8068). Never stack or drop hard disk drives.
EPILEPSY WARNING
A very small portion of the population has a condition which may cause them to experience
epileptic seizures or have momentary loss of consciousness when viewing certain kinds of
flashing lights or patterns that are present in our daily environment. These persons may
experience seizures while watching some kinds of television pictures or playing certain video
games. People who have not had any previous seizures may nonetheless have an undetected
epileptic condition.
If you or anyone in your family has experienced symptoms linked to an epileptic condition (e.g.,
seizures or loss of awareness), immediately consult your physician before using any video games.
We recommend that parents observe their children while they play video games. If you or your
child experience the following symptoms: dizziness, altered vision, eye or muscle twitching,
involuntary movements, loss of awareness, disorientation, or convulsions, DISCONTINUE USE
IMMEDIATELY and consult your physician.
1-3

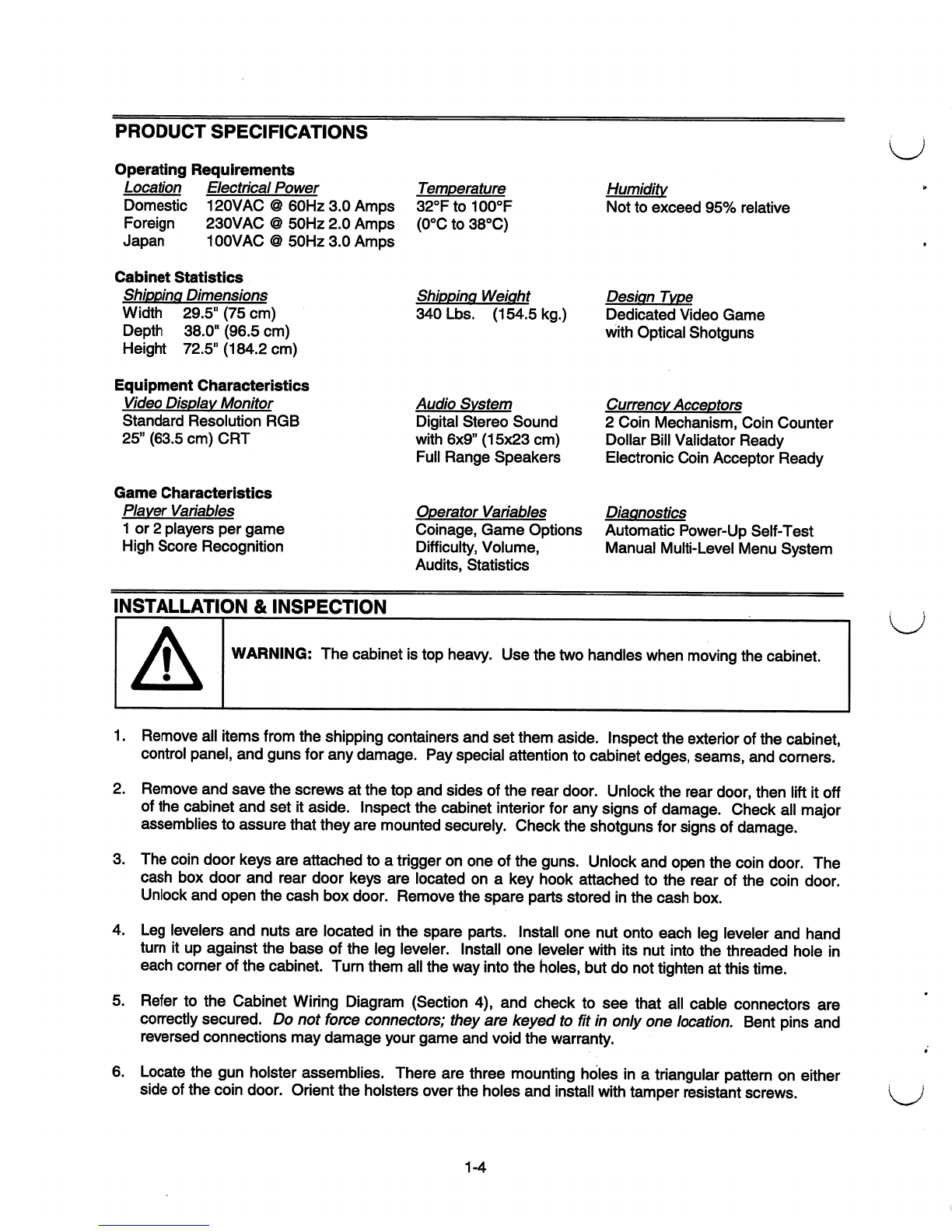

PRODUCT SPECIFICATIONS
Operating Requirements
Location Electrical Power
Domestic 120VAC @ 60Hz 3.0 Amps
Foreign 230VAC @ 50Hz 2.0 Amps
Japan 100VAC @ 50Hz 3.0 Amps
Cabinet Statistics
Shipping Dimensions
Width 29.5" (75 cm)
Depth 38.0" (96.5 cm)
Height 72.5" (184.2 cm)
Equipment Characteristics
Video Display Monitor
Standard Resolution RGB
25" (63.5 cm) CRT
Game Characteristics
Player Variables
1 or 2 players per game
High Score Recognition
Temperature
32°Fto100°F
(0°C to 38°C)
Shipping Weight
340 Lbs. (154.5 kg.)
Audio System
Digital Stereo Sound
with 6x9" (15x23 cm)
Full Range Speakers
Operator Variables
Coinage, Game Options
Difficulty, Volume,
Audits, Statistics
Humidity
Not to exceed 95% relative
Design Type
Dedicated Video Game
with Optical Shotguns
Currency Acceptors
2 Coin Mechanism, Coin Counter
Dollar Bill Validator Ready
Electronic Coin Acceptor Ready
Diagnostics
Automatic Power-Up Self-Test
Manual Multi-Level Menu System
INSTALLATION & INSPECTION
WARNING: The cabinet is top heavy. Use the two handles when moving the cabinet.
1. Remove all items from the shipping containers and set them aside. Inspect the exterior of the cabinet,
control panel, and guns for any damage. Pay special attention to cabinet edges, seams, and corners.
2. Remove and save the screws at the top and sides of the rear door. Unlock the rear door, then lift it off
of the cabinet and set it aside. Inspect the cabinet interior for any signs of damage. Check all major
assemblies to assure that they are mounted securely. Check the shotguns for signs of damage.
3. The coin door keys are attached to a trigger on one of the guns. Unlock and open the coin door. The
cash box door and rear door keys are located on a key hook attached to the rear of the coin door.
Unlock and open the cash box door. Remove the spare parts stored in the cash box.
4. Leg levelers and nuts are located in the spare parts. Install one nut onto each leg leveler and hand
turn it up against the base of the leg leveler. Install one leveler with its nut into the threaded hole in
each corner of the cabinet. Turn them all the way into the holes, but do not tighten at this time.
5. Refer to the Cabinet Wiring Diagram (Section 4), and check to see that all cable connectors are
correctly secured. Do not force connectors; they are keyed to fit in only one location. Bent pins and
reversed connections may damage your game and void the warranty.
6. Locate the gun holster assemblies. There are three mounting holes in a triangular pattern on either
side of the coin door. Orient the holsters over the holes and install with tamper resistant screws.
1-4

7. An extra padlock may be installed to secure the rear door. A hasp is located in the spare parts bag.
Remove the two lock bracket nuts from inside the cabinet, above the rear door opening. Slide the
hasp onto the bolts so that it protrudes from the hole in back of the cabinet. Reinstall nuts and tighten.
8. Modify the lock plate at the top of the rear door. Remove the bolts and nuts from the lock plate, then
rotate the plate so that the slot will be above the door. Reinstall the bolts and nuts and tighten firmly.
CARRIAGE
BOLT
NUT
HASP
BRACKET
KEY LOCK
BRACKET
CABINET SHOWN FOR REFERENCE
LOCK
PLATE
CARRIAGE
BOLT
The power cord is with the spare parts. Remove and save four screws from the line cord cover plate
at the rear of the cabinet. Match the holes on the IEC plug with the prongs in the receptacle and push
firmly to seat the line cord. Route the cord away from cabinet wheels and foot traffic areas. Hang
excess cord on the plastic clip near the vent.
(PART OF CABINET SHOWN
FOR REFERENCE ONLY)
_PHILLIPS-HEAD
SCREW
RECEPTACLE-
LINE CORD AND PLUG
LINE CORD INSTALLATION
1-5

CAUTION: CHECK POWER SUPPLY LINE VOLTAGE SELECTOR SWITCH. Set the
110/220 VAC selector on the power supply for the correct local line voltage. Check the
selector setting before switching on the game.
10. Reinstall the rear door onto the cabinet and close it. Lock the rear door and remove the key. If
required, install the extra padlock through the hasp at this time. Install the screws at the top and sides
of the rear door and tighten snugly. Close and lock the cash box and coin doors.
NOTICE: Tamper resistant screws and matching wrench are provided with this game for
additional security. Four tamper resistant screws and one wrench are located in the
spare parts bag. If desired, replace the original screws with the tamper resistant screws.
Tighten the screws firmly with the wrench.
11. Move the game to its intended location. Lower each leg leveler until the cabinet is stable and level.
Adjust as required to raise wheels and distribute weight equally on each corner. Tighten the nuts.
12. Plug the game into a grounded (3-terminal) AC wall outlet. Switch ON the game, using the ON/OFF
switch at the top left rear of the cabinet. The game will power up and begin self-diagnostics. If no
errors are found, the game will automatically enter its "attract11 mode of operation. Unlock and open
the coin door. Locate the control switches. Press TEST MODE to enter the Menu System.
13. Perform a gun test on each shotgun. Access to this test is from the Diagnostic screen of game's
Menu System. See Section Three for a detailed description of the Menu System. The gun test
verifies that the shotguns function properly to allow normal game play.
14. If necessary, calibrate the shotguns. Access to the calibration feature is from the Utilities screen of
game's Menu System. See Section Three. Calibration restores shotgun accuracy to original factory
level of performance. Since player satisfaction depends on gun performance, you should recalibrate
and test shotguns periodically.
1-6

CABINET ASSEMBLY
COIN DOOR
CASHBOX DOOR
COIN METER

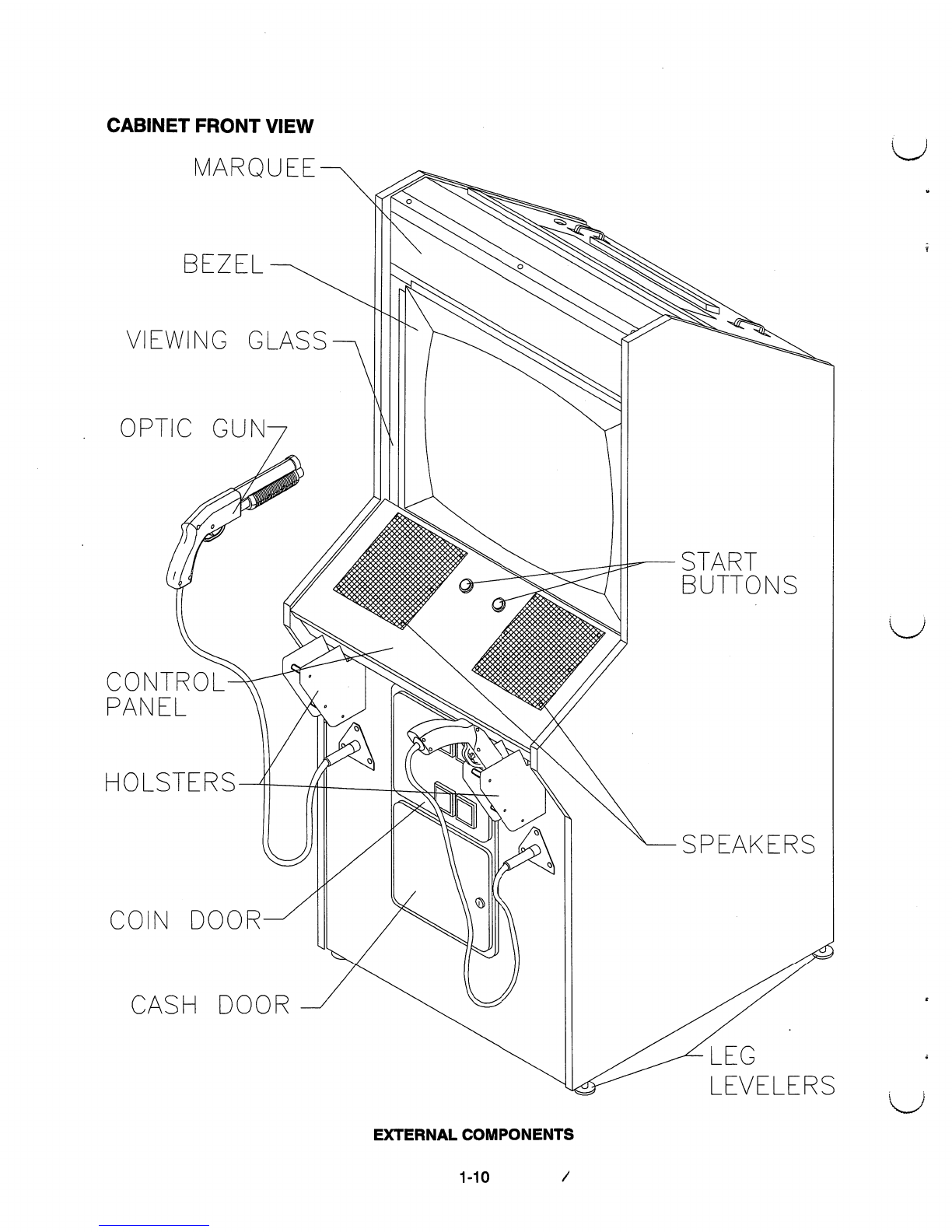

FRONT VIEW OF CABINET
1-7

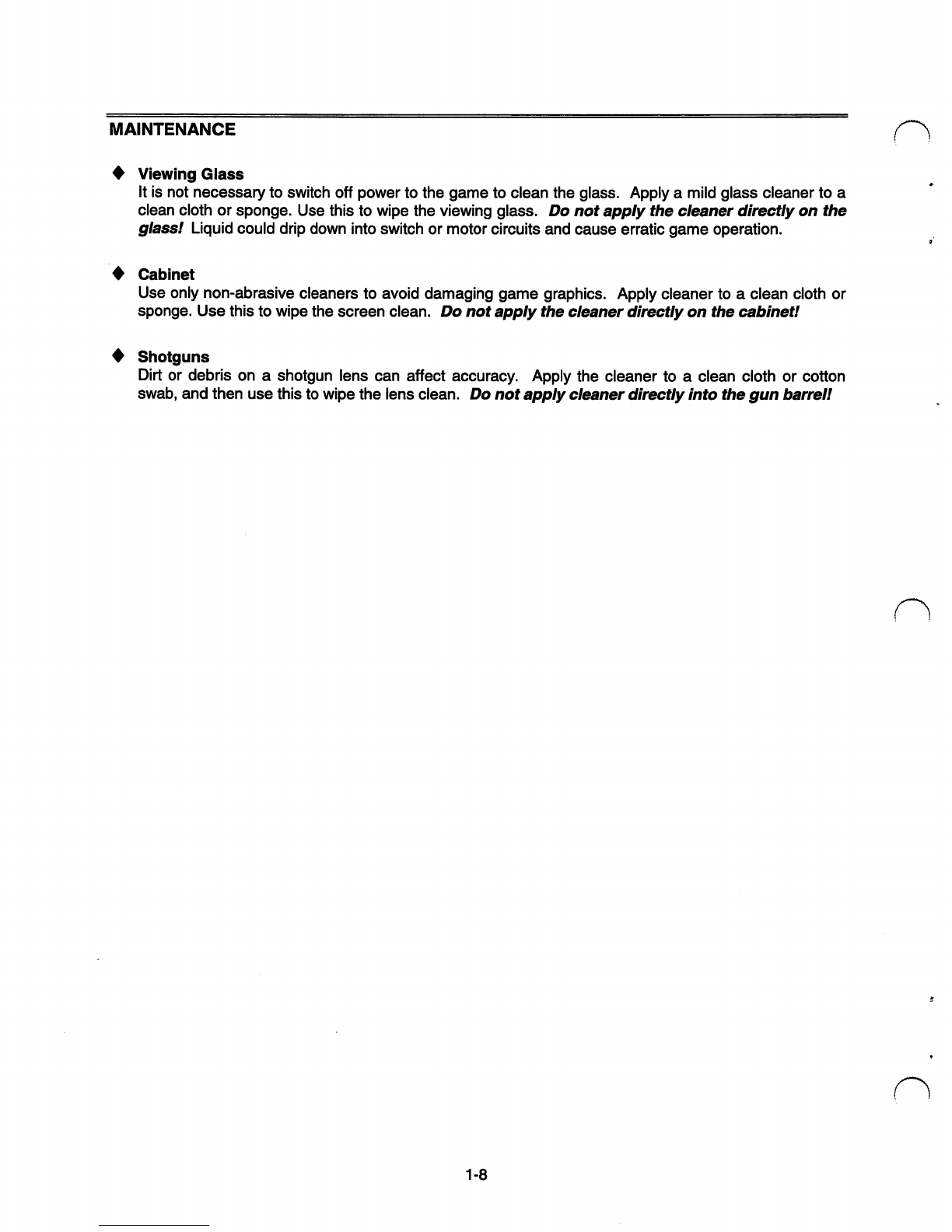

MAINTENANCE
♦ Viewing Glass
It is not necessary to switch off power to the game to clean the glass. Apply a mild glass cleaner to a
clean cloth or sponge. Use this to wipe the viewing glass. Do not apply the cleaner directly on the
glass! Liquid could drip down into switch or motor circuits and cause erratic game operation.
♦ Cabinet
Use only non-abrasive cleaners to avoid damaging game graphics. Apply cleaner to a clean cloth or
sponge. Use this to wipe the screen clean. Do not apply the cleaner directly on the cabinet!
♦ Shotguns
Dirt or debris on a shotgun lens can affect accuracy. Apply the cleaner to a clean cloth or cotton
swab, and then use this to wipe the lens clean. Do not apply cleaner directly into the gun barrel!
1-8

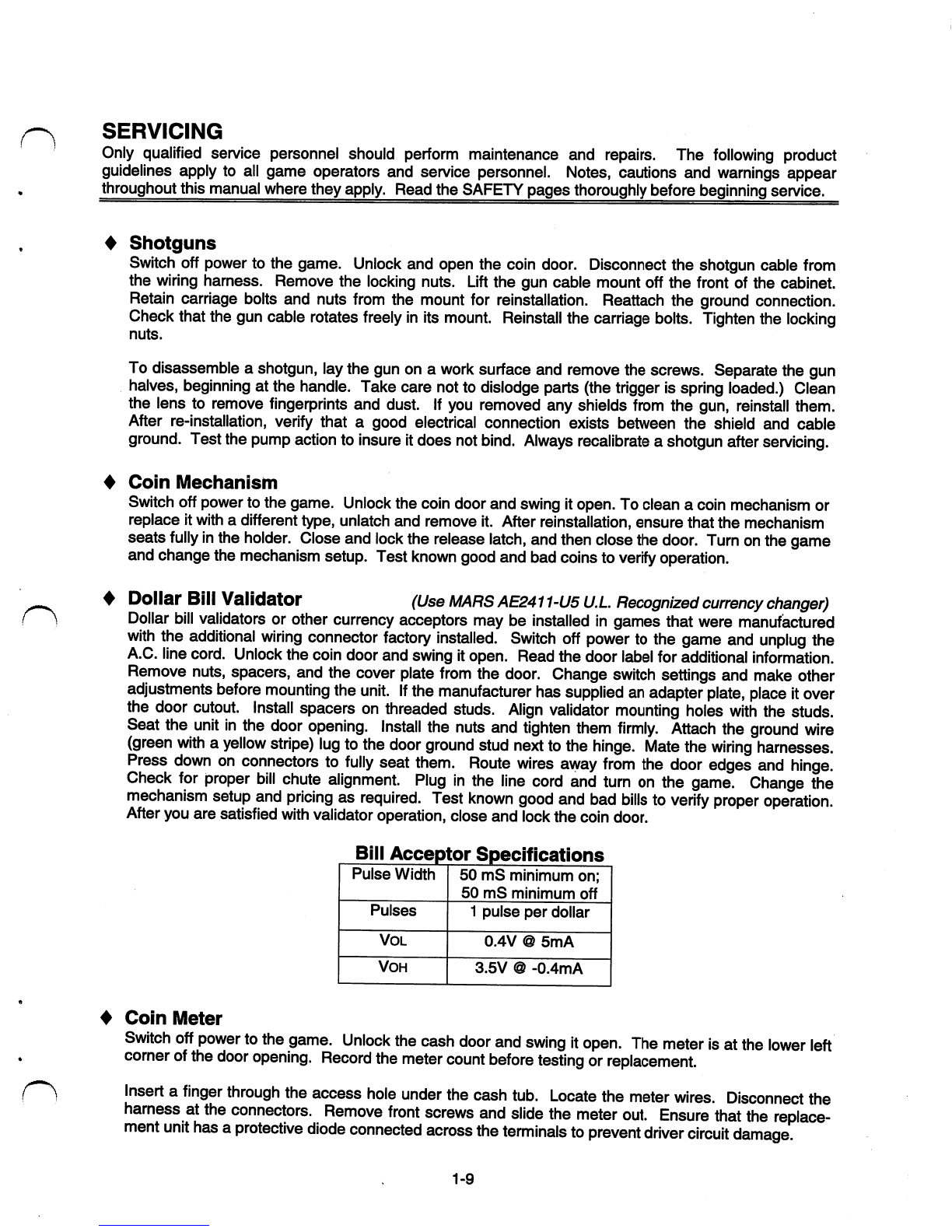

SERVICING
Only qualified service personnel should perform maintenance and repairs. The following product
guidelines apply to all game operators and service personnel. Notes, cautions and warnings appear
throughout this manual where they apply. Read the SAFETY pages thoroughly before beginning service.
♦ Shotguns
Switch off power to the game. Unlock and open the coin door. Disconnect the shotgun cable from
the wiring harness. Remove the locking nuts. Lift the gun cable mount off the front of the cabinet.
Retain carriage bolts and nuts from the mount for reinstallation. Reattach the ground connection.
Check that the gun cable rotates freely in its mount. Reinstall the carriage bolts. Tighten the locking
nuts.
To disassemble a shotgun, lay the gun on a work surface and remove the screws. Separate the gun
halves, beginning at the handle. Take care not to dislodge parts (the trigger is spring loaded.) Clean
the lens to remove fingerprints and dust. If you removed any shields from the gun, reinstall them.
After re-installation, verify that a good electrical connection exists between the shield and cable
ground. Test the pump action to insure it does not bind. Always recalibrate a shotgun after servicing.
♦ Coin Mechanism
Switch off power to the game. Unlock the coin door and swing it open. To clean a coin mechanism or
replace it with a different type, unlatch and remove it. After reinstallation, ensure that the mechanism
seats fully in the holder. Close and lock the release latch, and then close the door. Turn on the game
and change the mechanism setup. Test known good and bad coins to verify operation.
♦ Dollar Bill Validator (Use MARS AE2411-U5 U.L Recognized currency changer)
Dollar bill validators or other currency acceptors may be installed in games that were manufactured
with the additional wiring connector factory installed. Switch off power to the game and unplug the
A.C. line cord. Unlock the coin door and swing it open. Read the door label for additional information.
Remove nuts, spacers, and the cover plate from the door. Change switch settings and make other
adjustments before mounting the unit. If the manufacturer has supplied an adapter plate, place it over
the door cutout. Install spacers on threaded studs. Align validator mounting holes with the studs.
Seat the unit in the door opening. Install the nuts and tighten them firmly. Attach the ground wire
(green with a yellow stripe) lug to the door ground stud next to the hinge. Mate the wiring harnesses.
Press down on connectors to fully seat them. Route wires away from the door edges and hinge.
Check for proper bill chute alignment. Plug in the line cord and turn on the game. Change the
mechanism setup and pricing as required. Test known good and bad bills to verify proper operation.
After you are satisfied with validator operation, close and lock the coin door.
Bill Acceptor Specifications
Pulse Width
Pulses
VOL
VOH
50 mS minimum on;
50 mS minimum off
1 pulse per dollar
0.4V @ 5mA
3.5V @ -0.4mA
♦ Coin Meter
Switch off power to the game. Unlock the cash door and swing it open. The meter is at the lower left
corner of the door opening. Record the meter count before testing or replacement.
( *\ Insert a finger through the access hole under the cash tub. Locate the meter wires. Disconnect the
harness at the connectors. Remove front screws and slide the meter out. Ensure that the replace
ment unit has a protective diode connected across the terminals to prevent driver circuit damage.
1-9

CABINET FRONT VIEW
MARQUEE
BEZEL
VIEWING GLASS
OPTIC GUN
START
BUTTONS
CONTROL
PANEL
HOLSTERS
COIN DOOR
CASH DOOR
LEG
LEVELERS
EXTERNAL COMPONENTS
1-10

♦ Viewing Glass
Remove the screws from the top of the cabinet directly over the marquee. Lift the retaining strip of of
the cabinet. Tilt the glass slightly forward, grasp it firmly by its edges, and lift it out of the cabinet. The
marquee artwork may be removed if required. Clean and inspect the lamp before reassembling.
♦ Fluorescent Lamp
Remove the screws from the rear lamp access panel. Unlock it and lift from the cabinet. Reach over
the top of the assembly and grasp the tube. Give it a quarter turn and pull it out from its sockets. The
electronic ballast in this assembly does not require a separate starter. Carefully place a new tube into
the socket and rotate it a quarter turn to reinstall. Clean the tube to remove fingerprints and dust.
♦ Fluorescent Light Assembly
Remove the screws from the rear lamp access panel. Unlock it and lift from the cabinet. Disconnect
the power cable from the fluorescent light assembly. Loosen but do not remove the fasteners holding
the assembly to the cabinet. If present, remove the ground wire. Slide the assembly slightly forward
to disengage the screws from the keyholes. Lift the assembly and guide it out of the cabinet.
WARNING: If you drop a fluorescent tube or a CRT and it breaks, it will implode! Use
care in handling. Keep the item in its protective packaging until it is installed.
♦ Speakers
The grilles and the speakers come out from the front. Remove the screws and set the grilles aside.
To avoid damaging a speaker, remove upper mounting screws first, and replace them last. Remove
the speakers from the enclosure just enough to expose the terminals. Label and disconnect the
wires. Refer to the Wiring Diagram (Section Four) for speaker wiring information. Tighten screws
snugly. Do not use excess force when removing or tightening screws threaded into plastic or particle
board.
♦ Control Panel Switches
Remove grilles and speakers. Label and disconnect wires. Separate the switch from its button
housing. Bend the large prong away from the switch just enough to slide the switch off the housing.
Unscrew the switch mounting nut and pull the entire button assembly out the front of the control panel.
♦ Power Supply
Switch off power to the game. Unlock and remove the rear door. Unplug the IECA.C. connector from
the rear and the D.C. connector from the front of the assembly. Remove two top and two bottom
screws holding the supply to the power chassis, then lift it off the power chassis. Note voltage setting.
To install a power supply, remove the voltage switch cover if necessary and set the voltage to the
correct value. Set the supply on the power chassis and align the mounting holes. Install the four
screws and the two power connectors.
1-11

CABINET REAR VIEW
CAM LOCK
OPTICAL GUN
ASSEMBLY
POWER SUPPLY
ASSEMBLY
FIXED CASTER
WHEEL
REAR DOOR
ASSEMBLY
INTERNAL COMPONENTS
LAMP ACCESS PANEL
LOUVERED VENT
HANDLE
PLASTIC CLIP
MONITOR
ELECTRONICS
ASSEMBLY
CAM LOCK
ASSEMBLY
1-12

4 Monitor Bezel
Remove the viewing glass. Grasp the monitor bezel at the bottom and lift it out of the groove.
♦ Monitor
Read these precautions thoroughly before beginning this procedure.
WARNING: The video monitor is heavy, with most of the weight toward the front of the
assembly. Be certain that it is firmly supported as it is removed from the cabinet.
WARNING: The video monitor does not require isolation from the A. C. line voltage in
normal game operation. However, when operating the monitor outside of the cabinet
or servicing the monitor on a test bench, you must isolate the monitor circuits from line
voltage with an isolation transformer.
Switch off power to the game. Unlock and remove the rear door. Disconnect the monitor from the
wiring harness, remote adjustment board, and ground wires. Remove the retaining strip and the
viewing glass. Remove the monitor bezel and both barrier panels. Remove the fasteners holding the
monitor frame to the upper and lower mounting brackets. Pull the monitor carefully from the cabinet
and set it in a safe place. Remove the remote adjustment board from the cabinet and reconnect it to
the monitor before servicing or replacement. Clean the monitor face and the bezel before reinstalling.
CPU Fan Assembly
Switch off power to the game. Unlock and open the rear door. To expose the CPU Board Assembly,
remove the perforated metal cover from the game electronics. Disconnect the fan connector from the
wiring harness. Remove fasteners and lift the fan assembly out of cabinet. Separate the mounting
bracket from fan. Retain the bracket and the connector for reuse if a different fan must be installed.
CPU Board Assembly
Switch off power to the game. Open the rear door. To expose the CPU Board Assembly, remove its
perforated metal cover. Carefully note the orientation of the JAMMA connector and the other cables.
Extract the harness and the hard disk drive ribbon cable from the board connectors. Remove CPU
Board Assembly mounting screws. Lift the board out of the cabinet and set it in a safe place. Use
anti-static bags or protective containers from new parts to store boards that you don't plan to reinstall.
Gun Interface Board Assembly
Switch off power to the game. Unlock and remove the rear cabinet door. To expose the Gun
Interface Board Assembly, remove the perforated metal cover. Disconnect the wiring harness and the
fuses from the interface board assembly. Remove two large and two small screws holding the board
assembly in place and retain them along with their washers. Lift the board out of the cabinet and set it
in a safe place. Set the replacement board assembly over the CPU board, align the holes and install
the screws, small ones first. Reinstall the fuses and reconnect the wiring harness to this board.
1-13

GAME ELECTRONICS
MEMORY
CIRCUITS
GUN INTERFACE
BOARD ASSEMBLY
WOOD PANEL
CPU BOARD
ASSEMBLY
STEEL PLATE
ELECTRONICS-
HARNESS
BATTERY
FERRITE BEADS
DIP SWITCHES
HARD DISK DRIVE/
FAN POWER CABLE
FAN ASSEMBLY
HARD DRIVE
RIBBON CABLE
HARD DISK DRIVE
ASSEMBLY
GROMMETS
DIP SWITCH
ACCESS SLOT
PERFORATED
METAL COVER
-GROMMETS
INTERNAL COMPONENTS
1-14

Hard Disk Drive
Use an anti-static bag and approved shipping container (P/N 08-8068) to return the hard disk drive
assembly to your distributor. Switch off power to the game. Unlock and remove the rear cabinet door.
Remove the perforated metal cover over the game electronics. Disconnect the D.C. power cable from
the hard disk drive. Unplug the ribbon cable from the hard drive and leave it attached to the CPU
Board. Carefully loosen the screws and lift the drive assembly out of its mounting bracket. Remove
the screws and reuse them if a different hard disk drive assembly is to be installed.
NOTICE: Hard disk drives are very fragile! Handle them with care. Do not stack or drop
hard disk drives. Keep the disk drives away from magnets, heat and vibration.
Memory
The ROM (Read Only Memory) circuits contain the computer operating instructions for this game.
Switch off power to the game. Unlock and remove the rear door. Remove the perforated metal cover.
Carefully note the Integrated Circuit position, then remove the device with a chip extraction tool. To
reinstall memory circuits, orient the device over its socket and press firmly to seat pins. Do not force.
CAUTION: Static electricity builds up on your body. This static can damage or destroy
sensitive the game circuits. BEFORE touching or handling electronic assemblies,
discharge static electricity by touching the power supply chassis.
Battery
Switch off power to the game. Unlock and remove the rear door. Remove the perforated metal cover.
Carefully note the battery position, then gently lift the contact arm to release tension. Do not bend the
arm with excess force. Slight finger pressure may be needed to pry the cell from its holder. Slide the
battery out and remove from the cabinet. Avoid direct shorts across terminals or terminals to ground.
CAUTION: Danger of explosion if battery is incorrectly installed. Replace only with the
same or equivalent type as recommended by the manufacturer. Dispose of used
batteries according to instructions printed on the battery or the manufacturers packaging.
1-15

GAME OPERATION
STARTING UP
Whenever you turn on the machine or restore power, the system executes boot ROM code. The boot
ROM contains self-diagnostic tests. These tests automatically verify and report the condition of the disk
drive and other hardware. The screen is blank during these tests. If the hardware fails a test, the system
displays an error message. The message appears for 30 seconds or until someone presses a button.
• If nobody presses a button, the system quickly completes tests, and then loads game software.
• To skip boot ROM tests and activate the Menu System, press and hold the TEST MODE button.
Having passed power-up tests, the system enters Attract Mode. Attract Mode consists of typical game
scenes and sounds, alternating with high scores. Attract Mode continues until game play commences.
Players insert currency to start the game. Then they select a CamEvil territory. As a player chooses a
shotgun, the player also selects a character. The game identifies one character with green shotgun
blasts. The game associates the second character with purple shotgun blasts. Each character receives a
starting health level. Play begins after a countdown period. The game progresses until players exhaust
their characters1 health. If players choose not to continue, then the system returns to Attract Mode.
GAME RULES
ONE OR TWO PLAYERS
The player or players insert currency to start the game. Each player chooses a gun and presses the
nearest START button. At the CarnEvil ticket booth, either player selects a territory to begin an adventure.
Indicator bars at the sides of the screen track remaining ammunition for each player.
PLAYER CONTROLS
♦ START Buttons
These buttons allow players to begin or continue play.
♦ SHOTGUNS
Use a shotgun to shoot killer clowns and other enemies. Also use a shotgun to shoot player health
and gun-upgrade symbols. To reload the gun, pump it or shoot off-screen.
-SIGHT
PUMP
HANDLE
METAL CABLE-
SHOTGUN PARTS
1-16
