Midway CART Fury Championship Racing User manual

The manufacturer intends that this game is to be operated for amusement purposes only and not in contravention of
any federal, state or local law or regulation of the United States or any foreign country governing gaming devices. All
operators of this game are responsible for its operation in accordance with such laws and regulations. The manufac-
turer's factory settings for this game may require adjustment in order to comply with laws applicable in an operator's
specific jurisdiction. It is the operator's responsibility to determine whether adjustments are necessary and, if they are,
to make the appropriate adjustments prior to operating the amusement game.
MIDWAY AMUSEMENT GAMES, LLC
3401 NORTH CALIFORNIA AVENUE CHICAGO, ILLINOIS 60618 USA
http://www.midway.com
Manual Includes
SEPTEMBER 2000
16-40090-101
Game Operations
Manual for 27"
Dedicated Video
Game
Operation & Adjustments * Parts Information * Wiring Diagrams * Testing & Problem Diagnosis
86

C.A.R.T. FURY V
CABINET LINKING INSTRUCTIONS
CABINET ARRAYS
To create a Video Game Machine (VGM) Array, join the cabinets together. Each VGM comes equipped
with the necessary hardware to connect cabinets and provide maximum stability. Hardware is located in
the spare parts bag inside the cash box.
To join cabinets, remove the flat-head carriage bolts from the top and rear of adjacent cabinet sides. Posi-
tion cabinets next to one another and adjust the leg levelers until all holes are aligned. Insert long carriage
bolts through the holes in both cabinets, and then fasten in place with the nuts provided.
NETWORK CONSIDERATIONS
Each VGM comes complete with a factory installed network cable. Optionally, a hub can be installed and
located remotely to monitor network activity. Cables up to 328 ft., or 100 meters, in length may be used in
conjunction with the hub provided they are Category 3 or higher, 100 ohm unshielded twisted pair commu-
nications grade wiring. Standard telephone cables are not sufficient for this application and should not be
used.
Take care to protect exposed wiring from player foot traffic, cleaning crews, service personnel, etc. Use
approved conduit or wire channels to support cables. Please note that modular connectors do not have
strain relief.
Prevent linking cables from becoming damaged by avoiding sources of extreme heat or moisture, and high
amounts of electrical energy like neon signs, fluorescent fixtures, two-way radios, cordless phones, power
circuits, public address system wiring, etc.
Universal RJ-45 modular plugs are not numbered or coded in any way. Clearly label all network connec-
tions to avoid confusing network cables with computer or telephone circuits.
WIRING MODIFICATIONS AND SOFTWARE SETUP
1. Place the linking hub inside the base of a cabinet nearest the center of the array. Remember that the
crossover couplers supplied with the game are not used when creating an array using the hub. Cross-
over couplers are only used to link two cabinets.
2. Unlock and remove the rear door from the cabinets selected to be part of the array. Inside the cabinet
you will find a coil of linking cable with one end already attached to game electronics. Uncoil just
enough of the cable to reach the hub, then recoil the rest of the cable and tie it in place. Repeat this
procedure for each of the other cabinets. Do not reinstall the cabinet door(s) at this time.
3. Route the free end of each cable out through the notch located in the rear door opening and plug into
any jack on the rear panel of the linking hub. Route the free end of the AC adapter for the hub and plug
it into the 9VAC jack on the front panel of the hub. Now all of the cables can be connected to the hub.
To link two cabinets, use the crossover coupler included in the spare parts bag. Connect
the factory installed linking cable to the coupler and follow the instructions for “Wiring
Modifications and Software Setup” located below starting with step #7.
To link three or more cabinets, use a standard 10 base-T ethernet hub and follow all of
the instructions for “Wiring Modifications and Software Setup” located below.

VI MIDWAY AMUSEMENT GAMES, LLC
4. Refer to the manufacturer’s instructions in order to set the hub switches for LNK (link) and X(cross-
over) activity.
5. Fasten the hub to the bottom of the most central cabinet using a hook-and-loop type material. Orient
the hub so that the indicator lights are visible and cable jacks are accessible.
6. Make sure excess cable is tied into a coil and that all cables are routed through the notch in the rear
door. Connect the AC adapter for the hub and all line cords to AC power.
7. Switch on power and closely observe the screen for each cabinet during start up. Each automatically
enters ATTRACT MODE if no errors are found. Refer to Troubleshooting in the operation manual if
errors are detected.

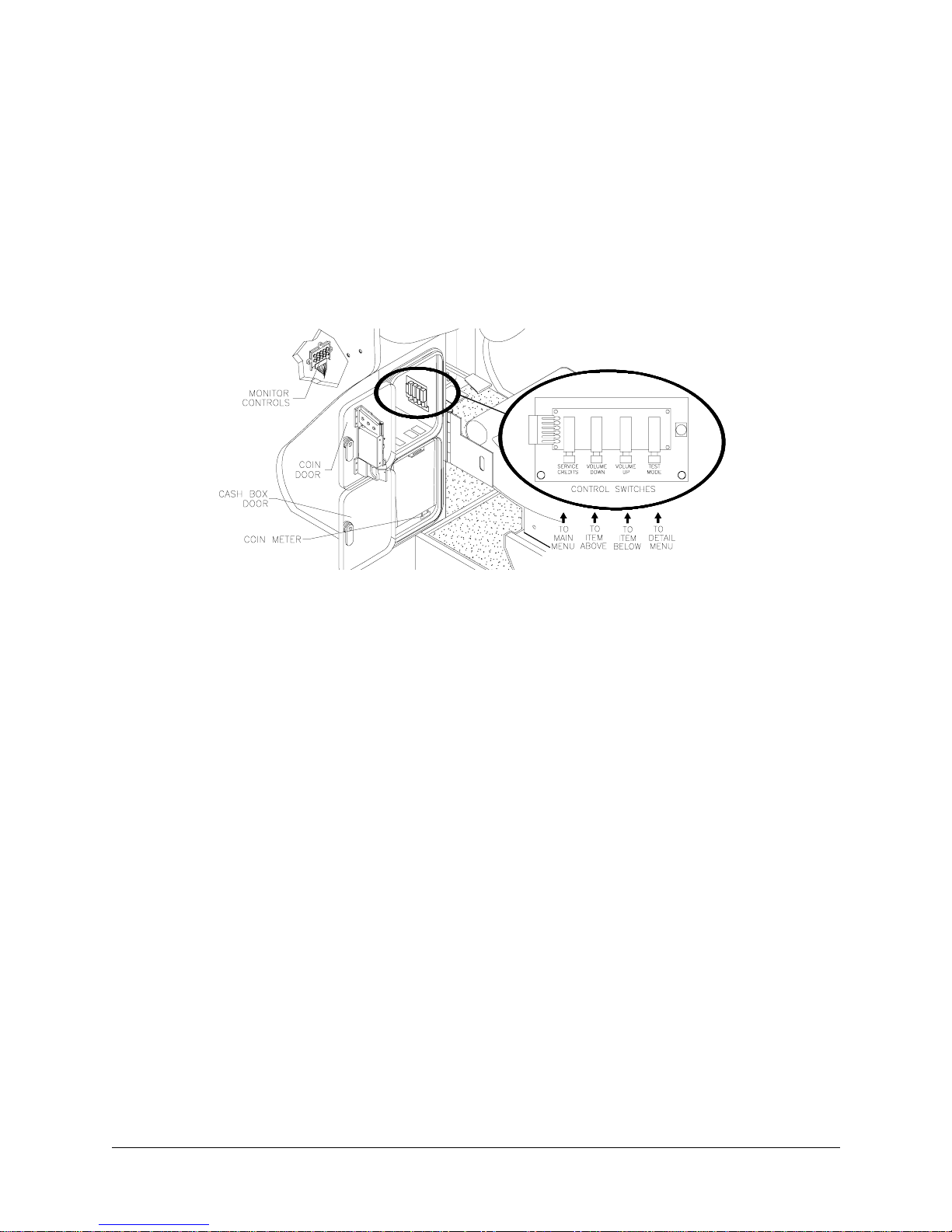

8. Unlock the coin door for each cabinet to access the operator control buttons inside coin vault. Press
and hold the TEST button to enter the menu system.
•Verify linked games have compatible software versions. Newer versions may contain instructions pre-
vious versions do not, causing games to halt or reset at random.
9. Select ADJUSTMENTS from the Main Menu screen, then scroll to the ADDITIONAL ADJUSTMENTS MENU and
press the Test button. Select GAME LINK NUMBER and press Test. Assign a linking number ranging
from 1 to 4 to each game cabinet.
NOTE: Each cabinet must have its own individual and unique number. The first cabinet on the left is
always cabinet 1, the second is cabinet 2, etc.
10. Repeat these steps for each remaining game cabinet you wish to link.
11. Close and lock the coin door, and reinstall and lock the rear door for each cabinet. Lower the leg level-
ers for each cabinet until the casters do not touch the floor and the cabinets are level. Lock the levelers
in position by tightening the nuts provided.
CAUTION
Do not connect or disconnect any cable to the game electronics or hub with the power turned
on. Circuit disruptions may damage the game and void the warranty.

CHAPTER ONE
C.A.R.T. FURY
OPERATIONS

2M
IDWAY AMUSEMENT GAMES, LLC
CHAPTER 1 OPERATION
SAFETY INSTRUCTIONS
The following safety instructions apply to operators and service personnel. Read these instructions before
servicing or preparing the Video Game Machine (VGM) for play. Other safety instructions appear through-
out this manual.
DEFINITIONS OF SAFETY TERMS
•DANGER indicates an imminent hazard. If you fail to avoid this hazard, it WILL cause death or serious
injury.
•WARNING indicates a potential hazard. If you fail to avoid this hazard, it COULD cause death or serious
injury.
•CAUTION indicates a potential hazard. If you fail to avoid this hazard, it MAY cause minor or moderate
injury. CAUTION also alerts you about unsafe practices.
•NOTE indicates information of special importance.
WARNING: TRANSPORTING GAMES.
The VGM contains glass and fragile electronic devices. Use appropriate care when
transporting. Avoid rough handling when moving the cabinet. Do not move with the
power switched on.
WARNING: DISCONNECT POWER.
Always turn the power OFF and unplug the VGM before attempting service or adjust-
ments unless otherwise instructed. Installing or repairing boards with power switched on
can damage components and void the warranty.
WARNING: GROUND GAMES.
Avoid electrical shocks! Do not plug in a VGM until you have inspected and properly
grounded it. Only plug this game into a grounded, three-wire outlet. Do not use a
“cheater” plug, or cut off the ground pin on the line cord.
WARNING: AVOID ELECTRICAL SHOCKS.
The VGM system does not utilize an isolation transformer. Internal cabinet AC is not iso-
lated from the external AC line.
WARNING: HANDLE FLUORESCENT TUBE AND CRT WITH CARE.
If you drop a fluorescent tube or CRT and it breaks, it will implode! Shattered glass can
fly eight feet or more from the implosion.
CAUTION: CHECK POWER SELECTOR, LAMP.
Set the 115/230VAC selector on the power supply for the correct line voltage. Check the
selector setting before switching on the VGM. Verify that the fluorescent lamp assembly
is correct for the local line voltage.
CAUTION: USE PROPER FUSE.
Avoid electrical shock! Replacement fuses must be identically rated. Fuse voltage and
current ratings must be identically rated to the original fuse.
CAUTION: ATTACH CONNECTORS PROPERLY.
Be sure board connectors mate properly. If connectors do not slip on easily, do not force
them. A reversed connector may damage the VGM and void the warranty. Connector
keys only allow a connector to fit one set of pins on a board.

C.A.R.T. FURY 3
CHAPTER 1 OPERATION
CAUTION: USE CARE WHEN SHIPPING HARD DISKS.
The hard disk drive must be packed in an anti-static bag. When shipping the drive for
repair or replacement, pack it in an approved container (P/N 08-8068). Do not stack or
drop hard disk drives.
WARNING: HAZARD TO EPILEPTICS.
A very small portion of the population has a condition which may cause them to experi-
ence epileptic seizures or have momentary loss of consciousness when viewing certain
kinds of flashing lights or patterns that are present in our daily environment. These per-
sons may experience seizures while watching some kinds of television pictures or play-
ing certain video games. People who have not had any previous seizures may
nonetheless have an undetected epileptic condition.
If you or anyone in your family has experienced symptoms linked to an epileptic condi-
tion (e.g., seizures or loss of awareness), immediately consult your physician before
using any video games.
We recommend that parents observe their children while they play video games. If you
or your child experience the following symptoms: dizziness, altered vision, eye or muscle
twitching, involuntary movements, loss of awareness, disorientation, or convulsions,
DISCONTINUE USE IMMEDIATELY and consult your physician.

4M
IDWAY AMUSEMENT GAMES, LLC
CHAPTER 1 OPERATION
PRODUCT SPECIFICATIONS
Operating Requirements
Cabinet Statistics
Game Characteristics
Equipment Characteristics
PRODUCT CONFIGURATION
• Stand Alone Video Game Machine
Each VGM is ready to play right out of the box. Operators may use the menu screens in the game menu
system to determine some player variables in advance or leave the choices up to the players.
• Linked Video Game Machines
Linking allows players to compete against each other on a single course. Operator menus are used the
same way as in stand-alone VGMs. Crossover couplers and linking cables to connect two VGMs are fac-
tory installed. Use an optional 10 base-T ethernet hub to interconnect up to four VGMs.
Location
Domestic
Foreign
Japan
Electrical Power
120VAC @ 60Hz 4.0 Amps
230VAC @ 50Hz 2.0 Amps
100VAC @ 50Hz 4.0 Amps
Temperature
32°F to 100°F
(0°C to 38°C)
Humidity
Not to exceed 95% relative
Shipping Dimensions
Width 30" (76.2 cm)
Depth 62" (157.4 cm)
Height 78" (198 cm)
Shipping Weight (Approx.)
350Lbs (158kg) Main Cabinet
125Lbs (57kg) Seat Assy.
Design Type
Sit-In Dedicated Video Game
Machine with Steering Wheel
Feedback
Player Variables
1 to 4 players per VGM (with Linking)
High Score Recognition
Suitable for All Ages (AAMA Certified)
Operator Variables
Coinage, Play Mode, Difficulty,
Volume, Audits, Statistics
Diagnostics
Automatic Power-Up Self-Test
Manual Multi-Level Menu System
Video Display Monitor
Medium Resolution RGB
27”(68.6 cm) CRT
Audio System
Digital Stereo
5” (12.7 cm) Coaxial Full Range
Speakers
Currency Acceptors
2 Coin Mechanisms
Dollar Bill Validator Ready
Electronic Coin Acceptor Ready

C.A.R.T. FURY 5
CHAPTER 1 OPERATION
VIDEO GAME MACHINE ARRAY
SET-UP
1. Remove all items from the shipping containers and set them aside. Remove all packing material.
Inspect the exterior of the main cabinet, control cabinet and the seat pedestal for any damage.
2. Remove the keys from the steering wheel. Unlock and open the rear door, and the coin and cash
boxes. Electrical cords, mechanical components, and assorted spare parts are packed inside the cash
box.
3. Install one nut onto each leg leveler. Tilt as needed to locate four threaded holes under both the main
cabinet and three holes under the pedestal. Install a leveler and nut into each hole. Do not tighten nuts
at this time.
4. The main cabinet is mounted on casters. Roll the cabinet to its intended location, maintaining clear-
ance between the cabinet and walls, drapes, other games or obstructions.
WARNING
The cabinet is top heavy. Do not push against plastic parts during movement.

6M
IDWAY AMUSEMENT GAMES, LLC
CHAPTER 1 OPERATION

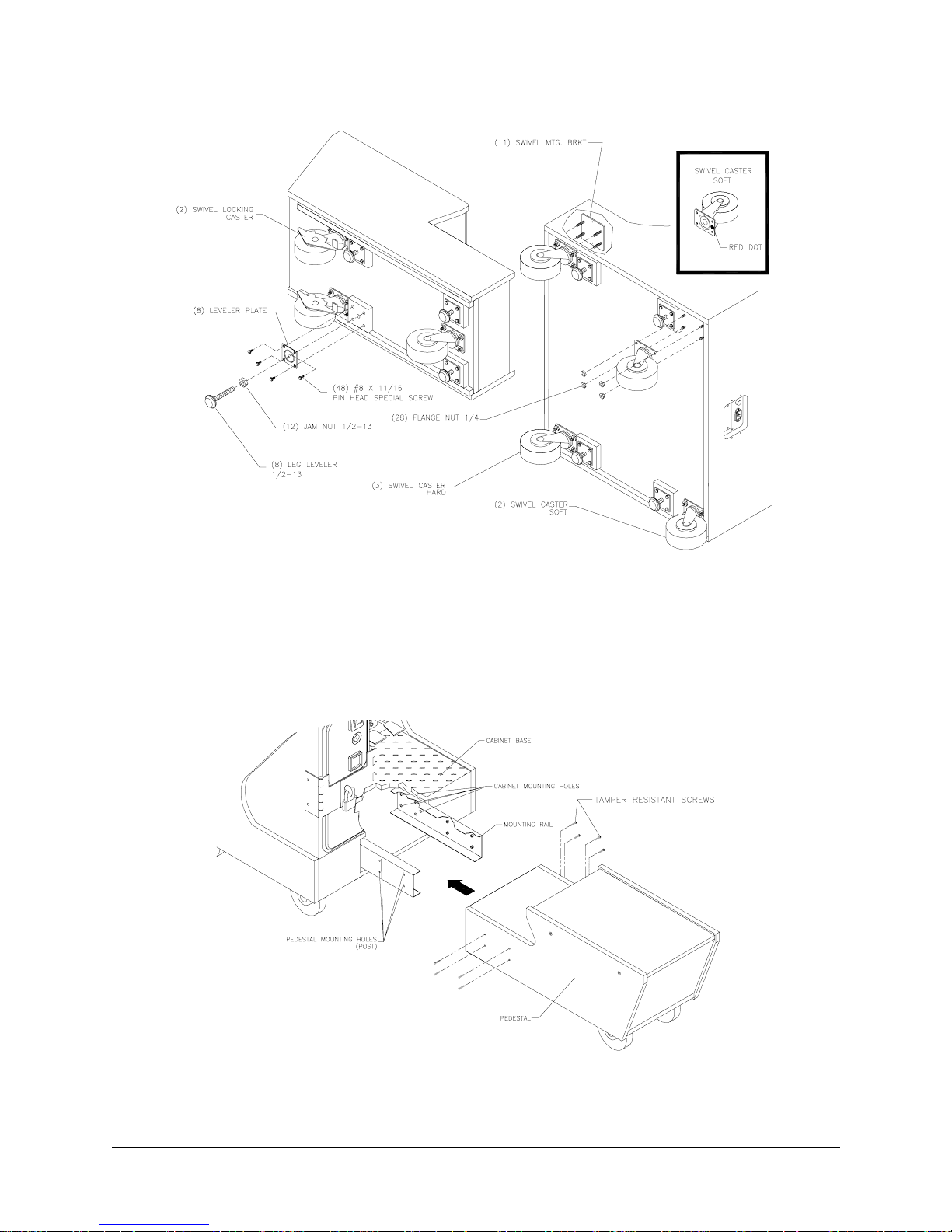

LOCATION OF CASTERS AND LEVELERS
5. The pedestal assembly mounting rails are shipped bolted to the inside of the control cabinet. Remove
all of the ¼-20 hex-head bolts used to fasten the rails inside the cabinet and set aside. Individually pull
each rail out of the cabinet, flip it end for end, and reinsert it. See diagram for proper placement. Fas-
ten the rail to the inside of the control cabinet with the bolts until finger tight. Do not tighten these bolts
at this time, as some movement is required in the mounting rails to align holes with pedestal assembly
LOCATION OF PEDESTAL ASSEMBLY MOUNTING HOLES

C.A.R.T. FURY 7
CHAPTER 1 OPERATION
6. Roll the pedestal section near the cabinet, align the opening in the pedestal with the ends of the rails.
Slide the pedestal forward onto extended mounting rails leaving enough space to attach the wiring har-
ness. Mate each cable connector and press firmly to seat the contacts. Ensure no wires are pinched
during pedestal attachment. Attach pedestal assembly using 1/4-20 tamper resistant screws and large
flat washers provided in spare parts. A T27 wrench is included with the spare parts to tighten these
screws firmly. Tighten the hex head bolts after the tamper resistant screws have been tightened.
7. Lower and adjust each leg leveler until the pedestal section is stable and level. Adjust the levelers until
the bottoms of all pieces are flush and parallel with each other. Inspect for binding or pinched wires.
Insert and firmly tighten the remaining fasteners to attach the two pieces together as a single unit.
REAR DOOR HASP INSTALLATION
8. An extra padlock may be installed to secure the rear door. A hasp is located in the spare parts bag.
Remove the two lock bracket nuts from inside the cabinet, above the rear door opening. Slide the hasp
bracket onto the bolts so that it protrudes from the hole in back of the cabinet, then reinstall nuts.
9. Modify the lock plate at the top of the rear door. Remove the bolts and nuts from the lock plate, then
rotate the plate so that the slot will be above the door. Reinstall the bolts and nuts and tighten firmly.
10. Reinstall the rear door onto the cabinet and close it. Lock the rear door and remove the key. If
required, install the extra padlock through the hasp at this time. Install the screws at the top and sides
of the rear door and tighten snugly. Leave the remaining doors open at this time.
LINE CORD INSTALLATION

8M
IDWAY AMUSEMENT GAMES, LLC
CHAPTER 1 OPERATION
11. The power cord is packed in with the spare parts. Insert a portion of the line cord in the cord clamp
leaving enough slack for the cord. Match the holes on the IEC plug with the prongs in the receptacle
and push firmly to seat the line cord.
12. Plug the game into a grounded (3-terminal) AC wall outlet. Switch on power to the game using the ON/
OFF switch located on the upper left top of the cabinet (when viewed from the player’s position). The
game will power up and begin its self test. If no errors are found, the game will automatically enter the
attract mode of operation (scenes and sounds from typical races, player’s scores, messages, etc.).
13. Open the coin door. Press and hold the Begin Test button on the operator control switch panel to enter
the menu system. Wait until the Main Menu screen appears on the monitor.
TYPICAL COIN DOOR SWITCH LOCATION
14. Follow on-screen instructions to select Diagnostics, then choose SWITCH TEST. Follow the on-screen
instructions to verify that each of the controls is operational. If no errors are found, the controls should
function well.
15. Return to the Diagnostics screen, then choose SPEAKER TEST. Follow the on-screen instructions to
verify that each of the speakers is operational. If no errors are found, the audio should function well.
16. Return to the Diagnostics screen, then choose WHEEL FEEDBACK TEST. Follow the on-screen
instructions to verify the presence of steering resistance. If no errors are found, the aim will be good.
17. Return to the Main Menu screen, then choose CONTROL CALIBRATION. Follow the on-screen
instructions to set steering limits. If no errors are found, the controls will have the maximum accuracy.
18. Return to the Main Menu screen, and then choose EXIT. The game will automatically enter its “attract”
mode of operation (scenes and sounds from typical races, player’s scores, messages, etc.).
19. Insert currency or tokens and play a game. Change the volume and make any other adjustments.
Close and lock all open doors. Tighten the leveler nuts and engage the caster locks.
MAINTENANCE
•Viewing Glass
It is not necessary to switch off power to the game to clean the glass. Apply a mild glass cleaner to a clean
cloth or sponge and wipe the viewing glass. Do not apply the cleaner directly on the glass! Liquid could
drip down into switch or control circuits and cause erratic game operation.

C.A.R.T. FURY 9
CHAPTER 1 OPERATION
•Player Controls
Use plastic-safe, non-abrasive cleaners to avoid damage. Apply cleaner to a clean cloth or sponge and
wipe the player controls. Do not apply the cleaner directly on the controls!
•Cabinet and Seat
Use plastic-safe, non-abrasive cleaners to avoid damage. Apply cleaner to a clean cloth or sponge and
wipe the seat or cabinet. Do not apply cleaner directly on artwork or cabinet!
GAME FEATURES
C.A.R.T. Fury: Championship Racing™ ships configured for one-player game play. Up to four cabinets
may be linked to promote player competition.
C.A.R.T Fury™ is based on the Championship Auto Racing Teams, Inc. owned FedEx®Championship
Series run yearly from March through October. CART races on road courses, temporary street circuits,
oval tracks, and super speedways in five countries on four continents. The races are televised both
domestically and around the world with a viewing audience of roughly over 57 million. Michael Andretti,
Christian Fittipaldi, Juan Montoya and Jimmy Vasser are but a few of the drivers involved in the CART cir-
cuit.
C.A.R.T Fury: Championship Racing™features a total of 12 tracks to choose from. There are 8 actual
CART courses, as well as 4 fantasy courses. Each course is packed with highly realistic scenery, immer-
sive physics and the most amazing wrecks and crashes. Additionally, players can opt to play a full 12-race
season, with points awarded for winning positions!
STARTING UP
Each time power is switched on or restored to the game machine, the system enters Start-up Tests. The
software revision level is shown at the top of the screen. A status screen to report on network activity will
appear for about ten seconds. This screen is used to verify and troubleshoot connections on an array of
cabinets.
The system enters Attract Mode once it passes all power-up tests. The Attract Mode screen will cycle end-
lessly and display a variety of scenes and sounds from a typical race on any given track. The system does
not exit Attract Mode until the desired amount of coins or tokens is inserted and game play commences.
NOTE: An error message appears on screen and the game does not enter start up if an error is detected
during the Start-Up Test. Record any messages before attempting to service the game.
GAME RULES AND OBJECTIVES
The game is configured for one-player game play, but up to four cabinets may be linked at one time to pro-
mote multiple player competition. To enter Game Mode, individual player(s) must insert the required
amount of currency or tokens, press the Start button, and select a car and track. The main objective of the
game is to earn top ranking against other drivers.
PLAYER CONTROLS
•Start Button is used to begin game play or to select certain features before a race.
•Boost Button, located on either side of the steering wheel, provides extra boost while passing other cars
during competition
•View 1 Button shows the view from the driver’s seat inside the vehicle. This is a normal driver view.
•View 2 Button shows the view from directly above. The player can see the front end of the vehicle.

10 MIDWAY AMUSEMENT GAMES, LLC
CHAPTER 1 OPERATION
•View 3 Button shows an aerial view of the vehicle. This is what a helicopter camera would see.
•Pedals, for both gas and brakes, are used to control vehicle speed.
•Seat Position Adjuster may be changed at any time, even during competition. Pull the adjustment lever
to the left while seated then slide the seat forward or backward. Release the lever to lock the seat into
position.
GAME OPERATION
Access to the menu system for statistics, adjustments, and testing is secured by a keyed lock on the coin-
box to prevent tampering. When the menu system is entered, on screen messages guide the operator
through tasks.
CABINET SWITCHES
•ON/OFF SWITCH is located on the top right side of the cabinet.
•REMOTE MONITOR ADJUSTMENT knobs are located inside coin vault. Use the monitor test screens
with these controls to adjust the video image size, brightness, contrast, etc.
•SLAM TILT SWITCH, located on the inside of the coin door opening near the lock, detects any forceful
vibrations against coin door. This switch prevents awarding of free games due to pounding on coin door.
NOTE: The Slam switch is not present on Dollar Bill Validator (DBV) ready doors.
CONTROL BUTTONS
•TEST BUTTON activates the game Menu System. Press the Test button to access the Main Menu and
select individual diagnostics, audits, utilities, etc.
•VOLUME UP BUTTON is used to move up through the menu selections or adjustment items, as well as
to increase volume level in game play. Activation of this button is accompanied by a distinct sound.
•
•VOLUME-DOWN BUTTON is used to move down through the menu selections or adjustment items, as
well as to decrease volume level in game play. Activation of this button is accompanied by a distinct
sound.
•SERVICE CREDIT BUTTON is used to allot credits without affecting the game's bookkeeping total. This
button is also used to exit a menu selection or to return to the main menu.

CHAPTER TWO
C.A.R.T. FURY
ADJUSTMENT, DIAGNOSTIC & AUDIT MENUS

2M
IDWAY AMUSEMENT GAMES, LLC
CHAPTER 2 DIAGNOSTICS
ADJUSTMENT, DIAGNOSTIC & AUDIT MENUS
MENU SYSTEM
WHAT IS THE MENU SYSTEM?
The game’s Menu System is a series of auditing, game adjustments and diagnostic screens. You can eas-
ily access and apply these screens to optimize game performance. For instance…
• Use game audit screens to assess game performance.
• Use adjustment screens to help you customize game performance. For example, you can restore factory
default game settings. You can also calibrate player controls for player accuracy.
• Use diagnostic screens to verify proper equipment operation.
ACCESSING THE MENU SYSTEM
Open the coin door. Locate and press the TEST MODE switch. The game system will exit game Attract
Mode and enter Diagnostic Mode. The system runs a brief self-test, and then displays the Main Menu. The
Main Menu is the opening screen of the Menu System.
Game audits, adjustments and diagnostics are line items on the Main Menu. Selecting an item opens its
submenu. Every submenu presents various options that you may act upon.
TYPICAL MAIN MENU SCREEN
MENU LAYOUT
Observe that each menu screen basically uses the same layout. The game ID, Serial Number, and Date of
Manufacture will appear on most of the menu screens. These numbers will be helpful to factory personnel
when referring to your game for parts or service.
• The block at the top of each screen displays the current menu title.
• Data, such as menu items and video reports, etc., appears in the center of the screen.
• Messages, for example explanations and active control functions, etc., appear at the bottom of the
screen.
MENU NAVIGATION TOOLS
Use the operator control buttons located inside the coin door to navigate menus. Press the Volume Up or
Volume Down buttons to scroll through the menu options.
Notice the options sequentially become highlighted. Press the Test button to select a highlighted option
and access the next menu level. NOTE: Only one highlighted option can be selected at a time.
To return to play mode, select Exit and press the Test button while in the Main Menu screen.
C.A.R.T. MAIN MENU
DIAGNOSTICS
AUDITS
ADJUSTMENTS
VOLUME LEVEL
CONTROL CALIBRATION
UTILITIES
EXIT

C.A.R.T. FURY 3
CHAPTER 2 DIAGNOSTICS
DIAGNOSTIC MENU
To verify the condition of the electrical and electronic hardware in the game, select Diagnostics Menu at
the Main Menu. Diagnostic tests assist you in checking and adjusting the game’s major systems. It is
important to periodically run diagnostics to improve and maintain game performance and player satisfac-
tion.
Use the Volume Up or Volume Down button to highlight the desired Diagnostic Menu option and press the
Test button to enter.
MONITOR SET-UP
To verify color clarity of the monitor, select MONITOR SETUP at the Main Menu.
Use the Volume Up or Volume Down button to highlight the desired monitor setting and press the Test but-
ton. Watch for the following results on-screen during this test.
Main Menu, continued
Diagnostics Menu
DIAGNOSTICS
MONITOR SETUP
SYSTEM INFORMATION
SOUND SUBSYSTEM
DISK TESTS
SWITCH TESTS
DIP SWITCH TESTS
LAMP AND LED TESTS
WHEEL FORCE FEEDBACK TEST
CONTROL TEST
SPEAKER TEST
LINK TEST
EXIT
Main Menu
Diagnostic Menu, continued
Monitor Setup
MONITOR SET-UP
COLOR BARS
CROSS HATCH
RED SCREEN
BLUE SCREEN
GREEN SCREEN
WHITE SCREEN
BLACK SCREEN
50% GRAY SCREEN
25% GRAY SCREEN
EXIT

4M
IDWAY AMUSEMENT GAMES, LLC
CHAPTER 2 DIAGNOSTICS
COLOR BARS. Observe 4 color bars in different shades appear on-screen as aids in adjusting the green,
blue, and red color levels. Each color should appear sharp and clear. Check video brightness and contrast.
The CROSSHATCH PATTERNS test fills the screen with a series of dots within a grid. Observe the dots
are perfectly round and that both the grid and dots are clear. Inspect monitor convergence, linearity, and
screen size.
The single color screens, RED SCREEN, BLUE SCREEN, GREEN SCREEN, etc., fills the screen with a
single color to be observed for complete saturation and clarity.
If any of the tests show a need for CRT adjustment, use the proper knobs on the Monitor Controls board.
SYSTEM INFORMATION
To verify game serial number and date code select System Information at the Main Menu.
TYPICAL SYSTEM INFORMATION SCREEN
Use the Start button or Test button to exit this menu screen.
SOUND SUBSYSTEM TEST
To Verify proper operation of the sound electronics select Sound Subsystem Test at the Main Menu.
Observe the following information on the screen.
Main Menu
Diagnostic Menu, continued
Monitor Setup, continued
Main Menu
Diagnostic Menu, continued
System Information
SYSTEM INFORMATION
MIDWAY AMUSEMENT GAMES, LLC
MC VEGAS SYS
SERIAL NUMBER 022373
GAME: XXX
DATE OF MANUFACTURE:09/09/99
PRESS START TO EXIT
Main Menu
Diagnostic Menu, continued
Sound Subsystem Test
