OPERATION MANUAL
MODEL no: TKG4-UP
2P.C.BOARDS TYPE
Nintendo

1.
CAUTIONS 1
CONTENTS
2. SPECIFICATIONS
3. INSTALLATION OF THE MACHINE
(1) Cautions on installation 3
(2) Earthing of machine 3
4. MAINTENANCE AND INSPECTION
(1) Dismounting of front screen 4
(2) Dismounting of operation panel 4
5. POINTS AND METHODS OF ADJUSTMENT
(1) CPU P.C. Board 3
(2)Adjustment of Semi-Fixed Resistors ^
7
(3) Video Monitor

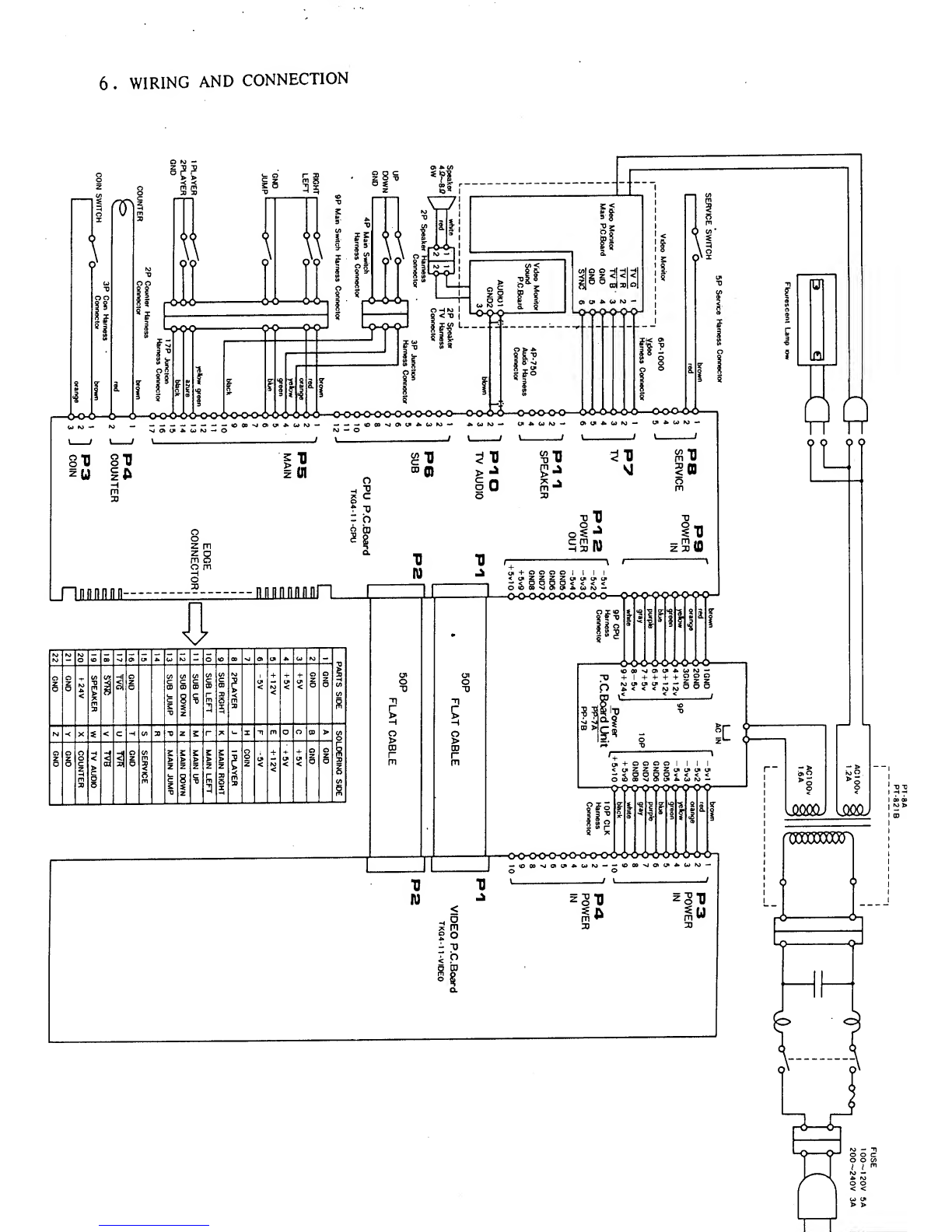

6. WIRING AND CONNECTION ^
7. NAME OF EACH PART
(1) Body ^

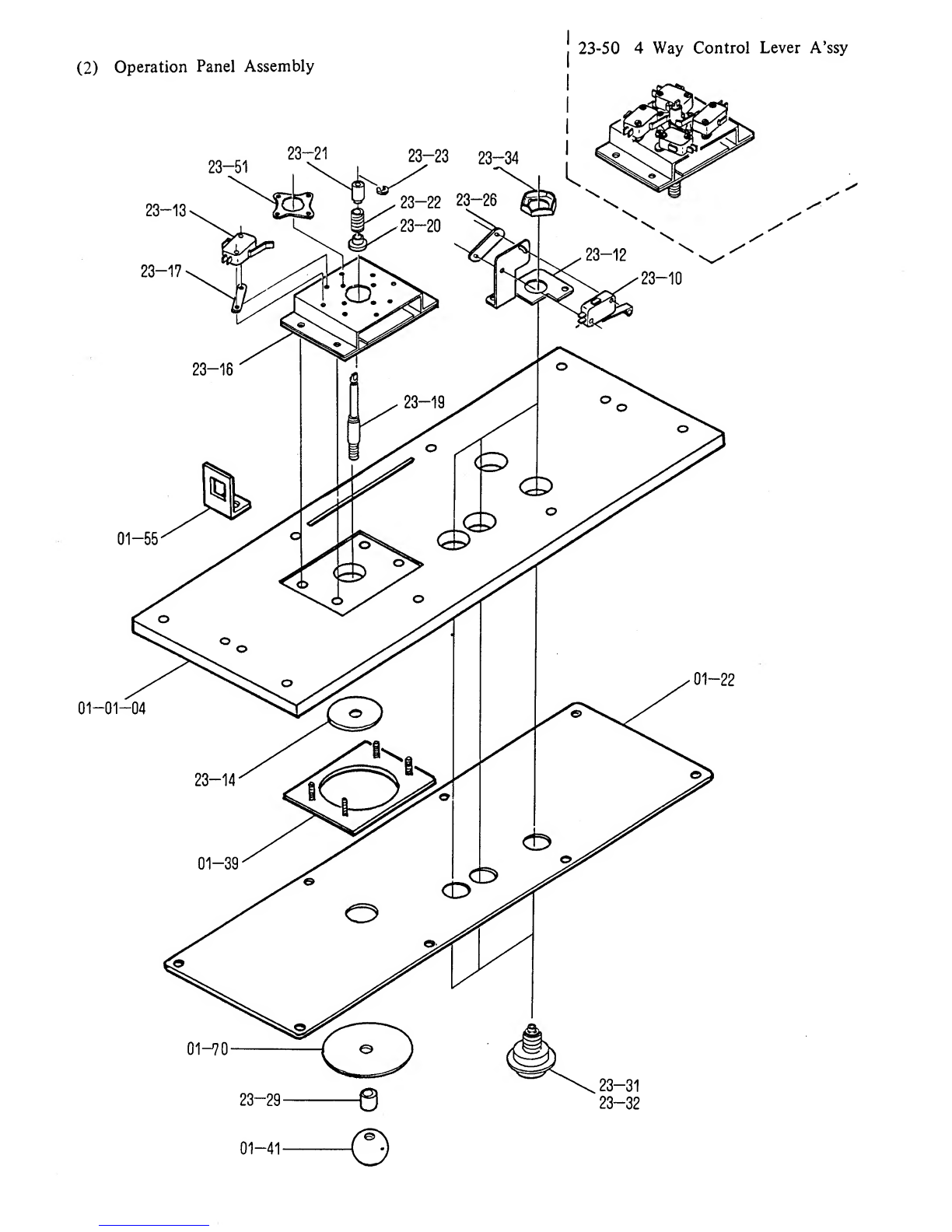

(2) Operation Panel Assembly 41
12
8. PART LIST
CAUTIONS
1.
2.
P.C .Board
sunshine should not be exposed direct to the sun
is very harmful to LSI (memory element). Direct
C. Board to be stored or transported should be wrapped by
cinductive pouch or aluminun. foil, because LSI and IC
sed in tbe machine are semiconductor integrated circuits
fwhich basic element is MOS-FET.
3.When images on
powerful noise
power off once
the Video Monitor screen are disturbed by
or other electrical causes, turn the mam
and then on again.

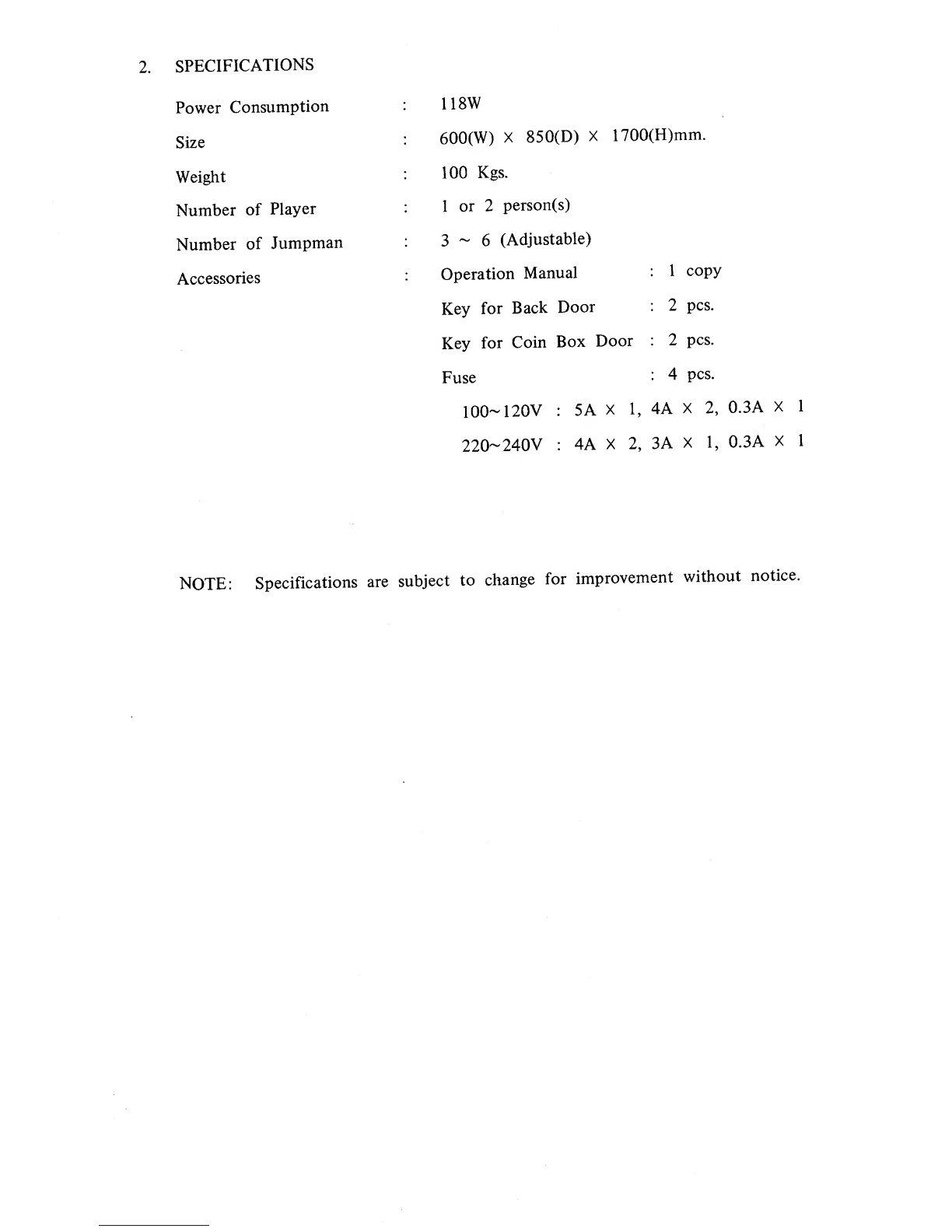

SPECIFICATIONS
Power Consumption
Size
Weight
Number of Player
Number of Jumpman
Accessories
118W
600(W) X850(D) X1700(H)mm.
100 Kgs.
1or 2person(s)
3~6(Adjustable)
Operation Manual :1copy
Key for Back Door :2pcs.
Key for Coin Box Door :2pcs.
Fuse :4pcs.
100- 120V :5A X1, 4A X2, 0.3A X1
220-240V :4A X2, 3A X1, 0.3A X1
NOTE: Specifications are subject to change for improvement without notice.

3-1 Cautions on installation
(1) The power cord of the machine should not be connected to awall
outlet together with large load unit(s) such as motor, cooler, etc.
(2) Turn the power off before setting and removing the P.C. Board
and connectors. Carefully handle them.
(3) Do not touch IC, LSI and other electronic parts on P.C. Board.
Do not use atester or the like on them. (They may be damaged
by the inner voltage of the instruments.)
(4) When exchanging afuse, use anew one of the prescribed capacity.
(5) The machine should be installed where it is not hot, keeping away
from aheating appliance and direct sunshine.
(6) The machine should be installed where it is not wet and dusty.
(7) Do not touch the inside of the video monitor which has high
tension units. Inform service station, if necessary.
3-2 Earthing of machine
(1) When the machine is installed in awet place, it should be
grounded to avoid accident by an electric shock.
a) Connect an earthing wire to the earthing terminal of the machine
b) The opposite end of the
earthing wire should be
connected to an earthing
bar which is firmly inserted
into the ground.
(2) Cautions
a) Do not connect the earthing
wire to awater pipe, because
polyvinyl-cholor ide pipes
are sometimes used in the
water lines and, if so, the
electronic continuity is cut
at the points.
b) Do not connect the earthing
wire to the gas pipe abso-
lutely. That is very danger-
ous .

4. MAINTENANCE AND INSPECTION
4-1 Dismounting of front screen
Opening the back door, pull
the front screen clamp
which is mounted under the
top plate. Pull the front
screen upward while pushing
and then pull toward you.
Front Screen Clamp
4-2 Dismounting of operation
panel
To dismount the operation
panel for maintenance or
inspection of the Control
Unit or Micro Switch, open
the front door and unfasten
the fastener.

5. POINTS AND METHODS OF ADJUSTMENT
5-1 CPU PfC. Board
The number of Jumpman, score level, the number of
coin and type of machine can be set with the switches
on CPU P.C. Board according to the diagram below.
.
•TKC34-] 1-CPU
SW1
~i 2345678
OP EN-
abcde FGH*
AB^0
Number of
Jumpman
3
4
5
'6
Score Level for
extra Jumpman*
7,000
pointa
10,006 points
15.000 points
20.000 points
Coinage
^1coirT /I
1coin /2
1coin /3
1coin* /4
2coins/1
3co.ins/l
4coins/1
'5 coins/1
>lay
plays
plays
plays
play
play
play
play
Table/Upright
Table
Upright
Keep the switch Halways at the ON position

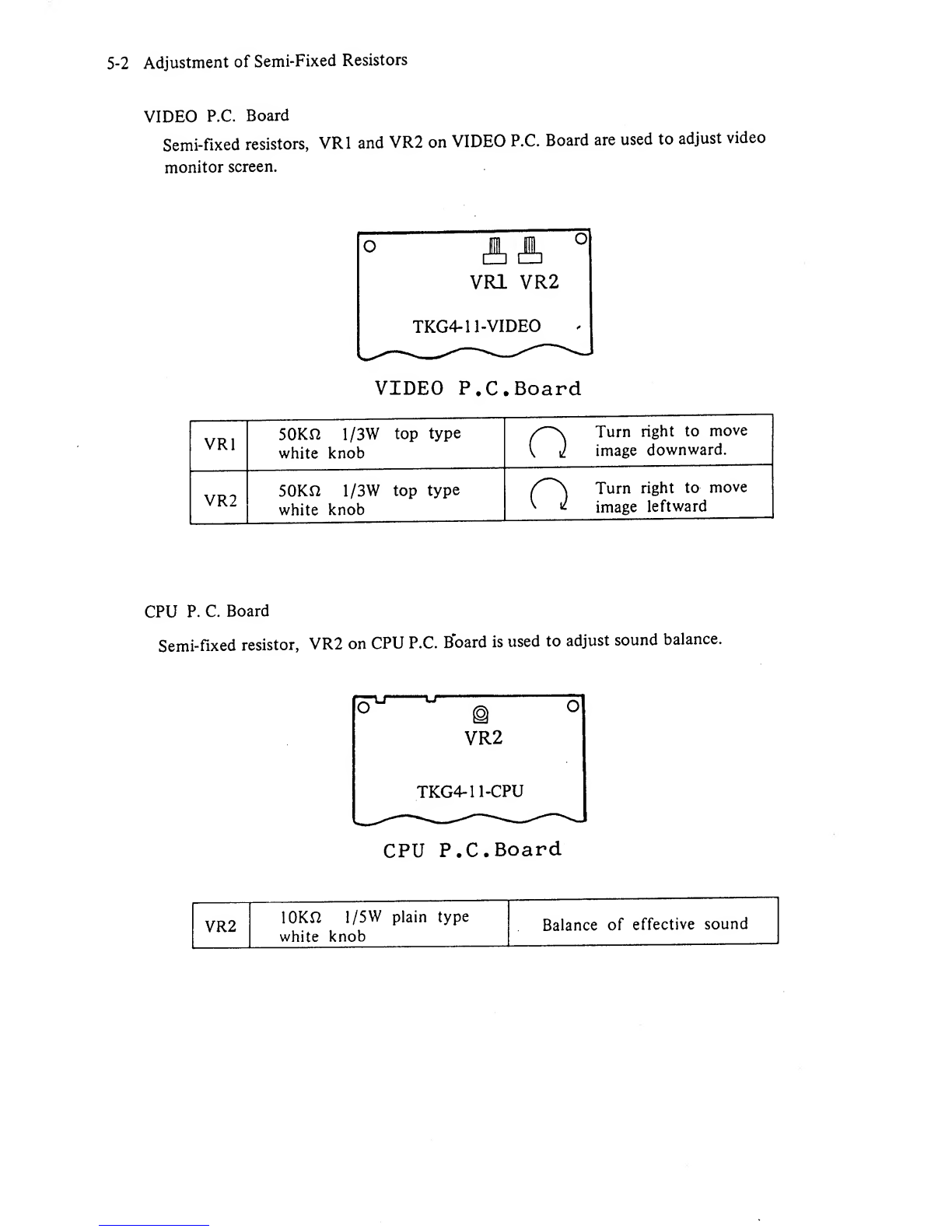

5-2 Adjustment of Semi-Fixed Resistors
VIDEO P.C. Board
Semi-fixed resistors, VRl and VR2 on VIDEO P.C. Board are used to adjust video
monitor screen.
VIDEO P.C. Board
VRl 50KD 1/3W top type
white knob 1nTurn right to move
image downward.
VR2 50KD 1/3W top type
white knob
1n1Turn right to move
image leftward
CPU P. C. Board
Semi-fixed resistor, VR2 on CPU P.C. Board is used to adjust sound balance.
10KS2 1/5W plain type
white knob Balance of effective sound

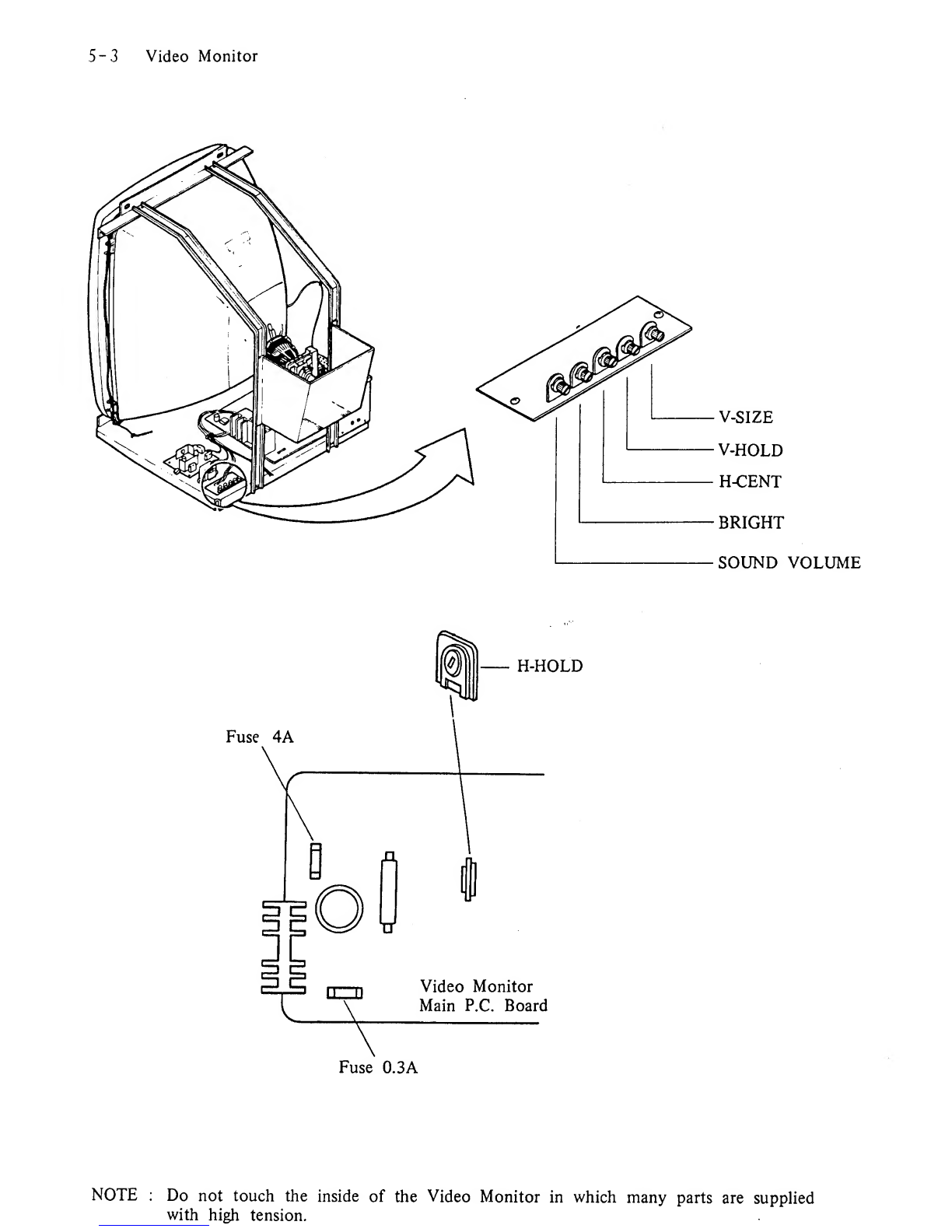

5-3 Video Monitor
V-SIZE
V-HOLD
H-CENT
BRIGHT
SOUND VOLUME
Fuse 0.3A
NOTE :Do not touch the inside of the Video Monitor in which many parts are supplied
with high tension.

5P
Service
Harness
Connector

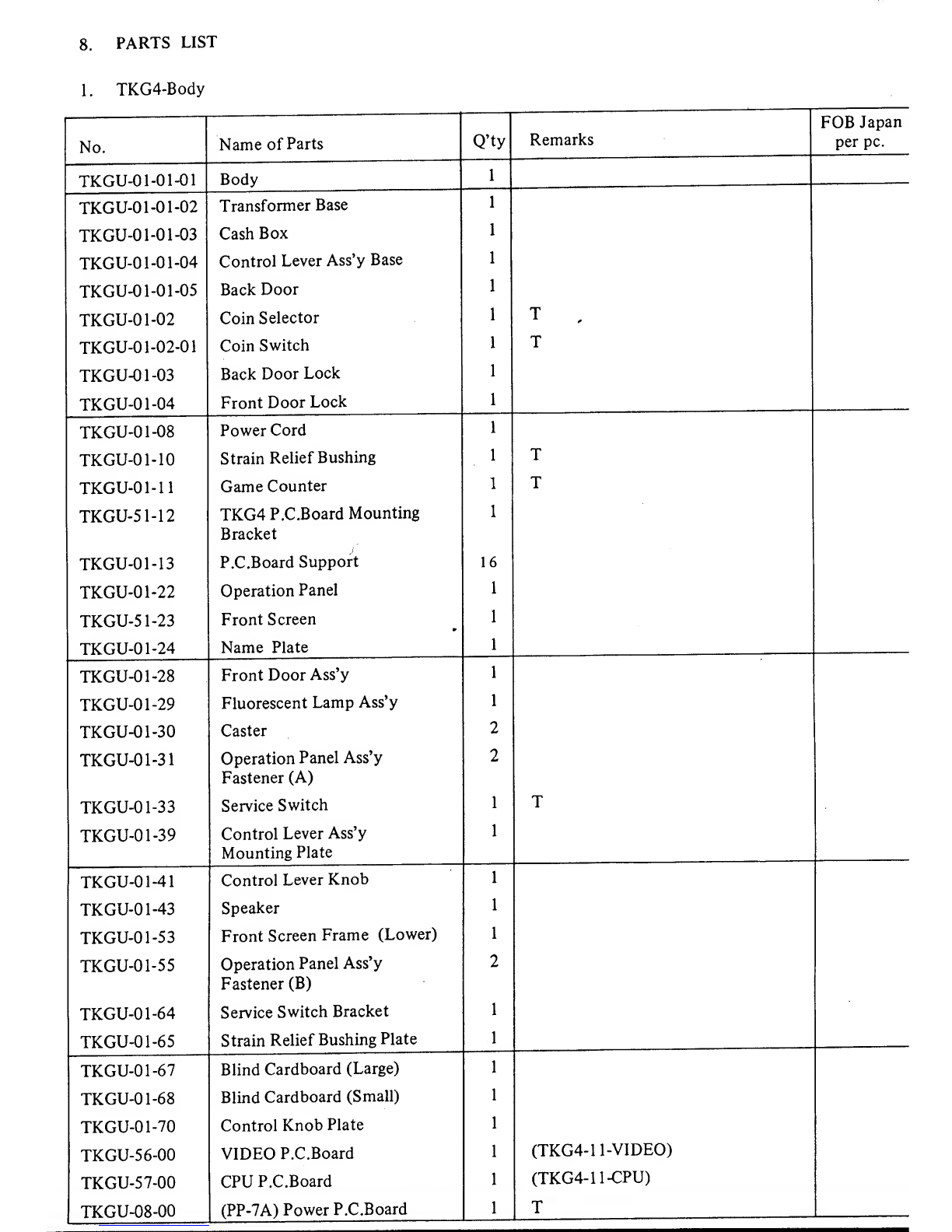

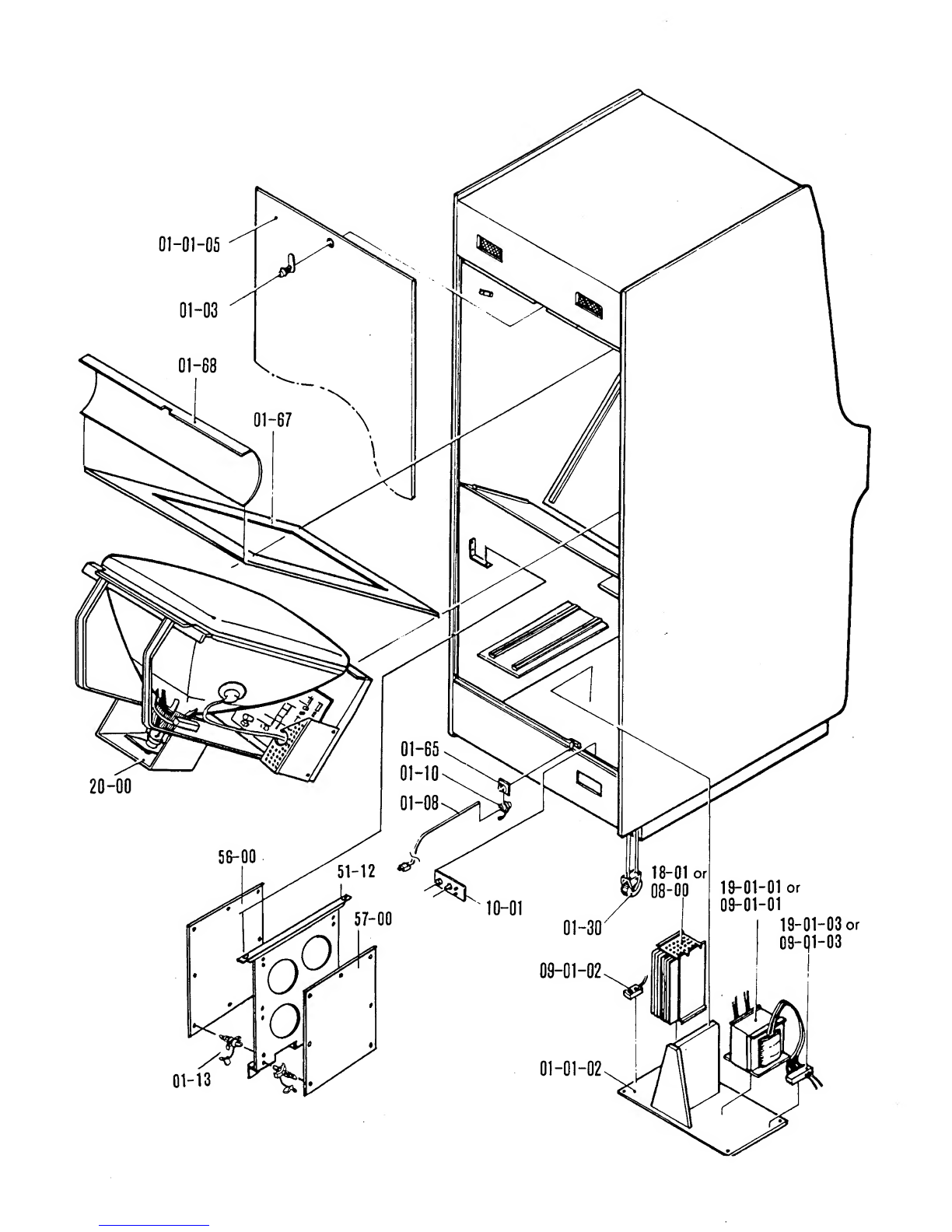

8. PARTS LIST
1. TKG4-Bocly
No. Name of Parts Q’ty
TKGU-0 1-0 1-01 Body ni
TKGU-0 1-0 1-02 Transformer Base 1
TKGU-0 1-0 1-03 Cash Box 1
TKGU-0 1-0 1-04 Control Lever Ass’y Base 1
TKGU-0 1-0 1-05 Back Door
TKGU-0 1-02 Coin Selector
TKGU-0 1-02-01 Coin Switch 1
TKGU-0 1-03 Back Door Lock 1
TKGU-0 1-04 Front Door Lock 1
TKGU-0 1-08 Power Cord 1
TKGU-0 1-10 Strain Relief Bushing 1
TKGU-0 1-11 Game Counter 1
TKGU-51-12 TKG4 P.C.Board Mounting
Bracket
1
TKGU-0 1-1
3
P.C.Board Support 16
TKGU-0 1-22 Operation Panel 1
TKGU-51-23 Front Screen 1
TKGU-01-24 Name Plate 1
TKGU-01-28 Front Door Ass’y 1
TKGU-01-29 Fluorescent Lamp Ass’y 1
TKGU-01-30 Caster 2
TKGU-0 1-31 Operation Panel Ass’y
Fastener (A)
2
TKGU-0 1-33 Service Switch 1
TKGU-0 1-39 Control Lever Ass’y
Mounting Plate
1
TKGU-0 1-41 Control Lever Knob 1
TKGU-0 1-43 Speaker 1
TKGU-0 1-53 Front Screen Frame (Lower) 1
TKGU-0 1-55 Operation Panel Ass’y
Fastener (B)
2
TKGU-01-64 Service Switch Bracket 1
TKGU-01-65 Strain Relief Bushing Plate 1
TKGU-0 1-67 Blind Cardboard (Large) 1
TKGU-0 1-68 Blind Cardboard (Small) 1
TKGU-01-70 Control Knob Plate 1
TKGU-56-00 VIDEO P.C.Board 1
TKGU-57-00 CPU P.C.Board 1
TKGU-08-00 (PP-7A) Power P.C.Board 1
FOB Japan
per pc.
(TKG4-1 1-VIDEO)
(TKG4-1 1-CPU)
T

No. Name of Parts
TKGU-18-01 (PP-7B) Power P.C.Board
TKGU-09-01-01 (PT-8A) Power Transformer
TKGU-19-0 1-01 (PT-821B) Power Transformer
TKGU-09-01-02 2P Table Tap
TKGU-09-01-03 Terminal Block
TKGU-19-0 1-03 Terminal Block
TKGU-10-01 Power Switch Ass’y
TKGU-13-01 lOP CLK Harness Connector
TKGU-13 -02 2P Counter Harness Connector
TKGU-13-03 9P CPU Harness Connector
TKGU-13-04 3P Coin Harness Connector
TKGU-13-05 5P Service Harness Connector
TKGU-13-06 2P Speaker TV Harness Connector
TKGU-134)7 4P-750 Audio Harness Connector
TKGU-13- 10 9P Main Switch Harness
Connector
TKGU-13- 11 17P Junction Harness Connector
TKGU-13-12 SOP Flat Cable
TKGU-13-17 2P Speaker Harness Connector
TKGU-13-28 3P Junction Harness Connector
TKGU-13-29 4P Main Switch Harness
Connector
TKGU-13-31 6P-1000 Video Harness Connector
TKGU-20-00 Video Monitor
TKGU-23-10 Micro Switch
TKGU-23-12 Switch Button Bracket
TKGU-23-13 Control Switch
TKGU-23-14 Blind Plate
TKGU-23-16 Bearing Bracket
TKGU-23-17 Switch Spacer
TKGU-23-19 Schaft
TKGU-23-20 Spring Stopper
TKGU-23-21 Switch Collar
TKGU-23-22 Lever Spring
TKGU-23-23 ERing 4
TKGU-23-26 Nut Plate
TKGU-23-29 Control Knob Collar
TKGU-23-3
1
Switch Button Ass’y (Blue)
TKGU-23-32 Switch Button Ass’y (Orange)
TKGU-23-34 Pal Nut

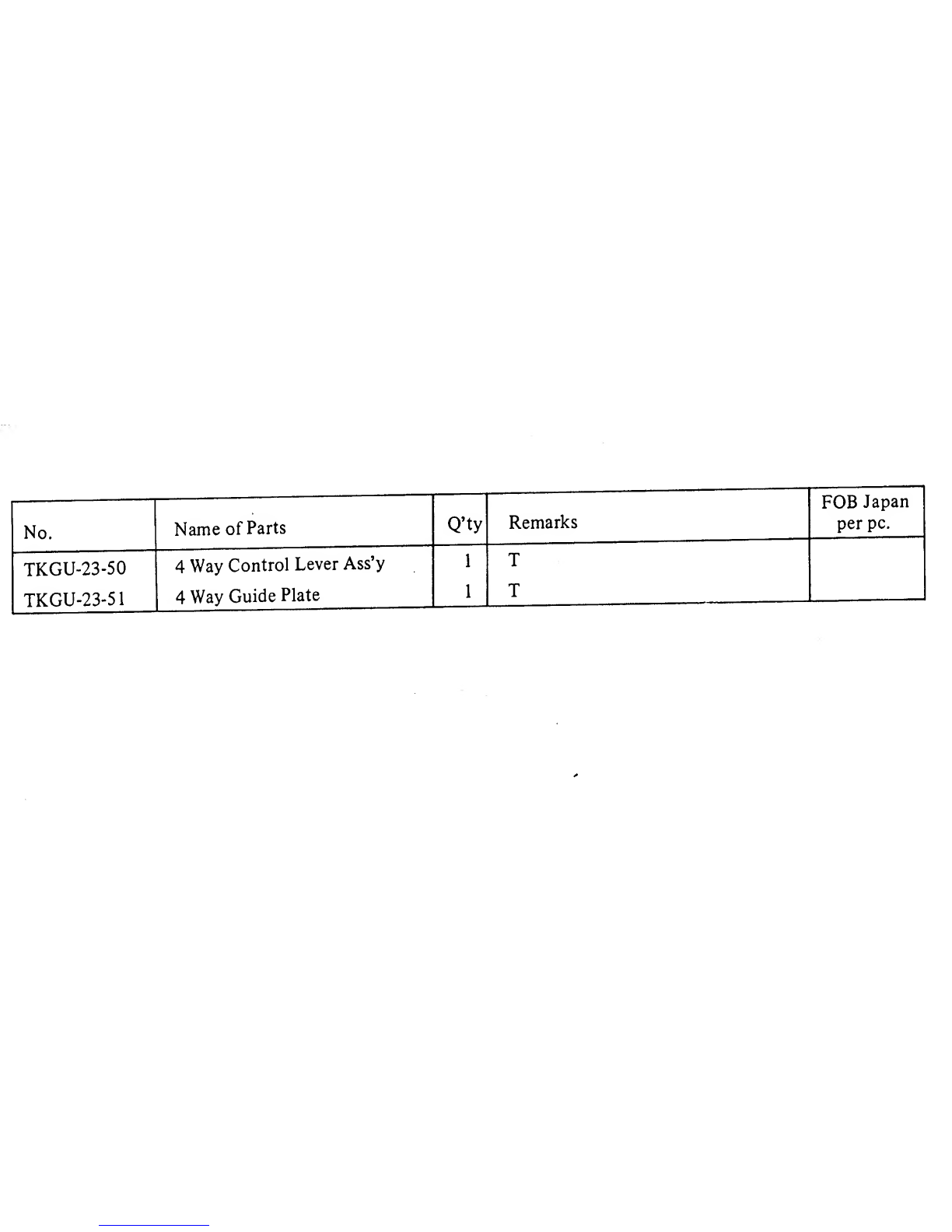

Remarks
T
FOB Japan
per pc.
(Sexipolar)
(Quadrupolar)

VIDEO P.C.Board
No. Name of Parts Q’ty Remarks FOB Japan
per pc.
TKG-56-00 VIDEO P.C.Board IComplete Set (TKG4-1 1-VIDEO)
IC SN74LS00 2Quadruple 2-Input Positive NAND
Gates
IC SN74LS02 3Quadruple 2-Input Positive Nor
Gates
TKG-56-03 IC SN74LS04 6Hex Inverters
TKG-56-04 IC SN74LS08 1Quadruple 2-Input AND Gate
TKG-56-05 IC SN74LS10 ITri 3Input NAND Gate
TKG-56-06 IC SN74LS20 4Dual 4'- Input Positive NAND Gate
TKG-56-07 IC SN74LS30 I8-Input Positive NAND Gate
TKG-56-08 IC SN74LS32 IQuadruple 2-Input Positive or Gate
TKG-56-09 IC SN74LS74 4Dual D-Type Edge-Triggered Flip-
Flop w/Set and Reset
TKG-56-10 IC SN74LS86 7Quadruple 2-Input Executive OR
Gate
TKG-5 6- 11 IC SN74LS109 1Dual J-K Positive Edge-Triggered
Flip-Flops with Preset and Clear
TKG-56-1
2
IC SN74LSI23 2Dual Retriggerable Single Shot
TKG-56-1
3
IC SN74LS139 1Dual 2- to 4-Line Decoder/Demulti -
plexer
TKG-56-14 ICSN74LSI57 14 Quadruple 2-Line to 1-Line Data
TKG-56-15 ICSN74LS161 4Synchronous Presettable 4-Bit Binary
Counter w/Direct Reset
TKG-5 6- 16 IC SN74LS163 24-Bit Binary Counter with Synchro-
nous clear
TKG-56- 17 IC SN74LS174 1Hex D-Type Flip-Flop w/Reset RAM
TKG-56- 18 IC SN74LS175 2Quadruple D-Type Flip-Flop w/Reset
TKG-5 6- 19 IC SN74LS245 2Octal 3-State Bus Transceivers
TKG-56-20 IC SN74LS273 4Octal D-FFS
TKG-5 6-21 IC SN74LS283 84Bit Binary Full Adder
TKG-56-22 IC SN74LS299 68Bit Bidirectional Universal Shift/
Storage
TKG.56-23 IC SN74LS367 2Hex Bus Driver w/3 State Output
TKG-5 6-24 IC SN74LS373 2Octal 3-State D-Latches
TKG-56-25 IC SN74LS377 1Octal D-Type Flip-Flops
TKG-56-26 IC SN74S161 3Schotkey 4-Bit Binary Counter with
Direct Clear
TKG-56-27 IC MB10I05 1Triple 2-3-2- Input OR/NOR Gates
TKG-56-28 ICMB101I6 1Triple Line Receivers
TKG-56-29 ICMB10124 4Quadruple TTL-to-ECL Translators
'TKG-56-30 ICMB10125 3Quadruple ECL-to-TTL Translators

No. Name of Parts Q’ty Remarks FOB Japan
per pc.
TKG-56-31 ICMB10136 1Universal Hexadecimal Counter
TKG-56-32 IC 2716 62048 X8Bit EP -ROM
TKG-56-33 IC MB7074 2ECL-RAM (MBM 10422) with
Radiator Fin
TKG-56-34 IC MB93419 164 X9Bipolar RAM
TKG-56-35 ICMB8114 21024 X4-Bit Static MOS RAM
TKG-56-36 ICMB8148L55 21024 X4-Bit Static RAM
TKG-56-37 IC 24S10 1256 X4-Bit Bipolar P-ROM
TKG-5 6-3 8Resistor Array 4RNSA-d9P-551J 8-device 5ion
TKG-56-39 Resistor Array 1RNSA-09P-102J 8-device Ikn
TKG-5640 Variable Resistor 250kn 1/3W
TKG-56-41 Resistor (Carbon) 2lOkn 1/4W ±5%
TKG-56-42 Resistor (Carbon) 12 5ion 1/4W ±5%
TKG-5 6-43 Resistor (Carbon) 215kn 1/4W ±5%
TKG-56-44 Resistor (Carbon) 22,2kn 1/4W ±5%
TKG-56-45 Resistor (Carbon) 24.7kn 1/4W ±5%
TKG-56-46 Resistor (Carbon) 122kn 1/4W ±5%
TKG-56-47 Resistor (Carbon) 127kn 1/4W ±5%
TKG-56-48 Resistor (Carbon) 23 Ikn 1/4W ±5%
TKG-56-49 Electrolytic Capacitor 2220mF 16V
TKG-56-50 Electrolytic Capacitor 2ImF 50V
TKG-56-51 Ceramic Capacitor 147pF 50V
TKG-56-52 Ceramic Capacitor 128 0.0 ImF 50V
TKG-56-53 Ceramic Capacitor 133pF 50V
TKG-56-54 Ceramic Capacitor 2iOpF 50V
TKG-56-55 Ceramic Capacitor 1220pF 50V
TKG-56-56 Ceramic Capacitor 168pF 50V
TKG -56-57 Polyester Film Capacitor 1lOOOpF 50V(102kz)
TKG -56-58 Polyester Film Capacitor 1OAuF 50V
TKG -56-59 Polyester Film Capacitor 10.022aiF 50V
TKG -56-60 Transistor 22SC1215-R/S/T
TKG -56-61 Crystal Oscillator 161.44MHz (HC-18U)

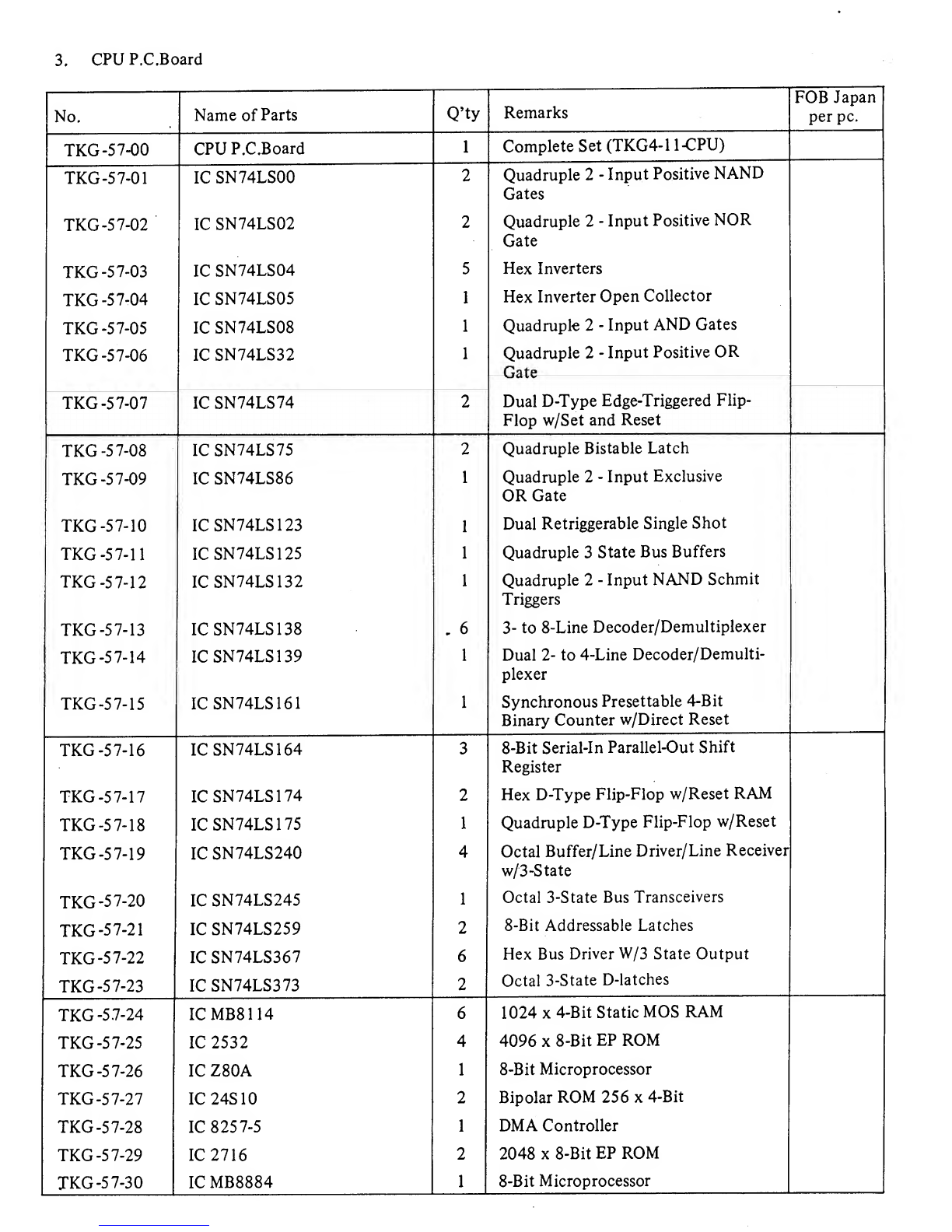

3. CPU P.C.Board
No. Name of Parts Q’ty Remarks FOB Japan
per pc.
TKG-57-00 CPU P.C.Board 1Complete Set (TKG4-1 1-CPU)
TKG-5 7-01 IC SN74LS00 2Quadruple 2-Input Positive NAND
Gates
TKG-5 7-02 IC SN74LS02 2Quadruple 2-Input Positive NOR
Gate
TKG-5 7-03 IC SN74LS04 5Hex Inverters
TKG -5 7-04 IC SN74LS05 1Hex Inverter Open Collector
TKG -57-05 IC SN74LS08 IQuadruple 2-Input AND Gates
TKG-57-06 IC SN74LS32 1Quadruple 2-Input Positive OR
Gate
TKG-57-07 IC SN74LS74 2Dual D-Type Edge-Triggered Flip-
Flop w/Set and Reset
TKG -57-08
TKG -57-09
TKG -57-10
TKG -57-11
TKG -57-12
TKG -5 7- 13
TKG -57-14
TKG -5 7- 15
TKG -5 7- 16
TKG -5 7- 17
TKG -5 7- 18
TKG-5 7- 19
TKG-5 7-20
TKG-5 7-21
TKG-5 7-22
TKG-57-23
IC SN74LS75
IC SN74LS86
IC SN74LS123
IC SN74LS125
IC SN74LS132
IC SN74LS138
IC SN74LS139
IC SN74LS161
IC SN74LS164
IC SN74LS174
IC SN74LS175
IC SN74LS240
IC SN74LS245
IC SN74LS259
IC SN74LS367
IC SN74LS373
TKG -57-24 IC MB8114
TKG-5 7-25 IC 2532
TKG-5 7-26 IC Z80A
TKG-57-27 IC 24S10
TKG-5 7-28 IC 8257-5
TKG-5 7-29 IC2716
TKG-5 7-30 IC MB8884
Quadruple Bistable Latch
Quadruple 2-Input Exclusive
OR Gate
Dual Retriggerable Single Shot
Quadruple 3State Bus Buffers
Quadruple 2-Input NAND Schmit
Triggers
3- to 8-Line Decoder/Demultiplexer
Dual 2- to 4-Line Decoder/Demulti-
plexer
Synchronous Presettable 4-Bit
Binary Counter w/Direct Reset
8-Bit Serial-In Parallel-Out Shift
Register
Hex D-Type Flip-Flop w/Reset RAM
Quadruple D-Type Flip-Flop w/Reset
Octal Buffer/Line Driver/Line Receiver
w/3-State
Octal 3-State Bus Transceivers
8-Bit Addressable Latches
Hex Bus Driver W/3 State Output
Octal 3-State D-latches
1024 X4-Bit Static MOS RAM
4096 X8-Bit EP ROM
8-Bit Microprocessor
Bipolar ROM 256 x4-Bit
DMA Controller
2048 X8-Bit EP ROM
8-Bit Microprocessor

Name of Parts
TKG -5 7-31 ICMB3614
TKG -57-32 IC NE556
TKG-57-33 IC DAC08CQ
TKG -5 7-34 IC CD4049UB
TKG -5 7-3 5Transistor
TKG-57-36 Transistor
TKG-5 7-3 7Transistor
TKG-5 7-38 Transistor
TKG-5 7-39 Diode
TKG-5 7-40 Diode
TKG-5 7-41 Diode
TKG-57-42 Dip Switch
TKG-5 7-43 Aluminium Electrolytic Capac-
itor
TKG-5 7-44 Electrolytic Capacitor
TKG-57-45 Electrolytic Capacitor
TKG-57-46 Electrolytic Capacitor
TKG-5 7-47 Electrolytic Capacitor
TKG-5 7-48 Electrolytic Capacitor
TKG-5 7-49 Electrolytic Capacitor
TKG-57-50 Electrolytic Capacitor
TKG-57-51 Electrolytic Capacitor
Q’ty Remarks
Lower Power Quadruple Operational
Amplifiers
Dual Timer
8-Bit Digital-to-Analog Converter
Hex Buffer/Converter (Inverting)
2SC1815
2SC1384-R
2SC828-P/Q
2SA564-P/Q/R
ISS53
IS953
W03B
B-8A
470juF 16V
220^F 25V
33/iF 16V
ImF 50V
4.7mF 25V
3.3/iF 50V
10/uF 16V
lOO/uF 16V
47a(F 25V
FOB Japan
per pc.
TKG -5 7-53
TKG-57-54
TKG-5 7-5 5
TKG -57-56
TKG -5 7-5 7
TKG-57-58
TKG -57-59
TKG-5 7-60
TKG -5 7-61
TKG -5 7-62
Ceramic Capacitor
Ceramic Capacitor
Ceramic Capacitor
Ceramic Capacitor
Ceramic Capacitor
Ceramic Capacitor
Polyester Film Capacitor
Polyester Film Capacitor
Tantalum Capacitor
Variable Resistor
TKG -57-63 Series Resistor Array
TKG-5 7-64 Parallel Resistor Array
TKG-57-65 Series Resistor Array
TKG-5 7-66 Resistor (Carbon)
TKG-5 7-67 Resistor (Carbon)
TKG-5 7-68 Resistor (Carbon)
0.068/nF 25V
O.Ol^F 50V
0.022mF 25V
22pF 50V
O.OOlpF 25V
O.l^F 50V
0.047/Li F50V
0.033mF 50V
lOpF 16V
lOkn 1/5W (RVA0911V-306-
7B103)
\kn PNSA-09P-102J
68^2 PNSB-08P-680J
A.lkQ. PNSB-09P-472J
47kS2 1/4W ±5%
5.1kn 1/4W ±5%
2kS2 1/4W ±5%

No.
TKG -57-69
TKG -57-70
TKG -57-71
TKG -57-72
TKG -57-73
TKG -57-74
TKG -57-75
TKG -57-76
TKG -57-77
TKG -57-78
TKG -57-79
TKG -57-80
TKG -57-81
TKG -57-82
TKG -57-83
TKG -57-84
TKG -57-85
TKG -57-86
TKG -57-87
TKG-5 7-88
TKG -5 7-89
TKG -57-90
TKG -57-91
TKG -57-92
Name of Parts
Resistor (Carbon)
Resistor (Carbon)
Resistor (Carbon)
Resistor (Carbon)
Resistor (Carbon)
Resistor (Carbon)
Resistor (Carbon)
Resistor (Carbon)
Resistor (Carbon)
Resistor (Carbon)
Resistor (Carbon)
Resistor (Carbon)
Resistor (Carbon)
Resistor (Carbon)
Resistor (Carbon)
Resistor (Carbon)
Resistor (Carbon)
Resistor (Carbon)
Resistor (Carbon)
Resistor (Carbon)
Resistor (Carbon)
Resistor (Carbon)
Resistor (Carbon)
Crystal Oscillator
Remarks
750fi 1/4W ±5%
4.7kf2 1/4W ±5%
lOkn 1/4W ±5%
oo 1/4W ±5%
43kn 1/4W ±5%
IkS^ 1/4W ±5%
5.6kn 1/4W ±5%
120n 1/4W ±5% •
150n lAW ±5%
18kf2 1/4W ±5%
3.3Mn 1/4W ±5%
27kJ2 1/4W ±5%
1.2kf2 1/4W ±5%
12kn 1/4W ±5%
4.3kf2 1/4W ±5%
68n 1/4W ±5%
330fi 1/4W ±5%
33kn 1/4W ±5%
220fi 1/4W ±5%
470n 1/4W ±5%
680n 1/4W ±5%
loon 1/4W ±5%
200n 1/4W ±5%
HC-18U-182 (6.000MHz)
FOB Japan
per pc.
