Miele DA5000D User manual

Operating and Installation
Instructions
Ventilation System
DA 5000 D
To prevent accidents
and machine damage,
read these instructions
before
installation or use. M.-Nr. 07 197 930
en - US, CA

2

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Functional description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Turning on the fan s...............................................11
Selecting the performance level ......................................11
Delayed shut down "5m15" .........................................12
Turning off the fan s...............................................12
Direct lighting n..................................................12
Indirect lighting ...................................................13
Safety cut-off .....................................................13
Grease filter timer l...............................................13
Sensor button tone.................................................14
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

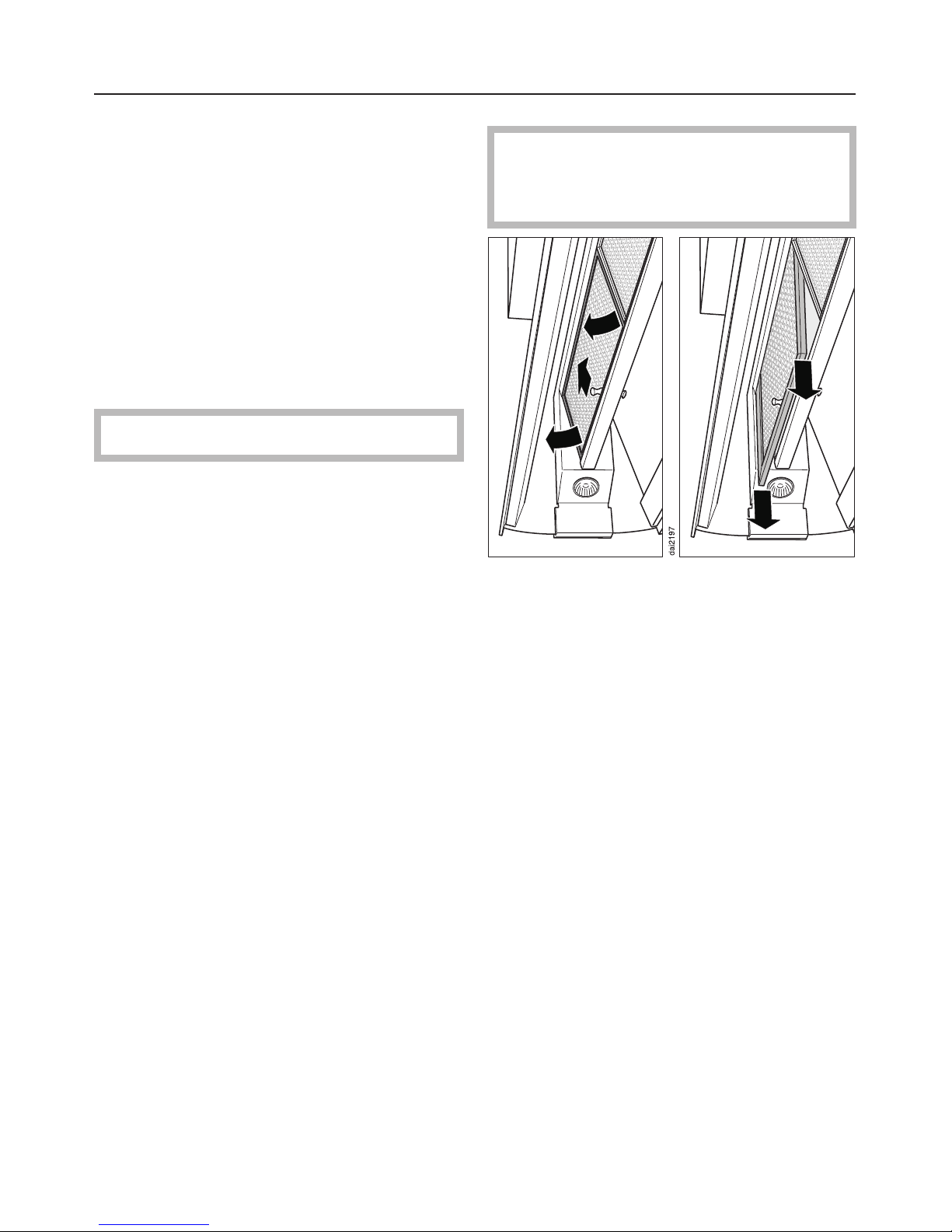

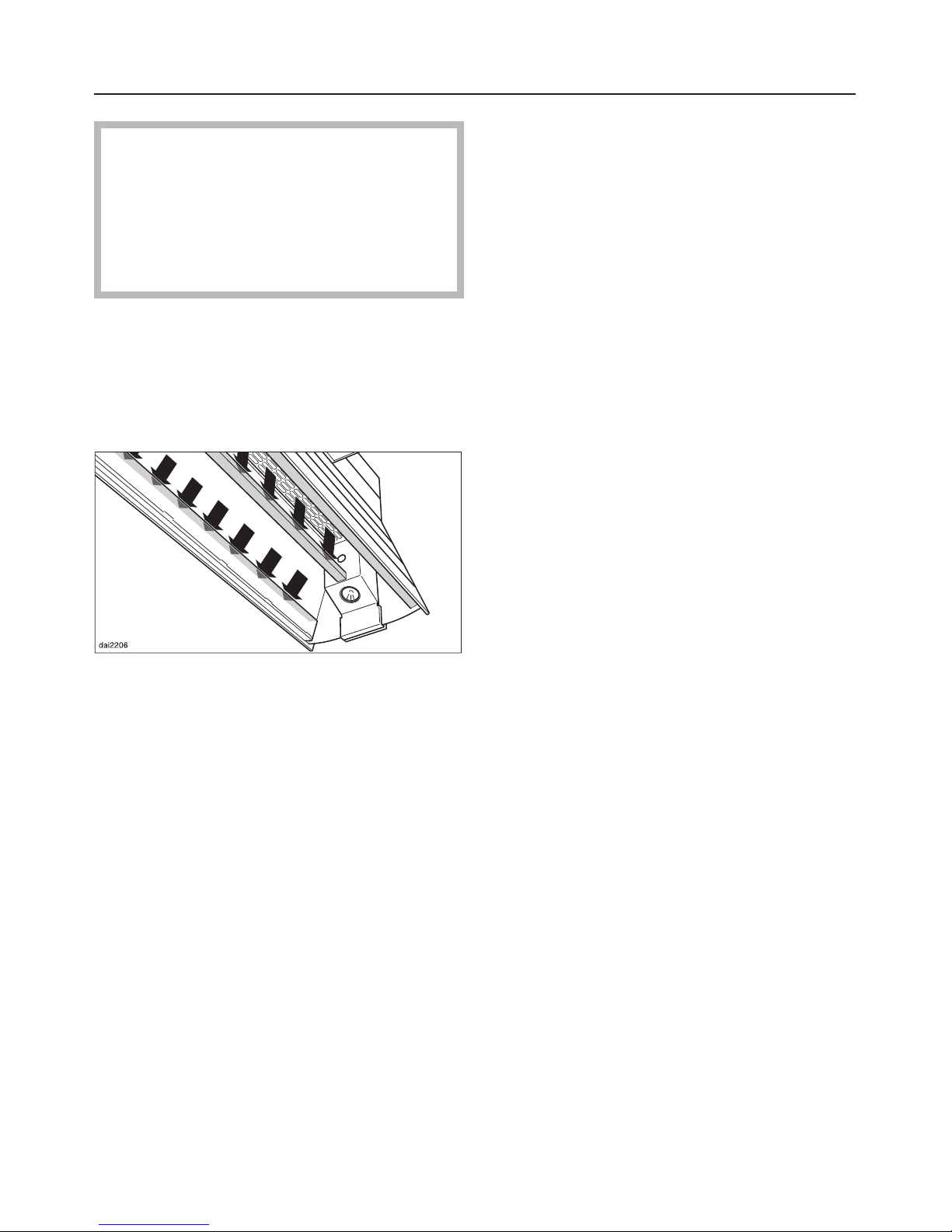

Grease filter ......................................................16
Re-setting the grease filter timer ......................................17

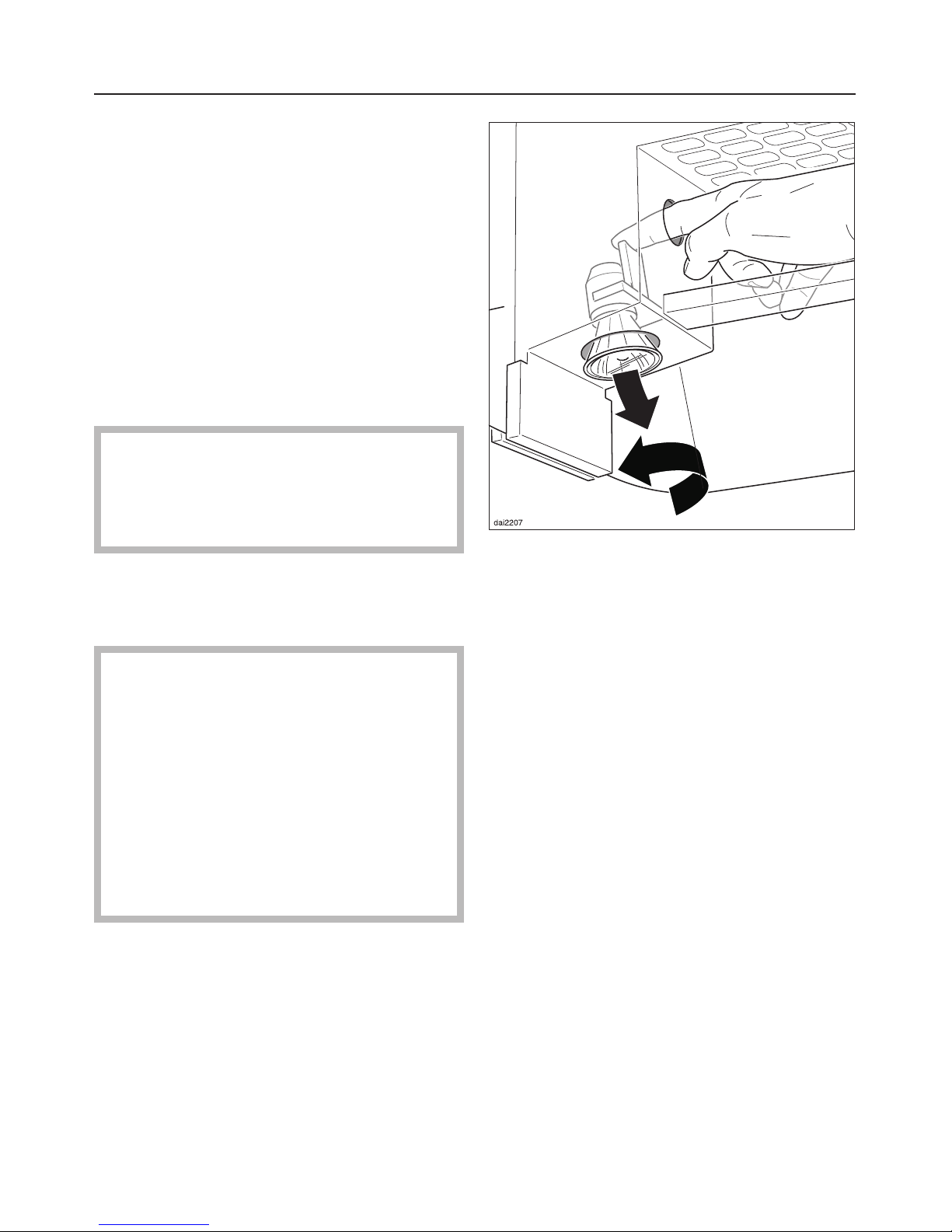

Changing the halogen light bulbs .....................................18
Changing the fluorescent light bulb ...................................19
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Installation instructions .............................................24
Installation accessories .............................................24
Structural support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Electrical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Appliance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Contents
3

Read these Operating Instructions carefully before installing or
using the Ventilation System.
This appliance is intended for
residential use only. Use the
appliance only for its intended
purpose. The manufacturer cannot
be held responsible for damages
caused by improper use of the
hood.
This appliance complies with current
safety requirements. Improper use
of the appliance can lead to
personal injury and material
damage.
READ AND SAVE THESE
INSTRUCTIONS
,CAUTION
Use only for general ventilation.
Do not use to exhaust hazardous or
explosive materials and vapors.
~This appliance is designed to vent
cooking smoke and odors only.
~Be certain your appliance is
properly installed and grounded by a
qualified technician.
To guarantee the electrical safety of this
appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician. The manufacturer
cannot be held responsible for
damages caused by the lack, or
inadequacy, of an effective grounding
system.
~Before connecting the appliance to
the power supply make sure that the
voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent machine
damage. If in doubt consult a qualified
electrician.
~Installation work and repairs should
only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and other work by unqualified
persons could be dangerous and the
manufacturer will not be held
responsible.
IMPORTANT SAFETY INSTRUCTIONS
4

~This equipment is not designed for
maritime use or for use in mobile
installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
an installation in these applications.
Please contact the nearest Miele dealer
or the Miele Technical Service
Department with specific requirements.
~Before servicing or cleaning the unit,
switch power off at the service panel
and lock the service disconnecting
means to prevent power from being
switched on accidentally. If the service
disconnecting means cannot be
locked, securely fasten a prominent
warning device, such as a tag, to the
service panel.
~Before discarding an old appliance,
disconnect it from the power supply
and remove the power cord to prevent
hazards.
Use
~Do not allow children to play with or
operate the appliance or its controls.
Supervise use by the elderly or infirm.
~Do not flambé or grill with an open
flame beneath the hood.
Flames could be drawn up into the
hood by the suction and the grease
filters may catch fire.
~Never operate gas burners without
cookware. Turn the burner off when not
in use. Adjust the burner so that the
flames do not extend beneath the
cookware. Do not overheat the
cookware, e.g. when using a wok. The
hood can be damaged due to
excessive heat from the burners and
the cookware.
~Do not use the hood without the
grease filter in place.
~Clean the grease filter regularly.
Dirty filters are a fire hazard.
~Do not use a steam cleaner to clean
the hood. Steam could penetrate
electrical components and cause a
short circuit.
~Always turn on the hood when using
the cooktop to prevent damage from
condensation.
IMPORTANT SAFETY INSTRUCTIONS
5

,WARNING - TO REDUCE
THE RISK OF A COOKTOP
GREASE FIRE:
~Never leave surface units
unattended at high settings. Boil-overs
cause smoking and greasy spillovers
may ignite. Heat oils slowly on low or
medium settings.
~Always turn the hood on when
cooking at high heat.
~Clean ventilating fans frequently.
Grease should not be allowed to
accumulate on fan or filter.
~Use proper pan size. Always use
cookware appropriate for the size of the
surface element.
,WARNING
TO REDUCE THE RISK OF INJURY
TO PERSONS, IN THE EVENT OF A
COOKTOP GREASE FIRE, OBSERVE
THE FOLLOWING:
~SMOTHER FLAMES with a close
fitting lid, cookie sheet, or metal tray
then turn off the burner.
BE CAREFUL TO PREVENT BURNS.
If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE
DEPARTMENT.
~NEVER PICK UP A FLAMING PAN
You may be burned.
~DO NOT USE WATER, including
wet dishcloths or towels - a violent
steam explosion will result.
~Use a fire extinguisher
ONLY if:
– You have a class ABC extinguisher,
and you know how to operate it.
– The fire is small and contained in the
area where it started.
–The fire department is being called.
–You can fight the fire with your back
to an exit.
IMPORTANT SAFETY INSTRUCTIONS
6

Installation
~,WARNING
To reduce the risk of fire only use
metal duct work.
~Any fittings, sealant, or materials
used to install the duct work must be
made of approved non-flammable
materials.
~Provided a larger distance is not
given by the manufacturer of the
cooktop, follow the minimum safety
distances between a cooktop and the
bottom of the hood:
– 22" (550 mm) above electric
cooktops,
– 30" (762 mm) above gas cooktops,
– 26" (650 mm) above an open electric
grill or an open electric boiler/fryer.
If local building codes require a greater
safety distance, follow their
requirement.
If there is more than one appliance
beneath the hood and they have
different minimum safety distances
always select the greater distance.
~Do not install this hood over
cooktops burning solid fuel.
~Be careful not to damage hidden
electrical wiring or plumbing when
cutting or drilling into the wall or ceiling.
~Do not use an extension cord to
connect the appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance,
(e.g. danger of overheating).
~Never connect an exhaust hood to
an active chimney, dryer vent, vent flue,
or room ventilating duct work. Seek
professional advice before connecting
an exhaust hood vent to an existing,
inactive chimney or vent flue.
~Ducted fans must always be vented
outdoors.
~Make sure that the airflow in the
room is sufficient for combustion and
exhausting of all non-electric heating
appliances (water heaters, gas
cooktops, gas ovens, etc.), otherwise
back drafts may occur. Follow the
heating manufacturer’s guidelines and
safety standards or those published by
the National Fire Protection Association
(NFPA) or the American Society for
Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE).
If in doubt, consult an experienced
professional.
IMPORTANT SAFETY INSTRUCTIONS
7

Guide to the appliance
8

aCovering frame
bChimney
cCanopy
The canopy opens as soon as the fan is
turned on.
dIndirect lighting
eControl panel
The symbols serve as sensor buttons.
To select a function, touch the sensor
button. A brief tone is heard as
confirmation.
fDirect lighting
gGrease filter
Sensor buttons
hIndirect lighting
iDirect lighting
Use this button to switch the direct
lighting On/Off, and to adjust the
brightness.
The lighting can be used independently
from the fan.
jFan On/Off
kFan power selection
lDelayed shut down
This button activates the Delayed Shut
Down feature. The fan can be set to
turn off automatically after 5 or 15
minutes.
mGrease filter
This sensor button will light up when the
grease filter needs to be changed.
This sensor button is also used:
–to reset the grease filter timer after
cleaning the grease filters (see
"Cleaning and care").
–to check how long the grease filters
have been in use (see Operation /
Grease filter timer").
–to change the number of hours
counted by the grease filter timer
(see Operation / Grease filter timer").
Guide to the appliance
9

The ventilation hood works by air
extraction. The air is drawn in and
cleaned by the grease filter and
directed outside.
The hood comes equipped with a
non-return flap. This flap automatically
closes when the hood is turned off so
that no exchange of outside air and
room air can occur. When the hood is
turned on, the air pressure of the
exhaust fan automatically opens the
flap blowing the inside air and cooking
odors outside.
Functional description
10

Turning on the fan s
^Touch the "s" sensor button.
The fan switches on to level "2".
The sensor buttons "s" and "2" light.
The canopy now opens.
Selecting the performance
level
Typically, levels "1" to "3" are sufficient
for regular cooking needs.
^Touch the sensor button "1", "2" or "3"
to select the desired power level.
Intensive setting
^To remove intensive vapors or odors,
for example when pan-frying, select
power level "4" temporarily.
Automatically switching back the
intensive setting
The intensive level "4" can be
programmed to automatically switch
back to level "3" after 10 minutes.
^Turn off the fan and lights.
^Press and hold the "5m15" sensor
button for approx. 10 seconds, until
the sensor button "1" lights up.
^Press the following buttons one after
another,
–the "n" sensor button,
– the "1" sensor button, and
– the "n" sensor button again.
If the function is not activated, the
sensor buttons "1" and "4" will flash.
^To activate the function, touch the "4"
sensor button.
The sensor buttons "1" and "4" will
light, without flashing.
To de-activate, touch sensor button
"1".
^Confirm the process by touching the
"5m15" sensor button.
If the procedure is not confirmed
within 4 minutes of programming,
the hood will automatically default to
the "old" data.
Operation
11

Delayed shut down "5m15"
If odors or smoke remain in the kitchen
after cooking has been completed, the
Delayed Shut Down feature can be
selected to allow the hood to continue
running for either 5 or 15 minutes.
^While the fan is still running, touch
the "5m15" sensor button:
Press once : the fan automatically
turns off after 5 minutes ("5" lights).
Press twice : the fan automatically
turns off after 15 minutes ("15" lights).
To de-activate the delay feature, touch
the button again. The fan will not
automatically switch off.
Turning off the fan s
^Touch the "s" sensor button to turn
off the fan.
The canopy now closes.
^If you would like the canopy to
remain open after the fan is shut off
(for example, for cleaning), press and
hold the active fan level for approx.
5 seconds while the fan is running,
until the fan shuts off. The canopy
remains open.
To turn it back on, select any fan
level.
Direct lighting n
The lighting can be used independently
from the fan.
Direct lighting on
^To turn on, briefly touch the "n"
sensor button.
The lighting comes on at maximum
brightness.
Dimming the lighting
The brightness of the lighting can be
adjusted.
^With the lighting on, press and hold
the "n" sensor button.
The lighting will dim until the button is
released.
^If the button is pressed again, the
lighting will brighten until the button is
released.
If the button is pressed continuously,
the light will cycle between bright and
dark.
Direct lighting off
^Briefly touch the "n" sensor button to
turn off the light.
Operation
12

Indirect lighting
Touch the " " sensor button to turn the
indirect lighting On/Off.
Safety cut-off
If the exhaust hood is left unattended
for more than 10 hours, the fan
automatically turns off. The lighting
remains on.
^Touch the "s" sensor button to turn
the fan back on again.
Grease filter timer l
The appliance records how many hours
the exhaust hood has been in
operation.
The grease filter timer will signal when
the grease filter needs to be cleaned.
After approx. 30 hours of operation, or
the pre-selected operating time, the
"l" sensor button will light. This means
it is time to clean the grease filter.
After cleaning, the timer will need to be
re-set (see "Cleaning and care").
Checking the grease filter timer
To check the percentage of time
already used:
^Touch the "s" sensor button to turn
on the fan.
^Hold down the "l" sensor button.
One or more of the sensor buttons
"1" to "4" will flash.
The number of flashing sensor buttons
indicates the percentage of operating
time already passed.
Sensor button "1" = 25 %
Sensor buttons "1" and "2" = 50 %
Sensor buttons "1" to "3" = 75 %
Sensor buttons "1" to "4" = 100 %
This information will remain stored in
memory in the event of a power failure.
Operation
13

Reprogramming the grease filter
timer
The grease filter timer is preset to 30
hours. This time can be lengthened or
shortened to 20, 30, 40, or 50 hours
depending on your cooking habits.
–A time of 20 hours should be
programmed in kitchens with
frequent pan or deep frying.
–A time of 20 hours should also be
programmed if the kitchen is only
used occasionally. This will help to
prevent grease which has
accumulated over a long period of
time from hardening on the filters
making cleaning more difficult.
– If you typically use very little fat for
cooking, an interval of 40 or 50 hours
can be selected.
To reprogram the timer:
^Touch the "s" sensor button to turn
off the fan.
^Touch the sensor buttons "5m15"
and "l" at the same time.
The sensor button "l" and one of the
sensor buttons "1" to "4" will flash.
The sensor buttons "1" to "4" show the
amount of time set:
Sensor button "1" = 20 hours
Sensor button "2" = 30 hours
Sensor button "3" = 40 hours
Sensor button "4" = 50 hours
^To select a shorter time, touch the
sensor button "1".
To select a longer time, touch the
sensor button "4".
Hold the sensor button until the
desired time is set.
^Confirm the process by touching the
"l" button.
All the lights go out.
If the procedure is not confirmed
within 4 minutes of programming,
the hood will automatically default to
the "old" data.
Sensor button tone
Whenever you select a feature with the
sensor buttons, a brief tone is heard.
You can de-activate this tone if desired.
^Touch the "s" sensor button to turn
off the fan.
^Simultaneously, press and hold the
sensor buttons "4" and "l" for
approx. 5 seconds, until a brief tone
is heard. The tone is now turned off
for all functions.
^To re-activate the tone, follow the
same steps.
If the exhaust hood is disconnected
from the power supply, or after a power
interruption, the tone is automatically
re-activated, regardless of the previous
settings.
Operation
14

Before cleaning or servicing the
hood, disconnect it from the power
supply by either removing the fuse,
unplugging it from the outlet, or
manually "tripping" the circuit
breaker.
Cleaning the casing
Warning: Never use abrasive
cleaners, scouring pads, steel wool
or caustic (oven) cleaners on the
hood. They will damage the surface.
Read the following instructions to
avoid damage.
^All external surfaces and controls
should be cleaned with warm water
and liquid dish soap applied with a
soft sponge.
^Wipe dry using a soft cloth.
Do not use too much water when
cleaning the controls. Water could
penetrate the electronics and cause
damage.
Avoid:
–cleaning agents containing soda,
acids or chlorides,
–abrasive cleaning agents,
e.g. powder or cream cleansers,
–abrasive sponges, i.e. pot scourers
or sponges which have been
previously used with abrasive
cleaning agents.
These will damage the surface.
Stainless steel
Stainless steel surfaces can be cleaned
using a non-abrasive stainless steel
cleaner.
To help prevent resoiling, a conditioner
for stainless steel can be applied.
Cleaners are available from Miele.
Glass surfaces
Glass surfaces can be cleaned using a
glass cleaner.
Cleaning and care
15

Grease filter
The reusable metal grease filters
remove solid particles from the vented
kitchen air (grease, dust, etc) and help
keep the exhaust hood clean.
At the latest, clean the grease filter
when the "l" sensor button lights up.
The grease filters should be cleaned
every3-4weeks or when the grease
filter indicator lights.
A dirty filter is a fire hazard.
To remove the grease filter, first open
the canopy.
^Touch the "s" sensor button to turn
on the fan.
The fan switches to level "2".
The canopy opens.
^Press and hold the "2" sensor button
for approx. 5 seconds, until the fan
turns off. The canopy remains open.

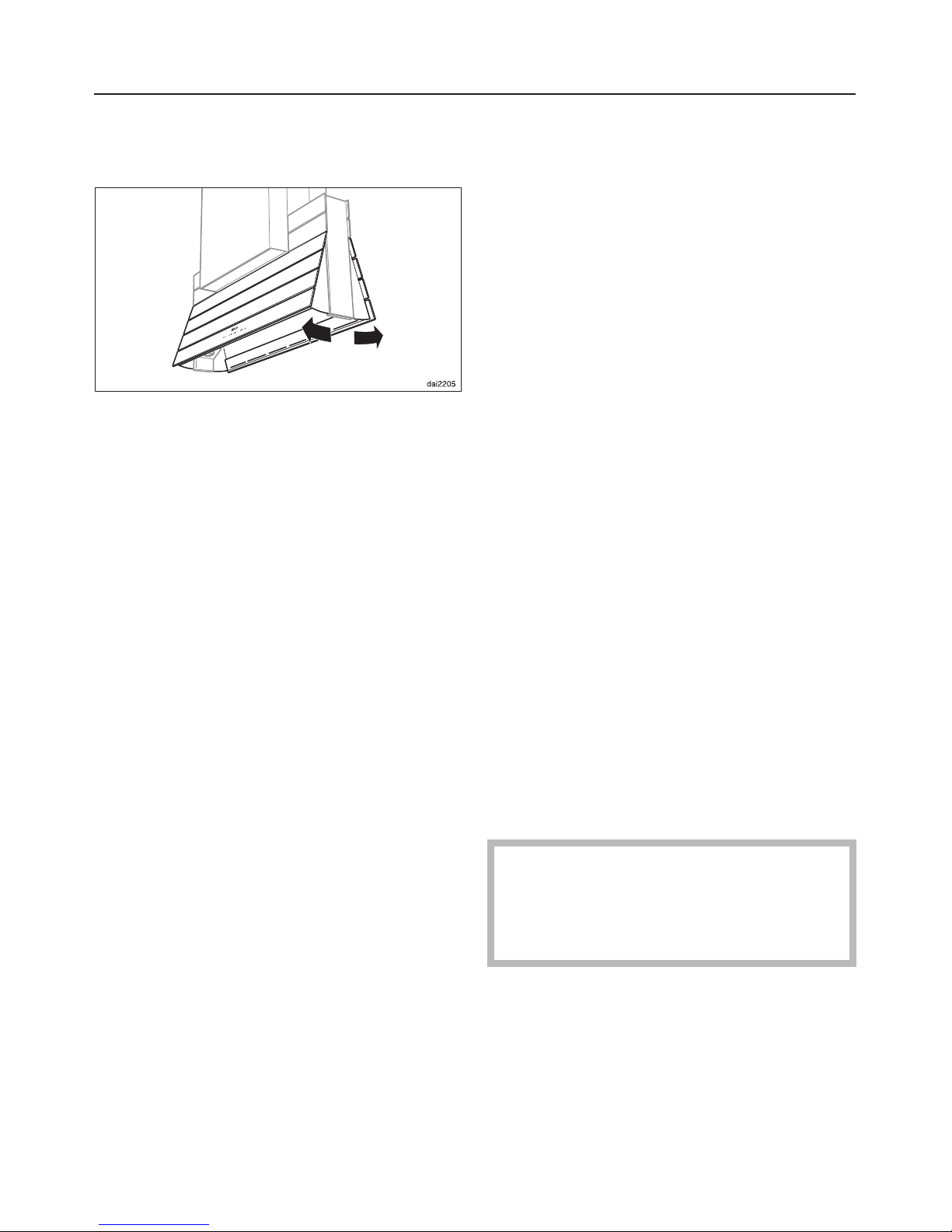

Be sure to support the grease filter
so that it does not fall onto the
cooktop.
^Press slightly upward on the grease
filter handle to release it from the
lower rail, pivot forward and lower it
downward.
Cleaning the grease filter
–By hand: use a scrub brush with a
solution of warm water and mild dish
soap.
Do not use the pure detergent,
aggressive all purpose cleaners,
oven sprays, abrasive cleaning
agents or limescale removers. They
could damage the filter.
–In a dishwasher: place the filter
vertically in the lower basket, making
sure that the spray arm is not
blocked.
Use a hot temperature program,
e.g. "Heavy Soil" or "Pots and pans".
Use the recommended amount of
dishwasher detergent. Overuse
could damage the filter.
Cleaning and care
16

Depending on the detergent,
cleaning the grease filters in a
dishwasher may cause permanent
discoloration of the filter surface.
Performance of the filter is not
affected by this discoloration.
^After cleaning, the filters can be
placed on a towel to air dry.
^While the filters are removed, clean
any dirt or grease from the filter
casing.
^There is a groove on both sides of
the canopy, to collect grease. These
grooves and the retainers for the
grease filter should be cleaned every
time the filter itself is cleaned.
^Put the grease filter back in place.
^Touch any sensor button from "1" to
"4". The fan turns back on.
Re-setting the grease filter
timer
Each time you clean the grease filter
re-set the counter.
^Touch the "s" sensor button to turn
on the fan.
^Press and hold the "l" sensor button
for approx. 3 seconds, until only the
sensor button "1" is flashing.
The light for sensor button "l" will go
out.
If you clean the grease filter before the
counter reaches the maximum number
of hours:
^Press and hold the "l" sensor button
for approx. 6 seconds, until only
sensor button "1" is flashing.
Cleaning and care
17

Changing the halogen light
bulbs
To change the halogen bulbs, first open
the canopy.
^Touch the "s" sensor button.
The fan turns on to level "2".
The canopy opens.
^Press and hold the "2" sensor button
for approx. 5 seconds, until the fan
turns off. The canopy remains open.
Disconnect the exhaust hood from
the power supply by either removing
the fuse, unplugging it, or manually
"tripping" the circuit breaker.
^Remove the grease filter from the
appliance, see "Cleaning and care /
Grease filter".
When in use halogen bulbs become
extremely hot, use caution. Do not
attempt to change the bulbs until
they have had sufficient time to cool.
Do not touch the bulb surface.
Fingerprints or body oils deposited
on the bulb will decrease its life.
Follow the bulb manufacturer’s
instructions.
^Through the opening above the light,
press the lighting unit slightly
downward.
^Then turn the halogen light to the left
to remove it from the fixture.
Use the same bulb type as a
replacement.
^Screw the new halogen bulb into the
fixture and press it upward.
^Put the grease filter back in place.
^Re-connect the exhaust hood to the
power supply.
The canopy will now close.
Cleaning and care
18

Changing the fluorescent light
bulb
Disconnect the exhaust hood from
the power supply by either removing
the fuse, unplugging it, or manually
"tripping" the circuit breaker.
To prevent damage to the glass
cover and the cooking surface, be
sure to securely handle the glass
cover.
^Shift the glass cover toward the back
slightly, then tilt the front down and
remove. If needed, use a tool to tilt
the glass cover downward.
^Rotate the fluorescent tube
approx. 180° and downward to
remove.
Use the same type of tube as a
replacement.
^Replace the lighting in the reverse
order.
Cleaning and care
19

Repairs
In the event of a fault which you cannot
easily fix yourself, please contact the
Miele Technical Service Department.
^When contacting Technical Service,
please quote the model and serial
number of your appliance.
These are shown on the data plate
which is visible on top of the canopy.
MieleCare
(USA only)
MieleCare, our Extended Service
Contract program, gives you the
assurance of knowing that your
appliance investment is covered by
5 years of worry free ownership.
MieleCare is the only Extended Service
Contract in the industry that guarantees
repairs by a Miele Authorized Service
Provider using genuine Miele parts.
Only genuine Miele parts installed by
factory trained professionals can
guarantee the safety, reliability, and
longevity of your Miele appliance.
Please note that unless expressly
approved in writing by Miele’s Service
department, Extended Service
Contracts offered by other providers for
Miele products will not be recognized
by Miele. Our goal is to prevent
unauthorized (and untrained) service
personnel from working on your Miele
products, possibly doing further
damage to them, you and/or your
home.
To learn more about MieleCare
Extended Service Contracts, please
contact your appliance dealer or visit
us online at:
http://store.miele.com
After Sales Service
20
