Miele Imperial DA 846-1 Specification sheet

Operating and Installation Instructions
..............................................................................................................................
Cooker Hood
DA 846-1 (Vented)
Q

Contents
Inhalt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Description of the functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operation
Switching on. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

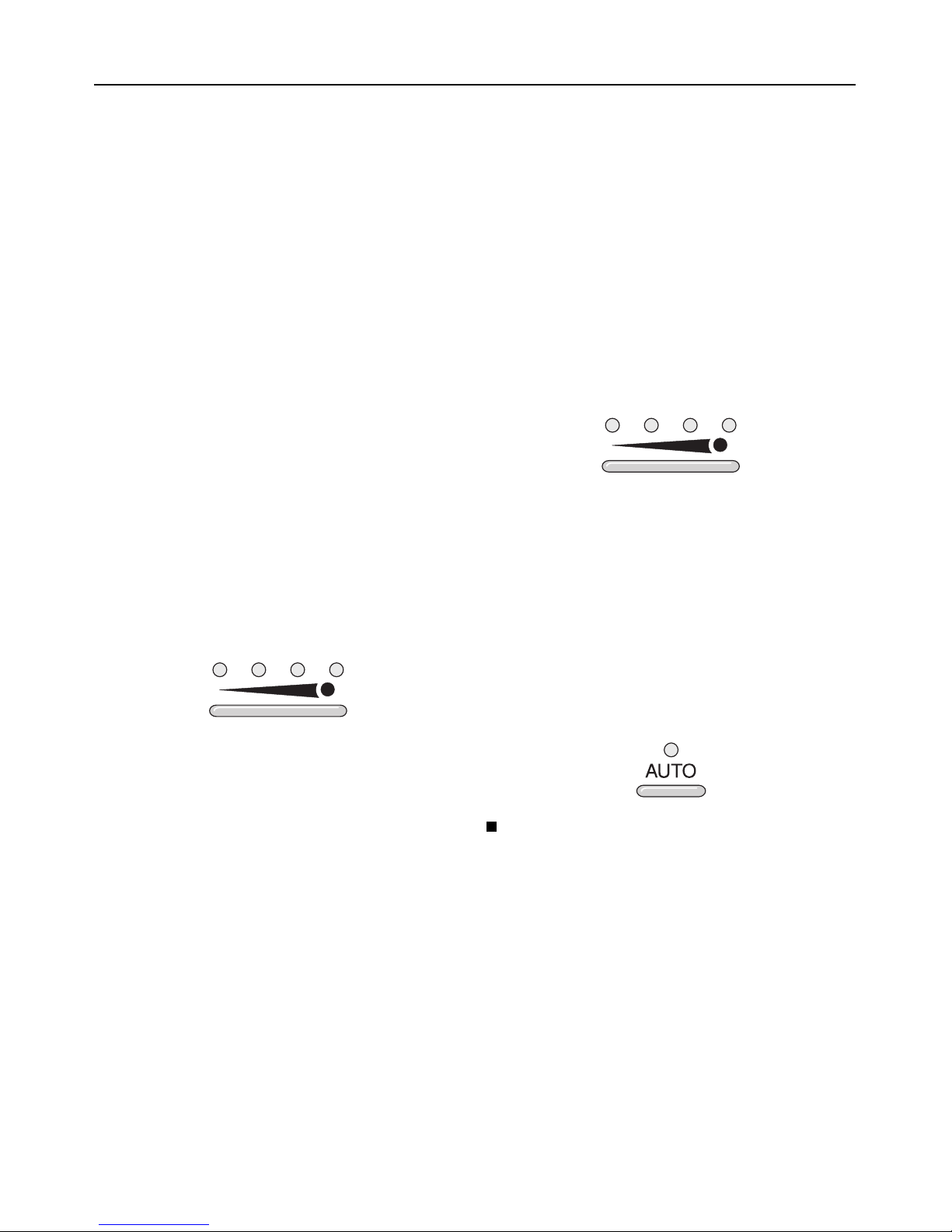

Selecting the power level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setting the power level manually: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setting the power level automatically: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Run-on option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Switching off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Switching the lighting on or off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Filter operating hours counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Power cut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning and care
Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

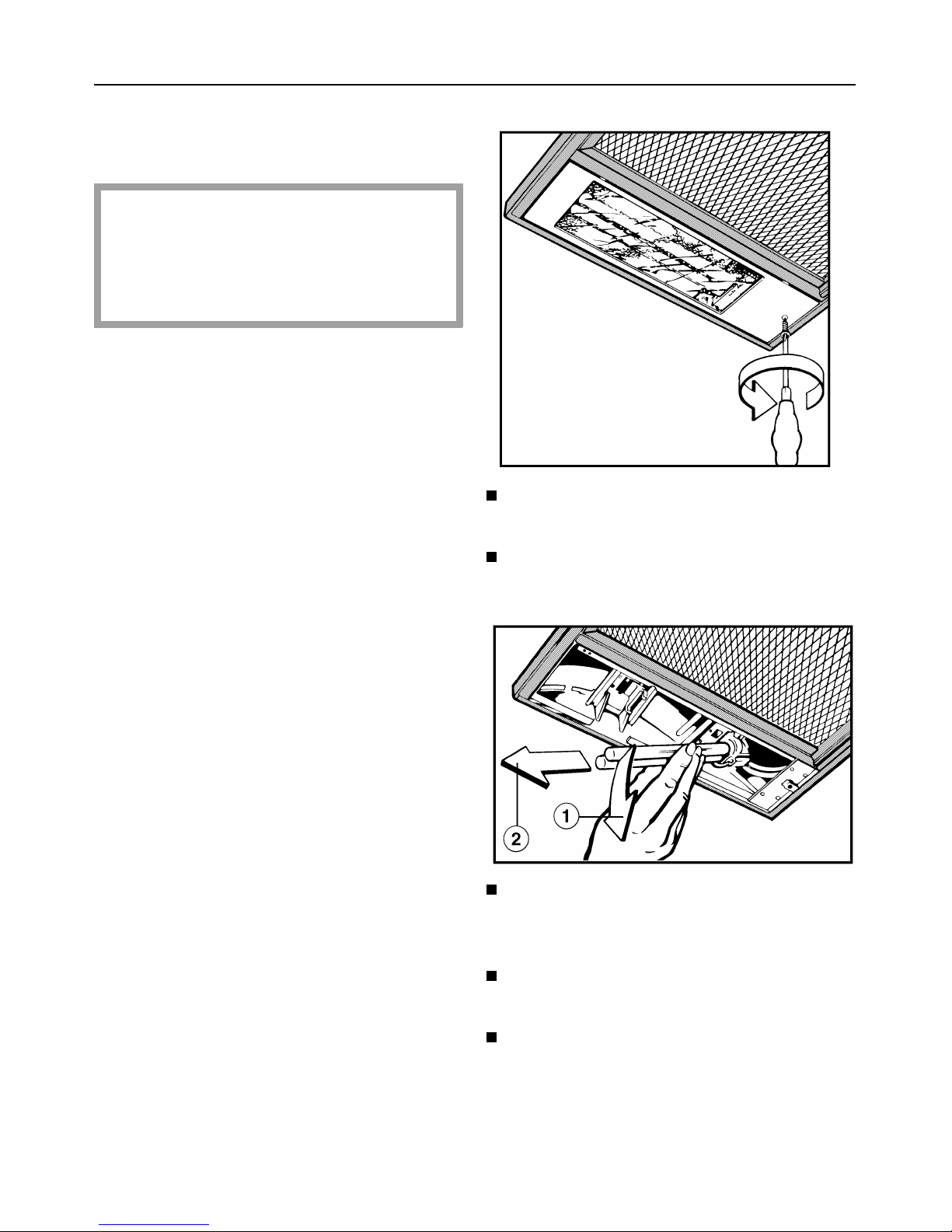

Changing the compact light unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Installation
Dimensions for building-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Building-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Depth alignment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Fitting the shelf. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Preparation for extraction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Installation - extraction
Connection for extraction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Condensate trap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
echnical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Contents
2

Caring for the environment
Disposal of packing material
The transport and protective packa-
ging has been selected from materials
which are environmentally friendly for
disposal and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these ma-
terials away, please ensure they are of-
fered for recycling.
Disposal of your old appliance
Old appliances contain materials which
can be reclaimed or recycled. Please
contact your dealer, your waste collec-
tion centre or scrap merchant about
potential recycling schemes.
Ensure that the appliance presents no
danger to children while being stored
for disposal.
See the appropriate section in the
Warning and Safety instructions.
Caring for the environment
3

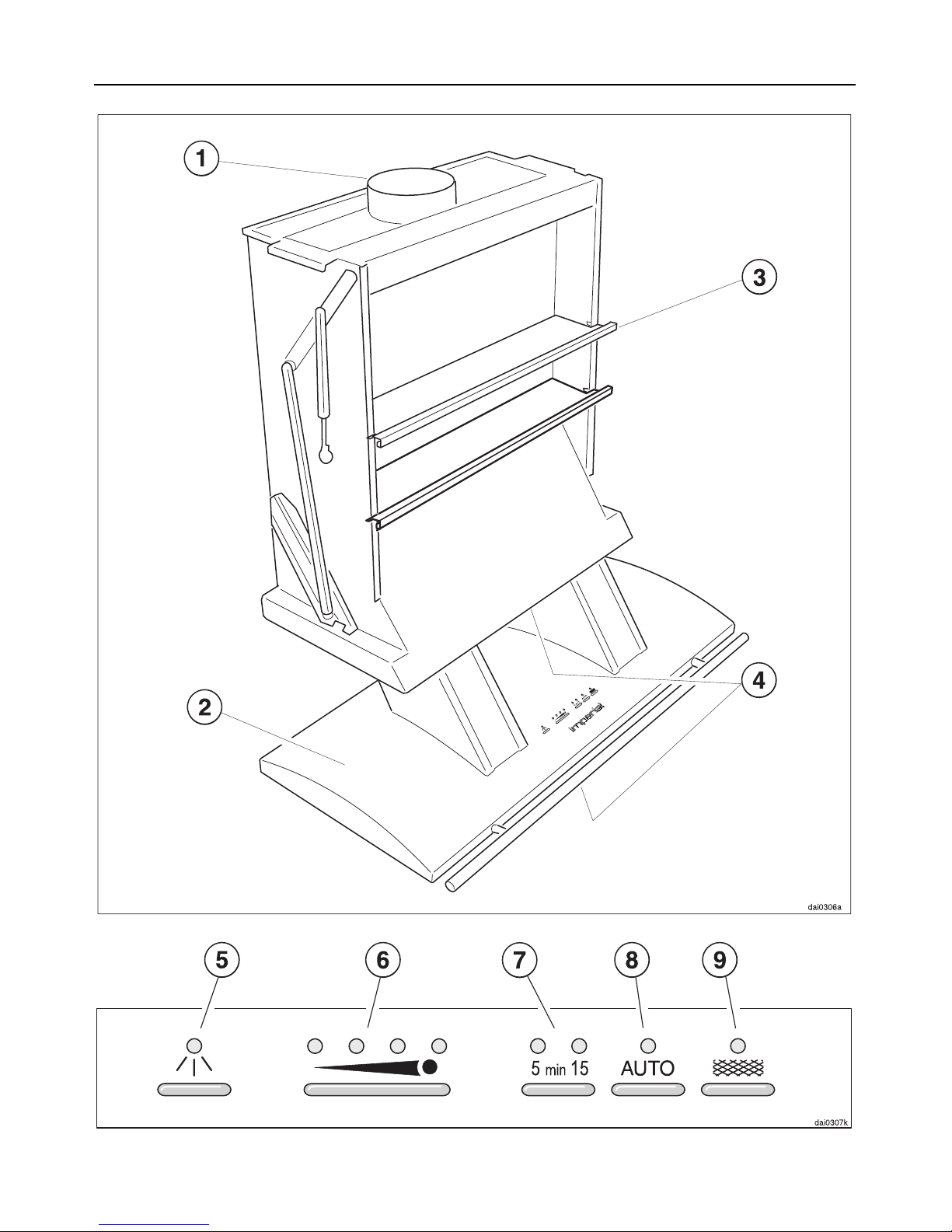

Guide to the appliance
Guide to the appliance
4

bVent socket
cVapour guide (canopy)
dShelf

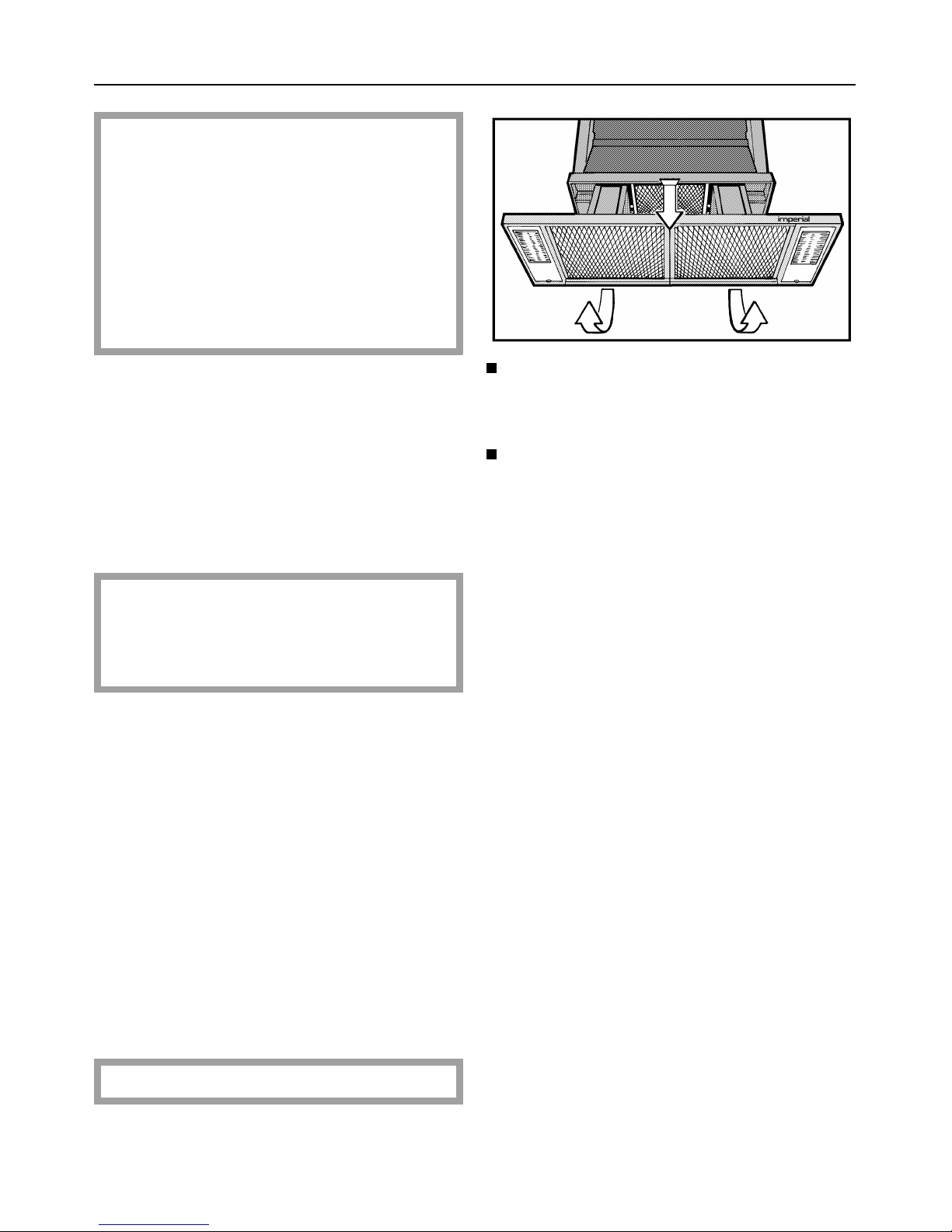

eGrease filters
fLighting touch
control
This is used to switch the lighting in the
hood for illuminating the hob on and
off, regardless of whether the cooker
hood is in operation or not.

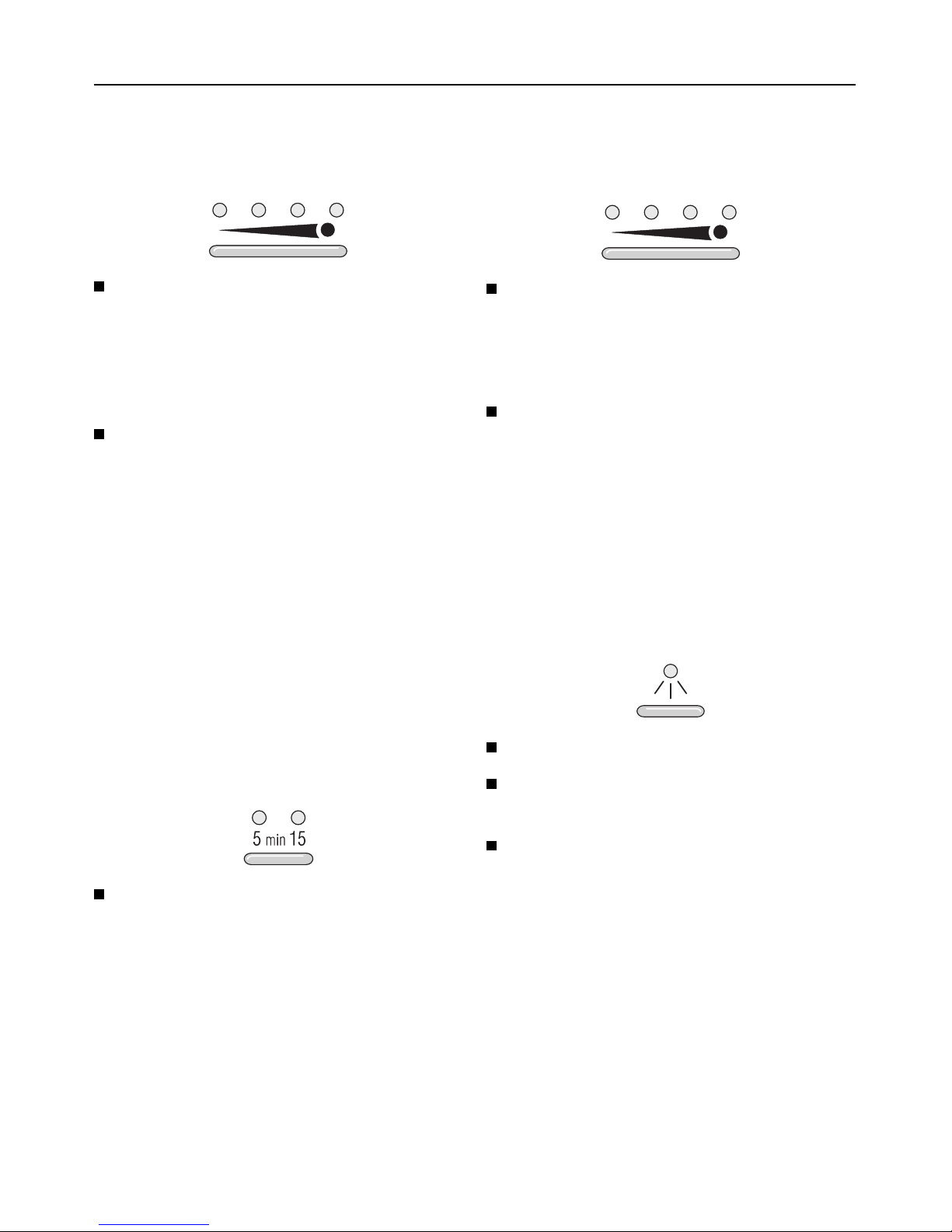

gPower setting touch control
There is a choice of three power levels
plus an intensive setting, to clean the
air in the kitchen.
In addition this control switches the fan
on and off
h Run-on option touch control
The fan can be set to continue running
for 5 to 15 minutes, after which the
cooker hood will switch off automati-
cally.
iAutomatic touch control
This control selects and de-selects
"Automatic" operation in which drawing
the vapour guide down or pushing it
back up alters the fan power level.

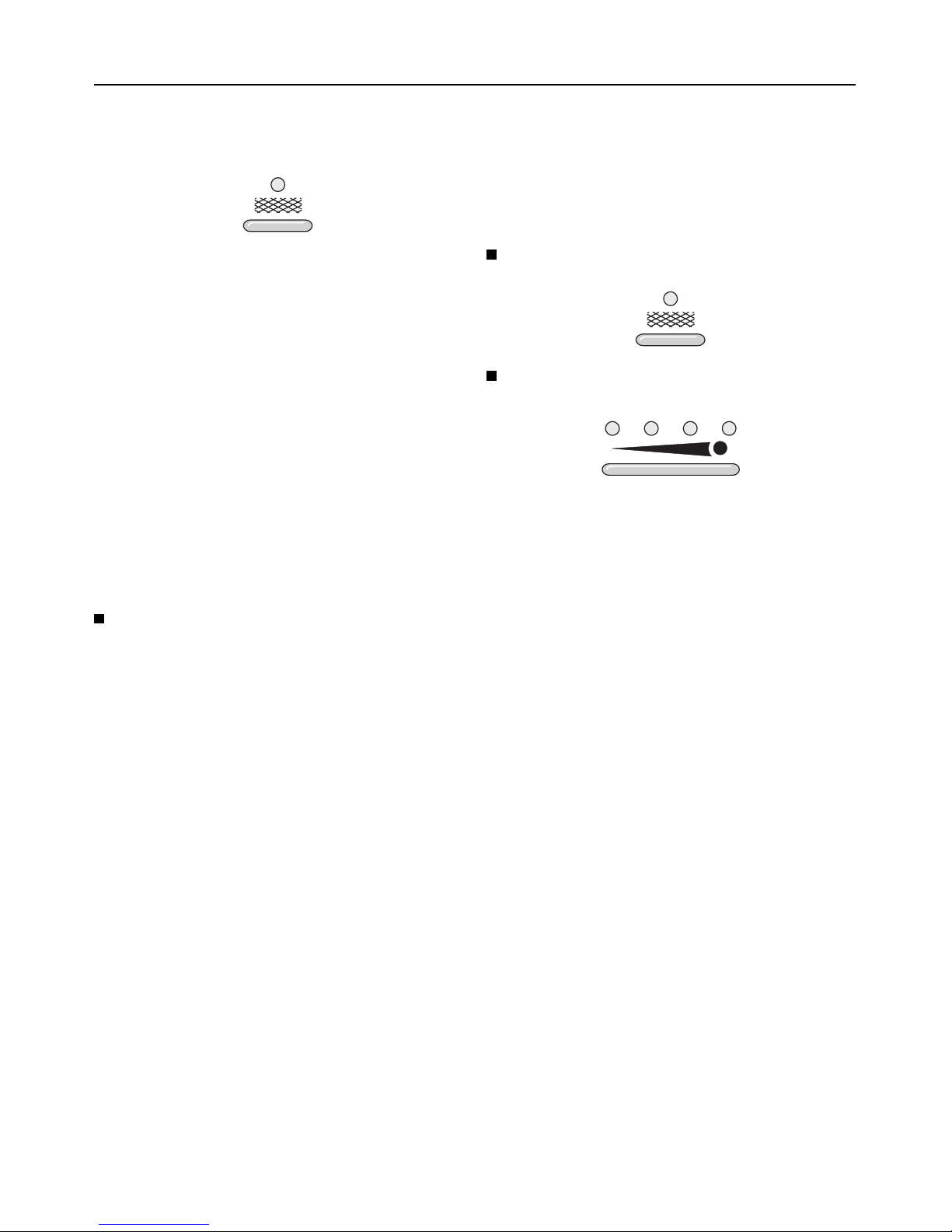

j Grease filter touch control
This indicator lamp for the grease filter
touch control lights up when the grease
filter needs to be cleaned.
The touch control is used
– to count down the time which is
shown on the filter operating time
counter as the fan is used (see sec-
tion on Operation/Filter operating
hours counter).

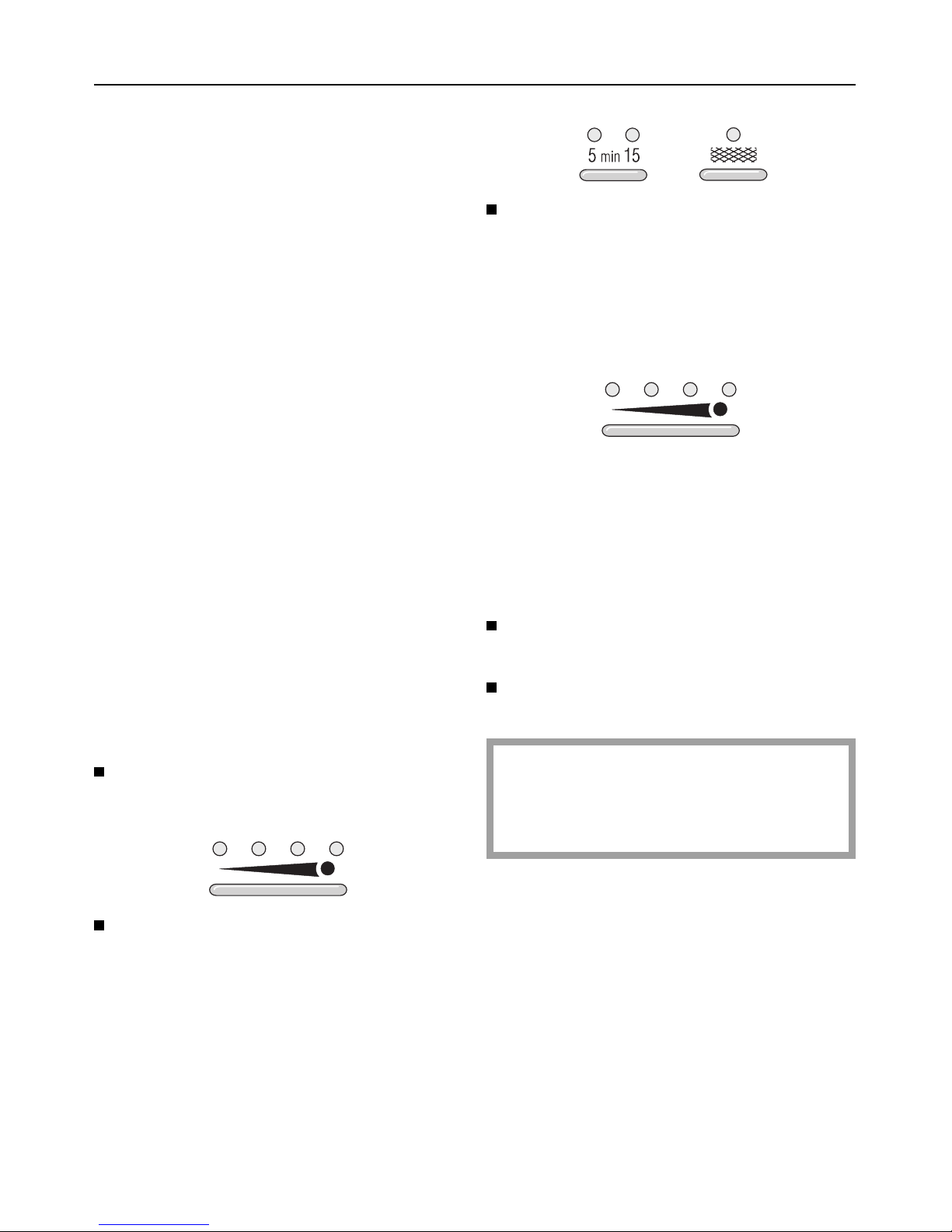

– together with the run-on option touch
control to alter the number of hours
to be counted by the filter operating
time counter (see section Operation /
Altering the filter operating hours
counter).
Guide to the appliance
5

Description of the functions
The cooker hood works with
. . . Air Extraction:
The air is drawn in and cleaned by the
grease filter and directed outside.
The cooker hood is fitted with a
non-return flap.
This flap is closed when the cooker
hood is switched off. No exchange of
room air and outside air can take
place. When the cooker hood is
switched on the non-return flap opens
for the cooking smells to be blown di-
rectly outside.
Description of the functions
6

Warning and Safety instructions
This appliance meets statutory
safety requirements. Inappropriate
use could however lead to risk of ac-
cidents to the user and damage to
the appliance.
Read the operating instructions be-
fore using this appliance for the first
time. They contain important infor-
mation about the safety, use and
maintenance of the appliance. This
will avoid the risk of accidents and
damage to the appliance.
Keep these operating instructions in
a safe place and ensure that new
users are familiar with the content.
Pass them on to any future owner of
the appliance.
Appropriate use of the cooker
hood
The appliance is intended for do-
mestic use only.
The manufacturer cannot be held re-
sponsible for any damage caused by
improper use or by non-observance of
these instructions.
echnical safety
Before connecting the appliance to
the mains supply make sure that
the voltage and frequency correspond
to the rating on the data plate, other-
wise the appliance could be damaged.
Consult a competent person if in doubt.
The electrical safety of this ap-
pliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with local and
national regulations. It is most import-
ant that this basic safety requirement is
tested by a qualified electrician.
The manufacturer cannot be held re-
sponsible for the consequences of an
inadequate earthing system (e.g. elec-
tric shock).
Installation work and repairs may
only be carried out by suitably
qualified and competent persons to en-
sure safety.
Repairs and other work by unqualified
persons could be dangerous.
The appliance is only completely iso-
lated from the electricity supply when:
–it is switched off at the fused unit or
the fuse is withdrawn, or
–it is switched off at the wall socket
and the plug removed (do not pull
on the cable, only on the plug), or
–the mains fuse is withdrawn; or
–the screw-out fuse is removed, (in
countries where this is applicable).
Ensure current is not restored to the ap-
pliance while maintenance or repair
work is being carried out.
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
Warning and Safety instructions
7

Use of the appliance
Never use an open flame beneath
the cooker hood. To avoid the
danger of fire do not flambéor grill
dishes. When switched on the cooker
hood could draw flames into the filters.
Fat particles drawn into the cooker
hood present a fire hazard.
Always switch the cooker hood on
when a cooking zone is in use,
otherwise condensation may collect in
the hood, which could cause corrosion.
When cooking with oil or fat, chip
pans and deep fat fryers etc, do
not leave the pans unattended.
Overheated oil and fat can ignite and
could set the cooker hood on fire.
Do not use the cooker hood with-
out the grease filters in place.
This way you will avoid the risk of
grease and dirt getting into the ap-
pliance and hindering its smooth oper-
ation.
Clean or change the filters regu-
larly.
An over-greasy filter is a fire hazard.
Under no circumstances use a
steam cleaner to clean this ap-
pliance.
Pressurised steam could reach the
electrical components and cause a
short circuit.
Installation
The cooker hood can only be in-
stalled above an electric hob.
Safety regulations prohibit the fitting of
this cooker hood over a gas hob, a
solid fuel stove or an open grill (elec-
tric).
The distance between the top of
the hob and the bottom of the
cooker hood (when the vapour guide is
completely retracted) must measure at
least 50 cm.
All ducting, pipework and fittings
must be of non-flammable ma-
terial. These can be obtained from the
Miele Spare Parts department or from
builders’merchants.
The appliance must not be con-
nected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
If exhaust air is to be extracted into
a chimney or ventilation duct no
longer used for other purposes, take
professional advice.
Warning and Safety instructions
8

When using the cooker hood at the
same time as another heating ap-
pliance which depends on the air in the
room, (e.g. gas, oil or coal fired
heaters, continuous flow or other water
heaters, gas cooker, gas hob or gas
oven) special care must be taken, as
the action of the cooker hood extracts
air from the room, which these types of
heater need for combustion.
In order to ensure safe operation, and
to prevent the gases given off by the
heating appliances from being drawn
back into the room when the extractor
and the heater are in operation simulta-
neously, an underpressure in the room
of 0.04 mbar (4 pa) is the maximum
permissible.
Ventilation can be maintained by air in-
lets which cannot be blocked, in win-
dows, doors and outside wall vents, or
by other technical measures, such as
ensuring that the extractor can only be
switched on when the heating ap-
pliance is switched off or vice-versa.
N.B.: The overall ventilation condition of
the dwelling must be taken into ac-
count.
If in any doubt, the advice of a compe-
tent builder or, for gas, a “Corgi”instal-
ler must be sought.
In countries which may be subject
to infestation by cockroaches or
other vermin, pay particular attention to
keeping the appliance and its surround-
ings in a clean condition at all times.
Any damage which might be caused
by cockroaches or other vermin will not
be covered by the appliance guaran-
tee.
Disposal of your old appliance
Before discarding an old ap-
pliance switch off and disconnect
from the power supply. Cut off and ren-
der any plug useless. Cut off the cable
directly behind the appliance to pre-
vent misuse. This should be done by a
competent person.
The manufacturer cannot be held re-
sponsible for any damage caused
by non-observance of these instruc-
tions.
Warning and Safety instructions
9

Operation
Switching on
When the vapour guide is completely
retracted, the electrical connection is
switched off. In this position the cooker
hood cannot be operated.
To be switched on the vapour guide
must be drawn down slightly.
When the vapour guide is drawn down
a few centimetres to the "light position"
the hob illumniation can be switched on
or off. When the vapour guide is pulled
down further (“fan position”) all the
other functions can be activated.
The first time the cooker hood is
switched on and drawn down it will run
as follows (factory setting):
–Light on.
–Power level II.
The fan motor can be switched off by
pressing the left hand side of the power
level touch control. To switch on again,
press the right hand side of the control.
Selecting the power level
Depending on how much the air needs
to be filtered, there are four power le-
vels available. For normal cooking a
low to medium level is usually suffi-
cient. For frying or cooking food with a
strong aroma the fourth level (intensive
setting) is recommended.
Setting the power level manually:
low setting intensive setting
Select the power level required by
pressing on the left hand or right hand
side of the touch control.
The indicator lamps show which power
level has been chosen.
Setting the power level automatically:
Press the "AUTO" touch control.
The indicator lamp comes on. The
power setting can now be regulated by
drawing down the vapour guide or re-
tracting it.
drawn down
= low power (level II)
retracted
= high power (intensive)
Operation
10

With automatic operation the power set-
ting can also be altered manually.
Use the power level control to select
the setting required.
Whatever the position of the vapour
guide the fan will switch to the power
setting required.
If you bring the vapour guide to the
position which corresponds to the
manually selected setting, the ap-
pliance will revert to "AUTO" oper-
ation.
Run-on option
If the air still needs to be cleared after
cooking, the cooker hood can be set to
continue running.
The fan motor will then be switched off
automatically after a further 5 or 15
minutes.
Press the run-on option touch control.
Press once = 5 minutes run-on time
Press twice = 15 minutes run-on time
Press 3 times = switch off
The relevant indicator lamp glows to
confirm the time selected.
To deactivate the run-on option time,
press the run-on option touch control
until both the control lamps go out.
Switching off
You can switch the fan off by either
repeatedly pressing the left hand
side of the power control until all the
indicator lamps go out,
or
retracting the vapour guide.
The next time the vapour guide is
drawn down, the fan will run at
power level II.
Switching the lighting on or off
The lighting in the cooker hood for il-
luminating the hob can be switched on
or off independently of the fan.
Draw the vapour guide down slightly.
Press the touch control for the light-
ing.
To switch the lighting off either press
the lighting touch control again, or re-
tract the vapour guide.
Operation
11

Filter operating hours counter
The operating hours counter for the
grease filter is set at the factory for 30
hours. (This can be changed if re-
quired. See “Altering the grease filter
operating hours”).
After this set time has elapsed the indi-
cator lamp for the grease filter touch
control glows. The grease filters must
then be cleaned.
After the grease filters have been
cleaned and put back in place, the fil-
ter operating hours counter must be re-
set.
To do this, press the grease filter
touch control and hold for about 4
seconds.
The indicator lamp will go out.
Reading the filter operating
hours counter
To check the percentage of time set al-
ready used:
Switch the fan on.
Press the grease filter touch control.
One or several of the power level touch
controls will flash.
The number of flashing lamps shows
the percentage of the operating time
which has already been used up.
1 lamp = 25%
2 lamps = 50%
3 lamps = 75%
4 lamps = 100%
The number of operating hours used re-
mains in the memory, even when the
appliance is switched off or there is a
power cut.
Operation
12

Altering the filter operating
hours counter
You can set the operating hours
counter to suit the type of cooking you
do.
–Select a short time if you roast or fry
a lot.
–If you use very little fat for cooking,
select a longer time.
–If you only cook occassionally, we
still recommend that you select a
short time because grease which
has built up gradually over a long
period of time will harden on the
grease filters and make cleaning
more difficult.
Altering the grease filter
operating hours
The operating hours counter for the
grease filter is set at 30 hours. This can
be lengthened or shortened. You can
choose from 20, 30, 40 or 50 hours.
Pull down the vapour guide into the
“fan position”.
Switch off the fan by pressing the left
hand side of the power level touch
control.
Press the run-on and grease filter
touch controls at the same time.
The indicator lamp for the grease filter
touch control and one of the control
lamps for the power level touch control
will flash.
The power level touch control lamps
show the time which has been set:
1st lamp from left = 20 hours
2nd lamp from left = 30 hours
3rd lamp from left = 40 hours
4th lamp from left = 50 hours
Use the power level touch control to
select the desired time.
Confirm the procedure by pressing
the grease filter touch control.
If the procedure is not confirmed
within 4 minutes of programming
the steps, the cooker hood will auto-
matically revert to the "old" data.
Operation
13

Power cut
If there is a power cut while the vapour
guide is pulled down, the Automatic
function is cancelled.
Restore as follows:
Push the vapour guide right back in
(until a resistance is felt).
Draw the vapour guide back down
again until the desired power level
position is reached.
Operation
14

Cleaning and care
Before any cleaning or maintenance
work the cooker hood must be iso-
lated from the power supply at the
mains fuse box or the wall connec-
tion unit (as appropiate). See "Warn-
ing and Safety" instructions.
Ensure current is not supplied to the
appliance while maintenance or re-
pair work is being carried out.
Housing
For stainless steel surfaces a mild non-
abrasive proprietary stainless steel
cleaner is suitable. Use a mild solution
of washing up liquid and warm water to
clean any painted surfaces.
Rub dry with a soft cloth.
Never use a cleaner which scours
or contains chlorine, acids or soda.
These would damage the surface of
the cooker hood.
Grease filters
Re-usable metal grease filters are fitted
which remove solid particles (oil, dust,
etc.) from the kitchen vapours, prevent-
ing soiling of the cooker hood.
The grease filters should be cleaned
regularly to avoid a build-up of fat, (ap-
prox. 3-4 weeks on average, but
sooner if necessary). Always clean the
filters immediately when the lamp for
the grease filter touch control comes on.
An over-greasy filter is a fire hazard.
To remove the upper grease filter
push the filter hand hold to the back,
and remove downwards.
To remove the lower grease filters
take hold of each one by the filter
hand hold and remove downwards.
Cleaning and care
15

Clean the filters
–by hand: with a scrubbing brush in
a mild solution of warm water and
washing up liquid.
–in a dishwasher: place the filter
with the short side upright in the
lower basket, ensuring the spray
arm is not obstructed.
Depending on the cleaning agent
used, cleaning the grease filters in
a dishwasher can cause permanent
discolouration of the surface of the
filters. However, this will not affect
the functioning of the grease filters
in any way.
After cleaning, leave the filters to dry
for a while on an absorbent surface
before putting it back in place.
When removing the filters for clean-
ing also clean off any residues of oil
or fat from the now accessible hous-
ing to prevent the risk of these catch-
ing fire.
After putting the grease filters back
in place, press the grease filter touch
control for approx. 4 seconds to re-
set the operating time counter.
Cleaning and care
16

Changing the compact light
unit
Isolate the cooker hood from the
power supply at the mains fuse box
or the wall connection unit (as ap-
propriate). See "Warning and
Safety" instructions.
Unscrew and remove the securing
screw on the lamp cover.
Take the lamp cover off downwards
at an angle.
Carefully guide the compact light
downards band pull out towards
the front c.
Change the lamp (11W) and fit the
new one.
Screw the lamp cover back in place.
Cleaning and care
17

After sales service
In the event of any faults which you can-
not remedy yourself, please contact:
–Your dealer
or
–The Miele Service Dept., (see ad-
dress on back page).
When contacting the Service Depart-
ment, please quote the Model and Ser-
ial number of your appliance, both of
which are given on the data plate
which is located on the front of the
housing.
Please note that telephone calls
may be monitored and recorded to
improve our service.
After sales service
18

Electrical connection
Electrical connection
All electrical work should only be car-
ried out by a suitably qualified and com-
petent person in accordance with na-
tional and local safety regulations.
The cooker hood is supplied for con-
nection to a 220-230 V single phase
50 Hz supply.
The data plate gives the necessary
data for connection. The data plate is
located on the front side of the housing.
Connection should be made either by a
double pole fused spur connection
unit, or a fused plug and a suitable
switched socket. The On-Off switch
should be easily accessible after the
appliance has been built in.
When switched off there must be an all-
pole contact gap of 3 mm in the switch
(including switch, fuses and relays ac-
cording to EN 60 335).
If the socket is not accessible after in-
stallation (depending on country) an ad-
ditional means of disconnection must
be provided for all poles.
For extra safety it is advisable to install
a residual current device (RCD) with a
trip current of 30 mA (in accordance
with DIN VDE 0664).
Important
The wires in the mains lead are col-
oured in accordance with the following
code:
Green/yellow = earth
Blue = neutral
Brown = live.
If the appliance is to be connected via
a plug and socket, please note the fol-
lowing:
As the colours of the wires in the mains
lead of this appliance may not corre-
spond with the coloured markings ident-
ifying the terminals in your plug, pro-
ceed as follows:
The wire which is coloured green and
yellow must be connected to the termi-
nal in the plug which is marked with the
letter E or by the earth symbol zor
coloured green or green and yellow.
The wire which is coloured blue must
be connected to the terminal which is
marked with the letter N or coloured
black.
The wire which is coloured brown must
be connected to the terminal which is
marked with the letter L or coloured red.
WARNING:
HIS APPLIANCE MUS BE
EAR HED
Electrical connection
19

Non-rewireable plugs BS 1363 (UK)
If this machine or appliance is fitted
with a non-rewireable plug, the follow-
ing information applies:
If the socket outlets are not suitable for
the plug supplied with this product, it
must be cut off and an appropriate
plug fitted. The fuse carrier and the
fuse should be removed from the old
plug and disposed of. The plug cut
from the flexible cord should then be
disposed of, and on no account be in-
serted into any socket elsewhere in the
house (electric shock hazard).
The fuse cover must be re-fitted when
changing the fuse and if the fuse cover
is lost the plug must not be used until a
suitable replacement is obtained.
The colour of the correct replacement
cover is that of the coloured insert in
the base of the plug (as applicable to
the design of plug fitted).
The correct fuse rating of the replace-
ment fuses that are ASTA approved to
BS 1362 should be fitted. Replacement
fuse covers may be purchased from
your local electrical suppliers or Ser-
vice agent.
Electrical connection
20
Table of contents
Other Miele Ventilation Hood manuals

Miele
Miele DA 2668 User manual

Miele
Miele DA 6066 W User manual

Miele
Miele DA 251 Parts list manual

Miele
Miele DA 362-75 User manual

Miele
Miele DA279-4 User manual

Miele
Miele DA 3590 EXT User manual

Miele
Miele DA 326-1 i User manual

Miele
Miele DA 2360 User manual

Miele
Miele TX3587 User manual

Miele
Miele DA 5966 W User manual

Miele
Miele DA 390-6 User manual

Miele
Miele DA 424 V EXT User manual

Miele
Miele DA 211 User instructions

Miele
Miele PUR 98 D User manual

Miele
Miele DA 399-5 EXT User manual

Miele
Miele DA 6698 W User manual

Miele
Miele DA 289-3 User manual

Miele
Miele DA 220-4 User manual

Miele
Miele DA2280 Assembly instructions

Miele
Miele DA 4288 W User manual
