Miele WT 2780 WPM User manual

Operating instructions
Washer-dryer
WT 2780 WPM
To avoid the risk of accidents
or damage to the machine,
it is essential to read
these instructions before it is
installed and used for the first time. M.-Nr. 09 441 860
en - AU, NZ

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Therefore,
please do not dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person.
The plug must be rendered useless
and the cable cut off directly behind the
appliance or the machine to prevent
misuse.
Caring for the environment
2

Caring for the environment..........................................2
Warning and safety instructions .....................................6
Guide to the machine .............................................14
Control panel .....................................................14
Display ..........................................................15
Use.............................................................15
Before using for the first time.......................................16
Calibrating the load size sensor to zero ..............................17
Washing and drying environmentally and economically.................18
WASHING .......................................................19
Short instructions ..................................................19
Separate washing .................................................19
Extra options .....................................................24
Short .........................................................24
Water plus.....................................................24
Stains ........................................................24
Further extras.....................................................24
Extra quiet.....................................................24
Extra rinse .....................................................25
Pre-wash ......................................................25
Soak .........................................................25
Rinse hold .....................................................25
Adding or removing laundry after a programme has started ................25
Final spin speed ..................................................26
Rinse and interim spin ...........................................26
To omit the final spin (Rinse hold) ..................................26
To omit the spin between rinses and the final spin .....................26
Programme chart ..................................................27
Programme sequence ..............................................31
Detergent ........................................................33
Water softeners.................................................34
Washing with several components ..................................34
Fabric conditioner and liquid starch.................................35
Colour run and dye removers/dyes .................................35
DRYING .........................................................36
Separate drying ...................................................36
Contents
3

Extras ...........................................................39
Low temperature................................................39
Thermospin ....................................................39
Extra quiet.....................................................39
Adding or removing laundry after a programme has started ................40
Programme chart ..................................................41
WASHING AND DRYING ...........................................47
Washing and drying in a continuous sequence ..........................47
After each washing or drying programme...............................48
Rinse out fluff programme .........................................49
Changing the programme sequence .................................50
To cancel a programme ..........................................50
Interrupting a programme.........................................50
Changing a programme ..........................................50
Safety lock ....................................................51
Delay start.......................................................52
Cleaning and care ................................................53
Cleaning the machine ..............................................53
Cleaning the filter in the water inlet ....................................55
Problem solving guide ............................................56
The programme does not start. .......................................56
A fault message appears in the display ................................57
Problems with the load size indicator ..................................58
General problems .................................................59
An unsatisfactory wash result ........................................60
An unsatisfactory drying result .......................................61
The drum door cannot be opened by pressing the Door button..............62
After sales service ................................................65
Future updates (PC) .............................................65
Appliance warranty..............................................65
Optional accessories ............................................65
Installation and connection ........................................66
Front view........................................................66
Rear view ........................................................67
Installation surface.................................................68
Contents
4

Installing the washer-dryer ..........................................68
Removing the transit fittings .........................................68
Levelling the machine ..............................................70
Screwing out and adjusting the feet .................................71
Building under a continous worktop / in a kitchen run ...................71
The Miele water protection system ....................................72
Connection to the water supply .......................................73
Connection to the drainage system....................................74
Electrical connection ...............................................75
Consumption data ................................................76
Consumption data for the nominated energy labelling programme according to
AS/NZS 2040.1 & AS/NZS 2040.2 Standard .............................76
Notes for test institutes: ..........................................76
Notes for test institutes: ..........................................77
Technical data ...................................................78
Settings menu ...................................................79
Language J......................................................79
Buzzer ..........................................................79
Time of day ......................................................80
Temperature unit ..................................................80
Brightness / Contrast ...............................................80
Standby display ...................................................80
Keypad tone .....................................................80
Lock code .......................................................81
Memory .........................................................81
Longer pre-wash Cottons ...........................................82
Gentle action .....................................................82
Suds cooling .....................................................82
Distribution controller...............................................82
Drying levels .....................................................83
Extended cool down ...............................................83
Anti-crease.......................................................83
Optional accessories..............................................84
CareCollection ....................................................84
Contents
5

~It is essential to read these instructions.
This washer-dryer conforms to current safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the washer-dryer,
please read these instructions carefully before using it for the first
time. They contain important information on its installation, safety,
use and maintenance.
Keep these instructions in a safe place and ensure that new users
are familiar with the content. Pass them on to any future owner.
Correct application
~This appliance is designed for domestic use and for use in similar
environments by guests in hotel or motel rooms, bed & breakfasts
and other typical living quarters. This does not include
common/shared facilities or commercial facilities within hotels,
motels or bed & breakfasts. It must only be used to:
–wash garments which have been declared suitable for washing by
the manufacturer indicated on the care label.
–dry garments which have been washed in water previously and
have been declared suitable for drying by the garment
manufacturer indicated on the care label.
Any other applications may be dangerous. Miele cannot be held
liable for damage resulting from incorrect or improper use or
operation.
Warning and safety instructions
6

~This washer-dryer is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning its use by a person
responsible for their safety.
Safety with children
~Keep children away from the washer dryer at all times. It is not a
toy! To avoid the risk of injury, do not allow children to play on or
near it or to play with its controls. Supervise children whilst you are
using it.
~Older children may only use the washer-dryer if its operation has
been clearly explained to them and they are able to use it safely,
recognising the dangers of misuse.
Warning and safety instructions
7

Technical safety
~Before setting up the washer-dryer, check it for any externally
visible damage.
Do not install or use a damaged machine.
~Before connecting the washer-dryer, ensure that the connection
data on the data plate (voltage and rated load) match the mains
electricity supply. If in any doubt, consult a qualified electrician.
~The electrical safety of this washer-dryer can only be guaranteed
when continuity is complete between it and an effective earthing
system which complies with current local and national safety
regulations. It is most important that this basic safety requirement is
present and regularly tested, and where there is any doubt, the
household wiring system should be inspected by a qualified
electrician. The manufacturer cannot be held liable for the
consequences of an inadequate earthing system (e.g. electric
shock).
~Do not connect the machine to the mains electricity supply by an
extension lead. Extension leads do not guarantee the required
safety of the washer-dryer (e.g. danger of overheating).
~Unauthorised repairs could result in unforeseen dangers for the
user, for which Miele cannot accept liability. Repairs should only be
undertaken by a Miele approved service technician. Ensure current
is not supplied to the machine until after maintenance or repair work
has been carried out.
Warning and safety instructions
8

~In the event of a fault or for cleaning purposes, the washer-dryer
is only completely isolated from the electricity supply when:
–it is switched off at the wall socket and the plug is withdrawn, or
–it is switched off at the mains, or
–the mains fuse is disconnected, or the screw-out fuse is removed
(in countries where this is applicable).
~The Miele “Water protection system” protects from water damage
provided the following conditions have been met:
–the machine is correctly plumbed in and connected to the
electricity supply.
– if a fault has been identified, the machine must be examined by a
competent person before further use, and repaired if necessary.
~Faulty components must only be replaced by genuine Miele
original spare parts. Only when these parts are fitted can the safety
standards of the machine be guaranteed.
~If the connection cable is faulty, it must only be replaced by a
Miele approved service technician to protect the user from danger.
~This washer-dryer must not be installed and operated in mobile
installations (e.g. on a ship).
~In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the machine and its
surroundings in a clean condition at all times. Any damage which
may be caused by cockroaches or other vermin will not be covered
by the warranty.
~Do not make any alterations to the washer-dryer unless
authorised to do so by Miele.
Warning and safety instructions
9

Correct use
,Caution! Risk of fire.
To avoid the possible danger of fire, please read
these warnings carefully.
~The washer-dryer is not suitable for outdoor use.
~Do not install your washer-dryer in rooms where temperatures
below freezing may occur. Frozen hoses may burst or split. The
reliability of the electronic control unit may be impaired at
temperatures below freezing point.
~Before using the washer-dryer for the first time, check that the
transit bars at the rear of the machine have been removed (see
section on "Installation"). During spinning, a transit fitting which is still
in place may result in damage to both the machine and adjacent
furniture or appliances.
~Turn off the tap if the machine is to be left for any length of time
(e.g. holiday), especially if there is no floor drain (gully) in the imme-
diate vicinity.
~Flooding danger. If hooking the drain hose into a wash basin,
check that the water can drain off quickly enough to prevent the sink
from overflowing. Make sure the drain hose is secure, so that the
force of the water flowing out of the hose does not dislodge it.
~Take care to ensure that foreign objects (e.g. nails, pins, coins,
paper clips) do not find their way into the machine with the laundry.
These may damage components of the machine (e.g. suds
container, drum), which in turn can result in damage to the laundry.
~If the correct amount of detergent is dispensed, the machine
should not need to be descaled. If, however, you do wish to descale
the machine, only use proprietary non-corrosive descaling agents
and strictly observe the instructions on the packaging. A Miele
descaling agent is available to order (see "Cleaning and care").
Warning and safety instructions
10

~To prevent the risk of fire, the following must not be dried in this
washer-dryer:
–items which have not been washed.
–items, such as workwear, which have not been thoroughly
cleaned and which are still soiled with grease, oil or other
deposits (such as cosmetics, lotions etc).
If items have not been thoroughly cleaned, there is a danger that
these might ignite when heated, even after they have been
removed from the washer-dryer at the end of the programme.
–items which have been treated with inflammable cleaning agents
or which contain residues of acetone, alcohol, benzine, petrol,
stain remover, turpentine, wax and wax remover or other
chemicals (e.g. mops and floor cloths).
– items which have been splashed with hair lacquer, hair spray, nail
varnish remover or similar substances.
When washing such heavily soiled items, ensure that you use
sufficient detergent and select a high temperature. If in doubt,
wash the items several times.
~To prevent the risk of fire, the following must not be dried in this
washer-dryer:
–items which have been cleaned using chemicals (e.g.
professional dry-cleaning agents).
–fabrics which contain a large proportion of rubber, foam rubber or
rubber-like materials. For example, products made from latex
foam rubber, shower caps, waterproof textiles, rubberised articles
and items of clothing and pillows with foam rubber filling.
–damaged items which contain padding or fillings (e.g. pillows,
jackets). When damaged, the filling can get out with the risk of
igniting in the washer-dryer.
Warning and safety instructions
11

~In many programmes, the heating phase is followed by a cooling
down phase to ensure that the items are not too hot to handle when
you remove them (this also avoids the danger of the laundry
self-igniting). The programme is not finished until the cooling down
phase has been completed.
Ensure that you always wait until the end of the programme before
removing the laundry.
~Warning: Do not switch the washer-dryer off before the end of a
drying programme. If this is done and the laundry is then removed
immediately, it could give off a great amount of heat.
~Fabric conditioner and similar products must be used according
to the instructions on the manufacturer's packaging.
~Oil-affected items can ignite spontaneaously, especially when
exposed to heat sources such as in a tumble dryer.
The items become warm, causing an oxidation reaction in the oil.
Oxidation creates heat.
If the heat cannot escape, the items can become hot enough to
catch fire. Piling, stacking or storing oil-affected items can prevent
heat from escaping and so create a fire hazard.
~If it is unavoidable that fabrics contaminated with vegetable or
cooking oil, or hair care products, be placed in a tumble dryer, they
should first be washed in hot water with extra detergent - this will
reduce, but not eliminate, the hazard.
~Only use dyes specified by the manufacturer as being suitable for
use in a domestic washing machine. Always observe the
manufacturer's instructions carefully.
Warning and safety instructions
12

~Colour run and dye removers contain sulphur compounds which
can cause damage such as corrosion. Do not use these products in
this machine.
~Make sure that any dispensing balls etc. are removed from the
laundry before the drying programme. These dispensers can melt
during the drying programme and cause damage to the machine
and the laundry. Do not use liquid dispenser balls or similar if you
are planning to wash and then dry in one continuous sequence.
~Textiles which have been pre-treated in solvent-based cleaning
agents must be thoroughly rinsed in clean water before being
washed in the washer-dryer.
~Never use solvent-based cleaning agents, e.g. those containing
benzene, in this machine, as this may result in damage to
component parts and create toxic fumes. Such agents also pose a
fire and explosion hazard.
~Take care, the metal cap is hot after drying.
Open the door wide after the drying cycle. Do not touch the metal
cap located on the inside of the door glass. It will still be hot and
could cause a burn.
Accessories
~Accessory parts may only be fitted when expressly approved by
Miele. If other parts are used, warranty, performance and product
liability claims will be invalidated.
Miele cannot be held liable for damage caused by
non-compliance with these Warning and Safety instructions.
Warning and safety instructions
13

Control panel
aStart/Stop button
For starting the programme selected
and cancelling a programme once it
has started.
bDisplay with X,OK and Ybuttons
See the following page for more
information.
c+button
For selecting delay start.
dPC / Optical interface
This is used by Miele service
technicians during servicing work for
testing purposes.
eLoad % / Detergent % button
For displaying the load size or the
recommended amount of detergent,
and for calibrating the load size
sensor to zero.
fExtra option buttons
gProgramme selector
For selecting washing and drying
programmes.
hWashing/Drying button
for selecting:
– Washing
– Drying
– Washing and Drying.
iKbutton
For switching the washer-dryer on
and off.
To save energy, the machine will
switch itself off automatically 15
minutes after the end of the
programme/anti-crease phase or
after being switched on if no other
selection is made.
jDoor button
Opens the machine door.
Guide to the machine
14

Display
The display is operated using the X,
OK and Ybuttons. The value or option
currently selected will appear
highlighted.
Press button X
to decrease a value in the display or to
scroll down to the next option.
Press button Y
to increase a value in the display or to
scroll up to the next option.
Press the OK button
to confirm the value or option
highlighted in the display.
With the programme selector at the
Further programmes / Settings position,
you can change display settings (see
"Settings menu") and select the
additional programmes (see
"Programme chart").
The display is also used for selecting
the wash temperature, spin speed,
soak duration, delay start, safety lock
and to cancel a programme.
Use
This washer-dryer can be used:
–to wash separately
Maximum load (depending on
programme) 5.5 kg;
–to dry separately
Maximum load (depending on
programme) 2.5 kg;
or
–to wash and dry in a continuous
sequence
Maximum load (depending on
programme) 2.5 kg;
Guide to the machine
15

Before using the machine for the first
time, ensure that it is correctly
installed and connected. Also check
that the drain filter is securely
tightened to prevent the risk of water
leakage during use. See "Installation
and connection".
This washer-dryer has undergone a
complete functional test at the factory
and there will be some residual water
in the drum from this process.
The washer-dryer has a sensor which
measures the amount of laundry in the
drum. This determines the amount of
detergent required. To allow the load
size indicator to function correctly, you
must first run a wash programme
without any laundry and without
detergent.
^Turn on the tap.
^Press the Kbutton.
If the machine is being switched on for
the first time, the Miele Willkommen
welcome screen will appear.
The welcome screen will not appear
again once a programme lasting
longer than 1 hour has been
completed.
After a few seconds, the display will
change to show the screen for
selecting your language.
Setting the language
Language
deutsch ;
english ,
^Use the Xand Ybuttons to select
the language you want and confirm
your selection by pressing the OK
button.
Setting the time of day
The display for setting the time will then
appear.
Time
12:00
^Set the hour with the Xand Ybuttons
and confirm your setting by pressing
the OK button. Then do the same to
set the minutes.
After you have confirmed the minute
setting, the display will change to show
the reminder to remove the transport
bars.
Reminder to remove transport bars
,To avoid the risk of damage, the
transport bars must be removed
before the washer-dryer is used for
the first time. See "Installation and
connection" for instructions on how
to do this.
^After removing the transport bars (if
this has not already been done by
your fitter) press the OK button.
Before using for the first time
16

Running your first programme
Your washer-dryer is now ready for the
first programme to be run.
^Turn the programme selector to
Cottons.
^Press the Start/Stop button.
^At the end of the programme switch
the machine off.
After running the first programme, the
load sensor has to be calibrated to
zero (as you would with bathroom
scales).
Calibrating the load size sensor to
zero
^Switch the machine on.
^Open the drum door.
^Turn the programme selector to
Cottons.
^Press and hold the Load % /
Detergent % button in until the
following message appears in the
display:
Zero setting OK
^Switch the machine off.
The machine is now ready for use.
Before using for the first time
17

Energy and water consumption
–Water consumption and energy
usage are determined by the size of
the load.
To make the most out of your
machine, load the maximum amount
for the programme you are using.
–Use the Automatic plus and Express
20 programmes for small loads.
–When smaller amounts of laundry are
washed using the Cottons
programmes, the automatic load
recognition system will reduce the
amount of water, time and energy
used. This may mean that the time
left shown in the display is adjusted
during the course of the wash
programme.
– Using the Cottons 60°C programme
instead of the Cottons 95°C
programme will result in energy
savings of between 35% and 45%.
This is sufficient for most levels of
soiling. For stubborn or old soiling,
use the Soak Extra option.
–Using the Cottons 40°C programme
is recommended for a normally
soiled load and is the programme
used in energy/water consumption
tests to AS/NZS 2040 (Refer to
consumption data).
Detergent
–Do not exceed the amounts of
detergent recommended by the
manufacturer on the packaging.
–Reduce the amount of detergent for
smaller loads. Use the Load % /
Detergent % button.
Choosing the correct Extra option
(Pre-wash, Soak, Short)
Select:
–A wash programme together with the
Short Extra option for light to normal
soiling where there are no obvious
marks.
– A wash programme without any Extra
options for normal to heavy soiling.
– A wash programme together with the
Soak Extra option for very heavily
soiled laundry.
– The Pre-wash Extra option for
laundry with large amounts of dirt
(e.g. dust, sand).
When drying straight after washing
Select a high spin speed for the wash
programme, as well as for the
Thermospin to save time and energy.
Washing and drying environmentally and economically
18

Short instructions
The headings numbered A,B,C,...
show the operating sequence and can
be used as brief instructions.
Separate washing

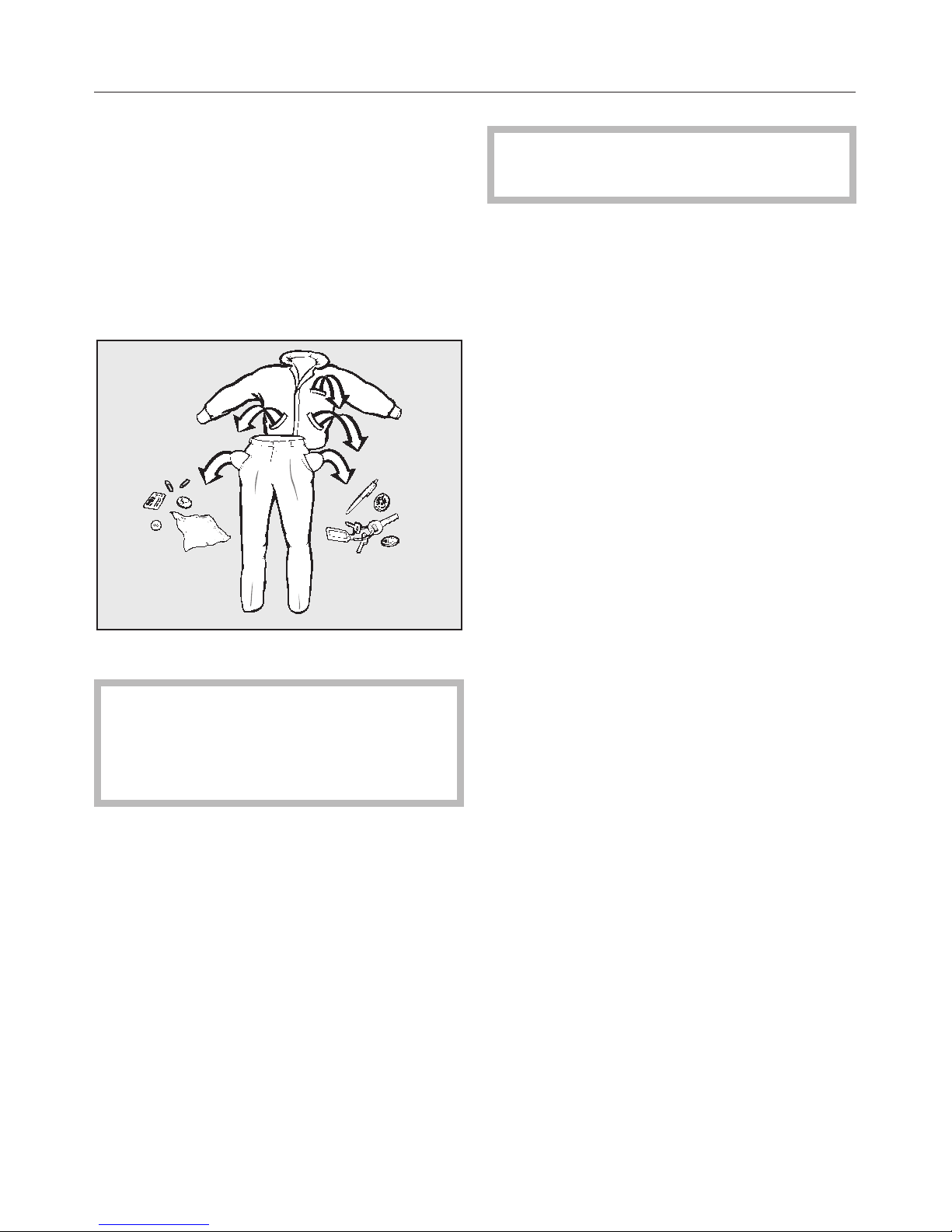

ASort the laundry
^Empty all pockets.
,Foreign objects (e.g. nails,
coins, paper clips, etc.) can cause
damage to textiles and to
components in the machine.
^Badly soiled areas, stains etc. should
be cleaned as soon as possible,
preferably whilst still fresh. Spillages
should be carefully dabbed off using
a soft, colourfast cloth. Do not rub!
Badly soiled areas can be pre-treated
with liquid detergent, stain removers
etc. first, following the manufacturer's
instructions. You can also use the
"Stains" Extra option. With particularly
stubborn stains, ask your dry cleaner
for advice.
,Do not use solvent-based
cleaning agents in this machine.
^Sort the laundry by colour and by
care label. Most garments have a
textile care label in the collar or side
seam.
Curtains: Remove lead weights first or
place in a laundry bag.
–Underwiring and collar stiffeners:
Any loose wiring in bras, shirt collar
stiffeners, etc. should be removed or
sewn in.
– Close any zips, fasten hooks and
eyes etc. before washing.
– Wash light and dark coloured items
separately.
– Fasten duvet covers, pillow cases
etc. to prevent small items from
being rolled up inside them.
Do not wash items in this machine
which are specified by the
manufacturer as not washable on the
care label.
WASHING
19

BSwitch the machine on
The interior drum lighting will come on.
The drum lighting will go out
automatically after five minutes. Press
the Door button to switch the drum
lighting back on again.
CSelect a programme
^Select the programme you want.
The programme selected will appear in
the display.
Cottons
60°C 1600 rpm
Duration: 1:49 h
Further programmes:
Turn the programme selector to Further
programmes/Settings to display a list of
other programmes that the machine
has to offer.
Further programmes
Settings !;
Dark garments ,
^Use the Xor Ybutton to highlight the
programme you wish to select and
confirm your selection by pressing
the OK button.
^Press the Washing/Drying button
repeatedly until only the Washing
indicator light is lit up.
The Drying indicator light must not
be lit up as well as this would mean
that the washing programme would
be followed immediately by the
relevant drying programme.
Cottons
60°C 1600 rpm
Duration: 1:49 h
^Use the Xor Ybutton to alter the
temperature. Press the OK button to
confirm the temperature selected and
move on to the spin speed option.
Cottons
40°C 1600 rpm
Duration: 2:04 h
^Use the Xor Ybutton to alter the
spin speed or to select No spin
(No .).
WASHING
20
