Milesight UG63 User manual

Mini
LoRaWAN®Gateway
UG63
Quick Start Guide

2
Safety Precautions
Milesight will not shoulder responsibility for any loss or damage resulting from not following the
instructions of this operating guide.
The device must not be modeled in any way.
Do not place the device close to objects with naked flames.
Do not place the device where the temperature is below/above the operating range.
Do not power on the device or connect it to other electrical device when installing.
Check lightning and water protection when used outdoors.
Do not connect or power the device using cables that have been damaged.
Related Documents
This Quick Start Guide only explains the installation of Milesight UG63 LoRaWAN®Gateway. For more
functionality and advanced settings, please refer to the relevant documents as below.
Document
Description
UG63 Datasheet
Datasheet for UG63 LoRaWAN®Gateway.
UG63 User Guide
Users can refer to the guide for instruction on how to log in the web GUI, and
how to configure all the settings.
The related documents are available on Milesight website: https://www.milesight-iot.com
Declaration of Conformity
UG63 is in conformity with the essential requirements and other relevant provisions of the CE, FCC, and
RoHS.
For assistance, please contact
Milesight technical support:
Email: [e-mail]
Tel: [phone]
Fax: [phone]
Revision History
Date
Doc Version
Description
March 9, 2022
V1.0
Initial version

3
Contents
1. Packing List .................................................................................................................................................... 4
2. Hardware Introduction ...................................................................................................................................4
2.1 Overview ............................................................................................................................................... 4
2.2 Dimensions ...........................................................................................................................................5
2.3 LED Indicators ...................................................................................................................................... 5
2.4 Reset Button .........................................................................................................................................5
3. Power Supply ..................................................................................................................................................5
4. Installation ...................................................................................................................................................... 6
4.1 Desktop .................................................................................................................................................6
4.2 Wall/Ceiling Mounting ......................................................................................................................... 6
5. Login the Web GUI ..........................................................................................................................................7
6. Network Connection ...................................................................................................................................... 9
7. Packet Forwarder Configuration .................................................................................................................10
8. Connect UG63 to Milesight IoT Cloud ........................................................................................................ 11
9. Connect UG63 to UG65/UG67 .....................................................................................................................13

4

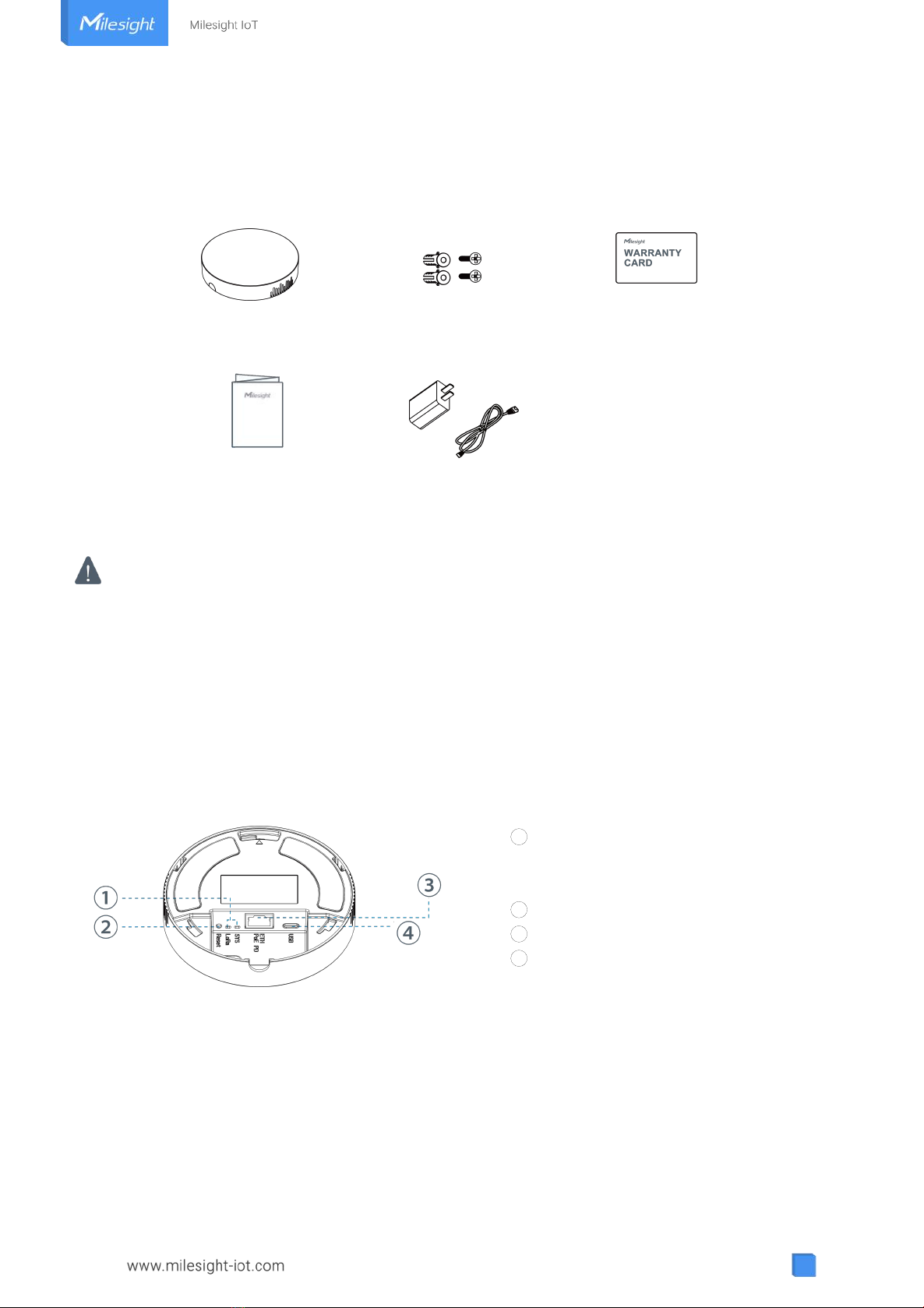

1. Packing List
Before you begin to install the UG63 LoRaWAN®Gateway, please check the package contents to verify
that you have received the items below.
1 × Quick Start Guide
1 × Type-C Cable &
Power Adapter (Optional)
If any of the above items is missing or damaged, please contact your sales representative.
2. Hardware Introduction
2.1 Overview
You can check below interfaces after taking off the mounting plate on the back of the device.
1 × UG63
2 × Wall Mounting Kits
1 × Warranty Card
1LED Area
SYS: System Indicator
LoRa: LoRa Indicator
2Reset Button
3Ethernet Port (PoE PD) & Indicator
4Type-C Console Port

5
2.2 Dimensions (mm)
2.3 LED Indicators
LED
Indication
Status
Description
SYS
System Status
Off
The system is starting up
Green Light
The system is running properly
Red Light
The system goes wrong
LoRa
LoRa Status
Off
Packet Forwarder mode is running off
Green Light
Packet Forwarder mode is running well
Ethernet
Port
Link Indicator
(Yellow)
Off
Disconnected or connect failure
On
Connected
Blinking
Transmitting data
Rate Indicator
(Green)
Off
100 Mbps mode
On
Other mode
2.4 Reset Button
Function
Description
SYS LED
Action
Reset
Static Green
Press and hold the reset button for more than 5 seconds.
Static Green →
Rapidly Blinking
Release the button and wait.
Off →Static Green
The gateway resets to factory default.
3. Power Supply
UG63 can be powered by 802.3af standard PoE or type-C port (5 VDC). If both connected, PoE power is
preferred.

6
Note: When connecting, Ethernet cable of UG63 device side should be installed first, otherwise, PoE
devices or gateway may be damaged.
4. Installation
UG63 supports multiple installation methods like desktop, wall mounting, ceiling mounting, etc. Before
you start, make sure that all cables have been installed and configurations are completed.
Note: Do not connect device to power supply or other devices when installing.
4.1 Desktop
Take off the baffle and mounting plate on the back of the device, then you can place the device on the
desktop.
4.2 Wall/Ceiling Mounting
A. Take off the mounting plate on the back of the device.
B. Align the mounting plate horizontally to the desired position on the wall or ceiling to mark two
mounting holes, drill two holes as these marks, insert wall plugs into the holes respectively.

7
C. Fix the mounting plate to the wall plugs with screws.
D. Turn the device clockwise to lock it to the mounting plate.
5. Login the Web GUI
UG63 provides web-based configuration interface for management. If this is the first time you configure
the gateway, please use the default settings below:
Username: admin
Password: password
Connect PC to UG63 ETH port through PoE injector or PoE switch. The following steps are based on
Windows 10 operating system for your reference.

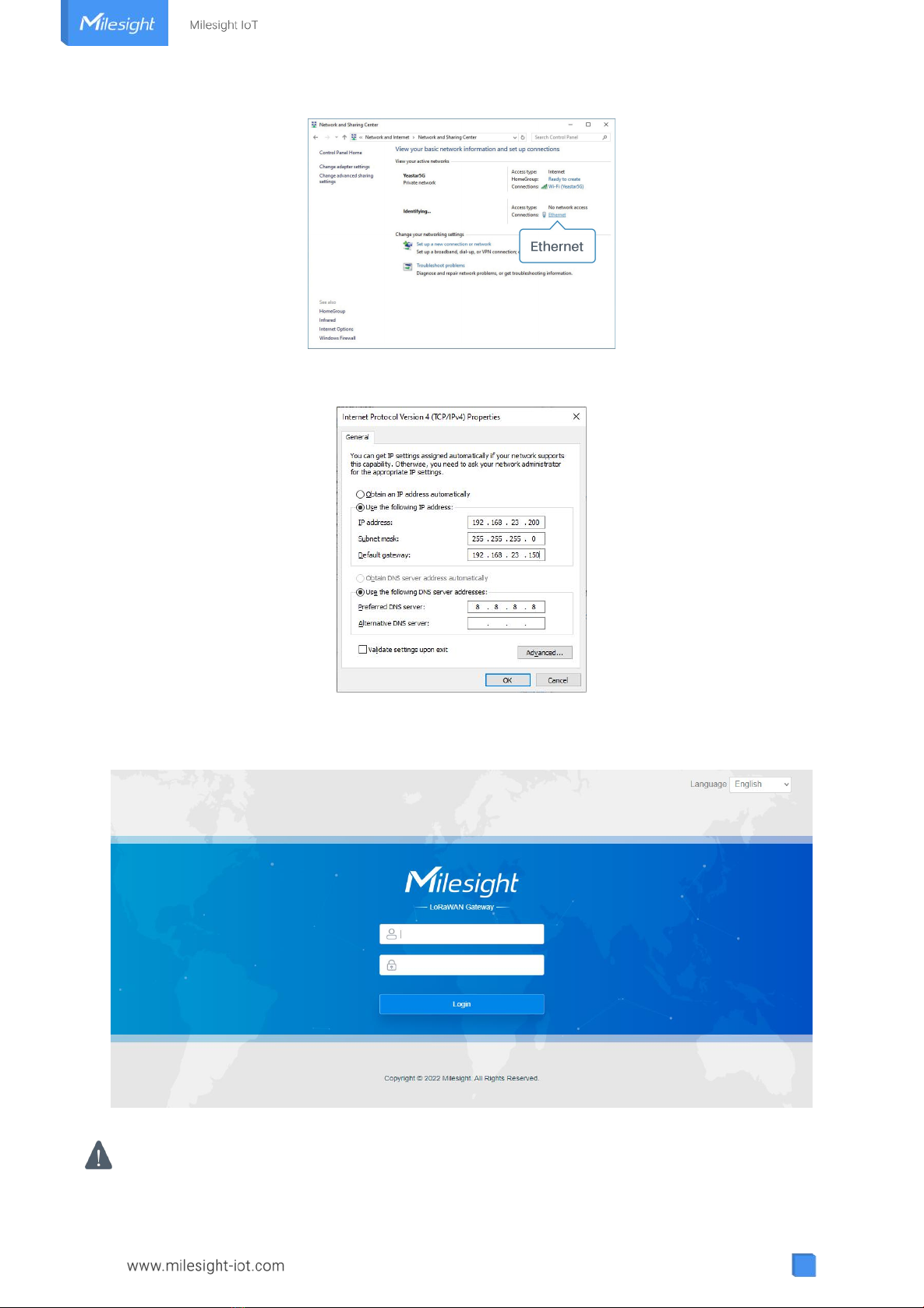

A. Go to “Control Panel” →“Network and Internet” →“Network and Sharing Center”, then click
“Ethernet” (May have different names).

8
B. Go to “Properties” →“Internet Protocol Version 4 (TCP/IPv4)” and select “Use the following IP
address”, then assign a static IP manually within the same subnet of the gateway.
C. Open a Web browser on your PC (Chrome is recommended) and type in the IP address 192.168.23.1
50 to access the web GUI.
D. Enter the username and password, click “Login”.
If you enter the username or password incorrectly more than 5 times, the login page will be
locked for 10 minutes.

9
E. After logging the web GUI, you can view system information and perform configuration of the
gateway. It’s suggested that you change the password for the sake of security.
6. Network Connection
A. Go to “Network” →“Interface” →“Port” page to select the connection type and configure Ethernet
port information, click “Save & Apply” for changes to take effect. UG63 supports Static IP, DHCP and
PPPoE modes. If you use static IP, ensure the “Gateway” IP address is the same as your modem/router
Ethernet port address.
B. Connect Ethernet port of gateway to network devices like router or modem.

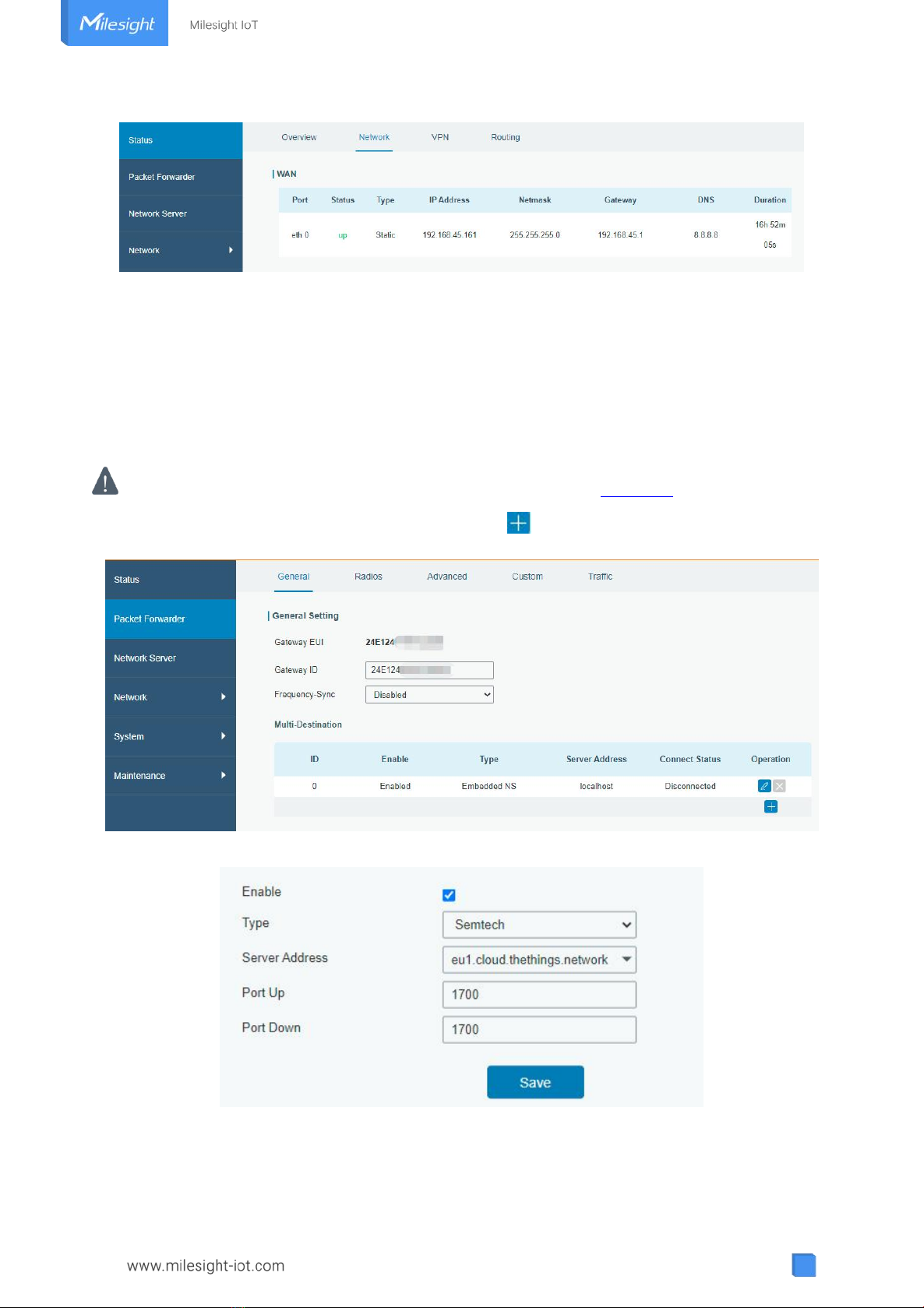

C. Log in the web GUI via the newly assigned IP address and go to “Status” →“Network” to check
Ethernet port status.

10
7. Packet Forwarder Configuration
UG63 has pre-installed multiple packet forwarders including Semtech UDP Packet Forwarder,
Chirpstack-Generic MQTT broker, LoRa Basic Station, etc. This section explains how to connect the
gateway to network servers.
Make sure the gateway connects to the network as shown in Section 6.
A. Go to “Packet Forwarder” →“General” page and click to add a network server.
B. Fill in the server information and enable this server.
C. Go to “Packet Forwarder” →“Radio” page to configure center frequency and channels. The channels
of the gateway and network server need to be the same.

11
D. Add the gateway on network server page. For more details about the network server connection
please refer to Milesight IoT Support portal.
E. Go to “Traffic” page to view the data communication of UG63.
8. Connect UG63 to Milesight IoT Cloud
UG63 can connect to Milesight IoT Cloud to manage Milesight product’s data. Due to the limitation of
memory, it’s suggested to bind not more than 20 devices.

12
A. Ensure the gateway has access to the Internet and is able to ping the domain of Milesight IoT Cloud.
B. Go to “Packet Forwarder” →“General” page to enable the embedded network server.
C. Go to “Packet Forwarder” →“Radio” page to select the center frequency and channels. The channels
of the gateway and nodes need to be the same.

13
D. Go to “Network Server” →“General” page to enable the network server and “Milesight IoT Cloud”
mode.
E. Log in the Milesight IoT Cloud. Then go to “My Devices” page and click “+New Devices” to add
gateway to Milesight IoT Cloud via SN. Gateway will be added under “Gateways” menu item.
F. The gateway is online on Milesight IoT Cloud. After that you can add node devices to cloud directly.
9. Connect UG63 to UG65/UG67
Milesight UG6x LoRaWAN®gateway can set up multi-gateway architecture, which can make different ga
teway failover each other and extend signal coverage, while make one node device
roams in multiple gateways. One UG65/UG67 gateway can be used as network server and other UG6x
series gateways can be used as packet forwarder and transmit all data to the main gateway.

14
A. Go to “Packet Forwarder” →“General” page to enable the “Remote Embedded NS” and fill in the main
gateway IP address which can reach.
B. Go to “Network Server” →“Gateway Fleet” page of UG65/UG67 to add the gateway ID of UG63
gateway and define a name, then save the settings.
C. After connected, the UG63 can transfer node data to UG65/UG67 and you can check the data details
on “Network Server” →“Packets” page of UG65/UG67.
