Milwaukee 6560 Series User manual

TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND
OPERATOR'S MANUAL.
AFIN DE RÉDUIRE LE RISQUE DE BLESSURES, L'UTILISATEUR DOIT LIRE ET
BIEN COMPRENDRE LE MANUEL DE L'UTILISATEUR.
PARA REDUCIR EL RIESGO DE LESIONES, EL USUARIO DEBE LEER Y
ENTENDER EL MANUAL DEL OPERADOR.
Catalog No.
No de Cat.
Catálogo No.
6560 Series
Série 6560
Serie 6560
12/14.4V CAULK AND ADHESIVE GUN
PISTOLET À COLLE ET CALFEUTRAGE 12/14,4V
PISTOLA DE CALAFATEO Y APLICACION DE ADHESIVO DE 12/14,4V
To extend battery pack life:
 Follow the "BATTERY PACK CARE AND USE" section of
this manual
 Charge battery packs before use
 Follow the charging instructions in your charger manual
Pour étendre la durée de vie de la batterie:
 Suivre les instructions de la section «UTILISATION ET
ENTRETIEN DE LA BATTERIE» de ce manuel
 Charger les batteries avant de les utiliser
 Suivre les instructions de charge du manuel du chargeur
Para extender la duración de la batería:
 Seguir la sección USO Y CUIDADO DE LA BATERÍA en
este manual
 Cargar las baterías antes de usarlas
 Seguir las instrucciones de carga en el manual del cargador
OPERATOR'S MANUAL
MANUEL de L'UTILISATEUR
MANUAL del OPERA OR

2 3
POWER TOOL USE AND CARE
16. Do not force the power tool. Use
the correct power tool for your
application. The correct power tool
will do the job better and safer at the
rate for which it was designed.
17. Do not use the power tool if the
switch does not turn it on and off.
Any power tool that cannot be con-
trolled with the switch is dangerous
and must be repaired.
18. Disconnect the plu from the
power source and/or the battery
pack from the power tool before
makin any adjustments, chan -
in accessories, or storin
power tools. Such pre enti e safety
measures reduce the risk of starting
the tool accidentally.
19. Store idle power tools out of the
reach of children and do not al-
low persons unfamiliar with the
power tools or these instructions
to operate power tools. Power
tools are dangerous in the hands of
untrained users.
20. Maintain power tools. Check for
misali nment or bindin of mov-
in parts, breaka e of parts and
any other condition that may af-
fect the power tool's operation. If
dama ed, have the power tool
repaired before use. Many acci-
dents are caused by poorly maintained
power tools.
21. Keep cuttin tools sharp and
clean. Properly maintained cutting
tools with sharp cutting edges are less
likely to bind and are easier to control.
SERVICE
28. Have your power tool serviced by
a qualified repair person usin
only identical replacement parts.
This will ensure that the safety of the
power tool is maintained.
WORK AREA SAFETY
ELECTRICAL SAFETY
PERSONAL SAFETY
WARNING!
READ ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in electric shock, fire
and/or serious injury. The term "power tool" in all of the warnin s listed
below refers to your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
GENERAL SAFETY RULES-FOR ALL BATTERY OPERATED TOOLS
1. Keep work area clean and well lit.
Cluttered or dark areas in ite accidents.
2. Do not operate power tools in ex-
plosive atmospheres, such as in
the presence of flammable liq-
uids, ases, or dust. Power tools
create sparks which may ignite the
dust or fumes.
3. Keep children and bystanders
away while operatin a power
tool. Distractions can cause you to
lose control.
4. Power tool plu s must match the
outlet. Never modify the plu in
any way. Do not use any adapter
plu s with earthed ( rounded)
power tools. Unmodified plugs and
matching outlets will reduce risk of
electric shock.
5. Avoid body contact with earthed
or rounded surfaces such as
pipes, radiators, ran es and re-
fri erators. There is an increased
risk of electric shock if your body is
earthed or grounded.
6. Do not expose power tools to rain
or wet conditions. Water entering a
power tool will increase the risk of
electric shock.
7. Do not abuse the cord. Never use
the cord for carryin , pullin , or
unplu in the power tool. Keep
cord away from heat, oil, sharp
ed es, or movin parts. Damaged
or entangled cords increase the risk
of electric shock.
9. Stay alert, watch what you are
doin and use common sense
when operatin a power tool. Do
not use a power tool while you
are tired or under the influence
of dru s, alcohol or medication. A
moment of inattention while operating
power tools may result in serious per-
sonal injury.
10. Use safety equipment. Always
wear eye protection. Safety equip-
ment such as dust mask, non-skid
safety shoes, hard hat, or hearing pro-
tection used for appropriate conditions
will reduce personal injuries.
11. Avoid accidental startin . Ensure
the switch is in the off-position
before plu in in. Carrying tools
with your finger on the switch or plug-
ging in power tools that ha e the
switch on in ites accidents.
12. Remove any adjustin key or
wrench before turnin the power
tool on. A wrench or a key left at-
tached to a rotating part of the power
tool may result in personal injury.
13. Do not overreach. Keep proper
footin and balance at all times.
This enables better control of the
power tool in unexpected situations.
8. When operatin a power tool out-
doors, use an extension cord suit-
able for outdoor use. Use of a cord
suitable for outdoor use reduces the
risk of electric shock.
14. Dress properly. Do not wear loose
clothin or jewellery. Keep your
hair, clothin and loves away
from movin parts. Loose clothes,
jewellery, or long hair can be caught in
mo ing parts.
15. If devices are provided for the
connection of dust extraction and
collection facilities, ensure these
are connected and properly used.
Use of these de ices can reduce dust-
related hazards.
22. Use the power tool, accessories
and tool bits etc., in accordance
with these instructions and in the
manner intended for the particu-
lar type of power tool, takin into
account the workin conditions
and the work to be performed.
Use of the power tool for operations
different from those intended could re-
sult in a hazardous situation.
BATTERY TOOL USE AND CARE
23. Ensure the switch is in the off
position before insertin battery
pack. Inserting the battery pack into
power tools that ha e the switch on
in ites accidents.
24. Rechar e only with the char er
specified by the manufacturer. A
charger that is suitable for one type of
battery pack may create a risk of fire
when used with another battery pack.
25. Use power tools only with spe-
cifically desi nated battery packs.
Use of any other battery packs may
create a risk of injury and fire.
26. When battery pack is not in use,
keep it away from other metal
objects like paper clips, coins,
keys, nails, screws, or other
small metal objects that can make
a connection from one terminal
to another. Shorting the battery ter-
minals together may cause burns or a
fire.
27. Under abusive conditions, liquid
may be ejected from the battery,
avoid contact. If contact acciden-
tally occurs, flush with water. If
liquid contacts eyes, additionally
seek medical help. Liquid ejected
from the battery may cause irritation
or burns.

4 5
123
4
6
7
8
5
9
Direct Current
Properly Recycle
Nickel Cadmium
Batteries
Cat. No.
6560 Series
48-59-0255
Battery
Charger
Volts
12/14.4 DC
120 AC
Symbology Sp cifications

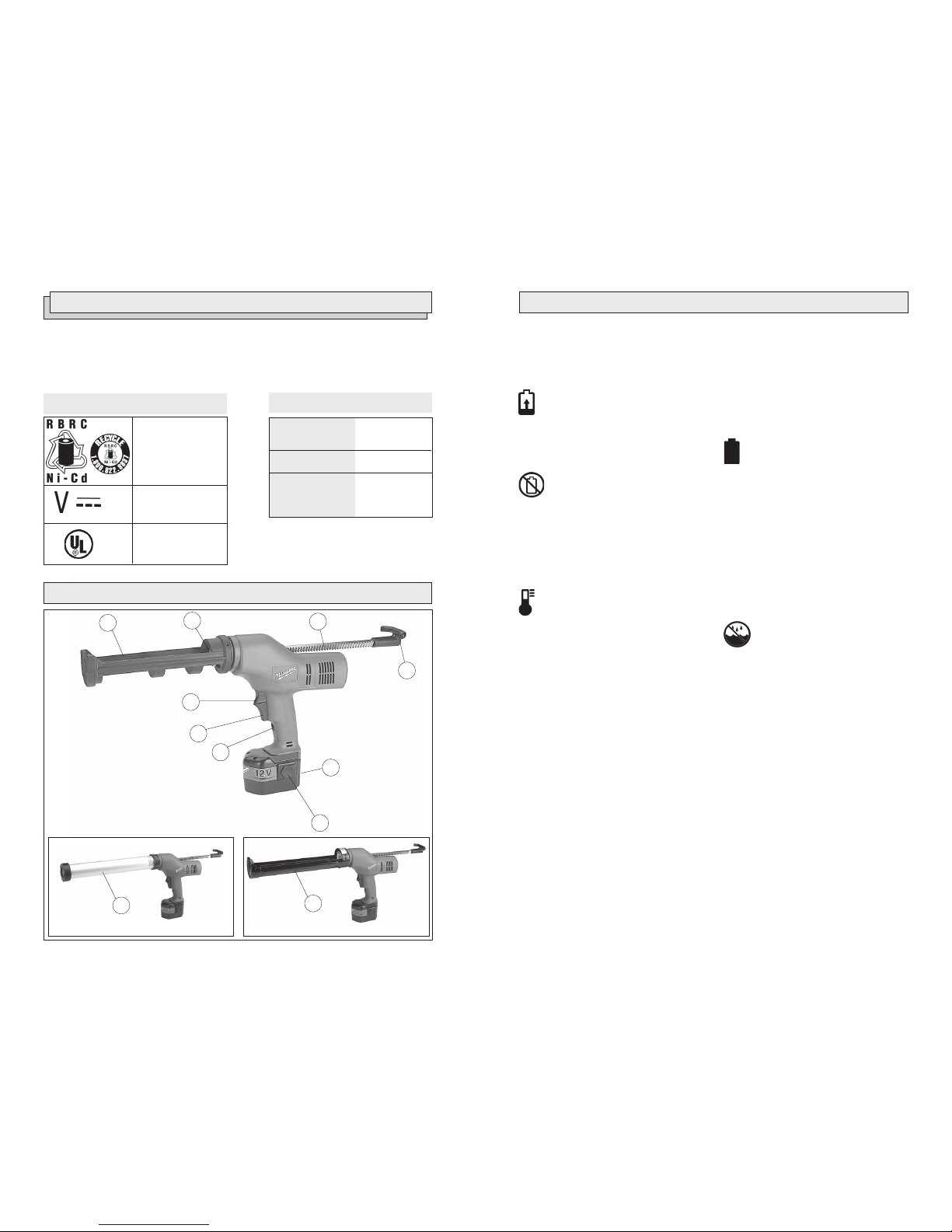

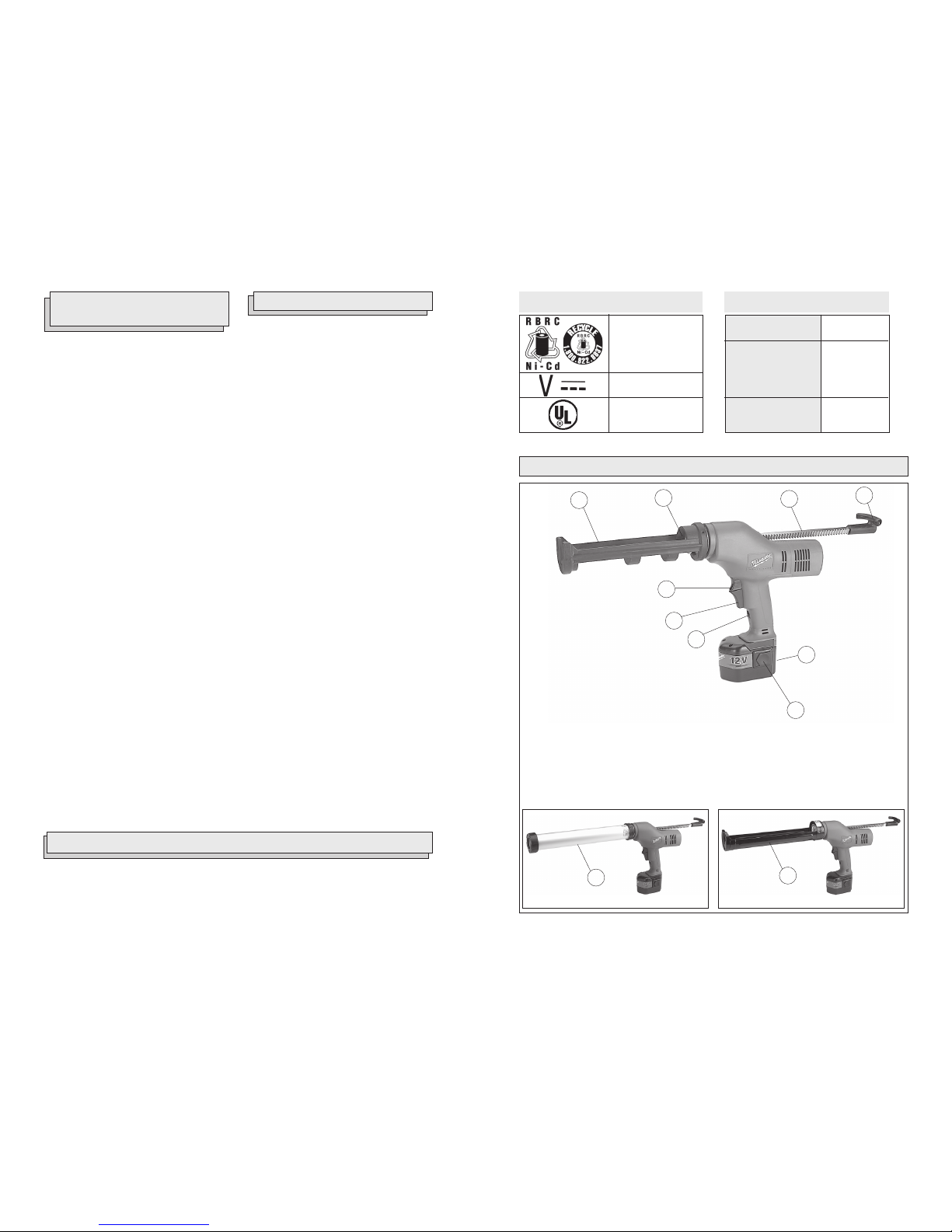

FUNCTIONAL DESCRIPTION
Underwriters
Laboratories, Inc.
1. Carriage Frame
2. Plunger
3. Plunger rod
4. Plunger rod handle
5. Battery pack
6. Battery pack release buttons
7. Trigger
8. Rod release trigger
9. Trigger lock
10. Quart capacity carriage frame
11. 20 oz. capacity barrel frame
Cat. No. 6560-21
Cat. No. 6560-24 Cat. No. 6560-23
10
11
SPECIFIC SAFETY RULES
1. Keep hands out of the plun er and plun er rod area of the caulk un.
Fingers can be pinched between the tube holder and the plunger.
2. Maintain labels and nameplates. These carry important information. If unreadable
or missing, contact a MILWAUKEE ser ice facility for a free replacement.
BATTERY PACK CARE AND USE
EXTENDING AND MAINTAINING
BATTERY PACK LIFE
Char e the new battery pack
overni ht before use to allow
the cells to become fully
char ed. New battery packs are not fully
charged. Two to ten normal charging/
discharging cycles may be required be-
fore the pack can take its maximum charge.
Never completely dischar e
the battery pack. MILWAUKEE
battery packs do not de elop a
"memory" when charged after only a par-
tial discharge. Taping-on triggers or lea -
ing work lights on for extended periods
to completely discharge the battery pack
will reduce its life by upsetting the electro-
chemical balance and can result in short-
circuiting of the battery.
Do not char e batteries in hot
or cold places (below 40°F (5°C)
or abo e 105°F (40°C)). Temperature
extremes reduce the ability for battery pack
cells to hold a charge. Do not store batter-
ies where the temperature may exceed
120°F (50°C), such as in a ehicle or metal
building during the summer.
To avoid overheatin to a battery pack,
allow cordless tools cool down be-
tween hi h torque drillin /cuttin
applications. The increased energy dis-
charge rate will heat the battery pack cells
faster than the cells can release the heat.
This could damage the cells.
After use, allow a hot battery pack to
cool to room temperature before inserting
it into the charger. If a hot battery is put on
a charger, charging will not begin until the
battery has cooled to a safe temperature.
See your charger manual for more infor-
mation on charging temperatures. Charg-
ing a hot battery will damage the cells.
Never forcibly heat up or cool down
batteries. This will damage some cells in
the pack, causing them to not be able to hold
a charge.
Remove the battery pack from the tool
for char in when the tool can no
lon er perform its intended function
(i.e., drilling, cutting, etc.).
Leave the battery pack on the
char er after it has reached a full
char e; the pack will continue to re-
cei e a trickle charge to ensure capacity
is maintained.
Occasionally (once a week) leave the
batteries on the char er overni ht to
help maintain cell balance.
Do not store the battery on the
char er (for more than 24 hours); this
could reduce battery life.
Never leave batteries on char ers
where power interruptions are com-
mon. Damage to the battery cells could
occur.
Store batteries at room tem-
perature away from moisture.
Do not store in damp locations
where corrosion of terminals may occur.
Do not submer e your battery or cord-
less tools in water. This will damage the
battery and tool.
Char e unused batteries overni ht
at least every six months to maximize
battery life. Unused batteries discharge
at a rate of about 1% per day and will be
fully discharged after six months. For bat-
teries stored for a long time, two to ten
normal charging cycles may be required
before the pack is fully charged.
Do not use oil or solvents to clean or
lubricate your battery pack. The plastic
casing will become brittle and crack, caus-
ing a risk of injury.
MILWAUKEE battery packs will operate for many years and/or hundreds of cycles when
they are used, charged, and stored according to these instructions. Properly using,
charging, and storing your battery pack can greatly extend its life.

6 7
Washer (black)
Plunger
Plunger rod
Barrel nut
Washer (Steel)
6560-23
Screw
Tube holder
Fi . 4
Plunger
Plunger rod
Tube holder
Barrel nut
Screw
Frame cap 6560-21
Tube holder
Fi . 3
WARNING!
Char e only MILWAUKEE 12, 14.4
and 18 Volt battery packs in
MILWAUKEE char ers. Other
brands of batteries may explode
causin personal injury and
dama e.
For specific char in instruc-
tions, please read the operator's
manual supplied with your
char er.

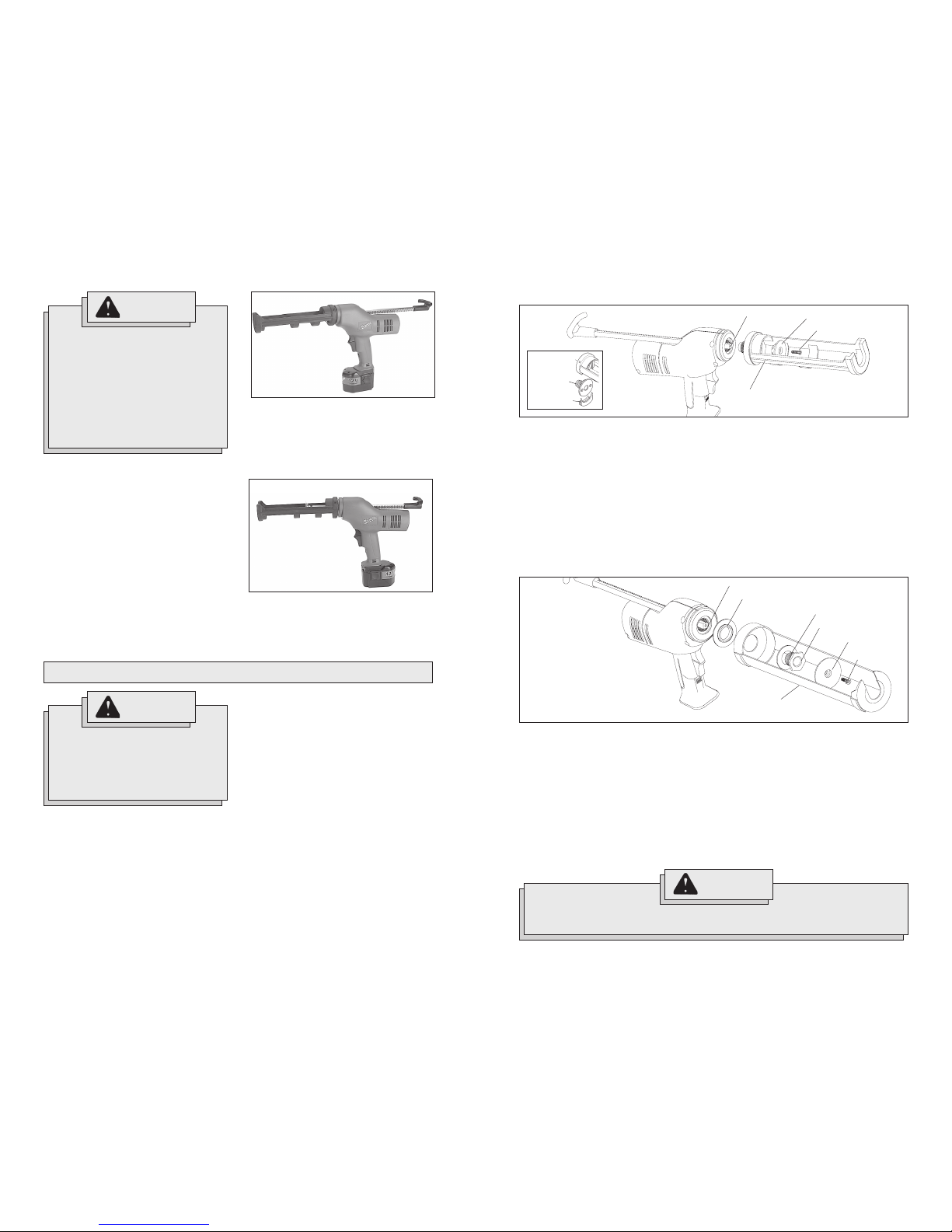

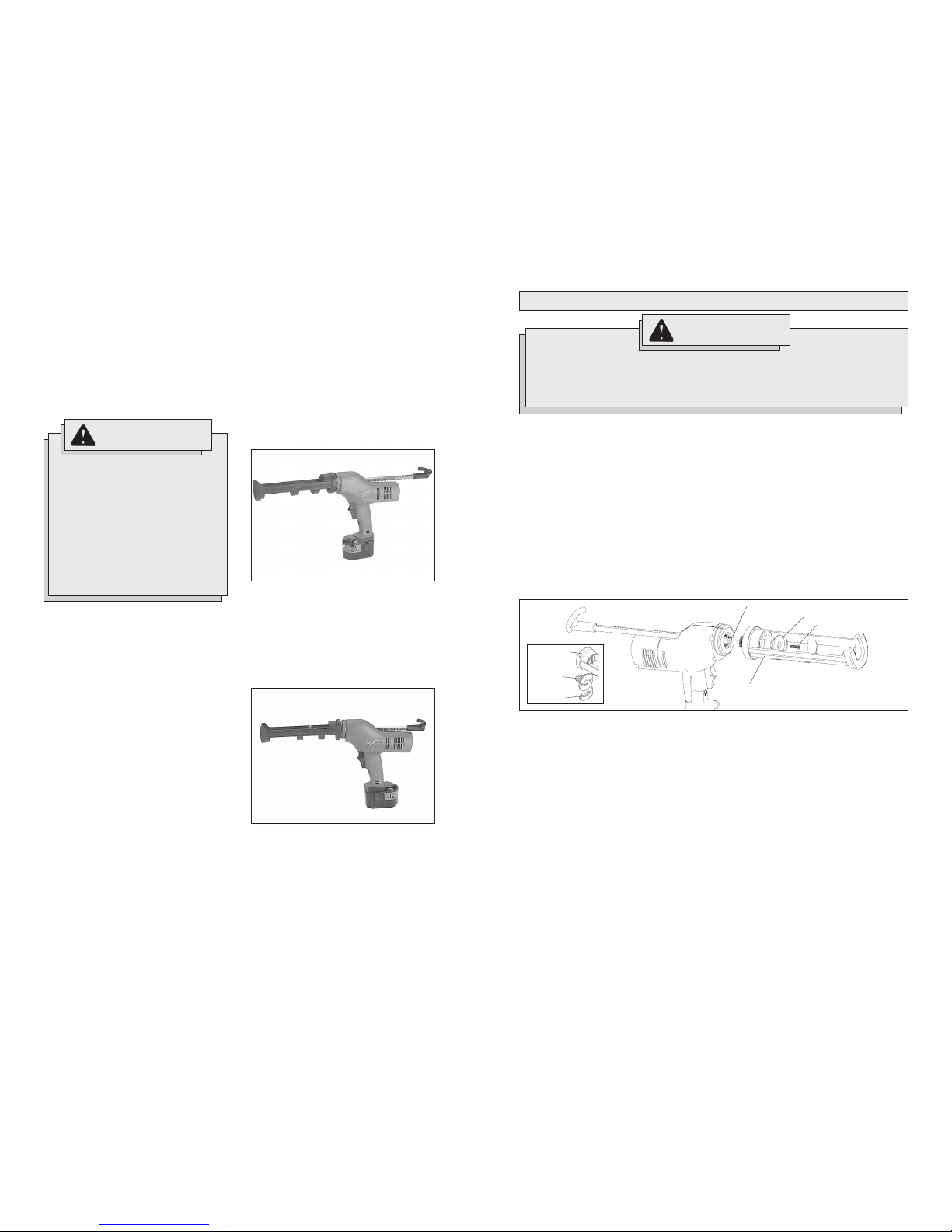

Insertin Battery Pack into Tool
For all models:
Battery pack can be inserted into the tool
in two ways.
1. For working in restricted spaces: In-
sert the battery pack from the front by
pressing in the release buttons and
sliding battery pack into the body of
the tool (Fig. 1). Insert the battery pack
until clamp engages.
2. For optimum weight distribution and
balance: Insert the battery pack from
the back by pressing in the release
buttons and sliding the battery pack
into the body of the tool (Fig. 2). Insert
the battery pack until clamp engages.
Fi . 2
Fi . 1
NOTE: A 12 olt battery is supplied with
this tool. To extend run time or increase
plunger speed, a 14.4 olt battery may be
used.
ASSEMBLY
Installin 10oz Tube Holder Assembly (Cat. No. 6560-21) (Fi . 3)
1. Lock trigger or remo e battery pack.
2. Press in and hold rod release trigger.
3. Grasp plunger rod handle and pull
plunger rod back until the rod tip is just
inside of tool.
4. Release rod release trigger.
5. Position washer (black) onto nose of
tool. The side with the larger collar fits
inside the tool.
6. Install tube holder o er washer.
7. Place washer (steel) between the tube
holder and barrel nut. Thread barrel
nut into nose of the tool. Tighten se-
curely using the wrench pro ided.
8. Press rod release trigger and push
plunger rod forward to access the tip
of the rod.
9. Attach plunger to the plunger rod, as
shown (Fig. 4). Tighten the screw se-
curely.
10. To remo e tube holder, re erse procedure.
Insertin the Plun er Rod
Always lock the trigger or remo e the bat-
tery pack before inserting the plunger rod.
Do not run the tool to pull the plunger rod
through the tool, this will damage the tool
and rod. Manually push the plunger rod
through the tool, as follows:
1. Press in and hold rod release trigger.
2. Grasp the plunger rod handle. The
teeth on the plunger rod should point
toward the left and slightly down.
3. Insert the plunger rod from the rear of
the tool. It may be necessary to wiggle
the plunger rod slightly while pushing
it through the tool.
NOTE: Keep the plunger rod clean. Retract-
ing or inserting a plunger that is co ered
with material may damage the internal parts
of the tool.
WARNING!
Always lock tri er or remove
battery pack before chan in or
removin accessories. Only use
accessories specifically recom-
mended for this tool. Others may
be hazardous.
WARNING!
To reduce the risk of injury, keep hands out of the plun er area of the tool.
Fin ers can be pinched between the tube holder and the plun er.
1. Lock trigger or remo e battery pack.
2. Press in and hold rod release trigger.
3. Grasp plunger rod handle and pull
plunger rod back until the rod tip is just
inside of tool.
4. Release rod release trigger.
5. The frame cap, barrel nut, and tube
holder are pro ided pre-assembled.
6. Thread barrel nut into the nose of the
tool. Tighten securely using the
wrench pro ided.
7. Press rod release trigger and push
plunger rod forward to access the tip
of the rod.
8. Attach plunger to the plunger rod, as
shown (Fig. 3). Tighten the screw
securely.
9. To remo e tube holder, re erse procedure.

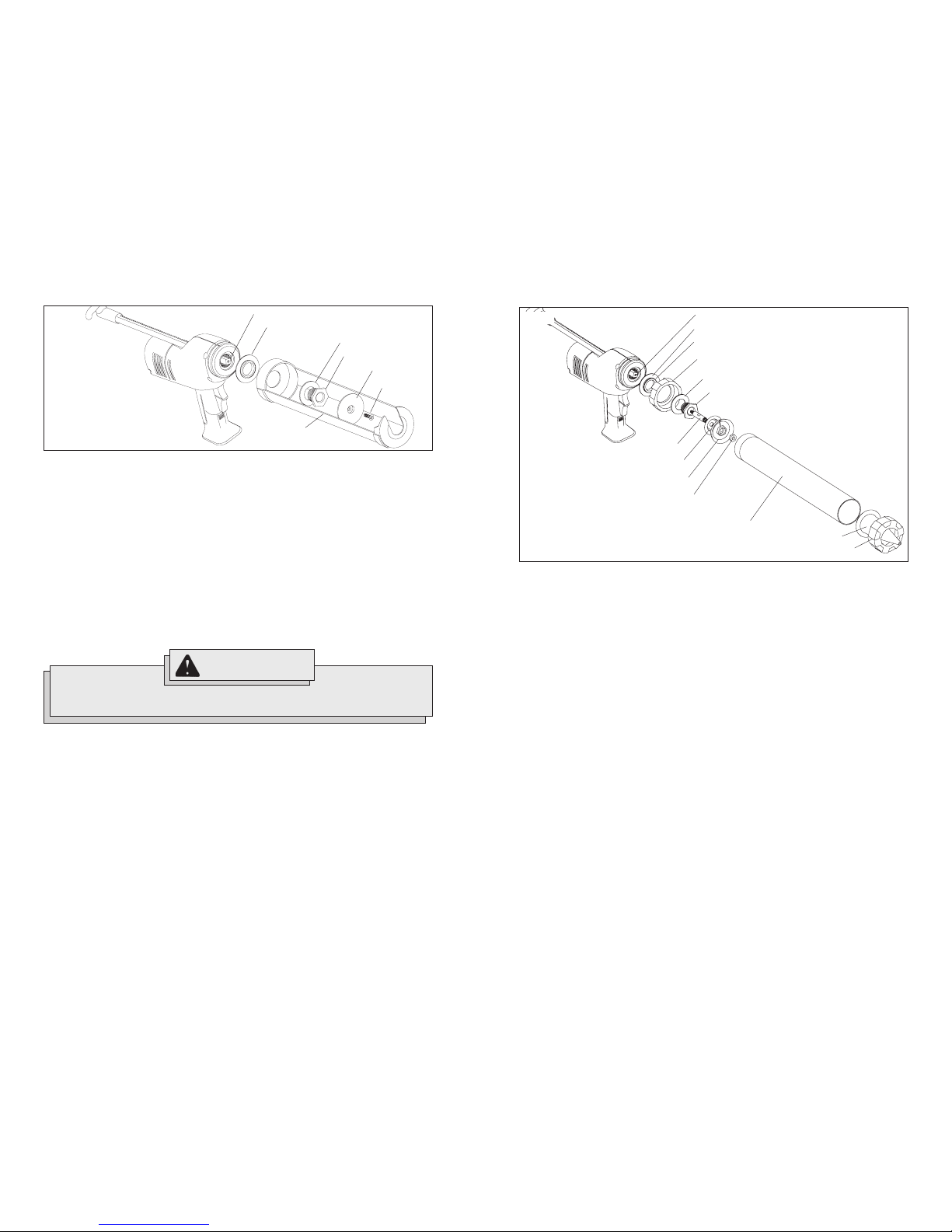

Installin Tube Holder Assembly (Cat. No. 6560-23) (Fi . 4)

8 9
Installin Sausa e Type Pack
Always check sausage packs for punc-
tures or damage to the pack before install-
ing. Do not use a damaged or frozen pack.
1. Lock trigger or remo e battery pack.
2. Press in and hold rod release trigger.
3. Grasp plunger rod handle and pull
plunger rod back to allow sausage
pack to fit inside barrel tube.
4. Insert pack into barrel tube.
5. Cut off end of sausage pack.
NOTE: Before using a partially filled
pack, remo e any hardened material.
1. Lock trigger or remo e battery pack.
2. Press in and hold rod release trigger.
3. Grasp plunger rod handle and pull
plunger rod back until the rod tip is just
inside of tool.
4. Release rod release trigger.
5. Position spacer and back cap (fine
threads) onto nose of the tool. The
side of the spacer with the double
collar fits inside the back cap.
6. Place backing washer on top of back
cap and thread barrel nut into nose of
the tool as shown. Tighten securely
using the wrench pro ided.
7. Press rod release trigger and push
plunger rod forward to access the tip
of the on rod.
8. Thread extenstion, plunger, barrel
plunger and nut onto the plunger rod in
the order shown. Tighten securely.
9. Thread barrel into back cap.
10. To remo e barrel tube, re erse procedure.
Installin Caulk or Adhesive Tube
1. Lock trigger or remo e battery pack.
2. Cut nozzle of tube at an angle and
size per manufacturer's recommenda-
tion to suit the job. A smaller nozzle
diameter requires more force to push
the caulk and reduces battery life.
3. Break inner seal of tube using a long
nail or piece of wire. If the inner seal
is not broken, the caulk material may
be forced out the rear end of the tube
and damage the tool.
NOTE: Before using a partially filled
tube, remo e any hardened material
with a long nail or piece of wire.
4. Press in and hold rod release trigger.
5. Grasp plunger rod handle and pull
plunger rod back to allow the caulk
tube to fit inside carriage frame.
6. Insert caulk tube into carriage frame.
7. Push plunger rod handle forward until
the plunger is against the caulk tube.
8. Release rod release trigger.
OPERATION
6. Insert nozzle supplied with the sau-
sage pack into the nozzle cap (coarse
thread). Thread nozzle cap onto the
front of barrel tube (Fig. 5).
7. Cut nozzle at an angle and size per
manufacturer's recommendation to suit
the job. A smaller nozzle diameter re-
quires more force to push the caulk
and reduces battery life.
8. Press in and hold rod release trigger.
9. Push plunger rod handle forward until
plunger is against sausage pack.
10. Release rod release trigger.
Startin and Stoppin and Controllin
Speed
1. Pull trigger to dispense caulk.
2. Increase or decrease pressure on trig-
ger to adjust the speed for proper bead
width and material feed rate. Material
type, temperature and nozzle diameter
will all affect flow rate. When using a
tube or pack with a smaller nozzle di-
ameter use a slower speed or the
material may be forced around the rear
tube seat.
3. Release trigger to stop dispensing
caulk.
Lockin the Tri er (Fi . 6)
Always lock trigger or remo e battery pack
before changing accessories or perform-
ing maintenance. Lock trigger when the
tool is not in use and when storing the tool.
1. To lock the trigger, push trigger lock
in the direction shown. The trigger will
not work when the trigger lock in the
locked position.
2. To unlock the trigger, push the trigger
lock in the direction shown.
WARNING!
When tool is not in use, lock tri -
er to prevent the tool from be-
in accidentally turned on.
Fi . 6
Locked
Unlocked
Adjustin Plun er Rod
1. To manually adjust plunger rod, press
in and hold rod release trigger.
2. Grasp plunger rod handle and either
push or pull rod in or out.
3. Release rod release trigger.
NOTE: Keep plunger rod clean of material.
Retracting a plunger that is co ered with
material may damage the internal parts of
the tool.

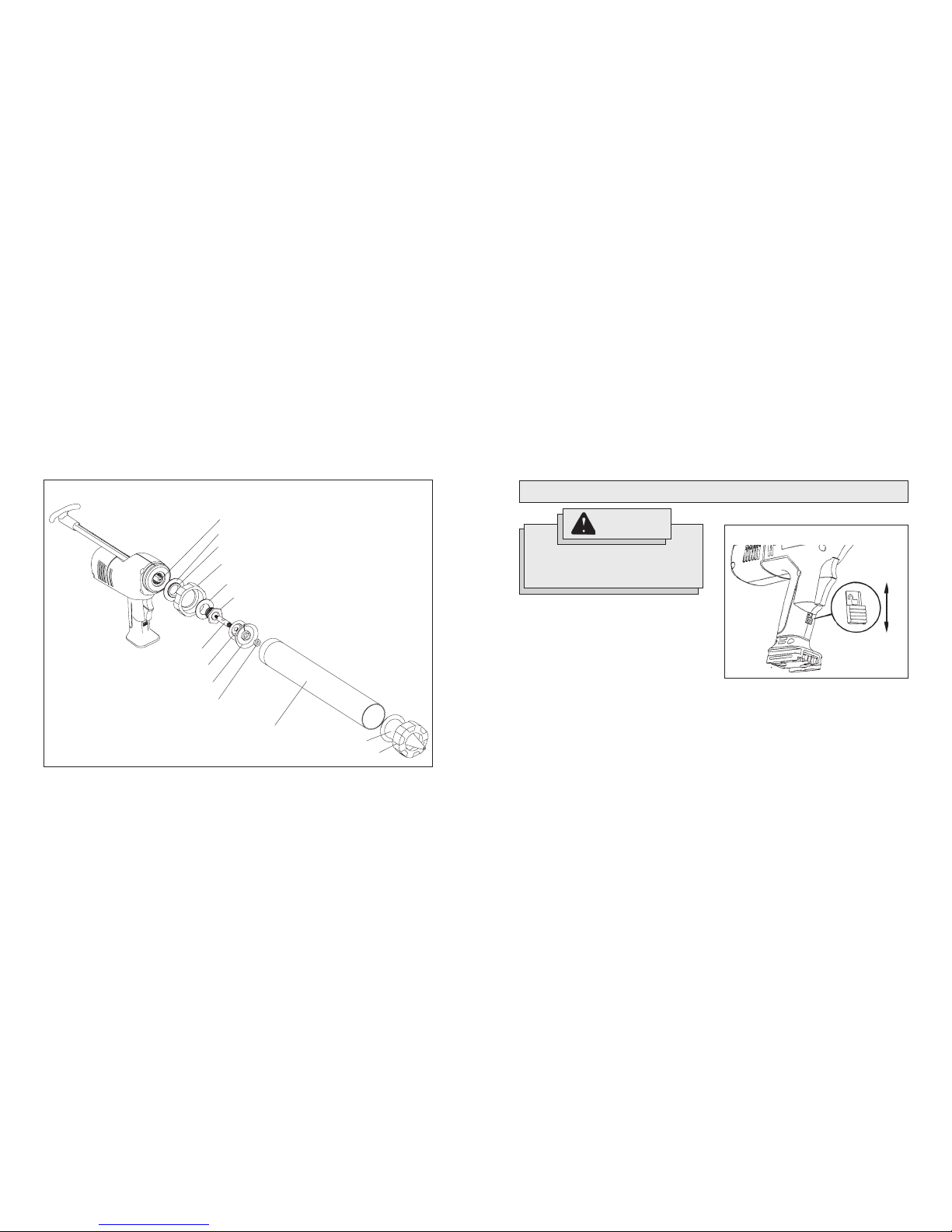

Installin Barrel Assembly (Cat. No. 6560-24) (Fi .5)
6560-24
Fi . 5
Barrel
Plunger rod
Plunger
Backing washer
Back cap
Spacer
Barrel plunger
Barrel nut
Nut
Nozzle cap
Nozzle
Double collar
Extension
