MA886
Refractometer for SodiumRefractometer for Sodium
Refractometer for SodiumRefractometer for Sodium
Refractometer for Sodium
Chloride MeasurementsChloride Measurements
Chloride MeasurementsChloride Measurements
Chloride Measurements
Milwaukee RefractometerMilwaukee Refractometer
Milwaukee RefractometerMilwaukee Refractometer
Milwaukee Refractometer
INSTRUCTION MANUAL

22
22
2
Instruction Manual MA886 Refractometer for Sodium Chloride Measurements
FUNCTIONAL DESCRIPTION ............................................................................. 3
GENERAL DESCRIPTION .................................................................................... 5
SPECIFICATIONS .............................................................................................. 6
PRINCIPLE OF OPERATION ................................................................................ 6
MEASUREMENT GUIDELINES .............................................................................. 8
CALIBRATION PROCEDURE ............................................................................... 8
MEASUREMENT PROCEDURE ........................................................................... 10
CHANGING MEASUREMENT UNIT ................................................................... 11
CHANGING TEMPERATURE UNIT ..................................................................... 12
MAKING A STANDARD SODIUM CHLORIDE SOLUTION .................................... 12
ERROR MESSAGES ........................................................................................... 13

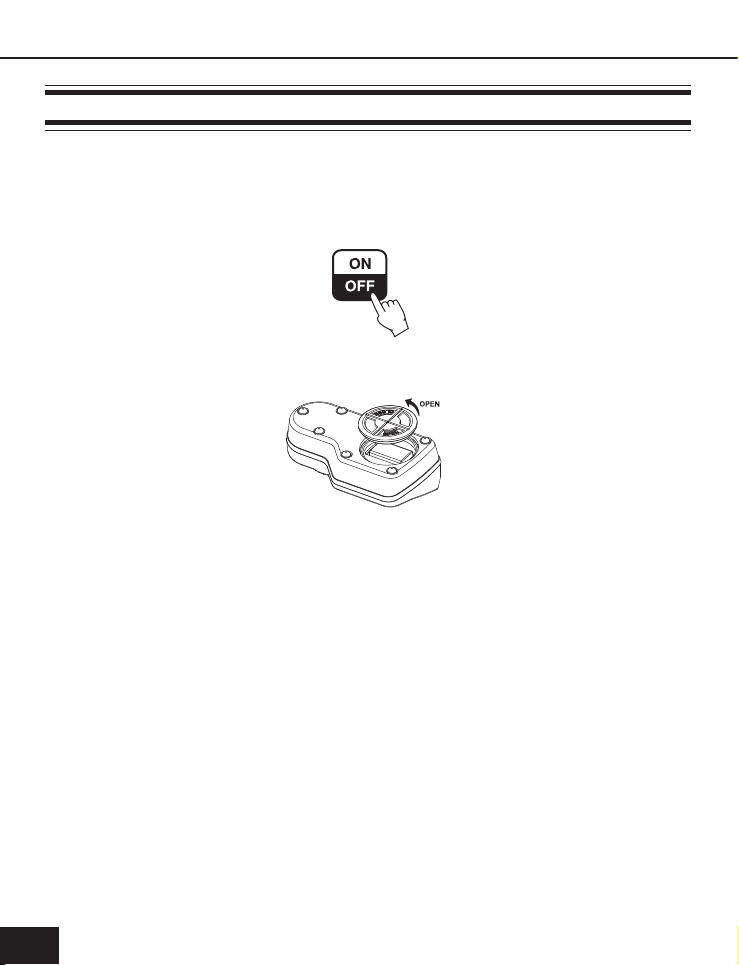

BATTERY REPLACEMENT ................................................................................... 14
WARRANTY ..................................................................................................... 15
TABLE OF CONTENTS
Remove the instrument from the packing materials and examine carefully to
ensure no damage has occurred during shipping. If any damage has
occurred, notify your Dealer.
Each instrument is supplied with:
• 9 V battery
• Instruction manual
Note: Save all packing material until you are sure that the instrument
functions correctly. A defective instrument must be returned in its
original packing.

www.milwaukeeinst.com
3
FUNCTIONAL DESCRIPTION
A. BATTERY STATUS ICON (BLINKS WHEN LOW BATTERY CONDITION DETECTED)
B. MEASUREMENT IN PROGRESS TAG
C. SETUP: FACTORY CALIBRATION TAG
D. CAL: CALIBRATION TAG
E. AUTOMATIC TEMPERATURE COMPENSATION
(BLINKS WHEN TEMPERATURE EXCEEDS 10-40 °C / 50-104 °F RANGE)
F. PRIMARY DISPLAY (DISPLAYS MEASUREMENT AND ERROR MESSAGES)
G. TEMPERATURE UNITS
H. SECONDARY DISPLAY (DISPLAYS TEMPERATURE MEASUREMENTS; WHEN BLINKING,
TEMPERATURE HAS EXCEEDED OPERATION RANGE: 0-80 °C / 32-176 °F)
I. RANGE INDICATOR
DISPLAYDISPLAY
DISPLAYDISPLAY
DISPLAY
[email protected]
www.ponpe.com

44
44
4
Instruction Manual MA886 Refractometer for Sodium Chloride Measurements
I. BATTERY COVER
J. BATTERY COMPARTMENT
BOTTOMBOTTOM
BOTTOMBOTTOM
BOTTOM
A. LIQUID CRYSTAL DISPLAY (LCD)
B. READ KEY (USER MEASUREMENT)
C. ZERO KEY (USER CALIBRATION)
D. RANGE KEY (USER MEASUREMENT UNIT)
E. ON/OFF
F. STAINLESS STEEL SAMPLE WELL AND PRISM
G. SECONDARY DISPLAY
H. PRIMARY DISPLAY
FRONT PANELFRONT PANEL
FRONT PANELFRONT PANEL
FRONT PANEL

www.milwaukeeinst.com
5
GENERAL DESCRIPTION
SIGNIFICANCE OF USE
Thank you for choosing Milwaukee. This instruction manual will provide you the
necessary information for correct use of the meter.
The MA886 is an optical instrument that employs the measurement of the refractive index
to determine sodium chloride concentration in aqueous solutions used in food preparation.
It is not intended for sea water salinity measurements. The measurement of refractive index
is simple and quick and provides the user an accepted method for NaCl analysis. Samples
are measured after a simple user calibration with deionized or distilled water. Within
seconds the instrument measures the refractive index of the solution. The digital refractometer
eliminates the uncertainty associated with mechanical refractometers and is easily portable
for measurements where you need them.
The instrument utilizes internationally recognized references for unit conversion and
temperature compensation. It can display the measurement of NaCl concentration 4 different
ways: g/100 g, g/100 mL, Specific Gravity, and °Baumé.
Temperature (in °C or °F) is displayed simultaneously with the measurement (on 3 of the
ranges) on the large dual level display along with icons for Low Power and other helpful
message codes.
Key features include:
• Waterproof models offers IP65 waterproof protection
• Automatic Temperature Compensation (ATC)
• Battery operation with Low Power indicator
• Automatically turns off after 3 minutes of non-use.
[email protected]
www.ponpe.com

66
66
6
Instruction Manual MA886 Refractometer for Sodium Chloride Measurements
PRINCIPLE OF OPERATION
Light Source Yellow LED
Measurement Time Approximately 1.5 seconds
Minimum Sample Volume 100 PL (cover prism totally)
Sample Cell Stainless Steel ring and flint glass prism
Temperature Compensation Automatic between 10 and 40 °C (50 to 104 °F)
Case Material ABS
Enclosure Rating IP 65
Battery Type/Life 1 x 9 volt AA batteries / 5000 readings
Auto-Shut off After 3 minutes of non-use
Dimensions 19.2 x 10.2 x 6.7 cm (7.5 x 4 x 2.6")
Weight 420 g (14.8 oz.).
SPECIFICATIONS
g001/gLm001/gytivarGcificepSémuaB°)F°(C°
:egnaR 82ot043ot0612.1ot000.162ot0)F°671ot23(C°08ot0
:noituloseR 1.01.0100
.01.0)F°1.0(C°1.0
:ycaruccA 2.0±2.0±200.0±2.0±)F°5.0±(C°3.0±
Aqueous NaCl determinations are made by measuring the refractive index of a solution.
Refractive Index is an optical characteristic of a substance and the number of dissolved
particles in it. Refractive Index is defined as the ratio of the speed of light in empty space
to the speed of light in the substance. A result of this property is that light will “bend”, or
change direction, when it travels through a substance of different refractive index. This is
called refraction.

www.milwaukeeinst.com
7
When passing from a material with a higher to lower refractive index, there is a critical
angle at which an incoming beam of light can no longer refract, but will instead be
reflected off the interface. The critical angle can be used to easily calculate the refractive
index according to the equation:
sin (Tcritical) = n2/ n1
Where n2is the refractive index of the lower-density medium; n1is the refractive index of
the higher-density medium.
In the MA886 refractometer, light from an LED passes through a prism in contact with the
sample. An image sensor determines the critical angle at which the light is no longer
refracted through the sample.
Specialized algorithms then apply temperature compensation to the measurement
and convert this refractive index to: g/100 g (% by mass), g/100 mL, Specific Gravity
(S.G. 20/20), or Baumé.
[email protected]
www.ponpe.com

88
88
8
Instruction Manual MA886 Refractometer for Sodium Chloride Measurements
CALIBRATION PROCEDURE
MEASUREMENT GUIDELINES
• Handle instrument carefully. Do not drop.
• Do not immerse instrument under water.
• Do not spray water to any part of instrument except the “sample well” located over the
prism.
• The instrument is intended to measure sodium chloride solutions. Do not expose
instrument or prism to solvents that will damage it. This includes most organic solvents
and extremely hot or cold solutions.
• Particulate matter in a sample may scratch the prism. Absorb sample with a soft tissue
and rinse sample well with deionized or distilled water between samples.
• Use plastic pipettes to transfer all solutions. Do not use metallic tools such as needles,
spoons or tweezers as these will scratch the prism.
• Cover sample well with hand if measuring in direct sun.
Calibration should be performed daily, before measurements are made, when the
battery has been replaced, between a long series of measurements, or if environmental
changes have occured since the last calibration..
1. Press the ON/OFF key, then release. Two instrument test screens will be displayed
briefly; all LCD segments followed by the percentage of remaining battery life. It will
briefly display an indication of the measurement units set. When the LCD displays
dashes, the instrument is ready.

www.milwaukeeinst.com
9
2. Using a plastic pipette, fill the sample well with distilled or deionized water. Make
sure the prism is completely covered.
Note: If the ZERO sample is subject to intense light such as sunlight or another strong
source, cover the sample well with your hand or other shade during the
calibration.
3. Press the ZERO key. If no error messages appear, your unit is calibrated.
(For a description of ERROR MESSAGES see page 13).
Note: The 0.0 screen will remain until a sample is measured or the power is turned off.
4. Gently absorb the ZERO water standard with a soft tissue. Use care not to scratch
the prism surface. Dry the surface completely. The instrument is ready for sample
measurement.
Note: If instrument is turned off the calibration will not be lost.
[email protected]
www.ponpe.com

1010
1010
10
Instruction Manual MA886 Refractometer for Sodium Chloride Measurements
MEASUREMENT PROCEDURE
Verify the instrument has been calibrated before taking measurements.
1. Wipe off prism surface located at the bottom of the sample well. Make sure the prism
and sample well are completely dry.
2. Using a plastic pipette, drip sample onto the prism surface. Fill the well completely.
Note: If the temperature of the sample differs significantly from the temperature of the
instrument, wait approximately 1 minute to allow thermal equilibration.
3. Press the READ key. The results are displayed in unit of interest.
Note: The last measurement value will be displayed until the next sample is measured
or the instrument is turned off. Temperature will be continuously updated.
Note: The “ATC” tag blinks and automatic temperature compensation is disabled if the
temperature exceeds the 10-40 °C / 50-104 °F range.
Note: Temperature is not displayed in Baumé mode.
4. Remove sample from the sample well by absorbing on a soft tissue.

www.milwaukeeinst.com
11
5. Using a plastic pipette, rinse prism and sample well with distilled or deionized water.
Wipe dry. The instrument is ready for the next sample.
Press the RANGE key to select measurement units. The instrument toggles between
the four measurement scales each time the key is pressed and the primary display
indicates “G-G” for g/100 g, “G-L” for g/100 mL, “S.G.” for Specific Gravity and
“bAU” for Baumé. When the instrument displays the screen with 4 dashes, the
instrument is ready for measurement. A number on the display indicates the selected
unit: “1” denotes g/100 g, “2” denotes g/100 mL, “3” denotes Specific Gravity and
“4” in the secondary display denotes Baumé (as indicated on the instrument cover).
Note: Temperature is not displayed in Baumé mode.
CHANGING MEASUREMENT UNIT
[email protected]
www.ponpe.com

1212
1212
12
Instruction Manual MA886 Refractometer for Sodium Chloride Measurements
To make a Standard NaCl Solution follow the procedure below:
• Place container (such as a glass vial or dropper bottle that has a cover) on an analytical
balance.
• Tare the balance.
• To make an X NaCl solution weigh out X grams of high purity dried Sodium Chloride
(CAS #: 7647-14-5) directly into the container.
• Add distilled or deionized water to the container so the total weight of the solution is
100 g.
Example with g/100 g NaCl:
g/100 g NaCl g NaCl g Water g Total
10 10.000 90.000 100.000
MAKING A STANDARD SODIUM CHLORIDE SOLUTION
To change the temperature measurement unit from Celsius to Fahrenheit (or vice versa),
follow this procedure.
1. Press and hold the ON/OFF key continuously for approximately 8 seconds. The
LCD will display the “all segment” screen followed by a screen with the model
number on the primary display and the version number on the secondary display.
Continue pressing the ON/OFF key.
2. While continuing to hold the ON/OFF key, press the ZERO key. The temperature
unit will change from °C to °F or vice versa.
8 seconds
°C or °F
CHANGING TEMPERATURE UNIT

www.milwaukeeinst.com
13

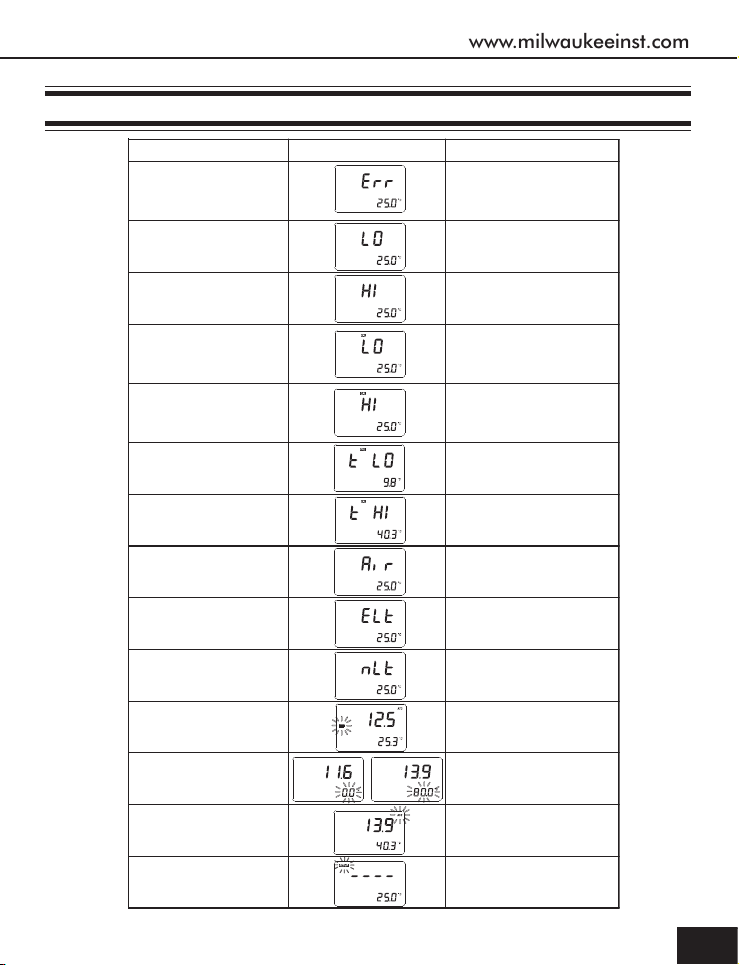

ERROR MESSAGES
edoCrorrEnoitpircseD
rrE
elcyC.eruliaflareneG
fI.tnemurtsniotrewop
,rorresahllitstnemurtsni
.eekuawliMtcatnoc
OL
yramirP yalpsid
rewolgnidaersielpmaS
desudradnats%0ehtnaht
.noitarbilacretemrof
IH
yramirP yalpsid mumixamsdeecxeelpmaS
.egnartnemerusaem
OL
yramirP yalpsid
laC NOtnemges
otdesunoitarbilacgnorW
esU.tnemurtsniorez
.retawdellitsidrodezinoied
.oreZsserP
IH
yramirP yalpsid
laC NOtnemges
otdesunoitarbilacgnorW
esU.tnemurtsniorez
.retawdellitsidrodezinoied
.oreZsserP
OLt
yramirP yalpsid
laC NOtnemges
CTAsdeecxeerutarepmeT
gnirud)C°01(timilwol
.noitarbilac
IHt
yramirP yalpsid
laC NOtnemges
CTAsdeecxeerutarepmeT
gnirud)C°04(timilhgih
.noitarbilac
riA yltneiciffusniecafrusmsir
P
.derevoc
tlE
rofthgillanretxehcumooT
revoC.tnemerusaem
.dnahhtiwllewelpmas
tLn .detcetedtonsithgilDEL
tcatn
oC eekuawliM .
gniknilbtnemgesyrettaB siefilyrettabfo%5<
.gniniamer
eraseulaverutarepmeT
gniknilb
°0.0 ro C°0.08
tnemerusae
merutarepmeT
0.0(egnargnilpmasfotuo
.)C°0.08ot
CTA gniknilbtnemges
erutarepmetedistuO
ot01(egnarnoitasnepmo
c
.)C°04
PUTES tnemges
gniknilb
.tsolnoitarbilacyrotcaF
tcatnoC
eekuawliM .
[email protected]
www.ponpe.com

1414
1414
14
Instruction Manual MA886 Refractometer for Sodium Chloride Measurements
BATTERY REPLACEMENT
To replace the instrument’s battery, follow these steps:
• Turn the instrument OFF by pressing the ON/OFF key.
• Turn instrument upside down and remove the battery cover by turning it counterclockwise.
• Extract the battery from its location.
• Replace with fresh 9V battery making certain to observe polarity.
• Insert the back battery cover and fasten it by turning clockwise to engage.

www.milwaukeeinst.com
15
WARRANTY
This instrument is warranted against defects in materials and manufacturing for a period of
2 years from the date of purchase. Electrodes are warranted for 6 months.
If during this period the repair or replacement of parts is required, where the
damage is not due to negligence or erroneous operation by the user, please return
the instrument, electrode and probe to either distributor or our office and the repair
will be effected free of charge.
Damage due to accidents, misuse, tampering or lack of prescribed maintenance is
not covered by the warranty.
Milwaukee/Martini instruments reserves the right to make improvements
in design, construction and appearance of its products without advance
notice.
For your Safety don’t use or store the instrument in hazardous environments. To avoid
damages or burns, do not perform any measurement in microwave ovens.
[email protected]
www.ponpe.com

THANK YOU FOR CHOOSING
Sales and Technical Service Contacts:
Milwaukee Electronics Kft.
Alsókikötősor 11.
6726, Szeged, Hungary
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
Milwaukee Instruments, Inc.
2950 Business Park Drive Rocky Mount, NC
27804 USA
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
www.milwaukeeinst.com
MANMA886 08/09
