INSTRUCTION MANUAL

22
22
2
Instruction Manual MA882, MA883, MA884 & MA885 Refractometers
for Wine and Grape Product Measurements
FUNCTIONAL DESCRIPTION ............................................................................. 3
GENERAL DESCRIPTION .................................................................................... 5
SPECIFICATIONS .............................................................................................. 6
PRINCIPLE OF OPERATION ................................................................................ 7
MEASUREMENT UNITS ....................................................................................... 8
MEASUREMENT GUIDELINES ............................................................................ 10
CALIBRATION PROCEDURE ............................................................................. 11
MEASUREMENT PROCEDURE ........................................................................... 12
CHANGING MEASUREMENT UNIT (MA884 & MA885) ...................................... 14
CHANGING TEMPERATURE UNIT ..................................................................... 15
CHANGING POTENTIAL ALCOHOL CONVERSION FACTOR (MA884 only) ........ 15
MAKING A STANDARD %BRIX SOLUTION ......................................................... 16
ERROR MESSAGES ........................................................................................... 17
BATTERY REPLACEMENT ................................................................................... 18
WARRANTY ..................................................................................................... 19
TABLE OF CONTENTS
Remove the instrument from the packing materials and examine carefully to
ensure no damage has occurred during shipping. If any damage has
occurred, notify your Dealer.
Each instrument is supplied with:
• 9 V battery
• Instruction manual
Note: Save all packing material until you are sure that the instrument
functions correctly. A defective instrument must be returned in its
original packing.

www.milwaukeeinst.com
3
FUNCTIONAL DESCRIPTION
A. BATTERY STATUS ICON (BLINKS WHEN LOW BATTERY CONDITION DETECTED)
B. MEASUREMENT IN PROGRESS TAG
C. SETUP: FACTORY CALIBRATION TAG
D. CAL: CALIBRATION TAG
E. AUTOMATIC TEMPERATURE COMPENSATION
(BLINKS WHEN TEMPERATURE EXCEEDS 10-40 °C / 50-104 °F RANGE)
F. PRIMARY DISPLAY (DISPLAYS MEASUREMENT AND ERROR MESSAGES)
G. TEMPERATURE UNITS
H. SECONDARY DISPLAY (DISPLAYS TEMPERATURE MEASUREMENTS; WHEN BLINKING,
TEMPERATURE HAS EXCEEDED OPERATION RANGE: 0-80 °C / 32-176 °F)
I. RANGE INDICATOR (MA884 AND MA885)
DISPLAYDISPLAY
DISPLAYDISPLAY
DISPLAY

44
44
4
Instruction Manual MA882, MA883, MA884 & MA885 Refractometers
for Wine and Grape Product Measurements
I. BATTERY COVER
J. BATTERY COMPARTMENT
BOTTOMBOTTOM
BOTTOMBOTTOM
BOTTOM
A. LIQUID CRYSTAL DISPLAY (LCD)
B. READ KEY (USER MEASUREMENT)
C. ZERO KEY (USER CALIBRATION)
D. RANGE KEY (MA884 AND MA885)
E. ON/OFF
F. STAINLESS STEEL SAMPLE WELL AND PRISM
G. SECONDARY DISPLAY
H. PRIMARY DISPLAY
FRONT PANELFRONT PANEL
FRONT PANELFRONT PANEL
FRONT PANEL

www.milwaukeeinst.com
5
GENERAL DESCRIPTION
SIGNIFICANCE OF USE
Thank you for choosing Milwaukee. This instruction manual will provide you the
necessary information for correct use of the meter.
The MA882, MA883, MA884 and MA885 are optical instruments that are based on the
measurement of the refractive index of a solution. The measurement of refractive index is
simple and quick and provides the vintner an accepted method for sugar content analysis.
Samples are measured after a simple user calibration with deionized or distilled water.
Within seconds the instrument measures the refractive index of the grape. This digital
refractometers eliminate the uncertainty associated with mechanical refractometers and
are easily portable for measurements in the field.
The four instruments utilize internationally recognized references for unit conversion and
temperature compensation.

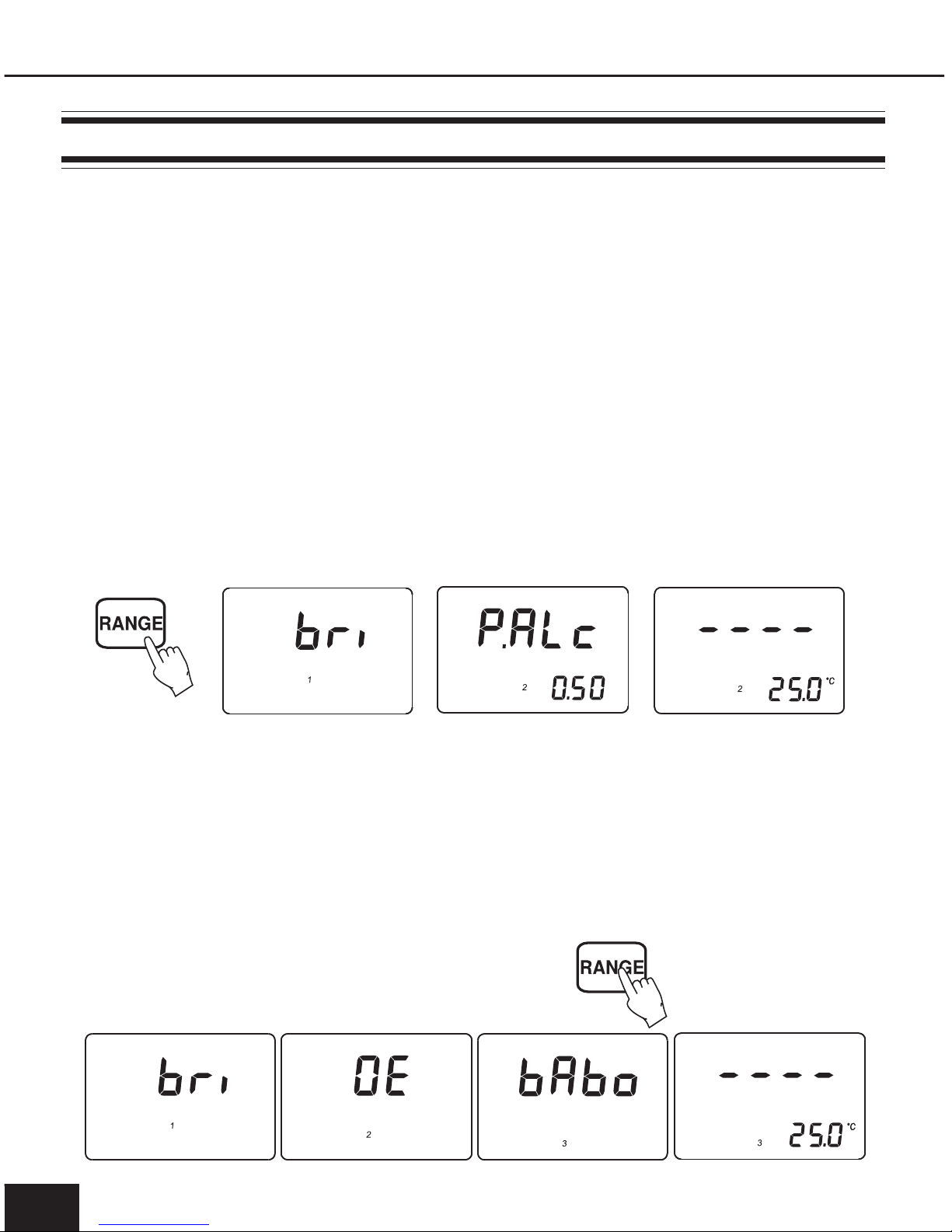

MA882 measures %Brix
MA883 measures °Baumé
MA884 measures %Brix
Potential Alcohol (% vol)
MA885 measures %Brix
°Oechsle (°Oe)
°KMW (°Babo)
Temperature (in °C or °F) is displayed simultaneously with the measurement on the large
dual level display along with icons for Low Power and other helpful message codes.
Key features include:
• Dual-level LCD
• Automatic Temperature Compensation (ATC)
• Easy setup and storage
• Battery operation with Low Power indicator
• Automatically turns off after 3 minutes of non-use
• Single-point calibration with distilled or deionized water
• Waterproof models offers IP65 waterproof protection
• Quick, precise results readings are displayed in approximately 1.5 seconds
• Small sample size as small as 2 metric drops.

66
66
6
Instruction Manual MA882, MA883, MA884 & MA885 Refractometers
for Wine and Grape Product Measurements
Common Specifications
Light Source Yellow LED
Measurement Time Approximately 1.5 seconds
Minimum Sample Volume 100 PL (cover prism totally)
Sample Cell Stainless Steel ring and flint glass prism
Temperature Compensation Automatic between 10 and 40 °C (50 to 104 °F)
Case Material ABS
Enclosure Rating IP 65
Battery Type/Life 1 x 9 volt AA batteries / 5000 readings
Auto-Shut off After 3 minutes of non-use
Dimensions 19.2 x 10.2 x 6.7 cm (7.5 x 4 x 2.6")
Weight 420 g (14.8 oz.).
SPECIFICATIONS
MA882
Range: 0 to 50 %Brix / 0 to 80°C (32 to 176°F)
Resolution: 0.1 %Brix / 0.1°C (0.1°F)
Accuracy: ±0.2 %Brix / ±0.3°C (±0.5°F)
MA883
Range: 0 to 28 °Baumé / 0 to 80°C (32 to 176°F)
Resolution: 0.1 °Baumé / 0.1°C (0.1°F)
Accuracy: ±0.1 °Baumé / ±0.3°C (±0.5°F)
MA884
Range: 0 to 50 %Brix / 0 to 25 % v/v Potential Alcohol / 0 to 80°C (32 to 176°F)
Resolution: 0.1 %Brix / 0.1 % v/v Potential Alcohol / 0.1°C (0.1°F)
Accuracy: ±0.2 %Brix / ±0.2 % v/v Potential Alcohol / ±0.3°C (±0.5°F)
MA885
Range: 0 to 50 %Brix / 0 to 230 °Oechsle/0 to 42 °KMW / 0 to 80°C (32 to 176°F)
Resolution: 0.1 %Brix / 1 °Oechsle/0.1 °KMW / 0.1°C (0.1°F)
Accuracy: ±0.2 %Brix / ±1 °Oechsle/±0.2 °KMW / ±0.3°C (±0.5°F)

www.milwaukeeinst.com
7
PRINCIPLE OF OPERATION
%Brix, °Baumé, °Oechsle, °KMW and % potential alcohol determinations are made by
measuring the refractive index of a solution. Refractive Index is an optical characteristic
of a substance and the number of dissolved particles in it. Refractive Index is defined as
the ratio of the speed of light in empty space to the speed of light in the substance. A result
of this property is that light will “bend”, or change direction, when it travels through a
substance of different refractive index. This is called refraction.

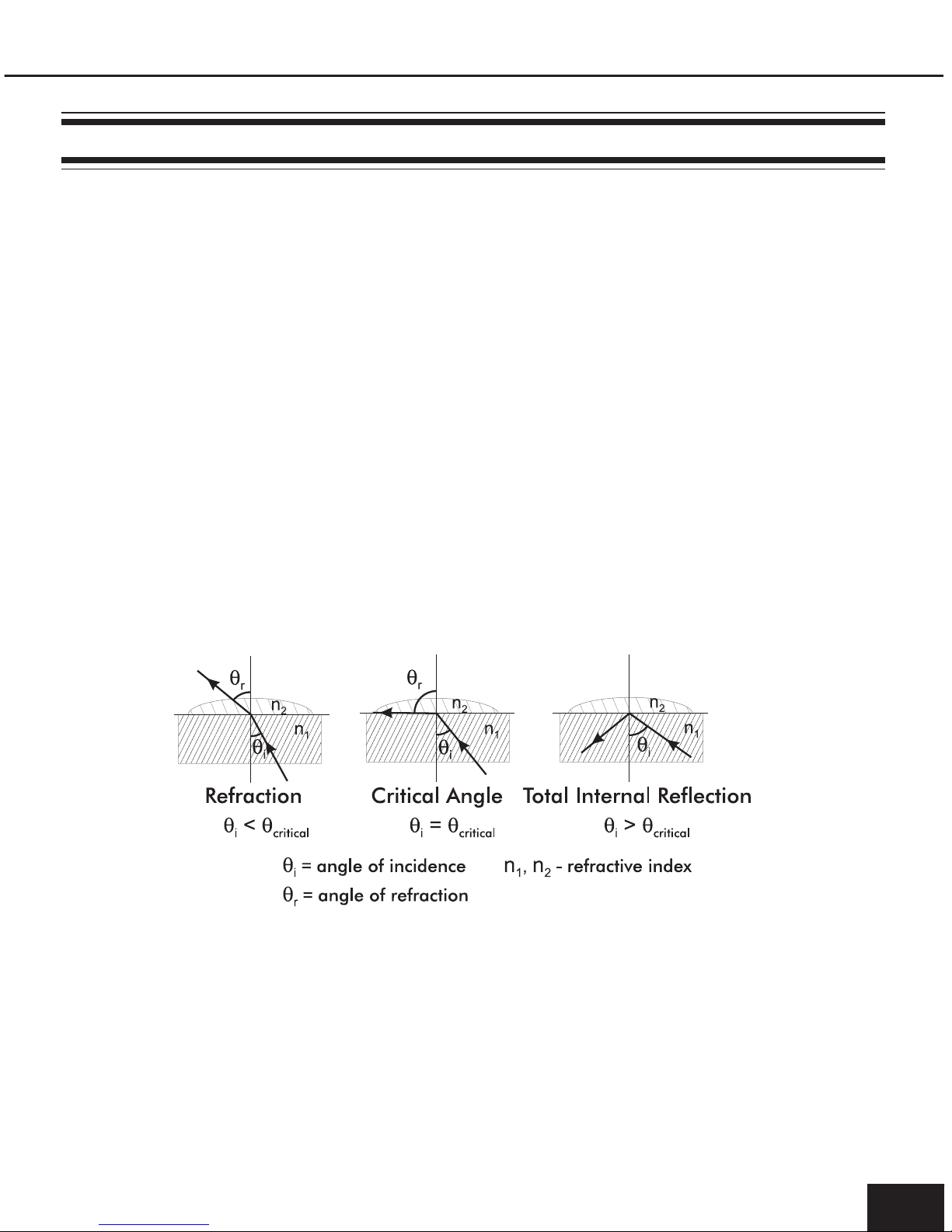

When passing from a material with a higher to lower refractive index, there is a critical
angle at which an incoming beam of light can no longer refract, but will instead be
reflected off the interface. The critical angle can be used to easily calculate the refractive
index according to the equation:
sin (Tcritical) = n2/ n1
Where n2is the refractive index of the lower-density medium; n1is the refractive index of
the higher-density medium.
In the MA882, MA883, MA884 and MA885 refractometers, light from an LED passes
through a prism in contact with the sample. An image sensor determines the critical angle
at which the light is no longer refracted through the sample.

88
88
8
Instruction Manual MA882, MA883, MA884 & MA885 Refractometers
for Wine and Grape Product Measurements
Specialized algorithms then apply temperature compensation to the measurement and
convert this refractive index to the model specific measurement unit.
MA882, MA883, MA884 and MA885 measure sugar content in several units to meet
the differing requirements found in the wine industry.
MA882, MA884 and MA885 convert the refractive index of the sample to sucrose
concentration in units of percent by weight, %Brix (also referred to as °Brix). The conversion
used is based on the ICUMSA Methods Book (International Commission for Uniform
Methods of Sugar Analysis). Since the majority of sugar in grape juice is fructose and
glucose and not sucrose, the reading is sometimes referred to as “Apparent Brix”.
MA883 has units of °Baumé. The °Baumé scale is based on density and was originally
designed to measure the mass of sodium chloride in water. °Baumé is used in wine
making to measure the sugar in must. The MA883 converts the %Brix reading to °Baumé
based on the table found in the Official Methods of Analysis of AOAC International, 18Th
Edition. 1 °Baumé is approximately equal to 1.8 %Brix, and 1 °Baumé is roughly equivalent
to 1 % alcohol when the wine is fully fermented.
In addition to %Brix, MA885 includes two other scales used in the wine industry: °Oechsle
and °KMW.
MEASUREMENT UNITS

www.milwaukeeinst.com
9
°Oechsle (°Oe) is mainly used in the German, Swiss and Luxenburgish winemaking
industry to measure the sugar content of must. The °Oe scale is based on specific gravity
at 20°C (SG20/20) and is the first 3 digits following the decimal point. 1 °Oe is roughly
equal to 0.2 %Brix.
°Oe = [(SG20/20) - 1] x 1000
°Klosterneuburger Mostwaage (°KMW) is used in Austria to measure the sugar content of
must. °KMW is related to °Oe by the following equation:
°Oe = °KMW x [(0.022 x °KMW) + 4.54]
1 °KMW is roughly equivalent to 1 %Brix or 5 °Oe. °KMW is also known as °Babo.
In addition to %Brix, MA884 also has a second scale that estimates the alcohol content
in the finished wine in (% vol/vol). This is known as “potential” or “probable“ alcohol
since the conversion between sugar and alcohol depends on many factors such as the
type of grapes, the grape maturity, the growing region and yeast fermentation efficiency
and temperature.
Since no fixed conversion factor is universally applicable, MA884 allows the user to
taylor the instrument to their specific needs based on their experience.

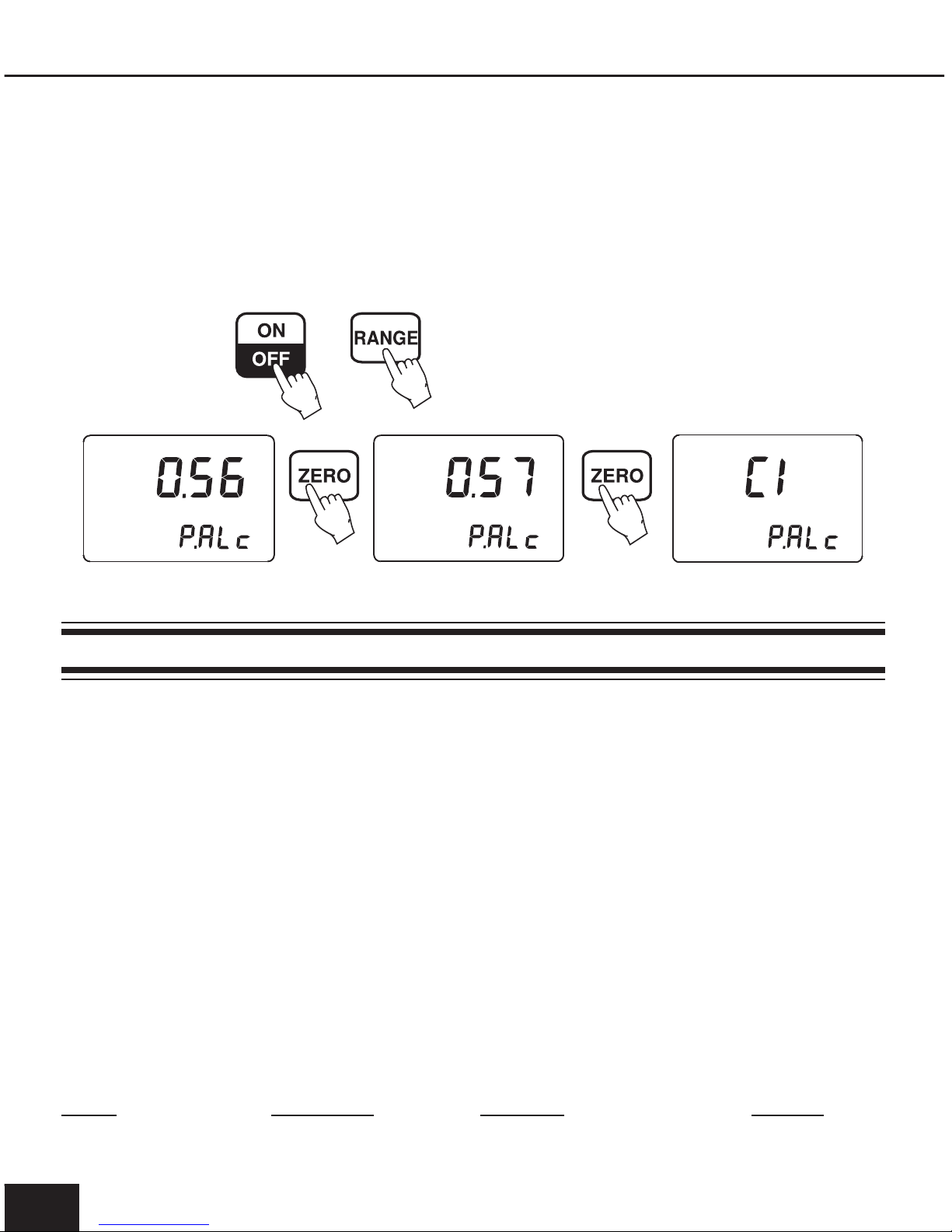

The first conversion is based on the %Brix value, with an adjustable conversion factor
anywhere between 0.50 and 0.70 (0.55 is a common value).
Potential alcohol (% v/v) = (0.50 to 0.70) x %Brix
One drawback of the above equation is that it does not take into account the
nonfermentable sugars and extract.
A second equation was also added that takes these factors into account and can give a
more accurate estimate of the alcohol content in the finished wine. This conversion is
named “C1” on the meter, and uses the following equation:
Potential Alcohol (% v/v) = 0.059 x [(2.66 x °Oe) - 30] (C1)

1010
1010
10
Instruction Manual MA882, MA883, MA884 & MA885 Refractometers
for Wine and Grape Product Measurements
MEASUREMENT GUIDELINES
• Handle instrument carefully. Do not drop.
• Do not immerse instrument under water.
• Do not spray water to any part of instrument except the “sample well” located over the
prism.
• The instrument is intended to measure grape/wine solutions. Do not expose instrument
or prism to solvents that will damage it. This includes most organic solvents and
extremely hot or cold solutions.
• Particulate matter in a sample may scratch the prism. Absorb sample with a soft tissue
and rinse sample well with deionized or distilled water between samples.
• Use plastic pipettes to transfer all solutions. Do not use metallic tools such as needles,
spoons or tweezers as these will scratch the prism.
• Cover sample well with hand if measuring in direct sun.

www.milwaukeeinst.com
11
CALIBRATION PROCEDURE
Calibration should be performed daily, before measurements are made, when the
battery has been replaced, between a long series of measurements, or if environmental
changes have occured since the last calibration.

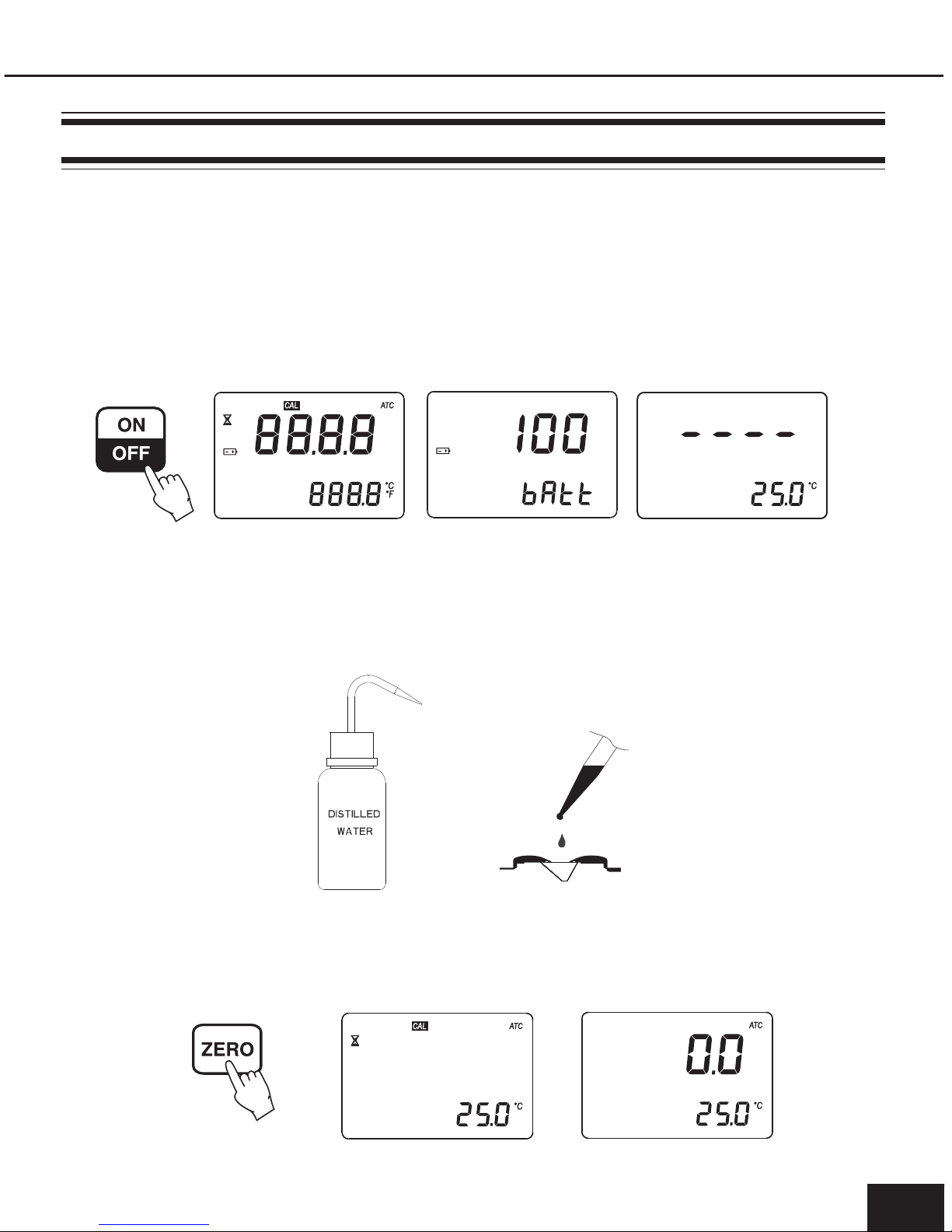

1. Press the ON/OFF key, then release. Two instrument test screens will be displayed
briefly; all LCD segments followed by the percentage of remaining battery life. When
the LCD displays dashes, the instrument is ready.
2. Using a plastic pipette, fill the sample well with distilled or deionized water. Make
sure the prism is completely covered.
Note: If the ZERO sample is subject to intense light such as sunlight or another strong
source, cover the sample well with your hand or other shade during the
calibration.
3. Press the ZERO key. If no error messages appear, your unit is calibrated.
(For a description of ERROR MESSAGES see page 17).
Note: The 0.0 screen will remain until a sample is measured or the power is turned off.

1212
1212
12
Instruction Manual MA882, MA883, MA884 & MA885 Refractometers
for Wine and Grape Product Measurements
MEASUREMENT PROCEDURE
Verify the instrument has been calibrated before taking measurements.
For MA884 and MA885 select the desired measurement unit (see page 14).
1. Wipe off prism surface located at the bottom of the sample well. Make sure the prism
and sample well are completely dry.
2. Using a plastic pipette, drip sample onto the prism surface. Fill the well completely.
Note: If the temperature of the sample differs significantly from the temperature of the
instrument, wait approximately 1 minute to allow thermal equilibration.
4. Gently absorb the ZERO water standard with a soft tissue. Use care not to scratch
the prism surface. Dry the surface completely. The instrument is ready for sample
measurement.
Note: If instrument is turned off the calibration will not be lost.

www.milwaukeeinst.com
13
3. Press the READ key. The results are displayed in unit of interest.
Note: The last measurement value will be displayed until the next sample is measured
or the instrument is turned off. Temperature will be continuously updated.
Note: The “ATC” tag blinks and automatic temperature compensation is disabled if the
temperature exceeds the 10-40 °C / 50-104 °F range.
4. Remove sample from the sample well by absorbing on a soft tissue.
5. Using a plastic pipette, rinse prism and sample well with distilled or deionized water.
Wipe dry. The instrument is ready for the next sample.

1414
1414
14
Instruction Manual MA882, MA883, MA884 & MA885 Refractometers
for Wine and Grape Product Measurements
For MA884 only:
1. Press the RANGE key to select measurement units of %Brix or % potential alcohol.
The instrument toggles between the two measurement scales each time the key is
pressed and the primary display indicates “bri” for %Brix or “P.ALc” for potential
alcohol. When the instrument displays the screen with 4 dashes, the instrument is
ready for measurement. A number on the display indicates the selected unit: “1”
denotes %Brix and “2” denotes potential alcohol as indicated on the instrument
cover.
2. The potential alcohol scale also indicates the conversion factor chosen for the
potential alcohol reading. See CHANGING POTENTIAL ALCOHOL CONVERSION
FACTOR (page 15) to change the current factor.
Note: When changing ranges the presently configured conversion factor will be
displayed in the lower display. (See page 15)
CHANGING MEASUREMENT UNIT (MA884 & MA885)
For MA885 only:
1. Press the RANGE key to select measurement units %Brix, °Oechsle (°Oe) or °KMW
(°Babo). The instrument toggles between the three scales each time the key is
pressed and the primary display indicates “bri” for %Brix, “OE” for °Oechsle or
“bAbo” for °KMW. When the instrument displays the screen with 4 dashes the
instrument is ready for measurement. A number on the display indicates the selected
unit: “1” denotes %Brix, “2” denotes °Oe and “3” denotes °KMW as indicated on
the instrument cover.

www.milwaukeeinst.com
15
To change the temperature measurement unit from Celsius to Fahrenheit (or vice versa),
follow this procedure.
1. Press and hold the ON/OFF key continuously for approximately 8 seconds. The
LCD will display the “all segment” screen followed by a screen with the model
number on the primary display and the version number on the secondary display.
Continue pressing the ON/OFF key.
2. While continuing to hold the ON/OFF key, press the ZERO key. The temperature
unit will change from °C to °F or vice versa.
8 seconds
°C or °F
CHANGING TEMPERATURE UNIT
CHANGING POTENTIALALCOHOLCONVERSIONFACTOR(MA884 only)
To change the potential alcohol conversion factor, follow this procedure.
1. Press and hold ON/OFF key continuously for approximately 8 seconds. The LCD
will display all segments screen followed by a screen with the model number on the
primary display and the version number on the secondary display. Continue pressing
the ON/OFF key.
8 seconds

1616
1616
16
Instruction Manual MA882, MA883, MA884 & MA885 Refractometers
for Wine and Grape Product Measurements
2. While continuing to hold ON/OFF, press the RANGE key. The LCD will show the
current conversion factor on the primary display and “P.ALc” on the secondary
display. Continue holding the ON/OFF key. Press the ZERO key to increase this
number. The number will continually increase until “0.70” is reached then wrap back
to “C1”. The user selectable conversion range is 0.50 to 0.70. C1 stands for “curve 1”
(see page 9). When you reach the conversion factor you desire release the ON/OFF
key. The new conversion factor will be used.
To make a Brix Solution, follow the procedure below:
• Place container (such as a glass vial or dropper bottle that has a cover) on an analytical
balance.
• Tare the balance.
• To make an X BRIX solution weigh out X grams of high purity Sucrose (CAS #: 57-50-1)
directly into the container.
• Add distilled or deionized water to the container so the total weight of the solution is
100 g.
•Note: Solutions above 60 %Brix need to be vigorously stirred or shaken and heated
in a water bath. Remove solution from bath when sucrose has dissolved. The
total quantity can be scaled proportionally for smaller containers but accuracy
may be sacrificed.
Example with 25 %Brix:
%Brix g Sucrose g Water g Total
25 25.000 75.000 100.000
MAKING A STANDARD %BRIX SOLUTION

www.milwaukeeinst.com
17

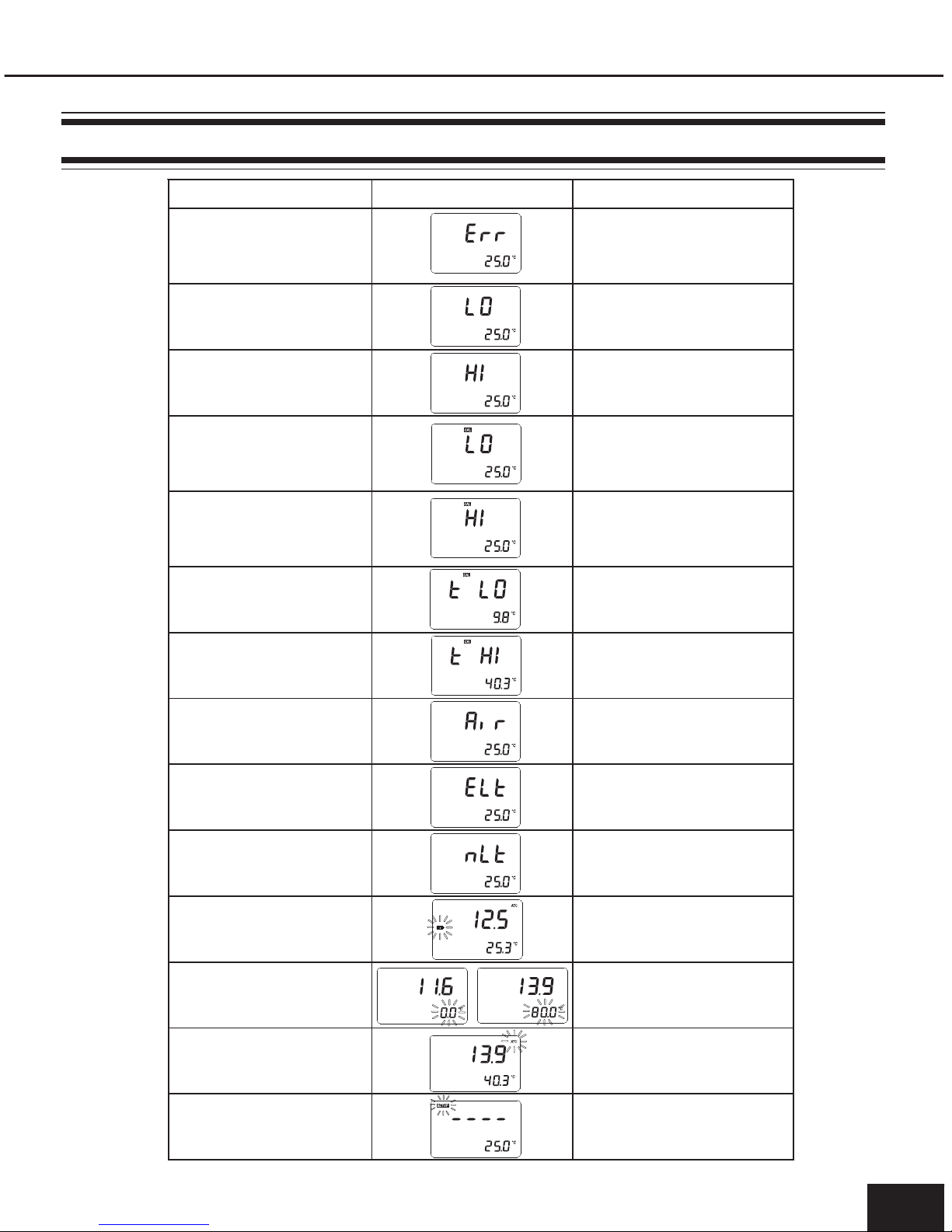

ERROR MESSAGES
edoCrorrEnoitpircseD
rrE
elcyC.eruliaflareneG
fI.tnemurtsniotrewop
,rorresahllitstnemurtsni
.eekuawliMtcatnoc
OL
yramirP yalpsid
rewolgnidaersielpmaS
desudradnats%0ehtnaht
.noitarbilacretemrof
IH
yramirP yalpsid mumixamsdeecxeelpmaS
.egnartnemerusaem
OL
yramirP yalpsid
laC NOtnemges
otdesunoitarbilacgnorW
esU.tnemurtsniorez
.retawdellitsidrodezinoied
.oreZsserP
IH
yramirP yalpsid
laC NOtnemges
otdesunoitarbilacgnorW
esU.tnemurtsniorez
.retawdellitsidrodezinoied
.oreZsserP
OLt
yramirP yalpsid
laC NOtnemges
CTAsdeecxeerutarepmeT
gnirud)C°01(timilwol
.noitarbilac
IHt
yramirP yalpsid
laC NOtnemges
CTAsdeecxeerutarepmeT
gnirud)C°04(timilhgih
.noitarbilac
riA yltneiciffusniecafrusmsir
P
.derevoc
tlE
rofthgillanretxehcumooT
revoC.tnemerusaem
.dnahhtiwllewelpmas
tLn .detcetedtonsithgilDEL
tcatn
oC eekuawliM .
gniknilbtnemgesyrettaB siefilyrettabfo%5<
.gniniamer
eraseulaverutarepmeT
gniknilb
°0.0 ro C°0.08
tnemerusae
merutarepmeT
0.0(egnargnilpmasfotuo
.)C°0.08ot
CTA gniknilbtnemges
erutarepmetedistuO
ot01(egnarnoitasnepmo
c
.)C°04
PUTES tnemges
gniknilb
.tsolnoitarbilacyrotcaF
tcatnoC
eekuawliM .

1818
1818
18
Instruction Manual MA882, MA883, MA884 & MA885 Refractometers
for Wine and Grape Product Measurements
BATTERY REPLACEMENT
To replace the instrument’s battery, follow these steps:
• Turn the instrument OFF by pressing the ON/OFF key.
• Turn instrument upside down and remove the battery cover by turning it counterclockwise.
• Extract the battery from its location.
• Replace with fresh 9V battery making certain to observe polarity.
• Insert the back battery cover and fasten it by turning clockwise to engage.

www.milwaukeeinst.com
19
WARRANTY
This instrument is warranted against defects in materials and manufacturing for a period of
2 years from the date of purchase. Electrodes are warranted for 6 months.
If during this period the repair or replacement of parts is required, where the
damage is not due to negligence or erroneous operation by the user, please return
the instrument, electrode and probe to either distributor or our office and the repair
will be effected free of charge.
Damage due to accidents, misuse, tampering or lack of prescribed maintenance is
not covered by the warranty.
Milwaukee/Martini instruments reserves the right to make improvements
in design, construction and appearance of its products without advance
notice.
For your Safety don’t use or store the instrument in hazardous environments. To avoid
damages or burns, do not perform any measurement in microwave ovens.

THANK YOU FOR CHOOSING
Sales and Technical Service Contacts:
Milwaukee Electronics Kft.
Alsókikötősor 11.
6726, Szeged, Hungary
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
Milwaukee Instruments, Inc.
2950 Business Park Drive Rocky Mount, NC
27804 USA
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
www.milwaukeeinst.com
MANMA882 08/09
