MINN KOTA MK-105PD User manual

DIGITAL
PORTABLE CHARGERS
MK105PD MK110PD
USER MANUAL

2 | minnkotamotors.com ©2017 Johnson Outdoors Marine Electronics, Inc.
INTRODUCTION
Made by Minn Kota
Johnson Outdoors
Marine Electronics, Inc.
121 Power Drive
Mankato, MN 56001 USA
Trolling Motors
Produced in 2012
ENDURA C2 30 30”
MODEL 1352230
SER NO M365 MK12345
EXAMPLE
Made by Minn Kota
Johnson Outdoors
Marine Electronics, Inc.
121 Power Drive
Mankato, MN 56001 USA
Trolling Motors
Produced in 2012
ENDURA C2 30 30”
MODEL 1352230
SER NO M365 MK12345
EXAMPLE
NOTE: The serial number on your Portable Digital
Charger is located on the bottom of the charger.
EXAMPLE
EXAMPLE
THANK YOU
Thank you for choosing Minn Kota. We believe that you should spend more time fishing, that’s why we build the smartest,
toughest, most intuitive marine products on the water. Every aspect of a Minn Kota product is thought out and rethought until it’s
good enough to bear our name. Countless hours of research and testing provide you the advantages of a Minn Kota product that
can truly take you “Anywhere. Anytime.” We don’t believe in shortcuts. We are Minn Kota. And we are never done helping you
catch more fish.
Model:__________________________________________________________________________________________________________________________
Serial Number: ________________________________________________________________________________________________________________
Purchase Date: ________________________________________________________________________________________________________________
Store Where Purchased: _____________________________________________________________________________________________________
REGISTRATION
Remember to keep your receipt and immediately register
your product. A registration card is included with your
product or you can complete registration on our website at
minnkotamotors.com.
SERIAL NUMBER
Your Minn Kota 11-character serial number is very
important. It helps to determine the specific model and
year of manufacture. When contacting Consumer Service
or registering your product, you will need to know your
product’s serial number. We recommend that you write the
serial number down so that you have it available for future
reference.
NOTE: Do not return your Minn Kota charger to your retailer. Your retailer is not authorized to repair or replace this unit.
You may obtain service by calling Minn Kota at [phone]. Please include proof of purchase, serial number and
purchase date for warranty service.
PRODUCT INFORMATION (FOR CONSUMER REFERENCE ONLY)
MK105PC
MODEL 1831050
MK110PC
MODEL 1830110

minnkotamotors.com | 3
©2017 Johnson Outdoors Marine Electronics, Inc.
Table of ConTenTs
TABLE OF CONTENTS
SAFETY INSTRUCTIONS ............................................................................................................4
Important Safety Instructions ..................................................................................................4
Personal Precautions.................................................................................................................. 5
Preparing to Charge .................................................................................................................... 5
Charger Locations........................................................................................................................ 5
DC Connection Precautions ......................................................................................................6
WARRANTY .......................................................................................................................................9
FEATURES........................................................................................................................................10
OPERATING INSTRUCTIONS..................................................................................................11
Overview........................................................................................................................................11
General Operation.......................................................................................................................11
Indicator LEDS ............................................................................................................................11
Multi-Stage Charging................................................................................................................ 12
Troubleshooting.......................................................................................................................... 13
MAINTENANCE INSTRUCTIONS..........................................................................................14
General Maintenance ................................................................................................................14
Inline Fuse ....................................................................................................................................14
Frequently Asked Questions ..................................................................................................14
For Further Troubleshooting and Repair.............................................................................16
COMPLIANCE STATEMENTS ..................................................................................................17
Environmental Compliance Statement .................................................................................17
WEEE Directive...........................................................................................................................17
Disposal..........................................................................................................................................17
FCC Compliance...........................................................................................................................17
Industry Canada Compliance ..................................................................................................18
Environmental Ratings .............................................................................................................18
PARTS DIAGRAM & PARTS LIST........................................................................................19
MK105PD ....................................................................................................................................19
MK110PD..................................................................................................................................... 21
NOTES .................................................................................................................................................23

4 | minnkotamotors.com ©2017 Johnson Outdoors Marine Electronics, Inc.
SAFETY INSTRUCTIONS
6. Do not operate charger with damaged cord or plug.
7. Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way.
8. Do not disassemble charger.
9. To reduce risk of electric shock, unplug charger from outlet and disconnect from battery before attempting any maintenance or
cleaning. Turning off controls will not reduce this risk.
IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS
1. SAVE THESE INSTRUCTIONS - This manual contains important safety and operating instructions for your Minn Kota battery
charger. The Minn Kota battery charger is a powerful electrical device. If incorrectly installed, configured or operated, the battery
charger can damage batteries and / or electrical equipment. Please thoroughly read the instructions and safety information
contained in this manual before operating the battery charger.
2. Do not expose charger to rain or snow.
3. Use of an attachment not recommended or sold by Johnson Outdoors Marine Electronics, Inc. may result in a risk or fire,
electric shock, or injury to persons.
4. To reduce the risk of damage to electric plug and cord, pull by plug rather than cord when disconnecting charger.
5. An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire
and electric shock. If an extension cord must be used, make sure:
a) That pins on plug of extension cord are the same number, size and shape as those of plug on charger;
b) That extension cord is properly wired and in good electrical condition; and
c) That wire size is large enough for ac ampere rating of charger as specified in table.
WARNING
10. WARNING - RISK OF EXPLOSIVE GASES
a) WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES
DURING NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS OF UTMOST IMPORTANCE THAT YOU FOLLOW
THE INSTRUCTIONS EACH TIME YOU USE THE CHARGER.
b) To reduce the risk of battery explosion, follow these instructions and those published by the battery manufacturer and
manufacturer of any equipment you intend to use in the vicinity of the battery. Review cautionary markings on these
products and on engine.
MODEL
AWG SIZE
25' AC Extension Cord 50' AC Extension Cord 100' AC Extension Cord 150' AC Extension Cord
MK105PD 18 AWG 18 AWG 18 AWG 16 AWG
MK110PD 18 AWG 18 AWG 18 AWG 16 AWG

minnkotamotors.com | 5
©2017 Johnson Outdoors Marine Electronics, Inc.
SAFETY INSTRUCTIONS
11. PERSONAL PRECAUTIONS
12. PREPARING TO CHARGE
13. CHARGER LOCATION
a) Consider having someone close enough by to come to your aid when you work near a lead-acid battery.
b) Have plenty of fresh water and soap nearby in case acid contacts skin, clothing, or eyes.
c) Wear complete eye protection and clothing protection. Avoid touching eyes while working near battery.
d) If battery acid contacts skin or clothing, wash immediately with soap and water. If acid enters eyes, immediately flood eye
with running cold water for at least 10 minutes and get medical attention immediately.
e) NEVER smoke or allow a spark or flame in vicinity of battery or engine.
f) Be extra cautious to reduce risk of dropping a metal tool onto battery. It might spark or short-circuit battery or other
electrical part that may cause explosion.
g) Remove personal metal items such as rings, bracelets, necklaces, and watches when working with a lead-acid battery. A
lead-acid battery can produce a short-circuit current high enough to weld a ring or the like to metal, causing a severe burn.
h) Use charger for charging batteries only. It is not intended to supply power to a low voltage electrical system other than in
a starter-motor application. Do not use battery charger for charging dry-cell batteries that are commonly used with home
appliances. These batteries may burst and cause injury to persons and damage to property.
i) NEVER charge a frozen battery.
a) If necessary to remove battery from boat or vehicle to charge, always remove grounded terminal from battery first. Make
sure all accessories in the boat or vehicle are off , so as not to cause an arc.
b) Be sure area around battery is well ventilated while battery is being charged.
c) Clean battery terminals. Be careful to keep corrosion from coming in contact with eyes.
d) Add distilled water to each cell until battery acid reaches level specified by battery manufacturer. Do not overfill. For a
battery without removable cell caps, such as valve regulated lead acid batteries, carefully follow manufacturer's recharging
instructions.
e) Study all battery manufacturer's specific precautions while charging and recommended rates of charge.
f) The Minn Kota charger will only charge 12 volt 6 cell LEAD-ACID: FLOODED/WET CELL, MAINTENANCE FREE, and
AGM/STARVED ELECTROLYTE batteries. Do not connect the output of the charger to any other voltage or battery type.
a) Locate charger as far away from battery as dc cables permit.
b) Never place charger directly above battery being charged; gases from battery will corrode and damage charger.
c) Never allow battery acid to drip on charger when reading electrolyte specific gravity or filling battery.
d) Do not operate charger in a closed-in area or restrict ventilation in any way.
e) Do not set a battery on top of charger.
f) Each DC output cord is six feet long. Make sure that all DC output cords can reach the batteries and that the AC power cord
can reach a power source. Do not shorten the DC output cords, as this can affect charger output.

6 | minnkotamotors.com ©2017 Johnson Outdoors Marine Electronics, Inc.
SAFETY INSTRUCTIONS
14. DC CONNECTION PRECAUTIONS
a) Connect and disconnect dc output clips only after setting any charger switches to "off" position and removing ac cord from
electric outlet. Never allow clips to touch each other.
b) Attach clips to battery and chassis as indicated in 15(e), 15(f), and 16(b).
15. FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN VEHICLE. A SPARK NEAR BATTERY MAY CAUSE
BATTERY EXPLOSION. TO REDUCE RISK OF A SPARK NEAR BATTERY:
a) Position ac and dc cords to reduce risk of damage by
hood, door, or moving engine part.
b) Stay clear of fan blades, belts, pulleys. and other parts
that can cause injury to persons.
c) Check polarity of battery posts. POSITIVE (POS, P, +)
battery post usually has a larger diameter than NEGATIVE
(NEG, N, -) post.
d) Determine which post of battery is grounded (connected)
to the chasis. If negative post is grounded to chasis (as in
most vehicles), see (e). If positive post is grounded to the
chasis, see (f).
e) For negative-grounded vehicle, connect POSITIVE
(RED) clip from battery charger to POSITIVE (POS, P, +)
ungrounded post of battery. Connect NEGATIVE (BLACK)
clip to vehicle chassis or engine block away from battery. Do
not clip to carburetor, fuel lines, or sheet-metal body parts.
Connect to a heavy gage metal part of the frame or engine
block. (Refer to Figure 1).
f) For positive-grounded vehicle, connect NEGATIVE
(BLACK) clip from battery charger to NEGATIVE (NEG, N, -)
ungrounded post of battery. Connect POSITIVE (RED) clip
to vehicle chassis or engine block away from battery. Do not
connect clip to carburetor, fuel lines, or sheet-metal body
parts. Connect to a heavy gage metal part of the frame or
engine block. (Refer to Figure 2).
g) When disconnecting charger, turn switches to off,
disconnect AC cord, remove clip from vehicle chassis, and
then remove clip from battery terminal.
h) See operating instructions for length of charge
information.
Figure 1
Figure 2
Ground
Ground
NEGATIVE
(Black) Clip
POSITIVE
(Red) Clip
POSITIVE
(POS, P, +)
Battery Post
POSITIVE
(POS, P, +)
Battery Post
NEGATIVE
(NEG, N, -)
Battery Post
NEGATIVE
(NEG, N, -)
Battery Post

minnkotamotors.com | 7
©2017 Johnson Outdoors Marine Electronics, Inc.
SAFETY INSTRUCTIONS
16. FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE VEHICLE. A SPARK NEAR THE BATTERY MAY CAUSE
BATTERY EXPLOSION. TO REDUCE RISK OF A SPARK NEAR BATTERY:
a) Check polarity of battery posts. POSITIVE (POS, P, +) battery post usually has a larger diameter than NEGATIVE (NEG, N,
-) post.
b) Connect POSITIVE (RED) charger clip to POSITIVE (POS, P, +) post of battery. Connect NEGATIVE (BLACK) charger clip
to NEGATIVE (NEG, N, -) post of battery.
c) Do not face battery when making final connection.
d) When disconnecting charger, always do so in reverse sequence of connecting procedure.
e) A marine (boat) battery must be removed and charged on shore. To charge it on board requires equipment specially
designed for marine use.
DANGER
17. DANGER - Never alter AC cord or plug provided – if it will not fit outlet, have proper outlet installed by a qualified electrician.
Improper connection can result in a risk of an electric shock.
DANGER
18. DANGER - Do not attempt to repair or service the charger yourself. Opening the charger may expose you to high voltages,
the risk of electric shock, and other hazards.
DANGER
19. DANGER - Do not splice the AC power cord.
UTION
20. CAUTION - When using an extension cord, make the AC connection to the charger outside of the battery compartment as far
away as practical to reduce the risk of a spark igniting gasses in the compartment.
UTION
21. CAUTION - Even though the Minn Kota charger is capable of operating in a high ambient temperature environment, a
minimum of six inches of unobstructed area should be allowed on all sides of the unit for proper air circulation and cooling.
Proper cooling and circulation will allow the charger to operate at peak efficiency.

8 | minnkotamotors.com ©2017 Johnson Outdoors Marine Electronics, Inc.
SAFETY INSTRUCTIONS
UTION
23. CAUTION - We recommend that you not recharge your battery, with the watercraft or motor lower unit in the water during
electrical storms. Severe damage to the motor or charging system may occur if lightning strikes nearby or if storm related high
voltage conditions exist.
UTION
24. CAUTION - If using a generator to power the charger, it must have a clean output and be safe for use on electrical equipment.
Generators with a sine wave output can be used to power this charger. See the table in the Maintenance Instructions for power
requirements.
DANGER
25. DANGER - Damaged cords and plugs can cause electric shock or electrocution.
UTION
22. CAUTION - Before making any connections to batteries in a confined space (such as a battery compartment of a boat), open
the door or hatch of the compartment and allow it to air out for 15 minutes. This allows any gasses that have accumulated in the
compartment to escape.

WARRANTY ON MINN KOTA BATTERY CHARGERS
Johnson Outdoors Marine Electronics, Inc. (“JOME”) extends the following limited warranty to the original retail purchaser only. Warranty coverage is not
transferable.
Minn Kota Limited Three-Year Replacement Warranty on the Entire Product
JOME warrants to the original retail purchaser only that the purchaser’s new Minn Kota battery charger and battery maintainer will be materially free from
defects in materials and workmanship appearing within three (3) years after the date of purchase. JOME will (at its option) replace, free of charge, any
charger found by JOME to be defective during the term of this warranty. Such replacement shall be the sole and exclusive liability of JOME and the sole and
exclusive remedy of the purchaser for breach of this warranty.
Exclusions & Limitations
This limited warranty does not apply to products that have been used commercially or for rental purposes. This limited warranty does not cover normal
wear and tear, blemishes that do not affect the operation of the product, or damage caused by accidents, abuse, alteration, modification, shipping
damages, acts of God, negligence of the user or misuse, improper or insufficient care or maintenance. DAMAGE CAUSED BY THE USE OF OTHER
REPLACEMENT PARTS NOT MEETING THE DESIGN SPECIFICATIONS OF THE ORIGINAL PARTS WILL NOT BE COVERED BY THIS
LIMITED WARRANTY. The cost of normal maintenance or replacement parts which are not in breach of the limited warranty are the responsibility of the
purchaser. Prior to using products, the purchaser shall determine the suitability of the products for the intended use and assumes all related risk and liability.
Any assistance JOME provides to or procures for the purchaser outside the terms, limitations or exclusions of this limited warranty will not constitute a
waiver of the terms, limitations or exclusions, nor will such assistance extend or revive the warranty. JOME will not reimburse the purchaser for any expenses
incurred by the purchaser in repairing, correcting or replacing any defective products or parts, except those incurred with JOME’s prior written permission.
JOME’S AGGREGATE LIABILITY WITH RESPECT TO COVERED PRODUCTS IS LIMITED TO AN AMOUNT EQUAL TO THE PURCHASER’S
ORIGINAL PURCHASE PRICE PAID FOR SUCH PRODUCT.
Minn Kota Service Information
To obtain warranty service in the U.S., the product believed to be defective, and proof of original purchase (including the date of purchase), must be presented
to Minn Kota’s factory service center in Mankato, MN. Any charges incurred for service calls, transportation or shipping/freight to/from the Minn Kota
Authorized Service Center or factory, labor to haul out, remove, re-install or re-rig products removed for warranty service, or any other similar items are the
sole and exclusive responsibility of the purchaser. Products purchased outside of the U.S. must be returned prepaid with proof of purchase (including the
date of purchase and serial number) to any Authorized Minn Kota Service Center in the country of purchase. Warranty service can be arranged by contacting
a Minn Kota Authorized Service Center or by contacting the factory at 1-800-227-6433 or email [e-mail]. Products repaired or
replaced will be warranted for the remainder of the original warranty period [or for 90 days from the date of repair or replacement,
whichever is longer]. For any product that is returned for warranty service that JOME finds to be not covered by or not in breach of this
limited warranty, there will be a billing for services rendered at the prevailing posted labor rate and for a minimum of at least one hour.
NOTE: Do not return your Minn Kota product to your retailer. Your retailer is not authorized to repair or replace products.
NOTE: THERE ARE NO EXPRESS WARRANTIES OTHER THAN THESE LIMITED WARRANTIES. IN NO EVENT SHALL ANY
IMPLIED WARRANTIES INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR
PURPOSE, EXTEND BEYOND THE DURATION OF THE RELEVANT EXPRESS LIMITED WARRANTY. IN NO EVENT SHALL JOME BE
LIABLE FOR PUNITIVE, INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. Without limiting the foregoing, JOME
assumes no responsibility for loss of use of product, loss of time, inconvenience or other damage.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above
limitations and/or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights which vary from state
to state.
minnkotamotors.com | 9
©2017 Johnson Outdoors Marine Electronics, Inc.
WARRANTY
NOTE: There are no serviceable components inside the charger.

10 | minnkotamotors.com ©2017 Johnson Outdoors Marine Electronics, Inc.
FEATURES
NOTE: Specifications subject to change without notice. This diagram is for reference only and may differ from your
actual charger.
Digital, Microprocessor-Based Design for:
• Automatic, Multi-Stage Charging
• Automatic Temperature Compensation
Digital, Microprocessor-Based Design for:
• Automatic, Multi-Stage Charging
• Automatic Temperature Compensation
MK105PD
MK110PD
Comprehensive
LED Display
Comprehensive
LED Display

minnkotamotors.com | 11
©2017 Johnson Outdoors Marine Electronics, Inc.
Operating instructiOns
Operating instructiOns
OVERVIEW
This is a high performance battery charger that has the ability
to properly and safely work with LEAD-ACID: FLOODED/
WET CELL, MAINTENANCE FREE, and AGM/STARVED
ELECTROLYTE batteries only. It is important to read and
understand how to properly use the battery charger before
charging batteries.

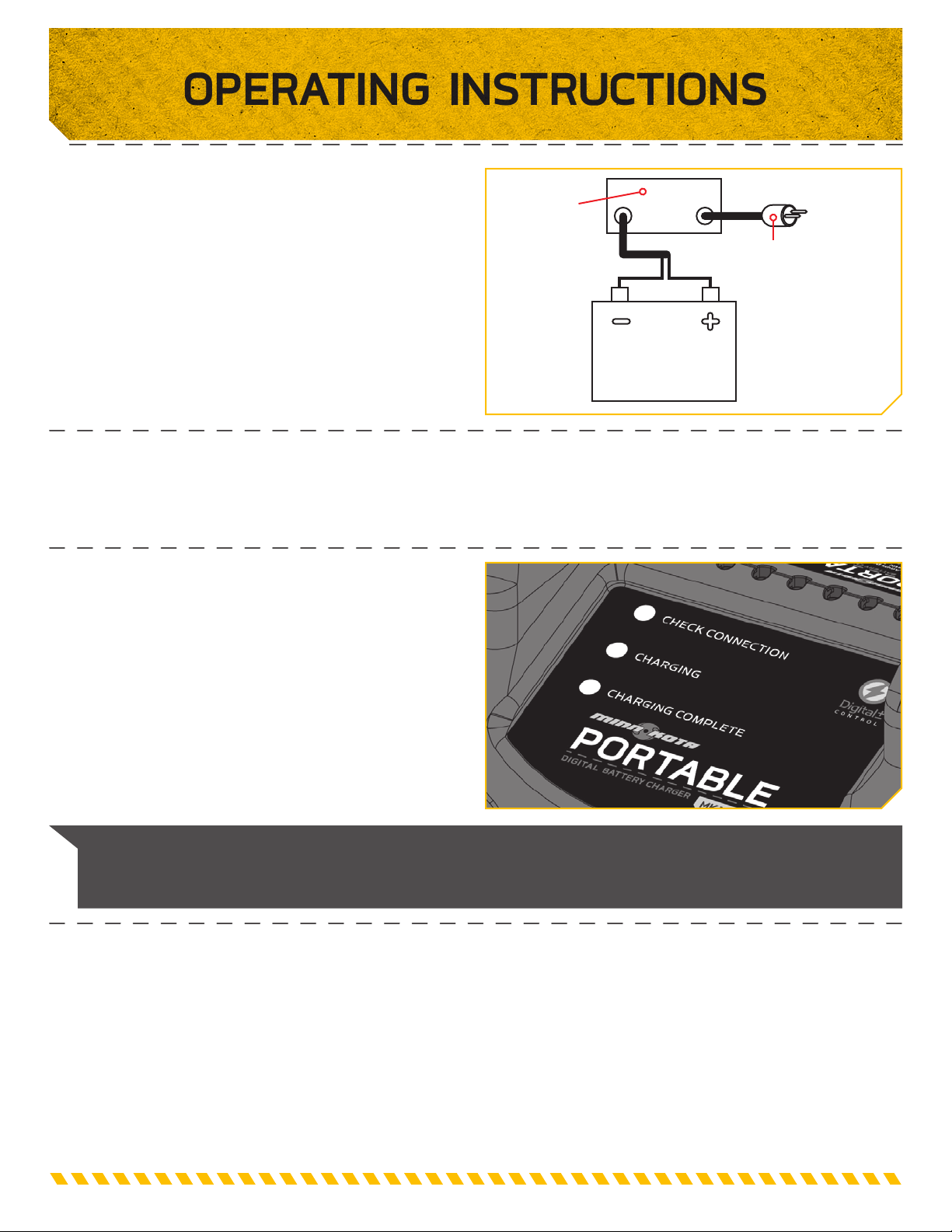

GENERAL OPERATION
After the AC cord on the charger is plugged in and a battery is connected to the output cable correctly, the Yellow LED will turn
on. After 4 seconds the charger will begin charging the battery. The 4 second delay is added to allow the user to establish a
good connection before the charger output is turned on. This will help prevent unwanted sparks during battery connections.
12v Battery
Black- Red+
Single Bank
Battery Charger
120V AC Input
NOTE: If a RED LED is on, reference the Troubleshooting Section of this manual to determine the reason and take the
necessary corrective action to remedy the situation. If you are unable to remedy the situation and need help, call the
Minn Kota Service Department at 1.800.227.6433 and a technical support representative will be happy to assist you.
INDICATOR LEDS
Each bank has the following LEDs:
• A solid RED LED indicates there is an issue with the
battery connection.
• A flashing RED LED indicates an error. See the
Troubleshooting section of this manual.
• A YELLOW LED indicates the progress of charging.
• A flashing GREEN LED indicates battery is fully charged, in
Maintenance Mode and ready to use.
• A solid GREEN LED indicates battery is fully charged, in
long term Maintenance Mode and ready to use.

12 | minnkotamotors.com ©2017 Johnson Outdoors Marine Electronics, Inc.
OPERATING INSTRUCTIONS
MULTI-STAGE CHARGING
Minn Kota’s Multi-Stage Charging delivers a fast, precise charge profile by automatically controlling current and voltage without
overcharging your batteries.
Bulk: During this stage, the charger delivers full current until the battery reaches ~75% charge. A YELLOW LED is lit to indicate
the battery is charging in the Bulk Mode.
Absorption: The charging current tapers down while the battery voltage is held at 14.4V (at 77° F). A flashing YELLOW LED
indicates the battery is charging in the Absorption Mode.
Maintenance: When the battery reaches full charge, the charger voltage is reduced. A flashing GREEN LED is lit to indicate
the battery is in Maintenance Mode and ready to use. After 24 hours, the charger automatically turns off and a steady GREEN
LED is lit to indicate the battery is in long term Maintenance Mode and ready to use. The charger will automatically resume
charging when the battery voltage drops below 12.6V.
Charging Full Charge
Charging Full Charge
Yellow LED Flashing Yellow LED Flashing Green LED Green LED
(THREE STAGE CHARGER)

minnkotamotors.com | 13
©2017 Johnson Outdoors Marine Electronics, Inc.
OPERATING INSTRUCTIONS
TROUBLESHOOTING
Error Condition Solution
RED LED is lit.
Check connection.
• Check polarity of leads to battery.
• Check connections to battery and fuses in output cord.
• Check voltage at battery. The bank will not charge a battery below 4 volts or above 18 volts.
• If still not working, call the Minn Kota Service Department at 1-800-227-6433.
RED LED is flashing.
Temperature sensor error.
• Reset the charger by unplugging the AC cord. Wait for all LEDs to turn off.
• Plug in the AC cord.
• If still not working, call the Minn Kota Service Department at 1-800-227-6433.
RED LED & GREEN LED is flashing.
Battery may be damaged.
• Check to make sure there are not any loads on the battery.
• Check the fluid in the battery and add fluid if necessary.
• If the battery voltage does not rise above 10.5 volts in 3 hours, or if the absorption voltage does
not increase to 14.4 volts (at 77F), the charger bank will shut down and will not charge. The battery
should be tested.
• If still not working, call the Minn Kota Service Department at 1-800-227-6433.
Indicator LEDs will not illumine.
• Check the AC power at the outlet.
• Make sure the GFCI(Ground Fault Circuit Interrupter) for the outlet has not tripped.
• If an extension cord is being used, check the AC power at the end of the extension cord.
• If still not working, call the Minn Kota Service Department at 1-800-227-6433.
Charger powers up and then turns off.
• If an extension cord is being used, check the AC power at the end of the extension cord.
• Extension cord AWG is too small - refer to chart in the Safety Instructions section.
• Very low AC voltage is applied to the charger.
• If still not working, call the Minn Kota Service Department at 1-800-227-6433.
NOTE: For all other malfunctions, please contact Custom Service. Our customer service representatives are available
Monday – Friday between 7:00 a.m. – 4:30 p.m. CST at 800-227-6433.

14 | minnkotamotors.com ©2017 Johnson Outdoors Marine Electronics, Inc.
MAINTENANCE INSTRUCTIONS
GENERAL MAINTENANCE
• Check battery charger for dirt, oil, battery corrosion, etc. Use a water and baking soda solution for cleaning corrosion. Wipe
clean using a dry cloth.
• Check clips for dirt, oil, and battery corrosion; then disconnect from battery posts and clean as necessary with water and
baking soda solution and dry with a clean cloth.
• When the charger is not in use, coil the power cord and output cord to prevent damage.
• When storing the battery charger, store in a clean dry area.
• If power cord or plug becomes damaged, you may contact the Minn Kota Service Repair Department for service repair
information. Otherwise, dispose of the battery charger in compliance with local law. Damaged cords and plugs can cause
electric shock or electrocution.
ELECTRICAL SPECIFICATIONS
Model Part No. System
Volts Output per Bank (amps) Total Output (amps) Input Current (120VAC, 60Hz) Input Power (120VAC, 60Hz)
MK105PD 1831050 12 5 5 0.8A 90W
MK110PD 1830110 12 10 10 1.8A 180W
MECHANICAL SPECIFICATIONS
Model Part No. Banks Input Cable Output Cable Size L x W x H Weight (lbs)
MK105PD 1831050 118AWG - 6" 16AWG - 6' 5" x 7" x 6-1/2" 3.5
MK110PD 1830110 118AWG - 6" 16AWG - 6' 7" x 9" x 7-3/4" 6.5
FREQUENTLY ASKED QUESTIONS
1. Can I charge two batteries on one charger bank?
• Yes, but it is not recommended. It takes double the amount of time to charge two batteries and could result in an error being
displayed if the batteries take too long to charge.
2. Do I need to disconnect the series or parallel battery connection(s) when using Minn Kota chargers?
• No, the battery jumper wire(s) can remain in place for both types of wiring.
INLINE FUSE
The output cord has an inline fuse on the RED end. The fuse serves as protection from surges and short circuits caused
by a damaged charger output cable. If a fuse blows, replace it with a 30 amp ATC 32V automotive fuse. Improper battery
connections will normally not cause a fuse to blow since this is handled by the internal circuitry of the charger.
DANGER
Damaged cords and plugs can cause electric shock or electrocution.

minnkotamotors.com | 15
©2017 Johnson Outdoors Marine Electronics, Inc.
GENERAL MAINTENANCE
3. How warm do Minn Kota battery chargers get?
• The Minn Kota battery chargers can reach 150° F. They may get warm in an enclosed area. The maximum recommended
room temperature for charging batteries is 122° F. If the charger seems to get “hot,” try opening a hatch to help cool the
charger. When the charger is hot, the output current will drop to protect the charger and the battery.
4. What size fuses are used on Minn Kota battery chargers?
• Chargers with a yellow fuse holder use a 30 amp AGX 32V automotive fuse. An AGC can be used but may not fit as well as
the AGX. Chargers with a red fuse holder use a 30 amp ATC 32V automotive fuse.
5. What Batteries can be charged by a Minn Kota charger?
• Minn Kota Chargers can charge 12 volt 6 cell lead-acid batteries. Minn Kota D Series Chargers and Minn Kota
Portable Chargers work well with LEAD-ACID: FLOODED/WET CELL, MAINTENANCE FREE, and AGM/STARVED
ELECTROLYTE. Minn Kota PC series Chargers have optimized charging for LEAD-ACID: FLOODED/WET CELL,
MAINTENANCE FREE, GEL and AGM/STARVED ELECTROLYTE battery types. You should verify with your Battery’s
Manufacturer the maximum Amp input for your Battery. The Amp Hour or AH rating for your battery should be in the range
indicated below for the per bank amp output of the battery charger selected.
Model Battery Charger Output Per Bank Battery Amp Hour Rating
MK105PD 5 AMPS 20-125 AH
MK110PD 10 AMPS 40-125 AH
6. Will I damage my batteries if I leave the charger plugged in over long periods of non-use (like storage)?
• No. Minn Kota’s chargers float the battery voltage at 13.4V (at 77F) in the “maintenance” stage (3rd stage). This will allow
you to keep your battery charger plugged in for long periods of time without “boiling the battery dry.”
NOTE: It is important to check the electrolyte level approximately every 30 days. Batteries should be filled after
charging, and the electrolyte level should be even in all cells and below the fill well in each cell. If the battery plates are
exposed before charging, add just enough water to cover the plates. If the battery is overfilled before charging, it may
overflow during charging.
7. Can I charge Lithium batteries?
• Minn Kota has not worked directly with any Lithium battery suppliers to determine if our chargers are compatible with their
batteries. Most of the Lithium Battery manufactures post required charge stage information on their web sites.
8. Are the chargers serviceable?
• There are no serviceable components inside the charger.
9. Can I use a portable generator to run my charger?
• Careful selection should be used when deciding on a portable generator for electronics. There are 2 important factors that
must be considered:
Output power: Generators are marketed in output wattage. This wattage must be higher than the power required by the
battery charger. Please review power requirements stated in the user manual for your specific charger.
Output type: Minn Kota chargers require clean output power from the generator to prevent permanent damage. The
generator must replicate the power from a standard AC outlet in your home (sine wave output).

16 | minnkotamotors.com ©2017 Johnson Outdoors Marine Electronics, Inc.
FOR FURTHER TROUBLESHOOTING AND REPAIR
Scan to visit
Minn Kota
service online.
Scan to visit
Minn Kota
service online.
FOR FURTHER TROUBLESHOOTING AND REPAIR
We offer several options to help you troubleshoot and/or repair your product. Please read through the options listed below.
Frequently Asked Questions
We have FAQs available on our website to help answer all of your Minn Kota questions. Visit minnkotamotors.com and
click on “Frequently Asked Questions” to find an answer to your question.
Call Us (for U.S. and Canada)
Our customer service representatives are available
Monday – Friday between 7:00 a.m. – 4:30 p.m. CST
at 800-227-6433.
Email Us
You can email our consumer service department with questions regarding your Minn Kota products. To email your question,
visit minnkotamotors.com and click on “Support”.
NOTE: There are no serviceable components inside
the charger.

minnkotamotors.com | 17
©2017 Johnson Outdoors Marine Electronics, Inc.
COMPLIANCE STATEMENTS
FCC COMPLIANCE
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by Johnson Outdoors Marine Electronics, Inc. could void the user’s authority to
operate this equipment.
INDUSTRY CANADA COMPLIANCE
This product meets the applicable Industry Canada technical specifications. Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Changes or modifications not expressly approved by Johnson Outdoors Marine Electronics, Inc. could void the user’s authority to
operate this equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
ENVIRONMENTAL COMPLIANCE STATEMENT
It is the intention of JOME to be a responsible corporate citizen, operating in compliance with known and applicable
environmental regulations, and a good neighbor in the communities where we make or sell our products.
WEEE DIRECTIVE
EU Directive 2002/96/EC “Waste of Electrical and Electronic Equipment Directive (WEEE)” impacts most distributors, sellers,
and manufacturers of consumer electronics in the European Union. The WEEE Directive requires the producer of consumer
electronics to take responsibility for the management of waste from their products to achieve environmentally responsible
disposal during the product life cycle.
WEEE compliance may not be required in your location for electrical & electronic equipment (EEE), nor may it be required for
EEE designed and intended as fixed or temporary installation in transportation vehicles such as automobiles, aircraft, and boats.
In some European Union member states, these vehicles are considered outside of the scope of the Directive, and EEE for those
applications can be considered excluded from the WEEE Directive requirement.
This symbol (WEEE wheelie bin) on product indicates the product must not be disposed of with other household
refuse. It must be disposed of and collected for recycling and recovery of waste EEE. Johnson Outdoors Inc.
will mark all EEE products in accordance with the WEEE Directive. It is our goal to comply in the collection,
treatment, recovery, and environmentally sound disposal of those products; however, these requirements do
vary within European Union member states. For more information about where you should dispose of your waste
equipment for recycling and recovery and/or your European Union member state requirements, please contact
your dealer or distributor from which your product was purchased.
DISPOSAL
Minn Kota chargers are not subject to the disposal regulations EAG-VO (electric devices directive) that implements the WEEE
directive. Nevertheless never dispose of your Minn Kota charger in a garbage bin but at the proper place of collection of your
local town council.
Never dispose of battery in a garbage bin. Comply with the disposal directions of the manufacturer or his representative and
dispose of them at the proper place of collection of your local town council.
WARNING
This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

18 | minnkotamotors.com ©2017 Johnson Outdoors Marine Electronics, Inc.
COMPLIANCE STATEMENTS
FCC COMPLIANCE
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by Johnson Outdoors Marine Electronics, Inc. could void the user’s authority to
operate this equipment.
INDUSTRY CANADA COMPLIANCE
This product meets the applicable Industry Canada technical specifications. Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Changes or modifications not expressly approved by Johnson Outdoors Marine Electronics, Inc. could void the user’s authority to
operate this equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CE MASTER USER MANUAL (FOR CE CERTIFIED MODELS)
Ambient operating temperature range: -10C to 50C
Ambient operating humidity range: 5% to 95%
Maximum operating altitude: 10,000 feet
ENVIRONMENTAL RATINGS

minnkotamotors.com | 19
©2017 Johnson Outdoors Marine Electronics, Inc.
PARTS DIAGRAM & PARTS LIST
MK105PD
This page provides Minn Kota® WEEE compliance instructions. Charger can not be disassembled, but the cords can be cut and
removed. For more information about where you should dispose of your waste equipment for recycling and recovery and/or your
European Union member state requirements, please contact your dealer or distributor from which your product was purchased.
Tools required, but not limited to: wire cutters.
Parts Diagram
10
12
22
32
22
8
34
36
18
20
30
4
22
32
14
6
28
2
16
24
26

20 | minnkotamotors.com ©2017 Johnson Outdoors Marine Electronics, Inc.
PARTS DIAGRAM & PARTS LIST
✖This part cannot be ordered individually.
pNot shown on Parts Diagram.
Item Part # Description Quantity
p✖POST CARD, REGISTRATION 1
p✖MANUAL,MK110PD & MK105PD 1
2✖CTRL BOARD, PORT.DIGITAL CHRGR 1
4✖DECAL-FRONT, MK105PD 1
6✖DECAL-BACK, MK105PD 1
8✖LABEL-WARNING, MK105PD 1
10 ✖TRANSFORMER, MK105PD 1
12 ✖HEAT SINK, MK105PD 1
14 ✖WASHER-BELLEVILLE,3MM 1
16 ✖STAND-OFF,MK105P CHRG,15MM 4
18 ✖CORD-INPUT,PORTABLE CHRGR,SJT 1
20 ✖CORD-OUTPUT,MK105P W/FUSE HLDR 1
22 ✖SCREW M4 X 18MM TYPE BT BZPS 6
24 ✖SCREW-T-BAR M3.5 X 15 MM 1
26 ✖T-BAR 30 X 8 X 2MM 1
28 ✖SWITCH, PORTABLE CHARGER 1
30 ✖BOOT-SILICONE 11 X 26MM 2
32 ✖HOUSING,MK105P PORTABLE CHRGR 2
34 ✖EMI FILTER,CHRGRS,1.0 UF 1
36 ✖BOARD WIRE INSULATION 1
Parts List
