MINN KOTA MK106PC User manual

PRECISION ONBOARD
CHARGERS
MK106PC MK110PC
MK212PC MK220PC
MK230PC MK318PC
MK330PC MK345PC
MK440PC MK460PC
USER MANUAL
MK 330PC
MK 345PC

Model:
Serial Number:
Purchase Date:
Store Where Purchased:
NOTE: Do not return your Minn Kota product to your retailer. Your retailer is not authorized to repair or replace this unit. You may obtain service
by: calling Minn Kota at [phone]; returning your motor to the Minn Kota Factory Service Center; sending or taking your motor to any
Minn Kota authorized service center. A list of authorized service centers is available on our website, at minnkotamotors.com. Please include proof of
purchase, serial number and purchase date for warranty service with any of the above options.
Please thoroughly read this user manual. Follow all instructions and heed all safety and cautionary notices below. Use of this motor is only
permitted for persons that have read and understood these user instructions. Minors may use this motor only under adult supervision.
THANK YOU
Thank you for choosing Minn Kota. We believe that you should spend more time fishing and less time positioning your boat. That’s
why we build the smartest, toughest, most intuitive marine products on the water. Every aspect of a Minn Kota product is thought
out and rethought until it’s good enough to bear our name. Countless hours of research and testing provide you the advantages of
a Minn Kota product that can truly take you “Anywhere. Anytime. “ We don’t believe in shortcuts. We are Minn Kota. And we are
never done helping you catch more fish.
REMEMBER TO KEEP YOUR RECEIPT AND IMMEDIATELY REGISTER YOUR PRODUCT.
A registration card is enclosed or you can complete registration on our website at minnkotamotors.com.
LOCATING YOUR SERIAL NUMBER
Your Minn Kota 11-character serial number is very important. It helps to determine the specific model and year of manufacture. When contacting
Consumer Service or registering your product, you will need to know your product’s serial number. We recommend that you write the serial number down
in the space provided below so that you have it available for future reference.
Serial number formats may include MKAD1234567 or J123MK12345
CE MASTER USER MANUAL (FOR CE/C-TICK CERTIFIED MODELS)
Conforms to 89/336/EEC (EMC) under standards EN 55022A, EN 50082-2 since 1996 LN V9677264
2 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.

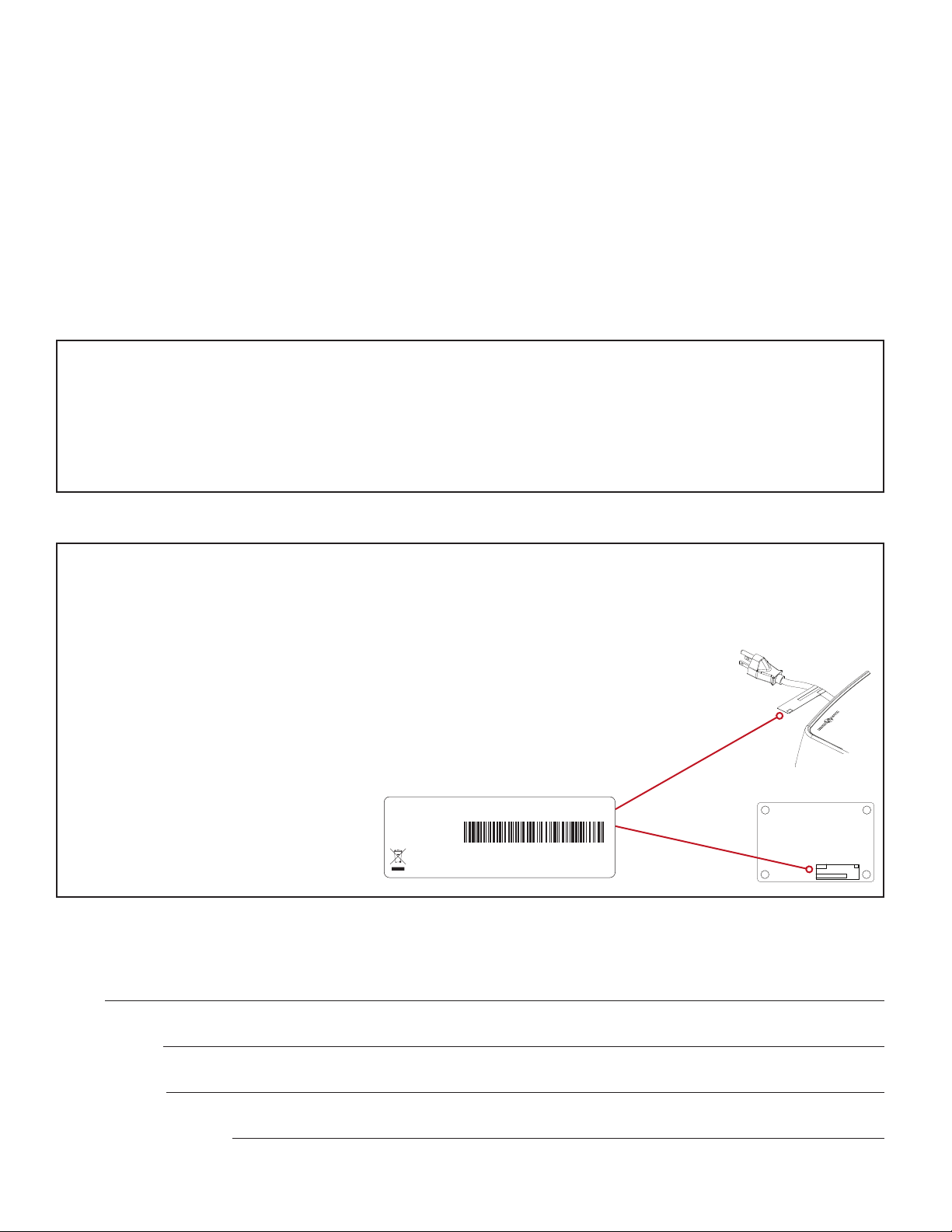

The serial number on your Precision Charger is
located on the input cord and the bottom of the
charger.
Made by Minn Kota
Johnson Outdoors
Marine Electronics, Inc.
121 Power Drive
Mankato, MN 56001 USA
Battery Chargers
Produced in 2014
Precision Charger
MODEL 1831060
SER NO M365 MK12345
EXAMPLE

minnkotamotors.com | 3
©2015 Johnson Outdoors Marine Electronics, Inc.
TABLE OF CONTENTS
Three-Year Limited Warranty 4
Features 5
Safety Precautions 6-8
Installation 9-10
Locating the Charger 9
Mounting the Charger 9
Installing the MK-EC Battery Extension Cable Accessory (not included) 10
Operating the Charger 11-14
Overview 11
Selecting the Battery Type 12
General Operation 12
Indicator LEDs 13
Multi-stage Charging 13-14
Troubleshooting 15
Frequently Asked Questions 16-17
Service & Maintenance 18
Compliance Statements 19
Parts Diagram & Parts Lists 21-25

WARRANTY ON MINN KOTA BATTERY CHARGERS
Johnson Outdoors Marine Electronics, Inc. (“JOME”) extends the following limited warranty to the original retail purchaser only. Warranty coverage is not
transferable.
MINN KOTA LIMITED THREE-YEAR REPLACEMENT WARRANTY ON THE ENTIRE PRODUCT
JOME warrants to the original retail purchaser only that the purchaser’s new Minn Kota battery charger and battery maintainer will be materially free from
defects in materials and workmanship appearing within three (3) years after the date of purchase. JOME will (at its option) replace, free of charge, any charger
found by JOME to be defective during the term of this warranty. Such replacement shall be the sole and exclusive liability of JOME and the sole and exclusive
remedy of the purchaser for breach of this warranty.
EXCLUSIONS & LIMITATIONS
This limited warranty does not apply to products that have been used commercially or for rental purposes. This limited warranty does not cover normal wear
and tear, blemishes that do not affect the operation of the product, or damage caused by accidents, abuse, alteration, modification, shipping damages, acts
of God, negligence of the user or misuse, improper or insufficient care or maintenance. DAMAGE CAUSED BY THE USE OF OTHER REPLACEMENT
PARTS NOT MEETING THE DESIGN SPECIFICATIONS OF THE ORIGINAL PARTS WILL NOT BE COVERED BY THIS LIMITED WARRANTY.
The cost of normal maintenance or replacement parts which are not in breach of the limited warranty are the responsibility of the purchaser. Prior to using
products, the purchaser shall determine the suitability of the products for the intended use and assumes all related risk and liability. Any assistance JOME
provides to or procures for the purchaser outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of the terms, limitations
or exclusions, nor will such assistance extend or revive the warranty. JOME will not reimburse the purchaser for any expenses incurred by the purchaser
in repairing, correcting or replacing any defective products or parts, except those incurred with JOME’s prior written permission. JOME’S AGGREGATE
LIABILITY WITH RESPECT TO COVERED PRODUCTS IS LIMITED TO AN AMOUNT EQUAL TO THE PURCHASER’S ORIGINAL PURCHASE
PRICE PAID FOR SUCH PRODUCT.
MINN KOTA SERVICE INFORMATION
To obtain warranty service in the U.S., the product believed to be defective, and proof of original purchase (including the date of purchase), must be presented to
Minn Kota’s factory service center in Mankato, MN. Any charges incurred for service calls, transportation or shipping/freight to/from the Minn Kota Authorized
Service Center or factory, labor to haul out, remove, re-install or re-rig products removed for warranty service, or any other similar items are the sole and
exclusive responsibility of the purchaser. Products purchased outside of the U.S. must be returned prepaid with proof of purchase (including the date of
purchase and serial number) to any Authorized Minn Kota Service Center in the country of purchase. Warranty service can be arranged by contacting a Minn
Kota Authorized Service Center or by contacting the factory at 1-800-227-6433 or email [e-mail]. Products repaired or replaced
will be warranted for the remainder of the original warranty period [or for 90 days from the date of repair or replacement, whichever
is longer]. For any product that is returned for warranty service that JOME finds to be not covered by or not in breach of this limited
warranty, there will be a billing for services rendered at the prevailing posted labor rate and for a minimum of at least one hour.
NOTE: Do not return your Minn Kota product to your retailer. Your retailer is not authorized to repair or replace products.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THESE LIMITED WARRANTIES. IN NO EVENT SHALL ANY IMPLIED
WARRANTIES INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, EXTEND
BEYOND THE DURATION OF THE RELEVANT EXPRESS LIMITED WARRANTY. IN NO EVENT SHALL JOME BE LIABLE FOR PUNITIVE,
INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. Without limiting the foregoing, JOME assumes no responsibility for
loss of use of product, loss of time, inconvenience or other damage.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above
limitations and/or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights which vary from state
to state.
4 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
THREE-YEAR REPLACEMENT WARRANTY

minnkotamotors.com | 5
©2015 Johnson Outdoors Marine Electronics, Inc.

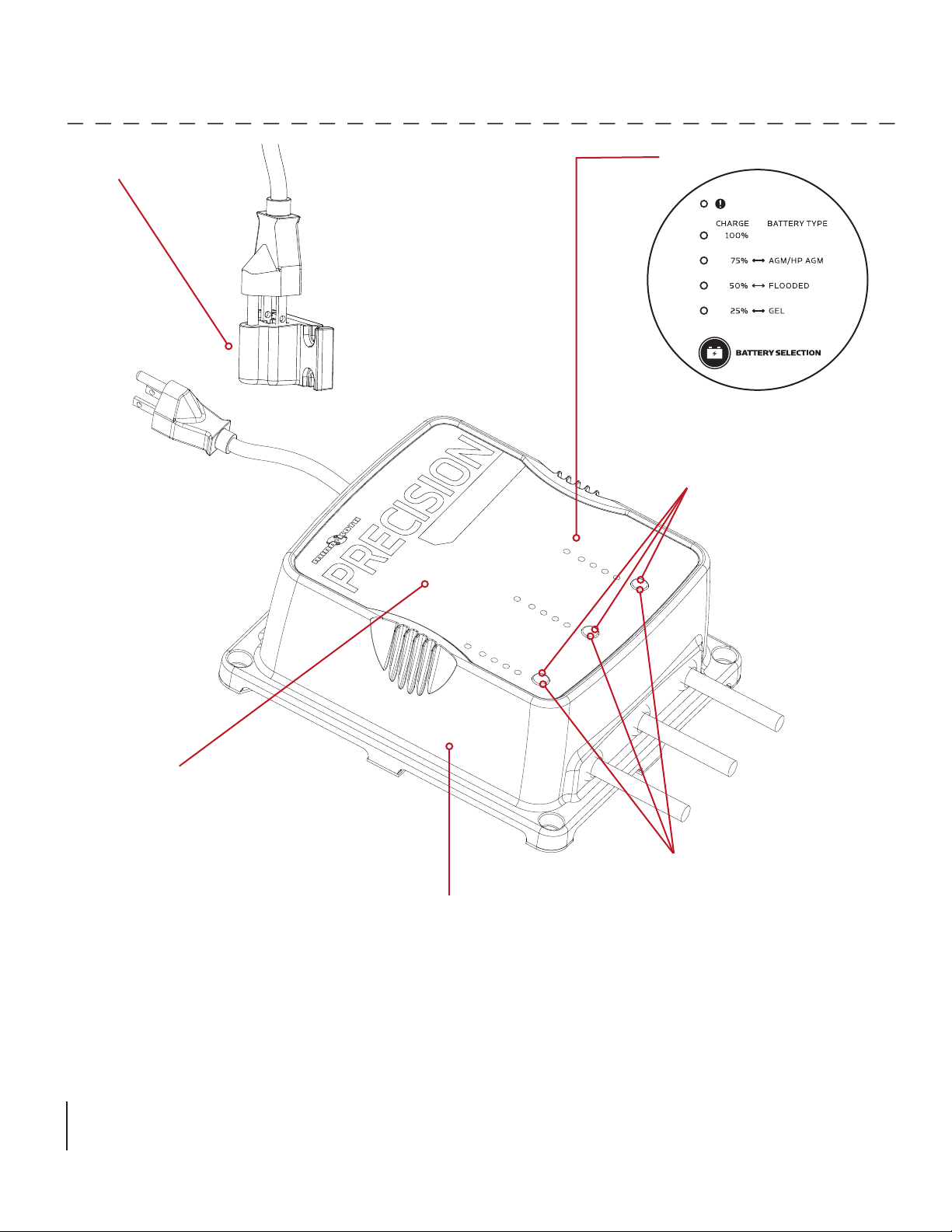

FEATURES
Specifications subject to change without notice.
*This diagram is for reference only and may differ from your actual charger.
MK 330PC
Comprehensive LED Display
AC Plug Holder
Digital, Microprocessor-Based Design for:
• Automatic Temperature Compensation
• Low-Line Voltage Compensation
• Automatic, Multi-Stage Charging
• True-Rated Output Waterproof, shock-resistant,
vibration resistant construction
Battery Equalization
(Flooded Lead-Acid only)
Battery Selection by Bank

6 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
SAFETY PRECAUTIONS
SAVE THESE INSTRUCTIONS!
This manual contains important safety and operating instructions applicable to the safe and efficient use of your Minn Kota
battery charger.
WARNING: Risk of explosive gases - working in the vicinity of a lead acid battery is dangerous. Batteries contain sulfuric acid
and produce explosive gases. A battery explosion could result in loss of eyesight or serious burns. For this reason, it is of utmost
importance that you follow the instructions each time you use the charger.
To reduce the risk of battery explosion, follow these instructions and those published by the battery manufacturer for any
equipment you intend to use in the vicinity of the battery. Review cautionary markings on these products and on engine, motor or
other equipment requiring battery usage.
WARNING: Do not attempt to repair or service the charger yourself. Opening the charger may expose you to high voltages, the
risk of electric shock, and other hazards.
IMPORTANT SAFETY INSTRUCTIONS
• The Minn Kota battery charger is a powerful electrical device. If incorrectly installed, configured or operated, the battery
charger can damage batteries and / or electrical equipment. Please thoroughly read the instructions and safety information
contained in this manual before operating the battery charger.
• Use of an attachment not recommended or sold by Johnson Outdoors Inc. may result in risk of fire, electric shock, or injury to
persons or property.
• The charger is not intended for use by young children or infirm persons without supervision. Young children should be
supervised to ensure that they do not play with the charger.
• To reduce risk of damage to electric plug or cord, pull by the plug rather than the cord when disconnecting the battery charger.
An AC extension cord should not be used unless absolutely necessary. Use of the improper AC extension cord could result in a
risk of fire or electric shock. If an AC extension cord must be used, make sure:
◊ That pins of plug of the extension cord are the same number,
size and shape of those of the plug on the battery charger;
◊ That extension cord is properly wired and in good electrical
condition; and
◊ That wire in extension cord is proper size according to the chart:
• Do not operate the battery charger with a damaged cord or plug.
• Do not operate the battery charger if it has received a sharp blow,
been dropped or otherwise damaged in any way.
• Do not disassemble the charger. Incorrect reassembly may result
in a risk of electric shock or fire.
• To reduce risk of electric shock, unplug the charger from outlet before attempting any maintenance or cleaning. Disconnecting the
leads will not reduce this risk.
• To reduce risk of shock or spark, never touch the ring terminals together while the charger is plugged into an outlet or extension cord.
• External connections to the battery charger shall comply with the United States Coast Guard electrical regulations
(33CFR183, Sub Part 1).
25' AC Ext. Cord 50' AC Ext. Cord 100' AC Ext. Cord
MK106PC/MK110PC/MK212PC/MK106D/MK210D
AWG Size 18 18 16
MK440PC/MK345PC/MK440D
AWG Size 16 12 10
MK220PC/MK230PC/MK318PC/MK330PC/MK220D/MK315D/MK330D
AWG Size 16 16 12
MK460PC
AWG Size 14 12 10

minnkotamotors.com | 7
©2015 Johnson Outdoors Marine Electronics, Inc.
SAFETY PRECAUTIONS
PERSONAL PRECAUTIONS
a. Consider having someone close enough nearby to come to your aid when you work near a lead acid battery.
b. Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing or eyes.
c. Wear complete eye protection and clothing protection. Avoid touching eyes while working near battery.
d. If battery acid contacts skin or clothing, wash immediately with soap and water. If acid enters eye, immediately flush eye with
running cold water for at least 10 minutes and get medical attention immediately.
e. Never smoke or allow a spark or flame in vicinity of battery, engine, motor or other flammable or explosive equipment.
f. Be extra cautious to reduce risk of dropping a metal tool onto the battery or across the battery terminals. It might spark or
short circuit the battery or other electrical component that may cause an explosion.
g. Remove personal metal items such as rings, bracelets, necklaces, and watches when working with a lead acid battery. A lead
acid battery can produce a short circuit current high enough to weld such items, causing severe burns.
h. Use the Minn Kota battery charger for charging and maintaining FLOODED LEAD-ACID, MAINTENANCE FREE, GEL CELL,
AND AGM / STARVED ELECTROLYTE batteries only. It is not intended to supply power to low voltage electrical systems
other than for charging and maintaining batteries. Do not use the charger for charging dry-cell batteries that are commonly
used with home appliances. These batteries may burst and cause injury to persons and damage to property.
DC CONNECTION PRECAUTIONS
a. The Minn Kota charger will only charge 12 volt 6 cell lead acid batteries including flooded lead/acid, AGM, and GEL batteries.
Do not connect the output of the charger to any other voltage or type of battery.
b. The charger’s DC output terminals are designed to be permanently mounted and connected to batteries.
c. Connect and disconnect DC output terminals only after disconnecting the AC plug from the electric outlet.
d. The charger output leads must be connected with the correct polarity for the charger to function. The RED lead must be
connected to the POSITIVE terminal of the battery and the BLACK lead must be connected to the NEGATIVE terminal of the
battery, as indicated in e(5), e(6) and f(2), f(3).
e. Follow these steps when the battery charger is installed in a boat or vehicle. A spark near the battery may cause battery
explosion. To reduce the risk of a spark near the battery:
1. Position AC and DC cords to reduce risk of damage by hood, door, or moving engine parts.
2. Stay clear of fan blades, belts, pulleys and other parts that can cause injury to persons.
3. Check polarity of battery posts. POSITIVE (POS, P, +) battery post is usually larger in diameter than
NEGATIVE (NEG, N, -) post.
4. Determine which post of the battery is grounded (connected) to the chassis (if any). If negative post is grounded to the
boat hull or chassis (as in most vehicles), see step 5 below. If positive post is grounded to the boat hull or chassis, see
step 6 below. If neither is grounded, the order in which the output leads are connected does not matter.
5. For negative-grounded boat or vehicle, connect POSITIVE (RED) output terminal to POSITIVE (POS, P, +) ungrounded
post of battery first. Then connect NEGATIVE (BLACK) output to NEGATIVE (NEG, N, -) grounded post of battery.
6. For positive-grounded boat or vehicle, connect NEGATIVE (BLACK) output to NEGATIVE (NEG, N, -) ungrounded post
of battery first. Then, connect POSITIVE (RED) output terminal to POSITIVE (POS, P, +) grounded post of battery.
7. When disconnecting charger, disconnect AC power cord from electric outlet first.
8. See operating instructions for length of charge information.

8 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
SAFETY PRECAUTIONS
f. Follow these steps when battery is outside boat or vehicle. A spark near battery may cause battery explosion. To reduce the
risk of a spark near battery:
1. Check polarity of battery posts. POSITIVE (POS, P, +) battery post is usually larger in diameter than
NEGATIVE (NEG, N, -) post.
2. Connect POSITIVE (RED) output terminal to POSITIVE (POS, P, +) post of battery.
3. Connect NEGATIVE (BLACK) output terminal to NEGATIVE (NEG, N, -) post of battery.
4. Do not face battery when making final connection.
5. When disconnecting charger, disconnect AC power cord from electric outlet first.
6. When disconnecting output terminals from battery posts, always do so in reverse sequence of the connecting procedure.
7. A marine (boat) battery does not need to be removed and charged on shore. However, instructions must be followed for
location of charger when permanently mounted or used on board.
AC POWER CORD CONNECTION PRECAUTIONS
The Minn Kota battery charger should be grounded to reduce risk of electric shock. The charger is equipped with an electric AC
power cord. The plug must be plugged into an outlet that is properly installed in accordance with all local codes and ordinances.
DANGER: Never alter AC cord or plug provided – if it will not fit outlet, have proper outlet installed by a qualified electrician.
Improper connection can result in a risk of an electric shock.
CAUTION – To reduce risk of fire or electric shock, connect battery charger directly to grounding receptacle (three-prong). An
adapter should not be used with battery charger.
CAUTION - Due to the higher charging current of the Minn Kota charger it is recommended that you check with the battery
manufacturer's maximum recommended charger current before connecting multiple charger outputs to 1 battery.

minnkotamotors.com | 9
©2015 Johnson Outdoors Marine Electronics, Inc.
INSTALLATION
INSTALLATION AND MOUNTING
LOCATING THE CHARGER
a. Never place charger above battery being charged; gases from battery will corrode and damage charger.
b. Never allow battery acid to drip on charger when reading electrolyte specific gravity or filling battery.
c. Do not operate charger in a closed-in area or restrict ventilation in any way.
d. Do not set a battery on top of charger.
e. Do not mount the charger below the waterline of the boat or directly adjacent to fuel tanks.
f. Each DC output cord is six feet long. Make sure that all DC output cords can reach the batteries and that the AC power
cord can reach a power source. When using an extension cord, make the AC connection to the charger outside of the
battery compartment as far away as practical to reduce the risk of a spark igniting gasses in the compartment.
g. Do not shorten the DC output cords, as this can affect charger output..
h. If the DC output cords are not long enough, they may be lengthened by splicing and soldering 12 AWG (minimum) wire. Each
splice should be covered with dual wall adhesive lined heat shrink tubing to protect the joint from corroding. The splice should
be made between the fork in the output cable and the fuse holder. The fuse holder should always remain within 7” of the
battery terminals. The maximum extension length is 15 feet. You may contact the Minn Kota Service Department with any
questions.
WARNING: Do not splice the AC power cord, as this voids the three year Limited Warranty.
i. Even though the Minn Kota charger is capable of operating in a high ambient temperature environment, a minimum of six
inches of unobstructed area should be allowed on all sides of the unit for proper air circulation and cooling. Proper cooling and
circulation will allow the charger to operate at peak efficiency.
MOUNTING THE CHARGER
Due to the weight of the charger and the impact that boats routinely endure, take the time to securely mount the charger to
prevent damage. Mounting with nuts, bolts and washers is preferable to mounting with screws.
1. Use the largest diameter bolts possible and use all four mounting holes.
2. After marking the locations, set the charger aside and drill the holes.
3. Apply a marine grade silicone sealant in each of the drilled holes to create a waterproof seal.
4. Then secure the charger in place using the mounting hardware.
NOTE: Your battery charger is supplied with an AC plug holder designed to hold the power cord plug when not in use. Mount
the AC plug holder with four screws in a convenient dry site to prevent corrosion to the AC plug and to prevent the AC plug from
making contact with the battery posts.
WARNING: Make sure the charger is disconnected from ac power before connecting the batteries to the output cords.
CAUTION: Before making any connections to batteries in a confined space (such as a battery compartment of a boat), open
the door or hatch of the compartment and allow it to air out for 15 minutes. This allows any gasses that have accumulated in the
compartment to escape.

10 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
OPTIONAL INSTALLATION
minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
MK-EC EXTENSION BLE ACCSORY
Model # 1820089
Parts Included:
Description Qty.
15ft Extension Cable 1
Wire Splice 2
Adhesive Heat Shrink 2
INSTALLING THE MK-EC EXTENSION CABLE ACCESSORY
The Minn Kota Battery Charger Output Extension Cables are ideal for extending charger output cables that do not reach bow,
center or transom battery compartments. Featuring easy installation with waterproof adhesive heat shrink for use in saltwater
environments. Each conductor is fused for protection against accidental short circuits.
TOOLS AND RESOURCES REQUIRED:
• Wire Cutters
• Wire Strippers
1. Remove AC power from your charger and disconnect the charger from
ALL batteries.
2. Open the door or hatch of the compartment and allow it to air out
for 15 minutes. This allows any gasses that have accumulated in the
compartment to escape.
3. Find the charger output cable you would like to extend and use the wire
cutters to cut the red or white (positive) and black (negative) wires before
the fuse holders.
NOTE: Some output cables will have a temperature sensor in the cable
covered by heat shrink. You must cut above the temperature sensor to
avoid damaging the sensor (see Figure 1).
4. Remove the loose pieces of insulation from the ends of the extension cable wires and crimp the black (negative) wire into the
Wire Splice connector using the crimpers (see Figure 2).
5. Strip the charger output cable wires 3/8” if they are 12AWG. Strip the output wires 3/4” if they are 14AWG or 16AWG.
6. Place one of the Adhesive Heat Shrinks over the Wire Splice and onto the black extension cable wire.
7. For 12AWG wire, insert the black charger output cable into the Wire Splice and crimp using the crimpers. For 14AWG or
16AWG wire, fold the stripped black charger output wire in half before inserting and crimping the wire.
8. Center the Adhesive Heat Shrink over the Wire Splice. Using the heat gun, warm the Adhesive Heat Shrink until it seals the
connection.
9. Repeat steps 4 through 8 for connecting the red or white (positive) wires to the Wire Splice.
10. Prepare each battery in advance by cleaning off dirt, oil, battery corrosion, etc. Use a water and baking soda solution for
cleaning corrosion. Wipe using a dry cloth.
11. Route the output extension cable away from sharp objects. Do not remove the fuse holders, since fuses are located on both
the positive and negative wires for protection in case of a short circuit.
12. Now connect the extension cable to the battery. Be sure to connect the black (negative -) ring terminal to the negative battery
post and connect the red (positive +) ring terminal to the positive battery post.
• Crimpers
• Heat Gun
Cut Here
Figure 1
White or Red (Positive +) Wire
White (Positive +) Wire
Do not cut wires near
temperature sensor
Charger Output CableExtension Cable
Black (Negative –) Wire
Heat Shrink
Wire-Splice Connector
Red (Positive +) Wire
Black (Negative –) Wire
To Battery
Figure 2
Temperature
Sensor
(OPTIONAL ACCESSORY KIT #1820089 - NOT INCLUDED)

minnkotamotors.com | 11
©2015 Johnson Outdoors Marine Electronics, Inc.
OPERATING THE CHARGER
OVERVIEW

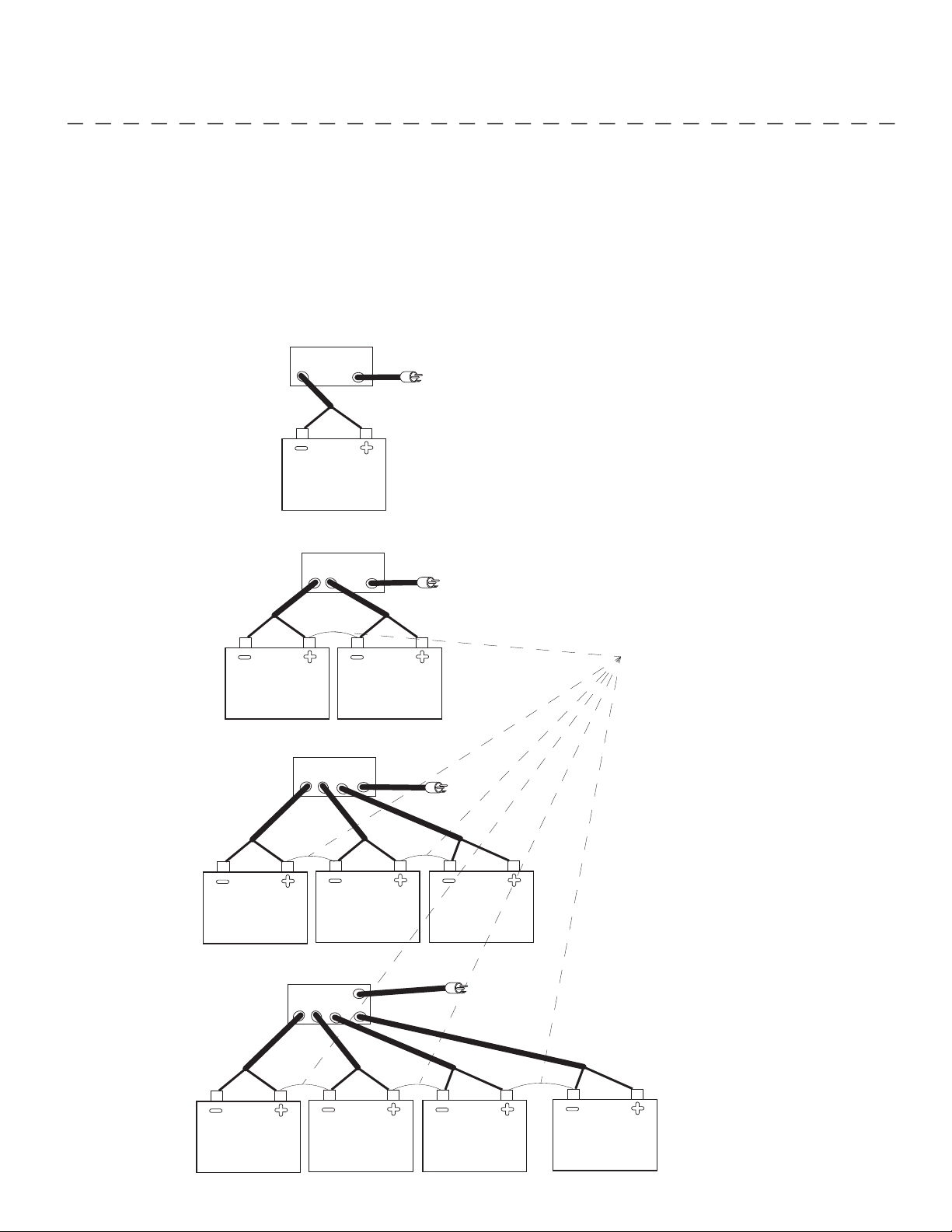

This is a high performance battery charger that has the ability to properly and safely work with several different battery types. It
is important to read and understand how to properly use the battery charger before charging batteries.
Each output bank is independent and isolated from one another and the AC input. The Minn Kota charger can charge indepen-
dent batteries or combinations of batteries hooked in series or parallel without disconnecting the batteries from any switches or
wires / straps joining the batteries.
12v battery
RED+
120V AC
INPUT
BLACK-
TWO BANK
BATTERY CHARGER
12v battery
RED+
BLACK-
12v battery
RED+
120V AC
INPUT
BLACK-
THREE BANK
BATTERY CHARGER
12v battery
RED+
BLACK-
12v battery
RED+
BLACK-
12v battery
RED+
120V AC
INPUT
BLACK-
FOUR BANK
BATTERY CHARGER
12v battery
RED+
BLACK-
12v battery
RED+
BLACK-
12v battery
RED+
BLACK-
12v battery
RED+
120V AC
INPUT
BLACK-
SINGLE BANK
BATTERY CHARGER
If batteries are connected in a series with
jumper wires, those wires can be left in
place during charging.
Optional Jumper Wires

12 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
OPERATING THE CHARGER
Model Input Power
(120VAC, 60Hz)
MK106PC 100W
MK110PC 165W
MK212PC 200W
MK220PC 330W
MK318PC 300W
MK330PC 500W
MK440PC 660W
MK230PC 500W
MK345PC 700W
MK460PC 900W
SELECTING THE BATTERY TYPE
The charger can be manually switched between 4 different modes; Gel Cell, Flooded Lead-Acid, AGM/High Performance AGM,
and Equalize. In order to optimize the performance of your batteries or to prevent damage, you will need to properly set each
charger bank for the correct battery type (each bank can be independently set). The factory default setting is Flooded Lead-Acid.
To set the battery type:
1. Plug the charger AC cord into an AC outlet.
2. During power up all LEDs will turn on, then 1 YELLOW LED will temporarily remain on. This YELLOW LED will indicate the
current battery type.
3. To change battery type press and hold the Battery Selection button until the YELLOW LED indicates the desired battery
type, then release the button. The battery type will be saved even if the AC cord or DC output cords are disconnected.
Flooded Lead-Acid batteries should be equalized per the battery manufacturers’ recommendations. Only Flooded Lead-Acid
batteries should be equalized. The charger will only allow selection of the Equalize Mode if the previous selection was Flooded
Lead-Acid. To set Equalize Mode, press and hold the Battery Selection button until all 3 YELLOW LEDs are lit, then release the
button. Once in Equalize Mode, the equalize process will only be performed one time. Once this cycle is completed or if the cycle
is interrupted (by unplugging the AC or a DC cord) the charger will revert back to the Flooded Lead-Acid battery type
WARNING: Battery type is factory preset for Flooded Lead-Acid. If you are using alternate type batteries, select Gel or
AGM/High Performance AGM. Failure to do so could result in damage to your battery and/or cause acid leaks.
GENERAL OPERATION
After the AC cord on the charger is plugged in and a battery is connected to the output cable correctly, the 25% charging LED will
turn on. After 4 seconds the charger will begin charging the battery. The 4 second delay is added to allow the user to establish a
good connection before the charger output is turned on. This will help prevent unwanted sparks during battery connections. The
YELLOW LEDs will indicate how far the charger is in the charging process. Once the 100% GREEN LED is flashing, the charger
is holding the battery in Maintenance Mode. The charger will stay in Maintenance Mode for 12 hours. After 12 hours in the
Maintenance Mode, the charger output will turn off and the 100% GREEN LED will switch to steady GREEN.
NOTE: If a RED LED is flashing, reference the troubleshooting section on page 15 to determine
the reason and take the necessary corrective action to remedy the situation. If you are unable to
remedy the situation and need help, call the Minn Kota Service Department at 1.800.227.6433 and a
technical support representative will be happy to assist you.
CAUTION: We recommend that you not recharge your battery, (or batteries), with the watercraft
or motor lower unit in the water during electrical storms. Severe damage to the motor or charging
system may occur if lightning strikes nearby or if storm related high voltage conditions exist.
CAUTION: If using a generator to power the charger, it must have a clean output and be safe for use
on electrical equipment. Generators with a sine wave output can be used to power this charger. See
Table 1 for power requirements.
WARNING: To reduce risk of electric shock, do not perform any servicing other than those contained in the operating
instructions.
Table 1

minnkotamotors.com | 13
©2015 Johnson Outdoors Marine Electronics, Inc.
OPERATING THE CHARGER
INDICATOR LEDs
Each bank has the following LEDs:
• (RED): A solid RED LED indicates there is an issue with the battery connection.
• A flashing RED LED indicates an error. See Troubleshooting on page 15.
• 25%, 50%, 75% (YELLOW): These LEDs indicate the progress of charging.
• 100% (GREEN): Flashing GREEN LED indicates battery is fully charged in Maintenance Mode and ready to use.
• Solid GREEN LED indicates battery is fully charged in long term Maintenance Mode and ready to use.
• Flashing GREEN and 25% YELLOW LEDs indicates the battery is less that 10.5 volts and the charger is in low power safety
mode. Full charging will begin once the battery reaches 10.5 volts. If the battery does not rise above 10.5 volts, then make sure
all loads are disconnected from the battery and try again.
MULTI-STAGE CHARGING
Minn Kota’s Multi-Stage Charging delivers a fast, precise charge profile by automatically controlling current and voltage without
overcharging your batteries.
Bulk Mode: During this stage, the charger delivers full current until the battery reaches ~75% charge.
Absorption Mode: The charging current tapers down while the battery voltage is held constant (see Table 2 for voltages).
Mild Equalize Mode (Flooded Lead-Acid Only): The voltage is automatically increased with each charging cycle for a
maximum of 1.5 hours to desulfate and mix fluids in each battery.
Equalize Mode (Flooded Lead-Acid Only): The equalize mode must be manually selected for each bank that is to be
equalized. The voltage is increased for a maximum of 4 hours to desulfate and mix fluids in each battery.
Maintenance Mode: When the battery reaches full charge, the charger voltage is reduced (see Table 1 on page 14 for
voltages). A flashing 100% GREEN LED is lit for each bank to indicate the battery is in Maintenance Mode and ready to use.
After 12 hours, the charger automatically turns off and a steady 100% GREEN LED is lit for each bank to indicate the battery is in
long term Maintenance Mode and ready to use. The charger will automatically resume charging when the battery voltage drops
below 12.6V.
INLINE FUSE
Each output cord has inline fuses on the RED and BLACK leads located near the ring terminals. These fuses serve as protection
from surges and short circuits caused by a damaged charger output cable. If a fuse blows, replace it with a 30 amp ATC 32V
automotive fuse. Improper battery connections will normally not cause a fuse to blow since this is handled by the internal
circuitry of the charger.

14 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
OPERATING THE CHARGER
CHARGING PROFILE @ 25° C
Battery Type Absorption Equalize Float
Flooded Lead-Acid 14.4V 15.5V 13.2V
AGM/High Performance AGM
(Absorbed Glass Mat) 14.4V n/a 13.4V
Gel 13.9V n/a 13.4V
Table 2

minnkotamotors.com | 15
©2015 Johnson Outdoors Marine Electronics, Inc.
TROUBLESHOOTING
TROUBLESHOOTING
ERROR CONDITION SOLUTION
RED LED is lit
Check connection.
• Check polarity of leads to battery.
• Check connections to battery and fuses in output cord.
• Check voltage at battery. The bank will not charge a battery below 0.5 volts or above
16 volts.
• If still not working, call the Minn Kota Service Department at 1-800-227-6433.
RED LED is flashing with solid
25% YELLOW LED
Low-voltage time expired.
• Check to make sure there are no power loads on the battery.
• Check the fluid in the battery and add fluid per battery manufacturer’s specifications.
• If the voltage of the battery does not increase above 10.5 volts, then the bank will shut
down and will not charge. The battery should be tested.
• If still not working, call the Minn Kota Service Department at 1-800-227-6433.
RED LED is flashing with solid
50% YELLOW LED.
Bulk time expired.
• Check to make sure there are no heavy or large loads on the battery.
• Check the fluid in the battery and add fluid per battery manufacturer’s specifications.
• If the voltage of the battery does not increase to the absorption voltage in 30 hours,
then the bank will shut down and will not charge. The battery should be tested.
• If still not working, call the Minn Kota Service Department at 1-800-227-6433.
RED LED is flashing with solid
75% YELLOW LED.
Temperature sensor error.
• Reset the charger by unplugging the AC cord. Wait for allLEDs to turn off.
• Plug in the AC cord.
• If still not working, call the Minn Kota Service Department at 1-800-227-6433.
RED LED is flashing with solid
25% and 75% YELLOW LEDs
Charger is overheated.
• Reset the charger by unplugging the AC cord. Wait for all LEDs to turn off and allow
charger to cool.
• Plug in the AC cord.
• If still not working, call the Minn Kota Service Department at 1-800-227-6433.
Indicator lights will not illumine
• Check the AC power at the outlet.
• Make sure the GFCI(Ground Fault Circuit Interrupter) for the outlet has not tripped.
• If an extension cord is being used, check the AC power at the end of the extension cord.
• If still not working, call the Minn Kota Service Department at 1-800-227-6433.
Charger powers up and then turns off
• If an extension cord is being used, check the AC power at the end of the extension cord.
• Extension cord AWG is too small - refer to the chart on pg. 6 of the Safety Precautions.
• Very low AC voltage is applied to the charger.
• If still not working, call the Minn Kota Service Department at 1-800-227-6433.
SPECIFICATIONS INPUT VOLTAGE: 95-135VAC, 60Hz
Model Part No. System Volts Banks Output per Bank
(amps)
Total
Output
(amps)
Input
Cable Output Cable Size L x W x H Weight (lbs) Input Current (120VAC, 60Hz)
MK106PC 1831060 12 1 6 6 18AWG - 6’ 16AWG - 6’ 9-1/4” x 4” x 3-1/4” 4.5 1.5A
MK110PC 1831100 12 110 10 18AWG - 6’ 16AWG - 6’ 9-1/4” x 4” x 3-1/4” 4.5 2.4A
MK212PC 1832120 12 / 24 2 6 12 18AWG - 6’ 16AWG - 6’ 9-1/4” x 8-1/4” x 3-1/4” 83A
MK220PC 1832200 12 / 24 210 20 18AWG - 6’ 16AWG - 6’ 9-1/4” x 8-1/4” x 3-1/4” 84.8A
MK318PC 1833180 12 / 24 / 36 3 6 18 18AWG - 6’ 16AWG - 6’ 9-1/4” x 8-1/4” x 3-1/4” 11 4.5A
MK330PC 1833300 12 / 24 / 36 310 30 18AWG - 6’ 16AWG - 6’ 9-1/4” x 8-1/4” x 3-1/4” 11 7.2A
MK440PC 1834400 12 / 24 / 36 / 48 410 40 16AWG - 6’ 16AWG - 6’ 9-1/4” x 10-1/2” x 3-1/4” 14 9.6A
MK230PC 1832300 12 / 24 215 30 14AWG - 6’ 12AWG - 6’ 7-5/8 x 9-1/4 x 3 9.6 7A
MK345PC 1833450 12 / 24 / 36 315 45 14AWG - 6’ 12AWG - 6’ 11 x 9-1/4 x 3 13.7 10.5A
MK460PC 1834600 12 / 24 / 36 / 48 415 60 14AWG - 6’ 12AWG - 6’ 14-3/8 x 9-1/4 x 3 18 14A

16 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
FREQUENTLY ASKED QUESTIONS
Q Are Minn Kota On-Board Precision Chargers tested and approved for use with Odyssey batteries?
AAll Minn Kota On-board Precision Chargers have been tested by Odyssey and found to properly charge all batteries rated
from 7-114 Ah.
Q Are the Minn Kota battery chargers waterproof?
AYes, the battery chargers are waterproof, however, they should not be operated while immersed.
Q Can I charge two batteries on one charger bank?
AYes, but it is not recommended. It takes double the amount of time to charge two batteries and could result in an error being
displayed if the batteries take too long to charge.
Q Can I connect two charger banks to one battery?
AYes, this will charge the battery almost twice as fast. However, the water in the battery is more likely to evaporate with higher
charging currents. Thus, the electrolyte level should be checked more often. The maximum safe charging current on most
deep cycle batteries is 20 amps. Consult your battery manufacturer for recommendations.
Q Can I extend the Minn Kota battery charger output leads?
AYes, please refer to Accessory Kit 1820089 - MK-EC-15 Wire Extension Kit (see Pg. 10).
Q Can the Minn Kota battery charger be mounted in any position?
AYes, but it is highly recommended that the charger not be mounted below the waterline.
Q Do I need to disconnect the series or parallel battery connection(s) when using Minn Kota chargers?
ANo, the battery jumper wire(s) can remain in place for both types of wiring.
Q Does losing AC power or unplugging the Precision charger from an AC outlet affect battery type selection?
ANo, once a battery type is selected it will be stored until a new battery type is selected by the user.
Q Does losing AC power or unplugging the Precision charger from an AC outlet affect Deep Equalization
mode?
AYes, the Deep Equalization mode is cancelled and the charger will restart the charging cycle in normal Flooded Lead Acid
battery mode.
Q How do I set Equalization mode on my Minn Kota Precision charger?
AMinn Kota Precision Chargers feature Automatic Equalization Technology that cleans and conditions batteries with each
charge cycle (flooded Lead-Acid only). Precision Chargers also feature a user selectable by bank Deep Equalization Mode.
Select Deep Equalization Mode (recommended every 30th charge cycle) – Deep Equalization should only be performed
on Flooded Lead-Acid batteries. Before you can select Deep Equalization mode you must first make sure that the current
battery selection is set to Flooded Lead Acid. Press and hold the “BATTERY SELECTION” button until you see three yellow
LED’s illuminate, then release the “BATTERY SELECTION” button. If any of the yellow LED’s begin to flash you are in Deep
Equalization Mode.
NOTE: The state of charge LED’s will continue to flash through the entire charge cycle including the 12-hour maintenance
mode.
Q How often should I perform Deep Equalization?
ADeep Equalization is recommended every 30th charge cycle or once a year.
Q How do I determine what battery type is selected on my Minn Kota PC Charger?
APress and release the “BATTERY SELECTION” button. The yellow LED located next to the corresponding battery type
selected will illuminate for 2-5 seconds.
Q How warm do Minn Kota battery chargers get?
AThe Minn Kota battery chargers can reach 150° F. They may get warm in an enclosed area. The maximum recommended
room temperature for charging batteries is 122° F. If the charger seems to get “hot,” try opening a hatch to help cool the
charger. When the charger is hot, the output current will drop to protect the charger and the battery.
Q What happens if AC power is lost during a charging cycle with the Minn Kota Precision battery charger?
AThe PC charger will simply restart the charging cycle with the battery type that was originally selected. Losing power or
unplugging the PC charger does not clear your battery type selection.
Q What size fuses are used on Minn Kota battery chargers?
AChargers with a yellow fuse holder use a 30 amp AGX 32V automotive fuse. An AGC can be used but may not fit as well as
the AGX. Chargers with a red fuse holder use a 30 amp ATC 32V automotive fuse.

minnkotamotors.com | 17
©2015 Johnson Outdoors Marine Electronics, Inc.
FREQUENTLY ASKED QUESTIONS
Q What Batteries can be charged by a Minn Kota charger?
AMinn Kota Chargers can charge 12 volt 6 cell lead-acid batteries. Minn Kota D Series Chargers and Minn Kota Portable
Chargers work well with Flooded Lead Acid and AGM battery types. Minn Kota PC series Chargers have optimized charging
for Flooded Lead Acid, AGM and Gel battery types. You should verify with your Battery’s Manufacturer the maximum Amp
input for your Battery. The Amp Hour or AH rating for your battery should be in the range indicated below for the per bank
amp output of the battery charger selected.
BATTERY CHARGER
OUTPUT PER BANK
BATTERY AMP
HOUR RATING
5 AMPS 20-125 AH
6 AMPS 24-125 AH
10 AMPS 40-125 AH
15 AMPS 60-180 AH
Q Why do the LED’s on my Precision Charger stay illuminated for a period of time after unplugged from AC
power?
AThis is normal and does not affect your batteries. It is simply a function of the Precision charging ensuring the charger is
disconnected prior to terminating the charge cycle.
The PC charger takes many complex and detailed measurements of the battery during a charge cycle. The software in the
charger processes this information to make the best possible decisions to give your battery the best charge on the market.
In some cases the measurements and software algorithms make it difficult to detect when AC has been disconnected and
therefore the charger may take a while to power down and turn off.
Q Will I damage my batteries if I leave the charger plugged in over long periods of non-use (like storage)?
ANo. Minn Kota’s on-board chargers float the battery voltage between 13.2V and 13.5V in the “maintenance” stage (3rd
stage). This will allow you to keep your battery charger plugged in for long periods of time without “boiling the battery dry.”
Note: It is important to check the electrolyte level approximately every 30 days. Batteries should be filled after charging,
and the electrolyte level should be even in all cells and below the fill well in each cell. If the battery plates are exposed before
charging, add just enough water to cover the plates. If the battery is overfilled before charging, it may overflow during
charging.
Q Can I charge Lithium batteries?
AMinn Kota has not worked directly with any Lithium battery suppliers to determine if our charger are compatible with their
batteries. Most of the Lithium Battery manufactures post required charge stage information on their web sites.
Q Are any of the charger foot prints compatible with other chargers?
AFootprints are not compatible with different charger models and sizes. The only exception is the MK212PC, MK318PC,
MK220PC and MK330PC have compatible footprints.
Q Are the chargers serviceable?
AThere are no serviceable components inside the charger.
Q Can one bank be disconnected while charging batteries on other banks?
AYes, The charger banks are fully independent chargers. Unused banks can be left disconnected from batteries. The output
of the unused banks are not energized. It is always a good idea to cover or tape the loose end to prevent shorting of other
electrical systems in the boat.
Q Can I use a portable generator to run my charger?
ACareful selection should be used when deciding on a portable generator for electronics. There are 2 important factors that
must be considered:
- Output power: Generators are marketed in output wattage. This wattage must be higher than the power required by
the battery charger. Please review power requirements stated in the user manual for your specific charger.
- Output type: MinnKota chargers require clean output power from the generator to prevent permanent damage. The
generator must replicate the power from a standard AC outlet in your home (sine wave output).

GENERAL MAINTENANCE
• Check battery charger for dirt, oil, battery corrosion, etc. Use a water and baking soda solution for cleaning corrosion. Wipe
clean using a dry cloth.
• Check ring terminals for dirt, oil, and battery corrosion; then disconnect from battery posts and clean as necessary with water
and baking soda solution and dry with a clean cloth.
• When the charger is not in use, coil the power cord to prevent damage.
• When storing the battery charger, store in a clean dry area.
• If power cord or plug becomes damaged, you may contact the Minn Kota Service Repair Department for service repair
information. Otherwise, dispose of the battery charger in compliance with local law. Damaged cords and plugs can cause
electric shock or electrocution.
FOR FURTHER TROUBLESHOOTING AND REPAIR
We offer several options to help you troubleshoot and/or repair your product. Please read through the options listed below.
FREQUENTLY ASKED QUESTIONS
We have FAQs available on our website to help answer all of your Minn Kota questions. Visit minnkotamotors.com and click on
“Frequently Asked Questions” to find an answer to your question.
CALL US (FOR U.S. AND CANADA)
Our consumer service representatives are available Monday – Friday between 7:00 a.m. – 4:30 p.m. CST at 800-227-6433.
If you are calling to order parts, please have the 11-character serial number from your product, specific part numbers, and credit
card information available. This will help expedite your call and allow us to provide you with the best consumer service possible.
You can reference the parts list located in your manual to identify the specific part numbers.
EMAIL US
You can email our consumer service department with questions regarding your Minn Kota products. To email your question, visit
minnkotamotors.com and click on “Support”.
AUTHORIZED SERVICE CENTERS
Minn Kota has over 300 authorized service centers in the United States and Canada where you can purchase parts or get your
products repaired. Please visit our Authorized Service Center page on our website to locate a service center in your area.
FOR FURTHER TROUBLESHOOTING AND REPAIR
18 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
SERVICE & MAINTENANCE

FOR FURTHER TROUBLESHOOTING AND REPAIR
We offer several options to help you troubleshoot and/or repair your product. Please read through the options listed below.
FREQUENTLY ASKED QUESTIONS
We have FAQs available on our website to help answer all of your Minn Kota questions. Visit minnkotamotors.com and click on
“Frequently Asked Questions” to find an answer to your question.
CALL US (FOR U.S. AND CANADA)
Our consumer service representatives are available Monday – Friday between 7:00 a.m. – 4:30 p.m. CST at 800-227-6433.
If you are calling to order parts, please have the 11-character serial number from your product, specific part numbers, and credit
card information available. This will help expedite your call and allow us to provide you with the best consumer service possible.
You can reference the parts list located in your manual to identify the specific part numbers.
EMAIL US
You can email our consumer service department with questions regarding your Minn Kota products. To email your question, visit
minnkotamotors.com and click on “Support”.
AUTHORIZED SERVICE CENTERS
Minn Kota has over 300 authorized service centers in the United States and Canada where you can purchase parts or get your
products repaired. Please visit our Authorized Service Center page on our website to locate a service center in your area.
minnkotamotors.com | 19
©2015 Johnson Outdoors Marine Electronics, Inc.
COMPLIANCE STATEMENTS
ENVIRONMENTAL COMPLIANCE STATEMENT:
It is the intention of JOME to be a responsible corporate citizen, operating in compliance with known and applicable
environmental regulations, and a good neighbor in the communities where we make or sell our products.
WEEE DIRECTIVE:
EU Directive 2002/96/EC “Waste of Electrical and Electronic Equipment Directive (WEEE)” impacts most distributors, sellers,
and manufacturers of consumer electronics in the European Union. The WEEE Directive requires the producer of consumer
electronics to take responsibility for the management of waste from their products to achieve environmentally responsible
disposal during the product life cycle.
WEEE compliance may not be required in your location for electrical & electronic equipment (EEE), nor may it be required
for EEE designed and intended as fixed or temporary installation in transportation vehicles such as
automobiles, aircraft, and boats. In some European Union member states, these vehicles are considered
outside of the scope of the Directive, and EEE for those applications can be considered excluded from the
WEEE Directive requirement.
This symbol (WEEE wheelie bin) on product indicates the product must not be disposed of with other
household refuse. It must be disposed of and collected for recycling and recovery of waste EEE. Johnson
Outdoors Inc. will mark all EEE products in accordance with the WEEE Directive. It is our goal to comply
in the collection, treatment, recovery, and environmentally sound disposal of those products; however, these requirement do
vary within European Union member states. For more information about where you should dispose of your waste equipment for
recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from
which your product was purchased.
DISPOSAL:
Minn Kota motors are not subject to the disposal regulations EAG-VO (electric devices directive) that implements the WEEE
directive. Nevertheless never dispose of your Minn Kota motor in a garbage bin but at the proper place of collection of your local
town council.
Never dispose of battery in a garbage bin. Comply with the disposal directions of the manufacturer or his representative and
dispose of them at the proper place of collection of your local town council.
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects
or other reproductive harm.
DISPOSAL:
Minn Kota chargers are not subject to the disposal regulations EAG-VO (electric devices directive) that implements the WEEE
directive. Nevertheless never dispose of your Minn Kota charger in a garbage bin but at the proper place of collection of your local
town council.
Never dispose of a battery in a garbage bin. Comply with the disposal directions of the manufacturer or his representative and
dispose of them at the proper place of collection of your local town council.
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects
or other reproductive harm.

20 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
COMPLIANCE STATEMENTS
FCC COMPLIANCE
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by Johnson Outdoors Marine Electronics, Inc. could void the user’s authority to
operate this equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
INDUSTRY CANADA COMPLIANCE
This product meets the applicable Industry Canada technical specifications. Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Changes or modifications not expressly approved by Johnson Outdoors Marine Electronics, Inc. could void the user’s authority to
operate this equipment.
Ambient operating temperature range: -10C to 50C
Ambient operating humidity range: 5% to 95%
Maximum operating altitude: 10,000 feet
ENVIRONMENTAL RATINGS
