MINN KOTA MKA-57 User manual

1 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
MKA-57 SLIDING
QUICK RELEASE BRACKET
1854057
The MKA-57 is compatible with freshwater and saltwater electric-steer, bow-mount, QUEST series trolling motors, including the Riptide
Instinct, Ulterra, Riptide Terrova and Terrova.
11
1818
1919
2424
2020
2525
2525
2121
77
66
6688
88
1717
33
44441313
1414
1515
99
1010
1111
1616 1212
22
22
55
55
1717
1717
1717
2222
2222
2323
2323
2626
CC
2828
2727 2929

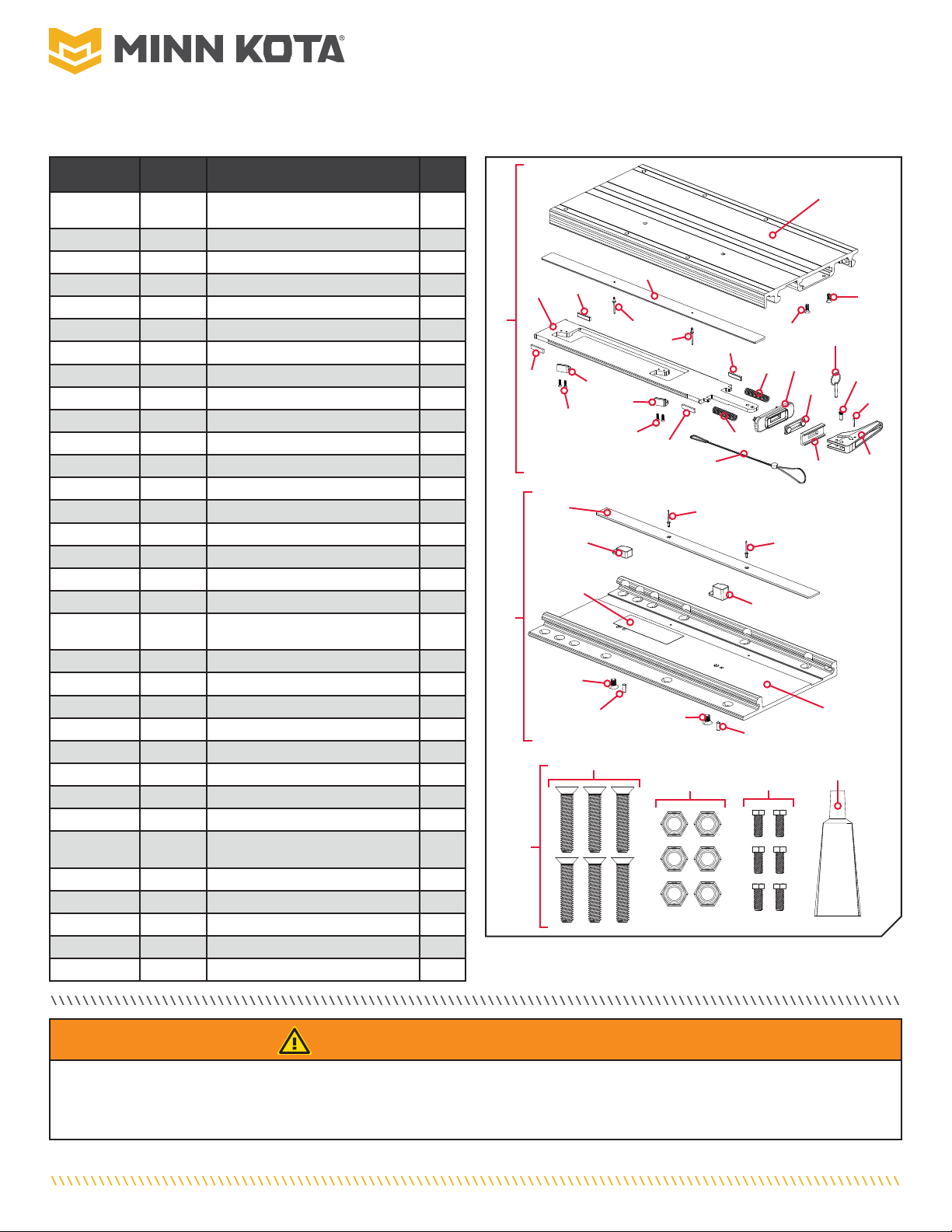

pNot shown on Parts Diagram.
Item/
Assembly Part # Description Qty.
A
Items 1-17 2778972 TOP PLATE KIT BL ALUM QRB 1
1 2381972 PLATE-TOP, ANODIZED 1
2 2383432 SCREW-#12 X 5/8 TYPE B PFH 2
3 2373626 WEAR STRIP, HDPE 1
4 2388630 RIVET-POP, 1/8 X 1/8 ALUM. 2
5 2383491 SCREW-#6-32 X 1/2" PFH SS 4
6 2373625 DRAW BAR WEAR STRIP 2
7 2373613 DRAW BAR, ANODIZED 1
8 2222716 SPRING,COMPRESSION OD.480 2
9 2373261 STOP, DRAW BAR 1
10 2225110 PAD, URETHANE,QCK ATTACH 1
11 2381948 EXTRUSION BACKER, MACH, ES QRB 1
12 2378475 CAM ARM HANDLE 1
13 2372623 PIN W/RING, QRB 1
14 2372644 PIN-ROLL, .093 x 5/8" SS 1
15 2262635 PIN-ROLLER, S/S 1
16 2373650 LANYARD ELECTRIC STEER,QRB 1
17 2373627 DRWBAR WEAR STRP,UHMWPE,BLK 4
B
Items 18-25 2778977 BOTTOM PLATE KIT BL ALUM QRB 1
18 2381977 PLATE-BOTTOM, ANODIZED 1
19 2225615 DECAL-WARNING,MNT PLATE 1
20 2377918 CAM PUCK BACK ELECTROPOLISH 1
21 2377919 CAM PUCK FRONT ELECTROPOLIS 1
22 2383488 SCREW-3/8-16 X 5/8" PFH SS 2
23 2382682 PIN-DOWEL, 1/4" X 5/8" SS 2
24 2373626 WEAR STRIP, HDPE 1
25 2388630 RIVET-POP, 1/8 X 1/8 ALUM. 2
C
Items 26-29 2994945 BAG ASM,ELEC.STEER QRB 1
26 2383489 SCREW-3/8-16 X 2" PFH SS 6
27 2383122 NUT 3/8-16 NYLON INST LOCKNUT 6
28 2353412 SCREW-3/8-16 X 1.0" HHCS SS 6
29 2378608 ANTI SEIZE TUBE, 4CC, TALON 1
p2377178 MANUAL, ELEC. STEER QRB 1
BB
AA
WARNING
You are responsible for the safe and prudent operation of this product. Minn Kota has designed this accessory to be a reliable and
convenient tool. Use only as directed and only for the designed intent of the product. Installation should occur in an area free from
hazards and obstacles. This product does not relieve you from the responsibility for safe operation.

2 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
MOUNTING CONSIDERATIONS
The MKA-57 Quick Release Bracket is designed to be locked in
two different positions. The first position aligns the Top Plate and
Bottom Plate and locks them in place with the Cam Lever.
This position is used when the motor is operating. The second
position allows the Top Plate to slide inboard 10 inches before it is
locked in place. This position is used during transport.
When checking motor clearance for a mounting location, give
consideration to the following:
CompleteComplete
TypicalTypical
InstallationInstallation
CompleteComplete
TypicalTypical
InstallationInstallation
Operating Transporting
NOTICE: Images are a graphical representation and may
vary slightly from your motor.
1. The MKA-57 is compatible with freshwater and saltwater
electric-steer, bow-mount, QUEST series trolling motors,
including the Riptide Instinct QUEST, Ulterra QUEST, Riptide
Terrova QUEST and Terrova QUEST. The base extrusion of the
trolling motors may vary. Please note the appearance of the
base extrusion for each trolling motor.
2. It is recommended that the motor be mounted as close to
the centerline or keel of the boat as possible. Installation of
the Bottom Plate requires the use of all six mounting bolts.
Mounting bolts spaced furthest apart will create the most
stability. Ensure that the mounting location is flat and that the
area under the mounting location is clear to drill holes and
install hardware.
InboardInboard InboardInboard
Ulterra QUEST
Riptide Instinct QUEST
Terrova QUEST
Riptide Terrova QUEST
TOOLS AND RESOURCES REQUIRED
• #3 Phillips Screwdriver
• #4 Phillips Screwdriver
• Needle-nose Pliers
(for Terrova and RT Terrova)
• Awl or similar Marking Tool
• Drill
• 13/32” Drill Bit
• 9/16” Box End/Open End Wrench
• A second person to help with
the installation
CAUTION
An incorrectly secured trolling motor may cause injury.
Installation of the Bottom Plate requires the use of all six
mounting bolts. Ensure that the mounting location is flat and
that the area under the mounting location is clear to drill holes
and install hardware. Avoid injury from an incorrectly secured
trolling motor by following the installation instructions.

3 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
NOTICE: The mounting surface for the Bottom Plate must
be completely flat. Rubber Washers (Part #2321710) can
be used to shim the Bottom Plate flat before hardware is
tightened. The Top Plate will not fit correctly unless the
Bottom Plate is installed completely flat.
5. This installation requires the use of hardware that was included
with your trolling motor. Six Backup Bars (Part #2371796) and
six Rubber Washers (Part #2321710) from the motor hardware
bag assembly (Part #2994948) are required.
6. With the motor in the stowed position, ensure that there is
enough room for the Shaft and Control Head and that they do
not extend off the side of the boat.
GunwaleGunwale
SlotSlot
1½"1½"
MinimumMinimum
GunwaleGunwale
ShaftShaft
SteeringSteering
HousingHousing
3 3
Need New Illustration Deck ofDeck of
BoatBoat
PossiblePossible
Position ofPosition of
Top PlateTop Plate
OutboardOutboard
InboardInboard
10"10"
1½"1½"
4
KeelKeel
3. The motor must not encounter any obstructions as it is
lowered into the water or raised into the boat when stowed
and deployed. In the stowed position, place the motor so that
the slot in the Base Extrusion is positioned beyond the boat
Gunwale. For proper clearance, the entire slot must be visible
beyond the Gunwale. When the motor is deployed, there must
be a minimum required distance of 1½" between the Gunwale
and the bottom of the Steering Housing and Shaft.
4. Check for obstructions around the Top Plate and motor
when they are in all possible positions. The Top Plate moves
sideways approximately 1½" and also slides inboard 10". This
allows the motor to be moved for trailering, transport or a boat
cover without being removed. With this movement in mind,
make sure to check for additional obstructions such as lights
or a windshield.
NOTICE: Make sure that the motor will not encounter any
obstructions when sliding on and off the Bottom Plate.
When mounting, the exact placement of the motor and
MKA-57 may vary depending on the boat, boat deck, and
base extrusion that the Top Plate is mounted to.

4 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.

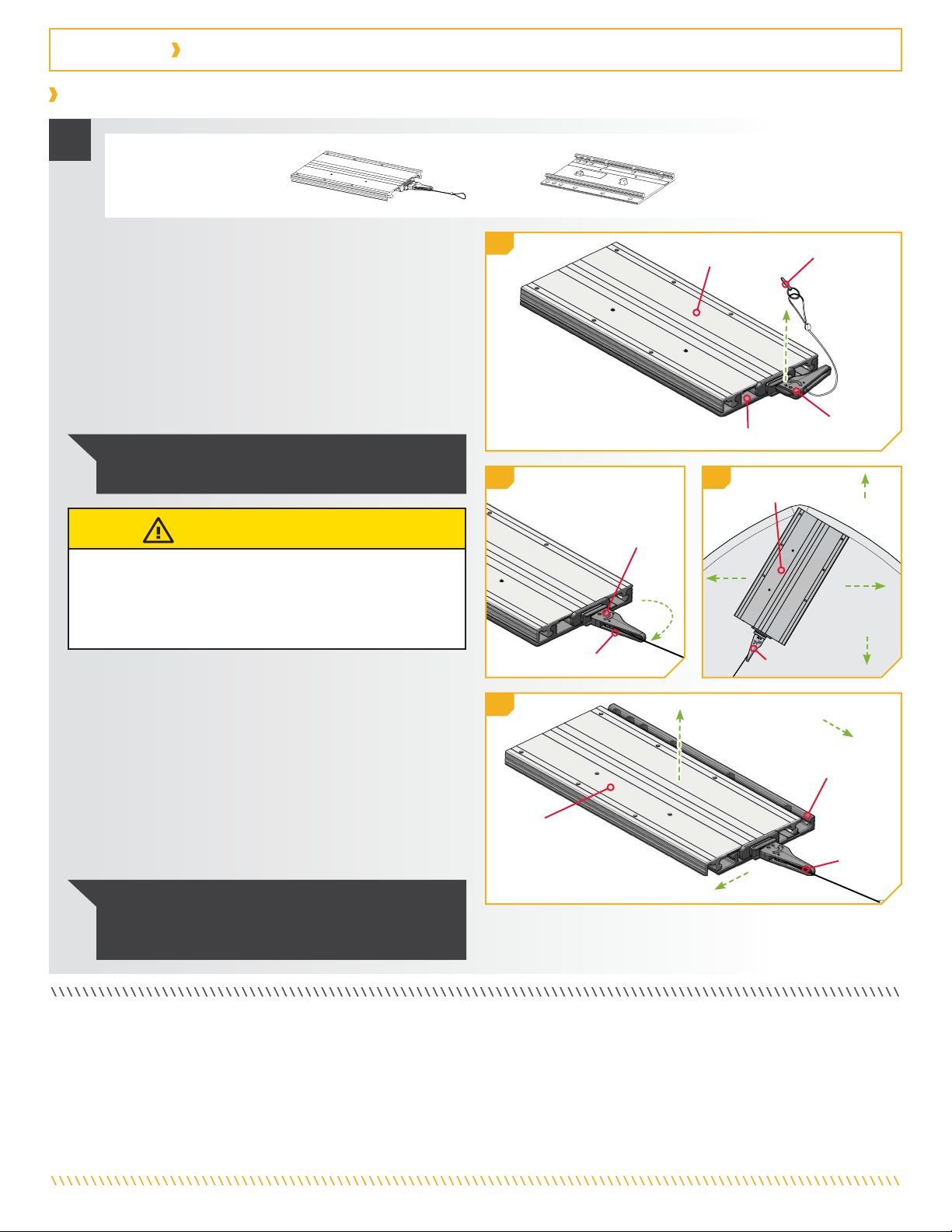

#B x 1
a. Take the MKA-57 Quick Release Bracket, which
consists of the Top Plate (Assembly #A) and the
Bottom Plate (Assembly #B). The Top Plate will be
attached to the trolling motor, while the Bottom
Plate will be installed to the boat deck.
b. Note the Cam Lever attached to the Top Plate. The
Plates are held together when the Cam Lever is
locked and secured with a Pin. Remove the Pin from
the Cam Lever to release the Lever.
NOTICE: The Cam Lever will only open and close in one
direction, indicated by the arrow on the Cam Lever.
NOTICE: The Top Plate can be separated from the
Bottom Plate when a sideways gap is present between
the Plates.
Top PlateTop Plate PinPin
CamCam
LeverLever
Bottom PlateBottom Plate
1ITEM(S) NEEDED
#A x 1

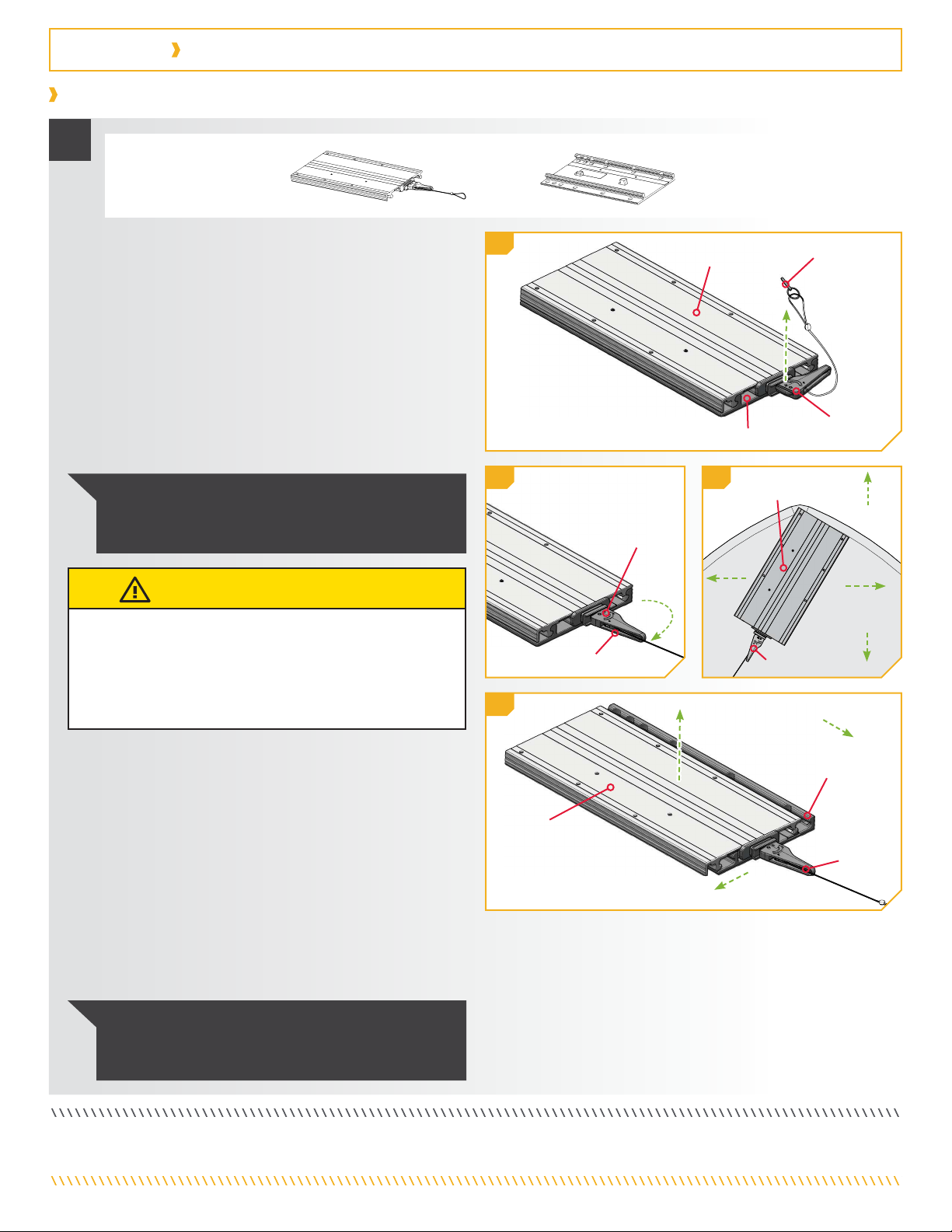

INSTALLATION
Opening the Bracket
1b
1d
1e InboardInboard
c. Open the Cam Lever by pulling it away from the
Quick Release Bracket.
d. When the Top Plate is attached to the Base
Extrusion of the trolling motor, the end of the Top
Plate with the Cam Lever will mount inboard.
e. With the Cam Lever open, Slide the Top Plate
portside 1½", then lift to separate it from the Bottom
Plate. Set the Bottom Plate aside. The Top Plate will
be installed first.
TopTop
PlatePlate
Slide 1½" PortsideSlide 1½" Portside
CamCam
LeverLever
Bottom PlateBottom Plate
InboardInboard
StarboardStarboard
PortPort
OutboardOutboard
Quick ReleaseQuick Release
BracketBracket
Cam LeverCam Lever
1c
CamCam
LeverLever
Flat SideFlat Side
CAUTION
Watch for pinch points. The space between the Cam Lever
and Plates can create a pinch point when closing the Cam
Lever. To avoid the pinch points, use an open palm against
the flat side of the Cam Lever to push the Cam Lever closed.

5 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.

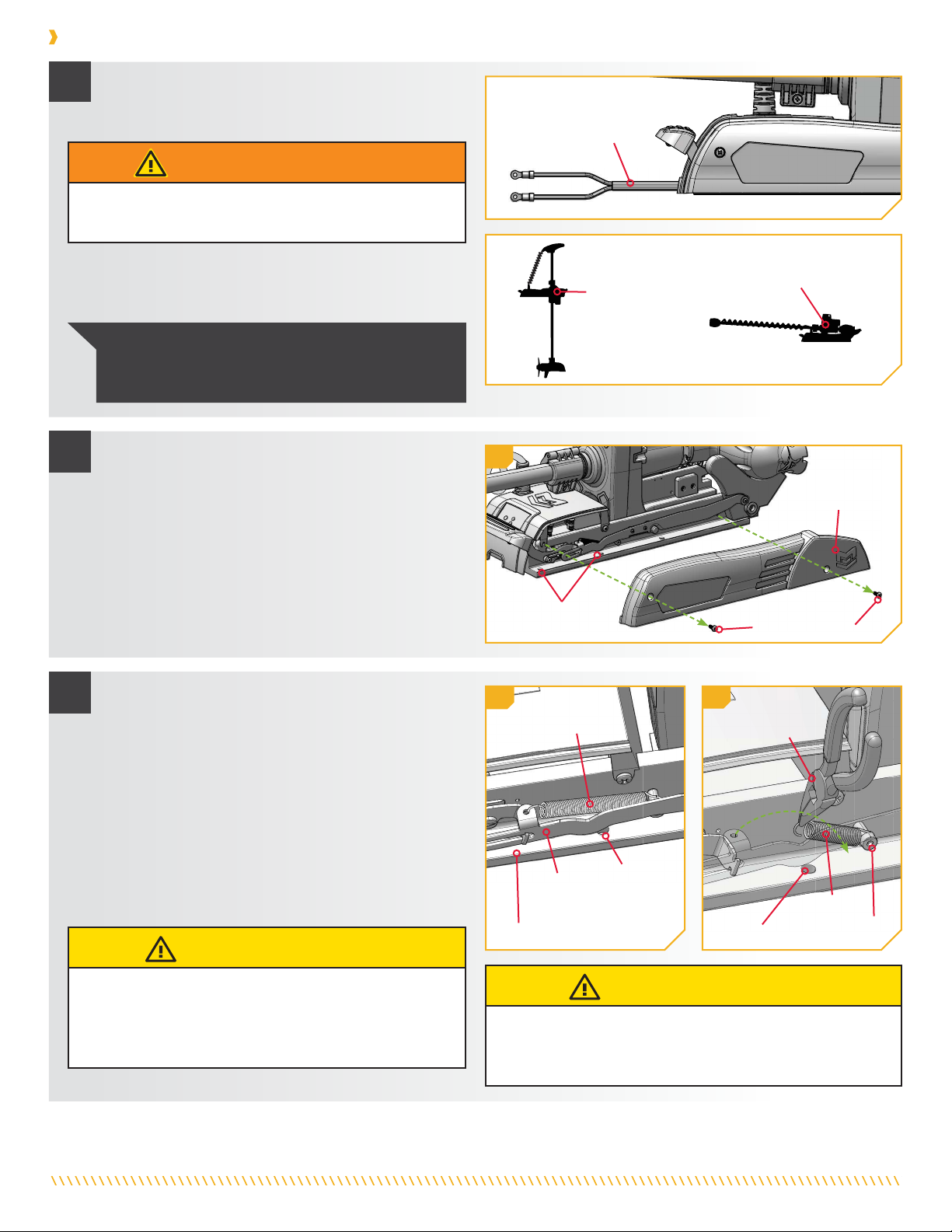

Installing the Top Plate to a Terrova or Riptide Terrova
33e
CAUTION
When handling each Spring, always keep the spring tension
under control. Abruptly releasing the Spring while there is still
tension could damage it and cause it to release unpredictably.
CAUTION
When maneuvering each Spring, carefully handle the Spring
to avoid bending it. Do not grab the body of the Spring to
avoid pinching between the spring coils. Always grab by the
hooked end.
Needle-NoseNeedle-Nose
PliersPliers
SpringSpring
BoltBolt
SpringSpring
Mounting HoleMounting Hole
MountingMounting
HoleHole
Base ExtrusionBase Extrusion
SideSide
RailRail
3f
22c
Sideplate ScrewSideplate Screw
c. Remove the four Sideplate Screws using a #3 Phillips
Screwdriver. Two of these screws will be located on
each side of the mount.
d. Remove the Right Sideplate and the Left Sideplate to
expose the six mounting holes on the Base Extrusion.
a. Make sure that the Power Cables from the battery
are disconnected or that the breaker, if equipped,
is “off.”
1
NOTICE: The trolling motor weighs up to 90lbs.
Minn Kota recommends having a second person help
with the installation.
WARNING
Make sure that the Power Cables from the battery are
disconnected or that the breaker, if equipped, is “off.”
b. Place the mount on an elevated, level surface such
as a workbench or the tailgate of a pickup. The
motor should be in the stowed position.
e. The center mounting hole on either side of the Base
Extrusion is blocked by a Spring. One end of each
Spring must be disconnected in order to access the
mounting holes.
f. To disconnect the Spring, take a Needle-nose Pliers
and carefully grab the hooked end on the top half of
the Spring. Unhook it from the hole in the Side Rail
by pulling up. Guide it towards the bottom half of the
Spring still attached to the Base Extrusion and gently
set it down. Do not disconnect the end of the Spring
that is wrapped around a bolt. Unhook both Springs.
DeployedDeployed StowedStowed
Power CablesPower Cables
SideplateSideplate
Mounting HolesMounting Holes

6 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.

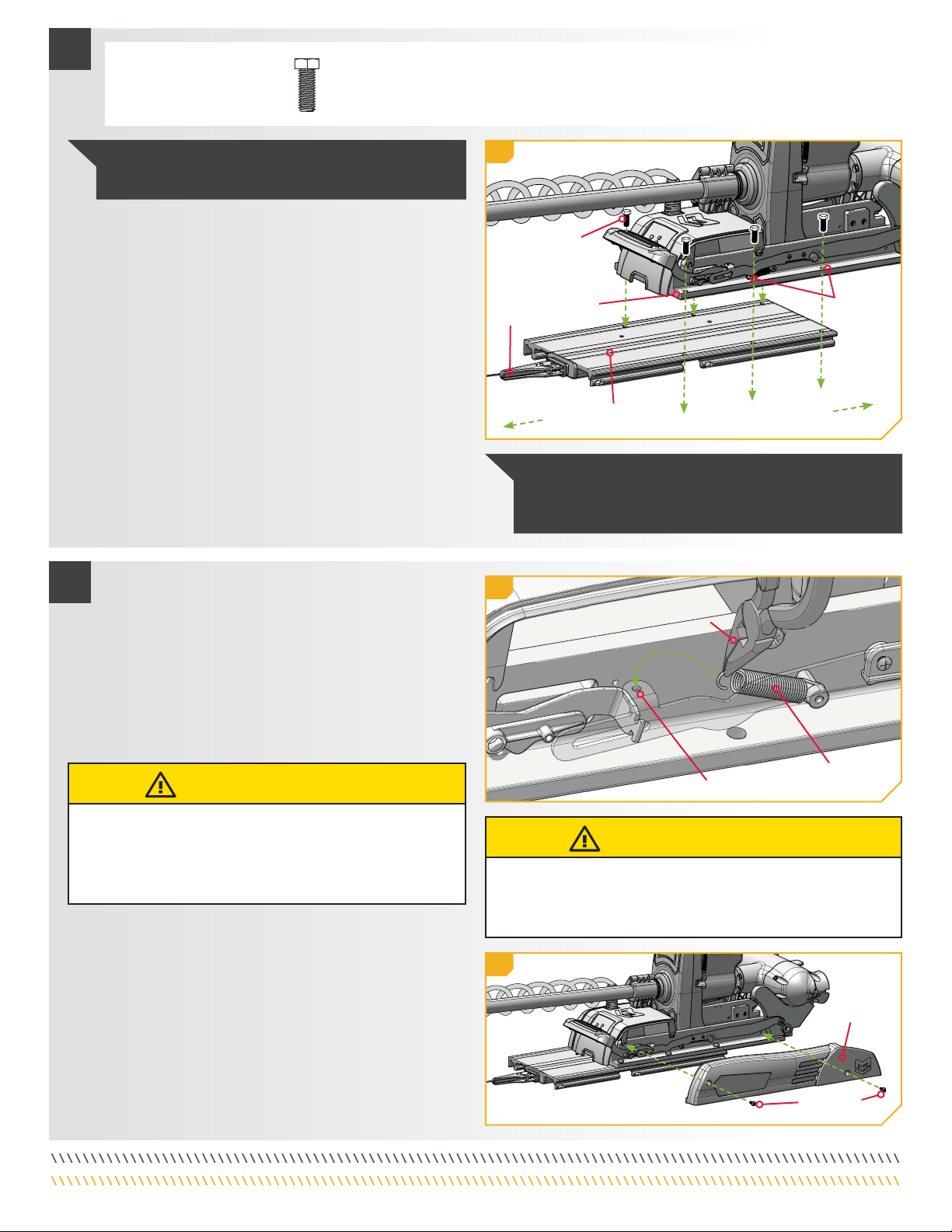

#28 x 6
Top PlateTop Plate
MountingMounting
HolesHoles
BaseBase
ExtrusionExtrusion
CamCam
LeverLever
Hex HeadHex Head
Cap ScrewCap Screw
OutboardOutboard
InboardInboard
4ITEM(S) NEEDED
4h
NOTICE: To prevent seizing of the stainless steel
hardware, do not use high-speed installation tools.
g. Place the flat side of the Top Plate against the
bottom of the Base Extrusion. Align the Mounting
Holes in the Top Plate with the Mounting Holes in
the Base Extrusion that were exposed when the
Sideplates and Springs were removed. Make sure
that the Cam Lever points inboard.
h. Use six Hex Head Cap Screws (Item #28) to secure
the Top Plate to the Base Extrusion. The Screws
should insert from the top down, through the Base
Extrusion and into the Top Plate. Tighten to
120 in-lbs with a 9/16” Box End or Open End
Wrench. Make sure all hardware is secure.
55i
Hole in Side RailHole in Side Rail
SpringSpring
Needle-Nose PliersNeedle-Nose Pliers
CAUTION
When maneuvering each Spring, carefully handle the Spring
to avoid bending it. Do not grab the body of the Spring to
avoid pinching between the spring coils. Always grab by the
hooked end.
5j
SideplateSideplate
ScrewScrew
SideplateSideplate

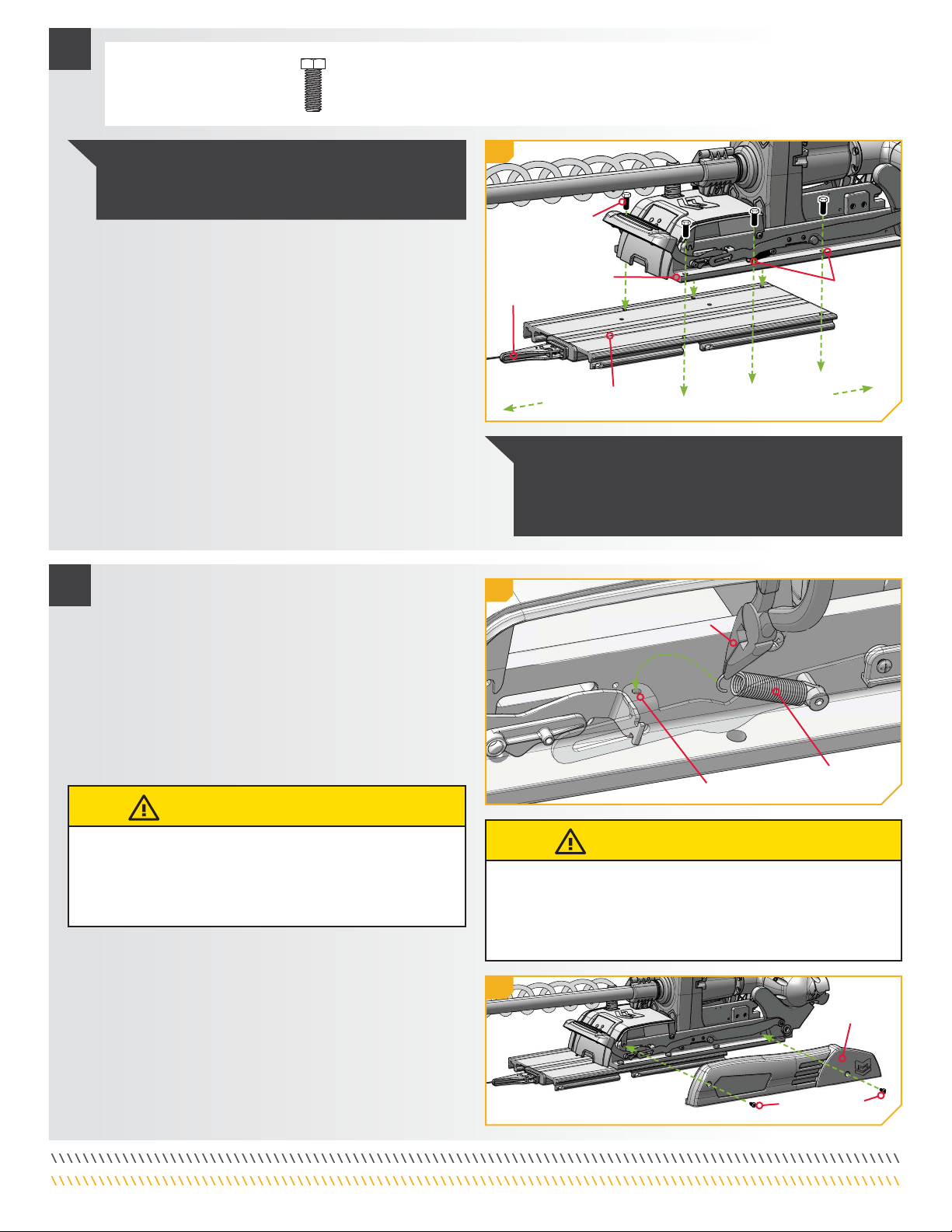

i. With the Top Plate secured to the Base Extrusion,
reassemble the Springs that were disconnected. Use
a Needle-nose Pliers to grab the hooked end of the
loose Spring. Reconnect it by pulling it upwards and
hooking it in the hole on the Side Rail. The curved
end of the Spring should be reattached from the
top down. Make sure the Spring is not twisted when
reattaching it. Reattach the Spring on both the right
and left side of the Base Extrusion.
j. With both Springs reattached, replace the Right
Sideplate and Left Sideplate.
k. Replace the four Sideplate Screws using a #3 Phillips
Screwdriver. Two of these screws will be located on
each side of the mount. Hand tighten.
NOTICE: Use extra care to avoid pinching and damaging
the sensor wires that run alongside the Base Extrusion
when installing and tightening the mounting hardware.
CAUTION
When handling each Spring, always keep the spring tension
under control. Abruptly releasing the Spring while there is still
tension could damage it and cause it to release unpredictably.

7 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.

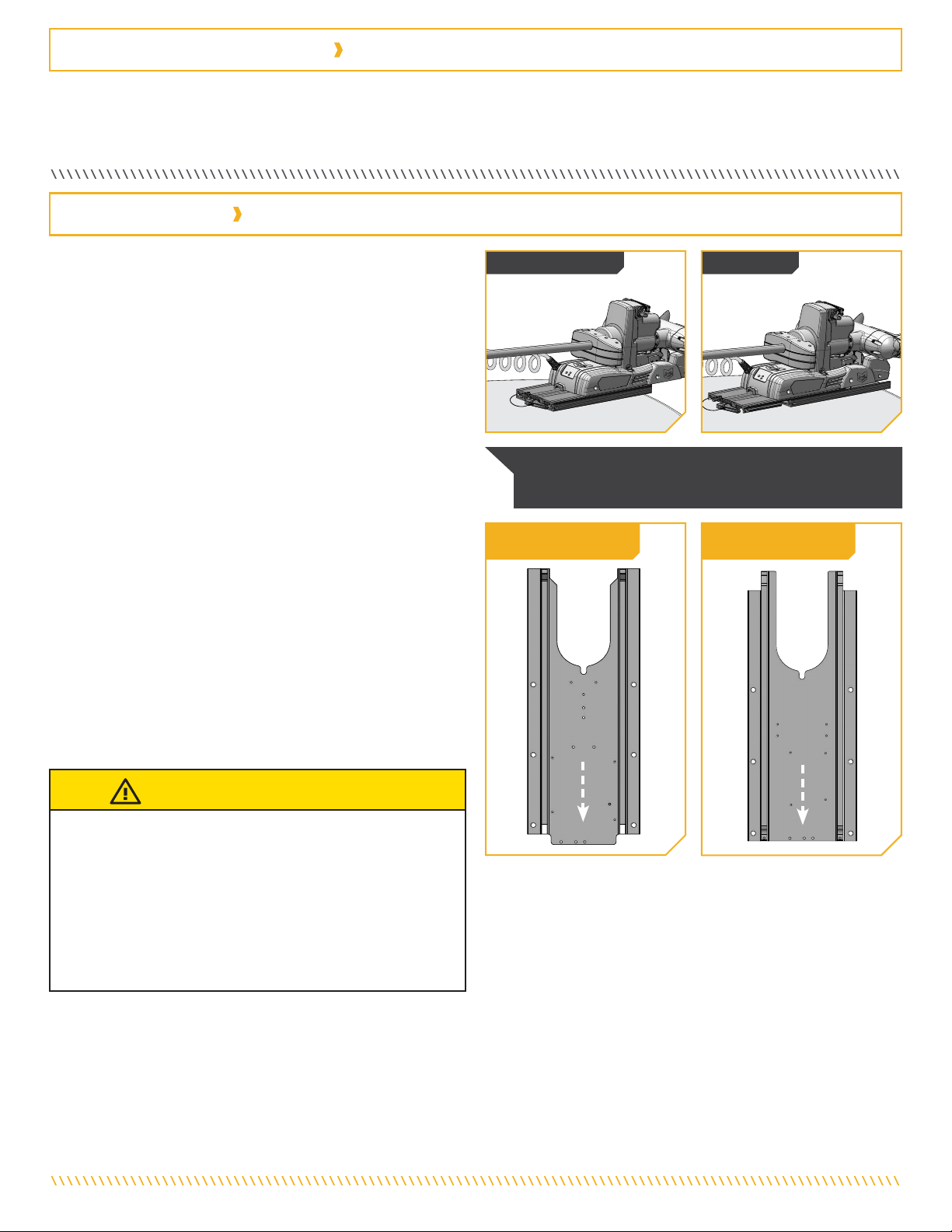

Installing the Top Plate to an Ulterra or Riptide Instinct
Power CablesPower Cables
1a. Make sure that the Power Cables from the battery
are disconnected or that the breaker, if equipped,
is “off.”
WARNING
Make sure that the Power Cables from the battery are
disconnected or that the breaker, if equipped, is “off.”
NOTICE: The trolling motor weighs up to 90lbs.
Minn Kota recommends having a second person help
with the installation.
b. Place the mount on an elevated, level surface such
as a workbench or the tailgate of a pickup. The
motor should be in the stowed position.
2
SideplateSideplate
ScrewScrew
SideplateSideplate
Mounting HolesMounting Holes
c. Remove the four Sideplate Screws using a #3 Phillips
Screwdriver. Two of these screws will be located on
each side of the mount.
d. Remove the Right Sideplate and the Left Sideplate to
expose the six mounting holes in the Base Extrusion.
DeployedDeployed StowedStowed

8 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
3
44g
TopTop
PlatePlate
Cam LeverCam Lever
BaseBase
ExtrusionExtrusion
Hex HeadHex Head
Cap ScrewCap Screw
OutboardOutboard
InboardInboard
#28 x 6
ITEM(S) NEEDED
3e
SideplateSideplate
ScrewScrew
SideplateSideplate
e. Place the flat side of the Top Plate against the
bottom of the Base Extrusion. Align the Mounting
Holes in the Top Plate with the Mounting Holes in
the Base Extrusion that were exposed when the
sideplates were removed. Make sure that the Cam
Lever points inboard.
f. Use six Hex Head Cap Screws (Item #28) to secure
the Top Plate to the Base Extrusion. The Screws
should insert from the top down, through the Base
Extrusion and into the Top Plate. Tighten to
120 in-lbs with a 9/16” Box End or Open End
Wrench. Make sure all hardware is secure.
g. With the Top Plate secured, replace the Right
Sideplate and Left Sideplate.
h. Replace the four Sideplate Screws using a #3 Phillips
Screwdriver. Two of these screws will be located on
each side of the mount.
NOTICE: To prevent seizing of the stainless steel
hardware, do not use high-speed installation tools.
NOTICE: Use extra care to avoid pinching and damaging
the sensor wires that run alongside the Base Extrusion
when installing and tightening the mounting hardware.

9 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.

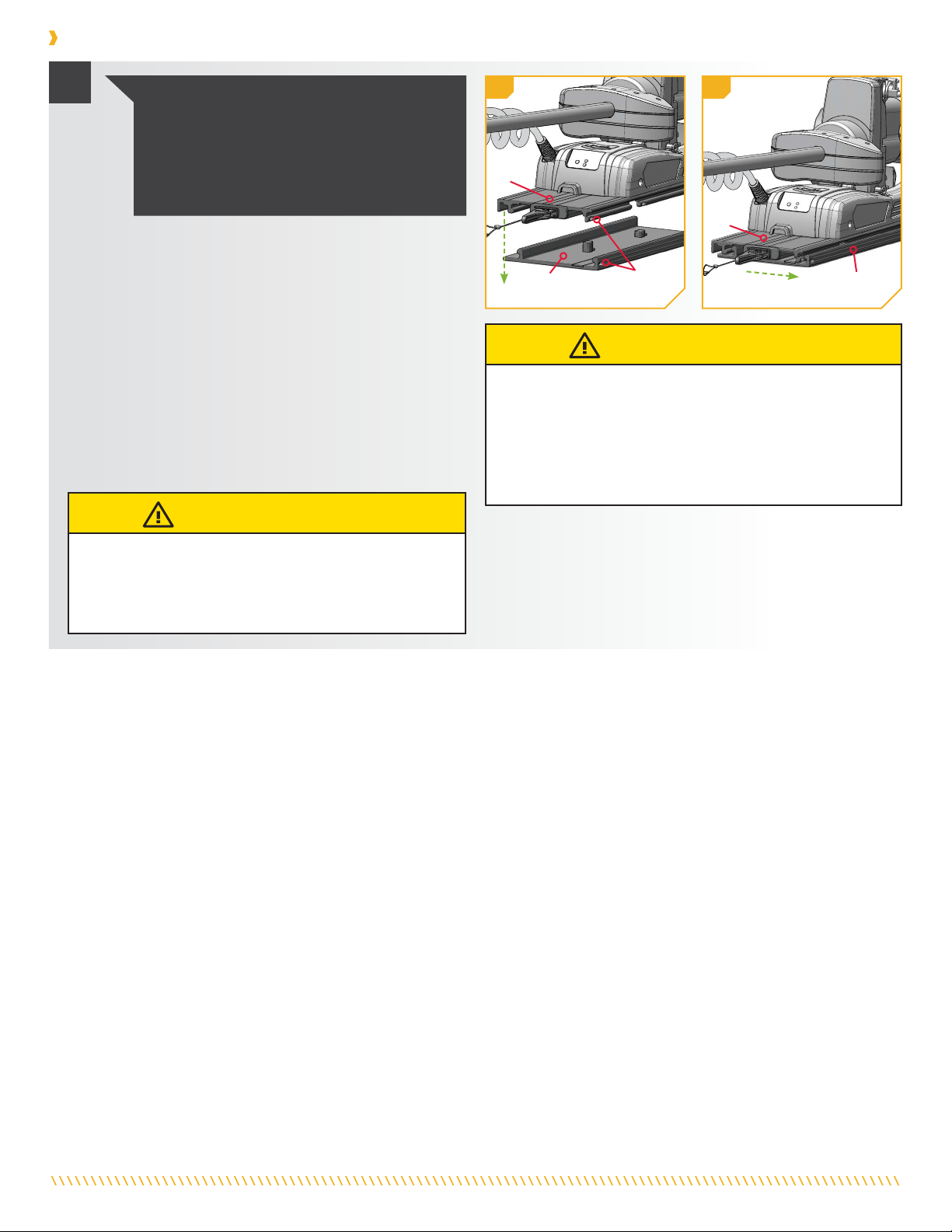

a. Once the Top Plate is secured to the motor,
reassemble the Quick Release Bracket with the help
of a second person. To reassemble the MKA-57, set
the Bottom Plate on a flat surface next to the Top
Plate. The Padlock Slot on the Bottom Plate should
face the same direction as the Padlock Slot on the
Top Plate.
b. Set the Top Plate and motor onto the Bottom Plate,
leaving a 1½" sideways gap between the Plates. Slide
the Top Plate and motor to the right to close the gap
and realign the Plates. Secure the Plates together by
closing the Cam Lever and inserting the Pin.
1
Installing the Bottom Plate to the Deck of the Boat
NOTICE: The mounting surface for the Bottom
Plate must be completely flat. Rubber Washers
(Part #2321710) can be used to shim the Bottom
Plate flat before hardware is tightened. The Top
Plate will not fit correctly unless the Bottom Plate
is installed completely flat.
BottomBottom
PlatePlate
PadlockPadlock
SlotSlot
TopTop
PlatePlate
BottomBottom
PlatePlate
TopTop
PlatePlate
1b 1b
CAUTION
An incorrectly secured trolling motor may fall and cause injury.
Improper alignment of the Top Plate and Bottom Plate will allow
the motor to fall off, even if the Cam Lever is closed. Before
closing the Cam Lever, make sure that the rails of the Top Plate
and Bottom Plate seat into their respective channels. Properly
securing the motor will prevent injury.
CAUTION
Watch for pinch points. The space between the Cam Lever
and Plates can create a pinch point when closing the Cam
Lever. To avoid the pinch points, use an open palm against
the flat side of the Cam Lever to push the Cam Lever closed.

10 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
BowBow
BottomBottom
PlatePlate
BowBow
OutboardOutboard
OutboardOutboard
Bottom PlateBottom Plate
MarkingsMarkings
BowBow
MarkingsMarkings
MarkingsMarkings
InboardInboard
InboardInboard
Top PlateTop Plate
33e
3d
3e
d. Once a mounting location has been determined and
all clearances verified, use an Awl or similar tool to
mark the side edges and rear of the Bottom Plate on
the bow of the boat.
e. Remove the Pin and open the Cam Lever to separate
the Top Plate and motor from the Bottom Plate. Set
aside the Top Plate and motor.
CamCam
LeverLever PadlockPadlock
SlotSlot
Padlock SlotPadlock Slot
2
Deck ofDeck of
BoatBoat
KeelKeel
2c
InboardInboard
StarboardStarboard
OutboardOutboard
PortPort
c. Place the motor with the attached Quick Release
Bracket assembly as close to the centerline or keel
of the boat as possible. The motor can be installed
on either the Port or Starboard side of the boat
based on personal preference. Review the mounting
considerations at the beginning of this document.
Check for obstructions around the Top Plate and
motor in all possible positions.

11 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
InboardInboard
InboardInboard
InboardInboard

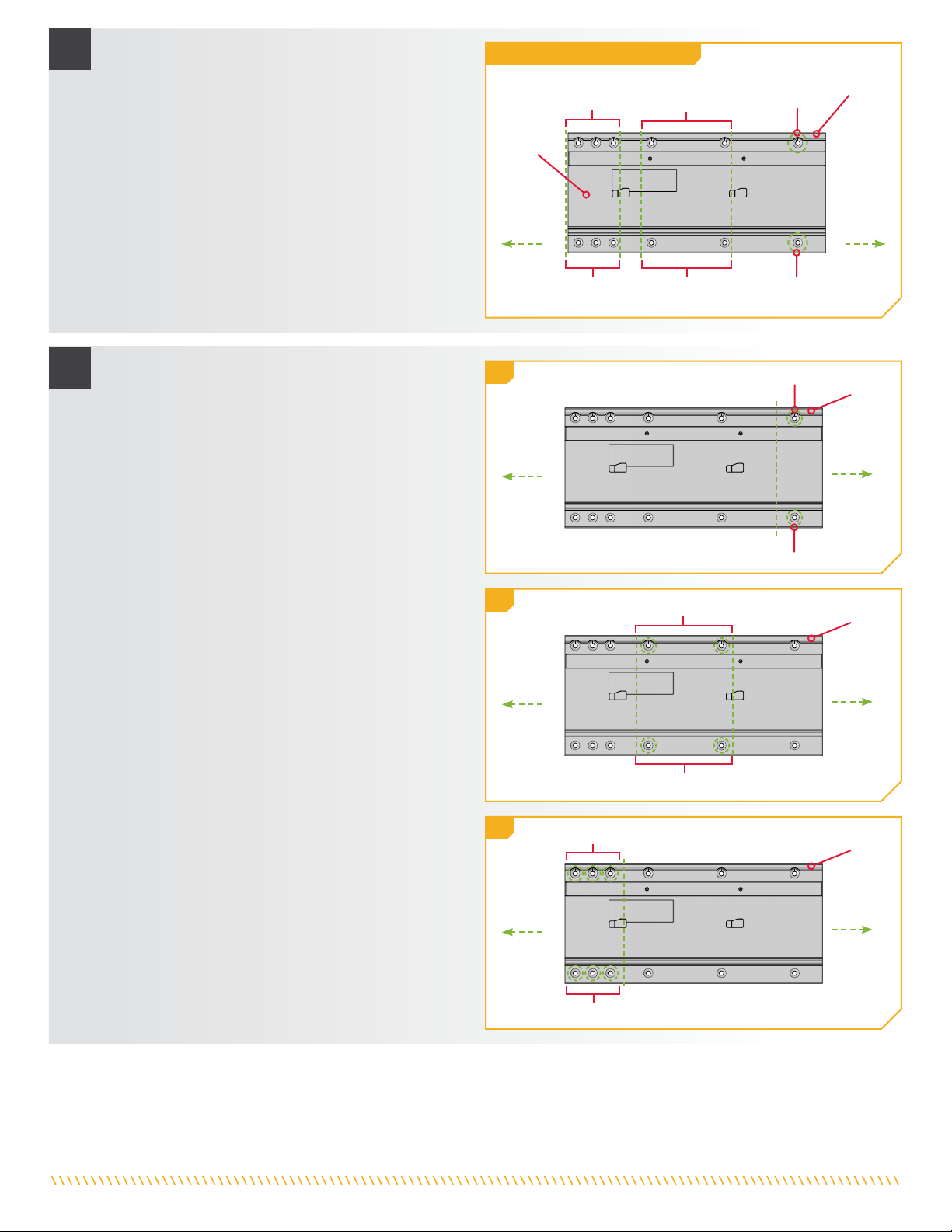

5h. Mark the two holes furthest inboard, one on each
side of the Plate. The two mounting holes furthest
inboard must always be used.
i. There are four mounting holes in the middle of the
Plate, with two holes on each side. Mark one of these
two holes on each side of the Bottom Plate. The holes
do not need to be symmetrical, as long as there is at
least one mounting bolt on each side.
j. Look at the end of the Bottom Plate which is furthest
outboard. There are six mounting holes close
together, three on each side of the Plate. One of
these three holes must be used on each side. The
pattern does not need to be symmetrical. Any choice
or order of hole works, as long as there is at least one
mounting bolt used on each side.
k. With all six mounting holes marked, set the Bottom
Plate aside. Use a Drill with a 13/32" Drill Bit to drill
through the Boat Deck on the marked locations.
PadlockPadlock
SlotSlot
PadlockPadlock
SlotSlot
PadlockPadlock
SlotSlot
5h
5i
5j
MarkMark
MarkMark
OutboardOutboard
OutboardOutboard
OutboardOutboard
Mark one out of twoMark one out of two
Mark one out of twoMark one out of two
Mark one out of threeMark one out of three
Mark one out of threeMark one out of three
InboardInboard
OutboardOutboard
Mark oneMark one
out of threeout of three
Mark oneMark one
out of threeout of three
Mark oneMark one
out of twoout of two
Mark oneMark one
out of twoout of two
MarkMark
PadlockPadlock
SlotSlot
BottomBottom
PlatePlate
MarkMark
4f. Reposition the Bottom Plate onto the marks made
on the bow of the boat. Make sure the Padlock Slot is
facing inboard.
g. There are a variety of mounting hole options and
patterns available when installing the Bottom Plate,
to provide flexibility and account for variances in
boat deck shapes. All six mounting bolts must be
used when installing the Bottom Plate to the bow,
with three bolts used on each side of the Plate. If
the desired mounting location and mounting hole
pattern does not allow for all six mounting bolts, a
new mounting location should be selected.
Mounting Hole Pattern Options

12 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
l. Reposition the Bottom Plate over the drilled holes.
Use six 3/8-16 X 2" Flat Head Screws (Item #26),
six Rubber Washers if needed (Part #2321710), six
Backup Bars (Part #2371796), and six Nylock Nuts
(Item #27) to secure the Bottom Plate to the boat
deck. Apply anti-seize (Item #29) to all hardware.
The Screws should be installed from the top down,
passing through the Bottom Plate, Rubber Washers
(if used) and into the boat deck.
m. Place a Backup Bar and then a Nylock Nut at the
end of each Screw. While holding each Nylock Nut
with a 9/16" Box End or Open End Wrench, use a #4
Phillips Screwdriver to tighten each Screw. Make
sure all hardware is secure.
Flat Head ScrewFlat Head Screw
BottomBottom
PlatePlate
RubberRubber
WasherWasher
Nylock NutNylock Nut
Backup BarBackup Bar
Deck ofDeck of
BoatBoat
#26 x 6 #27 x 6 #29 x 1
InboardInboard
OutboardOutboard
6ITEM(S) NEEDED
NOTICE: To prevent seizing of the stainless steel
hardware, do not use high-speed installation tools.
Wetting the screws or applying an anti-seize (Item #29)
may help prevent seizing.
NOTICE: The mounting surface for the Bottom Plate must
be completely flat. Rubber Washers (Part #2321710) can
be used to shim the Bottom Plate flat before hardware is
tightened. The Top Plate will not fit correctly unless the
Bottom Plate is installed completely flat.
NOTICE: This installation requires the use of hardware
that was included with your trolling motor. Six Backup Bars
(Part #2371796) and six Rubber Washers (Part #2321710)
that are part of the motor hardware bag assembly
(Part #2994948) are required.
PadlockPadlock
SlotSlot

13 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
a. Slide the Top Plate and motor onto the Bottom Plate
that was mounted to the Boat Deck. Close the Cam
Lever to lock the Plates. Insert the Pin into the hole
in the Cam Lever to secure the Lever and ensure it
remains latched.
BottomBottom
PlatePlate
Top PlateTop Plate
PinPin
Cam LeverCam Lever
1
Completing the Installation
CAUTION
Before using or transporting the trolling motor, always check
that the Cam Lever is closed and secured with the Pin to ensure
that the Top Plate and Bottom Plate remain locked. Failure to
secure the Cam Lever may result in injury from a falling motor.
NOTICE: Lock your motor to
help prevent theft. The motor
can be locked in both the
Operating and Transporting
positions. The diameter of the
Padlock slot is 1/4". OperatingOperating
TransportingTransporting
CAUTION
An incorrectly secured trolling motor may fall and cause injury.
Improper alignment of the Top Plate and Bottom Plate will allow
the motor to fall off, even if the Cam Lever is closed. Before
closing the Cam Lever, make sure that the rails of the Top Plate
and Bottom Plate seat into their respective channels. Properly
securing the motor will prevent injury.

a. To slide the MKA-57 into the transporting position,
remove the Pin and open the Cam Lever.
b. While grasping the motor Shaft and Steering
Housing with both hands, slide the Top Plate and
motor approximately 1½ inches sideways Portside.
c. Slide the Top Plate and motor 10 inches inboard.
Make sure that the Top Plate remains seated in the
Bottom Plate.
d. Slide the Top Plate and motor sideways Starboard-
side to close the 1½ inch gap and realign the Plates.
Close the Cam Lever to lock the Plates together. Insert
the Pin into the Cam Lever to secure the bracket.
e. To return to the normal position, reverse these steps.
1
Transporting Position
The position of the MKA-57 can be adjusted by sliding the Top
Plate 10 inches inboard. This allows for safer transportation, a
better boat cover fit, or more clearance when launching the boat.
1a 1b
1c 1d
InboardInboard
PortPort
StarboardStarboard
CamCam
LeverLever
PinPin
1½"1½"
10"10"
NOTICE: The Top Plate can be separated from the Bottom
Plate when a sideways gap is present between the plates,
or while sliding the plates between the operating and
transporting positions.
ImproperImproper
AlignmentAlignment
For warranty information, please visit minnkota.johnsonoutdoors.com.
Minn Kota Consumer & Technical Service
Johnson Outdoors Marine Electronics, Inc.
PO Box 8129
Mankato, MN 56001
121 Power Drive
Mankato, MN 56001
Phone [phone]
Fax [phone]
minnkota.johnsonoutdoors.com
©2023 Johnson Outdoors Marine Electronics, Inc.
All rights reserved.
Part #2377178 Rev B 05/23ECN 43074
CAUTION
Before using or transporting the trolling motor, always check
that the Cam Lever is closed and secured with the Pin to ensure
that the Top Plate and Bottom Plate remain locked. Failure to
secure the Cam Lever may result in injury from a falling motor.
CAUTION
An incorrectly secured trolling motor may fall and cause
injury. Improper alignment of the Top Plate and Bottom Plate
will allow the motor to fall off, even if the Cam Lever is closed.
Before closing the Cam Lever, make sure that the rails of
the Top Plate and Bottom Plate seat into their respective
channels. Properly securing the motor will prevent injury.

15 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
SUPPORT COULISSANT À
DÉGAGEMENT RAPIDE MKA-57
1854057
Le MKA-57 est compatible avec les moteurs de pêche à la traîne de la série QUEST à direction électrique et à montage sur proue d’eau
douce et d’eau salée, notamment les Riptide Instinct, Ulterra, Riptide Terrova et Terrova.
pNon affiché sur le schéma des pièces
11
1818
1919
2424
2020
2525
2525
2121
77
66
6688
88
1717
33
44441313
1414
1515
99
1010
1111
1616 1212
22
22
55
55
1717
1717
1717
2222
2222
2323
2323
2626
CC
2828
2727 2929
Article/
Assemblage Nº de pièce Description Qté
A
Articles 1 à 17 2778972 TOP PLATE KIT BL ALUM QRB 1
1 2381972 PLATE-TOP, ANODIZED 1
2 2383432 SCREW-#12 X 5/8 TYPE B PFH 2
3 2373626 WEAR STRIP, HDPE 1
4 2388630 RIVET-POP, 1/8 X 1/8 ALUM. 2
5 2383491 SCREW-#6-32 X 1/2" PFH SS 4
6 2373625 DRAW BAR WEAR STRIP 2
7 2373613 DRAW BAR, ANODIZED 1
8 2222716 SPRING,COMPRESSION OD.480 2
9 2373261 STOP, DRAW BAR 1
10 2225110 PAD, URETHANE,QCK ATTACH 1
11 2381948 EXTRUSION BACKER, MACH, ES QRB 1
12 2378475 CAM ARM HANDLE 1
13 2372623 PIN W/RING, QRB 1
14 2372644 PIN-ROLL, .093 x 5/8" SS 1
15 2262635 PIN-ROLLER, S/S 1
16 2373650 LANYARD ELECTRIC STEER,QRB 1
17 2373627 DRWBAR WEAR STRP,UHMWPE,BLK 4
B
Articles 18 à 25 2778977 BOTTOM PLATE KIT BL ALUM QRB 1
18 2381977 PLATE-BOTTOM, ANODIZED 1
19 2225615 DECAL-WARNING,MNT PLATE 1
20 2377918 CAM PUCK BACK ELECTROPOLISH 1
21 2377919 CAM PUCK FRONT ELECTROPOLIS 1
22 2383488 SCREW-3/8-16 X 5/8" PFH SS 2
23 2382682 PIN-DOWEL, 1/4" X 5/8" SS 2
24 2373626 WEAR STRIP, HDPE 1
25 2388630 RIVET-POP, 1/8 X 1/8 ALUM. 2
C
Articles 26 à 29 2994945 BAG ASM,ELEC.STEER QRB 1
26 2383489 SCREW-3/8-16 X 2" PFH SS 6
27 2383122 NUT 3/8-16 NYLON INST LOCKNUT 6
28 2353412 SCREW-3/8-16 X 1.0" HHCS SS 6
29 2378608 ANTI SEIZE TUBE, 4CC, TALON 1
p2377178 MANUAL, ELEC. STEER QRB 1
BB
AA
AVERTISSEMENT
Vous êtes responsable de l’utilisation sûre et prudente de ce produit. Minn Kota a conçu cet accessoire pour être un outil fiable et
pratique. Utiliser uniquement comme indiqué et uniquement pour l’intention prévue du produit. L’installation doit avoir lieu dans une
zone exempte de dangers et d’obstacles. Ce produit ne vous exonère pas de la responsabilité de naviguer en toute sécurité.

16 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
FACTEURS DE MONTAGE
Le support à dégagement rapide MKA-57 est conçu pour être
verrouillé en deux positions différentes. La première position
aligne la plaque supérieure et la plaque inférieure qui les verrouille
en place avec le levier à came. Cette position est utilisée lorsque
le moteur est en marche. La deuxième position permet de glisser
de 10 po (25,4 cm) la plaque supérieure vers l’en-bord avant de la
verrouiller en place. Cette position est utilisée lors du transport.
Lorsque vous vérifiez le dégagement du moteur pour un
emplacement de montage, tenez compte de ce qui suit :
InstallationInstallation
complètecomplète
typiquetypique
InstallationInstallation
complètecomplète
typiquetypique
En fonctionnement En transport
AVIS : Les images sont une représentation graphique et
peuvent être légèrement différentes de votre moteur.
1. Le MKA-57 est compatible avec les moteurs de pêche à la
traîne QUEST à direction électrique et à montage sur étrave
d’eau douce et d’eau salée, notamment les Riptide Instinct
QUEST, Ulterra QUEST, Riptide Terrova QUEST et Terrova
QUEST. L’extrusion de la base des moteurs de pêche à la
traîne peut varier. Veuillez noter l’apparence de l’extrusion de
la base pour chaque moteur de pêche à la traîne.
2. Il est recommandé que le moteur soit monté aussi près que
possible de l’axe ou de la quille du bateau. L’installation de
la plaque inférieure nécessite l’utilisation des six boulons de
montage. Monter les boulons aussi éloignés l’un de l’autre
que possible créera la plus grande stabilité. Assurez-vous
que l’emplacement de montage est à plat et que la zone sous
l’emplacement de montage est dégagée pour percer les trous
et installer la quincaillerie. En-bordEn-bord En-bordEn-bord
OUTILS ET RESSOURCES NÉCESSAIRES
• Tournevis cruciforme nº 3
• Tournevis cruciforme nº 4
• Pince à bec pointu
(pour Terrova et RT Terrova)
• Perceuse
• Poinçon ou autre outil de
marquage semblable
• Mèche de 13/32 po
(10,32 mm)
• Clé polygonale/ouverte de
9/16 po (14,28 mm)
• Une deuxième personne
pour vous aider avec
l’installation
Ulterra QUEST
Riptide Instinct QUEST
Terrova QUEST
Riptide Terrova QUEST
ATTENTION
Un moteur de pêche à la traîne mal fixé peut causer des
blessures. L’installation de la plaque inférieure nécessite
l’utilisation des six boulons de montage. Assurez-vous que
l’emplacement de montage est à plat et que la zone sous
l’emplacement de montage est dégagée pour percer les trous
et installer la quincaillerie. Évitez les blessures causées par
un moteur de pêche à la traîne mal fixé en suivant les
instructions d’installation.

17 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
Plat-bordPlat-bord
FenteFente
MinimumMinimum
de 1,5 pode 1,5 po
(3,8 cm)(3,8 cm)
Plat-bordPlat-bord
ArbreArbre
Boîtier deBoîtier de
directiondirection
3 3
Need New Illustration Pont duPont du
bateaubateau
PositionPosition
possible depossible de
la plaquela plaque
supérieuresupérieure
Hors-bordHors-bord
En-bordEn-bord
10 po10 po
(25,4 cm)(25,4 cm)
1,5 po1,5 po
(3,8 cm)(3,8 cm)
4
QuilleQuille
AVIS : Assurez-vous que le moteur ne rencontrera aucune
obstruction lorsque vous faites glisser la plaque inférieure.
Lors du montage, l’emplacement précis du moteur et du
MKA-57 peut varier selon le bateau, le pont du bateau
et l’extrusion de la base sur laquelle est montée la
plaque supérieure.
3. Le moteur ne doit rencontrer aucune obstruction lorsqu’il est
abaissé dans l’eau ou monté dans le bateau pour arrimage ou
déploiement. En position arrimée, placez le moteur de sorte
que la fente de l’extrusion de la base soit positionnée au-delà
du plat-bord du bateau. Le dégagement est approprié lorsque
la totalité de la fente est visible au-delà du plat-bord. Lorsque
le moteur est déployé, il doit y avoir une distance minimale
requise de 1½ po (3,81 cm) entre le plat-bord et le fond du
boîtier de direction et de l’arbre.
4. Vérifiez s’il y a des obstructions autour de la plaque
supérieure et du moteur dans toutes les positions possibles.
La plaque supérieure se déplace vers le côté d’environ 1½ po
(3,81 cm) et se glisse aussi vers l’en-bord de 10 po
(25,4 cm). Cela permet de déplacer le moteur pour le
remorquer, le transporter ou de couvrir le bateau, sans être
retiré. Assurez-vous de vérifier s’il y a d’autres obstructions
avec ce mouvement à l’esprit, comme un pare-brise ou
des phares.
AVIS : La surface de montage pour la plaque inférieure doit
être complètement à plat. Des rondelles en caoutchouc
(pièce nº 2321710) peuvent être utilisées pour caler la
plaque inférieure afin qu’elle soit à plat avant le serrage
de la quincaillerie. La plaque supérieure ne s’ajustera pas
correctement si la plaque inférieure n’est pas installée
complètement à plat.
5. Cette installation nécessite l’utilisation de la quincaillerie
incluse avec votre moteur de pêche à la traîne. Six barres
d’appui (nº de pièce 2371796) et six rondelles en caoutchouc
(nº de pièce 2321710) du lot sous emballage de quincaillerie
du moteur (nº de pièce 2994948) sont requises.
6. Le moteur en position d’arrimage, assurez-vous qu’il y a
suffisamment d’espace pour l’arbre et la tête de contrôle et
qu’ils ne s’étendent pas au-delà du bateau.

18 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
#B x 1
a. Prenez le support à dégagement rapide MKA-57, qui
comprend la plaque supérieure (assemblage nº A)
et la plaque inférieure (assemblage nº B). La plaque
supérieure sera fixée au moteur de pêche à la traîne,
tandis que la plaque inférieure sera installée sur le
pont du bateau.
b. Remarquez le levier à came fixé à la plaque
supérieure. Les plaques sont maintenues ensemble
lorsque le levier à came est verrouillé et fixé avec
une goupille. Retirez la goupille du levier à came
pour libérer le levier.
AVIS : Le levier à came ne s’ouvre et ne se ferme que
dans une seule direction, indiquée par la flèche sur le
levier à came.
AVIS : La plaque supérieure peut être séparée de la
plaque inférieure lorsqu’elle lorsqu’il existe un écart
latéral entre les plaques.
PlaquePlaque
supérieuresupérieure GoupilleGoupille
Levier àLevier à
camecame
Plaque inférieurePlaque inférieure
1ARTICLE(S) REQUIS
#A x 1
INSTALLATION
Ouverture du support
1b
1d
1e En-bordEn-bord
c. Ouvrez le levier à came en le tirant hors du support à
dégagement rapide.
d. Lorsque la plaque supérieure est fixée à l’extrusion
de la base du moteur de pêche à la traîne,
l’extrémité de la plaque supérieure avec le
levier à came se monte à l’en-bord.
e. Le levier à came ouvert, faites glisser la plaque
supérieure côté bâbord de 1½ po (3,81 cm), puis
soulevez-la pour la séparer de la plaque inférieure.
Mettez la plaque inférieure de côté. La plaque
supérieure sera installée en premier.
PlaquePlaque
supérieuresupérieure
Glisser 1½ po (3,81 cm) côté bâbordGlisser 1½ po (3,81 cm) côté bâbord
LevierLevier
à cameà came
Plaque inférieurePlaque inférieure
En-bordEn-bord
TribordTribord
BâbordBâbord
Hors-bordHors-bord
Support àSupport à
dégagement rapidedégagement rapide
Levier à cameLevier à came
1c
Levier àLevier à
camecame
ATTENTION
Surveillez les points de pincement. L’espace entre le levier
à came et les plaques peut créer un point de pincement lors
de la fermeture du levier à came. Pour éviter les points de
pincement, utilisez une paume ouverte contre le côté plat du
levier à came pour le fermer.
Côté platCôté plat

19 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
Installation de la plaque supérieure sur un Terrova ou un Riptide Terrova
33e
ATTENTION
Lorsque vous manipulez chaque ressort, gardez toujours la
tension du ressort sous contrôle. Relâcher brusquement le
ressort alors qu’il y a encore de la tension pourrait l’endommager
et faire en sorte que ses mouvements soient imprévisibles.
ATTENTION
Lorsque vous manipulez chaque ressort, manipulez-le avec
précaution pour éviter de le plier. Ne saisissez pas le corps
du ressort pour éviter de pincer entre les spires du ressort.
Saisissez toujours par l’extrémité à crochet.
Pince à becPince à bec
pointupointu
RessortRessort
BoulonBoulon
RessortRessort
Trou de montageTrou de montage
Trou deTrou de
montagemontage
Extrusion de la baseExtrusion de la base
RailRail
latérallatéral
3f
22c
Vis de plaqueVis de plaque
latéralelatérale
c. Retirez les quatre vis de la plaque latérale en
utilisant un tournevis cruciforme nº 3. Deux de ces
vis seront situées de chaque côté du support.
d. Retirez la plaque latérale droite et la plaque latérale
gauche pour exposer les six trous de montage sur
l’extrusion de la base.
a. Assurez-vous que les câbles d’alimentation de la
batterie sont déconnectés, ou que le disjoncteur, le
cas échéant, est en position « arrêt ».
1
AVIS : Le moteur de pêche à la traîne pèse jusqu’à 90 lb
(40,8 kg). Minn Kota recommande d’obtenir l’aide d’une
deuxième personne pour l’installation.
AVERTISSEMENT
Assurez-vous que les câbles d’alimentation de la batterie
sont déconnectés, ou que le disjoncteur, le cas échéant, est
en position « arrêt ».
b. Placez le support sur une surface élevée, de niveau,
comme un établi ou le hayon d’une camionnette. Le
moteur devrait être en position arrimée.
e. Le trou de montage central de chaque côté de
l’extrusion de la base est bloqué par un ressort. Une
extrémité de chaque ressort doit être déconnectée
pour accéder aux trous de montage.
f. Pour déconnecter le ressort, prenez une pince à
bec pointu et saisissez soigneusement l’extrémité
à crochet sur la moitié supérieure du ressort.
Décrochez-la du trou du rail latéral en la tirant vers
le haut. Guidez-la vers la moitié inférieure du ressort
toujours attaché à l’extrusion de la base et déposez-
la doucement. Ne déconnectez pas l’extrémité
du ressort qui est enroulée autour d’un boulon.
Décrochez les deux ressorts.
DéployéDéployé ArriméArrimé
Câbles d’alimentationCâbles d’alimentation
PlaquePlaque
latéralelatérale
Trous de montageTrous de montage

20 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
#28 x 6
PlaquePlaque
supérieuresupérieure
Trous deTrous de
montagemontage
ExtrusionExtrusion
de la basede la base
Vis à tête creuseVis à tête creuse
hexagonalehexagonale
Levier àLevier à
camecame
Hors-bordHors-bord
En-bordEn-bord
4ARTICLE(S) REQUIS
4h
AVIS : Pour prévenir le grippage de la quincaillerie en
acier inoxydable, n’utilisez pas d’outils haute vitesse
pour l’installation.
g. Placez le côté plat de la plaque supérieure contre
le fond de l’extrusion de la base. Alignez les trous
de montage dans la plaque supérieure aux trous
de montage dans l’extrusion de la base qui ont été
exposés lorsque les plaques latérales et les ressorts
ont été retirés. Assurez-vous que le levier à came
pointe vers l’intérieur.
h. Utilisez six vis à tête creuse hexagonale (article
nº 28) pour fixer la plaque supérieure à l’extrusion
de la base. Les vis doivent être insérées de haut en
bas, à travers l’extrusion de la base et dans la plaque
supérieure. Serrez à 120 po-lb (13,56 Nm) avec une
clé polygonale ou une clé à fourche de 9/16 po
(14,28 mm). Assurez-vous que toute la quincaillerie
est bien fixée.
55i
Trou dans le rail latéralTrou dans le rail latéral
RessortRessort
Pince à bec pointuPince à bec pointu
ATTENTION
Lorsque vous manipulez chaque ressort, manipulez-le avec
précaution pour éviter de le plier. Ne saisissez pas le corps
du ressort pour éviter de pincer entre les spires du ressort.
Saisissez toujours par l’extrémité à crochet.
5j
Vis de plaqueVis de plaque
latéralelatérale
PlaquePlaque
latéralelatérale
i. La plaque supérieure fixée à l’extrusion de la base,
réassemblez les ressorts qui ont été déconnectés.
Utilisez une pince à bec pointu pour saisir l’extrémité
à crochet du ressort libre. Reconnectez-le en le
tirant vers le haut et en l’accrochant dans le trou
du rail latéral. L’extrémité courbée du ressort doit
être rattachée de haut en bas. Assurez-vous que
le ressort n’est pas tordu lors de sa réinstallation.
Rattachez le ressort sur les côtés droit et gauche de
l’extrusion de la base.
j. Les deux ressorts rattachés, replacez la plaque
latérale droite et la plaque latérale gauche.
k. Replacez les quatre vis de la plaque latérale en
utilisant un tournevis cruciforme nº 3. Deux de ces
vis seront situées de chaque côté du support. Serrez
à la main.
AVIS : Faites preuve de vigilance pour éviter de pincer ou
d’endommager les fils de capteur qui longent l’extrusion de
la base lors de l’installation et du serrage de la quincaillerie
de montage.
ATTENTION
Lorsque vous manipulez chaque ressort, gardez toujours la
tension du ressort sous contrôle. Relâcher brusquement le
ressort alors qu’il y a encore de la tension pourrait l’endommager
et faire en sorte que ses mouvements soient imprévisibles.
