Freedom Series Platinum 8000 Power Wheelchair
Owner’s Manual

Welcome 2
Chair Specifications 3-5
Lets Begin 6
Fold and Unfold 7-11
Armrest 12
Joystick 13-14
Battery Information 15-20
Sync Remote Control 21-22
Manual vs Electric Mode 23-25
Basic Operation 26
Safety & Maintenance 27-32
Electromagnetic Interference 33
Warranty 34
Customer Service 35
Table of Contents
1

Welcome
Thank you for choosing the Miracle Mobility Freedom Series Platinum 8000 Folding Electric Wheelchair.
Miracle Mobility is an industry leader in medical mobility. Your wheelchair is designed to provide years of
use. You have taken an essential step in regaining mobility, independence, and freedom.
Please read this owner’s manual before attempting to operate your Miracle Mobility Freedom Platinum 8000
Folding Electric Wheelchair. The safety and operating instructions will help you to understand the
performance and limitations of your new Miracle Mobility Platinum 8000 Folding Electric Wheelchair.
If you need assistance, we have provided in-depth videos on the Miracle Mobility
website at www.miraclemobility com. Note: This is an instruction manual.
The actual product may have some slight differences due to random modifications
at the factory.
Thank you!
Miracle Mobility Development Team
1-888-375-7128
[e-mail]
2

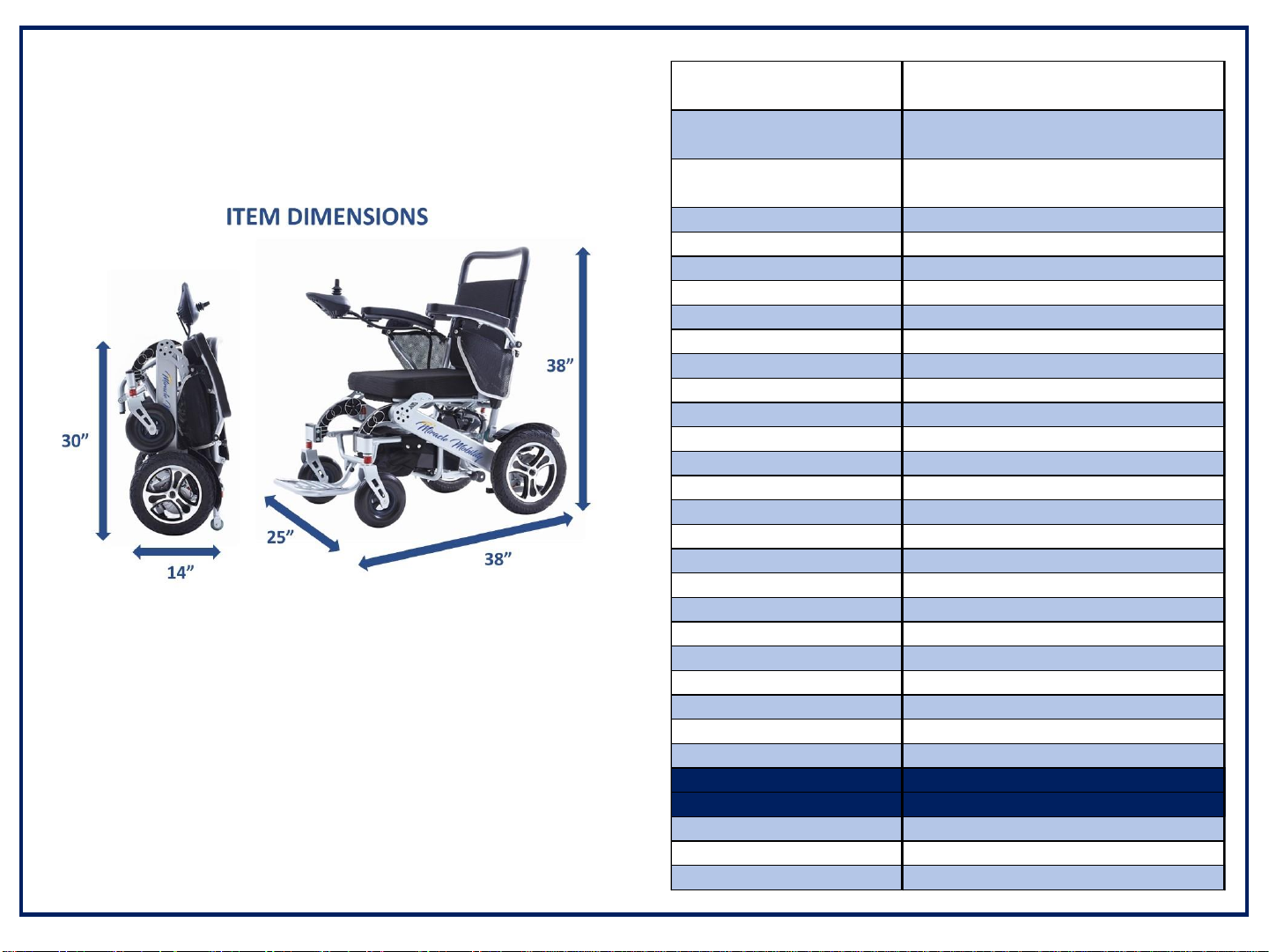

Chair Specifications
Easily navigate through standard
doors and narrow hallways.
Folds in less than 5 seconds and fits
in the trunk of most small cars.
Seat Size
18” x 18”
3
Color Options
(Black & Red)
(Silver)
Model #
MM-FSP8000-W11 (Black & Red)
MM-FSP8000-W1 (Silver)
UPC Code
8-800121-19805-5 (Black & Red)
8-500121-19804-8 (Silver)
Motor Type Magnetic Brushless DC Motor
Motor Power Rating
250 Watts x 2 (500 Watts Total)
Weight Capacity 396 lbs
Chair Weight w/o Battery 55 lbs
Chair Weight w/Battery 61 lbs
Maximum Speed 3.75 mph
Speed Settings 5 Speeds
Driving Distance up to 15 miles
Incline Grade Capacity 12 degrees
Battery Type Lithium Ion Battery
Battery Capacity 24V/12AH/288Wh
Batteries Per Unit 1 Battery
Charge Time 6-8 hours
Joystick Controller DC24V/2A
Charger Class 2 24V/2A
Brakes Intelligent Electromagnetic
Seat Size 18" D x 18" W
Unfolded Dimensions 37" L x 38" H x 25" W
Folded Dimensions 14" L x 30" H x 25" W
Tire Material Solid Polyurethane & Rubber
Front Tire Size 7"
Rear Tire Size 13"
Frame Construction Aluminum
Gross Shipping Weight 75 lbs
Carton Dimensions 26" x 32" x 18"
Carton Cube 8.6
Warranty
2 yrs (frame), 2 yrs (motor), 1 yr (parts)
Remote Control Yes

4

5

Lets Begin
1. Begin by taking out the wheelchair and spare parts from
the shipping carton and stand the chair upright.
(see Image 1)
2. Install the joystick controller on the armrest.
The joystick can be installed on the left or right hand.
(see Image 2)
3. You need to unfold the wheelchair.
(see Image 3 & 4)
Image 1
Image 3
Image 4
6
Image 2

7
Unfolding
4. Grasp one hand on the back push handle tube and the other hand on the foot rest and
separate frame (see Image 5) (note the armrests should be locked and the wheels should be in
electric mode)
Note: Always make sure the power is
off while folding and unfolding
(Image 5)

Unfolding
8
Note: Make sure you secure
the safety clamp and lock it in
place. Failure to do this could
result in the chair collapsing on
you causing serious injury.
5. Grasp the back push handle with one hand and lock the safety clamp on the back of
the chair. (see image 6 & 7)
Flip the clamp down to lock in place
(Image 6) (Image 7)

9

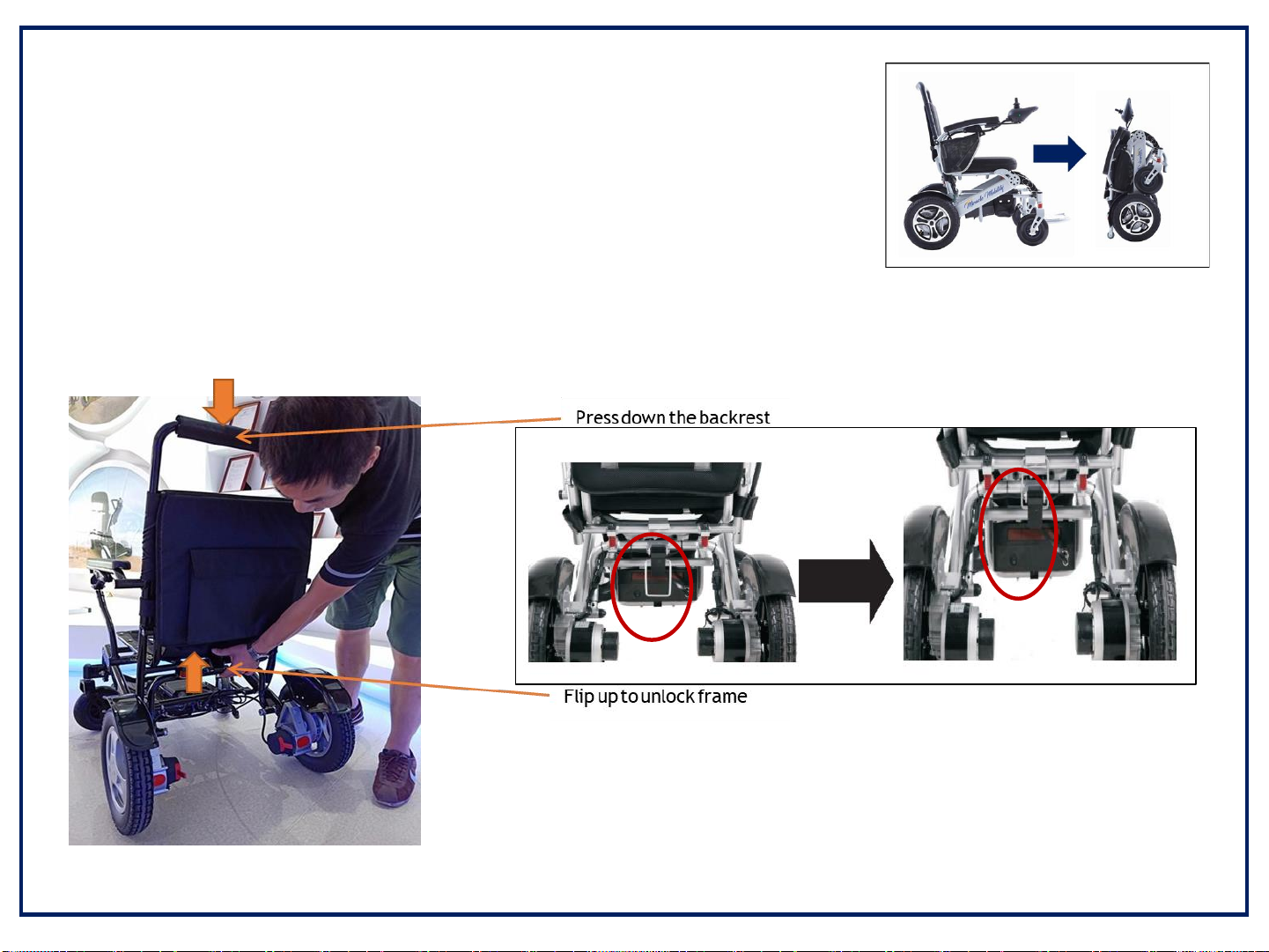

Folding
6. Unlatch the safety clamp in the back of the chair by
flipping up the safety clamp. (see image 8 & 9)
(Image 8)
(Image 9)

10

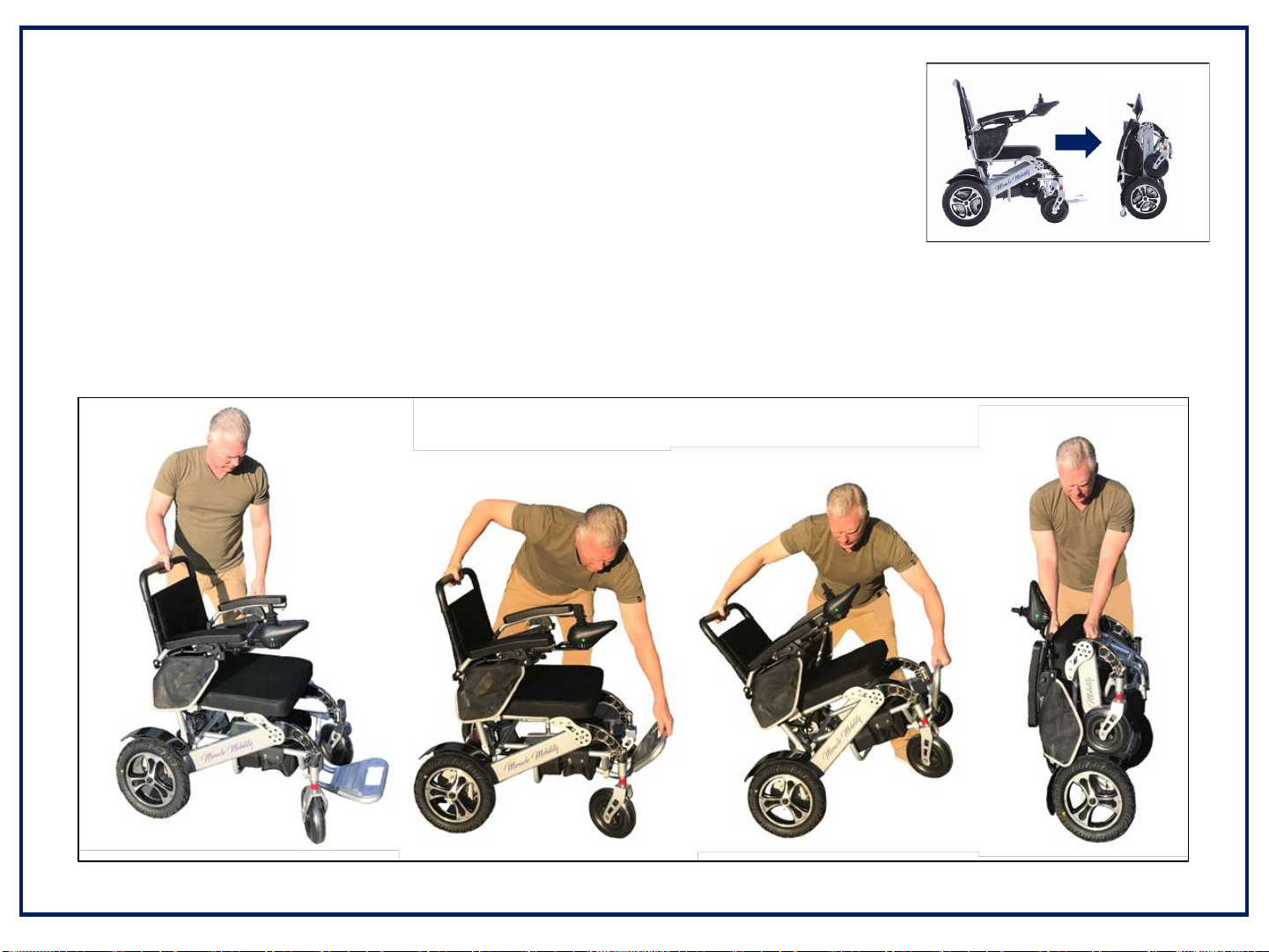

Folding
7. After you have unlocked the safety clamp. Grasp one hand on the back push
handle tube and the other hand on the foot rest and pull the frame together while
slightly lifting the front of the chair. (see Image 10) (note the armrests should be locked
and the wheels should be in electric mode)
Note: Always make sure the power is off while folding and unfolding
(Image 10)

11
Pulling
8. Switch the back red break levers to manual mode and you can pull the wheelchair
using the seat cross bar or leg rest bar. (see image 11 & 12)
Note: Make sure both red levers on
the back of the wheels are in manual
mode. To allow the wheels to turn
while pulling or pushing.
(Image 11)
(Image 12)

12
9. Notice the lever on the outside of each armrest (see image 13)
10. This lever is in the locked position when it is pointing up
11. You will not be able to lift the armrest when the armrest lever is in the locked position
12. Turn the lever down to release the armrest and then pull the armrest up (see image 14)
Note: We recommend that you lift the armrests to sit on the chair from a 45 degree angel then
turn your body to face forward. Once you are in the chair return the armrest to it’s natural
position and lock it in place.
The Armrest
(Image 13)
(Image 14)

Joystick Controller
13
The Joystick is designed to
provide all the information you
need to safely operate your
wheelchair. (see image 15)
The joystick is designed to
operate with a zero turn radius
(within it’s own footprint) and
will detect micromovement of
the joystick.
To stop the Wheelchair simply
let go of the joystick and the
chair will come to a controlled
stop.
Practice moving the joystick to
move forward and in reverse.
Also practice making left turns
and right turns.
It takes about a week to get use
to the joystick operation to
become proficient.
(Image 15)

14

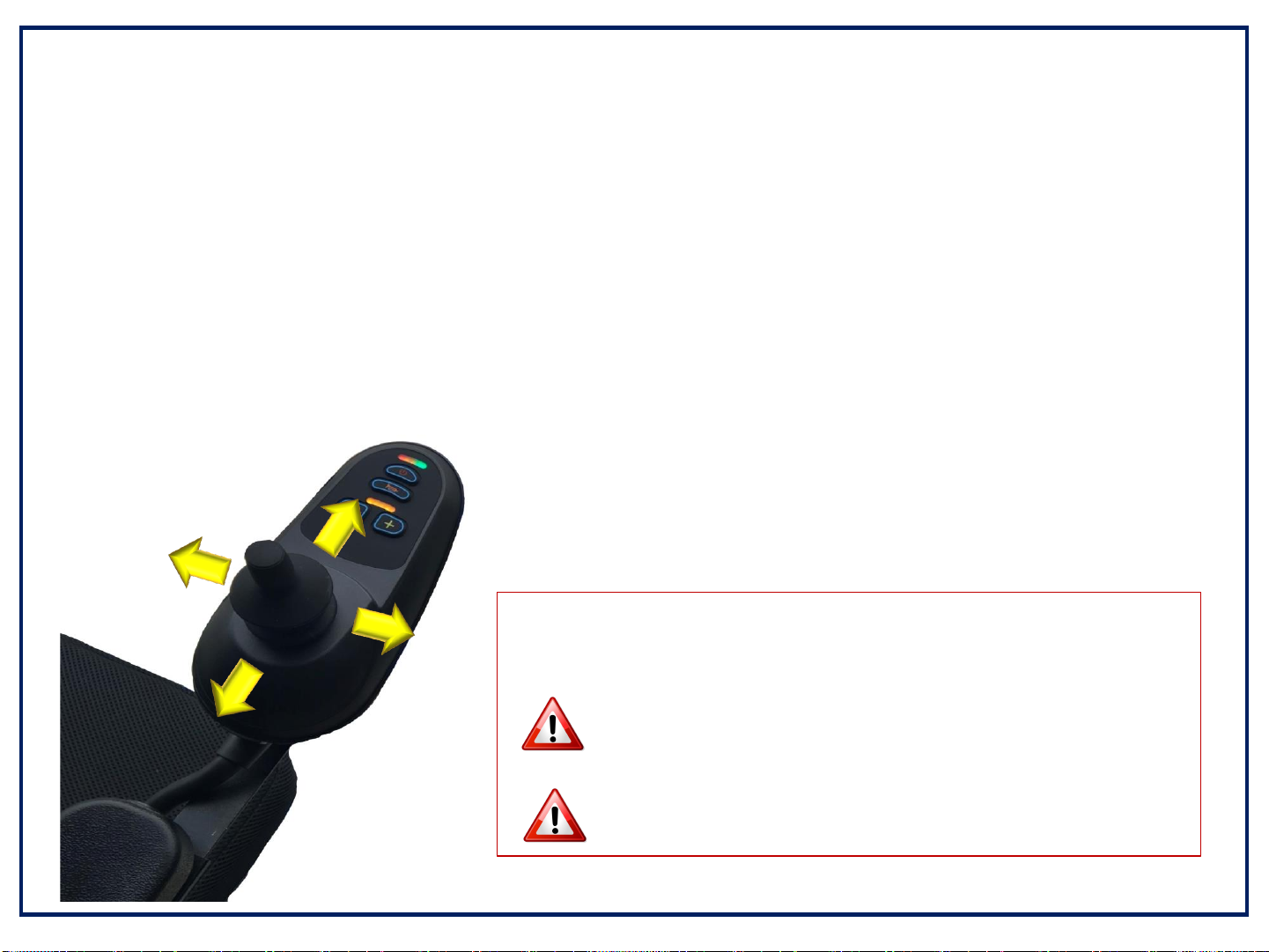

✓Practice operation in a safe and controlled environment to learn the operation of your
controller along with the speed and the maneuverability of the wheelchair.
✓When turning, reduce your speed, which will help you avoid any potential tilting or
tipping of the wheelchair and adjust the speed depending on your environment.
✓To stop, simply let go of the joystick and it will naturallyreturn to the neutral positionand bring the
chair to a comfortable stope.
Joystick Controller
Caution!
✓Operate the wheelchair slowly and at an even
controlled speeds
✓Make sure your path is clear of obstacles
(Image 16)

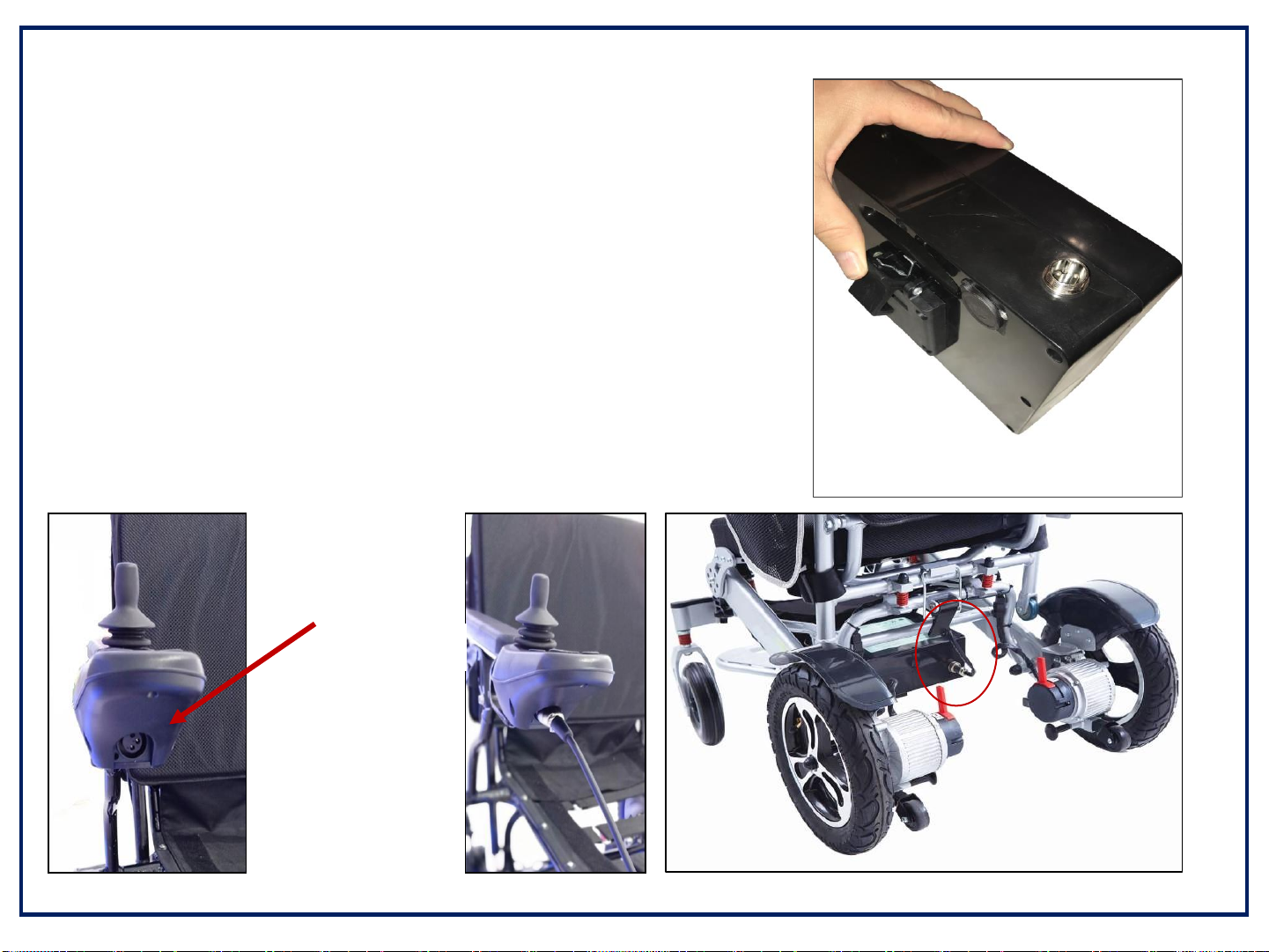

Battery
Charging the Battery
13. Make sure the Battery is installed correctly on the
battery rail under the seat and secure the battery
connection. (see Image 17 & 19)
14. Charge your battery for 4-6 hours by connecting the
charger to the joystick as shown. (see Image 18)
(Image 19)
(Image 18)
Controller Charge
port
15
(Image 17)

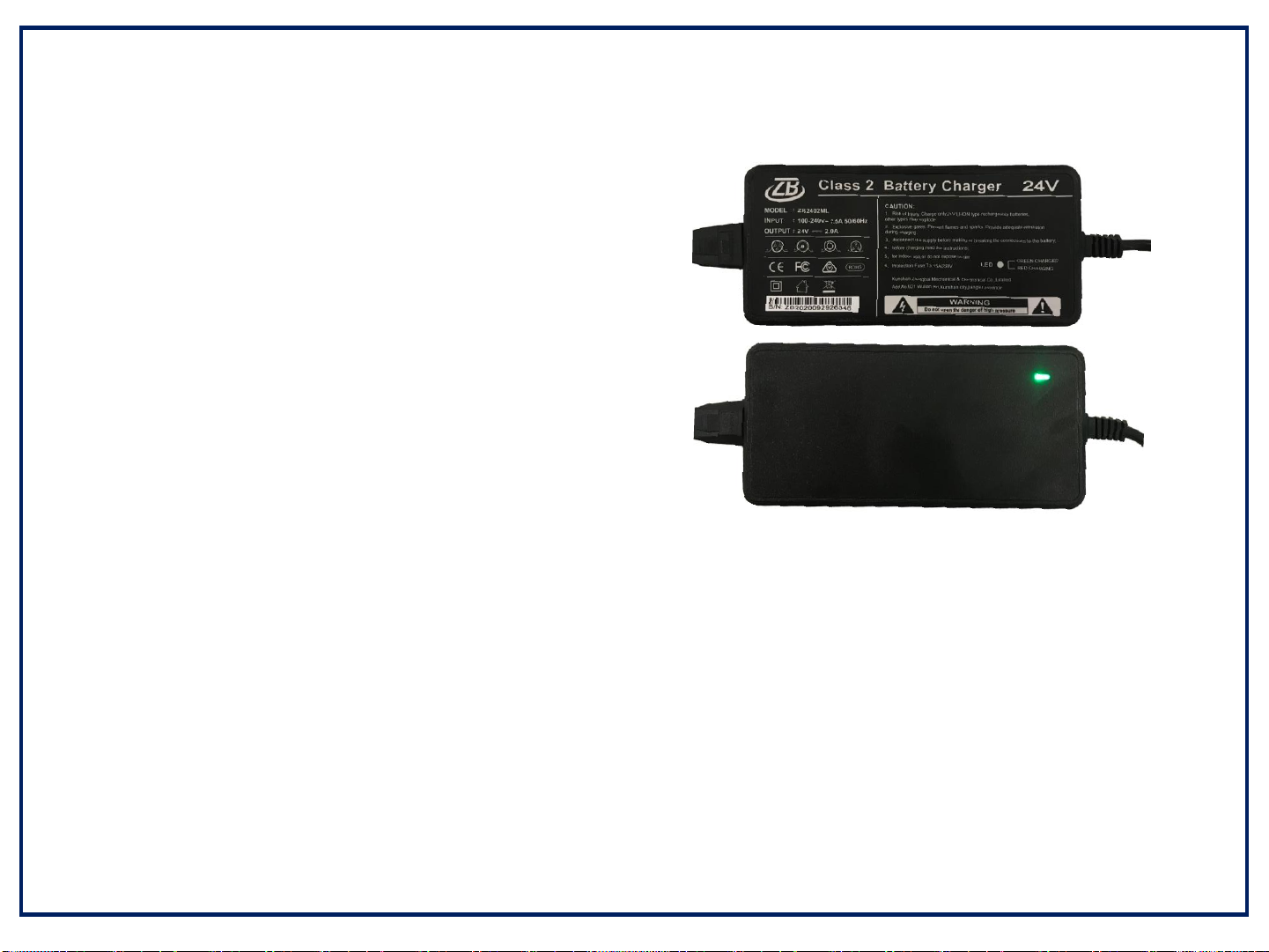

Charger Light (see image 20)
RED--battery is full drained
ORANGE-- battery is charging
GREEN-- battery is fully charged
Charging The Batteries
16
15. The Charger is an important part of your wheelchair and provides energy to your wheelchair through a
safe, fast, and easy charger.
16. The wheelchair is a maintenance free design however we recommend you check the following:
a) Keep the charger and joystick away from moisture and check the battery connections to ensure
they are not corroded
b) Do not wash your wheelchair bet wipe it down with a clean damp cloth
c) Storage should be in a clean room with less than 80% humidity and at temperatures between 40
degrees to 100 degrees
(Image 20)

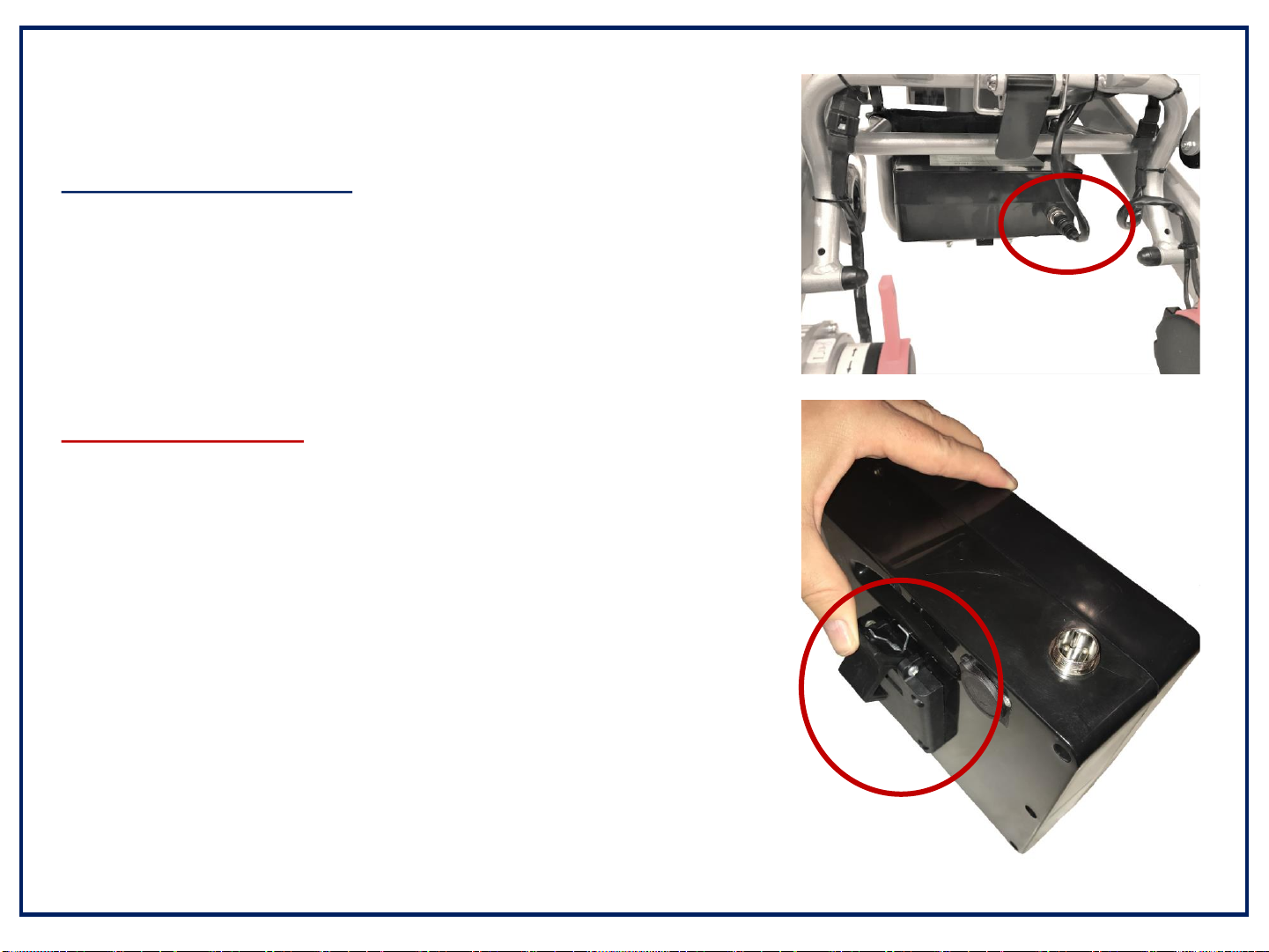

Battery Information
Remove the Battery
17. Pull out the Power Plug From the back of the chair.
18. Hold down the locking lever on the bottom of the
battery to disengage the battery clamp from the frame.
(see image 21 & 22)
19. Slide the battery out towards you.
Important Notes
✓Turn off the wheelchair prior to exiting the chair.
✓Please practice driving the wheelchair in a private and
controlled environment and in a smooth controlled
manner.
✓Please be aware of local laws regarding operating the
wheelchair on public roads.
✓It is recommended to use sidewalks at all times.
✓Always keep the feet on the footrests while driving
17
(Image 21)
(Image 22)

20. The electric wheelchair uses a 24V lithium Ion Battery. Your wheelchair will arrive with partially charged
batteries. The batteries should allow you to drive for a distance of about 15 miles under normal operation
conditions.
21. Turn the power off and plug in the charger to the controller port (see image 23).
22. Allow your wheelchair to charge for 4-6 hours or until the light on the charger turns green
23. We recommend you continue to charge the wheelchair about 1 hour after the light turns green to fully charge
the battery.
24. The light on the charger should turn on after plugging in the charger to the wall socket. (see image 24)
Controller Charge port
Charging The Batteries
18
(Image 23)
(Image 24)

Turn the Joystick power off while charging.
Do not leave children unsupervised near the wheelchair while it is charging.
Do not attempt to open the battery unit.
Red means the power is on and the unit is charging.
Green means the unit is fully charged.
25. When the battery is full charged, remove the cable, remove the DC charging connector
from the AC input power socket.
26. The average time taken to re-charge workable batteries will vary from 4 to 6 hours
depending on the level of usage
26. Do not charge more than 8 hours.
27. If you do not operate the Wheelchair for two months, we recommend that you charge the
battery for 6-8 hours before use.
More Battery Information
19
