Mitsubishi Electric KD Series User manual

COPYRIGHT © 2020 MITSUBISHI ELECTRIC CORPORATION. ALL RIGHTS RESERVED.
CONTACT IMAGE SENSOR (CIS)
KD Series for Web Surface Inspection
1
User’s Manual
Design and specification are subject to change without notice.
TM-XG537C
January 31st 2020
KD6R309MX, KD6R617MX, KD6R926MX
KD6R309MX-NL, KD6R617MX-NL, KD6R926MX-NL
TM-XG537C

COPYRIGHT © 2020 MITSUBISHI ELECTRIC CORPORATION. ALL RIGHTS RESERVED.
TM-XG537C 2
Chapter 1 Notice
1-1 Restriction for use
1-2 Precautions
1-3 CE Marking
1-4 Warranty
1-5 Repair
Chapter 2 Overview
2-1 What’s Contact Image Sensor (CIS)
2-2 Principal technology of CIS
2-3 Definition
2-4 Features of scanning pixel
2-5 Interpolation function
2-6 Specifications
2-7 Handling precautions
Chapter 3 Installation
3-1 Dimensions
3-2 Components
(necessary to prepare separately)
3-3 Connections
Chapter 4 How to control CIS
4-1 Communication port
4-2 Communication
4-3 Line Synchronization Timing
4-4 Power supply condition
Chapter 5 Getting started
5-1 Initial settings
5-2 Procedure of function settings
Setting①: Select Baud rate
Setting②: Select Output CLK frequency
Setting③: Select Output format
Setting④: Select Resolution
Setting⑤: Select Synchronization mode
Setting⑥: Select Control mode
Setting⑦: Dark correction
Setting⑧: LED control
Setting⑨: White correction
Setting⑩: PGA
Setting⑪: γ correction
Setting⑫: Test pattern
Appendix A: Data output
Appendix B: LED lighting control
Appendix C: Output on continuous operation
Appendix D: Command list
Index

COPYRIGHT © 2020 MITSUBISHI ELECTRIC CORPORATION. ALL RIGHTS RESERVED.
TM-XG537C 3
Chapter 1 : Notice

COPYRIGHT © 2020 MITSUBISHI ELECTRIC CORPORATION. ALL RIGHTS RESERVED.
TM-XG537C 4
Thank you very much for purchasing Mitsubishi Electric Contact Image
Sensor (CIS). This document contains information that introduces how to
use this product appropriately and safely. Read through this document
carefully before starting to use this product in your equipment or system.
This product is designed for the purpose of being used in general industries. Do not use this product for
specific and particular applications (aerospace application, combustive equipment, transportation
equipment, life-support system, safety device, etc.) where special quality and reliability are required and
failure or malfunction could directly threaten people’s lives, or do harm to the human body. Do not use for
applications other than the purpose of being used in general industries intended by Mitsubishi Electric. If
you plan to use such particular applications, contact our sales department personnel before doing so. If
you have be used it for applications other than the general industries intended by Mitsubishi Electric
without consulting our sales department personnel, Mitsubishi Electric SHALL HAVE NO
RESPONSIBILITY OR LIABILITY (INCLUDING, BUT NOT LIMITEDTO ANY AND ALL RESPONSIBILITY
OR LIABILITY BASED ON CONTRACT, WARRANTY, TORT, PRODUCT LIABILITY) FOR ANY INJURY
OR DEATH TO PERSONS OR LOSS OR DAMAGE TOPROPERTY CAUSED BY the PRODUCT.
Determine the applicability of this product to your equipment or devices through an
appropriate analysis or evaluation by the designer of such equipment or devices, or
personnel related to the specification. Such designers or personnel shall warrant the
performance and safety of your equipment or devices such as dust-proof, water-
proof, EMC and EMI, by themselves.
Design, specification and the contents of this document are subject to change
without notice.
1-1 RESTRICTION FOR USE

COPYRIGHT © 2020 MITSUBISHI ELECTRIC CORPORATION. ALL RIGHTS RESERVED.
This indicates the Warning or Caution
described above.
This indicates the prohibited action that must
not be handled.
This indicates the mandatory action that must
be carried out.
TM-XG537C 5
Be aware of the following warnings and cautions to use
this product appropriately and safely.
Warning This indicates that improper use of this product may result in
a hazard such as death or catastrophic bodily injury.
Caution This indicates that improper use of this product may result in
a hazard such as a bodily injury or property damage.
■Indications and definitions
■Indications and definitions
1-2 PRECAUTIONS
This indicates a prohibited action such as an
operation in a place where this product may
get wet.
This indicates the prohibition of the
disassembly of this product.
This indicates the possibility of the injury
under the specific situation

COPYRIGHT © 2020 MITSUBISHI ELECTRIC CORPORATION. ALL RIGHTS RESERVED.
TM-XG537C 6
Warning
Do not operate this product in a place where it is explosive, combustible or inflammable.
Operating in a place having propane gas, gasoline or flammable gas may cause a fire and/or an
explosion.
Use power supply specified or intended in this product’s specification, data sheet or manual.
Otherwise, a fire, an electric shock or a malfunction may occur.
Stop operation when you find any abnormalities or defects.
Otherwise, a fire or an electric shock may occur.
Do not repair, disassemble and/or modify by yourself.
Otherwise, a fire, defect, or an electric shock may occur. If you need to repair this product, you must
contact the agency who sold you this product.
Do not get this product wet. Handle this product with water-proofing.
Otherwise, a defect or an electric shock may occur. This product is designated for indoor use. This
product is designed as a line-scan module embedded in a system.
Keep this product clean. And do not touch the glass surface of this product.
Otherwise, a defect or a failure may occur. When you need to clean this product, you must clean the
glass surface of this product with a soft cloth and IPA etc.
Do not operate this product outdoors.
1-2 PRECAUTIONS

COPYRIGHT © 2020 MITSUBISHI ELECTRIC CORPORATION. ALL RIGHTS RESERVED.
TM-XG537C 7
Warning
Do not put anything on this product.
Otherwise, a fire or electrical shock may occur because of the things or materials in this product.
Do not put this product on an unstable surface, slanting and/or vibrating.
Otherwise, drop and/or fail of this product may cause injury.
Do not look at the internal illumination directly.
This product comprises a bright illumination.
Avoid the damage that ESD can cause. Never expose the internal electronics to a potentially
hazardous environment. Do not handle this product with an insulation sheet or on wooden
desk. In addition, do not cover this product with any materials having an electrostatic
discharge. Doing so may cause serious damage.
1-2 PRECAUTIONS

COPYRIGHT © 2020 MITSUBISHI ELECTRIC CORPORATION. ALL RIGHTS RESERVED.
TM-XG537C 8
Caution
Do not store this product in the following places.
●In a vibrating or precarious place ●In a humid, smoky, vaporized or dusty place
●In a slanting place ●In a place exposed by direct sun light
●In a temperature vasying place
●Near anything generating heat (eg. A stove, heater, etc)
●In a corrosive gas atmosphere （CL2, H2S, NH3, SO2, NOXetc.)
Care should always be exercised when handling and operating this product with your
equipment or device.
●Do not drop or damage this product. ●Do not put things on this product.
●No food or drink beside this product.
●Do not put any materials or liquids on this product.
●Avoid any ingression of materials, metals or smoke into this product and its connector.
Use the specified power cable connector and Camera Link® cable.
Power OFF when you insert or remove cables.
Otherwise, an electric shock or a malfunction may occur.
1-2 PRECAUTIONS
Camera Link® is a registered trademark of AIA(Automated Imaging Association)

COPYRIGHT © 2020 MITSUBISHI ELECTRIC CORPORATION. ALL RIGHTS RESERVED.
TM-XG537C 9
Caution
Put cables in a fixed position appropriately while operating.
Otherwise, a connection failure and damage may occur.
Do not use or operate this product in a slanting or unstable place
Do not use or operate this product in a humid, smoky, vaporized or dusty place.
Do not disassemble the side-bracket for mechanical mounting to your equipment or device.
Otherwise, an ingression of materials and dust, or a defect or a malfunction may occur.
Avoid the damage that ESD can cause. Never expose the internal electronics to a potentially
hazardous environment. Do not handle this product with an insulation sheet or on wooden
desk. In addition, do not cover this product with any materials having an electrostatic
discharge. Doing so may cause serious damage.
Be cautious of your cloths and arms for not to be caught by the sheet metal attached to the
edge of the glass side. It may cause injury.
1-2 PRECAUTIONS

COPYRIGHT © 2020 MITSUBISHI ELECTRIC CORPORATION. ALL RIGHTS RESERVED.
TM-XG537C 10
Caution ( Disclaimer)
Mitsubishi Electric assumes no responsibility and no liability for any damages resulting from
a fire, earthquake or any other act of God, acts by third parties, misoperation by the user
intentionally or accidentally, or used under extreme operating conditions.
Mitsubishi Electric assumes no responsibility and no liability for any damages resulting from
indirect, additional or consequential damages, including but not limited to loss of expected
income and suspension of business activities.
Mitsubishi Electric assumes no responsibility and no liability for any damages resulting from
an unintended use as stipulated in Manual and Datasheet of this product.
Mitsubishi Electric assumes no responsibility and no liability for any damages resulting from
improper handling, use or repair by any party other than Mitsubishi Electric.
Mitsubishi Electric warrants this product in conformity with the specification specified only
in the Datasheet and the Manual of this product.
Mitsubishi Electric’s total liability shall not exceed the purchase price of this product.
1-2 PRECAUTIONS

COPYRIGHT © 2020 MITSUBISHI ELECTRIC CORPORATION. ALL RIGHTS RESERVED.
TM-XG537C 11
Handling precautions
Handle this product carefully. Do not drop, shock, vibrate this product.
Do not operate not in compliance with the conditions defined in the Datasheet and the
Manual of this product.
Keep this product cool with the appropriate thermal management referred to in “2-8 Handling
precautions” to reduce the variation of illumination and dark output on this product.
This product is designed as an embedded line camera module. Determine the applicability of
this product to your equipment or devices through the appropriate analysis or evaluation by
the designer of such equipment or devices, or personnel related to the specification. Such
designers or personnel shall warrant the performance and safety of your equipment or
devices such as dust-proofing, water-proofing, EMC and EMI, by themselves.
1-2 PRECAUTIONS

COPYRIGHT © 2020 MITSUBISHI ELECTRIC CORPORATION. ALL RIGHTS RESERVED.
1-3 CE marking
This product is in conformity with the following EMC directives and standards.
EMC directives 2004/108/EC
Applicable standards Immunity EN 61000-6-2：2005
Emission EN 61000-6-4：2007
Category of ISM equipment by EN55011: Comply with Group 1, Class A test standard
Class A equipment is regulated to be used under industrial environment. It could be potentially
difficult to assure the electromagnetic compatibility under other environment. Refer to EN55011
standards for further details.
This product is designed to comply with EMC Directive 2004/108/EC of EU legislation.
However, to be compliant, 5V and 24V power cables have to be 2m or less, and also in order
to reduce the noise emission from the cables, the cables must attach the ferrite cores, as
described below.
Moreover, this product is designed as an embedded module. When this product shall be
installed to the other equipment, the equipment has to be compliant with the necessary
regulation and directives.
TM-XG537C 12

COPYRIGHT © 2020 MITSUBISHI ELECTRIC CORPORATION. ALL RIGHTS RESERVED.
A
B
In order to be compliant to the above mentioned standards,
attach ferrite cores as shown in the left diagrams, and reduce the noise emission from
the cables.
Recommenced ferrite cores are as shown below.
Ferrite core A：RFC-20, KITAGAWA INDUSTRIES CO.,LTD
Ferrite core B：GRFC-13, KITAGAWA INDUSTRIES CO.,LTD
Ferrite core C：RFC-H13, KITAGAWA INDUSTRIES CO.,LTD
1. KD6R309MX (A3 type)
Attach ferrite cores as described below.
- Connector D1, D2 / Frame grabber board connecting cables
Bundled: Two Ferrite core A (1 turn)
2. KD6R617MX (A1 type)
Attach ferrite cores as described below.
- Connector V1 / 5V power connecting cable: One Ferrite core A (2 turn)
- Connector V2 / 24V power connecting cable: One Ferrite core B (2 turn)
- Connector D1, D2, D3, D4 / Frame grabber board connecting cables
Bundled: One Ferrite core A (1 turn)
1. KD6R309MX (A3 type)
DC power
5V
24V
CIS
V1
V2
D1
D2
Ferrite core
2. KD6R617MX (A1 type)
Grabber
board
DC power
5V
24V
24V
Grabber
board
Grabber
board
TM-XG537C 13
1-3 CE marking
1-3-1 CE marking applicable conditions
A
A
A
A
CIS
V1
V2
V3
D1
D2
D3
D4

COPYRIGHT © 2020 MITSUBISHI ELECTRIC CORPORATION. ALL RIGHTS RESERVED.
A
TM-XG537C 14
3. KD6R926MX (A0 type)
Attach ferrite cores as described below.
- Connector V1 / 5V power connecting cable: One Ferrite core A (2 turn)
- Connector V1 / 5V power connecting cable
Connector V2 / 24V power connecting cable
Connector V3 / 24V power connecting cable
Bundled: One Ferrite core C (1 turn)
- Connector D3, D4, D5, D6 / Frame grabber board connecting cables
Bundled: Three Ferrite core A (1 turn)
DC power
5V
24V
24V
Grabber
board
Grabber
board
Grabber
board
C
A
AA
1-3 CE marking
3. KD6R926MX (A0 type)
CIS
V1
V2
V3
D1
D2
D3
D4
D5
D6

COPYRIGHT © 2020 MITSUBISHI ELECTRIC CORPORATION. ALL RIGHTS RESERVED.
TM-XG537C 15
1-4-1 Warranty scope
Mitsubishi Electric warrants this product in conformity with the specification specified only in
Datasheet and Manual of this product within Warranty period.
1-4-2 Warranty period
18 months from the delivery date to the customers who purchased this product.
In the following circumstances, this product are not covered under warranty.
●a case of out of warranty period.
●improper handling, use or repair by any other party than Mitsubishi Electric.
●improper conditions that are not stipulated in the data sheet or the manual.
The cost of repair or replacement shall be charged to the customer who requested to repair the
Out of Warranty product.
1-4-3 Out of warranty
Notwithstanding the above, Mitsubishi Electric’s warranty shall not cover, extend or apply to
any defect attributable to;
1-4 WARRANTY

COPYRIGHT © 2020 MITSUBISHI ELECTRIC CORPORATION. ALL RIGHTS RESERVED.
TM-XG537C 16
1-5-1 Repair method
Your sole remedy shall be repair or replacement of this product (Contact Image Sensor),
provided that the defective product is returned within the warranty period.
Notwithstanding above, depending on circumstances of the discontinuity of material
procurement and facility etc, repair of this product may not be available. In that case, such
request is handled as an upgrade or repair into other compatible products.
1-5-2 Request of repair
If you need to return this product for Repair, you must contact the agency who sold you this
product. Do not return your product to Mitsubishi Electric without prior authorization. The
shipment cost to return this product shall be bore by sending party.
1-5-3 Repair period
This product basically would be repaired for 1 year after the final production of this product,
provided that Mitsubishi Electric would be able to maintain production equipments or tools and
procure the necessary materials for the repair. The prior announcement of the discontinuation
of this product will be announced through the agency who sold you this product, or through our
website.
1-5 REPAIR

COPYRIGHT © 2020 MITSUBISHI ELECTRIC CORPORATION. ALL RIGHTS RESERVED.
TM-XG537C 17
Chapter 2 : Overview

COPYRIGHT © 2020 MITSUBISHI ELECTRIC CORPORATION. ALL RIGHTS RESERVED.
CIS Optical reduction
system
① Resolution Fixed Flexible
② Depth of focus Shallow
(±0.5～ 2mm)
Deep
(～ 4mm）
③ Distortion Small Large
④ Light path Short (10～50mm) Long(～200mm)
⑤ Requested light
intensity Small Large
⑥ Power
consumption Small Large
⑦ light-sensitive
element CMOS / CCD CMOS/CCD
⑧ Impacting and
vibration Strong Weak
⑨ Setup
adjustment Easy Need to be adjusted
with lens precisely.
⑩ Outline Compact Large
TM-XG537C 18

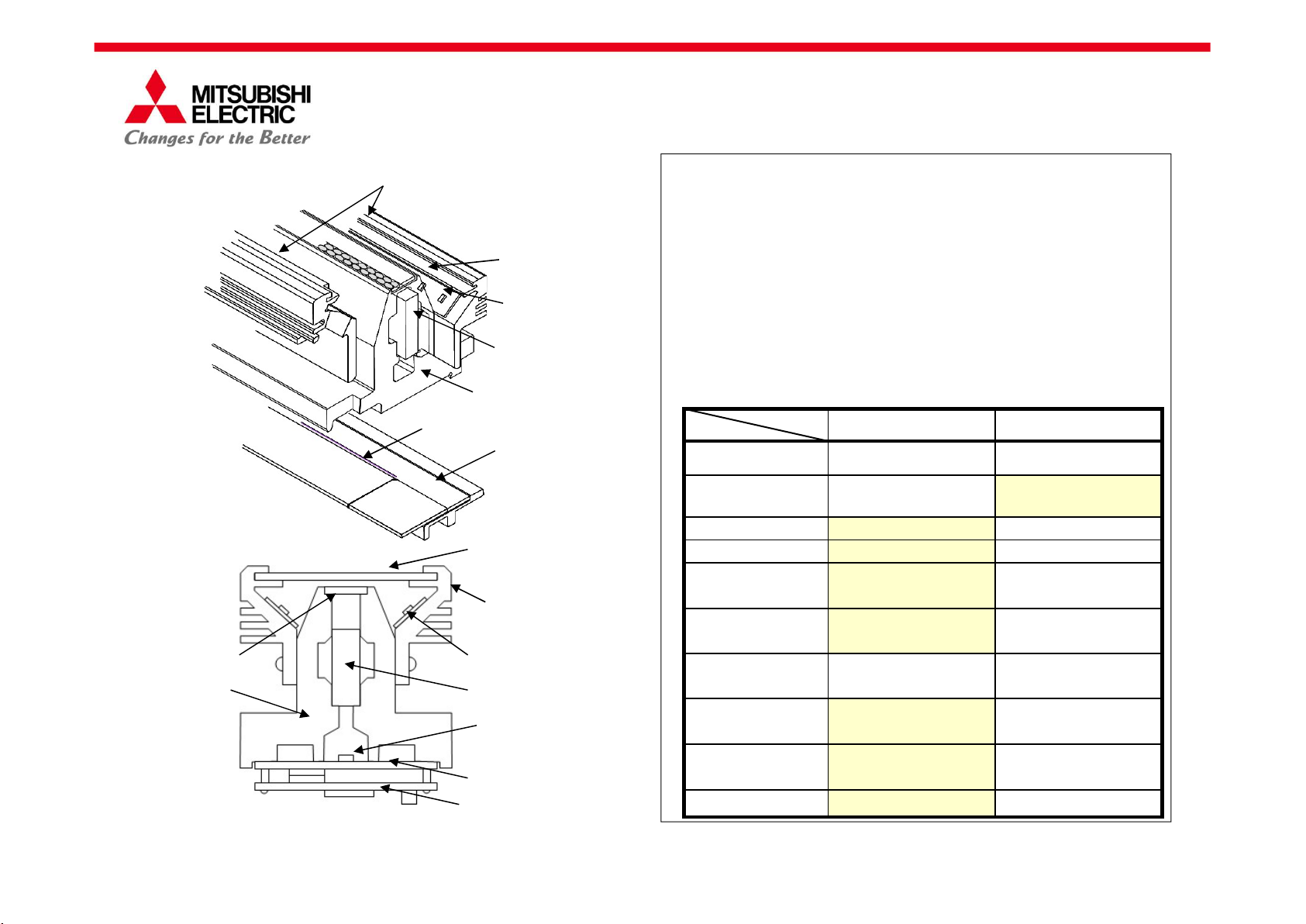

【Perspective view】
【Cross-section】
This product (CIS : Contact Image Sensor) is a
scanning device that comprises several key-
components in below;
・Sensor IC array in the length as same as scan width.
・Rod lens array in the length as same as scan width.
・Illumination in the length as same as scan width.
＊GRIN lens : Gradient Index lens
The features of CIS can be compared to line
camera as follows;
Sensor IC
Sensor board
White LED
LED array boardLED array board
LED-frameLED-frame
FrameFrame
Lens (GRIN lens*)Lens (GRIN lens*)
Signal processing board
& Camera Link® interface
Sensor board
Sensor IC
Lens (GRIN lens)
LED, LED array board
Cover-glass
LED-frame
Frame
Cover-glass
2-1 What’s Contact Image Sensor
Camera Link® is a registered trademark of AIA(Automated Imaging Association)

COPYRIGHT © 2020 MITSUBISHI ELECTRIC CORPORATION. ALL RIGHTS RESERVED.
TM-XG537C 19

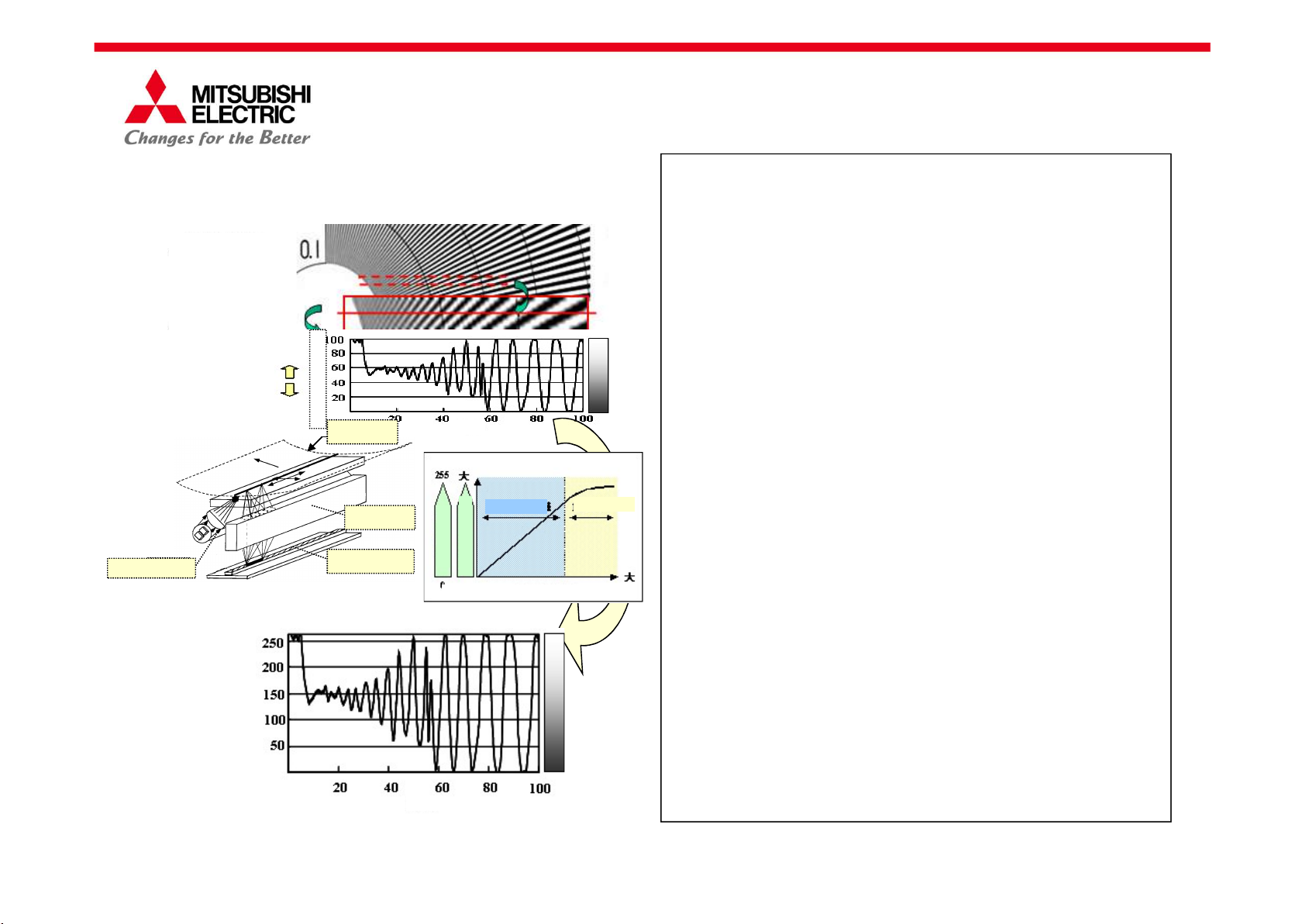

This clause explains how to acquire the raw
information of the light and convert into electrical
signal information.
・When scanning a surface of the object, the illumination on
this product irradiates the object.
・The object reflects the light. Generally the illuminated
black object reflects weaker reflective light. On the other
hand, the illuminated white object reflects stronger one.
・Refer to the drawing on left side (Fig.1). The black and
white chart has a correlation with the reflected light
intensity.
・The strong and weak reflective light arrives at the surface
of Sensor ICs (photo-diodes) through lens.
•As described in the drawing on the left side (Fig.3),
Sensor ICs correspondingly converts the strong and weak
light into the large and small electrical signal based on the
converting property of Sensor ICs as described on the
drawing on left side (Fig.2).
【How to acquire reflective light】
2-2 Principal technology of CIS
Output
Sensor voltage
Valid area Saturated
Incoming light intensity
Reflective light intensity
White
Pixel
Chart
Black
Image data output
Pixel
レンズ
ｾﾝｻｰIC
光源
原稿
レンズ
ｾﾝｻｰIC
光源
原稿
Illumination Sensor ICs
Lens
Paper
Fig.1
Fig.2
Fig.3

COPYRIGHT © 2020 MITSUBISHI ELECTRIC CORPORATION. ALL RIGHTS RESERVED.
TM-XG537C 20

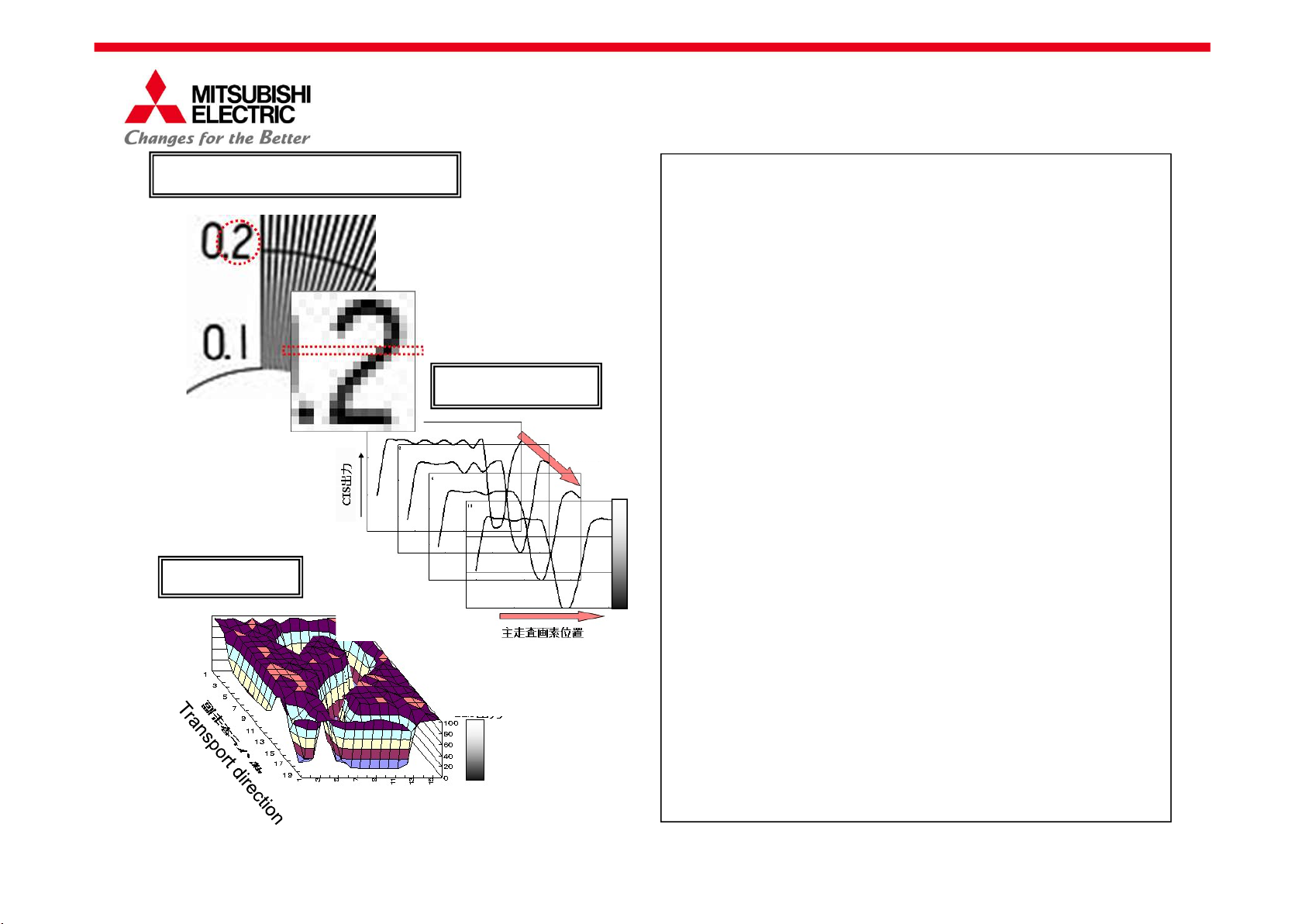

This product captures 2-d image by scanning one
line repeatedly and continuously.
・Acquiring a data of one line in scan direction.
・Relative transport in transport direction between the
object and this product can accumulate 2 dimensional data.
Refer to left side of the drawing.
【Example of scanning “2”】
・Step 1: Sensor IC reads one line in red point-line area.
The size of the line in transport direction is based on the
size of pixel.
・Step 2: The scanning line is transported in transport
direction.
・Step 3: Repeating Step 1 and 2 generates 2D image data.
(The height of the 2D-data means the strength of CIS
output.)
Objective information
Line scan
2D data
2-2 Principal technology of CIS
Scan direction
CIS
output
Scan direction
Transport
direction
Step 3
