TECHNICAL & SERVICE MANUAL
R32
[Model Name]
SUZ-M25VA
SUZ-M25VA-ET
SUZ-M25VA-ER
SUZ-M35VA
SUZ-M35VA-ET
SUZ-M35VA-ER
SUZ-M50VA
SUZ-M50VA-ET
SUZ-M50VA-ER
SUZ-M60VA
SUZ-M60VA-ET
SUZ-M60VA-ER
SUZ-M71VA
SUZ-M71VA-ET
SUZ-M71VA-ER
SUZ-M25VA.TH
SUZ-M35VA.TH
PARTS CATALOG (OCB684)
SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
[Service Ref.]
SUZ-M25VA.TH
SUZ-M25VAR1.TH
SUZ-M25VAR2.TH
SUZ-M25VA-ET.TH
SUZ-M25VA-ETR2.TH
SUZ-M25VA-ERR2.TH
SUZ-M35VA.TH
SUZ-M35VAR1.TH
SUZ-M35VAR2.TH
SUZ-M35VA-ET.TH
SUZ-M35VA-ETR2.TH
SUZ-M35VA-ERR2.TH
SUZ-M50VA.TH
SUZ-M50VAR1.TH
SUZ-M50VAR2.TH
SUZ-M50VA-ET.TH
SUZ-M50VA-ETR2.TH
SUZ-M50VA-ERR2.TH
SUZ-M60VA.TH
SUZ-M60VAR1.TH
SUZ-M60VAR2.TH
SUZ-M60VA-ET.TH
SUZ-M60VA-ETR2.TH
SUZ-M60VA-ERR2.TH
SUZ-M71VA.TH
SUZ-M71VAR1.TH
SUZ-M71VA-ET.TH
SUZ-M71VA-ETR1.TH
SUZ-M71VA-ERR1.TH
No. OCH684
REVISED EDITION-G
December 2022
Note:
•This service manual
describes service data of
the outdoor units only.
OCH684-F is void.
Revision:
• Connectable indoor units
have been added in
REVISED EDITION-G.
CONTENTS
TECHNICAL CHANGES·························· 2
1. COMBINATION OF INDOOR AND
OUTDOOR UNITS ······························3
2. SAFETY PRECAUTION ······················· 4
3. PARTS NAMES AND FUNCTIONS ······ 12
4. SPECIFICATION ······························ 13

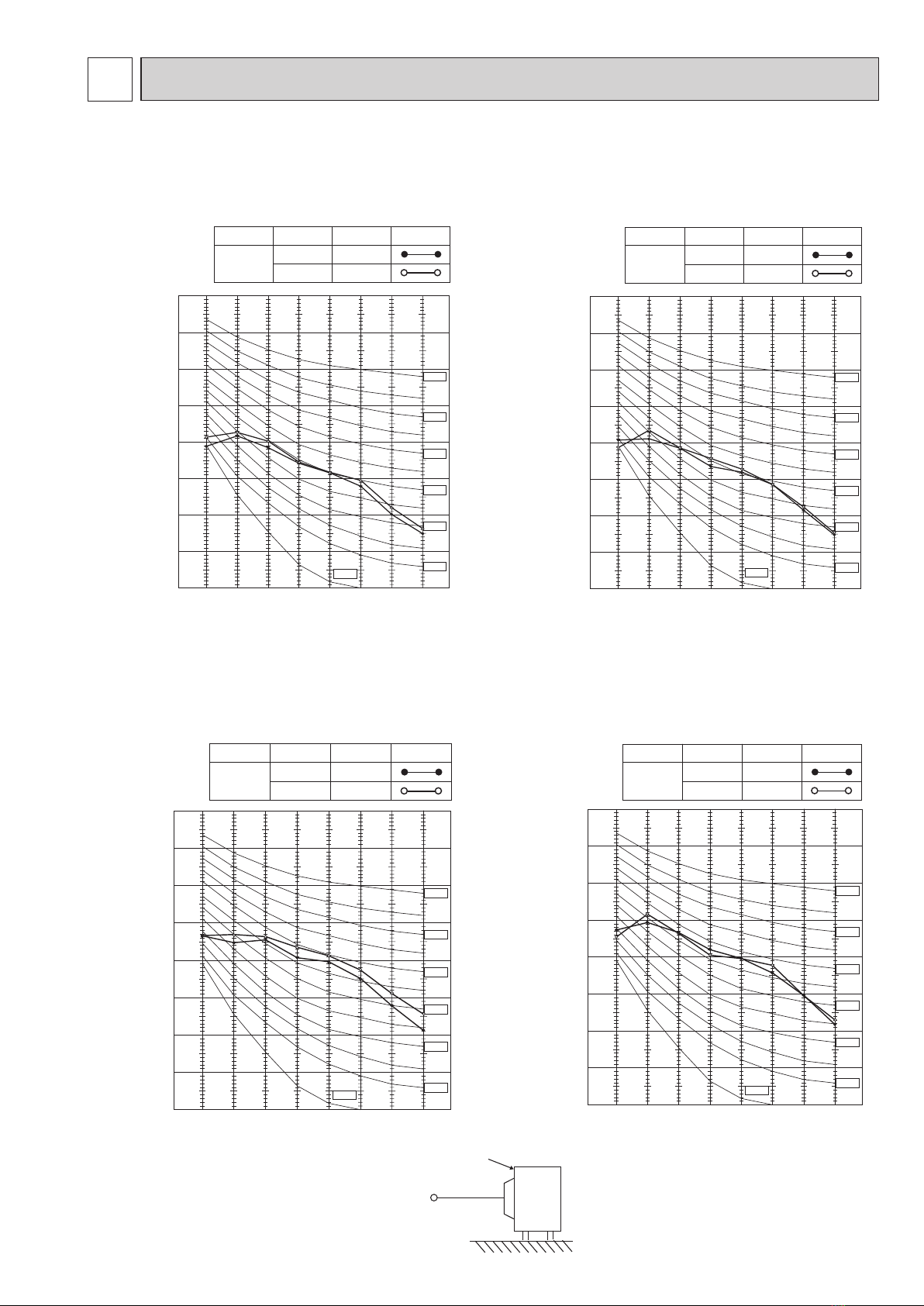

5. NOISE CRITERIA CURVES················ 15

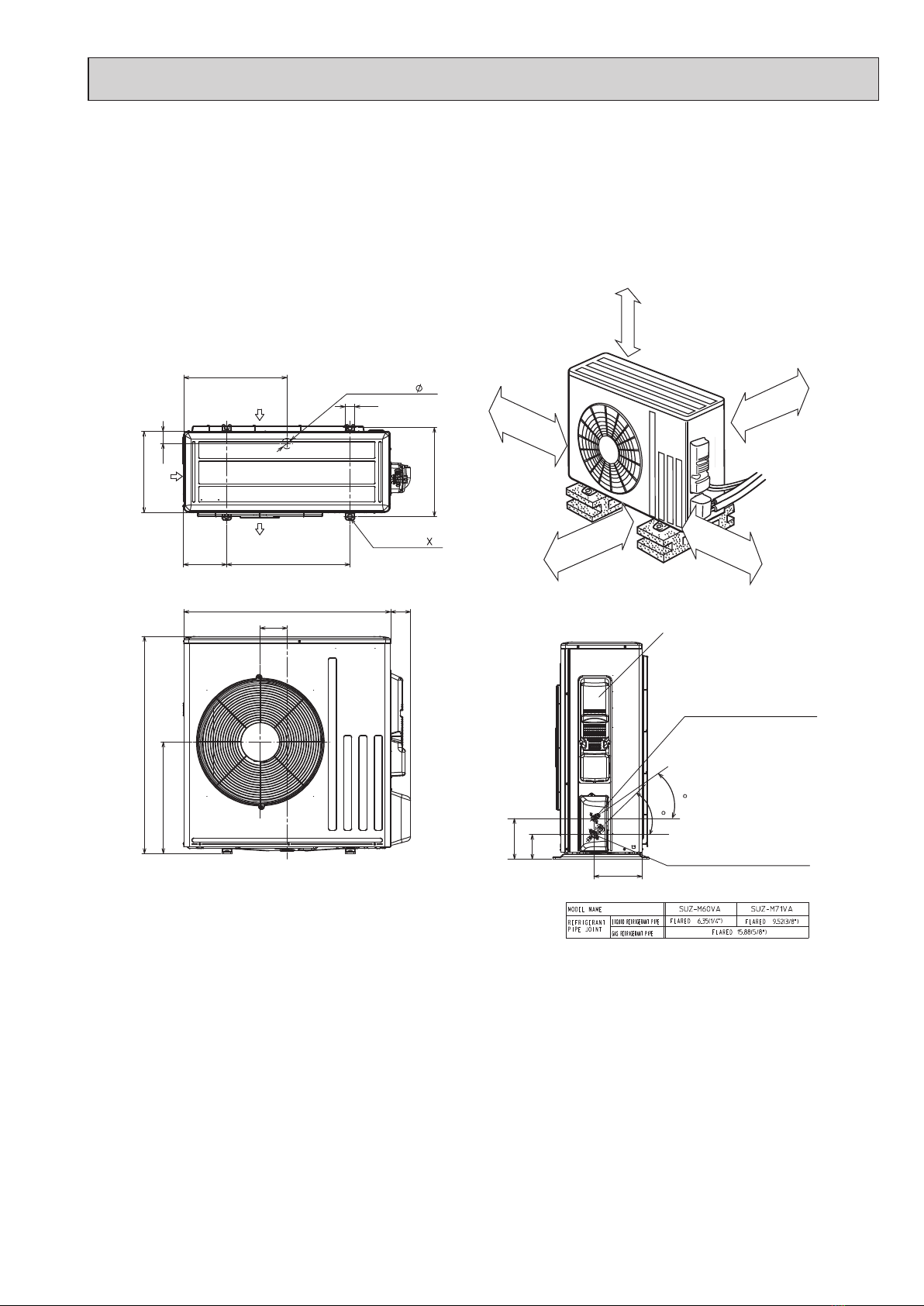

6. OUTLINES AND DIMENSIONS ··········· 16
7. WIRING DIAGRAM ··························· 18
8. REFRIGERANT SYSTEM DIAGRAM ··· 22
9. ACTUATOR CONTROL ····················· 25
10. SERVICE FUNCTIONS ······················ 26
11. TROUBLESHOOTING ······················· 26
12. DISASSEMBLY PROCEDURE ············ 38
13. REMOTE CONTROLLER ··················· 49

2 3
OCH684G
TECHNICAL CHANGES
Service ref. have been changed as follows.
SUZ-M25VA.TH SUZ-M25VAR1.TH
SUZ-M35VA.TH SUZ-M35VAR1.TH
SUZ-M50VA.TH SUZ-M50VAR1.TH
SUZ-M60VA.TH SUZ-M60VAR1.TH
• Connection with MFZ-KT will be added.
SUZ-M25VAR1.TH SUZ-M25VAR2.TH
SUZ-M35VAR1.TH SUZ-M35VAR2.TH
SUZ-M50VAR1.TH SUZ-M50VAR2.TH
SUZ-M60VAR1.TH SUZ-M60VAR2.TH
SUZ-M71VA.TH SUZ-M71VAR1.TH
SUZ-M25VA-ET.TH SUZ-M25VA-ETR2.TH
SUZ-M35VA-ET.TH SUZ-M35VA-ETR2.TH
SUZ-M50VA-ET.TH SUZ-M50VA-ETR2.TH
SUZ-M60VA-ET.TH SUZ-M60VA-ETR2.TH
SUZ-M71VA-ET.TH SUZ-M71VA-ETR1.TH
• Connection with SFZ will be added.

3
OCH684G
1COMBINATION OF INDOOR AND OUTDOOR UNITS
INDOOR UNIT SERVICE MANUAL
Indoor
unit Service Ref.
SLZ-M25FA2.TH SLZ-M35FA2.TH SLZ-M50FA2.TH SLZ-M60FA2.TH SEZ-M25DA(L)2.TH SEZ-M35DA(L)2.TH SEZ-M50DA(L)2.TH SEZ-M60DA(L)2.TH SEZ-M71DA(L)2.TH PLA-M35EA2.UK PLA-M50EA2.UK PLA-M60EA2.UK PLA-M71EA2.UK PEAD-M35JA(L)2.UK PEAD-M50JA(L)2.UK PEAD-M60JA(L)2.UK PEAD-M71JA(L)2.UK PEAD-M35JA(L)2.TH PEAD-M50JA(L)2.TH PEAD-M60JA(L)2.TH PEAD-M71JA(L)2.TH PCA-M35KA2 PCA-M50KA2 PCA-M60KA2 PCA-M71KA2 MLZ-KP25VF-E1 MLZ-KP35VF-E1 MLZ-KP50VF-E1 MFZ-KT25VG-E2 MFZ-KT35VG-E2 MFZ-KT50VG-E2 MFZ-KT60VG-E2 PSA-M71KA SFZ-M25VA.TH SFZ-M35VA.TH SFZ-M50VA.TH SFZ-M60VA.TH SFZ-M71VA.TH
Outdoor
unit
SUZ-M25VA(R1/R2).TH 1 1 1 1 1
SUZ-M35VA(R1/R2).TH 1 1 1 1 1 1 1 1 1
SUZ-M50VA(R1/R2).TH 1 1 1 1 1 1 1 1 1
SUZ-M60VA(R1/R2).TH 1 1 1 1 1 1 1 1
SUZ-M71VA(R1).TH 1 1 1 1 1 1 1
Service manual No.
Parts catalog No.
TCH067
TCB067
OCH714
OCB714
OCH783
OCB783 ─
BWE021440
─
BWE022250
OCH752
OCB752 OBH801
OBB801
OBH843
OBB843
OCH724
OCB724
─
BWE01921
Indoor
unit Service Ref.
SLZ-M25FA2-ET.TH SLZ-M35FA2-ET.TH SLZ-M50FA2-ET.TH SLZ-M60FA2-ET.TH SEZ-M25DA2-ET.TH SEZ-M35DA2-ET.TH SEZ-M50DA2-ET.TH SEZ-M60DA2-ET.TH SEZ-M71DA2-ET.TH PLA-M35EA2-ET.UK PLA-M50EA2-ET.UK PLA-M60EA2-ET.UK PLA-M71EA2-ET.UK PEAD-M35JA2-ET.UK PEAD-M50JA2-ET.UK PEAD-M60JA2-ET.UK PEAD-M71JA2-ET.UK PCA-M35KA2-ET PCA-M50KA2-ET PCA-M60KA2-ET PCA-M71KA2-ET MLZ-KP25VF-E1 MLZ-KP35VF-E1 MLZ-KP50VF-E1 MFZ-KT25VG-ET2 MFZ-KT35VG-ET2 MFZ-KT50VG-ET2 MFZ-KT60VG-ET2 PSA-M71KA-ET SFZ-M25VA-ET.TH SFZ-M35VA-ET.TH SFZ-M50VA-ET.TH SFZ-M60VA-ET.TH SFZ-M71VA-ET.TH
Outdoor
unit
SUZ-M25VA-ET(R2).TH 1 1 1 1 1
SUZ-M35VA-ET(R2).TH 1 1 1 1 1 1 1 1
SUZ-M50VA-ET(R2).TH 1 1 1 1 1 1 1 1
SUZ-M60VA-ET(R2).TH 1 1 1 1 1 1 1
SUZ-M71VA-ET(R1).TH 1 1 1 1 1 1
Service manual No.
Parts catalog No.
TCH067
TCB067
OCH714
OCB714
OCH783
OCB783 ─
BWE021440
OCH752
OCB752 OBH801
OBB801
OBH843
OBB843
OCH724
OCB724
─
BWE01921
Indoor
unit Service Ref.
SLZ-M25FA2-ER.TH SLZ-M35FA2-ER.TH SLZ-M50FA2-ER.TH SLZ-M60FA2-ER.TH SEZ-M25DA2-ER.TH SEZ-M35DA2-ER.TH SEZ-M50DA2-ER.TH SEZ-M60DA2-ER.TH SEZ-M71DA2-ER.TH PLA-M35EA2-ER.UK PLA-M50EA2-ER.UK PLA-M60EA2-ER.UK PLA-M71EA2-ER.UK PEAD-M35JA2-ER.UK PEAD-M50JA2-ER.UK PEAD-M60JA2-ER.UK PEAD-M71JA2-ER.UK PCA-M35KA2-ER PCA-M50KA2-ER PCA-M60KA2-ER PCA-M71KA2-ER MLZ-KP25VF-ER1 MLZ-KP35VF-ER1 MLZ-KP50VF-ER1 MFZ-KT25VG-ER1 MFZ-KT35VG-ER1 MFZ-KT50VG-ER1 MFZ-KT60VG-ER1 PSA-M71KA-ER SFZ-M25VA-ER.TH SFZ-M35VA-ER.TH SFZ-M50VA-ER.TH SFZ-M60VA-ER.TH SFZ-M71VA-ER.TH
Outdoor
unit
SUZ-M25VA-ERR2.TH 1 1 1 1 1
SUZ-M35VA-ERR2.TH 1 1 1 1 1 1 1 1
SUZ-M50VA-ERR2.TH 1 1 1 1 1 1 1 1
SUZ-M60VA-ERR2.TH 1 1 1 1 1 1 1
SUZ-M71VA-ERR1.TH 1 1 1 1 1 1
Service manual No.
Parts catalog No.
TCH067
TCB067
OCH714
OCB714
OCH783
OCB783 ─
BWE021440
OCH752
OCB752 OBH801
OBB801
OBH843
OBB843
OCH724
OCB724
─
BWE01921

54 5
OCH684G
2-1. ALWAYS OBSERVE FOR SAFETY
Before obtaining access to terminal, all supply circuits must be disconnected.
2SAFETY PRECAUTION
2-2. CAUTIONS RELATED TO NEW REFRIGERANT
Cautions for units utilizing refrigerant R32
MEANINGS OF SYMBOLS DISPLAYED ON THE UNIT
WARNING This mark is for R32 refrigerant only. Refrigerant type is written on nameplate of outdoor unit.
Read the OPERATION MANUAL carefully before operation.
Service personnel are required to carefully read the OPERATION MANUAL and INSTALLATION MANUAL before operation.
Further information is available in the OPERATION MANUAL, INSTALLATION MANUAL, and the like.
Use a vacuum pump with a reverse ow check valve.
Vacuum pump oil may ow back into refrigerant cycle
and that can cause deterioration of refrigerant oil, etc.
Use new refrigerant pipes.
In the case of using the existing pipes for R22, be careful
with the following.
· Be sure to clean the pipes and make sure that the
insides of the pipes are clean.
· Change are nut to the one provided with this product.
Use a newly ared pipe.
· Avoid using thin pipes.
Preparation before the repair service
• Prepare the proper tools.
• Prepare the proper protectors.
• Provide adequate ventilation.
• After stopping the operation of the air conditioner, turn
o󰀨 the power-supply breaker.
• Discharge the condenser before the work involving the
electric parts.
Handle tools with care.
If dirt, dust or moisture enters into refrigerant cycle, that can cause
deterioration of refrigerant oil or malfunction of compressor.
Use the specied refrigerant only.
Never use any refrigerant other than that specied.
Doing so may cause a burst, an explosion, or re when
the unit is being used, serviced, or disposed of.
Correct refrigerant is specied in the manuals and on the
spec labels provided with our products.
We will not be held responsible for mechanical failure,
system malfunction, unit breakdown or accidents caused
by failure to follow the instructions.
Ventilate the room if refrigerant leaks during
operation. If refrigerant comes into contact with
a ame, poisonous gases will be released.
Use the following tools specically designed for
use with R32 refrigerant.
The following tools are necessary to use R32 refrigerant.
Tools for R32
Gauge manifold Flare tool
Charge hose Size adjustment gauge
Gas leak detector Vacuum pump adaptor
Torque wrench Electronic refrigerant
charging scale
Make sure that the inside and outside of
refrigerant piping is clean and it has no
contaminants such as sulfur, oxides, dirt,
shaving particles, etc., which are hazard to
refrigerant cycle.
In addition, use pipes with specied thickness.
Contamination inside refrigerant piping can cause deterio-
ration of refrigerant oil, etc.
Store the piping indoors, and keep both ends of
the piping sealed until just before brazing.
(Leave elbow joints, etc. in their packaging.)
If dirt, dust or moisture enters into refrigerant cycle, that
can cause deterioration of refrigerant oil or malfunction of
compressor.
The refrigerant oil applied to are and ange
connections must be ester oil, ether oil or
alkylbenzene oil in a small amount.
If large amount of mineral oil enters, that can cause
deterioration of refrigerant oil, etc.
Do not use refrigerant other than R32.
If other refrigerant (R22, etc.) is used, chlorine in
refrigerant can cause deterioration of refrigerant oil, etc.
Precautions during the repair service
• Do not perform the work involving the electric parts
with wet hands.
• Do not pour water into the electric parts.
• Do not touch the refrigerant.
•
Do not touch the hot or cold areas in the refrigerating cycle.
• When the repair or the inspection of the circuit needs
to be done without turning o󰀨 the power, exercise great
caution not to touch the live parts.
•
When opening or closing the valve below freezing
temperatures, refrigerant may spurt out from the gap
between the valve stem and the valve body, resulting in
injuries.

5
OCH684G 5
[1] Warning for service
(1) Do not alter the unit.
(2) For installation and relocation work, follow the instructions in the Installation Manual and use tools and pipe
components specifically made for use with refrigerant specified in the outdoor unit installation manual.
(3) Ask a dealer or an authorized technician to install, relocate and repair the unit.
For appliances not accessible to the general public.
(4) Refrigerant pipes connection shall be accessible for maintenance purposes.
(5)

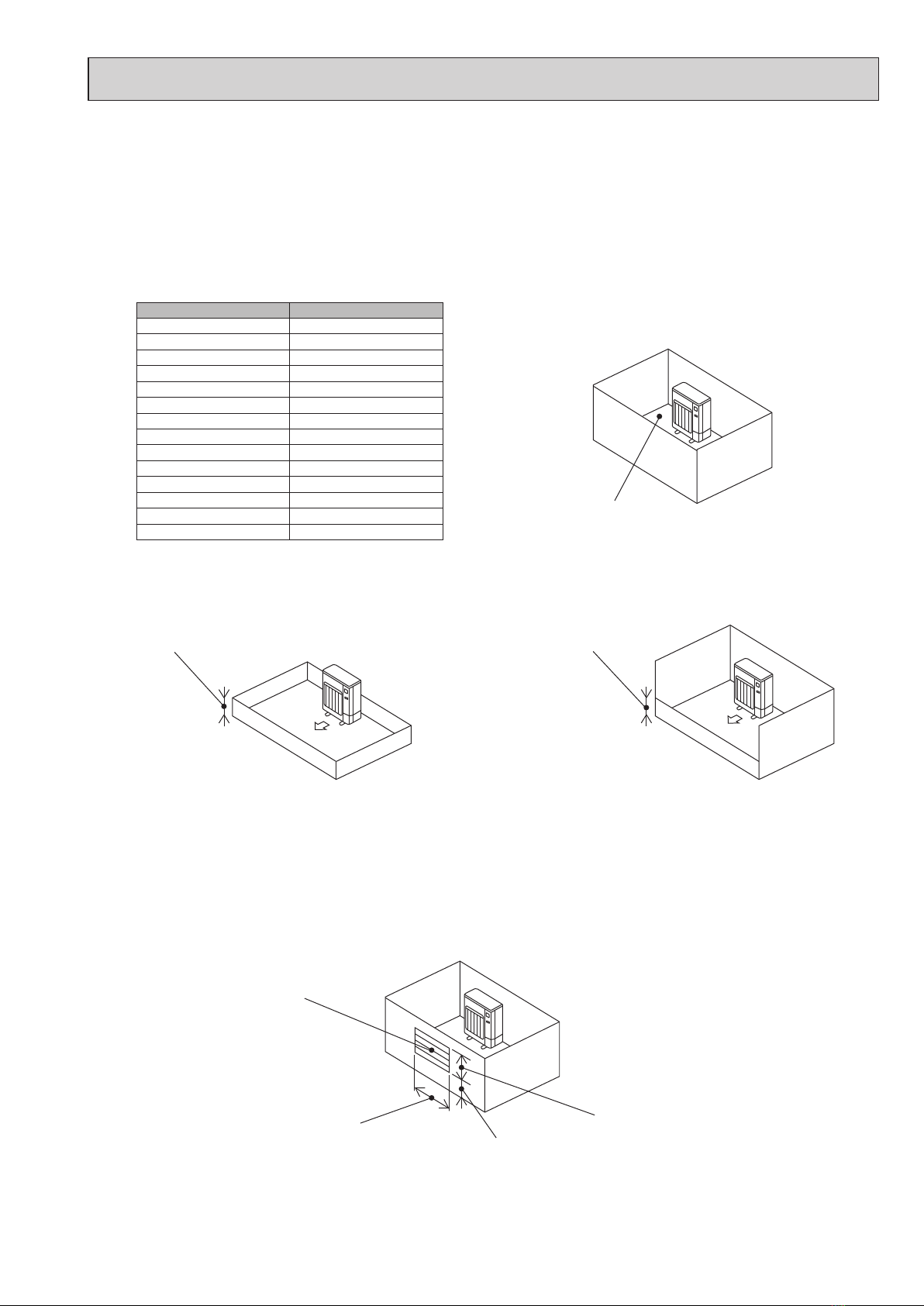

If the air conditioner is installed in a small room or closed room, measures must be taken to prevent the refrigerant
concentration in the room from exceeding the safety limit in the event of refrigerant leakage. Should the refrigerant
leak and cause the concentration limit to be exceeded, hazards due to lack of oxygen in the room may result.
(6) Keep gas-burning appliances, electric heaters, and other fire sources (ignition sources) away from the location
where installation, repair, and other air conditioner work will be performed.
If refrigerant comes into contact with a flame, poisonous gases will be released.
(7) When installing or relocating, or servicing the air conditioner, use only the specified refrigerant (R32) to charge
the refrigerant lines.
Do not mix it with any other refrigerant and do not allow air to remain in the lines.
If air is mixed with the refrigerant, then it can be the cause of abnormal high pressure in the refrigerant line, and
may result in an explosion and other hazards.
(8) After installation has been completed, check for refrigerant leaks. If refrigerant leaks into the room and comes
into contact with the flame of a heater or portable cooking range, poisonous gases will be released.
(9) Do not use low temperature solder alloy in the case of brazing the refrigerant pipes.
(10) When performing brazing work, be sure to ventilate the room sufficiently. Make sure that there are no hazardous
or flammable materials nearby.
When performing the work in a closed room, small room, or similar location, make sure that there are no refriger-
ant leaks before performing the work.
If refrigerant leaks and accumulates, it may ignite or poisonous gases may be released.

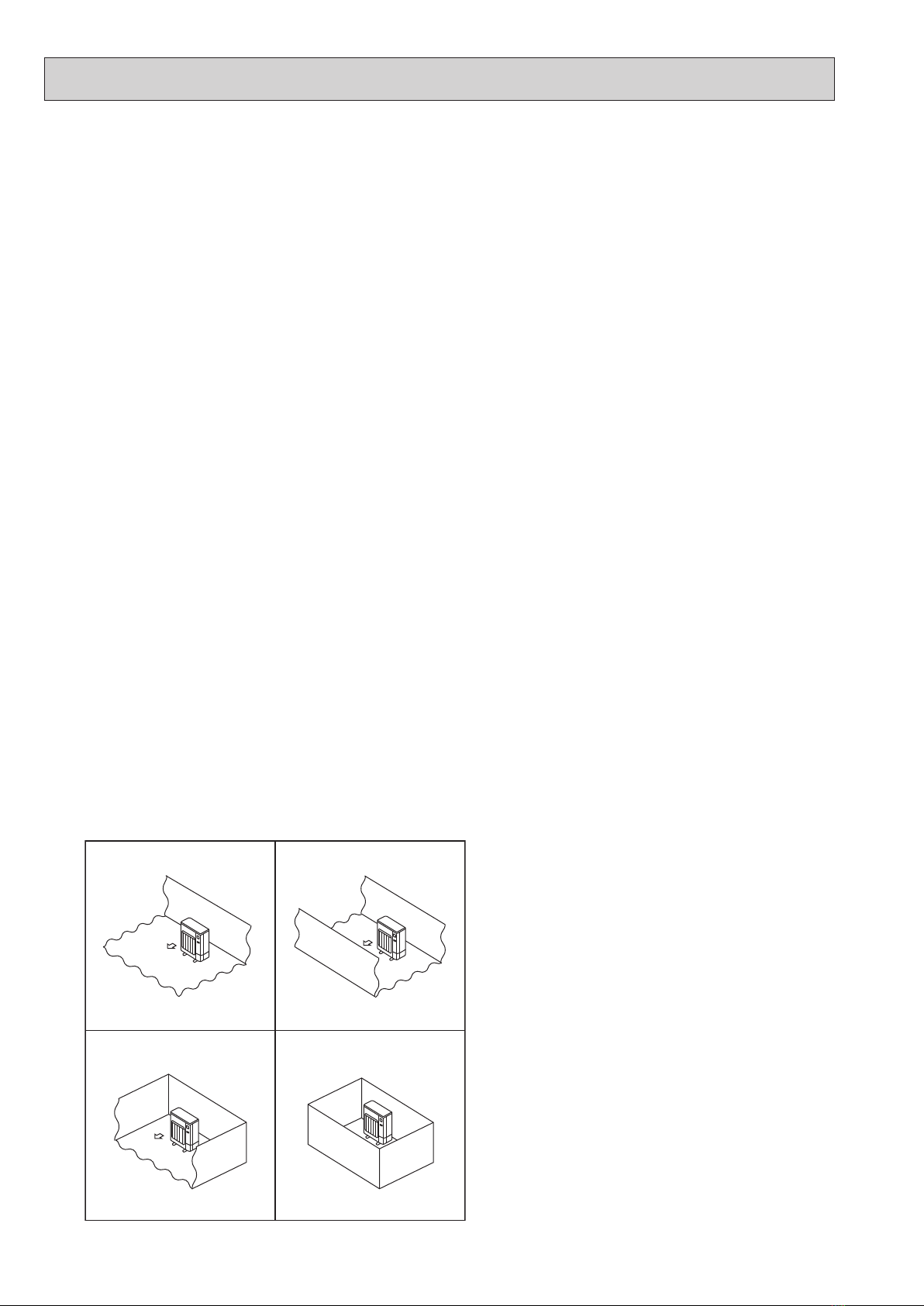

(11) Do not install the unit in places where refrigerant may build-up or places with poor ventilation such as a semi-base-
ment or a sunken place in outdoor: Refrigerant is heavier than air, and inclined to fall away from the leak source.
(12) Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manu-
facturer.
(13) The appliance shall be stored in a room without continuously operating ignition sources (for example: open
flames, an operating gas appliance or an operating electric heater).
(14) Do not pierce or burn.
(15) Be aware that refrigerants may not contain an odor.
(16) Pipe-work shall be protected from physical damage.
(17) The installation of pipe-work shall be kept to a minimum.
(18) Compliance with national gas regulations shall be observed.
(19) Keep any required ventilation openings clear of obstruction.
(20) Servicing shall be performed only as recommended by the manufacturer.
(21) The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as
specified for operation.
(22) Maintenance, service and repair operations shall be performed by authorized technician with required qualification.
(23) Be sure to have appropriate ventilation in order to prevent ignition. Furthermore, be sure to carry out fire preven-
tion measures that there are no dangerous or flammable objects in the surrounding area.

6 7
OCH684G
[2] Cautions for unit using R32 refrigerant
Basic work procedures are the same as those for conventional units using refrigerant R410A. However, pay careful
attention to the following points.
(1) Information on servicing
(1-1) Checks on the Area
Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the
risk of ignition is minimized.
For repair to the refrigerating systems, (1-3) to (1-7) shall be completed prior to conducting work on the systems.
(1-2) Work Procedure
Work shall be undertaken under a controlled procedure so as to minimize the risk of a flammable gas or vapor being
present while the work is being performed.
(1-3) General Work Area
All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out.
Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the con-
ditions within the area have been made safe by control of flammable material.
(1-4) Checking for Presence of Refrigerant
The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is
aware of potentially toxic or flammable atmospheres. Ensure that the leak detection equipment being used is suitable
for use with all applicable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.
(1-5) Presence of Fire Extinguisher
If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing
equipment shall be available to hand.
Have a dry powder or CO2 fire extinguisher adjacent to the charging area.
(1-6) No Ignition Sources
No person carrying out work in relation to a refrigeration system which involves exposing any pipe work shall use any
sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, includ-
ing cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal,
during which refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around
the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. “No Smoking” signs
shall be displayed.
(1-7) Ventilated Area
Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any
hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should
safely disperse any released refrigerant and preferably expel it externally into the atmosphere.
(1-8) Checks on the Refrigeration Equipment
Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all
times the manufacturer’s maintenance and service guidelines shall be followed. If in doubt, consult the manufacturer’s
technical department for assistance.
The following checks shall be applied to installations using flammable refrigerants:
• The charge size is in accordance with the room size within which the refrigerant containing parts are installed.
• The ventilation machinery and outlets are operating adequately and are not obstructed.
• Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected.
• Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance
which may corrode refrigerant containing components, unless the components are constructed of materials which are
inherently resistant to being corroded or are suitably protected against being corroded.
(1-9) Checks on Electrical Devices
Repair and maintenance to electrical components shall include initial safety checks and component inspection proce-
dures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is
satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an ade-
quate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised.
Initial safety checks shall include that:
• capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;
• no live electrical components and wiring are exposed while charging, recovering or purging the system;
• there is continuity of earth bonding
(2) Repairs to Sealed Components
(2-1) During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked
upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment
during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn
of a potentially hazardous situation.
(2-2) Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not
altered in such a way that the level of protection is affected. This shall include damage to cables, excessive number of
connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc.
Ensure that the apparatus is mounted securely.
Ensure that seals or sealing materials have not degraded to the point that they no longer serve the purpose of prevent-
ing the ingress of flammable atmospheres.
Replacement parts shall be in accordance with the manufacturer’s specifications.

7
OCH684G
(3) Repair to intrinsically Safe Components
Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the
permissible voltage and current permitted for the equipment in use.
Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmos-
phere. The test apparatus shall be at the correct rating.
Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in
the atmosphere from a leak.
(4) Cabling
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse
environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such
as compressors or fans.
(5) Detection of Flammable Refrigerants
Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks.
A halide torch (or any other detector using a naked flame) shall not be used.
(6) Leak Detection Methods
Electronic leak detectors may be used to detect refrigerant leaks but, in the case of flammable refrigerants, the sensitivity
may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.)
Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equip-
ment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed, and the
appropriate percentage of gas (25% maximum) is confirmed.
Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be
avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work.
If a leak is suspected, all naked flames shall be removed/extinguished.
If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or
isolated (by means of shut off valves) in a part of the system remote from the leak. For appliances containing flammable
refrigerants, oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing pro-
cess.
(7) Removal and Evacuation
When breaking into the refrigerant circuit to make repairs – or for any other purpose conventional procedures shall be
used. However, for flammable refrigerants it is important that best practice is followed since flammability is a considera-
tion. The following procedure shall be adhered to:
• remove refrigerant
• purge the circuit with inert gas
• evacuate
• purge again with inert gas
• open the circuit by cutting or brazing.
The refrigerant charge shall be recovered into the correct recovery cylinders. For appliances containing flammable refrig-
erants, the system shall be “flushed” with OFN to render the unit safe. This process may need to be repeated several
times.
Compressed air or oxygen shall not be used for purging refrigerant systems.
For appliances containing flammable refrigerants, flushing shall be achieved by breaking the vacuum in the system with
OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to
a vacuum. This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used,
the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital
if brazing operations on the pipe-work are to take place.
Ensure that the outlet for the vacuum pump is not close to any ignition sources and that ventilation is available.
(8) Charging Procedures
In addition to conventional charging procedures, the following requirements shall be followed:
• Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines
shall be as short as possible to minimize the amount of refrigerant contained in them.
• Cylinders shall be kept upright.
• Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
• Label the system when charging is complete (if not already).
• Extreme care shall be taken not to overfill the refrigeration system.
Prior to recharging the system, it shall be pressure-tested with the appropriate purging gas. The system shall be leak-
tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the
site.
(9) Decommissioning
Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its
detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an
oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential
that electrical power is available before the task is commenced.
a) Become familiar with the equipment and its operation.

8 9
OCH684G
b) Isolate system electrically.
c) Before attempting the procedure, ensure that:
• mechanical handling equipment is available, if required, for handling refrigerant cylinders;
• all personal protective equipment is available and being used correctly;
• the recovery process is supervised at all times by a competent person;
• recovery equipment and cylinders conform to the appropriate standards.
d) Pump down refrigerant system, if possible.
e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with manufacturer’s instructions.
h) Do not overfill cylinders. (No more than 80 % volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equip-
ment are removed from site promptly and all isolation valves on the equipment are closed off.
k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.
(10) Labelling
Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be
dated and signed. For appliances containing flammable refrigerants, ensure that there are labels on the equipment stat-
ing the equipment contains flammable refrigerant.
(11) Recovery
When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice
that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrig-
erant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge
are available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e.
special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure-relief valve and associated
shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery
occurs.
The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at
hand and shall be suitable for the recovery of all appropriate refrigerants including, when applicable, flammable refriger-
ants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be com-
plete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in
satisfactory working order, has been properly maintained and that any associated electrical components are sealed to
prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt.
The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant
waste transfer note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or
compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that
flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning
the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this pro-
cess. When oil is drained from a system, it shall be carried out safely.
2-3. Choosing the outdoor unit installation location
R32 is heavier than air—as well as other refrigerants—
so tends to accumulate at the base (in the vicinity of the
floor). If R32 accumulates around base, it may reach a
flammable concentration in case room is small. To avoid
ignition, maintaining a safe work environment is required
by ensuring appropriate ventilation. If a refrigerant leak is
confirmed in a room or an area where there is insufficient
ventilation, refrain from using of flames until the work
environment can be improved by ensuring appropriate
ventilation.
Install outdoor units in a place where at least one of the
four sides is open, and in a sufficiently large space with-
out depressions.
Correct Correct
Correct Incorrect

9
OCH684G
2-4. Minimum installation area
If you unavoidably install a unit in a space where all four sides are blocked or there are depressions, confirm that one of
these situations (A, B or C) is satisfied.
Note: These countermeasures are for keeping safety not for specification guarantee.
A) Secure sufficient installation space (minimum installation area Amin).
Install in a space with an installation area of Amin or more, corresponding to refrigerant amount M (factory-charged
refrigerant + locally added refrigerant).
B) Install in a space with a depression height of ≤ 0.125 [m]
C) Create an appropriate ventilation open area.
Make sure that the width of the open area is 0.9 [m] or more and the height of the open area is 0.15 [m] or more.
However, the height from the bottom of the installation space to the bottom edge of the open area should be 0.125 [m]
or less.
Open area should be 75% or more opening.
Amin
Height from the bottom of
0.125 [m] or less
Height from the bottom of
0.125 [m] or less
M [kg] Amin [m²]
1.0 12
1.5 17
2.0 23
2.5 28
3.0 34
3.5 39
4.0 45
4.5 50
5.0 56
5.5 62
6.0 67
6.5 73
7.0 78
7.5 84
75% or more opening
Width W 0.9 [m] or more
Height from the bottom
0.125 [m] or less
Height H 0.15 [m] or more

10 11
OCH684G
■ Indoor units
Install in a room with a floor area of Amin or more, corresponding to refrigerant amount M (factory-charged refrig-
erant + locally added refrigerant).
* For the factory-charged refrigerant amount, refer to the spec nameplate or installation manual.
For the amount to be added locally, refer to the installation manual.
Install the indoor unit so that the height from the floor to the bottom of the indoor unit is h0;
for wall mounted: 1.8 m or more
for ceiling suspended, cassette and ceiling concealed: 2.2 m or more
for floor standing (PSA-M): 0 m
for floor standing (MFZ-KT): Refer to indoor unit installation manual.
for floor standing concealed: Refer to indoor unit installation manual.
* There are restrictions in installation height for each model, so read the installation manual for the particular unit.
Case 1: for wall mounted, ceiling suspended, cassette and concealed
M [kg] Amin [m²]
1.0 4
1.5 6
2.0 8
2.5 10
3.0 12
3.5 14
4.0 16
4.5 20
5.0 24
5.5 29
6.0 35
6.5 41
7.0 47
7.5 54
Wall mounted
h0 ] 1.8 [m]
Ceiling concealedCassette
Ceiling suspended
h0 ] 2.2 [m]h0 ] 2.2 [m]h0 ] 2.2 [m]
Case 2: for floor standing (PSA-M)
M [kg] Amin [m²]
< 1.84
1.84
No requirements
2.0 6
6
2.5 7
3.0 9
3.5 10
4.0 11
4.5 13
5.0 14
5.5 15
6.0 17
6.5 18
7.0 20
7.5 21 Floor standing (PSA-M)
h0 = 0 [m]

11
OCH684G
M [kg] Amin [m²]
1.00
No requirements
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.84 3.63
1.90 3.75
2.00 3.95
2.10 4.15
2.20 4.34
2.30 4.54
2.40 4.74
h0 : Refer to indoor unit installation manual.
Floor standing (MFZ-KT)
M [kg] Amin [m²]
h ]1.8 1.4 [ [h < 1.8 1.0 h < 1.4
1.00
No requirements
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.84 4.5 5.8 8.0
1.90 4.6 5.9 8.3
2.00 4.9 6.3 8.7
2.10 5.1 6.6 9.2
2.20 5.4 6.9 9.6
2.30 5.6 7.2 10.0
2.40 5.8 7.5 10.5
M [kg] Amin [m²]
[
1.00
No requirements
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.84 4.1 5.0 8.3
1.90 4.3 5.1 8.6
2.00 4.5 5.4 9.0
2.10 4.7 5.7 9.5
2.20 4.9 5.9 9.9
2.30 5.2 6.2 10.4
2.40 5.4 6.5 10.8
φ = 90°
60° 30° [ φ < 90°
φ < 60°
Floor standing concealed
h0: Refer to indoor unit installation manual.
h
Floor standing concealed
h0: Refer to indoor unit installation manual.
Air outlet grille
(field supply)
φ
* The height h of the air outlet port shall not be less than 1.0 m
* The grille angle shall not be less than 30°
Case 3: for floor standing (MFZ-KT)
Case 4: for floor standing concealed
Case 4-1: When duct is installed
Case 4-2: When air outlet grille is installed

12 13
OCH684G
3PARTS NAMES AND FUNCTIONS
SUZ-M25VA.TH
SUZ-M25VAR1.TH
SUZ-M25VAR2.TH
SUZ-M25VA-ET.TH
SUZ-M25VA-ETR2.TH
SUZ-M25VA-ERR2.TH
SUZ-M35VA.TH
SUZ-M35VAR1.TH
SUZ-M35VAR2.TH
SUZ-M35VA-ET.TH
SUZ-M35VA-ETR2.TH
SUZ-M35VA-ERR2.TH
SUZ-M50VA.TH
SUZ-M50VAR1.TH
SUZ-M50VAR2.TH
SUZ-M50VA-ET.TH
SUZ-M50VA-ETR2.TH
SUZ-M50VA-ERR2.TH
Model SUZ-M·VA
Drain socket 1
Air outlet
Drain outlet
Piping
Drain hose
Air inlet
(back and side)
SUZ-M60VA.TH
SUZ-M60VAR1.TH
SUZ-M60VAR2.TH
SUZ-M60VA-ET.TH
SUZ-M60VA-ETR2.TH
SUZ-M60VA-ERR2.TH
SUZ-M71VA.TH
SUZ-M71VAR1.TH
SUZ-M71VA-ET.TH
SUZ-M71VA-ETR1.TH
SUZ-M71VA-ERR1.TH
Air outlet
Drain outlet
Piping
Drain hose
Air inlet
(back and side)
Air outlet
Drain outlet
Piping
Drain hose
Air inlet
(back and side)

13
OCH684G
SPECIFICATION
4
Note: Test conditions are based on ISO 5151
Cooling: Indoor D.B. 27°C W.B. 19°C
Outdoor D.B. 35°C
Heating: Indoor D.B. 20°C
Outdoor D.B. 7°C W.B. 6°C
Refrigerant piping length (one way): 5 m
*Measured under rated operating frequency.
Service ref.
SUZ-M25VA.TH
SUZ-M25VAR1.TH
SUZ-M25VAR2.TH
SUZ-M25VA-ET.TH
SUZ-M25VA-ETR2.TH
SUZ-M25VA-ERR2.TH
SUZ-M35VA.TH
SUZ-M35VAR1.TH
SUZ-M35VAR2.TH
SUZ-M35VA-ET.TH
SUZ-M35VA-ETR2.TH
SUZ-M35VA-ERR2.TH
SUZ-M50VA.TH
SUZ-M50VAR1.TH
SUZ-M50VAR2.TH
SUZ-M50VA-ET.TH
SUZ-M50VA-ETR2.TH
SUZ-M50VA-ERR2.TH
SUZ-M60VA.TH
SUZ-M60VAR1.TH
SUZ-M60VAR2.TH
SUZ-M60VA-ET.TH
SUZ-M60VA-ETR2.TH
SUZ-M60VA-ERR2.TH
SUZ-M71VA.TH
SUZ-M71VAR1.TH
SUZ-M71VA-ET.TH
SUZ-M71VA-ETR1.TH
SUZ-M71VA-ERR1.TH
Power supply Single phase 230 V, 50 Hz
Compressor
Model KVB073FYXMC SVB092FBAMT SVB130FBBMT SVB172FCKMT
Output W 470 660 900 1,200
Current* Cooling A3.0 4.1 7.1 8.4 9.1
Heating 3.7 5.0 8.0 9.3 9.5
Refrigeration oil
(Model)
L 0.27 (FW68S) 0.35 (FW68S) 0.40 (FW68S)
Fan motor
Model RC0J50-NC RC0J50-RA RC0J60-BC
Current* Cooling A0.22 0.20 0.29 0.84
Heating 0.20 0.23 0.29 0.84
Dimensions W × H × D mm 800 × 550 × 285 800 × 714 × 285 840 × 880 × 330
Weight kg 30 35 41 54 55
Special remarks
Air
ow*
Cooling High
m³/h
2,178 2,058 2,748 3,006
Low 1,038 906 1,320 1,716
Heating
High 2,076 1,962 2,622 3,006
Med. 1,788 1,686 2,238 2,892
Low 1,452 1,260 1,704 2,280
Sound pressure level*
Cooling
dB(A)
45 48 49
Heating 46 48 49 51
Sound power level 59 64 65 66
Fan
speed
Cooling High
rpm
940 840
Low 470 460 490 450
Heating
High 900 840 860
Med. 780 810
Low 640 600 610 650
Fan speed regulator 3
Refrigerant lling capacity
(R32) kg 0.65 0.90 1.20 1.25 1.45

1514 15
OCH684G
Specifications and rating conditions of main electric parts
Service ref.
Item
SUZ-M25VA.TH
SUZ-M25VAR1.TH
SUZ-M25VAR2.TH
SUZ-M25VA-ET.TH
SUZ-M25VA-ETR2.TH
SUZ-M25VA-ERR2.TH
SUZ-M35VA.TH
SUZ-M35VAR1.TH
SUZ-M35VAR2.TH
SUZ-M35VA-ET.TH
SUZ-M35VA-ETR2.TH
SUZ-M35VA-ERR2.TH
SUZ-M50VA.TH
SUZ-M50VAR1.TH
SUZ-M50VAR2.TH
SUZ-M50VA-ET.TH
SUZ-M50VA-ETR2.TH
SUZ-M50VA-ERR2.TH
SUZ-M60VA.TH
SUZ-M60VAR1.TH
SUZ-M60VAR2.TH
SUZ-M60VA-ET.TH
SUZ-M60VA-ETR2.TH
SUZ-M60VA-ERR2.TH
SUZ-M71VA.TH
SUZ-M71VAR1.TH
SUZ-M71VA-ET.TH
SUZ-M71VA-ETR1.TH
SUZ-M71VA-ERR1.TH
Smoothing
capacitor
(C61) — 620 μF 420 V 620 μF 420 V — —
(C62, C63) 620 μF 420 V 620 μF 420 V 620 μF420 V — —
(CB1, 2, 3) — — — 560 μF 450 V
Diode module (DB61) 15 A 600 V 15 A 600 V 25 A 600 V — —
(DB65) 25 A 600 V — —
Fuse
(F61) 25 A 250 V — —
(F62) 15 A 250 V — —
(F701, F801, F901) T3.15 A L250 V — —
(F601, F880, F901) — — — T3.15 A L250 V
Power module (IC700) 15 A 600 V 20 A 600 V
(IC932) 5 A 600 V
Switch power
transistor (Q821) 30 A 600 V — —
Expansion valve
coil (LEV) 12 V DC
Reactor (L61) 18 mH 23 mH — —
(L) — — — 282 μH
Diode (D3A, D3B) — — — 20 A 600 V
Diode module (DB41A, DB41B) — — — 20 A 600 V
Current-Limiting
PTC thermistor (PTC64, PTC65) 33Ω
Terminal block (TB1) 5P 3P
Relay
(X63) 3 A 250 V — —
(X64) 20 A 250 V
(X601) — — — 3 A 250 V
(X602) — — — 3 A 250 V
R.V. coil (21S4) 220–240 V AC

15
OCH684G 15
NOISE CRITERIA CURVES
5
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
COOLING
FUNCTION SPL(dB(A)) LINE
High
Med.
FAN SPEED
HEATING
45
46
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
BAND CENTER FREQUENCIES, Hz
NC-10
SUZ-M25VA.TH
SUZ-M25VAR1.TH
SUZ-M25VAR2.TH
SUZ-M25VA-ET.TH
SUZ-M25VA-ETR2.TH
SUZ-M25VA-ERR2.TH
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
COOLING
FUNCTION SPL(dB(A)) LINE
FAN SPEED
HEATING
48
48
High
Med.
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
BAND CENTER FREQUENCIES, Hz
NC-10
SUZ-M35VA.TH
SUZ-M35VAR1.TH
SUZ-M35VAR2.TH
SUZ-M35VA-ET.TH
SUZ-M35VA-ETR2.TH
SUZ-M35VA-ERR2.TH
COOLING
FUNCTION SPL(dB(A)) LINE
High
FAN SPEED
HEATING
48
49
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
BAND CENTER FREQUENCIES, Hz
NC-10
SUZ-M50VA.TH
SUZ-M50VAR1.TH
SUZ-M50VAR2.TH
SUZ-M50VA-ET.TH
SUZ-M50VA-ETR2.TH
SUZ-M50VA-ERR2.TH
Test conditions
Cooling: Dry-bulb temperature 35°C
Heating: Dry-bulb temperature 7°C
Wet-bulb temperature 6°C
OUTDOOR UNIT
MICROPHONE
1 m
SUZ-M60VA.TH SUZ-M71VA.TH
SUZ-M60VAR1.TH SUZ-M71VAR1.TH
SUZ-M60VAR2.TH SUZ-M71VA-ET.TH
SUZ-M60VA-ET.TH SUZ-M71VA-ETR1.TH
SUZ-M60VA-ETR2.TH SUZ-M71VA-ERR1.TH
SUZ-M60VA-ERR2.TH
OCTAVE BAND SOUND PRESSURE LEVEL, 0dB re 0.0002 MICRO BAR
COOLING
FUNCTION SPL(dB(A)) LINE
High
FAN SPEED
HEATING
49
51
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
BAND CENTER FREQUENCIES, Hz
NC-10

1716 17
OCH684G
mm (inch)
mm (inch)
6OUTLINES AND DIMENSIONS
Unit: mm
SUZ-M25VA.TH SUZ-M35VA.TH
SUZ-M25VAR1.TH SUZ-M35VAR1.TH
SUZ-M25VAR2.TH SUZ-M35VAR2.TH
SUZ-M25VA-ET.TH SUZ-M35VA-ET.TH
SUZ-M25VA-ETR2.TH SUZ-M35VA-ETR2.TH
SUZ-M25VA-ERR2.TH SUZ-M35VA-ERR2.TH
Unit: mm
SUZ-M50VA.TH
SUZ-M50VAR1.TH
SUZ-M50VAR2.TH
SUZ-M50VA-ET.TH
SUZ-M50VA-ETR2.TH
SUZ-M50VA-ERR2.TH

17
OCH684G 17
SUZ-M60VA.TH SUZ-M71VA.TH
SUZ-M60VAR1.TH SUZ-M71VAR1.TH
SUZ-M60VAR2.TH SUZ-M71VA-ET.TH
SUZ-M60VA-ET.TH SUZ-M71VA-ETR1.TH
SUZ-M60VA-ETR2.TH SUZ-M71VA-ERR1.TH
SUZ-M60VA-ERR2.TH
mm (inch)
417.5
40
42
Drain hole
175 500
330
50
Air in
Air out
2-holes 10 21
360
840
109
81
880
452
Service panel
99.5
164.5
195
35
44
Liquid refrigerant pipe joint
Gas refrigerant pipe joint
Air in
350 mm or more
100 mm or more
REQUIRED SPACE
100 mm or more
500 mm
or more *2
*1 500 mm or more when front
and sides of the unit are clear
*2 When any 2 sides of left, right
and rear of the unit are clear
Clear *1
Unit: mm

1918 19
OCH684G
7WIRING DIAGRAM
SUZ-M25VA.TH
SUZ-M25VAR1.TH
SUZ-M25VAR2.TH
SUZ-M25VA-ET.TH
SUZ-M25VA-ETR2.TH
SUZ-M25VA-ERR2.TH

19
OCH684G 19
SUZ-M35VA.TH
SUZ-M35VAR1.TH
SUZ-M35VAR2.TH
SUZ-M35VA-ET.TH
SUZ-M35VA-ETR2.TH
SUZ-M35VA-ERR2.TH

20 21
OCH684G
SUZ-M50VA.TH
SUZ-M50VAR1.TH
SUZ-M50VAR2.TH
SUZ-M50VA-ET.TH
SUZ-M50VA-ETR2.TH
SUZ-M50VA-ERR2.TH
