Mitsubishi Electric PLA-RP.BA Series Instruction manual

TECHNICAL DATA BOOK
CONTENTS
1. REFERENCE SERVICE MANUAL............................................. 2
2. SPECIFICATIONS....................................................................... 3
3. OUTLINES AND DIMENSIONS................................................ 15
4. WIRING DIAGRAM................................................................... 36
5. REFRIGERANT SYSTEM DIAGRAM......................................48
6. PERFORMANCE CURVES......................................................52
7. CORRECTION FACTORS........................................................54
8. APPLICABLE EXTENSION PIPE FOR EACH MODEL.......... 55
9. AIR FLOW DATA......................................................................59
10. NOISE CRITERION CURVES...................................................73
11. OPTIONAL PARTS.................................................................... 87
<Indoor unit>
[Model names]
R410A
<Outdoor unit>
[Model names]
No. OCS17
SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
PUHZ-P100/125/140VHA3
PUHZ-P100/125/140YHA
PUHZ-P200/250YHA3
December 2009
INVERTER
kW Model
PLA-RP·BA/BA2/BA3
PEAD-RP·JA(L)
PEA-RP·GA
PKA-RP·HAL
PKA-RP·KAL
PCA-RP·KA
PCA-RP·HA
PSA-RP·GA

2
1REFERENCE SERVICE MANUAL
For information on service, please refer to the service manual as follows.
1-1. INDOOR UNIT SERVICE MANUAL
Model name Service Ref. Service
Manual No.
PLA-RP50/60/71/100/125BA
PLA-RP71/125/140BA2 PLA-RP50/60/71/100/125BA#2.UK PLA-RP71/125/140BA2.UK OCH412 OCB412
PLA-RP100BA3 PLA-RP100BA3 OCH459
OCB459
PCA-RP50/60/71/100/125/140KA PCA-RP50/60/71/100/125/140KA OCH454
OCB454
PCA-RP71/125HA PCA-RP71/125HA#1 OC329
PKA-RP50HAL PKA-RP50HAL OCH453
OCB453
PKA-RP60/71/100KAL PKA-RP60/71/100KAL.TH OCH452
OCB452
PSA-RP71/100/125/140GA PSA-RP71/100/125/140GA#1 OC332
PEAD-RP50/60/71/100/125/140JA(L) PEAD-RP50/60/71/100/125/140JA(L)(R1).UK HWE08130 BWE08240
BWE09220
PEA-RP200/250/400/500GA
PEA-RP200/250/400/500GA.TH-AF
PEA-RP200/250GA.TH-AFMF
HWE0708A
1-2. OUTDOOR UNIT
Model name Service Ref. Service
Manual No.
PUHZ-P100/125/140VHA3
PUHZ-P100/125/140YHA PUHZ-P100/125/140VHA3R2.UK PUHZ-P100/125/140YHA.UK OCH415 OCB415
PUHZ-P200/250YHA3 PUHZ-P200/250YHA3R1 OCH424
OCB424

3
2SPECIFICATIONS
2-1. CEILING CASSETTE TYPE
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27(80°F) W.B. 19(66°F) Outdoor : D.B. 35(95°F) W.B. 24(75°F)
Heating Indoor : D.B. 20(68°F) Outdoor : D.B. 7(45°F) W.B. 6(43°F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35°C, W.B. 22.5°C D.B. 46
Lower limit D.B. 19°C, W.B. 15°C D.B. -5+
Heating Upper limit D.B. 28°C D.B. 21, W.B. 15
Lower limit D.B. 17°C D.B. -15, W.B. -15
4. Above data are based on the indicated voltage.
+If optional air protect guide is installed : D.B.-15
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
Model name Indoor unit PLA-RP100BA PLA-RP125BA PLA-RP125BA2
Outdoor unit PUHZ-P100VHA3 PUHZ-P125VHA3 PUHZ-P125VHA3
Cooling Capacity Btu/h 32,100 42,000 42,000
kW 9.4 (4.9-11.2)12.3 (5.5-14.0)12.3 (5.5-14.0)
Total input kW 3.12 4.09 4.09
EER 3.01 3.01 3.01
Energy label class BB-
SHF 0.74 0.71 0.71
Heating Capacity Btu/h 38,200 47,800 47,800
kW 11.2 (4.5-12.5)14.0 (5.0-16.0)14.0 (5.0-16.0)
Total input kW 3.28 4.11 4.02
COP 3.41 3.41 3.48
Energy label class BB-
Booster heater kW - - -
Power supply Phase W1
Cycle Hz 50
Voltage V 230
Breaker size A 32
Indoor unit Air flow CMM 20-23-26-30 22-25-28-31
(Low-Medium2-Medium1-High)
CFM 710-810-920-1060 780-880-990-1090
External pressure
Pa 0 0
Sound level dB(A)32-34-37-40 34-36-39-41
22-25-28-31
780-880-990-1090
0
34-36-39-41
(Low-Medium2-Medium1-High)
External finish (Panel)White Munsell 6.4Y 8.9/0.4
Dimension W : mm 840 (950)
Unit (Panel)D : mm 840 (950)
H : mm 298 (35)
W : inch 33-1/16 (37-3/8)
D : inch 33-1/16 (37-3/8)
H : inch 11-3/4 (1-3/8)
Weight kg 25 (6)
Unit (Panel)lbs 55 (13)
27 (6)
60 (13)
Field drain pipe O.D. mm 32
inch 1-1/4
Outdoor unit Air flow CMM 60 100
CFM 2,120 3,530
Sound level at cooling
dB(A)50 51 51
Sound level at heating
dB(A)54 55 55
External finish Ivory Munsell 3Y 7.8/1.1
Dimension W : mm 950
D : mm 330+30
H : mm 1350
W : inch 37-3/8
D : inch 13 + 1-3/16
H : inch 53-1/8
Weight kg 99
lbs 218
Refrigerant
pipe size
Gas side O.D. mm 15.88
inch 5/8
Liquid side O.D. mm 9.52
inch 3/8
Refrigerant
pipe length
Height difference
m Max. 30
Length m Max. 50
PLA-RP100BA3
PUHZ-P100VHA3
32,100
9.4 (4.9-11.2)
3.12
3.01
-
0.74
38,200
11.2 (4.5-12.5)
3.22
3.48
-
-
20-23-26-30
710-810-920-1060
0
32-34-37-40
50
54
943
37-1/8
75
165
PLA-RP140BA2
PUHZ-P140VHA3
46,400
13.6 (5.5-15.0)
5.21
2.61
D
0.71
54,600
16.0 (5.0-18.0)
4.98
3.21
C
-
40
24-26-29-32
850-920-1020-1130
0
36-39-42-44
27 (6)
60 (13)
52
56
26 (6) 25 (6)
55 (13)
57 (13)

4
Model name Indoor unit PLA-RP100BA PLA-RP125BA PLA-RP125BA2
Outdoor unit PUHZ-P100YHA PUHZ-P125YHA PUHZ-P125YHA
Cooling Capacity Btu/h 32,100 42,000 42,000
kW 9.4 (4.9-11.2)12.3 (5.5-14.0)12.3 (5.5-14.0)
Total input kW 3.12 4.09 4.09
EER 3.01 3.01 3.01
Energy label class BB-
SHF 0.74 0.71 0.71
Heating Capacity Btu/h 38,200 47,800 47,800
kW 11.2 (4.5-12.5)14.0 (5.0-16.0)14.0 (5.0-16.0)
Total input kW 3.28 4.11 4.02
COP 3.41 3.41 3.48
Energy label class BB-
Booster heater kW - - -
Power supply Phase W3
Cycle Hz 50
Voltage V 400
Breaker size A 16
Indoor unit Air flow CMM 20-23-26-30 22-25-28-31
(Low-Medium2-Medium1-High)
CFM 710-810-920-1060 780-880-990-1090
External pressure
Pa 0 0
Sound level dB(A)32-34-37-40 34-36-39-41
22-25-28-31
780-880-990-1090
0
34-36-39-41
(Low-Medium2-Medium1-High)
External finish (Panel)White Munsell 6.4Y 8.9/0.4
Dimension W : mm 840 (950)
Unit (Panel)D : mm 840 (950)
H : mm 298 (35)
W : inch 33-1/16 (37-3/8)
D : inch 33-1/16 (37-3/8)
H : inch 11-3/4 (1-3/8)
Weight kg 25 (6)
Unit (Panel)lbs 55 (13)
27 (6)
60 (13)
Field drain pipe O.D. mm 32
inch 1-1/4
Outdoor unit Air flow CMM 60 100
CFM 2,120 3,530
Sound level at cooling
dB(A)50 51 51
Sound level at heating
dB(A)54 55 55
External finish Ivory Munsell 3Y 7.8/1.1
Dimension W : mm 950
D : mm 330+30
H : mm 1350
W : inch 37-3/8
D : inch 13 + 1-3/16
H : inch 53-1/8
Weight kg 101
lbs 222
Refrigerant
pipe size
Gas side O.D. mm 15.88
inch 5/8
Liquid side O.D. mm 9.52
inch 3/8
Refrigerant
pipe length
Height difference
mMax.30
Length mMax.50
PLA-RP100BA3
PUHZ-P100YHA
32,100
9.4 (4.9-11.2)
3.12
3.01
-
0.74
38,200
11.2 (4.5-12.5)
3.22
3.48
-
-
20-23-26-30
710-810-920-1060
0
32-34-37-40
50
54
943
37-1/8
77
169
PLA-RP140BA2
PUHZ-P140YHA
46,400
13.6 (5.5-15.0)
5.21
2.61
D
0.71
54,600
16.0 (5.0-18.0)
4.98
3.21
C
-
24-26-29-32
850-920-1020-1130
0
36-39-42-44
27 (6)
60 (13)
52
56
26 (6) 25 (6)
55 (13)
57 (13)
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27(80°F) W.B. 19(66°F) Outdoor : D.B. 35(95°F) W.B. 24(75°F)
Heating Indoor : D.B. 20(68°F) Outdoor : D.B. 7(45°F) W.B. 6(43°F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35°C, W.B. 22.5°C D.B. 46°C
Lower limit D.B. 19°C, W.B. 15°C D.B. -5°C +
Heating Upper limit D.B. 28°C D.B. 21°C, W.B. 15°C
Lower limit D.B. 17°C D.B. -15°C, W.B. -15°C
4. Above data are based on the indicated voltage.
Indoor unit Single phase 230V 50Hz
3 phase 400V 50Hz
Outdoor unit
Indoor unit 198~264V, 50Hz
342~457V, 50Hz
Outdoor unit
3. Guaranteed voltage
If optional air protect guide installed. D.B.-15

5
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27(80°F) W.B. 19(66°F) Outdoor : D.B. 35(95°F) W.B. 24(75°F)
Heating Indoor : D.B. 20(68°F) Outdoor : D.B. 7(45°F) W.B. 6(43°F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35°C, W.B. 22.5°C D.B. 46
Lower limit D.B. 19°C, W.B. 15°C D.B. -5+
Heating Upper limit D.B. 28°C D.B. 21, W.B. 15
Lower limit D.B. 17°C D.B. -15, W.B. -15
4. Above data are based on the indicated voltage.
+If optional air protect guide is installed : D.B.-15
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
Model name Indoor unit PEAD-RP100JA(L) PEAD-RP125JA(L) PEAD-RP140JA(L)
Outdoor unit PUHZ-P100VHA3 PUHZ-P125VHA3 PUHZ-P140VHA3
Cooling Capacity Btu/h 32,100 42,000 46,400
kW 9.4 (4.9-11.2) 12.3 (5.5-14.0) 13.6 (5.5-15.0)
Total input kW 3.04 (3.02) 4.22 (4.20) 4.52 (4.50)
EER 3.09 (3.11) 2.91 (2.93) 3.01 (3.02)
Energy label class B C B
SHF 0.85 0.85 0.84
Heating Capacity Btu/h 38,200 47,800 54,600
kW 11.2 (4.5-12.5) 14.0 (5.0-16.0) 16.0 (5.0-18.0)
Total input kW 3.10 3.87 4.43
COP 3.61 3.62 3.61
Energy label class A A A
Booster heater kW - - -
Power supply Phase W1
Cycle Hz 50
Voltage V 230
Breaker size A 32 40
Indoor unit Air flow CMM 24 - 29 - 34 29.5 - 35.5 - 42 32 - 39 - 46
(Low-Mid-High)CFM 847-1024-1201 1042-1253-1483 1130-1377-1624
External pressure Pa 35 / 50 / 70 / 100 / 150
Sound level dB(A)29 - 34 - 38 33 - 36 - 40 34 - 38 - 43
(Low-Mid-High)
External finish Galvanized sheets
Dimension W : mm
250
D : mm
1400
H : mm
732
W : inch 55-1/8 63
D : inch 28-7/8
H : inch 9-7/8
Weight kg 41 (40) 43 (42) 47 (46)
lbs
mm
inch
91 (89) 95 (93) 104 (102)
Field drain pipe O.D. 32
1-1/4
Outdoor unit Air flow CMM 60 100
CFM 2,120 3,530
Sound level at cooling dB(A)50 51 52
Sound level at heating dB(A)54 55 56
External finish Ivory Munsell 3Y 7.8/1.1
Dimension W : mm 950
D : mm 330(+30)
H : mm 943 1350
W : inch 37-3/8
D : inch 13 + 1-3/16
H : inch 37-1/8 53-1/8
Weight kg 75 99
lbs 165 218
Refrigerant pipe size Gas side O.D. mm 15.88
inch 5/8
Liquid side O.D. mm 9.52
inch 3/8
Refrigerant pipe length Height difference m Max. 30
Length m Max. 50
1600
2-2. CEILING-CONCEALED TYPE

6
Model name Indoor unit PEAD-RP100JA(L) PEAD-RP125JA(L) PEAD-RP140JA(L)
Outdoor unit PUHZ-P100YHA PUHZ-P125YHA PUHZ-P140YHA
Cooling Capacity Btu/h 32,100 42,000 46,400
kW 9.4 (4.9-11.2) 12.3 (5.5-14.0) 13.6 (5.5-15.0)
Total input kW 3.04 (3.02) 4.22 (4.20) 4.52 (4.50)
EER 3.09 (3.11) 2.91 (2.93) 3.01 (3.02)
Energy label class B C B
SHF 0.85 0.85 0.84
Heating Capacity Btu/h 38,200 47,800 54,600
kW 11.2 (4.5-12.5) 14.0 (5.0-16.0) 16.0 (5.0-18.0)
Total input kW 3.10 3.87 4.43
COP 3.61 3.62 3.61
Energy label class A A A
Booster heater kW - - -
Power supply Phase W3
Cycle Hz 50
Voltage V 400
Breaker size A 16
Indoor unit Air flow CMM
(Low-Mid-High)CFM
External pressure Pa 35 / 50 / 70 / 100 / 150
Sound level dB(A)29 - 34 - 38 33 - 36 - 40 34 - 38 - 43
(Low-Mid-High)
External finish Galvanized sheets
Dimension W : mm
250
D : mm
1400
H : mm
732
W : inch
D : inch
H : inch
Weight kg
lbs
mm
inch
Field drain pipe O.D. 32
1-1/4
Outdoor unit Air flow CMM 60 100
CFM 2,120 3,530
Sound level at cooling dB(A)50 51 52
Sound level at heating dB(A)54 55 56
External finish Ivory Munsell 3Y 7.8/1.1
Dimension W : mm 950
D : mm 330(+30)
H : mm 943 1350
W : inch 37-3/8
D : inch 13 + 1-3/16
H : inch 37-1/8 53-1/8
Weight kg 77 101
lbs 169 222
Refrigerant pipe size Gas side O.D. mm 15.88
inch 5/8
Liquid side O.D. mm 9.52
inch 3/8
Refrigerant pipe length Height difference m Max. 30
Length m Max. 50
1600
24 - 29 - 34 29.5 - 35.5 - 42 32 - 39 - 46
847-1024-1201 1042-1253-1483 1130-1377-1624
55-1/8 63
28-7/8
9-7/8
41 (40) 43 (42) 47 (46)
91 (89) 95 (93) 104 (102)
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27(80°F) W.B. 19(66°F) Outdoor : D.B. 35(95°F) W.B. 24(75°F)
Heating Indoor : D.B. 20(68°F) Outdoor : D.B. 7(45°F) W.B. 6(43°F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35°C, W.B. 22.5°C D.B. 46°C
Lower limit D.B. 19°C, W.B. 15°C D.B. -5°C +
Heating Upper limit D.B. 28°C D.B. 21°C, W.B. 15°C
Lower limit D.B. 17°C D.B. -15°C, W.B. -15°C
4. Above data are based on the indicated voltage.
Indoor unit Single phase 230V 50Hz
3 phase 400V 50Hz
Outdoor unit
Indoor unit 198~264V, 50Hz
342~457V, 50Hz
Outdoor unit
3. Guaranteed voltage
+If optional air protect guide installed. D.B.-15

7
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27(80°F) W.B. 19(66°F) Outdoor : D.B. 35(95°F) W.B. 24(75°F)
Heating Indoor : D.B. 20(68°F) Outdoor : D.B. 7(45°F) W.B. 6(43°F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35°C, W.B. 22.5°C D.B. 46°C
Lower limit D.B. 19°C, W.B. 15°C D.B. -5°C +1
Heating Upper limit D.B. 28°C D.B. 21°C, W.B. 15°C
Lower limit D.B. 17°C
D.B. -11°C, W.B. -12°C
4. Above data are based on the indicated voltage.
+1. If optional air protect guide is installed : D.B.-15
Indoor unit 3 phase 400V 50Hz
3 phase 400V 50Hz
Outdoor unit
3. Guaranteed voltage
342~457V, 50Hz
Model name Indoor unit PEA-RP200GA PEA-RP250GA
Outdoor unit PUHZ-P200YHA3 PUHZ-P250YHA3
Cooling Capacity Btu/h 65,000 75,000
kW 19.0(9.0-22.4) 22.0(11.2-28.0)
Total input kW 7.21 8.44
EER
Energy label class
2.64 2.61
DD
SHF 0.81 0.86
Heating Capacity Btu/h 76,000 92,000
kW 22.4(9.5-25.0) 27.0(12.5-31.5)
Total input kW 7.36 8.47
COP 3.04 3.19
Energy label class D D
Booster heater kW - -
Power supply Phase :3
Cycle Hz 50
Voltage V 400
Breaker size A Indoor 15 / Outdoor 32
Indoor unit Air flow CMM 52 - 65 64 - 80
(Low-High) CFM 1835 - 2295 2260 - 2825
External pressure Pa 150
Sound level dB(A) 48-51 49 - 52
(Low-High)
External finish Galvanized steel
Dimension W : mm 16001400
D : mm 634
H : mm 400
W : inch 6355-1/8
D : inch 25
H : inch 15-3/4
Weight kg 70 77
lbs 155 170
Unit drain pipe R1
Outdoor unit Air flow CMM 130
CFM 4590
Sound level at cooling dB(A) 59
Sound level at heating dB(A) 59
External finish Ivory Munsell 3Y 7.8/1.1
Dimension W : mm 950
D : mm 330+30
H : mm 1350
W : inch 37-3/8
D : inch 13 + 1-3/16
H : inch 53-1/8
Weight kg 126
lbs 278
133
294
Refrigerant pipe size Gas side O.D. mm 25.4
inch 1
Liquid side O.D. mm 12.7
inch 1/2
9.52
3/8
Refrigerant pipe length Height difference m Max. 30
Length m Max. 70

8
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27(80°F) W.B. 19(66°F) Outdoor : D.B. 35(95°F) W.B. 24(75°F)
Heating Indoor : D.B. 20(68°F) Outdoor : D.B. 7(45°F) W.B. 6(43°F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35°C, W.B. 22.5°C D.B. 46°C
Lower limit D.B. 19°C, W.B. 15°C D.B. -5°C +1
Heating Upper limit D.B. 28°C D.B. 21°C, W.B. 15°C
Lower limit D.B. 17°C
D.B. -11°C, W.B. -12°C
4. Above data are based on the indicated voltage.
+1. If optional air protect guide is installed : D.B.-15
Indoor unit 3 phase 400V 50Hz
3 phase 400V 50Hz
Outdoor unit
3. Guaranteed voltage
342~457V, 50Hz
Model name Indoor unit PEA-RP400GA PEA-RP500GA
Outdoor unit PUHZ-P200YHA3%2 PUHZ-P250YHA3%2
Cooling Capacity Btu/h 130,000 150,000
kW 38.0(18.0-44.8) 44.0(22.4-56.0)
Total input kW 13.97 17.36
EER 2.72 2.53
Energy label class - -
Energy label class - -
SHF 0.75 0.77
Heating Capacity Btu/h 153,000 184,000
kW 44.8(19.0-50.0) 54.0(25.0-63.0)
Total input kW 14.27 17.42
COP 3.14 3.10
Booster heater kW - -
Power supply Phase :3
Cycle Hz 50
Voltage V 400
Breaker size A Indoor 15 / Outdoor 32 %2
Indoor unit Air flow CMM 120 160
(High) CFM 4240 5650
External pressure Pa 150
Sound level dB(A) 52 53
(High)
External finish Galvanized steel
Dimension W : mm 1947
D : mm 764
H : mm 595
W : inch 79-11/16
D : inch 30-1/8
H : inch 23-7/16
Weight kg 130 133
lbs 286 293
Unit drain pipe R1
Outdoor unit
(Per 1 outdoor unit)
Air flow CMM 130
CFM 4590
Sound level at cooling dB(A) 59
Sound level at heating dB(A) 59
External finish Ivory Munsell 3Y 7.8/1.1
Dimension W : mm 950
D : mm 330+30
H : mm 1350
W : inch 37-3/8
D : inch 13 + 1-3/16
H : inch 53-1/8
Weight kg 126
lbs 278
133
294
Refrigerant pipe size Gas side O.D. mm 25.4 %2
inch 1 %2
Liquid side O.D. mm 12.7 %2
inch 1/2 %2
9.52 %2
3/8 %2
Refrigerant pipe length Height difference m Max. 30
Length m Max. 70 (per 1 outdoor unit)

9
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27(80°F) W.B. 19(66°F) Outdoor : D.B. 35(95°F) W.B. 24(75°F)
Heating Indoor : D.B. 20(68°F) Outdoor : D.B. 7(45°F) W.B. 6(43°F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35°C, W.B. 22.5°C D.B. 46°C
Lower limit D.B. 19°C, W.B. 15°C D.B. -5°C +1
Heating Upper limit D.B. 28°C D.B. 21°C, W.B. 15°C
Lower limit D.B. 17°C
D.B. -15°C, W.B. -15°C
4. Above data are based on the indicated voltage.
+1. If optional air protect guide is installed : D.B.-15
Indoor unit Single phase 230V 50Hz
V : Single phase 230V 50Hz
Y : 3 phase 400V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz (V) / 342~457V, 50Hz (Y)
Model name Indoor unit PKA-RP100KAL
Outdoor unit PUHZ-P100VHA3
Cooling Capacity Btu/h 32,100
kW 9.4 (4.9-11.2)
Total input kW 3.12
EER 3.01
Energy label class B
SHF 0.75
Heating Capacity Btu/h 38,200
kW 11.2 (4.5-12.5)
Total input kW 3.49
COP 3.21
Energy label class C
Booster heater kW -
Power supply Phase W1
Cycle Hz 50
Voltage V 230
Breaker size A 32
Indoor unit Air flow CMM 20 - 23 - 26
(Low-Mid-High)CFM 705 - 810 - 920
External pressure Pa 0
Sound level dB(A)41 - 45 - 49
(Low-Mid-High)
External finish Munsell 1.0Y 9.2/0.2
Dimension W : mm 1170
D : mm 295
H : mm 365
W : inch 46-1/16
D : inch 11-5/8
H : inch 14-3/8
Weight kg 21
lbs 46
Field drain pipe I.D. mm 16
inch 5/8
Outdoor unit Air flow CMM 60
CFM 2,120
Sound level at cooling dB(A)50
Sound level at heating dB(A)54
External finish Ivory Munsell 3Y 7.8/1.1
Dimension W : mm 950
D : mm 330+30
H : mm 943
W : inch 37-3/8
D : inch 13 + 1-3/16
H : inch 37-1/8
Weight kg 75
lbs 165
Refrigerant pipe size Gas side O.D. mm 15.88
inch 5/8
Liquid side O.D. mm 9.52
inch 3/8
Refrigerant pipe length Height difference m Max. 30
Length m Max. 50
PKA-RP100KAL
PUHZ-P100YHA
50
400
16
77
169
3
2-3. WALL-MOUNTED TYPE

10
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27(80°F) W.B. 19(66°F) Outdoor : D.B. 35(95°F) W.B. 24(75°F)
Heating Indoor : D.B. 20(68°F) Outdoor : D.B. 7(45°F) W.B. 6(43°F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35°C, W.B. 22.5°C D.B. 46
Lower limit D.B. 19°C, W.B. 15°C D.B. -5+
Heating Upper limit D.B. 28°C D.B. 21, W.B. 15
Lower limit D.B. 17°C D.B. -15, W.B. -15
4. Above data are based on the indicated voltage.
+If optional air protect guide is installed : D.B.-15
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
Model name Indoor unit PCA-RP100KA PCA-RP125KA PCA-RP140KA
Outdoor unit PUHZ-P100VHA3 PUHZ-P125VHA3 PUHZ-P140VHA3
Cooling Capacity Btu/h 32,100 42,000 46,400
kW 9.4(4.9-11.2)12.3(5.5-14.0)13.6(5.5-15.0)
Total input kW 3.13 4.09 4.84
EER 3.00 3.01 2.81
Energy label class C B C
SHF 0.77 0.72 0.71
Heating Capacity Btu/h 38,200 47,800 54,600
kW 11.2(4.5-12.5)14.0(5.0-16.0)16.0(5.0-18.0)
Total input kW 3.28 4.12 4.69
COP 3.41 3.40 3.41
Energy label class B C B
Booster heater kW - - -
Power supply Phase W1
Cycle Hz 50
Voltage V 230
Breaker size A 32 40
Indoor unit Air flow CMM 22 - 24 - 26 - 28 23 - 25 - 27 - 29
(Low-Medium2-Medium1-High)CFM 775-850-920-990 810-885-955-1025
External pressure Pa 0
Sound level dB(A)37 - 39 - 41 - 43 39 - 41 - 43 - 45 41 - 43 - 45 - 48
(Low-Medium2-Medium1-High)
External finish White Munsell 6.4Y 8.9/0.4
Dimension W : mm 1600
D : mm 680
H : mm 230
W : inch 63
D : inch 26-3/4
H : inch 9-1/16
Weight kg 36 38 39
lbs 79 84 86
Field drain pipe O.D. mm 26
inch 1
Outdoor unit Air flow CMM 60 100
CFM 2,120 3,530
Sound level at cooling dB(A)50 51 52
Sound level at heating dB(A)54 55 56
External finish Ivory Munsell 3Y 7.8/1.1
Dimension W : mm 950
D : mm 330
H : mm 943 1350
W : inch 37-3/8
D : inch 13 + 1-3/16
H : inch 37-1/8 53-1/8
Weight kg 75 99
lbs 165 218
Refrigerant pipe size Gas side O.D. mm 15.88
inch 5/8
Liquid side O.D. mm 9.52
inch 3/8
Refrigerant pipe length Height difference m Max. 30
Length m Max. 50
24 - 26 - 29 - 32
850-920-1025-1130
2-4. CEILING-SUSPENDED TYPE

11
Model name Indoor unit PCA-RP100KA PCA-RP125KA PCA-RP140KA
Outdoor unit PUHZ-P100YHA PUHZ-P125YHA PUHZ-P140YHA
Cooling Capacity Btu/h 32,100 42,000 46,400
kW 9.4(4.9-11.2)12.3(5.5-14.0)13.6(5.5-15.0)
Total input kW 3.13 4.09 4.84
EER 3.00 3.01 2.81
Energy label class C B C
SHF 0.77 0.72 0.71
Heating Capacity Btu/h 38,200 47,800 54,600
kW 11.2(4.5-12.5)14.0(5.0-16.0)16.0(5.0-18.0)
Total input kW 3.28 4.12 4.69
COP 3.41 3.40 3.41
Energy label class B C B
Booster heater kW - - -
Power supply Phase W3
Cycle Hz 50
Voltage V 400
Breaker size A 16
Indoor unit Air flow CMM
(Low-Medium2-Medium1-High)CFM
External pressure Pa 0
Sound level dB(A)37 - 39 - 41 - 43 39 - 41 - 43 - 45 41 - 43 - 45 - 48
(Low-Medium2-Medium1-High)
External finish
Dimension W : mm 1600
D : mm 680
H : mm 230
W : inch
D : inch 26-3/4
H : inch
Weight kg 36 38 39
lbs 79 84 86
Field drain pipe O.D. mm 26
inch 1
Outdoor unit Air flow CMM 60 100
CFM 2,120 3,530
Sound level at cooling dB(A)50 51 52
Sound level at heating dB(A)54 55 56
External finish
Dimension W : mm 950
D : mm 330 (+30)
H : mm 943 1350
W : inch 37-3/8
D : inch 13 + 1-3/16
H : inch 37-1/8 53-1/8
Weight kg 77 101
lbs 169 222
Refrigerant pipe size Gas side O.D. mm 15.88
inch 5/8
Liquid side O.D. mm 9.52
inch 3/8
Refrigerant pipe length Height difference m Max. 30
Length m Max. 50
22 - 24 - 26 - 28 23 - 25 - 27 - 29
775-850-920-990 810-885-955-1025
White Munsell 6.4Y 8.9/0.4
63
9-1/16
Ivory Munsell 3Y 7.8/1.1
24 - 26 - 29 - 32
850-920-1025-1130
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27(80°F) W.B. 19(66°F) Outdoor : D.B. 35(95°F) W.B. 24(75°F)
Heating Indoor : D.B. 20(68°F) Outdoor : D.B. 7(45°F) W.B. 6(43°F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35°C, W.B. 22.5°C D.B. 46°C
Lower limit D.B. 19°C, W.B. 15°C D.B. -5°C +
Heating Upper limit D.B. 28°C D.B. 21°C, W.B. 15°C
Lower limit D.B. 17°C D.B. -15°C, W.B. -15°C
4. Above data are based on the indicated voltage.
Indoor unit Single phase 230V 50Hz
3 phase 400V 50Hz
Outdoor unit
Indoor unit 198~264V, 50Hz
342~457V, 50Hz
Outdoor unit
3. Guaranteed voltage
+If optional air protect guide installed. D.B.-15

12
Model name Indoor unit PCA-RP125HA
Outdoor unit PUHZ-P125VHA3
Cooling Capacity Btu/h 42,000
kW 12.3 (5.5-14.0)
Total input kW 4.38
EER 2.81
Energy label class C
SHF 0.78
Heating Capacity Btu/h 47,100
kW 13.8 (5.0-16.0)
Total input kW 4.30
COP 3.21
Energy label class C
Booster heater kW -
Power supply Phase W1
Cycle Hz 50
Voltage V 230
Breaker size A 32
Indoor unit Air flow CMM 30-38
(Low-High)CFM 1060-1350
External pressure Pa 0
Sound level dB(A)44-50
(Low-High)
External finish Stainless steel
Dimension W : mm 1520
D : mm 650
H : mm 280
W : inch 59-7/8
D : inch 25-5/8
H : inch 11
Weight kg 56
lbs 124
Field drain pipe O.D. mm 26
inch 1
Outdoor unit Air flow CMM 100
CFM 3,530
Sound level at cooling dB(A)51
Sound level at heating dB(A)55
External finish Ivory Munsell 3Y 7.8/1.1
Dimension W : mm 950
D : mm 330+30
H : mm 1350
W : inch 37-3/8
D : inch 13 + 1-3/16
H : inch 53-1/8
Weight kg 99
lbs 218
Refrigerant pipe size Gas side O.D. mm 15.88
inch 5/8
Liquid side O.D. mm 9.52
inch 3/8
Refrigerant pipe length Height difference m Max. 30
Length m Max. 50
PCA-RP125HA
PUHZ-P125YHA
3
50
400
16
101
222
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27(80°F) W.B. 19(66°F) Outdoor : D.B. 35(95°F) W.B. 24(75°F)
Heating Indoor : D.B. 20(68°F) Outdoor : D.B. 7(45°F) W.B. 6(43°F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35°C, W.B. 22.5°C D.B. 46°C
Lower limit D.B. 19°C, W.B. 15°C D.B. -5°C +
Heating Upper limit D.B. 28°C D.B. 21°C, W.B. 15°C
Lower limit D.B. 17°C D.B. -15°C, W.B. -15°C
4. Above data are based on the indicated voltage.
+If optional air protect guide installed. D.B.-15
Indoor unit Single phase 230V 50Hz
V: Single phase 230V 50Hz
,
Y: 3 phase 400V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz (P125Y : 342~457V, 50Hz)

13
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27(80°F) W.B. 19(66°F) Outdoor : D.B. 35(95°F) W.B. 24(75°F)
Heating Indoor : D.B. 20(68°F) Outdoor : D.B. 7(45°F) W.B. 6(43°F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35°C, W.B. 22.5°C D.B. 46
Lower limit D.B. 19°C, W.B. 15°C D.B. -5+
Heating Upper limit D.B. 28°C D.B. 21, W.B. 15
Lower limit D.B. 17°C D.B. -15, W.B. -15
4. Above data are based on the indicated voltage.
+If optional air protect guide is installed : D.B.-15
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
Model name Indoor unit PSA-RP100GA PSA-RP125GA PSA-RP140GA
Outdoor unit PUHZ-P100VHA3 PUHZ-P125VHA3 PUHZ-P140VHA3
Cooling Capacity Btu/h 32,100 42,000 46,400
kW 9.4(4.9-11.2)12.3(5.5-14.0)13.6(5.5-15.0)
Total input kW 3.12 4.38 5.64
EER 3.01 2.81 2.41
Energy label class B C E
SHF 0.83 0.76 0.75
Heating Capacity Btu/h 38,200 47,800 54,600
kW 11.2(4.5-12.5)14.0(5.0-16.0)16.0(5.0-18.0)
Total input kW 3.28 4.98 5.69
COP 3.41 2.81 2.81
Energy label class B D D
Booster heater kW - - -
Power supply Phase W1
Cycle Hz 50
Voltage V 230
Breaker size A 32 40
Indoor unit Air flow CMM 24-31 26-33 27-35
(Low-High)CFM 850-1060 920-1165 955-1240
External pressure Pa 0
Sound level dB(A)44-49 46-51 47-52
(Low-High)
External finish White Munsell 0.70Y 8.59/0.97
Dimension W : mm 600
D : mm 350
H : mm 1900
W : inch 23-5/8
D : inch 13-3/4
H : inch 74-13/16
Weight kg 51 53
lbs 112 117
Field drain pipe I.D. mm 20
inch 13/16
Outdoor unit Air flow CMM 60 100
CFM 2,120 3,530
Sound level at cooling dB(A)50 51 52
Sound level at heating dB(A)54 55 56
External finish Ivory Munsell 3Y 7.8/1.1
Dimension W : mm 950
D : mm 330+30
H : mm 943 1350
W : inch 37-3/8
D : inch 13 + 1-3/16
H : inch 37-1/8 53-1/8
Weight kg 75 99
lbs 165 218
Refrigerant pipe size Gas side O.D. mm 15.88
inch 5/8
Liquid side O.D. mm 9.52
inch 3/8
Refrigerant pipe length Height difference m Max. 30
Length m Max. 50
2-5. FLOOR STANDING TYPE

14
Model name Indoor unit PSA-RP100GA PSA-RP125GA PSA-RP140GA
Outdoor unit PUHZ-P100YHA PUHZ-P125YHA PUHZ-P140YHA
Cooling Capacity Btu/h 32,100 42,000 46,400
kW 9.4(4.9-11.2)12.3(5.5-14.0)13.6(5.5-15.0)
Total input kW 3.12 4.38 5.64
EER 3.01 2.81 2.41
Energy label class B C E
SHF 0.83 0.76 0.75
Heating Capacity Btu/h 38,200 47,800 54,600
kW 11.2(4.5-12.5)14.0(5.0-16.0)16.0(5.0-18.0)
Total input kW 3.28 4.98 5.69
COP 3.41 2.81 2.81
Energy label class B D D
Booster heater kW - - -
Power supply Phase W3
Cycle Hz 50
Voltage V 400
Breaker size A 16
Indoor unit Air flow CMM 24-31 26-33 27-35
(Low-High)CFM 850-1060 920-1165 955-1240
External pressure Pa 0
Sound level dB(A)44-49 46-51 47-52
(Low-High)
External finish White Munsell 0.70Y 8.59/0.97
Dimension W : mm 600
D : mm 350
H : mm 1900
W : inch 23-5/8
D : inch 13-3/4
H : inch 74-13/16
Weight kg 51 53
lbs 112 117
Field drain pipe I.D. mm 20
inch 13/16
Outdoor unit Air flow CMM 60 100
CFM 2,120 3,530
Sound level at cooling dB(A)50 51 52
Sound level at heating dB(A)54 55 56
External finish Ivory Munsell 3Y 7.8/1.1
Dimension W : mm 950
D : mm 330+30
H : mm 943 1350
W : inch 37-3/8
D : inch 13 + 1-3/16
H : inch 37-1/8 53-1/8
Weight kg 77 101
lbs 169 222
Refrigerant pipe size Gas side O.D. mm 15.88
inch 5/8
Liquid side O.D. mm 9.52
inch 3/8
Refrigerant pipe length Height difference m Max. 30
Length m Max. 50
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27(80°F) W.B. 19(66°F) Outdoor : D.B. 35(95°F) W.B. 24(75°F)
Heating Indoor : D.B. 20(68°F) Outdoor : D.B. 7(45°F) W.B. 6(43°F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35°C, W.B. 22.5°C D.B. 46°C
Lower limit D.B. 19°C, W.B. 15°C D.B. -5°C +
Heating Upper limit D.B. 28°C D.B. 21°C, W.B. 15°C
Lower limit D.B. 17°C D.B. -15°C, W.B. -15°C
4. Above data are based on the indicated voltage.
Indoor unit Single phase 230V 50Hz
3 phase 400V 50Hz
Outdoor unit
Indoor unit 198~264V, 50Hz
342~457V, 50Hz
Outdoor unit
3. Guaranteed voltage
+If optional air protect guide installed. D.B.-15

1515

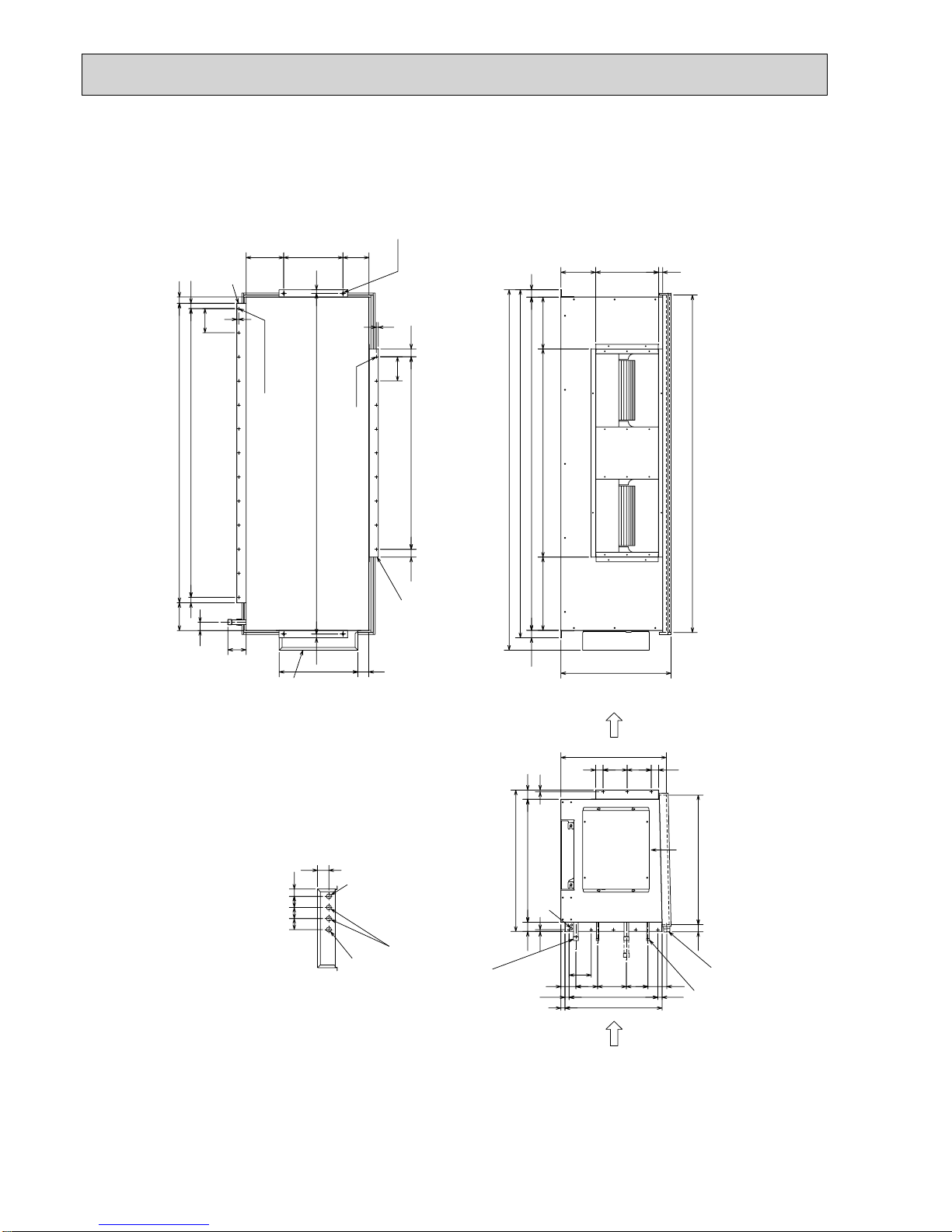

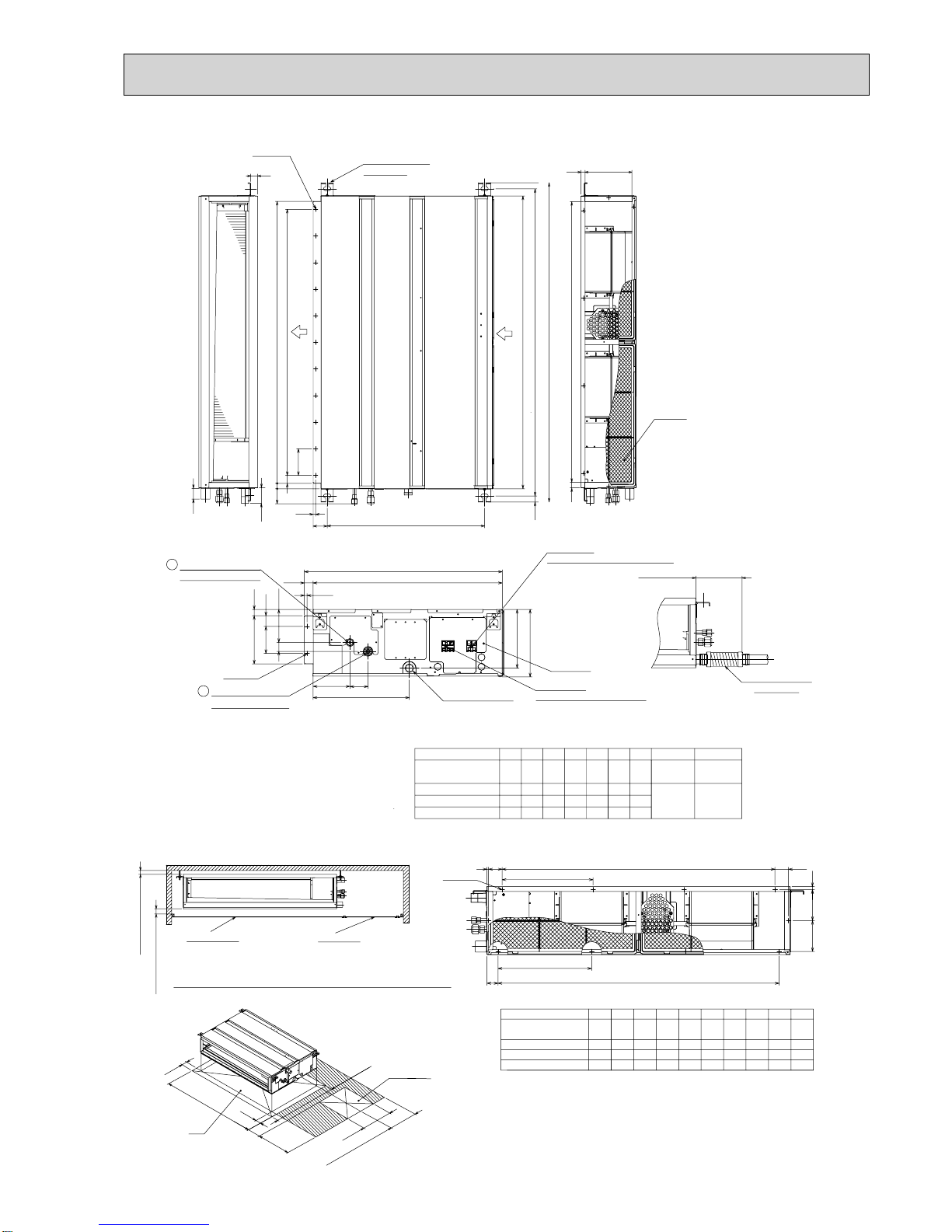

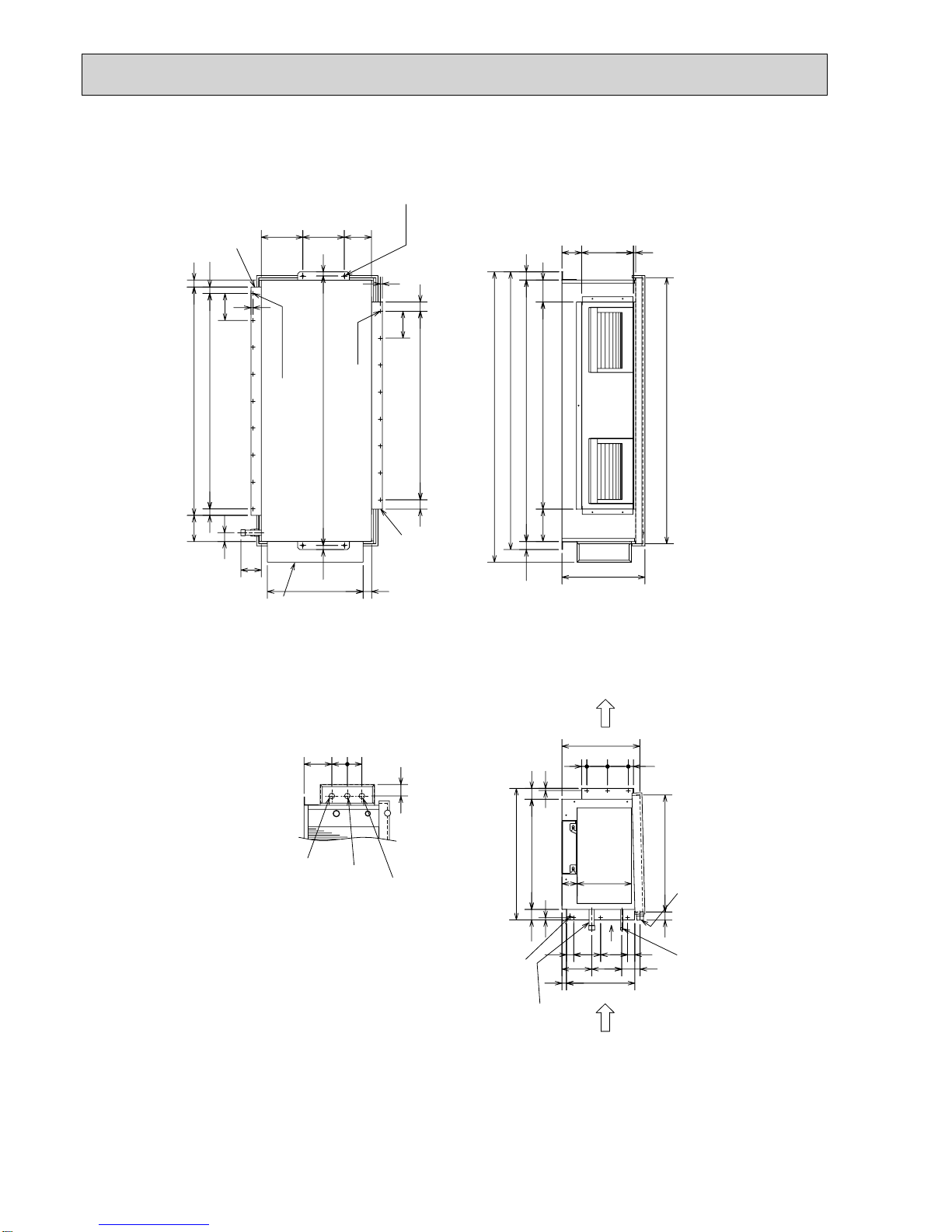

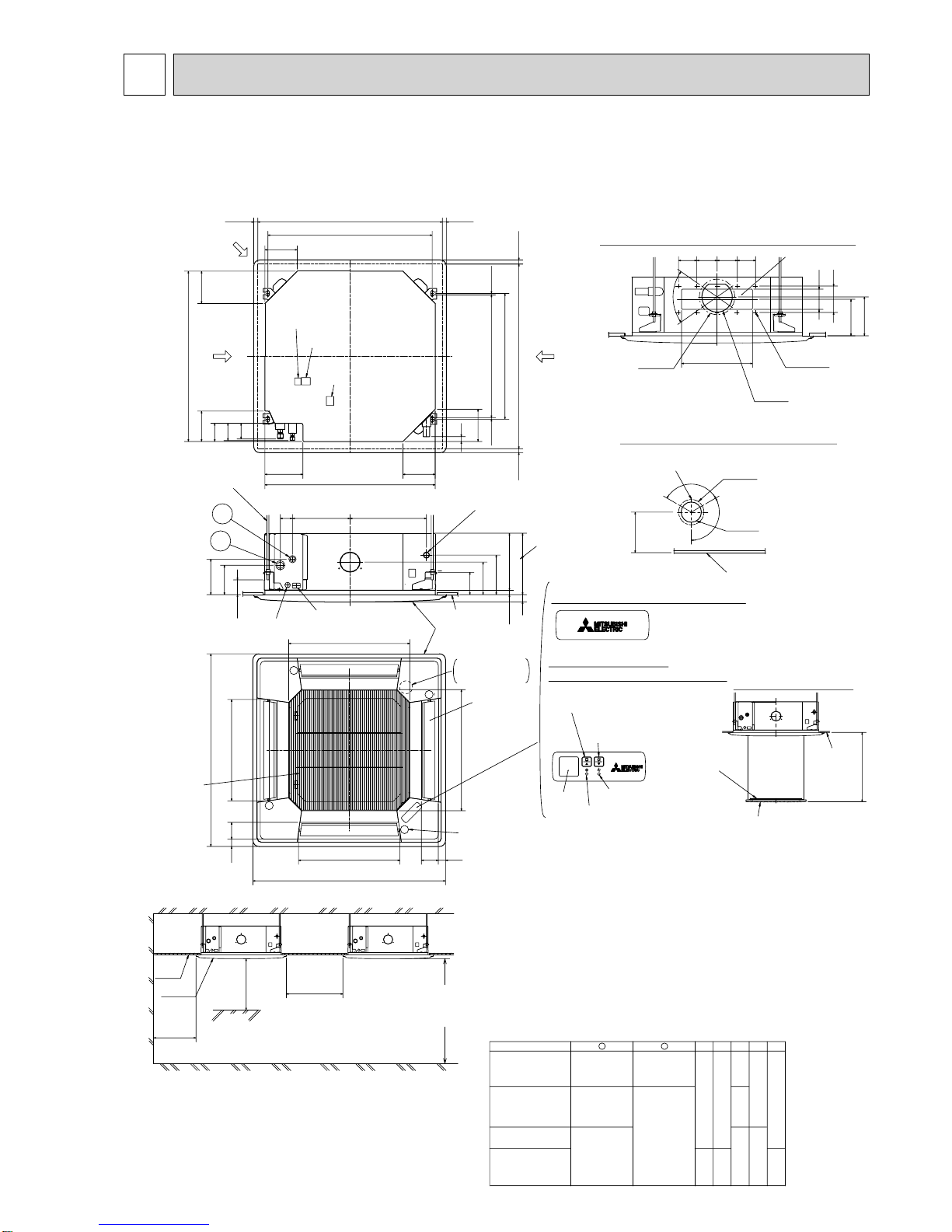

3OUTLINES AND DIMENSIONS
Unit : mm
Note 1. Please choose the grille from a standard grille, auto-grille.
2. As for drain pipe, please use VP-25(O.D. :32 PVC TUBE).
Drain pump is included.
Max. lifting height is 850mm from the ceiling.
3. As for suspension bolt, please use M10 or W3/8.
(Procured at local site)
4. Electrical box may be removed for the service purpose.
Make sure to slack the electrical wire little bit for control/ power wires connection.
5. The height of the indoor unit is able to be adjusted with the grille attached.
6. For the installation of the optional high efficiency filter or optional multi-functional casement.
1) Requires E or more space between transom and ceiling for the installation.
2) Add 135 mm to the dimensions +marked on the figure.
3) The optional high efficiency filter must be used jointly with optional multi-functional casement.
7. When installing the branch ducts, be sure to insulate adequately.
Otherwise condensation and dripping may occur.
(It becomes the cause of dew drops/water dew.)
8. As for necessary installation/service space, please refer to the left figure.
Ceiling
Grille
Indoor unit
1500mm
or more
1000mm or more
3000mm or more
1800mm or more
from floor
For high
attachment
Indoor unit
Obstacle
Floor
Ceiling
Air intake grille
Max. 4.0m
L.L Filter
37728460
()
Ceiling hole
Branch duct hole
Drain pipe
connected to VP-25
Ceiling
Grille
Drain hole
Models
Auto vane
(Air outlet)
Air intake grille
Ceiling
Cut out hole
Cut out hole
Cut out hole
Burring hole pitch
Burring hole pitch
Burring hole
Burring hole
Power supply wire,
Indoor unit/Outdoor unit
connecting wire entry
Indoor unit/Outdoor unit
connecting terminal block
Indoor power supply
terminal block(Option part)
Control wire entry
Air intake hole
Air intake hole
Air outlet hole
Air outlet hole
Connected the
attached socket.
Keep approximately
10 to 15mm space
between unit ceiling
and ceiling slab.
Branch duct hole
Fresh air
intake hole
Ceiling hole
Suspension bolt pitch
Suspension bolt pitch
Remote controller
terminal block
Suspension bolt
M10 or W3/8
(7.5)(7.5)
605
+35
- 5
620
DEFROST/STAND BY lamp
Receiver
Operation lamp
In case of standard grille : PLP-6BA / PLP-6BAMD
In case of wireless remote controller : PLP-6BALM Auto grille
Air intake grille up/down discharge
Emergency operation
switch<Cooling>and
Emergency Up/Down switch<Up>
160
160
500
500
597
83 36
950
8336
950 597
A
17
+5
0
B35
190
156
105
140
50~70
160
840
150
90
C
D
840
187.5
20~45
860~910
20~45
810
20~45
860~910
20~45
24
160
++
+
+
++++
+
M
M
M
M
120°
120°
:175
:125
167
158
Vane motor
2
1
Drain pump clean hole
and Drain emergency
drainage hole
130 100
70°
155
350
90 100 100 90
BACDE
241 258
80
87
74
400
298
85 77
440
281
2
1
Refrigerant pipe
···:6.35
Flared connection
···1/4 inch
Refrigerant pipe
···:9.52
Flared connection
···3/8 inch
Refrigerant pipe
···:12.7
Flared connection
···1/2 inch
Refrigerant pipe
···:15.88
Flared connection
···5/8 inch
Refrigerant pipe
:6.35 / :9.52
Flared connection
1/4 inch/3/8 inch
(compatible)
PLA-RP50BA
PLA-RP60BA
PLA-RP71BA
PLA-RP71BA2
PLA-RP100,125BA
PLA-RP100BA3
PLA-RP125,140BA2
Detail drawing of fresh air intake hole
Detail connecting of branch duct(Both aspects)
3-:2.8
14-:2.8
:150
:100
Emergency operation
switch<Heating>and
Emergency Up/Down switch<Down>
In case of auto-grille : PLP-6BAJ
Suspension bolt
lower edge
170
+
INDOOR UNIT
PLA-RP50BA PLA-RP60BA PLA-RP71BA
PLA-RP100BA PLA-RP125BA
PLA-RP71BA2 PLA-RP100BA3 PLA-RP125BA2 PLA-RP140BA2

16
Unit : mm

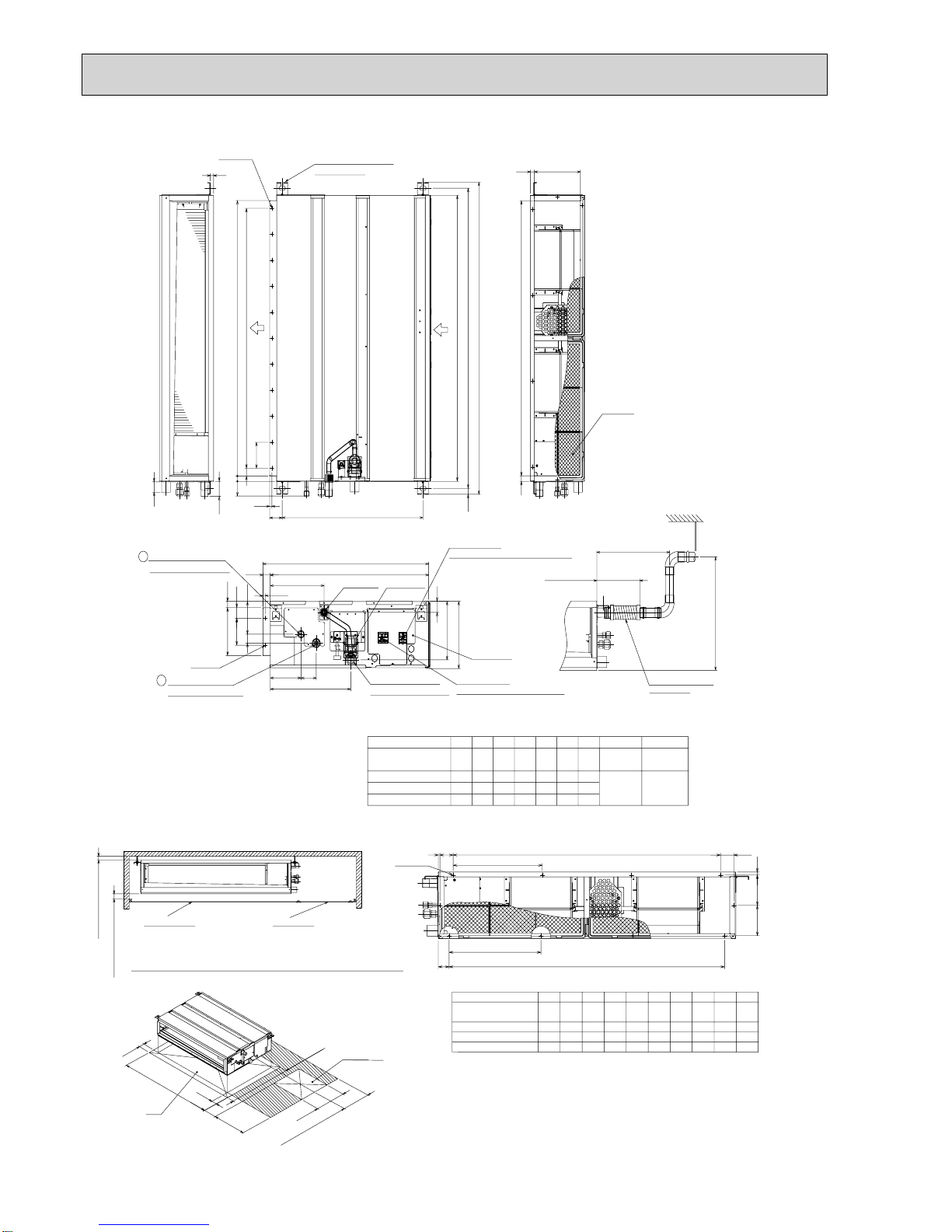

PEAD-RP50, 60, 71, 100, 125, 140JA
Air Filter
Suspension bolt hole
4-14x30 Slot
Air
outlet Air
inlet
2xE-
: 2.9
2×2-:2.9
Refrigerant piping
Flare connection (liquid)
2
1Refrigerant piping
Flare connection (gas)
Drain pump
Control box
Terminal block
(Indoor/Outdoor connecting line)
Terminal block
(Remote controller transmission line)
Drain pipe(O.D.:32)
(Spontaneous draining)
Drain pipe
(O.D.:32)
:15.88 :9.52
:6.35
:12.7
Liquid pipe
Gas pipe
1558
1358
1500
1300
Model A
1200
900 954 860 9
E
11
D
1060
C
1100
B
1154
PEAD-RP140JA
PEAD-RP100,125JA
PEAD-RP60,71JA
PEAD-RP50JA
1400
1600
1454
1654
1500
1700
1360
1560
14
16
1000
1000
F
858800
G
1058
40
21018
G21
250
12233
15
58
57
10
100
100x(E-1)=F
A
B(Suspension bolt pitch)
C
23
643 (Suspension bolt pitch)
30
57 20 D (Duct)
178 (Duct)
40
23
10
238
32 700
732
136 67
356
100
41
217
NOTE 1. Use M10 screw for the Suspension bolt (field supply).
2. Keep the service space for the maintenance at the bottom.
3. This chart indicates for PEAD-RP60
• 71 • 100 • 125 • 140JA
models,which have 2 fans. PEAD-RP50JA models have 1 fan.
4. In case that the inlet duct is used, remove the air filter (supplied with
the unit), then install the filter (field supply) at suction side.
Less than 300mm
175±5mm
Less than 700mm
Drain hose (I.D.:32)
<accessory>
(Actual length)
1520
1320
1020
819
JQS
340
R
54 260 4 780 10 40.5 273 4
440
P
10
N
990
M
4
L
49
K
330
5
5380
54
54
320
370
5
5
1280
1480
12
12
40
40
330
1700
1500
PEAD-RP50JA
PEAD-RP60,71JA
PEAD-RP100,125JA
PEAD-RP140JA
1200
1000
HModel
N-
: 2.9 K
Kx(L-1)=M J
112 112 11
Q
Qx(R-1)=SP
J
6
More than 20mm
More than 10mm
Make the access door at the appointed position properly for service maintenance.
Ceiling surface Access door
50
250~300
450
50
H
777
450
More than 300
Access door
Note2
Required space for service and maintenance

17
Unit : mm
PEAD-RP50, 60, 71, 100, 125, 140JAL
Air Filter
:15.88 :9.52
:6.35
:12.7
Liquid pipe
Gas pipe
1558
1358
1500
1300
Model A
1200
900 954 860 9
E
11
D
1060
C
1100
B
1154
PEAD-RP140JAL
PEAD-RP100,125JAL
PEAD-RP60,71JAL
PEAD-RP50JAL
1400
1600
1454
1654
1500
1700
1360
1560
14
16
1000
1000
F
858800
G
1058
40
21018
G
21
15
58
NOTE 1. Use M10 screw for the Suspension bolt (field supply).
2. Keep the service space for the maintenance at the bottom.
3. This chart indicates for PEAD-RP60
• 71 • 100 • 125 • 140JAL
models,which have 2 fans. PEAD-RP50JAL models have 1 fan.
4. In case of the inlet duct is used,remove the air filter
(supplied with the unit), then install the filter
(field supply) at suction side.
1520
1320
1020
819
JQS
340
R
54 260 4 780 10 40.5 273 4
440
P
10
N
990
M
4
L
49
K
330
5
5380
54
54
320
370
5
5
1280
1480
12
12
40
40
330
1700
1500
PEAD-RP50JAL
PEAD-RP60,71JAL
PEAD-RP100,125JAL
PEAD-RP140JAL
1200
1000
HModel
N-
: 2.9 K
Kx(L-1)=M J
112 112 11
Q
Qx(R-1)=SP
J
6
More than 20mm
More than 10mm
Make the access door at the appointed position properly for service maintenance.
Ceiling surface Access door
50
250~300
450
50
H
777
450
More than 300
Access door
Note2
Required space for service and maintenance
Suspension bolt hole
4-14x30 Slot
Air
outlet Air
inlet
2xE- : 2.9
57
10
100
100x(E-1)=F
A
B(Suspension bolt pitch)
C
23
643 (Suspension bolt pitch)
30
57 20 D (Duct)
Drain pipe(O.D. : 32)
2×2-
: 2.9
Refrigerant piping
Flare connection (liquid)
2
1
Refrigerant piping
Flare connection (gas)
Control box
Terminal block
(Indoor/Outdoor connecting line)
Terminal block
(Remote controller transmission line)
250
33
122
178 (Duct)
40
23
10
32 700
732
136 67
356
100
217
175±5mm
<accessory>
Drain hose (I.D.
: 32)
(Actual length)

18
PEA-RP200GA Unit : mm
Return air sensor
A
Rubber bush <Remote controller wiring>
Rubber bush <Outdoor unit connection wiring>
Rubber bush <Power supply wiring>
A
4- :12
Drain R1
Top v i ew
Control box
Return air duct flange
Supply air duct flange <For hanging bolt M10>
[Field supply]
22-:3.1
24-:3 Holes
Refrigerant pipe
:9.52 (3/8 braze)
Refrigerant pipe :25.4 (1 braze)
<Accessory> Pipe cover···················2pcs. (For dew condensation prevention of local piping and unit connection) Remote controller········1pc.
Return air
Left side view
Supply air
Front view
75
55
12970
42
124 34
131
530
50
9525011
7x130(=910)
10
130
130
45 45
31 31
1102
200
10
8x130(=1040)
1300 20
199
100
40
20
462
144
1284
400
155 1000 105
40 1260 40
1340
1400
56539
22330
145
89
35
130
130
35
634
262 73
10
54
10
376
2510010025

19
PEA-RP250GA Unit : mm
Rubber bush <Remote controller wiring>
Rubber bush <Outdoor unit connection wiring>
Rubber bush <Power supply wiring>
A
A
4- :12
Drain R1
Top view
Control box
22- :3.1
<For hanging bolt M10> [Field supply]
Return air duct flange
Supply air duct flange
26- :3 Holes
Left side view
Supply air
Return air
Front view
Return air sensor
<Accessory> Pipe cover··················2pcs. (For dew condensation prevention of local piping and unit connection) Remote controller·······1pc.
Refrigerant pipe
:12.7 (1/2 braze)
Refrigerant pipe
:25.4 (1 braze)
42
144145
75
55
70 129
124
131
50 530
34
130
9525011
10
66
1302
1484
7x130(=910)
130
45 45
200
20
100
20
199
40
1500
462
66 9X130(=1170)
10
25 100 100 25
10 10
1540
40146040
255 205
376
1000
1600
73262
400
39 565
54
634
35
130
89
330 22
130
35

20
PEA-RP400, 500GA Unit : mm
45
Refrigerant pipe PEA-RP400GA :
:
9.52 (3/8 braze)
PEA-RP500GA :
:
12.7 (1/2 braze)
[2 places (*2 part)]
*2
*1
*2 *1
Refrigerant pipe :25.4 (1 braze)
[2 places (*1 part)]
Return air sensor (2 places)
Drain R1
24-:3.1
36-:3 HOLES
Left side view Front view
Top view
Return air Supply air
4-:15
<For hanging bolt M12> [Field supply]
Return air duct flange
Control box
Supply air duct flange
A
Rubber bush <Remote controller wiring>
Rubber bush
<Power supply wiring>
Rubber bush <Outdoor unit connection wiring>
A
<Accessory> Pipe cover··················4pcs. (For dew condensation prevention of local piping and unit connection) Remote controller·······1pc.
81
117156117
10
20 1840
10
40
60 60
61
60
4040 1800
1880
50 664
525
22
102
22.5
120
4X120(=480)
22.5
595
1824
50
764
2801125395
340 18822
1947
570
40 130 130 40
10
33
29
130
12X130(=1560)
29
149 1618
100
42.5
130
8X130(=1040)42.5
10
203320141
20
42559
700
39
