Mitsubishi Electric PLA-RP.BA Series Instruction manual

TECHNICAL DATA BOOK
CONTENTS
1. REFERENCE SERVICE MANUAL·············································2
2. SPECIFICATIONS ······································································3
3. OUTLINES AND DIMENSIONS················································12
4. WIRING DIAGRAM···································································34
5. REFRIGERANT SYSTEM DIAGRAM ······································46
6. PERFORMANCE CURVES······················································50
7. CORRECTION FACTORS························································52
8. APPLICABLE EXTENSION PIPE FOR EACH MODEL ··········53
9. AIR FLOW DATA······································································57
10. NOISE CRITERION CURVES ··················································69
11. OPTIONAL PARTS·····································································80
<Indoor unit>
[Model names]
R410A
PLA-RP·BA
PEAD-RP·EA
PEAD-RP·EA2
PEAD-RP·GA
PEA-RP·GA
PKA-RP·GAL
PKA-RP·FAL
PKA-RP·FAL2
PCA-RP·GA
PCA-RP·GA2
PCA-RP·HA
PSA-RP·GA
<Outdoor unit>
[Model names]
No. OCS08
REVISED EDITION-A
SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
PUHZ-P100/125/140VHA2
PUHZ-P200/250YHA
September 2007
INVERTER
kW Model
Revision:
•PUHZ-P·YHA and PEA-RP·GA
are added in REVISED EDI-
TION-A.
•Some descriptions have been
modified.
•Please void OCS08.
OCS08A-1.qxp 07.9.6 4:20 PM Page 1

2
For information on service, please refer to the service manual as follows.
1-2. OUTDOOR UNIT
Model name Service Ref.
PUHZ-P100/125/140VHA2 PUHZ-P100/125/140VHA2.UK
PUHZ-P200/250YHA PUHZ-P200/250YHA
1-1. INDOOR UNIT
Model name Service Ref.
Service
Manual No.
Service
Manual No.
PLA-RP50/60/71/100/125/140BA PLA-RP50/60/71/100/125/140BA.UK
OCH415
OCB415
OCH424
OCB424
OCH412
OCB412
PCA-RP50/60/71/100/125/140GA PCA-RP50/60/71/100/125/140GA OC328
PCA-RP50GA2 PCA-RP50GA2
PCA-RP71/125HA PCA-RP71/125HA OC329
PKA-RP50GAL PKA-RP50GAL OC330
PKA-RP60/71/100FAL
PKA-RP50FAL2 PKA-RP60/71/100FAL PKA-RP50FAL2 OC331
PSA-RP71/100/125/140GA PSA-RP71/100/125/140GA OC332
PEAD-RP50/60/71/125/140EA PEAD-RP50/60/71/125/140EA.UK
HWE05210
PEAD-RP100EA2 PEAD-RP100EA2.UK
PEAD-RP60/71/100GA PEAD-RP60/71/100GA.UK
HWE05060
PEA-RP200/250/400/500GA PEA-RP200/250/400/500GA.TH-AF
PEA-RP200/250GA.TH-AFMF
HWE0708A
1REFERENCE SERVICE MANUAL
OCS08A-1.qxp 07.9.6 4:20 PM Page 2

3
2SPECIFICATIONS
2-1. CEILING CASSETTE TYPE
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46:
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5:w
Heating Upper limit D.B. 28˚C D.B. 21:, W.B. 15:
Lower limit D.B. 17˚C D.B. -11:, W.B. -12:
4. Above data are based on the indicated voltage.
wIf optional air protect guide is installed : D.B.-15:
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
Model name Indoor unit PLA-RP100BA PLA-RP125BA PLA-RP140BA
Outdoor unit PUHZ-P100VHA2 PUHZ-P125VHA2 PUHZ-P140VHA2
Cooling Capacity Btu/h 32,100 42,000 46,400
kW 9.4(4.9-11.2)12.3(5.5-14.0)13.6(5.5-15.0)
Total input kW 3.12 4.09 5.21
EER 3.01 3.01 2.61
Energy label class BBD
SHF 0.74 0.71 0.71
Heating Capacity Btu/h 38,200 47,800 54,600
kW 11.2(4.5-12.5)14.0(5.0-16.0)16.0(5.0-18.0)
Total input kW 3.28 4.11 4.98
COP 3.41 3.41 3.21
Energy label class BBC
Booster heater kW - - -
Power supply Phase {1
Cycle Hz 50
Voltage V 230
Breaker size A 32 40
Indoor unit Air flow CMM 20-23-26-30 22-25-28-31
(Low-Medium2-Medium1-High)CFM 710-810-920-1060 780-880-990-1090
External pressure Pa 0 0
Sound level dB(A)32-34-37-40 34-36-39-41
24-26-29-32
850-920-1020-1130
0
36-39-42-44
(Low-Medium2-Medium1-High)
External finish (Panel)White Munsell 6.4Y 8.9/0.4
Dimension W : mm 840 (950)
Unit (Panel)D : mm 840 (950)
H : mm 298 (35)
W : inch 33-1/16 (37-3/8)
D : inch 33-1/16 (37-3/8)
H : inch 11-3/4 (1-3/8)
Weight kg 25 (6)
Unit (Panel)lbs 55 (13)27 (6) 60 (13)
Field drain pipe O.D. mm 32
inch 1-1/4
Outdoor unit Air flow CMM 60 100
CFM 2,120 3,530
Sound level at cooling dB(A)50 51 52
Sound level at heating dB(A)54 55 56
External finish Ivory Munsell 5Y 7/1
Dimension W : mm 950
D : mm 330+30
H : mm 943 1350
W : inch 37-3/8
D : inch 13 + 1-3/16
H : inch 37-1/8 53-1/8
Weight kg 75 99
lbs 165 218
Refrigerant pipe size Gas side O.D. mm 15.88
inch 5/8
Liquid side O.D. mm 9.52
inch 3/8
Refrigerant pipe length Height difference m Max. 30
Length m Max. 50
OCS08A-1.qxp 07.9.6 4:20 PM Page 3

4
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46:
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5:w
Heating Upper limit D.B. 28˚C D.B. 21:, W.B. 15:
Lower limit D.B. 17˚C D.B. -11:, W.B. -12:
4. Above data are based on the indicated voltage.
wIf optional air protect guide is installed : D.B.-15:
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
Model name Indoor unit PEAD-RP100EA2 PEAD-RP125EA PEAD-RP140EA
Outdoor unit PUHZ-P100VHA2 PUHZ-P125VHA2 PUHZ-P140VHA2
Cooling Capacity Btu/h 32,100 42,000 46,400
kW 9.4(4.9-11.2)12.3(5.5-14.0)13.6(5.5-15.0)
Total input kW 3.12 4.38 5.21
EER 3.01 2.81 2.61
Energy label class B C D
SHF 0.86 0.83 0.84
Heating Capacity Btu/h 38,200 47,800 54,600
kW 11.2(4.5-12.5)14.0(5.0-16.0)16.0(5.0-18.0)
Total input kW 3.28 4.11 4.98
COP 3.41 3.41 3.21
Energy label class B B C
Booster heater kW - - -
Power supply Phase {1
Cycle Hz 50
Voltage V 230
Breaker size A 32 40
Indoor unit Air flow CMM 33.5-42 33.5-42 36.5-46
(Low-High)CFM 1183-1483 1183-1483 1288-1624
External pressure Pa 70(130)
Sound level dB(A)44-50 44-50 46-51
(Low-High)(
130Pa : 46-52)( 130Pa : 46-52)( 130Pa : 47-53)
External finish Galvanized sheets
Dimension W : mm 1415 1715
D : mm 740
H : mm 325
W : inch 55-11/16 67-1/2
D : inch 29-1/8
H : inch 12-13/16
Weight kg 65 65 70
lbs 143 143 154
Unit drain pipe R1(External thread)
Outdoor unit Air flow CMM 60 100
CFM 2,120 3,530
Sound level at cooling dB(A)50 51 52
Sound level at heating dB(A)54 55 56
External finish Ivory Munsell 5Y 7/1
Dimension W : mm 950
D : mm 330+30
H : mm 943 1350
W : inch 37-3/8
D : inch 13 + 1-3/16
H : inch 37-1/8 53-1/8
Weight kg 75 99
lbs 165 218
Refrigerant pipe size Gas side O.D. mm 15.88
inch 5/8
Liquid side O.D. mm 9.52
inch 3/8
Refrigerant pipe length Height difference m Max. 30
Length m Max. 50
2-2. CEILING-CONCEALED TYPE
OCS08A-1.qxp 07.9.6 4:20 PM Page 4

5
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46˚C
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5˚C w1
Heating Upper limit D.B. 28˚C D.B. 21˚C, W.B. 15˚C
Lower limit D.B. 17˚C
D.B. -11˚C, W.B. -12˚C
4. Above data are based on the indicated voltage.
w1. If optional air protect guide is installed : D.B.-15:
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
Model name Indoor unit PEAD-RP100GA
Outdoor unit PUHZ-P100VHA2
Cooling Capacity Btu/h 32,100
kW 9.4(4.9-11.2)
Total input kW 3.60
EER 2.61
Energy label class D
SHF 0.85
Heating Capacity Btu/h 38,200
kW 11.2(4.5-12.5)
Total input kW 3.49
COP 3.21
Energy label class C
Booster heater kW -
Power supply Phase {1
Cycle Hz 50
Voltage V 230
Breaker size A 32
Indoor unit Air flow CMM 26.5-33
(Low-High)CFM 935-1165
External pressure Pa 10/50/70
Sound level dB(A)40-43/42-45/42-46
(Low-High)(
10/50/70Pa)
External finish Galvanized sheets
Dimension W : mm 1411
D : mm 740
H : mm 275
W : inch 55-9/16
D : inch 29-1/8
H : inch 10-13/16
Weight kg 50
lbs 111
Unit drain pipe O.D. mm 32
inch 1-1/4
Outdoor unit Air flow CMM 60
CFM 2,120
Sound level at cooling dB(A)50
Sound level at heating dB(A)54
External finish Ivory Munsell 5Y 7/1
Dimension W : mm 950
D : mm 330+30
H : mm 943
W : inch 37-3/8
D : inch 13 + 1-3/16
H : inch 37-1/8
Weight kg 75
lbs 165
Refrigerant pipe size Gas side O.D. mm 15.88
inch 5/8
Liquid side O.D. mm 9.52
inch 3/8
Refrigerant pipe length Height difference m Max. 30
Length m Max. 50
OCS08A-1.qxp 07.9.6 4:20 PM Page 5

6
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46˚C
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5˚C w1
Heating Upper limit D.B. 28˚C D.B. 21˚C, W.B. 15˚C
Lower limit D.B. 17˚C
D.B. -11˚C, W.B. -12˚C
4. Above data are based on the indicated voltage.
w1. If optional air protect guide is installed : D.B.-15:
Indoor unit 3 phase 400V 50Hz
3 phase 400V 50Hz
Outdoor unit
3. Guaranteed voltage
342~457V, 50Hz
Model name Indoor unit PEA-RP200GA PEA-RP250GA
Outdoor unit PUHZ-P200YHA PUHZ-P250YHA
Cooling Capacity Btu/h 65,000 75,000
kW 19.0(9.0-22.4) 22.0(11.2-28.0)
Total input kW 7.21 8.44
EER
Energy label class 2.64 2.61
DD
SHF 0.81 0.86
Heating Capacity Btu/h 76,000 92,000
kW 22.4(9.5-25.0) 27.0(12.5-31.5)
Total input kW 7.36 8.47
COP 3.04 3.19
Energy label class D D
Booster heater kW - -
Power supply Phase [3
Cycle Hz 50
Voltage V 400
Breaker size A Indoor 15 / Outdoor 32
Indoor unit Air flow CMM 52-65 64-80
(Low-High) CFM 1835-2295 2260-2825
External pressure Pa 150
Sound level dB(A) 48-51 49-52
(Low-High)
External finish Galvanized steel
Dimension W : mm 16001400
D : mm 634
H : mm 400
W : inch 6355-1/8
D : inch 25
H : inch 15-3/4
Weight kg 70 77
lbs 155 170
Unit drain pipe R1
Outdoor unit Air flow CMM 130
CFM 4590
Sound level at cooling dB(A) 59
Sound level at heating dB(A) 59
External finish Ivory Munsell 3Y 7.8/1.1
Dimension W : mm 950
D : mm 330+30
H : mm 1350
W : inch 37-3/8
D : inch 13 + 1-3/16
H : inch 53-1/8
Weight kg 126
lbs 278 133 294
Refrigerant pipe size Gas side O.D. mm 25.4
inch 1
Liquid side O.D. mm 12.7
inch 1/2
9.52
3/8
Refrigerant pipe length Height difference m Max. 30
Length m Max. 70
OCS08A-1.qxp 07.9.6 4:20 PM Page 6

7
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46˚C
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5˚C w1
Heating Upper limit D.B. 28˚C D.B. 21˚C, W.B. 15˚C
Lower limit D.B. 17˚C
D.B. -11˚C, W.B. -12˚C
4. Above data are based on the indicated voltage.
w1. If optional air protect guide is installed : D.B.-15:
Indoor unit 3 phase 400V 50Hz
3 phase 400V 50Hz
Outdoor unit
3. Guaranteed voltage
342~457V, 50Hz
Model name Indoor unit PEA-RP400GA PEA-RP500GA
Outdoor unit PUHZ-P200YHAo2 PUHZ-P250YHAo2
Cooling Capacity Btu/h 130,000 150,000
kW 38.0(18.0-44.8) 44.0(22.4-56.0)
Total input kW 13.97 17.36
EER 2.72 2.53
Energy label class D E
Energy label class D D
SHF 0.75 0.77
Heating Capacity Btu/h 153,000 184,000
kW 44.8(19.0-50.0) 54.0(25.0-63.0)
Total input kW 14.27 17.42
COP 3.14 3.10
Booster heater kW - -
Power supply Phase [3
Cycle Hz 50
Voltage V 400
Breaker size A Indoor 15 / Outdoor 32 o2
Indoor unit Air flow CMM 120 160
(High) CFM 4240 5650
External pressure Pa 150
Sound level dB(A) 52 53
(High)
External finish Galvanized steel
Dimension W : mm 1947
D : mm 764
H : mm 595
W : inch 79-11/16
D : inch 30-1/8
H : inch 23-7/16
Weight kg 130 133
lbs 286 293
Unit drain pipe R1
Outdoor unit
(Per 1 outdoor unit) Air flow CMM 130
CFM 4590
Sound level at cooling dB(A) 59
Sound level at heating dB(A) 59
External finish Ivory Munsell 3Y 7.8/1.1
Dimension W : mm 950
D : mm 330+30
H : mm 1350
W : inch 37-3/8
D : inch 13 + 1-3/16
H : inch 53-1/8
Weight kg 126
lbs 278 133 294
Refrigerant pipe size Gas side O.D. mm 25.4 o 2
inch 1 o 2
Liquid side O.D. mm 12.7 o 2
inch 1/2 o 2
9.52 o 2
3/8 o 2
Refrigerant pipe length Height difference m Max. 30
Length m Max. 70 (per 1 outdoor unit)
OCS08A-1.qxp 07.9.6 4:20 PM Page 7

8
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46˚C
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5˚C w1
Heating Upper limit D.B. 28˚C D.B. 21˚C, W.B. 15˚C
Lower limit D.B. 17˚C
D.B. -11˚C, W.B. -12˚C
4. Above data are based on the indicated voltage.
w1. If optional air protect guide is installed : D.B.-15:
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
Model name Indoor unit PKA-RP100FAL
Outdoor unit PUHZ-P100VHA2
Cooling Capacity Btu/h 32,100
kW 9.4(4.9-11.2)
Total input kW 3.12
EER 3.01
Energy label class B
SHF 0.79
Heating Capacity Btu/h 38,200
kW 11.2(4.5-12.5)
Total input kW 3.49
COP 3.21
Energy label class C
Booster heater kW -
Power supply Phase {1
Cycle Hz 50
Voltage V 230
Breaker size A 32
Indoor unit Air flow CMM 22-28
(Low-High)CFM 780-990
External pressure Pa 0
Sound level dB(A)41-46
(Low-High)
External finish Munsell 3.4Y 7.7/0.8
Dimension W : mm 1680
D : mm 235
H : mm 340
W : inch 66-1/8
D : inch 9-1/4
H : inch 13-3/8
Weight kg 28
lbs 62
Field drain pipe I.D. mm 20
inch 13/16
Outdoor unit Air flow CMM 60
CFM 2,120
Sound level at cooling dB(A)50
Sound level at heating dB(A)54
External finish Ivory Munsell 5Y 7/1
Dimension W : mm 950
D : mm 330+30
H : mm 943
W : inch 37-3/8
D : inch 13 + 1-3/16
H : inch 37-1/8
Weight kg 75
lbs 165
Refrigerant pipe size Gas side O.D. mm 15.88
inch 5/8
Liquid side O.D. mm 9.52
inch 3/8
Refrigerant pipe length Height difference m Max. 30
Length m Max. 50
2-3. WALL-MOUNTED TYPE
OCS08A-1.qxp 07.9.6 4:20 PM Page 8

9
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46:
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5:w
Heating Upper limit D.B. 28˚C D.B. 21:, W.B. 15:
Lower limit D.B. 17˚C D.B. -11:, W.B. -12:
4. Above data are based on the indicated voltage.
wIf optional air protect guide is installed : D.B.-15:
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
Model name Indoor unit PCA-RP100GA PCA-RP125GA PCA-RP140GA
Outdoor unit PUHZ-P100VHA2 PUHZ-P125VHA2 PUHZ-P140VHA2
Cooling Capacity Btu/h 32,100 42,000 46,400
kW 9.4(4.9-11.2)12.3(5.5-14.0)13.6(5.5-15.0)
Total input kW 3.35 4.38 5.21
EER 2.81 2.81 2.61
Energy label class C C D
SHF 0.77 0.78 0.76
Heating Capacity Btu/h 38,200 47,800 54,600
kW 11.2(4.5-12.5)14.0(5.0-16.0)16.0(5.0-18.0)
Total input kW 3.49 4.98 4.98
COP 3.21 2.81 3.21
Energy label class C D C
Booster heater kW - - -
Power supply Phase {1
Cycle Hz 50
Voltage V 230
Breaker size A 32 40
Indoor unit Air flow CMM 20-21-23-25 27-30-32-34
(Low-Medium2-Medium1-High)CFM 705-840-810-885 955-1060-1130-1200
External pressure Pa 0 0
Sound level dB(A)40-41-43-45 41-43-45-46 42-44-46-48
(Low-Medium2-Medium1-High)
External finish White Munsell 0.70Y 8.59/0.97
Dimension W : mm 1310 1620
D : mm 680
H : mm 270
W : inch 51-9/16 63-3/4
D : inch 26-3/4
H : inch 10-5/8
Weight kg 37 43 45
lbs829599
Field drain pipe O.D. mm 26
inch 1
Outdoor unit Air flow CMM 60 100
CFM 2,120 3,530
Sound level at cooling dB(A)50 51 52
Sound level at heating dB(A)54 55 56
External finish Ivory Munsell 5Y 7/1
Dimension W : mm 950
D : mm 330+30
H : mm 943 1350
W : inch 37-3/8
D : inch 13 + 1-3/16
H : inch 37-1/8 53-1/8
Weight kg 75 99
lbs 165 218
Refrigerant pipe size Gas side O.D. mm 15.88
inch 5/8
Liquid side O.D. mm 9.52
inch 3/8
Refrigerant pipe length Height difference m Max. 30
Length m Max. 50
2-4. CEILING-SUSPENDED TYPE
OCS08A-1.qxp 07.9.6 4:20 PM Page 9

10
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46˚C
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5˚C w1
Heating Upper limit D.B. 28˚C D.B. 21˚C, W.B. 15˚C
Lower limit D.B. 17˚C
D.B. -11˚C, W.B. -12˚C
4. Above data are based on the indicated voltage.
w1. If optional air protect guide is installed : D.B.-15:
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
Model name Indoor unit PCA-RP125HA
Outdoor unit PUHZ-P125VHA2
Cooling Capacity Btu/h 42,000
kW 12.3(5.5-14.0)
Total input kW 4.38
EER 2.81
Energy label class C
SHF 0.78
Heating Capacity Btu/h 47,100
kW 13.8(5.0-16.0)
Total input kW 4.30
COP 3.21
Energy label class C
Booster heater kW -
Power supply Phase {1
Cycle Hz 50
Voltage V 230
Breaker size A 25
Indoor unit Air flow CMM 30-38
(Low-High)CFM 1060-1350
External pressure Pa 0
Sound level dB(A)44-50
(Low-High)
External finish Stainless steel
Dimension W : mm 1520
D : mm 650
H : mm 280
W : inch 59-7/8
D : inch 25-5/8
H : inch 11
Weight kg 56
lbs 124
Field drain pipe O.D. mm 26
inch 1
Outdoor unit Air flow CMM 100
CFM 3,530
Sound level at cooling dB(A)51
Sound level at heating dB(A)55
External finish Ivory Munsell 5Y 7/1
Dimension W : mm 950
D : mm 330+30
H : mm 1350
W : inch 37-3/8
D : inch 13 + 1-3/16
H : inch 53-1/8
Weight kg 99
lbs 218
Refrigerant pipe size Gas side O.D. mm 15.88
inch 5/8
Liquid side O.D. mm 9.52
inch 3/8
Refrigerant pipe length Height difference m Max. 30
Length m Max. 50
OCS08A-1.qxp 07.9.6 4:20 PM Page 10

11
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46:
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5:w
Heating Upper limit D.B. 28˚C D.B. 21:, W.B. 15:
Lower limit D.B. 17˚C D.B. -11:, W.B. -12:
4. Above data are based on the indicated voltage.
wIf optional air protect guide is installed : D.B.-15:
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
Model name Indoor unit PSA-RP100GA PSA-RP125GA PSA-RP140GA
Outdoor unit PUHZ-P100VHA2 PUHZ-P125VHA2 PUHZ-P140VHA2
Cooling Capacity Btu/h 32,100 42,000 46,400
kW 9.4(4.9-11.2)12.3(5.5-14.0)13.6(5.5-15.0)
Total input kW 3.12 4.38 5.64
EER 3.01 2.81 2.41
Energy label class B C E
SHF 0.83 0.76 0.75
Heating Capacity Btu/h 38,200 47,800 54,600
kW 11.2(4.5-12.5)14.0(5.0-16.0)16.0(5.0-18.0)
Total input kW 3.28 4.98 5.69
COP 3.41 2.81 2.81
Energy label class B D D
Booster heater kW - - -
Power supply Phase {1
Cycle Hz 50
Voltage V 230
Breaker size A 32 40
Indoor unit Air flow CMM 24-31 26-33 27-35
(Low-High)CFM 850-1060 920-1165 955-1240
External pressure Pa 0
Sound level dB(A)44-49 46-51 47-52
(Low-High)
External finish White Munsell 0.70Y 8.59/0.97
Dimension W : mm 600
D : mm 350
H : mm 1900
W : inch 23-5/8
D : inch 13-3/4
H : inch 74-13/16
Weight kg 51 53
lbs 112 117
Field drain pipe I.D. mm 20
inch 13/16
Outdoor unit Air flow CMM 60 100
CFM 2,120 3,530
Sound level at cooling dB(A)50 51 52
Sound level at heating dB(A)54 55 56
External finish Ivory Munsell 5Y 7/1
Dimension W : mm 950
D : mm 330+30
H : mm 943 1350
W : inch 37-3/8
D : inch 13 + 1-3/16
H : inch 37-1/8 53-1/8
Weight kg 75 99
lbs 165 218
Refrigerant pipe size Gas side O.D. mm 15.88
inch 5/8
Liquid side O.D. mm 9.52
inch 3/8
Refrigerant pipe length Height difference m Max. 30
Length m Max. 50
2-5. FLOOR STANDING TYPE
OCS08A-1.qxp 07.9.6 4:20 PM Page 11

12

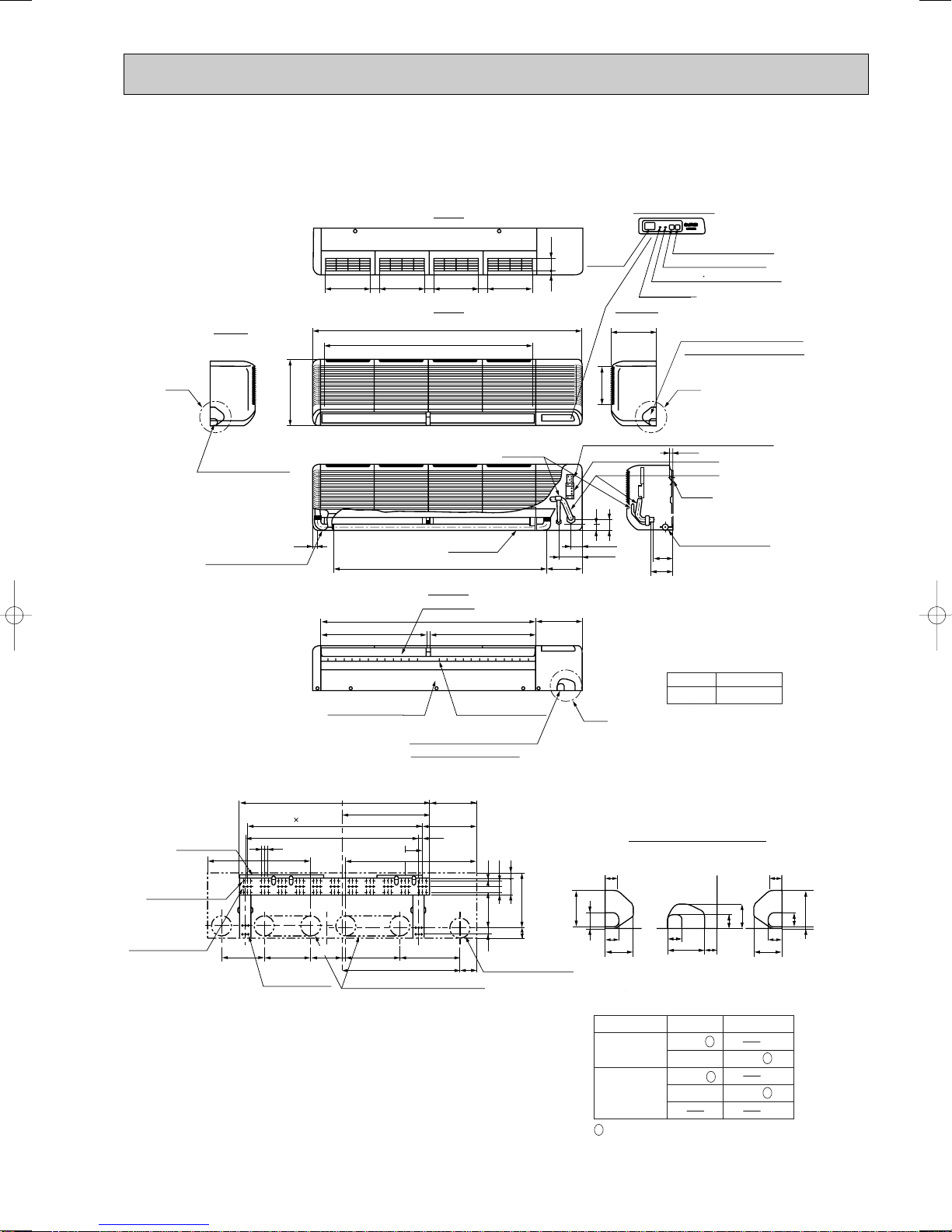

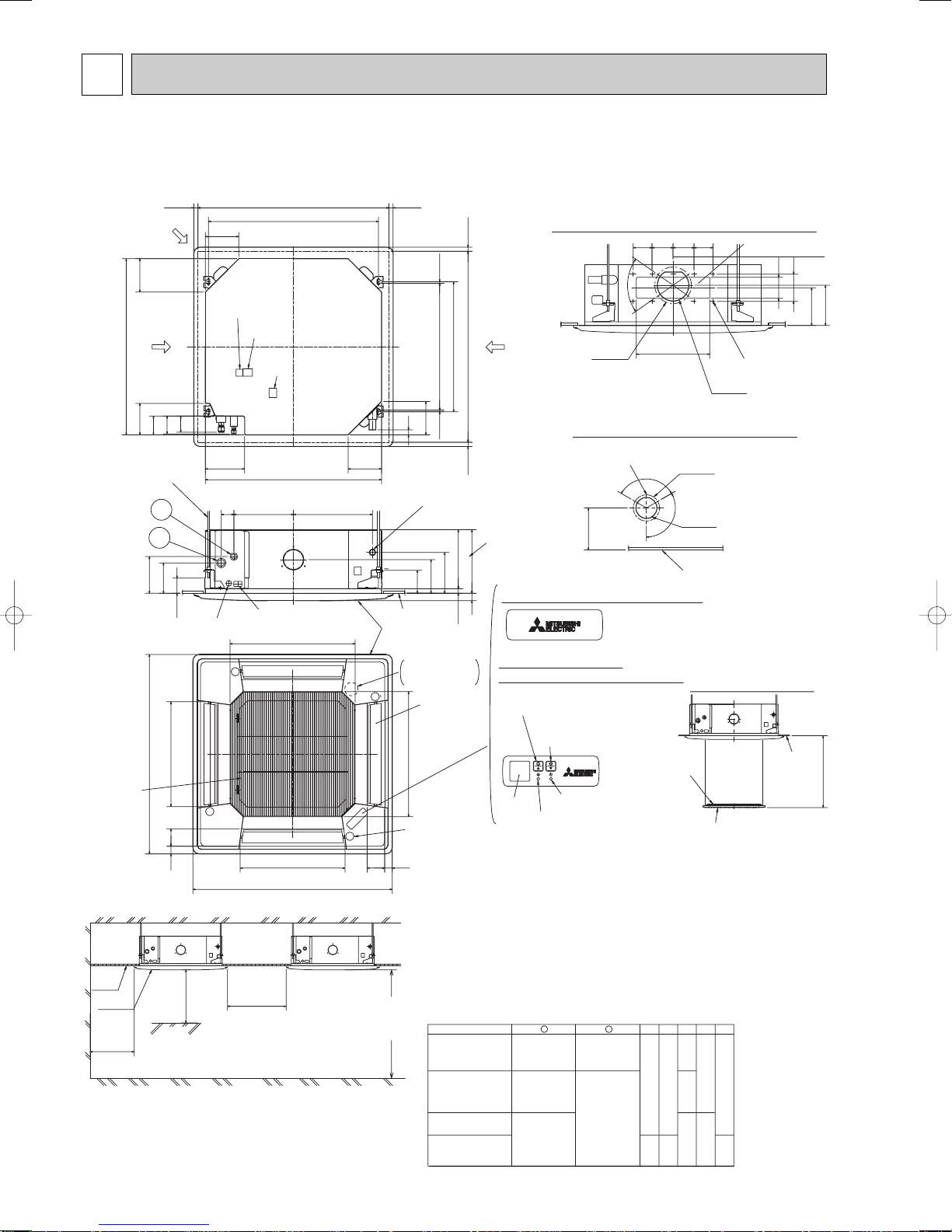

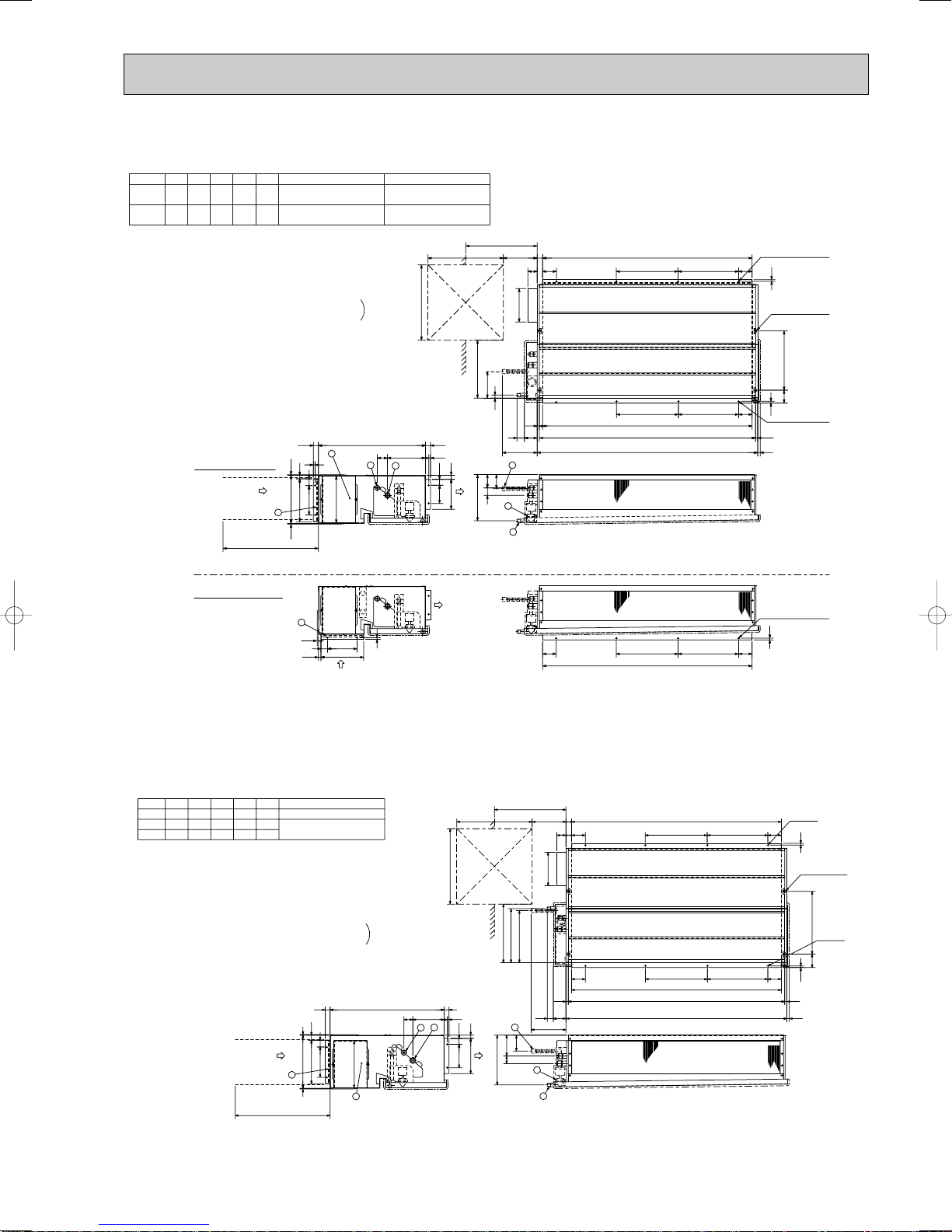

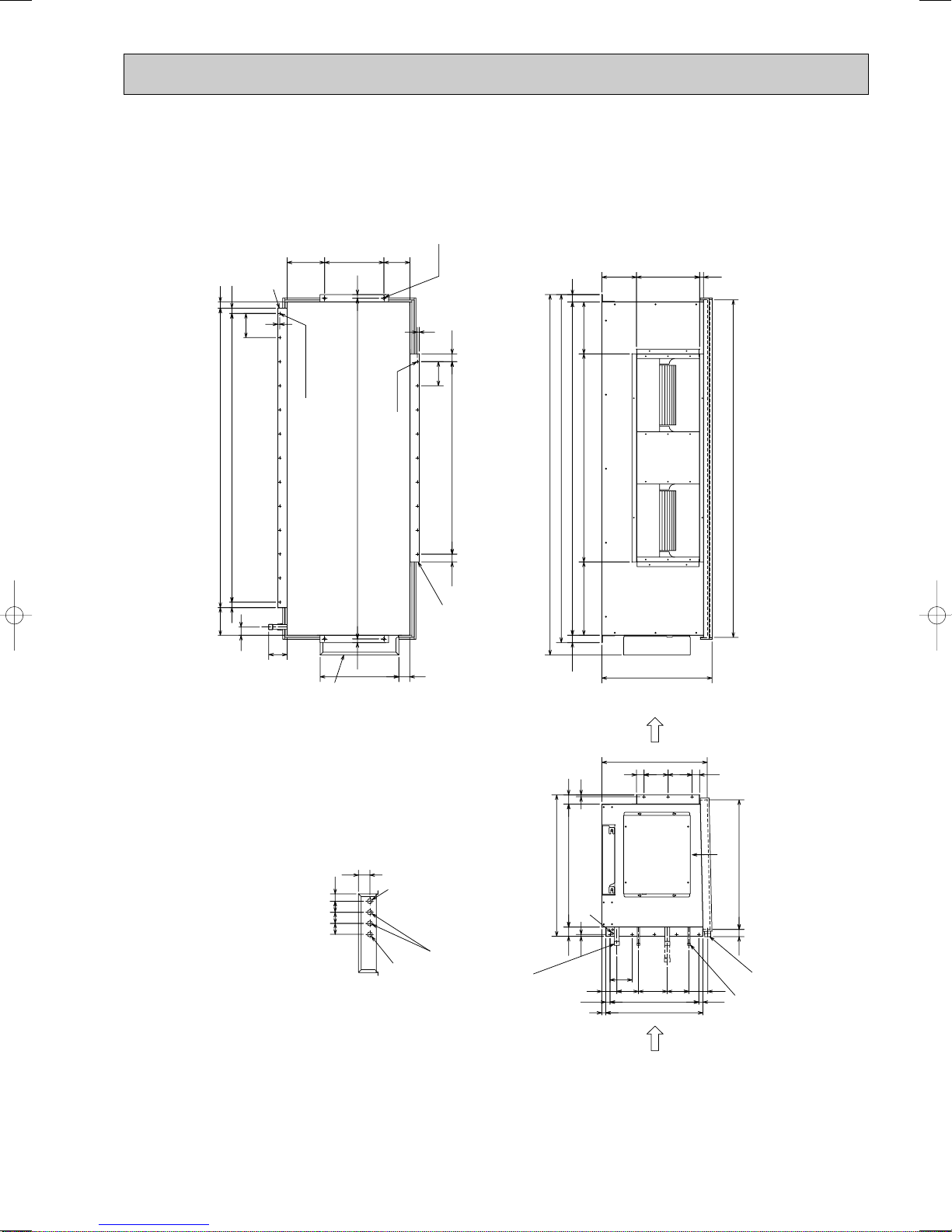

3OUTLINES AND DIMENSIONS
37728460
()
Ceiling hole
Branch duct hole
Drain pipe
connected to VP-25
Ceiling
Grille
Drain hole
Models
Auto vane
(Air outlet)
Air intake grille
Ceiling
Cut out hole
Cut out hole
Cut out hole
Burring hole pitch
Burring hole pitch
Burring hole
Burring hole
Power supply wire,
Indoor unit/Outdoor unit
connecting wire entry
Indoor unit/Outdoor
connecting terminal
Indoor power supply
terminal block(Option part)
Control wire entry
Air intake hole
Air intake hole
Air outlet hole
Air outlet hole
Connected the attached
flexible pipe or socket.
Keep approximately
10 to 15mm space
between unit ceiling
and ceiling slab.
Branch duct hole
Fresh air
intake hole
Ceiling hole
Suspension bolt pitch
Suspension bolt pitch
Remote controller
terminal block
Suspension bolt
M10 or W3/8
(7.5)(7.5)
605 +35
- 5
620
DEFROST/STAND BY lamp
Receiver Operation lamp
In case of standard grille : PLP-6BA / PLP-6BAMD
In case of wireless remote controller : PLP-6BALM Auto Grille
Air intake grille up/down discharge
Emergency operation
switch<Cooling>and
Emergency Up/Down switch<Up>
160
160
500
500
597
83 36
950
8336
950 597
A
17+5
0
B35
190
156
105
140
50~70
160
840
150
90
C
D
840
187.5
20~45
860~910
20~45
810
20~45
860~910
20~45
24
160
ww
w
w
wwww
w
M
M
M
M
120°
120°
[175
[125
167
158
Vane motor
2
1
Drain pump clean hole
and Drain emergency
drainage hole
130 100
70°
155
350
90 100 100 90
BACDE
241 258
80
87
74 400
298 85 77
440
281
2
1
Refrigerant pipe
···[6.35
Flared connection
···1/4 inch
Refrigerant pipe
···[9.52
Flared connection
···3/8 inch
Refrigerant pipe
···[12.7
Flared connection
···1/2 inch
Refrigerant pipe
···[15.88
Flared connection
···5/8 inch
Refrigerant pipe
[6.35 / [9.52
Flared connection
1/4 inch/3/8 inch
(compatible)
PLA-RP50BA
PLA-RP60BA
PLA-RP71BA
PLA-RP100,125,140BA
Detail drawing of fresh air intake hole
Detail connecting of branch duct(Both aspects)
3-[2.8
14-[2.8
[150
[100
Emergency
switch<Heating>and
Emergency Up/Down switch<Down>
In case of Auto-Grille : PLP-6BAJ
Suspension bolt
lower edge
170
w
Ceiling
Air intake grille
Max. 4.0m
L.L Filter
Ceiling
Grille
Indoor unit
1500mm
or more
1000mm or more
3000mm or more
1800mm or more
from floor
For high
attachment
Indoor unit
Obstacle
Floor
Note1. Please choose the grille from a standard grille or Auto-Grille.
2. As for drain pipe, please use VP-25(O.D. [32 PVC TUBE).
Drain pump is included.
Max. lifting height is 850mm from the ceiling.
3. As for suspension bolt, please use M10 or W3/8.
(Procured at local site)
4. Electrical box may be removed for the service purpose.
Make sure to slack the electrical wire little bit for control/ power wires connection.
5. The height of the indoor unit is able to be adjusted with the grille attached.
6. For the installation of the optional high efficiency filter or optional multi-functional casement.
1) Requires E or more space between transom and ceiling for the installation.
2) Add 135 mm to the dimensions wmarked on the figure.
3)
The optional high efficiency filter becomes optional multi-functional casement and concomitant use.
7. When installing the branch ducts, be sure to insulate adequately.
Otherwise condensation and dripping may occur.
(It becomes the cause of dew drops/Water dew.)
8. As for necessary installation/service space, please refer to the left figure.
Unit : mm
INDOOR UNIT
PLA-RP50BA PLA-RP60BA PLA-RP71BA
PLA-RP100BA PLA-RP125BA PLA-RP140BA
OCS08A-1.qxp 07.9.6 4:20 PM Page 12

13
PEAD-RP50EA
PEAD-RP60EA
PEAD-RP71EA
PEAD-RP100EA2
PEAD-RP125EA
PEAD-RP140EA
1 Refrigerant piping flare connection (liquid [F copper tube):HP
2 Refrigerant piping flare connection (gas [G copper tube):LP
3 Drain R1(External thread)
4 Electrical parts box
5 Drain Pump (Option)
6 Drain Pipe (Option) ... Flexible joint VP-25(I.D.
[ 32)
7 Filter
R407C Outdoor unit : 9.52
F
R410A Outdoor unit : 6.35 w
R407C Outdoor unit : 9.52 w
Outdoor unit (SUZ) : 6.35
EDCBA
804830
- 305772
Model
RP60
R407C Outdoor unit : 15.88
G
R410A Outdoor unit : 12.7 w
15.88
104410702902801012
RP50
wInitial setting
2
1
3
4
Air inlet
Air outlet
Access door 55
50~150
81
197
Service space:500 or more
Keep duct-work length 850mm or more.
Be sure to apply the air filter
near the air inlet grille.
5
6
75 44
18
365~465
B81
10
56 355
7
159
243
Air outlet
Air inlet
7
Lifting bolt hole
(14×22)
10- [ 3 (RP35,50)
12-
[ 3 (RP60)
In case of rear inlet
In case of bottom inlet 10-
[ 3 (RP35,50)
12-
[ 3 (RP60)
D30
C
10
81BC
A
450
450
10- [ 3 (RP35,50)
12-
[ 3 (RP60)
176
40
288
256
3.5 3.5
10
109 179
10
35
24
30640
30
21
277 80
45
282
13
13E
A
61 227
29
85
40 176
10
15
3.5
256 BC 81
10
81
A
Set
R407C outdoor unit : 19.05158416104704601552RP140
15.8810441070290 F
R410A Outdoor unit : 15.88 w
EDCBA
12841310370360
2801012
1252
Model
RP100,125
RP71
w Initial setting
7
44
243
308
323
75
6
5
13
1 Refrigerant piping flare connection (liquid [9.52 copper tube):HP
2 Refrigerant piping flare connection (gas [F copper tube):LP
3 Drain R1 (External thread)
4 Electrical parts box
5 Drain Pump (Option)
6 Drain Pipe (Option) ... Flexible joint VP25(I.D.[32)
7 Filter
Service space:500 or more
81
365~465
197
81
50~150
55
29
Access door
Air outlet
Air inlet
43
12
113
307 122
12-[3
(14x22)
Lifting bolt hole
45
Set
210
12-[3
450
450
140
282
680
3.5 3.5
30
319
261
181
40
30
A
C B 81
10
375
10 80
C B 81
A
E13
30D
20
35
30
1053 169
Keep duct-work length 850mm or more.
Be sure to apply the air filter
near the air inlet grille.
Unit : mm
OCS08A-1.qxp 07.9.6 4:20 PM Page 13

14
PEAD-RP60GA
PEAD-RP71GA
PEAD-RP100GA
Unit : mm
Model ABCDE
7
7
9
8
9.52
9.52
15.88
15.88
8
10
FG H J
RP60
RP71
RP100
1125
1125
1365
1090
1090
1330
1050
1050
1290
1012
1012
1252
840
840
1080
Outdoor unit(SUZ) : 6.35
Other outdoor unit : 9.52 w
R410A Outdoor unit : 15.88 w
R407C Outdoor unit : 19.05
wInitial setting
OCS08A-1.qxp 07.9.6 4:20 PM Page 14

15
PEA-RP200GA Unit : mm
Return air sensor
A
Rubber bush <Remote controller wiring>
Rubber bush <Outdoor unit connection wiring>
Rubber bush <Power supply wiring>
A
4-[12
Drain R1
Top view
Control box
Return air duct flange
Supply air duct flange <For hanging bolt M10>
[Field supply]
22-[3.1
24-[3 Holes
Refrigerant pipe
[9.52 (3/8 braze)
Refrigerant pipe [25.4 (1 braze)
<Accessory> Pipe cover···················2pcs. (For dew condensation prevention of local piping and unit connection) Remote controller········1pc.
Return air
Left side view
Supply air
Front view
75
55
12970
42
124 34
131
530
50
9525011
7x130(=910)
10
130
130
45 45
31 31
1102
200
10
8x130(=1040)
1300 20
199
100
40
20
462
144
1284
400
155 1000 105
40 1260 40
1340
1400
56539
22330
145
89 35
130
130
35
634
262 73
10 54
10
376 2510010025
OCS08A-1.qxp 07.9.6 4:20 PM Page 15

16

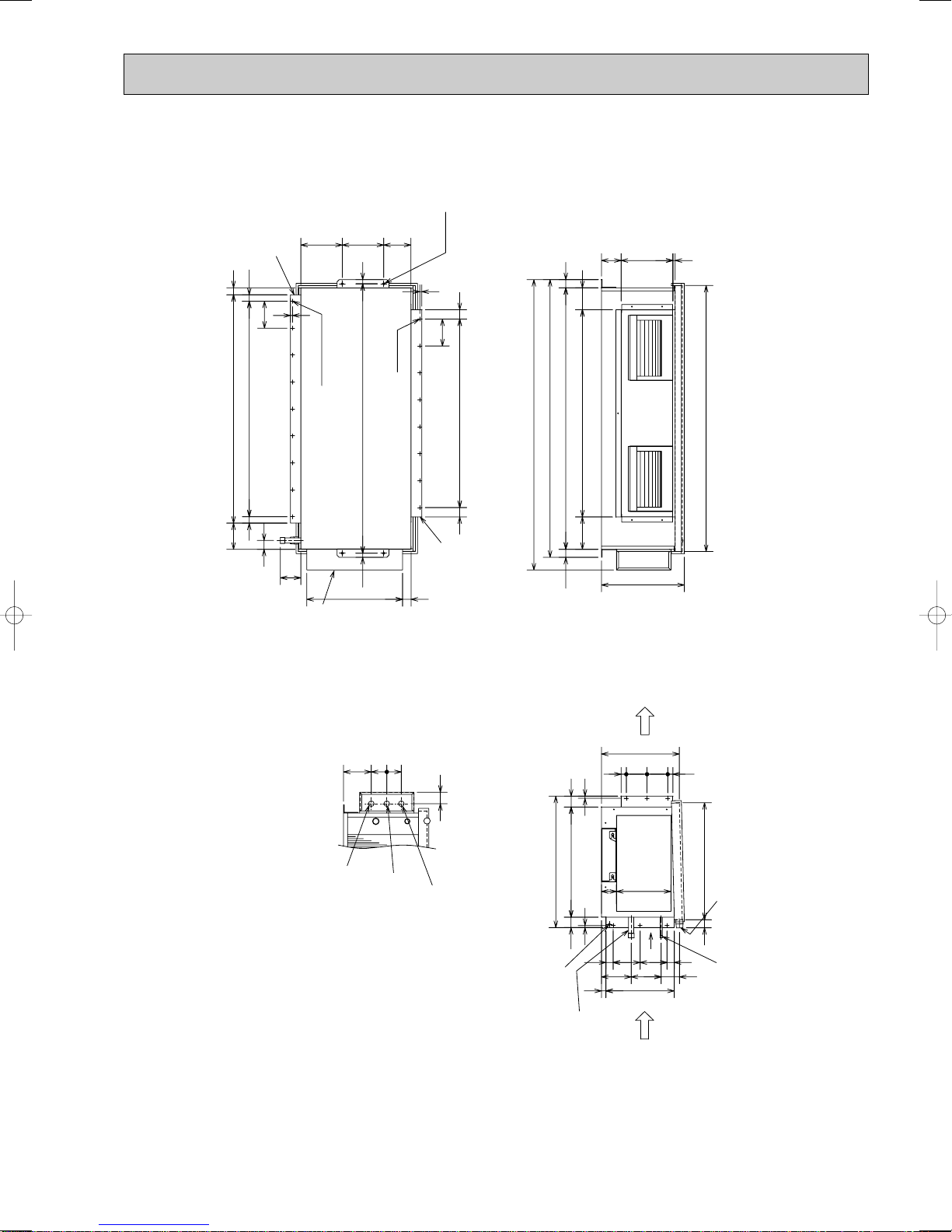

PEA-RP250GA Unit : mm
Rubber bush <Remote controller wiring>
Rubber bush <Outdoor unit connection wiring>
Rubber bush <Power supply wiring>
A
A
4- [12
Drain R1
Top view
Control box
22- [3.1
<For hanging bolt M10> [Field supply]
Return air duct flange
Supply air duct flange
26- [3 Holes
Left side view
Supply air
Return air
Front view
Return air sensor
<Accessory> Pipe cover··················2pcs. (For dew condensation prevention of local piping and unit connection) Remote controller·······1pc.
Refrigerant pipe
[12.7 (1/2 braze)
Refrigerant pipe
[25.4 (1 braze)
42
144145
75
55
70 129
124
131
50 530
34
130
9525011 10
66
1302
1484
7x130(=910) 130
45 45
200
20
100
20
199
40
1500
462
66 9X130(=1170)
10
25 100 100 25
10 10
1540 40146040 255 205
376
1000
1600
73262
400
39 565
54
634
35
130
89 330 22
130
35
OCS08A-1.qxp 07.9.6 4:20 PM Page 16

17

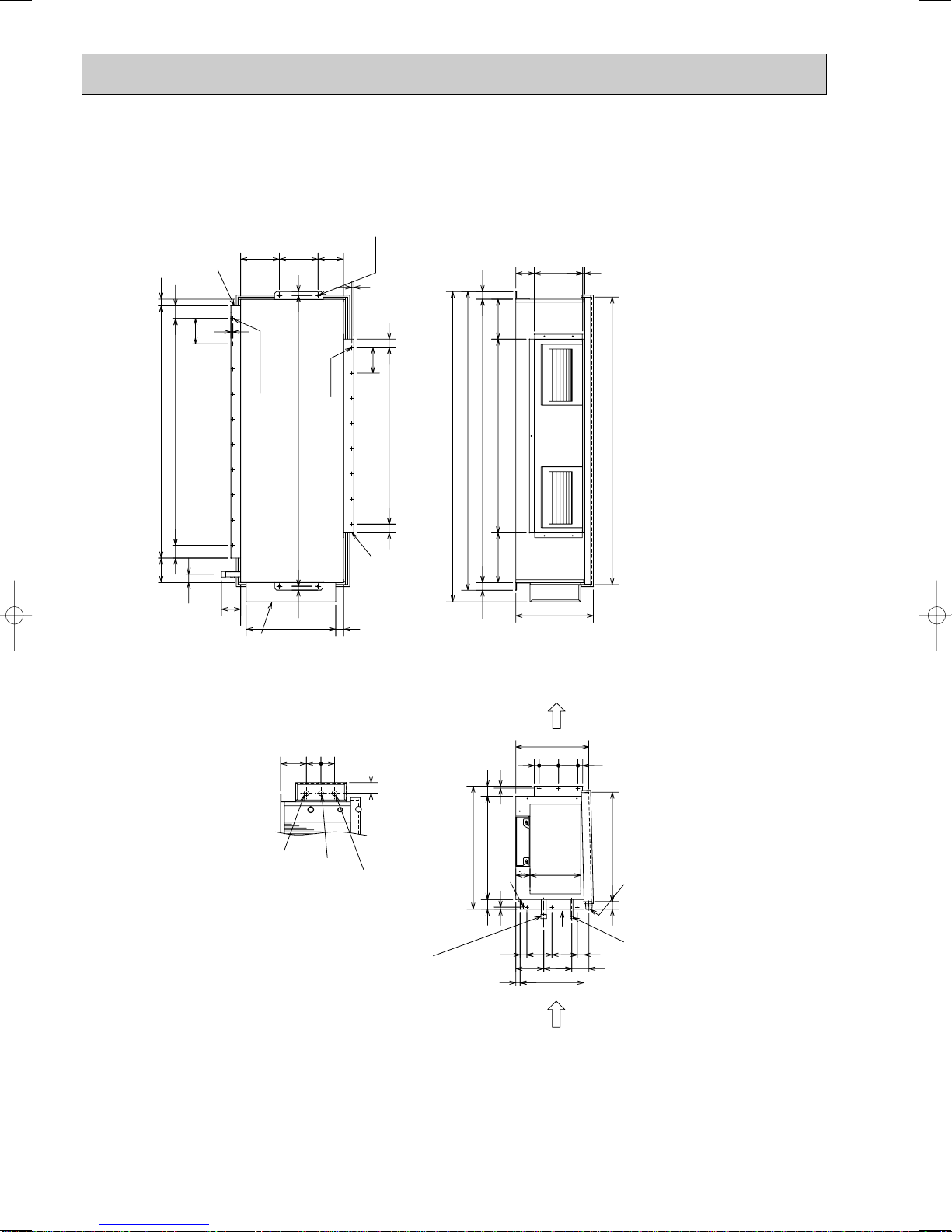

PEA-RP400, 500GA Unit : mm
45
Refrigerant pipe PEA-RP400GA :
[
9.52 (3/8 braze)
PEA-RP500GA :
[
12.7 (1/2 braze)
[2 places (*2 part)]
*2
*1
*2 *1
Refrigerant pipe [25.4 (1 braze)
[2 places (*1 part)]
Return air sensor (2 places)
Drain R1
24-[3.1
36-[3 HOLES
Left side view Front view
Top view
Return air Supply air
4-[15
<For hanging bolt M12> [Field supply]
Return air duct flange
Control box
Supply air duct flange
A
Rubber bush <Remote controller wiring>
Rubber bush
<Power supply wiring>
Rubber bush <Outdoor unit connection wiring>
A
<Accessory> Pipe cover··················4pcs. (For dew condensation prevention of local piping and unit connection) Remote controller·······1pc.
81
117156117
10
20 1840
10
40
60 60
61
60
4040 1800
1880
50 664
525
22
102 22.5
120
4X120(=480)
22.5
595
1824
50
764
2801125395
340 18822
1947
570
40 130 130 40
10
33
29
130
12X130(=1560)
29
149 1618
100
42.5
130
8X130(=1040)42.5
10
203320141
20
42559
700
39
OCS08A-1.qxp 07.9.6 4:20 PM Page 17

18

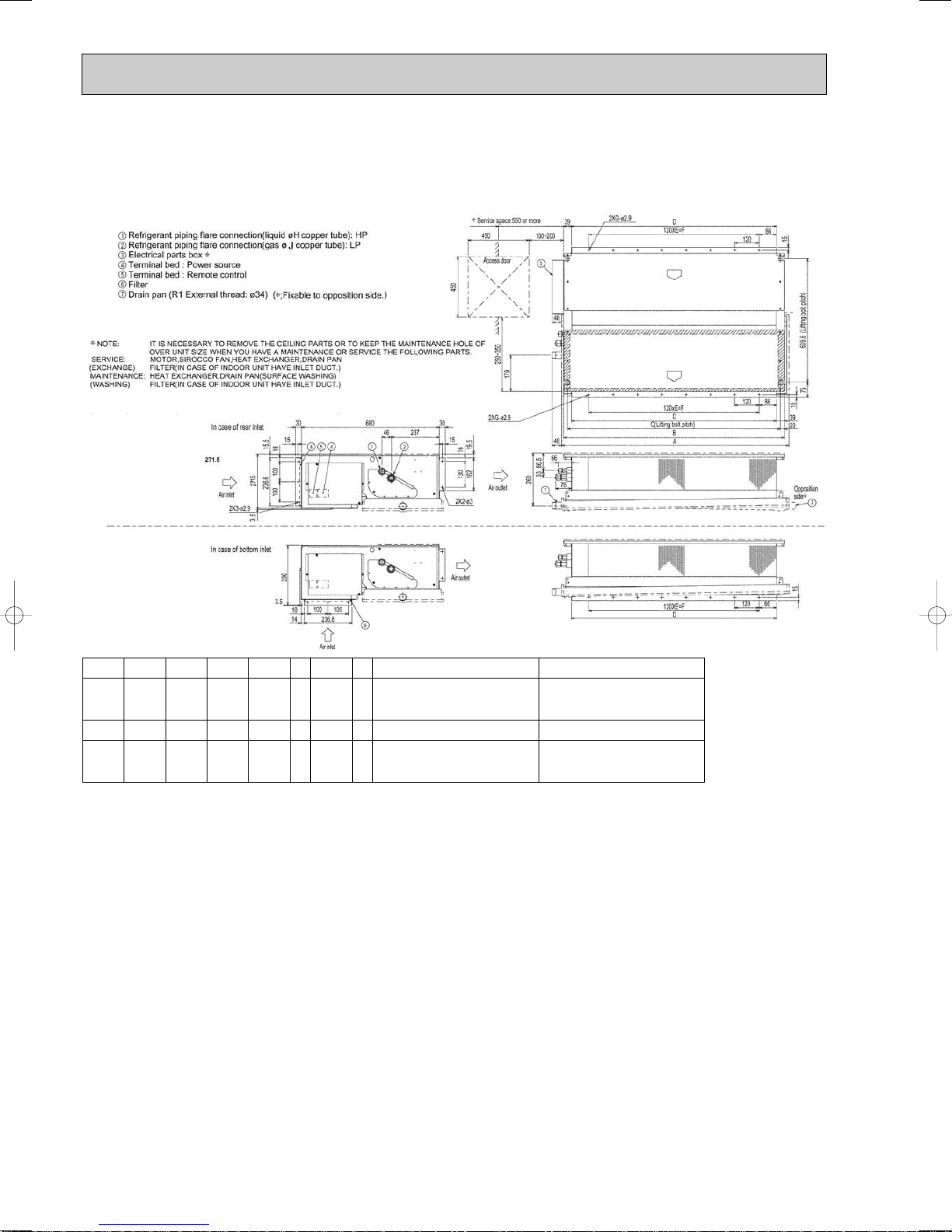

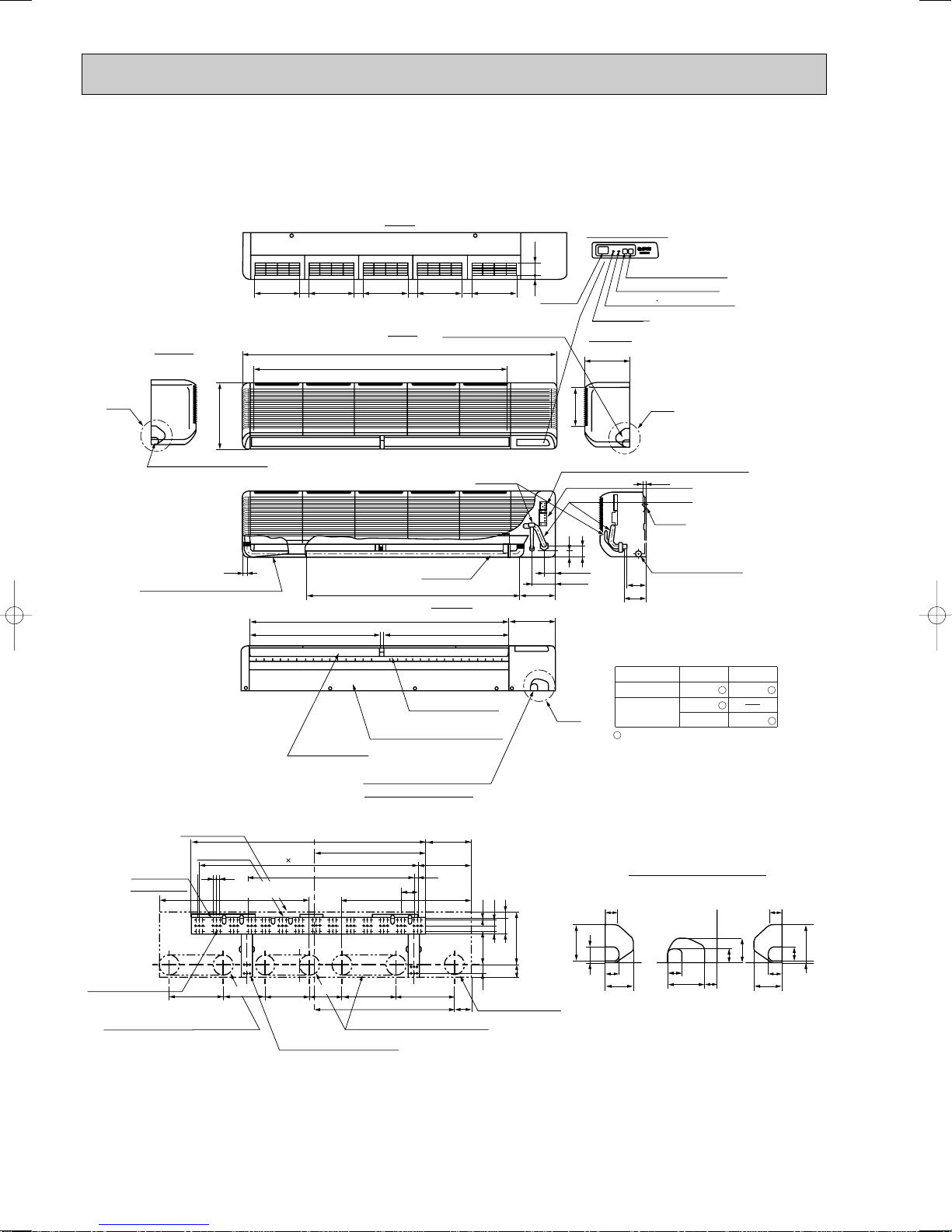

PKA-RP50GAL
BYOFF
ON STAND HEATCOOL
OFF BY
ON STANDCOOL HEAT
ÅrÇoÇoÅqÅ@ëOñÅ@ÇeÇqÇnÇmÇs ÅrÇoÇoÅqÅ@ëOñ Å@ÇeÇqÇnÇmÇs
r.SLI.SLI
m m
MITSUBISHIELECTRICMITSUBISHIELECTRIC
r.S.S
L
I
m m
MITSUBISHIELECTRICMITSUBISHIELECTRIC
knockout hole for right piping Refrigerant pipe.Drain pipe. Wiring hole
21
Right side Less than 15
70 245
60
235
Auto vane
Front view
Air intake
Air intake
Air intake
Air intake
198
53
340
715 225
340 80 280 233
990
21
Left side
knockout hole for left piping Refrigerant pipe.Drain pipe.Wiring hole. 60
70 245
(Necessary clearance for unit installation)
Right side
Allowing clearances Front view
Less than 130
50 or more 150 or more
180 or more 30 or more
for bolts
Left-rear piping hole
left-rear piping
R52.5 R52.5
Installation plate balance point hole
Details of installation plate
49-[5hole
for tapping screw
knockout hole for right-rear piping Right-rear
piping hole
Unit center
14-[14hole
knockout hole for
425
420
170
190
210
230
0
322 0 35 55 80 130 190 230 272 310 0
35
95
150
205
260
320
345
495
20
75
135
190
245
300
360
405
495
32
0
w1 Sleeves are available on the market. w2 This size shows the lower end of through hole.
[90~[100[90 Through hole
Sleeve w1
50 Model
R52.5
R52.5
Gas pipe
Liquid pipe
Terminal block for Terminal block to outdoor unit
Filter grip
Service panel (Power supply access)
(Flexible hose total length800) (Right side piping
installation)
(Left side piping
installation)
Unit drain pipe O.D.20
Front view(to open the grille)
700
449 86
581 54
31 280
35
knockout hole for under piping Refrigerant piping.Drain pipe. Wiring hole
12-Louvers(manual)
Air outlet
Lower side
80
50
395400
190
60
70 35
79
160 40
235
705
power supply (Heater (PKH-P50GALH only))
153
GAS SIDE
LIQUID SIDE
RP50 P50
[6.35 [9.52 [12.7 [15.88
—
[9.52
—
[15.88
Use the current nuts meeting the pipe size of the outdoor unit. Available pipe size
: Initial flare nut size
Unit : mm
OCS08A-1.qxp 07.9.6 4:20 PM Page 18

19
Unit : mm
PKA-RP50FAL2
PKA-RP60FAL
PKA-RP71FAL
235
45
235
45
235
45
235
62.5
13
58 42
340
197
Top
Front Right side
Left side 1400
1090 Air intake 235
C
Knockout hole for right piping
Refrigerant pipe. Drain pipe
Knockout hole for
left piping
Drain hose for
left-hand side piping Drain hose
Lower side
Auto vanes
(Gas pipe) Drain hose O.D.20
Bolt
Gas pipe
15
(Liquid pipe)
Liquid pipe [9.52(3/8F)
Gas pipe [15.88(5/8F)
Liquid pipe
A
30
32
39 98
37
74
439
100
30
37
74
4
2980
280
3030
18430
60
10
39
37
65
100
AB C
Knockout hole for wiring
25
1110 183
240
B
1120 552
55
120 107
111
Air outlet
552 Air outlet
Louvers (manual)
Under panel
Removable at left-hand
side piping Knockout hole for under-piping
Refrigerant pipe. Drain pipe
Rear piping opening
Range for left rear piping opening
12-ø6 hole for
tapping screw
66-ø6 hole for
tapping screw
Wall fixture
Unit center
32-ø12 hole for bolt 225
18 18 91
900
990 455 285
245
19
240 280 314
610 90
Drainage range
on left-hand side Drainage range on right-hand side
10 91=(910)
180
Terminal block for heater (PKH only)
Terminal block for indoor/outdoor connecting line
Display section
Receiving
section
Power lamp
Emergency switch(Heat)
Emergency switch(Cool)
Defrosting Initial heating lamp
GAS SIDE
LIQUID SIDE
RP50
[ 6.35
[ 9.52
[ 15.88
[ 12.7
Available pipe size
[ 9.52
[ 15.88
[ 90
RP60,71 / P60,71
w 1 Sleeves are available on the market.
Use the current nuts meeting
the pipe size of the outdoor unit.
Sleeve w1Through hole
[ 90~ [ 100
:Initial flare nut size
OCS08A-1.qxp 07.9.6 4:20 PM Page 19

20
Unit : mm
PKA-RP100FAL
235
45
235
45
235
45
235
45
235
62.5
13
58 42
340
197
Top
Front Right side
Display section
Receiving
section
Power lamp
Emergency switch(Heat)
Emergency switch(Cool)
Defrosting Initial heating lamp
Left side 1680
1370 Air intake 235
C
Knockout hole for right piping
Knockout hole for left piping
Drain hose for left-hand side piping Drain hose
Drain hose
Lower side
Auto vane
(Gas pipe)
Bolt
Gas pipe
15
(Liquid pipe)
Liquid pipe
A
30
32
39 98
37
74
439
100
30
37
74
4
2980
280
3030
18430
60
10
39
37
65
100
AB C
Knockout hole for wiring
25
1110 183
240
B
1400
55
120 102
111
694 Air outlet 694 Air outlet
Louvers (manual)
Under panel
(Removable at left-hand side piping)
Knockout hole for under-piping
Refrigerant pipe. Drain pipe
Rear piping opening
Range for left rear piping openingRange for left rear piping opening
12-ø6 hole for tapping screw
84-ø6 hole for
tapping screw
Wall fixture
Unit out line Unit center
41-ø12 hole for bolt 295 225
18 18 91
900
1270 595 285
245
19
240 280 314
750 90
Drainage range
on right-hand side
13 91=(1183)
180
Drainage range
on left-hand side
Terminal block for heater (PKH only)
Terminal block for indoor/outdoor connecting line
Drain hose O.D.20
: Initial flare nut size
GAS SIDE
LIQUID SIDE
RP100
[9.52
[15.88
[19.05
P100
[9.52
[19.05
Use the current nuts meeting the pipe size
of the outdoor unit.
Available pipe size
OCS08A-1.qxp 07.9.6 4:20 PM Page 20
