SERVICE MANUAL
SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
SPLIT-TYPE, AIR CONDITIONERS
CONTENTS
1. REFERENCE MANUAL··································3
2. SAFETY PRECAUTION··································4
3. PART NAMES AND FUNCTIONS ··················6
4. SPECIFICATIONS···········································7
5. DATA ·····························································11

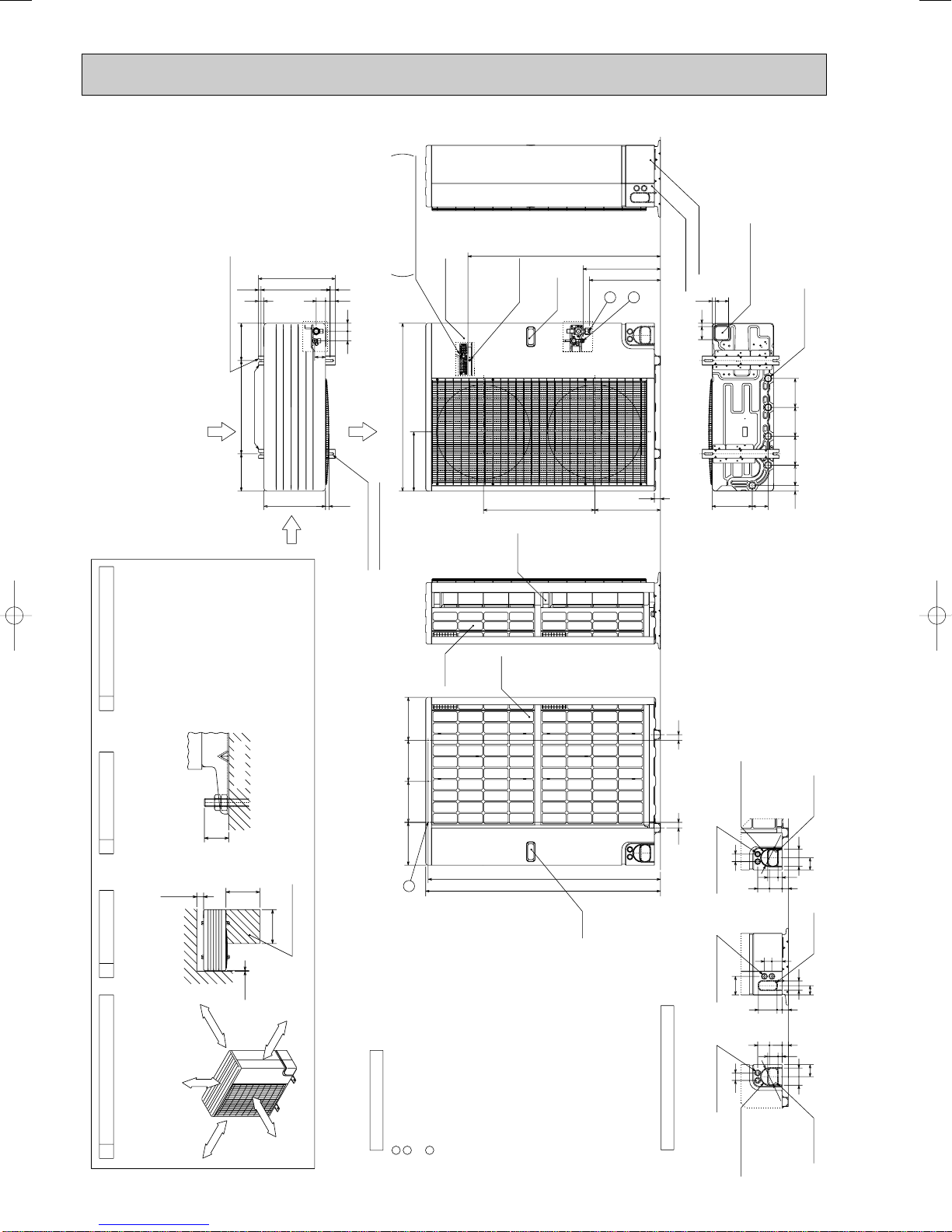

6. OUTLINES AND DIMENSIONS····················18
7. WIRING DIAGRAM·······································22
8. WIRING SPECIFICATIONS ··························24
9. REFRIGERANT SYSTEM DIAGRAM ··············28
10. TROUBLESHOOTING··································30
11. FUNCTION SETTING ···································65
12. DISASSEMBLY PROCEDURE·····················71
13. PARTS LIST··················································75
Outdoor unit
[model names]
PUH-P25VGAA
PUH-P35VGAA PU-P35VGAA
PUH-P35YGAA PU-P35YGAA
PUH-P50VGAA PU-P50VGAA
PUH-P50YGAA PU-P50YGAA
PUH-P60VGAA PU-P60VGAA
PUH-P60YGAA PU-P60YGAA
PUH-P71VGAA PU-P71VGAA
PUH-P71YGAA PU-P71YGAA
PUH-P100VGAA PU-P100VGAA
PUH-P100YGAA PU-P100YGAA
PUH-P125YGAA PU-P125YGAA
PUH-P140YGAA PU-P140YGAA
No.OC336
R407C
[Service Ref.]
Service Ref. is on page 2.
August 2005
• This manual describes only
service data of the outdoor
units.
OC336--1.qxp 05.8.29 7:18 PM Page 1

2
[Service Ref.]
PUH-P25VGAA.UK
PUH-P35VGAA.UK PU-P35VGAA.UK
PUH-P35YGAA.UK PU-P35YGAA.UK
PUH-P50VGAA.UK PU-P50VGAA.UK
PUH-P50YGAA.UK PU-P50YGAA.UK
PUH-P60VGAA.UK PU-P60VGAA.UK
PUH-P60YGAA.UK PU-P60YGAA.UK
PUH-P71VGAA.UK PU-P71VGAA.UK
PUH-P71YGAA.UK PU-P71YGAA.UK
PUH-P100VGAA.UK PU-P100VGAA.UK
PUH-P100YGAA.UK PU-P100YGAA.UK
PUH-P125YGAA.UK PU-P125YGAA.UK
PUH-P140YGAA.UK PU-P140YGAA.UK
OC336--1.qxp 05.8.29 7:18 PM Page 2

3
1-1. INDOOR UNIT'S SERVICE MANUAL
Model name Service Ref. Service
Manual No.
PLA-RP35/50/60/71AA PLA-RP35/50/60/71AA.UK OC335
PLA-RP100/125/140AA PLA-RP100/125/140AA.UK
PLH-P35/50/60/71AAH PLH-P35/50/60/71AAH.UK
PLH-P100/125/140AAH PLH-P100/125/140AAH.UK
PMH-P25/35/50BA PMH-P25/35/50BA OC333
PCA-RP50/60/71/100/125/140GA PCA-RP50/60/71/100/125/140GA OC328
PCH-P50/60/71/100/125/140GAH PCH-P50/60/71/100/125/140GAH
PCA-RP71/125HA PCA-RP71/125HA OC329
PKA-RP35/50GAL PKA-RP35/50GAL OC330
PKH-P35/50GALH PKH-P35/50GALH
PKA-RP60/71/100FAL PKA-RP60/71/100FAL OC331
PKH-P60/71/100FALH PKH-P60/71/100FALH
PSA-RP71/100/125/140GA PSA-RP71/100/125/140GA OC332
PSH-P71/100/125/140GAH PSH-P71/100/125/140GAH
PEAD-RP35/50/60/71EA PEAD-RP35/50/60/71EA.UK -
PEAD-RP100/125/140EA PEAD-RP100/125/140EA.UK
PEHD-P35/50/60/71EAH PEHD-P35/50/60/71EAH.UK -
PEHD-P100/125/140EAH PEHD-P100/125/140EAH.UK
PEAD-RP60/71/100GA PEAD-RP60/71/100GA.UK -
1-2. TECHNICAL DATA BOOK
1REFERENCE MANUAL
Manual No.OCS02
OC336--1.qxp 05.8.29 7:18 PM Page 3

4
SAFETY PRECAUTION
2
[2] Refrigerant recharging
(1) Refrigerant recharging process
1Direct charging from the cylinder.
·R407C cylinder are available on the market has a syphon pipe.
·Leave the syphon pipe cylinder standing and recharge it.
(By liquid refrigerant)
(2) Recharge in refrigerant leakage case
·After recovering the all refrigerant in the unit, proceed to working.
·Do not release the refrigerant in the air.
·After completing the repair service, recharge the cycle with the specified amount of
liquid refrigerant.
[1] Cautions for service
·After recovering the all refrigerant in the unit, proceed to working.
·Do not release refrigerant in the air.
·After completing the repair service, recharge the cycle with the specified amount of
liquid refrigerant.
Cautions for units utilising refrigerant R407C
CAUTIONS RELATED TO NEW REFRIGERANT
Do not use the existing refrigerant piping.
The old refrigerant and lubricant in the existing piping
contains a large amount of chlorine which may cause the
lubricant deterioration of the new unit.
Use “low residual oil piping”
If there is a large amount of residual oil (hydraulic oil, etc.)
inside the piping and joints, deterioration of the lubricant
will result.
Use ESTER , ETHER or HAB as the lubricant to
coat flares and flange connection parts.
If large amount of mineral oil enter, that can cause
deterioration of refrigerant oil etc.
Use liquid refrigerant to charge the system.
If gas refrigerant is used to seal the system, the composition
of the refrigerant in the cylinder will change and performance
may drop.
Do not use a refrigerant other than R407C.
If another refrigerant (R22, etc.) is used, the chlorine in the
refrigerant may cause the lubricant deterioration.
Use a vacuum pump with a reverse flow check valve.
The vacuum pump oil may flow back into the refrigerant
cycle and cause the lubricant deterioration.
Store the piping to be used during installation
indoors with keep both ends sealed until just
before brazing.
(Store elbows and other joints in a plastic bag.)
If dust, dirt, or water enters the refrigerant cycle,
deterioration of the oil and compressor trouble may result. Ventilate the room if refrigerant leaks during
operation. If refrigerant comes into contact with
a flame, poisonous gases will be released.
Gravimeter
Unit
OC336--1.qxp 05.8.29 7:18 PM Page 4

5
[3] Service tools
Use the below service tools as exclusive tools for R407C refrigerant.
No. Tool name Specifications
1Gauge manifold ·Only for R407C.
·Use the existing fitting SPECIFICATIONS. (UNF7/16)
·Use high-tension side pressure of 3.43MPa·G or over.
2Charge hose ·Only for R407C.
·Use pressure performance of 5.10MPa·G or over.
3Electronic scale
4Gas leak detector ·Use the detector for R134a or R407C.
5Adapter for reverse flow check. ·Attach on vacuum pump.
6Refrigerant charge base.
7Refrigerant cylinder. ·For R407C ·Top of cylinder (Brown)
·Cylinder with syphon
8Refrigerant recovery equipment.
OC336--1.qxp 05.8.29 7:18 PM Page 5

6

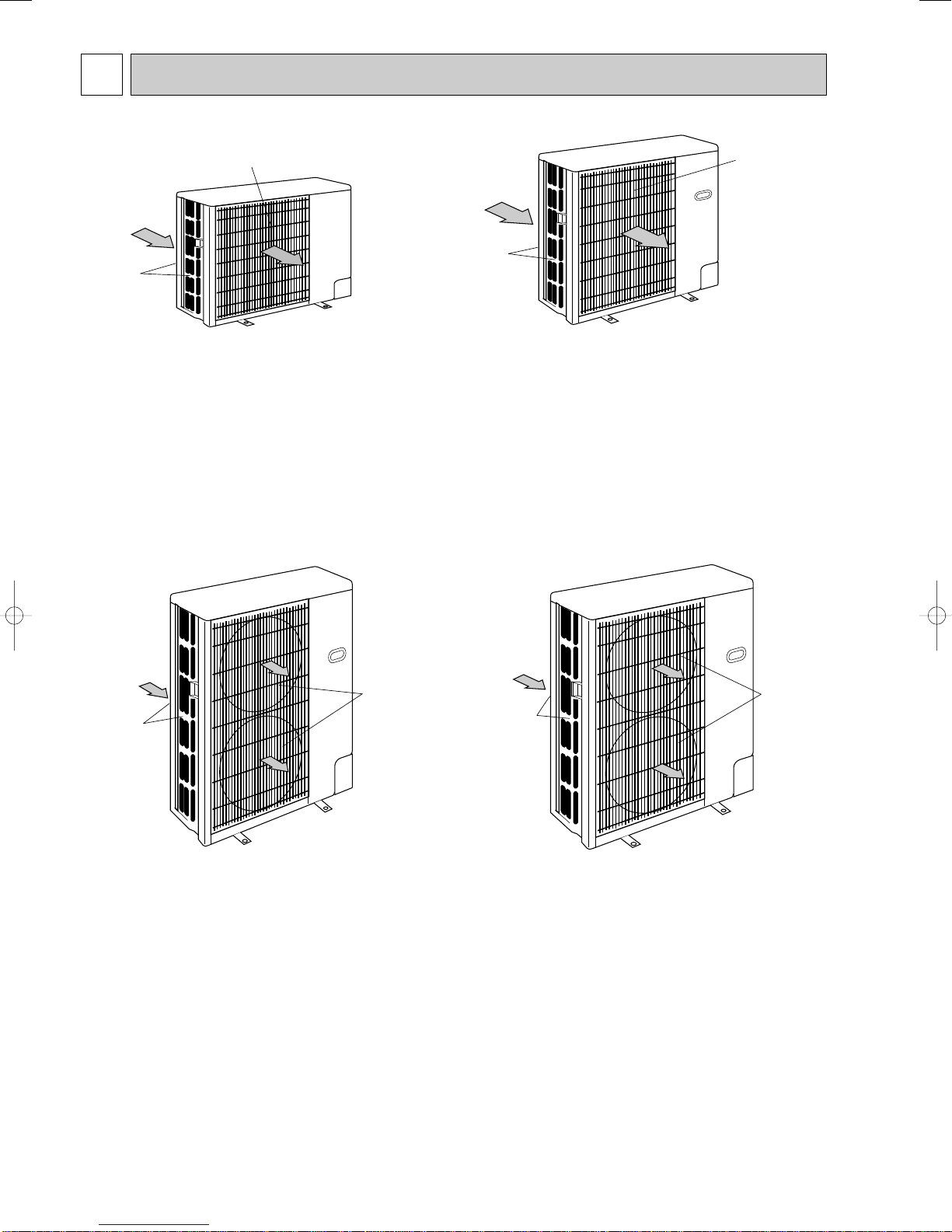

3PART NAMES AND FUNCTIONS
CHARGELESS SYSTEM
PRE-CHARGED REFRIGERANT IS SUPPLIED FOR PIPING LENGTH AT SHIPMENT.
PU/PUH-P25, P35, P50, P60 : max 20m
PU/PUH-P71, P100, P125, P140 : max 30m
The refrigerant circuit with LEV(Linear Expansion Valve) and a large accumulator always control the optimal refrigerant
level regardless of the length (20/30m max. and 5m min.) of piping. The additional refrigerant charging work during
installation often causes problems. Heretofore it is completely eliminated. This unique system improves the quality
and reliability of the work done.It also helps to speed up the installation time.
Air intake
Air outlet
(Expels warm air during cooling)
Air intake
Air outlet
Air intake Air outlet
Air intake
Air outlet
PUH-P25VGAA.UK
PUH-P35VGAA.UK
PUH-P35YGAA.UK
PU-P35VGAA.UK
PU-P35YGAA.UK
PUH-P50VGAA.UK PUH-P50YGAA.UK
PUH-P60VGAA.UK PUH-P60YGAA.UK
PUH-P71VGAA.UK PUH-P71YGAA.UK
PU-P50VGAA.UK PU-P50YGAA.UK
PU-P60VGAA.UK PU-P60YGAA.UK
PU-P71VGAA.UK PU-P71YGAA.UK
PUH-P100VGAA.UK
PUH-P100YGAA.UK
PU-P100VGAA.UK
PU-P100YGAA.UK
PUH-P125YGAA.UK
PUH-P140YGAA.UK
PU-P125YGAA.UK
PU-P140YGAA.UK
OC336--1.qxp 05.8.29 7:18 PM Page 6

7
4SPECIFICATIONS
A
A
kW
W
kW
K
/min(CFM )
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Mode
Power supply (phase, cycle, voltage)
Running current
Max current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) oNo.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
OUTDOOR UNIT
REFRIGERANT PIPING
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Service Ref. PUH-P25VAA.UK
PUH-P35VGAA / YGAA.UK
Cooling
5.32
Single,50Hz,230V
7.23
RE189VHSMT
0.9
45(1,590)
46
48
50(110)
1.7(3.8)
6.35(1/4)
12.7(1/2)
Max. 30m
Max. 30m
Munsell 5Y 7/1
Linear Expansion Valve
Hermetic
Line start
30
Plate fin coil
Propeller (direct) o1
0.07
Reverse cycle
900(35-7/16)
330+20(13+3/4)
650(25-5/8)
R407C
0.57(Ester)MEL56
Flared
Flared
Heating
4.89
Cooling
7.61 / 2.54
Single,50Hz,230V / 3-ph,50Hz,400V
10.67/5.4
RE277VHSMT/RE277YFKM
1.3
45(1,590)
47
49
54(119)
2.5(5.5)
9.52(3/8)
15.88(5/8)
Max. 40m
Max. 40m
Heating
7.85 / 2.62
Internal thermostat
HP switch
Discharge thermo
Thermal relay
HP switch
Discharge thermo
Internal thermostat
HP switch
Discharge thermo
4-1. HEAT PUMP
A
A
kW
W
kW
K
/min(CFM )
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Mode
Power supply (phase, cycle, voltage)
Running current
Max current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) oNo.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
OUTDOOR UNIT
REFRIGERANT PIPING
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Service Ref. PUH-P50VGAA / YGAA.UK PUH-P60VGAA / YGAA.UK
Cooling
10.97 / 3.98
15.35 /7.0
NE36VMJMT / NE36YEKMT
1.6
55(1,940)
49
74(163)
2.6(5.7)
Max. 40m
Max. 40m
Single, 50Hz, 230V / 3-ph, 50Hz,400V(4wires)
Munsell 5Y 7/1
Linear Expansion Valve
Hermetic
Line start
38
Plate fin coil
Propeller (direct) o1
0.07
Reverse cycle
48
900(35-7/16)
330+20(13+3/4)
855(33-5/8)
R407C
1.2 (Ester)MEL56
9.52(3/8)
15.88(5/8)
Flared
Flared
Heating
11.30 / 3.95
Cooling
13.27 / 4.43
18.03 / 7.7
NE41VMJMT / NE41YEKMT
1.9
50(1,770)
50
79(174)
3.1(6.8)
Max. 50m
Max. 50m
Heating
12.84/ 4.29
Internal thermostat
HP switch
Discharge thermo
Thermal relay
HP switch
Discharge thermo
OC336--1.qxp 05.8.29 7:18 PM Page 7

8
A
A
kW
W
kW
K
/min(CFM )
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Mode
Power supply (phase, cycle, voltage)
Running current
Max current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) oNo.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
OUTDOOR UNIT
REFRIGERANT PIPING
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Service Ref. PUH-P100VGAA / YGAA.UK
PUH-P71VGAA / YGAA.UK
Cooling
15.66 / 5.23
22.66 / 10.8
NE52VNJMT / NE52YDKMT
2.5
Propeller (direct) o1
0.07
50(1,770)
49
51
855(33-5/8)
79(174)
3.3(7.3)
15.88(5/8)
Single, 50Hz, 230V / 3-ph, 50Hz, 400V(4wires)
Munsell 5Y 7/1
Linear Expansion Valve
Hermetic
Line start
38
Plate fin coil
Reverse cycle
900(35-7/16)
330+20(13+3/4)
R407C
1.3 (Ester)MEL56
9.52(3/8)
Flared
Flared
Max. 50m
Max. 50m
Heating
16.67 / 5.56
Cooling
16.43/ 5.48
23.57 / 10.8
NE56VNJMT / NE56YDKMT
2.7
Propeller (direct) o2
0.07+0.07
85(3,000)
51
53
1,260(49-5/8)
97(214)
4.0(8.8)
19.05(3/4)
Heating
17.34 / 5.79
Internal thermostat
HP switch
Discharge thermo
Thermal relay
HP switch
Discharge thermo
A
A
kW
W
kW
K
/min(CFM )
dB(A)
dB(A)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Mode
Power supply (phase, cycle, voltage)
Running current
Max current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) oNo.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
OUTDOOR UNIT
REFRIGERANT PIPING
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Service Ref. PUH-P125YGAA.UK
Cooling
8.92 20.4
BE96YADMT
4.2
100(3,530)
57
58
4.9(10.8)
3-ph, 50Hz, 400V(4wires)
Munsell 5Y 7/1
Linear Expansion Valve
Hermetic
Line start
Thermal relay, HP switch, Discharge thermo
38
Plate fin coil
Propeller (direct) o2
0.07 +0.07
Reverse cycle
1,050(41-5/16)
330+20(13+3/4)
1,260(49-5/8)
125(276)
R407C
1.7 (Ester) MEL56
9.52(3/8)
19.05(3/4)
Flared
Flared
Max. 50m
Max. 50m
Heating
9.45
Cooling
7.52 18.0
BE82YADMT
3.5
95(3,360)
55
56
4.6(10.1)
Heating
8.06
PUH-P140YGAA.UK
OC336--1.qxp 05.8.29 7:18 PM Page 8

9
A
A
kW
W
kW
K
/min(CFM )
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Mode
Power supply (phase, cycle, voltage)
Running current
Max. current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) oNo.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
OUTDOOR UNIT
REFRIGERANT PIPING
Cooling
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Service Ref.
PU-P35VGAA / YGAA.UK PU-P50VGAA / YGAA.UK PU-P60VGAA / YGAA.UK
Cooling
7.61 / 2.54
10.67 / 5.4
RE277VHSMT/RE277YFKM
1.3
30
45(1,590)
47
650(25-5/8)
54(119)
2.5(5.5)
0.57 (Ester)MEL56
Single, 50Hz, 230V / 3-ph, 50Hz, 400V(4wires)
10.97 / 3.98
15.35 / 7.0
Munsell 5Y 7/1
Linear Expansion Valve
Hermetic
NE36VMJMT/NE36YEKMT
1.6
Line start
Internal thermostat, HP switch, Discharge thermo / Thermal relay,Discharge thermo,HP switch
Plate fin coil
Propeller (direct) o1
0.07
55(1,940)
—
900(35-7/16)
330+20(13+3/4)
74(163)
R407C
2.6(5.7)
9.52(3/8)
15.88(5/8)
Flared
Flared
Cooling
38
48
855(33-5/8)
1.2 (Ester)MEL56
13.27 / 4.43
18.03 / 7.7
NE41VMJMT/NE41YEKMT
1.9
50(1,770)
79(174)
3.1(6.8)
Max. 50m
Max. 50m
Cooling
Max. 40m
Max. 40m
4-2. COOLING ONLY TYPE
A
A
kW
W
kW
K
/min(CFM )
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Mode
Power supply (phase, cycle, voltage)
Running current
Max. current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) oNo.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
OUTDOOR UNIT
REFRIGERANT PIPING
Cooling
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Service Ref. PU-P71VGAA / YGAA.UK PU-P100VGAA / YGAA.UK
Cooling
15.66 / 5.23
22.66 / 10.8
NE52VNJMT / NE52YDKMT
2.5
Propeller (direct) o1
0.07
50(1,770)
49
855(33-5/8)
79(174)
3.3(7.3)
15.88(5/8)
Single, 50Hz, 230V / 3-ph, 50Hz, 400V(4wires)
Munsell 5Y 7/1
Linear Expansion Valve
Hermetic
Line start
38
Plate fin coil
—
900(35-7/16)
330+20(13+3/4)
R407C
1.3 (Ester)MEL56
9.52(3/8)
Flared
Flared
Max. 50m
Max. 50m
Cooling
16.43/ 5.48
23.57 / 10.8
NE56VNJMT / NE56YDKMT
2.7
Propeller (direct) o2
0.07+0.07
85(3,000)
51
1,260(49-5/8)
97(214)
4.0(8.8)
19.05(3/4)
Internal thermostat
HP switch
Discharge thermo
Thermal relay
HP switch
Discharge thermo
OC336--1.qxp 05.8.29 7:18 PM Page 9

10
A
A
kW
W
kW
K
/min(CFM )
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Mode
Power supply (phase, cycle, voltage)
Running current
Max. current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) oNo.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
OUTDOOR UNIT
REFRIGERANT PIPING
Cooling
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Service Ref. PU-P125YGAA.UK PU-P140YGAA.UK
Cooling
8.92
20.4
BE96YADMT
4.2
100(3,530)
57
4.9(10.8)
3-ph, 50Hz,400V(4wires)
Munsell 5Y 7/1
Linear Expansion Valve
Hermetic
Line start
Thermal relay, HP switch, Discharge thermo
38
Plate fin coil
Propeller (direct) o2
0.07+0.07
—
1,050(41-5/16)
330+20(13+3/4)
1,260(49-5/8)
125(276)
R407C
1.7 (Ester) MEL56
9.52(3/8)
19.05(3/4)
Flared
Flared
Max. 50m
Max. 50m
Cooling
7.52
18.0
BE82YADMT
3.5
95(3,360)
55
4.6(10.1)
OC336--1.qxp 05.8.29 7:18 PM Page 10

11
5DATA
5-1. REFILLING REFRIGERANT CHARGE (R407C : kg)
Piping length (one way)
10m 20m 30m 40m 50m Factory
charged
1.6
2.4
2.4
2.5
2.5
2.9
2.9
2.9
2.9
3.4
3.4
4.0
4.3
1.7
2.5
2.5
2.6
2.6
3.1
3.1
3.1
3.1
3.7
3.7
4.3
4.6
1.8
2.6
2.6
3.1
3.1
3.3
3.3
3.3
3.3
4.0
4.0
4.6
4.9
—
3.0
3.0
3.7
3.7
3.9
3.9
3.9
3.9
4.7
4.7
5.3
5.6
—
—
—
—
—
4.5
4.5
4.5
4.5
5.4
5.4
6.0
6.3
1.7
2.5
2.5
2.6
2.6
3.1
3.1
3.3
3.3
4.0
4.0
4.6
4.9
Service Ref.
PUH-P140YGAA.UK
PU-P140YGAA.UK
PUH-P125YGAA.UK
PU-P125YGAA.UK
PUH-P100VGAA.UK
PU-P100VGAA.UK
PUH-P100YGAA.UK
PU-P100YGAA.UK
PUH-P71YGAA.UK
PU-P71YGAA.UK
PUH-P71VGAA.UK
PU-P71VGAA.UK
PUH-P60YGAA.UK
PU-P60YGAA.UK
PUH-P60VGAA.UK
PU-P60VGAA.UK
PUH-P50YGAA.UK
PU-P50YGAA.UK
PUH-P50VGAA.UK
PU-P50VGAA.UK
PUH-P35YGAA.UK
PU-P35YGAA.UK
PUH-P35VGAA.UK
PU-P35VGAA.UK
PUH-P25VGAA.UK
PRE- CHARGED REFRIGERANT IS SUPPLIED
FOR PIPING LENGTH AT SHIPMENT.
5-2. COMPRESSOR TECHNICAL DATA
Compressor model
Winding
Resistance
( ")
U-V
(R-C)
U-W
(S-C)
W-V
U-V
(R-C)
U-W
(S-C)
W-V
RE277VHSMT RE277YFKM
Unit
NE36VMJMT
1.80
3.00
—
10.8
10.8
10.8
5.01
5.01
5.01
NE36YEKMT
0.89
2.03
—
Unit
Compressor model
Winding
Resistance
( ")
(at 20°C)
BE96YADMTBE82YADMT
2.123
2.123
2.123
NE52VNJMT
0.64
1.67
—
3.59
3.59
3.59
1.963
1.963
1.963
NE56YDKMT
3.32
3.32
3.32
PUH-P35VGAA.UK
PU-P35VGAA.UK PUH-P35YGAA.UK PU-P35YGAA.UK PUH-P50VGAA.UK PU-P50VGAA.UK PUH-P50YGAA.UK PU-P50YGAA.UK
PUH-P25VGAA.UK
PUH-P60YGAA.UK
PU-P60YGAA.UK
PUH-P60VGAA.UK
PU-P60VGAA.UK PUH-P71VGAA.UK PU-P71VGAA.UK PUH-P100VGAA.UK PU-P100VGAA.UK
PUH-P71YGAA.UK
PU-P71YGAA.UK
PUH-P125YGAA.UK
PU-P125YGAA.UK
PUH-P100YGAA.UK
PU-P100YGAA.UK
U-V
(R-C)
U-W
(S-C)
W-V
Unit
Compressor model
Winding
Resistance
( ")
NE41VMJMT NE41YEKMT
5.00
5.00
5.00
NE56VNJMT
0.62
1.59
—
RE189VHSMT
2.79
3.36
—
0.87
2.22
—
NE52YDKMT
PUH-P140YGAA.UK
PU-P140YGAA.UK
OC336--1.qxp 05.8.29 7:18 PM Page 11

12
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 µbar)
BAND CENTER FREQUENCIES, Hz
PUH-P35VGAA.UK
PUH-P35YGAA.UK
PU-P35VGAA.UK
PU-P35YGAA.UK
COOLING
MODE
HEATING
47
SPL(dB)
49
LINE
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 µbar)
BAND CENTER FREQUENCIES, Hz
COOLING
MODE
HEATING
SPL(dB) LINE
PUH-P50VGAA
PUH-P50YGAA.UK
PU-P50VGAA.UK
PU-P50YGAA.UK
48
49
.UK
90
80
70
60
50
40
30
20
10
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 µbar)
63 125 250 500 1000 2000 4000 8000
BAND CENTER FREQUENCIES, Hz
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
COOLING
MODE
HEATING
SPL(dB) LINE
PUH-P60VGAA.UK
PUH-P60YGAA.UK
PU-P60VGAA.UK
PU-P60YGAA.UK
48
50
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 µbar)
BAND CENTER FREQUENCIES, Hz
PUH-P25VGAA.UK
COOLING
MODE
HEATING
46
SPL(dB)
48
LINE

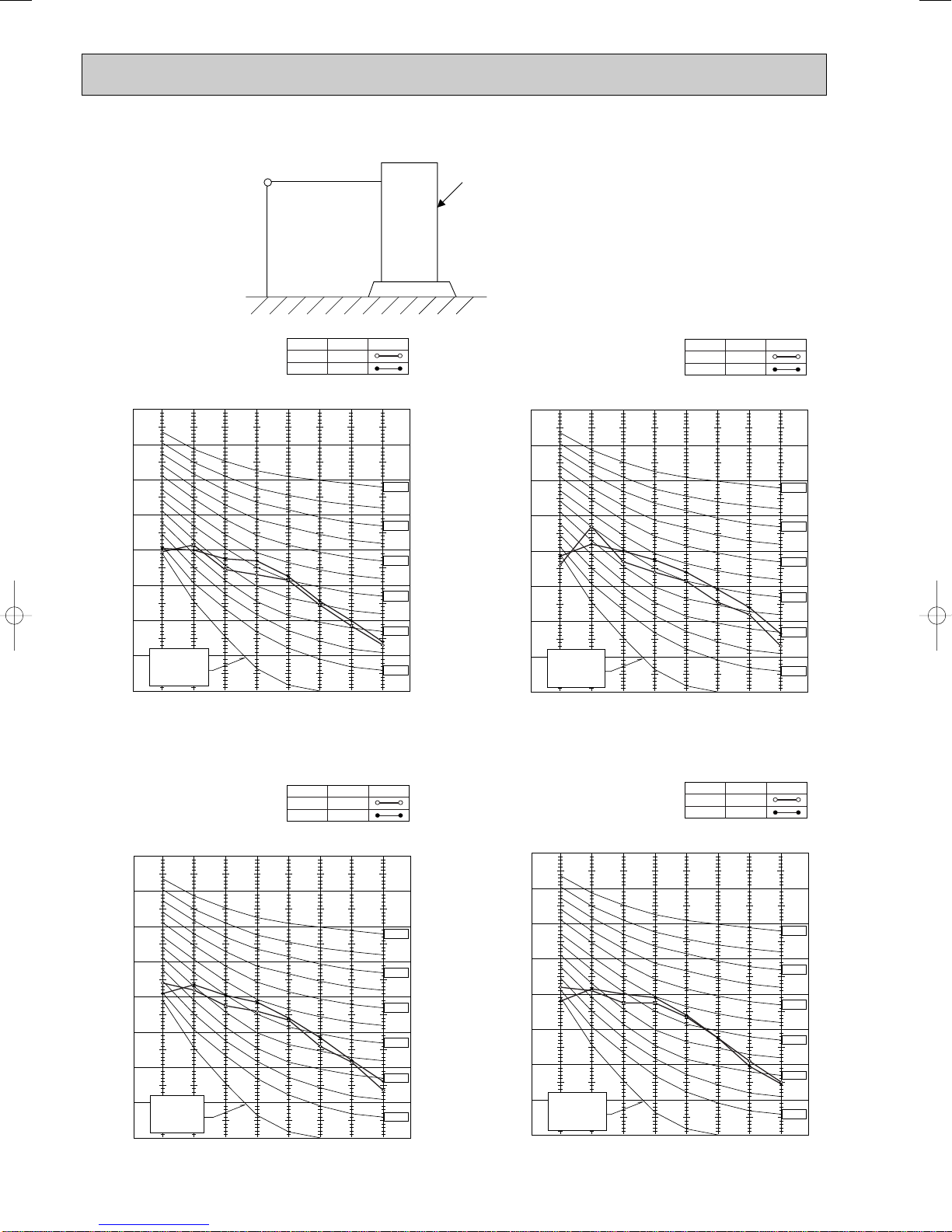

5-3. NOISE CRITERION CURVES
1m
1m
MICROPHONE UNIT
GROUND
OC336--1.qxp 05.8.29 7:18 PM Page 12

13
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 µbar)
BAND CENTER FREQUENCIES, Hz
COOLING
MODE
HEATING
SPL(dB) LINE
55
56
PUH-P125YGAA.UK
PU-P125YGAA.UK
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 µbar)
BAND CENTER FREQUENCIES, Hz
COOLING
MODE
HEATING
SPL(dB) LINE
57
58
PUH-P140YGAA.UK
PU-P140YGAA.UK
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 µbar)
BAND CENTER FREQUENCIES, Hz
COOLING
MODE
HEATING
SPL(dB) LINE
51
53
PUH-P100VGAA.UK
PUH-P100YGAA.UK
PU-P100VGAA.UK
PU-P100YGAA.UK
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 µbar)
BAND CENTER FREQUENCIES, Hz
COOLING
MODE
HEATING
SPL(dB) LINE
49
51
PUH-P71VGAA.UK
PUH-P71YGAA.UK
PU-P71VGAA.UK
PU-P71YGAA.UK
OC336--1.qxp 05.8.29 7:18 PM Page 13

14
TotalElectrical circuitRefrigerant circuitIndoor side
Outdoor
side
Representative matching
SHF
BF
W
kW
Mode
Capacity
Input
PLA-RP35AA PLA-RP50AA PLA-RP60AA
PLA-RP35AA PLA-RP50AA PLA-RP60AA
Cooling
4,500
1.72
Heating
4,950
1.70
Cooling
5,600
2.53
Heating
6,350
2.20
Cooling
6,700
2.57
Heating
7,300
2.40
7.43/1.94
2.01
0.59
78
48
11
5
27
19
14.1
35
24
0.75
0.16
7.33/1.91
1.92
0.37
77
48
1
5
20
15
38.9
7
6
—
—
11.30/3.23
2.48
0.59
85
55
10
5
27
19
14.6
35
24
0.82
0.12
9.72/2.70
1.96
0.38
76
45
0
5
20
15
38.9
7
6
—
—
11.49/3.29
2.18
0.54
80
51
9
5
27
19
12.9
35
24
0.72
0.14
10.68/3.02
1.92
0.38
75
47
1
5
20
15
41.9
7
6
—
—
1 , 50
230
0.79
1/3 , 50
230/400
1 , 50
230
0.79
1/3 , 50
230/400
1 , 50
230
0.79
1/3 , 50
230/400
Phase , Hz
Volts
Amperes
Outdoor unit
Phase , Hz
Volts
Amperes
Discharge pressure
Suction pressure
Discharge temperature
Condensing temperature
Suction temperature
Ref. pipe length
Intake air temperature
Discharge air temperature
Intake air temperature
V
A
V
A
MPa
MPa
°C
°C
°C
m
°C
°C
°C
°C
°C
Indoor unit
D.B.
W.B.
D.B.
D.B.
W.B.
PUH-P35VGAA.UK
PUH-P35YGAA.UK PUH-P50VGAA.UK PUH-P50YGAA.UK PUH-P60VGAA.UK PUH-P60YGAA.UK
1, 50
230
PUH-P25VGAA.UK
0.19
2.01
0.55
71
48
8.0
5
27
19
13.3
35
24
0.77
0.09
0.19
1.85
0.44
70
44
4.0
5
20
15
41.5
7
6
—
—
PMH-P25BA
PMH-P25BA
Cooling
3,100
1.14
Heating
3,350
1.05
1, 50
230
5.13
1, 50
230
4.72
Heat pump type
The unit of pressure has been changed to MPa based on international SI system.
The conversion factor is : 1(MPa)=10.2(kgf/ff)
5-4. STANDARD OPERATION DATA
OC336--1.qxp 05.8.29 7:18 PM Page 14

15
TotalElectrical circuitRefrigerant circuitIndoor side
Outdoor
side
Representative matching
SHF
BF
W
kW
Mode
Capacity
Input
PLA-RP71AA PLA-RP100AA PLA-RP125AA PLA-RP140AA
PLA-RP71AA PLA-RP100AA PLA-RP125AA PLA-RP140AA
Cooling
7,700
3.42
Heating
9,200
3.48
Cooling
9,600
3.68
Heating
10,500
3.91
Cooling
13,300
5.09
Heating
15,600
5.54
Cooling
14,200
5.90
Heating
17,000
6.35
15.55/4.64
2.30
0.47
81
44
5
5
27
19
13.4
35
24
0.74
0.13
15.84/4.74
2.38
0.39
88
45
0
5
20
15
45.1
7
6
—
—
16.33/4.59
1.98
0.54
71
42
8
5
27
19
14.0
35
24
0.78
0.12
17.43/4.96
2.12
0.42
75
47
1
5
20
15
40.1
7
6
—
—
6.44
2.11
0.48
71
41
6
5
27
19
11.7
35
24
0.72
0.06
7.16
2.39
0.42
79
44
0
5
20
15
48.7
7
6
—
—
7.73
2.27
0.45
81
45
2
5
27
19
11.3
35
24
0.69
0.09
8.44
2.36
0.41
84
46
-1
5
20
15
51.2
7
6
—
—
1 , 50
230
0.79
1/3 , 50
230/400
1 , 50
230
1.25
1/3 , 50
230/400
1 , 50
230
1.64
3 , 50
400
1 , 50
230
1.64
3 , 50
400
Phase , Hz
Volts
Amperes
Outdoor unit
Phase , Hz
Volts
Amperes
Discharge pressure
Suction pressure
Discharge temperature
Condensing temperature
Suction temperature
Ref. pipe length
Intake air temperature
Discharge air temperature
Intake air temperature
V
A
V
A
MPa
MPa
°C
°C
°C
m
°C
°C
°C
°C
°C
Indoor unit
D.B.
W.B.
D.B.
D.B.
W.B.
PUH-P71VGAA.UK
PUH-P71YGAA.UK
PUH-P100VGAA.UK
PUH-P100YGAA.UK
PUH-P125YGAA.UK PUH-P140YGAA.UK
The unit of pressure has been changed to MPa based on international SI system.
The conversion factor is : 1(MPa)=10.2(kgf/ff)
OC336--1.qxp 05.8.29 7:18 PM Page 15

16
TotalElectrical circuitRefrigerant circuitIndoor side
Outdoor
side
Representative matching
SHF
BF
W
kW
V
A
V
A
MPa
MPa
°C
°C
°C
m
°C
°C
°C
°C
°C
Mode
Capacity
Input
Indoor unit
Phase , Hz
Volts
Amperes
Outdoor unit
Phase , Hz
Volts
Amperes
Discharge pressure
Suction pressure
Discharge temperature
Condensing temperature
Suction temperature
Ref. pipe length
Intake air temperature
Discharge air temperature
Intake air temperature
Cooling
4,500
1.72
1 , 50
230
0.79
1/3 , 50
230/400
7.43/1.94
2.01
0.59
78
48
11
5
27
19
14.1
35
24
0.75
0.16
Cooling
5,600
2.53
1 , 50
230
0.79
1/3 , 50
230/400
11.30/3.23
2.48
0.59
85
55
10
5
27
19
14.6
35
24
0.82
0.12
Cooling
6,700
2.57
PLA-RP60AA
1 , 50
230
0.79
1/3 , 50
230/400
11.49/3.29
2.18
0.54
80
51
9
5
27
19
12.9
35
24
0.72
0.14
D.B.
W.B.
D.B.
D.B.
W.B.
PLA-RP35AA PLA-RP50AA
PLA-RP35AA
PU-P35VGAA.UK
PU-P35YGAA.UK PU-P50VGAA.UK PU-P50YGAA.UK PU-P60VGAA.UK
PU-P60YGAA.UK
PLA-RP50AA
PLA-RP60AA
Cooling only type
The unit of pressure has been changed to MPa based on international SI system.
The conversion factor is : 1(MPa)=10.2(kgf/ff)
OC336--1.qxp 05.8.29 7:18 PM Page 16

17
TotalElectrical circuitRefrigerant circuitIndoor side
Outdoor
side
SHF
BF
W
kW
V
A
V
A
MPa
MPa
°C
°C
°C
m
°C
°C
°C
°C
°C
Mode
Capacity
Input
Indoor unit
Phase , Hz
Volts
Amperes
Outdoor unit
Phase , Hz
Volts
Amperes
Discharge pressure
Suction pressure
Discharge temperature
Condensing temperature
Suction temperature
Ref. pipe length
Intake air temperature
Discharge air temperature
Intake air temperature
Cooling
7,700
3.42
1 , 50
230
0.79
1/3 , 50
230/400
15.55/4.64
2.30
0.47
81
44
5
5
27
19
13.4
35
24
0.74
0.13
Cooling
9,200
3.68
1 , 50
230
1.25
1/3 , 50
230/400
16.33/4.59
1.98
0.54
71
42
8
5
27
19
14.0
35
24
0.78
0.12
Cooling
13,300
5.09
1 , 50
230
1.64
3 , 50
400
6.44
2.11
0.48
71
41
6
5
27
19
11.7
35
24
0.72
0.06
Cooling
14,200
5.90
1 , 50
230
1.64
3 , 50
400
7.73
2.27
0.45
81
45
2
5
27
19
11.3
35
24
0.69
0.09
D.B.
W.B.
D.B.
D.B.
W.B.
PLA-RP71AA PLA-RP100AA
PU-P71VGAA.UK
PU-P71YGAA.UK
PU-P100VGAA.UK
PU-P100YGAA.UK PU-P125YGAA.UK PU-P140YGAA.UK
PLA-RP125AA PLA-RP140AA
PLA-RP71AA PLA-RP100AA PLA-RP125AA PLA-RP140AA
Representative matching
The unit of pressure has been changed to MPa based on international SI system.
The conversion factor is : 1(MPa)=10.2(kgf/ff)
OC336--1.qxp 05.8.29 7:18 PM Page 17

18
6OUTLINES AND DIMENSIONS
OUTDOOR UNIT
PUH-P25VGAA.UK
PUH-P35VGAA.UK
PUH-P35YGAA.UK
PU-P35VGAA.UK
PU-P35YGAA.UK
321
T
SR
w1 248
w1 196
500
Power Supply Wiring Hole (2-[27Knock-Out)
Right Piping Hole (Knock-Out)
Power Supply Wiring Hole (2-[27Knock-Out)
Terminal Connections Left...Power supply Wiring Right..Indoor/Outdoor Wiring
70
70
15515515510930
21585
Bottom Piping Hole (Knock-Out)
Drain Hole (5-[33holes)
18
18
424
900
318 Handle for moving
Earth Point
Service Panel
Front Piping Cover
Rear Piping Cover
1
2
Side Air Intake
200200
53 370 (14)
412
29
330
55
4351
Rear Air Intake
Air Discharge
2-U Shaped notched holes (Foundation Bolt M10)
2-12x40 oval holes (Foundation Bolt M10)
20
28
58
Installation Feet
Rear Air Intake
Side Air Intake
Handle for moving
3
230220220230
637
650
3030
Rear Trunking Hole (Knock-Out)
< Rear Side >
Power Supply Wiring Hole (2-[27Knock-Out)
40
33
22 55
68 63
65 92 Rear Piping Hole
(Knock-Out)
[92
Piping Knock-Out Hole Details
. . Refrigerant GAS pipe connection (FLARE)P35V(Y)GAA: [15.88 (5/8F)
. . Refrigerant LIQUID pipe connection (FLARE)P35V(Y)GAA: [9.52 (3/8F)
. . Height of STOP VALVE connection location.
1 2
Front Trunking Hole (Knock-Out)
< Right Side >< Front Side >
Explanation of Notes
40
68 63
22 55
65
92
33 27 100
50 50
100
33
[92
Front Piping Hole (Knock-Out)
5540
3. . 3-[3.6 holes (for securing the top of the unit)
These holes are provided for cases where the unit must be secured by the base AND by the top surface. Use Self Tapping screws 5 x L15 or less.(Obtained locally)
w1
. . Refrigerant GAS pipe connection (FLARE)P25VGAA : [12.7 (1/2F)
. . Refrigerant LIQUID pipe connection (FLARE)P25VGAA : [6.35 (1/4F)
1 2
Over 10mm
F R E E
Over 500mm
Less than
30mm
FREE SPACE (Around the Unit)
Piping and wiring connections can be made from 4 directions: Front, Right, Rear and Below.
FOUNDATION BOLTS
1
The diagram below shows a basic example. Explanation of particular details are given in the installation manuals etc.
SERVICE SPACE
Dimensions of space needed for service access are shown in the below diagram.
2
Over500
Over500
PIPING-WIRING DIRECTIONS
43
FOUNDATION
<Foundation bolt height>
Please secure the unit firmly with 4 foundation (M10) bolts. (Bolts and washers must be purchased locally).
Service Space
Over 100mm
Over 10mm
Over10
Over100
Unit : mm
OC336--1.qxp 05.8.29 7:18 PM Page 18

19
321TSR
w1 376
w1 428
Handle
Rear Air Intake
Side Air Intake
Installation Feet
2-U Shaped notched holes (Foundation Bolt M10)
Side Air Intake
Rear Air Intake
Air Discharge
2-12x40 oval holes (Foundation Bolt M10) Terminal Connections
Left...Power supply Wiring Right..Indoor/Outdoor Wiring
Earth Point
Service Panel
Rear Piping Cover
Front Piping Cover
Bottom Piping Hole (Knock-Out)
Drain Hole (5-[33holes)
Power Supply Wiring Hole (2-[27Knock-Out)
Rear Piping Hole (Knock-Out)
< Rear Side >
Rear Trunking Hole (Knock-Out)
40
33
22 55
68 63
65 92
[92
Piping Knock-Out Hole Details
Front Piping Hole (Knock-Out)
Front Trunking Hole (Knock-Out)
Power Supply Wiring Hole (2-[27Knock-Out) Power Supply Wiring Hole
(2-[27Knock-Out)
< Front Side >
Right Piping Hole (Knock-Out)
< Right Side >
40
68 63
22 55
65
92
33 27 100
50 50
100
33
[92
5540
70
70
15515515510930
21585
18
18
627
442
900
318
Handle
1 2
200500200
53 370 (14)
412
29
330
55
43
51
20
28
58
Handle
3
230220220230
840
855
3030
. . . Refrigerant GAS pipe connection (FLARE) [15.88 (5/8F)
. . . Refrigerant LIQUID pipe connection (FLARE) [9.52 (3/8F) . . . Height of STOP VALVE connection location. . . . 3-[3.6 holes (for securing the top of the unit) These holes are provided for cases where the unit must be secured by the base AND by the top surface together. Use Self Tapping screws 5 x L15 or less. (Obtained Locally)
Explanation of Notes
1
w1
2 3
Over10
Over100
Over500
Over500
Service Space
Less than
<Foundation bolt height>
30mm
The diagram below shows a basic example. Explanation of particular details are given in the installation manuals etc.
Please secure the unit firmly with 4 foundation (M10) bolts. (Bolts and washers must be purchased locally).
SERVICE SPACE
2
Piping and wiring connections can be made from 4 directions: Front, Right, Rear and Below.
Dimensions of space needed for service access are shown in the below diagram.
FOUNDATION
FOUNDATION BOLTS
3
PIPING-WIRING DIRECTIONS
4
FREE SPACE (Around the Unit)
1
F R E E
Over 10mm
Over 500mm
Over 10mm
Over 100mm
Unit : mm
PUH-P50VGAA.UK
PUH-P50YGAA.UK
PUH-P60VGAA.UK
PUH-P60YGAA.UK
PUH-P71VGAA.UK
PUH-P71YGAA.UK
PU-P50VGAA.UK
PU-P50YGAA.UK
PU-P60VGAA.UK
PU-P60YGAA.UK
PU-P71VGAA.UK
PU-P71YGAA.UK
OC336--1.qxp 05.8.29 7:18 PM Page 19

20
W1 376
W1 428
3
Rear Piping Cover
Front Piping Cover
2-U Shaped notched holes (Foundation Bolt M10)
Installation Feet
Rear Air Intake
Side Air Intake
2-12x40 oval holes (Foundation Bolt M10) Terminal Connections
Left...Power supply Wiring Right..Indoor/Outdoor Wiring
[92
92
65
6368
5522
33
40 Rear Trunking Hole
(Knock-Out)
< Rear Side >
Rear Piping Hole (Knock-Out)
Power Supply Wiring Hole (2-[27Knock-Out)
4055
[92
33
100
50
50
100
27
33
92 65
5522 6368
40
< Right Side >
Right Piping Hole (Knock-Out)
< Front Side > Power Supply Wiring Hole
(2-[27Knock-Out)
Power Supply Wiring Hole (2-[27Knock-Out)
Front Trunking Hole (Knock-Out)
Front Piping Hole (Knock-Out)
Piping Knock-Out Hole Details
Drain Hole (5-[33Holes)
Bottom Piping Hole (Knock-Out)
85 215
30 109 155 155 155
70
70 18
18
1 2
Earth Point
598
Handle
Service Panel
318 900
1033
352
33
4351
50
200500200
53 370 (14)
412
29
330
Air Discharge
20
58
28
Handle
Rear Air Intake
Side Air Intake
Handle
230220220
230
1246
1260
3030
PUH-P100VGAA.UK
PUH-P100YGAA.UK
PU-P100VGAA.UK
PU-P100YGAA.UK
4
PIPING-WIRING DIRECTIONS
3
FOUNDATION BOLTS
FOUNDATION
Piping and wiring connections can be made from 4 directions: Front, Right, Rear and Below.
SERVICE SPACE
Please secure the unit firmly with 4 foundation (M10) bolts. (Bolts and washers must be purchased locally).
30mm
<Foundation bolt height>
Less than
Over500 Over100
Service Space
Over500
1
FREE SPACE (Around the Unit)
Dimensions of space needed for service access are shown in the below diagram.
2
The diagram below shows a basic example. Explanation of particular details are given in the installation manuals etc.
Over10
Over 10mm
F R E E
Over 500mmOver 100mm
Over 10mm
Explanation of Notes
. . . Refrigerant GAS pipe connection(FLARE) [19.05 (3/4F)
. . . Refrigerant LIQUID pipe connection(FLARE) [9.52 (3/8F)
. . . Height of STOP VALVE connection location. . . . 3-[3.6 holes (for securing the top of the unit)
These holes are provided for cases where the unit must be secured by the base AND by the top surface together. Use Self Tapping screws 5 x L15 or less. (Obtained Locally)
3 2
w1
1
Unit : mm
OC336--1.qxp 05.8.29 7:18 PM Page 20
